V8.1_PARTS BOOK23 by ctmmixers

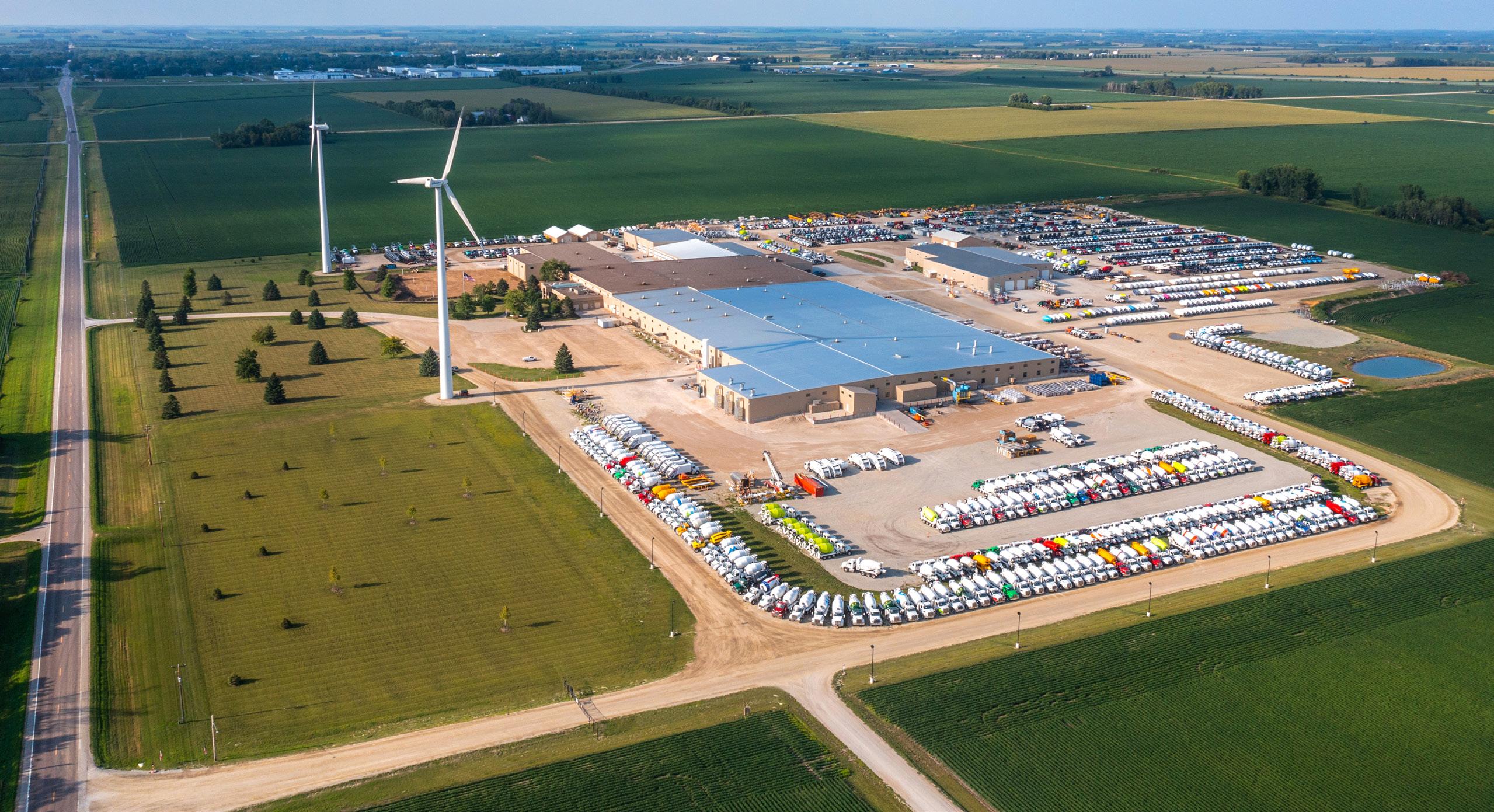

Minnesota (Midwest) 65740 State Hwy. 56 Dodge Center, MN 55927 dcsales@ctmmixers.com 507-374-2239 ATLANTA

Georgia (Southeast)

108 Hudson Industrial Dr. Griffin, GA 30224 southeast@ctmmixers.com

Ohio (Northeast) 38134 Western Pkwy., Unit 2 Willoughby, OH 44094 northeast@ctmmixers.com 440-946-3322

Texas (South Central)

205 Wilcox St., Ste. 100 McKinney, TX 75069

dallas@ctmmixers.com

Texas (South Central) 11175 Windfern Rd. Houston, TX 77064 houston@ctmmixers.com 832-688-8449

SAN BERNARDINO

California (Western) 378 E. Commercial Rd. San Bernardino, CA 92408 west@ctmmixers.com 909-478-0017

RETURNS, REPLACEMENTS,

RETURN POLICY

You must contact your sales representative prior to obtaining a Return Authorization. The Return Authorization (RA) will be valid for 45 days from the issue date. After 45 days Con-Tech Manufacturing, Inc. will close the RA and it will no longer be valid. Please mark the RA number clearly on all shipping cartons and paperwork. When requesting an RA number/form, please be prepared to provide the following information:

• Customer name

• Customer shipping address

• Customer billing address

• Customer phone number

• Customer contact

• Customer contact e-mail

• Equipment type and/ or serial number

• Original sales order or purchase order number

• Reason for return

Having this return policy in effect will ensure that all of our customers receive their parts credit(s) in an efficient and timely manner. Returns are subject to a 15% restocking fee.

REPLACEMENT PARTS WARRANTY

Con-Tech Manufacturing, Inc., a Minnesota corporation, hereinafter referred to as Con-Tech, warrants replacement parts sold by Con-Tech to be free from defects in material and workmanship under normal use and service for a period up to one year. Con-Tech’s obligation under this warranty is limited to repairing and replacing, at ConTech’s opinion, any parts which are returned to Con-Tech’s factory at Dodge Center, MN 55927. Transportation charges must be prepaid by the customer. Parts must be returned within 30 days after date of delivery to customer. This warranty covers only parts which, upon examination by Con-Tech, are found to be defective in material or workmanship. Such repair or replacement of parts under this warranty will be made by Con-Tech without charge for such parts. Under no circumstance will Con-Tech be under any further liability with respect to such warranty. Replacement parts purchased by Con-Tech from other manufacturers shall be covered by that manufacturer’s warranty.

Con-Tech warranty shall not apply to parts that have been subject to misuse, negligence, accident, or which has been repaired or altered without Con-Tech’s prior knowledge and consent.

IN NO CASE SHALL CON-TECH BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL, OR INDIRECT DAMAGES OF ANY KIND.

Con-Tech makes no other expressed or implied warranties of fitness or merchantability or any other warranties, either expressed or implied. Any implied warranty of merchantability or fitness for a particular purpose which exceeds the forgoing warranty is hereby disclaimed by Con-Tech. There are no warranties which extend beyond the description on the face hereof.

BridgeKing®, Ecofin™, Armor-Tech™, Extreme Duty™, and Con-Tech Manufacturing, Inc.® are trademarks that are property of Con-Tech Manufacturing, Inc., Dodge Center, Minnesota. This publication is copyrighted by Con-Tech Manufacturing, Inc. and should not be duplicated or used in any form electronically or otherwise .

COMPATIBILITY OF PARTS & USAGE

All items in this book are marked with CTM (Con-Tech Manufacturing, Inc.), mtm (McNeilus Truck and Manufacturing, Inc.), or CTM/mtm, which indicates the compatibility and usage of the individual parts. Con-Tech manufactures OEM (Original Equipment Manufacturer) fabricated metal replacement parts only for CTM mixers. The fabricated metal replacement parts referred to with respect to mtm mixers in this book are “Will Fit” parts for mtm mixers manufactured by Con-Tech. They are not OEM parts (i.e., parts manufactured and/or supplied by McNeilus Truck and Manfacturing, Inc.) for mtm mixers. Con-tech makes no representation that any replacement parts referred to in this book are manufactured by McNeilus Truck and Manufacturing, Inc.

AFTERMARKET PARTS TERMS AND CONDITIONS

Please review Con-Tech Manufacturing, Inc.’s Aftermarket Parts Terms of Sale. Please contact Con-Tech Manufacturing, Inc., hereinafter referred to as Con-Tech, with questions or for further information.

1.1 PRICES

Every term and provision of prior parts quotations and of the pricing and delivery time above is subject to, and customer agrees to be bound by, changing conditions resulting from: prior sales, fluctuations in currency exchange rates, material surcharge assessments, fuel surcharge assessments, component pricing escalations, material pricing escalations, labor cost escalations, lack of timely component availability, shipper limitations, vendor limitations, ConTech factory capacity, and force majeure events.

• Prices do not include state sales tax, excise tax or any other government charge upon production, sale, or shipment of goods, now imposed or hereafter becoming effective, which shall be added when, as, and if applicable.

1.2 TERMS OF PAYMENT

Con-Tech’s requested methods of payment are check and ACH. Credit cards are accepted as an alternative payment method but will be subject to a 3.3% convenience fee. Accepted credit cards are Visa, MasterCard, American Express, and Discover.

• Customer accounts are initially set up with PIA (Payment in Advance) terms. Con-Tech’s PIA terms state the invoice will need to be paid before the order is shipped.

• Upon approval of credit application, customers’ accounts will have Net 30 terms. Please request a credit application from your sales representative or Con-Tech’s main office.

• A 12% annual (1.0% per month) finance charge applies to all invoices past their due date. Customer accounts may be placed on purchasing hold if they have an overdue invoice.

• Overpaid invoices will be turned into credit memos and sent to the customer. Credit memos may be used in your future payments or paid back upon request. All credit memos over 90 days will be issued back to the customer.

• The customer authorizes Con-Tech to exercise peaceful possession over such items that have not been paid for in full at Con-Tech’s discretion.

1.3 TAX AND EXEMPTION CERTIFICATES

It is the customer’s responsibility to know if they are tax exempt based on their ship-to state’s laws.

• I t is the customer’s responsibility to send Con-Tech a complete, current, and correct copy of their tax exemption certificate or reseller’s permit (dependent on your state’s laws).

• If Con-Tech does not receive a copy of the customer’s completed exemption by the first of the month following the date of the invoice, Con-Tech will expect the tax to be paid by the customer.

1.4 LIMITED WARRANTY ON AFTERMARKET PART SALES

Equipment or accessories purchased by Con-Tech from other manufacturers shall be covered by that manufacturer’s warranty.

Con-Tech’s obligation under warranty is limited to repairing or replacing, at Con-Tech’s discretion, any parts which are returned to Con-Tech’s factory at Dodge Center, Minnesota 55927. Transportation charges must be prepaid by the customer. This warranty covers only parts which, upon examination by Con-Tech, are found to be defective in material or workmanship. Such repair or replacement of parts under his warranty will be made by Con-Tech without charge for such parts. Under no circumstances will Con-Tech be under any further liability with respect to such warranty.

• In no case shall Con-Tech be liable for consequential, incidental, special, or indirect damages of any kind.

• Con-Tech warranty shall not apply to components that have been subject to misuse, negligence, accident, acid use, liquid nitrogen exposure, contamination or which has been repaired or altered without Con-Tech’s prior knowledge and consent. (Continued on the next page)

CUSTOMER TERMS & CONDITIONS

• Con-Tech makes no other expressed or implied warranties of fitness or merchantability or any other warranties, either expressed or implied. Any implied warranty of merchantability or fitness for a particular purpose which exceeds the forgoing warranty is hereby disclaimed by Con-Tech. There are no warranties which extend beyond the description on the face hereof.

• The customer’s exclusive remedy for breach of warranty as a result of defects in material and workmanship shall be as set forth herein. Any action for breach of warranty must be commenced within 30 days after the cause of action shall accrue, and no such action may be maintained which is not commenced within such period. Con-Tech neither assumes nor authorizes any other persons to assume for it any liability in connection with its equipment.

• Used parts are not covered by any warranty terms continued herein.

TERMS FOR PARTS COVERED UNDER LIMITED WARRANTY

• Elec trical components, including but not limited to, electrical controllers, cables, switches, solenoid valves, and lights are warranted 90 days against defects in materials and workmanship.

• O ther aftermarket parts, excluding electrical components, including but not limited to, gauges, harnesses, hydraulic cylinders, air cylinders, hydraulic pump/motors, gearboxes, and hoses are warranted for one year against defects in materials and workmanship.

1.5 CANCELLATIONS

In the event of order cancellation, labor and materials costs allocated towards the agreed upon order shall be the sole responsibility of the customer and charged as such. This includes (but not limited to) raw materials, shop supplies, goods in the process of manufacture, any labor involved in the assembly of the order.

• Con-Tech reserves the right to cancel the entirety of an order in the event of a partial cancellation by the customer.

1.6 RETURNS OF ORDER

You must contact your sales representative to obtain a Return Authorization. Parts must be returned within 30 days after date of delivery to customer. The Return Authorization (RA) will be valid for 45 days from the issue date of the invoice. After 45 days, Con-Tech will close out the RA and it will no longer be valid. Please mark the RA number clearly on all shipping cartons and paperwork.

• Returns are subject to a 15% restocking fee.

1.7 FREIGHT CLAIMS/CHARGES & ASSESSMENTS

Con-Tech is not responsible for freight rates charged by carriers. All parts sold by Con-Tech are F.O.B. Origin and ships standard ground service unless otherwise specified by the customer.

• If a shipment arrives damaged in transit, the customer must note the damage on the Bill of Lading and contact Con-Tech immediately.

• Con-Tech is not responsible for delays resulting from strikes, accidents, negligence of carriers or other causes beyond our control.

• If Con-Tech receives any additional fees or assessments for shipping, including but not limited to, expedited freight, guaranteed delivery, and liftgate usage, the customer will be responsible for those fees incurred. ConTech will send out a freight-only invoice for the assessed charges.

1.8 PRODUCT CHANGES

Con-Tech reserves the right to make changes to patterns, design, or materials at any time without prior notification or obligation to make corresponding changes in previous models.

UPDATED AS OF 01/20/2023

POLICIES & SCHEDULES

Return Policy

Replacement Parts Warranty

Compatibility of Parts & Usage

Terms & Conditions of Sale

Parts Covered Under Limited Warranty

Service & Maintenance Schedule

CHUTES

Main & Foldover

Foldover, Transition, & Extension

Chute Racks & Mounts

Chute Accessories

HOPPERS & COLLECTORS

Hoppers & Accessories

Collectors & Accessories

PEDESTALS

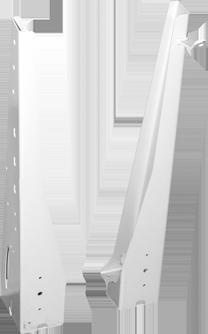

Rear Pedestals & Components

Ladders & Platforms

Rear Pivot

Chute Locks & Accessories

Rollers, Guards, & Ped Hardware

Front Pedestals

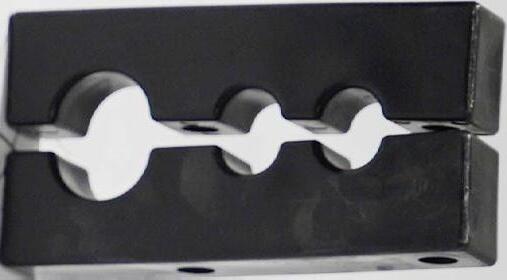

Hose Blocks

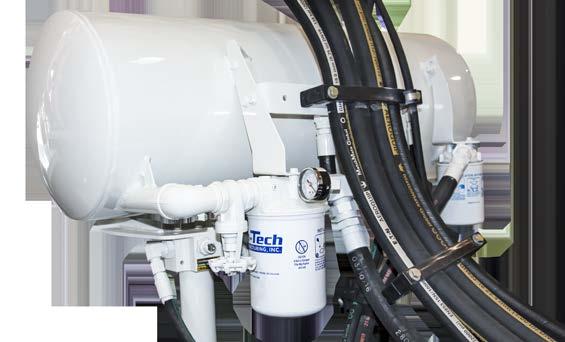

AIR SYSTEM

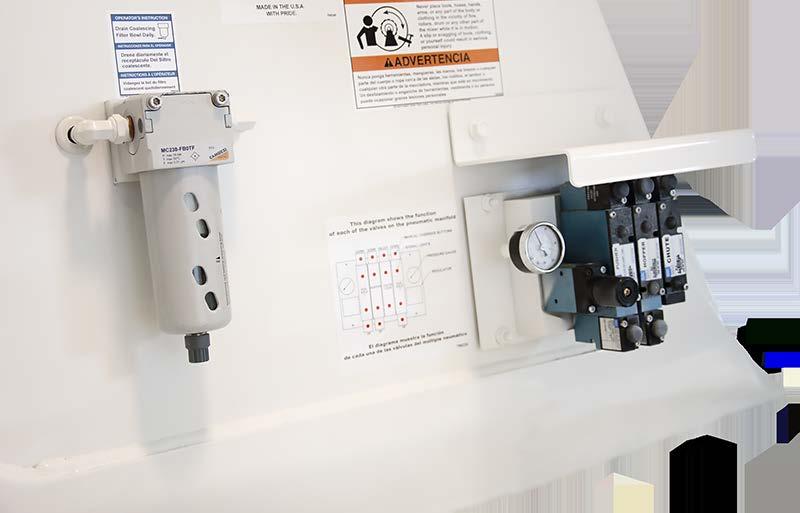

Air Control Valves & Accessories

HYDRAULICS

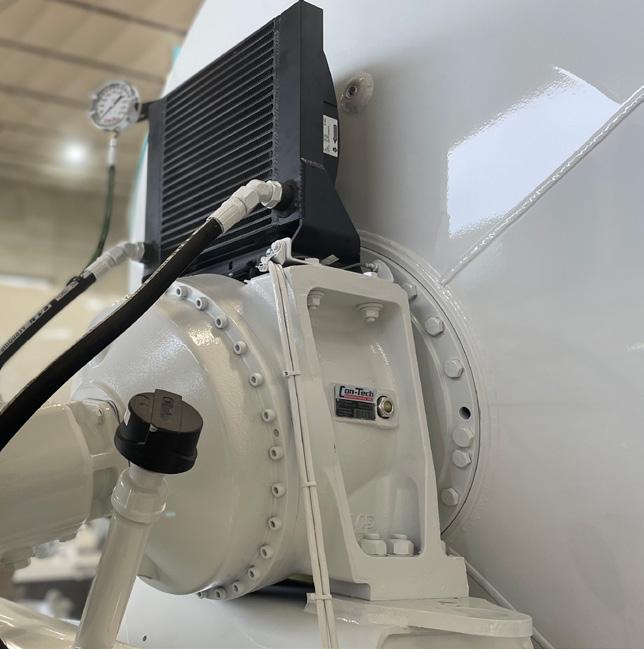

Gear Boxes & Components

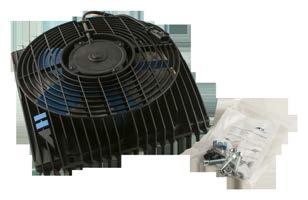

Fan Coolers

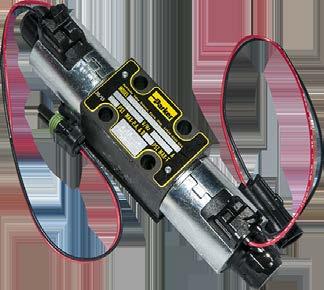

Hydraulic Controls & Components

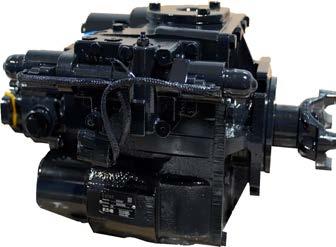

Pumps & Motors

Driveshafts

Hydraulic Cylinders

AXLES

BridgeKing® Trailers & Components

BridgeKing® Fenders

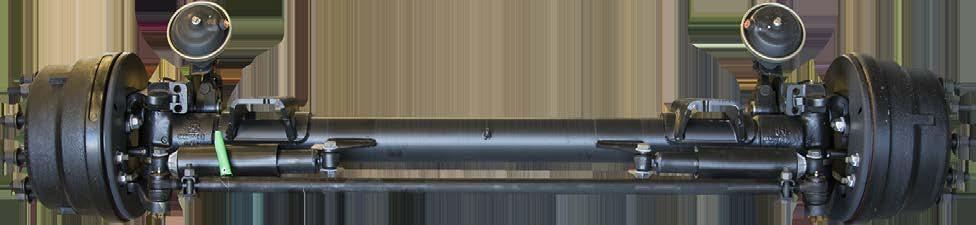

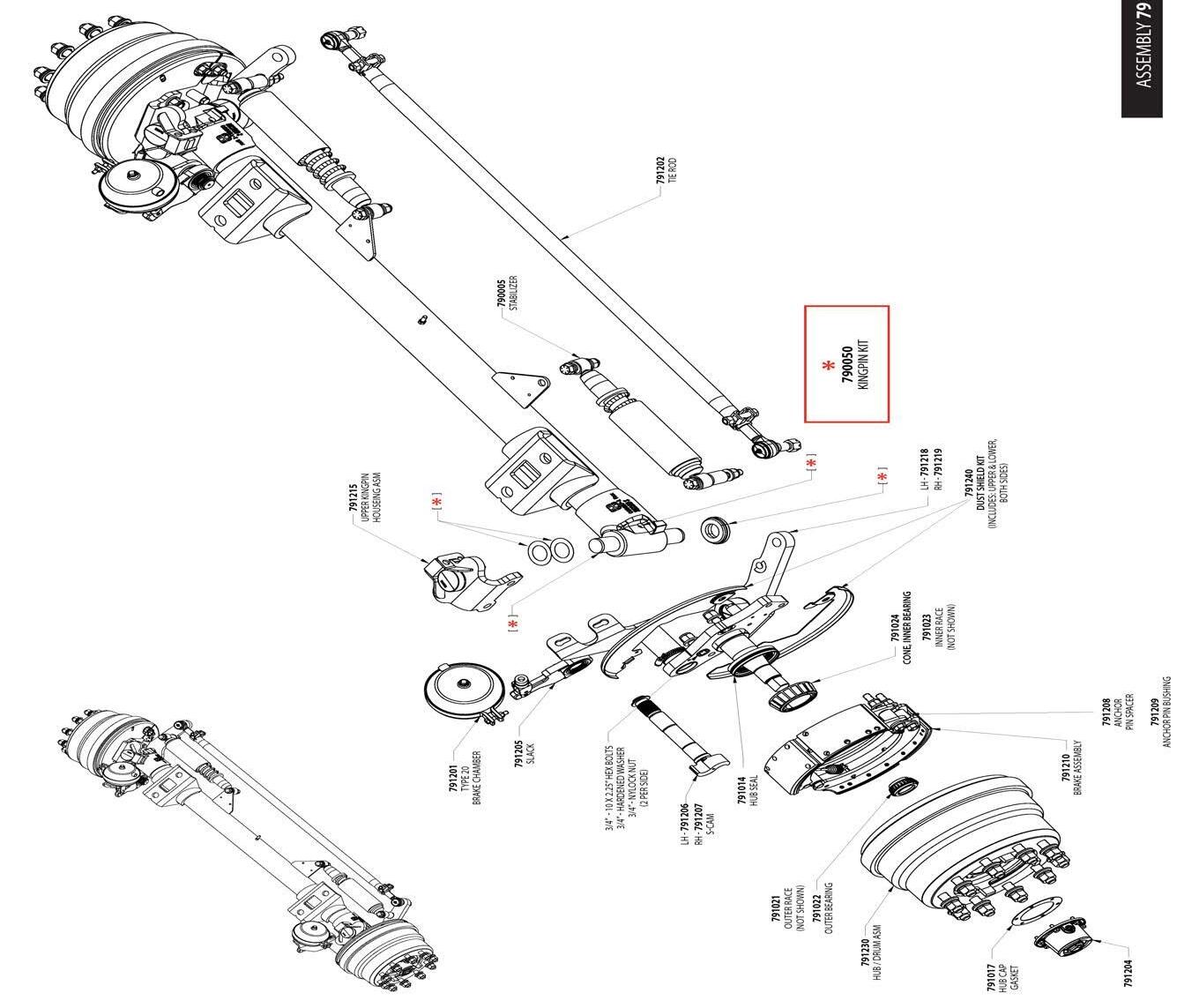

Axle Assemblies & Components

CONTROLS

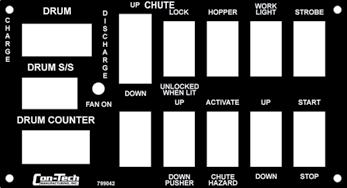

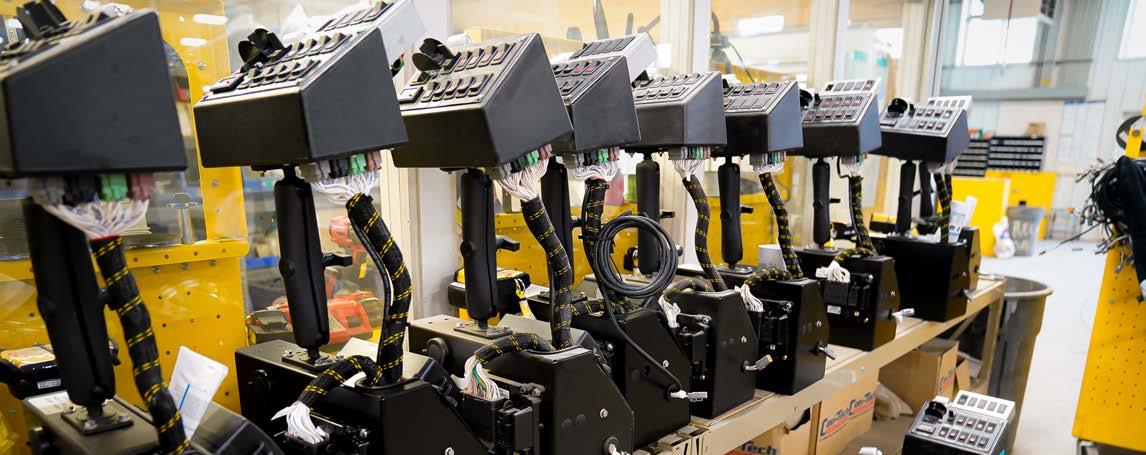

In-Cab Control Box

Cab Controls & Accessories

Rear Control Box

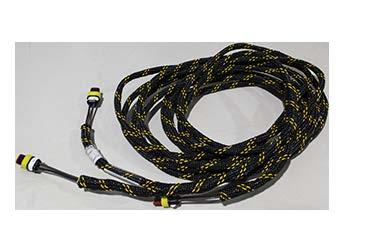

Control Cables

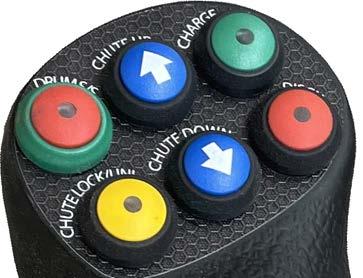

Pendants

Elite™ Control System

Remote Control Components

Displays & Keypads

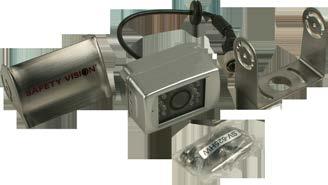

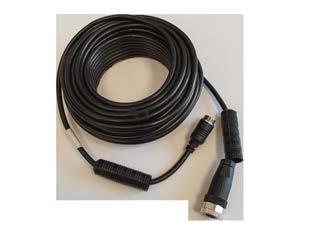

Cameras & Accessories

& SLUMP

WATER SYSTEM

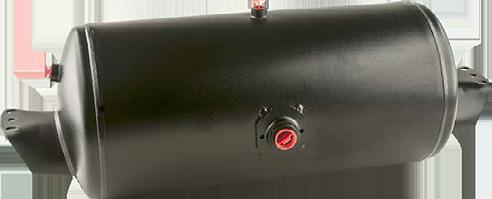

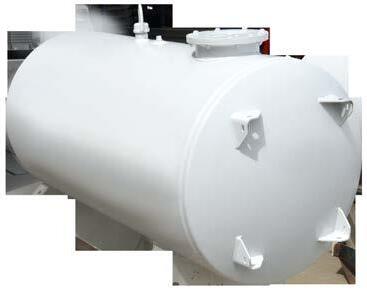

Aluminum & Steel Water Tanks

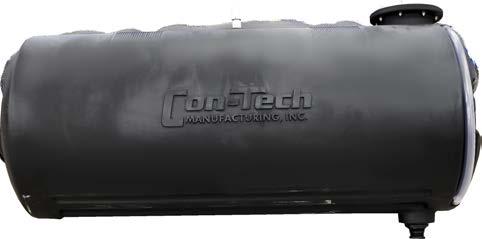

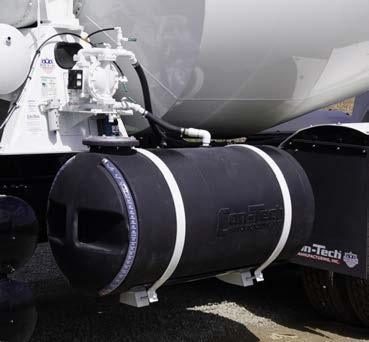

Poly Water Tank System

Mounts, Straps, & Saddles

High Overhead Water Tank Configurations

Sight Gauge Mount Parts

Sight Glass & Strips

Floppers & Gaskets

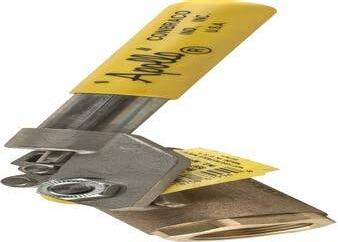

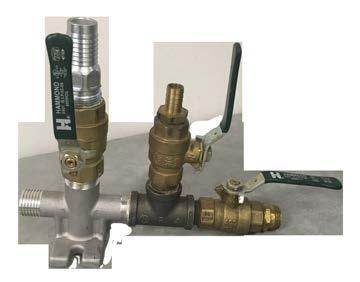

Valves & Shut-Offs

Hoses & Nozzles

FENDERS & BUMPERS

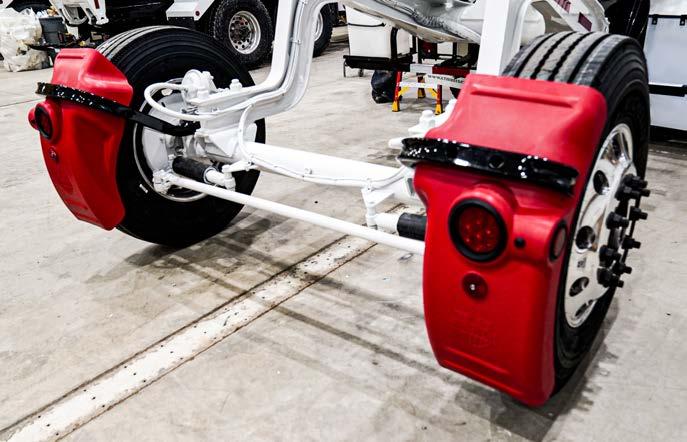

Poly-Tuff® Fenders, Supports, & Accessories

Steel & Aluminum Fenders & Supports

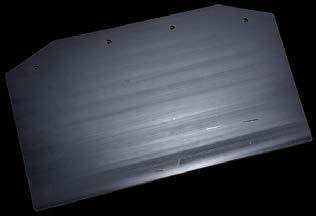

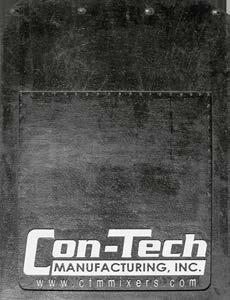

Mudflaps & Accessories

BridgeKing® Fenders

Aftermarket Front Bumpers

Rear Bumpers

DRUM PARTS

Con-Tech’s High Performance™ Drum

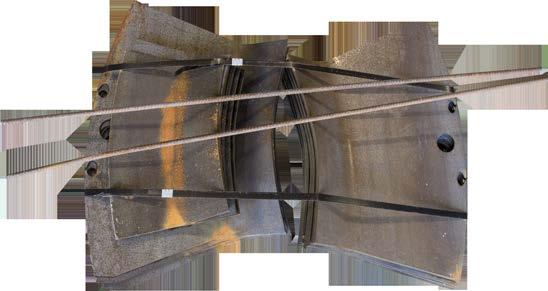

Fins & Fin Kits

Ball Busters & Hatch Accessories

ELECTRICAL

Lights & Accessories

Alarms, Cameras, & Displays

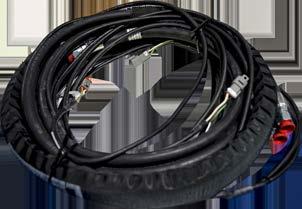

CTM Wiring Harness Layout & Harnesses

Armor-Tech™ Wiring System

ACCESSORIES & TOOLS

Connection Tools, Wheel Chocks, & DOT Accessories

Tool Boxes, Bucket Racks, & Cone Holders

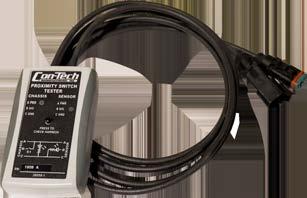

Testers, Adjustment Tools, & Accessories

WASHOUT SYSTEM

EcoWash™ Automatic Wash System

Chute Wash Recovery

Watch Dog Washout System

Enviroguard®

Drum Sprayer System

DEC ALS & PLACARDS

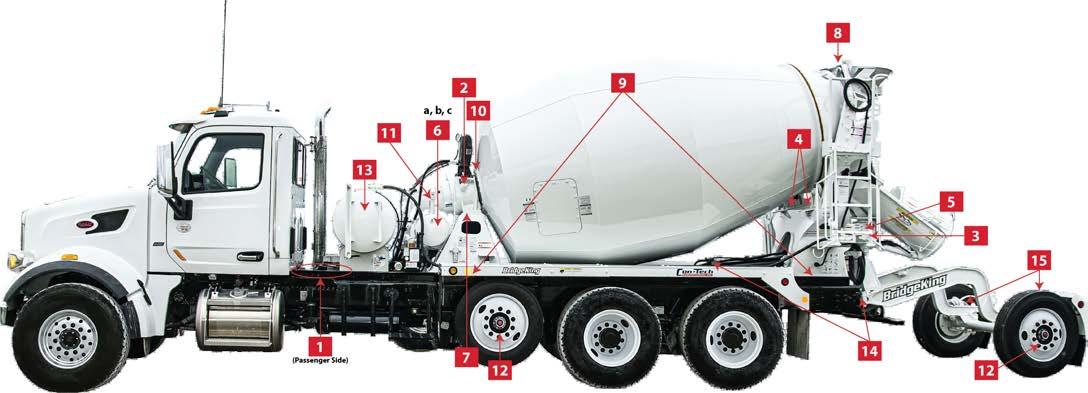

Safety Decal Placement

Sight Strips & Mixer Data Cards

Placards

RESOURCES

Plant Parts

Non-CTM/mtm Parts

High Performance™ Drum Order Form

Pre-HP™ & mtm Drum Order Form

Front Pedestal Order Spec Sheet

Rear Pedestal Order Spec Sheet

High Performance™ Hopper Order Form

‘Gun Rack’ Tab Order Form

Business Credit Application

Assembly

225290

225289

Assembly - Hydraulic Main/Foldover, Paver Foldover, Less Cylinder

225181

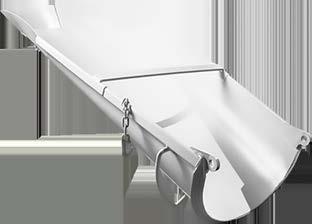

ChuteHP Main CTM / mtm

225030

ChuteFoldover CTM / mtm

225229

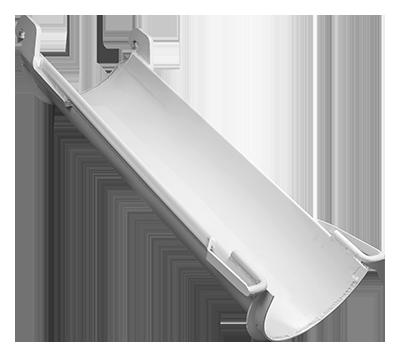

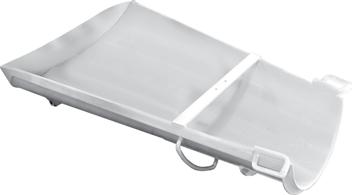

Chute6’ Main CTM / mtm

225282

Chute - Foldover, Standard/Transitional, Short CTM / mtm

225410

Chute - 6’ Main, Direct to Extension CTM / mtm

225409

Chute - Dam 6’ CTM / mtm

225049

ChutePVR Foldover CTM / mtm

225076

Chute - PVR Foldover Short CTM

705321

225025

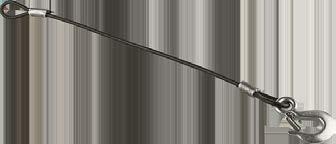

Chain - Chute, Main Safety CTM / mtm

705099

Chain Splice, Chute Safety CTM / mtm

OUR NEW PAINT PRIMER

Imron® High Performance Urethane DTM Primer

215478

215500

215476

215470

215958

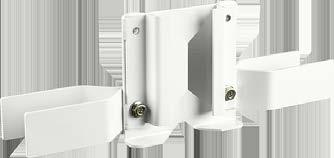

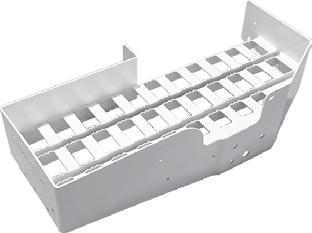

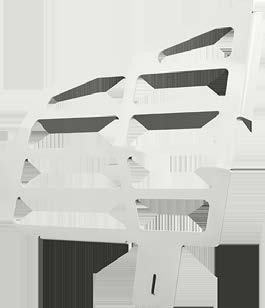

Chute Rack - Pedestal Mount, Antler Rack CTM / mtm (Production Up to 03/21)

216269

Chute Rack - Pedestal Mount, WLDT, Antler Rack (For Use with 216266) CTM / mtm (Post 03/21)

215551

HP Chute Rack - Pedestal Mount, Rear 14” Depth, BK CTM / mtm (Production Up to 03/21)

215092

Chute Rack - Pedestal Mount StopPre-HP CTM Rear, Current Front, 9” Depth CTM / mtm

216266

Chute Rack - Pedestal Mount Stop11.5” Depth (For Use with 216269) CTM / mtm (Post 03/21)

216206

Chute RackRail Mount CTM / mtm

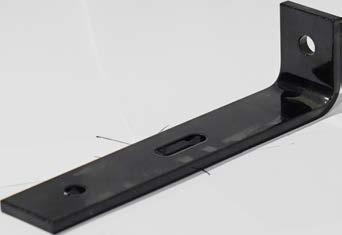

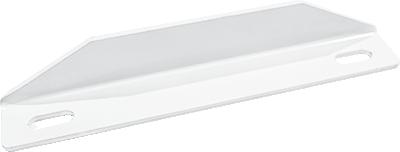

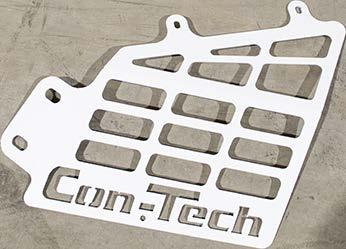

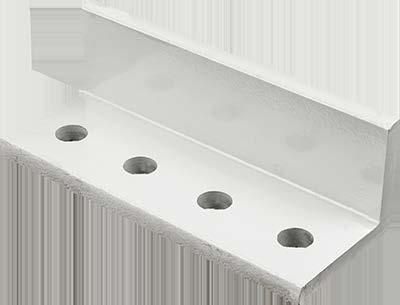

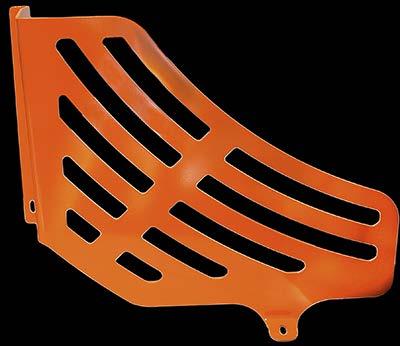

Bracket - Rock Guard

BracketRock Guard Bottom

Bracket

Chute

216061

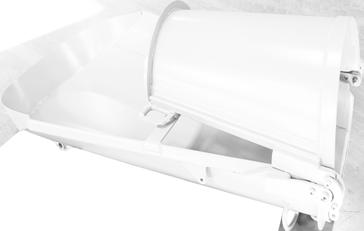

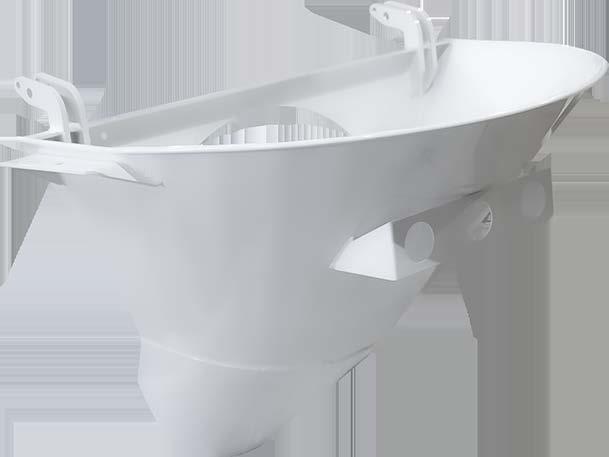

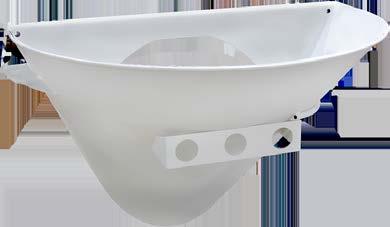

Hopper - HP PVR, 1-Piece CTM / mtm

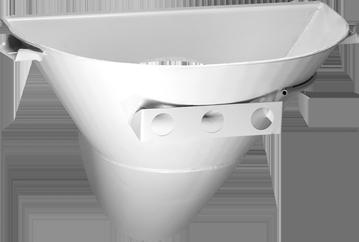

215070

Charge Hopper - Standard, Old Style mtm

216261

Hopper - HP PVR 1-Piece Drop CTM / mtm

215277

Charge Hopper - Standard, WDLT, 44” CTM / mtm

215420

Charge HopperStandard,1-Piece CBMW

705323

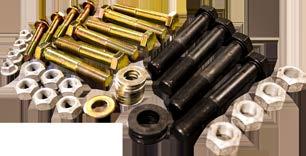

Hardware Kit - Hopper Includes: (2) 705302 Bolts, (8) 705309 Washers, (2) 705313 Lock-Nuts CTM / mtm

215346

Hopper - PVR, Charge (Drop) CTM / mtm

215289

Hopper - Standard, Charge (Drop) CTM / mtm

215077

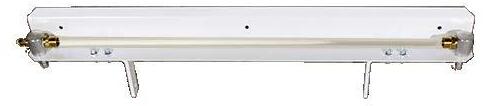

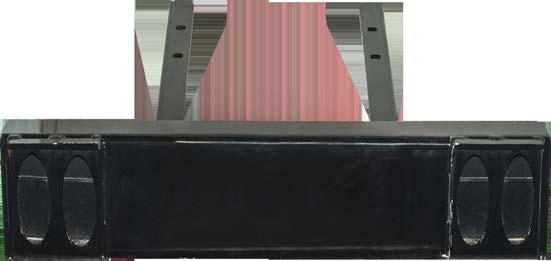

Light Bar - Charge Hopper

750002

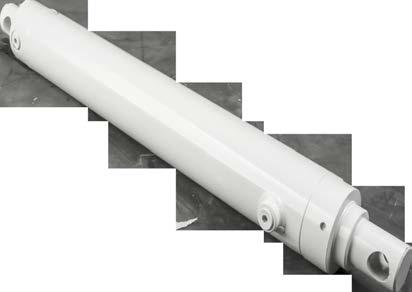

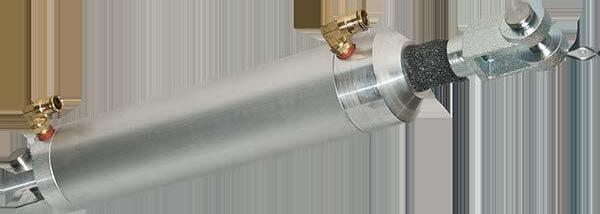

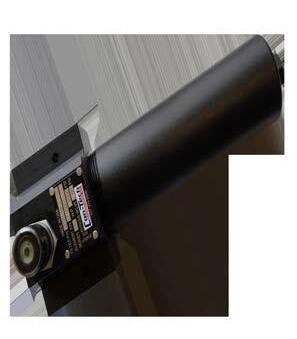

Cylinder - Hopper Air Lift (Pins and Fittings Included) CTM / mtm

750003

Cotter Pin for Hopper Cylinder CTM / mtm

776021

Adapter - Hopper

Cylinder 90’ Elbow CTM / mtm

215272 3 Light Bracket - Rear Pedestal Mount

Hopper Light - Bolt-On CTM

750016

Hopper Cylinder Clevis Kit CTM / mtm

750025

Cylinder - Hopper, Spring Loaded Down CTM / mtm

730160 Seal Saver - Hopper, Cylinder CTM / mtm

750002A Kit - Hopper Cylinder/Rebuild CTM / mtm

215080

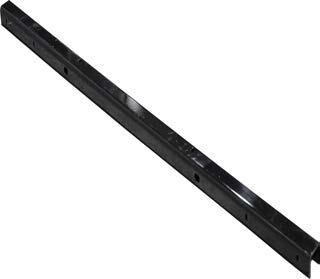

Hopper - Light Bar Tube CTM / mtm

215179

Lug Hopper Pivot CTM / mtm

215178

Cylinder Hopper Mount CTM / mtm

216115

Lug- Hopper Cylinder, Bolt-On CTM / mtm

216013

Lug - Hopper Prop CTM / mtm

720090

Shim - Drop Hopper Support CTM / mtm

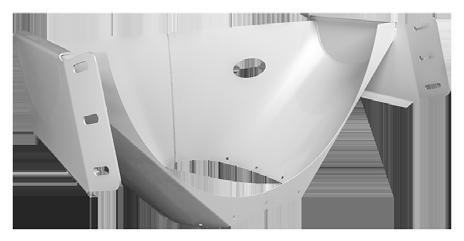

215055

42” Collector - Standard mtm

215060

46” Collector - HP PVR CTM / mtm

215965

42” Collector - Wide Standard CTM / mtm

215571

Collector - Full Body HP Paver CTM / mtm

705324

Hardware Kit - Collector Includes: (6) 705303 Bolts, (12) 705311 Washers, (6) 705314 Lock-Nuts CTM / mtm

HP Hoop Weldment, 42” Drum CTM

HP Hoop Weldment, 46” Drum CTM 216129

215179

Lug - Hopper Pivot CTM / mtm

216016

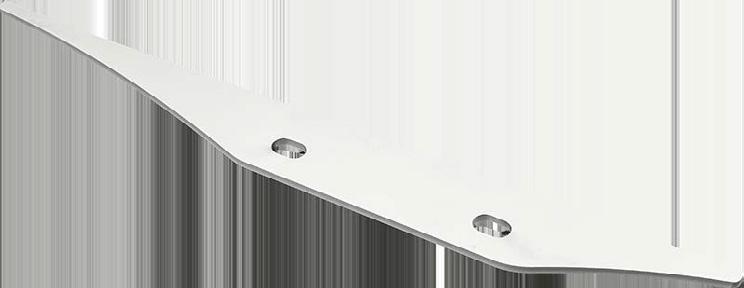

Debouncer - 6” Bent CTM / mtm

215323

Debouncer - 7” Bent, Drum, Long CTM

215313

Debouncer - Drum, Flat CTM / mtm

215170

Top Hoop Gusset CTM / mtm

215178

Mount - Hopper Cylinder CTM / mtm

216115

Lug - Hopper Cylinder, Bolt-On CTM

215208

Sprayer Loop CTM / mtm

215163

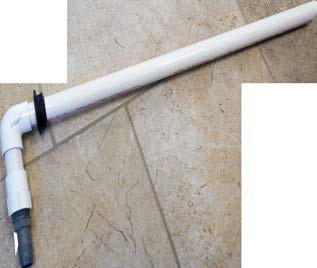

Water Injection Tube, Bolt-On CTM / mtm

215787

Cover - Brake Valve Rear Ped (Type A) CTM

215788

Cover - Brake Valve Rear Ped (Type B) CTM

DISCLAIMER: Please call with upper railing measurements to ensure proper railing fit and safety. Measuring is the best way to order.

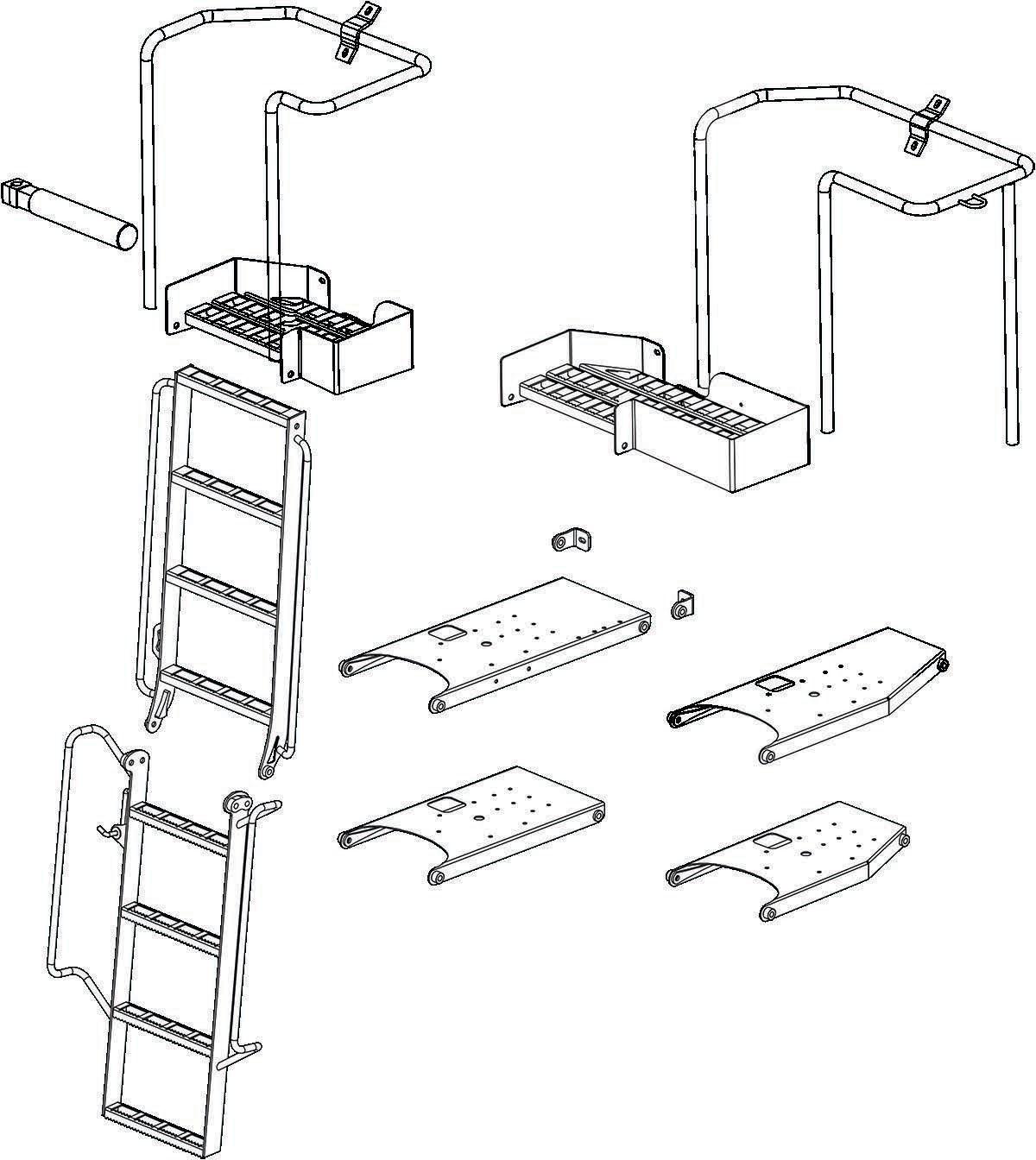

High Performance Ladder Systems

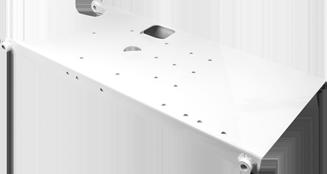

215646

HP Lower Ladder Platform, A-Ped CTM

215710

HP Lower Ladder Platform, B-Ped CTM

215003

Lower Ladder Platform (Old Style) mtm

215681

HP Lower Ladder Platform, O/S A-Ped CTM

215012

Railing - Upper Platform 32.66”, Standard CTM / mtm

215082

Railing - Upper Platform 32.66”, Paver CTM / mtm

215712

HP Lower Ladder Platform, O/S B-Ped CTM

215357

Railing Upper Platform STD Extended CTM / mtm (Pre 04/2018)

215028

Lower Ladder Platform Pre-HP CTM / mtm

216153

Upper Ladder Handrail, Bolt-On Handrail 46” CTM / mtm (Post 04/2018)

216152

Upper Ladder Handrail, Bolt-On Handrail 42” CTM / mtm (Post 04/2018)

215302

Railing - Upper Platform STD Extended CTM / mtm

215047

Pendant Holder

215053

Pendant Holder Back

215050

Pendant Holder w/ Wrap

215375

Pendant Holder Angled Bracket

215734

Rear Control Mount Bracket

215130

Pendant Cord Wrap (Fender Mount)

215813

215099

Pendant Cord Holder w/ Tab

215128

Rear Pivot Housing (Type A)

Pre-HP CTM / mtm

215129

Rear Pivot Housing (Type B)

Pre-HP CTM / mtm

215633

Pre-HP Main Pivot Assembly, 11.5” Pre-HP CTM / mtm

215664

HP Main Pivot Assembly, 11.0” (Short) CTM

215781

A-Frame - Pivot Housing, HP, A Ped CTM

622500

Pre-HP Main Pivot w/ Bearing Kit, 11.5” Pre-HP CTM / mtm

215782

A-Frame - Pivot Housing, HP, B-Ped CTM

622501

HP Main Pivot w/ Bearing Kit, 11.0” (Short) CTM

Spring - Chute Lock

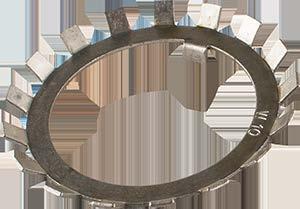

Washer - Chute Lock

705035

Roll Pin - Chute Lock 5/32” x 1-1/2”

215103

Disc Rear Brake Plate

216322

Mounting Bracket - Type A

Chute Lock Can (Bolt-On)

216375

Mounting Bracket - Type B

Chute Lock Can (Bolt-On)

/ mtm

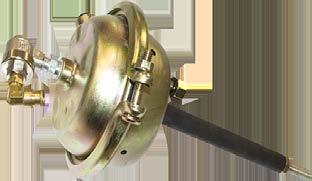

Brake Can - Assembly With Quick Dump and Tube

785151

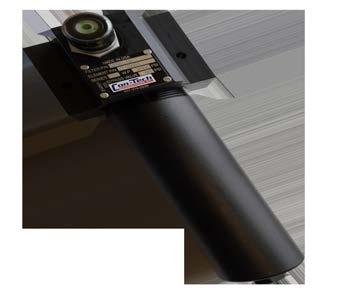

Chute Lock Air Chamber (Mounted vertically under frame) mtm

Chute

216020

216019

216018

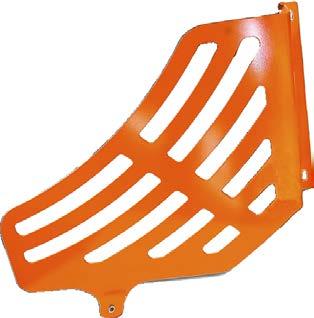

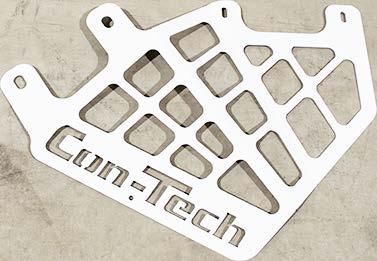

Con-Tech Manufacturing, Inc. Roller Guards

CREATES A SAFE ZONE

Buffer area is created around the rollers while they are turning.

WIDE SLOTS ACROSS GUARDS Makes for easy cleaning in and around the roller assemblies.

215257

215258 ClipFront Pedestal LH mtm

215936

216283

216368

Shim - Front Pedestal to Rail 0.25” Thickness (Requires 2)

215941

216282

216279

Shim - Rear Pedestal to Rail

0.25” Thickness (Requires 2)

215150

215151

Frame Clip - MACK, 2-Hole (Short)

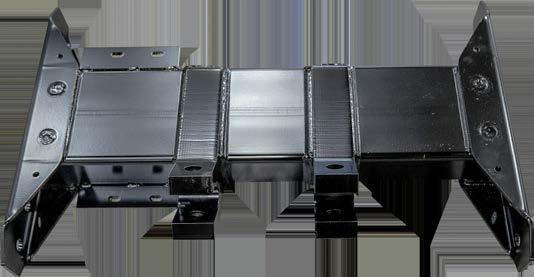

FRONT PEDESTAL

FRONT PEDESTAL,

245196

Bracket - Hose Block Mounting CTM / mtm

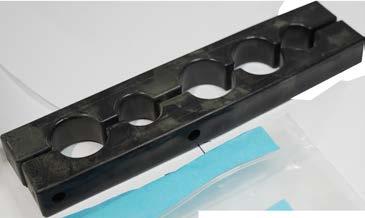

720026

Hose Separator Block, 16-12-16-16-12 CTM / mtm

720029

Hose Separator Block, 6-6-8 CTM / mtm

720020

Hose Separator Block, 12-16 CTM / mtm

720027

Hose Separator Block, 12-6-6 CTM / mtm

720033

Hose Separator Block, 12-16-16-12 CTM / mtm

720024

Hose Separator Block, 12-8 CTM / mtm

720030

Hose Separator Block, 16-4-6-6-6-6-12 Top CTM / mtm

720028

Hose Separator Block, 16-4-6-6-6-6-12 Bottom CTM / mtm

730008

Grommet

730251

730021

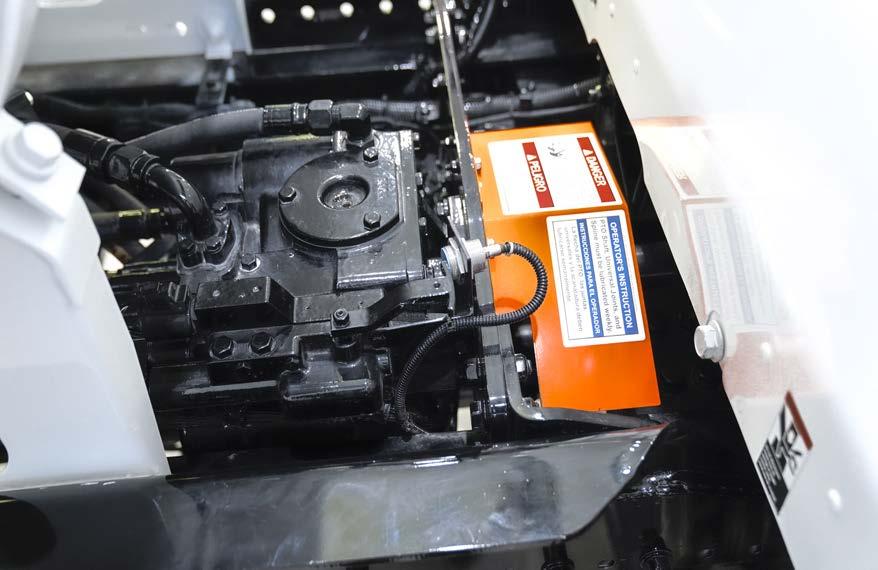

Gearbox

Gearbox - ZF P7300 (Re-Seal)

760154 CTM CTM

715052

Pigtail/Jumper Weather Pack Female

715209

Pigtail/Jumper Weather Pack Male

CONVERSION TO MTM REQUIRES 715052 & 715209

760158 CTM

Valve - Parker Directional, BridgeKing® Includes: Valve, Hardware, O-Ring (725029, Pg. 56) CTM

760158 mtm

Valve - Parker Directional, BMV Conversion (Conversion to mtm requires 760158, 715052, 715209) mtm

760015 mtm

Valve - Parker Directional, BMV (No longer available, Replace with 760158 BMV Parker Valve Conversion to the left) mtm

760014 Parker Valve Coil w/ Female Weather Pack

760199

Parker Valve Coil Retainer Nut CTM / mtm

705066

Chute Up / Down Coil Acorn Nut CTM / mtm

760156

Coil - CTM, Parker Valve (Replaces 760014 and 760062) CTM / mtm

760062 Parker Valve Coil w/ Male Weather Pack

COIL REPLACEMENT REQUIRES 715052 & 715209

715052

Pigtail - Parker Valve Coil w/ Female Weather Pack CTM / mtm

715209

Pigtail - Parker Valve Coil w/ Male Weather Pack CTM / mtm

725029

O-Ring - Parker Valve Mount(Need 4 Per Directional Valve) CTM / mtm

705061

Screw - Long Parker Valve w/ Spacer (2” x #10 x 32) mtm

4 REQUIRED PER DIRECTIONAL VALVE

705062

Screw - Parker Valve (1 1/4” x #10 x 32) CTM

705060

Screw - Parker Valve (1 1/2” x #10 x 32) mtm

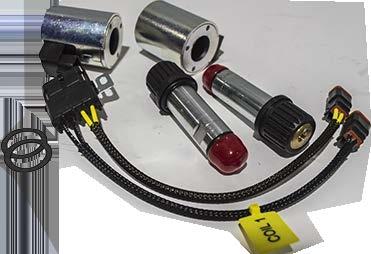

760060

Cartridge - mtm Chute Lift, O/C, DA w/ Coils mtm

760011

Cartridge - Normally Open, mtm Chute Up w/ Coil mtm

760012

Cartridge - Normally Closed, mtm Chute Down w/ Coil mtm

760150

Cartridge - Parker, O/C N/C Down mtm

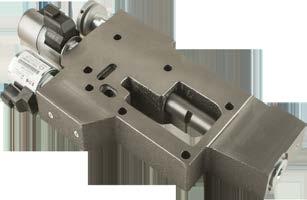

Control Manifold - Constant Speed Assembly CTM

Control Coil Only - Constant Speed CTM

Cartridge

715191

Controller - Constant Speed w/ Interlocks, Eaton, HFX CTM (2020 & Up)

760195 Controller - Signal Interlock EVDR Module, Driver CTM

715192

Harness - Main Constant Speed, w/ Interlocks CTM (2020 - Present)

715193

Harness - Constant Speed, w/ Interlocks, J1939 Controller to Pump & Motor CTM (2020 & Up) 760193

Sensor - 3-Wire, Motor Speed

100107

Split Flange Kit - 1” Code 61

Includes: O-Ring, Clamps, Bolts CTM / mtm

725018

#16 O-Ring - Split Flange CTM / mtm

100172

Split Flange 90 Degree1704-16-16 - Code 61 CTM / mtm

100106

Split Flange 45 Degree1703-16-16 - Code 61 CTM / mtm

100186

Split Flange 120 Degree1703-16-16 - Code 61

CTM / mtm

Driveshaft 1350 - 43” / 2.5” Diameter

795044 44” SHAFT Driveshaft 1350 - 44” / 2.5” Diameter 795045 45” SHAFT Driveshaft 1350 - 45” / 2.5” Diameter

795046 46” SHAFT Driveshaft 1350 - 46” / 2.5” Diameter

795047 47” SHAFT Driveshaft 1350 - 47” / 2.5” Diameter

795048 48” SHAFT

Driveshaft 1350 - 48” / 2.5” Diameter

795049 49” SHAFT Driveshaft 1350 - 49” / 2.5” Diameter

795050 50” SHAFT Driveshaft 1350 - 50” / 2.5” Diameter

795051 51” SHAFT Driveshaft 1350 - 51” / 2.5” Diameter

795052 52” SHAFT Driveshaft 1350 - 52” / 2.5” Diameter

795053 53” SHAFT Driveshaft 1350 - 53” / 2.5” Diameter

795054 54” SHAFT Driveshaft 1350 - 54” / 2.5” Diameter

795061 61” SHAFT Driveshaft 1350 - 61” / 2.5” Diameter CTM / mtm

795020

U-Joint - 1350, Non-Greasable CTM / mtm

795021

Yoke - Pump, 1350 1.5” Tapered Flange for Strap Kit (Threaded) CTM / mtm

795006

Yoke - Pump, 1350, 1.5” Tapered U-Bolt CTM / mtm

795016

Yoke - 6-Hole DIN to 1350 Flange CTM / mtm

795003

U-Joint - 1350 CTM / mtm

795001

U-Joint - 1350, Cap, Greasable CTM / mtm

795008

Yoke - Flange, 1350, 4-Bolt 2.75” Pilot CTM / mtm

795022

Yoke - Slip, 1350 U-Joint CTM

795014 Kit1350 Strap CTM / mtm

795015

Yoke - Pump, 1.5” Companion Flange CTM / mtm

795026

Snap Ring1350 U-Joint, Thin 0.056” CTM / mtm

725165

750000

Cylinder - Chute Lift Cylinder (Single Acting) CTM / mtm

750001

Cylinder - Chute Lift (Dual Acting) CTM / mtm

730161

Seal SaverChute Cylinder CTM / mtm

104050

Kit -Chute Lift Cylinder CTM / mtm

750005

Kit - Accumulator Charge CTM / mtm

750007

Kit - Chute Cylinder, CTM Dual Acting Only CTM

725036

Valve - Nitrogen Fill CTM / mtm

710024

Adapter - Hydraulic, Chute Cylinder 6801-06-06 CTM / mtm

750006

Valve - Gooseneck / Elbow, Cylinder Charge CTM / mtm

750019

Washer - Fiber, (For use with 750006) CTM / mtm

600175 NLA

600176 NLA

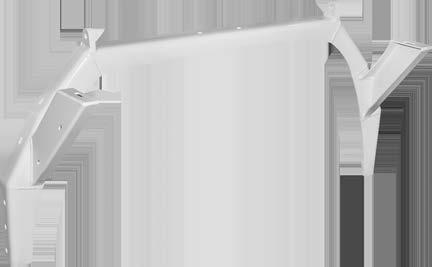

Fender

SCAN HERE

NEED

TO ZOOM IN?

1. Open your camera app on your phone.

2. Hold your camera over the code above.

3. Click on the link that appears on your screen.

4. Zoom in to see the diagram close up!

CURRENT STYLE HENDRICKSON AXLE ASSEMBLY (POST 08/2020)

®

OLD STYLE HENDRICKSON AXLE ASSEMBLY (PRE 08/2020)

SCAN HERE

NEED TO ZOOM IN?

1. Open your camera app on your phone.

2. Hold your camera over the code above.

3. Click on the link that appears on your screen.

4. Zoom in to see the diagram close up!

791020

Nut - Wheel Spindle, BridgeKing® Axle Hendrickson CTM

791021

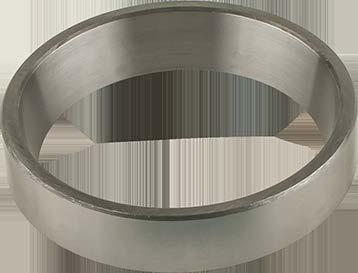

Race - Outer Wheel Bearing, BridgeKing® Axle Hendrickson CTM / mtm

791022

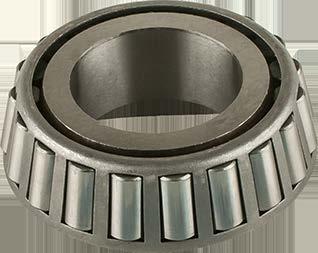

Bearing - Outer BridgeKing® Axle Hendrickson CTM / mtm

791023

Race - Inner Wheel Bearing BridgeKing® Axle Hendrickson CTM / mtm 791024

Bearing - Inner BridgeKing® Axle Hendrickson CTM / mtm

Seal - Axle Oil, Westport Hendrickson CTM

791236

Knuckle - LH BridgeKing® Axle, Lower w/ Spindle (Cast) CTM / mtm

791237

Knuckle - RH BridgeKing® Axle, Lower w/ Spindle (Cast) CTM / mtm

791238

Knuckle - LH BridgeKing® Axle, Upper (Cast) CTM / mtm

791239

Knuckle - RH BridgeKing® Axle, Upper (Cast) CTM / mtm

Plate

791219

Plate - Lower King Pin, w/ Spindle, RH CTM 791215

Adjuster - Slack, BK®/ Hendrickson Axle (LH/RH)

Yoke - Auto Slack Adjuster, Hendrickson BK® Axle (w/ Insert)

Chamber - Brake, BridgeKing® Hendrickson Axle

Attachment PlateAxle

760309

Valve - Brake Relay, BK® Trailer Park Brake Application, Wabco (5/17) CTM / mtm

760086

Valve - Pusher Up / Down, PACCAR/Watson-Chalin CTM / mtm

760301

ValveBrake Proportioning, RP-12 CTM / mtm

760302

ValveBrake Limiting, LQ-5 CTM / mtm

760303

ValveQR Pusher Down CTM / mtm

760305

ValveQR Pusher Up CTM / mtm

792140

Valve - Quick Dump, Hendrickson Steerable, Down Bag, 1/4” NPT CTM / mtm 215795

MountBrake Valve

760307

Check Valve 1/2” NPT Male-Female, BK® Park Brake Application CTM / mtm

TUBELENGTH

791202

Tie Rod AssemblyHendrickson, BK® Axle, Tube Length 57.5” CTM

791225

Tie Rod Assembly - Round Tube Hendrickson Push, Flat Strap Replacement, Tube Length 58.5” CTM / mtm

791226

Tie Rod AssemblyBM, Round Tube, Tube Length 59.5” CTM / mtm

790015

Kit - Stabilizer (Shock) - Hendrickson Steerable Pusher, w/ Flat Tie Rod CTM / mtm

792103

Kit - Pivot Bushing, Hendrickson SC13 Models (w/ Bolts) CTM / mtm

791990

Spring - Bolster, Hendrickson Haulmaxx, 46K (4 per truck) CTM / mtm

791991

Strap Kit - Rebound, Hendrickson Haulmaxx, 46K (2 per truck) CTM / mtm

791992

Progressive Load SpringHendrickson Haulmaxx, 46K CTM / mtm

792107

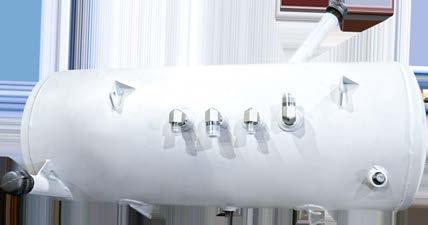

Tank Kit - Air, Hendrickson 13.2 Steerable w/ U-Bolts CTM / mtm

CAB BOX CONTROLS — CHEAT SHEET

Counter

Kit - Prox Switch, W/Magnet Eastern Labs (DP-0306F)

715525

PendantCTM Rear Pendant Assembly 25’ CTM

715533

PendantCTM Rear Pendant Assembly 15’ CTM

715505

PendantCTM Rear Pendant Assembly 5’ CTM

715526

Cord Assembly25’ CTM Pendant CTM

715541

Pendant - mtm, 25’ Weather Pack 1-Wire Start/Stop mtm

715540

Pendant - mtm, 5’ Weather Pack 1-Wire Start/Stop mtm

715524

Pendant - CTM Rear Pendant 25’ for OMNEX Control Mixers CTM

715534

Pendant - Rear Pendant 15’ for OMNEX Control Mixers CTM

715523

Pendant - CTM Rear Pendant 5’ for OMNEX Control Mixers CTM

715506

Cord AssemblyCTM 5’ Pendant CTM

715546

Pendant - 25’ Weather Pack 3-Wire Start/Stop mtm

715545

Pendant - 5’ Weather Pack 3-Wire Start/Stop mtm

715530

Pendantmtm Rear Pendant Assembly 25’ mtm

715538

Pendantmtm Rear Pendant Assembly 15’ mtm

715535

Pendantmtm Rear Pendant Assembly 5’ mtm

715536

Cord Assembly5’ mtm Pendant mtm

715547

Pendantmtm 25’ Aluminum mtm

715548

Pendantmtm 5’ Aluminum mtm

761018

Deutsch Connector23 Position, Receptacle CTM / mtm

761030

Deutsch Connector - 23 Position, Harness Side Rear Pendant CTM / mtm

715549

Plug - Jumper, CTM Rear Pendant, Wireless CTM

761028

Deutsch Connector - 21 Position, Cab Box (C52 Connector In-Cab Box) CTM / mtm

715515

Repair Harness CTM Rear PendantHarness Side (Includes Deutsch Connector 18”) CTM

761045

Deutsch Connector - 21 Position, Main Harness Side CTM / mtm

715516

Repair Harness mtm Rear PendantHarness Side (Includes Deutsch Connector 18”) mtm

761019

Housing - Deutsch MaleRear Pendant Cord CTM / mtm

761057

Nut Strain Relief - Deutsch, Pendant Cord CTM / mtm

761056

Strain Relief - Deutsch, Housing Only CTM / mtm

765009

O-RingRear Pendant CTM / mtm

DeutschNut, Plastic Panel

Deutsch

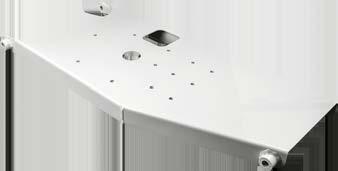

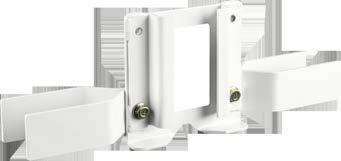

215734 Rear Pendant Mounting Bracket

215375

Pendant

7” LCD COLOR SCREEN & KEYPAD CONTROL FEATURES

CONTROL

7” LCD COLOR SCREEN

ADJUSTABLE, RAM ARM, DASH-MOUNTED DISPLAY

CHUTE LOCK, CHUTE HAZARD, & HOPPER UP WARNINGS

HYD FAN COOLING ICON WITH BUILT-IN ON/OFF OVERRIDE ON SCREEN

TACHOMETER INDICATOR FOR DRUM RPM & DIRECTION

DIGITAL HYDRAULIC TEMPERATURE & PRESSURE DISPLAY GAUGES

RESETTABLE AND LIFETIME DRUM COUNTER

BUILT-IN REAR VIEW/SAFETY CAMERA INTEGRATED ON SCREEN

AUTOMIX COUNT & RESET FUNCTIONS

JOYSTICK

COMPLETE CONTROL IN THE PALM OF YOUR HAND

SUPERIOR ERGONOMIC DESIGN FOR COMFORT & SMOOTH OPERATION

UNLIMITED SET-UP POSITIONS FOR DRIVER PREFERENCE

FLEXIBLE JOYSTICK CONTROLLER FOR ALL PRIMARY JOB SITE FUNCTIONS

ALL BUTTONS ARE LOCKED OUT IN TRANSIT EXCEPT DRUM START / STOP SO OPERATOR CANNOT ACCIDENTALLY ACTIVATE FUNCTIONS

COATED, FLEXIBLE ROD ARM WITH LASTING, DURABLE LIFE EXPECTANCY

AUTO MIX FUNCTIONS

AUTO MIX RANGE (60 - 150 REVS)

THE AUTO MIX FUNCTION WILL RAISE THE VEHICLE ENGINE RPM IN A CHARGE POSITION UNTIL A PRESET DRUM REVOLUTION IS ACHIEVED. AFTER THE AUTO MIX ACTION IS COMPLETE, THE CONTROLS WILL GO INTO A CONSTANT SPEED (DRUM SAVER FEATURE) IN THE CHARGE POSITION.

• Work lights on Press button to turn off

• Strobe lights on Press button to turn off

• Rear View Camera on Press button to turn off

• BridgeKing® Axle up

• Pusher Axle up

• Hopper down • Transmitter

• Charging

WATER

TANKS (BY SIZE / MATERIAL) CTM / mtm

285779 65 GallonALUMINUM

285798 90 GallonALUMINUM

285609 90 GallonSTEEL

285796 100 GallonALUMINUM

285717 100 GallonSTEEL

285528 125 GallonALUMINUM

285630 125 GallonSTEEL

285637 150 GallonALUMINUM

285635 150 GallonSTEEL

285573 175 GallonALUMINUM

285683 50 Gallon, 30”STEEL

285813 100 Gallon, 30”STEEL

285781 125 Gallon, 30”ALUMINUM

285838 125 Gallon, 30”STEEL

285842 150 Gallon, 30”ALUMINUM

285681 150 Gallon, 30”STEEL

285545 175 Gallon, 30”ALUMINUM

285794 200 Gallon, 30”ALUMINUM

285685 200 Gallon, 30”STEEL

285743 300 Gallon, 36”STEEL

285880 400 Gallon, 42”STEEL

SPLIT TANKS

285328 90/10 GallonALUMINUM

285430 100/15 GallonALUMINUM

286033 125/15 GallonALUMINUM

285750 125/15 Gallon, 30” STEEL

285810 135/15 GallonALUMINUM

285748 135/15 Gallon, 30” STEEL

285377 125/15 Gallon, 30” ALUMINUM

765222

Tube - Water Tank Sight Gauge

125 Gal Poly, LH CTM / mtm

765223

Tube - Water Tank Sight Gauge

125 Gal Poly, RH CTM / mtm

765225

Tube - Water Tank Sight Gauge

150 Gal Poly, LH CTM / mtm

765224

Tube - Water Tank Sight Gauge

150 Gal Poly, RH CTM / mtm

765232

Poly Water Tank

Floating Ball CTM / mtm

POLY WATER TANK SYSTEM BENEFITS

1. Safer, non-pressurized poly water tank utilizes air operated water pump

2. Dual diaphragm pump capable of up to 90 psi water pressure at rear of mixer

3. Increased water pressure equates to more thorough, more efficient (quicker) wash downs

4. Poly water tank is more resistant to environmental damage (i.e. rust, corrosion, scale, paint chipping, etc.)

5. Wall thickness and material composition unmatched in the industry

6. Uses standard flopper seal with “thru-bolts” on flange

7. Replaceable, common “ag type” threaded adapter fittings are readily available

8. Tank head contains molded grab handles, eliminating the need for additional bolt-on components

9. Dual sight gauge tubes increase viewing angle to front/rear of mixer in cross-mount applications

10. Large rubber sight tube resists damage from impact or freezing and has large, easy-toread scale

11. Integrated sight tube minimizes the need for numerous attaching parts

12. Tank does not require surface coating

13. Replacement cost of poly tank is considerably less than “weight similar” aluminum

SaddleHP Cross Mount, 26”, LH CTM / mtm

SaddleHP Cross Mount, 26”, RH CTM / mtm

Saddle - HP Tall Cross Mount, 26”, LH CTM / mtm

Saddle - HP Tall Cross Mount, 26”, RH CTM / mtm 286013

Strap

Bracket

Assembly

705013

Nut - Sight Glass CTM / mtm

710002

Mount - Sight Glass CTM / mtm

760058 1/2” 90° Ball Valve CTM / mtm

710008

Nipple - Push Lock CTM / mtm

710007

Petcock 1/8” CTM / mtm

710017

Petcock 1/8” - 1/4 Turn CTM / mtm

710005 Plug - Pipe 1/8” CTM / mtm

710010

725080

Flopper - 8 5/8” Long Neck

Assembly, Bolt-Thru CTM 285532

Plate - 8 5/8” Long Neck

Assembly, Bolt-Thru CTM

725076

Gasket - Flopper 8 5/8”, Bolt-Thru (Rubber) CTM

725075

Gasket8 5/8”, Bolt-Thru CTM

725009

Assembly -

7 7/8” Flopper Pre-2016 CTM / mtm 285707

Plate7 7/8” Flopper Pre-2016 CTM / mtm

725039

Gasket -

7 7/8”, Bolt-Thru (Rubber) Pre-2016 CTM / mtm

725011

Gasket -

7 7/8”, Bolt-Thru Pre-2016 CTM / mtm

POLY-TUFF ® POLY FENDERS

Support - Fender, Rear, LH,

Support

Support - Fender, Front, LH, Poly Fender, Rail Mount

Support - Fender, Front, RH, Poly Fender, Rail Mount

205250

Brace - Poly Fender, Outer, LH CTM / mtm

205249

Brace - Poly Fender, Outer, RH CTM / mtm

705336

Bolt Kit - Steel to Poly Fender Conversion, Adapter Bracket (Qty. 40) CTM / mtm

205240

Support Plate - Drop Fender, Under Rail, Weld-On CTM / mtm

705058

Carriage Bolt - 3/8” x 1 1/4”, Fender Support Mount CTM / mtm

705079

3/8” Lock Nut - 16 UNC, Flange Head CTM / mtm

205076

Spacer -

Fender Mounting, 1/4” CTM / mtm

205078

Spacer -

Fender Mounting, 3/8” CTM / mtm

205079

SpacerFender Mounting, 1/2” CTM / mtm

205071

Spacer -

Fender Mounting, 3/4” CTM / mtm

205072

Spacer -

Fender Mounting, 1” CTM / mtm

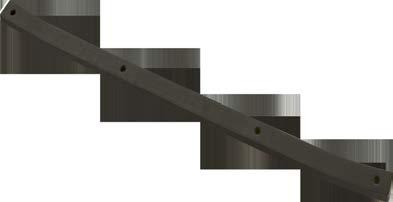

Strip - Rubber Cushion, Radius, Poly Fender CTM / mtm

205259

205214UR Extreme Duty™ DBL Drop Cross Support CTM / mtm

205237

Cross Mount Angle Extreme Duty™, One Piece CTM / mtm

205214

Support - Front Cross Flat Clamp Extreme Duty™ CTM / mtm

205211

UR Cross Mount Link Extreme Duty™ (1 Per Truck) CTM / mtm

205204

Support Clamp - UR Extreme Duty™ Front Cross (2 Per Truck) CTM / mtm

REPLACEMENT FENDERS

205187

285001

Bumper - Kenworth CTM / mtm 285710

Bumper - Kenworth W900, 2015, Set-Forward Front Axle CTM / mtm 285712

Bumper - Kenworth T880, T800 Set-Back (2015 to Present) CTM / mtm

285847

Bumper - Kenworth Set-Forward, Wingman Fusion CTM / mtm

285885

Bumper - 2017 Kenworth T880 Set-Forward CTM / mtm 286075

Bumper - Kenworth T880/W900 Universal, Set-Forward CTM / mtm 285033

Bumper - Peterbilt CTM / mtm 285260

Bumper - Peterbilt 365 (2009) CTM / mtm 286259

Bumper - Peterbilt 567 (2019) CTM / mtm

- Mack, Front, GU, 2007-2020/Current CTM / mtm

Bracket

OEM Con-Tech Manufacturing, Inc. & WILL FIT mtm MIXERS

THE CON-TECH® HIGH PERFORMANCE™ DRUM

New! Tail Cone Fin Hole Configuration with Elevated Surge Fins: Limits buildup, improves mixing and reduces wear

High Performance Tail Cone: Special fin spiral with an additional 1/4 turn allows for unmatched charging speed and discharge performance

Patented A.R. Steel Lip Doubler: Doubles fin thickness for ultimate wear protection and fin life

EcoFin Technology: Reduces wear and buildup while improving mix consistency

Precision Fit Panels: Eliminates flats spots that cause accelerated wear areas — Ensures optimal fin position for even, smooth pours

High Capacity Mixing Bowl: 25% increase in mixing area with a lower center of gravity for improved stability

Ball Buster Paddle System: Drastically reduces or eliminates cement balls

Fabricated A.R. Steel Head: 1/4” true nominal thickness reduces wear areas throughout

One-Piece Solid Roller Track: Pre-machined and crowned

— Eliminates weld cracking and increases structural integrity over hollow designs

5/16 Hatch Frame with Tapped Holes: Increases frame thickness by 85% and eliminates square-welded nuts

Straight Taper Cone: Straight angle from the belly to the drip ring eliminates surging caused by non-straight cones in a high-production pour

Removable Lifting Lug: For easy and safe drum removal and replacement — a removable lifting lug is included with each HP drum

Light - Back-Up White LED, 4” AMP Plug

715855

715057

715859

Light - Peterson Amber LED, 4” Strobe, AMP Connector CTM / mtm

715853 Light - Amber LED Round,

715854

715294

715856

715038

715042

Light - Red LED, STT, 4” Grote CTM / mtm

715046

Light - Back-Up White LED, 4” Grote CTM / mtm

715026

Light - Back-Up White LED, 4”, PL-3 Plug CTM / mtm

715024

Light - Amber LED, 2.5”, PL-10 Plug CTM / mtm

715023

Light - Red LED, 2.5” Hopper, PL-10 Plug CTM / mtm

715850 Light - Amber LED, 2.5” w/ Reflex Lens, PL-10 Plug CTM / mtm

715851

Light - Red LED, 2.5” w/ Reflex Lens, PL-10 Plug CTM / mtm

715043

715020

715021

715218

715182

715183

715155

715286

715710

Harness - 2.5” Strobe/STT, LH Upright

715711

715181

715117

Harness -

BridgeKing® Stop, Tail, Turn CTM

715260

Cab Box to Front Pedestal Harness CTM

715185

Harness -

BridgeKing® Fender, w/ Amp Seal CTM

715296

Harness - Strobe, 2.5”, LH (In Upright) w/ Amp Seal CTM

715297

Harness - Strobe, 2.5”, RH (In Upright) w/ Amp Seal CTM

715290

Harness - STT, 2.5” LH (In Upright) CTM

715122

HarnessStandard, Main CTM

715281

Harness - BridgeKing®, New Style Cab Box, Lower, RAM (Harness 1) CTM

715291

Harness - STT, 2.5” RH (In Upright) CTM

The Armor-Tech™ Wiring System is the perfect example what we can accomplish by listening to our customers. The number one trouble area on a mixer is a poor connection from the front pedestal to the rear.

Con-Tech solved the connection problem, and in the process, found a way to make maintenance, troubleshooting, diagnosis, replacement, and repair easy.

Armor-Tech™ Wiring System

Easy access for repairs and maintenance

We don’t believe in digging through the cab for electrical issues. Our mixers use simple and reliable Deutsch bulkhead connectors to tether each independent coil from the front pedestal to the back. Each assembly is easy to identify, troubleshoot, and most importantly, reach.

Color-coded, independent harnesses

Each cable has independent duties. In the event of a malfunction or damage to a line, our cables can be replaced individually. This simple approach ensures the communication between pedestals is interrupted less frequently and for less time. We don’t believe in replacing the whole harness.

Built for harsh conditions

Our system is UV, chemical, and concrete build-up resistant rubber jacketed cables. Unlike our competitors, we use basic, balanced, proven components to make sure we keep your mixer running at it’s best at all times.

Protects your bottom line

This technology is representative of our philosophy at ConTech. We don’t charge extra for our best ideas - we include our proprietary technologies in our builds because they make our trucks the most affordable and efficient in the industry.

799600

- Hydro Test

799615 Tester - Chassis, w/ Cable

799610 Tester - Rear Pendant

799619

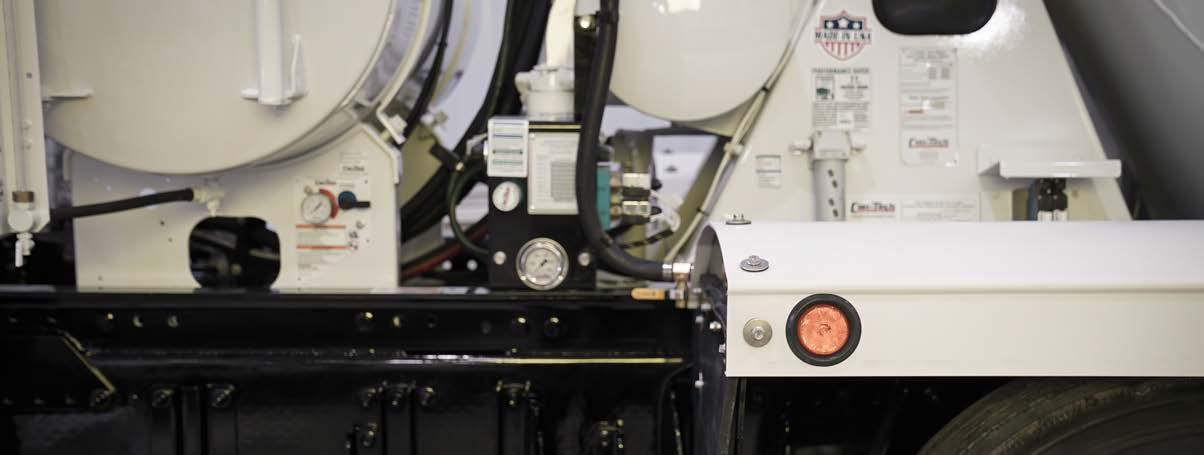

MADE WITH THE PRODUCER IN MIND

THE CON-TECH® EcoWash™ WASHOUT SYSTEM IS LEADING THE CHARGE FOR COMMON SENSE SOLUTIONS IN YOUR OPERATION.

1 SAFETY

Keeps your drivers working on the ground

• Designed to minimize and eliminate the need for drivers to climb up and down ladders to wash out

• Four strategically-placed, internal spray zones on the rear pedestal and drum

• Control valves located on the rear pedestal at ground level

2 RELIABILITY

Simplicity purposefully built into the design

• Washout system utilizes manual ball valves to increase reliability and minimize required maintenance

• 100 mesh inlet strainer keeps contamination from entering valves and spray nozzles

• Water drain valve located on strainer for freeze protection

3 EASE OF USE

Straight-forward, reliable, & proven components

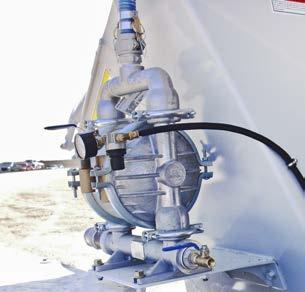

• The cycle is powered by a dualdiaphram air pump that supplies up to 100 psi of spray pressure

• In-stock replaceable parts from Con-Tech Parts

• Scan the QR CODE with your phone camera to learn more:

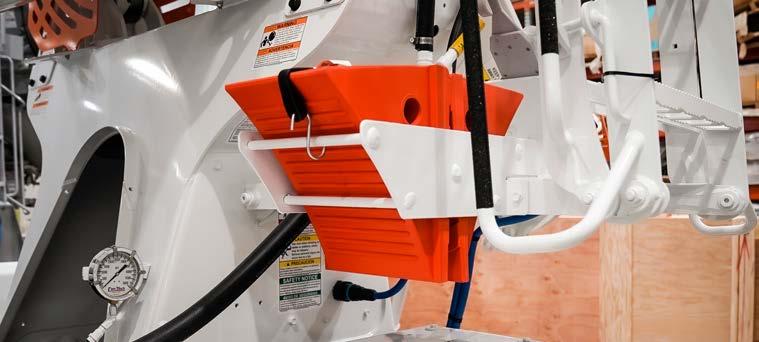

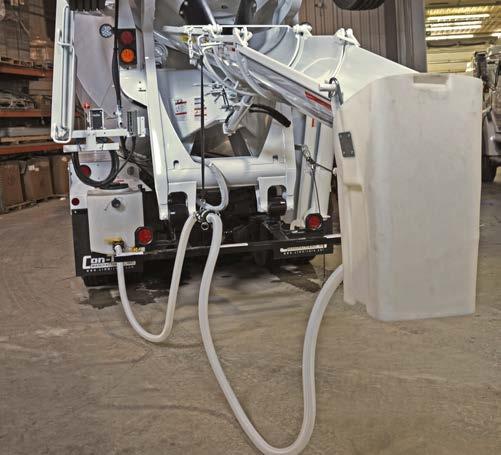

CHUTE WASH RECOVERY SYSTEM

- Drum Sprayer

2 -Piece

KEEP YOUR MIXERS AT TEMP, CLEAN, & LOOKING THEIR BEST WITH

The Con-Tech drum sprayer bar is a simple add-on feature that will help keep your concrete temp within spec on those hot days.

• An additional benefit is that it keeps the drum clean and promotes positive company image - keeping your rolling billboard looking it’s best!

• The sprayer bar assembly includes a filter screen to keep the nozzles from clogging (due to scale and contaminants in the water tank) and is turned on/off by a simple ball valve.

• Bar is shaped to follow the contour of the drum and mounts with simple bolt brackets.

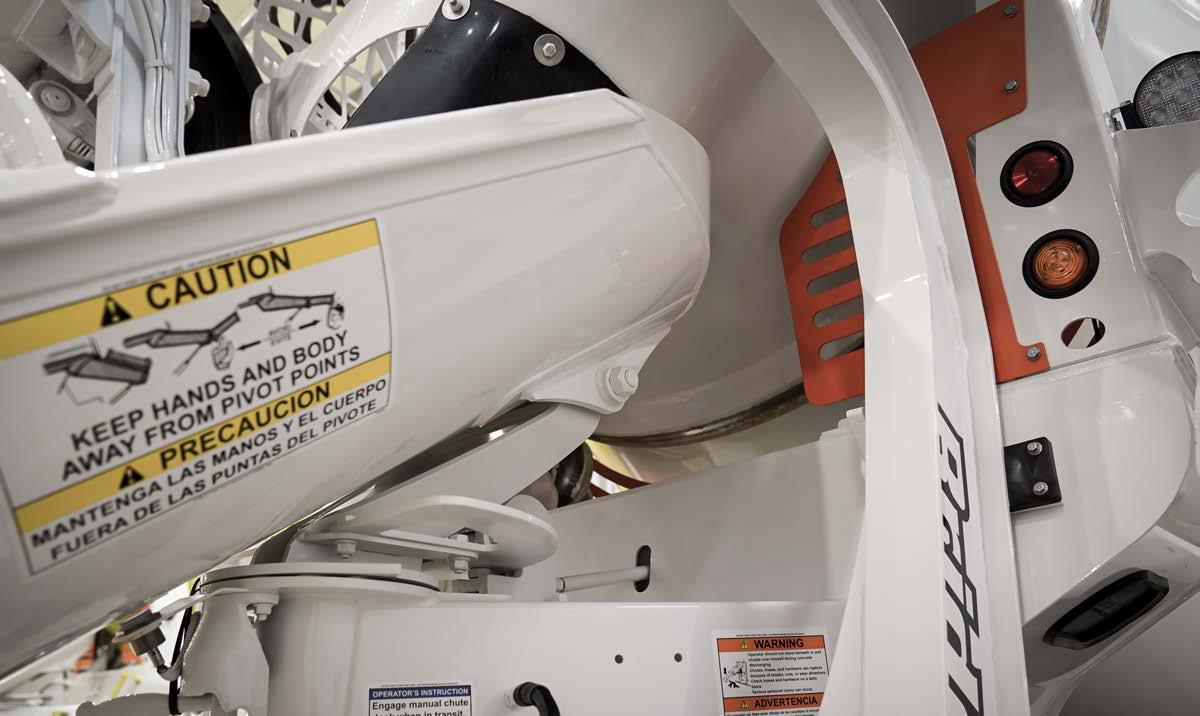

SAFETY DECAL PLACEMENT

NOTES: APPEARANCE OF THE TRUCK, AND THE LOCATION OF THE DECALS MAY VARY.

Standard decals come in English/Spanish combinations unless otherwise indicated - English/French combinations are also available.

*All extension chutes should have proper decals on both sides.

*Door decal locations may vary by manufacturer and space availability. If the door does not allow for decal placement, the decals may go on the back wall of the cab.

799001

Sight Strip - 90 Gallon, 26” Head

799002

Sight Strip - 100 Gallon, 26” Head

799003

Sight Strip - 125 Gallon, 26” Head

799004

Sight Strip - 150 Gallon, 26” Head

799005

Sight Strip - 40 Gallon, 26” Head

799006

Sight Strip - 15 Gallon, Add Mix, 26” Head

799007

Sight Strip - 135 Gallon, 26” Head

799008

Sight Strip - 175 Gallon, 26” Head

799014

Sight Strip - 125 Gallon, 30” Head

799015

Sight Strip - 15 Gallon, 30” Head

799016

Sight Strip - 150 Gallon, 30” Head

799017

Sight Strip - 200 Gallon, 30” Head

799018

Sight Strip - 300 Gallon, 36” Head

799024

799035

Sight Strip - 65 Gallon, 26” Head

Sight Strip - 110 Gallon, 26” Head 799037

Sight Strip - 100 Gallon, 30” Head

799038

Sight Strip - 400 Gallon, 36” Head 799065

799029

Sight Strip - 175 Gallon, 30” Head

Sight Strip - 135 Gallon, 30” Head

Sight Strip - 200 Gallon, 36” Head 799036

NON-CTM/ mtm PARTS AVAILABLE

215420 Charge Hopper

225107 Chute - Foldover, Paver

CBMW

Continental, CBMW

705038 Spacer - CBMW Spacer/Washer CBMW

755200 Roller - Assembly, Short

755204 Roller - Assembly, Tall

770070 Chute - Aluminum, Paver

CCB, Kimble, CBMW

CTM, mtm, CBMW, Beck

770071 Chute - Extension, Steel, 14 Ga. CBMW

725105 Water Pipe Assembly CBMW

770100 Ladder - Handrail CBMW

770101 Ladder - Lower CBMW

770102 Ladder - Upper CBMW

770072 Chute - Extension, Aluminum CBMW

770073 Chute - Foldover, 30” Transition, 92 Series CBMW

770110 Bracket - Mounting, Flat, w/ Holes CBMW Front Ped

770111 Bracket - Mounting, Flat, w/o Holes CBMW Front Ped

770112 Bracket - Mounting, Flat, w/ Holes CBMW Front Ped

770113 Collector - Paver, Narrow, 2001 CBMW

770114 Chute - Transition Extension, 36” CBMW

770115 Air Chute Lock Chamber CBMW

770116 Roller Bolt Assembly CBMW

760450 Manifold - Bridge Control Block CBMW

770117 Collector - Bridgesaver CBMW

770103 Main Chute Pivot CBMW

770104 Platform - Upper Ladder CBMW

225201 Main Chute CBMW

225109 Pendant - Remote Control CBMW

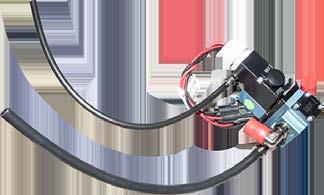

760063 Valve - 63 Ser MAC, Plant, S/A w/o Base

760064 Valve - 63 Ser MAC, Plant, D/A w/o Base

760065 Valve - 93 Ser MAC, S/A w/o Base

760066 Valve - 93 Ser MAC, D/A w/o Base

400120 Vibrator - Air Piston, BV-150

GUMBOOT Available to order

All measurements are to the center of the weld seam.

DIMENSIONS

FIN THICKNESS: 3/16” Standard 1/4” Optional

DRUM SHELL THICKNESS: 3/16” Standard 1/4” Optional

HATCH OPTION: Single Dual Quick FINISH: Prime Paint

REV DRUM REPLACEMENT: YES NO

DIMENSIONS

Pedestal A

Pedestal B

I hereby certify that the information contained herein is complete and accurate. This information has been furnished with the understanding that it is to be used to determine the amount and conditions of the credit to be extended. Furthermore, I hereby authorize the financial institutions listed in this credit application to release necessary information to the company for which credit is being applied for in order to verify the information contained herein. All invoices are to be paid 30 days from the date of invoice. There will be a 1.0% interest charge per month on all invoices that are 30 + days past due.
