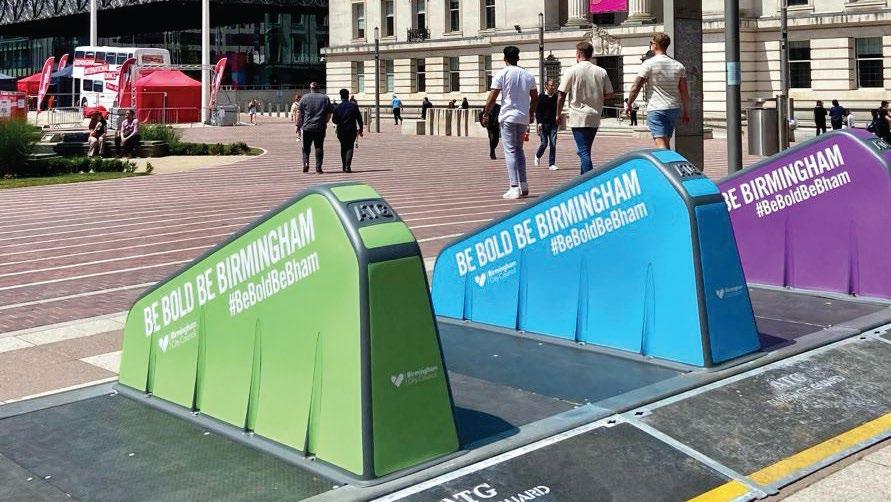

Offering versatile and scalable protection against vehicle attacks...
...and incursions for events and public realm spaces, ATG Surface Guard is an award-winning temporary HVM system.

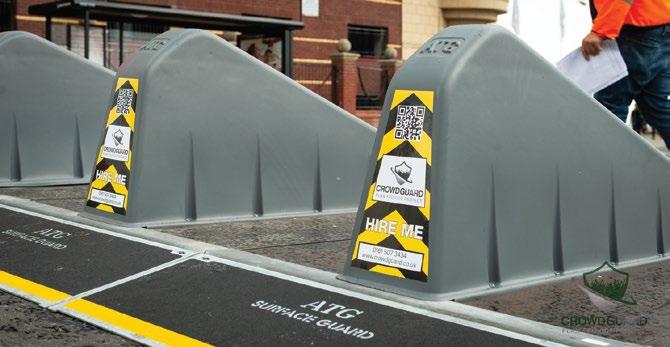

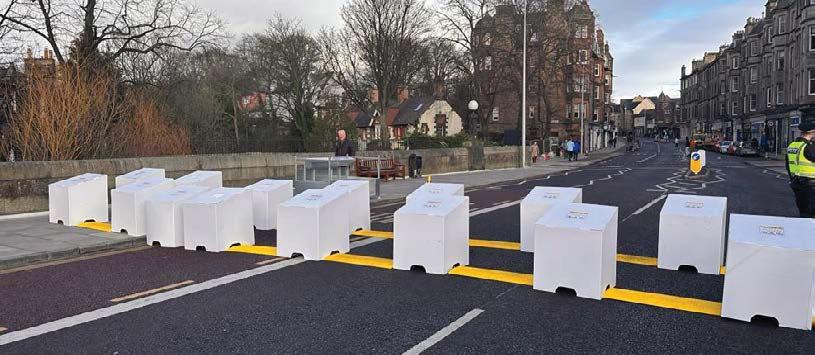

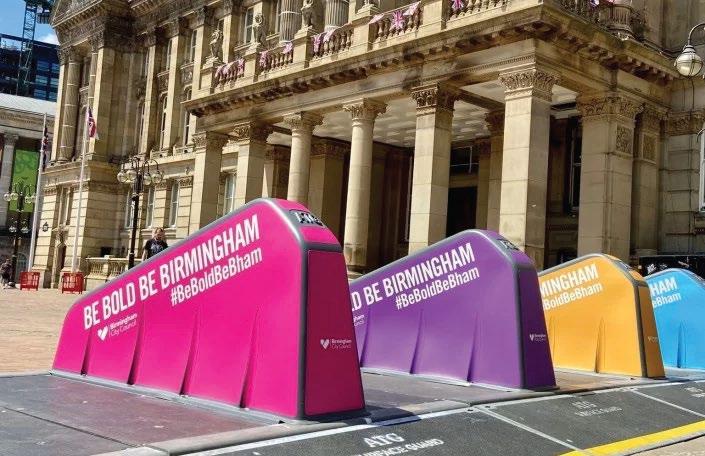

Surface mounted and pedestrian permeable, ATG Surface Guard is a modular HVM system, assembled using lightweight and compact sections, which are easy to store, transport and move around site. An array large enough to protect a single roadway can be installed by a team of four trained technicians in as little as 40 minutes, or, if extra rapid deployment is required, the system can be pre-built and lifted into position in sections. The modular HVM solution can be installed around street furniture, across traffic islands, and can transition up and down kerbs, enabling a connected array. It also copes very well with road cambers.
ATG Surface Guard also offers flexibility, convenience and safety, with optional vehicle access plates that enable vehicular access for blue light services or deliveries within as little as 30 seconds. This flexibility can also be useful for applications where areas only need to be closed to vehicles at specific times and regular access is permitted outside of those times.
The ATG Surface Guard system is customisable too, with options for:
Technical Specification
Pedestrian Permeable / Authorised Vehicle Access

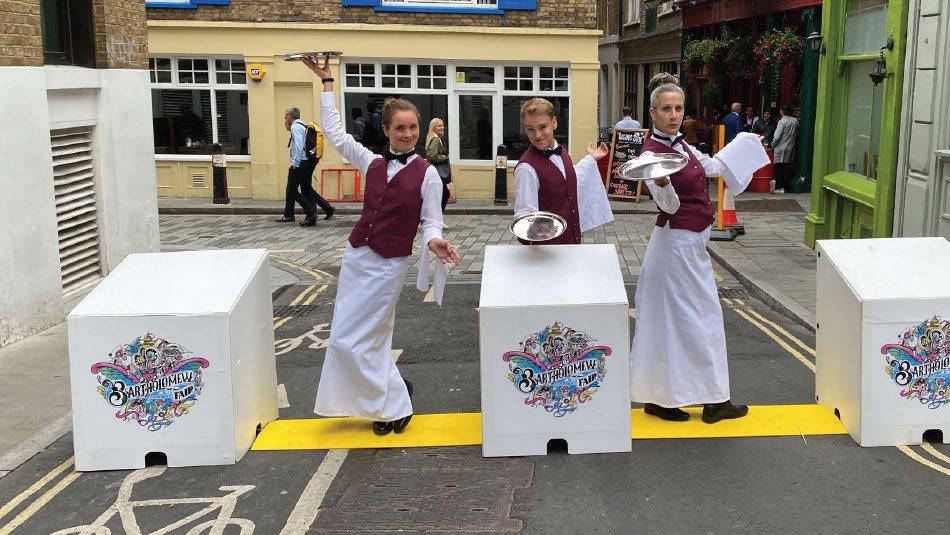

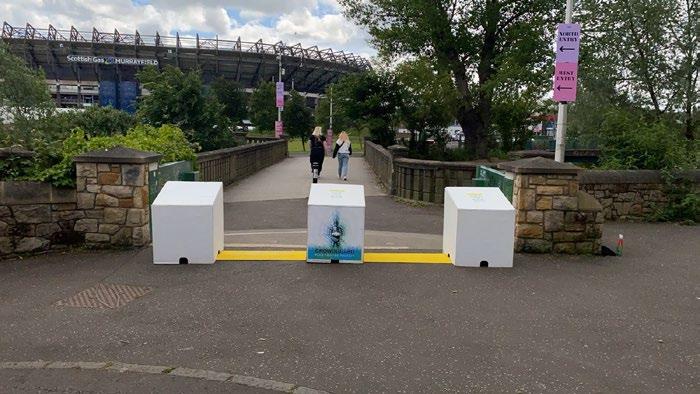

The Claw
A surface mounted HVM system designed for rapid,

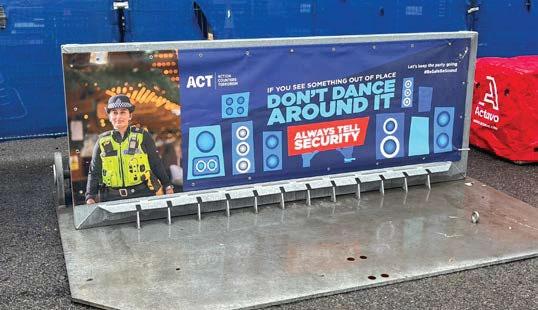

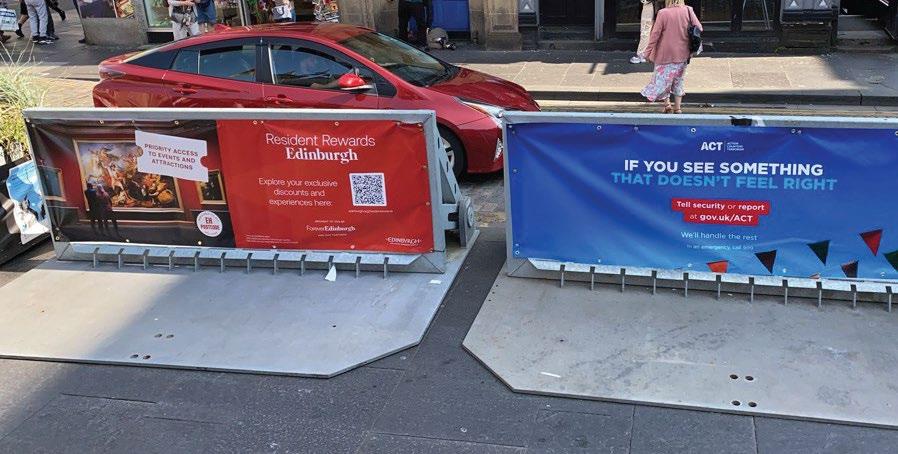

The Claw is a customisable unit that can be used for branding, advertising or wayfinding, as well as providing effective protection against vehicle attacks or incursions.
The robust, galvanised unit requires no anchors, fixings or foundations, but can be ‘dropped’ into place, preventing access by either vehicles or pedestrians. Fast and simple to deploy by a trained technician, the system offers versatile deployment and is completely tamperproof, enabling unguarded deployment, thereby reducing security costs.
The Claw system is customisable too, with options for:
Technical Specification
A versatile HVM system, which prevents vehicle incursions by trapping vehicles in the claw of its steel aperture, The Claw provides effective protection without looking hostile or threatening. It can be accessorised with refuse bins or cycle racks, providing multi-purpose functionality at ingress/egress points for a wide array of events and public realm applications. IWA

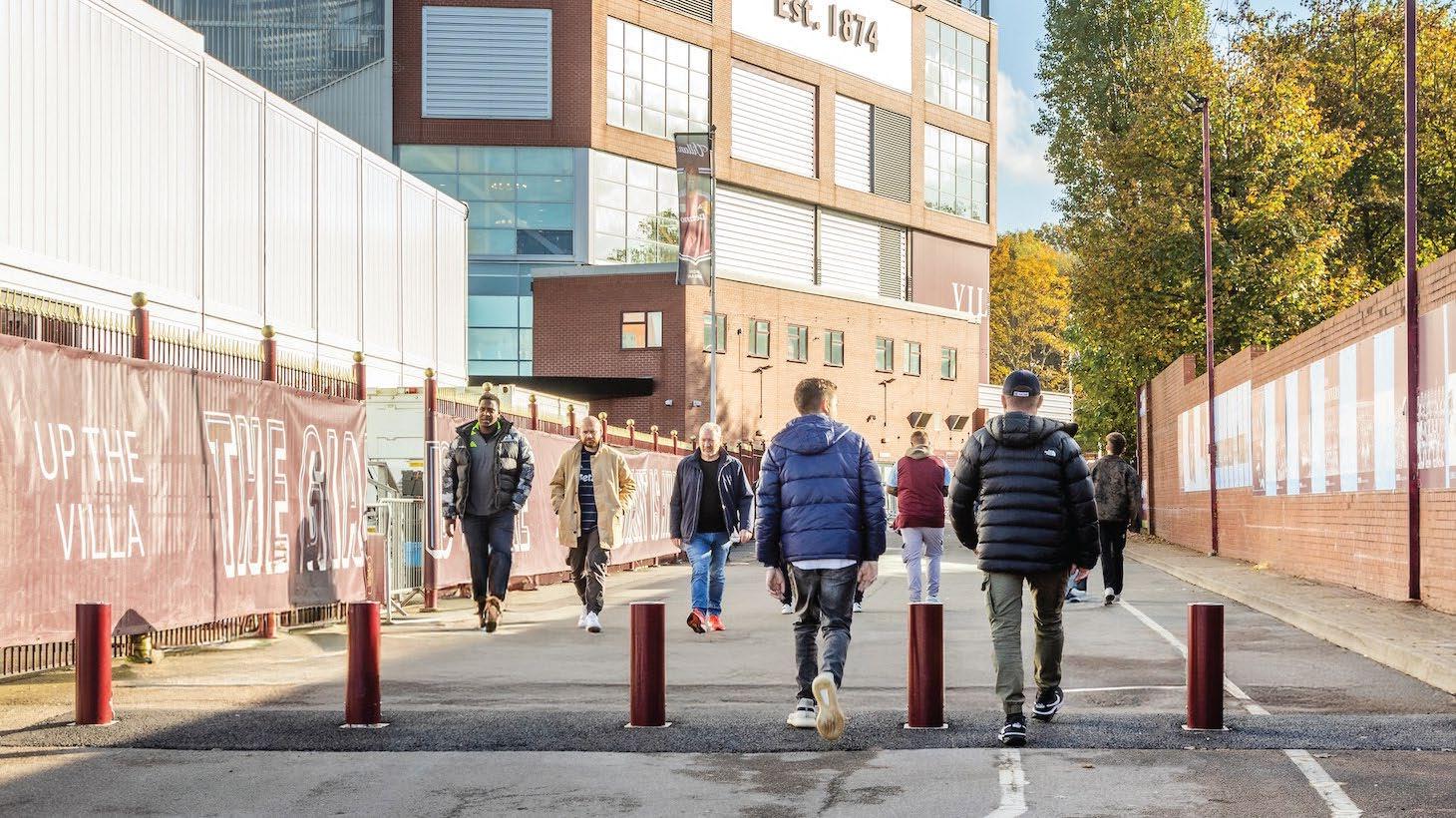

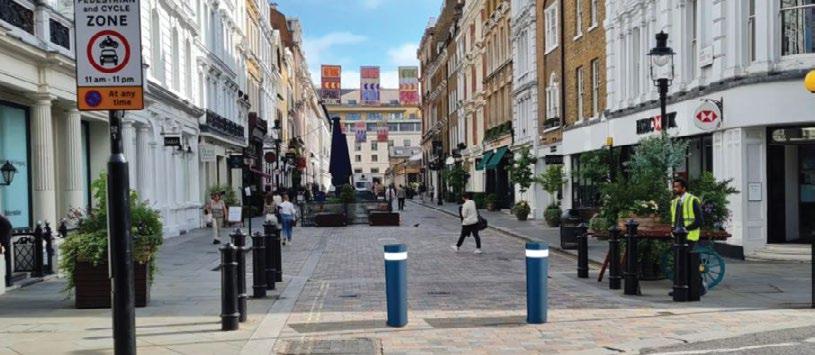

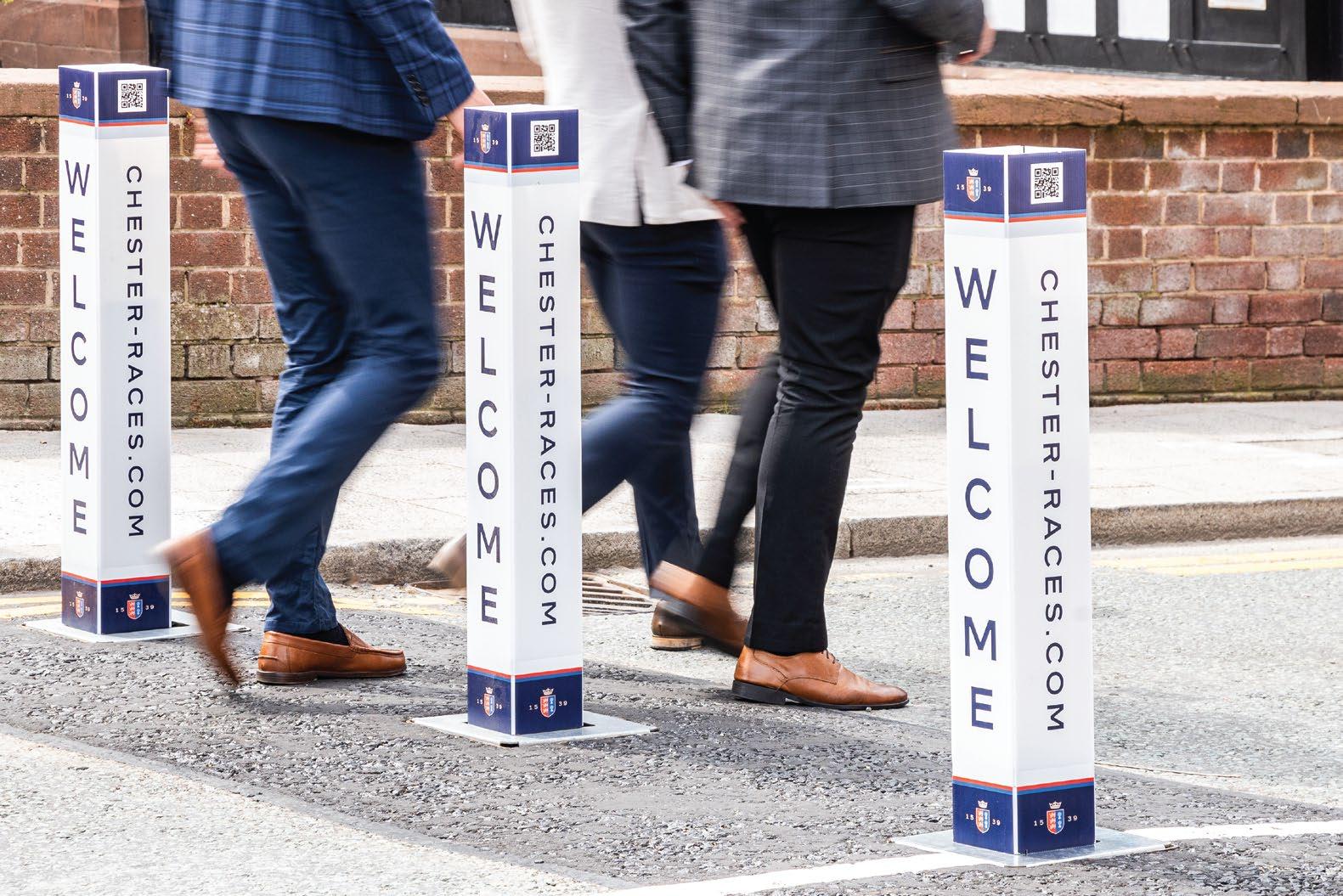

The Core from Unafor
and Lock Solution
...by a single trained technician once the shallow mount foundations are in place.
With structural foundation depths starting from 200mm, The Core is a flexible solution for almost any environment. Paving or surface finishes between 50mm and 150mm deep can be placed around the sockets, enabling the installation to blend into its surroundings. The sockets can be supplied with cover plates, ensuring that the system is almost invisible when not in use.
A lightweight HVM system, the M1 core weighs just 27kg and can be installed or removed by hand by one person. The N1 bollard involves a two-person lift of 41kg. The innovative click and lock installation method enables posts to be inserted into the foundation sockets and locked into place with a firm and stable fit.

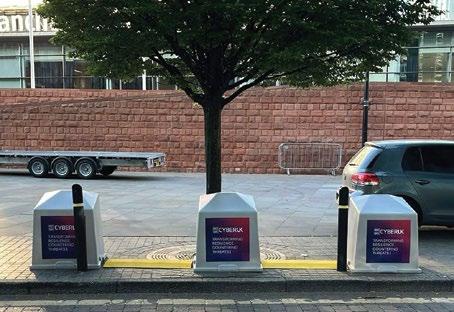

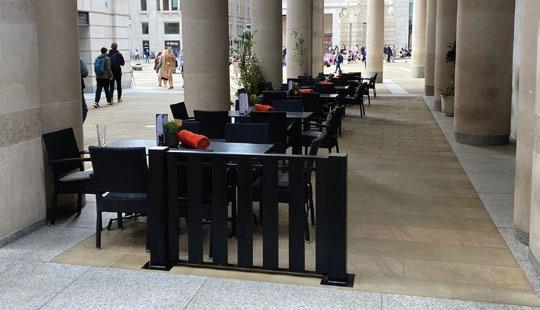

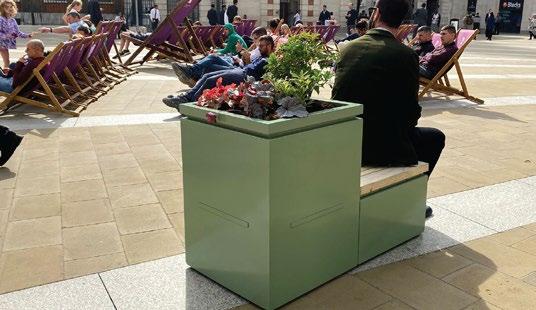

The certified HVM system can then be concealed with a choice of bollards, street furniture or planters, including seating, bicycle racks and branded or unbranded alfresco dining enclosures.
The Core from Unafor system is customisable too, with options for: ADVERTISING WAYFINDING BRANDING
Technical Specification
HEIGHT ABOVE GROUND
500 - 600mm
DEPTH OF FOUNDATION
WIDTH OF TESTED ARRAY - 1720mm
MATERIAL
Galvanized Steel, Stainless Steel, Powder Coated Steel, Corian and Cast Iron, Various Ral Colours Available (Request Full Catalogue For Options)
IWA

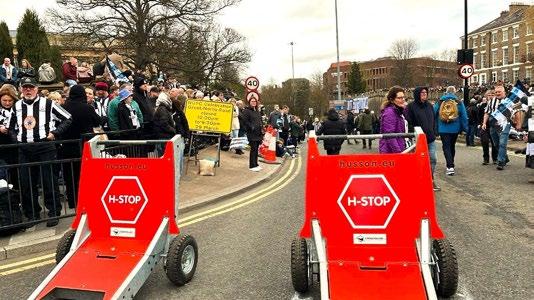

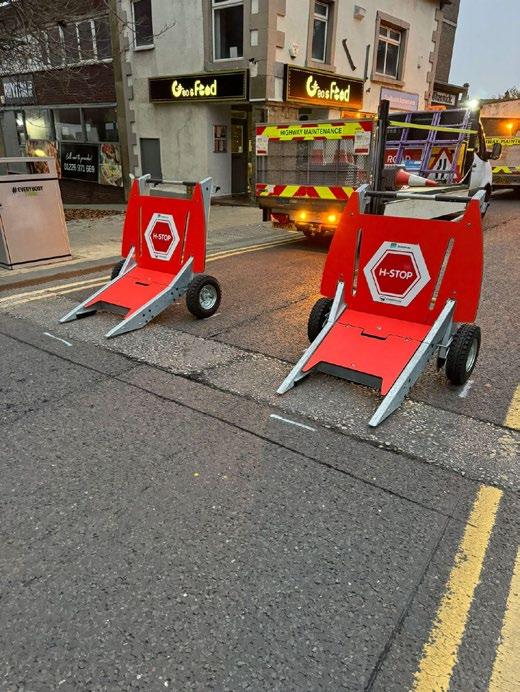

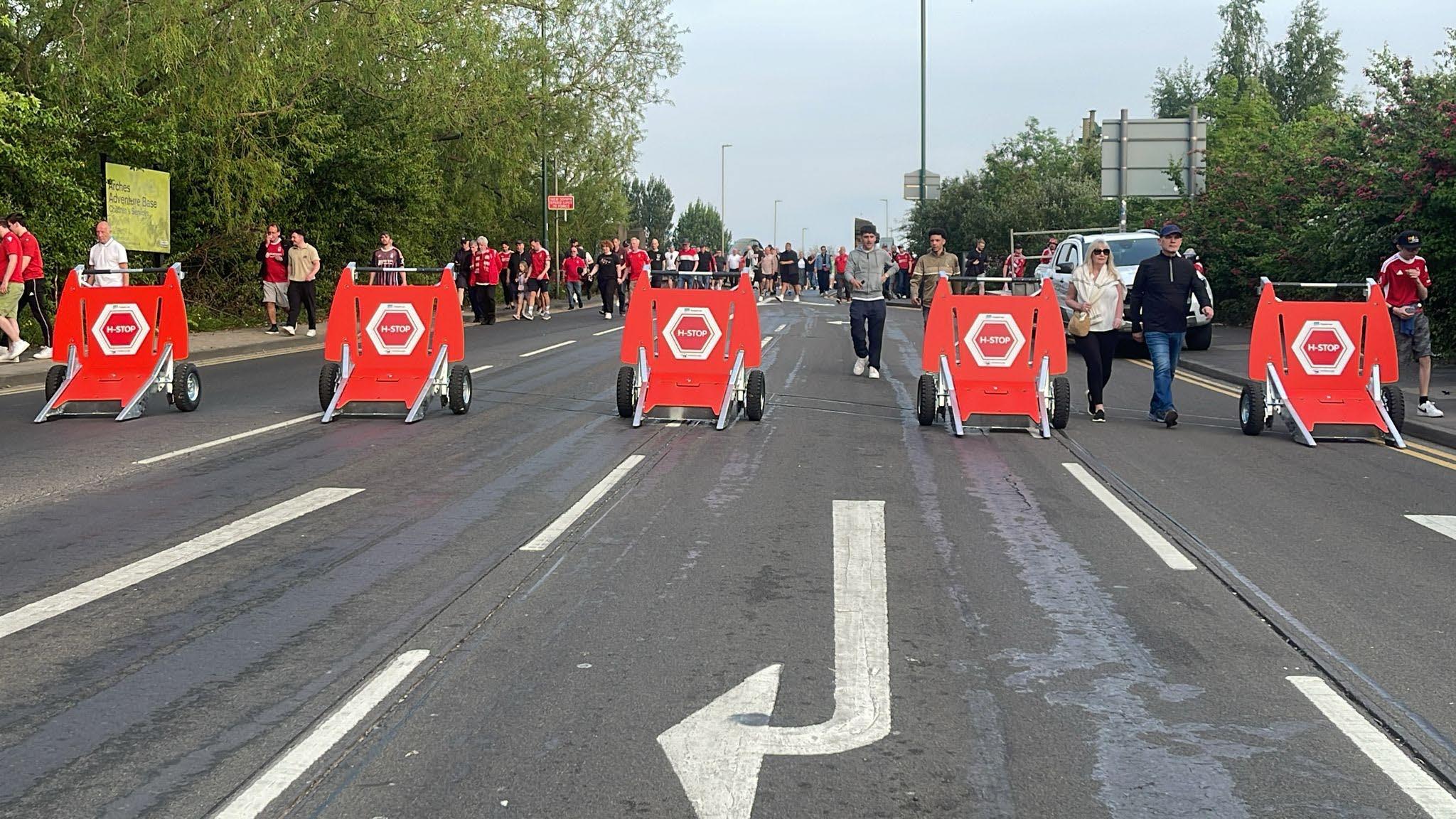

Husson H-STOP ®

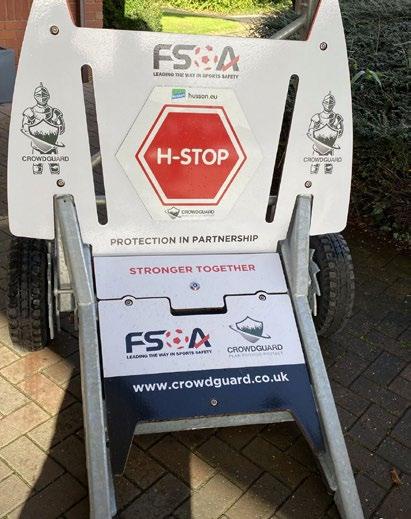

...is designed to protect against vehicle as a weapon attacks and IEDs. The HVM system works by changing a vehicle’s trajectory from horizontal to vertical, associated with a friction interface (device tyres and front stops) that adheres firmly to the ground.

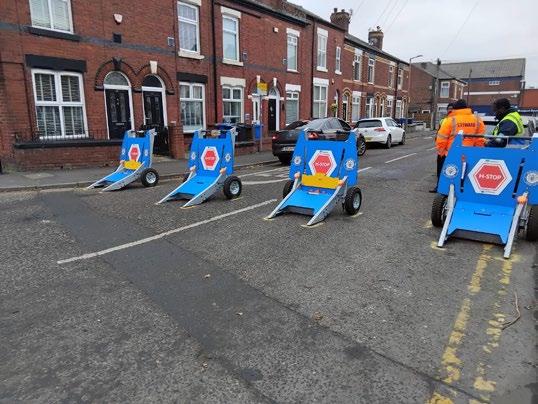

A versatile solution for rapid deployment with just one operative. H stop is tested and certified in a single unit meaning no connections or ramps between the units is required allowing free pedestrian permeability. The robust wheels have pneumatic tyres, enabling the H stop to be wheeled easily into position over uneven surfaces and once in position the wheels are locked to secure the HVM in place in either a linear or a chicane configuration.
The Husson H-STOP ® system is customisable too, with options for: ADVERTISING WAYFINDING BRANDING
Technical Specification
Supplied in bright red as standard to provide a visual deterrent to would-be attackers, H-stop® can also be provided in a range of colours and with branding options. When no longer required, or to allow access for authorised or emergency vehicles, the H-stop® can be wheeled away and it is easy to store, with a design that allows units to be pushed into each other, just like supermarket trolleys, for compact storage. WIDTH OF

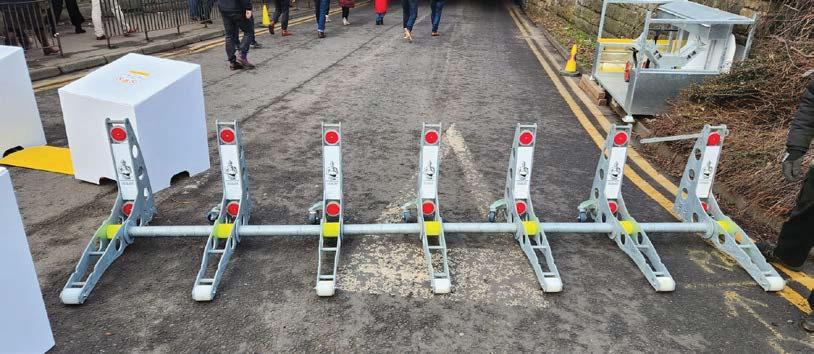

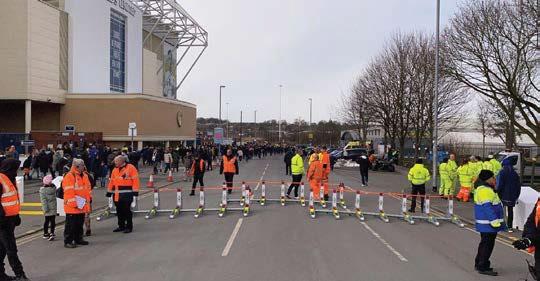

The RB50 is a moveable, modular HVM system... RB50
Rapid Deployment HVM - Authorised Vehicle Access
...for rapid, flexible and convenient deployment as a temporary vehicle barrier to protect against vehicle attacks or incursions.
With robust, galvanised steel construction, the modular RB50 system is compact for ease of transportation and storage, while providing effective IWA 14-1 certified performance. The surface mounted temporary HVM system can be deployed in less than five minutes by a single trained technician and, once assembled, it can be wheeled into position and the wheels removed. The wheels can be re-attached to enable the RB50 to be redeployed to a different location if required.
Each RB50 unit creates a 4000mm array, which makes RB50 ideal for protecting road closures. It is deployed in its tested configuration where operational requirements and site restrictions allow, and is the most flexible HVM in its class, with multiple IWA 14-1 and PAS 68 certifications enabling specification aligned to risk, operational requirements and budgets.
Suitable for use on roads or pavements, with no foundations or footings, the RB50 cannot be disassembled without a specialist tool. When not in use, it can be stored conveniently in stackable racks, with a single 1.2m² stillage allowing compact storage for two x 4000mm arrays – equivalent to 11600mm of protection.
Technical Specification
IWA 14-1:
V/3500 (N1)/48/90:12.4 V/7200 (N2)/48/90:25.5
- (dbl. upstands, 4000mm array)
V/7200 (N2)/48/90:31.4
PAS 68: 2013 V/7500 (N2)/48/90:31.16
The ARX Stopper! ®
The ARX Stopper!™ is a Pedestrian permeable ...
...temporary HVM system, designed for rapid deployment. It can secure an average road width within 10 minutes and offers high levels of pedestrian permeability, making it an ideal solution for ingress and egress in high footfall locations.
A robust two-part product, the ARX Stopper!™ can be transported easily and erected quickly. The two steel sections are assembled by simply lifting one part of the body and slotting it into the other. A securing bar locks the two elements together by simply sliding straight through the middle of each. The crowns situated at the end of the arms of each ARX Stopper!™ are designed to tip and penetrate the body or underside of a vehicle to slow it down and stop it.
A steel rope is secured to anchor bars situated within the arms of the system by a D-Shackle to add extra security and rigidity to the build. ARX Stopper!™ is a scalable HVM solution that enables units to be connected together by chains or poles to offer maximum protection to any high security installations or pedestrian areas.
The ARX Stopper system is customisable too, with options for:
Pedestrian Permeable

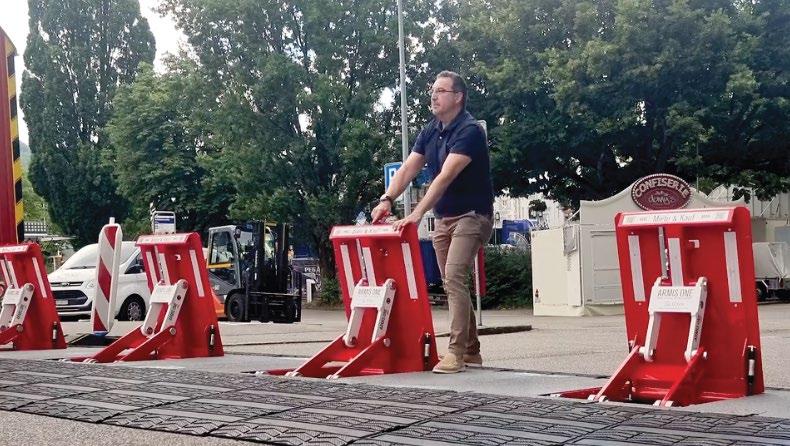

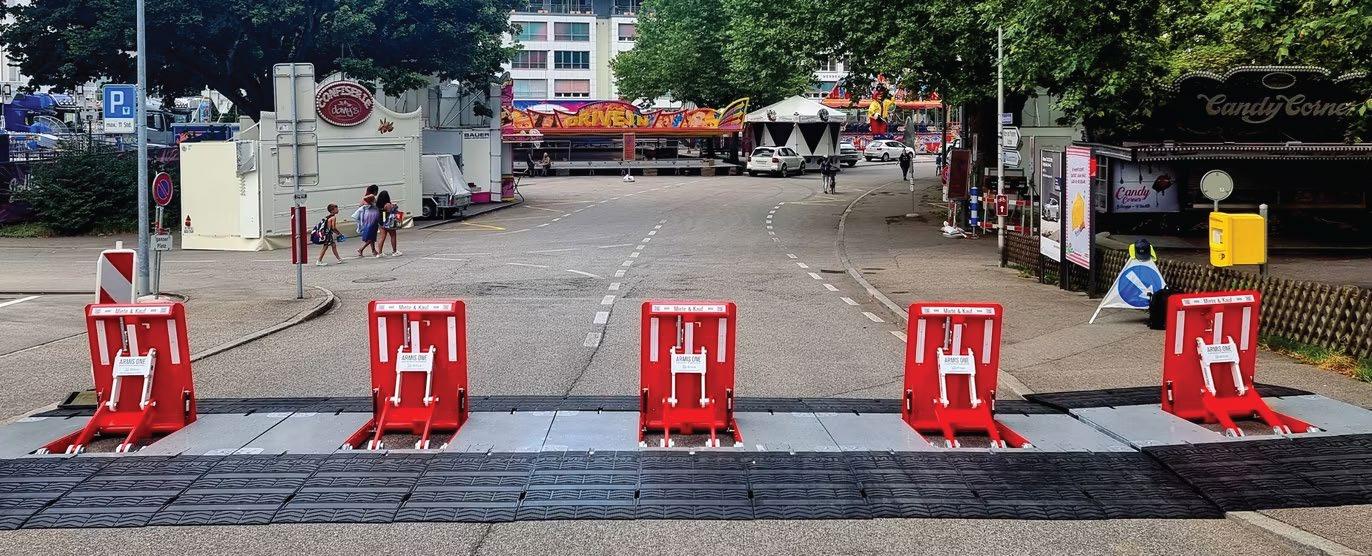

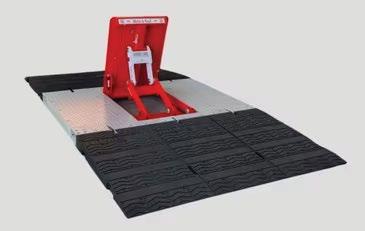

ARMIS ONE
The all-rounder among mobile vehicle barriers
Offers certified protection from hostile vehicle attacks...
...and at the same time enables targeted access. The folding barrier segment can be lowered within seconds, allowing emergency access, deliveries or drive-throughs outside of event times.
• Certified as a single element in accordance with ISO 22343-1 / DIN SPEC 91414.1
• World's best performance with a penetration depth of 8.3 metres

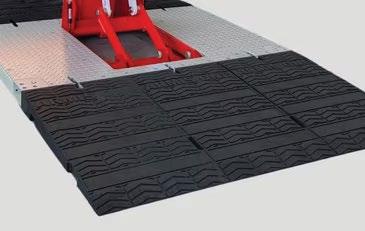

• Integrated, foldable ramps made of solid rubber
• Extremely non-slip thanks to new surfaces
• Optimised handling - only one blocking segment
World's best performance with a penetration depth of 8.3 metres
ARMIS ONE has been certified in accordance with the new ISO 22343-1 standard at 7.2 tonnes at 48 km/h. This standard has replaced the previous IWA 14-1 and PAS 68 standards since September 2023. Among other things, the new international standard places higher requirements on penetration depths (max. 25 metres) and debris throw (max. 2 kg).
The new ARMIS ONE was also successfully subjected to a displacement and manipulation test in accordance with DIN SPEC 91414.1.
With a penetration depth of 8.3 metres, the new ARMIS ONE achieved the world's best performance of individually certified barrier elements and a displacement of less than 10 cm. The manipulation test achieved class MK2.
Technical Specification

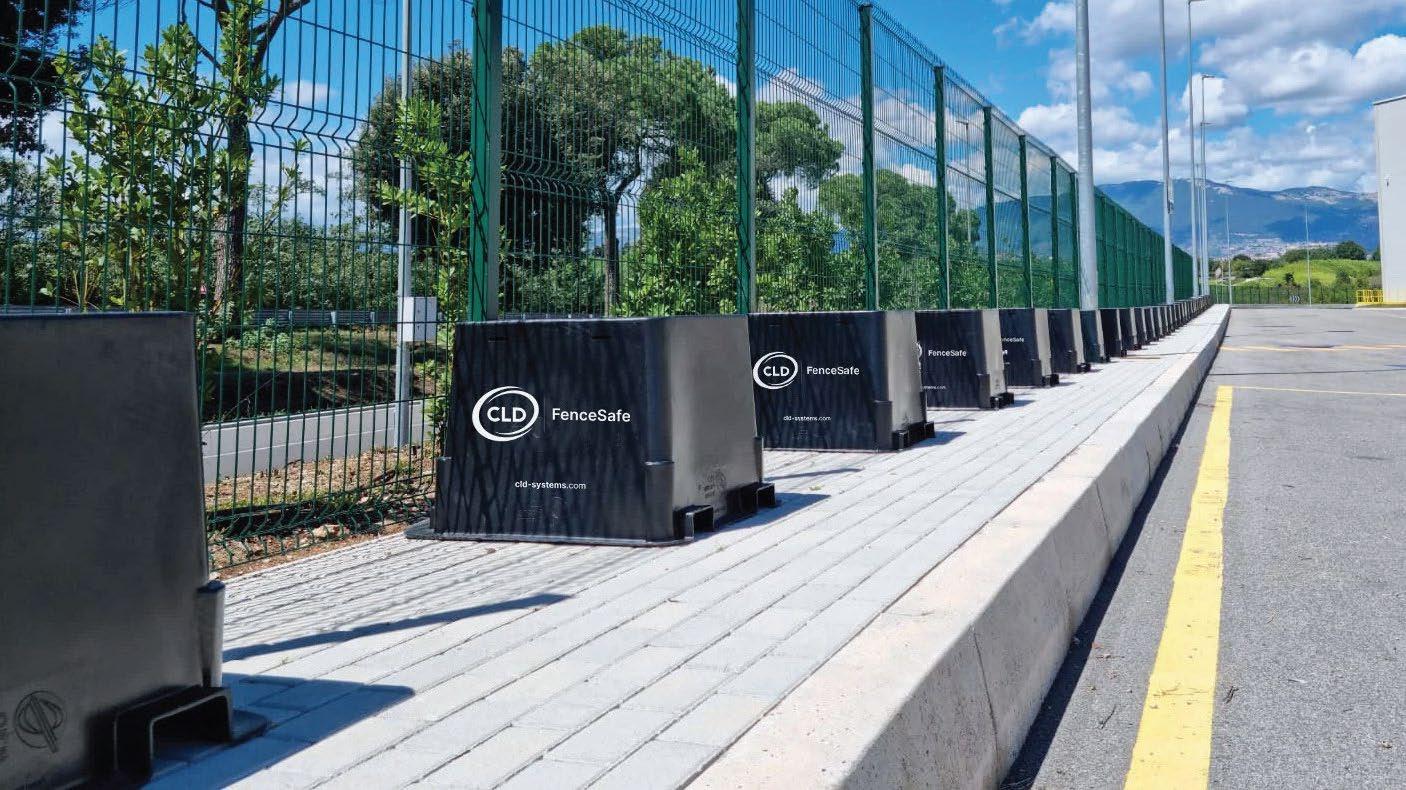

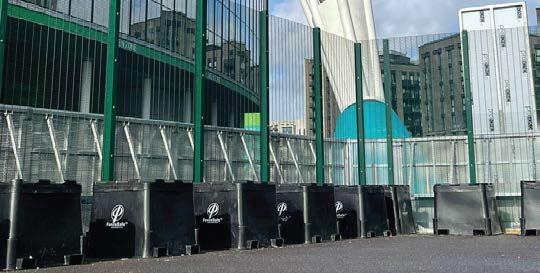

Fencesafe

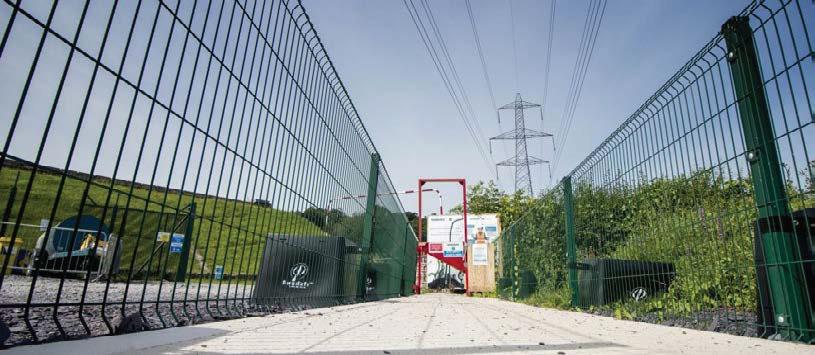

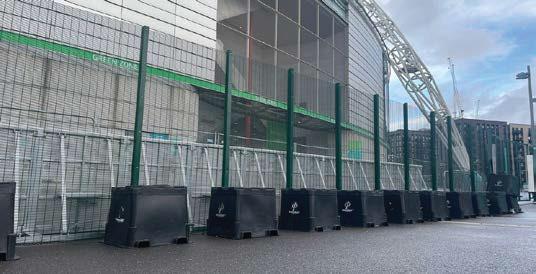

The FenceSafe range of surface mounted temporary fencing...
...from CLD Physical Security Systems, the UK’s largest manufacturer and supplier of rigid mesh fencing and security gates, provides a temporary perimeter protection solution with permanent fence performance.
Crowdguard offers three options for FenceSafe temporary fencing, suitable for a wide variety of events and sites, with specification aligned to the security rating and perimeter protection required.
We will help you select the most appropriate solution from:
• Dulox Lite – a double wire mesh panel temporary fence
• Eclipse – a profiled mesh fence
• SR1 – a D-rated security fence
Made from 90% recycled steel, all three variations of FenceSafe temporary fencing can be installed with ingress/egress solutions for pedestrians and/or vehicles, including sliding gates, swing gates, boom arm barriers, or turnstiles.
The FenceSafe temporary fencing system is installed using a patented, BE EN 1991 compliant MDPE base, manufactured from 100% recycled materials. Each base is ballasted using 200kg of bagged or loose ballast and the fence panels are attached using a 4-way adjustable bracket. The bases have forklift entry points for ease of movement on site and are designed for easy stacking for storage when not in use.
Temporary Fencing from CLD

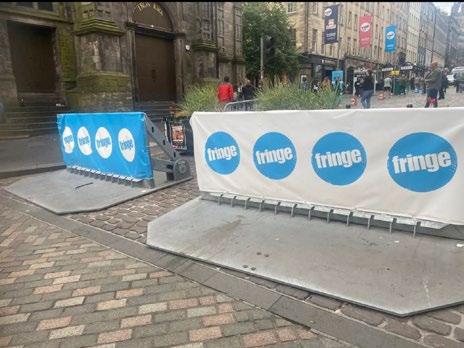

SVEA Barrier
free
standing efficient linear solution
Can be used as a temporary or semi permanent system...
...to provide security and protection from vehicle threats and incursions at urban and rural events, venues and locations. SVEA easily adapts to Project requirements while ensuring fast installation and superior protection.

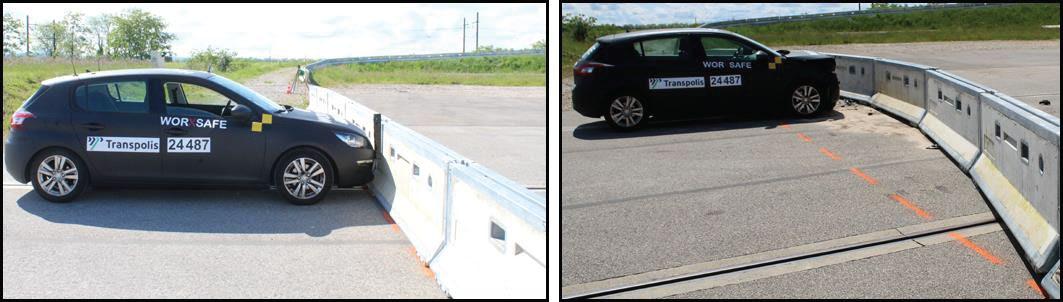

SVEA’s patented connection system streamlines installations guiding connections seamlessley. With only one person and a crane truck MASH Compliant installations can be achieved in as little as 10 minutes. The unique shape of the connection allows for barrier angles up to 3 degrees in every direction accomodating vertical displacements of up to 140mm whilst maintaining a secure link.

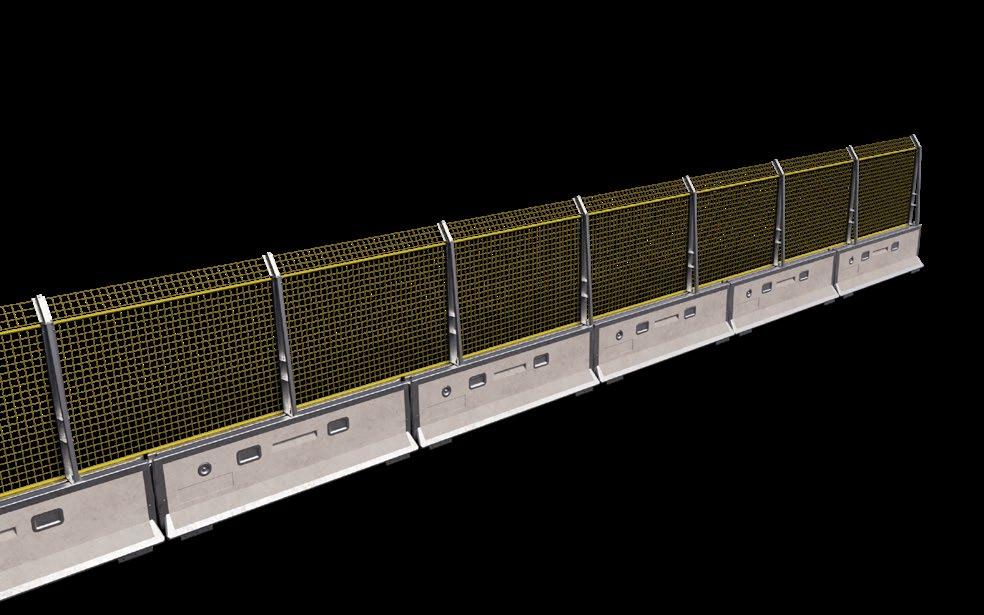

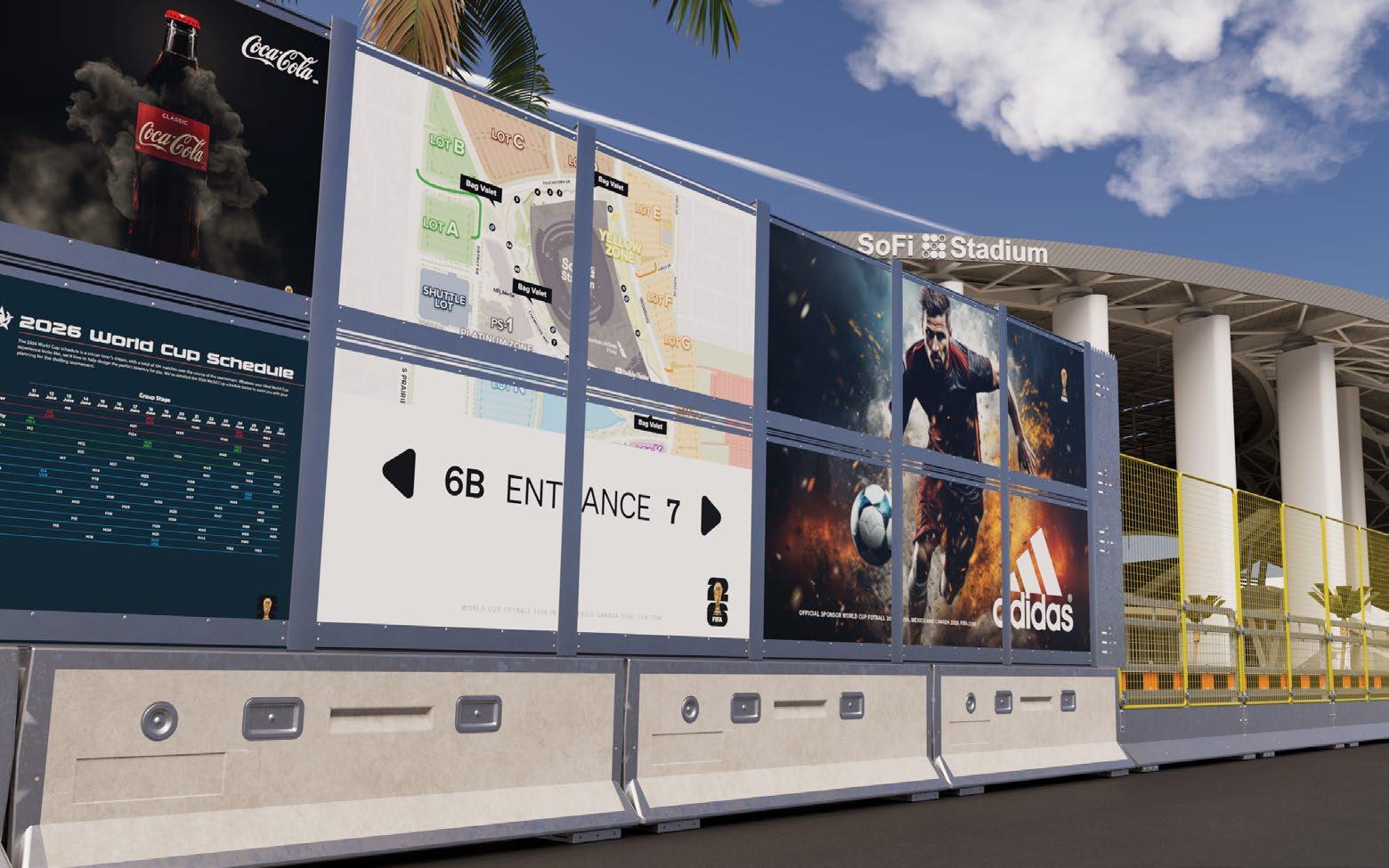

Options to add the SVEA Sound panel for event branding at two optional heights. The AT Fence can be added when a taller barrier is necessary to prevent unauthorised access.
The SVEA Barrier system is customisable too, with options for: ADVERTISING WAYFINDING BRANDING
