AKUS - Serenity Everyday

Page 1

INTERIOR ACCOUSTIC PANELS

Serenity Everyday

Elevate interior spaces with AKUS acoustic solutions.

AKUS offers attractive, easy-to-use panels that deliver high-quality sound absorption and resonance reduction. Improving interior acoustics has never been simpler.

Designed for modern-day interior designs where form meets function – specifically, the creation of harmonious work and rest spaces which factor in the effect of environmental considerations.

AKUS panels are environmentally friendly (certified woods in E-0 MDF), highly durable and available in various thicknesses. The array of colours and designs complement any interior space.

Experience the Difference

Attractive solutions that enhance spatial environments.

AKUS panels come in seven unique designs, inspired by nature. The panels are crafted to absorb human interaction sound frequencies (between 400-1200Hz).

Wide assortment of décor and panel selections.

A curated range of laminates offers a wide variety of tactility and colour options. Together with various MDF panel colours and thicknesses, the possibilities for personalisation AKUS panels are endless.

Easy to use and implement for furnishing designs.

Suitable for usage on both vertical and horizontal surfaces, AKUS panels can be easily incorporated onto furnishings to complement most interiors.

RECOMMENDED FOR Ceilings Discreet or showpiece

The unique groove designs of AKUS panels provide creative yet aesthetically subtle solutions to meet acoustic challenges and provide an improved audio experience like no other. Alternatively, you can transform a surface, like the ceiling, into a sound-absorbing piece of art with your ingenuity.

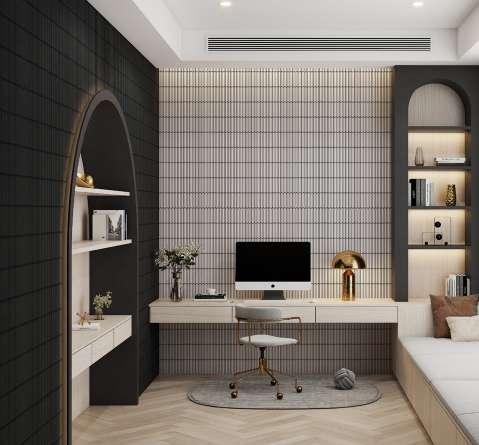

Walls

Flexible and functional

Solving acoustic issues without disrupting the overall design of small, narrow spaces can be difficult. In such instances, AKUS wall panels are an effective solution. An extensive range of laminates allows you to explore myriad possibilities in spaces of all sizes.

Room Dividers

Multi-functional carpentry work

Create multi - functional, flexible spaces in large areas featuring customised carpentry with optimised aural ambiences with AKUS panels. They can be machined to meet your requirements.

THE AKUS ADVANTAGE

Sturdy and Easy to maintain.

AKUS panels are easy to upkeep. They can be maintained in pristine condition without professional cleaning services. The effective combination of durable laminates and MDF boards provides stability and strength while ensuring resilience against basic wear and tear.

Engineered performance.

The secret behind AKUS panels’ versatility is the use of multiple perforations developed for optimum performance. Results from the ASTM E1050-95 standard test show that the panels absorb between 70% to 80% of sound waves that strike the panels’ surface.

Certified Environmentally friendly.

The eco - friendly MDF boards, from Forescolor, which are used for AKUS panels meet sustainability standards from international bodies such as Forest Stewardship Council (FSC), Korea Eco - Label by Korea Environmental Industry & Technology Institute (KEITI), California Air Resources Board’s (CARB) Phase 2, and Environmental Protection Agency (EPA).

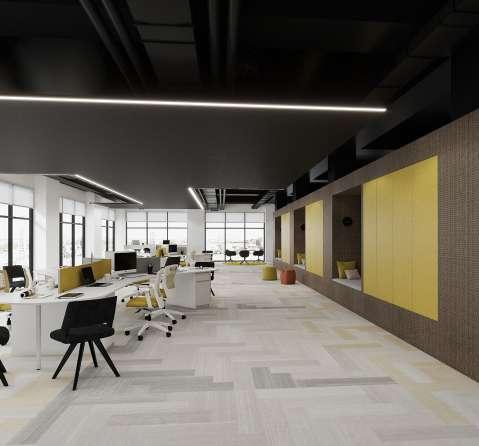

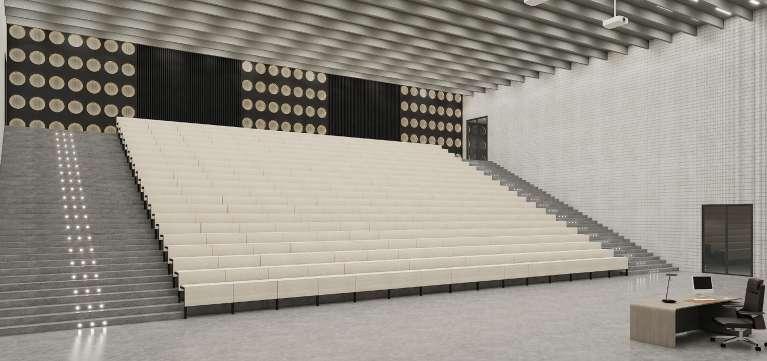

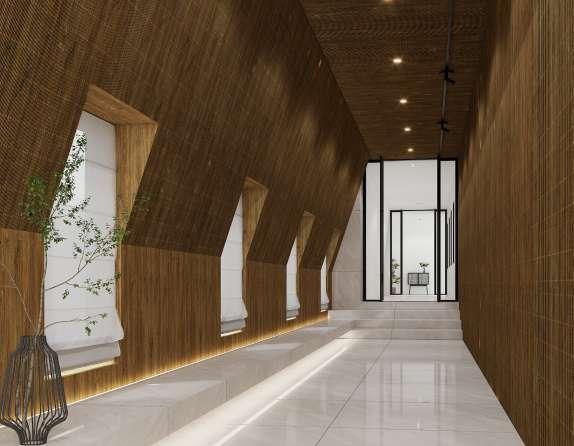

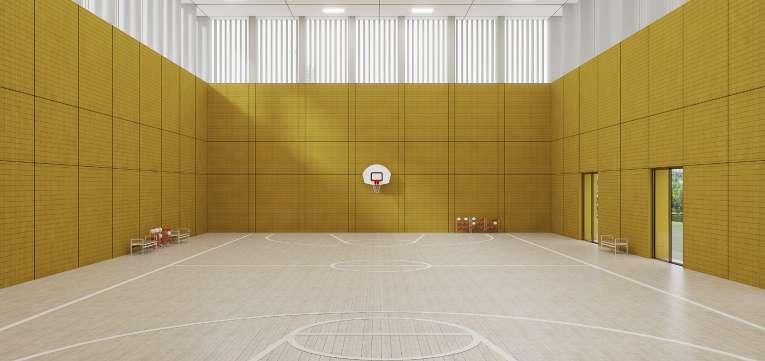

OFFICE AUDITORIUM COMPLEX RESIDENTIAL

Fall

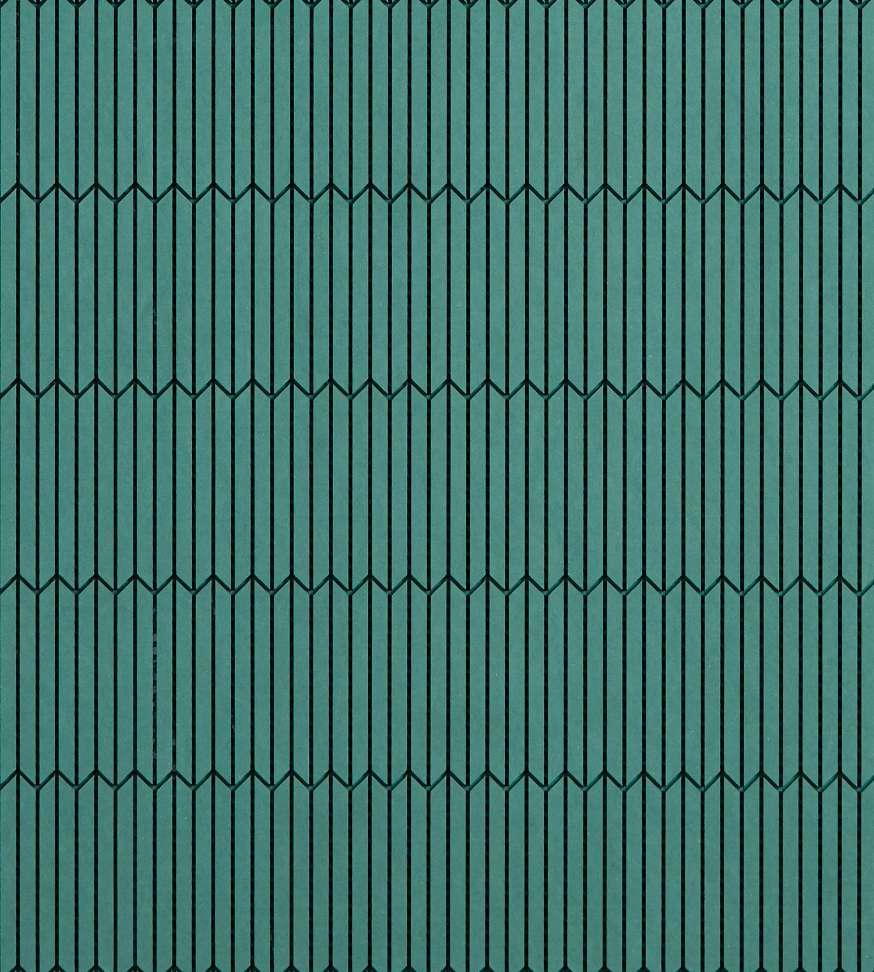

Fall 10mm NRC 0.50 SAA 0.50 Fall 16 mm NRC 0.54 SAA 0.55 Figure Figure 10mm NRC 0.47 SAA 0.46 Figure 16mm NRC 0.48 SAA 0.48
Flow Flow 10mm NRC 0.35 SAA 0.34 Flow 16mm NRC 0.32 SAA 0.33 Foglia Foglia 10mm NRC 0.43 SAA 0.43 Foglia 16mm NRC 0.52 SAA 0.53

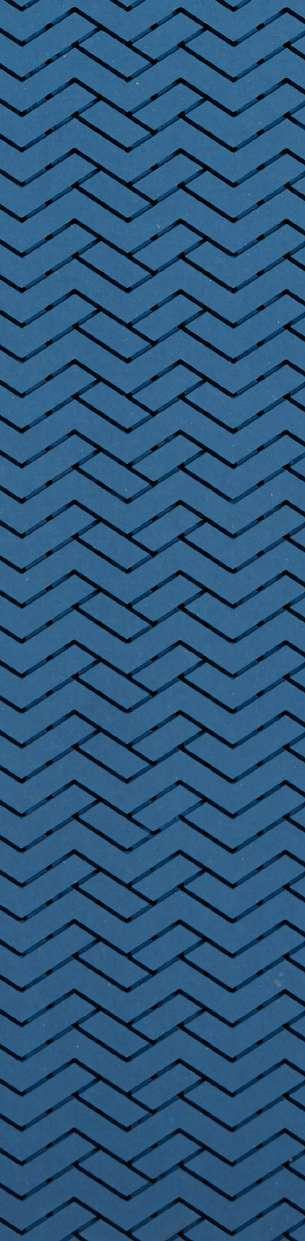

Fold 10mm NRC 0.55 SAA 0.55 Fold 16mm NRC 0.56 SAA 0.58
Fold

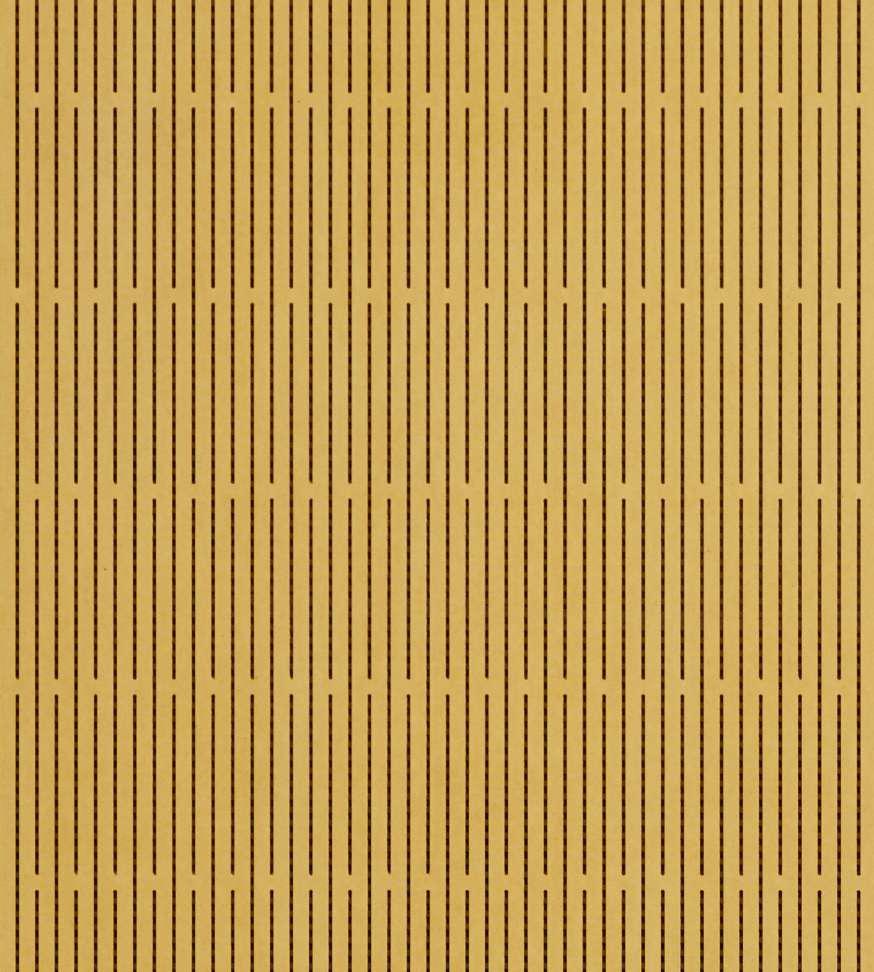

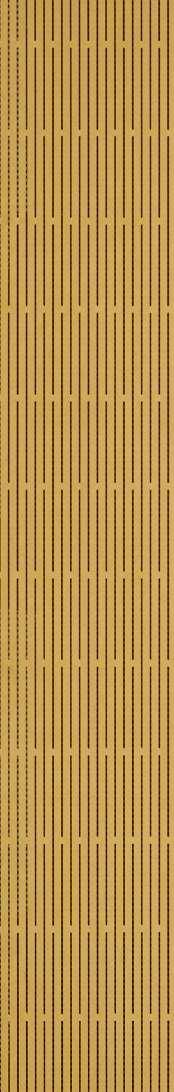

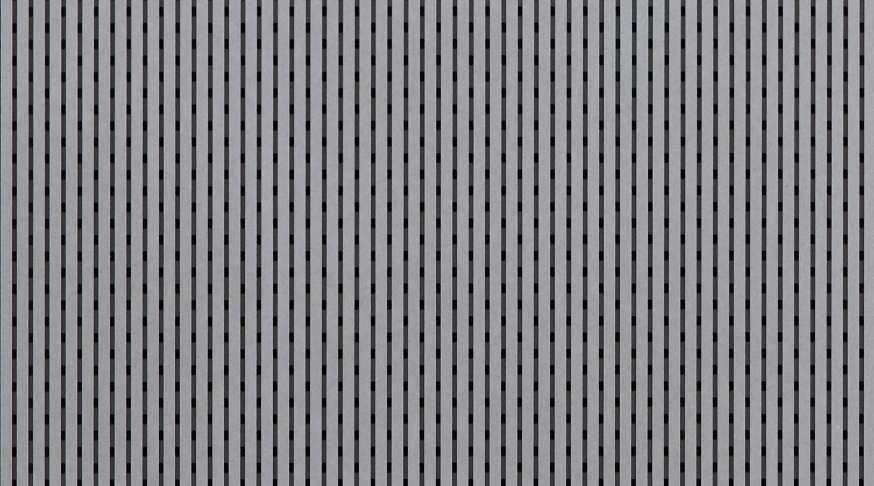

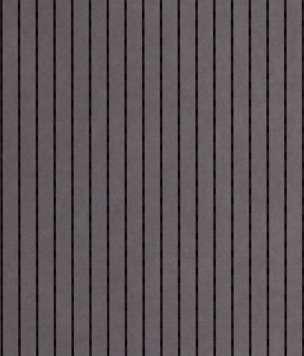

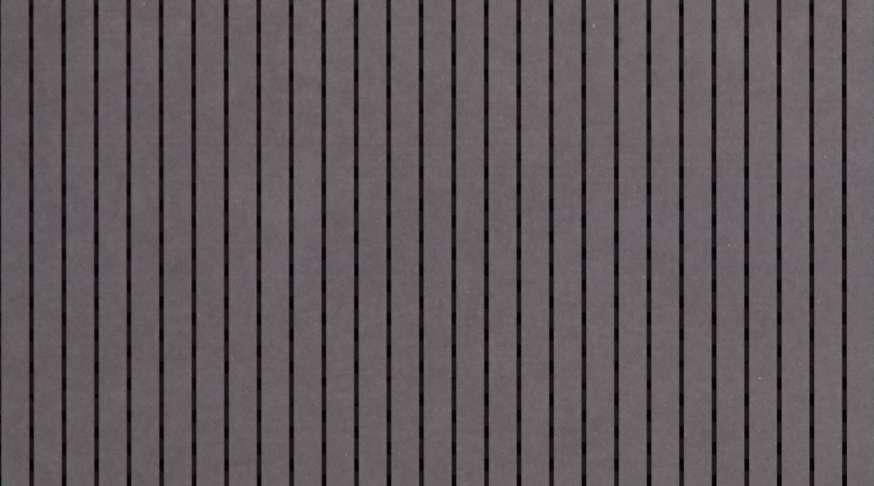

Strype S 10mm NRC 0.51 SAA 0.51 Strype S 16mm NRC 0.51 SAA 0.52 Strype M 10mm NRC 0.47 SAA 0.46 Strype M 16mm NRC 0.47 SAA 0.48
Strype S Strype M

PANEL DETAILS HOW IT WORKS

Standard Panel Size: 1200mm x 2400mm

Thickness: 10mm and 16mm (+- 1.4mm with laminate)

Installation method: Sandwich system for optimal performance

Customizable options: Choice of coloured MDF and/or

Laminate selection on your chosen AKUS perforation :

Laminate
Sound Less
Visit our website for more technical data. wg-spaces.com/brands/akus
AKUS
Concrete wall Air gap AKUS panel
Echo
FSB Black FSGY Grey FSGY - L Light Grey FSBR Brown FSBU Blue FSG Green FSR Red FSO Orange FSY Yellow

Choices of Laminates.

METAL

HP 1402XA Flaxx Ash HP 1404XA Flaxx Rouge HP 1502XA Halley Umber HP 1501XA Halley Sterling

PATTERNS AL801B Silver Brushed AL803B Steel Brushed AL202B Rose Brushed AL403B Vegas Brushed

WOODS PATTERNS

HS 5002VT Velvet Olive HS 5001VT Velvet Lake HS 4001VT HS 2001VT Velvet Blush HS 6001VT Velvet Indigo HS 8001VT Velvet Pewter HS 8003VT Velvet Smoke HS 8002VT Velvet Ash HS 9001VT Velvet Ivory HS 9002VT Velvet Frost

SOLIDS

HP 1401XA Flaxx Penny HP 1403XA Flaxx Taupe HP 1504XA Halley Night HP 1503XA Halley Basalt DXO 1337D Bianco Caraceni DXO 4322X Gillian Faux Denim DXP 1361K Tito Ercolano DXP 1370K Auguste Beton SCA 1103D Mood SCA 1132D Nude SCA 1136D Pewter SCA 1138D Clay SCA 5101D Designer White SCX 1166D Pebble PCA 5107S Caviar CES 1108S Basic Black

WG 1203S Silver Legno Oak WG 5207S Clear Legno Oak WG 5254D Giselle Hemavan Ash WG 5255D Emile Hemavan Ash WY 4211X Fondue Ash WY 4219X Black Oregon Teak WY 4220X Natural Eames Teak WY 4222X Stateroom Eames Teak WY 4231X Creme Akemi Ash WY 4232X Pearl Akemi Ash WY 4262X Reid Hoffmann ELM WY 4265X Aiko Shizuoka Oak WY 4266X Ivory Yugen Oak WY 4267X Natural Yugen Oak WY 5213D Amerie Viola Noce WY 5242D Biaggio Noce Roma WY 5217D Hermes Marcello Walnut WY 5218D Ermanno Marcello Walnut WY 5240D Collins Marcello Walnut

AL401B Lush Brushed
SOLIDS AL404B Chardonnay Brushed AL802B Matt Silver Brushed

AWARDS

At W+G, we endeavor to forge rewarding partnerships amongst our international and local networks in the world of design and material distribution.

By staying inquisitive and paying attention to new trends, we bring innovative solutions to interior spaces across Thailand.

Visit us at SPACE Studio: 2nd Floor Unit A217, K Village at 93,95 Sukhumvit 26 Klongton Klongtoey Bangkok 10110 Thailand. 1st Runner-up for ‘Best Innovation’ at the Architect Expo 2022
ABOUT W+G

wg-spaces.com/brands/akus

T 02 683 0440-1
F 02 683 0442
E sales@wg-spaces.com
