One Way Lashing Page 48

One Way Lashing

USER INSTRUCTIONS UNIFIXX ONE WAy LAShING

1 2

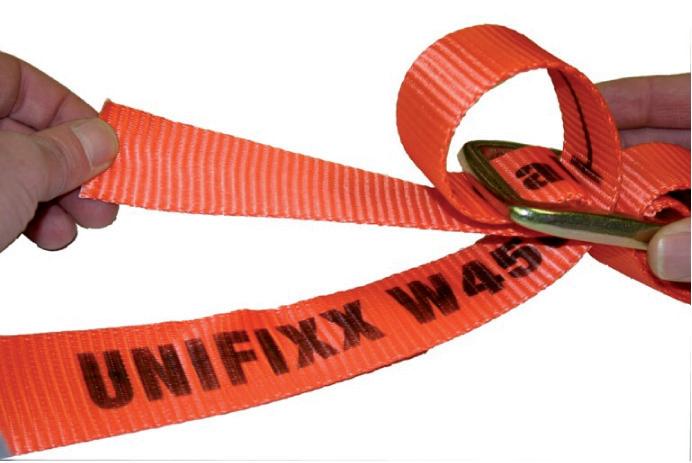

Thread one end of the lashing webbing through the middle of the buckle

4

Make a loop around one end and insert the lashing webbing under the looped end

5

Pull the lashing webbing away from the buckle Repeat step 1 - 4 with the opposite end

8 3

Lead the end back through the middle of the buckle

6

Pull tight and allow a min. overlap of 25 cm for tensioner use

9

Squeeze the handle of the tensioner and lead the webbing under the break lever

10

Pull the handle wide open and place the top lashing webbing part through the cutter and tensioner slot

11

Move the handle up and down to tension the lashing webbing; keep min. 8 cm overlap from the buckle

12

Squeeze the handle to cut the lashing webbing (10), release the break (11) and remove the tensioner (12)

Unitex Anti slip matting

ANTI SLIP MATTING FOR LOAD SECURING

The safe loading of vehicles is vitally in prevending injury to people and damage of property when transporting a load the load must be restrained tidily and safely is order to prevent the load from shifting during transport The load is required to withstand forces of at least:

• 80% of its weight in forward direction (braking) • 50% of its weight sideways and backwards (acceleration and cornering). • 20% of the weight in upwards direction ( rough roads)

Load-securing with Polyester or chain lashing is not always sufficient especially when there is low friction between the load and baering surface at full stop surface Load restraint equipment is most efficient when there is high friction between the vehicle and the load surface, for this you need appropriate inter layer packing. Unitex has specially designed anti-slip rubber matting for interlayer packing “UTX-ARM” which increases the friction between the two surfaces. In fact this UTX-ARM anti slip matting should belong to the standard equipment for every responsible and professional transporter.

Unitex UTX-ARM Anti slip matting increases the friction between the surface up to at least 0,6µ as a result the load can be restrained with fewer lashings because you need less tension or lashing force to secure the load Unitex UTX-ARM anti slip matting is also very useful for loads which can’t withstand high pressure or tension forces
