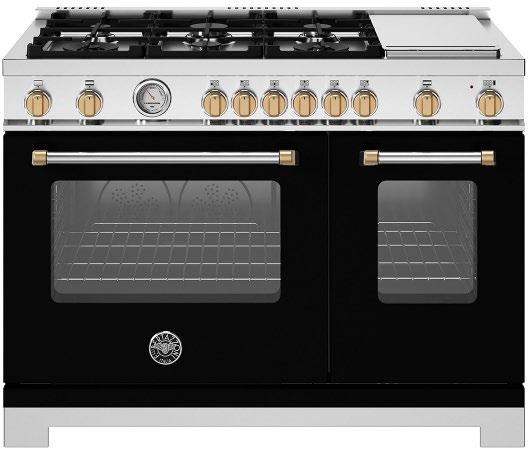

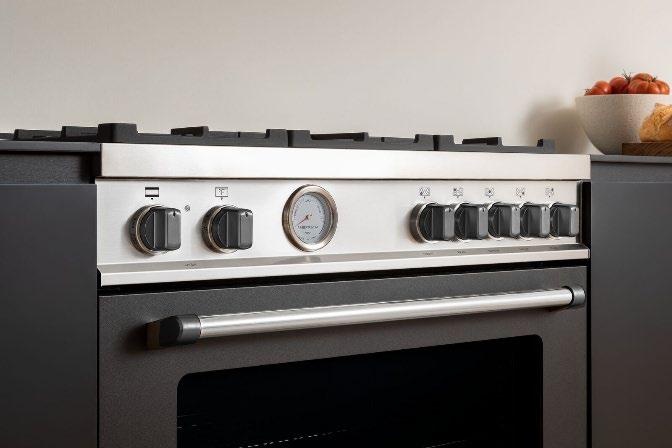

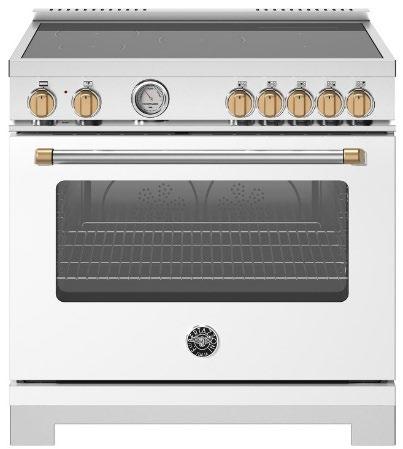

MASTER SERIES RANGES
PROFESSIONAL SERIES RANGES

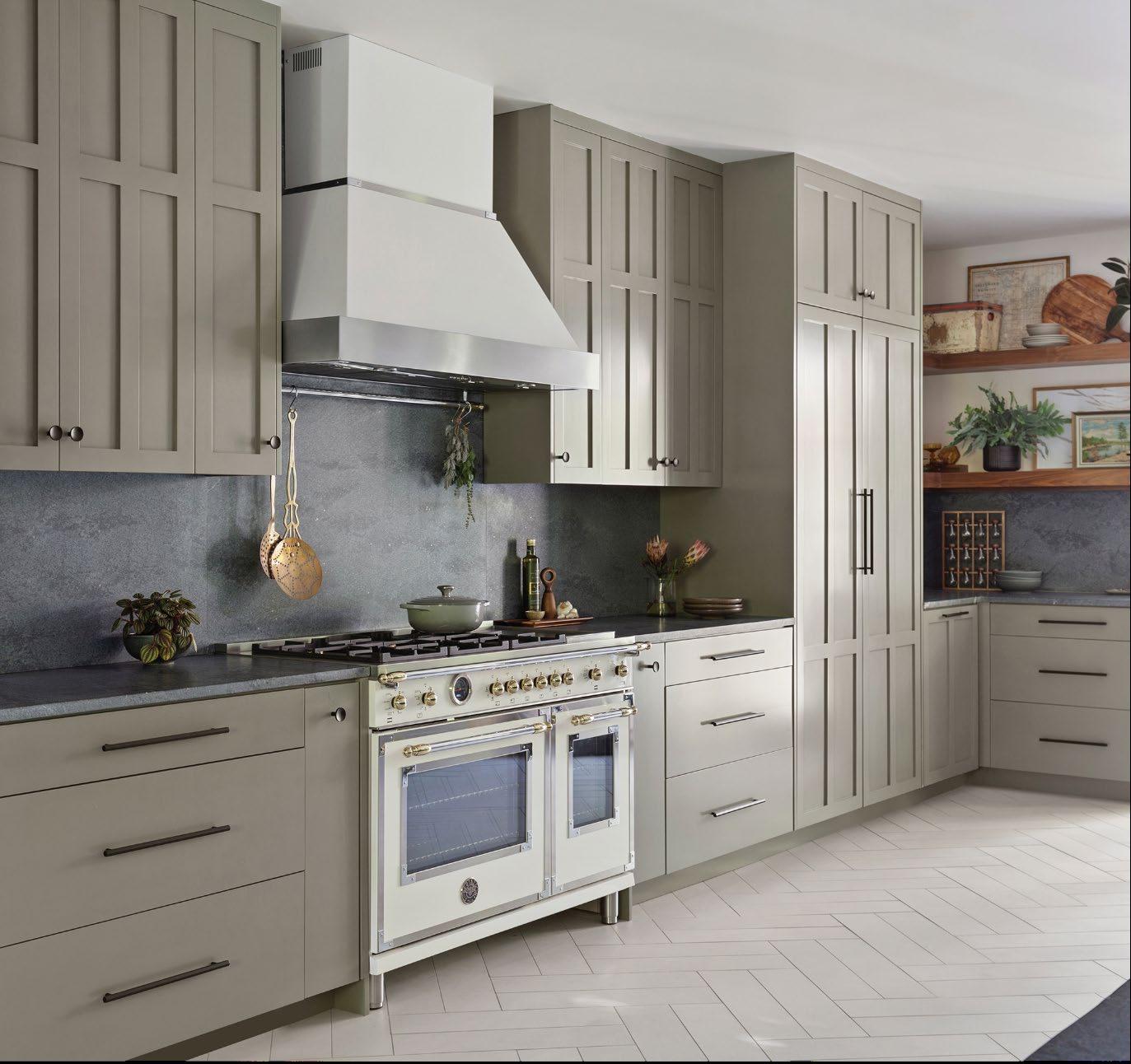

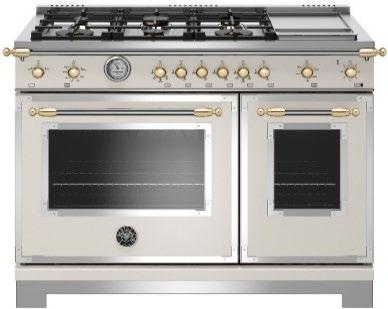

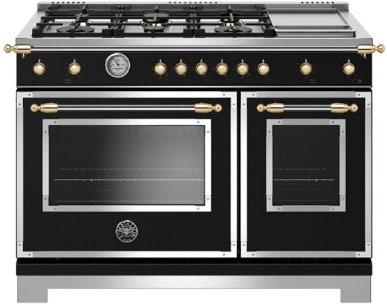

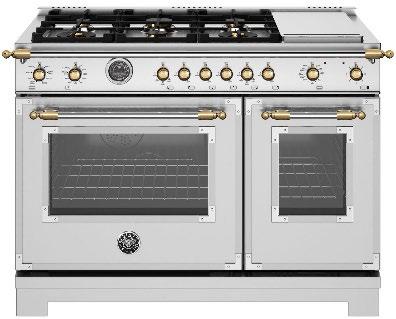

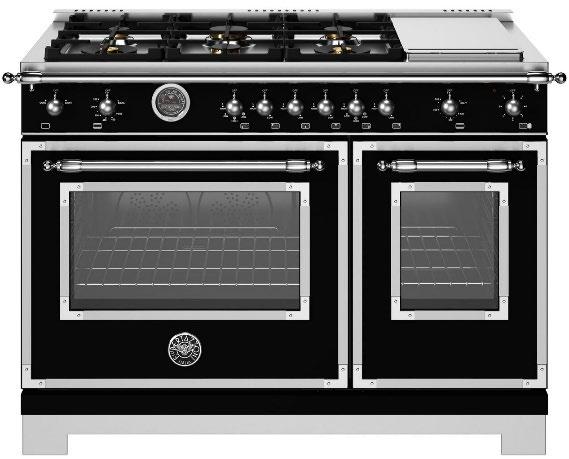

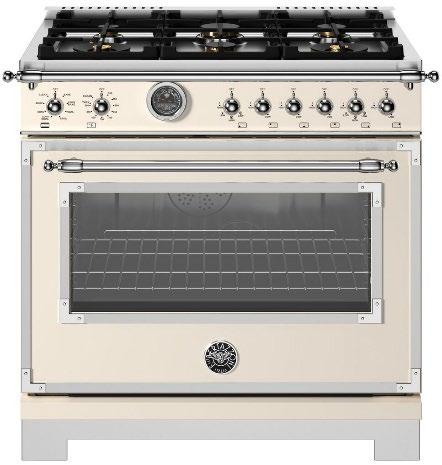

HERITAGE SERIES RANGES

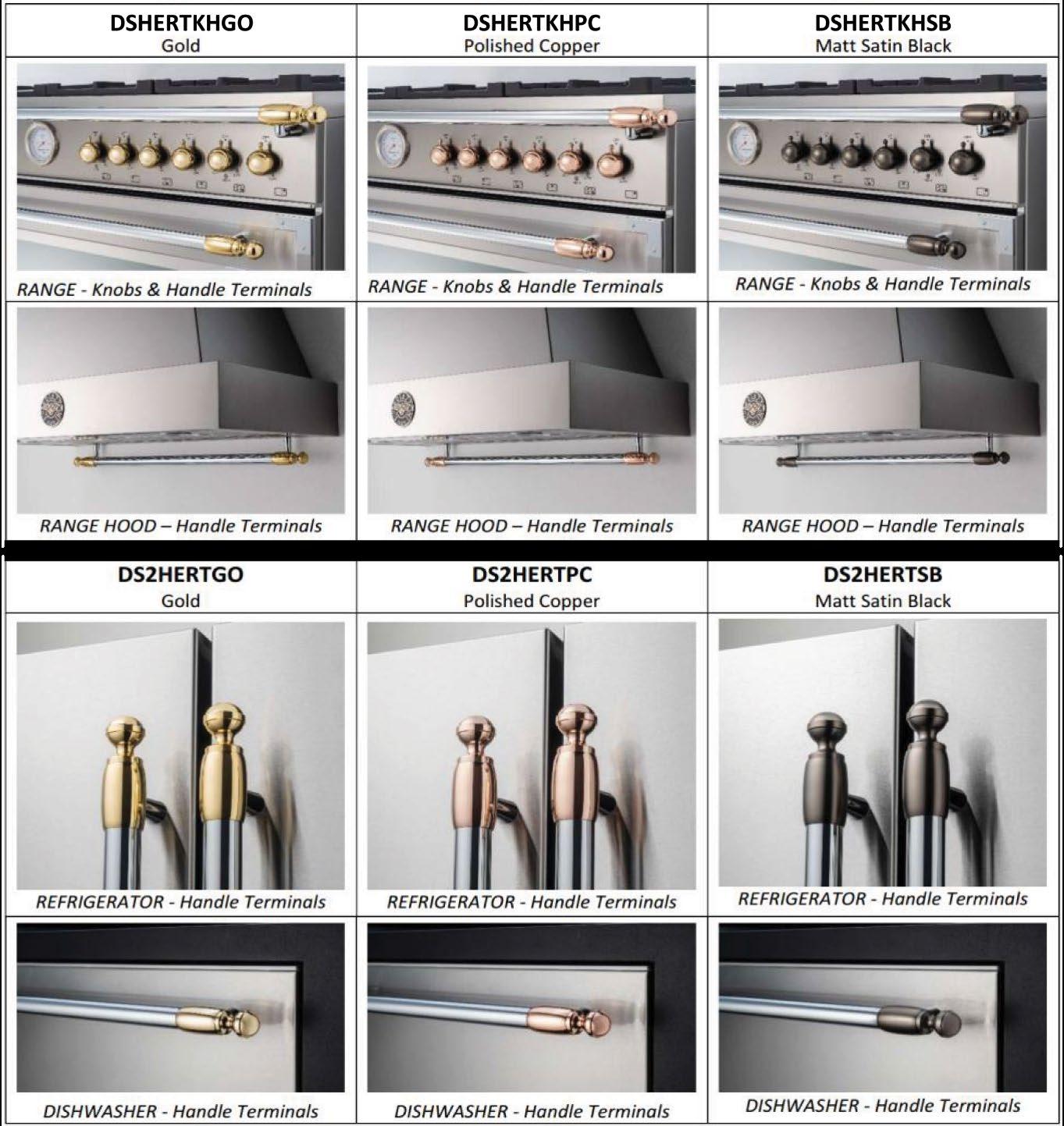

HERITAGE DÉCOR SETS

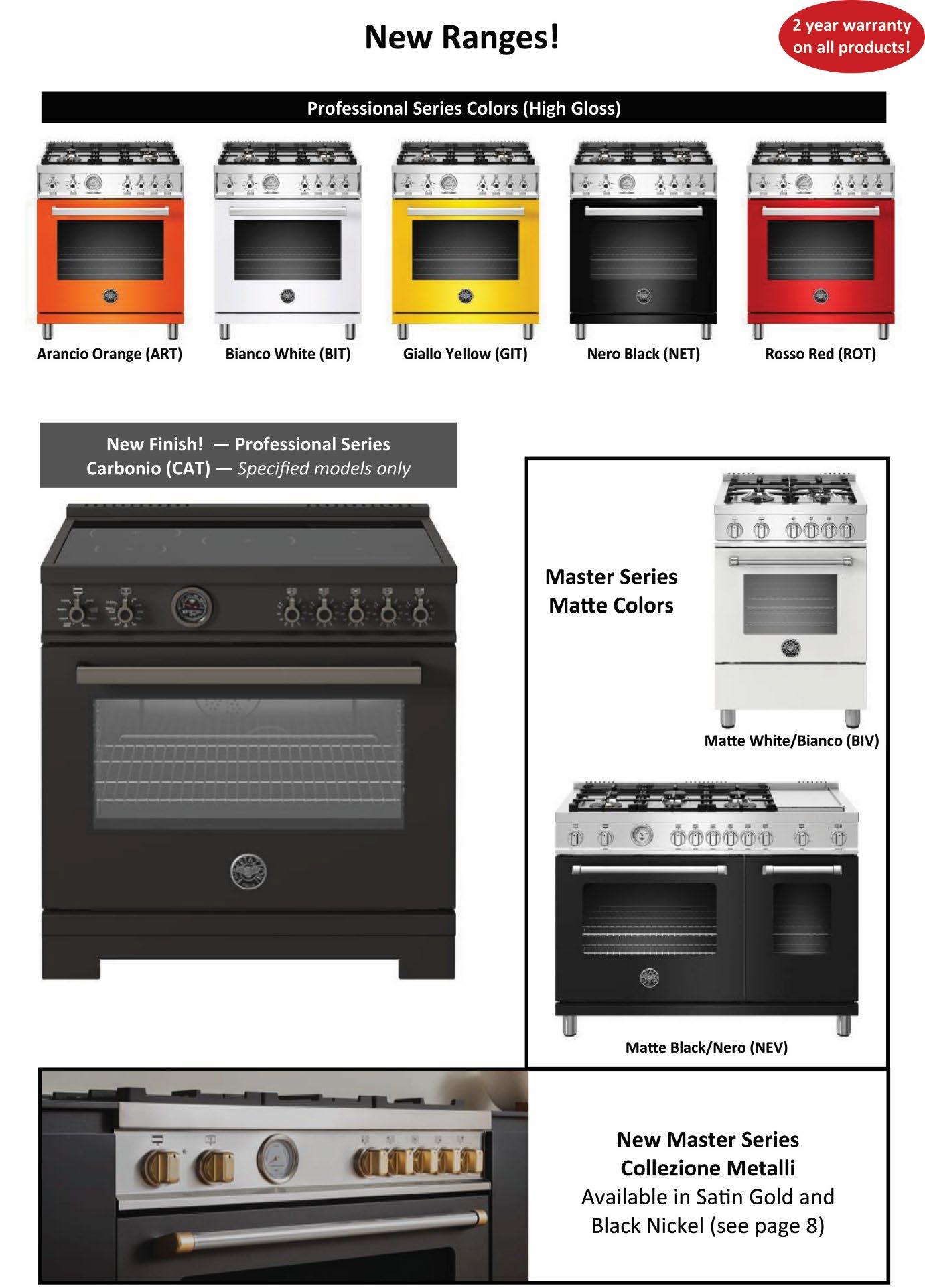

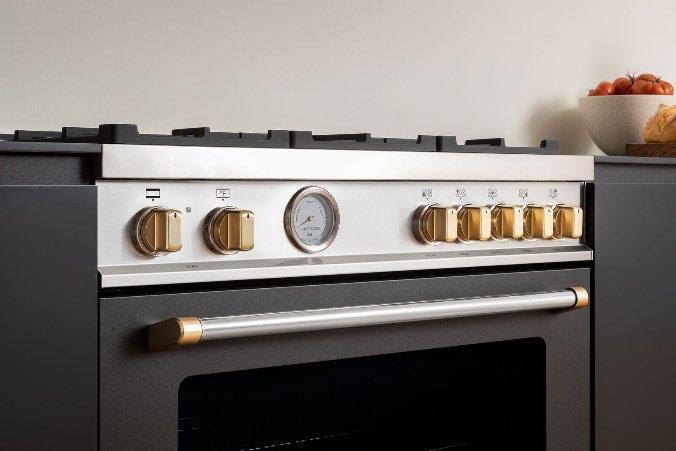

NEW ! MASTER SERIES COLLEZIONE METALLI
Black Nickel Satin Gold
COOKING ACCESSORIES AND OPTIONS

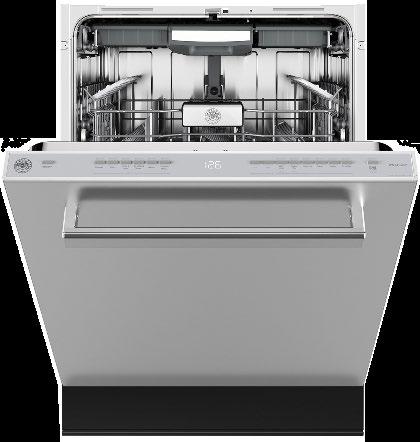

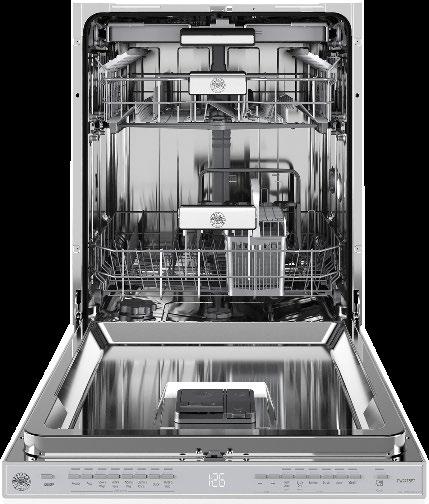

NEW! DISHWASHERS
DISHWASHER HANDLES (Required for SS Models, optional for Panel Ready)
Fits New Models: DW24T_, DW24S_, DW18S_
UNIVERSAL FEATURES:
Energy Star Rated
Stainless Steel Interior
Concealed Heating Element
Triple Stage Filter
Hidden Top Controls / white LED display PowerDry Drying System (24" only)
Floor Projection Status Light (24" only)
Overflow Protection Device
7 Wash Options (24" models) accel, extra dry, delay start, half load, sanitize, scrub, stealth
5 Wash Options (18") extra dry, delay start, half load mode, sanitize, scrub
Direct Wire Electrical
DELUXE MODEL FEATURES
8 Cycles auto, crystal/china, normal plus, pots/pans, quick, regular, rinse/hold, wash/soak Flexible & Foldable Third Rack
3 Spray Arms + DirectWash Zone
DW24T3IPT
DW24T3IXV
STANDARD FEATURES with HK24PRODWX
6 Cycles auto, crystal/china, pots/pans, quick, regular, rinse/hold
3rd Rack on Tall Tub (not avail on Standard /ADA height)
3 Spray Arms on 24" | 2 Spray Arms on 18"

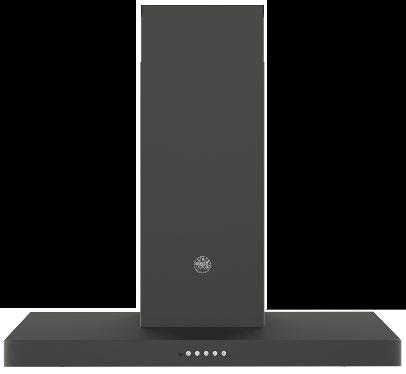

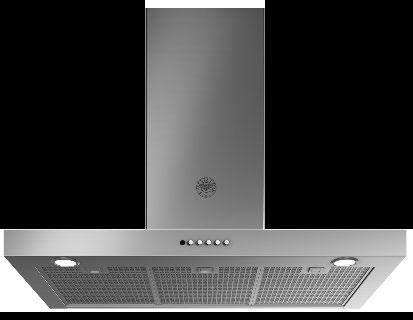

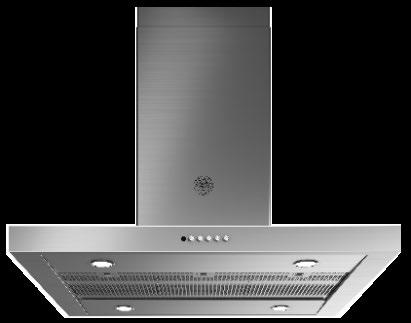

T-SHAPE VENTILATION
600 CFM, 6 inch round duct
Limit airflow to 295 or 395 CFM with digital airflow reducer
Mesh filters
LED Lighting
ADA Compliant remote control included
Telescopic duct cover included, fits 8' to 9' ceiling
T-SHAPE VENTILATION ACCESSORIES

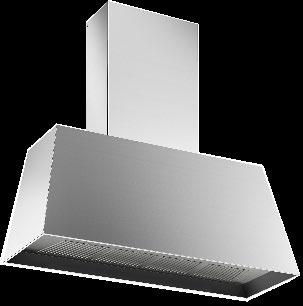

HEAVY DUTY VENTILATION
600 CFM hoods can be digitally reduced to 395 CFM
Duct Size: 600 CFM = 6" round, 1200 CFM = 8" round
SS Baffle Filters
LED Light bar
Telescopic duct cover included
Overall height adjustable from 34 1/2" - 53"
19 11/16" deep
Recirculating filter available (600 CFM models only) Filter 901612: $54 UMRP $75 RETAIL
CONTEMPORARY VENTILATION
Ducted
Ducted

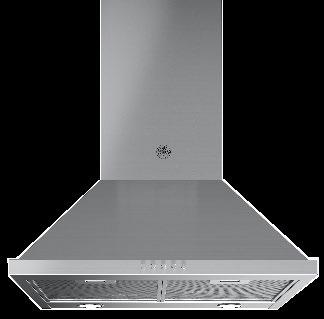

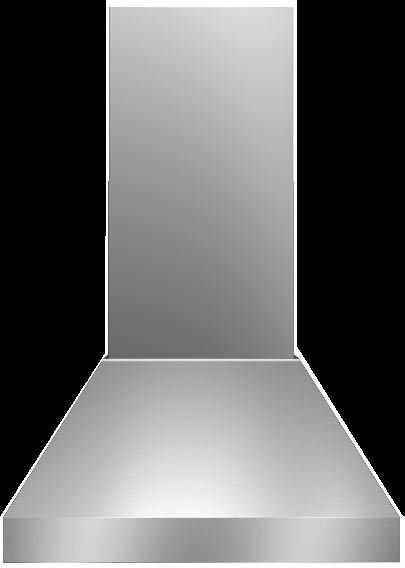

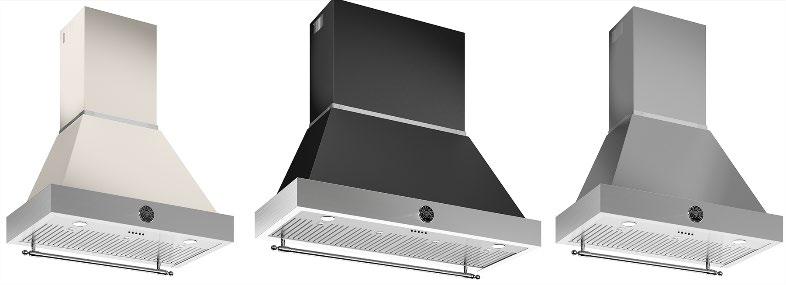

CHIMNEY STYLE VENTILATION
OTR MICROWAVE HOODS

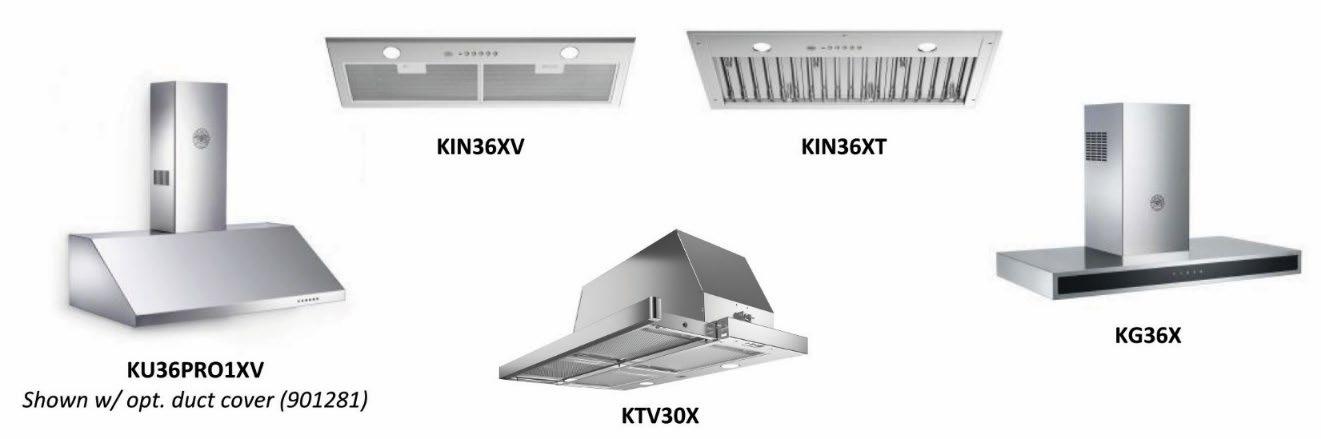

VENTILATION
Pro series: SS, Electronic controls, 10 1/8" Tall, wall or undercabinet, optional duct
KU--PRO1X14 hoods can recirculate | chimney installs only with 901394 filters
Pro Series XV: SS, Slider controls, 8 1/4" Tall, wall or undercabinet, optional duct cover sold separately
KU--PRO1XV hoods can recirculate in undercabinet installs with kits 901396 (24"), 901335 (30"), 901336 (36")
Design Series: SS w Black Glass Front, Touch controls, 3 1/8" Tall, wall mount, duct cover incl for 8' - 9' ceiling
KG hoods can recirculate | chimney installs only with 901578 filters or 901577 recirc kit
Visor Series w Telescopic Extension: SS, Touch controls, cabinet mount
KTV hoods can
with 901531 filters (NOTE: Air must be directed out of cabinet)
Hood Inserts: SS, Electronic controls, LED Lighting
KIN hoods can recirculate with 901531 filters (NOTE: Air must be directed out of cabinet)
22 1/8" Wide
VENTILATION
KU__PRO1 models
KU48PRO2, KU48PRO1
KU__PRO1 models
KU48PRO2, KU36PRO2
KU36PRO2, KU36PRO1
KU30PRO1
KG48X, KG36X
901396 | 901335 | 901366

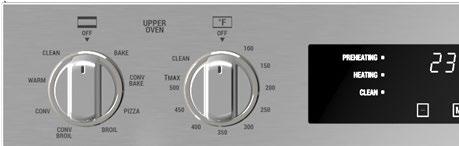

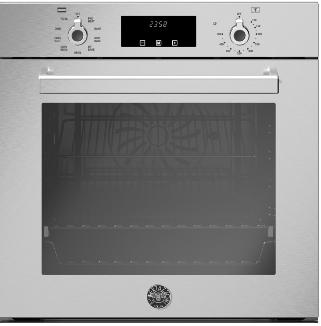

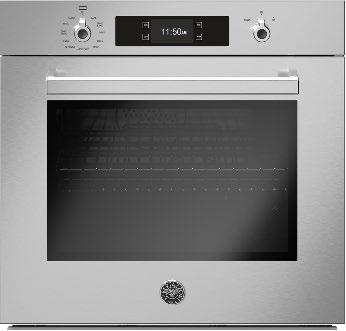

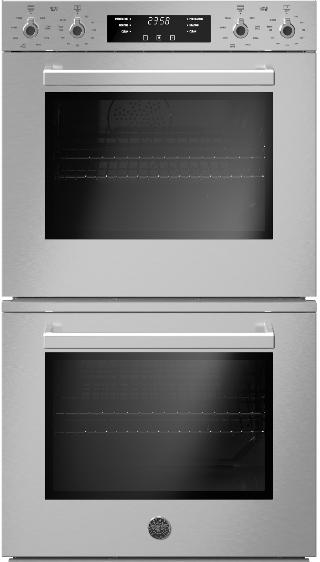

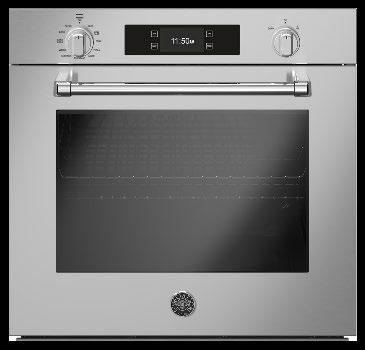

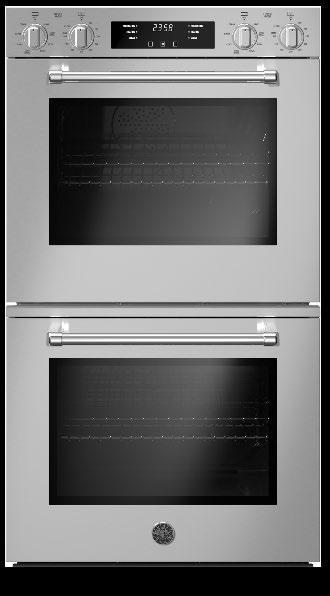

30" BUILT-IN OVENS
| Keyhole Knobs |
Stainless
| Round Knobs |
Self cleaning on all ovens

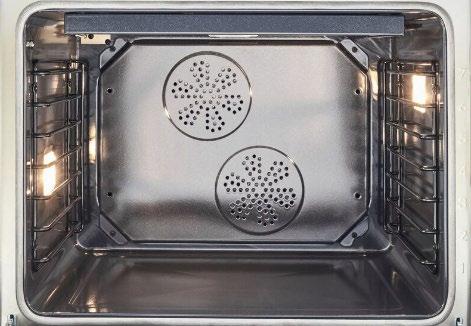

Dual diagonal fan convection system
One telescopic glide per oven cavity (Deluxe)
Extra large 4.1 cu ft capacity per oven
Panoramic glass | clear view of all 7 levels
Bertazzoni Chef Assist creates, manages and stores cooking methods for perfect results

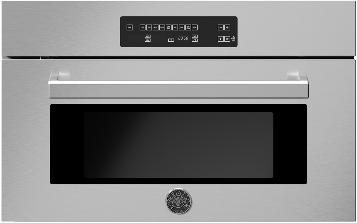

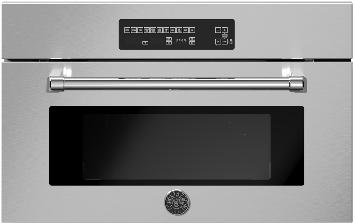

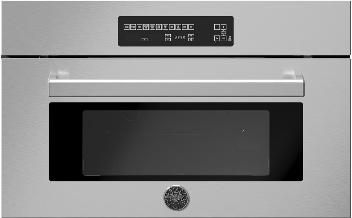

30" BUILT-IN COMBI SPEED OVENS
CONVECTION BAKE, BROIL and MICROWAVE
New Intuitive Controls
Glass Turntable with Roasting Trivet
Plentiful Cooking Modes Including Popcorn
1.34 cu ft Capacity
29 78" W x 21 3/8" D x 18 3/4" H | 240V 16A

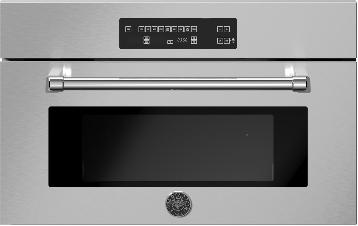

30" BUILT-IN CONVECTION STEAM OVENS
CONVECTION BAKE, BROIL and STEAM
New Intuitive Controls
1200W Dedicated Broiler
Wire and Perforated Shelves
1.34 cu ft Capacity
29 78" W x 21 3/8" D x 18 3/4" H | 240V 16A

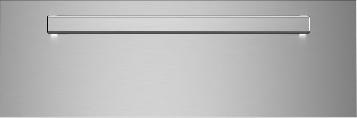

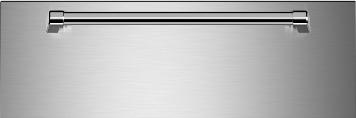

30" BUILT-IN WARMING DRAWERS
LATERAL CONVECTION HEATING SYSTEM
80° to 170° Temperature Range
Tempered Glass Cavity Bottom Plentiful Cooking Modes Including Popcorn
29 78" W x 22" D x 9 5/8" H | 120V 5A

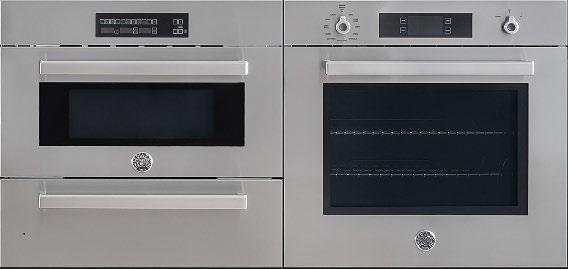

Height of the Speed/Steam Oven plus Warming Drawer is the same as a 30" Wall Oven
Build a Sleek Side by Side Combo like this!
950 W, 11 Power Levels

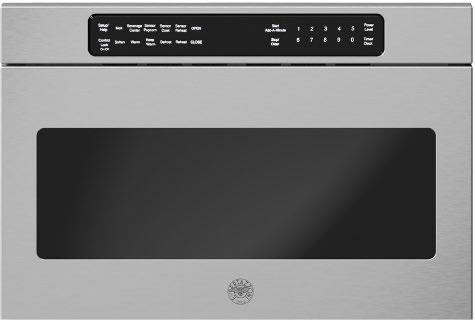

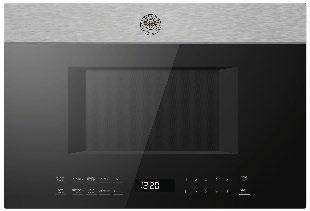

24" MICROWAVE DRAWER
Touch Controls w Sensor Cooking | Defrost, Popcorn, etc
Motorized Power Drawer
23 78" W x 23" D x 15 7/8" H | 120V 13.6A
24" BUILT-IN ELECTRIC WALL OVEN
3/8" W x 23 1/2" D x 21 7/8" H | 240V 13, 16A

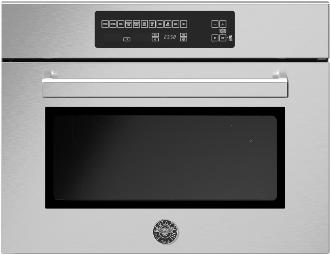

24" ELECTRIC COMBI SPEED OVEN
DESCRIPTION 24" Speed Oven
1.34 cu ft Stainless Steel Built-In Speed Oven LCD Touch Control Panel Euro Convection Ring Heating Element + 1500W Broiler Stainless Steel Interior Glass Turn Table
3/8" W x 21 3/8" D x 17 7/8" H | 240V 13, 16A
24" BUILT-IN MICROWAVE OVEN
Stainless frame for 30" Built-In
2 cu ft Capacity Built-In Microwave Oven 1100W 24" W x 18" D x 12 1/2" H | 120V, 15A

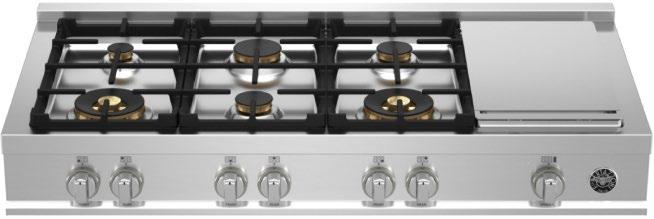

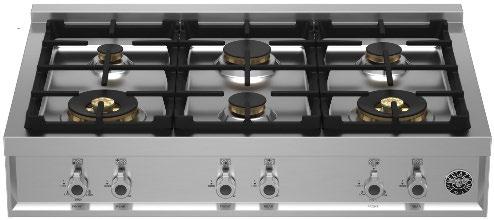

GAS RANGETOPS

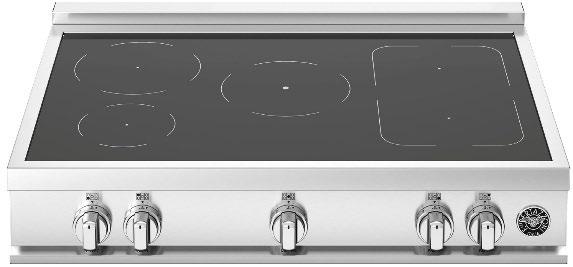

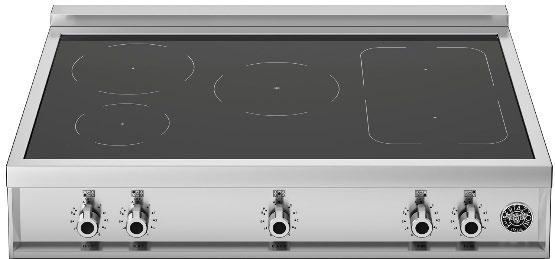

INDUCTION RANGETOPS
DIMENSIONS
LOW PROFILE COOK TOPS
FRONT CONTROL COOK TOPS
INDUCTION AND ELECTRIC COOK TOPS
P365IAE P304IAE
SPECIFICATIONS
|

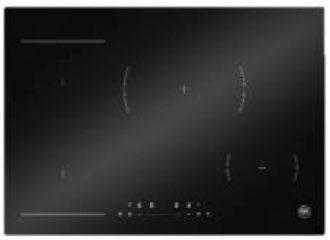

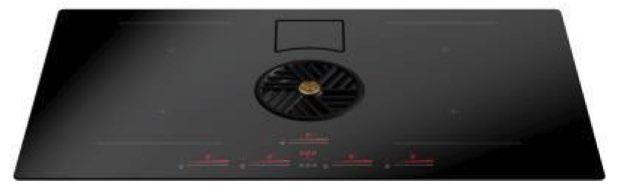

NEW! INDUCTION COOK TOPS
14,800 TOTAL WATTAGE 10,400 8,200 7,400
SPECIFICATIONS
| OVERALL 35 7/16"W x 20 1/2"D | CUTOUT 33 11/16"W x 19 1/2"D
PE304INDXV | OVERALL 30 4/16"W x 20 1/2"D | CUTOUT 28 15/16"W x 19 1/16"D
V 48A
V 32A
PE244INDXV | OVERALL 21 3/4"W x 20 1/2"D | CUTOUT 22 1/4"W x 19 1/2"D 208/240 V 30A
PE364IDDNET | OVERALL 36"W x 8 1/4"H x 20 1/16"D | CUTOUT 34 3/4"W x 19 3/8"D
V 35A
AND 24" REFRIGERATION

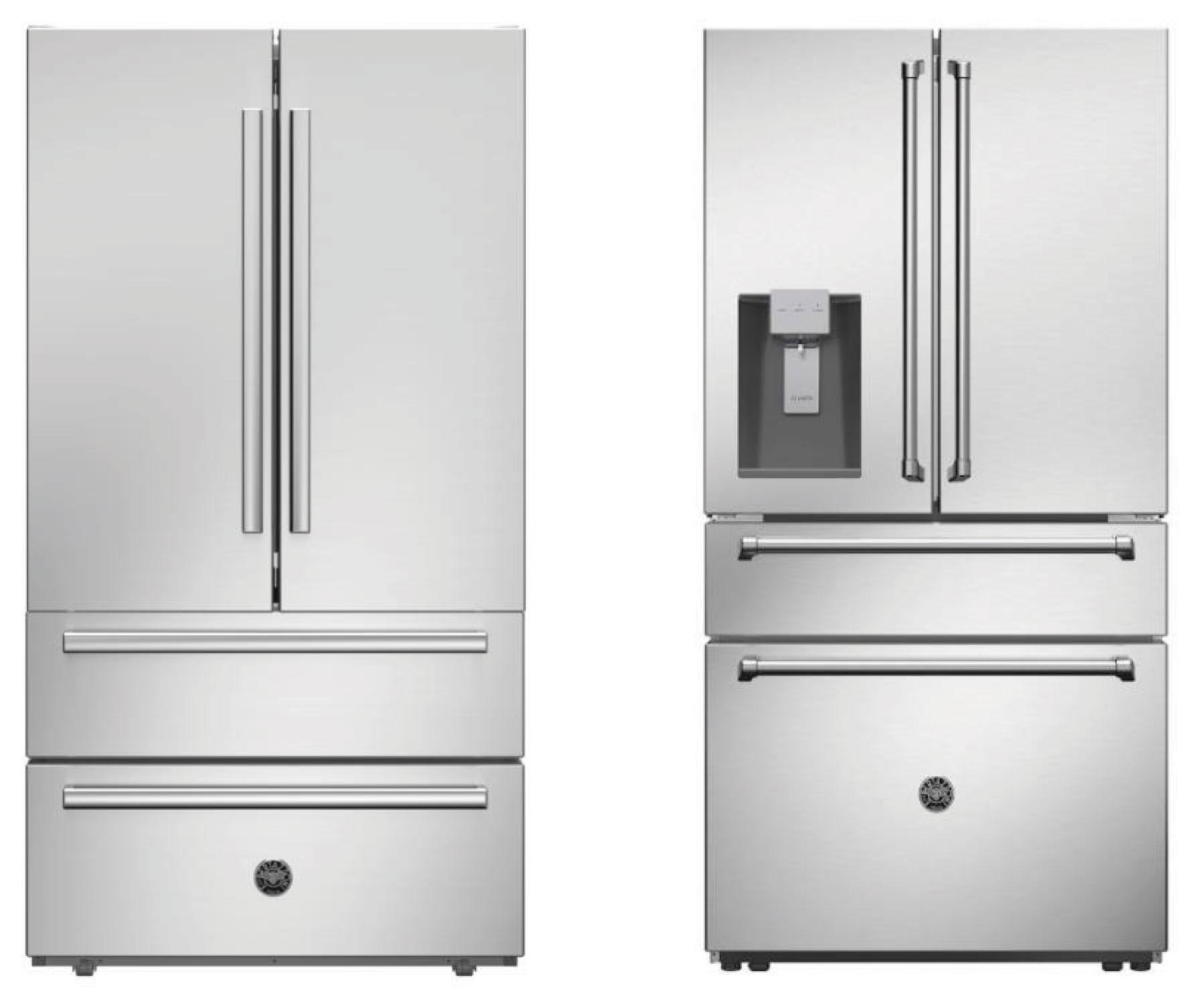

36" FRENCH DOOR REFRIGERATORS
w/ HK36PROFDX
w/ HK36MASFDX
French Door Refrigerator w/ Double Freezer Drawers | Features LED Controls and Lights, Automatic Ice
French Door Refrigerator w/ (1) Freezer Drawer and (1) Quattro Temp Zone Drawer with customizable settings for meat & fish, delicacies, beverages or wine. | Features (3) Evaporators,and Dual Air-flow Cooling with Independent No-Frost Systems, LED Controls and Lights, Through the Door Ice & Water, (2) Large Humidity Controlled Crispers.

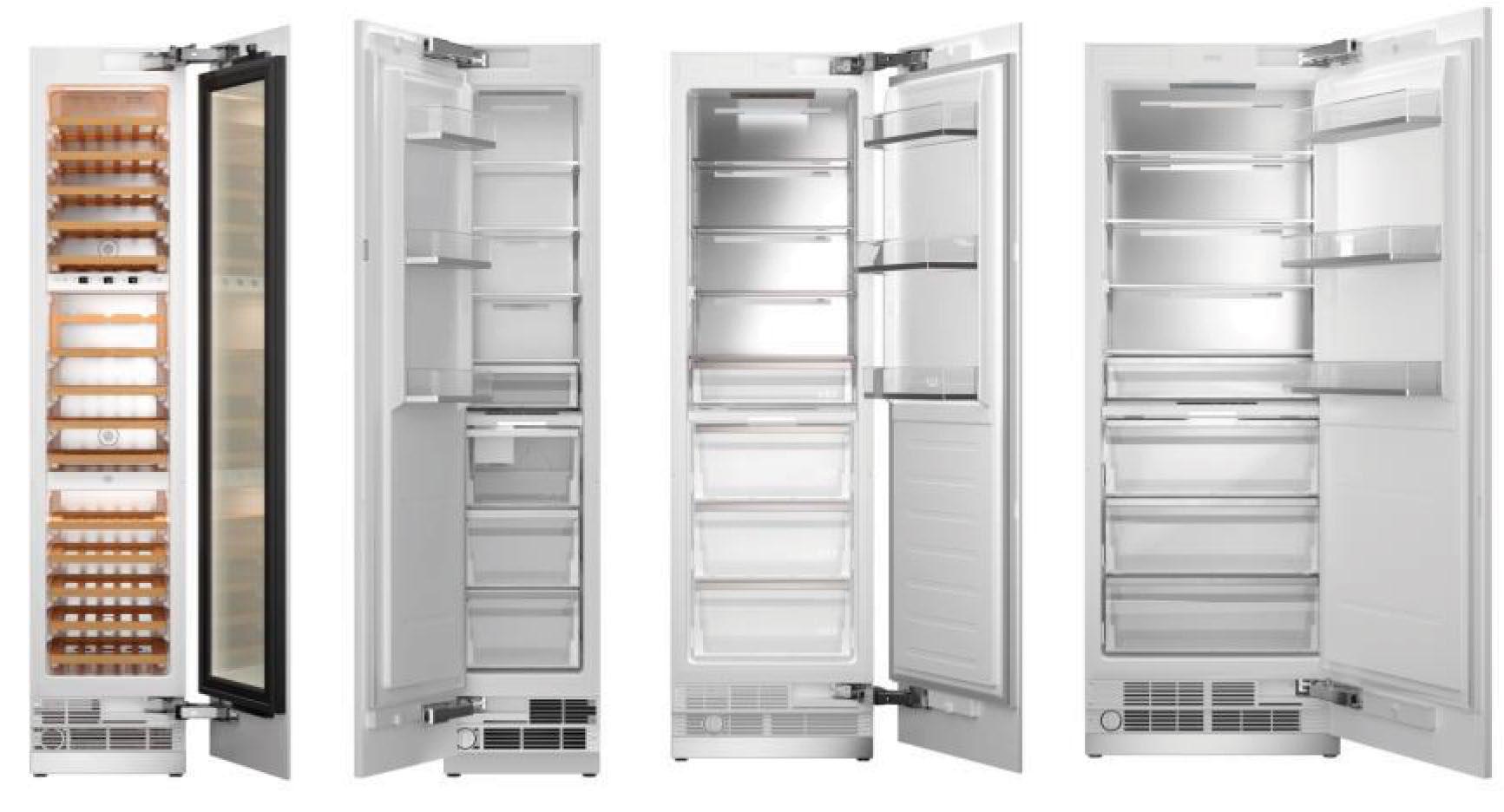

BUILT-IN COLUMNS
Refrigerators feature internal water dispenser and fresco drawers with separate tempertaure controls
Freezers feature automatic ice makers. | Wine cellars can hold 68 bolltles (18") or 100 bottles (24") All units feature LED LIGHTING and multiple convinient settings (including Sabbah mode). All Units are 83 6/16"H x 23 5/16"D | 18" column doors are not reversible

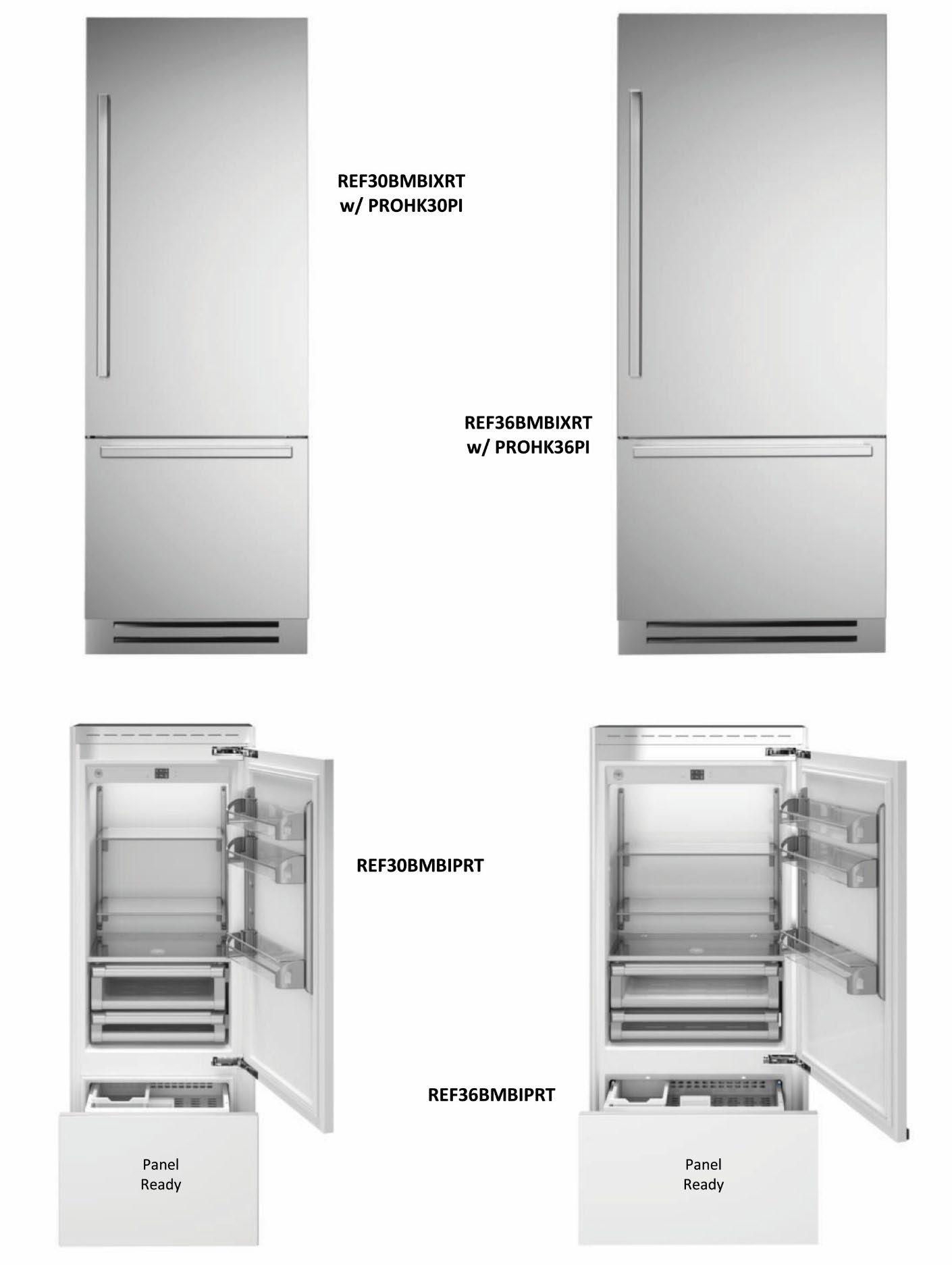

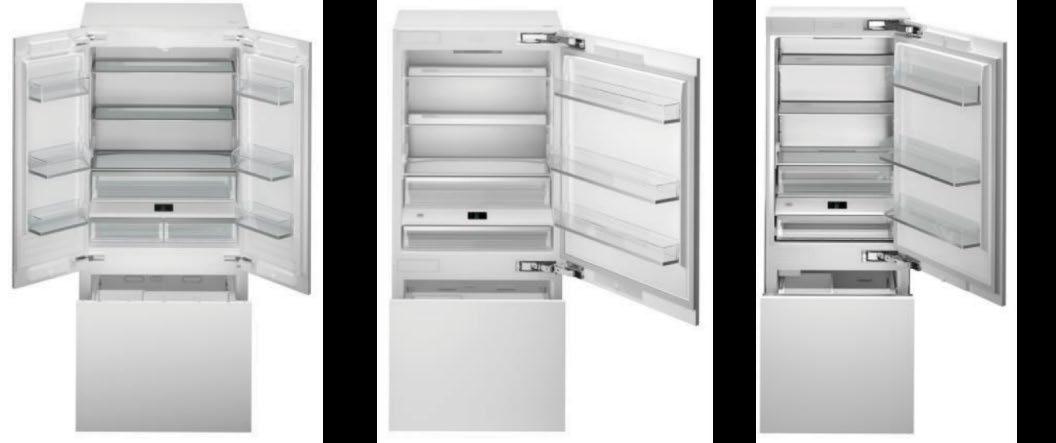

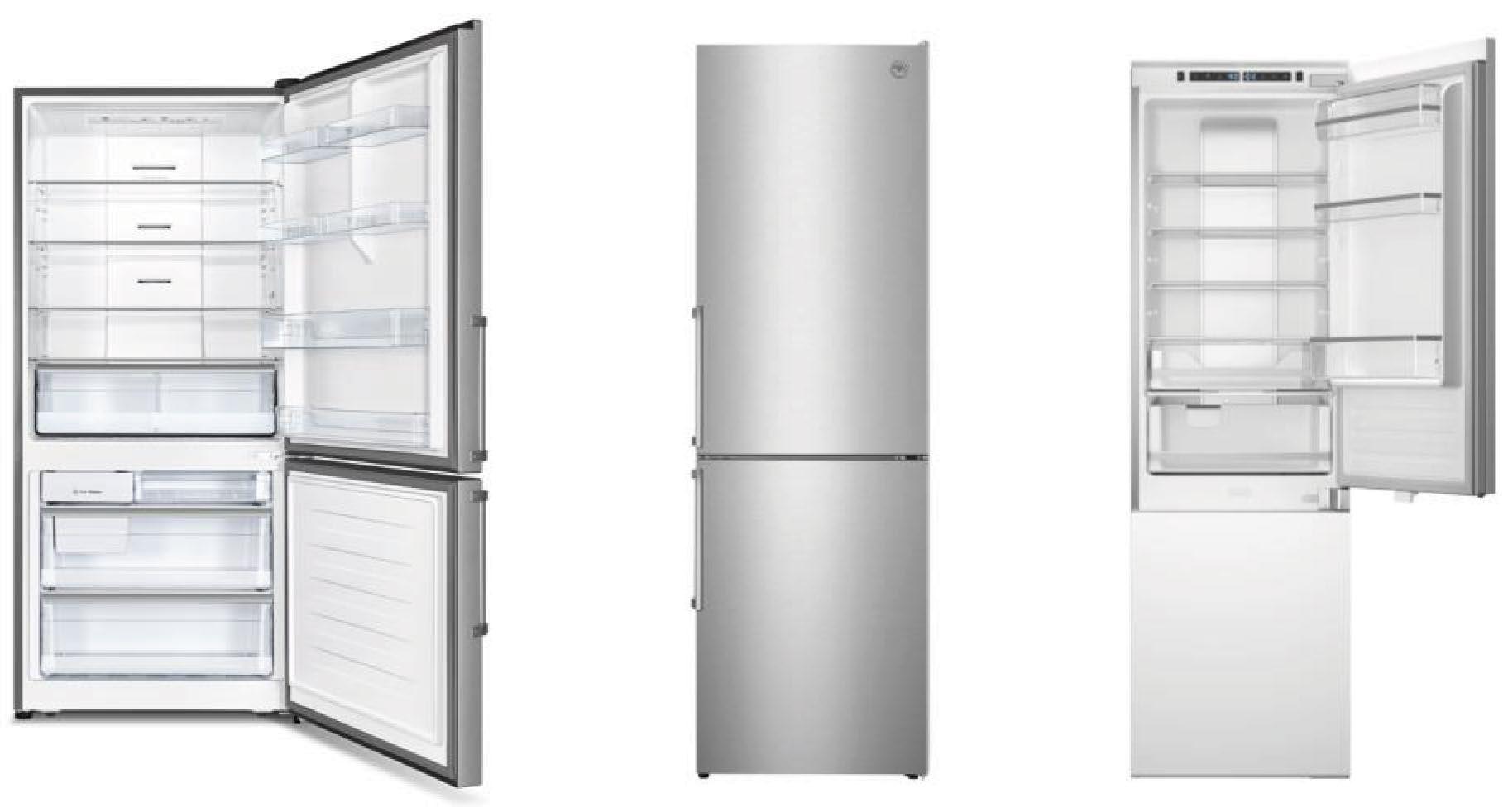

BUILT-IN REFRIGERATORS
ITALIAN BUILT REFRIGERATION

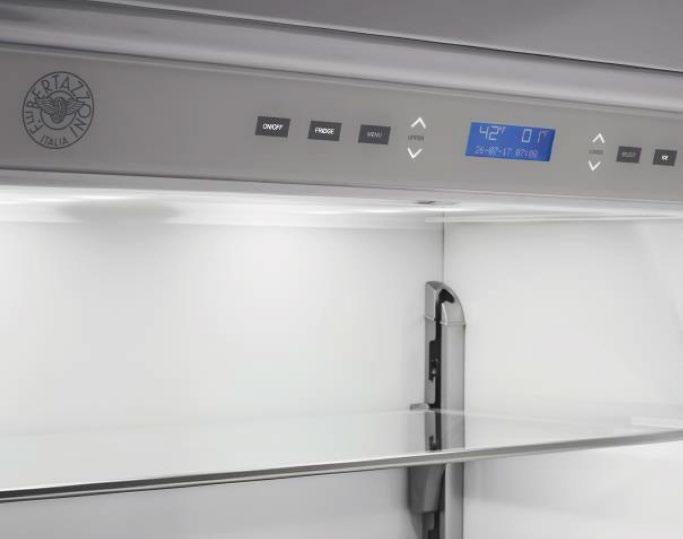

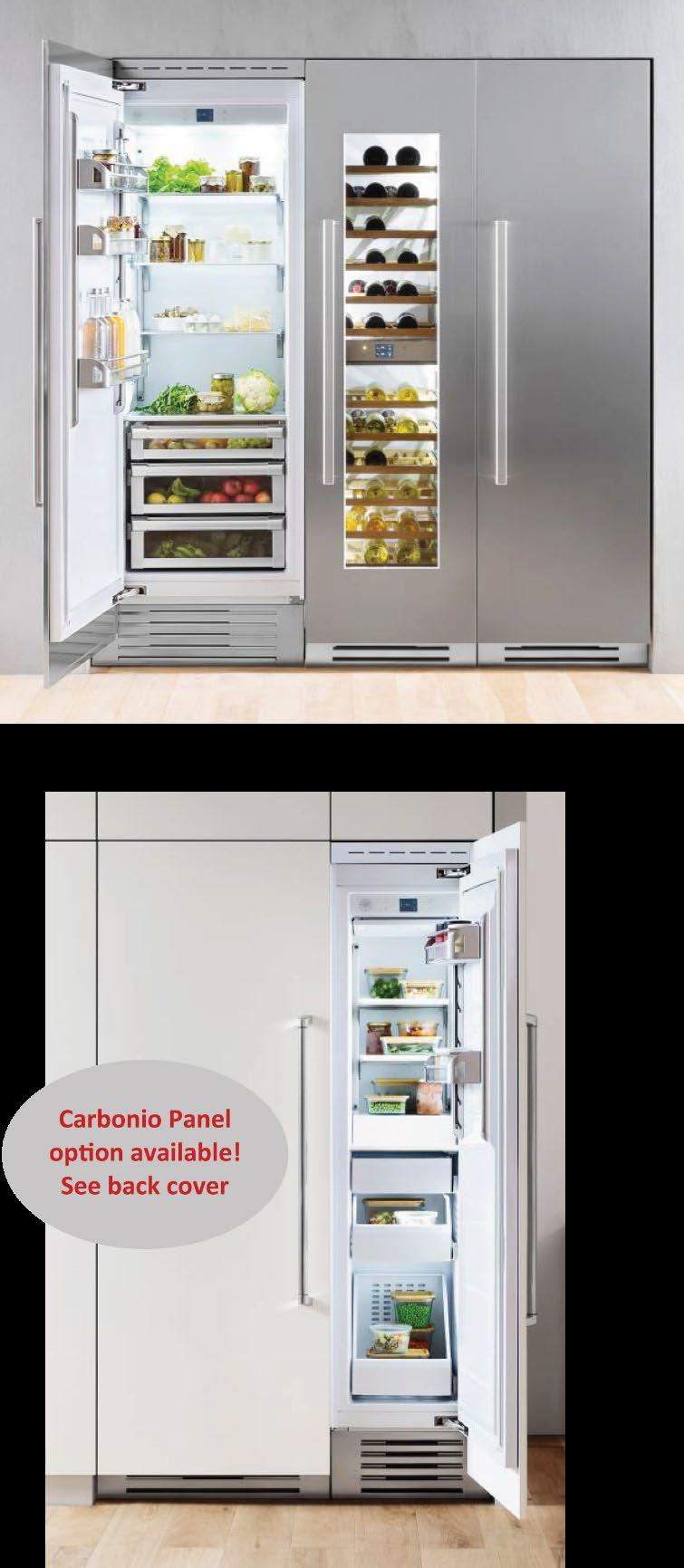

ITALIAN BUILT-IN COLUMNS

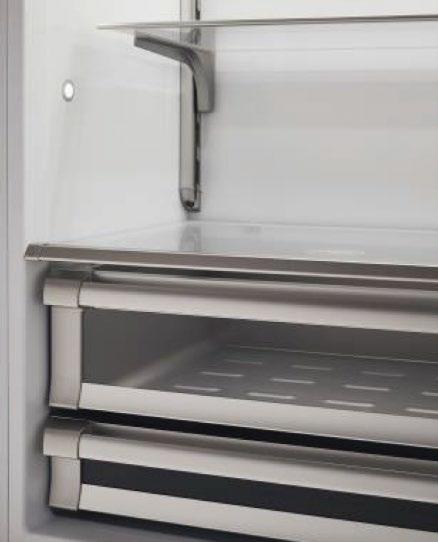

Frost Free | White Aluminum Interior w/ Top and Sides LED Illumination | Sabbath Mode Option 2 Soft Close Metal Drawers | 3 Interior Shelves (2 Adjustable) | 3 Adjustable Door Bins
Digital User Interface Controls Temperature, Humidity, Automatic Ice Maker w/ Filter & Selectable Cube Size
Proprietary Hinge System for True Flush Installation | Dual Variable Speed Compressors | Dual Evaporators Lateral Airflow System, Reduces Cold Loss when door is open
ITALIAN BUILT-IN COLUMNS
ITALIAN BUILT-IN COLUMNS
REFRIGERATOR FEATURES
State-of -the-Art sensor managed tempertaure zones cooled by a variable speed compressor
Enjoy ample and flexible food storage thanks to an exclusive design featuring the most usable interior depth in the category
Maintain the correct temperature in the refrigerator when opening the door thanks to the unique lateral airflow circulation
WINE CELLAR FEATURES
UV Protective glass
Vibration free variabke speed compressor
FREEZER FEATURES
Preserve food for extended time in dry conditions, avoiding freezer burn and frost build up.
Serve premium ice and choose the cube size with the digitally controlled and filtered automatic ice maker
DIMENSIONS
HEIGHT: 83 1/2"
DEPTH: 24 3/8"
WIDTH: 17 15/16" all 18" models
23 15/16" all 24" models
29 15/16" all 30" models
35 15/16" all 36" models
NEW! BUILT-IN PANELS AND HANDLES
SP18CC Carbonio door panel 18" freezer column
fits REF18FCIPR(L or R)23, REF18FCBIPLV, REF18FCBIPRV
SP18CX SS door panel 18" freezer column fits REF18FCBIPLV, REF18FCBIPRV
SP18WCC Carbonio door panel built-In 18" wine cellar
fits REF18WCIPR(L or R)23, REF18WCBP(L or R)V
SP18WXV SS door panel 18" wine column fits REF18WCBIP(L or R)V
SP24CC Carbonio door panel 24" column
fits REF24RCPR(L or R)23, REF18FCBIP(L or R)V
SP24CX SS door panel 24" column fits REF24RCBP(L or R)V, REF24FCBIP(L or R)V
Carbonio door panel built-In 24" wine column
fits REF24WCIPRL23, REF24WCIPRR23, REF24WCBIPLV, REF24WCBIPRV
SP24WXV SS door panel built-In 24" wine column fits REF24WCBP(L or R)V
Carbonio door panel 30" column
fits REF30RCPR(L or R)23, REF30RCBP(L or R)V
SP30CX SS door panel 30" column fits REF30RCBP(L or R)V, REF30RCBIP(L
fits REF36RCPR(L or R)23, REF36RCBP(L or R)V
Carbonio
