DESIGN SPECIFICATION MANUAL Q3
WELCOME LETTER
Welcome to Central Bark!
We are excited for you and for the future clients that you will serve with Central Bark Whole Dog Care. You are now a part of a growing, dynamic, enthusiastic franchise community, and an amazing Brand!
More than 25 years after we opened our first location, our business has grown and evolved, but our MISSION remains the same:
To nurture and enrich whole health, happiness, and unconditional love for each dog, family, and community we serve. Our Core Values of Passion, Compassion, Integrity, and Respect are the cornerstones of what we do. These values govern and inform how we behave, manage, lead, and engage with others.
This document’s purpose is to provide you with direction on how to activate and commercialize the Central Bark brand in your community. While the franchise locations are independently owned and operated by franchisees like yourself, we are providing a roadmap that helps to ensure brand and customer consistency across the entire network. The Central Bark brand is truly “different, better, and special,” and to further enable brand consistency, we have developed certain methods and practices for conducting business that are part of the Central Bark System Standards. This helps to protect and grow the Central Bark brand and its reputation, which in turn, protects and grows the value of your investment. This Design Specifications Manual is designed to provide you with the guidance and assistance you need to open your location and achieve the kind of results that are the foundation of our collective and individual success as a Brand.
The Design Specifications Manual outlines the quality standards for you to follow so you can make the Central Bark brand unique and differentiated in the marketplace. We know you want to have the very best location possible which is why we want to provide you with all the tools necessary to accomplish this objective. Please know your opinions are extremely valuable to us, so if you have questions or concerns, please ask us! We are one large community, and it is important to all of us that we strive for continued excellence and improvements. Having you engage with us is a key component of this methodology.
Congratulations again on this momentous occasion and welcome to Central Bark business ownership!
BOB CRAWFORD CHIEF EXECUTIVE OFFICER
1 2 3 4 5
CONGRATS, YOU JUST SIGNED. NOW WHAT?
After signing on as a franchisee, Barkley Ventures Franchising, LLC (BVF) will provide you with the resources needed to get your store up and running. Connect with your Onboarding Manager as they will guide you along this process. You will need to obtain CAD files or drawings of the existing building, take interior and exterior photos, and document structural features and equipment (water heaters, electrical panels, etc. ) that exist in the space.
CONTACT THE ARCHITECT
Once you are ready to start the design of your space, receive approval from BVF to contact the preferred architect of Central Bark. The architect will want to have an introductory virtual meeting to understand your space and design goals. A contract between you and the architect will be drafted for your review, approval and signature. Then the fun begins!
DESIGN /APPROVALS
With a signed contract in place, design will begin. The architect will dive deeper into the layout and construction of your building. Local, state and national building codes will be reviewed to ensure compliance. You and the architect will work together to develop an acceptable floor plan. Once established, the architect will prepare construction documents for a general contractor to price and build your space.
HIRE CONTRACTOR / BUILD
Engage a general contractor to review the construction documents and provide you with a cost estimate for the work. At times, it is beneficial to engage 2-3 general contractors to compare their estimates and make sure that you are getting the most bang for your buck. Once you have selected a general contractor and entered into a contract with them, it is time to build.
GO THRU ALL CHECKLIST ITEMS FOR PRE-OPENING
When your project is nearing completion, reference and complete the pre-opening checklist provided by BVF. If certain items are not completed on time, it could delay your opening. Once the architect has visited the site at the end of construction and deemed your project substantially complete, an occupancy permit can be obtained. Let the celebration begin!
FLOOR PLANS
PROTOTYPE DOCUMENTATION

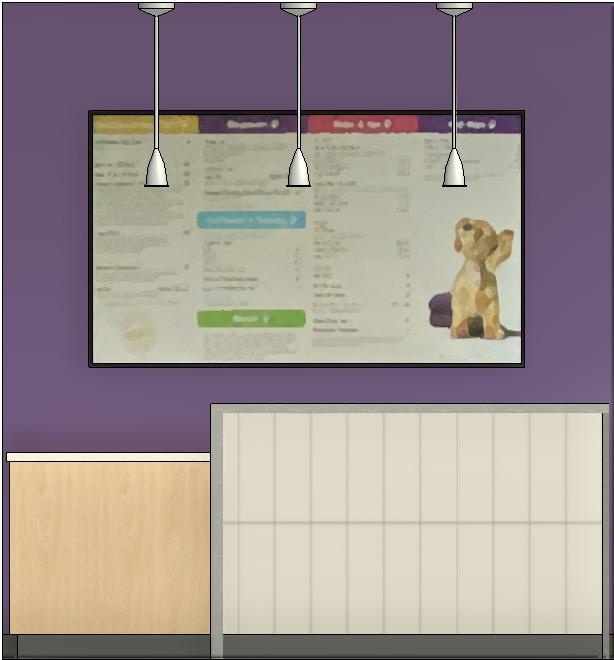

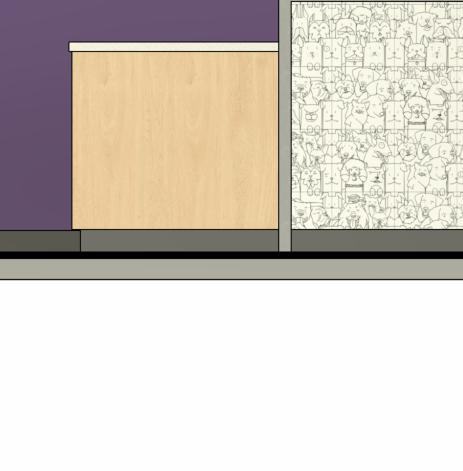

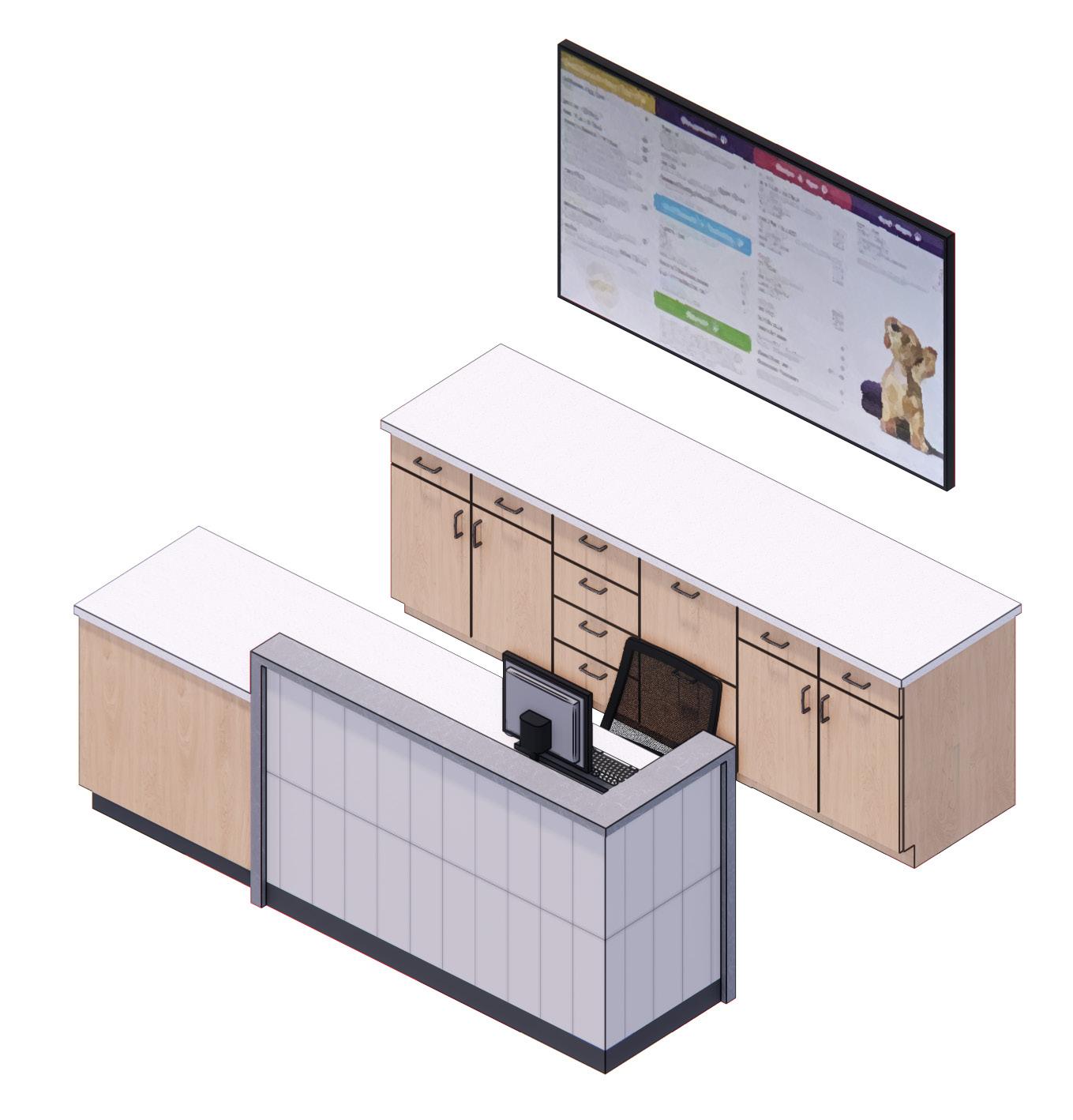

THE RECEPTION SPACE IS A COMBINATION OF OPEN RECEIVING SPACE AND MARKET AREA THAT IS WARM AND INVITING. IT IS MOST EFFICIENT TO HAVE THESE SPACES TOGETHER AND ALSO HELPS FEED OTHER BUSINESS LINES. STRATEGICALLY PLACE YOUR DISPLAYS TO PROVIDE VISUAL BARRIERS FOR DOGS WHILE IN THE SPACE.
OTHER REQUIREMENTS:
- DIGITAL MONTIOR FOR MENU BOARD BEHIND DESK (75”-80”)
- ALTERNATE MONITOR FOR CENTRAL BARK COLLATERAL
- PRINTER & CASH DRAWER (SEE SUPPLY LIST)
- DOOR BUZZER (LOW VOLTAGE) WITH SWITCH NEAR DESK
- ON/OFF SWITCH BY RECEPTION DESK FOR DOOR BUZZER
- PENDANT LIGHTS OVER RECEPTION DESK
- CONTACT ICG OR IVARS FOR RETAIL DISPLAYS (SEE SUPPLY LIST)
- ACCENT QUOTES MUST BE APPROVED BY BVF
- LOCKABLE SAFE WITHIN CASEWORK (IF THERE IS NO OFFICE)
- LEASH RACK FROM ICG OR IVARS LOCATED IN CORRIDOR OUTSIDE OF DOOR TO RECEPTION
RECEPTION DESK
ROOM GROOMINGNAME
PROTOTYPE DOCUMENTATION
PROTOTYPE DOCUMENTATION
DOCUMENTATION

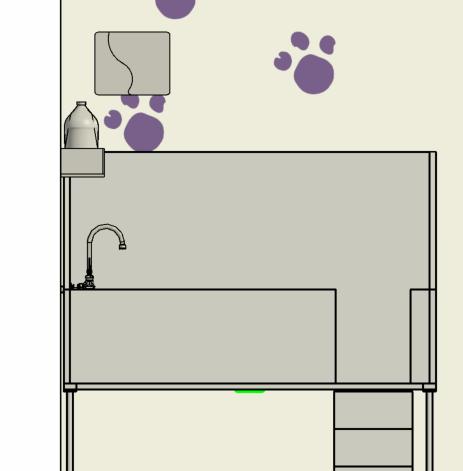

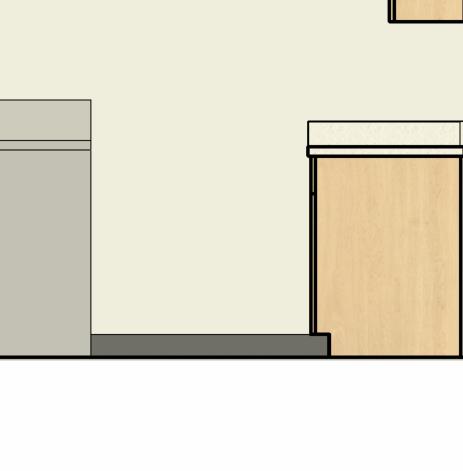

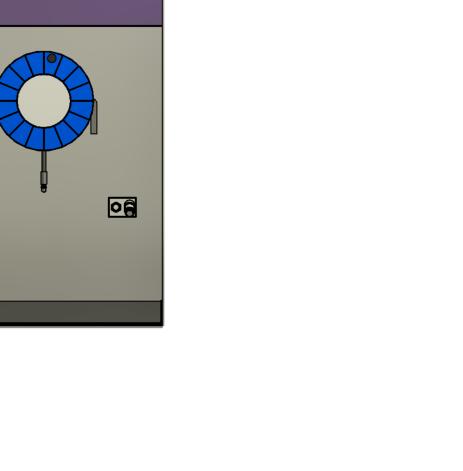

THE GROOMING ROOM SHOULD BE LOCATED NEAR THE RECEPTION, BUT THE DOOR SHOULD OPEN INTO A CORRIDOR. THE ROOM SHOULD BE FULLY ENCLOSED, WELL LIT, AND VENTILATED. ALL BUSINESS FUNCTIONS OF GROOMING CAN BE ADDRESSED AT THE RECEPTION DESK.
OTHER REQUIREMENTS:
- AIR CONDITIONING & VENTILATION

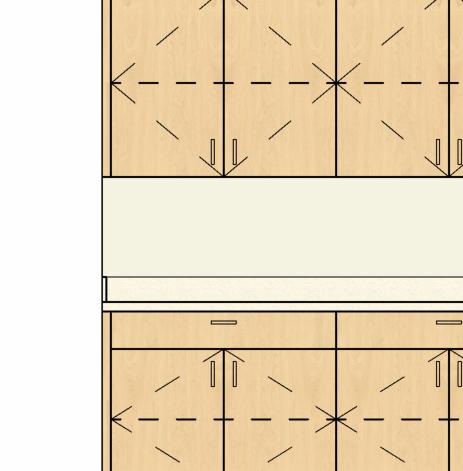

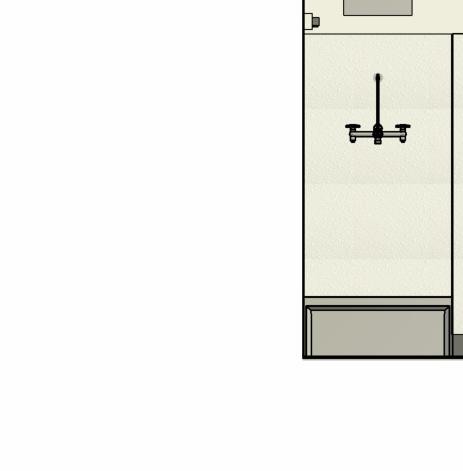

- COUNTERTOP/ SINK/ STORAGE
- STAINLESS STEEL GROOMING TUB (SEE SUPPLY LIST)
- BACK-FLOW PREVENTER
- BATHERBOX (SEE SUPPLY LIST)
- HEAVY-DUTY GROOMING HOOK (SEE SUPPLY LIST)
- MANUAL HYDRAULIC GROOMING TABLE (SEE SUPPLY LIST) WITH 4’-0” TO 5’-0” CLEARANCE AROUND EACH TABLE
- GROOMING SPRAY NOZZLE (SEE SUPPLY LIST)

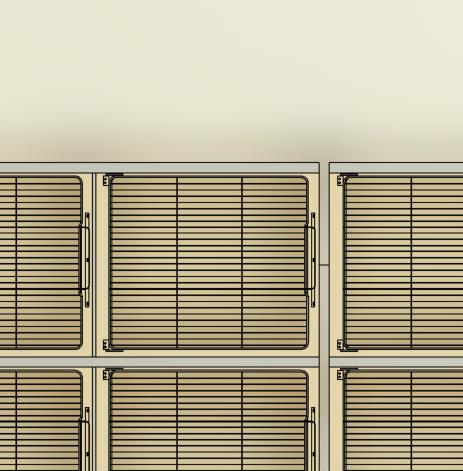

- BANK OF MASON CAGES (MODELS DEPEND ON DOG MIX)
- “WHOLE DOG CARE” LOGO TO BE USED ON ACCENT WALL, 4’-8” DIA.
- MARKERBOARD (4’ X 6’)
WALL PROTECTION (IF OPEN TUB)

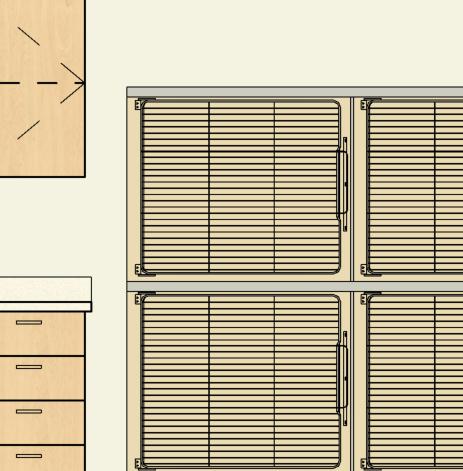

THE NAP ROOM SHOULD BE LOCATED CLOSE TO THE RECEPTION FOR QUICK DROP OFF AND PICK UP. THIS SPACE SHOULD ALSO HAVE EASY ACCESS TO THE OUTDOOR & INDOOR PLAY AREAS. THE SPACE SHOULD BE ABLE TO ACCOMMODATE A VARIETY OF CAGE BANKS AND SANI-KENNELS DEPENDING ON THE NEEDS OF THE FACILITY. PROVIDE PERSONAL STORAGE LOCKERS AND FOOD PREPARATION AREAS. WALL PROTECTION IS STRONGLY RECOMMENDED ON ALL WALLS IN THIS AREA.
PROTOTYPE DOCUMENTATION
OTHER REQUIREMENTS:
- AIR CONDITIONING & VENTILATION
- AIR PURIFICATION (FREESTANDING)
- DIFFUSER WITH “DOG SAFE” CALMING ESSENTIAL OILS
- NIGHT LIGHT WITH SEPARATE SWITCH
- MARKERBOARD (4’ X 6’)
- CHEST FREEZER AND DISHWASHER (SEE SUPPLY LIST)
COUNTER/SINK/STORAGE (OMIT IF PREP ROOM IS AVAILABLE)

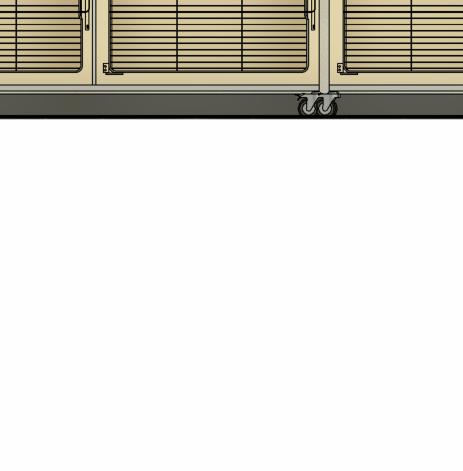

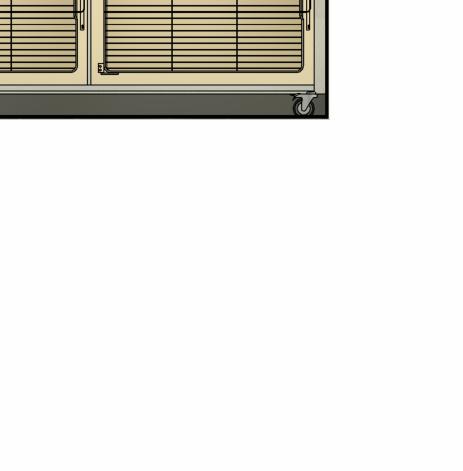

- MIX OF QUIET COTTAGES AND SANI-KENNELS (SEE SUPPLY LIST)
* PLACE CRATE ORDERS 3-4 MONTHS PRIOR TO OPENING INDIVIDUAL DOG STORAGE SYSTEM FOR FOOD
* BLADE HARDWARE PULL TO PREVENT DOG ACCESS
- ACOUSTICAL WALL PANELS RECOMMENDED
PLUNKETT RAYSICH ARCHITECTS, LLP
PLUNKETT RAYSICH ARCHITECTS, LLP
© 2024 Plunkett Raysich Architects, LLP03/12/2024-#230256-01
Raysich Architects, LLP03/12/2024-#230256-01

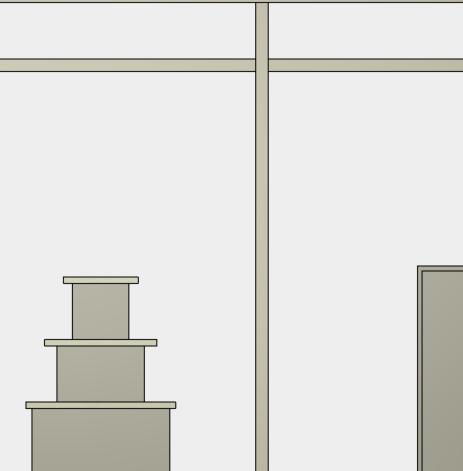

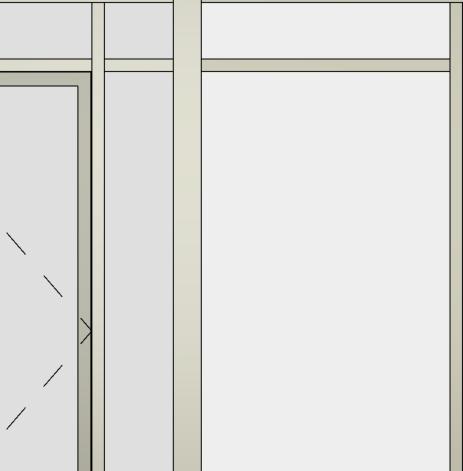

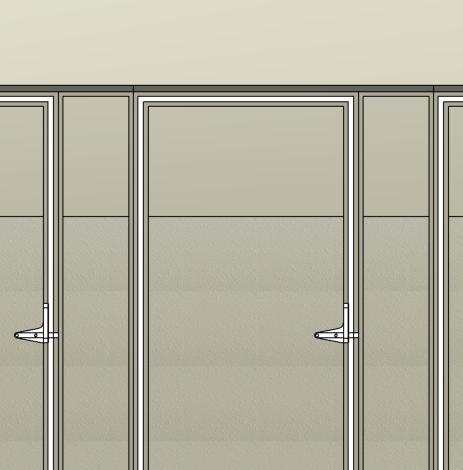

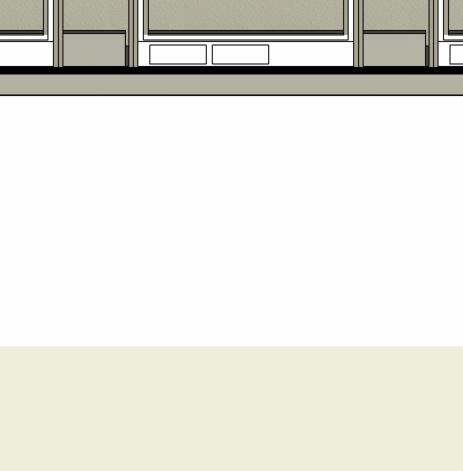

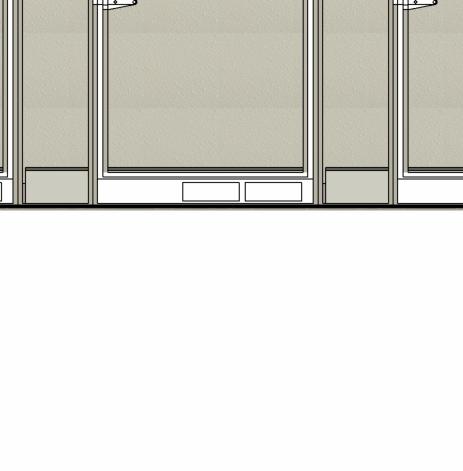

6000 STAY N' PLAY (NORTH) 6000 STAY N' PLAY (SOUTH)
6000 STAY N' PLAY (EAST)
STAY N' PLAY (WEST)
STAY N' PLAY (WEST)
6000 STAY N' PLAY (EAST) 6000 STAY N' PLAY (NORTH) 6000 STAY N' PLAY (SOUTH)
STAY N’ PLAY SPACES ACCOMMODATE SLEEPOVER DOGS WHO ARE NOT A PART OF REGULAR ENRICHMENT DAYCARE, AS WELL AS OVERFLOW AND LUXURY DENS FOR REGULAR GUESTS. FOR SAFETY, THE STAY N’ PLAY SHOULD INCLUDE SEPARATE INDOOR AND OUTDOOR PLAY SPACES OF A MINIMUM 150 SF. CLOSE OR DIRECT ACCESS TO THESE SPACES IS REQUIRED. AS A BASELINE, FOR EVERY 10 DOGS, PROVIDE 1 INDOOR AND 1 OUTDOOR PLAY SPACE. IDEALLY, CAGE DISTRIBUTION WILL BE 25% K-9 CABINS AND 75% SANI-KENNELS. WORK WITH YOUR ONBOARDING MANAGER TO DETERMINE THE BEST LAYOUT FOR YOUR SPACE. WALL PROTECTION IS STRONGLY RECOMMENDED ON ALL WALLS.
OTHER REQUIREMENTS:
- AIR CONDITIONING & VENTILATION
- AIR PURIFICATION (FREESTANDING)
- DIFFUSER WITH “DOG SAFE” CALMING ESSENTIAL OILS
- NIGHT LIGHT WITH SEPARATE SWITCH
- MARKERBOARD (4’ X 6’)
- UTILIZE NAP ROOM STORAGE / PREPARATION AREAS

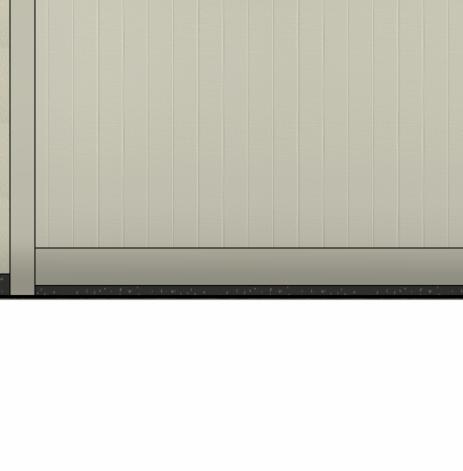

- 6’-0” HIGH WHITE VINYL FENCING WITH LATTICE BETWEEN GROUPS
- GATES MUST SWING INTO THE PLAYGROUPS

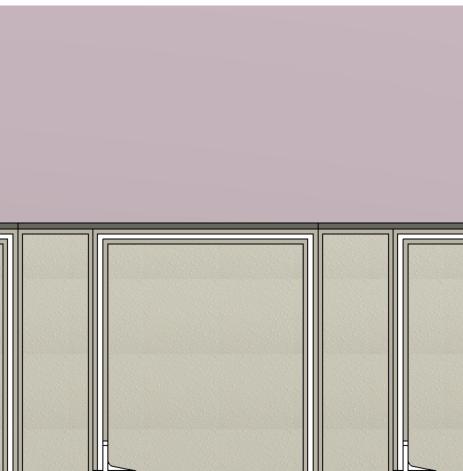

- ACOUSTICAL WALL PANELS RECOMMENDED SANI-KENNEL WALL PANEL
MAIN PAINT WALL PROTECTION

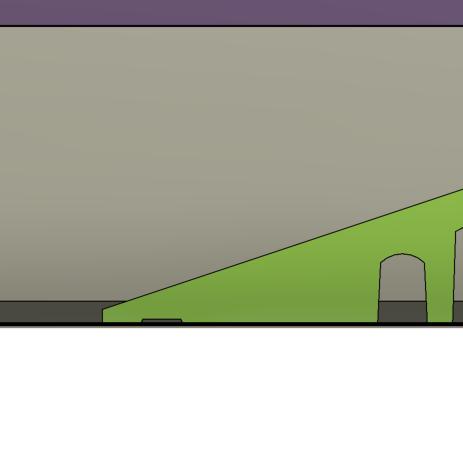

INDOOR PLAY / TRAINING: PAINTED
PLUNKETT RAYSICH ARCHITECTS, LLP
PLUNKETT RAYSICH ARCHITECTS, LLP

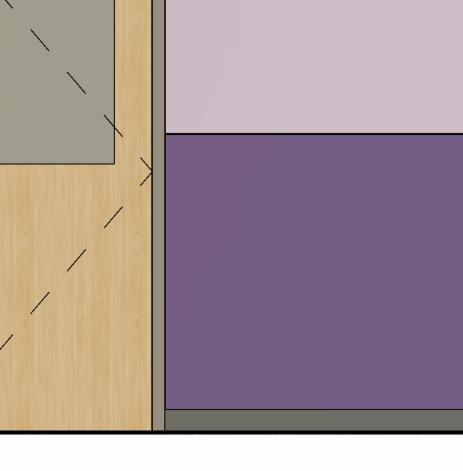

THE INDOOR PLAY AREAS SHOULD HAVE DIRECT ACCESS TO THE OUTDOOR PLAY AREAS AND A CORRIDOR. IF POSSIBLE, ACCESS TO THE NAP ROOM IS IDEAL. STRATEGICALLY PLACE GATES TO MINIMIZE TRAVEL DISTANCE FOR DOGS. CONSIDER USING GATES BETWEEN PLAY GROUPS TO ALLOW FOR DIFFERENT CONFIGURATIONS. TRAINING AREAS CAN ALSO BE INCORPORATED INTO THE PLAY AREA.
OTHER REQUIREMENTS:

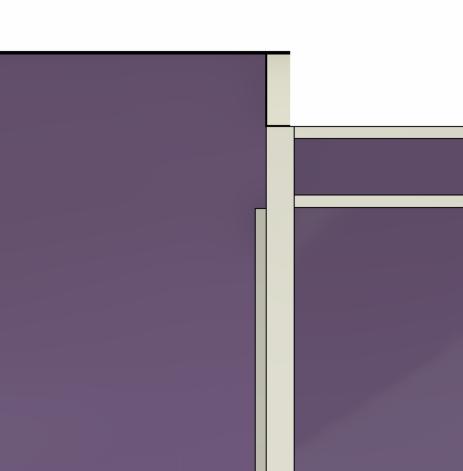

- 4’-0” HIGH WHITE VINYL FENCING BETWEEN PLAY AREAS
- GATES MUST SWING INTO THE PLAYGROUPS
- FENCING SHOULD BE SECURED AS CLOSE TO THE FLOOR AS POSSIBLE. A MAXIMUM TOLERANCE OF (1 1/2”) IS ALLOWED
- BRIGHTLY LIT
- CIRCULAR LOGO ON WALL (SIZE PENDING CEILING HEIGHT)

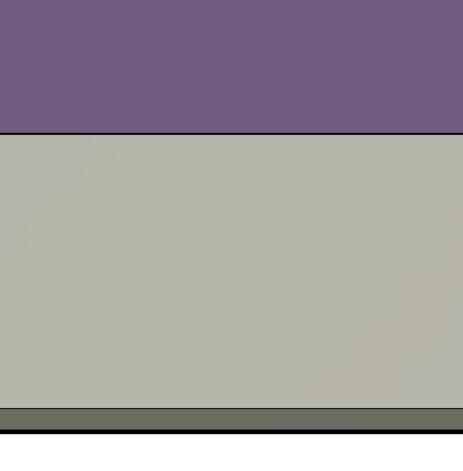

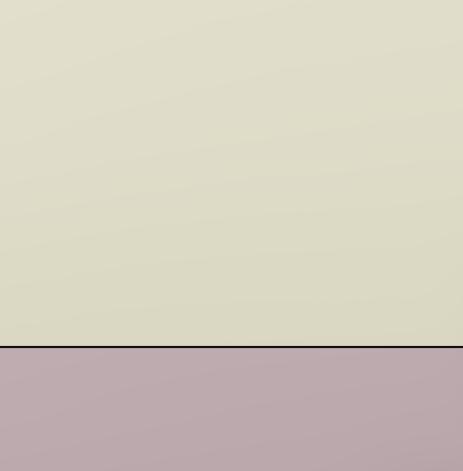

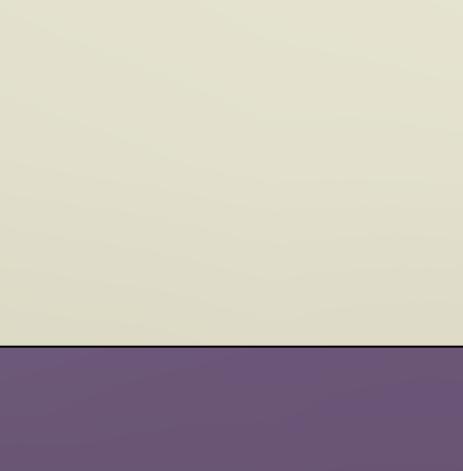

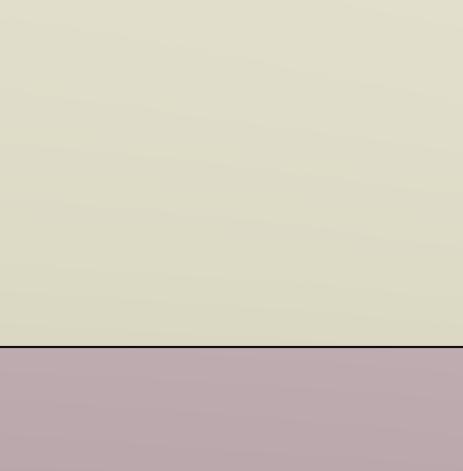

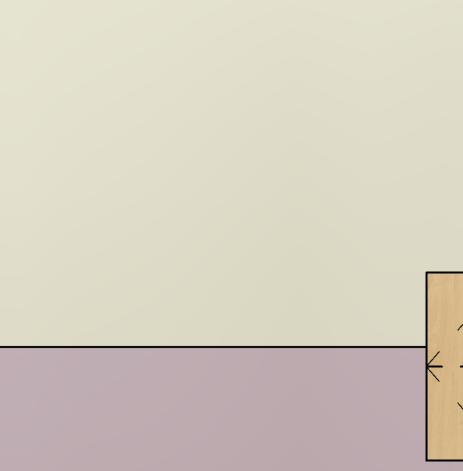

- ALL WALLS TO RECEIVE DARK PURPLE PAINT TO 4’-0” HIGH, WITH BAND OF LIGHT PURPLE, AND WHITE PAINT ABOVE
- DOOR BUZZER (CONSIDER PLACEMENT FOR AUDIBILITY)
HOSE BIBS WITH COLD WATER ACCESS (1.5” DIA. PIPES REC.)
- PLAY EQUIPMENT (SEE SUPPLY LIST)
- FLOOR DRAINS IN EACH PLAY GROUP

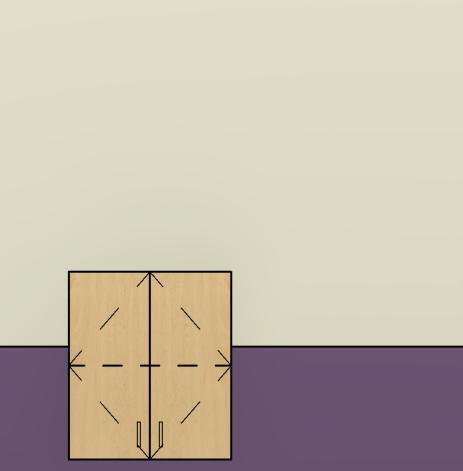

- WALL CABINET FOR CLEANING SUPPLIES IN EACH PLAY SPACE
- ACOUSTICAL WALL PANELS RECOMMENDED
PROTOTYPE DOCUMENTATION ACOUSTICAL PANEL
PAINT COLORS
INDOOR PLAY / TRAINING: WALL PROTECTION
PLUNKETT RAYSICH ARCHITECTS, LLP
LLP
PLUNKETT RAYSICH ARCHITECTS,
PROTOTYPE DOCUMENTATION
PROTOTYPE DOCUMENTATION
THE INDOOR PLAY AREAS SHOULD HAVE DIRECT ACCESS TO THE OUTDOOR PLAY AREAS AND A CORRIDOR. IF POSSIBLE, ACCESS TO THE NAP ROOM IS IDEAL. STRATEGICALLY PLACE GATES TO MINIMIZE TRAVEL DISTANCE FOR DOGS. CONSIDER USING GATES BETWEEN PLAY GROUPS TO ALLOW FOR DIFFERENT CONFIGURATIONS. TRAINING AREAS CAN ALSO BE INCORPORATED INTO THE PLAY AREA.
OTHER REQUIREMENTS:
- 4’-0” HIGH WHITE VINYL FENCING BETWEEN PLAY AREAS
- GATES MUST SWING INTO THE PLAYGROUPS
- FENCING SHOULD BE SECURED AS CLOSE TO TE FLOOR AS POSSIBLE.
A MAXIMUM TOLERANCE OF (1 1/2”) IS ALLOWED
- BRIGHTLY LIT
- CIRCULAR LOGO ON WALL (SIZE PENDING CEILING HEIGHT)
- ALL WALLS TO RECEIVE GRAY FRP TO 4’-0” HIGH, WITH BAND OF DARK PURPLE, AND WHITE PAINT ABOVE
- DOOR BUZZER (CONSIDER PLACEMENT FOR AUDIBILITY)
HOSE BIBS WITH COLD WATER ACCESS (1.5” DIA. PIPES REC.)
- PLAY EQUIPMENT (SEE SUPPLY LIST)
- FLOOR DRAINS IN EACH PLAY GROUP
- WALL CABINET FOR CLEANING SUPPLIES IN EACH PLAY SPACE
- ACOUSTICAL WALL PANELS RECOMMENDED
PAINT COLORS
IMPACT RESISTANT WALL PANELS
ACOUSTICAL PANEL
SHEET VINYL FLOORING WITH INTEGRAL BASE
STAY N’ PLAY / SLEEPOVER OUTDOOR PLAY

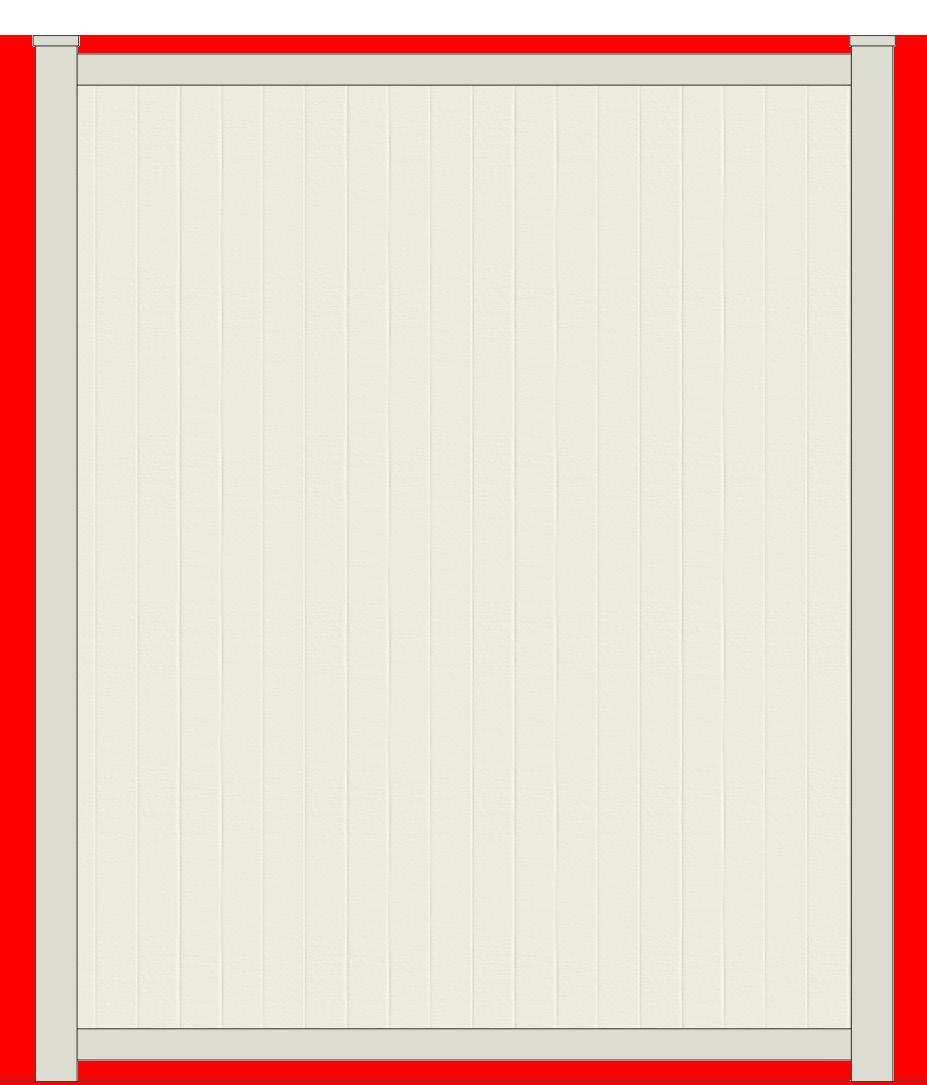

STANDARD FENCING

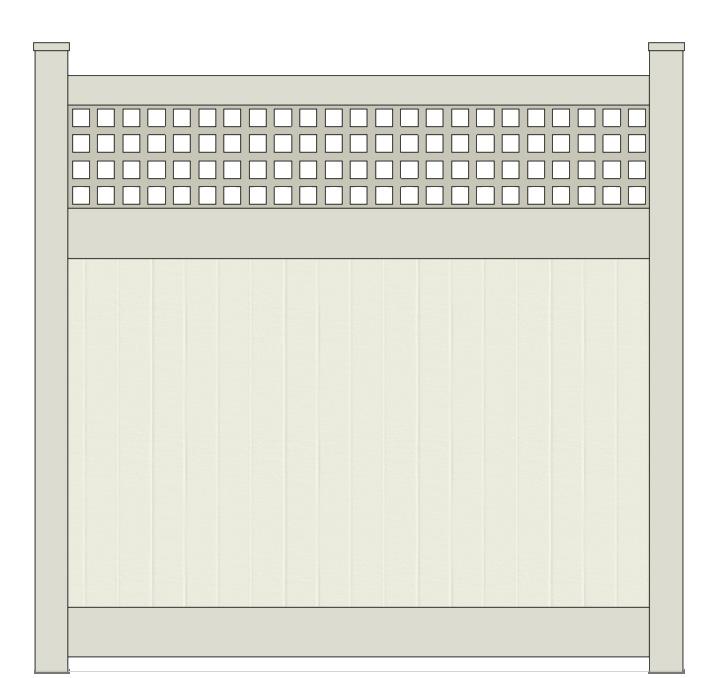

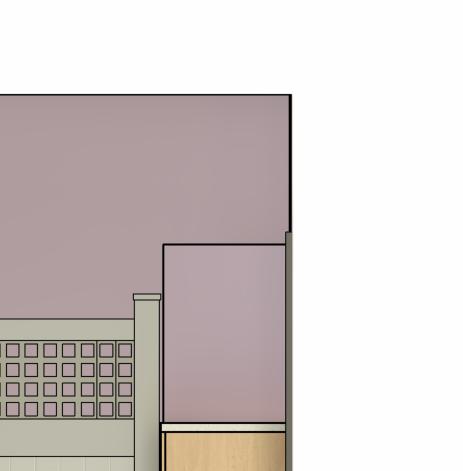

LATTICE FENCING
SLATTED GATE
EXTERIOR FENCING
REINFORCED FENCING AND GATES
OUTDOOR PLAY AREAS SHOULD BE ACCESSED DIRECTLY FROM THE NAP ROOM, STAY N’ PLAY, AND INDOOR PLAY AREAS. IT IS IDEAL TO HAVE THE SAME QUANTITY AND SIZE AREAS BETWEEN THE INDOOR AND OUTDOOR PLAY AREAS FOR EASIER GROUP ROTATIONS. THERE SHOULD BE NO VISIBILITY FROM THE OUTDOOR PLAY AREA TO THE PUBLIC OR TO THE INDOOR PLAY AREAS. WINDOW COVERING SOLUTIONS ARE AVAILABLE TO ALLOW SUNLIGHT INTO PLAY AREAS WITHOUT ALLOWING VISIBILITY.
OTHER REQUIREMENTS:
- 8’-0” HIGH PERIMETER WHITE VINYL FENCING
- 4’-0” HIGH WHITE VINYL FENCING BETWEEN PLAY GROUPS
- 6’-0” HIGH FENCING WITH LATTICE BETWEEN STAY N’ PLAY GROUPS
- GATES MUST SWING INTO THE PLAYGROUPS
- FENCING SHOULD BE SECURED TIGHTLY AGAINST TURF
- SHADED AREAS FOR GROUPS
- FLOOD LIGHTS FOR NIGHT VISIBILITY
- HOSE BIBS WITH COLD WATER ACCESS (1.5” DIA. PIPES REC.)
- PLAY EQUIPMENT (SEE SUPPLY LIST)D

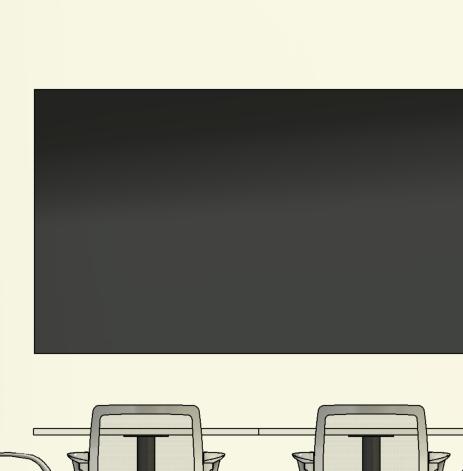

LOUNGE / OFFICE
PROTOTYPE DOCUMENTATION
THE STAFF LOUNGE IS FLEXIBLE BASED ON STAFFING AND SPACE AVAILABLE BUT SHOULD PROVIDE STORAGE FOR PERSONAL ITEMS, A KITCHENETTE, AND SEATING. THIS ROOM CAN BE USED FOR STAFF BREAKS, MEETINGS, AND ADMINISTRATIVE WORK.
PROTOTYPE
OTHER REQUIREMENTS:

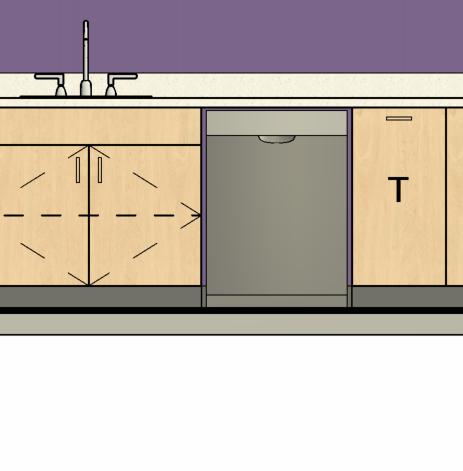

- COUNTERTOP/ SINK/ STORAGE
- DISHWASHER, MICROWAVE, REFRIGERATOR, COFFEE MAKER
- TABLE & CHAIRS
- MARKERBOARD (4’ X 6’) AND TACKBOARD (4’ X 4’)
- TV MONITOR SUGGESTED BUT NOT REQUIRED
- BRIGHTLY LIT

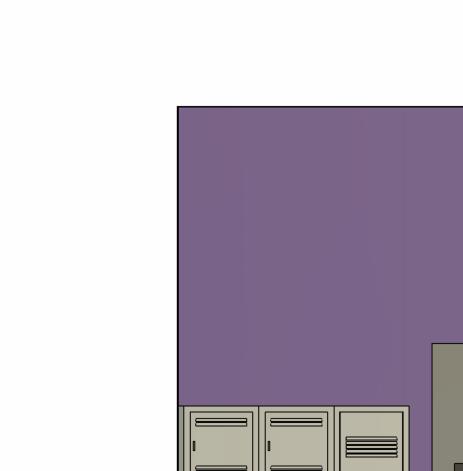

- EMPLOYEE STORAGE LOCKERS (METAL, 2 HIGH AND 5 HIGH)
- SEE SUPPLY LIST

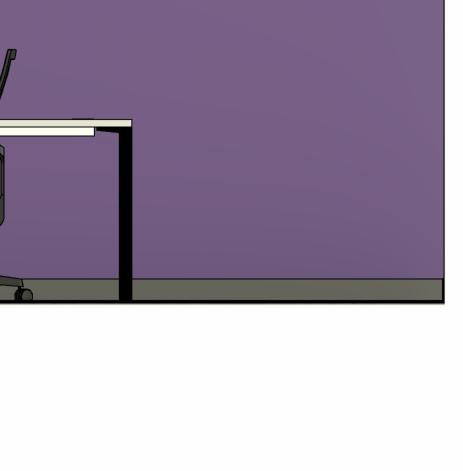

THE OFFICE IS OPTIONAL BASED ON OWNER PREFERENCE. ONE OR MORE OFFICES ARE ACCEPTABLE AND CAN ACCOMMODATE ONE OR MULTIPLE USERS. WHEN INCLUDED, THE OFFICE SHOULD BE LOCATED NEAR OR DIRECTLY OFF OF THE RECEPTION AREA TO FACILITATE CUSTOMER INTERACTION.
OTHER REQUIREMENTS:
- BRIGHTLY LIT

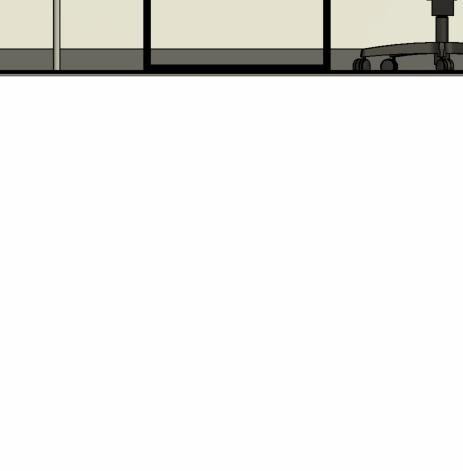

- DESK, TASK CHAIR, GUEST CHAIR (SEE ADDITIONAL SPECS)
- SAFE (IF NOT LOCATED IN RECEPTION) (SEE SUPPLY LIST)
- SEE SUPPLY LIST
VINYL
STORAGE
/ UTILITY / TOILET

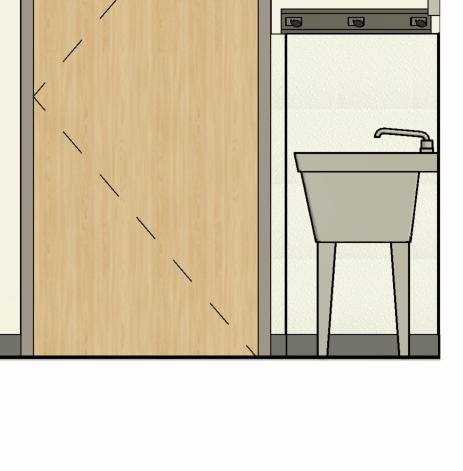

CONSIDER VARIOUS TYPES OF STORAGE AND WHERE THESE FUNCTIONS ARE BEST SEPARATED / COMBINED. AMPLE DRY STORAGE SHOULD BE AVAILABLE FOR EXTRA MARKET PRODUCTS AND PET NECESSITIES. UTILITY ROOMS SHOULD INCLUDE SPACE FOR LAUNDRY MACHINES, A UTILITY SINK AND MOP SINK, AS WELL AS STORAGE FOR OTHER CLEANING SUPPLIES AND CHEMICALS.
OTHER REQUIREMENTS:
PROTOTYPE DOCUMENTATION
- FLOOR DRAINS (CHECK LOCAL CODE)
- MOP HOLDER
- FLOOR SINK WITH CURB
- HAIR TRAPS (CHECK LOCAL CODE)
- STORAGE FOR TOOLS & MAINTENANCE SUPPLIES
- WALL MOUNTED CHEMICAL DILUTION STATION

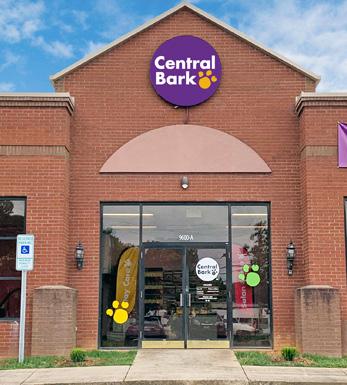

EXTERIOR DESIGN REQUIREMENTS
STREET SIGNAGE
UTILIZE STREET-FACING SIGNAGE TO DIRECT TRAFFIC TO THE BUSINESS, ESPECIALLY WHERE THE FRONT ENTRY IS NOT DIRECTLY VISIBLE FROM THE STREET

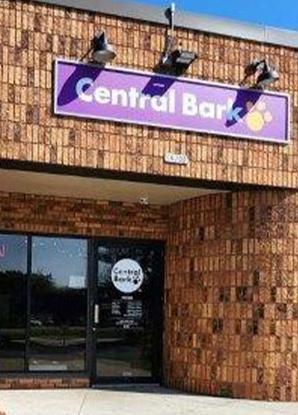

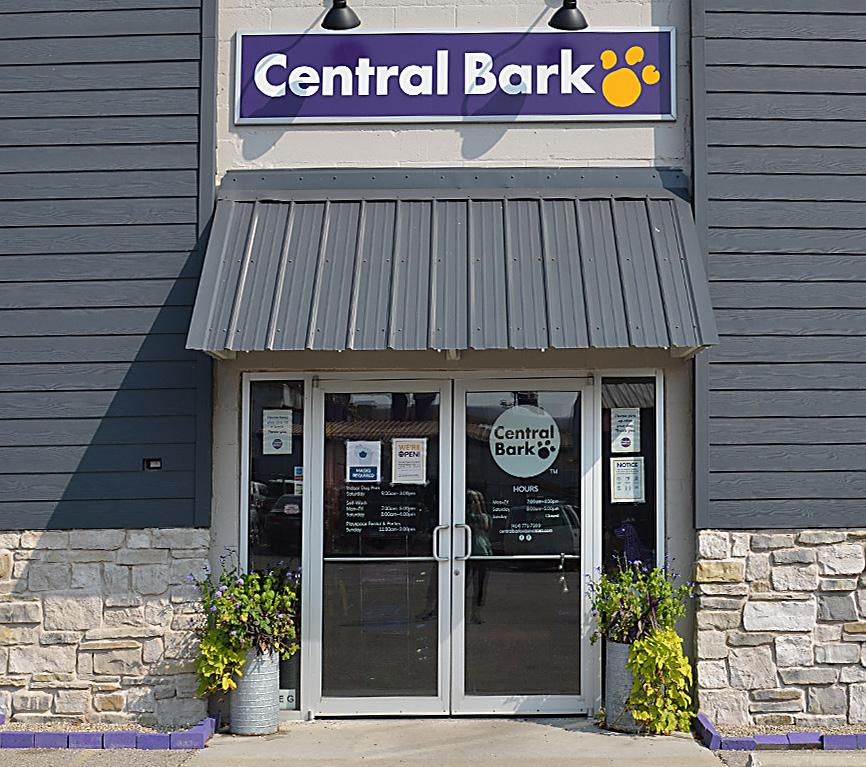

STOREFRONT GLASS DOUBLE-DOOR ENTRY BRANDED AWNING
STOREFRONT WINDOWS AT THE RECEPTION/ MARKET AREA WILL PROVIDE VISIBILITY FOR STAFF AND GUESTS AS WELL AS NATURAL LIGHT
IDEALLY, FRANCHISES WILL HAVE A DOUBLE-DOOR ENTRY WITH A VESTIBULE. THIS PROVIDES SPACE FOR TWO-WAY TRAFFIC AND A TWO-DOOR SECURITY SYSTEM

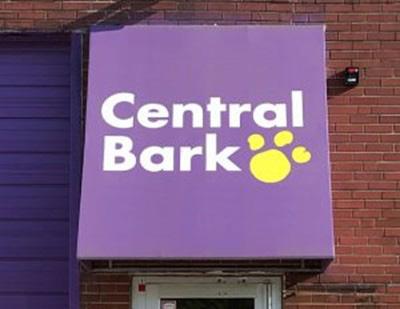

AWNINGS SHOULD BE CENTRAL BARK PURPLE AND MAY ALSO FEATURE A LOGO
LOCATIONS SHOULD HAVE AMPLE SIGNAGE, STOREFRONT WINDOWS AT THE RECEPTION AREAS, A COVERED ENTRY, AND A TWO-DOOR VESTIBULE WHERE SPACE ALLOWS. ANY LARGE EXTERIOR WINDOWS ASIDE FROM THE RECEPTION AREA SHOULD BE COVERED TO LIMIT VISIBILITY/ INTERACTION BETWEEN DOGS AND THE PUBLIC. ALL EXTERIOR MATERIALS MUST BE APPROVED BY BVF.
OTHER REQUIREMENTS:
- AWNINGS CAN BE SUNBRELLA CANVAS OR VINYL - ONLY APPROVED SIGNAGE SHOULD BE USED TO COVER WINDOWS

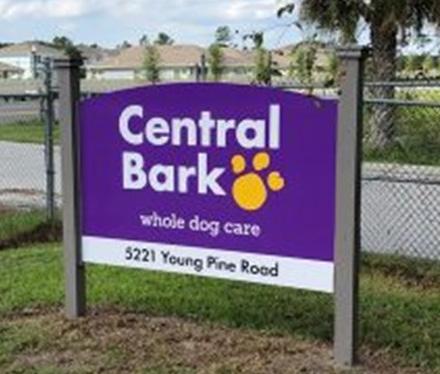

ENTRY SIGN
WINDOW SIGNAGE
USE WINDOW SIGNAGE TO CREATE VISUAL BLOCKS WHERE THERE ARE LARGE PUBLIC-FACING WINDOWS WHERE A BRANDED AWNING IS NOT NECESSARY/ PERMITTED, A LARGE SIGN SHOULD BE FEATURED ABOVE THE MAIN ENTRANCE
GARAGE DOORS
EXISTING GARAGE DOORS SHOULD BE TREATED THE SAME AS LARGE WINDOWS IF THEY OPEN INTO ANY NAP ROOM OR INDOOR PLAY AREA. OPERABLE GARAGE DOORS IN PLAY AREAS WILL REQUIRE FENCING TO SEPARATE INDOOR AND OUTDOOR SPACES
CANVAS AWNING
EXTERIOR SIGNAGE
GENERAL SIGNAGE
ENTRY SIGNAGE

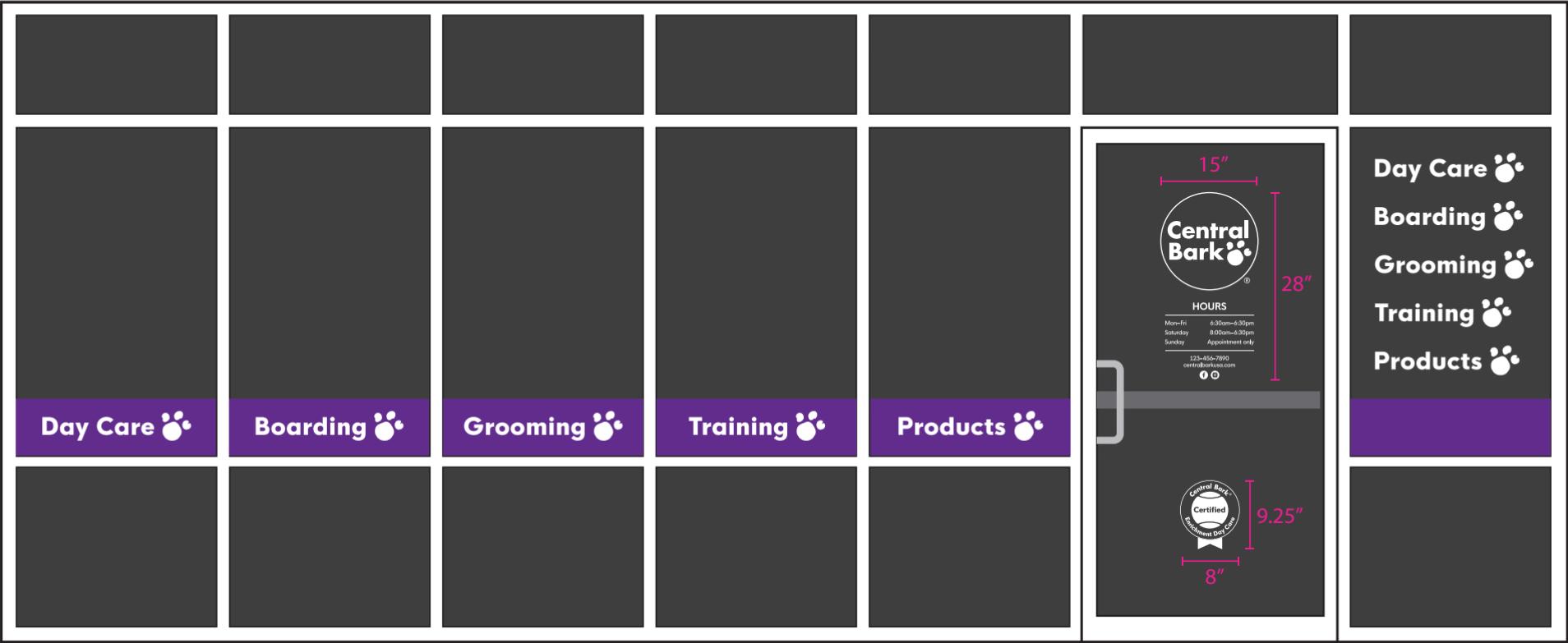

Window Decals
If less windows are available, decals can be removed in order of least priority or could be displayed vertically on one window in order of priority.
Order of Priority
1) Day Care 2) Boarding 3) Grooming 4) Training 5) Products
WINDOW SIGNAGE
GENERAL SIGNAGE
- WORK WITH A LOCAL VENDOR
- CONTACT YOUR ONBOARDING MANAGER FOR ALL ORDERING PROCESSES
- ORDER APPROX. 2 MONTHS PRIOR TO OPENING
- PERMANENT SIGNAGE REQUIRED PRIOR TO OPENING
- UNDERSTAND & ADHERE TO ALL LOCAL REGULATIONS, CODES AND RESTRICTIONS. A PERMIT MAY BE REQUIRED
- TYPICAL PAW LOGO ROTATION ANGLE TO BE 22* TO THE RIGHT. OPTIONAL TO ROTATE TO LEFT IF NEEDED. DO NOT MIRROR.
- SEE SIGNAGE REQUIREMENTS FOR OTHER MARKETING MATERIAL
EXTERIOR
- ENTRY SPACE SHOULD HAVE A BRANDED AWNING OR OVERHEAD SIGNAGE, WHERE ALLOWED
- FRONT DOOR SIGNAGE IS REQUIRED TO SHOW THE LOGO, HOURS, CONTACT INFORMATION, AND “CERTIFIED” DECAL
- PAW PRINTS ARE OPTIONAL
- ANY EXTERIOR WINDOWS TO THE NAP ROOM OR PLAY AREAS MUST BE FULLY COVERED (OPAQUE)
- ANY WINDOWS THAT LOOK INTO THE OTHER AREAS CAN BE COVERED WITH A PERFORATED VINYL TO ENSURE VISIBILITY
BANNERS
- TEMPORARY OR SPECIAL EVENT SIGNAGE EX.) COMING SOON, NOW ENROLLING, NOW HIRING, ETC.
- CONTACT YOUR ONBOARDING MANAGER TO REQUEST ARTWORK
WALK OFF CARPET BENTLEY ROUGH IDEA SHEAR, OUTLINE, 24” X 24” *COLD CLIMATES ONLY
SHEET VINYL PROTECT-ALL CLASSIC SERIES, DARK GRAY, HEAT WELDED
TURF A
FOREVER LAWN K9 GRASS ELITE SERIES
MATERIALS & FINISHES
VINYL TILE ASPECTA
LOFTWOOD - ALTO 9” X 60”, 22MM WEAR LAYER
SHEET VINYL PROTECT-ALL DESIGNER SERIES, STARDUST, HEAT WELDED
TURF B
FOREVER LAWN K9 GRASS ENDURA SERIES
PORCELAIN TILE
DALTILE VOLUME, 12” X 24
INTENSITY PEBBLE
GROUT: BOSTIK FRENCH GRAY
SEALED CONCRETE CLEAR EPOXY SEALER IN WET AREAS
ACOUSTICAL PANEL
ROBIN REIGI TAC PANEL
WHITE (PAINTABLE) 24” X 48” X 1”

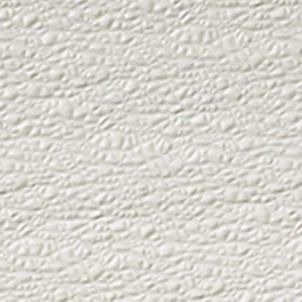

WALL PROTECTION

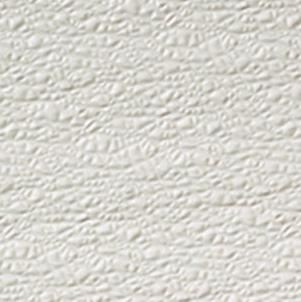

MARLITE PEBBLED P151 LIGHT GRAY
TURF C
FOREVER LAWN K9 GRASS CLASSIC SERIES *APPROVAL NEEDED
FLOORING
CEILING TILE
ARMSTRONG CEILINGS OPTIMA HEALTH ZONE 3114, 24” X 24” X 1.5”
WALL PROTECTION MARLITE PEBBLED P470N GRAY
WALL BASE TARKETT, 4”H CHARCOAL
CANVAS AWNING SUNBRELLA CONCORD 4665-0000

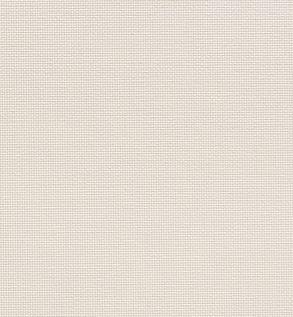

ROLLER SHADES
SWF CONTRACT R300C8211 WHITE / LINEN
WALL PROTECTION MISC.
PAINT 1
SW6147 PANDA WHITE
BM CSP-310 FIRST CRUSH
PAINT 2
SW6004 MINK
BM AF-660 GRANITE
PAINT 3
SW6982 AFRICAN VIOLET
BM1400 YOUR MAJESTY
PAINT 4
SW6973 FREE SPIRIT
BM2073-50 EASTER EGG
PAINT 5
SW6928 GREEN VIBES
BM2031-50 KEY LIME WALL

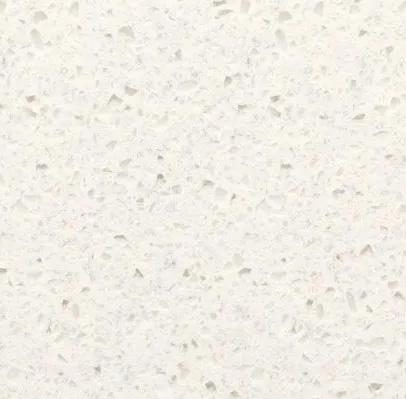

SOLID SURFACE WILSONART 9204CE MORNING ICE
QUARTZ WILSONART Q6025 SAN ANGELO
LAMINATE A FORMICA 6925 MAPLE WOODLINE
LAMINATE B FORMICA 5884 CHESTNUT WOODLINE
PORCELAIN TILE DALTILE
COLOR WHEEL LINEAR, 6” X 18”
K175 BISCUIT - GLOSSY
GROUT: BOSTIK CLASSIC BONE
IVAR’S DISPLAY GRAY
* ALTERNATE RECEPTION
DESK + DOOR COLOR
*APPROVAL NEEDED

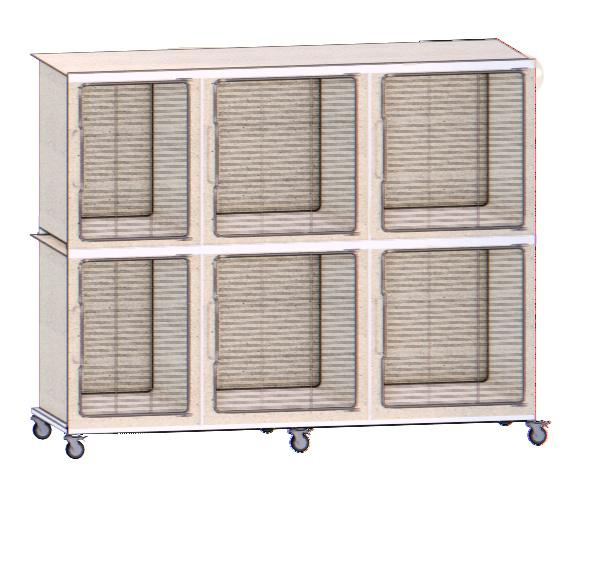

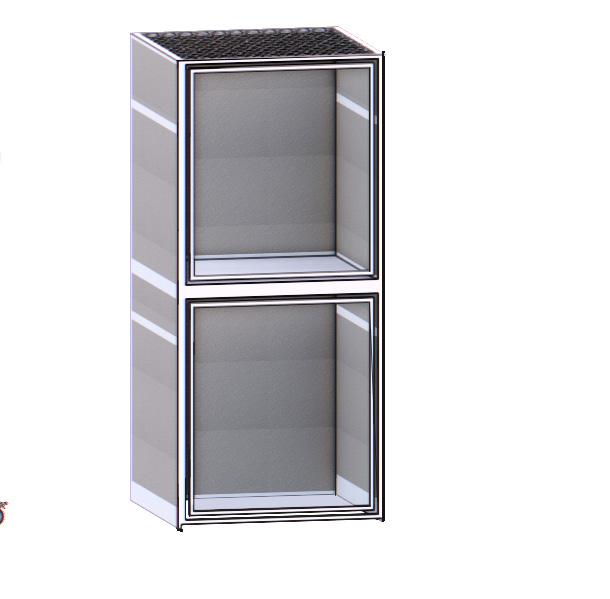

QUIET COTTAGE AURORA

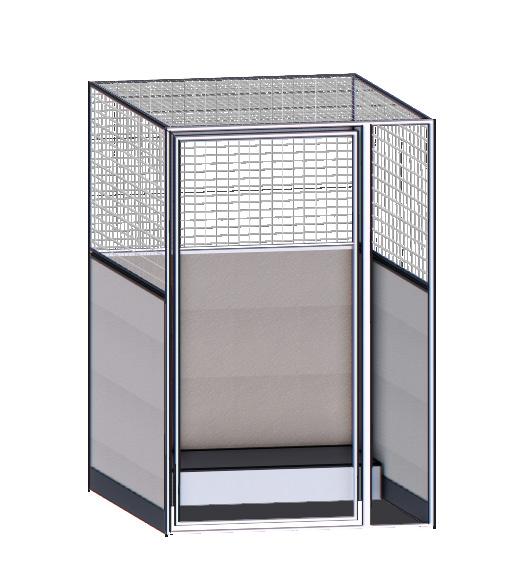

SANI-KENNEL PEARL 671
K9 CABIN PEARL 671
FURNITURE & CAGES
HON VOI SERIES L-SHAPE DESK
SIZE / CONFIGURATION BASED ON YOUR SPACE. OPTION FOR HEIGHT-ADJUSTBILITY
HON SOLVE MID-BACK TASK CHAIR
BLACK MESH BACK, SYNCHRO-TILT & SEAT SLIDER, ADJUSTABLE ARMS, LUMBAR SUPPORT, HARD CASTERS
HON CIPHER GUEST CHAIR
ARMLESS, GLIDES

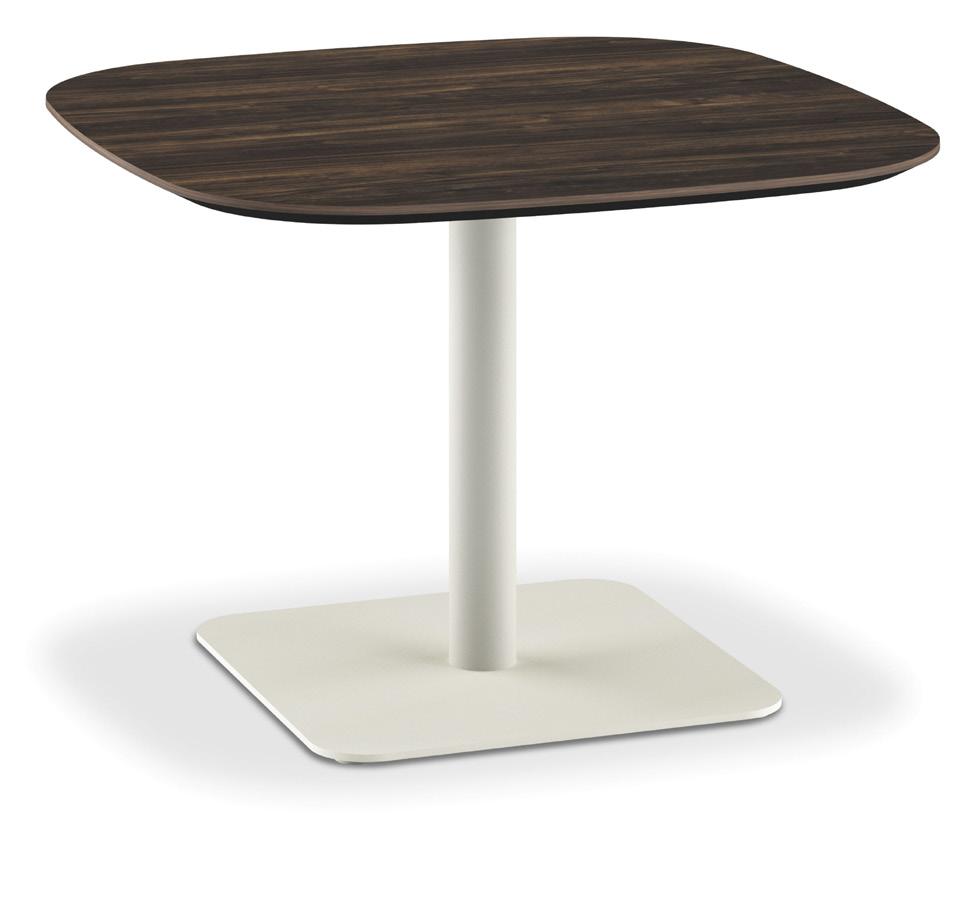

HON BIRK TABLE
SOFT TOP (SQ OR RECT) WITH FLAT EDGE, & PEDESTAL LEG. TABLE SIZE / LEGS WILL VARY BASED ON YOUR SPACE

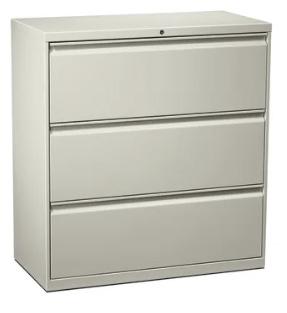

HON FLAGSHIP STORAGE AS NEEDED
4-WAY MESH: BLACK DESK TOP: LOFT
DESK BASE: BLACK
GRADE 1 SEAT: COUNTOURETT IRON
BASE: BLACK
4-WAY MESH: CHARCOAL
GRADE 1 SEAT: COUNTOURETT IRON W/ COORD STITCH
BASE: BLACK
TABLE TOP: LOFT FINISH: LOFT
TABLE BASE: TEXTURED CHARCOAL
MEDIUM TO LARGE DOGS
MEDIUM TO LARGE DOGS
QUIET COTTAGE MODEL #7
SMALL TO MEDIUM DOGS
SANI - KENNEL
ALL SIZES
K9 CABIN
SMALL TO MEDIUM DOGS
QUIET COTTAGE MODEL #20
SMALL TO MEDIUM DOGS
OTHER SPECIFICATIONS
MISCELLANEOUS ITEMS
- ALL WALLS SHOULD BE FULL-HEIGHT TO DECK
- FULL WIDTH SOUND BATT INSULATION SHOULD BE PROVIDED IN ALL WALLS BETWEEN GROOMING, PLAY AREAS, NAP ROOM, AND STAY N’ PLAY AND ADDED ELSEWHERE AS BUDGET ALLOWS
- AVOID SHARP EDGES AND PROTRUSIONS WHICH COULD INJURE A DOG
- PROVIDE ROLLER SHADES AT EXTERIOR WINDOWS AS NEEDED (BASIS OF DESIGN: SWF CONTRACT R-SERIES MANUAL SOLAR SHADE)
- PROVIDE WALL PROTECTION (SHEETS AND CORNER GUARDS) AS REQUIRED IN CORRIDOR SPACES WHERE DOGS WILL BE PASSING THROUGH
PAINT
- ALL PAINT LOCATIONS TO BE APPROVED BY BVF
- DOG AREAS TO USE EPOXY PAINT
- OTHER AREAS MAY USE SATIN / EGGSHELL
INTERIOR SIGNAGE
- CODE REQUIRED SIGNAGE AT TOILET ROOMS, STAIRS, ELEVATORS, AND EXITS
- ALL SIGNAGE MUST BE INSTALLED PRIOR TO OPENING
- SEE RECEPTION, GROOMING & INDOOR PLAY REQUIREMENTS LISTED IN THIS DOCUMENT
- ALL ARTWORK AND QUOTES MUST BE APPROVED BY BVF (COORDINATE WITH YOUR ONBOARDING MANAGER)
- SEE SIGNAGE REQUIREMENTS AND COORDINATE WITH OBNBOARDING MANAGER FOR OTHER MARKETING MATERIALS
- DISPLAY YOUR “FRANCHISE SIGN” IN A PROMINENT LOCATION WITHIN THE STORE. REFER TO YOUR ONBOARDING MANAGER FOR GUIDANCE ON ORDERING AND PLACEMENT OF THIS SIGN

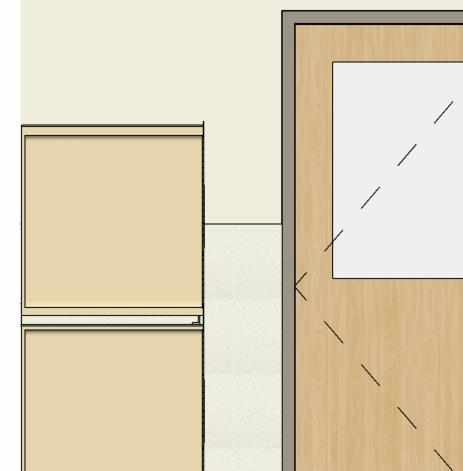

DOORS & DOOR HARDWARE
- EXISTING DOORS TO BE REUSED, IF POSSIBLE

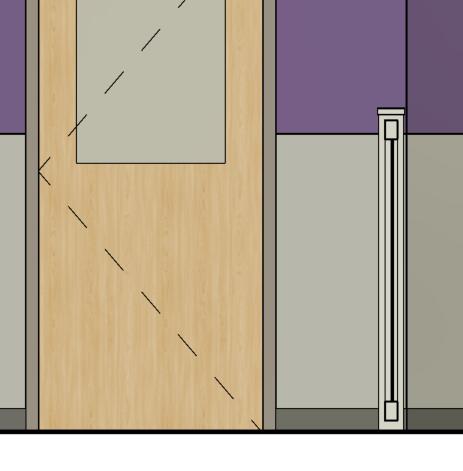

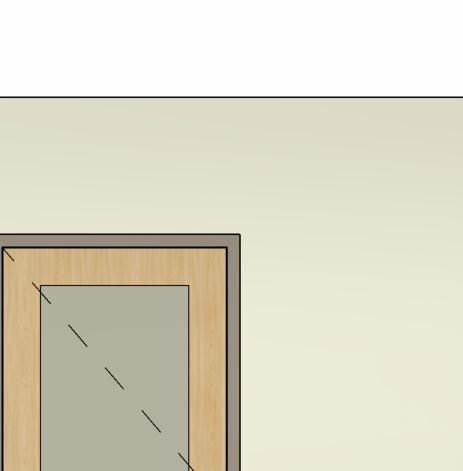

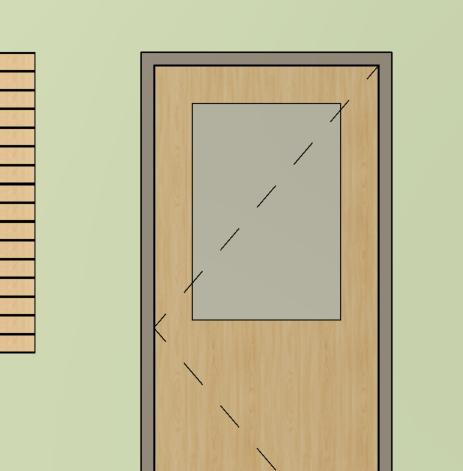

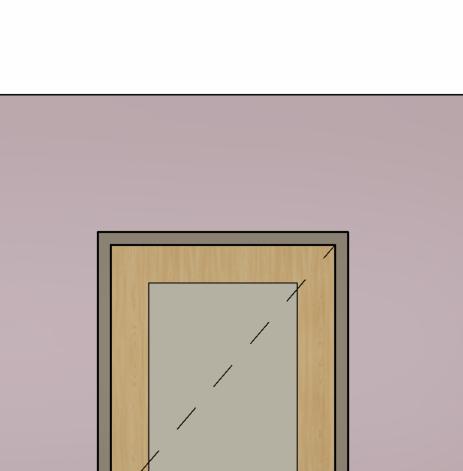

- NEW DOORS TO BE WOOD W/ HALF LITES OR NARROW LITES
- ALL DOORS TO HAVE PROTECTION PLATES ON BOTH SIDES (METAL OR INPRO PALLADIUM)
- ALL DOORS TO HAVE SELF-CLOSERS
- MAIN ENTRY DOOR(S) TO HAVE A BUZZER
- BUZZER SHOULD BE AUDIBLE IN PLAY AREAS TO NOTIFY STAFF WHEN MAIN ENTRY DOOR IS OPENED
- EGRESS DOORS TO HAVE CODE REQUIRED DOOR HARDWARE
- ALL OTHER DOORS TO HAVE LEVER HANDLES AND LOCKING OR NON-LOCKING FUNCTION –TO BE DETERMINED ON A CASE BY CASE BASIS

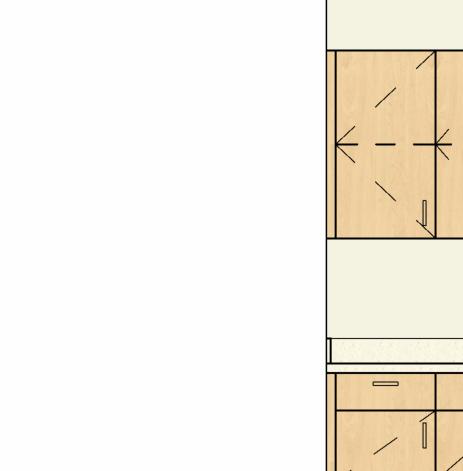

- ALL CABINETRY REACHABLE BY DOGS TO HAVE BLADE HARDWARE PULL
OUTDOOR SHADES
- IF YOUR OUTDOOR SPACE DOES NOT HAVE NATURAL SHADE, PROVIDE COVER VIA A SUN SHADE OR SIMILAR IN EACH PLAY AREA (BASIS OF DESIGN: APOLLO SUNSHADE 3-POINT SAIL)
- AVOID HAVING ANY CENTRAL POSTS WITHIN THE PLAY SPACE
- FOR THE SAFETY OF THE DOGS, HAVING TREES OR PLANTS IN THE OUTDOOR AREA SHOULD BE AVOIDED - CONSULT YOUR ONBOARDING MANAGER AND ARCHITECT WHEN SELECTING A SITE TO REVIEW EXISTING CONDITIONS
SECURITY SYSTEMS
- MOTION DETECTION SYSTEMS (NOT IN DOG AREAS)
- MONITORED SERVICES MUST INCLUDE: HEAT, SMOKE, FIRE, CARBON MONOXIDE, DOOR AND WINDOW OPENING
- GLASS BREAK DETECTION SUGGESTED (NOT REQUIRED)
- VIDEO CAMERAS INSIDE AND OUT RECOMMENDED (NOT REQUIRED)
- CONSIDER BUNDLING SECURITY SERVICES WITH PHONE AND INTERNET
- ANNUAL MAINTENANCE PACKAGE RECOMMENDED
MECHANICAL, ELECTRICAL, PLUMBING AND FIRE PROTECTION
- FOR ALL MEP-RELATED ITEMS, KEEP OUT OF HIGH-TRAFFIC SPACES AND ENSURE THAT PROPER CLEARANCES ARE MET
- ELECTRICAL PANEL SHOULD NOT BE LOCATED IN SPACES THAT WILL BE HOSED DOWN (INDOOR PLAY AND STAY N’ PLAY)
* WHEN POSSIBLE, CONCEAL WITHIN ITS OWN ROOM OR IN THE UTILITY ROOM
- ANY ELECTRICAL OUTLETS IN SPACES THAT WILL BE HOSED DOWN SHOULD BE GFCI OUTLETS
- ALL ELECTRICAL OUTLETS OR POWER SUPPLIES LOWER THAN (4’-0”) MUST BE COVERED OR DISCONNECTED SO THAT DOGS CANNOT ELECTROCUTE THEMSELVES
- ALL LIGHT FIXTURES SHOULD BE LED
- (3) PENDANTS REQUIRED ABOVE RECEPTION DESK (BASIS OF DESIGN: KUZCO LIGHTING, HELENA PD9108, COLOR: WHITE/SILVER)
- COLD WATER SOURCES (HOSE BIBS AND HOSES) ARE IDEALLY PRESENT IN ALL INDOOR AND OUTDOOR PLAY AREAS. EXISTING CONDITIONS MAY DICTATE THE FEASIBILITY OF ADDING THESE FEATURES
- FLOOR DRAINS ARE RECOMMENDED BUT NOT REQUIRED WHEREVER POSSIBLE, ESPECIALLY IN INDOOR PLAY AREAS
- A FIRE SPRINKLER SYSTEM MAY BE REQUIRED FOR YOUR BUILDING AND SHOULD BE DISCUSSED WITH THE LOCAL AUTHORITY HAVING JURISDICTION PRIOR TO ARCHITECT’S INVOLVEMENT IN THE PROJECT. IF A FIRE SPRINKLER SYSTEM EXISTS IN THE BUILDING, IT MUST BE EXTENDED AND/OR MODIFIED TO BE COHESIVE WITH THE UPDATED FLOOR PLAN
- PROVIDE FIRE EXTINGUISHERS AS REQUIRED BY CODE
FENCING
- ALL FENCING AND GATES ARE REQUIRED TO BE WHITE VINYL
- FENCING BETWEEN PLAY GROUPS SHOULD BE 4’-0” HIGH SOLID VINYL (BASIS OF DESIGN: WEATHERABLES PEMBROKE 4’ -0” WITH EXTERNAL POST CAP)
- GATES BETWEEN PLAY GROUPS SHOULD BE 4’-0” HIGH SLATTED VINYL (BASIS OF DESIGN: WEATHERABLES WILLIAMSPORT 4’ -0” WITH EXTERNAL POST CAP)
- FENCING BETWEEN STAY N’ PLAY GROUPS SHOULD BE 6’-0” HIGH (BASIS OF DESIGN: WEATHERABLES GIDEON 6’ -0” WITH EXTERNAL POST CAP)
- GATES BETWEEN STAY N’ PLAY GROUPS SHOULD BE 6’-0” HIGH SOLID VINYL, OR TO MATCH ADJACENT FENCES WITH VISIBILITY ACCENT (BASIS OF DESIGN: WEATHERABLES PEMBROKE 6’ OR GIDEON 6’ WITH EXTERNAL POST CAP)
- EXTERIOR PERIMETER FENCING SHOULD BE 8’-0” HIGH OR GREATER WHERE MUNICIPALITIES ALLOW. PLEASE CONTACT BVF IF AN 8’-0” HIGH FENCE IS NOT PERMITTED AT YOUR FACILITY (BASIS OF DESIGN: WEATHERABLES PEMBROKE 8’ -0” WITH EXTERNAL POST CAP)
- POSTS SHOULD BE NO FURTHER THAN 8’-0” APART
- TYPICAL GATE SIZE IS 4’-0” WIDE
- GATES MUST SWING INTO THE PLAYGROUPS
- LARGE OPERABLE GATES SHOULD ALSO BE WHITE VINYL WITH VINYL OR STEEL REINFORCEMENT. FOR SPANS GREATER THAN 10’-0” CONSULT A FENCING CONTRACTOR (BASIS OF DESIGN: WEATHERABLES PEMBROKE 4’ -0” WITH EXTERNAL POST CAP)
- CONSULT YOUR FENCING MANUFACTURER TO DETERMINE AMOUNTS AND TYPES OF PRODUCTS NEEDED FOR YOUR LAYOUT. CUSTOM PIECES MAY BE REQUIRED.
- IF YOUR FACILITY HAS GARAGE DOORS IN THE PLAY AREAS, THEY ARE TO BE USED FOR VENTILATION PURPOSES ONLY. FENCING MUST BE INSTALLED TO SEPARATE PLAY GROUPS WHILE DOORS ARE OPEN. STANDARD HEIGHT GUIDELINES APPLY.
- ALL FENCES SHOULD BE SECURED TIGHTLY AGAINST THE TURF AT EXTERIOR FENCING, AND A MAXIMUM OF (1 1/2”) ABOVE THE GROUND AT INTERIOR FENCING TO PREVENT SMALL DOGS FROM ESCAPING
- ALL FLOORING AND TURF MUST BE INSTALLED PRIOR TO FENCE INSTALLATION
- NO CHAIN LINK FENCING IS PERMITTED
- BVF MUST APPROVE ANY SPECIAL CASES OR SUBSTITUTIONS
PLEASE REACH OUT TO YOUR ONBOARDING MANAGER FOR ANY QUESTIONS OR CONCERNS NOT ADDRESSED WITHIN THIS DOCUMENT
