Cassettes

Gear range of 9/10/12/15/18/22/26/30/34/40/46/52T XD-Driver compatible Material: AL7075 (30/34/40/46/52T), SACM645 steel (9/10/12/15/18/22/26T) Weight: ~325g NOT FOR AXS

OILSLICK OILSLICK OILSLICK

OILSLICK OILSLICK OILSLICK

black gold oilslick EDV-Ref. RRP

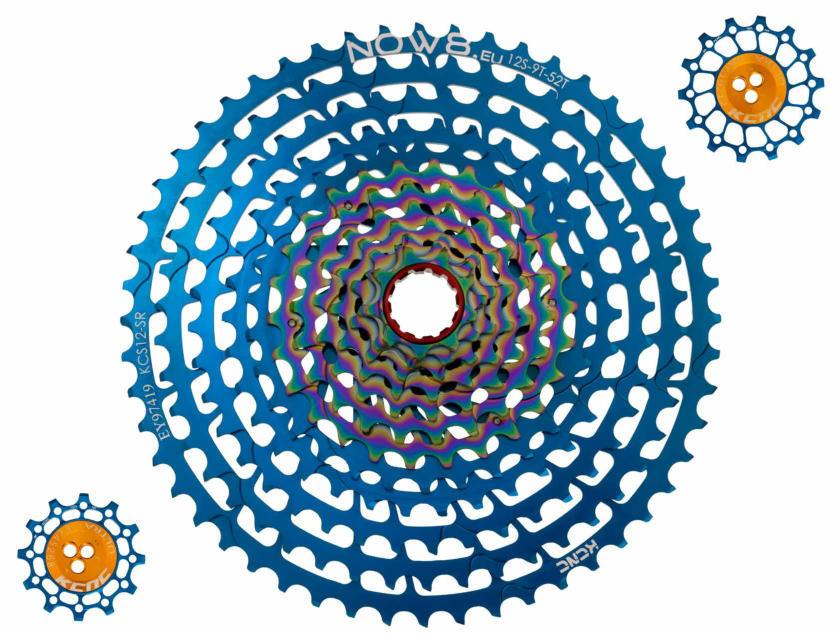

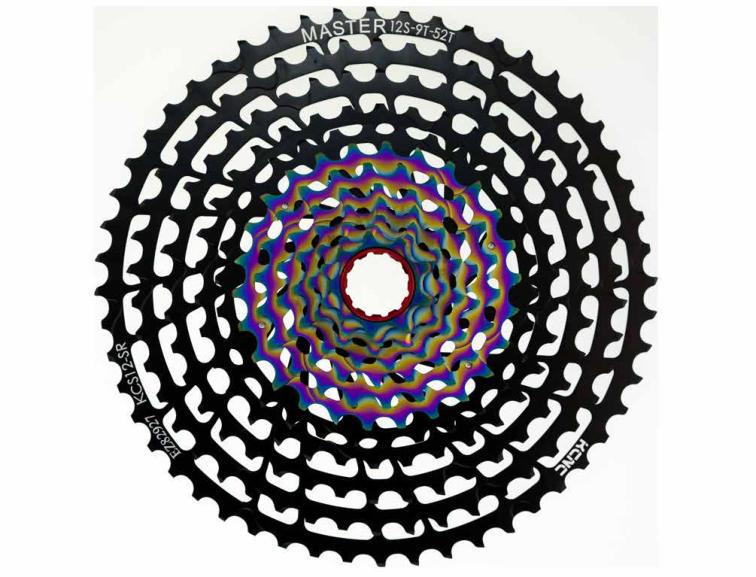

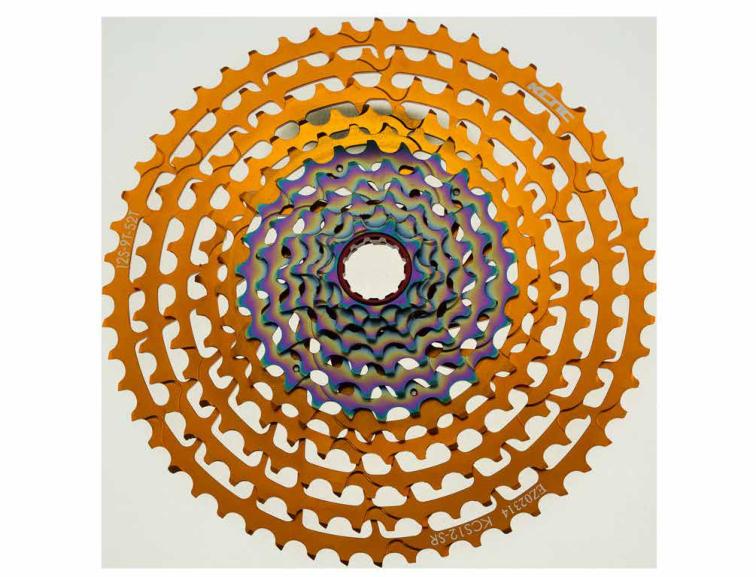

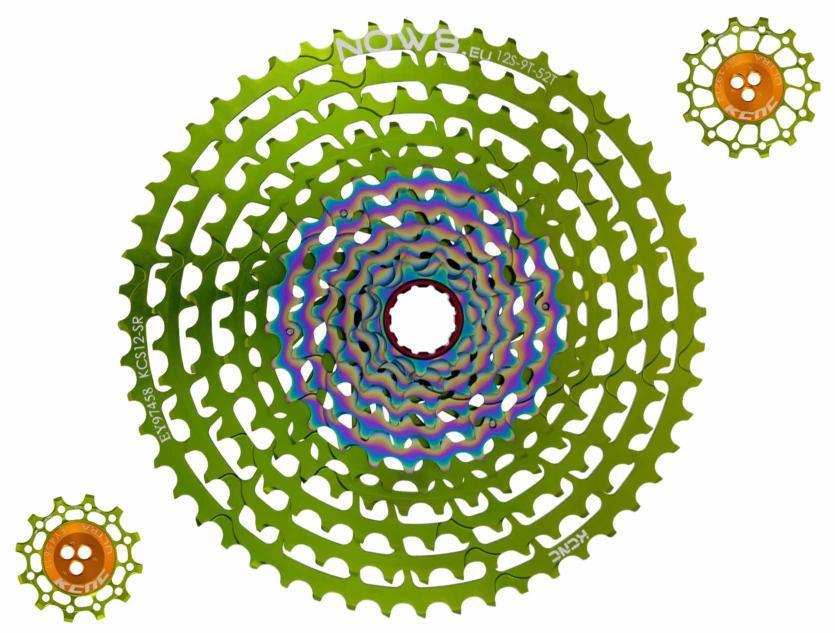

KCNC Cassette, 12 Speed (MTB 9-52)

801155 801150 423310 € 233,20 Steelpart for Cassette, 12 Speed (MTB 9-52) 801151 459900 Alloypart for Cassette, 12 Speed (MTB 9-52) 801158 801152 526600

XD-Driver Material: AL7075 (30/34/40/46/52T), SACM645 steel (9/10/12/15/18/22/26T) Weight: ~325g 9/10/12/15/18/22/26/30/34/40/46/52T Incl. asymmetrical pulley 12T+14T narrow wide Made by KCNC NOT FOR AXS

OILSLICK OILSLICK OILSLICK

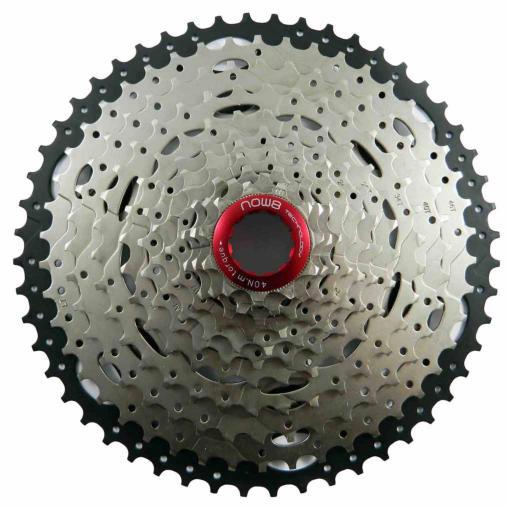

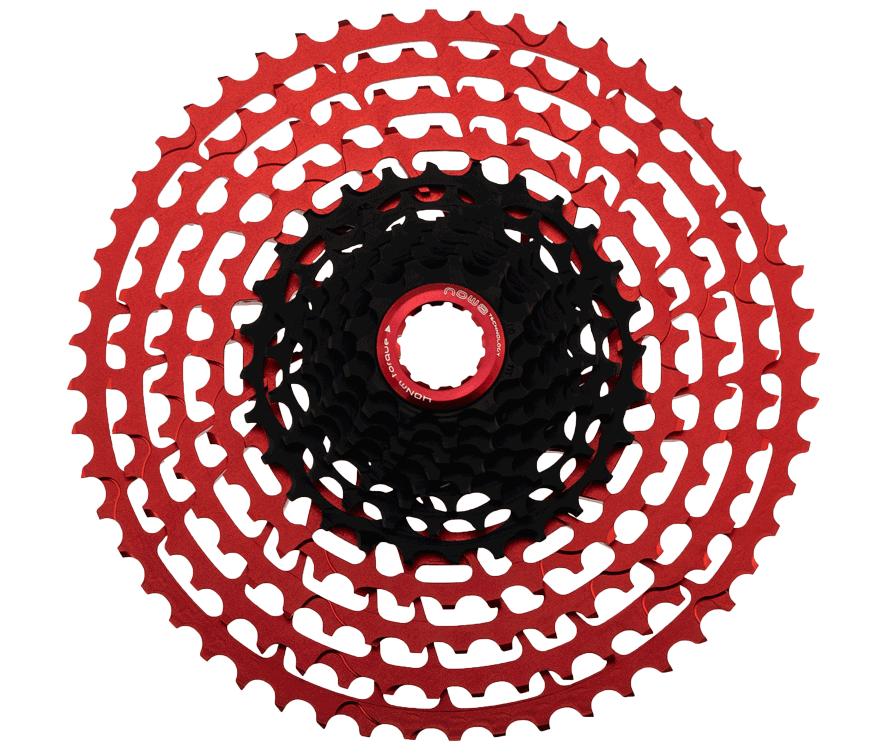

Our NOW8 Cassette Facile 12 is made of steel & aluminum & has a circumference of 11-52. With only about 336g is Facile one of the best in her class. It works with SH 11 speed derailleur M8000 SGS & normal SH MTB freewheel body. In addition, it is 3-piece & all parts are also available separately.

Shifter for Cassette

Type

NOW8 Cassette Facile, 12 speed, 11-52 NOW8 Shifter for Cassette Facile/MEZO 12, 11-48 NOW8 Shifter for Cassette BAZO-M2, 11-50/52 Art. Nr. EDV-Ref. RRP

190874 587810 € 338,10 190871 186400 € 84,70 190873 728300 € 68,80

12 speed, for SH 11-48 AL7075 & Stainless steel Weight: 423g 11/12/14/16/18/21/24/28/32/36/42/48

Made by KCNC

NOW8 Cassette MEZO, 12 speed, 11-48 Art. Nr. EDV-Ref. RRP

190872 252510 € 274,50

MEZO-M2

12 speed, SR XD compatible 9/11/13/15/18/21/24/28/32/36/42/50T Material: Steel+Aluminium Weight: 548g

Gear range of 9/10/12/14/17/20/24/28/32/38/44T XD-Driver compatible Cro-Mo/alloy Weight: ~265g

Type Cassette MTB, 11 Speed (9-44)

Cassette (MTB 9-48)

Gear range of 9/10/12/14/17/20/24/28/32/40/48T XD-Driver compatible Cro-Mo/alloy Weight: ~270g

Art. Nr. EDV-Ref. RRP 801153 380510 € 264,00

8 10 Speed, Steel Cassette, for SH 8 11-40, 11-42 8 Weight: 491g, 517g 8 11/13/15/18/21/23/26/30/34/40T 11/13/15/18/21/24/28/32/36/42T

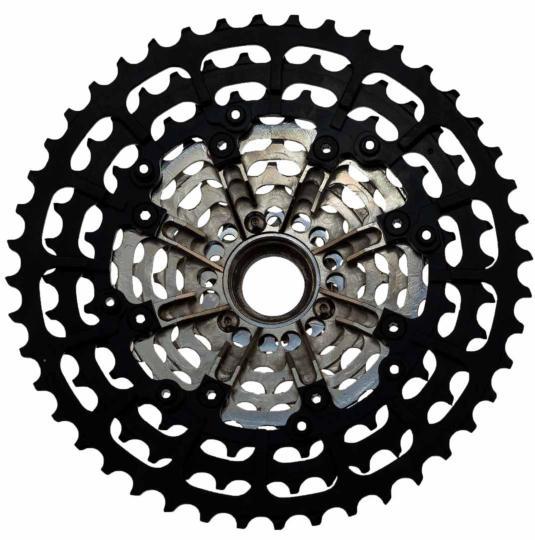

BAZO-M2

8 12 Speed, Steel Cassette, for SH 8 11-50, 11-52 8 Weight: 617g, 705g 8 11/13/15/17/19/21/24/28/32/36/42/50T 11/13/15/17/19/21/24/28/34/40/46/52T 8 11 Speed, Steel Cassette, for SH 8 11-46, 11-50, 11-52 8 Weight: 654g, 647g, 732g 8 11/13/15/18/21/23/26/30/34/40/46T 11/13/15/18/21/24/28/32/36/42/50T 11/13/15/18/21/24/28/34/40/46/52T

NOW8 BAZO-M0, 10 speed, 11-40 NOW8 BAZO-M0, 10 speed, 11-42 NOW8 BAZO-M1, 11 speed, 11-46 NOW8 BAZO-M1, 11 speed, 11-50 NOW8 BAZO-M1, 11 speed, 11-52 NOW8 BAZO-M2, 12 speed, 11-50 NOW8 BAZO-M2, 12 speed, 11-52 NOW8 Spare Sprocket 11 +13 for BAZO-M Cassettes Art. Nr. EDV-Ref. RRP

190821 832300 € 58,30 190822 832300 € 58,30 190825 614400 € 79,50 190826 156400 € 83,70 190827 649400 € 89,00 190830 142500 € 94,30 190831 535500 € 99,60 190839 249000 € 17,90

Using 6AL/4V titanium cogs, fixed on 7075 alloy carrier, smallest three cogs are removeable 11 & 12T (single piece), 14T (single piece), others are fixed by SUS rivets.

Gear range of 11/12/14/16/18/21/24/28/32/36/40T SH/SR 11 Speed MTB compatible Material: AL7075 carrier & 40T, 6AL/4V titanium cogs (11~36T), SUS rivets Weight: 282g

Type Titanium Cassette, 11 Speed (MTB 11-40T) Art. Nr. EDV-Ref. RRP 801144 907030 € 537,40

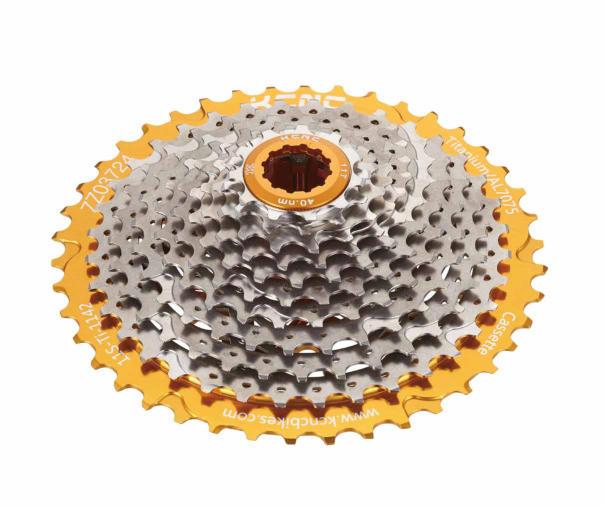

11 Speed Titanium Cassette (MTB 11-42T)

Using 6AL/4V titanium cogs, fixed on 7075 alloy carrier, smallest three cogs are removeable 11 & 12T (single piece), 14T (single piece), others are fixed by SUS rivets.

Gear range of 11/12/14/16/18/21/24/28/32/36/42T SH/SR 11 Speed MTB compatible Material: AL7075 carrier & 42T, 6AL/4V titanium cogs (11~36T), SUS rivets Weight: 292g

Using 6AL/4V titanium cogs, fixed on 7075 alloy carrier, smallest three cogs are removeable 11 & 12T (single piece), 13T (single piece), others are fixed by SUS rivets.

Gear range of 11/12/13/14/15/17/19/21/23/25/27T SH/SR 11 Speed RD compatible Material: AL7075 carrier & 27T, 6AL/4V titanium cogs (11~25T), SUS rivets Weight: 167g

Type Titanium Cassette, 11 Speed (Road 11-27T) Art. Nr. EDV-Ref. RRP 801148 510720 € 472,80

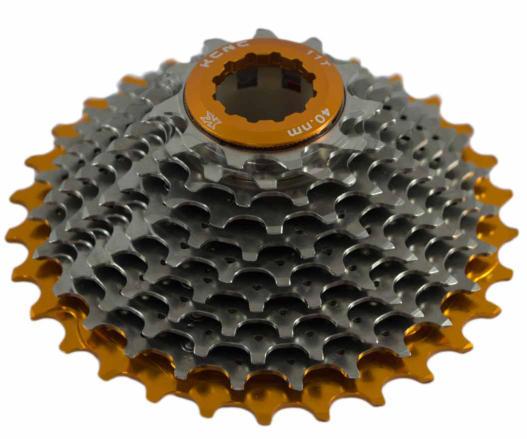

11 Speed Titanium Cassette (Road 11-30T)

Using 6AL/4V titanium cogs, fixed on 7075 alloy carrier, smallest three cogs are removeable 11 & 12T (single piece), 13T (single piece), others are fixed by SUS rivets.

Gear range of 11/12/13/15/17/19/21/23/25/27/30T SH/SR 11 Speed RD compatible Material: AL7075 carrier & 30T, 6AL/4V titanium cogs (11~27T), SUS rivets Weight:196g

SH 11-38T 11-13-15-17-20-23-26-30-34-38

SH/SR 10S MTB compatible 10 individual 6/4 Ti cogs Mono block CNC machined AL7075 carrier Optimized tooth profile for swift shifting performance Weight: ~ 194g

*Fixed mount, no user replaceable cogs*

SH 11-23T 11/12/13/14/15/16/17/19/21/23 SH 12-25T 12/13/14/15/16/17/19/21/23/25 SH 12-27T 12/13/14/15/16/17/19/21/24/27

SH 10S RD compatible 10 individual 6/4 Ti cogs Mono block CNC machined AL7075 carrier Optimized tooth profile for swift shifting performance Weight: ~118-136g

*Fixed mount, no user replaceable cogs*

SH 11-23T

SH 12-27T

Type Titan Cassette Road 10 Speed (11-23T), 118g Titan Cassette Road 10 Speed (12-25T), 132g Titan Cassette Road 10 Speed (12-27T), 136g SH 12-25T

Art. Nr. EDV-Ref. RRP 801060 982420 € 425,00 801061 982420 € 425,00 801062 982420 € 425,00

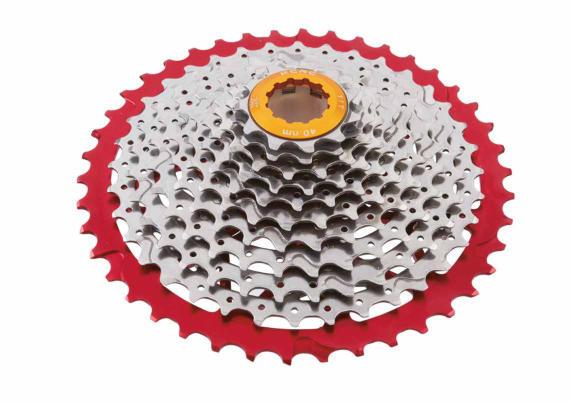

Stainless steel Cassette (11-36T)

SUS420 press cutting Stainless steel cogs, fixed on 7075 alloy carrier, smallest three cogs are removable 11 & 12T (single piece), 14T (single piece), others are fixed by SUS rivets SH/SR 10 Speed compatible Gear range of 11/12/14/16/18/21/24/28/32/36; only 11-36T range is available for 10 Speed SUS cassette Material: AL7075 carrier - Stainless steel cogs & rivets Weight: 315g

Type Art. Nr. EDV-Ref. RRP

Stainless steel Cassette MTB, 10 Speed (11-36T) 801136 024800 € 147,30

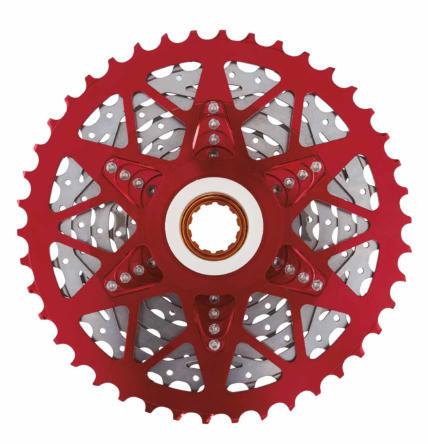

Stainless steel Cassette (11-42T)

SUS420 press cutting Stainless steel cogs, fixed on 7075 alloy carrier, smallest three cogs 11 & 12T (single piece), 14T (single piece) & largest 42T alloy cog are removable, others are fixed by SUS rivets. SH 11 Speed compatible Gear range of 11/12/14/16/18/21/24/28/32/36/42 (alloy); only 11-42T range is available for 11 Speed SUS cassette Material: AL7075 carrier - Stainless steel cogs & rivets Weight: 380g

Weight: 24g Also matching for 15mm Skewer

BOOOST adaptor Centra lock Front: NOW8 CL BOOST adaptor front, from 100 OLD to 110 OLD, for Centerlock Hubs Rear: NOW8 CL BOOST adaptor rear, from 142 OLD to 148 OLD, for Centerlock Hubs

BOOOST adaptor Front: New fork OLD 110, old rotor OLD 100, BOOST adaptor 100/110 Rear: New frame OLD 148, old rotor OLD 142, BOOST adaptor 142/148 Incl. 6 bolts 14mm (front) or 12mm (rear)

NOW8 Conversion kit, 11 speed, 18+50, MTB Cassettes NOW8 Centra lock adaptor NOW8 CL BOOST adaptor front NOW8 CL BOOST adaptor rear NOW8 BOOST adaptor front NOW8 BOOST adaptor rear Art. Nr. EDV-Ref. RRP

193090 388500 € 105,90 190410 490100 € 20,30 190416 866100 € 31,70 190417 866100 € 31,70 190418 698000 € 17,90 190419 698000 € 17,90

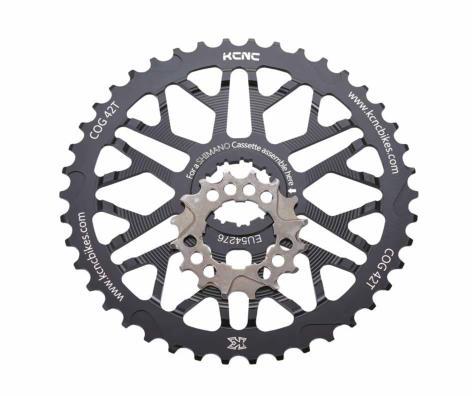

Upgrade your 10S Cassette (11-36T) to a wide range option with this replacement cogs. Compatible with 1x10 or 2x10 drive trains, replacement for SH or SR 10S Cassette 10 Speeds: 11-13-16-19-21-24-28-32-36-42 Sprocket Material: AL7075 (42T), SUS420 (16T)

Type 42T Sprocket+16T Art. Nr. EDV-Ref. RRP 801009 074400 € 78,20

40T Sprocket+16T

Upgrade your 10S Cassette (11-36T) to a wide range option with this replacement cogs. Compatible with 1x10 or 2x10 drive trains, replacement for SH or SR 10S Cassette 10 Speeds: 11-13-16-19-21-24-28-32-36-40 Sprocket Material: AL7075 (40T), SUS420 (16T)

Type 40T Sprocket+16T

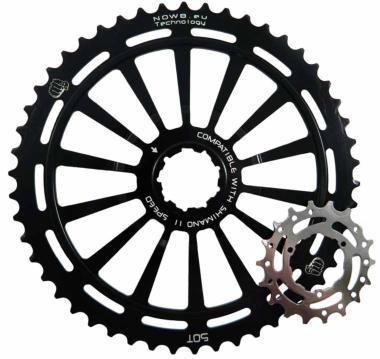

Conversion kit

11 speed, 18+50, for SH Weight: 120g

black red EDV-Ref. RRP 801010 801011 074400 € 78,20

For XTR or XT specially for cassettes 42 or 44T Material: AL7075 Weight: 30g

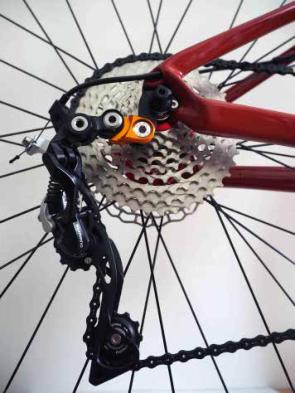

Rear derailleur adaptor - for XT M781 to 42T cog

It allows the XT M781 rear derrailleur users to upgrade cassette size up to 42T cogs. Material: AL7075

Type Rear derailleur adaptor for XTR M985/M980 Rear derailleur adaptor for XT M780/M785 Rear derailleur adaptor for XT M781/M786 Art. Nr. EDV-Ref. RRP 801133 502100 € 21,10 801134 502100 € 21,10 801135 502100 € 21,10

Type black red gold EDV-Ref. RRP Dropout extension, vertical, for rear derailleur 801190 801192 801191 502100 € 21,10 Dropout extension, horizontal, for rear derailleur 801193 801195 801194 502100 € 21,10

Lockring

11T & 12T Weight: 5g

Type red gold blue silver EDV-Ref. RRP SH 11T, 10/11/12 Speed 804561 804562 804563 804565 129000 € 16,10 SH 12T, 10/11/12 Speed 804567 804568 804569 804571 129000 € 16,10 Campagnolo 11T, 10/11/12 Speed 804573 804574 804575 804577 129000 € 16,10 Campagnolo 12T, 10/11/12 Speed 804579 804580 804581 804583 129000 € 16,10

for SH, DuraAce, XTR, XT; crankset left arm Material: AL6061 Weight: 5g

OILSLICK OILSLICK OILSLICK

Type black red gold blue green silver pink oilslick EDV-Ref. RRP Crank bolt 804205 804206 804207 804208 804209 804210 804211 844000 € 7,90 Crank bolt 804212 006000 € 10,50

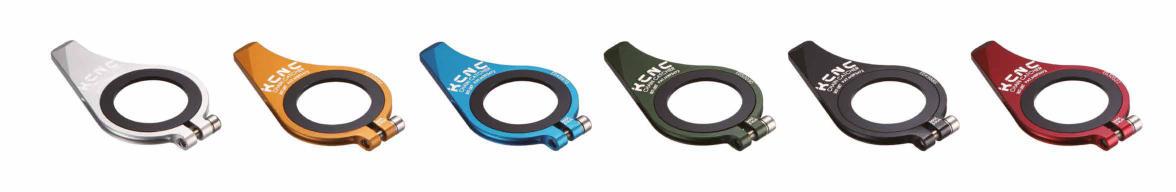

MTB Chain catcher

Prevents drive chains from falling Use on SH/KCNC external bearing system MTB cranksets Fits inner chainring tooth range from 24-20T, 27-25T, 30-28T Weight: 21-27g

Road Chain catcher

Prevents drive chains from falling Use on SH/KCNC external bearing system Road cranksets Weight: 12g

Type black red gold blue green silver EDV-Ref. RRP MTB Chain catcher, 30-28T 803617 803618 803619 803621 803620 803622 872200 € 39,90 MTB Chain catcher, 24-20T 803623 803624 803625 803627 803626 803628 872200 € 39,90 MTB Chain catcher, 27-25T 803629 803630 803631 803633 803632 803634 872200 € 39,90 Road Chain catcher 803635 803636 803637 803639 803638 803640 872200 € 39,90

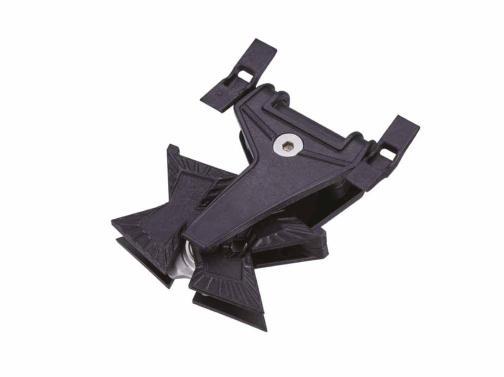

Chain guide for raising the chaintension, in order to prevent the chain from falling down or knocking around suitable for 1-3-Speed chainwheel sets.

Suitable for all bikes with or without nonstop cable routing under the chain stay

Mounting at cable guide or chain stay is possible

Made of high grade fiber nylon

High quality Stainless steel pulley applied ensure smooth chain running

Two Zip ties are included in the package

Type KCNC Chain guide with Stainless steel pulley Art. Nr. EDV-Ref. RRP 803641 237100 € 30,30

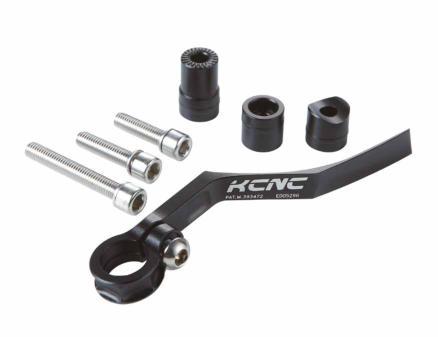

Chain guide

For ISCG05 mount/High DM mount/Seattube clamp mount Range: 30/32/34/36/38/40/42T Material: AL7075

Type Direct mount Chain guide-MTB (ISCG05) D-Type Chain guide-MTB, direct mount Seattube Chain guide-MTB, clamp 34.9 black red gold EDV-Ref. RRP 803642 803644 803643 632200 € 39,10 803645 803647 803646 057100 € 30,60 803611 803613 803612 399100 € 34,90
