Back to the Mine

After four decades of dormancy, the newly renamed Cactus Project is ripe for redevelopment. Arizona Sonoran Copper Company, based in Tempe, AZ is setting the stage for the big new dig.

Written by Amy Milshtein Produced by Stephen Marino

www.arizonasonoran.com

2

Arizona Sonoran Copper Company | 3

www.arizonasonoran.com

E

Arizona Sonoran Copper Company |

4

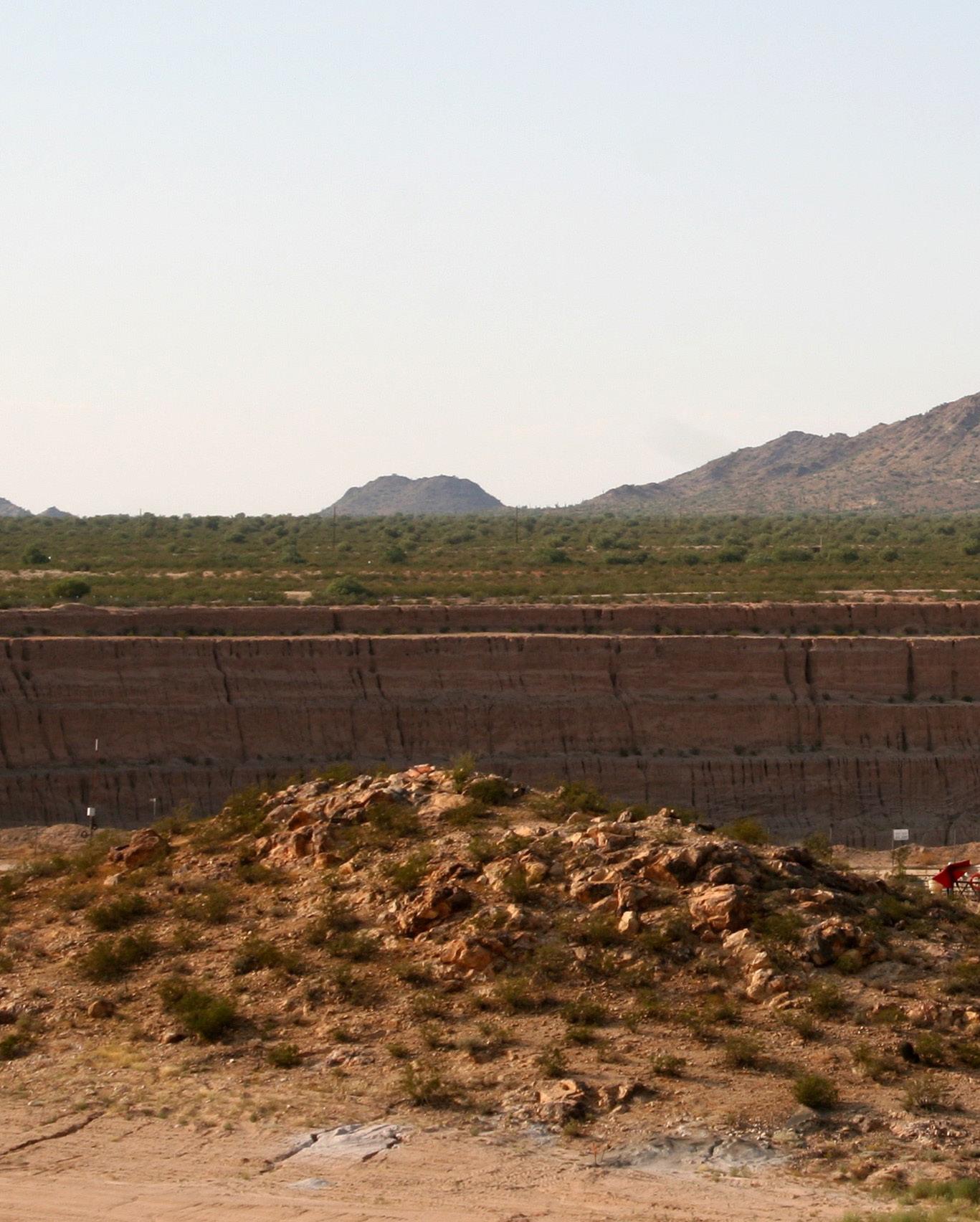

verything old is new again at the Sacaton Mine located just west of Casa Grande, AZ.—starting with its name.

Now known as the Cactus Project, this long-dormant mine is gearing up for productivity once more, thanks to new owner Arizona Sonoran Copper Company. (For those keeping count, Arizona Sonoran Copper Company is also new, in name at least. The change represents a rebrand of Elim Mining Incorporated.)

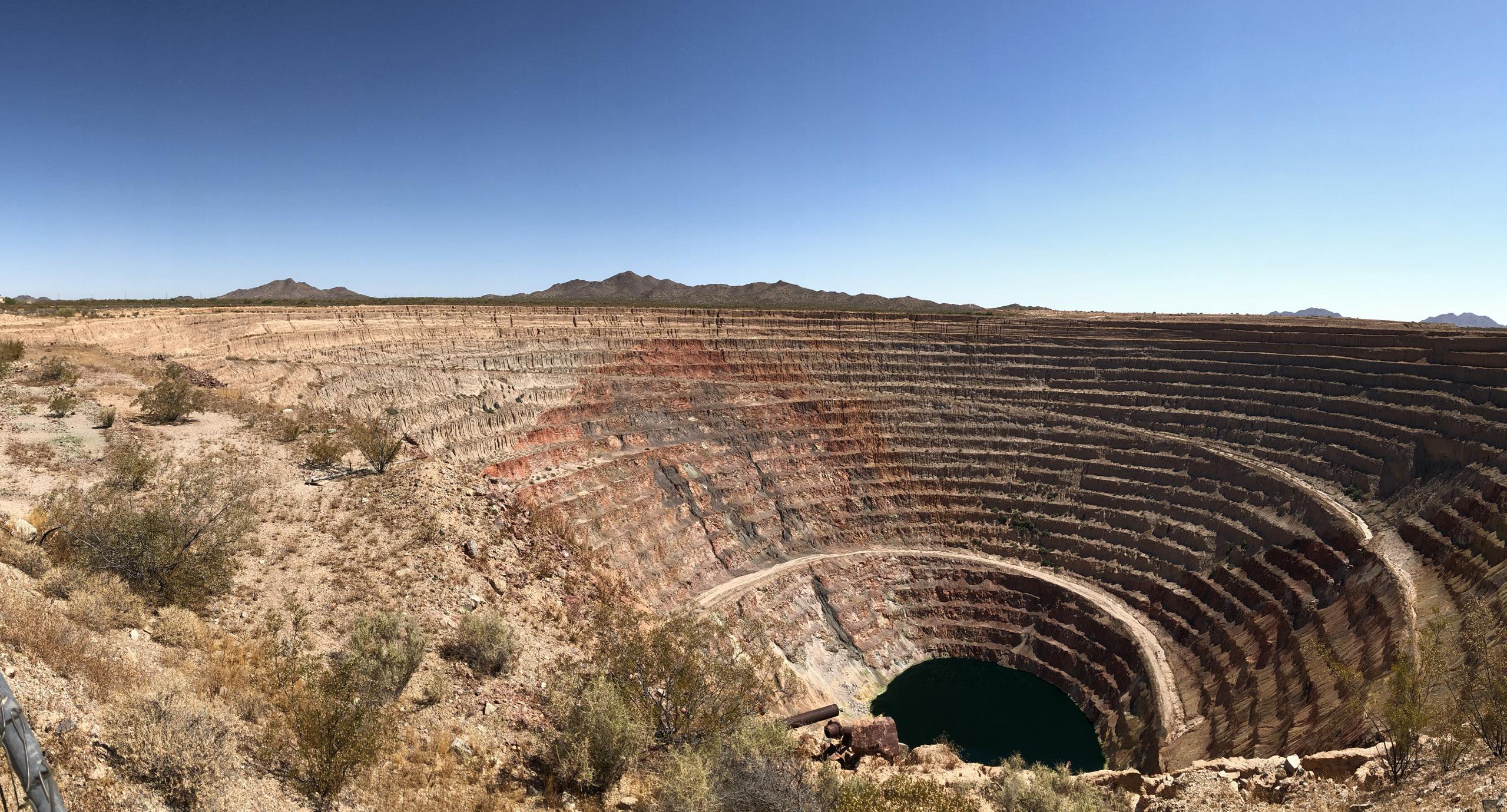

That is a lot of activity around a nearly 40-year-old open pit described as a “taxpayer liability in 2019” by Arizona Sonoran Copper Company COO Ian McMullan in an article in AZO Mining.

Much has turned around in the few short years since then. According to that AZO Mining story, an economic study based on the 2021 Preliminary Economic Assessment and as conducted by Rounds Consulting Group, the project’s 18-year operating life would result in an economic impact of more than $8.5 billion - the equivalent of a Super Bowl’s economic activity every other year for nearly two decades.

Not one to measure economic success by “Super Bowls,” Arizona Sonoran Copper Company president, CEO, and director www.arizonasonoran.com

“The success of the project to d building an excellent team includ Samuel Engineering and Stante been able to keep within our dri industry cost per meter drilling w to Ruen Drilling. Last year we p and Preliminary Economic Asse both Samuel Engineering and economics on the Project. W completing a Pre-Feasibility Stu are confident of producing highlighting the econo

- George Ogilvie, Preside

date has been contingent upon ding our partners Ruen Drilling, ec. On the drilling front we’ve illing budget and have leading with great productivity thanks produced a maiden resource essment with the assistance of d Stantec that showed robust We are now in the midst of udy with the same partners and g a quality technical report omics of the Project.”

dent, CEO, and Director

Arizona Sonoran Copper Company | 5

George Ogilvie puts the numbers in more mining-friendly terms.

“Based on the Cactus Project alone, our average annual production that’ll come out of the pre-feasibility study is probably going to be close to 35,000 short tons or 70 million lbs of copper cathode production, which is about a 15% improvement over and above what we had in the PEA at 56 million lbs.” (That 70 million lbs works out to around $273 million U.S. dollars in annual revenue at the current spot Copper price of $3.90.) The company has also discovered a nearly 3 billion pound deposit known as Parks Salyer within the project boundary, in addition to the 3.5 billion pounds at Cactus, which is currently being added into the pre-feasibility study due around year end.

A (Mineral) Rich History Located at the convergence of three major geological zones in western Pinal County, the area’s mineral riches were originally discovered by the American Smelting and Refining Company (ASARCO) in 1961. ASARCO mined the sight from 1972 to 1984, processing 38 million tons of primary copper ore through a floatation mill. This produced 400 hundred million pounds of copper along with 759,000 ounces of silver and 27,000 ounces of gold. www.arizonasonoran.com

Arizona Sonoran Copper Company |

Azteca Gold Corporation

World-Wide Experience

PROJECT: Two Mile Project LOCATION: Silver Valley, Idaho

INTELLIGENT APPROACH EQUALS A BETTER VALUE

From the Mariani Tunnel geotechnical investigation in Puerto Rico to the challenging markets of the Far East and Latin America. Its our personal attention, project passion, outstanding safety record and reputation that sets Ruen Drilling apart from the rest.

RUEN was asked to drill a series of deep core holes beneath known mineral deposits in the Silver Valley mining district in order to confirm the existence and sxtent of deeper mineralization. Drilling proceeded on one of the holes to roughly 11,340 feet. Possibly the deepest core hole ever drilled in North America. Crews operated 24 hours a day, from start to fisish using V-wall lightweight drill rods. Special bits and an engineeered low solids polumer based drilling campaign with zero lost time accidents.

Vulcan Power Company

Caldecott Tunnel Improvement Project

PROJECT: Geothermal Resource Evaluation

PROJECT: Geotechnical Baseline Report

LOCATION: Near Fallon, Neveda

LOCATION: Oakland, California

Geologic conditions and client’s needs require deep core recovery in a series of geothermal core holes. These were hubrid borings, pre-collared with casing ising a rotary drill rig, to top of the basement rock. Core holes completed to approximately 7,000 feet, drilling wire line core to TD. RUEN achieved accurate results for data collection to characterize the geothermal reservoir, and recovered core for additional exploration study at a cost savings to the client. With crews trained and experienced in geothermal hazards and nlowout prevention, this project was completed in a safe, timely manner.

Drilling results were the basis for a Geotechnical Baseline Report (GBR). Drilling included hortixontal and angle HQ3 core holes to depths of over 900 feet each. Geotechnical aspects of the rock including RQD, bedding, fracture patterns, presence and glow rate of the groundwater were reported.

RUEN’s work on this project was designed to contribute t an accurate construction bid. In general, the more complete the characterization drilling program, the fewer change orders “changed ground conditions” will follow.

02 09 Alaska, USA

01

Project Abstracts

Ruen’s experience in the US, South America, and Asia

Clark Fork, Idaho

05

Modesta, CA

San Juan, Puerto Rico project location

03

office

06

Ensanada, Mexico

Carajas, Brazil

04 Perú Lima, Perú P, Bolivia Oruru, Bolivia

08 Magadan, Russia

07

03

CLIENT: Kiewit Pacific Company PROJECT: Rock Quarry Investigation / Core Drilling LOCATION: Ensenada, Mexico

04

CLIENT: Minera Yanacocha S.A. PROJECT: Exploration - Reserve Def. -Hydrological Investigation LOCATION: Cajamarca, Perú

05

CLIENT: Geopractica, Inc. PROJECT: PR-53 Mariani Tunnel Project LOCATION: San Juan, Puerto Rico

06

CLIENT: GeoSal PROJECT: Consulting LOCATION Carajas, Brazil

07

CLIENT: Territory Development Dept PROJECT: New Town Ground Investigation LOCATION: Maunsell - Sha, China

08

CLIENT: Omolon Gold Corporation (Amax Gold, Inc.) PROJECT: Kegali Exploration Core Drilling Project.

LOCATION: Kubaka Mine Site - Magadan Russia

09

CLIENT: Teck PROJECT: Red Dog Mine LOCATION: Kotzebue, Alaska, USA CLIENT: Northern Star Resources PROJECT: Pogo Gold Mine LOCATION: Delta Junction, Alaska, USA CLIENT: Nova Minerals PROJECT: Estelle Gold Trend LOCATION: Willow, Alaska, USA

Hong Kong, China

To see more projects, visit www. ruendrilling.com

Phone: (208) 266-1151 • Fax: (208) 266-1379 • Email: office@ruendrilling.com

www.arizonasonoran.com

6

AND SE RV ITY AL

48

ICE

QU

Arizona Sonoran Copper Company | 7

R

C.

YEARS

U

EN

DRILLING

IN

Providing drilling services to the following industries:  Environmental  Industrial Minerals  Metals Mining  Geotechnical Engineering  Groundwater

www.arizonasonoran.com

Arizona Sonoran Copper Company |

In 1982 construction began on a production shaft to a depth of 1,800 ft along with a headframe to the southwest to access higher-grade ore via underground mining methods. The projects were never completed. “The mine became uneconomical,” Ogilvie reveals. “There was significant mineralization in the ground at that point in time. But, you know, at $0.65 a pound for copper, they couldn’t really make money on that from an underground Mine.”

The mine officially closed in 1984 and ASARCO filed for Chapter 11 bankruptcy protections in 2004.

After that the site was placed into an environmental trust and in 2019, $20 million worth of stabilization and reclamation work was completed. The trust also conducted valuable environmental analysis.

www.arizonasonoran.com

8

Elim Mining bought the mine in late 2019 for $6 million. They then renamed the site and subsequently rebranded as Arizona Sonoran Copper Company.

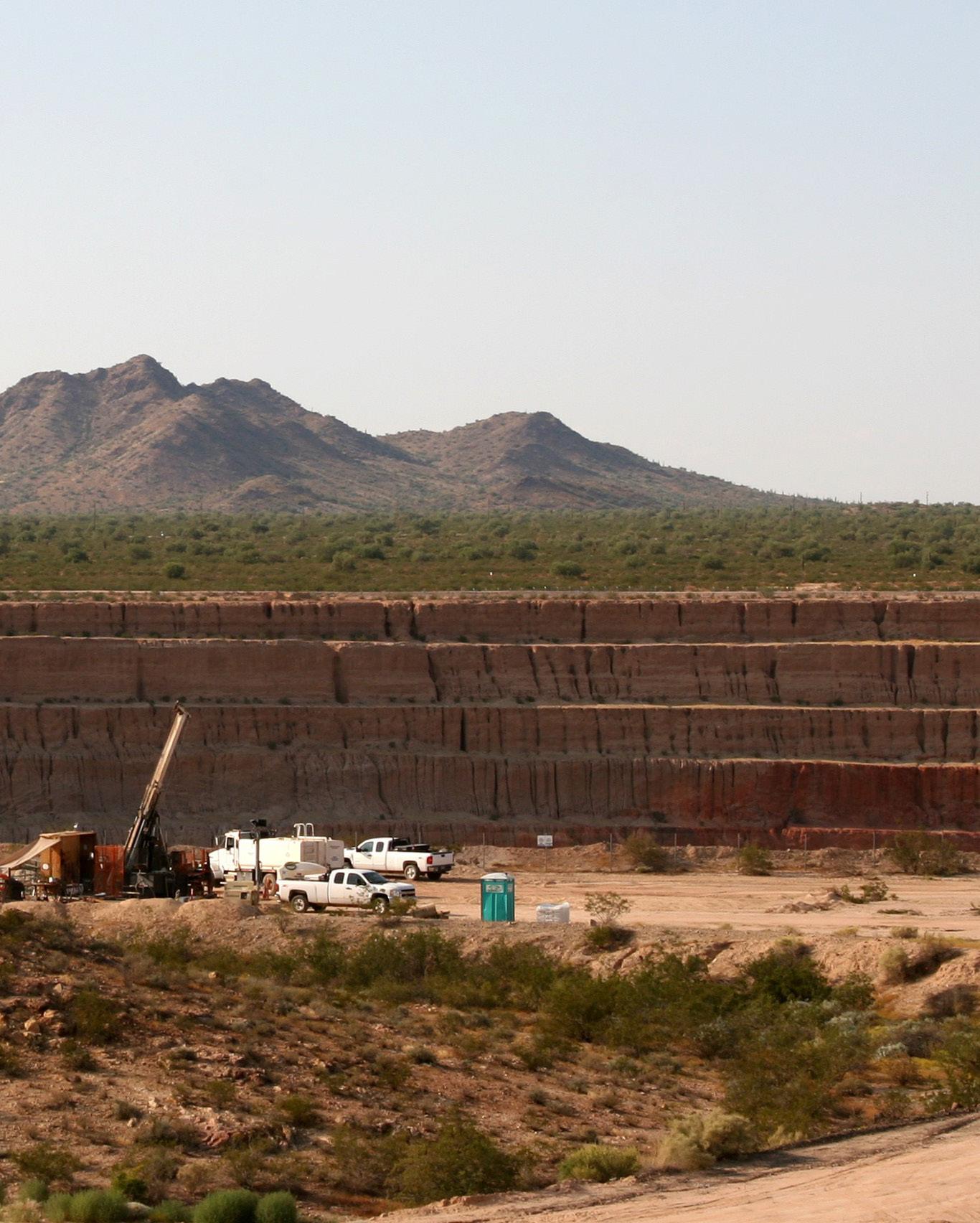

Reviving a Brownfield The Cactus Project already enjoys a head start, thanks in great part to being a brownfield project.

That means that much of the infrastructure is already in place with a main power line running right through the property. There is an existing substation available to step power down and feed it to a core shed and security shack. An administrative building was also already on site, however, the offices are now housed within the typical mining double-wide trailer.

But advances in mining technology is what really makes this project

Arizona Sonoran Copper Company | 9

economically exciting. Arizona Sonoran Copper Company plans to use heap leaching to extract the copper. This requires just leaching pads and a solvent extraction electro-winning plant, according to Ogilvie, as opposed to a large, complex copper concentrator.

“Heap leach technology was in its infancy back in the 1970s when ASARCO mined the site,” he says. “So, when they initially were starting up the pit, they scraped back the overburden and then the oxide cap. But all of that oxide cap was regarded as waste and went to a surface stockpile. The same was true for any sulfide material below 0.3% copper which was the copper cut-off grade at the time.”

Ogilvie estimates that there is almost 80 million tons of material already drilled, blasted, and hauled

to the surface by ASARCO that is about 0.169% total copper. “If you calculate it out that’s about 224 million lbs (nearly $873 million) worth of copper sitting in a surface stockpile.”

Because the money has already been spent removing the rock, Ogilvie views the early work at the Cactus Project as a low-hanging fruit re-handling exercise to generate cash flow. “We just pick that material up, put it through a screen, onto a conveyor belt, agglomerate and then stack it onto a leaching pad,” he says. “With the application of just sulfuric acid we’re seeing a 90% recovery of copper from the oxide!”

This methodology allows Arizona Sonoran Copper Company the cash flow to reinvest in the project.

This promises to minimize the

www.arizonasonoran.com

Arizona Sonoran Copper Company | 10

FULL SERVICE

LIFE CYCLE Engineering Procurement

Projects Worldwide

Samuel wishes to congratulate Arizona Sonoran on a successful project to date! We are grateful for our partnership throughout the feasibility study and NI 43-101 report effort and we look forward to the next phases of the project.

STUDIES PEA and MRE Studies Prefeasibility and Feasibility Studies NI 43-101 and S-K 1300 Report Development and QP Due Diligence Economic Analysis

www.arizonasonoran.com

DETAILED DESIGN & PROCUREMENT Mineral processing expertise Multi-discipline engineering Full service procurement & expediting capabilities Sophisticated Project Controls & Estimating

CONS

Fu ca su Ex te C So tr an

Arizona Sonoran Copper Company | 11

E EPFC SERVICES

E SOLUTIONS Fabrication

Construction

STRUCTION

ull Construction apabilities - both ubcontract and direct hire xperienced management eam Commitment to safety ophisticated project racking and earned value nalysis

COMMISSIONING/ STARTUP & ONGOING SUPPORT Onsite commissioning and startup team Operational testing and operator training Plant optimization Debottlenecking

FABRICATION - Module fabrication & assembly - Pipe spool and vessel fabrication - Platework assembly - 40,000 sf of shop space - 4 acres of laydown and module assembly area 100% Minority Owned 51% Woman Owned

Privately Owned

Active PE's in all disciplines

300+ Professionals

Debt Free

www.arizonasonoran.com

Arizona Sonoran Copper Company |

capital costs required to bring the mine into production.

It will also help speed up construction. “We have a prefeasibility study that’ll come out in late 2023/early 2024. We then move on to a bankable feasibility study which is produced in the late 2024,” reveals Ogilvie. “We would anticipate that we would have the project financing in place on the back of the bankable feasibility study and based on the current PEA schedule, it shows an 18-month construction and development period once the project financings are in place and the project is green lighted to first production. So, if we could execute

www.arizonasonoran.com

12

on that plan, we should see first copper cathode production being produced in late 2026.

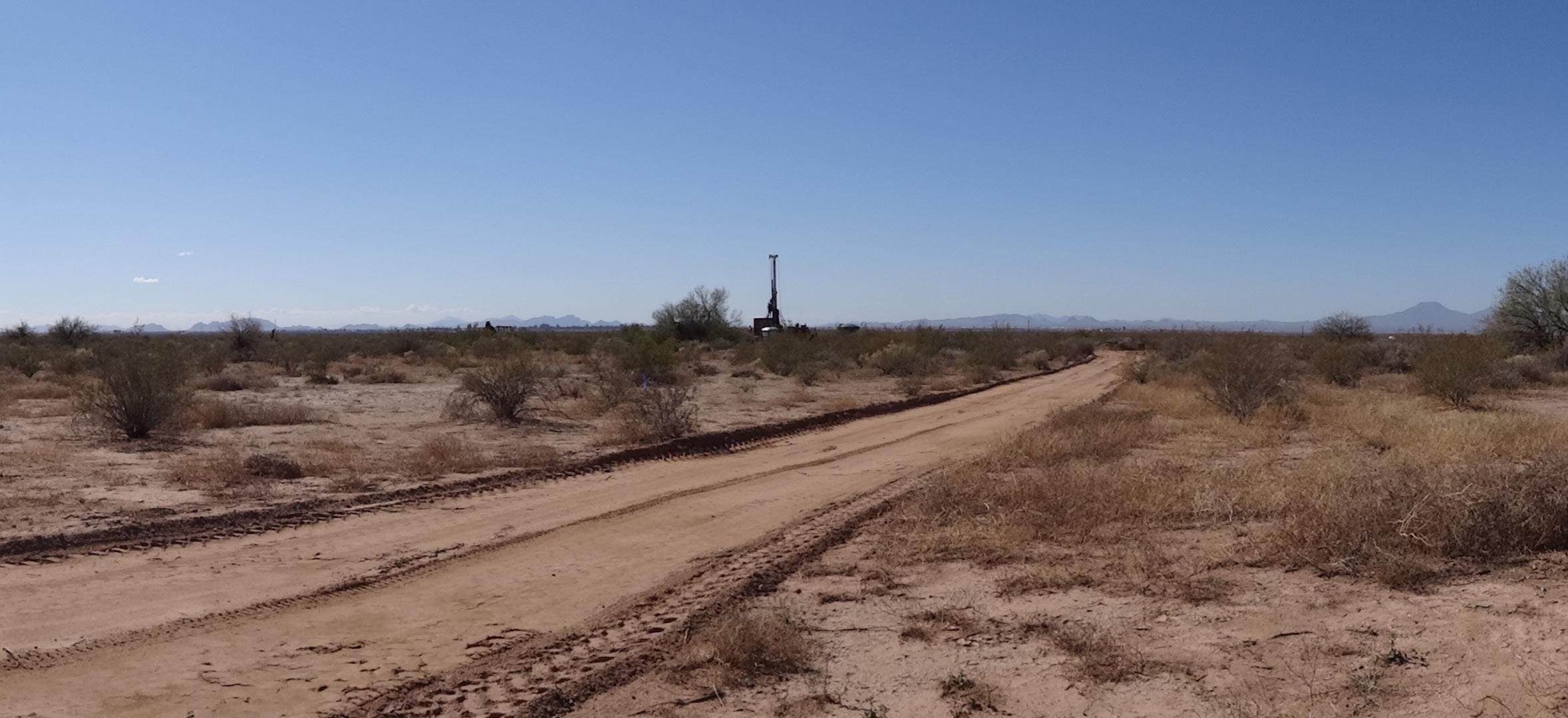

Drilling Partnerships for Success The Arizona Sonoma Copper Company leaned heavily on several corporate partners to ensure the Cactus Project’s success. Ogilvie is not shy when talking about their importance. “The success of the project to date has been contingent upon building an excellent team including our partners Ruen Drilling, Samuel Engineering and Stantec,” he says.

Ogilvie continues. “On the drilling

Arizona Sonoran Copper Company | 13

front we’ve been able to keep within our drilling budget and have leading industry cost per meter drilling with great productivity thanks to Ruen Drilling. Last year we produced a maiden resource on Parks Salyer that will feed through to a re-scoped Pre-Feasibility Study in late 2024.”

Green Mining for Green Technology Mining—the epitome of an extractive industry—is responsible for four to seven percent of greenhouse gas emission globally, according to McKinsey. Arizona Sonoran Copper Company, however, is committed to mining

sustainability. Their reclamation work already won the company the 2022 Award for Environmental Excellence by the American Exploration & Mining Association (“AEMA”), an award they share with the Arizona Department of Environmental Quality.

But that is just the start. Arizona Sonoran Copper Company is committed to operating in an environmentally responsible manner, which includes investing in low carbon and water efficient technologies. They also pledge to responsibly manage dust and tailings and to protect local air and water quality. Their ultimate goal is a Net Zero copper mine.

www.arizonasonoran.com

Arizona Sonoran Copper Company | 14

The extracted mineral will also help create a cleaner future for all. Copper, an excellent electricity conductor, is needed in many industries but it is critical for powering renewable energy sources. Solar, wind, geothermal, fuel cells, and other technologies need copper. Electric vehicles also require significant supplies of the mineral for construction.

level lawmakers, to share its plans in an effort to better understand community needs. Arizona Sonoran Copper Company also maintains a public hotline to encourage and solicit community partnerships and local procurement.

As part of their sustainable framework, Arizona Sonoran Copper Company also considers social and community impacts.

They pledge to create a positive work culture that prioritizes safety and well-being. The Company regularly meets with local community leaders and regional

Mr. Ogilvie is a Professional Engineer, with 32 years of management, operations, and technical experience in the mining industry, both in Canada and internationally, according to an article in Businesswire. He has a track record of developing assets into commercial production

www.arizonasonoran.com

Picking Winners Before the Race Even Starts

Arizona Sonoran Copper Company | 15

and turning businesses around resulting in significant shareholder appreciation.

The article notes that Ogilvie was previously the CEO of Battle North Gold (acquired by Evolution Mining) and Kirkland Lake Gold Inc. (acquired St. Andrew Goldfields), where he and his team optimized and improved operations, prior to major acquisitions.

Additionally, Mr. Ogilvie was the CEO of Rambler Metals and Mining, where he and his team guided the evolution of the company from grassroots exploration to a profitable junior producer.

Mr. Ogilvie began his mining career in 1989 with AngloGold in South Africa working in the ultra-deep, high-grade, gold mines in the Witwatersand Basin. From there, he moved to Northern Manitoba for HudBay Minerals’ Ruttan Mine as MineSuperintendent, followed by a term at Dynatec as Area Manager in Sudbury and McCreedy West Mine as Mine Manager.

Mr. Ogilvie received his B.Sc. (Hons.) in Mining and Petroleum Engineering from Strathclyde University in Glasgow, Scotland and holds his Mine Managers Certificate (South Africa), according to the piece. He is also a registered Professional Engineer in

Ontario, Canada.

Ogilvie has a reputation for success and turning ailing companies around. He is willing to share his secret to success.

“Before joining Rambler, before joining Kirkland Lake, even before joining Rubicon (later re-named to Battle North Gold) and even this company, Arizona Sonoran.

I’ve had the luxury of actually conducting weeks if not months of my own due diligence before signing on the bottom line,” he says. “That really is the secret. You can pick the winners even before the race has started.”
