Section

Pages 32-39 Aggregate Production and Recycling Section

For more information on crushing, screening and recycling equipment, visit CEG's Web site at www.constructionequipmentguide.com.

With Lack of Raw Materials, Rising Prices, Solutions Come From Waste Material

It’s a problem affecting everyone, from suppliers to their customers: we’re in the middle of a supply shortage.

The planetary crisis behind finding aggregates has hit all sectors, mechanics and construction and doesn’t seem to have an end in sight.

Prices also change from month to month, becoming unsustainable for companies already struggling to meet all of their orders. The jobs are there, but no one knows when they’ll finish them; public and private works risk delaying their construction sites and struggling to recover.

“One of the first things that came to mind about this problem was to manage our materials to become more autonomous and not depend on third parties for everything,” a company, who handles demolitions in Belarus, said.

“When dealing with demolitions, we have a lot of rubble to dispose of on-site — reinforced concrete, bricks, tiles, reinforced poles, etc. — so we asked ourselves, ‘why not process this rubble directly on-site and reuse them?’ Above all, how do you successfully carry out this process?”

How did they give waste materials a second life? Using a BF70.2 crusher bucket to reduce the material’s size, add an MB-S18 screening bucket and they cleaned and sorted the material on-site with their two excavators. With two attachments and one excavator, they produced quality material themselves, all ready to be reused.

With MB Crusher’s equipment, the rubble becomes a resource capable of keeping the construction site active, even on locations where there aren’t materials readily available, or in areas with difficult access, or within cities while managing restrictions, and be watchful of noise and dust emissions. The whole process takes place on-site and transforms waste crushed and selected to become excellent recycled material. A practical and economically advantageous method makes the process perfectly autonomous, lets them save time and money with disposal fees, and purchasing new materials. Once transformed, the “clean” rubble can be reused for other jobs, for example, as a foundation to construct new roads. Recently, in Serbia, after demolishing an old commercial building, the mix of bricks, reinforced concrete and demolition materials has been used to construct the subgrade of the streets in the area. Time and the costs of transporting, disposing, and purchasing new material have been eliminated. All due to the MB80.3 crusher bucket installed on the excavator that is already on site.

By facilitating the construction during the process to recover demolition materials, one helpful tool is the MB Crusher sorting grapples.

“These are agile and practical machines, perfect both for demolition and when handling post-demolition materials,” said an Italian project manager.

The winning feature of MB’s grapples is the unit’s grip sensitivity: it allows extreme precision and progressively increases the closing force.

Due to the interchangeable claws and the 360 hydraulic rotation, they managed larger loads and odd shapes despite the confined space.

With MB Crusher’s machines, you receive the advantages of an ethical process when recovering demolition materials, which extends to the environment and community. Due to reusing materials, companies don’t have to worry about disrupting the area’s ecosystem, reducing vehicles traveling to and from the demolition area, and decreasing noise and dust emissions. Fundamental discussions surround how responsible companies are becoming more aware of the circular economy-oriented market.

For more information, visit www.mbamerica.com. 

Using a BF70.2 crusher bucket to reduce the material’s size and an MB-S18 screening bucket, a Belarus company cleaned and sorted the material on-site with its two excavators. Recently, in Serbia, after demolishing an old commercial building, the mix of bricks, reinforced concrete and demolition materials has been used to construct the subgrade of the streets in the area.

With MB Crusher’s equipment, rubble becomes a resource capable of keeping the construction site active, even on locations where there aren’t materials readily available, or in areas with difficult access, or within cities while managing restrictions, and be watchful of noise and dust emissions.

MDS International manufactures heavy duty and recycling trommels, apron feeders and conveyor systems (pictured left), a product range that complements other Terex brands such as EvoQuip (pictured right).

Terex Materials Processing (MP) announced the purchase of MDS International (MDS), a manufacturer of heavy-duty and recycling trommels, apron feeders and conveyor systems, based in Co. Monaghan, Ireland.

MDS was founded in 1995 by Liam and Una Murray, with a vision to design and develop engineering solutions to industry. Over the past 25 years MDS has built a highly skilled work force along with global distribution partners, and has a valued reputation for innovation, offering bespoke solutions to serve client needs with equipment that can withstand the harshest of environments.

This acquisition supports Terex MP’s growth strategy to expand its offering in the crushing and screening and environmental industries, with products that complement the existing portfolio.

Trommels from MDS are heavy duty trommels that will enable expansion into areas of the market that Terex MP does not currently serve. Additionally, Terex MP expects strong commercial synergies from this deal, as several Terex MP distributors already carry the MDS line, while others will be new to Terex, offering the potential to develop new channel partner relationships. MDS’ 34,000 sq. ft. facility will be the first Terex location in the Republic of Ireland, which diversifies its footprint and provides access to a new labor pool. Additionally, the facility is within a short driving distance to the Terex Dungannon and Omagh sites, providing ready access to Terex MP’s Northern Irish team and enabling close coordination with the resources at these facilities. The MDS facility and its highly skilled team members will be led by Conor Hegarty, general manager and business line director. Previously, Hegarty held the position of international sales director of Terex Ecotec, and his commercial background and product knowledge will be a huge asset as he takes leadership responsibility for MDS, the company said. MDS will remain a standalone brand along with Terex MP’s Crushing and Screening businesses including Powerscreen, Terex Finlay and EvoQuip. Terex MP will build on the momentum of MDS International’s long-standing reputation, continuing to develop the brand, its product portfolio and its distribution channels. Commenting on the announcement, Pat Brian, vice president, mobile crushing and screening, Terex MP said, “The addition of MDS to our portfolio of businesses will bolster our growth and improve our product offering. The business has been well managed, is on a terrific growth trajectory, and its heavy duty trommels address a gap in our own product lines while also having a lot of synergy with what we already manufacture and distribute.” Liam Murray, co-founder of MDS International said, “I am so proud of how MDS has grown over the past 25 years — to have a multinational company like Terex interested in our business is a testament to what we have achieved. MDS will now have the global resources of Terex to develop and grow it to new levels; I feel this is the right move for our business and team. This sale will also bring new levels of support to customers and dealers worldwide. I will always care deeply for our MDS family and will remain on board for a period of time, in order to support a smooth transition to Terex ownership.” For more information, visit www.terex.com. 

(L-R): Pictured at the announcement is Conor Hegarty, general manager and business line director of MDS — a Terex brand; Minister Heather Humphreys, TD of the Cavan–Monaghan constituency; Pat Brian, vice president and managing director, mobile crushing and screening, Terex; and Liam Murray, founder of MDS International.

With increased throughput, high-efficiency and quality end products the Edge SM186 mobile screen incorporates a robust 18 by 6 ft. (5.4 by 1.75 m) two deck screen with interchangeable flip flow and conventional scalper bottom decks. Edge Innovate’s E SM186 Offers Wide Range of Screen Boxes

Edge Innovate’s E SM186 wheeled mounted screener is a highly efficient screening solution designed for the most difficult and demanding of applications including recycling, soils, aggregates, compost and demolition waste, according to the manufacturer.

With increased throughput, high efficiency and quality end products, the Edge SM186 mobile screen incorporates a robust 18 by 6 ft. (5.4 by 1.75 m) two deck screen with interchangeable flip flow and conventional scalper bottom decks. This flexibility combined with numerous screen media options and configurations allows the Edge SM186 to process a wide range of materials and screening applications.

Features include a low level feed hopper designed to accept loads from all three sides without the need of construction ramps; twoor three-way splitting configuration; hydraulic folding discharge conveyors to facilitate the quick transition from operation to transport; and a fully integrated power unit with large service access. A user-friendly control system with sequential start/stop functionality provides enhanced operational performance and unit safety.

Fitted with a tri-axle bogie with an ultra underslung suspension complete with fifth wheel hook-up and air brakes, the Edge SM186 is easy to transport between sites with redeployment taking a matter of minutes, according to the manufacturer.

Operators can choose from a range of different screen boxes including Edge Innovate’s flip flow screen, scalping screen and rinser screen. Optional power sources include, diesel/hydraulic, diesel genset or direct electric. The Edge SM186 also is available in a static chassis format.

Signature Features: • Robust interchangeable 18 by 6 ft. (5.4 by 1.75 m) two-deck screen. • Choose between three different screen box types to suit your application. • Intelligent modular top deck system allowing numerous media types to be installed side by side including 3D screen media. • Screen-box jack up functionality allows for easy operator access. • A low level direct feed hopper facilitates side and rear loading via wheel loaders without the need to construct ramps. • Both side conveyors can be repositioned on any side of the machine to suit site requirements. • Fully mobile fifth wheel hook-up with hydraulic folding discharge conveyors enables quick and easy transport from site to site.

For more information, visit www.edgeinnovate.com. 

New Integrated Solutions... Metso Outotec Debuts Its In-Pit Crush, Convey Solutions Service

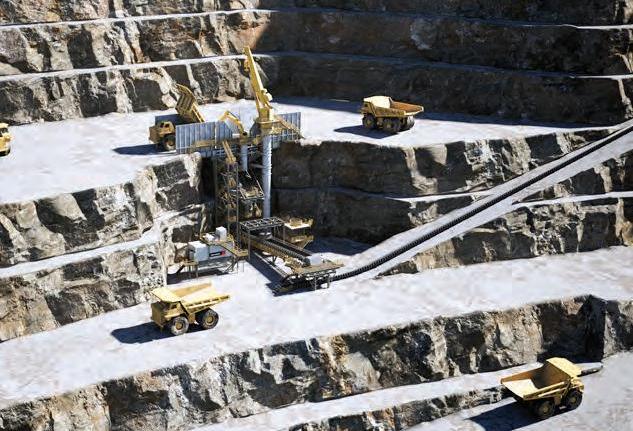

Metso Outotec launched in-pit crush and convey (IPCC) solutions.

Mining operations are impacted by declining head grades. More material needs to be moved from greater depths to maintain concentrated production levels. This affects productivity and energy consumption, which directly correlates to the mine’s profitability and sustainability.

To better meet these challenges, Metso Outotec launched in-pit crush and convey (IPCC) solutions. The integrated solutions consist of crushing, conveying and stacking equipment combined with IPCC planning and lifecycle services. The offering has been designed to ensure the highest productivity, energy efficiency and maintainability.

“With our team, technology and services, we can combine and provide the industry’s strongest building blocks to deliver successful in-pit crush and convey operations,” said Leif Berndt, director, IPCC of Metso Outotec. “We are excited to launch our solutions that cater in an exceptional way to our customers’ operational and sustainability targets.”

Metso Outotec’s IPCC Offering at a Glance

The experience-driven IPCC planning services allow Metso Outotec to support customers with pre-defined study work packages that are in line with common study phases used throughout the industry. The team uses an integrated methodology to determine the optimal pit shape and mine schedule in alignment with system configurations, that utilize advanced engineering tools to increase the speed of project definition and certainty of outcome.

The key technology highlight of the IPCC solution is the Foresight semi-mobile primary gyratory (SMPG) station, which features the Superior MKIII crusher and SmartStation for optimal processing, allowing material size control and reduced wear, downtime and plant height. The IPCC solutions are part of the company’s Planet Positive portfolio with their improved energy efficiency.

Services are a key part and a proven piece of the Metso Outotec IPCC solutions. Life Cycle Services (LCS) for operational support are available. Connected analytics allows equipment to be better managed by staying connected at all times and by reducing unplanned downtime. The IPCC offering also includes offsite and onsite assembly options.

Key benefits of Metso Outotec in-pit crushing and conveying technology include: • Optimal processing with patented

SmartStation; • Up to 30 percent higher capacity on the same crusher size and 70 percent reduced downtime with Superior MKIII

Primary Gyratory technology; • Up to 30 percent power savings with

Energy Savings Idlers (ESI); and • Better maintainability through improved crusher access and plant area isolation.

For more information, visit mogroup.com/ipcc. 

From Reduction to Shaping

Your ability to turn virgin material and waste product into high quality aggregates requires equipment with unmatched power and precision. From reducing shot rock to sizing and shaping fine e sand, we design and manufacture the most versatile and efficient crushers. Not sure what you need? Let our experts partner with you to apply the ideal solution.
