Wheel Loader Section
see CHART page 46
MODEL ENGINE TYPE ENGINE POWER OPERATING WEIGHT BUCKET CAPACITY MAX DUMP HEIGHT NET HP (KW) LBS. (KG) CU. YD. (CU M) FT. (M)
CASE
21F XT Case/FPT 55 (41) 10,913 (4,950) 1.44 (1.10) 7.6 (2.3) 21F Z Bar Case/FPT 55 (41) 11,272 ( 5,112) 1.44 (1.10) 7.7 (2.4) 121F XT Case/FPT 60 (45) 11,023 ( 4,999) 1.59 (1.22) 7.6 (2.3) 121F Z Bar Case/FPT 60 (45) 11,618 (5,269) 1.59 (1.22) 7.8 (2.4) 221F Z Bar Case/FPT 70 (52) 12,547 (5,670) 1.73 (1.32) 8 (2.5) 221F HS Case/FPT 70 (52) 12,547 (5,670) 1.73 (1.32) 8 (2.5) 321F Z Bar Case/FPT 70 (52) 13,303 (6,034) 1.87 (1.43) 8.2 (2.5) 321F HS Case/FPT 70 (52) 13,303 (6,034) 1.87 (1.43) 8.2 (2.5) 521G Case/FPT 131 (98) 24,203 (10,978) 2.3 (1.75) 8.5 (2.6) 521G XT Case/FPT 131 (98) 25,404 (11,523) 2.1 (1.60) 8.5 (2.6) 521G XR Case/FPT 131 (98) 24485 (11,106) 2.1 (1.60) 10 (3.0) 621G Case/FPT 162 (121) 28,159 (12,772) 2.5 (1.91) 9.2 (2.8) 621G XT Case/FPT 162 (121) 29,076 (13,188) 2.5 (1.91) 9 (2.7) 621G XR Case/FPT 162 (121) 29332 (13,304) 2.5 (1.91) 10.6 (3.2) 721G Case/FPT 179 (133) 32,492 (14,738) 3 (2,29) 9.4 (2.9) 721G XT Case/FPT 179 (133) 33,392 (15,146) 3 (2,29) 9.2 (2.8) 721G XR Case/FPT 179 (133) 32851 (14,900) 3 (2.29) 10.7 (3.3) 821G Case/FPT 211 (158) 40,057 (18,169) 4.3 (3,28) 9.4 (2.9) 821G XR Case/FPT 211 (158) 40648 (18,437) 4.3 (3.28) 10.8 (3.3) 921G Case/FPT 242 (180) 45,070 (20,443) 4.8 (3.67) 9.2 (2.8) 921G XR Case/FPT 242 (180) 45651 (20,707) 4 (3.05) 11 (3.4) 1021G Case/FPT 296 (221) 55,282 (25,075) 5.5 (4.21) 9.8 (3.0) 1021G XR Case/FPT 296 (221) 58711 (26,630) 4.8 (3.67) 11.8 (3.6) 1121G Case/FPT 320 (238) 61,650 (27,963) 6.3 (4.61) 10.1 (3.1) 1121G XR Case/FPT 320 (238) 63443 (28,777) 5.3 (4.05) 11.8 (3.6)
DOOSAN INFRACORE
DL200-7 Perkins 160 (119) 26,559 (12,046) 2.6 (2.0) 9.0 (2.7) DL220-7 Doosan 160 (119) 28,922 (13,118) 3.0 (2.3) 9.3 (2.8) DL250-7 Doosan 172 (128) 30,527 (13,846) 3.3 (2.5) 9.2 (2.8) DL280-7 Doosan 189 (141) 34,552 (15,670) 3.7 (2.8) 9.3 (2.8) DL320-7 Doosan 271 (202) 43,506 (19,733) 4.2 (3.2) 10 (3) DL380-7 Doosan 271 (202) 44,919 (20,370) 4.8 (3.7) 9.9 (3) DL420-7 Scania 345 (257) 51,553 (23,384) 5.5 (4.2) 10 (3) DL480-7 Scania 345 (257) 58,354 (26,468) 6.3 (4.8) 10.6 (3.2) DL550-7 Scania 380 (283) 71,390 (32,380) 6.8 (5.1) 11.3 (3.4) DL580-7 Scania 394 (293) 74,494 (33,789) 8.4 (6.4) 10.4 (3.2) DL200TC-5 Perkins 142 (106) 26,224 (11,895) 2.6 (2.0) 8.8 (2.7) DL250TC-5 Doosan 172 (128) 31,592 (14,330) 3.3 (2.5) 9.0 (2.7) DL200HL-7 Perkins 142 (106) 26,969 (12,232) 2.6 (2.0) 10.7 (3.2) DL220HL-7 Doosan 160 (119) 29,463 (13,364) 3.0 (2.3) 10.8 (3.3) DL250HL-7 Doosan 172 (128) 30,891 (14,011) 3.3 (2.5) 10.6 (3.2) DL280HL-7 Doosan 189 (141) 34,890 (15,830) 3.7 (2.8) 10.7 (3.3) DL320HL-7 Doosan 271 (202) 45,261 (20,530) 4.2 (3.2) 11.7 (3.6) DL380HL-7 Doosan 271 (202) 45,624 (20,690) 4.8 (3.7) 11.7 (3.6) DL420HL-7 Scania 345 (257) 52,159 (23,660) 5.5 (4.2) 11.8 (3.6) DL480HL-7 Scania 345 (257) 58,938 (26,733) 6.3 (4.8) 12.2 (3.7) DL550HL-7 Scania 380 (283) 70,599 (32,020) 7.5 (5.7) 12.8 (3.9)
JOHN DEERE
204L Yanmar 4TNV98 61 (45) 11,806 (5,355) 1.0 - 1.4 (0.8 - 1.1) 8.0 (2.4) 244L Yanmar 4TNV98CT 71 (52) 12,258 (5,560) 1.0 - 1.4 (0.8 - 1.1) 8.3 (2.5) 304L Yanmar 4TNV98 65 (48) 12,778 (5,796) 1.0 - 2.1 (0.8 - 1.6) 8.6 (2.6) 324L Yanmar 4TNV98CT 71 (52) 14,110 (6,400) 0.8 - 1.6 (1.0 - 2.1) 8.6 (2.6) 344L Deere PowerTech 4045T 103 (76) 19,533 (8,860) 2.0 - 2.6 (1.5 - 2.0) 9.6 (2.9) 444 P-Tier Deere PowerTech PSS 4045 124 (92) 25,814–27,670 (11,709–12,551) 2.5–4.5 (1.9–3.4) 8.4 (2.6) 524 P-Tier Deere PowerTech PVS 6068 152 (113) 28,931–31,097 (13,123–14,105) 2.5–4.5 (1.9–3.4) 9.1 (2.8) 544 P-Tier Deere PowerTech PVS 6068 166 (123) 30,520–32,827 (13,844–14,827) 2.5–5.25 (1.9–4.0) 9.2 (2.8) 624 P-Tier Deere PowerTech PVS 6068 192 (143) 34,715–37,174 (15,747–16,799) 2.5–5.25 (1.9–4.0) 9.3 (2.8) 644 G-Tier Deere PowerTech PVS 6068H 227 (169) 39,537–41,209 (17,934–18,692) 4.0–4.25 (3.1–3.25) 9.8 (3.0) 644 P-Tier Deere PowerTech PSS 6068 249 (186) 41,246–42,913 (18,709–19,465) 4.0–4.75 (3.1–3.6) 9.4 (2.9) 644 X-Tier Deere PowerTech PSS 6068 231 (172) 41,571–43,430 (18,856–19,700) 4.0–4.75 (3.1–3.6) 9.4 (2.9) 724 P-Tier Deere PowerTech PSS 6090 268 (200) 43,707–45,103 (19,825–20,459) 4.0–5.0 (3.1–3.8) 9.4 (2.9) 744L Deere PowerTech PSS 6090 316 (236) 55,872–58,713 (25,343–26,632) 5.0 - 5.85 (3.8 - 4.5) 10.0 (3.0) 824L Deere PowerTech PSS 6090 343 (256) 60,645–62,891 (27,508–28,527) 5.0 - 6.75 (3.8 - 5.2) 10.5 (3.2) 844L Deere PowerTech PSS 6135 417 (311) 74,831–76,670 (33,943–34,777) 6.3 - 8.0 (4.8 - 6.1) 10.8 (3.3) 844L Aggregate Handler Deere PowerTech PSS 6135 429 (320) 80,050–80,318 (36,310–36,432) 9.3 - 9.8 (7.1 - 7.5) 10.3 (3.1) 944K Hybrid Deere PowerTech PSS 6135 536 (400) 119,607–124,614 (54,253–56,524) 8.5 - 10.0 (6.5 - 7.65) 12.7 (3.9)
Page 44 • July 3, 2022 • www.constructionequipmentguide.com • Wheel Loaders, Tool Carriers & Attachments Section • Construction Equipment Guide Cat 966 GC Wheel Loader Delivers High Performance, Easy Operation
Design features enable operators of all experience levels to routinely attain 10 percent higher bucket-fill factors, compared with legacy designs, to improve production and reduce fuel consumption. Ensuring excellent material retention and increasing efficiency, the loader’s optional ride control improves operating smoothness over rough terrain.

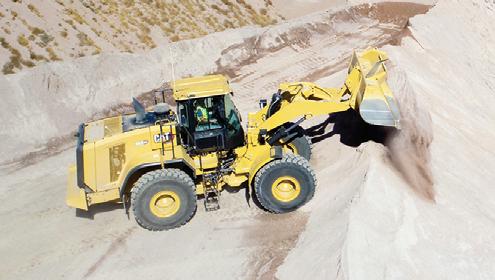

Offering long-term durability in a wide range of applications, the new Cat 966 GC wheel loader is designed for reliable, performing and efficient operation.
Its Caterpillar designed components, on-demand fan, load-sensing hydraulics and intuitive controls keep fuel consumption and operating costs low, making it a versatile machine that also fits the needs of the rental and municipal markets, according to the manufacturer.
The Cat C9.3B engine meets U.S. EPA Tier IV Final, EU Stage V, Korea Tier 4 Final, China Nonroad Stage IV and Japan 2014 emission standards with a gross power rating of 239 kW (321 hp). The engine’s automatic Cat Clean Emissions Module (CEM), including SCR catalyst and diesel particulate filter (DPF) works in the background without impacting the production schedule. The Cat Engine Idle Management System (EIMS), Auto Engine Idle Shutdown (EIS), variable speed fan and load sensing hydraulics help result in low fuel consumption and reduced sound levels on this machine. An optional automatic reversing fan assists in cleaning cooling cores to improve performance in highdebris environments.
The new loader features a 4-speed forward/reverse electronically controlled, automatic planetary powershift transmission with shift protection and single clutch gear shifting for efficiency, durability and smooth gear changes. Ensuring excellent material retention and increasing efficiency, the loader’s optional ride control improves operating smoothness over rough terrain. Optional limited slip differential axle configurations increase traction in poor underfoot conditions.
Front Linkage
Field-proven, Caterpillar’s Z-bar loader linkage with cast crossmember and tilt-lever provides both strong digging capabilities and high breakout forces when the new loader is equipped with Cat Performance Series buckets. The loadsensing implement hydraulic system continuously controls flow and pressure to precisely match requirements of the operating situation, reducing both the load on the pump and overall fuel burn, according to the manufacturer.
Using a system-based approach to balance bucket shape with the machine’s lift and tilt capacity, weight and linkage, the Performance Series buckets are available for a range of applications including general purpose, flat floor, heavy duty rock and light material.
Design features enable operators of all experience levels to routinely attain 10 percent higher bucket-fill factors, compared with legacy designs, to improve production and reduce fuel consumption. The 966 GC also can be equipped with the Cat Fusion quick coupler and controls, and combined with optional third-function auxiliary hydraulics, the coupler allows use of a wide selection of Cat work tools.
An optional Cat Payload kit provides on-the-go weighing* (*Not legal for trade) for precise load targets with proven accuracy, flexible and simple installation, and easy calibration. Bringing payload weighing to the cab, Cat Payload weighs the material while moving to the truck and lifting, so there are no interruptions in the load cycle. It allows the operator to load to exact specification and load more trucks and move more material faster.
Operator Environment, Serviceability
The new 966 GC loader features a simple, intuitive and ergonomic control system with an operator interface display that includes six analog-like gauges, color indicator lights, and an LCD screen all within easy view, so operators can quickly monitor machine systems. Low-effort, pilot-operated implement controls feature a remote transmission kick down switch for operating comfort.
Keeping safety in mind, inclined ladders and integrated handholds are located on both sides of the machine to provide access to the cab and to the engine air filter. A large roofto-floor, distortion-free, flat glass front windshield; standard rearview camera; and exterior mirrors with integrated spot mirrors provide all-around visibility. The standard heating and air conditioning system with 10 louvered vents helps to keep the operator comfortable in all climates.
Ground level access to service points reduces maintenance time and improves safety. Large gull-wing engine hood side panels and a tilt-up rear grill provide unrestricted access to daily service points, fuel and DEF fills, greasing points, filters, and fluid-sampling ports. Further reducing maintenance, an optional Cat Autolube greasing system is available.
With Cat Product Link standard, 966 GC operating efficiency, preventative maintenance and servicing are enhanced. Deeply integrated into machine systems, Product Link captures critical operating data, remotely monitored via my.cat.com, the Cat app or VisionLink.
For more information, visit www.cat.com.
OKLAHOMA TERRITORY CONSTRUCTION EQUIPMENT
www.oklahomaterritoryequipment.com Oklahoma City, OK 405-917-9191 Tulsa, OK 918-835-7200
Garton Tractor Inc.
www.gartontractor.com 2400 N Golden State Blvd. • Turlock, CA 95382 209-632-3931 Fairfield, CA • 707-425-9545 Merced, CA • 209-726-4600 Modesto, CA 95356 • 209-538-0911 Newman, CA • 209-862-3760 Santa Rosa, CA • 707-586-1790 Stockton, CA 95206 • 209-948-5401 Tulare, CA 93274 • 559-686-0054 Ukiah, CA 95482 • 707-468-5880
CLM EQUIPMENT CO. INC.
www.clmequipment.com Lafayette, LA 337-837-6693 Lake Charles, LA 337-625-5942 Houston, TX 281-598-2500
BANE MACHINERY INC.
www.banemachinery.com Dallas, TX 800-594-2263 Ft. Worth, TX 800-601-2263 Tyler, TX 800-594-2200
COLUMBIA WESTERN MACHINERY
Columbiawesternmachinery.com 11125 SW Tonquin Road Sherwood, OR 97140 503-454-0902
CHART from page 42 see CHART page 50
MODEL ENGINE TYPE ENGINE POWER OPERATING WEIGHT BUCKET CAPACITY MAX DUMP HEIGHT TIP LOAD NET HP (KW) LBS. (KG) CU. YD. (CU M) FT. (M) LBS. (KG) CATERPILLAR
903D Cat C2.4 74 (55.2) 9,392 (4,260) 0.8 - 1.3 (0.6 - 1.0) 5,070 (2,230) 10 mph 906 Cat C2.8 74 (56) 12,628 (5,730) 1.0 - 1.7 (.80 - 1.35) 9,756 (4,427) 25 / 19 mph 906M Cat C3.3B DIT 74 (55.2) 12,331 (5,593) 1.0 - 1.6 (.76 - 1.2) 7,507 (3,405) 6 / 6 mph 907 Cat C2.8 74 (56) 12,765 (5,792) 1.0 - 1.7 (.80 - 1.35) 9,770 (4,433) 25 / 19 mph 907M Cat C3.3B DIT 74 (55.2) 9,666 (4,384) 1.0 - 1.6 (.76 - 1.2) 7,716 (3,500) 6 / 6mph 908 Cat C2.8 74 (56) 14,617 (6,632) 1.0 - 1.7 (.80 - 1.35) 10,604 (4,812) 25 / 19 mph 908M Cat C3.3B DIT 74 (55.2) 14,026 (6,362) 1.2 - 2.0 (.9 - 1.5) 8,311 (3,770) 6 / 6 mph 910 Cat C3.6 100 (74.6) 17,893 (8,116) 1.7 - 2.5 (1.3 - 1.9) 13,237 (6,004) 25 / 25 mph 914 Cat C3.6 110 (82) 19,103 (8,665) 1.7 - 2.5 (1.3 - 1.9) 11,845 (5,373) 25 / 25 mph 920 Cat C3.6 121 (90) 21,742 (9,862) 1.7 - 2.5 (1.3 - 1.9) 12,439 (5,642) 25 / 25 mph 926M Cat C7.1 153 (114) 28,770 (13,050) 2.5 - 5.0 (1.9 - 3.8) 19,383 (8,792) 25 / 25 mph 926M High Lift Cat C7.1 153 (114) 29,383 (13.328) 2.5 - 5.0 (1.9 - 3.8) 19,383 (8,792) 25 / 25 mph 930M Cat C7.1 164 (122) 30,876 (14,005) 2.7 - 5.5 (2.1 - 4.2) 21,928 (9,946) 25 / 25 mph 930M High Lift Cat C7.1 164 (122) 31,390 (14,238) 2.7 - 5.5 (2.1 - 4.2) 21,928 (9,946) 25 / 25 mph 938M Cat C7.1 188 (140) 36,216 (16,427) 3.3 - 6.5 (2.5 - 5.0) 26,097 (11,837) 25 / 25 mph 938M High Lift Cat C7.1 188 (140) 35,995 (16,327) 3.3 - 6.5 (2.5 - 5.0) 26,097 (11,837) 25 / 25 mph 950 GC Cat C7.1 225 (168) 41,554 (18,849) 3.75 - 5.75 (2.9 - 4.4) 24,264 (11,006) 22.4 / 14.2 mph 950M Cat C7.1 230 (172) 42,357 (19,213) 3.3 - 12.0 (2.5 - 9.2) 28,144 (12,766) 24.9 / 16.0 mph 962M Cat C7.1 250 (186) 44,491 (20,181) 3.3 - 12.0 (2.5 - 9.2) 29,877 13,552) 24.9 / 16.0 mph 966 Cat C9.3B 321 (239) 51,124 (23,190) 3.75 - 15.5 (2.8 - 11.9) 32,727 (14,845) 24.5 / 24.5 mph 966 XE Cat C9.3B 321 (239) 51,124 (23,190) 3.75 - 15.5 (2.8 - 11.9) 32,727 (14,845) 24.5 / 17.9 mph 966M Cat C9.3 276 (206) 51,176 (23,213) 4.19 - 9.68 (3.2 - 7.4) 36,711 (16,652) 24.9 / 24.9 mph 966M High Lift Cat C9.3 276 (206) 51,176 (23,213) 4.19 - 9.68 (3.2 - 7.4) 36,711 (16,652) 24.9 / 17.1 mph 966M XE Cat C9.3 298 (222) 51,176 (23,213) 4.19 - 9.68 (3.2 - 7.4) 36,711 (16,652) 24.9 / 17.1 mph 966M XE High Lift Cat C9.3 298 (222) 51,176 (23,213) 4.19 - 9.68 (3.2 - 7.4) 36,711 (16,652) 24.9 / 17.1 mph 972 Cat C9.3B 339 (253) 54,858 (24,883) 3.75 - 18.25 (2.8 - 14) 35,919 (16,296) 24.5 / 24.5 mph 972 XE Cat C9.3B 339 (253) 54,858 (24,883) 3.75 - 18.25 (2.8 - 14) 35,919 (16,296) 24.5 / 24.5 mph 972M Cat C9.3 299 (223) 54,871 (24,889) 4.19 - 13 (3.2 - 9.9) 40,779 (18,497) 24.9 / 24.9 mph 972M High Lift Cat C9.3 299 (223) 54,871 (24,889) 4.19 - 13 (3.2 - 9.9) 40,779 (18,497) 24.9 / 24.9 mph 972M XE Cat C9.3 311 (232) 54,871 (24,889) 4.19 - 13 (3.2 - 9.9) 40,779 (18,497) 24.2 / 17.1 mph 972M XE High Lift Cat C9.3 311 (232) 54,871 (24,889) 4.19 - 13 (3.2 - 9.9) 40,779 (18,497) 24.2 / 17.1 mph 980 Cat C13 393 (293.1) 66,877 (30,335) 5.25 - 19 (4.0 - 14.5) 43,432 (19,700) 24.5 / 24.5 mph 980 XE Cat C13 393 (293.1) 66,877 (30,335) 5.25 - 19 (4.0 - 14.5) 43,432 (19,700) 24.5 / 24.5 mph 982 Cat C13 404 (301.3) 78,264 (35,500) 6.25 - 22.5 (4.8 - 17.2) 46,526 (21,104) 23.3 / 24.5 mph 982 XE Cat C13 404 (301.3) 78,264 (35,500) 6.25 - 22.5 (4.8 - 17.2) 46,526 (21,104) 23.3 / 24.5 mph 986K Cat C15 373 (278) 98,806 (44,818) 6.5 - 13.5 (5.0 - 10.3) 63,404 (28,760) 24 / 25.4 mph 986K High Lift Cat C15 373 (278) 98,806 (44,818) 6.5 - 13.5 (5.0 - 10.3) 63,404 (28,760) 24 / 25.4 mph 988K Cat C18 541 (403) 112,574 (51,063) 6.5 - 13.5 (5.0 - 10.3) 63,404 (28,760) 24 / 25.4 mph 988K High Lift Cat C18 541 (403) 112,574 (51,063) 6.5 - 13.5 (5.0 - 10.3) 63,404 (28,760) 24 / 25.4 mph 988K XE Cat C18 541 (403) 116,362 (52,781) 6.2 - 17 (4.7 - 13) 86,941 39,436) 21.6 / 14.4 mph 990K Cat C27 699 (521) 179,233 (81,299) 9.7 - 19.5 (7.4 - 14.9) 108,644 (49,280) 15.2 / 16.4 mph 990K High Lift Cat C27 699 (521) 179,233 (81,299) 9.7 - 19.5 (7.4 - 14.9) 108,644 (49,280) 15.2 / 16.4 mph 992 Cat C32 814 (307) 233,430 (105,882) 15 - 32 (11.5 - 24.5) 136,365 61,854) 14.2 / 15.4 mph 993K Cat C32 1,024 (764) 292,748 (132,788) 16 - 31 (12.2 - 23.7) 183,563 (83,263) 14.1 / 15.6 mph 993K High Lift Cat C32 1,024 (764) 292,748 (132,788) 16 - 31 (12.2 - 23.7) 183,563 (83,263) 14.1 / 15.6 mph 994K Cat 3516E 1,739 (1,297) 529,149 (240,018) 25 - 52.(19.1 - 39.8) 346,263 (157,062) 15.2 / 16.8 mph 994K High Lift Cat 3516E 1,739 (1,297) 529,149 (240,018) 25 - 52 (19.1 - 39.8) 346,263 (157,062) 15.2 / 16.8 mph
Conventional L20H Volvo D2.6M 64 (48) 10,251 (4,650) 1.05 (.8) 7.9 (2.4) L25H Volvo D2.6M 64 (48) 10,913 (4,950) 1.2 (1) 7.7(2.3) L30G Volvo D3.3M 74 (55) 12,170 (5,520) 1.4 (1.1) 8.3 (2.5) L35G Volvo D3.3M 74 (55) 13,448 (6,100) 1.6 (1.2) 8.8 (2.7) L45HS Volvo D4J 100 (75) 19,378 (8,790) 2.0 (1.5) 9 (2.8) L50HS Volvo D4J 117 (87) 20,944 (9,500) 2.1 (1.6) 9.3 (2.8) L60H Volvo D6J 164 (122) 29,983 (13,600) 2.7 (2.1) 9.3 (2.8) L70H Volvo D6J 170 (127) 30,880 (14,000) 3.0 (2.3) 9.2 (2.7) L90H Volvo D6J 184 (137) 34,350 (15,580) 3.7 (2.8) 9.6 (2.9) L110H Volvo D8J 256 (191) 43,030 (19,510) 4.6 (3.5) 9 (2.7) L120H Volvo D8J 272 (203) 44,820 (20,330) 5.0 (3.8) 9.2 (2.7) L150H Volvo D13J (Tier 4F) 295 (220) 56,320 (25,546) 6.3 (4.4) 9.6 (2.9) L180H Volvo D13J (Tier 4F) 329 (245) 62,390 (28,300) 7.2 (5.5) 9.9 (2.9) L180HHL Volvo D13J (Tier 4F) 329 (245) 83,321 (37,794) -- 19 (5.8) L220H Volvo D13J (Tier 4F) 366 (273) 71,140 (32,260) 8.2 (6.3) 10 (3) L260H Volvo D13J (Tier 4F) 414 (309) 76,090 (34,510) 9.5 (7.3) 10.6 (3.2) L350H Volvo D16J (Tier 4F) 528 (394) 115,730 (52,490) 9.5 (7.3) 11 (3.7) Electric L20 Electric 48 volt lithium-ion battery 43 (32) 9920 (4,500) 1.05 (.8) 8.2 (2.5) L25 Electric 48 volt lithium-ion battery 48 (36) 11,199 (5,080) 1.2 (.9) 8.2 (2.5)
LIUGONG
835H Perkins 1204F 131 (98) 26,010 (11,798) 2.5 (1.9) 8.8 (2.70) 848H Cummins QSB6.7 175 (129) 35,260 (15,994) 3.5 (2.7) 9.0 (2.75) 856H Cummins QSB6.7 225 (168) 42,540 (19,296) 4.2 (3.2) 9.7 (2.95) 877H Cummins QSL9 331 (247) 54,013 (24,500) 5.5 (4.2) 10.3 (3.15) 890H Cummins QSG12 370 (276) 68,540 (31,089) 7.1 (5.5) 10.9 (3.33)
VOLVO
CHART from page 46 see CHART page 51
HYUNDAI
HL930A Cummins B4.5 133 (99) 25,595 (11,610) 2.5 (1.9) 8.9 (2.7) HL930A XT Cummins B4.5 133 (99) 25,795 (11,700) 2.5 (1.9) 9.9 (3.04) HL930A TM Cummins B4.5 133 (99) 26,370 (11,960) 2.5 (1.9) 9.2 (2.79) HL940 Cummins QSB6.7 156 (116) 29,321 (13,300) 3.0 (2.3) 9.2 (2.79) HL940XT Cummins QSB6.7 156 (116) 29,740 (13,490) 3.0 (2.3) 11.2 (3.39) HL940TM Cummins QSB6.7 156 (116) 29,980 (13,600) 3.0 (2.3) 9.4 (2.84) HL940A Cummins B6.7 156 (116) 29,985 (13,601) 3.0 (2.3) 9.2 (2.79) HL940A XT Cummins B6.7 156 (116) 30,560 (13,862) 3.0 (2.3) 11.2 (3.39) HL940A TM Cummins B6.7 156 (116) 30,420 (13,800) 3.0 (2.3) 9.4 (2.84) HL955 Cummins QSB6.7 197 (147) 33,995 (15,420) 3.6 (2.8) 9.4(2.84) HL955XT Cummins QSB6.7 197 (147) 34,780 (15,775) 3.6 (2.8) 11.3 (3.41) HL955TM Cummins QSB6.7 197 (147) 34,390 (15,600) 3.5 (2.7) 9.4 (2.84) HL955A Cummins B6.7 200 (149) 35,490 (16,098) 3.6 (2.8) 9.4(2.84) HL955A XT Cummins B6.7 200 (149) 36,355 (16,490) 3.6 (2.8) 11.3 (3.41) HL955A HD Cummins QSB6.7 222 (166) 42,425 (19,425) 4.3 (3.3) 9.7 (2.93) HL955A HD XT Cummins QSB6.7 222 (166) 43,211 (19,600) 4.3 (3.3) 11.3 (3.41) HL955A TM Cummins B6.7 200 (149) 36,380 (16,500) 3.5 (2.7) 9.4 (2.84) HL960 Cummins QSB6.7 222 (166) 42,825 (19,425) 4.3 (3.3) 9.7 (2.93) HL960XT Cummins QSB6.7 222 (166) 43,211 (19,600) 4.3 (3.3) 11 (3.36) HL960A Cummins B6.7 225 (168) 43,720 (19,831) 4.3 (3.3) 9.7 (2.93) HL960A XT Cummins B6.7 225 (168) 44,160 (20,031) 4.3 (3.3) 11 (3.36) HL960HD Cummins QSB6.7 222 (166) 43,940 (19,930) 4.3 (3.3) 9.7 (2.93) HL960HDXT Cummins QSB6.7 222 (166) 45,770 (20,760) 4.3 (3.3) 11 (3.36) HL960A HD Cummins B6.7 225 (168) 44,283 (20,086) 4.3 (3.3) 9.7 (2.93) HL960A HDXT Cummins B6.7 225 (168) 46,113 (20,916) 4.3 (3.3) 11 (3.36) HL965 Cummins QSL9 269 (198) 45,700 (20,730) 4.7 (3.6) 9.8 (2.95) HL965XT Cummins QSL9 269 (198) 46,210 (20,960) 4.7 (3.6) 11.3 (3.44) HL970 Scania DC 09 085A 308 (230) 52,999 (24,040) 5.5 (4.2) 10.5 (3.08) HL970XT Scania DC 09 085A 308 (230) 53,352 (24,200) 5.5 (4.2) 11.8 (3.57) HL970A Cummins L9 325 (242) 54,455 (24,700) 5.5 (4.2) 10.5 (3.08) HL970A XT Cummins L9 325 (242) 55,210 (25,002) 5.5 (4.2) 11.8 (3.57) HL975 Cummins QSL9 331 (247) 58,430 (26,500) 6.3 (4.8) 10.3 (3.12) HL975XT Cummins QSL9 331 (247) 60,175 (27,300) 6.3 (4.8) 11.5 (3.48) HL980 Scania DC 13 376 (280) 69,600 (31,570) 7.3 (5.6) 10.9 (3.30) HL980XT Scania DC 13 376 (280) 69,887 (31,700) 7.3 (5.6) 11.10 (3.61) HL980A Cummins X12 355 (265) 69,120 (31,352) 7.3 (5.6) 10.9 (3.30) HL980A XT Cummins X12 355 (265) 69,450 (31,500) 7.3 (5.6) 11.10 (3.61)
KUBOTA *Includes an operator weight of 175 lbs
R430 Kubota D1803 44.5 (33.2) 7,758 lbs 0.5 (0.38) 7.2 (2.2) R540 Kubota V2607 47.9 (35.7) 9,888 lbs 0.85 (0.65) 8.3 (2.5) R640 Kubota V2607 61.1 (45.6) 11,177 lbs 0.94 (0.72) 8.3 (2.5)
LIEBHERR
P= Parallel Linkage Ind.= Industrial Linkage Z= Z Linkage
L 526 Z 4045HB551 134 (100) 25,950 (11,770) 2.7 (2.0) 9.3 (2.8) �L 526 P 4045HB551 134 (100) 28,970 (13,140) 2.7 (2.0) 9.1 (2.8) L 538 Z 4045CB551 165 (123) 29,760 (13,458) 3.4 (2.4) 9.3 (2.8) L 538 P 4045CB551 165 (123) 30,645 (13,900) 3.0 (2.3) 9.2 (2.8) L 546 Z 6068HB551 185 (138) 31,305 (14,200) 3.7 (2.8) 9.3 (2.8) L 546 P 6068HB551 185 (138) 31,525 (14,300) 3.3 (2.5) 9 (2.7) L 550 Z XPower Liebherr D 934 A7 219 (163) 40,895 (18,550) 4.5 (3.4) 9.4 (2.9) L 550 Ind. XPower Liebherr D 934 A7 219 (163) 42,330 (19,200) 4.1 (3.1) 9.4 (2.9) L 556 Z XPower Liebherr D 944 A7 245 (183) 43,210 (19,600) 4.8 (3.7) 9.3 (2.8) L 556 Ind. XPower Liebherr D 944 A7 245 (183) 44,535 (20,200) 4.4 (3.4) 9.3 (2.8) L 566 Z XPower Liebherr D 936 A7 272 (203) 52,690 (23,900) 5.5 (4.2) 10.5 (3.2) L566 Ind. XPower Liebherr D 936 A7 272 (203) 54,675 (24,800) 4.8 (3.7) 10.5 (3.2) L 580 Z XPower Liebherr D 936 A7 312 (233) 60,955 (27,648) 6.8 (5.2) 10.8 (3.3) L 580 Ind. XPower Liebherr D 936 A7 312 (233) 61,840 (28,050) 6.1 (4.7) 10.1 (3.1) L 586 Z XPower Liebherr D 936 A7 353 (263) 71,870 (32,600) 7.9 (6.0) 10.7 (3.25)
TAKEUCHI
TW60 Series 2 Yanmar 4TNV86CHT-MAW 61 (45.6) 10,692 (4,850) 1.19 (0.9) 7.4 (2.3) TW80 SERIES 3 Deutz / TD2.9L Turbo 73 (54) 12,700 (5,760) 1.3 (1.0) 8.5 (2.6) TW95 Deutz / TD 3.6 L4 114 (85) 18,188 (8,250) 2.0 (1.5) 9.3 (2.8)
WACKER NEUSON
5055 Yanmar 4TNV88C 46 (34) 7,938 (3,600) 0.85(.65) 7.6 (2.31) 8085 Deutz TCD 2.9 74 (55) 10,472 (4,750) 1.1 (.84) 8.4 (2.56) 8085T Deutz TCD 2.9 74 (55) 12,125 (5,600) 1.1 (.84) 13.2 (4.0) WL28 Yanmar 3TNV86CHT/HP 45/56(33/42) 7,275 (3,300) 0.50 (.38) 5.6 (1.70) WL34 Deutz TD 2.9 L4 S5 60 (45) 8,598 (3,900) 0.75(.57) 8.0 (2.44) WL38 Deutz TCD 2.9 L4 60/74 (45/55) 9,480 (4,300) 0.75 (.57) 8.0 (2.44) WL52 Deutz TCD 2.9 L4 74 (55) 11,244 (5,100) 1.10 (.76) 8.3 (2.51) WL60 Perkins 904J-E36TZ 101 (75) 13,007 (5,900) 1.3 (1.15) 9.3 (2.82) WL95 Deutz TCD 3.6 136 (101) 22,900 (10,387) 2.0 (1.53) 10.0 (3.05)
CHART from page 50
MODEL ENGINE TYPE ENGINE MODEL ENGINE POWER OPERATING WEIGHT MAX DUMP HEIGHT NET HP (KW) LBS. (KG) FT. (M) HITACHI CONSTRUCTION MACHINERY AMERICAS INC. (HCMA)
ZW30-5B Kubota D1703-MD-I 24 (17.9) 7,310 (3,315) 6.67 (2.03) ZW50-5B Kubota D1803-CR-TIE4 42 (31.8) 9,350 (4,240) 7.83 (2.39) ZW80-5B Deutz TD2.9L4 63 (47) 12,600 (5,715) 7.83 (2.39) ZW100-6 Deutz TCD3.6L4F 96 (71) 16,140 (7,320) 8.83 (2.71) ZW120-6 Deutz TCD3.6L4F 96 (71) 18,590 (8,430) 8.83 (2.71) ZW140-6 Cummins QSB4.5 142 (106) 25,661 (11,640) 9.50 (2.89) ZW150-6 Cummins QSB4.5 142 (106) 27,029 (12,260) 9.33 (2.85) ZW150-6 PL Cummins QSB4.5 142 (106) 27,010 (12,830) 9.33 (2.85) ZW180-6 Cummins QSB6.7 168 (125) 32,100 (14,560) 9 (2.76) ZW180PL-6 Cummins QSB6.7 168 (125) 34,380 (15,590) 8.91 (2.72) ZW220-6 Cummins QSB6.7 194 (145) 38,912 (17,650) 9.5 (2.89) ZW250-6 Cummins QSB6.7 246 (181) 46,050 (20,890) 9.83 (2.98) ZW310-6 Cummins QSL9 302 (225) 53,310 (24,180) 10.17 (3.10) ZW330-6 Cummins QSL9 302 (225) 58,158 (26,380) 10.42 (3.18) ZW370-6 Isuzu 6WG1 386 (288) 73,789 (33,470) 10.67 (3.26) ZW370-6 HC Isuzu 6WG1 386 (288) 79,010 - 79,200 (35,830 - 35,920) 10.67 (3.26) ZW550-6 Isuzu 6WG1 517 (380) 104,570 (47,430) 10.67 (3.26)
407 JCB Diesel by Kohler KDI 2504 TCR 64 (48) 11,486 (5,210) 1.1 (0.84) 8.2 (2.4) 409 JCB Diesel by Kohler KDI 2504 TCR 74 (55) 13,296 (6,031) 1.3 (1.0) 8.6 (2.6) 411HT JCB Ecomax 109 (81) 19,154 (8,688) 1.8 (1.4) 8.11 (2.4) 417HT JCB Ecomax 125 (93) 20,779 (9,425) 2.1 (1.6) 8.9 (2.71) 427HT Cummins QSB6.7 179 (133) 30,170 (13,685) 3.1 (2.4) 9.4 (2.86) 427ZX Cummins QSB6.7 179 (133) 30,708 (13,929) 3.1 (2.4) 9.5 (2.9) 437HT Cummins QSB6.7 183 (136) 33,411 (15,151) 3.5 (2.7) 9.4 (2.87) 437ZX Cummins QSB6.7 183 (136) 34,236 (15,529) 3.5 (2.7) 9.5 (2.9) 457HT Cummins QSB6.7 282 (210) 44,621 (20,240) 4.6 (3.5) 9.4 (2.86) 457ZX Cummins QSB6.7 282 (210) 44090 (19,999) 4.6 (3.5) 8.8 (2.7)
KOMATSU
WA200-8 SAA4D107E-3 126 (94) 25,827 - 26,489 (11,715 - 12,015) 2.6 - 3.1 (2.0 - 2.4) 9.7 (2.9) with pin on GP bucket WA270-8 SAA6D107E-3 149 (111) 28,208 - 29,079 (12,795 kg - 13,190) 2.5 - 3.5 (1.9 - 2.7) 9.8 (2.9) WA320-8 SAA6D107E-3 165 (123) 34,128 - 34,987 (15,480 - 15,870) 3.0 - 4.2 (2.8 - 3.2) 9.4 (2.8) WA380-8 SAA6D107E-3 191 (143) 40,532 - 41,932 (18385 - 19020) 3.5 - 4.3 (2.7 - 3.3) 9.7 (2.9) WA475-10 SAA6D125E-7 290 (216) 56,240 - 60,400 (25,510 - 27,397) 5.5 - 6.0 (4.2 - 4.6) 10.1 (3.1) WA475-10 YL SAA6D125E-7 290 (216) 60,208- 60,451 (27,310 - 27,420) 6.0 - 6.8 (4.6 - 5.2) 9.9 (3.0) WA480-8 SAA6D125E-7 299 (223) 56,262 - 56,416 (25,520 - 25,590) 6.0 - 6.5 (4.6 - 5.0) 10.4 (3.2) WA480-8 YL SAA6D125E-7 299 (223) 61,311 (27,810) 7.2 (5.5) 9.9 (3.0) WA500-8 SAA6D140E-7 353 (263) 76,897 - 77,856 (34,880 - 35,315) 5.9 - 8.2 (5.2 - 6.3) 10.8 (3.3) WA500-8 YL SAA6D140E-7 353 (263) 80,647 - 81,152 (36,581 - 36,810) 8.2 - 9.8 (6.3 -7.5) 10.5 (3.2) WA600-8 SAA6D170E-7 529 (395) 122,136 - 126,678 (55,400 - 57,460) 8.4 - 10.2 (6.4 - 7.8) 12.8 (3.9) WA800-8 SAA12V140E-7 854 (637) 254,700 (115,530) 14.4 - 16.0(11.0 - 12.2) 15.5 (4.7) WA900-8 SAA12V140E-7 899 (671) 256,618 - 257,324(116,400 - 116,720) 15.0 - 19.0 (11.5 - 14.5) 15.1 (4.6)
MECALAC
AS600 WC w/ intercooler Deutz TCD 2.2 L3 turbo diesel 49.5 (36.4) 9,700 (4,400) 0.78 - 1 (0.6 - 0.8) 8.5 (2.6) AS700 WC w/ intercooler Deutz TCD 2.9 L4 turbo diesel 75 (55.4) 13,183 (5,980) 0.92 - 1.6 (0.7 - 1.2) 8.9 (2.7) AS900 WC w/ intercooler Deutz TCD 2.9 L4 turbo diesel 75 (55.4) 14,638 (6640) 1.2 - 2 (0.9 - 1.5) 8.7 (2.6) AS900T WC w/ intercooler Deutz TCD 2.9 L4 turbo diesel 75 (55.4) 15,983 (7,250) 0.92 - 1.6 (0.7 - 1.2) 10.2 - 13.4 (3.1 - 4.1)* AS1600 WC w/ intercooler Deutz TCD 3.6 L4 turbo diesel 136 (100) 24,074 (10,920) 2.1 - 3.3 (1.6 - 2.5) 10.2(3.1) AS210 WC w/ intercooler Deutz TCD 6.1 L4 turbo diesel 175 (129) 33,289 (15,100) 2.75 - 3.92 (2.1 - 3) 11.2 (3.4) AT1050 WC Deutz TCD 2.9 L4 turbo diesel 75 (55.4) 15,763 (7,150) 1.37 - 2.1 - (1.05 - 1.6) 10.4 - 13.3 (3.2 - 4)* AX700 WC Deutz TCD 2.9 L4 turbo diesel 68 (50) 10,383 (4,710) 0.92 - 1.6 (0.7 - 1.2) 8 (2.47) AX850 WC Deutz TCD 2.9 L4 turbo diesel 68 (50) 11,133 (5,050) 1.11 - 2 (0.85 - 1.5) 8 (2.47) AX1000 WC Deutz TCD 2.9 L4 turbo diesel 75 (55.4) 11,927 (5,410) 1.3 - 2.1 (1 - 1.6) 7 (2.4)
Page 52 • July 3, 2022 • www.constructionequipmentguide.com • Wheel Loaders, Tool Carriers & Attachments Section • Construction Equipment Guide Doosan Expands Its -7 Series Wheel Loader Line With Three New Machines
Doosan Infracore North America is introducing three additional models of its next-generation -7 Series wheel loaders in the United States and Canada. These new 200 size class machines include many of the same features as the larger models and are now available at Doosan dealerships.
Similar to the -7 Series wheel loaders that were launched in spring 2021, this next generation of Doosan wheel loaders offer all-new redesigned cabs with first-class comfort features, increased bucket capacities and new fuel-saving technologies, according to the manufacturer.
The three new models — the DL200-7, DL220-7 and DL250-7 — are smaller than the models launched last year. They have standard bucket capacities between 2.6 and 3.3 cu. yds. All three new models are available with a high-lift option for additional dump height and reach.
“We’re excited to offer a -7 Series iteration of our popular 200 size class wheel loaders in North America,” said Aaron Kleingartner, product and dealer marketing manager, Doosan Infracore North America.
Markets, Applications These smaller models are most commonly used on construction sites, specifically for loading, grading and site prep work. They’re also operated in scrap and recycling applications where they may be paired with a grapple attachment for handling bulk materials. Agriculture producers rely on this size of wheel loader for tasks like feeding cattle and managing manure. Grounds maintenance companies often prefer this size of wheel loader for clearing parking lots with a snow pusher or a bucket for placing snow in trucks for removal.
New Exclusive Technology
Each model of the -7 Series wheel loader can be equipped with an optional transparent bucket, a Doosan-exclusive technology that offers a supplemental view from a monitor inside the cab to improve operator visibility and productivity. The transparent bucket has two cameras with protective guarding, one mounted high and one mounted low on the front of the machine.
“We anticipate that the transparent bucket will be a popular option for our Doosan -7 Series wheel loaders,” Kleingartner said. “Another new technology available in our newest Doosan wheel loaders is situation awareness technology (SAT). The technology helps save fuel by automatically adjusting the engine output in real time to the needs of the drivetrain and hydraulics. It lowers fuel consumption without reducing performance.”
Additional Doosan -7 Series wheel loader technologies available in the 200 size class machines include the following. • The Doosan Smart Guidance System analyzes operator driving habits and provides tips on the Doosan Smart Touch display during operation to increase efficiency. • An improved Load Isolation System improves wheel loader stability while moving, which can reduce cycle times, increase productivity and boost fuel efficiency. • The new Doosan Smart Load weighing system tells the operator the weight of material in the bucket. All menus and settings are integrated into the Doosan Smart Touch screen. • The Doosan Smart Key is a key fob that can unlock the cab and allow push-button engine starting.
DL200-7: Hydrostatic Drive
The new Doosan DL200-7 wheel loader features a hydrostatic drive system for enhanced fuel efficiency, machine positional control and reduced wear on the brakes. The traction control management system allows operators to easily adjust traction force to match jobsite conditions. This helps reduce wheel slippage for more efficient digging, stockpiling and loading.
Doosan DL200-7 operators may choose from the following traction modes. • Max: Provides maximum traction force • Traction control: Allows the wheel loader operator to choose from three levels of reduced traction forces to match jobsite conditions • S-Mode: Helps when operating on slippery roadway conditions
Wheel loader operators may instantly return to the machine’s Max traction mode by pressing the kick-down button on the joystick control.
Kirby-Smith Machinery
www.kirby-smith.com 6715 W. Reno Ave Oklahoma City, OK 73127
800-375-3339
3922 I-40 E Amarillo, TX 79103
800-283-1247
4617 Powell St. McAlester, OK 74501
918-310-1550
3419 E Slaton Rd. Lubbock, TX 79404
866-289-6087
12321 E. Pine St. Tulsa, OK 74116
800-375-3733
7301 E Interstate 20 E Odessa, TX 79765
877-794-1800
415 Enterprise Blvd. Waco (Hewitt), TX 76643 254-261-1370
Tri-West Tractor, Inc.
www.tri-westtractor.com 6281 Southfront Road Livermore, CA 94551 925-455-8200
Ditch Witch of East Texas
Volvo Construction Equipment announced new functionality for Load Assist, a productivity program run on the co-pilot tablet in the cab of Volvo CE wheel loaders. Volvo Expands Load Assist Features for Wheel Loaders
Volvo Construction Equipment has launched new functions on its wheel loader productivity software, Load Assist. The updates include new modes within the on-board weighing app, the operator coaching advanced app and quick tips.
“These enhancements will help operators get even more from their Volvo wheel loader, and they add to the existing core functionality of Load Assist, which 10,000 operators have benefitted from to date,” said Eric Yeomans, product manager, wheel loaders at Volvo CE. “We are continuously evolving our Assist programs, and customers can expect further upgrades in the future.”
New Weighing Modes
Load Assist is a suite of apps operated by the Volvo copilot in-cab display. One of the most popular apps is onboard weighing, which provides real-time insight into the bucket’s load within +/-1 percent accuracy. Getting started with the app has never been easier due to the new simple mode, which limits on-board weighing to three core functions: viewing the current load in trip mode, viewing the loaded weight and printing a simplified receipt.
Another new feature of on-board weighing is low load mode, which allows operators to weigh lighter materials and loads than with previous iterations.
Operator Coaching, Leveled Up
As machines become more advanced, the operator coaching app has helped operators understand how their actions influence machine productivity, fuel efficiency and wear, to ensure they are working in a way that delivers optimum results.
Operator coaching now includes a host of advanced features, including two new views. The productivity view allows operators to monitor tons moved per gallon, tons moved per hour and fuel consumed per hour. This can be displayed as a total for the entire work shift, including idle time or only for the active work. It also can be broken down according to short cycles or load and carry cycles.
A new utilization view displays an overview of the time spent, productivity achieved and fuel consumed during different tasks (e.g., the amount of fuel consumed by travel or the percentage of time spent idling).
Another new feature of the advanced package is operator tips. This provides feedback at the end of a shift, including a QR code that links to a relevant instructional video on anything that can be improved.
Quick tips is another new tool that shows messages on how to use specific apps and functions found within the Volvo co-pilot display.
Expanded Tire Pressure
Monitoring System Availability
The tire pressure monitoring system, introduced in 2020 on Volvo L110H to L350H wheel loaders, is now available for the L60H, L70H and L90H models. This system allows the operator to easily check the condition of the tires from the comfort of the cab.
With real-time information on tire pressure and temperature, the operator can ensure that tires are operating within the correct parameters. If not, the operator receives an alert and visual display showing which tire needs attention. The integrated system saves time during machine inspections while also helping to secure the highest levels of tire life, fuel efficiency, machine performance and operator comfort.
For more information, visit www.volvoce.com.
Updates on the co-pilot tablet include new modes within the on-board weighing app, the operator coaching advanced app and quick tips. CISCO EQUIPMENT
www.cisco-equipment.com 1706 South 1st Street, Artesia, NM 88210 575-748-1314 Odessa, TX • 432-550-9181 Lubbock, TX • 806-745-9595 San Angelo, TX • 325-653-2121
NED - TEXAS (Formerly Four Seasons Equipment)
NUECES POWER EQUIPMENT
www.nuecespower.com 7510 IH-37 Access Rd., Corpus Christi, TX 78409 361-289-0066 Laredo, TX • 956-725-0066 San Antonio, TX • 210-310-0066 San Benito, TX • 956-361-0066 Victoria, TX • 361-576-0066 El Paso, TX • 915-541-0066
PORTER GROUP USA
www.portergroupusa.com 13013 Temescal Canyon Rd, Corona, CA 92883 951-674-9999 Pacoima, CA • 818-834-0102 Newark, CA • 510-713-7368
MECOM EQUIPMENT
www.mecomequipment.com 4546 N Wilson Way, Stockton, CA 95205 209-466-5135
JET CITY EQUIPMENT
www.jetcityequipment.com 33345 SR 20, Oak Harbor, WA • 360-675-4441 Marysville, WA • 360-651-9079 Wenatchee, WA • 509-888-8181
R & S INDUSTRIES, INC.
www.rsindinc.com 951 CR G, Clovis, NM 88101 575-769-8659
Page 58 • July 3, 2022 • www.constructionequipmentguide.com • Wheel Loaders, Tool Carriers & Attachments Section • Construction Equipment Guide Yanmar Compact Equipment Offers Its Reliable Compact Wheel Loaders
Yanmar Compact Equipment’s V4-7, V8, V10 and V12 wheel loaders are built for maximum efficiency and ease of operation.
Yanmar Compact Equipment’s line of compact wheel loaders, which includes the V4-7, V8, V10 and V12, are built for maximum efficiency and ease of operation.
The machines include comfort features across the line, including a comfortable, spacious cab and dual doors for easy entry from each side. Their combination of power, comfort and compactness make them ideal for applications that require fast travel speeds, high lift capacity and a small turning radius, according to the manufacturer.
All four models come with Yanmar’s signature reliability standards and a 3-year/3,000-hour warranty.
“Our loaders fill a critical niche for landscaping, ag, construction, snow removal and rock quarries,” said Jeff Pate, director of sales of Yanmar Compact Equipment North America. “For contractors, having reliable, high-performing machines in this size class is a crucial component to being successful.”
Performance
Yanmar Compact Equipment’s wheel loaders are engineered for high performance in a compact package. Operating weights for the line range from 8,422 to 15,432 lbs. The loaders feature bucket capacities ranging from 0.65 to 2.35 cu. yds. and lift capacities of 7,451 to 15,962 poundforce. Fast travel speeds, ranging from 11.8 to 22 mph, improve jobsite productivity.
The loaders have intuitive controls and include features that allow for easy operation, such as fixed travel speed mode, fully automatic accelerator mode and auxiliary hydraulics with proportional control. Operators of all skill levels can easily manage the intuitive, multi-function joysticks.
The V4-7, V8 and V10 are equipped with electronically controlled, Tier IV Final Yanmar diesel engines, which offer enhanced power with minimized fuel consumption. The V12 features a Deutz diesel engine that also is Tier IV Final compliant. operators to lift loads with precision, without the need for constant readjustment of the load angle.
As the most compact loader in the line, V4-7 has a z-bar for higher breakout forces, but the machine also features an auto-leveler mode for applications where it is more beneficial to maintain a consistently level bucket. Additionally, the V4-7 offers ECO Mode, a setting that reduces the motor speed to allow for even lower fuel consumption.
Comfort
The Yanmar Compact Equipment compact wheel loaders bring operator comfort to the forefront with a cab experience that includes high visibility, a suspension seat and full climate control. All models feature two doors for easy entry from either side and maximum ventilation. The machines offer smooth off-road operation due to an oscillating rear axle that securely transmits traction force to uneven ground. This keeps the bucket level in operation and reduces operator fatigue.
The V8, V10 and V12 come standard with enclosed cabs designed to reduce operator fatigue. Cabs are rubber-mounted for a smoother ride and feature a comfortable seat with lumbar support, cushioning and an extra high backrest. The V4-7 is available in both open- and closed-cab configurations.
Reliability
Backing up their claim of maximum reliability, Yanmar Compact Equipment offers a 3-year/3,000-hour bumper-tobumper warranty on its entire line of compact wheel loaders. A central lubrication system is available as an option for the V8, V10 and V12. This option provides constant lubrication while the machine is running, virtually eliminating the risk of contamination.
Maintenance kits that provide common maintenance and wear part replacement items conveniently in one place are available for all compact wheel loaders in the line. The loaders feature maximum serviceability, with convenient access to service items allowing for long maintenance intervals.
For more information, visit Yanmar.com/us/products/construction/.
