Built to deliver an improved customer experience, the new 4.4 ton Cat 304 and 5.5 ton Cat 305 CR next generation mini hydraulic excavators deliver more power to the pumps, higher bucket breakout forces and deeper standard digging depths to increase performance by up to 20 percent over their E2 series counterparts.
Their grease intervals and extended filter service life, combined with common components throughout the line and flat, easy-to-replace side panels, deliver up to 10 percent lower owner and operating costs, according to the manufacturer.
The new 304 and 305 CR models are the final machines to be reengineered to the Cat next generation mini hydraulic excavator line concept. From the 1.6 to 11 ton class models, all 17 to 20 Cat mini hydraulic excavators in the range (depending on region) offer common features and consistent controls layout to simplify training and operator adaptation.
New 304 Increases Stability
Built with a new reduced radius design, the 304 features a narrow, 66.9-in. track width, 10 in. slimmer than the 304 E2, for more versatility and access to confined spaces. While narrower, the new 304 design increases performance, balance and stability. Its reduced radius allows for greater stability, both 360-degree and when traveling with loads, while its extra counterweight option takes the model to an even higher level of stability.
Next Generation Comfort, Savings
Compact Performance of 305 CR
The new engine on the Cat 305 CR excavator delivers nearly 9 percent greater power to increase machine performance. Hydraulic system improvements provide higher breakout forces — 49.2 kN (11,061 lbf) bucket, 28.3 kN (6,362 lbf) standard stick and 25.2 kN (5,665 lbf) long stick — to improve digging efficiency in hard rock applications. It also offers 5.6 in. deeper dig depths than the 305 E2, giving it more application flexibility. Its compact radius swing reduces overhang when working to the side, while its 78-in. track width and new extra counterweight option help to optimize stability and lift performance in confined spaces.
Common to most Cat next generation mini hydraulic excavators, the sealed and pressurized cab enclosure is available with heating and/or air conditioning for all-weather climate control. The cab’s large glass areas plus skylight afford all-around visibility. The large display with advanced touchscreen option provides intuitive machine function control and easy monitoring of critical operating parameters. A canopy option is available in some regions.
Daily maintenance checks for the 304 and 305 CR are quickly made from ground level through side doors. Expanded use of common parts throughout the line plus their damage-resistant exterior construction help to reduce parts inventory investment and lower repair costs. Increased service intervals mean these excavators spend more time on the job and less time in the shop.
For more information, visit www.cat.com.
Advanced Efficiency
Both excavator models now offer an angle dozer blade option to optimize machine flexibility in backfilling and finish grading applications. In addition to offering ample above- and below-grade travel with standard float function for easy clean-up, the angle blade moves 45 degrees left or right of center. Increasing efficiencies and reducing operator interaction with final grading, angle blade movement is controlled by the right-hand joystick, while the left joystick handles machine drive.
Tailoring machine weight to job requirements, interchangeable counterweight packages offer the balance between low ground pressure and lifting performance. The Cat Stick Steer System simplifies machine control by allowing the operator to switch from conventional lever/foot-pedal steering controls to low-effort joystick operation. Two travel speed ranges and standard cruise control facilitate moving around the job site with minimum operator interaction.
Meeting U.S. EPA Tier IV Final and EU Stage V emission standards, the turbocharged Cat C1.7 Turbo engine delivers higher power than the previous C2.4 engine. Standard auto idle, auto engine shutdown and efficient load-sensing hydraulics with variable displacement pump help to lower fuel usage at the site for more affordable operation.
High main-relief pressures, coupled with flow rates, generates the hydraulic capacity for high digging and lifting forces and more efficient use of a range of attachments. Complete with quick-disconnect lines, the standard auxiliary system provides the choice of one-way, two-way or continuous flow.
All Island Equipment 39 Jersey St. • West Babylon, NY 11704 631-643-2605 www.allislandequipment.com
ATS Equipment, Inc. 33 Locust Street • Boston, MA 02125 617-825-3600 487 Washington Street, Route 20 • Auburn, MA 01501 508-832-8500 51 Fall River Avenue • Rehoboth, MA 02769 508-379-6200 ww.atsequipment.com
Baschmann Services Inc. 1101 Maple Road • Elma, NY 14509 888-655-1101 www.baschmann.com
Chappell Tractor 454 Route 13 South • Milford, NH 03055 800-698-2640 251 Route 125 • Brentwood, NH 03833 800-616-5666 391 Loudon Rd. • Concord, NH 03301 800-358-6007 www.chappelltractor.com
Highway Equipment Company 615 State Route 33 • Millstone Township, NJ 08535 732-446-7600 www.highway-equipment.com
Westchester Tractor 60 International Blvd. • Brewster, NY 10509 845-278-7766 www.wtractor.com
At a recent equipment demonstration, Bob Best took notice of the stout, compact articulated loader busily feeding Bandit machines and was immediately impressed. Rich Droste (L) of Hummerbee and Bob Best, owner of Best Excavation, with the Hummerbee 721R 4-wheel drive compact articulated loader.
At a recent equipment demonstration hosted by Bandit Industries near its headquarters in Remus, Mich., the manufacturer’s extensive line of tree chippers and stump grinders weren’t the only machines to catch the attention of Bob Best, owner of Best Excavation, based in Alma, Mich. Best took notice of the stout, compact articulated loader busily feeding the Bandit machines and was immediately impressed.
As it turned out, the loader was on loan from another Michigan-based manufacturer, Hummerbee Rough Terrain Equipment.
Brian Kulling, president of Hummerbee, also was on hand at the Bandit demo event and Best sought him out to learn more about the company and its compact articulated loader.
Over the 35 years that Hummerbee has been in business, the company has gained a worldwide reputation as a premier manufacturer of rugged and reliable 4-wheel drive articulated forklifts for the beekeeping industry.
With the rising popularity of compact machines in the construction, tree care, farming, forestry, landscaping and municipal maintenance industries, Hummerbee saw an opening for a U.S.-made, heavy-duty, compact articulated loader. Applying its decades of experience in the design, engineering and production of rough-terrain machines, the company set about the development of a telescopic, compact articulated loader that would bridge the gap between skid steer loaders / mini wheel loaders and full-sized wheel loaders. The goal was to design a compact loader that is costeffective yet rugged enough to meet the challenging demands of wide-ranging work applications.

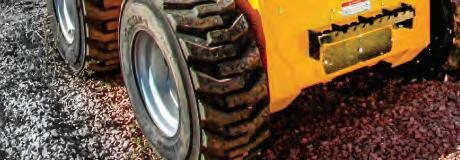

The result is the Hummerbee 721R, a 4-wheel drive compact articulated loader equipped with a 126-in. telescopic, dual- arm boom, 4,500-lb. tipping load, and is capable of getting around the job site at a speed of up to 14 mph. Powered by a Tier IV Final, 74 hp Kohler turbo diesel engine, Hummerbee’s articulated loader employs a 2-speed hydrostatic transmission with on-the-fly shifting.
Best Excavation specializes in post construction site work to prepare projects for final landscaping. Much of the company’s work consists of backfilling around foundations and site development, material placement and leveling on projects within a 40-mi. radius of the company’s home base.
Established in 1987 by Fred Best, he grew the company into what it is known as today. Best Excavation is now owned and managed by Fred’s nephew, Bob Best. As the new owner, he brings a new scope to the projects that Best Excavation has been completing for more than 30 years.
Best hopes to continue to find new ways to complete daily operations more efficiently and deliver the same quality service his uncle built the company around. That’s why the Hummerbee caught his attention, but will it fit the bill?
Eager to test the new Hummerbee compact articulated loader in a real-world work application, Kulling readily agreed to provide Best Excavation one of its machines for an extended trial period. Best’s immediate impression when operating Hummerbee’s compact articulated loader was that getting accustomed to the machine was extremely easy.
Best also was impressed with how much weight the Hummerbee compact articulated loader could lift. The 721R can manage a 2,500- to 3,000-lb. operating load, depending on the tire size and counter weight package.
Best found that another advantage of the Hummerbee is that the location of the operator’s position, which is higher up, provides exceptional sight lines on the job site, making it safer to operate.
Best also liked the fact that the Hummerbee is a wheeled loader as opposed to a track machine.
“With a tracked machine, you have to watch how you turn to avoid tearing up the ground on a finished grade, we didn’t have that issue with the Hummerbee. And because it’s articulated, you can really operate in tight spots,” he said.
A multitude of skid steer-style attachments are compatible with the Hummerbee compact articulated loader to equip the machine for a wide range of job functions. And the true, 21gpm auxiliary hydraulic oil flow extends the machines capabilities, which is a unique feature in the compact articulated loader world.
For more information, call Brian Kulling at 800/943-8677 or visit hummerbee.com. CEG
The Case TV620B compact track loader
Case Construction Equipment introduced the TV620B compact track loader (CTL), the largest and most powerful compact track loader ever built, according to the manufacturer. The 114-hp, 6,200-lb. rated operating capacity CTL delivers best-in-class breakout forces — as well as more standardized features than previously available on any Case CTL, said the company. This includes standard adjustable electro-hydraulic controls, high-flow hydraulics, auto ride control, oneway self-leveling, a hydraulic coupler, an auto-reversing fan, LED lights and a oneyear subscription to Case SiteWatch telematics. It also comes with a new 1.25 cu.-yd. heavy-duty bucket designed specifically for the TV620B.
The new Case TV620B also features the new Case SiteConnect Module, remote connectivity and software updates through the SiteManager App (iOS and Android), as well as connectivity to the Case Uptime Center for collaborative fleet management between Case, the local Case dealer and the equipment owner.
“The industry has never seen a CTL like this, and we’re focused on delivering extreme power and performance matched with intuitive technologies that simplify owning and operating,” said George MacIntyre, product manager, Case Construction Equipment. “The TV620B is built to simplify heavy work such as cold planing, mulching, heavy material handling, and loading high-sided trucks. There’s no loader on the market today with this level of standard features and its combination of power, stability, and performance — it’s here to take on the big work.”
The TV620B also features the advances introduced with the launch of the Case B Series CTLs, including a completely redesigned operator interface, industry leading 360-degree visibility, and an eight-inch LCD multi-function display that serves as the command center for the machine. It also includes the industry’s only rearview camera visible in a split screen display with machine data.
The Case TV620B provides major operational categories including rated operating capacity (6,200 lbs.), breakout force (12,084 lbs. bucket; 12,907 lbs. lift) and track length on the ground (74 in.).
Ground performance and machine strength is further supported by a new heavy-duty undercarriage and heavy-duty 17.7-in. rubber tracks that allow for minimal ground disturbance (6.1 psi) and enhanced performance on improved surfaces.
The TV620B offers a selection of buckets, including a heavy-duty 84-in. 1.25 cu.-yd. bucket with SmartFit teeth and is specifically designed for use with other heavy-duty attachments, such as mulching heads, cold planers and the new Case grading blade. Case will be releasing additional heavy-duty attachments designed specifically for use with the TV620B and has enhanced the hydraulic cooling capacity of the machine to support use of such heavy-duty, high-capacity attachments.
“The combination of strength, performance and stability of the TV620B is unmatched by any other machine, and provides a robust platform for working with larger buckets and high-capacity attachments,” said MacIntyre. “Heavy pallets, loading larger trucks, and running attachments that require enhanced-high-flow hydraulics are all handled with ease by this machine. The combination of track-onground, hinge pin height and reach at maximum dump height specs really make this a machine designed for loading trucks of all sizes.”
Standard Electro-Hydraulics, ‘Hydraulics On Demand’ Drive Greater Control
The Case TV620B expands on the intuitive controls of the B Series CTLs with new control features and standardization. It comes standard with adjustable electrohydraulic controls, which allow operators to set total machine responsiveness to low, moderate or aggressive; or independently set tilt, lift and drive speed, as well as loader arm and drive control to best meet the demands of the work. A simple button lets operators select between operating in H or ISO operating patterns. And “Creep Speed” allows the operator to set machine speed at a consistent/slow “creep” while independently setting attachment speed via the throttle for optimal use of attachments such as cold planers and brooms.
Exclusive to the Case TV620B is new “hydraulic on demand” performance that allows the operator to easily select the percentage of auxiliary hydraulic flow to the attachment via the machine’s multi-function display. This allows the operator to dial in attachment performance to their preference or the recommendation of the attachment manufacturer.
The TV620B also features standard automatic ride control with adjustable speed settings, which engages ride control immediately when the CTL hits a pre-specified speed. This feature is enabled and disabled simply within the multi-function display in the machine.
It also features a foot pedal that serves one of three functions — accelerator (traditional acceleration), trans (reduces drive speed but retains RPM for loader arm functions), and decel (traditional deceleration), based on operator preference.
“We are giving the operator more precise and intuitive control than they’ve ever had in a Case CTL, and making the machine as simple to operate for as broad a range of applications as possible,” said MacIntyre.
Enhanced Ease of Service; Standard Telematics; New Hydraulically Reversing Fan The Case TV620B meets emissions regulations with a combination of cooled exhaust gas recirculation (CEGR), diesel oxidation
SOLLID DEESIGN N
TBUIL - -TO
P PERFORM
The SV17e is a miniexcavator aimed at customers in the European market and plays in the 1.5 to 2.0 tonnes segment.
CONTACT YOUR LOCAL GEH HL DEALER TOD DAY!
www.allislandequipment.com 39 Jersey Street West Babylon, NY 11704 631/643-2605
sales@admarsupply.com www.admarsupply.com 878 Old Albany Shaker Road
Latham, NY 12110 518/690-0750 449 Commerce Road
Vestal, NY 13850 607/798-0333 1394 Military Road
Tonawanda, NY 14217 716/873-8000 2390 Rochester Road Canandaigua, NY 14424 585/396-0031 3001 West 17th Street Erie, PA 16505 814/833-7761 1950 Brighton Henrietta Town Line Road Rochester, NY 14623 7800 Brewerton Road Cicero, NY 13039 315/433-5000 121 Armstrong Road Pittston, PA 18640 570/299-5505
585/272-9390
Yanmar Compact Equipment is bringing its engine and mini-excavator expertise into the field of electrification with its first electric mini-excavator prototype: the new SV17e. This innovation represents an important strategic step in the transformation for Yanmar Compact Equipment.
“Our aim, together with our dealer partners, is to build stronger relationships and create even greater customer value,” said CEO Giuliano Parodi. “Our transformation will embrace our entire business and will encompass new products with alternative fuel technologies. The SV17e prototype is a clear demonstration of our intent to build a sustainable business for our customers and dealer partners.”
The SV17e is a mini-excavator aimed at customers in the European market and plays in the 1.5 to 2.0 tonnes segment. Powered by efficient electric drive and hard working 48volt batteries with fast charging capability, it’s a quiet, zero emission machine designed to meet the most demanding emissions restrictions, according to the manufacturer.
In-line with Yanmar Compact Equipment’s commitment to create an exceptional customer experience, the appeal of SV17e goes beyond simply being an electric machine. The design and engineering team have set out to build a machine which offers the highest levels of comfort, ergonomics and operational power, precision and control.
“Our prototype is significant because it demonstrates our capability to bring the quality and reliability of our highly respected conventional engine technology into the arena of electrification,” explained Director Product Management EMEA Cedric Durand. “But we have gone further. As always, the operator is at the heart of this machine, and we have challenged ourselves to deliver the comfort, power, control and precision which we believe will surpass the expectations of professional operators.”
In preparation for its sales start at bauma 2022, the prototype SV17e currently is undergoing Yanmar’s product testing regime. These tough field tests are uncompromising in their thoroughness to ensure an uncompromising level of durability and reliability in the design and engineering, the manufacturer said.
According to Director Engineering EMEA Sota Takami, “We are very pleased with the performance to date — as you would expect, we have a rigorous testing regime which pushes every aspect of the machine to its limit. The machine has performed very well in all these tests. We are particularly pleased with the power and control of the machine. Of course, this is a quiet, zero emission machine but that, in itself, is not enough. We must create a great feeling for the operator. I am confident that professional operators will be very comfortable in this machine, they will certainly feel the power, control and the precision handling they will need to take on the big jobs as well as the small jobs.”
For more information, visit www.yanmar.com.
The Dingo TX 1300 is ideal for landscape, hardscape and tree care jobs, though its versatility allows it to be used for much more.
Ambrose Equipment Co.
1401 Hooksett Rd. • Hooksett, NH 03106 603-644-8787 1 Madison Street • Plainville, MA 02762 508-643-0044 www.ambroseequipment.com
Able Tool & Equipment
410 Burnham Street South Windsor, CT 06074 860-289-2020 www.abletool.net
The Toro Dingo TX 1300 brings a new combination of power, reach and convenient control to the Toro Dingo lineup.
The Dingo TX 1300 is ideal for landscape, hardscape and tree care jobs, though its versatility allows it to be used for much more. Dingo compact utility loaders are an extremely functional class of machinery.
The Dingo TX 1300 features an INTELLISCOPE loader arm with SmartLoad technology, giving the operator an additional 26 in. of reach. A hinge-pin height of 109 in. allows for loads to be lifted up and over the side of a dumpster or truck, another major convenience. The goal of these features is to help users reach maximum productivity.
Toro has integrated the hydraulics and loader arm functions into one thumb-operated controller for easier, more accommodating operation. One hand can be used to operate the loader arm and auxiliary attachments and the other to operate the Toro traction controls. This feature makes it more manageable than ever to pick, place and dump loads all day long.
“The comfort of a machine can make or break the experience of the operator who’s using it day in and day out. The Dingo TX 1300’s comfort features make operation an enjoyable experience for anyone who steps foot on the platform,” said Kyle Cartwright, marketing manager at Toro.
“By minimizing the number of areas with buttons and controls, the operator can better focus on the task at hand — improving productivity and efficiency.”
Customers also will appreciate the pressure-relieving quick coupler system, which makes connecting attachments a breeze, along with a larger operator platform for increased operator comfort. All these features are combined into a compact footprint that’s maneuverable in tight spaces, helping to get the job done more efficiently, the company said.
The new Dingo TX 1300 will be available starting in winter 2021.
For more information, visit www.toro.com. Admar Construction Equipment & Supplies
1950 Brighton Henrietta Town Line Road • Rochester, NY 14623 585-272-9390 7800 Brewerton Road • Cicero, NY 13039 315-433-5000 449 Commerce Rd. • Vestal, NY 13850 607-798-0333 1394 Military Road • Tonawanda, NY 14217 716-873-8000 2390 Rochester Rd. • Canandaigua, NY 14424 585-396-0031 878 Old Albany Shaker Road • Latham, NY 12110 518-690-0750 3001 West 17th Street • Erie, PA 16505 814-833-7761 121 Armstrong Road • Pittston, PA 18640 570-299-5505 www.admarsupply.com
Cap Rents Supply, LLC 18-25 43rd Street Astoria, NY 11105 718-932-4100 • Fax: 718-932-8971 www.caprents.com
Central Equipment Company P.O. Box 261 45 Dempsey-Greaves Lane • Stillwater, ME 04489 207-827-6193 Fax: 207-827-3774 54 Old Canal Way • Gorham, ME www.centralequipmentco.com
Caterpillar now offers Cat Grade technologies as an aftermarket option to owners of Cat next generation mini hydraulic excavators in the 6- to 10ton class range.
The field kit’s modular components facilitate quick installation, while the technology seamlessly integrates into the Cat next generation excavator electronics infrastructure, according to the manufacturer.
Both aftermarket grade technologies mirror the capabilities of larger Cat excavators operating Cat Grade with Advanced 2D or 3D systems, allowing the equipment to reach target grade quickly. A separate, 10-in. highresolution touchscreen monitor allows operators to conveniently view, create and work site designs inside the cab. Automatics deliver simple, single-joystick control over the stick and bucket to maintain grade and avoid overcutting and undercutting.
Cat Grade with Advanced 2D uses onboard processors and fast-response sensors to deliver real-time bucket tip and elevation guidance on the touchscreen monitor. This technology gives operators the ability to create and work to basic site designs, while grade design edits can easily be made from the operator’s seat. Field installation of the technology includes the hardware, sensors and dedicated monitor for grade plan creation, editing and viewing.
Using GPS and GLONASS systems to pinpoint the excavator’s exact location, Cat Grade with 3D allows multiple machines to
Available through Cat and Sitech dealers, owners can equip the excavators with Cat Grade with Advanced 2D or Cat Grade grade to complex jobsite designs. The monitor shows bucket position throughout the full range of the digging motion, while height and depth with 3D. audio alerts indicate when desired grade has been reached to protect from overcutting or undercutting. Beyond the hardware and sensors, including monitor, required for Grade with Advanced 2D, installation of Grade with 3D also requires GNSS receivers and antennas. Beneficial in a range of applications including sewer and septic work, digging footings and flat pad home development, Cat Grade technologies help operators reduce the number of passes and shortens the time it takes to complete cuts. They improve grade quality and consistency for operators of all experience levels and can extend the workday by aiding work in limited visibility situations. Saving costs associated with time, labor, fuel and material consumption, Cat Grade technologies allow companies to reach target grade quickly and lower overall operating costs at the jobsite. For more information, visit www.cat.com.
LiuGong Expands Mini-ExcavatorLineup With 9027F
LiuGong North America ‘s true zero tail-swing 9027F, a 2.7 metric ton mini-class excavator, is designed to meet and exceed North American market’s tough design specifications. Its compact dimensions and versatility give operators multiple transportation and application benefits.
The versatility of the 9027F ZTS is more than just its compact size and ability to be transporting via pickup bed or trailer. This unit is a powerful machine that supports a variety of attachments and consumer-requested aftermarket add-ons, according to the manufacturer.
“We are pleased to announce the expansion of our mini-class excavator line,” said Christopher Saucedo, vice president and general manager, LiuGong North America.
“Like all of our machines, the 9027F ZTS’s value-adding features come standard and are not classified as premium options that add cost to the base price of the unit. Features like a Tier IV Final Yanmar engine rated at 20.4 net hp, Inline hydraulic pumps and main control valve make the 9027F ZTS a truly versatile machine,” said Saucedo.
With a slew circuit of 2698 psi, the 9027F ZTS enables operators to dig parallel to the dozer blade, especially advantageous for operations close to walls and backfilling. The 9027F ZTS’s applications range from digging and trenching for residential and commercial construction to landscaping applications like grading, trenching and fencing. With a competitive operating weight and its lifting and digging abilities, the 9027F ZTS also is ideal for rental and utility applications. Equipped with a more efficient hydraulic system than its predecessor, the 9027F ZTS offers improved fuel consumption and improved break-out force. Its improved load-sensitive hydraulic system with 23.8 gpm main pump displacement, utilizes a proportional control valve for better management of hydraulic flow for all attachments.
Operators can easily engage the flow rate for the hammer-shear and hydraulic thumb from operator’s monitor. The LiuGong hydraulic thumb is a standard feature on the 9027F ZTS. Hydraulic control for travel, boom swing, arm and bucket machine functions are engaged through travel pedals and joysticks. Auxiliary hydraulic functions are controlled by electrical proportional solenoids for precise control.
Just like all F-series LiuGong excavators, the 9027F ZTS is compatible with many third-party aftermarket technologies such as Trimble for gradeability and telematics. The unit is available in both a climate-controlled rollover protection structure (ROPS) cab or open canopy design with tip-over protection (TOPS). Both cab designs offer excellent visibility, fully adjustable suspension seat and ergonomic controls.
The 9027F ZTS’s applications range from digging and trenching for residential and commercial construction to landscaping applications like grading, trenching and fencing.
9027F Specs
• Operating weight (Cab): 6,063 lb. • T4F Yanmar engine: 20.4 hp (net) • Max pump flow rate: 23.8 gpm • Max pressure: 3,133 psi • Standard bucket capacity: 0.065 cu. yd. • Bucket/cutting width: 15.75 in. • Bucket breakout force: 4,496 lbf • Arms digging force: 2,698 lbf • Max. Digging depth: 9 ft. 4 in. • Swing speed: 9.5 rpm • Arm length: 4 ft. 3 in. • Max dump height: 10 ft. 1 in.
LiuGong NA offers a 3 year / 4,000-hour end-to-end coverage warranty.
For more information, visit www.liugongna.com.
To enhance utility and the fiber contractor’s experience, while tackling tough jobs on tight schedules, Ditch Witch has introduced the RT70 rideon trencher.
The newly designed trencher is equipped with features that increase operator comfort and visibility, helping to boost efficiency and profitability on the job site, according to the manufacturer.
For example, the ergonomically designed operator station features an open layout with a 120-degree swivel seat, more leg room and intuitive controls. This enhanced visibility gives operators a full view of the machine — from front tire to back tire and the attachment — helping operators of any experience level increase productivity.
The RT70 also includes a cooling fan to reduce temperature levels in the operator station by moving hot, uncomfortable exhaust out of the side of the machine rather than toward the operator like traditional fans. This helps keep workers safer and more comfortable during long days.
“At Ditch Witch, we understand the challenges that electric and fiber contractors face daily,” said Steve Seabolt, product manager, ride-on tractors, Ditch Witch. “The RT70 is compact and maneuverable, yet powerful. This new unit, with its unique features, will allow the operator to tackle tough jobs in tight conditions.”
Powered by a 72 hp Yanmar Tier IV Stage V compliant diesel engine, and built with a narrow footprint of 73-in. wide, the RT70
rubber-tire trencher can handle heavyduty jobs and still easily maneuver around tight job sites, corners and culde-sacs with ease. This makes it the perfect go-to trencher to take on even the toughest jobs, according to the manufacturer. It also is available with crab and coordinated steering modes, which allows operators to turn the machine with a steering wheel instead of using two separate levers. This makes it easier to use and frees them up to focus on other parts of the job. The machine’s modular design features a single base unit with the option to move from tires to tracks. And with different attachments, plus a variety of optional add-ons, operators can endlessly reconfigure their machine throughout its lifecycle to customize it for specific job site needs. Powered by a 72 hp Yanmar Tier IV Stage V compliant diesel engine, and built with a narrow The RT70 is built to increase operafootprint of 73-in. wide, the RT70 rubber-tire trencher can handle heavy-duty jobs and still tor productivity with daily mainteeasily maneuver around tight job sites, corners and cul-de-sacs with ease. nance points in one easy-to-access location and a single-piece, easy-open hood. Fast and simple maintenance means that operators can spend their valuable time where it matters most — on the job site. For more information, visit ditchwitch.com/ride-on/rt70.
Toro’s Dingo TX 700 Ideal in Tight Spaces
Toro has added the Dingo TX 700 to its already extensive Dingo lineup.
Due to the Dingo TX 700’s small size and powerful punch, it’s the ideal machine for both homeowners and contractors working within the confines of tight spaces. It packs 700 pounds of rated operating capacity into its small footprint, bringing Toro-level power to everything it touches, according to the company.
“The compact size and flexibility of the Dingo TX 700 is bound to be a game-changer for operators,” said Kyle Cartwright, marketing manager at Toro. “The fact that it’s small, but incredibly capable, increases the applications for the Dingo TX 700 on the job site. This Dingo has the potential to be the compact go-getter of the operation.”
Featuring Dingo TX 1000 traction controls and a dedicated stand-on platform, the Dingo TX 700 is easyto-use and boasts increased comfort and visibility. Even if the buyer is new to operating heavy machinery, it will quickly become second nature, the company said.
The versatility of Dingos, or compact utility loaders, is well-known — and the Dingo TX 700 is no different. In fact, its small size further increases versatility by allowing it to reach areas other Dingos may not. It’s also compatible with dozens of attachments, meaning the machine can be used for a wide range of jobs.
Attachments include multiple types of buckets, adjustable forks, a grapple, leveler, utility blade and more. Completing more work using fewer machines is a major advantage, plus, the Dingo TX 700 doesn’t require as much storage space as its larger counterparts.
It’s easy on turf, too. The Dingo TX 700 is available in both narrow track and wide track configurations — the wide track option is equipped with the industry tested Camso track system. The system features a less aggressive tread pattern that’s gentle on turf and minimizes damage, perfect for keeping pristine lawns intact.
The new Dingo TX 700 will be available starting mid-year 2022.
For more information, visit www.toro.com.
Featuring Dingo TX 1000 traction controls and a dedicated stand-on platform, the Dingo TX 700 is easyto-use and boasts increased comfort and visibility.
Construction Equipment Guide• Mini & Compact Equipment Section• www.constructionequipmentguide.com • December 22, 2021 • Page 77 Case Construction’s TV620B Features SiteConnect Module
CASE from page 68
catalyst (DOC) and selective catalytic reduction (SCR) technologies — it features no diesel particulate filter (DPF) and requires no regeneration.
“This emissions solution requires no downtime associated with regeneration, no lifetime service associated with a DPF, and is easy for the owner to manage,” said MacIntyre. “We’ve also integrated large diesel (30.8 gal.) and diesel exhaust fluid (3.3 gal.) tanks to extend working days when the job needs to get done.”
Debris buildup in the engine compartment is further mitigated with a standard hydraulic auto-reversing fan — the operator can easily set how often the fan runs, and for what duration, within the multi-function display in the cab.
As with the entire lineup of Case compact track loaders, all major service points are easily accessible at the rear of the machine. Daily service and overall fleet management are further improved with a standard one-year subscription to Case SiteWatch telematics.
The enhancements in machine design and technology also includes the new Case SiteConnect Module — first introduced on Case G Series wheel loaders. The SiteConnect Module allows for more robust telematics performance, remote diagnostics and remote software updates that streamline fleet management activities. This enhanced connectivity allows the machine owner to share — at their discretion — real-time machine information with the dealer and the Case Uptime Center in Racine, Wis.
“These technologies help Case and our dealers stay better connected to the service and fleet management needs in the field, and significantly shortens the amount of time it takes to identify machine issues, respond in the field and ensure optimal uptime,” said MacIntyre.
Case achieves the new remote service capabilities in part through the new SiteManager App (iOS and Android). This app pairs the operator’s phone or device to the machine to enable remote analysis. Certified Case technicians then diagnose the health of each connected machine through various parameter readings and fault codes — and the technician makes a determination as to whether the issue can be addressed remotely (such as clearing codes or updating software) or if it requires a trip to the machine.
The SiteConnect Module also improves the volume, flow and integration of data to the Case SiteWatch telematics platform for real-time monitoring, management of maintenance and service intervals, examination of equipment utilization and overall machine record keeping.
“The TV620B represents the most powerful, complete and intuitive CTL we’ve ever built, and certainly unlike anything the industry has seen — from the pure specs of it to the new control capabilities and the remote fleet management capabilities,” said MacIntyre. “This machine takes CTL capabilities to a whole new level no matter what industry you work in.”
For more information, visit CaseCE.com/TV620B.
