Steel ErectorsAssociation ofAmerica Names 2023 Project of Year Winners

All Island Equipment 39 Jersey St. • West Babylon, NY 11704 631-643-2605 www.allislandequipment.com

The Steel Erectors Association of America (SEAA) announced the winners of its 2023 Projects of the Year. Entries could be submitted in two categories — Structural and Miscellaneous Metals. There are four classes by erection contract size in the Structural category and two classes in Miscellaneous Metals. This year, there were no entries for Structural Class II.

Projects that were topped out in 2021 or 2022 were eligible and must have been completed without significant accident or injury. Submissions are reviewed and winners are selected by an independent panel of judges from an engineering firm not affiliated with the association.

“SEAA appreciates the time and expertise these volunteers contribute, which makes it possible to fairly judge these projects,” said Drew Heron, chairman of the awards committee.

“Several of the award-winning projects dealt with working during restricted hours, were challenged by limitations for crane placement, and exhibited creative use of tools and equipment to overcome those challenges,” said Bob Beckner, Project of the Year Awards Committee representative. In addition, each of these projects was completed safely while working in close proximity to the public.

Winners receive trophies, feature article coverage in Connector magazine, and the chance to participate in peer panel discussions at future SEAA Conventions and at AISC’s Steel Conference.

Structural Class IV (Over $2.5 Million) Colorado Convention Center Expansion

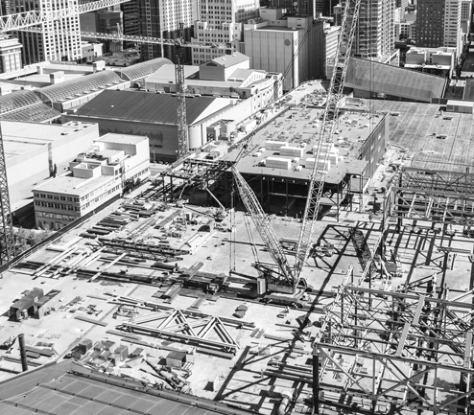

Derr & Gruenewald, Brighton, Colo., erected 9,000 tons of structural steel for a 200,000 sq. ft. expansion of the Colorado Convention Center. The expansion was on top of the northwest corner of the existing structure, which ultimately required an LR1300 crawler crane configured with optional derrick and suspended counterweight to be assembled and operated from the roof of the existing structure.

The existing structure consisted of joist and truss girders with 90 ft. wide bays supported by 36 in. diameter pipe columns. The columns were filled with concrete to support the new construction.

At each bay, the crawler crane was used to build a new floor above the existing roof, capable of supporting the crane itself. After completion of steel erection and slab placement of each bay in the crane path, the crane would roll onto the newly constructed bay and continue erecting adjacent bays.

Putting a crawler crane on the roof of the convention center wasn’t the only challenge the company faced. It also had very little room for unloading and shakeout. Located on the front range of Colorado, wind, snow and lightening were common causes for delay, plus work has to be scheduled around conventions that were being held in the adjacent space.

Miscellaneous Metals Class I (Contract Value Up to $500,000) Pergola Over Tulsa

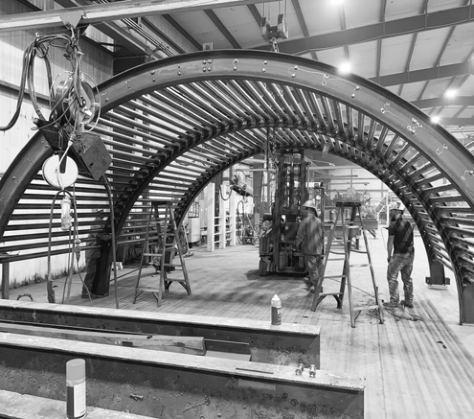

Basden Steel Corp., Burleson, Texas, fabricated and erected a 100-ft.-long pergola on the second-floor terrace of a prominent downtown Tulsa building. The AESS Category 1 structure is made of white galvanized rolled 10-in. WF for the columns and arches, with 3-in. pipe infill and 10-in. HSS connecting the columns and bearing the center arches. Each arch is just over 18 ft. tall and 20 ft. wide. The AESS finish received a white paint over galvanized base and required multiple full pen welds.

The entire project was designed, fabricated and erected in less than four months. As the date for installation neared, the Basden team was faced with several surprises, including having to re-locate the crane and having restricted working hours requiring the crane to be removed every weekend.

“Mid-way through the second week, we got into a groove. Installation was complete in three weeks with an additional week for weld clean up, Bondo for AESS, and touch up painting,” said Austin Jones, contract administrator and field operations manager. 
