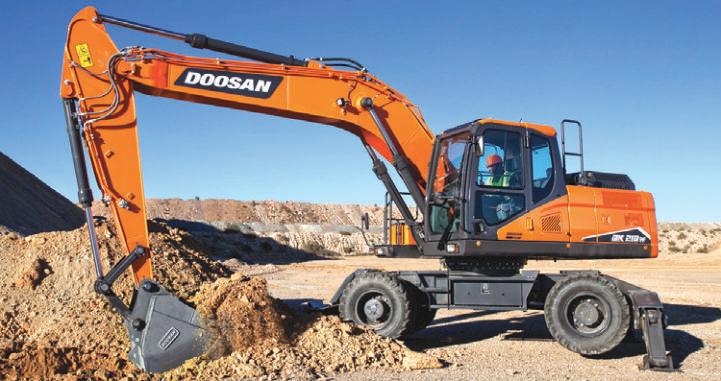

The DX210W-7, which replaces the DX210W-5, has an operating weight of 50,706 lb.

DOOSAN from page 78

New Machine Offerings

The optional load isolation system engages automatically at 3.1 mph, reducing attachment and machine bouncing when traveling on uneven road surfaces. The standard auto hold brake system engages the digging brake automatically to improve operator comfort and productivity. The fine swing function reduces the shock from excavator swing starts and stops to help with operator accuracy.

An optional trailer-ready feature allows wheel excavator operators to pull a 5- to 10ton trailer. In addition, a tilt-rotator working mode and a priority valve enable the use of mulchers, grass cutters and other specialty attachments.

Four Selectable Power Modes

Doosan continues to offer four selectable power modes, giving operators more control over the excavator’s performance and helping to reduce fuel consumption.

• Power+ mode for severe digging conditions and mass loading (top loading)

• Power mode for extremely deep trenching and simultaneously truck loading

• Standard power mode for general ground utility applications: digging and pipe laying

• Economy mode for precise grading and to maximize controllability and machine efficiency

DoosanCONNECT Telematics

The DoosanCONNECT Telematics system comes standard on all -7 Series wheel excavators, making it easy to remotely monitor and maintain machines. DoosanCONNECT Telematics is an equipment diagnostic tool that monitors the health, location and productivity of Doosan construction equipment from a user-friendly mobile app and website.

Doosan -7 Series Wheel Excavator Specs

DX140W-7 replaces the DX140W-5

• Horsepower: 137 hp (102 kW) at 2,000 rpm

• Operating weight: 34,760 lb. (15,800 kg)

• Maximum digging depth: 14 ft. 8 in. (4.5 m)

• Maximum digging reach (ground): 24 ft. 2 in. (7.4 m)

• Maximum loading height: 19 ft. 4 in. (6 m)

DX190W-7 replaces the DX190W-5

• Horsepower: 159.6 hp (119 kW) at 1,900 rpm

• Operating weight: 46,187 lb. (20,950 kg)

• Maximum digging depth: 18 ft. 9 in. (6 m)

• Maximum digging reach (ground): 29 ft. 8 in. (9 m)

• Maximum loading height: 22 ft. 2 in. (6.8 m)

DX210W-7 replaces the DX210W-5

• Horsepower: 171.2 hp (127.7 kW) at 1,900 rpm

• Operating weight: 50,706 lb. (23,000 kg)

• Maximum digging depth: 19 ft. 4 in. (5.9 m)

• Maximum digging reach (ground): 31 ft. 2 in. (9.5 m)

• Maximum loading height: 23 ft. 4 in. (7.2 m)

For more information, visit na.DoosanEquipment.com. 
