PRODUCT CATALOGUE

Conlan_product_catalogue_V1_DK-10-26


Conlan ApS Amalienborgvej 15 9400 Nørresundby Denmark

For questions about our products, contact us on following email address: info@conlan.eu For ordering goods, contact us on following email address: order@conlan.eu For technical support, call us on the following phone number: +45 7240 6003 Visit our website to keep up for news from our company: www.conlan.eu

Publications of CONLAN ApS are protected by copyright and all rights are reserved. CONLAN ApS publications may not be reproduced in any form or by any means without written permission from the copyright owner

2


Content Stand Alone Solutions 1000

Page

Wiegand Solutions 1200

Page 11

Conlan 485 Solutions 2000

Page 18

Open Protocol OSDP 485 Solutions 3002

Page 24

Open Protocol MODBUS 485 Solutions 3003

Page 28

Accessories

Page 30

3

4


STAND ALONE SOLUTIONS 1000 SERIES

4


KEYPAD AND MIFARE FOR STAND ALONE • • • • • • • • • • • • •

Up to 190 user codes/tags Changeable and/or function for high security All settings can be copied to other CM1000 readers with a backup card (Art. 480080) 2 outputs (500 mA) for codes/tags REX input Programmable LED and buzzer 8 core 2.5 m cable IP67 protection rate for indoor and outdoor use Voltage 9 – 24 V DC (incl. ripple voltage) HxLxW (Mykey): 75x50x8 mm. HxLxW (Classic): 130x50x8 mm. Customised front labels EMV version can read Europay, Mastercard, Visa and Wallet

480010 CM1000 black, Mykey 480011 CM1000 white, Mykey 482010 CM1000 black, Classic 482011 CM1000 white, Classic 480040 CM1000EMV black, Mykey 480041 CM1000EMV white, Mykey 482040 CM1000EMV black, Classic 482041 CM1000EMV white, Classic

5


KEYPAD AND PROXIMITY FOR STAND ALONE • • • • • • • • • • • • •

Atmel and EM compatible Up to 190 user codes/tags Changeable and/or function for high security Permanent codes, single use codes and 24 hour codes 2 outputs (500 mA) for codes/tags REX input Programmable LED and buzzer 8 core 2.5 m cable IP67 protection rate for indoor and outdoor use Voltage 9 – 25 V DC HxLxW (Mykey): 75x50x8 mm. HxLxW (Classic): 130x50x8 mm. Customised front labels

480015 CP1000 black, Mykey 480016 CP1000 white, Mykey 482015 CP1000 black, Classic 482016 CP1000 white, Classic

6

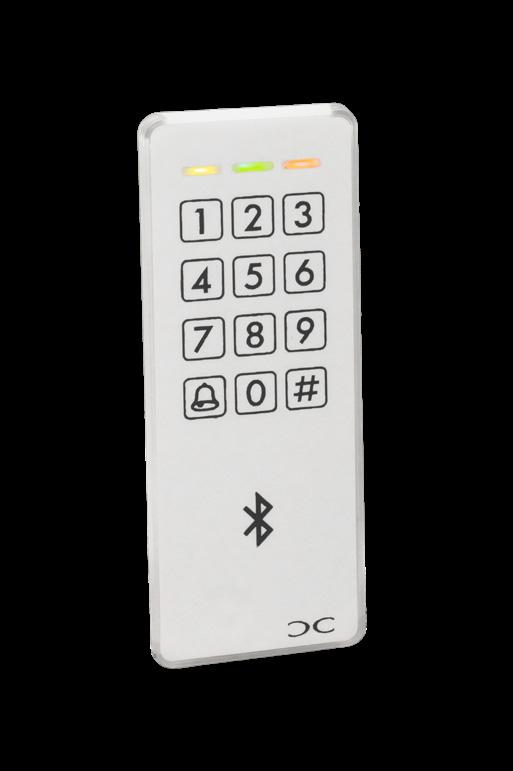

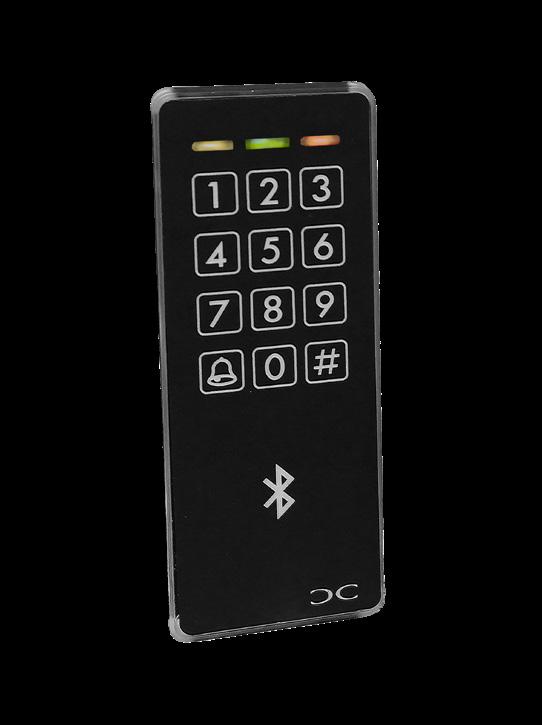

KEYPAD AND BLUETOOTH FOR STAND ALONE • • • • • • • • • • • •

For mobile phones and Bluetooth tags Up to 512 user codes/tags Adjustable range detection Delivered with Conlan Wiegand Controller (Art. 460116) REX input Programmable LED and buzzer 8 core 2.5 m cable IP67 protection rate for indoor and outdoor use Voltage 9 – 42 V DC HxLxW (Mykey): 75x50x8 mm. HxLxW (Classic): 130x50x8 mm. Customised front labels

482230 CB1000LE black, Mykey 482231 CB1000LE white, Mykey 482130 CB1000LE black, Classic 482131 CB1000LE white, Classic

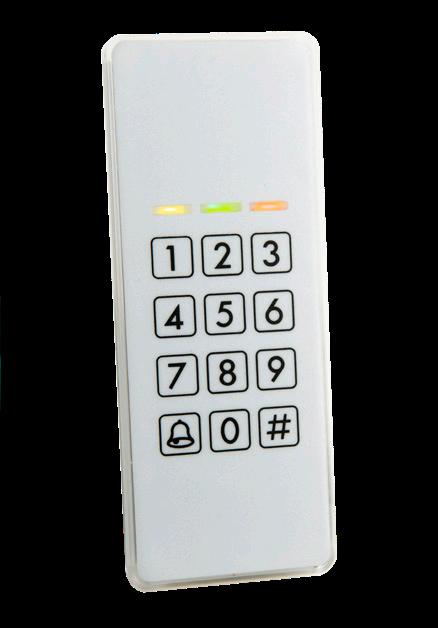

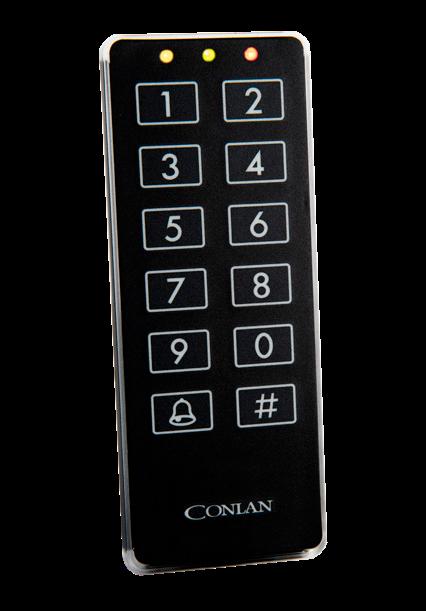

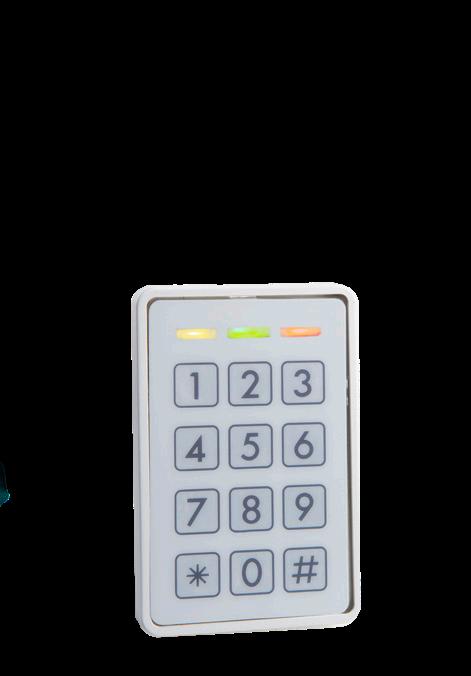

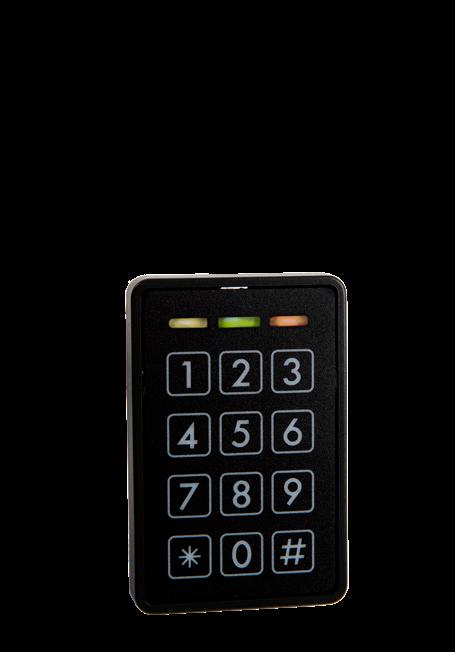

KEYPAD FOR STAND ALONE • • • • • • • • • •

Up to 200 user codes 2 outputs (500 mA) for codes and bell REX input Programmable LED and buzzer Voltage: 9 – 25 V DC 8 core 2.5 m cable IP67 protection rate for indoor and outdoor use HxWxL: 130x50x8 mm. Customised front labels A version with tamper switch can be ordered

460100 CT1000v2 black 460106 CT1000v2 white 460100T CT1000v2 Tamper black 460106T CT1000v2 Tamper white

7

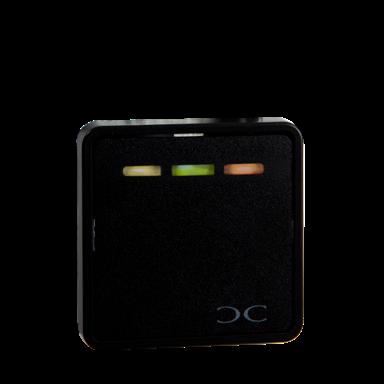

MIFARE READER FOR STAND ALONE • • • • • • • • • • •

Up to 80 users Master tag for programming users and settings Delete individual transponders All settings can be copied to other M1000 readers with a backup card (Art. 480081) 2 outputs (500 mA) IP67 protection rate, for indoor and outdoor use REX input Voltage: 9 – 42 V DC 8 core 2.5 m cable HxWxL: 50x50x8 mm. Customised front labels

480060 M1000 black 480061 M1000 white

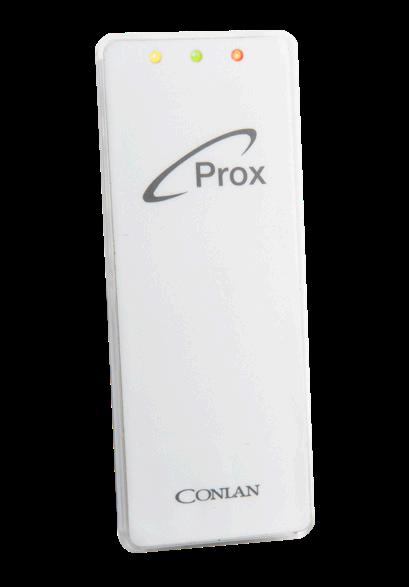

PROXIMITY READER FOR STAND ALONE • • • • • • • • • • •

Up to 80 users For both Atmel and E-Marine Master tag for programming users and settings Delete individual transponders 2 outputs (500 mA) IP67 protection rate, for indoor and outdoor use REX input Voltage: 9 – 42 V DC 8 core 2.5 m cable HxWxL: 50x50x8 mm. Customised front labels

480070 P1000 ATM/EM black 480071 P1000 ATM/EM white

8

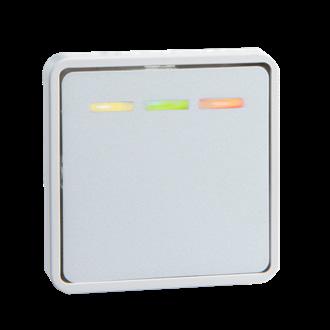

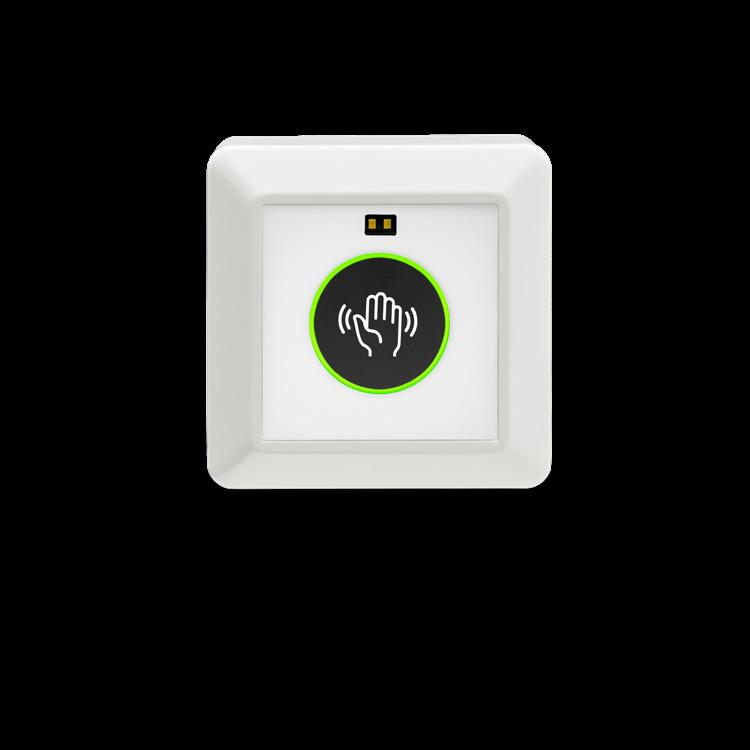

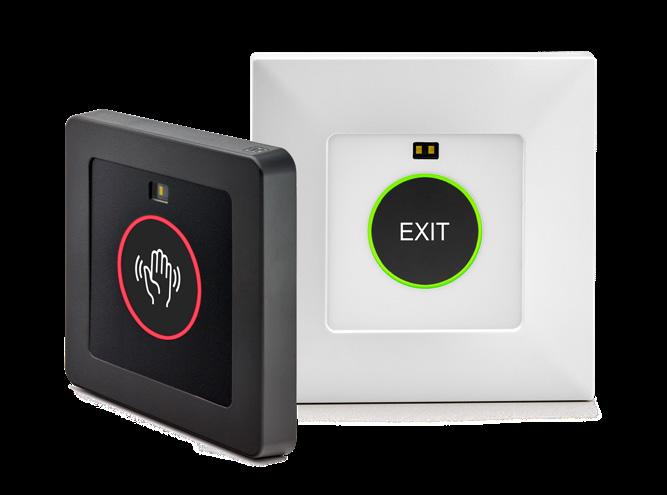

WAVE XS FOR STAND ALONE • • • • • • • • • • •

Touchless Adjustable detection range Adjustable proximity range Design - choose between text or 6 different symbols, or upload your own picture or text via software Operating temperature: -20°C ~ +70°C Voltage: 12 – 24 V DC 8 core 2.5 m cable IP65 protection rate for indoor use HxWxL Danish: 63x63x10 mm. HxWxL European: 80x80x9 mm. HxWxL Nordic: 84x84x10,5 mm.

480390 WAVE XS Danish black 480391 WAVE XS Danish white 480490 WAVE XS European black 480491 WAVE XS European white 480590 WAVE XS Nordic black 480591 WAVE XS Nordic white

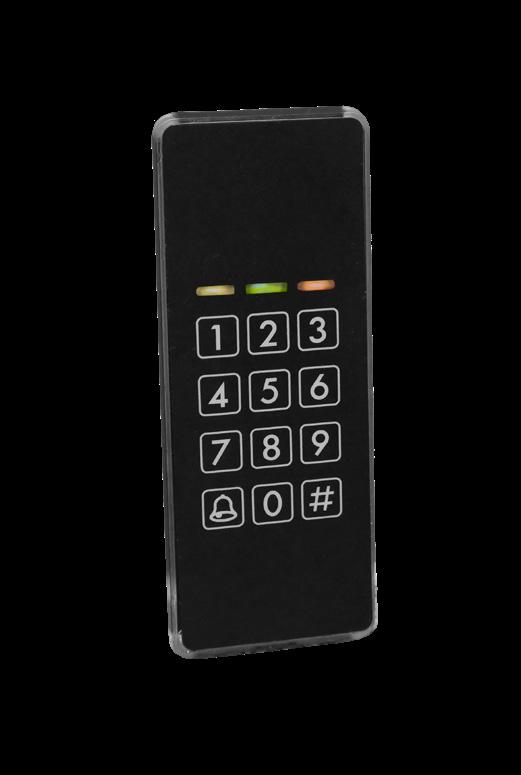

LOW POWER KEYPAD FOR STAND ALONE • • • • • • • • •

Up to 190 user codes H-bridge or open collector output Permanent codes, single-use and 24 hour codes Built-in battery IP67 protection rate for indoor and outdoor use Voltage: 2 – 16 V DC 8 core 2.5 m cable HxWxL: 75x50x8 mm. Customised front labels

480005 C1000LP black, Mykey 480006 C1000LP white, Mykey

9


EMARINE PROXIMITY READER FOR STAND ALONE • • • • • • • • • • • •

Reader for EMarine tags Up to 1024 user tags Master and user tags enrolled on site Delete individual user tags 1 output (500 mA) Programmable LED and buzzer Rex input Voltage: 9 – 17 V DC 8 core 2.5 m cable IP67 protection rate for indoor and outdoor use HxWxL: 130x50x8 mm. Customised front labels

460108 PR1000EM black 460109 PR1000EM white

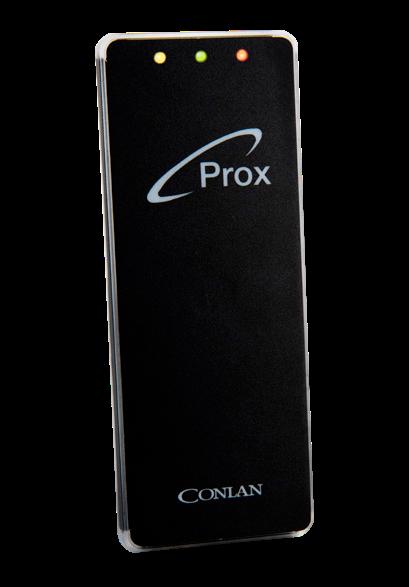

ATMEL PROXIMITY READER FOR STAND ALONE • • • • • • • • • • • •

Reader for Atmel tags Up to 1024 user tags Master and user tags enrolled on site Delete individualuser tags 1 output (500 mA) Programmable LED and buzzer REX input Voltage: 9 – 17 V DC 8 core 2.5 m cable IP67 protection rate for indoor and outdoor use HxWxL: 130x50x8 mm. Customised front labels

460101 PR1000ATM black 460107 PR1000ATM white

10


WIEGAND SOLUTIONS 1200 SERIES

11


KEYPAD AND MIFARE READER FOR WIEGAND • • • • • • • • • • • • •

Adjustable bit settings Singlekey and mastermode Setup on site for all Wiegand communication Programmable LED and buzzer 2 outputs (D0 and D1) IP67 protection rate for indoor and outdoor use Voltage 9 – 24 V DC (incl. ripplle voltage) 8 core 2.5 m cable HxLxW (Mykey): 75x50x8 mm. HxLxW (Classic): 130x50x8 mm. Customised front labels Compatible with e.g. Conlan Wiegand controller EMV version can read Europay, Mastercard, Visa and Wallet

490010 CM1200 black, Mykey 490011 CM1200 white, Mykey 492010 CM1200 black, Classic 492011 CM1200 white, Classic 490020 CM1200EMV black, Mykey 490021 CM1200EMV white, Mykey 492020 CM1200EMV black, Classic 492021 CM1200EMV white, Classic

12


KEYPAD AND PROXIMITY READER FOR WIEGAND • • • • • • • • • • • • •

Atmel and Emarine compatible Adjustable bit settings Singlekey and mastermode Setup on site for all Wiegand communication Programmable LED and buzzer 2 outputs (D0 and D1) IP67 protection rate for indoor and outdoor use Voltage 9 – 25 V DC 8 core 2.5 m cable HxLxW (Mykey): 75x50x8 mm. HxLxW (Classic): 130x50x8 mm. Customised front labels Compatible with e.g. Conlan Wiegand controller

490015 CP1200 black, Mykey 490016 CP1200 white, Mykey 492015 CP1200 black, Classic 492016 CP1200 white, Classic

13


KEYPAD AND BLUETOOTH READER FOR WIEGAND • • • • • • • • • • • • • • •

For mobile phones and Bluetooth tags Classic and low energy Bluetooth Adjustable bit settings Adjustable range detection Set up on site for all Wiegand communication Programmable LED and buzzer 2 outputs (D0 and D1) IP67 protection rate for indoor and outdoor use Voltage: 9 – 42 V DC 8 core 2.5 m cable HxLxW (Mykey): 75x50x8 mm. HxLxW (Classic): 130x50x8 mm. Customised front labels Compatible with e.g. Conlan Wiegand controller Mykey size is delivered with an external antenna

492230 CB1200LE black, Mykey 492231 CB1200LE white, Mykey 492130 CB1200LE black, Classic 492131 CB1200LE white, Classic

MIFARE READER FOR WIEGAND • • • • • • • • • •

Adjustable bit settings Set up on site for all Wiegand communication Programmable LED and buzzer 2 outputs (D0 and D1) IP67 protection rate for indoor and outdoor use Voltage: 9 – 42 V DC 8 core 2.5 m cable HxLxW: 50x50x8 mm. Customised front labels Compatible with e.g Conlan Wiegand controller

490060 M1200 black 490061 M1200 white

14


PROXIMITY READER FOR WIEGAND • • • • • • • • • • •

Atmel and Emarine compatible Adjustable bit settings Set up on site for all Wiegand communications Programmable LED and buzzer 2 outputs (D0 and D1) IP67 protection rate for indoor and outdoor use Voltage: 9 – 42 V DC 8 core 2.5 m cable HxLxW: 50x50x8 mm. Customised front labels Compatible with e.g Conlan Wiegand controller

490070 P1200 black 490071 P1200 white

15


KEYPAD FOR WIEGAND • • • • • • • • • • •

26/8/4 bits 26 bits for codes and 8/4 bits for each digit Set up on site Programmable LED and buzzer 2 outputs (D0 and D1) IP67 protection rate, for indoor and outdoor use Voltage: 9-27 V DC 8 core 2.5 m cable HxLxW: 130x50x8 mm. Customised front labels Compatible with e.g. Conlan Wiegand controller

460110 CT1200 black 460112 CT1200 white

ATMEL PROXIMITY READER FOR WIEGAND • • • • • • • • • •

Reader for Atmel transponder 26 bits Programmable LED and buzzer 2 outputs (D0 and D1) IP67 protection rate, for indoor and outdoor use Voltage: 9-17 V DC 8 core 2.5 m cable HxWxL: 130x50x8 mm. Customised front labels Compatible with e.g. Conlan Wiegand controller

460111 PR1200ATM black 460114 PR1200ATM white

16


EMARINE PROXIMITY READER FOR WIEGAND • • • • • • • • • •

Reader for EM transponder 26 bits Programmable LED and buzzer 2 outputs (D0 and D1) IP67 protection rate for indoor and outdoor use Voltage: 9-17 V DC 8 core 2.5 m cable HxWxL: 130x50x8 mm. Customised front labels Compatible with e.g. Conlan Wiegand controller

460121 PR1200EM black 460122 PR1200EM white

26 BIT WIEGAND CONTROLLER • • • • • • • • • • •

For 1 door with in and out reader 512 users Program on site by PC Attach name and notes to each user Door switch and REX switch 2 relays for door and alarm RS232 communication protocol for PC and RS485 for network Built in log function (real time) for 3500 logs Wiegand SQL and Delfi software, 32/64 bits Voltage: 12 V DC HxLxW: 88.5x65x30 mm.

460116 Wiegand Controller

17


CONLAN 485 SOLUTIONS 2000 SERIES

18


KEYPAD CONLAN 485 PROTOCOL SK. 3 • • • • • • • • • • •

Up to 100 user codes (divided in max. 12 groups) Program on site with service code or by PC Programmable LED and buzzer 1 output (500 mA) IP67 protection rate for indoor and outdoor use Voltage: 9 – 27 V DC 8 core 4 m cable HxWxL: 130x50x8 mm. Customised front labels Tamper switch EN50131-3, Security Grade 3, Environmental class 2, Skafor 3

460001 CT2000 SK. 3 black 460014 CT2000 SK. 3 white

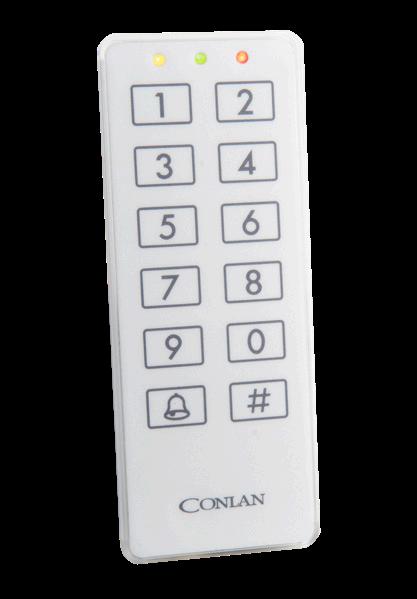

KEYPAD CONLAN 485 PROTOCOL • • • • • • • • •

Up to 100 user codes (divided in max. 12 groups) Program on site with service code or by PC Programmable LED and buzzer 1 output (500 mA) IP67 protection rate for indoor and outdoor use Voltage: 9 – 27 V DC 8 core 4 m cable HxWxL: 130x50x8 mm. Customised front labels

460005 CT2000 black 460007 CT2000 white

19


KEYPAD CONLAN 485 PROTOCOL LED • • • • • • • • • • •

Up to 100 user codes (divided in max. 12 groups) Program on site with service code or by PC Programmable LED and buzzer 1 output (500 mA) IP67 protection rate for indoor and outdoor use Voltage: 9 – 27 V DC 12 core 4 m cable HxWxL: 130x50x8 mm. Customised front labels Tamper switch Possible to control LED and buzzer via 0V

460070 CT2000 LED black 460071 CT2000 LED white

PROXIMITY READER CONLAN 485 PROTOCOL • • • • • • • • • • •

For Atmel transponder Up to 100 users (divided in max. 12 groups) Program on site by master transponder (Art. 460012) or by PC Programmable LED and buzzer Sabotage switch 1 output (500 mA) IP67 protection rate for indoor and outdoor use Voltage: 9 – 17 V DC 8 core 4 m cable HxWxL: 130x50x8 mm. Customised front labels

460002 PR2000 black 460015 PR2000 white

20


PROXIMITY READER CONLAN 485 PROTOCOL LED • • • • • • • • • • • •

For Atmel transponder Up to 100 users (divided in max. 12 groups) Program on site by master transponder (Art. 460012) or by PC Programmable LED and buzzer Sabotage switch 1 output (500 mA) IP67 protection rate for indoor and outdoor use Voltage: 9 – 15 V DC 12 core 4 m cable HxWxL: 130x50x8 mm. Customised front labels Possible to control LED and buzzer via 0V

460074 PR2000 LED black 460076 PR2000 LED white

21

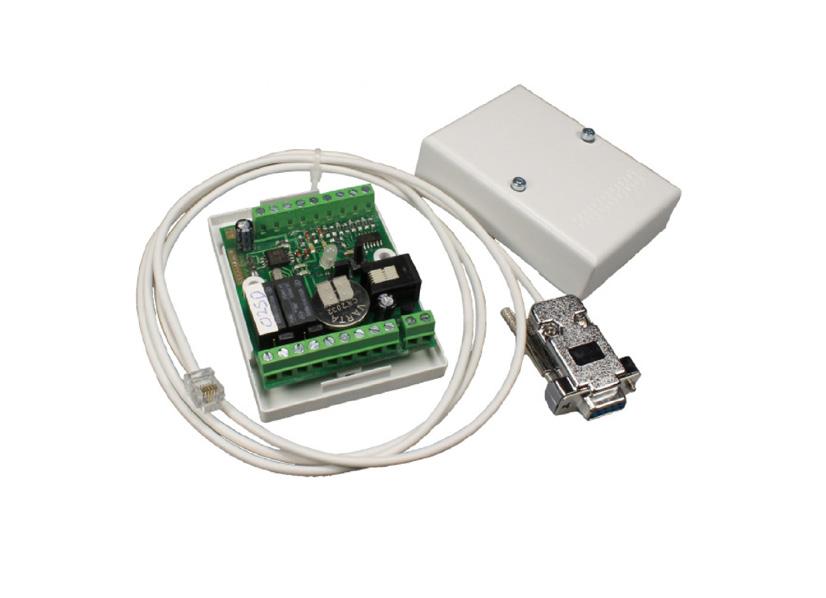

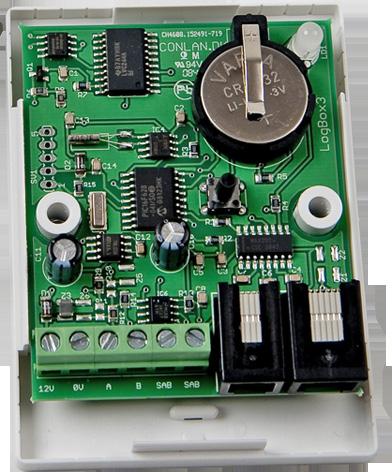

LOGBOX 3, INCL. SOFTWARE (CONLAN EXPRESS) • • • • • • • •

Log and PC interface integrated function Interface and logbox for programming and event registration Up to 10.000 logs Communicates on RS485 bus with all other 2000 products Software for programming/logging/reporting Cable for PC and bus Optional plug and/or screw connections HxWxL: 88,5x65x30 mm.

460017 LogBox3

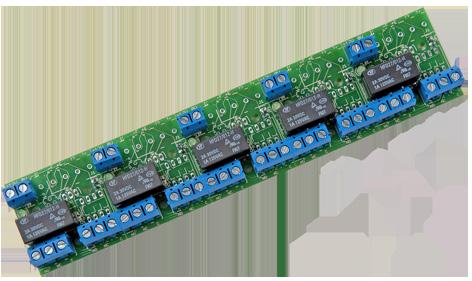

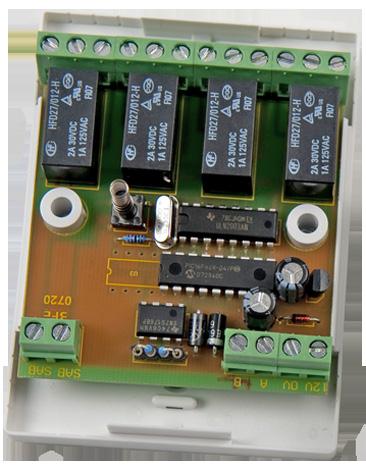

EXTENSION UNIT 485-4 • • • • • • • •

Door control unit – extension unit 4 relays (C-NO-NC) Operate from 2 readers (user groups are allocated to specific relays) Each group can be freely assigned to either relay Keypad/prox activates the relay(s) Can control multiple doors Use with CT2000 or PR2000 HxWxL: 88,5x65x30 mm.

460006 Box 485-4

22


MASTER TRANSPONDER • • • •

Programmed by a unique code Program by PC Set up 2 groups (of transponders/users) Delete/cancel transponders

460012 Master Transponder

23


OPEN PROTOCOL OSDP 485 SOLUTIONS 3002 SERIES

24


KEYPAD AND MIFARE READER FOR OSDP 485 • • • • • • • • • •

2 Inputs (0V active) 2 outputs (500 mA) Voltage: 9 – 24 V DC (incl. ripple voltage) 8 core 2.5 m cable HxLxW (Mykey): 75x50x8 mm. HxLxW (Classic): 130x50x8 mm. IP67 protection rate for indoor and outdoor use Customised front labels OSDP open or encrypted EMV version can read Europay, Mastercard, Visa and Wallet

520010 CM3002 black, Mykey 520011 CM3002 white, Mykey 522010 CM3002 black, Classic 522011 CM3002 white, Classic 520020 CM3002EMV black, Mykey 520021 CM3002EMV white, Mykey 522020 CM3002EMV black, Classic 522021 CM3002EMV white, Classic

25


KEYPAD AND PROXIMITY READER FOR OSDP 485 • • • • • • • •

2 inputs (0V active) 2 outputs (500 mA) Voltage: 9 – 27 V DC 8 core 2.5 m cable HxLxW (Mykey): 75x50x8 mm. HxLxW (Classic): 130x50x8 mm. IP67 protection rate for indoor and outdoor use OSDP open or encrypted

520015 CP3002 black, Mykey 520016 CP3002 white, Mykey 522015 CP3002 black, Classic 522016 CP3002white, Classic

26


MIFARE READER FOR OSDP 485 • • • • • • •

2 inputs (0V active) 2 outputs (500 mA) Voltage: 9 – 17 V DC 8 core 2.5 m cable HxLxW: 130x50x8 mm. IP67 protection rate for indoor and outdoor use OSDP open or encrypted

520060 M3002 black 520061 M3002 white

PROXIMITY READER FOR OSDP 485 • • • • • • • •

Compatible with EM and Atmel transponders 2 inputs (0V active) 2 outputs (500 mA) Voltage: 9 – 17 V DC 8 core 2.5 m cable HxLxW: 130x50x8 mm. IP67 protection rate for indoor and outdoor use OSDP open or encrypted

520078 P3002 black 520071 P3002 white

27


OPEN PROTOCOL MODBUS 485 SOLUTIONS 3003 SERIES

28


KEYPAD AND MIFARE READER FOR MODBUS 485 • • • • • • • •

2 Inputs (0V active) 2 outputs (500 mA) Voltage: 9 – 24 V DC (incl. ripple voltage) 8 core 2.5 m cable HxLxW (Mykey): 75x50x8 mm. HxLxW (Classic): 130x50x8 mm. IP67 protection rate for indoor and outdoor use Customised front labels

530010 CM3003 black, Mykey 530011 CM3003 white, Mykey 532010 CM3003 black, Classic 532011 CM3003 white, Classic

29


ACCESSORIES Cards and transponders

28

Frames and labels

34

Power supplies

40

Relays

42

Assembly boxes, and converters

45

Strikes and locks

47

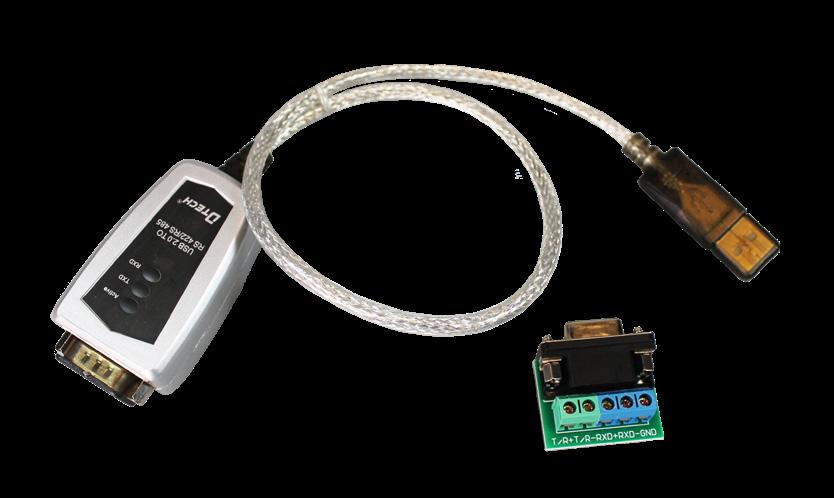

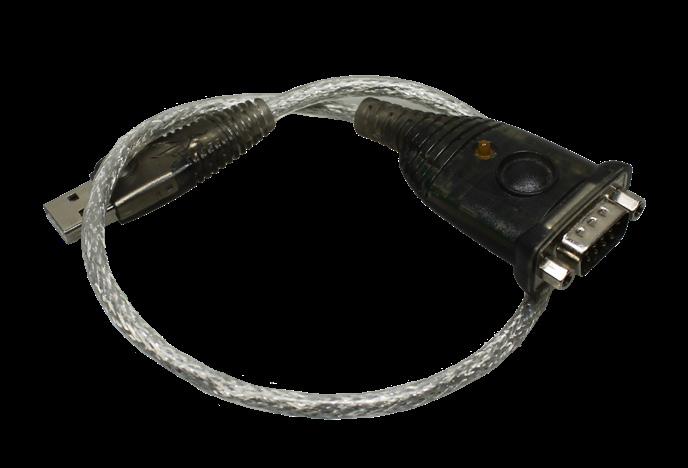

USB converters

48

30

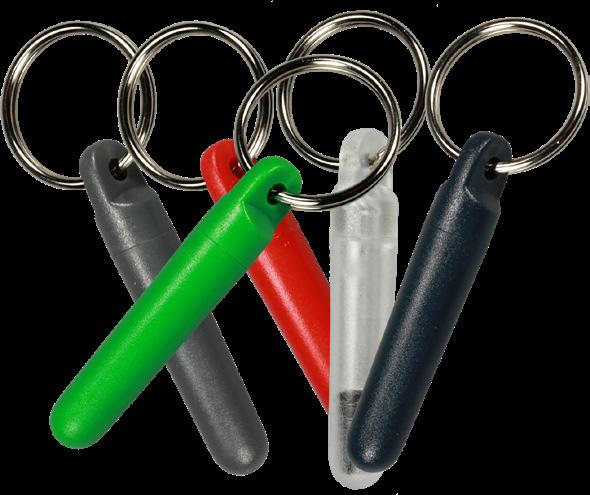

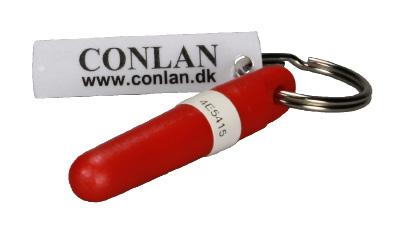

125 KHZ ATMEL TAG • • • •

Waterproof and robust design Key chain Color: Black, red or blue Sold in packs of 5 pcs

460003 TRblack Atmel 460009 TRblue Atmel 460011 TRred Atmel

125 KHZ EMARINE TAG • • • •

Waterproof and robust design Key chain Color: Black Sold in packs of 5 pcs

461020 TRblack EM

31

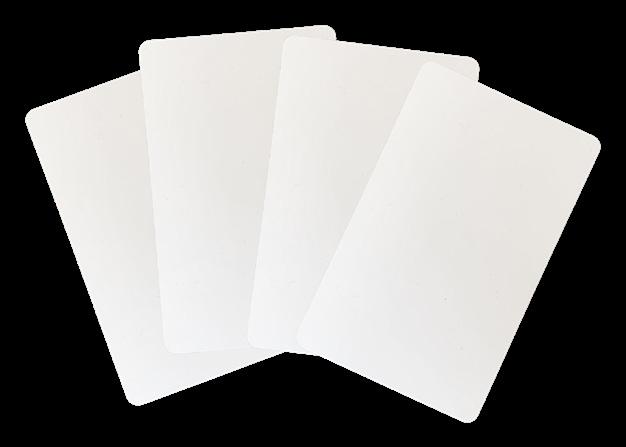

ATMEL CARD •

Credit card format

460103 Card ATM

EMARINE CARD •

Credit card format

460115 Card EM

32


MIFARE CARD •

Credit card format

460104 Card Mifare

DESFIRE CARD EV2 •

Credit card format

462011DF Card Desfire

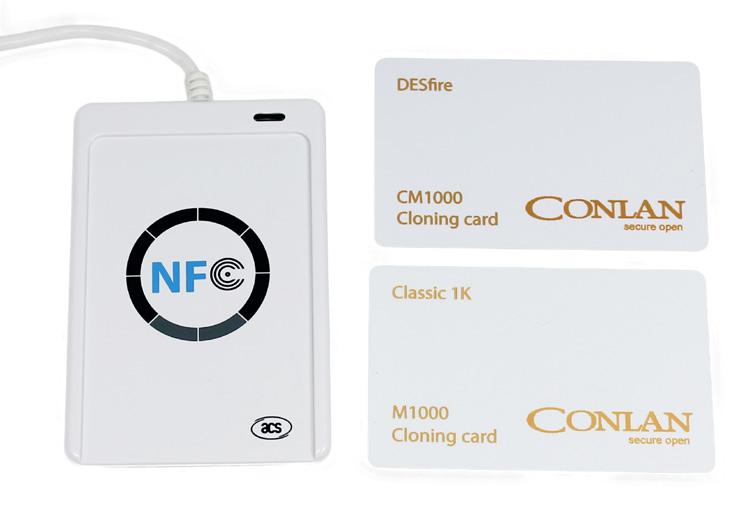

CLONING CARD FOR CM1000 •

Credit card format

480080 Cloning card

33


CLONING CARD FOR M1000 •

Credit card format

480081 Cloning card

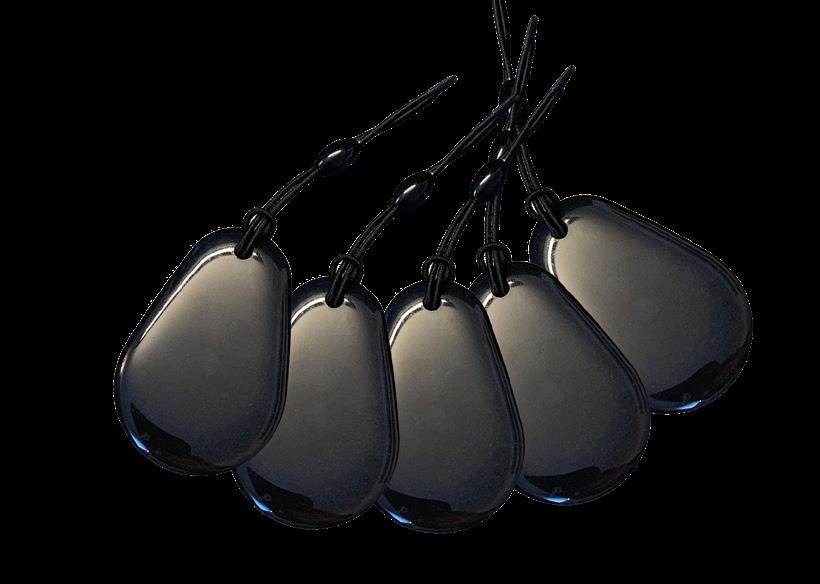

EMARINE TAG • • •

Key tag drop shape Epoxy Sold in packs of 10 pcs

461010 EM tag

34


MIFARE 1K TAG • • •

Key tag drop shape Epoxy Sold in packs of 10 pcs

461011 Mifare tag

EMARINE OPEN TAG • • •

Self adhesive 25 x 1 mm. Sold in packs of 10 pcs

461050 EM open tag

35


MIFARE 1K OPEN TAG • • •

Self adhesive 25 x 1 mm Sold in packs of 10 pcs

461051 Mifare open tag

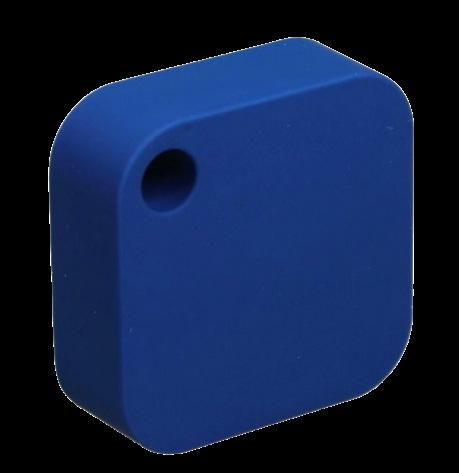

BLUETOOTH TAG • •

Low energy tag Can be wearing as a wristband or with a key chain

461516CB Bluetooth Tag

36

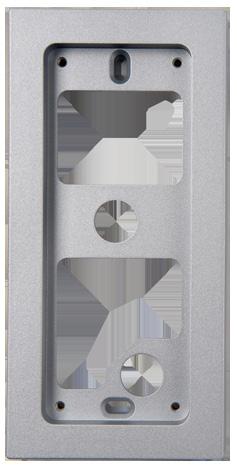

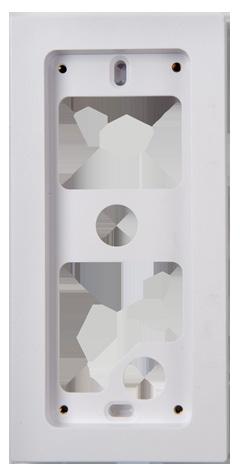

FRAME FOR CONLAN CLASSICREADERS 460030 Frame white 460035 Frame anthracite grey 460039 Frame silver 460073 Frame black

SPY PROOF COVER FOR CONLAN CLASSIC READERS •

Stainless steel

460079 Frame for keypad

37

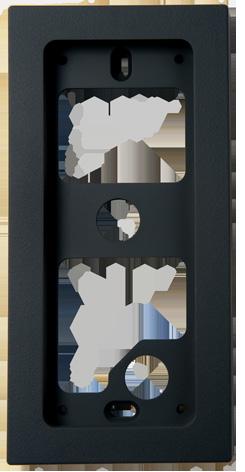

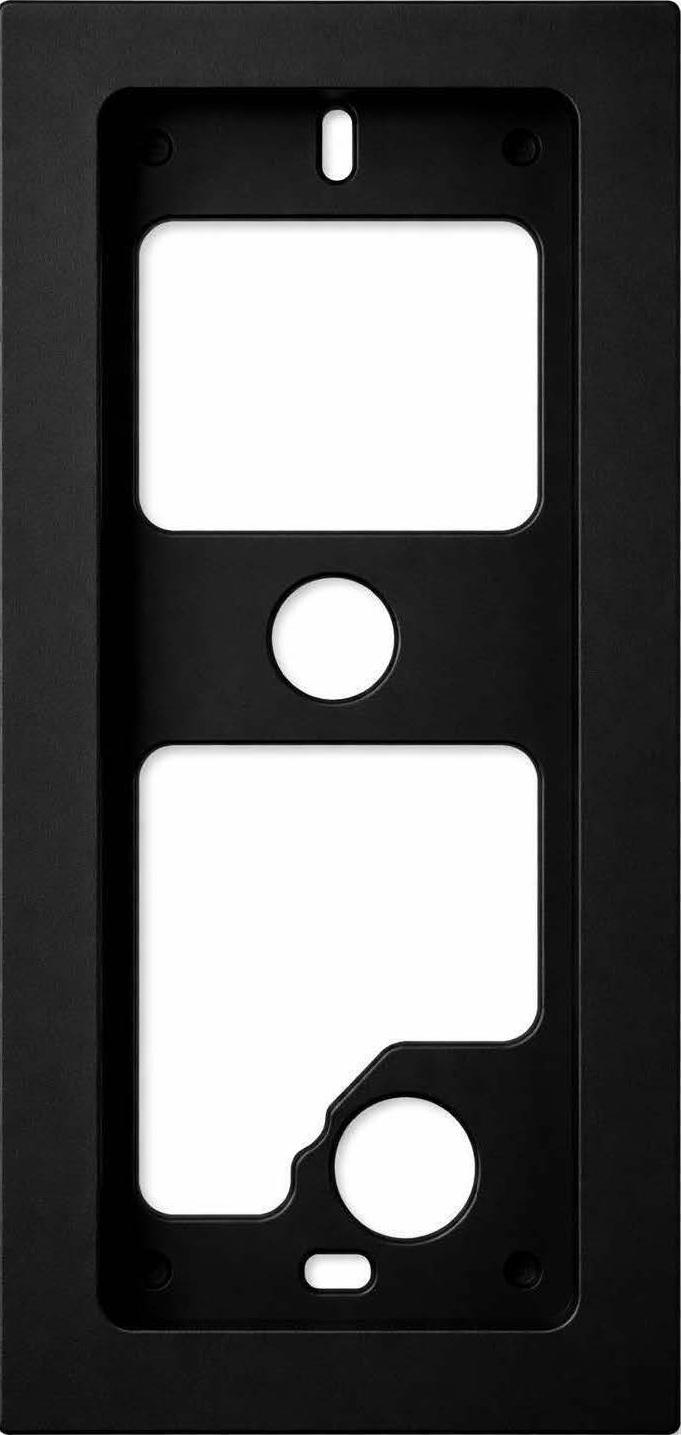

FRAME FOR CONLAN MYKEY READERS • • •

For outdoor use Resistant to sunlight Antracite grey

480020 Mykey frame, UV Protected

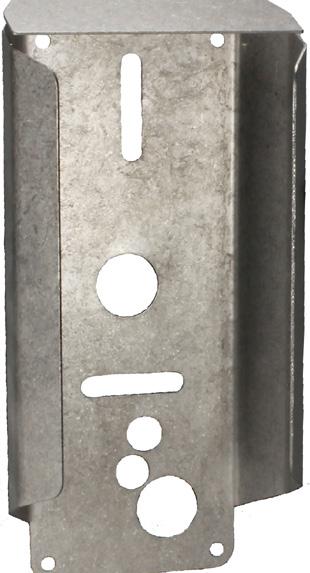

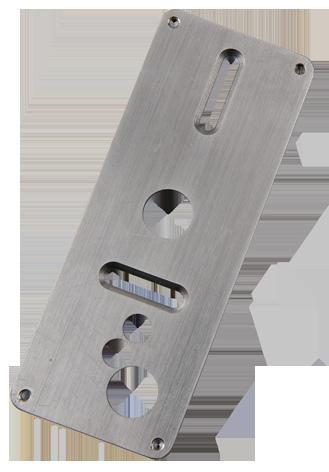

MOUNTING PLATE FOR CONLAN CLASSICREADERS • • •

2mm stainless steel Delivered with screws for reader and wall Used for mounting on uneven surfaces

460081 Mounting plate

38

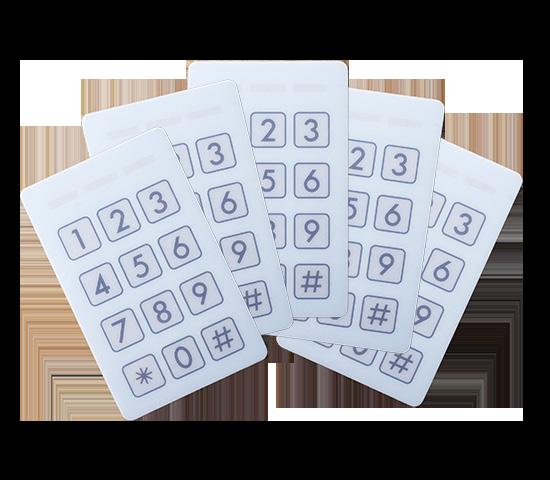

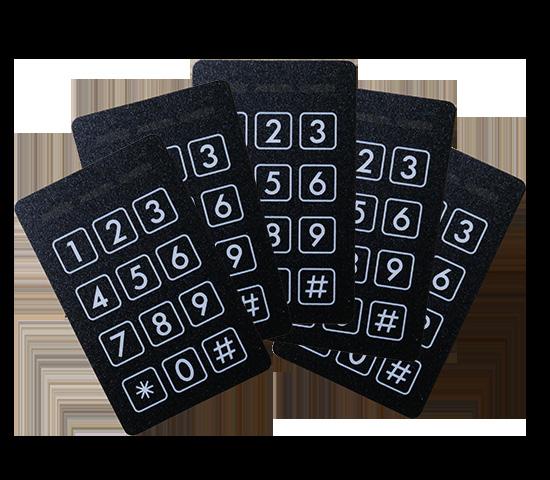

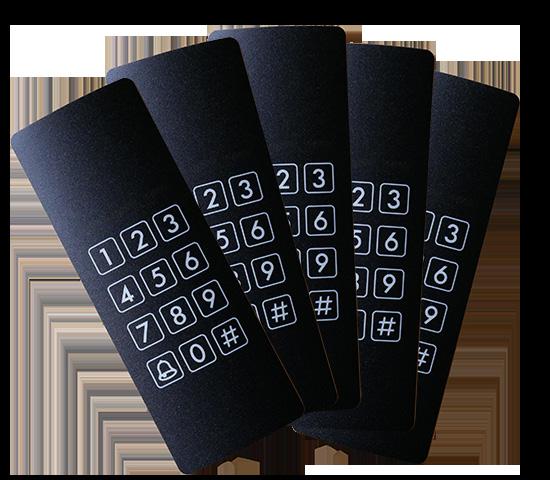

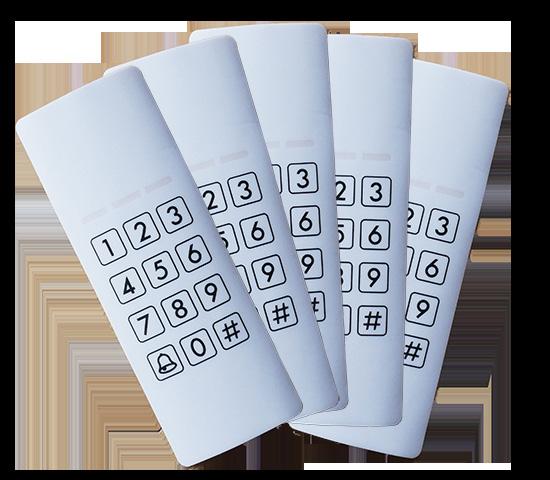

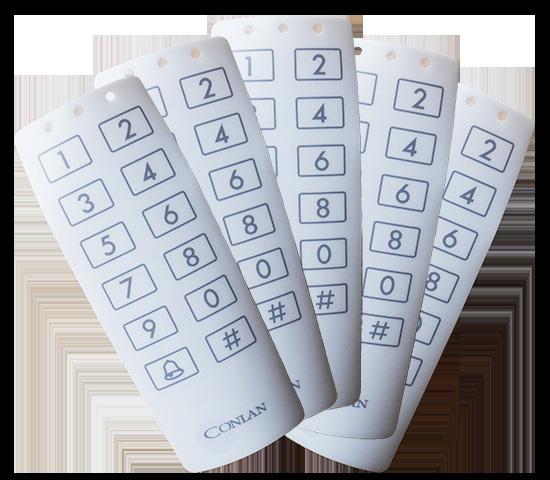

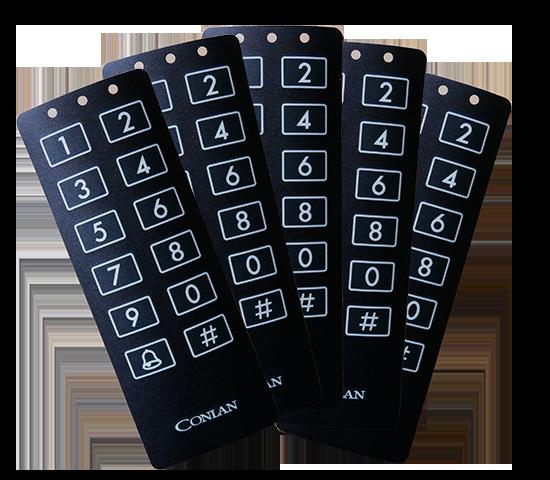

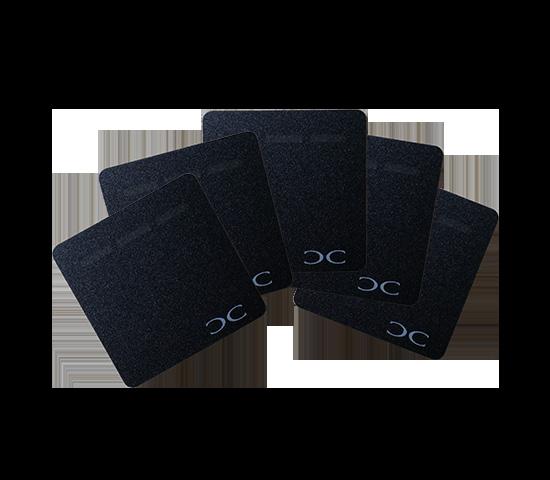

LABELS FOR CT KEYPADS •

Extra front labels (5 pcs set)

460021 CT Labels black 460025 CT Labels white

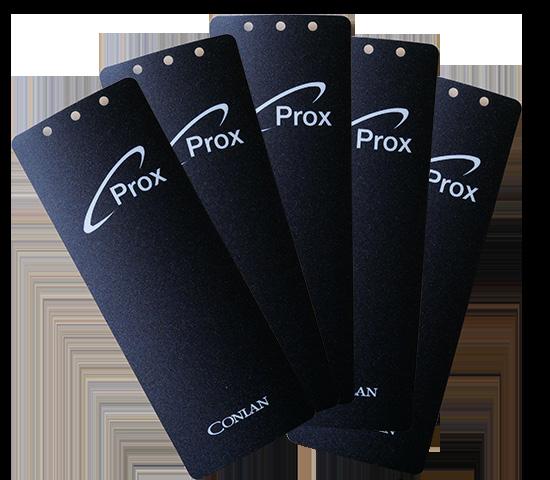

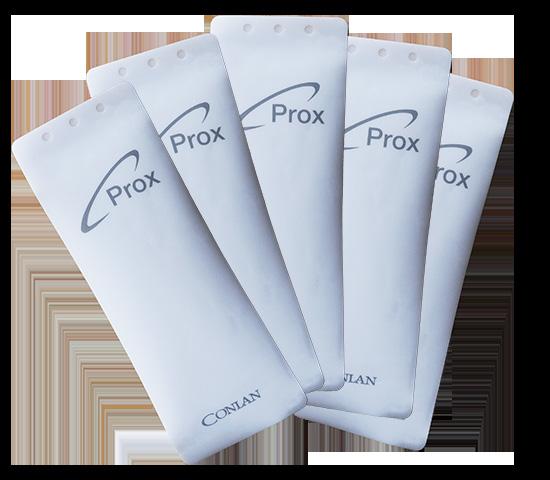

LABELS FOR PR PROXIMITY READERS •

Extra front labels (5 pcs set)

460023 PR Labels black 460026 PR Labels white

39

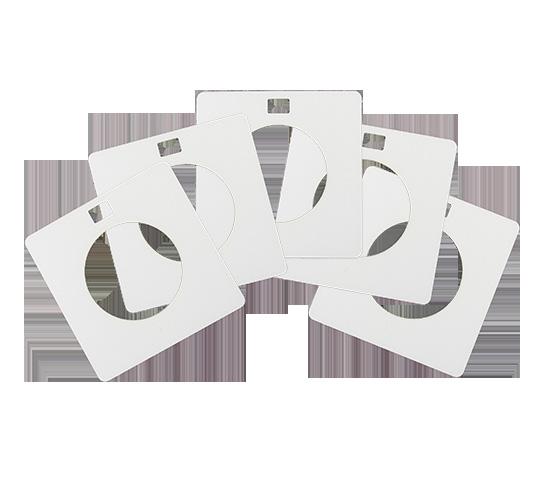

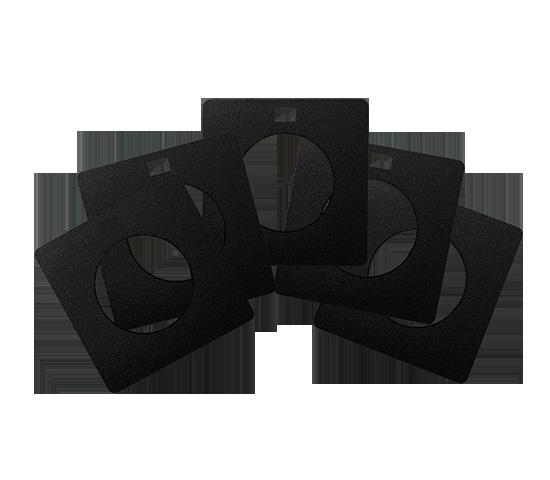

LABELS FOR MYKEY 1½ MODULE •

Extra front labels (5 pcs set)

480021 Mykey labels black 480025 Mykey labels white

LABELS FOR MYKEY 1 MODULE •

Extra front labels (5 pcs set)

480023 Mykey labels black 480026 Mykey labels white

40

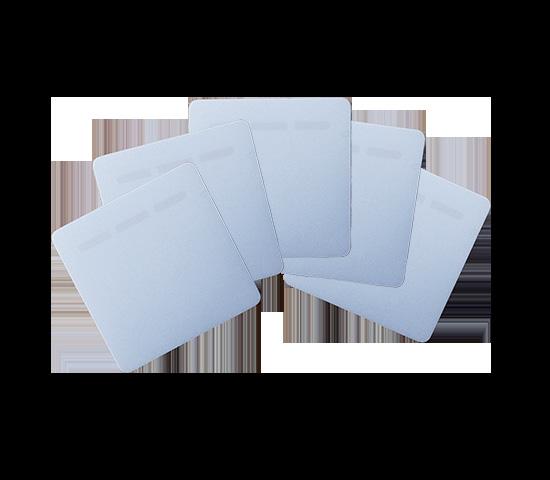

LABELS FOR CM/CP CLASSIC READERS •

Extra front labels (5 pcs set)

482021 CM/CP Classic labels black 482025 CM/CP Classic labels white

LABELS FOR WAVE XS DANISH AND EUROPEAN • •

Extra front labels (5 pcs set) For both the Danish and European model.

480024 Wave XS labels black 480022 Wave XS labels white

41

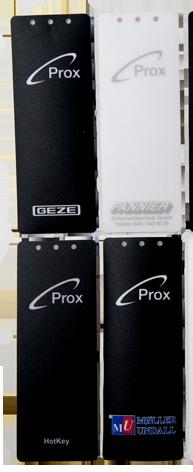

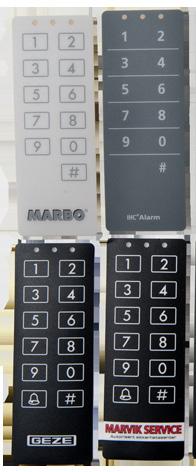

CUSTOMISED LABELS (MIN. 100 PCS.) • • •

For Mykey or Classic design Your own logo, contact data, etc. Your preferred colour

460022 OEM-CT label 460024 OEM-PR label

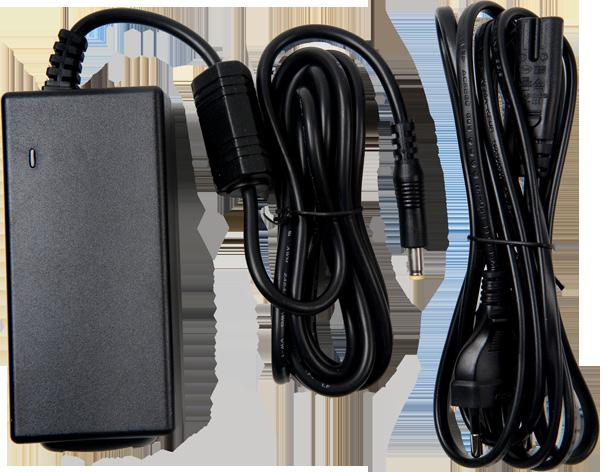

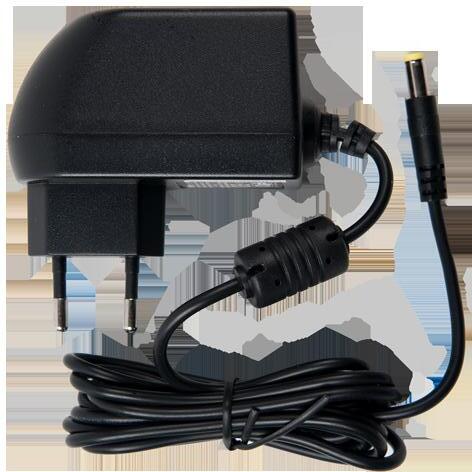

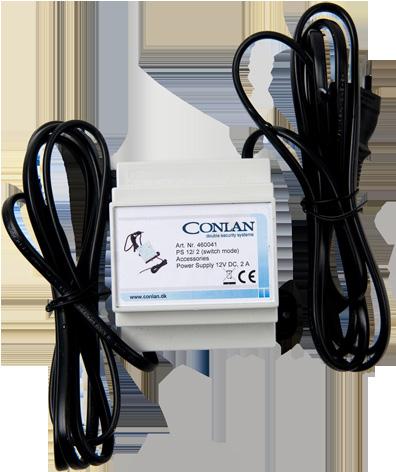

POWER SUPPLY 12 V / 5,42 A • •

Suitable for ITV and similar tasks Incl. Euro connecting cable

460050 PS12/5.42

42

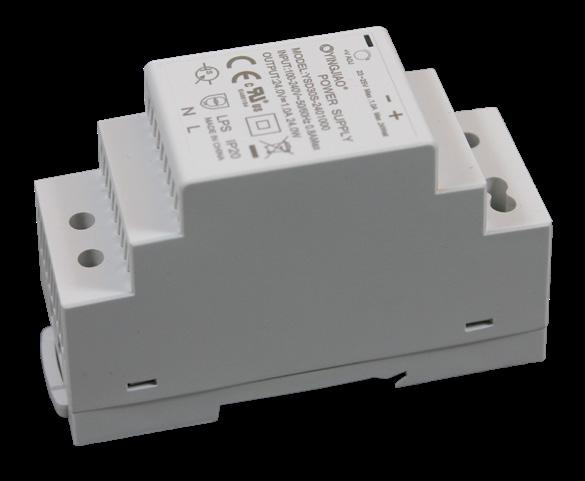

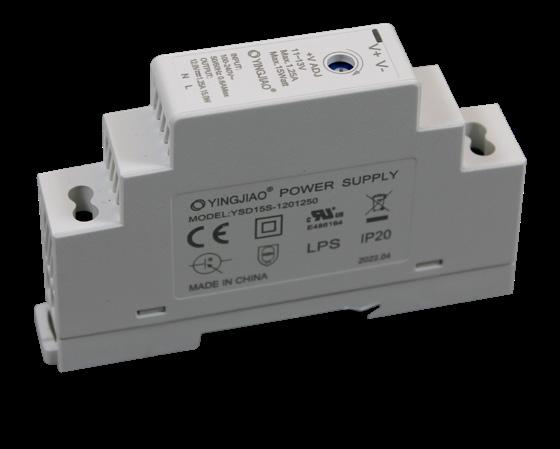

POWER SUPPLY 12 V / 1,25 A • • •

DIN rail mounting Input 220-230 VAC 50~60 hertz Ouput 12 VDC / 1,25 A

460033 PS 12 V/1,25 A

POWER SUPPLY 24 V / 1,25 A • • •

DIN rail mounting Input 220-230 VAC 50~60 hertz Output 24 VDC / 1,25 A

460034 PS 24 V/1,25 A

43

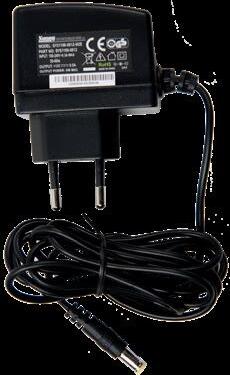

POWER SUPPLY 12 V / 1 A SWITCH MODE 70MM DIN • • •

IP67 protection rate for indoor and outdoor use DIN rail or direct wall mounting Conneting cable for 230 V AC and 12/24 V DC (brown and blue indication)

460046 PS12/1

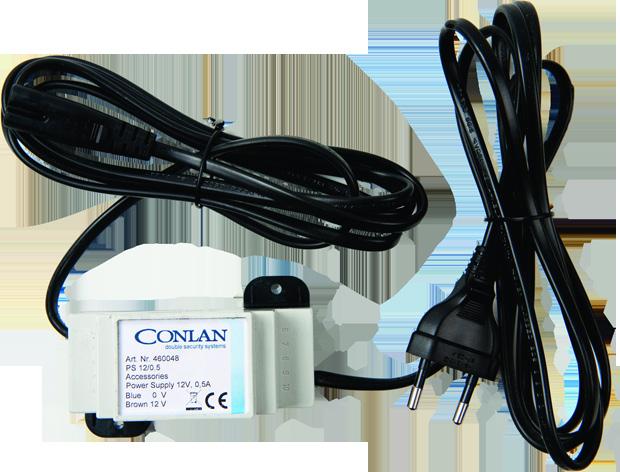

POWER SUPPLY 12 V / 0,5 A SWITCH MODE 35MM DIN • • •

IP67 protection rate for indoor and outdoor use DIN rail or direct wall mounting Conneting cable for 230 V AC and 12 V DC (brown and blue indication)

460048 PS12/0.5

44

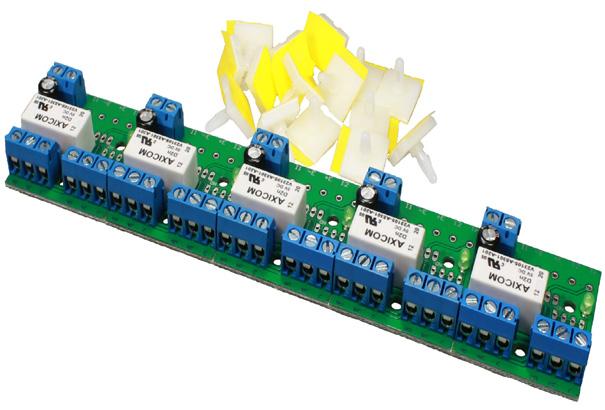

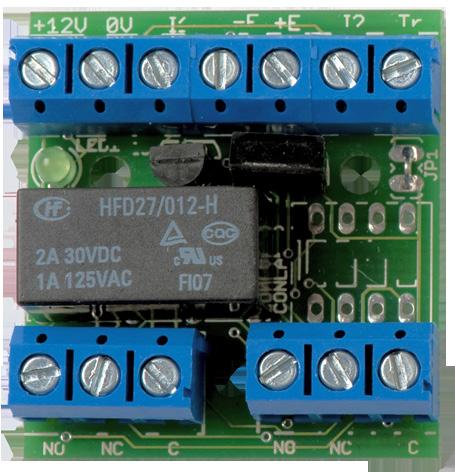

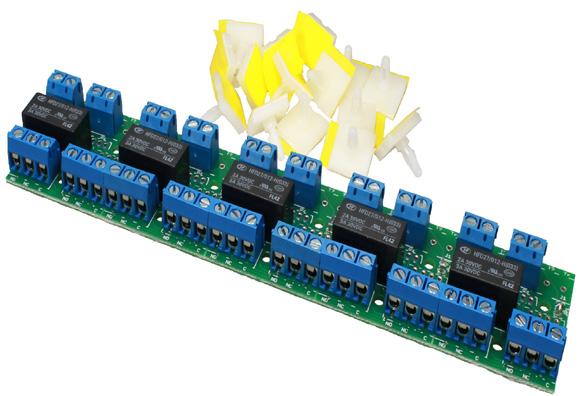

RELAY BOARD WITH DOUBLE CONTACT C-NC-NO • • • • • •

Voltage: 12/24 V DC / 3 A LED for relay status HxL: 38x35 mm 3 adhesive mounting feet Sold in bars of 5 pieces Suitable for output/potential free relay

460150 RP0

Relay board with double switch contact C-NC-NO • • • • • • • •

Voltage: 12/24 V DC / 3 A LED for relay status Activates to +/- <1 mA HxL: 38x35 mm 3 adhesive mounting feet Sold in bars of 5 pieces Activates from TTL level with transistor inputs Suitable for output/potential free relay

460151 RPT0

45


Relay board with AC/DC converter • • • • •

Voltage: 9 – 27 V AC/DC 2 relay outputs (C-NC-NO) HxL: 38x35 mm 3 adhesive mounting feet Sold in bars of 5 pieces

460153 RP AC/DC

46

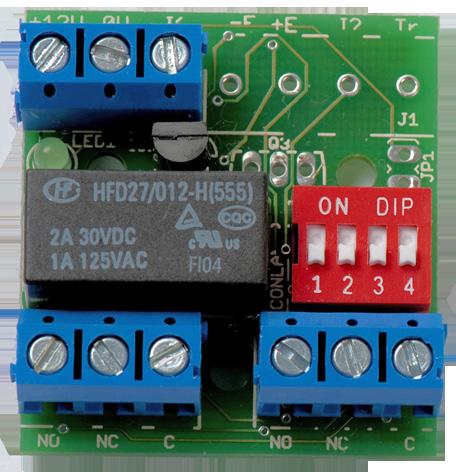

Relay board with timer (5 functions) • • • • • • • •

Voltage: 12/24 V DC +/- input automatic configuration Relay output with double contact C-NC-NO Programmable on site (DIP): pulse extension, alarm time limitation, arming delay, pulse generator and pulse delay Time: From 0.3 to 360 seconds HxL: 38x35 mm 3 adhesive mounting feet Suitable for time delay on doors, safes etc.

460154 RPT-TI

Relay board with flip-flop, open collector • • • • • • • • •

Voltage: 12/24 V DC +/- input automatic configuration Relay 2X (C-NC-NO) (for alarm) Output open collector, 500 mA Input for reaction in the relay or open collector Input 2 (set) functions on the open collector, or (unset) on relay HxL: 38x35 mm 3 adhesive mounting feet Used for arming/disarming alarm systems and door openings

460152 RPTX

47

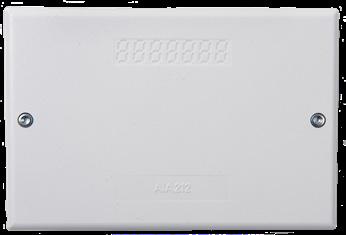

SIMPLE MOUNTING BOX • •

Up to 1 CVT board or relay board HxLxW: 88.5x65x31 mm

• •

Up to 2 CVT boards or relay boards HxLxW: 131.5x88.5x31 mm

•

Used as assembly boxes for circuit boards or similar

460084 VTG1 460082 VTG2

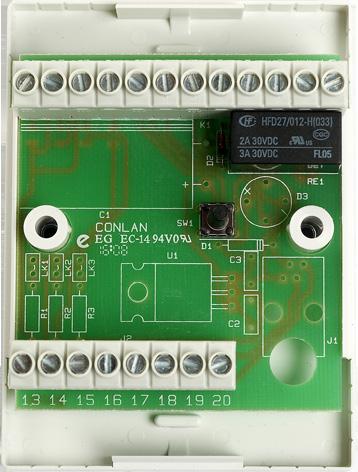

CVT1R – TAMPER/15 FREE CONNECTORS AND RELAY • • • • •

Sabotage swich 30 V / 2 A relay (C-NC-NO) 15 free connectors HxLxW: 88.5x65x31 mm Used as assembly box with relay

460085r CVT1r

48

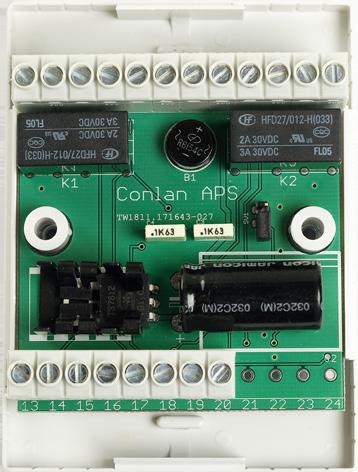

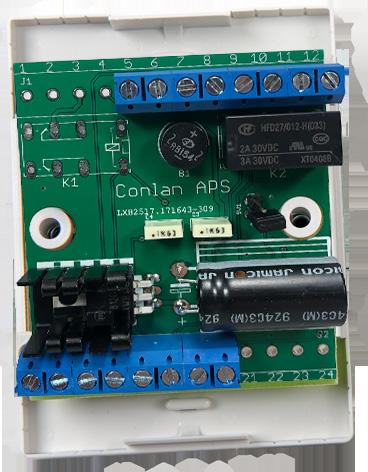

CVT6 - RELAY / AC-DC / 16 CONNECTORS • • • • • • • •

Voltage: 12/24 V AC to 12 V DC Relay output C-NC-NO 16 connectors Jumper for reset the reader HxLxW: 88.5x65x31 mm Suitable in connection with an interphone installation with different voltages Can be used for stand alone systems Can be used as power supply for Conlan readers

460090 CVT6

CVT6,2 - 2 RELAYS / AC-DC / 20 CONNECTORS • • • • • • • •

Voltage 12/24 V DC to 12 V DC 2 relay outputs (C-NC-NO) One relay can be set as RPT-TI (Art. No.: 460154) Programme by DIP HxLxW: 88.5x65x31 mm Suitable for interphone installations with different voltages Suitable for CT1000 installations Can be used as power supply for all Conlan readers

460099 CVT6.2

49


DOOR STRIKE STANDARD 12 V DC / 255 MA WITH STATUS SIGNAL •

Delivered with long plate

460054 Door strike 211211

USB CARD MANAGER • • •

USB Card Manager with clone card for the CM1000 or the M1000 readers Use it with the Conlan SmartKey software for easy managing of all user information Clone the information directly on to the reader via the clone card

460060

USB card manager with clone card

50


USB TO RS485 CONVERTER •

For configuration of Wave XS

460185

USB converter to RS485

USB TO RS232 CONVERTER •

Used to communicate LogBox 3 or Wiegand Controller to PC

460304

USB Charger

51


Conlan ApS - Speditørvej 2A - 9000 Aalborg - Denmark - +45 72 40 60 03 - info@conlan.eu - www.conlan.eu


Turn static files into dynamic content formats.

Create a flipbook
product catalogue_FEB2026 by Conlan - Issuu
