JETFRAME 137/157
Remove concrete anywhere

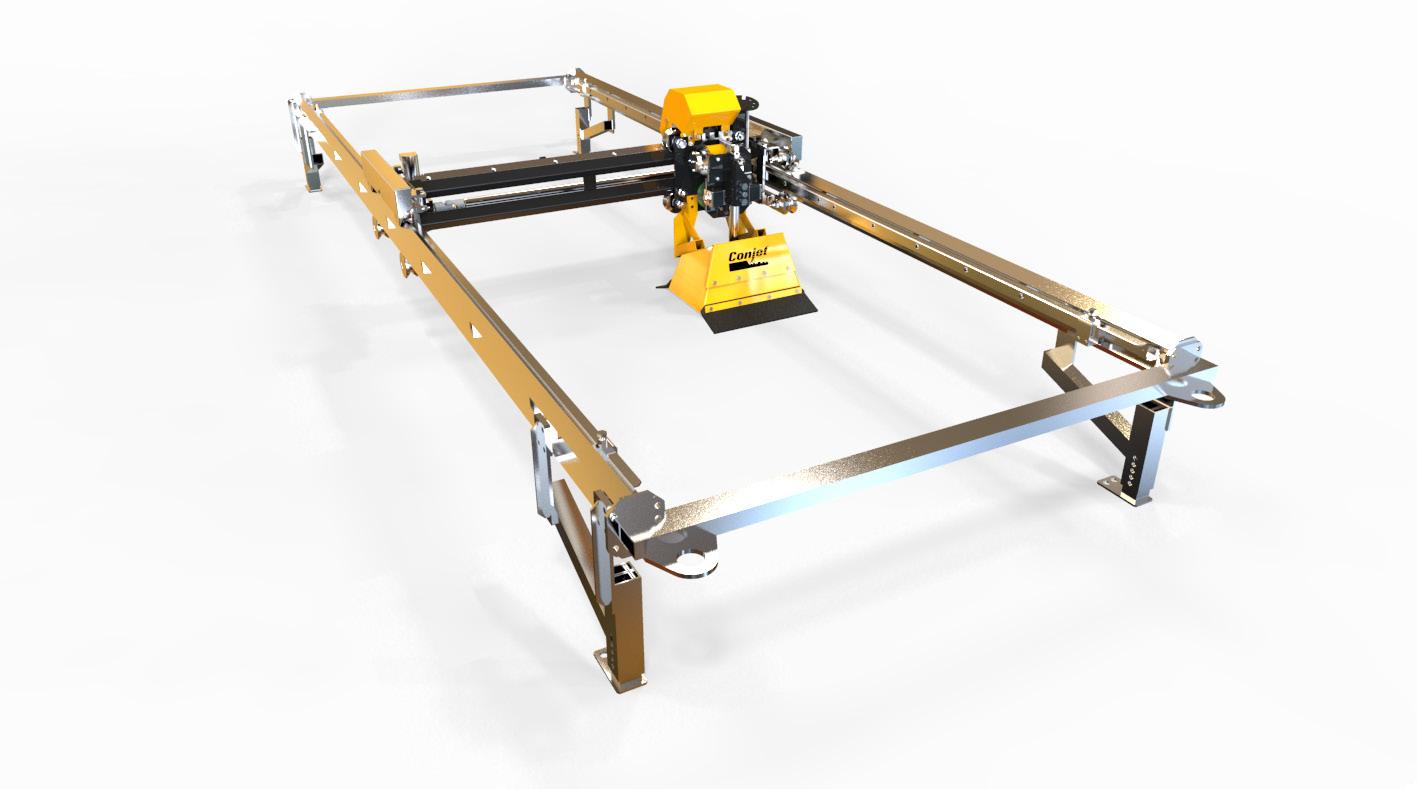

Conjet’s Jetframe 137/157 hydrodemolition system allows selective removal of concrete in areas inaccessible to standard hydrodemolition robots or other concrete removal technologies. The Jetframe is remotely operated from up to 100 meters using any 7series Conjet robot. The JETFRAME 157/137 comes equipped with our oscillating cradle. By utilizing the feed beam from either the Robot 557 (JETFRAME 157) or the Robot 327 (JETFRAME 137), it offers a seamless transition between your preferred removal methods. Switching between methods is made easy by simply replacing the oscillation cradle with a rotor assembly. It can be bolted to the concrete surface being repaired or mounted on a tool carrier, such as a fourwheel drive forklift truck, skylift platform or supported from winches.
The Jetframe 137/157 is specifically designed to remove concrete in the most difficult-to-reach places. It can also be quickly dismantled into components allowing easy transport. It can operate on a variety of horizontal, vertical and angled surfaces, including ceilings and underneath bridge decks.
Optimal for:
• Bridge pillars
•Dam surfaces and spillways
•Dry docks and quay decks
FEATURES
•Handles the most inaccessible areas
•Operates under water
•Remotly controlled via any 7- Series Robot
• Can operate at long distance from the control unit
• Rigid framework to maximize keeping the precision high
•Can be dismantled for transportation and easier handling
• Customizable on request for spceial projects
