Taylors Falls Facility Assessment

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

FACILITY CONDITIONS BUILDING ENVELOPE IMPROVEMENTS Roof Replacement at Office Area and Resource Center The roofs over the main office and resource center (areas H and I) are reaching the end of their useful life and are showing signs of aging such as bridging / stretching at roof perimeters and multiple previous repairs. These roofs should be replaced in the next 3 to 5 years.

Roofing system replacement will improve energy performance by increasing system insulation values, reduce leaks, and will reduce operating and maintenance expenses.

Page | 233

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

BUILDING ENVELOPE IMPROVEMENTS TF-BE-1 Roof Replacement at Office Area and Resource Center • Removal of old roof systems & wet insulation / deteriorated wood blocking.

• Polyisocyanurate insulation layers. R-30 with a minimum positive slope of 1/8" per foot to ensure proper drainage.

• Recovery insulation board to accept new roof system & provide a stop gap against thermal bridging from insulation fasteners.

• Multiply modified built-up roof system with gravel surfacing. Provides a "severe hail" rating.

• Pre-finished sheet metal copings & counterflashings at all perimeters and projections to protect against damage and UV • degradation.

TF-BE-1 Benefits • Extend life of building • Reduce energy costs • Reduce leaks • Reduce operating and maintenance expenses

Page | 234

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS BUILDING ENVELOPE IMPROVEMENTS Install Through-Wall Fashing at Steel Lintels, Structural Steel Lintels Should be Thoroughly Cleaned of Corrosion and Painted with Quality Steel Coating, Repair or Replace Lintels that Show Major Damage. Replace Perimeter Sealant, Control Joints, Cast Stone Sill Joints at the Building Façade Taylors Falls Elementary School is a single-story building constructed of mass brick masonry walls and corrugated metal panels. The windows and doors throughout the complex are aluminum-framed with insulated glass glazing. In general, the brick masonry façade appeared to be in fair condition for its age.

Through-wall flashing is present along the sills of the windows. Steel lintels and weep vents were present at doors and windows heads. There is no metal drip edge or through-wall flashing installed along the heads of the windows and doors. Some through-wall flashing was present at the eastern portion of the building with a drip edge exposed. The original building section windows do not appear to have through-wall flashing present at the lintels above window/door openings in the brick masonry.

Many steel lintels at the building were in fair to poor condition. Some lintels exhibited corrosion and expansive forces into the brick. Layers of pack rust have also formed. Structural steel lintels should be thoroughly cleaned of corrosion and painted with a quality exterior steel coating. If major section loss is present, then repair of the lintel or replacement may be warranted. This condition warrants repair to prevent further damage to embedded steel and brick cladding, and to prevent water entry into and through the exterior walls. Install through-wall flashing at existing steel lintels.

Page | 235

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS Exterior joint sealants at windows, doors, corners, and other areas of the façade were in poor condition. Weathering, splitting, debonding, and cracking of sealant was observed throughout the façade. Utilities pipe penetration sealants are deteriorated, or adhesive failure was observed.

Based on observed conditions, it appears that the sealants on the building have reached or exceeded their useful life. Widespread sealant deterioration is present at the building. A building-wide sealant replacement project is recommended in the next 4-6 years.

BUILDING ENVELOPE IMPROVEMENTS TF-BE-2 Steel lintels, Sheet Metal Flashing and Through-Wall Flashing • Install through-wall flashing • Clean and paint steel lintels •• Sealant replacement at doors, windows, and control joints TF-BE-2 Benefits • Extend life of building • Reduce leaks • Reduce operating and maintenance expenses

Page | 236

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS BUILDING ENVELOPE IMPROVEMENTS Repair Brick Deterioration at the Localized Elevations Where Roof Runoff is Damaging Brick. Tuckpoint, Replace Damaged Brick, Repair the Shrunken Gasket in Window to Prevent Future Water Entry into the Wall System, and Replace the Concrete Surface Drains.

In general, the brick masonry façade appeared to be in good condition for its age.

However, spalling was observed at isolated locations throughout the façade. In the courtyard some areas of the brick façade are in poor condition. Localized areas exhibit damage/deterioration of brick and mortar that appears to have resulted from freezing thaw circle A few locations were seen to have cracked, spalled, or broken bricks. Efflorescence is present at many locations at the original section of the building.

Other miscellaneous items include a cracked and broken concrete surface drain and a junction box that is missing a cover and is exposed to the elements.

Page | 237

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

BUILDING ENVELOPE IMPROVEMENTS TF-BE-3 Repoint Mortar Joints and Replace Cracked/Spalled Brick • Replace brick (approximately 500) • Repoint 2,000 square feet •• Replace the concrete surface drain and cover on junction box TF-BE-3 Benefits • Extend life of building • Prevent moisture intrusion • Reduce operating and maintenance expenses

Page | 238

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS BUILDING ENVELOPE IMPROVEMENTS Replace Blue Metal Siding within Courtyard and Northside of Original Building Metal panel siding appears to be in fair to poor condition. No major dents or damage in the siding was noted during the inspection. Painting touchups have occurred on the siding at many locations. The metal siding is showing signs of aging. Consideration should be given to replacement of the metal siding.

BUILDING ENVELOPE IMPROVEMENTS TF-BE-4 Replace Blue Metal Siding within Courtyard and Northside of Original Building •• Replace siding TF-BE-4 Benefits • Extend life of building • Improve overall aesthetics

Page | 239

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS BUILDING ENVELOPE IMPROVEMENTS Replace Two (2) Exterior Double Doors and Two (2) Single Exterior Doors The hollow metal swing doors are corroded at the bottom of the door frames.

The doors and center mullion are showing signs of wear.

We recommend replacing the indicated exterior doors, including the hardware and locks. Re-key all the door locks to comply with the District-wide Schlage standard.

BUILDING ENVELOPE IMPROVEMENTS TF-BE-5 Replace Two (2) Exterior Double Doors and Two (2) Single Exterior Doors • Replace exterior doors and frames including hardware and locks •• Re-key all locks to District-wide Schlage standard TF-BE-5 Benefits • Extend life of structure • Reduce maintenance • Increase security

Page | 240

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

Page | 241

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

MECHANICAL AND PLUMBING Controls Upgrade Controls Upgrade (Only if TF-ME-6 is NOT Accepted) The Taylors Falls Elementary School building automation system is in good shape and all hardware and software are current.

The existing chiller is the only item that is in need of a controls upgrade. If the chiller replacement is NOT accepted in TF-ME-6 Nexus recommends upgrading the controls on the chiller. This upgrade would include new controls modules, programming, field labor, and mapping to the building’s BAS front end.

The benefits of this controls improvement include improved equipment scheduling, improved cooling system control, increased energy savings, improved occupant comfort, and an improved learning and working environment.

BUILDING ENVELOPE IMPROVEMENTS TF-ME-1 Controls Upgrade (Only if TF-ME-6) is NOT Accepted • Provide new controls for existing chiller • Integrate new existing controls into updated platform • Provide all programming required for this improvement TF-ME-1 Benefits • Easy to use, modernized system control updates • Improved building monitoring and maintenance troubleshooting • Improved occupant comfort • Extended heating system life • Reduced energy consumption • Reduced maintenance

Page | 242

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

MECHANICAL AND PLUMBING Add Suspended Unit Heaters to Gym Storage Rooms (Qty 2) There are two (2) storage rooms located in the gym with external wall exposure but no source of heat. The lack of heat in the spaces results in them often being too cold resulting in comfort complaints. Additional temperature control zoning is required to improve occupant comfort.

Nexus proposes adding new hot water suspended unit heaters in each of the gym storage rooms. New hot water piping would be extended from the nearest existing hot water mains to the new suspended unit heaters. All associated valves and controls would be provided and installed as required.

Benefits of these heating system improvements include reduced maintenance and extended heating system life, and the ability to ventilate the spaces properly in all weather conditions.

MECHANICAL AND PLUMBING TF-ME-2 Add Suspended Unit Heaters to Gym Storage Rooms (Qty 2) • Add new suspended hot water unit heaters to each gym storage room • Extend new hot water piping as required for these heating additions • Provide all electrical and general construction work.

TF-ME-2 Benefits • Reduced maintenance • Improved occupant comfort • Extended heating system life

Page | 243

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

MECHANICAL AND PLUMBING Replace 1990 RTU-2 and 2004 RTU-5 There are several rooftop units serving the Taylors Falls Elementary School that are becoming maintenance problems for the District. These units are as listed below.

•

1990 Mammoth RTU-2 that serves a classroom and storage rooms. This rooftop air handling unit currently has a DX cooling coil and downstream hot water heating coils.

•

2004 AAON RTU-5 that serves the West classrooms and health office. This air handling unit currently has a chilled water cooling coil and hot water heating coil.

Nexus recommends replacing the two (2) rooftop units one to one with new double wall rooftop air handling units with hot water heating and chilled water dehumidification. The new rooftop air handling units would come with code compliant filtration, hot water heating coils, chilled water dehumidification coils, access sections, and supply fans with variable speed drives (VSDs).

The benefits of this HVAC improvement include increased system life expectancy, improved DDC scheduling, improved ventilation, increased energy savings, improved occupant comfort, and an improved learning and working environment.

Page | 244

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS MECHANICAL AND PLUMBING TF-ME-3 Replace 1990 RTU-2 and 2004 RTU-5 • Remove existing rooftop units, piping, and controls • Provide new double wall rooftop air handling units with hot water heating and chilled water dehumidification • Extended new hot water and chilled water piping to air handling units as required • Provide variable speed drives for the supply and relief fans • Provide all roofing and sealing work as required • Provide DDC controls, sequencing, and programming • Provide all associated general construction and electrical work as required TF-ME-3 Benefits • Upgraded HVAC infrastructure • Increased ventilation for improved indoor air quality • Improved temperature control • Improved occupant comfort • Reduced maintenance • Improved learning/work environment

Page | 245

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

MECHANICAL AND PLUMBING Replace 2004 RTU-3, RTU-6, and Kitchen MAU There are several rooftop units serving the Taylors Falls Elementary School that are becoming maintenance problems for the district. These units are as listed below.

•

2004 AAON RTU-3 that serves the Kid’s Club and small group classrooms. This air handling unit currently has a chilled water cooling coil and hot water heating coil.

•

2004 AAON RTU-6 that serves the cafeteria. This air handling unit currently has a chilled water cooling coil and hot water heating coil.

•

2004 Kitchen McQuay MAU that serves the kitchen hood. This air handling unit currently has a chilled water cooling coil and hot water heating coil.

Page | 246

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

MECHANICAL AND PLUMBING TF-ME-4 Replace 2004 RTU-3, RTU-6, and Kitchen MAU • Remove existing rooftop units, piping, and controls • Provide new double wall rooftop air handling units with hot water heating and chilled water dehumidification • Extended new hot water and chilled water piping to air handling units as required • Provide variable speed drives for the supply and relief fans • Provide all roofing and sealing work as required • Provide DDC controls, sequencing, and programming • Provide all associated general construction and electrical work as required TF-ME-4 Benefits • Upgraded HVAC infrastructure • Increased ventilation for improved indoor air quality • Improved temperature control • Improved occupant comfort • Reduced maintenance • Improved learning/work environment

Page | 247

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

MECHANICAL AND PLUMBING Replace Four (4) Fan Coil Air Handling Units with New Rooftop Energy Recovery Units There are several fan coil air handling units serving the Taylors Falls Elementary School that are becoming maintenance problems for the District. These units are as listed below.

•

2004 MagicAire Classroom Fan Coil Units (Qty 4)

MECHANICAL AND PLUMBING TF-ME-5 Replace Four (4) Fan Coil Air Handling Units with New Rooftop Energy Recovery Units • Remove existing fan coil units, piping, and controls • Provide new double wall rooftop air handling units with hot water heating and chilled water dehumidification • Extended new hot water and chilled water piping to air handling units as required • Provide variable speed drives for the supply and relief fans • Provide all roofing and sealing work as required • Provide DDC controls, sequencing, and programming • Provide all associated general construction and electrical work as required TF-ME-5 Benefits • Upgraded HVAC infrastructure • Increased ventilation for improved indoor air quality • Improved temperature control • Improved occupant comfort • Reduced maintenance • Improved learning/work environment

Page | 248

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS MECHANICAL AND PLUMBING Replace 2004 R-22 Chiller There is currently a 2004 vintage AAON air-cooled chiller serving Taylors Falls Elementary School. This existing unit has increased in maintenance and is experiencing corrosion, leaking, and mechanical component failure such as fans, belts, and motors.

Nexus recommends replacing the existing chiller with a new air-cooled chiller plant that is sized to accommodate the entire building. The new air-cooled chiller would be provided with variable frequency drives (VFDs) to provide maximum efficiency at part-load conditions when the chiller runs most of the time. A sound attenuating package will be included for noise reduction. The new chiller would be tied into the DDC control system.

The benefits of these chilled water system upgrades include improved equipment scheduling, improved ventilation, increased energy savings, improved occupant comfort, and an improved learning and working environment.

MECHANICAL AND PLUMBING TF-ME-6 Replace 2004 R-22 Chiller • Remove existing air-cooled chiller, piping, and controls • Provide new air-cooled chiller • Provide DDC controls, sequencing, and programming • Provide all associated general construction and electrical work as required TF-ME-6 Benefits • Upgraded chilled water system infrastructure • Improved temperature control • Improved occupant comfort • Reduced maintenance • Improved learning/work environment

Page | 249

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS MECHANICAL AND PLUMBING Add Dehumidification to Gym AHUs The Gym is currently served by two (2) 2020 vintage Daikin air handling units.

These air handling have no means of dehumidification which results in higher humidity levels and occupant discomfort in the Gym. The Gym is also unable to meet the American Society of Heating and Refrigeration Engineer’s (ASHRAE) Thermal Environmental Conditions for Human Occupancy Standard 55. This ASHRAE design standard specifies the combinations of personal and indoor thermal environmental requirements necessary to achieve an occupant comfort satisfaction rate of 80% or greater. These indoor environmental requirements include temperature, thermal radiation, humidity, and air speed.

Nexus recommends adding new chilled water dehumidification coils to both air handling units to allow for dehumidification of the code required ventilation air to the Gym. Chilled water piping would be extended to each air handling unit as required.

The benefits of these chilled water system upgrades include improved equipment scheduling, improved ventilation, increased energy savings, improved occupant comfort, and an improved learning and working environment.

Page | 250

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS MECHANICAL AND PLUMBING TF-ME-7 Add Dehumidification to Gym AHU • Provide new chilled water dehumidification coils to gym air handling units (Qty 2) • Extended new chilled water piping to air handling units as required • Provide DDC controls, sequencing, and programming • Provide all associated general construction and electrical work as required TF-ME-7 Benefits • Upgraded chilled water system infrastructure • Improved temperature control • Improved occupant comfort • Reduced maintenance • Improved learning/work environment

Page | 251

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

MECHANICAL AND PLUMBING Replace Eight (8) Rooftop and Inline Exhaust Fans, Replace Exhaust and Add Transfer Air to Lower-Level Locker Room, and Re-Route Water Heater Venting for Removal of Chimney, Add Demand Recirculation Pumps for Eight (8) Sinks with Hot Water Issues There are several rooftop and inline exhaust fans serving the building that have exceeded their recommended service life and are in need of replacement.

Nexus recommends replacing some of these fans when major work is taking place so the best pricing can be obtained from the contractors. Nexus has budgeted for the replacement of eight (8) existing exhaust fans for the school.

Nexus will work along with the district on the priority of which ones want to be replaced.

Nexus also recommends adding two (2) demand domestic hot water recirculation pumps for the classroom sinks that have trouble getting hot water in an appropriate amount of time. There are eight (8) classrooms with current hot water issues. These classrooms include rooms 109, 108, Quiet Room, Staff Restroom, 110, 111, 106, and 118.

Nexus also recommends replacing the inline exhaust fan serving the lowerlevel locker room and adding transfer air to better ventilate the space.

Fans will be a direct replacement to the original size/capacity but will have premium efficiency motors installed to increase energy savings. The fan size/capacity may be reduced if engineering can justify where over ventilation is occurring.

The existing water heating venting is routed right up through the chimney. As part of this improvement, we would reroute that venting so the chimney can be removed.

Page | 252

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

The benefits of this HVAC improvement will result in increased energy savings, improved flow and reduced maintenance for exhaust fans, and reduced leaks from seals.

MECHANICAL AND PLUMBING TF-ME-8 Replace Eight (8) Rooftop and Inline Exhaust Fans, Replace Exhaust and Add Transfer Air to Lower-Level Locker Room, and Re-Route Water Heater Venting for Removal of Chimney, Add Demand Recirculation Pumps for Eight (8) Sinks with Hot Water Issues • Replace rooftop and inline exhaust fans with new exhaust fans with associated ductwork • Replace Lower-Level Locker Room inline exhaust fan with new exhaust fan and add transfer air • Re-route water heating venting for chimney removal • Provide all roofing and sealing work as required • Provide DDC controls, sequencing, and programming • Provide all associated general construction and electrical work as required TF-ME-8 Benefits • Upgraded exhaust system infrastructure • Improved temperature control • Improved occupant comfort • Reduced maintenance • Improved work environment

Page | 253

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS MECHANICAL AND PLUMBING Replace Galvanized Plumbing Some domestic water piping located in the 1951, 1962, and 1970 portions of the building is old, galvanized steel. Over time, galvanized pipes are susceptible to corrosion and rust, which can lead to a buildup of mineral deposits within the piping. This corrosion process not only reduces water flow but also compromises water quality, potentially introducing harmful contaminants into the water used by students and staff. The deterioration of these pipes can lead to frequent leaks and occasional bursts, disrupting school operations and requiring costly repairs and maintenance.

Nexus recommends the replacement of the galvanized domestic water piping with insulated copper piping. Copper plumbing offers superior durability and resistance to corrosion compared to galvanized steel and does not suffer from the same accumulation of mineral deposits that can impede water flow and quality. Furthermore, copper pipes are less prone to leaks and bursts, ensuring a more reliable water supply. Importantly, copper systems do not carry the risk of leaching harmful substances like lead, providing a safer environment for students and staff and aligning with health and safety standards in educational facilities.

Benefits of this work would be reduced maintenance, improved water quality, and improved domestic hot water system.

Page | 254

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

MECHANICAL AND PLUMBING TF-ME-9 Replace Galvanized Plumbing • Remove existing galvanized domestic water piping and components in 1951, 1962, and 1970 portions of the building • Install new insulated copper domestic water piping • Provide associated general and electrical construction work as required TF-ME-9 Benefits • Reduced potential for elevated lead and galvanized contaminants in water supply • Improved drinking water quality • Improved plumbing fixture operation • Increased equipment life • Reduced maintenance

Page | 255

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

MECHANICAL AND PLUMBING Retro-Commissioning of HVAC Equipment Building retro-commissioning is a systematic process that ensures all buildings perform as efficiently as possible according to the owner’s operational needs as well as adjustment of HVAC equipment’s operational parameters to meet current space use.

The Building Automation System (BAS) plays a crucial role in providing a comfortable, energy-efficient environment for students, parents, and staff. Over time, damper and valve controls have gone out of proper adjustment, components fail, and controls sequences are modified and may not be programmed to provide an optimal balance between comfort, indoor air quality, and energy efficiency.

This Nexus Retro-commissioning Team will identify the root cause of HVAC equipment operational issues and will provide adjustments to the sequences and outdoor air setting to improve occupant comfort while reducing energy consumption where possible. The retro-commissioning process will also identify components that require adjustment or replacement.

Retro-commissioning activities include: HVAC Equipment: Nexus will verify existing HVAC equipment operation and control sequences through observation. We will provide adjustment and tuning services to achieve optimal operation and improved occupant comfort.

Documentation of the findings with corrections and recommendations for further improvements will be made.

Page | 256

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS Services include: • • • • •

Ventilation study to assure all spaces are ventilated per the current code requirements and the outdoor air setpoints will be adjusted up or down based on current space occupancy Test point commands vs actual controller output at each device for heating, cooling, and mixed air control Verify valve/damper operation on reheat coils and air handler coils Verify indicated vs actual (duct static, supply and return temperatures) Verify mixed-air operation (damper position and economizer operation)

Valves and Dampers: Nexus will test all existing rooftop (RTU) and indoor air handling unit (AHU) sequences along with the valve and damper operation to ensure control actuators are fully operational. We observe valve/damper/actuator operation and check for any physical signs of valve/damper leakage or binding, which results in operational issues and increased energy consumption. We check discharge temperature with valves in the fully open and closed positions. In addition, we will provide unit pricing to replace any defective valves and/or actuators. Proper RTU and AHU operation provides improved occupant comfort at optimal energy efficiency.

Zone Reheat Valves: Nexus will test existing zone reheat valves for proper operation. We ensure command valves fully open and close and observe valve/actuator operation. We inspect valves for any physical signs of valve leakage or binding, check discharge temperature with valve in the fully open and closed positions and provide unit pricing to replace any defective valves and/or actuators.

Economizer: Nexus will update the control sequence for mixed-air dampers to their setpoints with economizer lockout setpoints.

Heating Water Pump Variable Speed Drives (VSDs): Nexus will lower the pressure setpoint to allow drives to modulate down to the slowest speed required to satisfy the most critical room temperature sensor.

Page | 257

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS Boilers: Nexus will optimize sequencing and staging of equipment and adjust the water reset schedules based on outside air temperature.

The action steps noted above are part of the Nexus retro-commissioning process. The benefits of this process include improved temperature control and occupant comfort, reduced energy consumption, reduced maintenance, and extended HVAC equipment life.

Page | 258

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS MECHANICAL AND PLUMBING TF-ME-10 Retro-Commissioning of HVAC Equipment • Provide retro-commissioning of all existing HVAC systems • Provide adjustments to existing sequences to improve HVAC system operation • Verify operation of all dampers, actuators, valves, and terminal HVAC devices TF-ME-10 Benefits • Improved temperature control and occupant comfort • Reduced energy consumption • Reduced maintenance • Extended HVAC equipment life

Page | 259

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

ELECTRICAL, TECHNOLOGY, AND SAFETY SYSTEMS Upgrade Electrical Power Distribution Including Switchgear, Panels, and Generator There are five panels that are original to the 1962 building are now more than 60 years old and are at the end of their useful life. The panels were manufactured by States, which is no longer in existence. Parts for this equipment are no longer available.

It is recommended that the 1962 electrical panels be replaced. New panels will provide a safer electrical system since new equipment will be in compliance with current manufacturing standards for electrical equipment and will reduce maintenance costs.

Equipment recommended to be replaced includes one switchboard and 5 panelboards.

ELECTRICAL, TECHNOLOGY, AND SAFETY SYSTEMS TF-ES-1 Upgrade Electrical Power Distribution Including Switchgear, Panels, and Generator •

Replace five original 1962 electrical panels and one switchboard

TF-ES-1 Benefits • • • •

Protection of and Improved Reliability of Electrical Infrastructure Reduced energy consumption Reduced maintenance Extended HVAC equipment life

Page | 260

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

ELECTRICAL, TECHNOLOGY, AND SAFETY SYSTEMS Install New Generator to Control Primary Systems such as Boiler, Boiler Pumps, Emergency Lighting, Coolers and Freezers (230kW) Currently, there is no backup power generator installed. There are frequent power outages at this location. This poses a risk for building security and life safety. In addition, costs may be incurred due to loss of heat in the building causing it to freeze up and loss of food that is stored in the coolers and freezers. In addition, there is a 40-horsepower fire pump, which should be backed up by a generator for a code compliant installation.

It is recommended that a generator be installed to provide backup power for these necessary items.

Page | 261

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

Increase the Size of the Generator from 230kw to 700kw to Cover Full Building Load including Cooling (cost represents the increased cost between the two generators) Alternately, with frequent power outages, installing a generator with full building backup will allow the school to function, even when utility power is lost.

Page | 262

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

ELECTRICAL, TECHNOLOGY, AND SAFETY SYSTEMS TF-ES-2.1, 2.2 Install New Generator • •

Install new natural gas generator Install new automatic transfer switches, feeders, and electrical distribution

TF-ES-2.1, 2.2 Benefits • • •

Protection of and Improved Reliability of Electrical Infrastructure Improved safety Option to handle the entire building load to prevent school shutdowns

Page | 263

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

ELECTRICAL, TECHNOLOGY, AND SAFETY SYSTEMS LED Lighting Upgrade for Areas with Fluorescent. Retrofit Kits for Fixtures in Good Condition, Replacement for Unique or Outdated Fixtures. Including Emergency and Exit Lights. Add Lighting Controls to Corridors and Gym. Light Fixture Upgrades The existing lighting in classrooms, gymnasiums, and common areas is primarily fluorescent lamps throughout. The fixtures appear to be in fair condition; however, LED lamp technology is more energy efficient.

Retrofitting the light fixtures by replacing the fluorescent lamps with LED lamps will reduce overall energy use. In addition, the LED lamps have a life of 50,000 hours compared to only 36,000 hours for a fluorescent lamp, which will reduce maintenance costs.

In specific areas, such as corridors, it is recommended to replace the entire fixture to match newer LED fixtures installed in a recent renovation project.

Lighting controls that automatically shut off lights based on occupancy reduce energy use and are required to comply with current energy codes.

There are no occupancy sensors in the corridors. It is recommended that occupancy sensors are installed in corridors to provide automatic shutoff of lighting.

Page | 264

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS ELECTRICAL, TECHNOLOGY, AND SAFETY SYSTEMS TF-ES-3 LED Lighting Upgrade for Areas with Fluorescent. Retrofit Kits for Fixtures in Good Condition, Replacement for Unique or Outdated Fixtures. Includes Emergency and Exit Lights. Add Lighting Controls to Corridors and Gym. • Replace light fixtures throughout the building with LED light fixtures • Add light fixtures on building exterior • Controls to provide dimming capabilities • Automatic shutoff of lighting TF-ES-3 Benefits • • •

Reduce energy costs Reduce maintenance costs Enhance outside security

Page | 265

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS ELECTRICAL, TECHNOLOGY, AND SAFETY SYSTEMS Install New Burglar Alarm System with 10 Motion Sensors and 2 Keypads.

A burglar alarm system is also needed to enhance the security of the building. It is recommended that a burglar alarm system be installed.

ELECTRICAL, TECHNOLOGY, AND SAFETY SYSTEMS TF-ES-4 Install New Burglar Alarm System with 10 Motion Sensors and 2 Keypads.

• •

Add a burglar alarm systems Add 10 motion sensors and 2 keypads

TF-ES-4 Benefits •

Enhance security

.

Page | 266

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

INTERIOR FINISHES AND ADA Ceiling Replacement Taylor Falls elementary has been maintained well, however, there are a few high priority interior finishes needs that should be addressed in the next 0-6 years. We have reviewed the ceilings and exposed structures to determine what has reached the end of useful life, shows stains, or is beginning to sag.

The flooring from worn carpet to old VCT in corridors has been prioritized.

Other areas include casework, ADA needs, and interior doors. Prioritization is based on immediate needs (0-3 years), priority 2 is from 4 to 6 years. Low priority would be those items that can be addressed in 7 to 10 years. The floor plans on the following pages indicate areas that need to be addressed based on the prioritization.

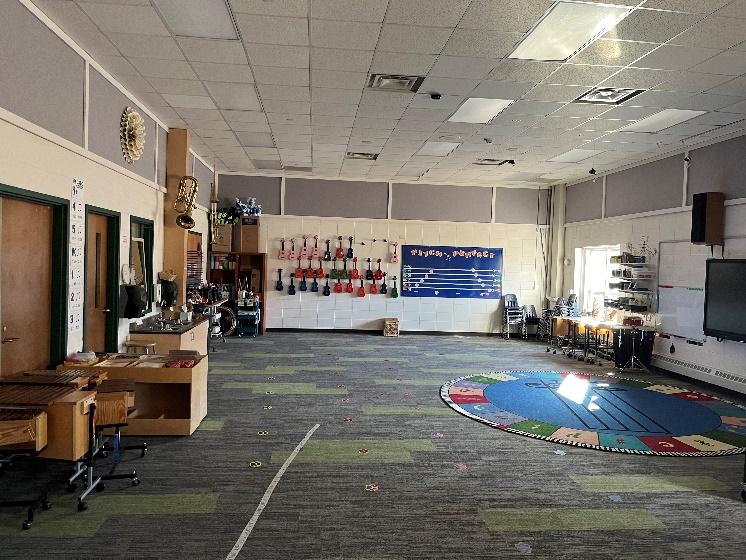

High Priority Ceilings: High priority areas include the music room/ art room and adjacent rooms, the corridor from the kitchen past the SPED rooms, the cafeteria and the kitchen and a few smaller areas.

Low Priority Ceilings: Low priority ceilings include the kid’s club/ intervention/ third grade classrooms, the corridor outside of the cafeteria, and the large kindergarten room. Other areas include the 1st and 2nd grade classrooms, the nurse’s office, and the reading specialist room.

Page | 267

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

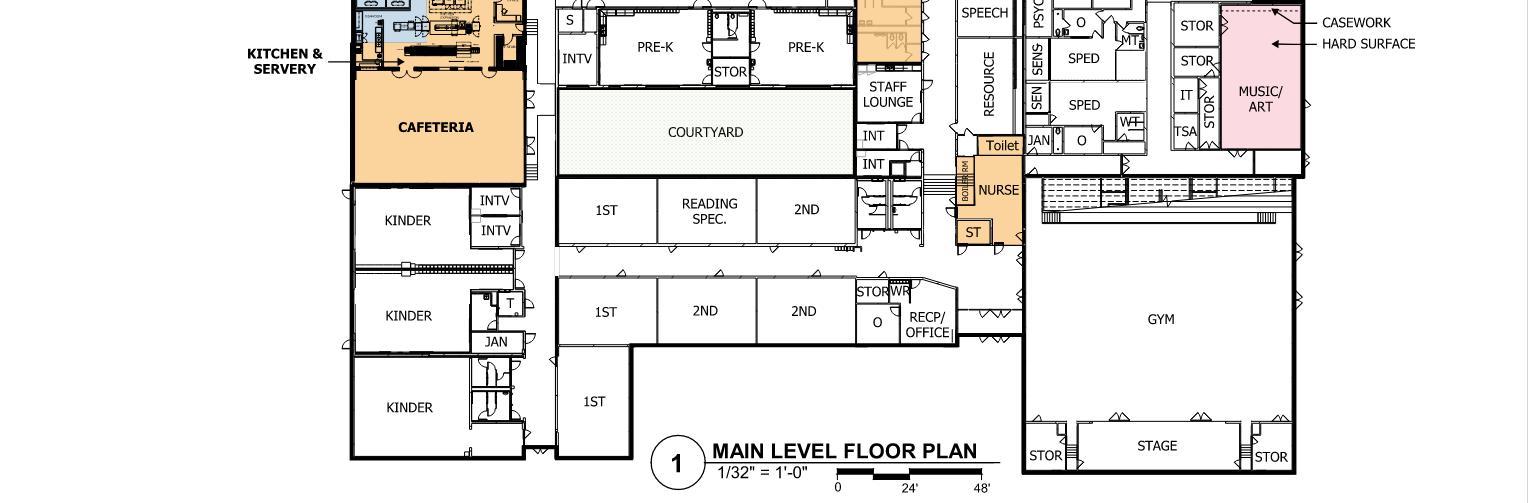

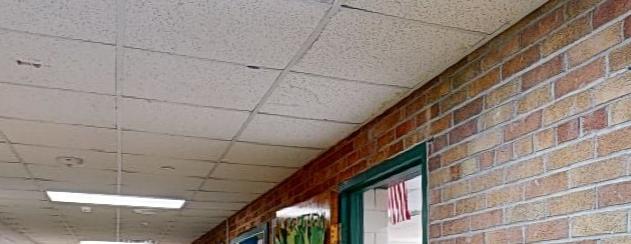

Ceilings

Page | 268

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS INTERIOR FINISHES AND ADA TF-IA-1 High Priority Ceilings • •

Replace ceiling as noted on the plans within the next 0-6 years Replace gyp board ceilings adjacent to stage

TF-IA-6 Low Priority Ceilings • •

Replace remaining ACT ceilings in older classrooms Replace corridor ceiling outside of cafeteria

TF-IA-1 & 6 Benefits • • •

Extending the life of the interior materials Reduce maintenance cost Improves facility aesthetics

Page | 269

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS INTERIOR FINISHES AND ADA High Priority Flooring The wood floor in the gym, including the stage, is at the end of its useful life and needs to be replaced. Replace the old VCT in the corridors east of the gym with new rubber tiles as part of a district wide standardization.

The flooring in the kitchen and cafeteria, along with rooms 116 and 118.

Replace VCT flooring with a flooring material that requires less maintenance, such as an LVT. Low Priority Flooring The resilient flooring in the classrooms for the 1st, 2nd and 3rd grades should be replaced in the next 10 years.

Cafeteria

Room 118

Page | 270

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

FLOORING

Page | 271

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

INTERIOR FINISHES AND ADA TF-IA-2 High Priority Flooring • Replace wood floor in gym and stage • Replace VCT in corridors with rubber tiles • Replace VCT and resilient flooring with LVT in areas marked on the plans TF-IA-7 Low Priority Flooring • •

Replace resilient flooring with LVT Replace corridor ceiling outside of cafeteria

TF-IA-2 & 7 Benefits • • •

Extending the life of the interior materials Reduce maintenance cost Improves facility aesthetics

Page | 272

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

INTERIOR FINISHES AND ADA High Priority Casework The casework in the majority of the classrooms is in need of updating. It is showing signs of damage and is not meeting the needs of the users. All of the identified casework should be replaced in the next 6 years. The lockers outside of the 4th and 5th grade classrooms should be painted.

Typical Classroom

Page | 273

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

Casework

Page | 274

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

INTERIOR FINISHES AND ADA TF-IA-3 High Priority Casework • •

Replace casework in classrooms Repair and paint the lockers outside 4th and 5th grade classrooms

TF-IA-3 Benefits • Improved building aesthetics • Extending the life of the interior materials • Improved functionality of building

Page | 275

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS INTERIOR FINISHES AND ADA High Priority Wall Finishes The glazed tile in the original 1951 classrooms should be painted in the next three years. The health room, toilet rooms, and the 2008 classrooms should also be painted in the next three years. This will brighten up the spaces, giving them a fresh, updated look. To improve safety for staff and students, add clear, 24 ml thick security film to the two sliding windows in the main office. The handrails on the ramps and stairs are non-compliant and should be replaced.

Page | 276

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

Walls

Page | 277

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

INTERIOR FINISHES AND ADA TF-IA-4 High Priority Wall Finishes • • •

Paint glazed tile in 8 classrooms and two offices Install 3M S2400 security film on sliding glass windows at main office Replace the handrails on the 3 ramps and 3 staircases Replace casework in classrooms

TF-IA-4 Benefits • Improved building aesthetics • Extending the life of the interior materials • Improved functionality of building • Improved safety and security

Page | 278

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

INTERIOR FINISHES AND ADA High Priority Door Replacement, Hardware and Locks. Re-key all Door Locks to Comply with District-wide Schlage Standard. Low Priority Door Replacement and Hardware.

The majority of the interior door hardware needs to be replaced in the next 3 years. There are also a few doors that need replacement including the hardware. All of the door’s locks need to be re-keyed to comply with the district wide Schlage standard. In the next 7 to 10 years, the doors in the 4th and 5th grade classrooms should be replaced.

INTERIOR FINISHES AND ADA TF-IA-5 Door, Hardware, and Locks – high priority • • •

Replace hardware on 23 doors Replace 21 single doors and hardware Replace 2 double doors

TF-IA-8 Door, Hardware, and Locks – low priority •

Replace doors in the 4th and 5th grade wing

TF-IA-5 and 8 Benefits • • • •

Improved building aesthetics Extending the life of the interior materials Improved functionality of building Improved security

Page | 279

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

DOORS & HARDWARE

Page | 280

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS SITE IMPROVEMENTS Replace Pavement Around the North and West Side of the Building and Replace Part of the South Side Drive. Includes Restriping and Fence Relocation. Crack Seal and Sealcoat the Hard Surface Play Area and the South East Parking Lot. The West bus loop and parking was observed with significant cracking and in need of removal and replacement within the next few years. Previous borings should be analyzed, and possible new borings should be taken.

Cracked and chipped curbs and sidewalks were observed. Access to doors should be analyzed to update curb style as needed to provide ADA access to all doors as required. North door on the west side may need change to conform to requirements.

Pavement south of building and south parking needs typical pavement maintenance of crack seals and seal coats over the next few years. Reclaim and repave or a removal and replacement should be years down the line. Spot removal and replacement of cracked and failing curbs and gutter and walks is needed within the next few years.

.

Page | 281

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

SITE IMPROVEMENTS Repair Play Area by Replacing Fence Backstop and Top Dress the Kickball Field Observed backstop that seemed mostly sturdy but with some signs of movement and heaving. Weedy areas observed in the aglime. Additional sideline fencing could be added if uses of field would benefit from additional safety/protection in front of benches and/or along parking lot.

Page | 282

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

Page | 283

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

SITE IMPROVEMENTS TF-SI-1 Replace Pavement Around the North and West Side of the Building and Replace Part of the South Side Drive.

Includes Restriping and Fence Relocation. Crack Seal and Sealcoat the Hard Surface Play Area and the South East Parking Lot • Replace pavement on the north and west side of the building, including restriping • Replace part of the south side drive, including restriping and fence relocation • Crack seal and sealcoat the hard surface play area • Crack seal and sealcoat the southeast parking lot TF-SI-2 Repair Play Area by Replacing Fence Backstop and Top Dress the Kickball Field • • •

Top dress aglime or continue weed removal New sideline fencing if wanted for type of existing and if any desire for expanded uses of field Budget for future removal and replacement of aging backstop

TF-SI-1, 2 Benefits • • •

Improved building aesthetics Increase safety Decrease maintenance issues

Page | 284

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS SITE IMPROVEMENTS Purchase adjacent property and add new north parking lot with 20 additional spaces To improve parking on the west side of the school, the District could purchase the adjacent property. This would allow for a new north parking lot with an additional 20 spaces.

Extend south drive to Center Street to improve parent drop-off/pick-up Vehicles have backed up along West street during times of student drop-off and pick-up. Some of this has been resolved using the parent online app. To further resolve this problem the District can add a drive off the southeast parking lot that would exit onto Center street.

Page | 285

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

Page | 286

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

Replace aging playground equipment with new equipment, new plastic border timbers and engineered wood fiber. Existing swings and climbing tower to remain.

Some of the playground equipment is showing signs of deterioration and wear and should be replaced. The coatings have degraded over time, and in some cases, rust is starting to form. On some of the climbing apparatus there are exposed bolts, causing safety issues. The existing swings and one of the climbing structures would remain. The new equipment would be a mix of age appropriate items.

Page | 287

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

Page | 288

TAYLORS FALLS ELEMENTARY

FACILITY CONDITIONS

Add electronic/music playground with synthetic turf for an inclusive play area.

The area on the southeast corner that is outside of the plastic curb could be made into an inclusive play area with synthetic turf surfacings and ADA appropriate equipment.

SITE IMPROVEMENTS TF-SI-3 Purchase adjacent property and add new north parking lot with 20 additional spaces • Purchase the property on the west side of the building • Add a parking lot with 20 additional space

TF-SI-4 Extend south drive to Center Street to improve parent dropoff/pick-up •

Add additional drive that exits off of Center Street

TF-SI-5 Replace Aging Playground Equipment • Replace aging playground equipment with new 2-5 and 5-12 age

group appropriate equipment • Replace plastic curbing with new plastic timbers for playground

border • Top dress wood chips • Keep swings and play structure

TF-SI-6 Add electronic/music playground with synthetic turf • • •

Install electronic and music playground equipment Install picnic tables Install synthetic turf

TF-SI-3, 4, 5, 6 Benefits • Improve safety • Improve aesthetics for the outside arear

Page | 289

TAYLORS FALLS ELEMENTARY

EDUCATIONAL ADEQUACY

EDUCATIONAL ADEQUACY Renovate & Expand Kitchen, Café, Receiving The kitchen is undersized for the number of students they are serving and has equipment deficiencies due to lack of space. They currently serve 240 breakfasts and 275 lunches on average. They currently serve food to students through a small window opening near the entrance of the cafeteria where lines back up into the hallway causing congestion. Currently, the receiving process for the building is done by unloading a truck next to an exterior door of the cafeteria and using hand trucks to bring food and deliveries into the building through the cafeteria. Depending on the timing of the delivery, this can be disruptive to before/after school activities as well as school-day uses in the cafeteria. The garbage cans also are taken through the kitchen in order to access the door to the dumpsters. An addition would be provided to expand and better the workflow for food service activities. It would provide space for equipment and processes needed for today’s food service requirements and create a dedicated servery for serving meals to students. The addition would provide dedicated receiving and building-wide storage that has immediate access to the exterior for deliveries and interior hallways to disperse the products. Renovations would also include relocating the food storage and coolers from the cafeteria to be in the food service space and allow internal expansion of the cafeteria.

Page | 290

TAYLORS FALLS ELEMENTARY

EDUCATIONAL ADEQUACY

Renovate 3rd Grade Area Restrooms The existing toilet rooms near the 3rd grade classrooms are of original construction and the fixtures and finishes are beyond their useful life. In addition, the toilets an d sinks do not meet ADA and lack any type of supervision. These restroom areas would be renovated to still meet the toilet counts required by code and provide for increased supervision similar to the toilet renovations completed in recent projects at this building.

Add Resilient Flooring, Casework, and Shelving in Storage Rooms for Art. Music and Art are not instructed year-round and currently share a space.

That teaching space should be renovated to support multi-purpose functions, similar to recent renovations at Primary School. The room is large enough to create a space on the east end better appointed for art including hard surface flooring, providing casework for art storage, shelving solutions for adjacent storage rooms, and replacing the sinks to meet ADA requirements. There also exists a pair of double doors from the music area into the adjacent storage area. These doors are not used and could be eliminated to create more wall space for music.

Page | 291

TAYLORS FALLS ELEMENTARY

EDUCATIONAL ADEQUACY Reconfigure Boiler Room Stairwell and Nurses Area The existing toilet room that serves the Nurse’s room is barely 30” wide and is vastly undersized. It is inadequate to serve students and their needs while seeing the Nurse. To create an appropriately sized toilet room that meets ADA as well as changing area for students in this age group, the impact would impede on the Nurse’s area.

The existing stair access to the basement boiler room would be relocated and this area would then be converted into a toilet/changing room. The nurse’s room would have updated finishes and casework to support the health services provided.

Add Metal Awning to South Gym Doors for Pickup/Dropoff At the end of the day, students that are receiving a ride by a parent/family member/guardian are queued in the Gymnasium. Staff escorts students outside when their ride approaches the pick-up zone, and staff supervises the traffic. The awning would provide for protection from weather for the staff and students, as well as help identify the zone for student pick-up.

New Flexible Classroom Furniture (50%) Most classrooms have outdated furniture or do not have sufficient flexible furniture available that will attract students to those areas. Comfortable and inviting furniture has been studied to be as important to the spaces as the lighting, HVAC, and spaces themselves

Page | 292

TAYLORS FALLS ELEMENTARY

EDUCATIONAL ADEQUACY

Page | 293
