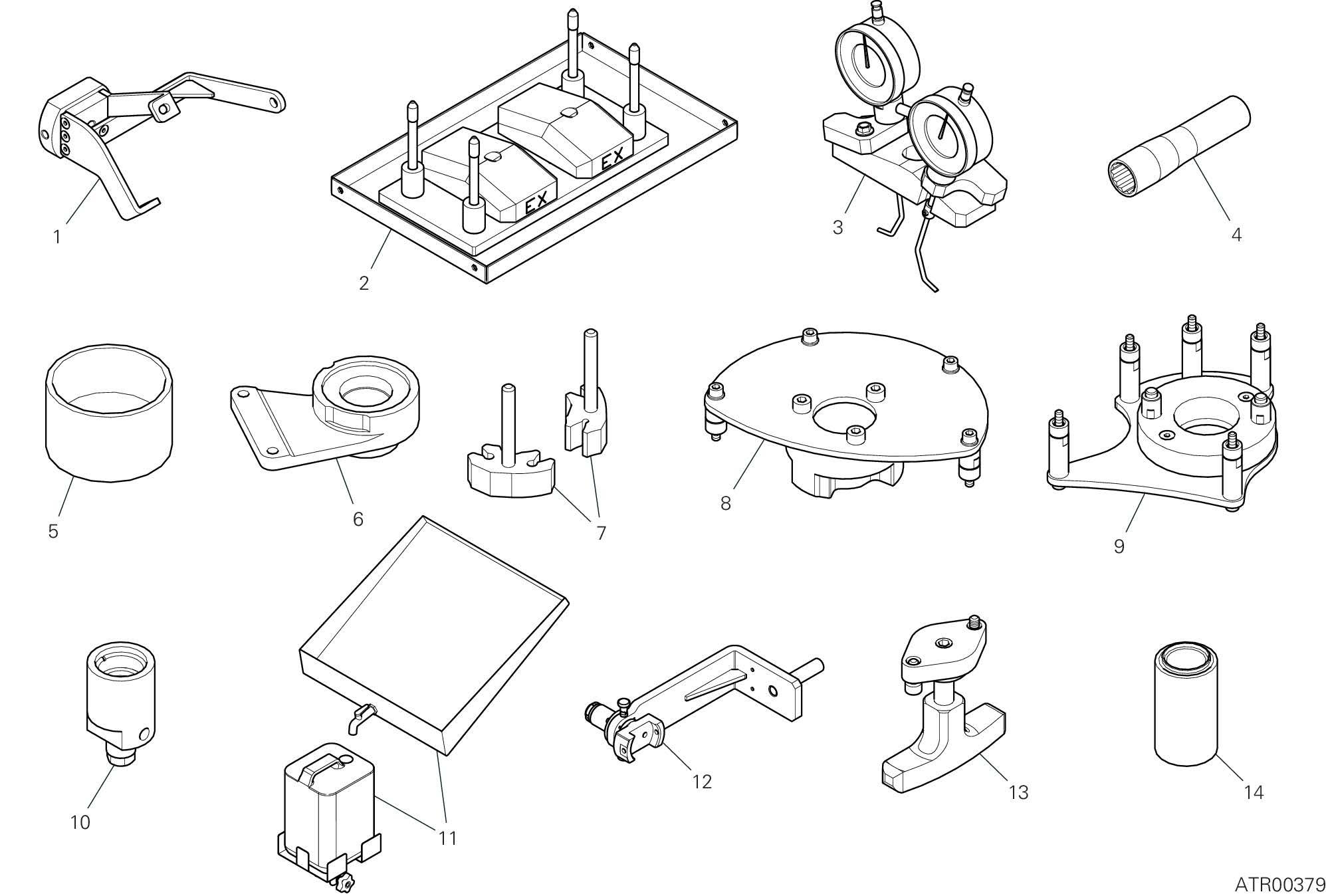

Drawing 01B - WORKSHOP SERVICE TOOLS (ENGINE) [MOD:PANV4SGP

Next Article

from 2019 Superbike Panigale V4 S Corse, page 198

Article from: 2019 Superbike Panigale V4 S Corse
Drawing 38A - POSITIONING PLAT...

POS. CODE

887133003 887133004 887133614 887133633 887135387 887135840 887138851 887138852 887138853 887138854 887138855 887138856 887138857 887138858

DESCRIPTION

ENGINE MOUNT HEAD MOUNTING BASE VALVE LIFT GAUGE (GAUGES NOT INCLUDED) SPARK PLUG WRENCH TOOL, PISTON MOUNTING GEARBOX FASTENING TOOL PRIMARY DRIVE GEAR TIGHTENING TOOL CLUTCH HUB NUT TIGHTENING TOOL WRENCH FLYWHEEL NUT IGNITION FLYWHEEL EXTRACTOR FLUID RECOVERY RESERVOIR ENGINE ROTATION TOOL PULLER TO REMOVE ALTERNATOR COVER SEAL RING DRIVING TOOL

QTY START DATE END DATE VALIDITY NOTES

1 1 1 1 1 1 1 1 1 1 1 1 1 1
