You can replace the entire hand torch and lead assembly, or you can replace individual torch components.
Item Kit/Part number
Description 428174

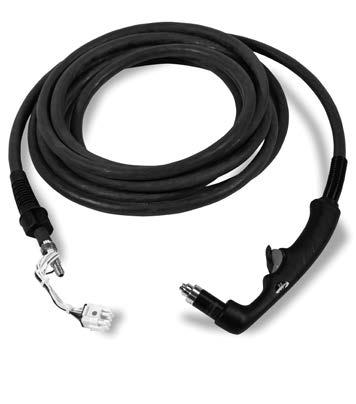

Kit: Duramax LT hand torch assembly with 4.6 m (15') lead. The torch assembly includes one set of general-purpose (standard) consumables: electrode (420120), swirl ring (420211), retaining cap (420114), nozzle (420118), shield (420116)
Kit: Duramax LT torch lead, 4.6 m (15'), with strain relief

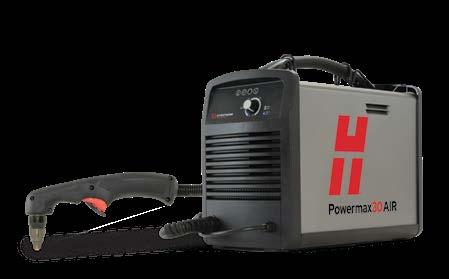

Powermax30® AIR

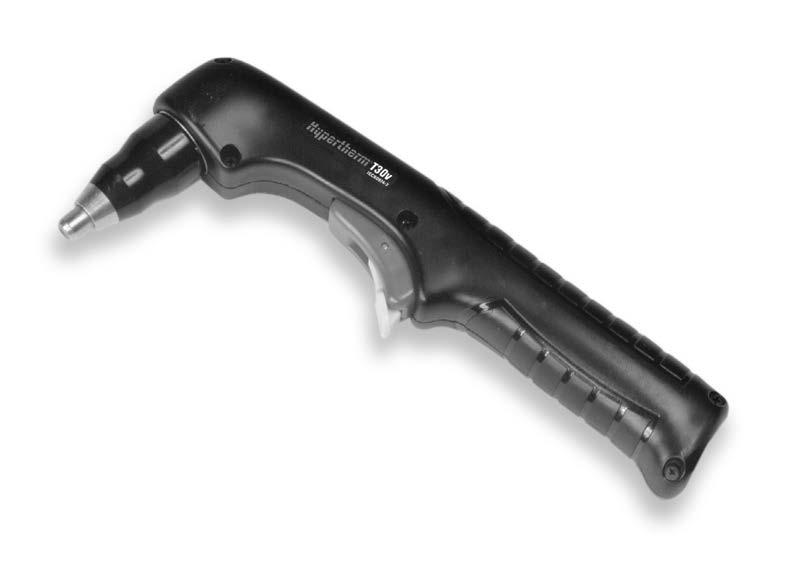

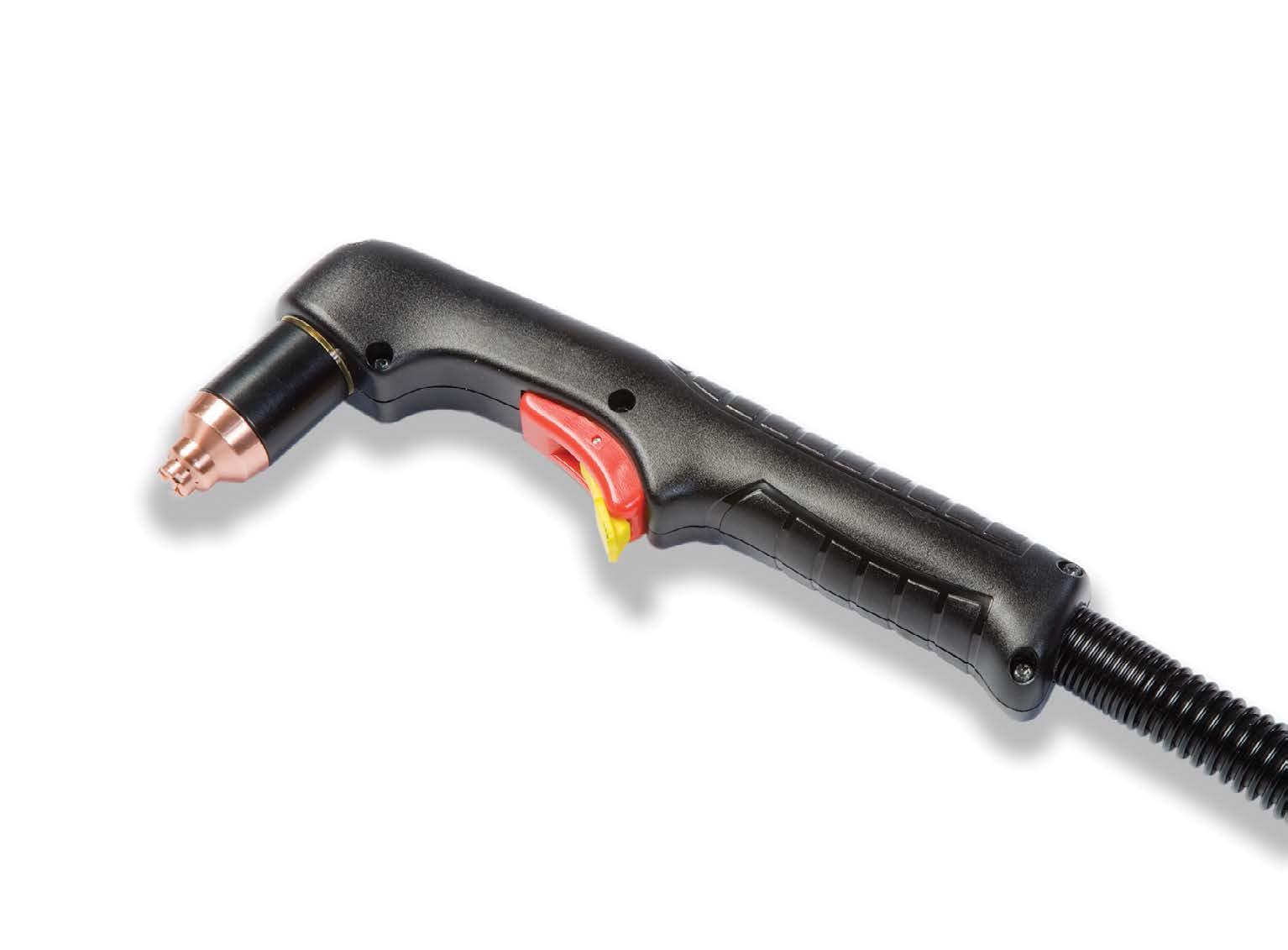

AIR T30 hand torch parts
AIR T30 hand torch parts
You can replace the entire hand torch and lead assembly, or you can replace individual torch components.

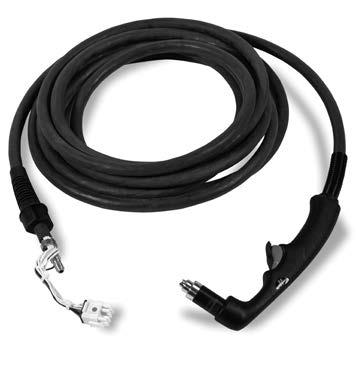

AIR T30 hand torch assembly with 4.6 m (15 foot)
1 228109
2 428162
3 428394 Kit: AIR T30 torch body (includes o-ring)
4 428179
Kit: Replacement o-rings for torch body
5 428156 Kit: Torch trigger and spring
6 428182 Kit: Replacement springs for torch trigger
7 428381
8 428181
9 428176
1Assembly includes consumables.
AIR T30 torch handle (includes handle screws)
AIR T30 torch replacement handle screws
AIR T30 torch lead, 4.6 m (15'), with strain relief

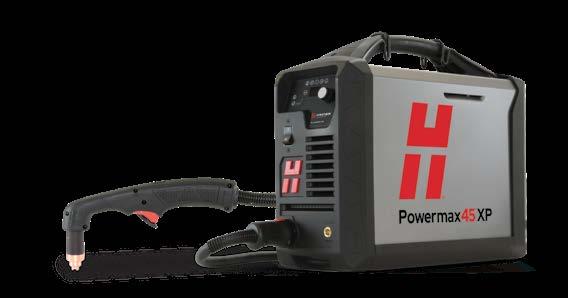

Powermax45 ® XP
Upgrade to the revolutionary Hypertherm cartridge for Powermax® systems consumable

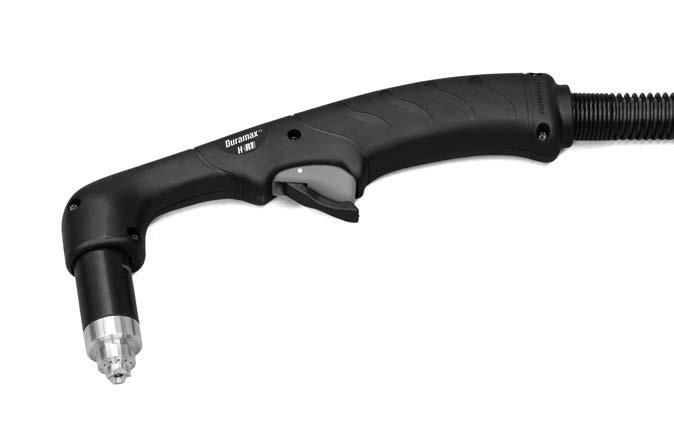

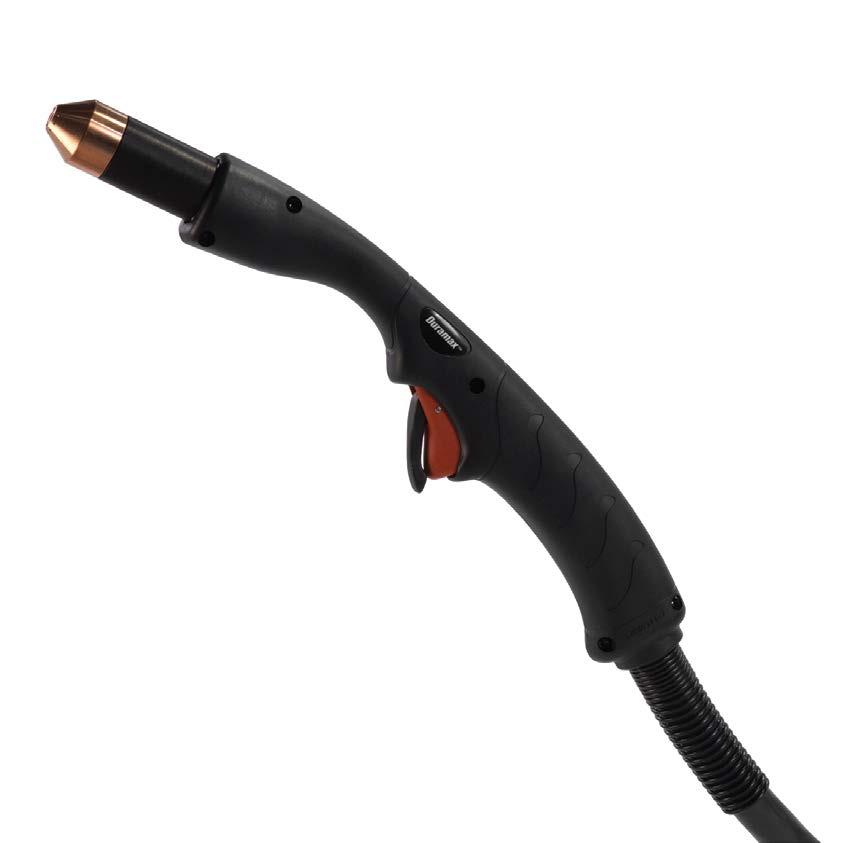

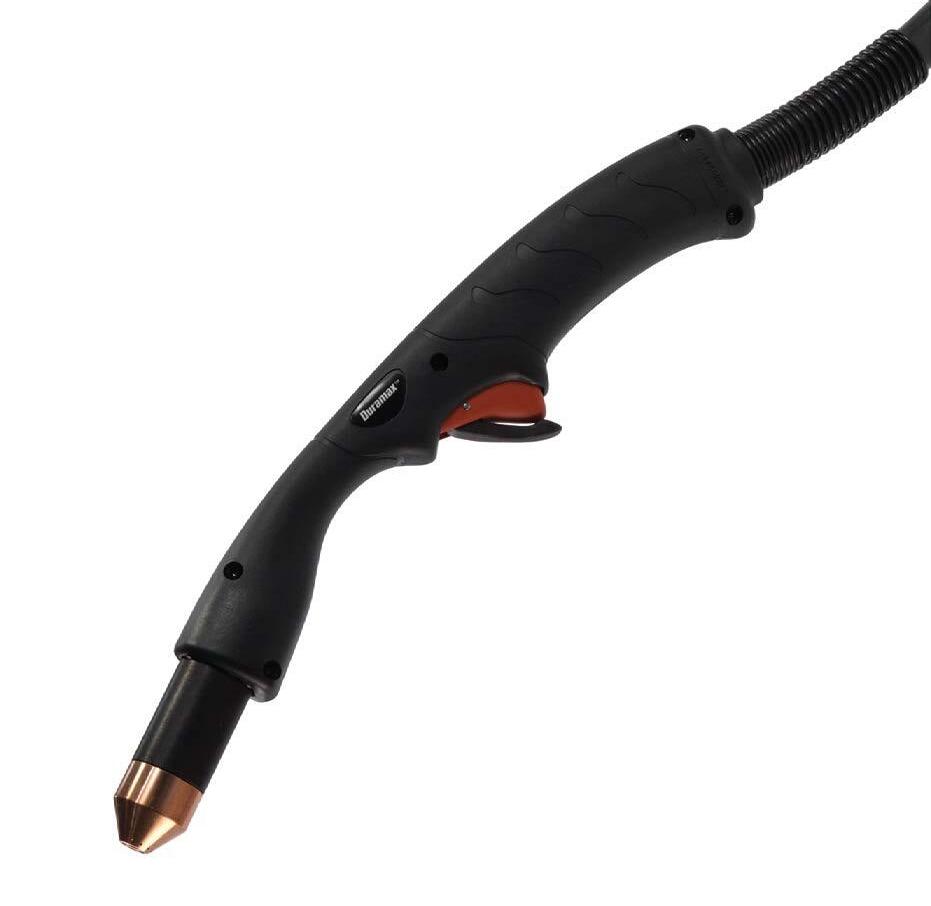

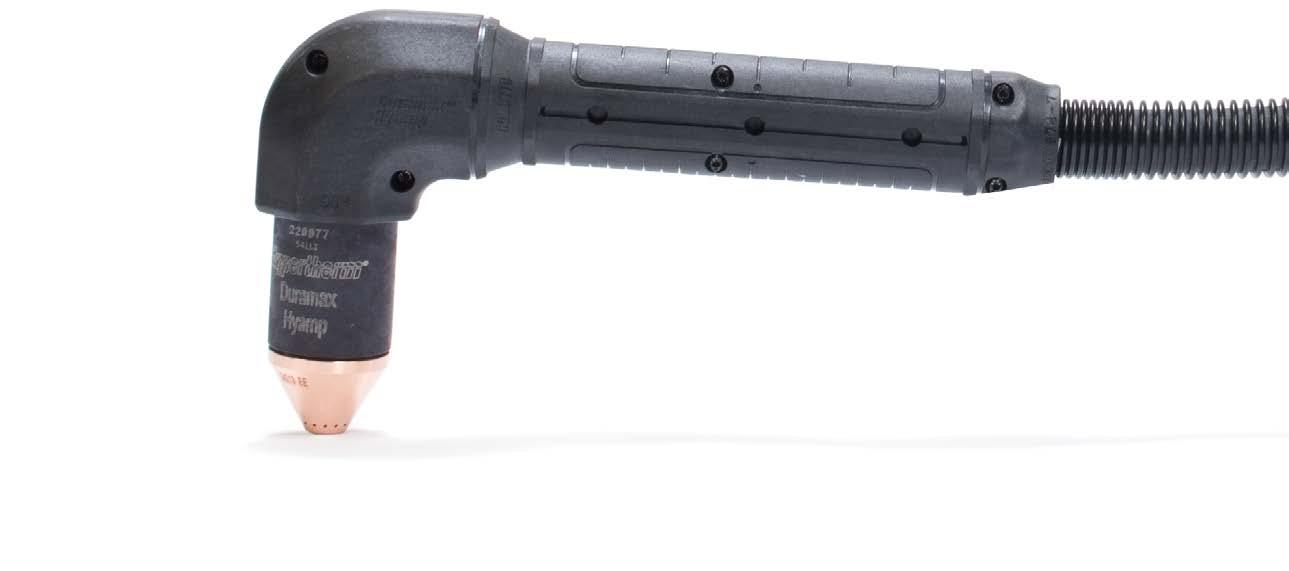

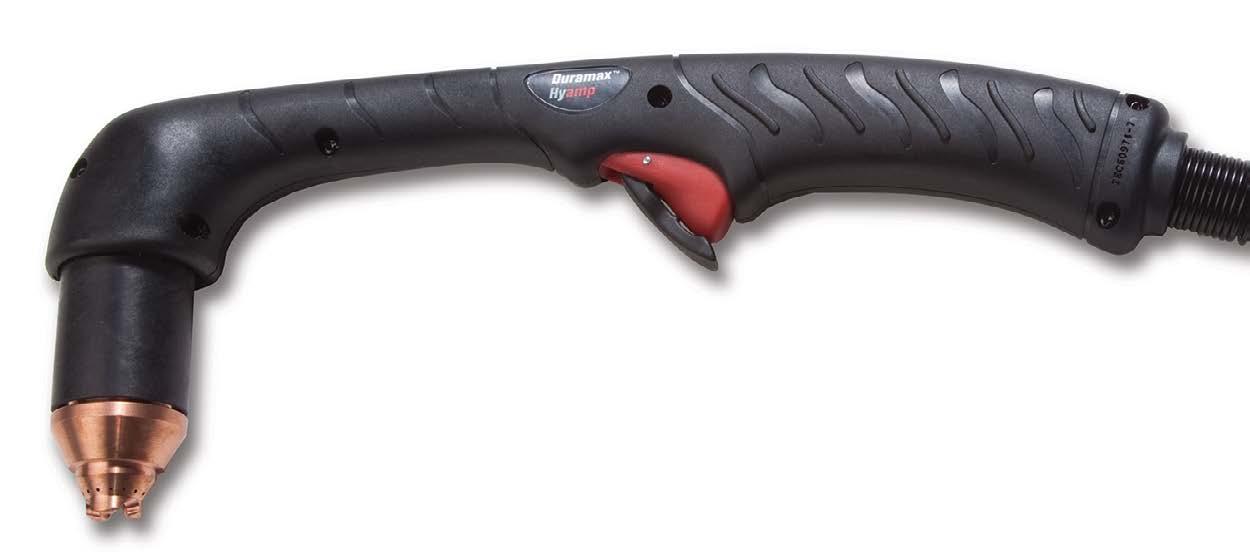

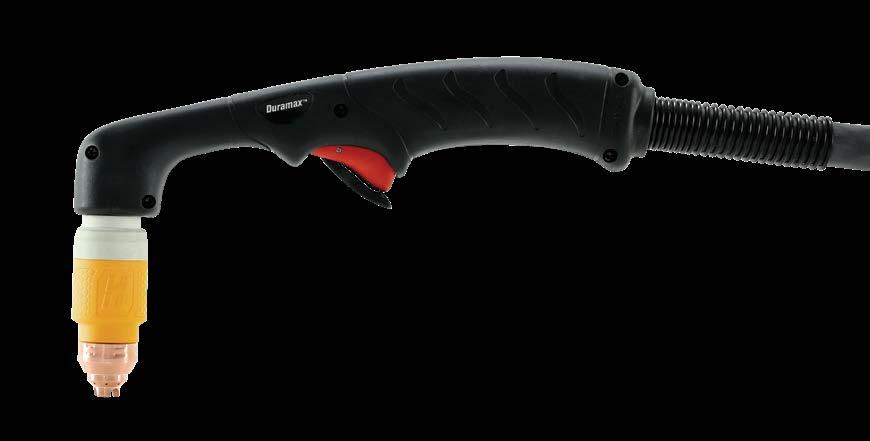

Duramax® Lock 75° hand torch parts
For use with the Powermax45® XP
Duramax Lock 75° hand torch assembly
Item Kit/Part number
0881641
Description
Duramax Lock 75° hand torch assembly with 6.1 m (20 foot) lead 0881651
1 428590
2 428162
3 428594
Duramax Lock 75° hand torch assembly with 15 m (50 foot) lead
Kit: 75° hand torch handle (with screws)
Kit: Hand torch start switch
Kit: Cap-sensor switch/torch-disable switch assembly for hand torch (includes wires and connectors)
4 428588 Kit: 75° hand torch main body (with O-ring)
5 428180
Kit: Replacement O-rings for torch body
6 075504 Pilot terminal screw
7 428156
8 428182
9 428148
10 228314
11 428592
11 428593
Kit: Hand torch trigger and spring – includes start switch and screws for torch handle
Kit: Replacement springs for hand torch trigger
Kit: Replacement screws for torch handle
Kit: Torch quick-disconnect repair (shell with button – does not include torch lead)
Kit: Hand torch lead replacement, 6.1 m (20 foot)
Kit: Hand torch lead replacement, 15 m (50 foot)
12 428595 Kit: Torch-disable slider for hand torch (with yellow/green label)
1The torch assembly does not include consumables.

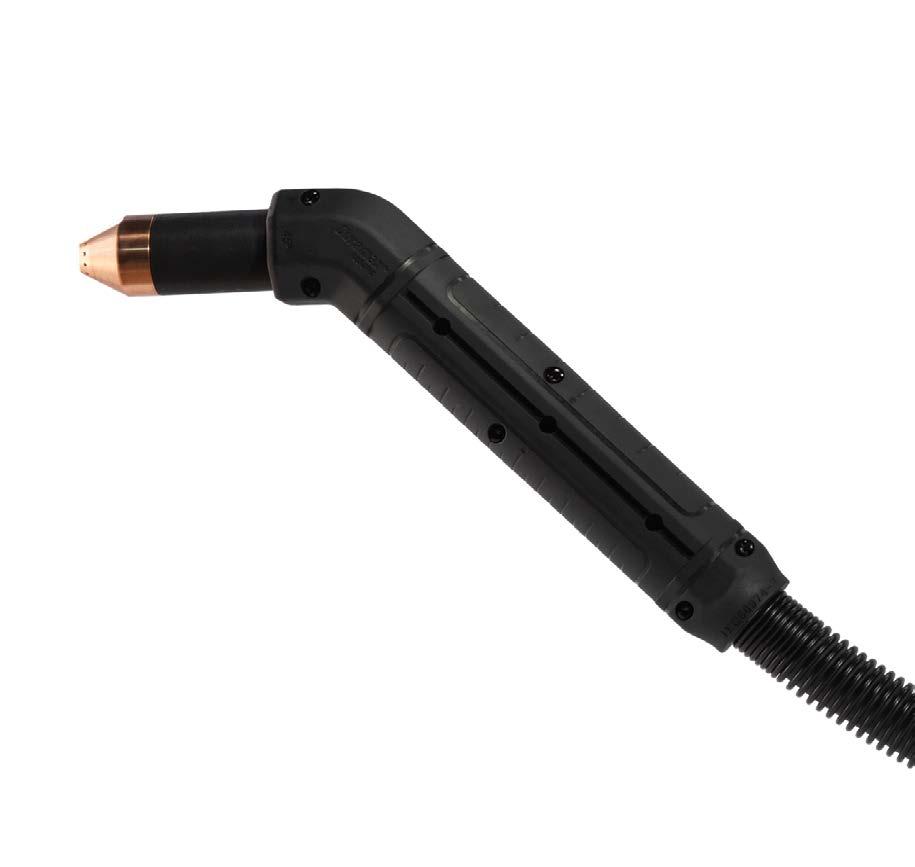

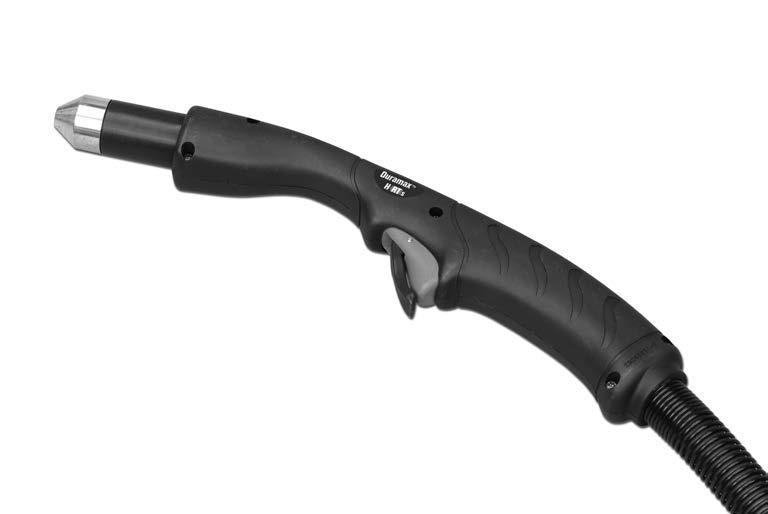

Duramax® Lock 15° hand torch parts
For use with the Powermax45® XP
Duramax Lock 15° hand torch assembly
Item Kit/Part number
0881621
Description
Duramax Lock 15° hand torch assembly with 6.1 m (20 foot) lead 0881631
1 428591
2 428162
3 428594
4 428589
5 428180
Duramax Lock 15° hand torch assembly with 15 m (50 foot) lead
Kit: 15° hand torch handle (with screws)
Kit: Hand torch start switch
Kit: Cap-sensor switch/torch-disable switch assembly for hand torch (includes wires and connectors)
Kit: 15° hand torch main body (with O-ring)
Kit: Replacement O-rings for torch body
6 075504 Pilot terminal screw
7 428156
8 428182
9 428148
10 228314
11 428592
11 428593
Kit: Hand torch trigger and spring – includes start switch and screws for torch handle
Kit: Replacement springs for hand torch trigger
Kit: Replacement screws for torch handle
Kit: Torch quick-disconnect repair (shell with button – does not include torch lead)
Kit: Hand torch lead replacement, 6.1 m (20 foot)
Kit: Hand torch lead replacement, 15 m (50 foot)
12 428595 Kit: Torch-disable slider for hand torch (with yellow/green label)
1The torch assembly does not include consumables.

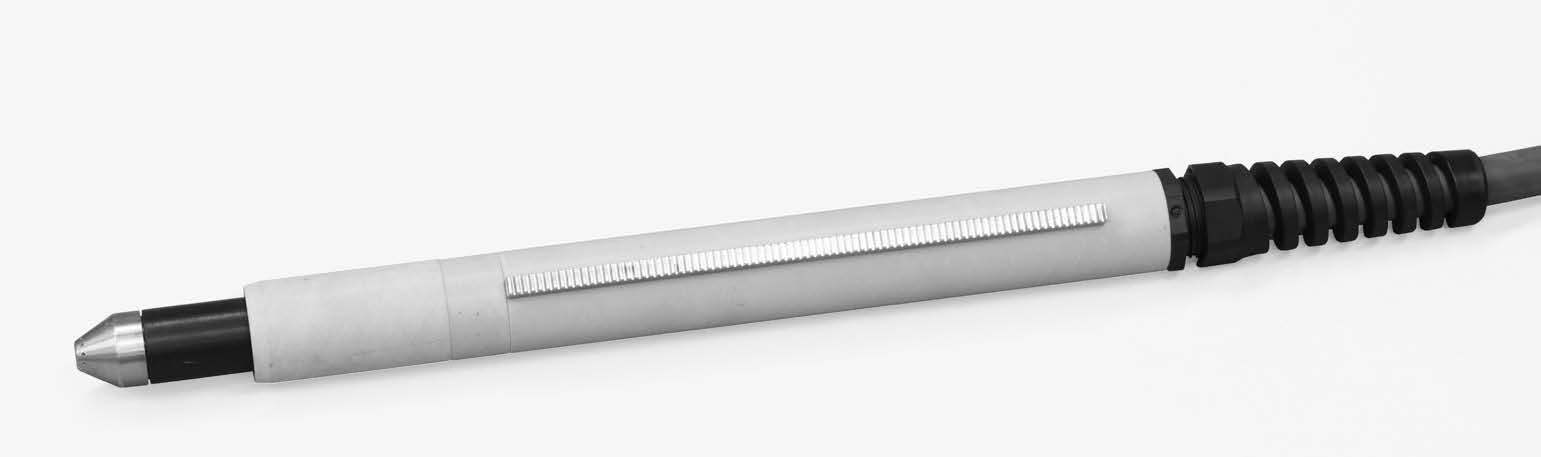

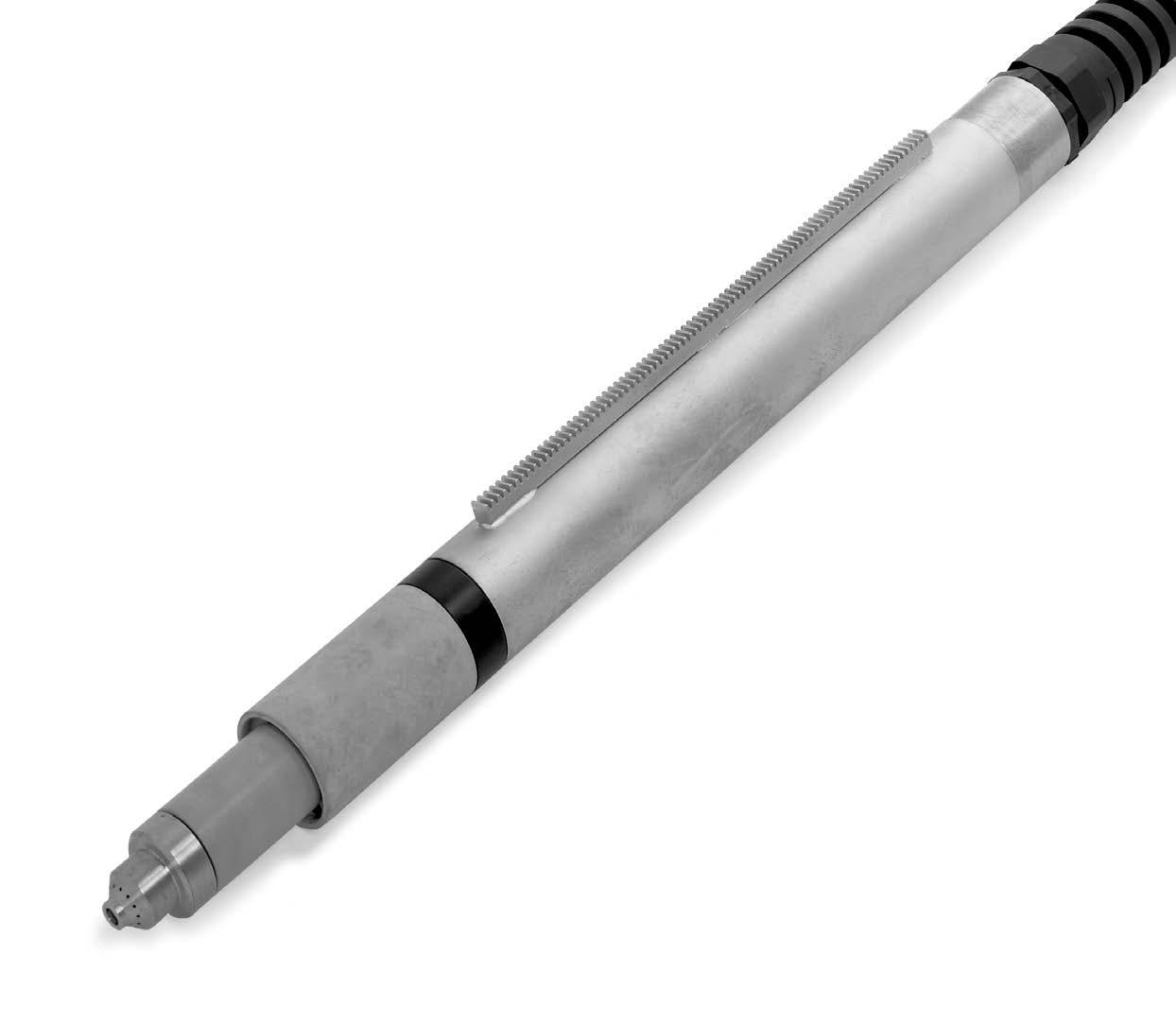

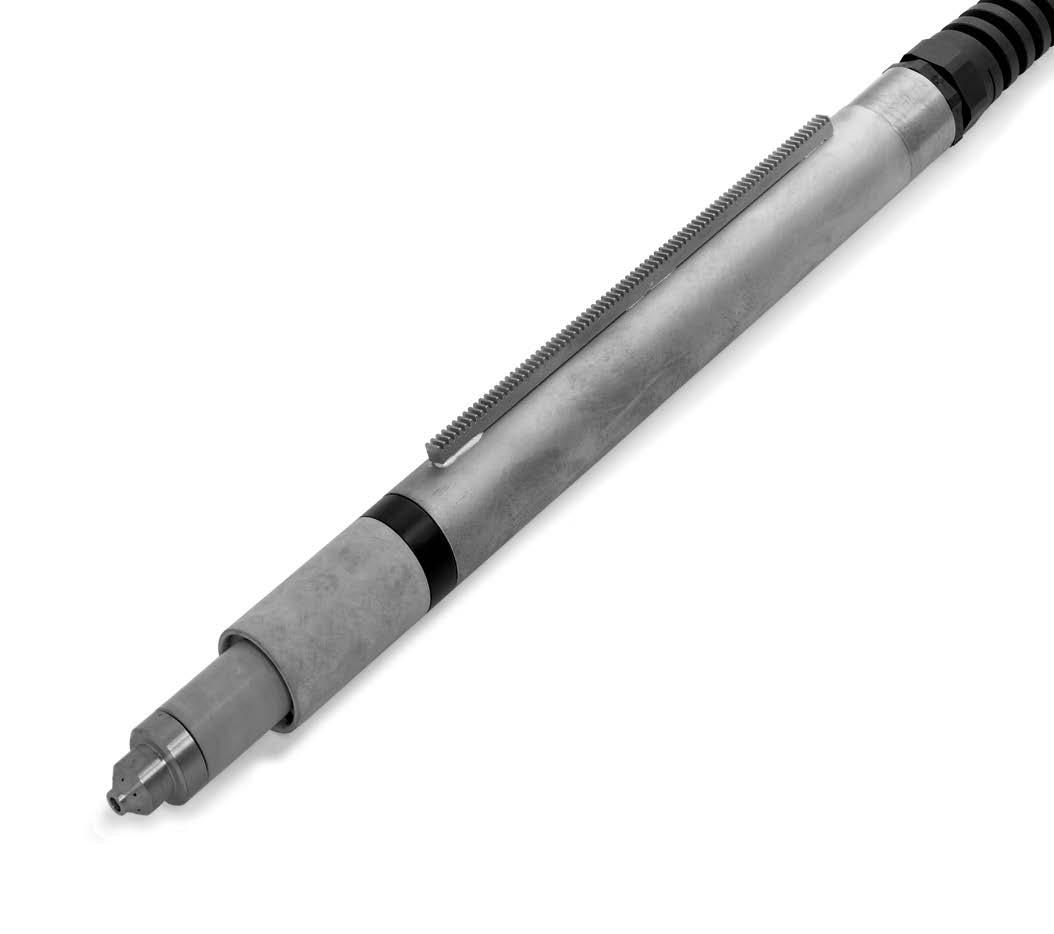

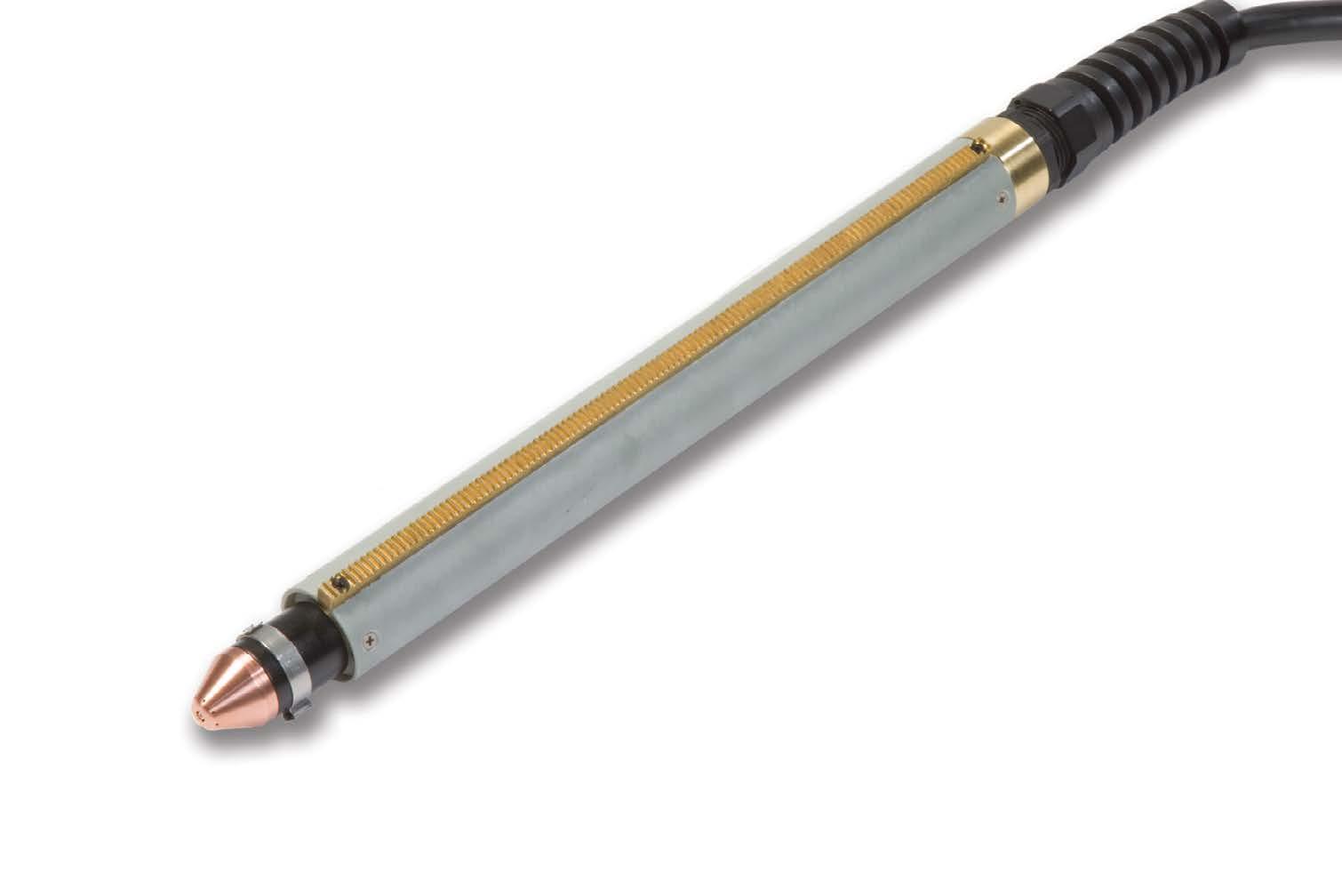

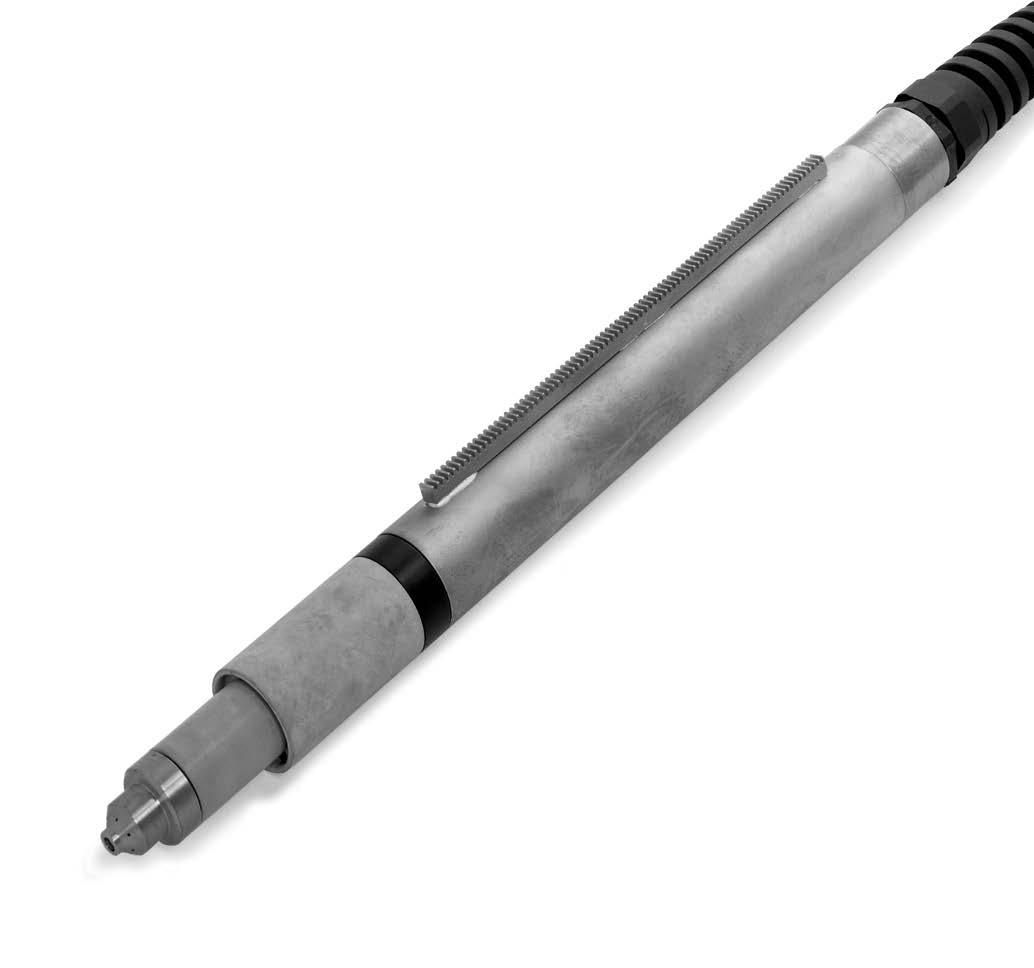

Duramax® Lock 180° machine torch parts
For use with the Powermax45® XP

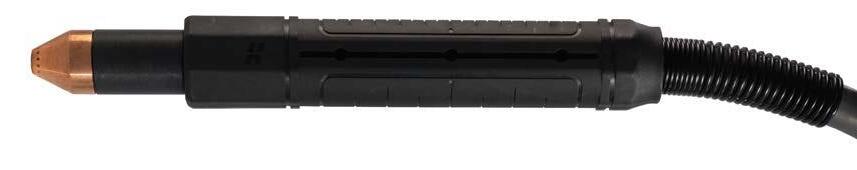

Duramax Lock 180° machine torch assembly
Item Kit/Part number
088167*
Description
Kit: Duramax Lock machine torch assembly with 7.6 m (25 foot) lead 088168*
088169*
1 428703
Kit: Duramax Lock machine torch assembly with 10.7 m (35 foot) lead
Kit: Duramax Lock machine torch assembly with 15 m (50 foot) lead
Kit: Removable 32-pitch gear rack (with screws)
2 428596 Kit: Machine torch shell (with screws)
3 428704
Kit: Torch main body replacement for machine torch
4 428180 Kit: Replacement O-rings for torch body
5 075504 Pilot terminal screw
6 428148 Kit: Replacement screws for torch shell
7 428260 Kit: Torch quick-disconnect repair (shell with button – does not include torch lead)
8 428699
8 428710
8 428700
9 428705
10 4287061
1The torch assembly does not include consumables.
Kit: Machine torch lead replacement, 7.6 m (25 foot)
Kit: Machine torch lead replacement, 10.7 m (35 foot)
Kit: Machine torch lead replacement, 15 m (50 foot)
Kit: Cap-sensor switch/torch-disable switch assembly for machine torch (includes wires and connector)
Kit: Torch-disable slider for machine torch (with yellow/green label)

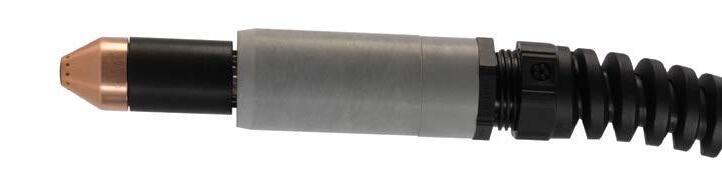

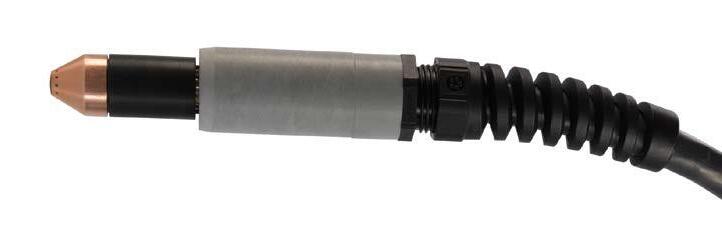

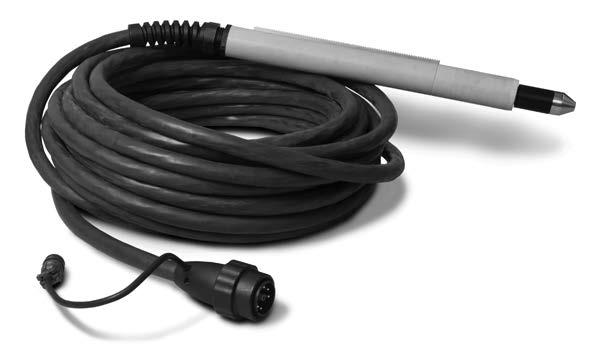

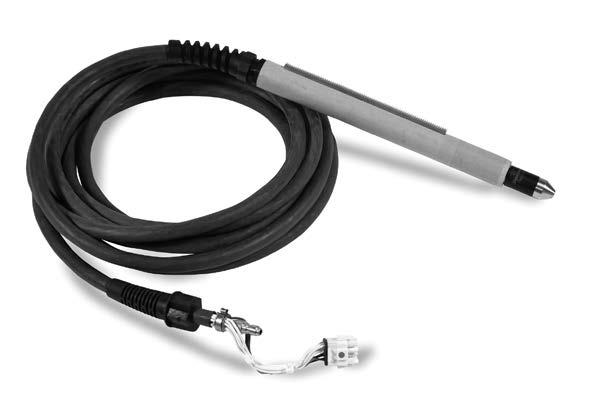

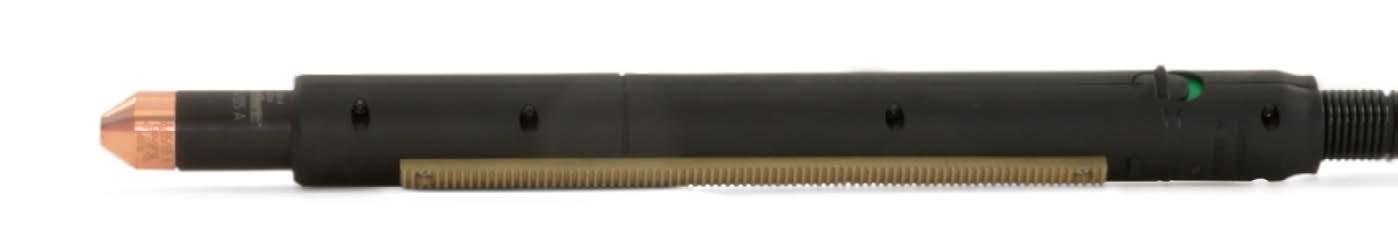

Duramax® 180° mini machine torch parts
For use with the Powermax45® XP
Duramax 180° mini torch assembly
Item Kit/Part number
059481
059482
059483
059484
3 220956
4 228736
5 228716
6 228720
Description
Duramax 180° mini machine torch assembly with 4.5 m (15') lead
Duramax 180° mini machine torch assembly with 7.6 m (25') lead
Duramax 180° mini machine torch assembly with 10.7 m (35') lead
Duramax 180° mini machine torch assembly with 15.2 m (50') lead
Kit: Duramax 180°/Duramax 180° mini torch front mounting sleeve
Kit: Duramax 180°/Duramax 180° mini torch adapter ring (coupler)
Kit: Duramax 180°/Duramax 180° mini torch main body replacement
Kit: Cap-sensor switch replacement
7 058519 O-ring
8 075504
9 228730
9 228731
9 228732
9 228733
9 228734
Pilot terminal screw
Kit: Duramax 180°/Duramax 180° mini torch lead replacement, 4.5 m (15')
Kit: Duramax 180°/Duramax 180° mini torch lead replacement, 7.6 m (25')
Kit: Duramax 180°/Duramax 180° mini torch lead replacement, 10.7 m (35')
Kit: Duramax 180°/Duramax 180° mini torch lead replacement, 15.2 m (50')
Kit: Duramax 180°/Duramax 180° mini torch lead replacement, 22.8 m (75') 128650
Remote start pendant for machine torch, 7.6 m (25')
Remote start pendant for machine torch, 15.2 m (50')
Remote start pendant for machine torch, 22.8 m (75') 2231251
Kit: 65 A Work lead with hand clamp, 7.6 m (25')
1Other work lead options available.

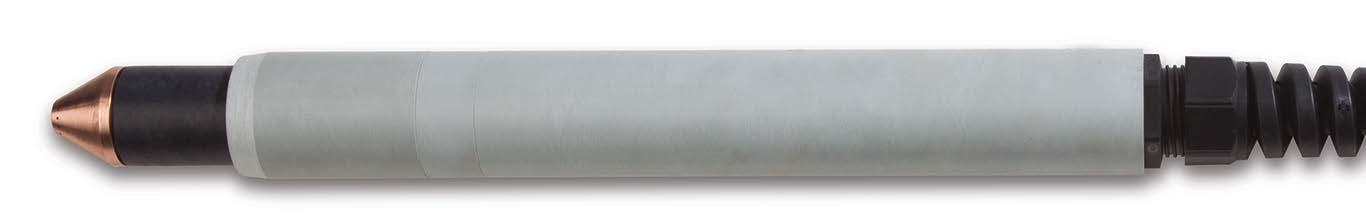

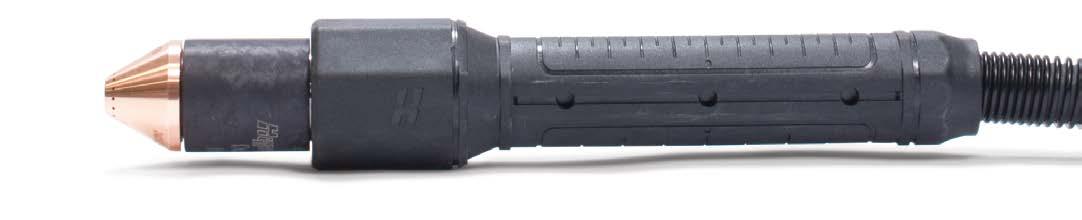

Duramax® 180° robotic torch parts
For use with the Powermax45® XP
Duramax 180° robotic torch assembly
The entire Duramax 180° robotic torch assembly with leads can be replaced, or individual component parts can be replaced.
Kit/Part number
1 058519
2 075504
3 075714
4 228109
5 428260 Kit: FastConnect replacement
6 228852
7 228853
8 228856
Robotic torch lead replacement, 7.6 m (25')
180° Robotic torch main body replacement

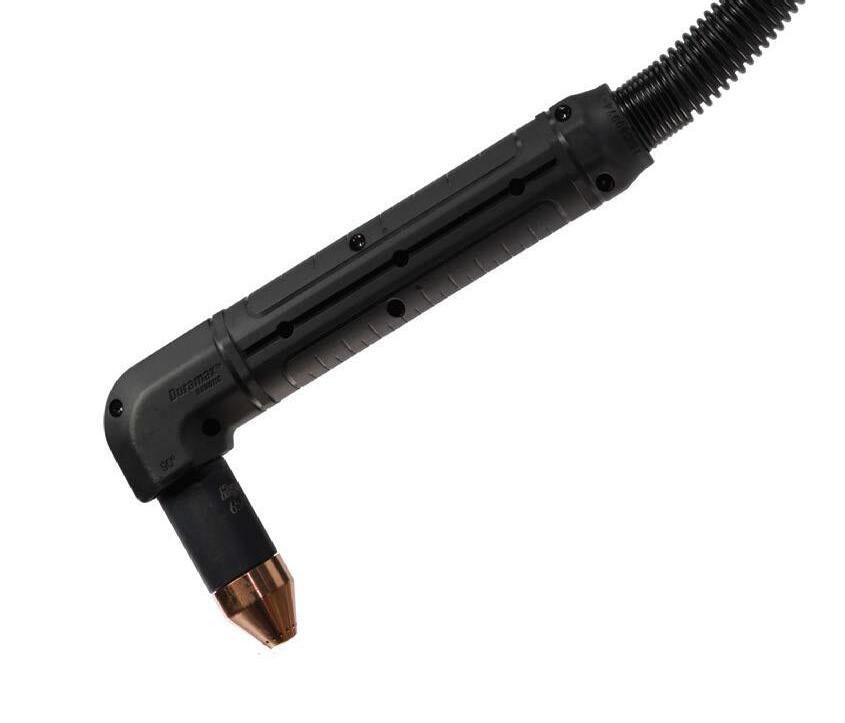

Duramax® 90° robotic torch parts
For use with the Powermax45® XP
Duramax 90° robotic torch assembly
The entire Duramax 90° robotic torch assembly with leads can be replaced, or individual component parts can be replaced.
4
5
7
Duramax® 45° robotic torch parts
For use with the Powermax45® XP
Duramax 45° robotic torch assembly
The entire Duramax 45° robotic torch assembly with leads can be replaced, or individual component parts can be replaced.
1
2
3
4
5
6 228852
7 228855
8 228858

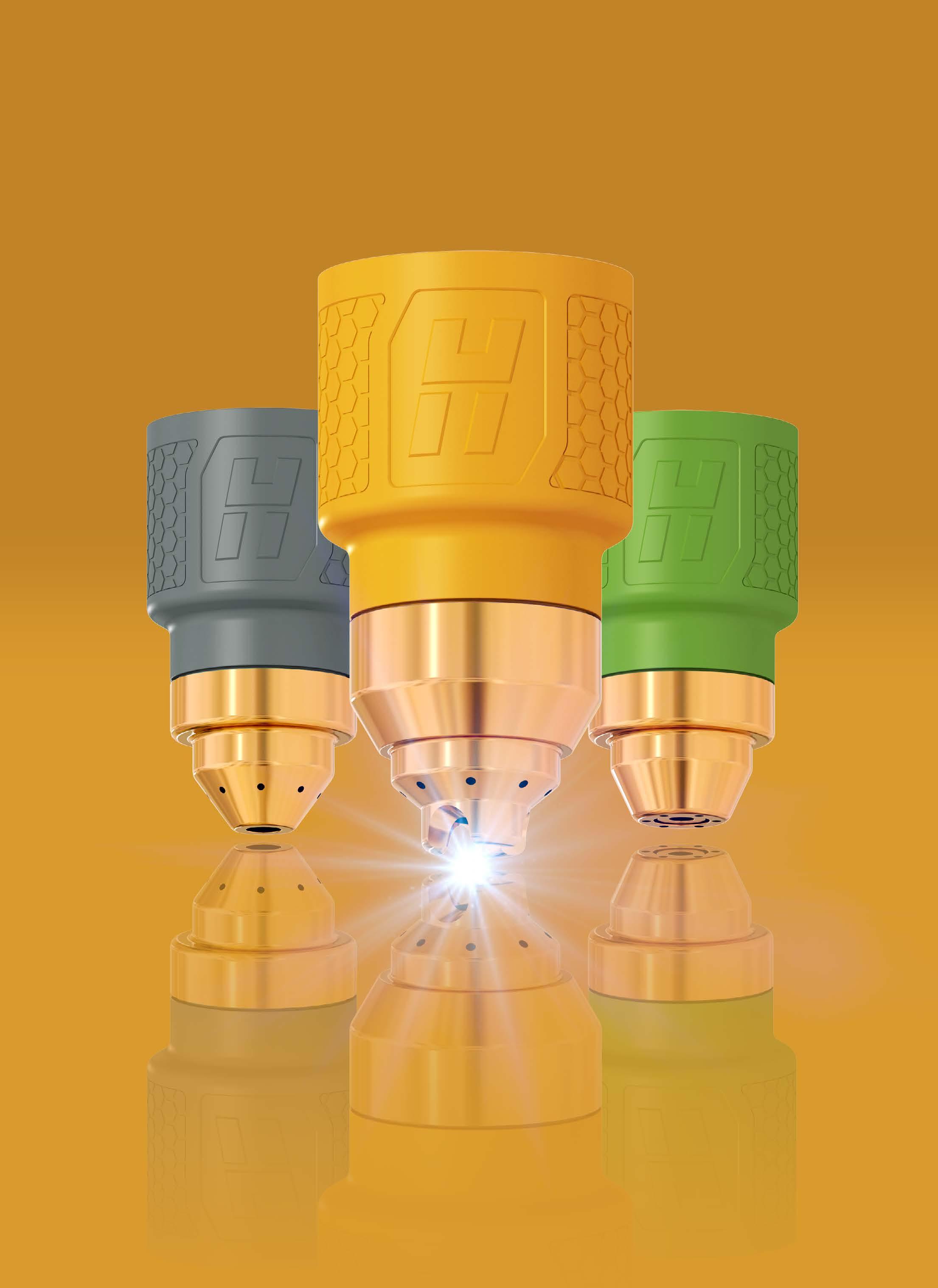

A dramatically simplified consumable platform combined with advanced torch communication for automated set-up makes Hypertherm’s new Powermax65/85/105 SYNC® plasma systems the smarter choice for any cutting or gouging application.
SmartSYNC ® torches
• Advanced torch technology for enabling automated process set-up
• Convenient power and amperage adjustment controls for hand torches

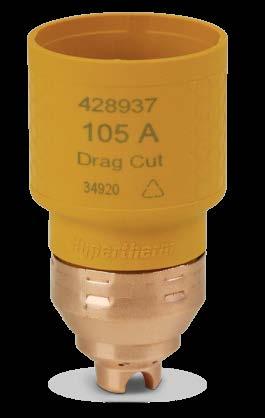

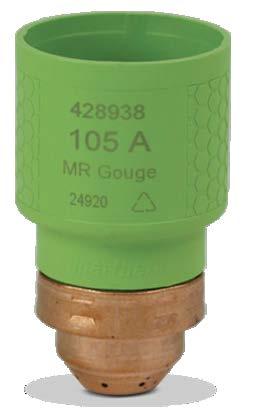

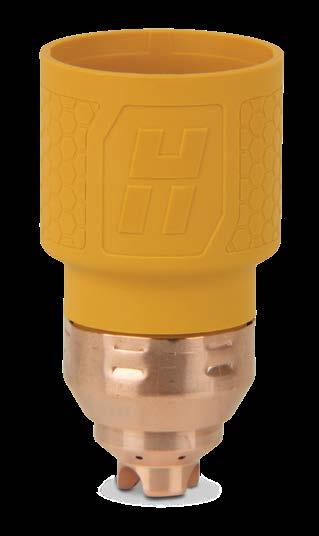

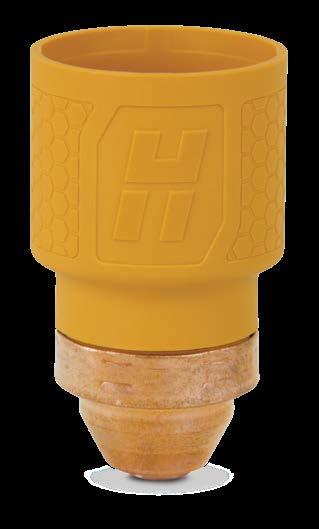

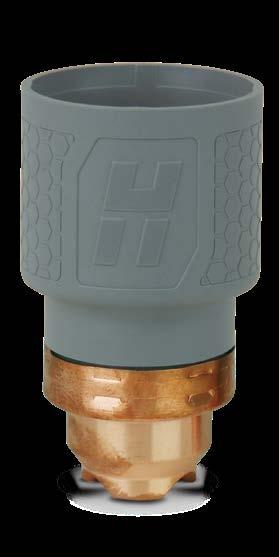

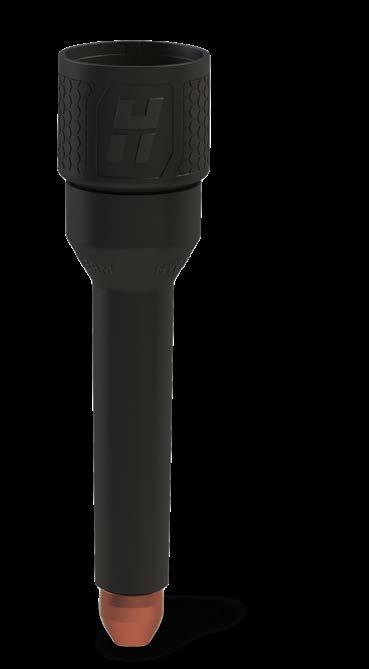

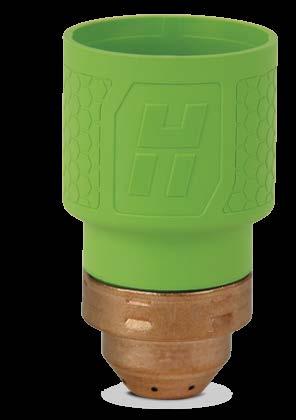

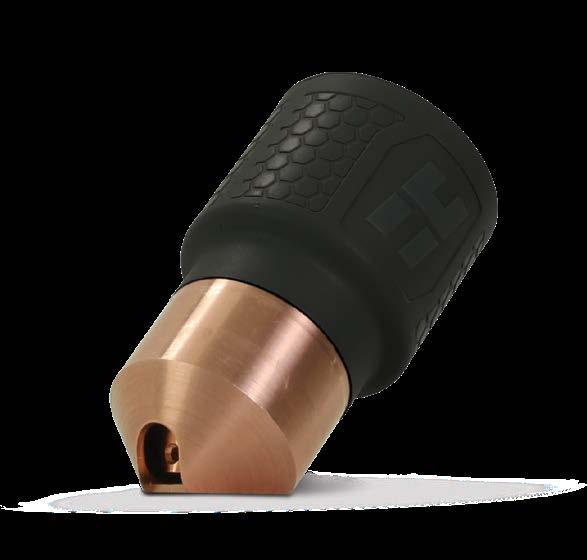

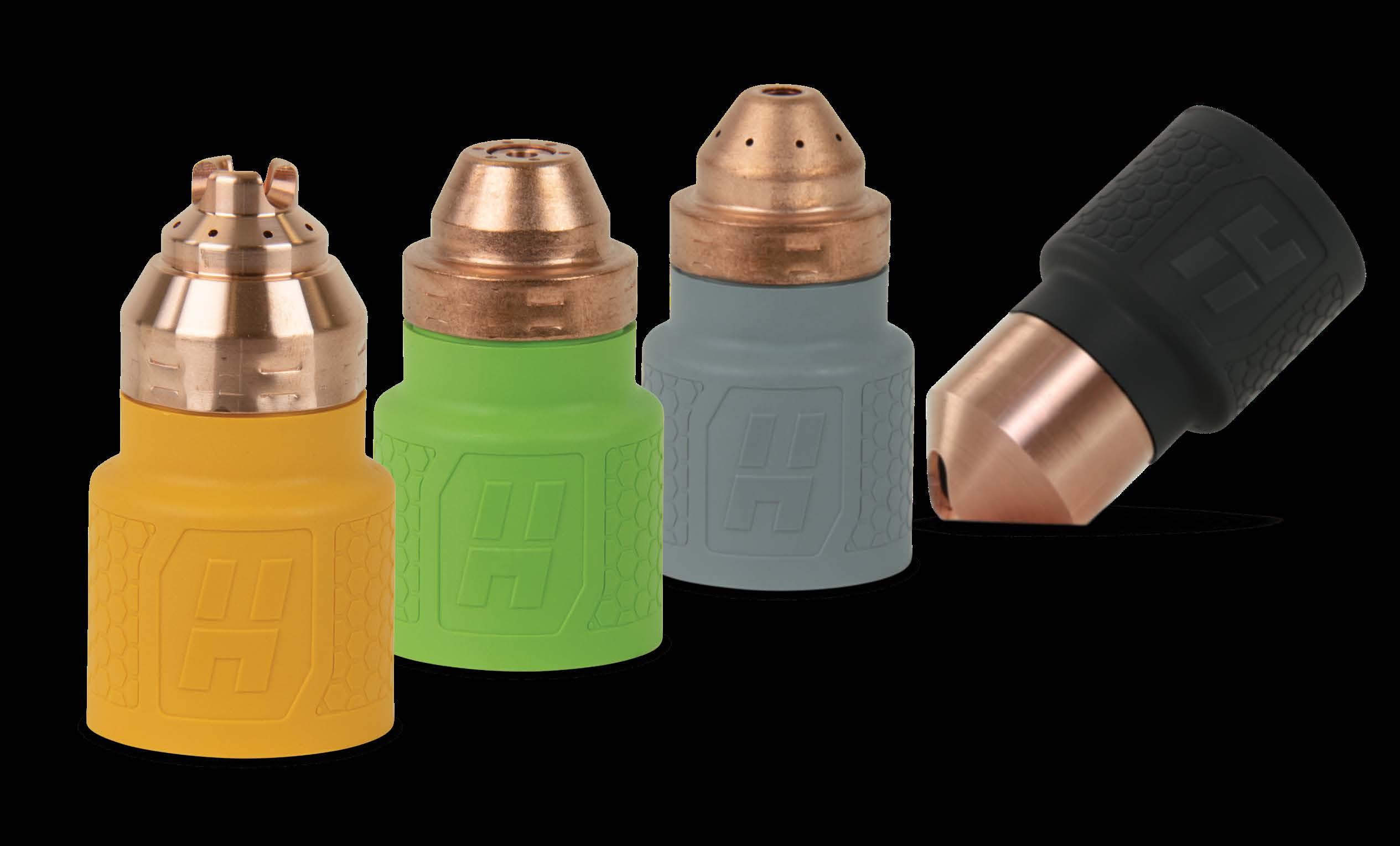

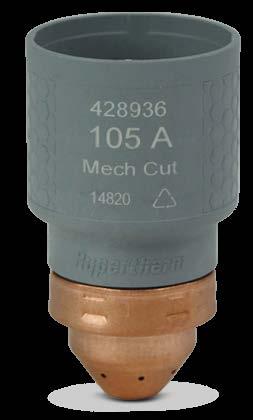

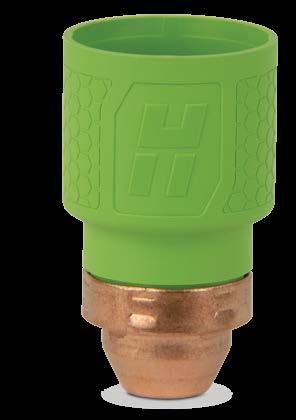

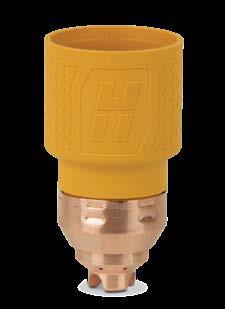

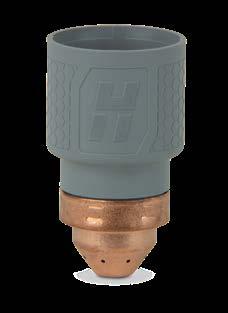

Cartridge
• Single-piece
• Color coded cartridges are easy to identify by process
• Simplifies consumable inventory management

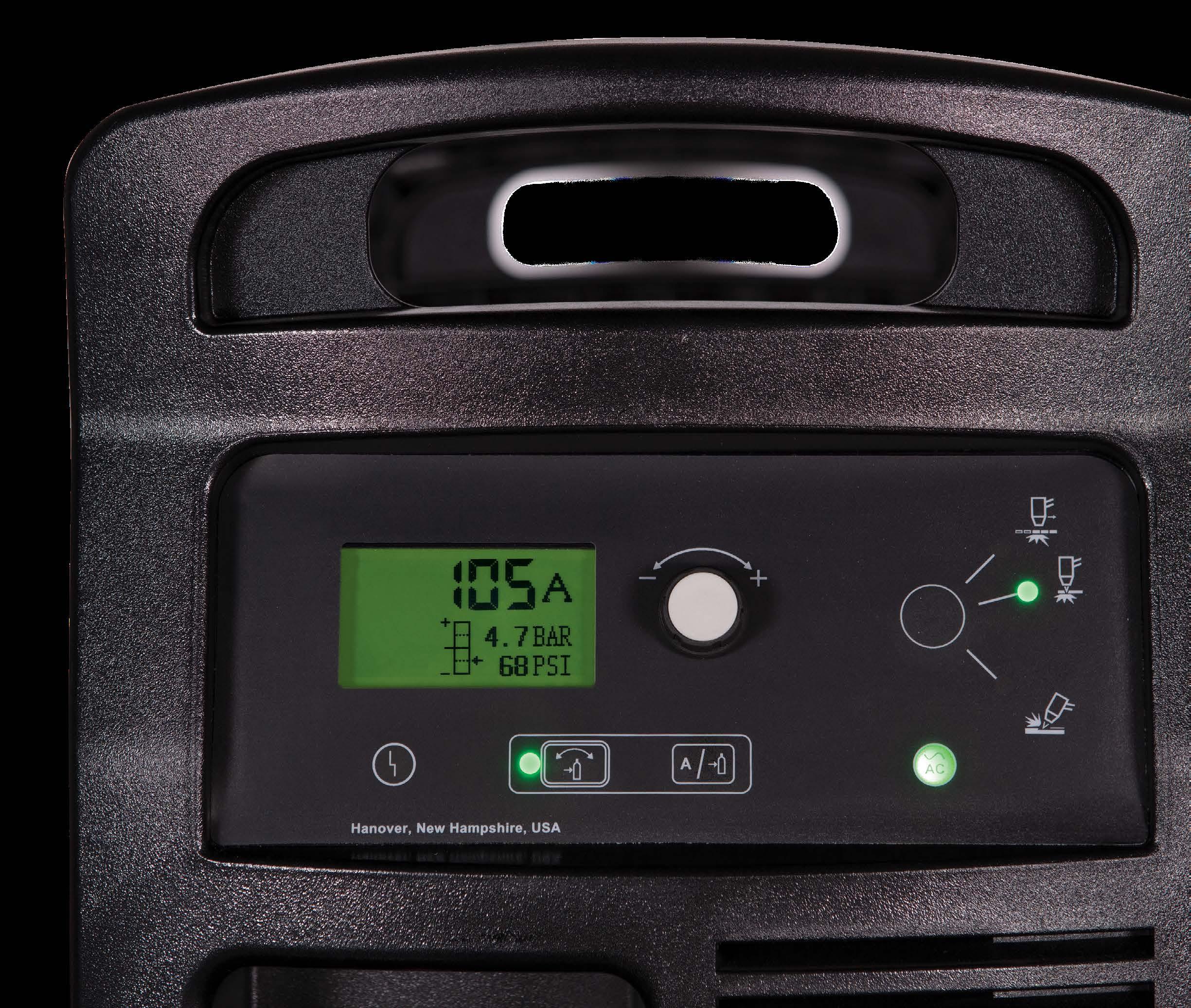

Automatic setup of power supply
• Automated process and amperage setting

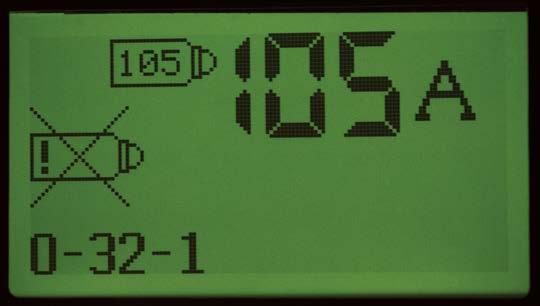

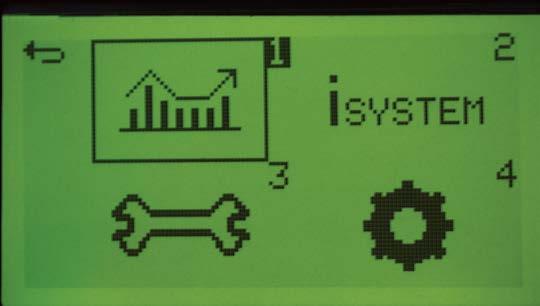

• Data display

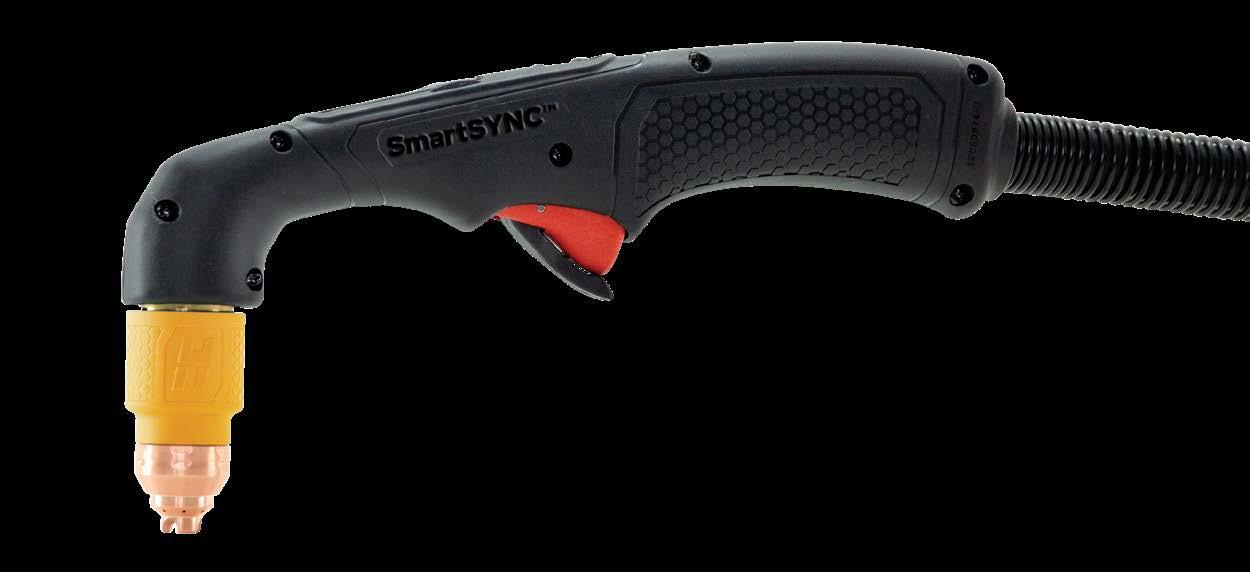

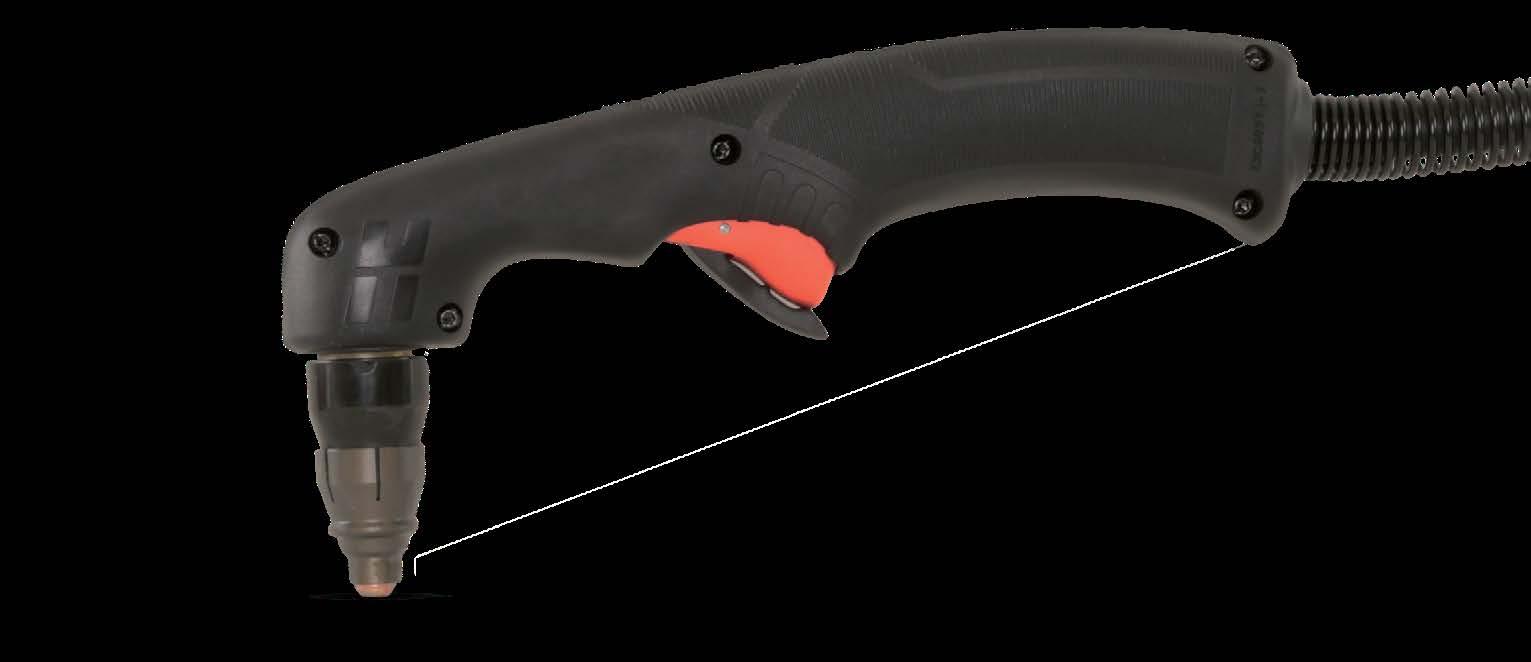

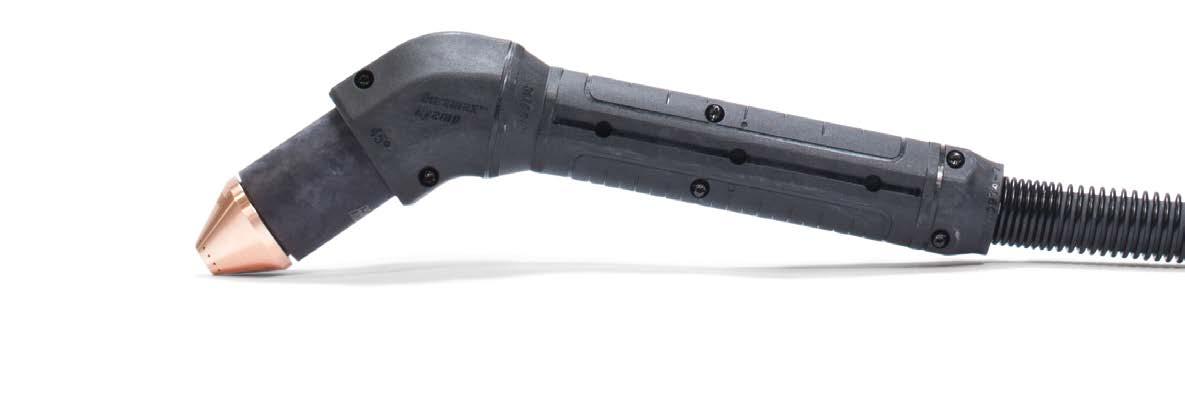

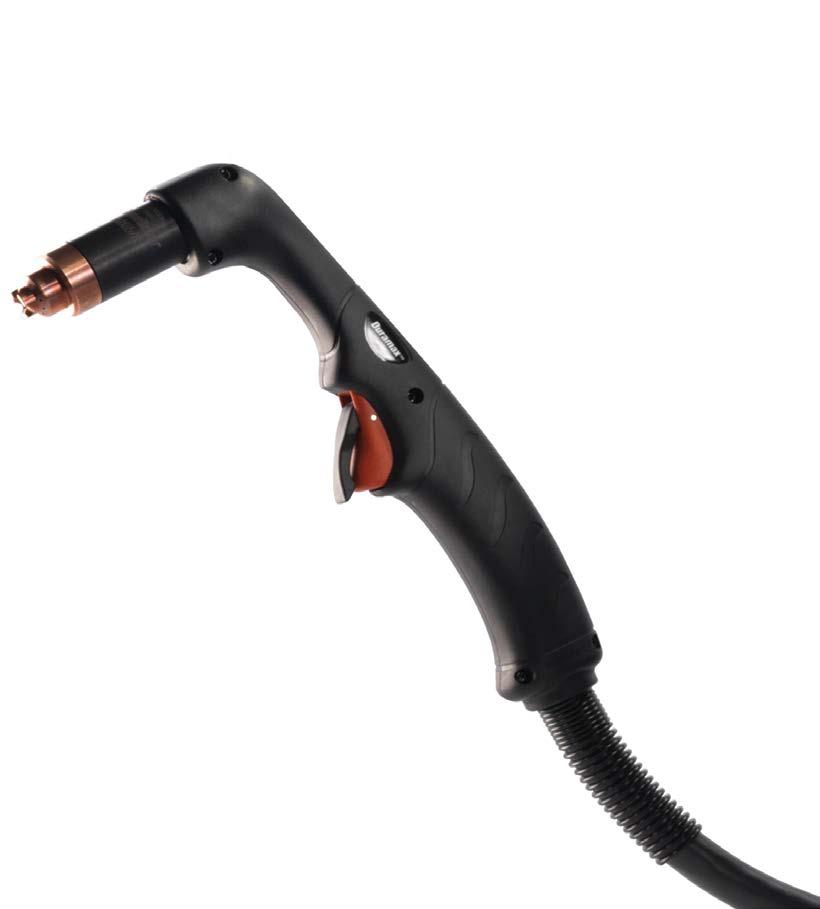

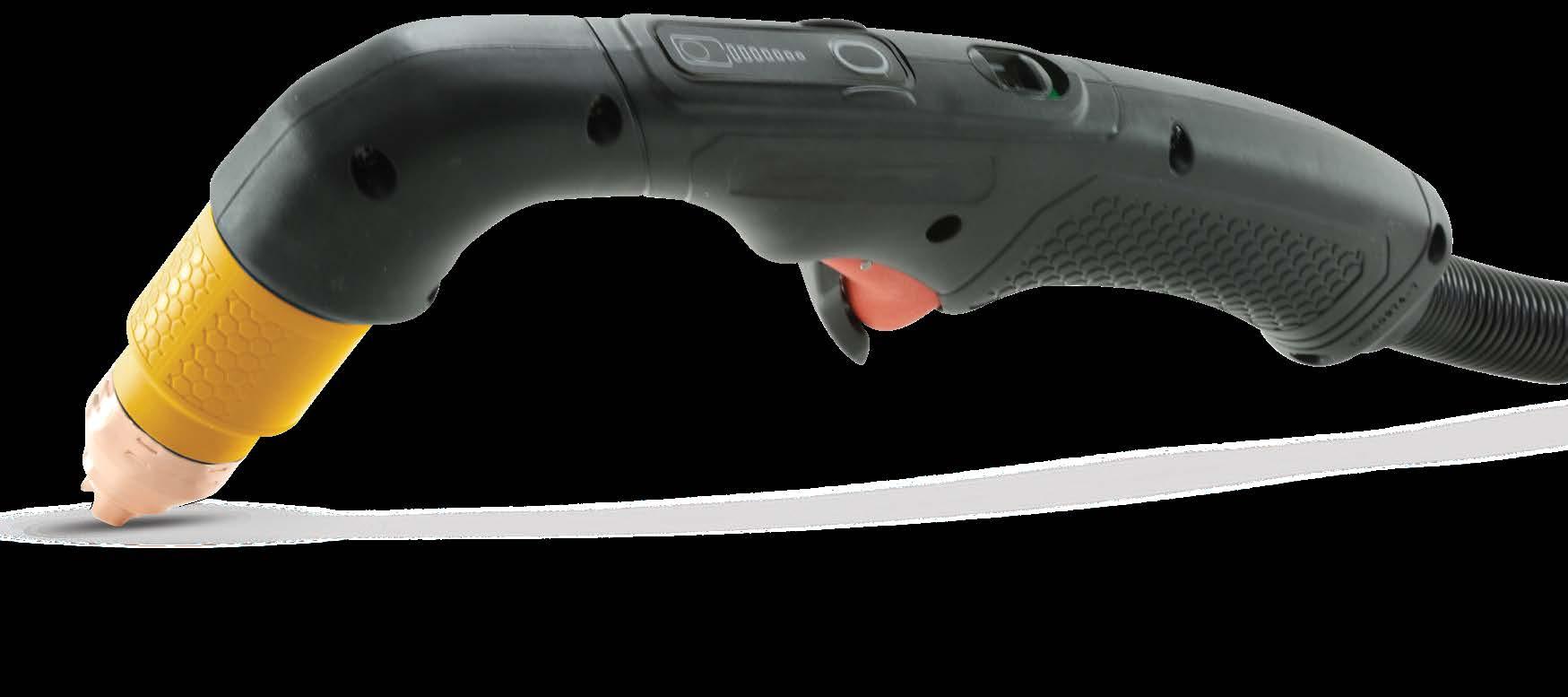

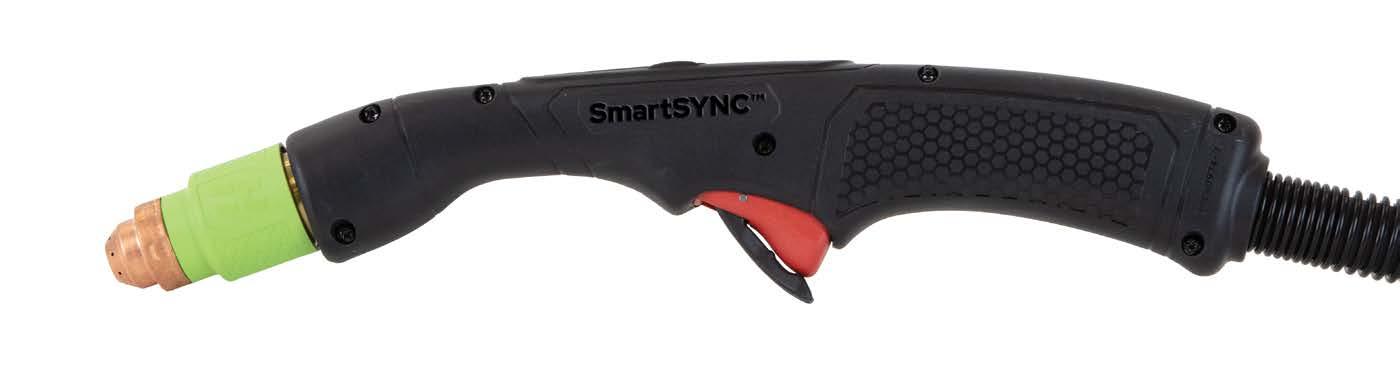

SmartSYNC® 75° hand torch parts

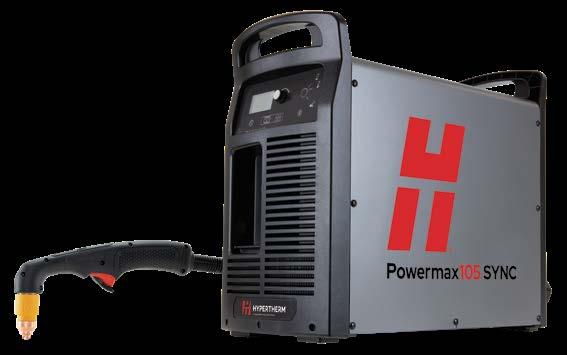

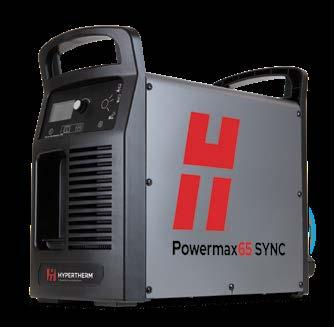

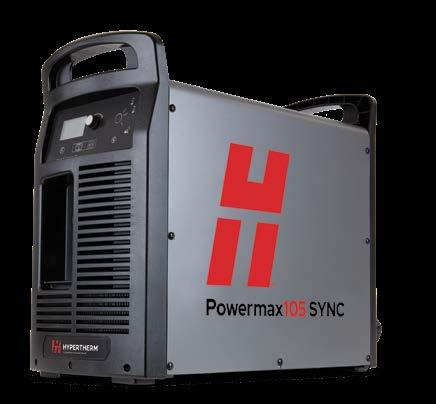

For use with the Powermax65 SYNC®/85 SYNC/105 SYNC
SmartSYNC 75° hand torch assembly
Item Kit/Part number
059726
Description
SmartSYNC 75° hand torch assembly with 7.6 m (25 foot) lead 059727
SmartSYNC 75° hand torch assembly with 15 m (50 foot) lead 059728
SmartSYNC 75° hand torch assembly with 23 m (75 foot) lead 059770
1 428856
2 428873
3 428871
4 428852
4 428853
4 428854
5 428863
6 428148
7 428958
8 428156
9 428182
10 428877
11 528066
12 428950
13 428858
14 428865
15 428869
SmartSYNC 75° hand torch assembly with 30 m (100 foot) lead
Kit: Handle for 75° hand torch, with 7 screws
Kit: Amperage-adjustment control
Kit: Torch-lock slider, with yellow and green label
Kit: Lead for hand torch, 7.6 m (25 foot)
Kit: Lead for hand torch, 15 m (50 foot)
Kit: Lead for hand torch, 23 m (75 foot)
Kit: Quick-disconnect shell, with button, lever, and 4 screws (does not include torch lead connector)
Kit: Screws for torch handle, 7 per kit
Kit: Start switch
Kit: Trigger, with spring, start switch, and 7 screws for torch handle
Kit: Spring for trigger, 5 per kit
Kit: Clip for RFID wires, 2 per kit
Kit: Torch contact ring, 2 per kit (for torch head)
Kit: O-ring, 5 per kit (for torch head)
Kit: Body for 75° hand torch, with terminal screw (1/4 inch), 7 screws for torch handle, silicone lubricant, and thread locker
Kit: Cap-sensor switch for 75° hand torch
Kit: Radio-frequency printed circuit board
SmartSYNC® 15° hand torch parts
SmartSYNC 15° hand torch assembly
1 428855
2 428873
3 428871
4 428852
4 428853
4 428854
5 428863
6 428148
7 428958
8 428156
9 428182
10 528066
15° hand torch assembly with 7.6 m (25 foot) lead
15° hand torch assembly with 15 m (50 foot) lead
15° hand torch assembly with 23 m (75 foot) lead
Kit: Handle for 15° hand torch, with 7 screws
Kit: Amperage-adjustment control
Kit: Torch-lock slider, with yellow and green label
Kit: Lead for hand torch, 7.6 m (25 foot)
Kit: Lead for hand torch, 15 m (50 foot)
Kit: Lead for hand torch, 23 m (75 foot)
Kit: Quick-disconnect shell, with button, lever, and 4 screws (does not include torch lead or connector)
Kit: Screws for torch handle, 7 per kit
Kit: Start switch
Kit: Trigger, with spring, start switch, and 7 screws for torch handle
Kit: Body for 15° hand torch, with terminal screw (1/4 inch), 7 screws for torch handle, silicone lubricant, and thread locker
Kit: Clip for RFID wires, 2 per kit
Kit: Radio-frequency printed circuit board

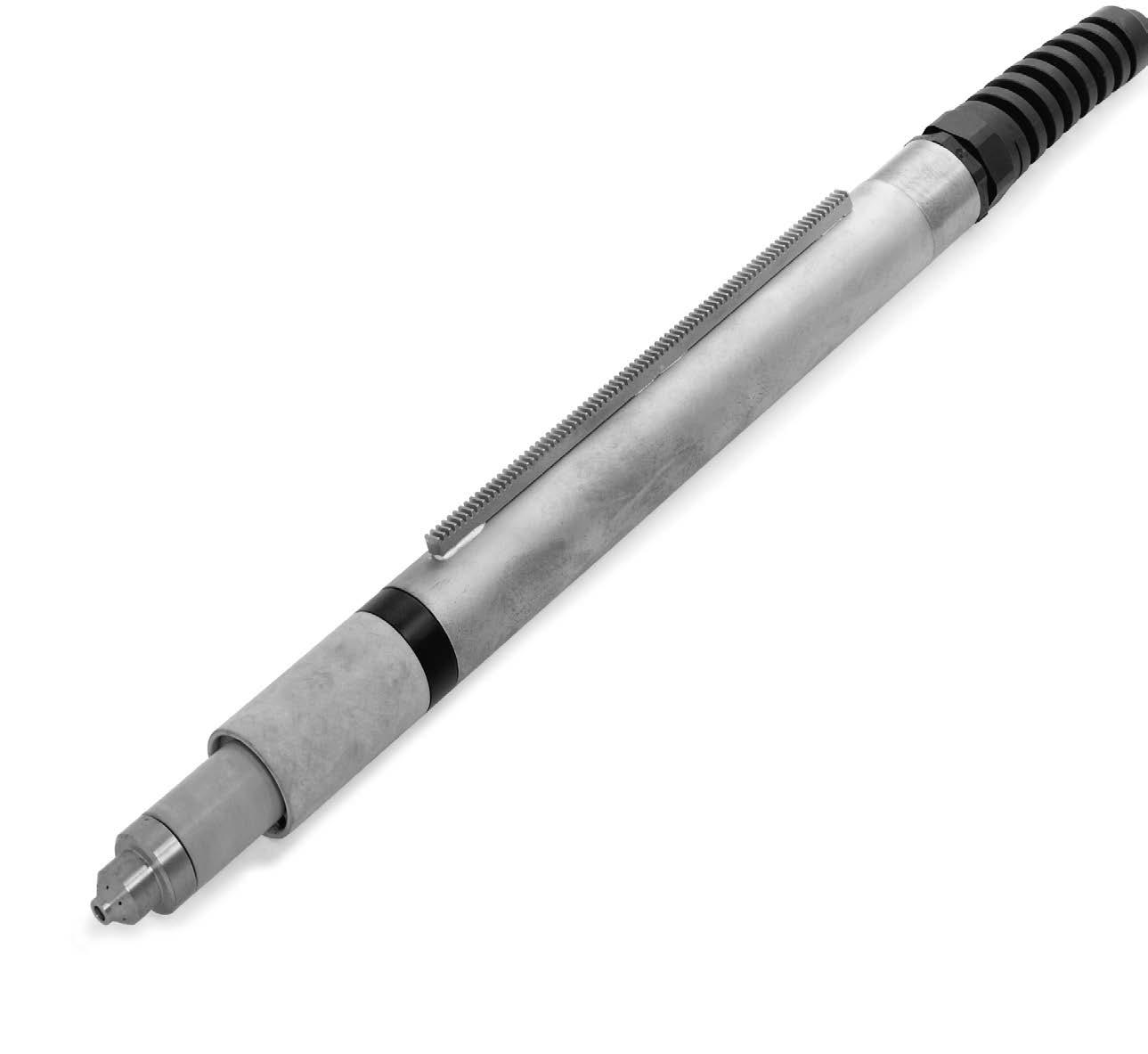

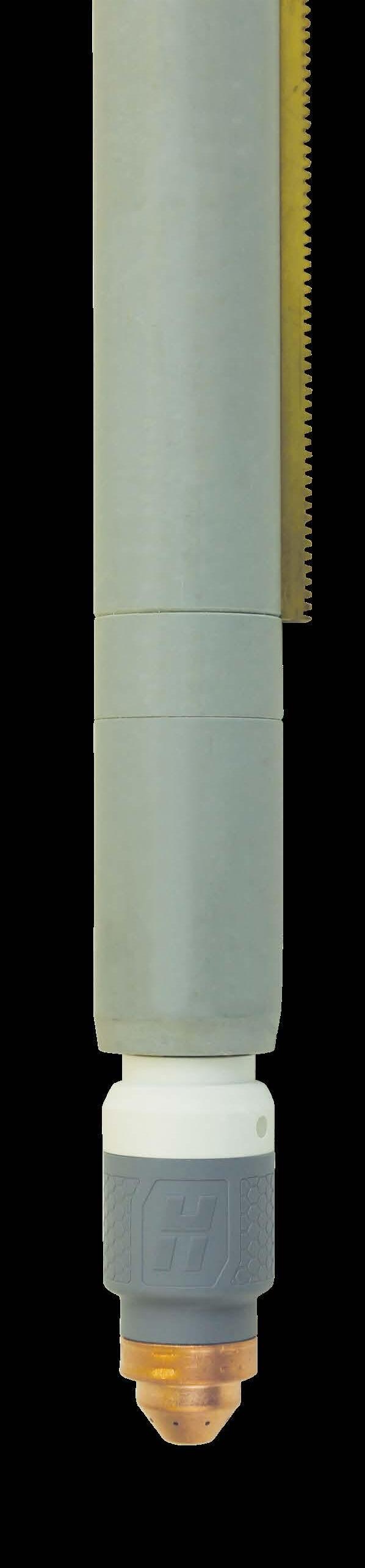

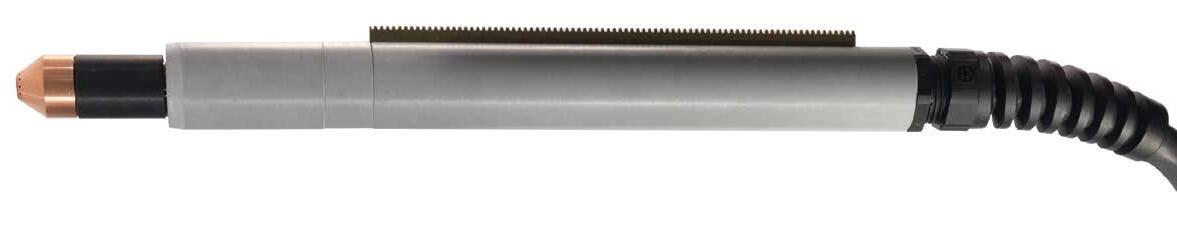

SmartSYNC® 180° machine torch parts
For use with the Powermax65 SYNC®/85 SYNC/105 SYNC
SmartSYNC 180° machine torch assembly
Item Kit/Part number
Description 059719
SmartSYNC full-length machine torch assembly with 7.6 m (25 foot) lead 059720
059721
059722
1 428874
SmartSYNC full-length machine torch assembly with 10.7 m (35 foot) lead
SmartSYNC full-length machine torch assembly with 15 m (50 foot) lead
SmartSYNC full-length machine torch assembly with 23 m (75 foot) lead
Kit: Shell for full-length machine torch
2 428703 Kit: Gear rack for full-length machine torch
3 428872
4 428847
4 428848
4 428849
4 428850
Kit: Torch-lock slider for full-length machine torch, with yellow and green label
Kit: Lead for full-length machine torch, 4.6 m (15 foot)
Kit: Lead for full-length machine torch, 7.6 m (25 foot)
Kit: Lead for full-length machine torch, 10.7 m (35 foot)
Kit: Lead for full-length machine torch, 15 m (50 foot)
4 428851 Kit: Lead for full-length machine torch, 23 m (75 foot)
5 428863
6 428148
7 428877
8 528066
9 428950
10 428859
11 428866
12 428870
13 428868
Kit: Quick-disconnect shell, with button, lever, and 4 screws (does not include torch lead or connector)
Kit: Screws for torch shell, 7 per kit
Kit: Clip for RFID wires, 2 per kit
Kit: Torch contact ring, 2 per kit (for torch head)
Kit: O-ring, 5 per kit (for torch head)
Kit: Body for full-length machine torch, with terminal screw (1/4 inch), 7 screws for torch handle, and silicone lubricant
Kit: Cap-sensor switch for full-length machine torch
Kit: Radio-frequency printed circuit board
Kit: Switch assembly for torch-lock slider for full-length machine torch
SmartSYNC® 180° mini machine parts

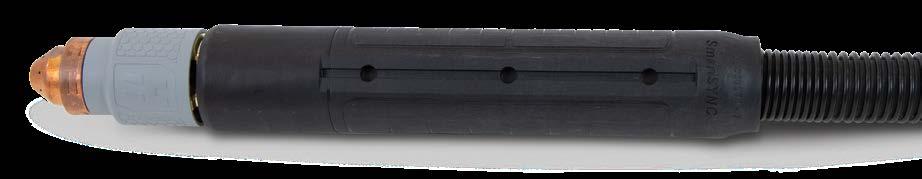

SmartSYNC 180° mini torch assembly
SmartSYNC mini machine torch assembly with 4.6 m (15 foot) lead
SmartSYNC mini machine torch assembly with 7.6 m (25 foot) lead 059735 SmartSYNC Mini machine torch assembly with 15 m (50 foot) lead
1 428896
2 528066
3 428950
4 428860
5 428867
6 428870
7 428901
7 428900
7 428902
7 428903
7 428904
8 428863
9 428148
10 428877
11 428899
Kit: Shell for mini machine torch
Kit: Torch contact ring, 2 per kit (for torch head)
Kit: O-ring, 5 per kit (for torch head)
Kit: Body for mini machine torch, with terminal screw (1/4 inch), 7 screws for torch handle, and silicone lubricant
Kit: Cap-sensor switch for mini machine torch
Kit: Radio-frequency printed circuit board
Kit: Mini machine torch lead, 4.6 m (15 foot)
Kit: Mini machine torch lead, 7.6 m (25 foot)
Kit: Mini machine torch lead,10.7 m (35 foot)
Kit: Mini machine torch lead,15 m (50 foot)
Kit: Mini machine torch lead, 23 m (75 foot)
Kit: Quick-disconnect shell, with button, lever, and 4 screws (does not include torch lead or connector)
Kit: Screws for torch shell, 7 per kit
Kit: Clip for RFID wires, 2 per kit
Kit: Jumper wire for mini machine torch board
SmartSYNC® 45° robotic torch parts

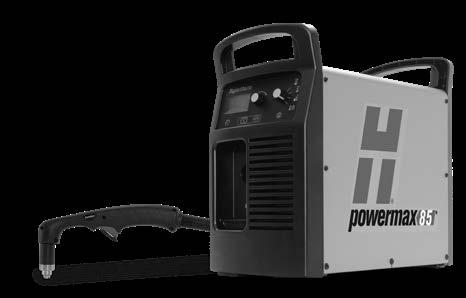

For use with the Powermax65 SYNC®/85 SYNC/105 SYNC

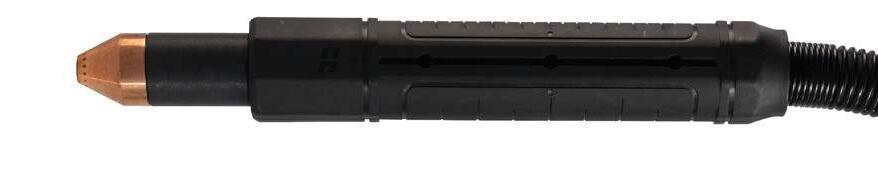

SmartSYNC 180° machine torch assembly
Item Kit/Part number
059719
059720
059721
059722
1 428874
Description

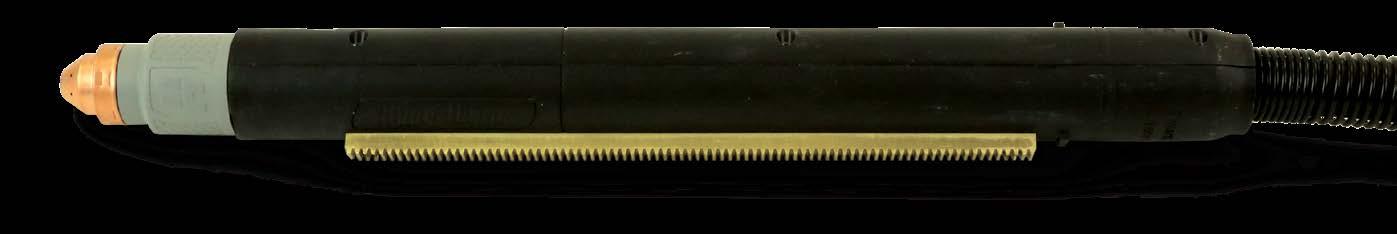

SmartSYNC full-length machine torch assembly with 7.6 m (25 foot) lead
SmartSYNC full-length machine torch assembly with 10.7 m (35 foot) lead
SmartSYNC full-length machine torch assembly with 15 m (50 foot) lead
SmartSYNC full-length machine torch assembly with 23 m (75 foot) lead
Kit: Shell for full-length machine torch
2 428703 Kit: Gear rack for full-length machine torch
3 428872
4 428847
4 428848
4 428849
4 428850
4 428851
5 428863
6 428148
7 428877
8 528066
9 428950
10 428859
11 428866
12 428870
13 428868
Kit: Torch-lock slider for full-length machine torch, with yellow and green label
Kit: Lead for full-length machine torch, 4.6 m (15 foot)
Kit: Lead for full-length machine torch, 7.6 m (25 foot)
Kit: Lead for full-length machine torch, 10.7 m (35 foot)
Kit: Lead for full-length machine torch, 15 m (50 foot)
Kit: Lead for full-length machine torch, 23 m (75 foot)
Kit: Quick-disconnect shell, with button, lever, and 4 screws (does not include torch lead or connector)
Kit: Screws for torch shell, 7 per kit
Kit: Clip for RFID wires, 2 per kit
Kit: Torch contact ring, 2 per kit (for torch head)
Kit: O-ring, 5 per kit (for torch head)
Kit: Body for full-length machine torch, with terminal screw (1/4 inch), 7 screws for torch handle, and silicone lubricant
Kit: Cap-sensor switch for full-length machine torch
Kit: Radio-frequency printed circuit board
Kit: Switch assembly for torch-lock slider for full-length machine torch
SmartSYNC® 90° robotic torch parts
For use with the Powermax65 SYNC®/85 SYNC/105 SYNC
SmartSYNC 180° mini torch assembly Item Kit/Part number
SmartSYNC mini machine torch assembly with 4.6 m (15 foot) lead 059734 SmartSYNC mini machine torch assembly with 7.6 m (25 foot) lead 059735 SmartSYNC Mini machine torch assembly with 15 m (50 foot) lead
1 428896
2 528066
3 428950
4 428860
5 428867
6 428870
7 428901
7 428900
7 428902
7 428903
7 428904
8 428863
9 428148
10 428877
11 428899
Kit: Shell for mini machine torch
Kit: Torch contact ring, 2 per kit (for torch head)
Kit: O-ring, 5 per kit (for torch head)
Kit: Body for mini machine torch, with terminal screw (1/4 inch), 7 screws for torch handle, and silicone lubricant
Kit: Cap-sensor switch for mini machine torch
Kit: Radio-frequency printed circuit board
Kit: Mini machine torch lead, 4.6 m (15 foot)
Kit: Mini machine torch lead, 7.6 m (25 foot)
Kit: Mini machine torch lead,10.7 m (35 foot)
Kit: Mini machine torch lead,15 m (50 foot)
Kit: Mini machine torch lead, 23 m (75 foot)
Kit: Quick-disconnect shell, with button, lever, and 4 screws (does not include torch lead or connector)
Kit: Screws for torch shell, 7 per kit
Kit: Clip for RFID wires, 2 per kit
Kit: Jumper wire for mini machine torch board

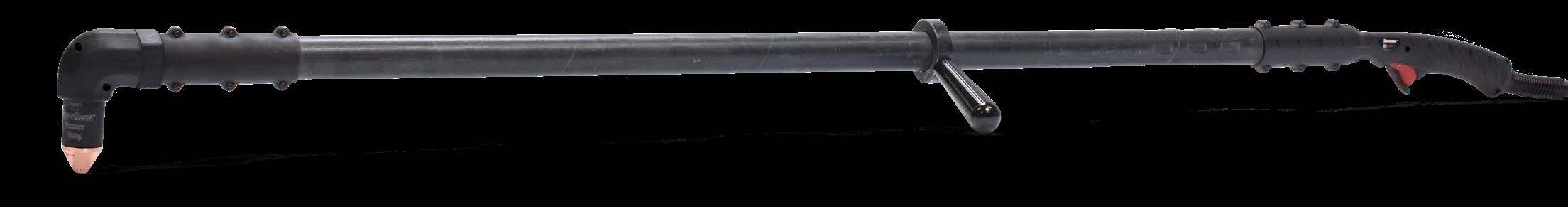

SmartSYNC® long hand torch replacement parts
For use with the Powermax65 SYNC®/85 SYNC/105 SYNC
SmartSYNC 45° long hand torch assembly – external parts
Item Kit/Part number
528114
Description
SmartSYNC 45° long torch with 1.2 m (4’) extension and 7.6m (25') lead 528116
SmartSYNC 45° long torch with 0.6 m (2’) extension and 15.2m (50') lead 528118
428852
428853
528091
SmartSYNC 45° long torch with 1.2 m (4’) extension and 15.2m (50') lead
Kit: Lead for hand torch, 7.6m (25’)
Kit: Lead for hand torch, 15.2 (50’)
Kit: SmartSYNC long torch main body replacement – 0.6 m (2’), 45° 528093
1 528085
2 528086
3 528088
3 528089
4 528100
5 428287
6 428863
7 428595
8 428156
9 428182
10 528066
11 428950
Kit: SmartSYNC long torch main body replacement – 1.2 m (4’), 45°
Kit: SmartSYNC long torch handle replacement
Kit: SmartSYNC long torch 45⁰ front replacement
Kit: SmartSYNC long torch extension tube – 0.6 m (2’)
Kit: SmartSYNC long torch extension tube – 1.2 m (4’)
Kit: SmartSYNC long torch auxiliary handle replacement
Kit: Screws for long torch, 17 per kit
Kit: Quick-disconnect shell, with button, level, and 4 screws (does not include torch lead connector)
Kit: Hand torch disable slide switch
Kit: Trigger, with spring, start switch, and 7 screws for torch handle
Kit: Spring for trigger, 5 per kit
Kit: Torch contact ring, 2 per kit (for torch head)
Kit: O-ring, 5 per kit (for torch head)
SmartSYNC® long hand torch replacement parts
For use with the Powermax65 SYNC®/85 SYNC/105 SYNC
SmartSYNC 45° long hand torch assembly – internal parts
Item Kit/Part number
1 528097
1 528098
2 428958
3 528066
4 428950
5 428870
6 428864
SmartSYNC 45° long torch with 1.2 m (4’) extension and 7.6m (25') lead
SmartSYNC 45° long torch with 0.6 m (2’) extension and 15.2m (50') lead
SmartSYNC 45° long torch with 1.2 m (4’) extension and 15.2m (50') lead
Kit: Lead for hand torch, 7.6m (25’)
Kit: Lead for hand torch, 15.2 (50’)
Kit: SmartSYNC long torch wire replacement – 0.6 m (2’)
Kit: SmartSYNC long torch wire replacement – 1.2 m (4’)
Kit: Start Switch
Kit: Torch contact ring, 2 per kit (for torch head)
Kit: O-ring, 5 per kit (for torch head)
Kit: Radio-frequency printed circuit board
Kit: SmartSYNC cap sensor for 15⁰ and 45⁰ torches
SmartSYNC® long hand torch replacement parts
SmartSYNC 90° long hand torch assembly – external parts
1 528085
2 528087
3
3
4 528100 Kit: SmartSYNC long torch auxiliary handle replacement
5 428287
6 428863
7 428595
8 428156
9 428182
10 528066
11 428950
Kit: Screws for long torch, 17 per kit
Kit: Quick-disconnect shell, with button, level, and 4 screws (does not include torch lead connector)
Kit: Hand torch disable slide switch
Kit: Trigger, with spring, start switch, and 7 screws for torch handle
Kit: Spring for trigger, 5 per kit
Kit: Torch contact ring, 2 per kit (for torch head)
Kit: O-ring, 5 per kit (for torch head)
SmartSYNC® long hand torch replacement parts
SmartSYNC 90° long hand torch assembly – internal parts
Item Kit/Part number
Description 528117
SmartSYNC 90° long torch with 0.6 m (2’) extension and 15.2m (50') lead 528119
1 528097
1 528098
2 428958
3 528066
4 428950
5 428870
6 428866
SmartSYNC 90° long torch with 1.2 m (4’) extension and 15.2m (50') lead
Kit: SmartSYNC long torch wire replacement – 0.6 m (2’)
Kit: SmartSYNC long torch wire replacement – 1.2 m (4’)
Kit: Start Switch
Kit: Torch contact ring, 2 per kit (for torch head)
Kit: O-ring, 5 per kit (for torch head)
Kit: Radio-frequency printed circuit board
Kit: SmartSYNC cap sensor 90⁰ and mechanized torches

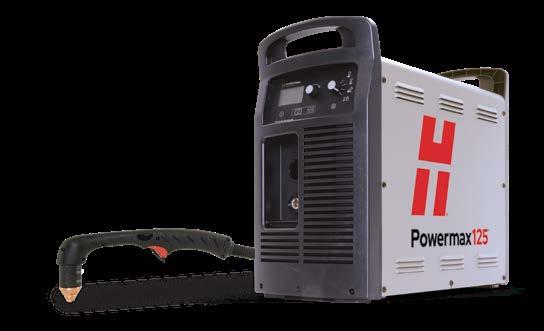

Powermax125®

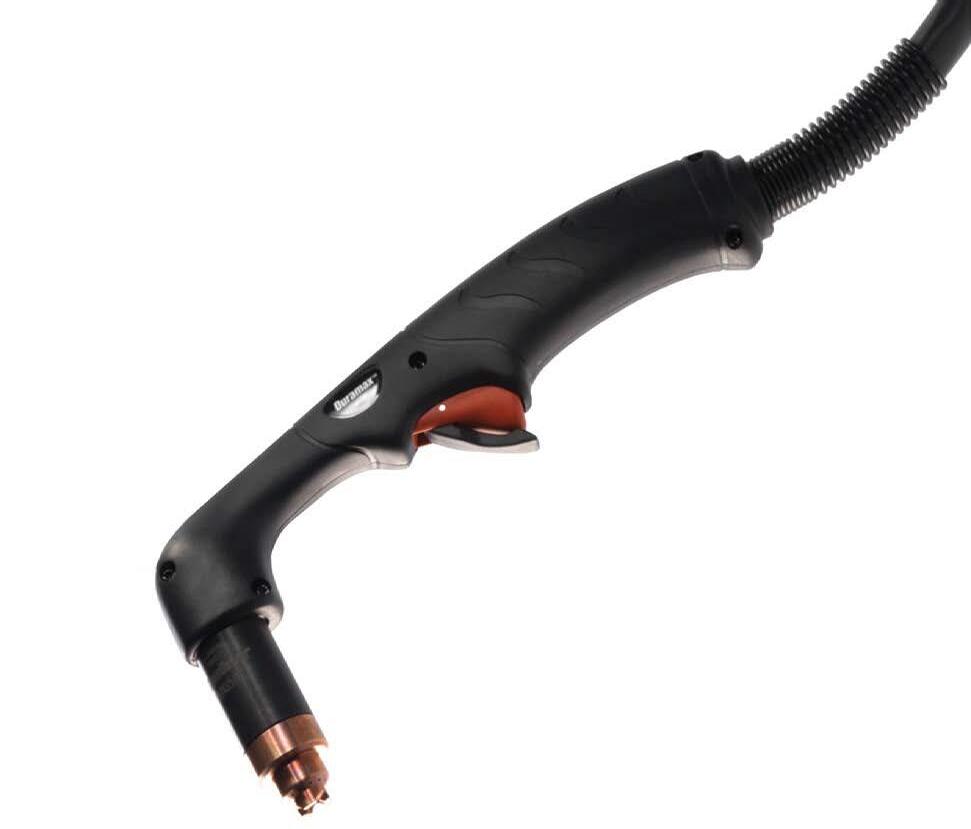

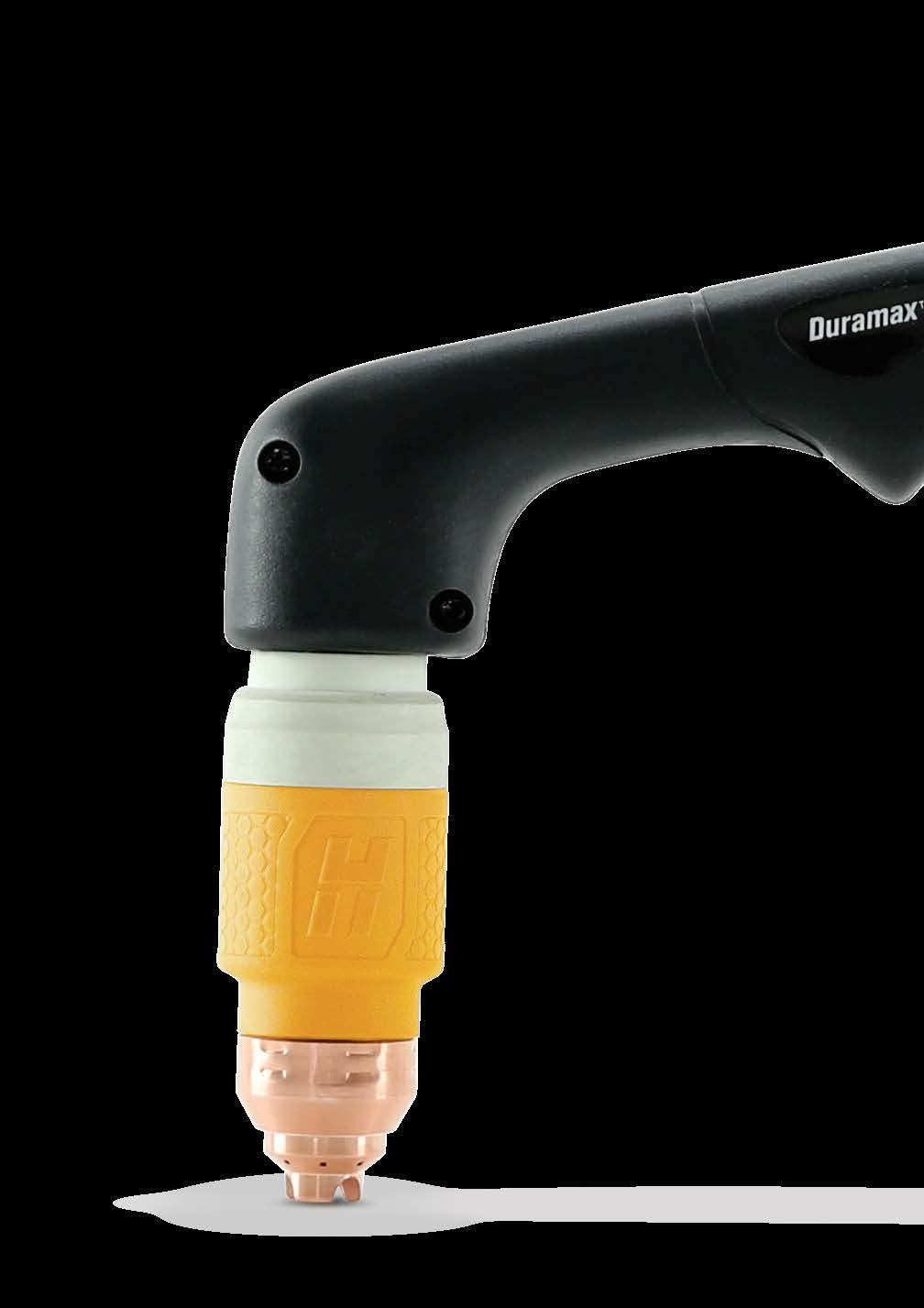

Duramax® Hyamp™ 85° hand torch parts
Duramax Hyamp 85° hand torch parts
The entire hand torch and lead assembly can be replaced, or individual component parts can be replaced. Use the following part numbers to replace the entire Duramax Hyamp 85° hand torch assembly. Part numbers starting with 059 indicate complete torch and lead assemblies. Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
Item
0594921
0594931
0594941
0596652
1 228719
2 075696
3 428158
4 428253
5 428156
6 428162
7 428148
8 428159
8 428160
8 428161
8 428762
9 428155
Description
Duramax Hyamp 85° hand torch assembly with 7.6 m (25') lead
Duramax Hyamp 85° hand torch assembly with 15 m (50') lead
Duramax Hyamp 85° hand torch assembly with 23 m (75') lead
Duramax Hyamp 85° hand torch assembly with 45.7 m (150') lead
Kit: Duramax and Duramax Hyamp hand torch cap-sensor switch
1The torch assembly does not include consumables. 2This torch is only compatible with Powermax125s built after November 14, 2017 (serial number 125-007944 or higher) or that have had the DSP board replaced with a board built after this date.
Duramax® Hyamp™ 15° hand torch parts
For use with the Powermax125®
Duramax Hyamp 15° hand torch parts
The entire hand torch and lead assembly can be replaced, or individual component parts can be replaced. Use the following part numbers to replace the entire Duramax Hyamp 85° hand torch assembly. Part numbers starting with 059 indicate complete torch and lead assemblies. Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
Item
0594951
0594961
0594971
0596642
1 228719
2 075696
3 428157
4 428253
5 428156
6 428162
7 428148
8 428159
8 428160
8 428161
8 428762
9 428154
428260
1The torch assembly does not include consumables.
Duramax Hyamp 15° hand torch assembly with 7.6 m (25') lead
Duramax Hyamp 15° hand torch assembly with 15 m (50') lead
Duramax Hyamp 15° hand torch assembly with 23 m (75') lead
Duramax Hyamp 15° hand torch assembly with 45.7 m (150') lead
Kit: Duramax and Duramax Hyamp hand torch cap-sensor switch
2This torch is only compatible with Powermax125s built after November 14, 2017 (serial number 125-007944 or higher) or that have had the DSP board replaced with a board built after this date.
Duramax® Hyamp™ 180° full-length machine torch parts
The entire machine torch and lead assembly can be replaced, or individual component parts can be replaced. Use the following part numbers to replace the entire Duramax Hyamp 180° full-length machine torch assembly. Part numbers starting with 059 indicate complete torch and lead assemblies. The standard OD on Duramax Hyamp torches is 45 mm (1.75"). Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
Item Kit/Part number
0595191
0595201
0595211
0595221
0595231
1 428248
2 428144
3 428145
4 428253
5 075696
6 228720
7 428147
8 428149
8 428150
8 428151
8 428152
8 428153
Description
Duramax Hyamp 180° full-length machine torch assembly with 4.6 m (15') lead
Duramax Hyamp 180° full-length machine torch assembly with 7.6 m (25') lead
Duramax Hyamp 180° full-length machine torch assembly with 10.7 m (35') lead
Duramax Hyamp 180° full-length machine torch assembly with 15 m (50') lead
Duramax Hyamp 180° full-length machine torch assembly with 23 m (75') lead
The entire machine torch and lead assembly can be replaced, or individual component parts can be replaced. Use the following part numbers to replace the entire Duramax Hyamp 180° mini machine torch assembly. Part numbers starting with 059 indicate complete torch and lead assemblies. Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
0595141
Duramax Hyamp 180° mini machine torch assembly with 4.6 m (15') lead 0595151
0595161
Duramax Hyamp 180° mini machine torch assembly with 7.6 m (25') lead
Duramax Hyamp 180° mini machine torch assembly with 10.7 m (35') lead 0595171
0596662
1 428248
2 428146
3 428145
4 428253
Duramax Hyamp 180° mini machine torch assembly with 15 m (50') lead
Duramax Hyamp 180° mini machine torch assembly with 45.7 m (150') lead
Kit: Duramax Hyamp 180° machine torch coupler
Kit: Duramax Hyamp 180° mini machine torch adapter ring
2This torch is only compatible with Powermax125s built after November 14, 2017 (serial number 125-007944 or higher) or that have had the DSP board replaced with a board built after this date.
Duramax® Hyamp™ 180° robotic torch parts
For use with the Powermax125®
Duramax Hyamp 180° robotic torch assembly
The entire Duramax Hyamp 180° robotic torch assembly with leads can be replaced, or individual component parts can be replaced. Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
Item
Duramax Hyamp 180° robotic torch assembly with leads, 7.6 m (25')
The entire Duramax Hyamp 90° robotic torch assembly with leads can be replaced, or individual component parts can be replaced. Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
Hyamp 90° robotic torch assembly with leads, 7.6 m (25')
2 428297 Kit: Duramax Hyamp 90° robotic torch main body
3 428253 Kit: Duramax Hyamp o-ring (5)
4 075714 Positioning barrel screws
5 428260 Kit: FastConnect
6
7
Duramax® Hyamp™ 45° robotic torch parts
For use with the Powermax125®
Duramax Hyamp 45° robotic torch assembly
The entire Duramax Hyamp 45° robotic torch assembly with leads can be replaced, or individual component parts can be replaced. Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
Item
059564 Duramax Hyamp 45° robotic torch assembly with leads, 7.6 m (25')
Duramax® Hyamp™ 45° Long hand torch replacement parts
For use with the Powermax125®

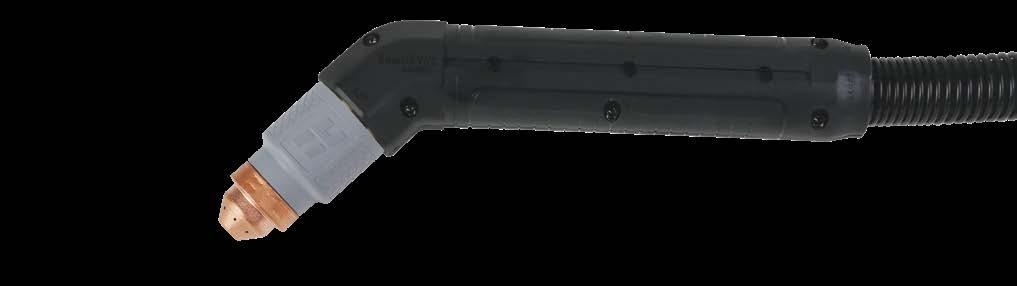

Duramax Hyamp 45° Long hand torch assembly – external components
The entire Duramax Hyamp 45° Long hand torch assembly with leads can be replaced, or individual component parts can be replaced. Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
Item Kit/Part number
059562
059579
059567
059581
059667
059758
059759
1 428278
2 428280
2 428281
2 428822
2 059587
2 428820
3 428286
4 428287
5 428156
6 428277
7 428260
Description
Duramax Hyamp 45° long handheld torch assembly with 0.6 m (2') extension and 7.6 m (25') lead
Duramax Hyamp 45° long handheld torch assembly with 0.6 m (2') extension and 15 m (50') lead
Duramax Hyamp 45° long handheld torch assembly with 1.2 m (4') extension and 7.6 m (25') lead
Duramax Hyamp 45° long handheld torch assembly with 1.2 m (4') extension and 15 m (50') lead
Duramax Hyamp 45° long handheld torch assembly with 1.2 m (4') extension and 45.7 m (150') lead
Duramax Hyamp long handheld torch, 45°, 1.8 m (6') extension, 7.6m (25') lead
Duramax Hyamp long handheld torch, 45°, 1.8 m (6') extension, 7.6m (50') lead
Kit: Duramax Hyamp 45° long handheld torch front shell
Kit: Duramax Hyamp long handheld torch extension tube, 0.6 m (2')
Kit: Duramax Hyamp long handheld torch extension tube, 1.2 m (4')
Kit: Duramax Hyamp long handheld torch cap-sensor switch, 1.8 m (6')
Kit: Duramax Hyamp long handheld torch extension tube, 1.8 m (6')
Duramax Hyamp long handheld torch extension tube, 1.8 m (6')
Kit: Duramax Hyamp long handheld torch auxiliary handle (with screws)
Kit: Duramax Hyamp torch handle screws
Kit: Duramax Hyamp hand torch trigger (with spring)
Kit: Duramax Hyamp long handheld torch handle
Kit: Duramax and Duramax Hyamp torch FastConnect
Duramax® Hyamp™ 45° Long hand torch replacement parts (continued)
For use with the Powermax125®
Duramax® Hyamp™ 45° Long hand torch assembly – internal components
Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
Item Kit/Part number Description
1 428288 Kit: Duramax Hyamp long handheld torch cap-sensor switch, 0.6 m (2')
1 428289 Kit: Duramax Hyamp long handheld torch cap-sensor switch, 1.2 m (4')
2 428282 Kit: Duramax Hyamp 45° long handheld torch body (torch head plus gas tube), 0.6 m (2') – includes pilot arc wire, cap-sensor switch, and foam strips
2 428284 Kit: Duramax Hyamp 45° long handheld torch body (torch head plus gas tube), 1.2 m (4') – includes pilot arc wire, cap-sensor switch, and foam strips
2 428822 Kit: Duramax Hyamp long handheld torch cap-sensor switch, 1.8 m (6')
3 428253 Kit: Duramax Hyamp O-ring (5)
4 428290 Kit: Duramax Hyamp long handheld torch pilot arc wire (with screws), 0.6 m (2')
4 428291 Kit: Duramax Hyamp long handheld torch pilot arc wire (with screws), 1.2 m (4')
5 428162 Kit: Duramax Hyamp hand torch start switch
6 428159 Kit: Duramax and Duramax Hyamp hand torch lead, 7.6 m (25')
6 428160 Kit: Duramax and Duramax Hyamp hand torch lead, 15 m (50')
6 428762 Kit: Duramax Hyamp hand torch lead, 45.7 m (150')
The 0.6 m (2') torch body contains 1 foam strip around the middle; the 1.2 m (4') torch body contains 2 foam strips around the middle.
Duramax® Hyamp™ 90° Long hand torch replacement parts
For use with the Powermax125®
Duramax Hyamp 90° Long hand torch assembly – external components
The entire Duramax Hyamp 90° Long hand torch assembly with leads can be replaced, or individual component parts can be replaced. Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
059563
059580
059568
059582
059668
059623
059624
1 428279
2 428280
2 428281
2 428820
3 428286
4 428287
5 428156
6 428277
7 428260
Duramax Hyamp 90° long handheld torch assembly with 0.6 m (2') extension and 7.6 m (25') lead
Duramax Hyamp 90° long handheld torch assembly with 0.6 m (2') extension and 15 m (50') lead
Duramax Hyamp 90° long handheld torch assembly with 1.2 m (4') extension and 7.6 m (25') lead
Duramax Hyamp 90° long handheld torch assembly with 1.2 m (4') extension and 15 m (50') lead
Duramax Hyamp 90° long handheld torch assembly with 1.2 m (4') extension and 45.7 m (150') lead
Duramax Hyamp 90° long handheld torch assembly with 1.8 m (6') extension and 7.5 m (25') lead
Duramax Hyamp 90° long handheld torch assembly with 1.8 m (6') extension and 15 m (50') lead
Kit: Duramax Hyamp 90° long handheld torch front shell
Kit: Duramax Hyamp long handheld torch extension tube, 0.6 m (2')
Kit: Duramax Hyamp long handheld torch extension tube, 1.2 m (4')
Duramax Hyamp long handheld torch extension tube, 1.8 m (6')
Kit: Duramax Hyamp long handheld torch auxiliary handle (with screws)
Kit: Duramax Hyamp torch handle screws
Kit: Duramax Hyamp hand torch trigger (with spring)
Kit: Duramax Hyamp long handheld torch handle
Kit: Duramax and Duramax Hyamp torch FastConnect
Duramax® Hyamp™ 90° Long hand torch replacement parts (continued)
For use with the Powermax125®
Duramax® Hyamp™ 90° Long hand torch assembly – internal components
Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
1 428288
1
2 428283 Kit: Duramax Hyamp 90° long handheld torch body (torch head plus gas tube), 0.6 m (2 feet) – includes pilot arc wire, cap-sensor switch, and foam strips
2 428285 Kit: Duramax Hyamp 90° long handheld torch body (torch head plus gas tube), 1.2 m (4 feet) – includes pilot arc wire, cap-sensor switch, and foam strips
2 428822 Kit: Duramax Hyamp long handheld torch cap-sensor switch, 1.8 m (6')
2 428821
3 428253 Kit: Duramax Hyamp O-ring (5)
4 428290 Kit: Duramax Hyamp long handheld torch pilot arc wire (with screws), 0.6 m (2 feet)
4 428291 Kit: Duramax Hyamp long handheld torch pilot arc wire (with screws), 1.2 m (4 feet)
4 428823 Kit: Duramax Hyamp long handheld torch pilot arc wire (with screws), 1.8 m (6 feet)
5 428162 Kit: Duramax Hyamp hand torch start switch
6 428159 Kit: Duramax and Duramax Hyamp hand torch lead, 7.6 m (25 feet)
6 428160 Kit: Duramax and Duramax Hyamp hand torch lead, 15 m (50 feet)
6 428762 Kit: Duramax Hyamp hand torch lead, 45.7 m (150')
The torch adapter allows for conversion to the cartridge consumable platform if you have the following systems and torch types.
System Torch type Part number
Powermax45® XP Duramax® Lock hand, mechanized and robotic 428951 Powermax65®
Powermax85® Powermax105®
Duramax hand, mechanized and robotic
• Not recommended for use on Duramax retrofit torches for Powermax1000/1250/1650
• Not compatible with Duramax Hyamp™ standard or long style torches
• The cartridge consumable platform is standard for the new Powermax SYNC® 65/85/105 systems with SmartSYNC® torches (no adapter required)
• When using the adapter with the Powermax45 XP in a mechanized application, Hypertherm recommends using the 45 A cut charts for the Powermax45 XP
Color codes for ease of use
The easy to identify cartridges are color coded by process to eliminate consumable part mix-ups and are clearly marked for amperage and part number.
Upgrade to the revolutionary Hypertherm cartridge consumable platform with the installation of a torch adapter.
Hand cutting and FineCut® for hand torches
Mechanized/stand-off and FineCut for mechanized torches
T30v hand torch parts

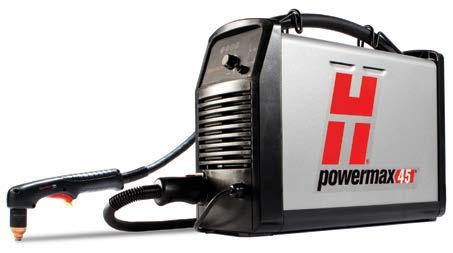

Powermax45®
1Use T30v 30 A consumables for fine feature cutting on thin metals.
2Consumable available in bulk packaging. See order information below.
3Components are unique to the CSA kit, part number 851478.
4Kit contains 2 nozzles (220671) and 2 electrodes (220669).
Consumable
In countries following CE
5
6
(420137)
(420137)
T45v hand torch parts
For use with the Powermax45®
torch
075714
6 002244 Safety trigger assembly
7 027254 Spring
8 228315
9
10 128642
T45m machine torch parts
Powermax45®
The Duramax torch series is an optional torch upgrade for Powermax45 systems. The following are the compatible consumables.
5
Duramax® 75° hand torch parts
For use with the Powermax45® XP, and Powermax65,/85/105. The Duramax torch series is an optional torch upgrade for Powermax45 systems.
Duramax 75° hand torch assembly
228714
228958
058519
228719
228960
Duramax® 15° hand torch parts
For use with the Powermax45® XP, and Powermax65,/85/105. The Duramax torch series is an optional torch upgrade for Powermax45 systems. Duramax 15° hand torch
0757141
228721
058519
228109
2289591
Duramax 15° Torch handle replacement
screws, #4 x 1/2 slotted TORX pan head, S/B
Duramax 15°/Duramax 75°/HRT/HRTs (spring and trigger assembly)
Duramax 15° Cap-sensor switch replacement
Duramax 15° Torch lead replacement, 7.6 m (25') 7 2289601
Duramax 15° Torch lead replacement, 15.2 m (50')
Duramax® 180° machine torch parts
For use with the Powermax45® XP, and Powermax65,/85/105. The Duramax torch series is an optional torch upgrade for Powermax45 systems.
059477 Duramax 180° machine torch assembly with 7.6 m (25') lead
059478 Duramax 180° machine torch assembly with 10.7 m (35') lead
059479 Duramax 180° machine torch assembly with 15.2 m (50') lead
1 228737
Duramax® 180° mini machine torch parts
The Duramax torch series
Duramax® 180° robotic torch parts
For use with the Powermax45® XP, and Powermax65,/85/105. The Duramax torch series is an optional torch upgrade for Powermax45 systems.
Duramax 180° robotic torch assembly
The entire Duramax 180° robotic torch assembly with leads can be replaced, or individual component parts can be replaced.
075714
228853
228856
Duramax® 90° robotic torch parts
For use with the Powermax45®
180° Robotic torch main body replacement
180° Robotic torch positioning barrel replacement
Robotic torch clamp assembly
Duramax 90° robotic torch assembly
The entire Duramax 90° robotic torch assembly with leads can be replaced, or individual component parts can be replaced.
228852
228854
228857
Robotic torch lead replacement, 7.6 m (25')
90° Robotic torch main body replacement
Duramax® 45° robotic torch parts
For use with the Powermax45® XP, and Powermax65,/85/105. The Duramax torch series is an optional torch upgrade for Powermax45 systems.
Duramax 45° robotic torch assembly
The entire Duramax 45° robotic torch assembly with leads can be replaced, or individual component parts can be replaced.

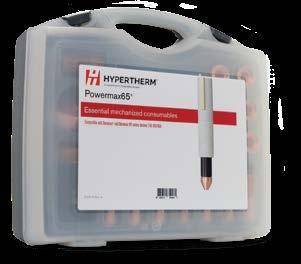

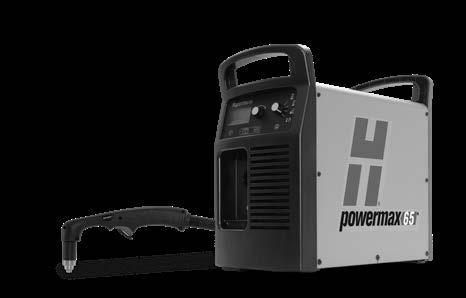

Powermax65®
Upgrade to the revolutionary Hypertherm cartridge for Powermax® systems consumable platform with the installation of a torch adapter. See pages 46–47 to learn more.

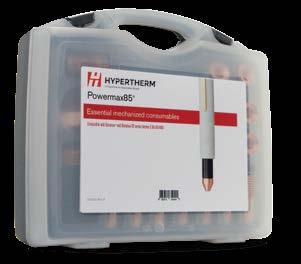

Powermax85®
2
Torch adapter
Part number 428951
Upgrade to the revolutionary Hypertherm cartridge for Powermax® systems consumable platform with the installation of a torch adapter. See pages 46–47 to learn more.
2Consumable available in bulk packaging. See order information below.

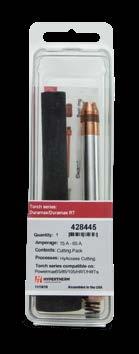

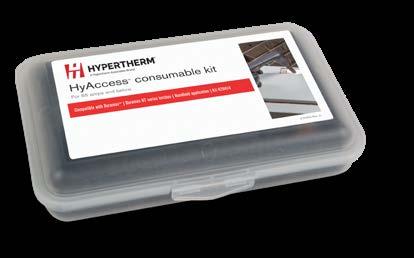

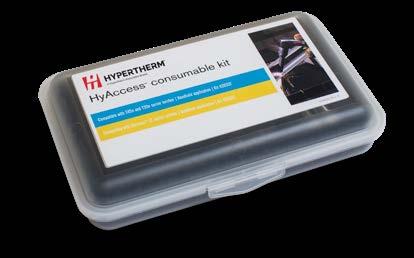

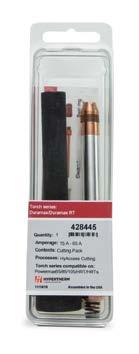

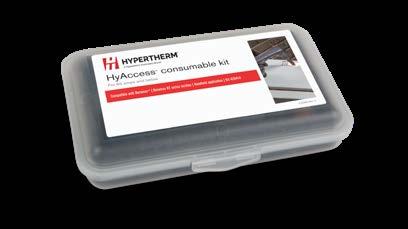

HyAccess cutting only starter pack – 4284456

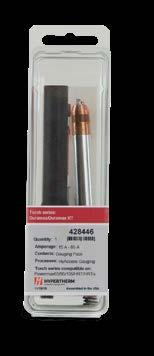

HyAccess gouging only starter pack – 4284467
Warning: The Duramax HyAccess (65 amps and below) consumables should not be operated above 65 amps
6Starter pack contains 1 retaining cap (420413), 1 cutting nozzle (420410) and 1 electrode (420408)
7Starter pack contains 1 retaining cap (420413), 1 gouging nozzle (420412) and 1 electrode (420408)
7Using the 45 amp FlushCut consumables on the Powermax85 above 45 amps will cause premature consumable damage

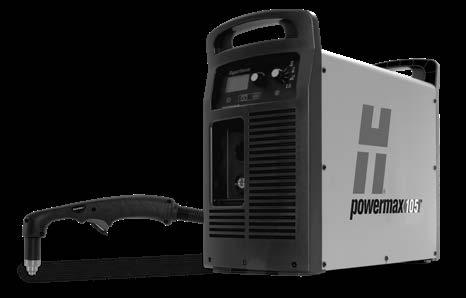

Powermax105®
1For longer consumable life when cutting metal 1/2 inch (12 mm) and under, check out the CopperPlus electrode (part number 220777).
2Consumable available in bulk packaging. See order information below. 3Deflector for unshielded cutting.
2Consumable available in bulk packaging. See order information below.
4The Max removal gouging shield is designed for aggressive metal removal, deep gouge profiles and extreme metal washing.
5The Max control gouging shield is designed for more
Upgrade to the revolutionary Hypertherm cartridge for Powermax® systems consumable platform with the installation of a torch adapter. See pages 46–47 to learn more.
220777). 2Using the 45 amp FlushCut consumables on the Powermax105 above 45 amps will cause premature consumable damage.
Powermax1000®
T60/T60M hand/machine torch consumables
1Consumable available in bulk packaging. See order information on next page. 2In countries following CE standards, unshielded consumables may only be used in mechanized torch applications.

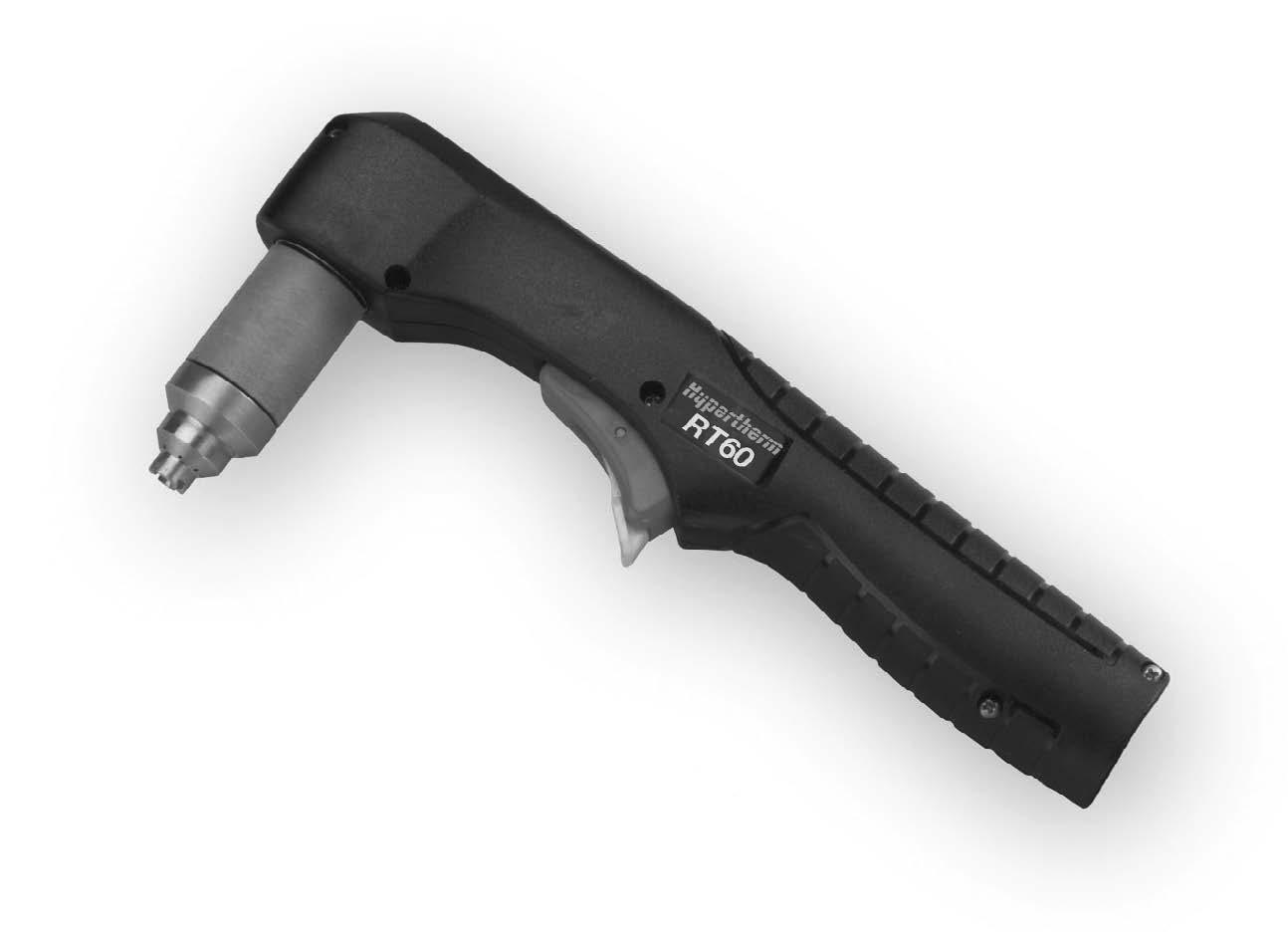

A Duramax® retrofit torch is available for this system see page 153. See page 134 for the consumables that work with the Duramax retrofit torch.
1Consumable available in bulk packaging. See order information on next page.
1Consumable
2Consumable available in bulk packaging. See order information below. 3CE Shield for use in countries requiring CE,CCC,GOST marks.

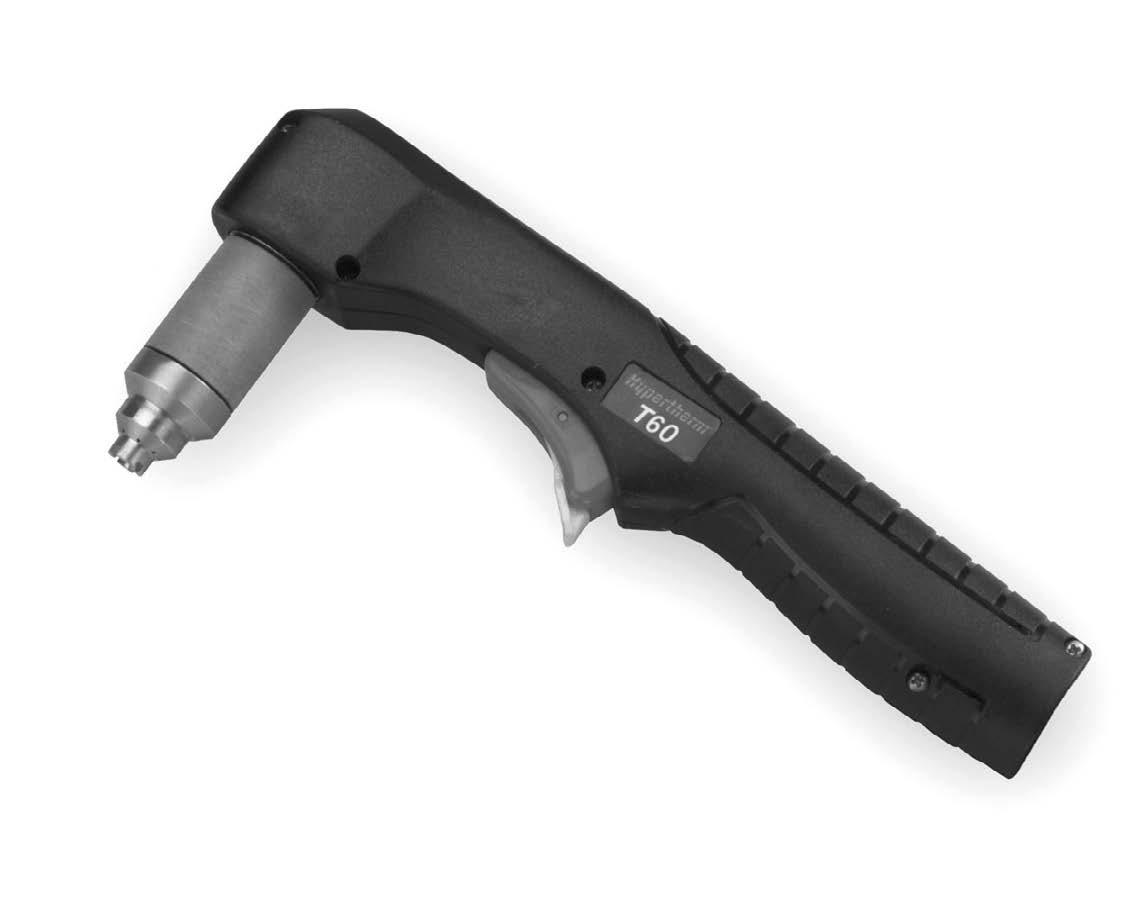

T60 hand torch parts
For use with the Powermax1000®
T60 hand torch parts
1 128564
2 128639
3 128521
4 027254
5 002244
6 128642
7 128644
8 128638
9 027889
10 075714
Powermax1250®
T80/T80M hand/machine torch consumables
Original consumables for the T80 and T80M torches remain available and are listed below.
1Consumable available in bulk packaging. See order information on next page.
1Consumable available in bulk packaging. See order information on next page.
2In countries following CE standards, unshielded consumables may only be used in mechanized torch applications.
1Consumable available in bulk packaging. See order information on next page. Minimum
1Consumable available in
See order information on next
3Consumable available in bulk packaging. See order information below. 4CE Shield for use in countries requiring CE,CCC,GOST marks.

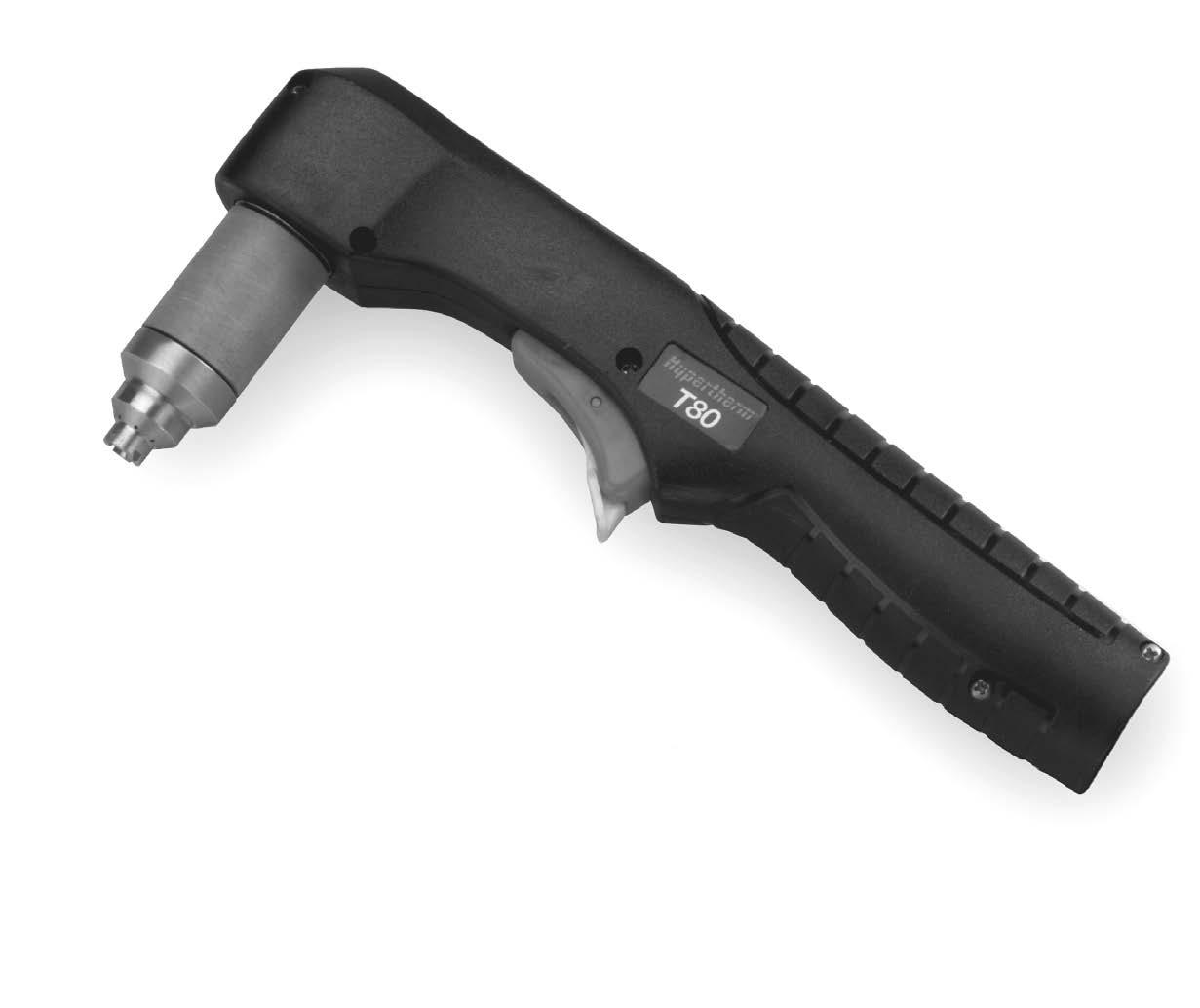

T80 hand torch parts
For use with the Powermax1250®
T80 hand torch parts
Item Part number
1 128564
4 027254
5
6 128642
7 128644
8
9 075714
T80M machine torch parts
For use with the Powermax1250®
RT80/RT80M retrofit torch
1Consumable available in bulk packaging. See order information on next page.
1Consumable available in bulk packaging. See order information on next page.
2In
1Consumable available in bulk packaging. See order information on next
1Consumable available in bulk packaging. See order information on next page. 3CE Shield for use in countries requiring CE,CCC,GOST marks.

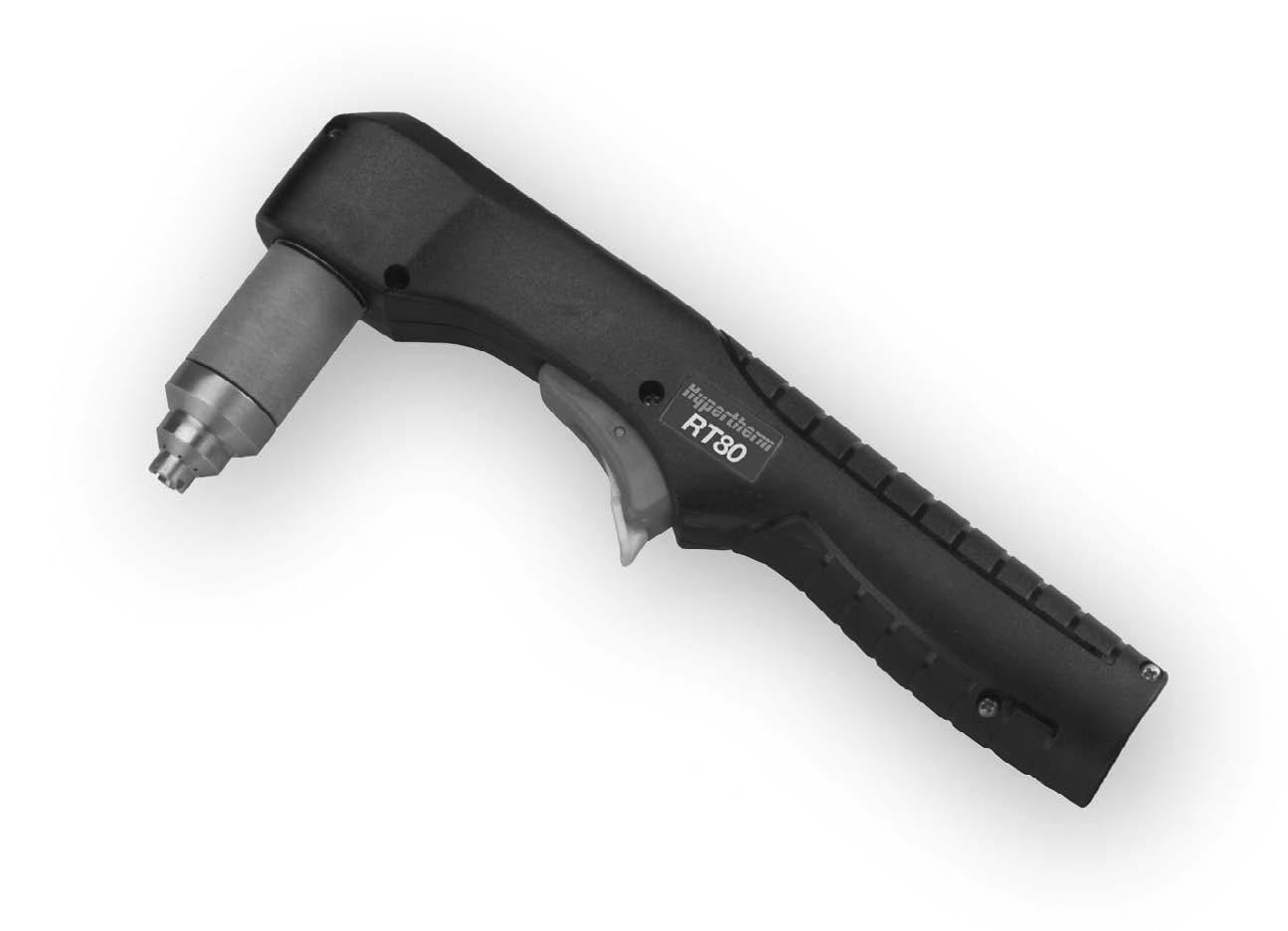

RT80 hand torch parts
RT80 hand torch parts
Item
0870331 RT80 hand torch assembly with 7.6 m (25') leads 0870341
1 128564
2 027889
hand torch assembly with 15.2 m (50') leads
torch main body replacement (does not include cap sensor)
3 058519 O-ring
4 128639
5 075571
6 128521
7 128644
8 075586
9 002244
10
11 128829
12 128830
13 128826
14 128642
1Assembly includes consumables.
Selected torches and repair parts are no longer available. System upgrade is recommended. See pages 38–39 for systems by amperage.
cap-off sensor replacement
sensor screw
torch head repair (does not include head, includes screws)
lead replacement, 7.6 m (25')
lead replacement, 15.2 m (50')
quick disconnect repair
start switch replacement
RT80M machine torch parts
RT80M machine torch parts
Item Part number Description 0870351
RT80M machine torch assembly with 7.6 m (25') leads 0870361
1 128640
RT80M machine torch assembly with 15.2 m (50') leads
Kit: torch main body replacement (does not include cap sensor)
2 027889 Retaining clip
3 058519 O-ring
4 128639
Kit: cap-off sensor replacement
5 075571 Cap-off sensor screw
6 128521 Kit: torch head repair (does not include head, includes screws)
7 128643 Kit: torch mounting sleeve replacement
8 075618 Torch mounting screw
9 128710 Torch positioning sleeve
10 128827 Torch lead replacement, 7.6 m (25')
11 128828 Torch lead replacement, 15.2 m (50')
12 128926
Kit: quick disconnect repair 128645
Torch mounting kit (for reassembly after installation)
1Assembly includes consumables.

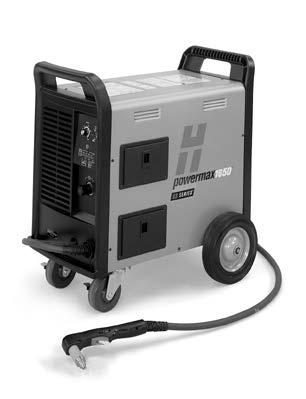

Powermax1650®
T100/T100M/T100M-2 torch consumables
Original consumables for the T100 torches remain available and are listed below.
A Duramax® retrofit torch upgrade is available see page 154. Available consumables for the Duramax retrofit torch see page 134–135.
1Consumable available in bulk packaging. See order information on next page.
2In countries following CE standards, unshielded consumables may only be used in mechanized torch applications.
3CE shield for use in countries requiring CE, CCC, GOST marks.
1Consumable available in bulk packaging. See order information below.
1Consumable available in bulk packaging. See order information below. 3CE Shield for use in countries requiring CE,CCC,GOST marks.

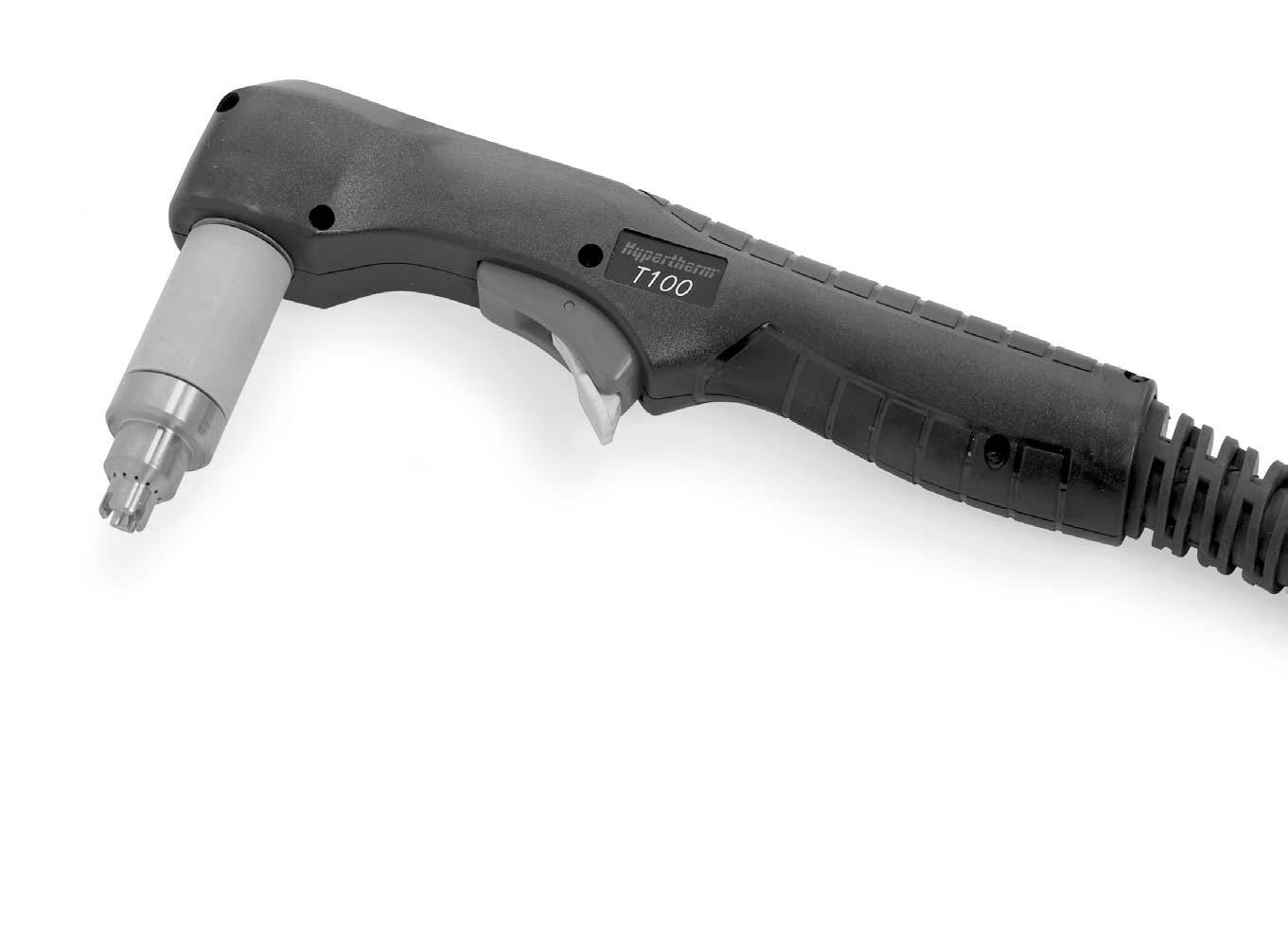

T100 hand torch parts
For use with the Powermax1650®
This torch is also compatible with the Powermax1250 and Powermax1000.
T100 hand torch parts
Item
T100 hand torch assembly with 7.6 m (25') leads
1 128767 Kit: T100 torch main body replacement (does not include cap sensor)
2 027889 Retaining clip
3 058519 O-ring
4 128639 Kit: Cap-off sensor replacement
5 075571 Cap-off sensor screw
6 128768 Kit: T100/T100M torch head repair (does not include head)
Selected torches and repair parts are no longer available. System upgrade is recommended. See pages 38–39 for systems by amperage.

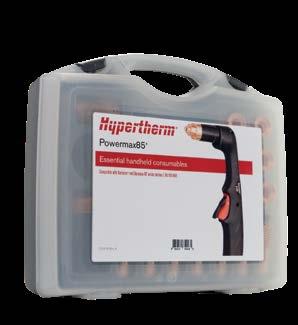

Powermax® bulk pack consumables
Appendix
In 2012, Hypertherm initiated a product lifecycle management process for legacy MAX® and Powermax® systems designed to provide customers with a path for upgrading their torch and consumables to maximize performance and ensure overall product satisfaction. Retrofit torch options to replace the original torches that are no longer available are summarized by system in the charts below.
Please also refer to the systems and torch series by amperage charts found on pages 4 and 5 of the catalog for additional information on torch series availability and recommended system upgrade paths for legacy MAX and Powermax systems.
MAX42® and MAX43® systems Duramax® retrofit torches Original
MRT mechanized 50' 059336 T100M-2 machine torch assembly 35 mm 75' Not
Powermax1650® T100 replacement torches
059264 T100 hand torch assembly 25'
059270 T100 hand torch assembly 50'
059299 T100 hand torch assembly 75'
059315 T100M-2 machine torch assembly 25' Not available 059324 T100M-2 machine torch assembly 35' Not available 059325 T100M-2 machine torch assembly 50' Not available 059326 T100M-2 machine torch assembly 75' Not available 059333 T100M-2 machine torch assembly 35 mm 25' Not available
059334 T100M-2 machine torch assembly 35 mm 35' Not available
059335 T100M-2 machine torch assembly 35 mm 50' Not available
059336 T100M-2 machine torch assembly 35 mm 75' Not available
Powermax65® Duramax® replacement torches
Original part number Description
Duramax part number Replacement description 083247 Powermax65 75° hand torch assembly 25' 059473
Powermax65/85/105 75° hand torch assembly 25' 083248 Powermax65 75° hand torch assembly 50' 059474
Powermax65/85/105 75° hand torch assembly 50' 083249 Powermax65 75° hand torch assembly 75' 059475
Powermax65/85/105 75° hand torch assembly 75' 083251 Powermax65 15° hand torch assembly 25' 059470
Powermax65/85/105 15° hand torch assembly 25' 083252 Powermax65 15° hand torch assembly 50' 059471
Powermax65/85/105 15° hand torch assembly 50' 083253 Powermax65 15° hand torch assembly 75' 059472
228723 Kit:H65/H85 torch lead replacement, 25' Not available 228724 Kit:H65/H85 torch lead replacement, 50' Not available 228725 Kit:H65/H85 torch lead replacement, 75' Not available
228727 Kit:H65s/H85s torch lead replacement, 25' 228959 Kit:Duramax hand torch lead replacement 25' 228728 Kit:H65s/H85s torch lead replacement, 50' 228960 Kit:Duramax hand torch lead replacement 50' 228729
Kit:H65s/H85s torch lead replacement, 75' 228961 Kit:Duramax hand torch lead replacement 75'
228784 Kit: Duramax HRT/HRTs lead replacement 25' 228952 Kit: Duramax HRT/HRTS 1/2" coupler lead replacement 25' 228785 Kit: Duramax HRT/HRTs lead replacement 50' 228953 Kit: Duramax HRT/HRTS 1/2" coupler lead replacement 50'

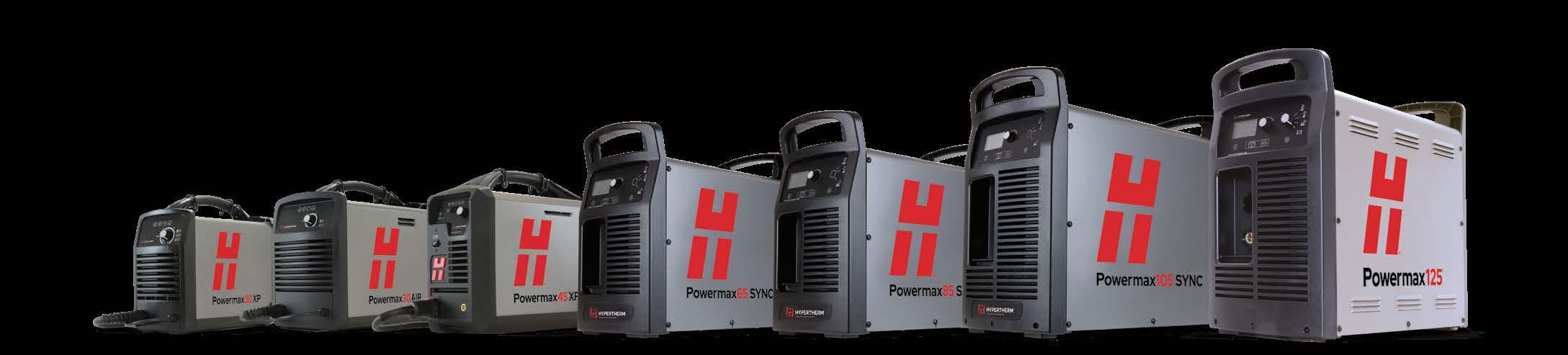

The new Powermax SYNC® plasma cutting and gouging systems will revolutionize the way you work. The new single-piece cartridge consumable is quick and easy to install, eliminates guess work on knowing when to change consumables and simplifies inventory needs. Now you will waste less time and produce more high-quality parts every time. Available in 65, 85, 105 amp systems. Discover more at Hypertherm.com/SYNC.

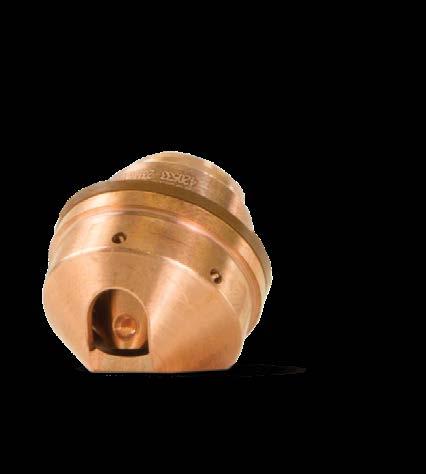

THE FLUSHCUT™ PROCESS FOR SELECT POWERMAX SYSTEMS PROVIDES USERS WITH THE ABILITY TO CUT CLOSER TO BASE MATERIALS THAN EVER BEFORE.
MAX REMOVAL GOUGING IS DESIGNED FOR AGGRESSIVE METAL REMOVAL, ACHIEVING DEEP GOUGE PROFILES AND EXTREME METAL WASHING.
MAX CONTROL GOUGING IS DESIGNED FOR MORE PRECISE METAL REMOVAL, ACHIEVING SHALLOWER GOUGE PROFILES AND LIGHT METAL WASHING.
For more information visit: www.hypertherm.com
Hypertherm, Powermax, Duramax, Powermax SYNC, SmartSYNC, FineCut, CopperPlus, HyAccess, FlushCut, Hyamp, SpringStart, and Conical Flow are trademarks of Hypertherm, Inc. and may be registered in the United States and/or other countries.
Please visit www.hyperthermassociates.com/patents for more details about Hypertherm Associates patent numbers and types.
