DRY ICE IN PLASTIC & RUBBER MOLDING

WHAT IS DRY ICE? THE MOST SUSTAINABLE SOLUTION ON THE MARKET

CLEAN IN-PLACE EXTEND PRODUCTION RUNS, IMPROVE PART QUALITY & REDUCE OPERATING COSTS

IoT-ENABLED MACHINES FOR INDUSTRY 4.0

NOW YOU SEE IT, NOW YOU DO N 'T

Want to utilize more efficient and environmentally sustainable cleaning methods? Want to lower your Greenhouse Gas (GHG) emissions score?

Start using dry ice.

It's no secret that sustainability and ESG initiatives are rising to the top of the corporate priority list. Plastic processors are aligning their corporate goals to remain responsible, competitive and resilient. Utilizing dry ice in several applications in plastics processing is helping the industry move into a circular economy to better protect our environment. How? The CO2 utilized for the production of dry ice is a Carbon Capture and Utilization process that involves using recycled CO2, and replaces environmentally harmful solvent cleaning processes.

Plastics and Rubber processors are under great pressure to increase the productivity of their equipment, improve the quality of their parts and reduce costs. This can be a balancing act between using the most effective technologies and working within a tight budget.

Mold cleaning remains a critical component of producing quality products.

Cleaning mold cavities and vents of resin off-gasses, cured material or mold release agents can prevent numerous common molding problems such as short shots, burns, flash, contamination, etc. Cleaning is often delayed because traditional methods cause extended downtime and often involve the use of chemicals or mechanical means that are harmful to employees, abrasive to the tooling and can wear away critical mold tolerances.

We understand this problem and offer solutions to clean molds more often, faster, cheaper and non-abrasively, in a sustainable, environmentally sustainable manner. Cold Jet’s Dry Ice Environmental Cleaning and Surface Preparation (ECaSP) systems present a proven solution to accomplish productivity, quality and cost reduction initiatives that many plants are pursuing.

Dry ice is also utilized in our industry to deburr and deflash plastic parts.

Thermoset parts will always have flash (sometimes thermoplastic parts as well), and the part geometries do not always lend themselves to tumbling.

Our solutions are often completely automated.

Lastly, we offer solutions with on-demand dry ice production and blasting for the surface preparation/cleaning of plastic parts prior to painting. Cold Jet systems are designed for easy integration into existing automated paint line systems. They replace aqueous cleaning methods and the associated problems that come with wet cleaning: large floor space needed for drying oven, high operation costs for a drying oven and water reclamation system and scrap parts that do not dry thoroughly.

Thank you for your interest in our technologies and solutions. As you explore this magazine, you will discover the numerous problems that dry ice is solving in our industry. We look forward to working with you on your next dry ice cleaning project. Should you have any questions, or if we can be of assistance in any way, please do not hesitate to contact us.

S teve Wilso n A pp licat ions Deve lopme nt Dire ctor

Americas. Europe. Asia-Pacific.

Introduction to Dry Ice Cleaning 0 1 . What is Dry Ice?

0 3 . How Does Dry Ice Cleaning Work?

0 2 . Why is Dry Ice Used for Cleaning

Dry Ice Cleaning in the Plastics Industry 1 3 . Extrusion Line Cleaning

0 9 . Injection Mold ROI

1 4 . LSR & LIM Mold Cleaning

1 0 . PET Preform

1 5 . Medical Device Mold Cleaning & Deburring

1 1 . Blow Mold

1 6 . EV Batteries

1 2 . Deflashing & Deburring

1 7. 3D Printing/Additive Manufacturing

TABLE OF CONTENTS

0 8 . Plastic Mold Cleaning

Dry Ice Cleaning in Rubber & Composites 1 8 . Rubber Mold Cleaning

1 9 . Composite Tool Cleaning

Customer Service & Machine Specs 2 0 . Cold Jet CONNECT TM

2 6 . Aero2 PLT 60

2 3 . Aero2 PCS 60

2 7. COMBI PCS System

2 5 . i3 MicroClean 2

19,000

GLOBAL DRY ICE MACHINE INSTALLATIONS With no signs of slowing down

BY THE NUMBERS

Learn more at coldjet.com

IMPROVE ESG SCORES WITH DRY ICE

Due to the fact that dry ice is recycled CO2, it will not contribute to your greenhouse gas score. In the calculation of a carbon footprint, CO2 is accounted for at the producer level. It is not counted a second time at the point of use.

-

California Air Resources Board

GIVING CO 2 A SECOND LIFE

FAC TORY

P H ASE C H AN G E gas to liquid

COM M ERC I A L STORAG E

T RA N S PORT

ON - S IT E STORAG E

PH A S E C H A N G E liquid to solid

DRY I CE solid CO2

CO2 path

WHAT IS DRY ICE?

THE MOST SUSTAINABLE SOLUTION ON THE MARKET

1

Dry ice is based on the conversion of captured carbon dioxide (CO2) into a value added, commercially useful product. It's the product of the carbon capture and utilization (CCU) process in which CO2 is captured at industrial, biogas, or ambient air capture facilities, converted to liquid CO2, and transformed into dry ice - giving it a second life as a cooling and cleaning medium.

Americas. Europe. Asia-Pacific.

THE UNIQUE CHARACTERISTICS OF DRY ICE Dry ice is non-abrasive, non-conductive and will not damage surfaces or equipment. By sublimating on impact, no secondary waste is left behind. It is also non-toxic and safer for employees than traditional cleaning methods.

These attributes make dry ice cleaning an efficient, cost effective, environmentally sustainable, and occupationally safe cleaning solution.

WATER FREE

RECYCLED PRODUCT

CHEMICAL FREE

WASTE FREE

amount of water used at 40% Estimated industrial facilities for sanitation

cost of water increases from 60% Average 2010 - 2019 in 30 largest US cities

Dry ice eliminates single use brushes, pads, and rags that end up in landfills

Eliminate downstream contamination, reduce GhG scores, and improve worker safety by removing solvents

TRADITIONAL CLEANING

D RY ICE CL EAN IN G

Water

Chemicals Contaminant

Contaminant

Stop Production, Cool, Pull Tool, Transport, Clean, Transport,

Clean on-line during production

Reinstall Tool, Reheat, Restart Production

We strive for a balance between economic, environmental and social goals. We categorically reject the ruthless pursuit of a profit at the expense of the environment. This process supports the environmental program of Geberit Productions AG.

WHY IS DRY ICE USED FOR CL EAN IN G?

REDUCE EMISSIONS

-

Plastics Engineer | Geberit Productions AG

Learn more at coldjet.com 2

KINETIC ENERGY

THERMODYNAMIC SHOCK

CO2 EXPLOSION

I

C

E

Impact of pellets creates a kinetic energy effect. The soft dry ice is accelerated by compressed air through specially designed nozzles at supersonic speeds.

Cold temperature of dry ice pellets creates a thermal effect. The temperature of dry ice (-109F/78.5C) causes the contaminant to embrittle. This helps break the bond between the substrate and the contaminant.

Expansion of the dry ice pellets. Dry ice pellets sublimate upon impact, volumetrically expanding in size by 800%, removing the contaminant.

Dry ice cleaning is similar to sand, bead and soda blasting in that it prepares and cleans surfaces using a media accelerated in a pressurized air stream. It differs in that dry ice cleaning uses solid CO2 pellets or MicroParticles, which are blasted at supersonic speeds and sublimate on impact, lifting dirt and contaminants off the underlying substrate.

BY THE NUMBERS

3

250+

WORLDWIDE PATENTS More patents than any competitor

7.2%

ANNUAL REVENUE USED FOR R&D 3%+ Higher R&D spend than other industry leaders

Americas. Europe. Asia-Pacific.

Because dry ice is non-abrasive and turns to gas, you are left only with a clean surface that extends the asset life of your mold.

IT'S ALMOST LIKE MAGIC!

HOW DO ES I T WO RK?

S U B L I M AT I O N

Dry ice blasting definitely results in a superior clean, and with less downtime, we have been able to increase production. Our automotive customers have very stringent quality control procedures and demands, and dry ice blasting has helped us meet those requirements.

– Vice President | Husky

INCREASE PRODUCTIVITY. IMPROVE PRODUCT QUALITY. Dry ice environmental cleaning and surface preparation systems allow for cleaning tools on-line and at operating temperatures, thus increasing machine uptime, mold asset life and profitability.

BY THE NUMBERS

5

40%+

GLOBAL DRY ICE TECHNOLOGY MARKET SHARE

Dominating the global market place in dry ice solutions for cooling & cleaning

Americas. Europe. Asia-Pacific.

DRY IC E C L EANING IN T H E PL AST IC S INDU ST RY

Maintaining clean mold cavities and vents is a major concern for plastic part manufacturers in meeting today’s high quality

PROVEN APPLICATIONS

standards. The build-up of unwanted surface residue from either the product mix itself, mold releases or the labeling process can

BLOW MOLD

create various problems, ranging from product release (“knock

COMPRESSION MOLD

out”) to inferior product quality and possible tool damage. Flash

EXTRUSION DIE

on the product also creates challenges for manufacturers. Mold

INJECTION MOLD

halves can leave a parting line in the final product, and that parting

PLASTIC INJECTION SCREW

line, or flash, must be removed to preserve product quality.

PLATE-OUT & OFF GASSING THERMOFORM MOLD

Traditional cleaning and deflashing methods involve tedious and

URETHANE MOLDS & OVERSPILL

ineffective manual processes using chemicals and hand tools.

Cold Jet’s alternative cleaning process provides a non-abrasive

PRODUCT FINISHING:

and environmentally sustainable method that allows molds and

DEBURRING MACHINED PARTS

products to be cleaned in a fraction of the time, allowing increased

DEFLASHING & SURFACE / PARTING

cycles between preventive maintenance. In addition, molds can be

GLOSS LEVELING

cleaned hot and in-place, without water, chemicals or the creation

LINE VENTS

of secondary waste.

BY THE NUMBERS

70+

COUNTRIES WITH COMMERCIAL ACTIVITY

Nearly 300 Cold Jet employees and over 30 Cold Jet distributors support our global install base

MOLD CLEANING Cold Jet’s ECaSP systems have helped molders reduce annual costs and meet stringent industry demands: 6-Sigma, Kaizen, 5S, TPM (Total Productive Maintenance). Our systems enable molders to optimize their manufacturing process by cleaning contaminants from cavities, vents and hard-to-reach places faster, better and more economically than traditional methods. This can reduce cleaning times by as much as 75% and decrease annual mold cleaning costs by as much as €50,000.

IMPROVE PART QUALITY

CLEAN IN-PL AC E no disassembly required

REDUCE SCRAP

REDUCE PRODUCTION DOWNTIME

NO N -A B R A S I V E no damage to product or equipment

REDUCE CLEANING TIME

E N V I RO N ME N TA LLY S U STA I NABL E no secondary waste

TECHNICAL MOLD CLEANING Molders are very familiar with the requirements of precision (high-tolerance) and micro-molding parts and the difficulties that come with them. Keeping small orifices, micro-cavity production molds - as well as the deep, complex geometry of micro tools - clean is a critical concern when manufacturing high-tolerance plastic parts.

Dirty molds cause vents to fill up and cause a variety of molding problems: burns, short shots, foreign particles, flash and plate-out. After the vents fill, a sticky and sometimes abrasive off-gas is forced between other close-fitting tooling. Mold damage can also occur from trapped air “dieseling” or “jetting” due to clogged vents.

Learn more at coldjet.com 8

Contact us for a personalized payback calculation

INJECTION MOLDING (IMM) PAYBACK EXAMPLE Manual Cleaning vs Dry Ice Blasting 48 CAVITY IMM

96 CAVITY IMM

144 CAVITY IMM

PRODUCTION MAXIMUM hour/year

8,400 hours

8,400 hours

8,400 hours

TIME SAVINGS per Week with Cold Jet

1.5 hours

2.0 hours

2.5 hours

TIME SAVINGS per Year with Cold Jet

78 hours

104 hours

130 hours

EFFICIENCY IMPROVEMENT with Cold Jet

0.9%

1.2%

1.5%

EXTRA HOURS PRODUCTION

78 hours

104 hours

130 hours

MOLD CYCLES per Hour

360 molds

360 molds

360 molds

EXTRA PREFORMS MADE per Year

1,347,840 more preforms

3,594,240 more preforms

6,739,200 more preforms

PROFIT per Preform

€0.0036 per preform

€0.0036 per preform

€0.0036 per preform

PROFIT per Year from Extra Production

€4,912 per year

€13,098 per year

€24,559 per year

PAYBACK-TIME per IMM in Months

89 months

33 months

18 months

PAYBACK-TIME per 5 IMM in Months

18 months

7 months

4 months

Example calculated based on: Maximum production, pre-set mold cycle time, estimated profit per preform, etc.

Not taken in consideration: Savings by labor cost, reduced repair costs, extended equipment lifetime.

9

Americas. Europe. Asia-Pacific.

Core Half

Core Cavity

Lock Ring

Cavity Core

Neck Ring

Gate Insert Difficult to Clean

Easy to Clean

In addition to the molds, conveyor and PET dryer, we have also eliminated nearly three days of downtime by using Cold Jet's system to clean the injection screws on our presses, a process that usually required us to send the screws offsite.

– Set-Up Supervisor | Silgan

PET PREFORM MOLD CLEANING

Cold Jet systems have helped packaging molders meet stringent productivity demands. Our systems help molders clean faster, better and more economically, increasing production capacity and improving product quality. Mold cleaning times can be reduced by up to 75% with Cold Jet.

Dry ice cleaning technology allows molds, lock rings, cores and gate inserts to be cleaned without the disassembly of the stripper plate and while the mold is still in the press. The system also cleans blow molding machines, palletizing equipment, conveyor belts, airveyors and glue machines.

Learn more at coldjet.com 10

It's because of Cold Jet's systems we are able to meet our high cleaning standards and our customers' mold maintenance cycles.

– Setup Supervisor | Silgan

BLOW MOLD CLEANING

Cold Jet’s environmentally sustainable blow mold cleaning systems can reduce mold cleaning time by up to 75% while also increasing productivity and product quality. Our i3 MicroClean 2 utilizes the patented shaved dry ice technology, which allows aluminum molds even with beryllium inserts to be cleaned hot and inplace with MicroParticles. The non-abrasive method requires no chemicals, and produces no secondary waste. The specially designed nozzles and applicator allow for cleaning in hard-to-reach spaces to ensure a complete clean every time. A quicker clean means more production time and the thorough clean allows consistent quality products with less scrap. As a result, Cold Jet dry ice cleaning helps your facility become more profitable.

11

Americas. Europe. Asia-Pacific.

DEFLASHING & DEBURRING Cold Jet’s ECaSP systems were developed to improve quality and reduce operating costs for manufacturers with parts that have flash or burrs.

Our automated systems eliminate the need for manual deflashing or deburring, thus improving part quality, increasing productivity and lowering cost. Our systems can safely remove flash and burrs from a variety of materials: PEEK, PBT, Acetal, Nylon, LCP, ABS, UHMWPE, Nitinol, etc. without causing part surface damage.

M EDICAL

ELEC T RONI C S

AUTOMOT I V E

Robot picking up medical implant from tray

A E ROS PAC E

S E MI CO N DUC TO R

MARIN E

Robot moves implant around blasting nozzle for deburring

Hand Tools vs Dry Ice Blasting DEBURRING BY HAND TOOLS

DRY ICE BLASTING

BENEFIT

COMPARISON

RESULT

Missed dead corners & tiny burrs

Thorough deburring

Improved Quality

Consistant, high quality w/ dry ice

TIME

620 Hrs/ Mo.

50 Hrs / Mo.

Improved Productivity

Save 90% of processing time

CONSUMABLE COST

Labor and time cost

Cost of dry ice

Lower Costs

Labor & time costs > dry ice costs

TOTAL COST

€4,500 / Mo.

€750 / Mo.

Lower Costs

80% cost savings*

YIELD

91%

96%

Improved Productivity

Increased by 5% with dry ice

HEALTH & SAFETY

Operators are using blades & tools

EPA, FDA and USDA approved

Improved Worker Safety

Dry ice is safer for employees

* Take that 80% cost savings over 10-30% of the overall part costs

Learn more at coldjet.com 12

EXTRUSION LINE CLEANING SOLUTION

In the arena of flexible packaging - such as blown film lines - cleaning the dies, sizing ring and collapsing tower is critical in order to maintain output and quality. Oftentimes, an additive or slip agent is compounded into the resin to increase the output of the extruder. This additive will off-gas, leaving a waxy substance on the tower. Dry ice cleaning is a non-abrasive method that can quickly remove the contaminant while minimizing line downtime.

The cooling rolls in the sheet extrusion business are one of the most important aspects of the line. Cleaning with dry ice helps take care of your rolls so that they can work effectively. MicroParticles are a good solution for cleaning cooling rolls whether they are embossed or not.

It has drastically improved our productivity and helped us cut costs. Simply put, dry ice cleaning is the best cleaning solution for our needs.

– Tooling Engineer | MPC

13

Americas. Europe. Asia-Pacific.

LSR & LIM MOLD CLEANING

Because silicones flash very easily, molds for these high performance thermoset elastomers are manufactured to critical tolerances, often +/- .0005 mm. Protecting the critical dimensions on parting lines and sealing surfaces, as well as the mold surface finish, is vital. It is also important to keep the vents open in order to evacuate the air out of the mold prior to injection – this helps to produce high quality molded parts.

With Cold Jet dry ice cleaning, you can clean molds in the machine at processing temperature (typically 250-400 degrees 0C), without causing mold wear – thus increasing production capacity and improving product quality.

100+

GLOBAL DRY ICE PATENTS

Most global dry ice patents in the industry

20+

DRY ICE TECH PATENTS

Most dry ice technology patents in the industry

BY THE NUMBERS

Learn more at coldjet.com 14

MEDICAL DEVICE MOLD CLEANING & DEBURRING Cold Jet systems have helped medical industry manufacturers meet stringent industry process demands for quality and consistency. Our systems enable manufacturers to optimize their process by cleaning contaminants from cavities, vents and hard-to-reach places. This is done without the use of chemicals, which eliminates the cross-contamination concerns from chemical residue on the mold and ensures that products are delivered without flaws.

Medical part before

15

Medical part after deburring with dry ice

Americas. Europe. Asia-Pacific.

EV BATTERIES Dry ice blasting helps EV battery manufacturers reduce scrap and downtime, improve product quality, and prolong the life of their equipment.

The process is used widely in battery production to clean the agitators on mixers, allowing manufacturers to reclaim and reuse their mixed ingredients. It is also heavily used to surface prep parts prior to bonding, remove adhesives, clean battery cells after electrolyte filling, and deflash parts so they don’t puncture battery separator walls.

COMBI PCS System

Operate up to four simultaneous blasting operations.

Blasting Booth w/ Robot

Learn more at coldjet.com 16

3D PRINTING/ADDITIVE MANUFACTURING Additive manufacturing technologies are advancing at a record rate, but post-print processes can still rely heavily on manual skilled labor which is time consuming, increases part cost, and reduces efficiency and throughput.

Dry ice cleaning is gentle enough not to abrade the surface or ruin the part, yet aggressive enough to remove support structures, surface imperfections, and parts from powder cake.

Dry ice cleaning is a non-abrasive and environmentally sustainable alternative to traditional cleaning methods that does not produce secondary waste. It is a faster, more effective process than aggressive sanding or using hand picks to clean parts, providing an opportunity for additive manufacturers to grow at scale.

VAT Polymerization (SLA, DLP, MSLA)

Removal of Support Structures Removal of Surface Imperfections

Powder Bed Fusion (MJF, SLM, SHS, DMLS, SMS)

De-Powdering Parts Surface Treatment & Preparation

Material Extrusion

D RY I C E C L EA N I NG I N TH E RU B B E R IN DU ST RY

(FDM, FFF, FGF)

Material Jetting (MFM, DOD, POLYJET)

BY THE NUMBERS

17

30+

YEARS OF DRY ICE INDUSTRY EXPERIENCE

Americas. Europe. Asia-Pacific.

PROVEN APPLICATIONS BLOW MOLD COMPRESSION MOLD INJECTION MOLD LIFT PRESS METAL BONDED MOLD TILT-BACK PRESS

RUBBER MOLDS A major problem faced by rubber molders is mold fouling. Buildup of cured material and mold release agents causes sticking molds, blemishes and unwanted flash on final parts, making them unusable and requiring line shutdowns for cleaning.

Traditional cleaning methods such as manual scraping, glass bead blasting or ultrasonic cleaning can be time consuming, ineffective, damaging to molds and result in high labor and material costs. Dry ice cleaning offers an in-place, online, quick and effective way to clean at operating temperatures without causing damage to expensive molds.

ELIMINATE PRODUCTION SHUTDOWN

NO MOLD DISASSEMBLY

REDUCE PRODUCT SCRAP

N O N -A B R A S I V E no damage to product or equipment

REDUCE CLEANING TIME & LABOR COSTS UP TO 75%

E N V I RO N ME N TA LLY S U STA I N A B LE no secondary waste

18

COMPOSITE TOOL CLEANING

ENVIRONMENTA L LY SUSTA I NA BL E no secondary waste

C LEA N I N - P LAC E no disassembly required

REDUCE CLEANING TIME & LABOR COSTS

N O N -A B R A S IVE no damage to product or equipment

REDUCE PRODUCTION DOWNTIME

Removal of Frekote®

PROVEN APPLICATIONS COMPRESSION MOLDING RESIN TRANSFER MOLDING EXTRUSION PRE-PREGGING WET-LAYUP

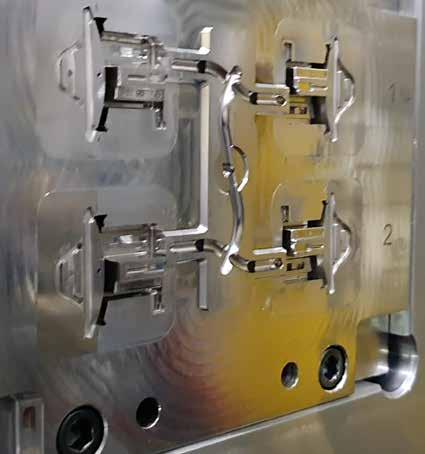

Cold Jet dry ice cleaning extends the life of a mold by eliminating the need for harsh chemicals, wire brushes and coarse pads that require proper disposal and often end up in landfills. It is a non-abrasive mold cleaning solution that protects the critical dimensions and geometric shapes of parting lines and sealing surfaces while preserving the mold surface finish.

There are a variety of materials utilized in the composite tooling industry, from epoxies and urethanes to aluminum and steel, including TeflonTM-coated tools and tools that are highly polished. It can also safely remove a variety of residual process contaminants from the molds, including mold release agents, epoxy, Teflon tape, silicone, phenolic, carbon, graphite and more without damaging the tooling.

19

Americas. Europe. Asia-Pacific.

ENHANCE PRODUCTIVITY THROUGH AN UNRIVALED INTELLIGENCE CUSTOMER SERVICE A ND SUPPORT PLATFORM

Cold Jet CONNECT introduces Industry 4.0 capabilities to our portfolio

FEATURES & BENEFITS

of dry ice technologies, providing you with a clear view of the data you need to make decisions that will accelerate your return on investment and profitability through increased machine efficiency and uptime.

MACHINE DOCUMENTATION AT YOUR FINGERTIPS MACHINE & APPLICATION TRAINING

Cold Jet CONNECT enables tracking and support of your installed fleet of Cold Jet equipment and helps you understand, control, delegate and orchestrate your daily business without us needing to be physically present.

IOT DATA & REMOTE SUPPORT FLEET MANAGEMENT ONSITE PREVENTATIVE MAINTENANCE

Advancing dry ice technologies is what we do best. Cold Jet CONNECT offers actionable insights so you can focus on what you do best.

REMOTE ASSISTANCE PLATFORM

Data. Information. Insights. The keys to your success.

UNRIVAL ED CUSTOMER SERVICE

REMOTE MACHINE MONITORING

Learn more at coldjet.com 20

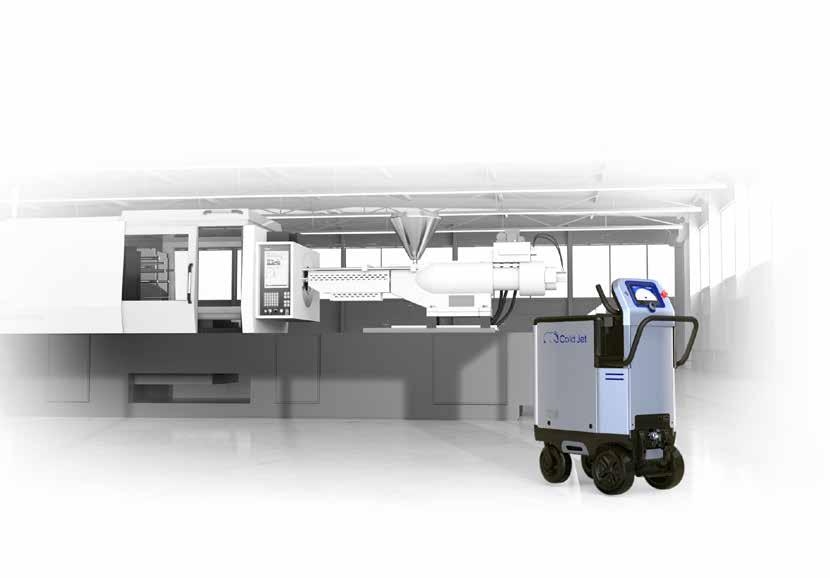

DRY ICE BLASTING MACHINES IoT-ENABLED MACHINES FOR INDUSTRY 4.0

21

Americas. Europe. Asia-Pacific.

PCS 60 S P E C S H E E T #047107022021 ®

DRY ICE BLASTING REINVENTED

PCS 60 ®

THE NEW STANDARD IN DRY ICE BLASTING

MACHINE DIMENSIONS

HOPPER CAPACITY

COMPRESSED AIR SUPPLY

Length x Width x Height:

60 lb (27 kg)

40 - 145 psi (2.8 - 10 bar)

HMI DISPLAY

NOZZLE AIR CONSUMPTION

7” LCD Color Screen

12 - 100 cfm (0.3 - 2.8 m3/min)

39 in (99 cm) x 19 in (48 cm) x 45 in (114 cm) Weight: 269 lb (122 kg)

POWER REQUIREMENTS

Compliant with the EU Machinery Directive (CE) and UL Design Standards

at 80 psi (5.5 bar)

FEED RATE

110/220V AC (50/60 Hz)

Variable - up to 4 lb/min

BLAST FLOW PATH

(1.8 kg/min)

3/4” Straight Through Tubing

PARTICLE CONTROL SYSTEM

SUREFLOW

Variable Dry Ice Size: 3mm - 0.3mm

Thumper, Ramrods, Electric Vibrator

Utilizes 28 distinct dry ice particle sizes

“Always-On” Hopper Agitation

BLAST PRESSURE RANGE 20 - 145 psi (1.4 - 10 bar)

Learn more at coldjet.com 23

PCS 60 S P E C S H E E T

Americas. Europe. Asia-Pacific.

Our most versatile machine. Easily adjust particle size, blast pressure, and other parameters according to the location and stubbornness of the contaminant you are blasting.

The Cold Jet PCS 60 utilizes finely controlled particles of dry ice as a blasting medium via our proprietary and patented Particle Control SystemTM (PCS). The machine accepts 3mm pellets and, via the PCS, precisely cuts the dry ice into diamond shaped particles in the exact dimensions chosen by the operator.

The machine also features programmable application recipes. Set and save blast pressure, particle size, feed rate to ensure the most efficient use of consumables and prevent user error.

CHOOSE BETWEEN 28 DRY ICE PARTICLE SIZES

FROM 3MM TO 0. 3MM AND EVERY SIZE IN BETWEEN

Users can adjust dry ice particle sizes from 0.3mm to 3mm and every size in between, giving complete control to effectively fine-tune the machine for each unique application

7” LCD color screen with digital controls makes it easy to view and control blasting parameters

MICROCLEAN 2 S P E C S H E E T #0615.07022021

DRY ICE BLASTING REINVENTED ®

®

MICROCLEAN 2 MICROCLEAN 2

TM

SMART, IoT-ENABLED PRECISION BLASTER

D ES I G N E D FO R P R EC I S I O N S H AV E D D RY I C E M I C RO PA RT I C L E B L A ST E R

POWER REQUIREMENTS

BLAST PRESSURE RANGE

110-240V AC (50/60 Hz)

20-145 psi (1.4-10 bar)

31 in (78 cm) x 25 in (62 cm) x 47 in (120 cm)

DRY ICE CAPACITY

COMPRESSED AIR SUPPLY

Weight: 190 lb (86 kg)

Up to 25 lb (11 kg)

50-145 psi (3.4-10 bar)

FEEDER SYSTEM

NOZZLE AIR CONSUMPTION

Shaved dry ice use blocks or pellets

12-50 cfm (0.3-1.4 m3/min) at 80 psi (5.5 bar)

25 in (64 cm) x 22 in (56 cm) x 27 in (68 cm)

HMI DISPLAY

BLAST FLOW PATH

Weight: 56.2 lb (25.5 kg)

7 in (17.8 cm) LCD Color Screen

0.5 in (1.3 cm)

*Including i3 MicroClean 2 and standard cart

FEED RATE

Compliant with the EU Machinery Directive (CE) and UL Design Standards

DIMENSIONS Length x Width x Height FULL SYSTEM*

MACHINE ONLY

31 in (78 cm) x 19 in (48 cm) x 21 in (51.5 cm) Weight: 133.38 lb (60.5 kg) CART ONLY

0-1.5 lb/min (0-0.7 kg/min)

Learn more at coldjet.com

25

MICROCLEAN 2 S P E C S H E E T

Americas. Europe. Asia-Pacific.

PLT 60 S P E C S H E E T #0523.07022021

®

DRY ICE BLASTING REINVENTED

PLT 60 ®

PLT = PELLET BLASTER

THE NEW STANDARD IN DRY ICE BLASTING

DESIGNED FOR POWER BLAST UP TO 250 PSI

MACHINE DIMENSIONS

HOPPER CAPACITY

BLAST PRESSURE RANGE

Length x Width x Height:

60 lb (27 kg)

35 - 250 psi (2.4 - 17.2 bar)

HMI DISPLAY

COMPRESSED AIR SUPPLY

7” LCD Color Screen

40 - 250 psi (2.8 - 17.2 bar)

FEED RATE

NOZZLE AIR CONSUMPTION

Variable - up to 6 lb/min (2.7 kg/min)

50 - 165 cfm (1.4 - 4.7 m3/min) at 80 psi (5.5 bar)

DRY ICE PARTICLE SIZE

BLAST FLOW PATH

Input: 3mm ; Output: 3mm

1” Straight Through Tubing

39 in (99 cm) x 19 in (48 cm) x 45 in (114 cm) Weight: 251 lb (114 kg) POWER REQUIREMENTS Input Voltage: 110/230V AC (50/60 Hz) AMPS: 4.3 Compliant with the EU Machinery Directive (CE) and UL Design Standards

SUREFLOW Thumper, Ramrods, Electric Vibrator “Always-On” Hopper Agitation Isolated Hopper

Learn more at coldjet.com

PLT 60 S P E C S H E E T

Learn more at coldjet.com 26

#0748.04192022

A U T O M AT E D D R Y I C E B L A S T I N G S O L U T I O N S

COMBI PCS ®

®

SERIES

AUTOMATED SOLUTIONS FOR CONTINUOUS CLEANING PROCESS

*Robot and blasting cabinet not included

OUTPUT

BLASTING OUTPUT/HOUR

COMBI PCS 110

242 lb/hr (110 kg/hr)

242 lb/hr (110 kg/hr)

COMBI PCS 110 DUAL

242 lb/hr (110 kg/hr)

242 lb/hr (110 kg/hr)

COMBI PCS 320 DUAL

705 lb/hr (320 kg/hr)

485 lb/hr (220 kg/hr)

PARTICLE SIZE

0.3mm - 3.0mm (28 particle sizes)

BLASTING OUTLETS

MAXIMUM NOZZLES

1

2

2

4

2

4

NOZZLE AIR CONSUMPTION

106 - 388 CFM (3 - 11 m3 / min)

UNIT DIMENSIONS (l x w x h)

FOOTPRINT

WEIGHT

70.9 x 47.2 x 86.7 in (1800 x 1200 x 2200 mm)

7.1 sq. ft.

(2.16 m2)

3,042 lb (1380 kg)

82.7 x 51.2 x 86.7 in (2100 x 1300 x 2200 mm)

9.2 sq. ft.

(2.8 m2)

START-UP TIME

NOISE LEVEL

< 3 Min

< 75 dB(A)

3,484 lb (1580 kg)

POWER SUPPLY

HMI DISPLAY

AIR QUALITY

3 X 380-480 V AC + PE, 50-60Hz

16” Color Touch Screen

ISO 8573-1, Minimum Class 2

Imax: 16A

INLET LIQUID CO2 PRESSURE

BACK PRESSURE ON REVERT GAS

Ipk: 10 kA

189 - 262 psi (13-18 bar)

0-14.5 psi (0-1 bar)

480 V AC Solidly Grounded Wye Source

-27 - -9 F (-33 - -23 C)

TN-S Earthing system

Compliant with the EU Machinery Directive (CE) and UL Design Standards

EXHAUST GAS PIPE Internal diameter: 2 in (50mm)

COMPRESSED AIR SUPPLY 72.5 - 145 psi (5 - 10 bar)

Learn more at coldjet.com

27

Americas. Europe. Asia-Pacific.

#0748.04192022

C O M B I P C S A U T O M AT E D D R Y I C E B L A S T I N G

AUTOMATED DRY ICE BLASTING SOLUTIONS CONTINUOUSLY CLEAN

The COMBI PCS series of integrated dry ice blasting systems offers manufacturers the most advanced automated cleaning solution on the market.

With our patented dry ice production and particle control systems (PCS) built in, the COMBI PCS makes cleaning in an automated facility easier and more effective.

Our PCS system allows machine programmers to finetune the dry ice particle according to the surface or contaminant being blasted.

A U T O M AT E D S U R FA C E P R E PA R AT I O N A N D PA R T F I N I S H I N G S O L U T I O N S AUTOMOTIVE MANUFACTURING

RUBBER MANUFACTURING

ELECTRONIC MANUFACTURING

SUREFLOW DOSING

PARTICLE CONTROL SYSTEM

Thumpers and vibrators provide reliable dosing and clog-free operations

Easily adjust dry ice pellet sizes from 0.3 mm - 3 mm and every size in between

BATTERY MANUFACTURING

FULLY AUTONOMOUS Produce dry ice pellets and blast without the need for an operator

GREATER CONTROL 16” Beckhoff Industrial HMI allows programmers to control particle size, blast pressure, feed rate, production rate, blast path, and more

GREATER VERSATILITY Three machine options provide two to four simultaneous blasting operations at various outputs

Learn more at coldjet.com

Learn more at coldjet.com 28

Cold Jet GmbH Weinsheim, Germany +49 6551 96060

Global Headquarters Loveland, Ohio, USA

+1 513-831-3211

Europe Headquarters Zellik, Belgium +32 13 53 95 47

Asia Headquarters Tokyo, Japan +81 3 6869 2665
