Ebrochure Rack Protection

Rack Protection Protect Your Racking

Rack Proteciton Applications End-of-Aisle Rack Protectors ..................................................................................... 4 End-of-Aisle Rack Protectors Inventory List ............................................................ 5 Rack Post Protectors ................................................................................................. 11 Rack Post Protectors Inventory List ........................................................................ 12 Back-of-Rack Guards ................................................................................................. 16 Back-of-Rack Guards Inventory List ....................................................................... 17 Floor Angle Guide ....................................................................................................... 22 Floor Angle Guide Inventory List .............................................................................. 23 Delivery Dates ............................................................................................................. 25

Rack Protection

Protect Your Racking

End-of-Aisle Rack Protection

Cogan end-of-aisle rack protectors are the smart choice when you need solid protection close to the ground.

4 | COGAN

Effective protection close to the ground, Cogan end-of-aisle rack protectors shield sensitive rackaisle-ends from warehouse traffic. Prevent collision damage should a fork truck or other in-plant vehicle steer off-course and accidentally bump the racking.

When properly anchored to the floor, Cogan end-ofaisle rack protectors help guard your investment without interrupting aisle flow patterns or limiting access to your pick area. Available in single and double-sided configurations.

Rack Aisle Protectors | Wrap Around Rack Pal 1. Product Information Specifications Model

Single Sided Wrap Around

Overall Height

12”

Floor Angle

L5 x 3 x 1/4”

Finish

Powder-Coated Safety Yellow

Requires

5/8”ø x 4 1/2” Floor Anchors (sold separately)

Model

Double Sided Wrap Around

Overall Height

12”

Floor Angle

L5 x 3 x 1/4”

Finish

Powder-Coated Safety Yellow

Requires

5/8”ø x 4 1/2” Floor Anchors (sold separately)

Single Sided Wrap Around Left Crescent

Right Crescent

Double Sided Wrap Around

2. Finish

Safety Yellow

5 | COGAN

3. Standard Sizes Item Description

Nominal Length

Overall Length

Item #

24” Left “Wrap Around Rack Pal”

24”

26 9/16”

RP24L

24” Right “Wrap Around Rack Pal”

24”

26 9/16”

RP24R

42” Left “Wrap Around Rack Pal”

42”

44 9/16”

RP42L

42” Right “Wrap Around Rack Pal”

42”

44 9/16”

RP42R

48” Left “Wrap Around Rack Pal”

48”

50 9/16”

RP48L

48” Right “Wrap Around Rack Pal”

48”

50 9/16”

RP48R

54” Left “Wrap Around Rack Pal”

54”

56 9/16”

RP54L

54” Right “Wrap Around Rack Pal”

54”

56 9/16”

RP54R

42” Double-Sided “Wrap Around Rack Pal”

42”

47 1/8”

RPD42

48” Double-Sided “Wrap Around Rack Pal”

48”

53 1/8”

RPD48

All sizes in blue are kept in stock.

Refer to Delivery Dates for details.

Custom sizes also available.

Single Sided Wrap Around Left Crescent - 24”

Single Sided Wrap Around Left Crescent - 42”, 48”, 54”

ø3/4”

ø3/4” 3”

7 1/6”

3”

Equal

Dist. Between Floor Anchors

Nominal Length

Nominal Length

Overall Length

Overall Length

Double Sided Wrap Around 42”, 48” ø3/4” 3”

Equal

Equal Nominal Length Overall Length

6 | COGAN

Equal

7 1/6”

7 1/6”

4. Details Type

Nominal Length

# Punched Holes

Spacing

Single Sided Wrap

24”

2

19”

Single Sided Wrap

42”

3

18 1/2”

Single Sided Wrap

48”

3

21 1/2”

Single Sided Wrap

54”

3

24 1/2”

Double Sided Wrap

42”

3

18 1/2”

Double Sided Wrap

48”

3

21 1/2”

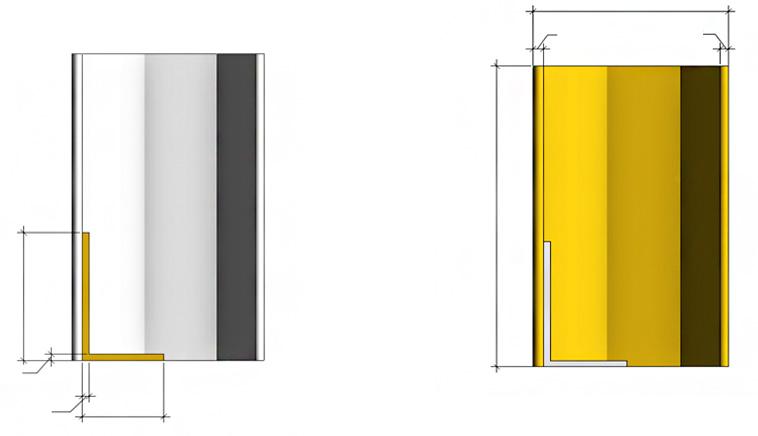

Floor Angle L5 x 3” x 1/4” - Detail Single and Double Sided Wrap Around

Crescent - Detail 7 1/16” 3/8”

3/8”

12” 5” 1/4” 1/4”

3”

Spacing

Spacing

Punched Hole

Requires 5/8”ø x 4 1/2” wedge type floor anchors

Existing Racking

Existing Racking

Left Crescent

Right Crescent 7 | COGAN

Rack Aisle Protectors | Wrap Around Rack Pal (Large Crescent) 1. Product Information Specifications Model

Single Sided Wrap Around (Large Crescent)

Overall Height

12”

Floor Angle

L5 x 3 x 1/4”

Finish

Powder-Coated Safety Yellow

Requires

5/8”ø x 4 1/2” Floor Anchors (sold separately)

Model

Double Sided Wrap Around (Large Crescent)

Overall Height

12”

Floor Angle

L5 x 3 x 1/4”

Finish

Powder-Coated Safety Yellow

Requires

5/8”ø x 4 1/2” Floor Anchors (sold separately)

Single Sided Wrap Around (Large Crescent) Left Crescent

Double Sided Wrap Around (Large Crescent)

2. Finish

Safety Yellow

8 | COGAN

Right Crescent

3. Standard Sizes Item Description

Nominal Length

Overall Length

Item #

24” Left “Wrap Around Rack Pal” (Large Crescent)

24”

26 3/4”

RP24L-LC

24” Right “Wrap Around Rack Pal” (Large Crescent)

24”

26 3/4”

RP24R-LC

42” Left “Wrap Around Rack Pal” (Large Crescent)

42”

44 3/4”

RP42L-LC

42” Right “Wrap Around Rack Pal” (Large Crescent)

42”

44 3/4”

RP42R-LC

48” Left “Wrap Around Rack Pal” (Large Crescent)

48”

50 3/4”

RP48L-LC

48” Right “Wrap Around Rack Pal” (Large Crescent)

48”

50 3/4”

RP48R-LC

54” Left “Wrap Around Rack Pal” (Large Crescent)

54”

56 3/4”

RP54L-LC

54” Right “Wrap Around Rack Pal” (Large Crescent)

54”

56 3/4”

RP54R-LC

42” Double-Sided “Wrap Around Rack Pal” (Large Crescent)

42”

47 3/4”

RPD42-LC

48” Double-Sided “Wrap Around Rack Pal” (Large Crescent)

48”

53 3/4”

RPD48-LC

All sizes in blue are kept in stock.

Refer to Delivery Dates for details.

Custom sizes also available.

Single Sided Wrap Around (Large Crescent)

Single Sided Wrap Around (Large Crescent)

Left Crescent - 24”

Left Crescent - 42”, 48”, 54” ø3/4”

ø3/4”

11 5/16”

11 5/16” 3”

3”

Equal Dist. Between Floor Anchors

Equal Nominal Length

Nominal Length

Overall Length

Overall Length

Double Sided Wrap Around (Large Crescent) 42”, 48” ø3/4”

11 5/16” 3”

Equal

Equal Nominal Length Overall Length

9 | COGAN

4. Details Type

Nominal Length

# Punched Holes

Spacing

Single Sided Wrap

24”

2

19”

Single Sided Wrap

42”

3

18 1/2”

Single Sided Wrap

48”

3

21 1/2”

Single Sided Wrap

54”

3

24 1/2”

Double Sided Wrap

42”

3

18 1/2”

Double Sided Wrap

48”

3

21 1/2”

Floor Angle L5 x 3” x 1/4” - Detail Single and Double Sided Wrap Around

Crescent - Detail 7 1/16” 3/8”

3/8”

12” 5” 1/4” 1/4”

3”

Spacing

Spacing

Punched Hole

10 | COGAN

Requires 5/8”ø x 4 1/2” wedge type floor anchors

Existing Racking

Existing Racking

Left Crescent

Right Crescent

Rack Post Rack Protection

Easy-to-install and economical, Cogan rack post protectors provide just the right amount of protection around individual racking posts.

Pallet rack systems are not designed to withstand forklift impact. Even the slightest traffic collision

can result in structural damage and potential rack collapse. Cogan rack post protectors are designed to shield vulnerable column uprights from such accidents. The durable, all-steel construction wraps around the entire circumfrence of each rack post to absorb and dissipate impact. Your racking will remain intact and your workflow productive.

Cogan rack post protectors are available in three standard sizes to accomodate a range of racking systems.

11 | COGAN

Rack Post Protectors | Standard Crescent 1. Product Information Specifications Height

12”, 18”, 24”

Thickness

3/8”

Base Plate

For Maximum Rack Post of 5”

Inner Length

5 1/4”

Finish

Powder-Coated Safety Yellow

Requires

1/2 ø x 4 1/4” Wedge Type Floor Anchors (sold separately)

Rack Post Protector

Back View

Front View

2. Finish

Safety Yellow

3. Standard Sizes Item Description

Height

Item #

Rack Post Protector

12”

RP12

Rack Post Protector

18”

RP18

Rack Post Protector

24”

RP24

12 | COGAN

All sizes in blue are kept in stock.

Refer to Delivery Dates for details.

4. Details

12” Rack Post Protector

18” Rack Post Protector

24” Rack Post Protector

24” 18” 12”

4”

5 1/4” 8 1/4”

6”

4”

5 1/4” 8 1/4”

6”

5 1/4”

4”

6”

8 1/4”

Plan View The rack post protector shields a maximum rack post of 5”.

Crescent Wrap around crescent is made of 3/16” thick steel.

Base Plate The base plate is made of 1/4” thick steel plate punched with four 5/8ø holes for floor anchors.

8 1/4” 3/16”

5 1/4”

3/16”

5/8” 4”

Maximum Rack Post of 5”

Requires 1/2” ø x 4 1/4” wedge typefloor anchors

6”

13 | COGAN

Rack Post Protectors | Large Crescent 1. Product Information Specifications Height

12”, 18”, 24”

Thickness

3/8”

Base Plate

For Maximum Rack Post of 8”

Inner Length

8 1/4”

Finish

Powder-Coated Safety Yellow

Requires

1/2 ø x 4 1/4” Wedge Type Floor Anchors (sold separately)

Rack Post Protector (Large Crescent)

Back View

Front View

2. Finish

Safety Yellow

3. Standard Sizes Item Description

Height

Item #

Rack Post Protector (Large Crescent)

12”

RP12-LC

Rack Post Protector (Large Crescent)

18”

RP18-LC

Rack Post Protector (Large Crescent)

24”

RP24-LC

14 | COGAN

All sizes in blue are kept in stock.

Refer to Delivery Dates for details.

4. Details

12” Rack Post Protector (Large Crescent)

18” Rack Post Protector (Large Crescent)

24” Rack Post Protector (Large Crescent)

24” 18” 12”

4”

8 1/4”

4”

8 1/4”

6”

6”

11 1/4”

11 1/4”

8 1/4”

4”

6”

11 1/4”

Plan View The rack post protector shields a maximum rack post of 8”.

Crescent Wrap around crescent is made of 3/16” thick steel.

Base Plate The base plate is made of 1/4” thick steel plate punched with four 5/8ø holes for floor anchors.

11 1/4” 3/16”

8 1/4”

3/16”

5/8” 4” 6”

Maximum Rack Post of 8”

Requires 1/2” ø x 4 1/4” wedge type floor anchors

15 | COGAN

Rigid and resilient, form a sturdy wall of protection between your employees and your inventory with Cogan wire mesh rack guards.

Rigid and resilient, Cogan rack guard panels bolt directly onto racking uprights, effectively placing

Rack Guards Back-of-Rack Protection

16 | COGAN

a barrier between stored materials and the picking aisles below. Your workers remain safe from falling debris should a forklift bump the racking or if a pallet breaks. The wire mesh construction forms a sturdy wall of protection for your employees, while your inventory remains secure and visible.

Simple nut-and-bolt assembly makes installation quick and easy, minimizing costs and maximizing savings. It’s why Cogan rack guards consistently outperform in every crucial area— including price.

Wire Mesh Rack Guards 1. Product Information Specifications Panel Height

3’-5’

Finish

Powder-Coated

Mesh Size

2” x 2” x 10GA

Panel Material

Steel Wire

Frame Material

Structural Angle 1 1/4” x 1 1/4” x 12GA

Stiffening Profile

None

2. Finish

Cogan Grey Panels

Electro-Galvanized Brackets

3. Standard Sizes

Plan View

Standard Width 94” panel for 96” rack beam 106” panel for 108” rack beam 118” panel for 120” rack beam 130” panel for 132” rack beam 142” panel for 144” rack beam Oversized Started and Add-On Units Width Panel Width

154” panel for 156” rack beam 166” panel for 168” rack beam 178” panel for 180” rack beam 190” panel for 192” rack beam

17 | COGAN

Standard Panel Sizes Nominal Panel Size (WxH)

Exact Panel Size (WxH)

Item #

8’ x 3’

94” x 35”

P-W83

8’ x 4’

94” x 47”

P-W84

8’ x 5’

94” x 59”

P-W85

9’ x 3’

106” x 35”

P-W93

9’ x 4’

106” x 47”

P-W94

9’ x 5’

106” x 59”

P-W95

10’ x 3’

118” x 35”

P-W103

10’ x 4’

118” x 47”

P-W104

10’ x 5’

118” x 59”

P-W105

11’ x 3’

130” x 35”

P-W113

11’ x 4’

130” x 47”

P-W114

11’ x 5’

130” x 59”

P-W115

12’ x 3’

142” x 36”

P-W123

12’ x 4’

142” x 47”

P-W124

12’ x 5’

142” x 59”

P-W125

Standard

18 | COGAN

All sizes in blue are kept in stock.

Refer to Delivery Dates for details.

Custom sizes also available.

Starter Unit Sizes Nominal Panel Size (WxH)

Exact Panel Size (WxH)

Item #

13’ x 3’

154” x 35”

P-W-SU-133

13’ x 4’

154” x 47”

P-W-SU-134

13’ x 5’

154” x 59”

P-W-SU-135

14’ x 3’

166” x 35”

P-W-SU-143

14’ x 4’

166” x 47”

P-W-SU-144

14’ x 5’

166” x 59”

P-W-SU-145

15’ x 3’

178” x 35”

P-W-SU-153

15’ x 4’

178” x 47”

P-W-SU-154

15’ x 5’

178” x 59”

P-W-SU-155

16’ x 3’

190” x 35”

P-W-SU-163

16’ x 4’

190” x 47”

P-W-SU-164

16’ x 5’

190” x 59”

P-W-SU-165

Refer to Delivery Dates for details.

Custom sizes also available.

Starter Unit

HS

S2

HS

S2

”x

2”

”x

x1

2”

x1

6G

A

6G

A

19 | COGAN

Add-On Unit Sizes Nominal Panel Size (WxH)

Exact Panel Size (WxH)

Item #

13’ x 3’

154” x 35”

P-W-AU-133

13’ x 4’

154” x 47”

P-W-AU-134

13’ x 5’

154” x 59”

P-W-AU-135

14’ x 3’

166” x 35”

P-W-AU-143

14’ x 4’

166” x 47”

P-W-AU-144

14’ x 5’

166” x 59”

P-W-AU-145

15’ x 3’

178” x 35”

P-W-AU-153

15’ x 4’

178” x 47”

P-W-AU-154

15’ x 5’

178” x 59”

P-W-AU-155

16’ x 3’

190” x 35”

P-W-AU-163

16’ x 4’

190” x 47”

P-W-AU-164

16’ x 5’

190” x 59”

P-W-AU-165

Refer to Delivery Dates for details.

Custom sizes also available.

Add-On Unit

HS

S2

20 | COGAN

”x

2”

x1

6G

A

4. Details

Top View of Roll Formed Racking Upright

Top View of Structural Racking Upright Flush mount installation

Flush mount installation 6”, 8” or 12” offset installation

6”, 8” or 12” offset installation

Mounting Brackets Offset bracket for roll formed racking uprights

Flush mount bracket (used for roll formed or structural uprights)

Offset bracket for structural racking uprights

Angled extension bracket (used for both roll formed and structural uprights)

21 | COGAN

Floor Guide Rack Protection

Effective and reliable protection.

Direct in-plant vehicles along safe channels and aisle ways with Cogan floor angle guide.

22 | COGAN

Cogan floor angle guide provides continuous, uninterrupted protection low to the ground. Easy-toinstall and economical, our floor angle guide keeps traffic away from critical rack supports, pallet flow rails, walls, offices, and other work areas. Floor angle guide can also be used for narrow aisle storage applications The durable, all-steel construction stands up to forklift accidents and other collisions.

You benefit from a safer work environment that protects your people, products and profits.

Floor Angle Guide 1. Product Information Specifications Size

L5 x 3 x 1/4”

Lengths

12”, 24”, 36”, 42”, 48”, 60”, 96”, 120”

Width

3”

Height

5”

Thickness

1/4”

Finish

Powder-Coated Safety Yellow

Requires

5/8”ø x 4 1/2” Wedge Type Floor Anchors (sold separately)

2. Finish

Safety Yellow

23 | COGAN

3. Standard Sizes Item Description

Length

# Punched Holes

Item #

Floor Angle Guide

12”

2

RPFAG12

Floor Angle Guide

24”

2

RPFAG24

Floor Angle Guide

36”

3

RPFAG36

Floor Angle Guide

42”

3

RPFAG42

Floor Angle Guide

48”

3

RPFAG48

Floor Angle Guide

60”

3

RPFAG60

Floor Angle Guide

96”

5

RPFAG96

Floor Angle Guide

120”

6

RPFAG120

Refer to Delivery Dates for details.

Custom sizes also available.

12” 24” 36” 42” 48” 60” 96” 2”

Equal

Equal

Equal

Equal

Equal

2”

120”

4. Details

Profile View L5” x 3” x 1/4”

5”

1/4” 1/4” 24 | COGAN

Requires ø5/8” x 4 1/2” wedge type floor anchors

3”

Delivery Dates Rack Protection

Please refer to the guidelines below for delivery estimates when placing your Ready Made or Custom Made order.

$0 - $5.000 For orders with a total dollar value of $5,000 and under.

Standard sizes in blue are kept in stock.

Allow 1-2 weeks for delivery.

For all other standard sizes, allow +1 extra week for delivery.

For all custom sizes, allow +1 extra week for delivery.

$5.000 + For orders with a total dollar value of $5,000 and over.

+ For all standard and custom sizes, allow 3-4 weeks for delivery.

25 | COGAN

Standard Colors Standard colors are applied to all products and are inluded in the material price on your quote. Unless otherwise specified, all standard colors are powder-coated for a durable, long-lasting, and maintenance-free paint finish.

Rack Protection Safety Yellow

Cogan Grey

Cogan Wire & Metal Products Ltd. Phone (800) 567.2642 Fax (800) 633.3004 info@cogan.com www.cogan.com
