BIG BILL Workwear HIgh Vis Standards Guide

made in usa & canada ANSI 107 & CSA Z96 GUIDE

IDENTIFYING THE CANADIAN HIGH VISIBILITY STANDARD FOR WORKWEAR, CSA Z96

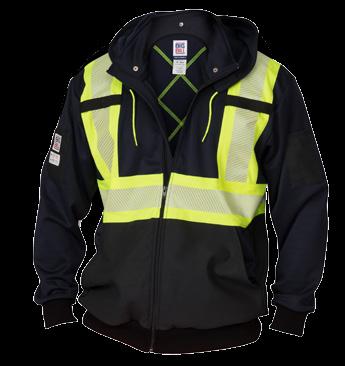

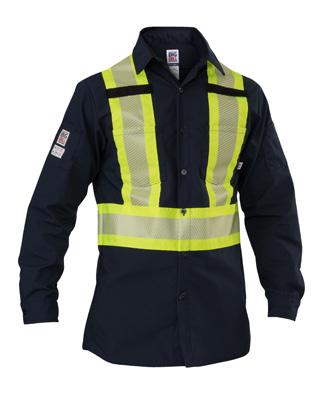

• Can be any garment (except pants) • Can be on any background material that is NOT fluorescent • Must use 4 inch Reflective Material, Yellow, or Orange / Silver / Yellow or Orange, which meets Level 2 standard for superior quality.

• REFLECTIVE MATERIAL EMPLACEMENT must be applied in a CSA approved pattern: provides 360-degree visibility with two vertical strips on front, “X” on back, material around the waist.

IDENTIFYING THE AMERICAN HIGH VISIBILITY STANDARD FOR WORKWEAR, ANSI 107

• Can be any garment (except pants) • Can be on any background material that is NOT fluorescent • Must use 4 inch Reflective Material, Yellow or Orange / Silver / Yellow or Orange, which meets Level 2 standard for superior quality.

• REFLECTIVE MATERIAL EMPLACEMENT must be applied in a CSA approved pattern: provides 360-degree visibility with two vertical strips on front, “X” on back, material around the waist.

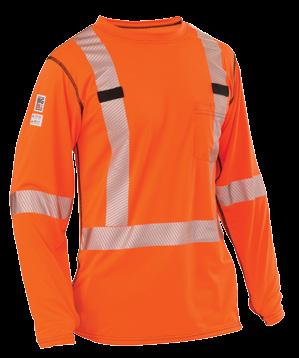

• Can be any garment (except pants) • Must be on a lime yellow, orange or red, fluorescent background material.

• Must use 2 inch Silver Reflective Material, which meets Level 2 standard for superior quality.

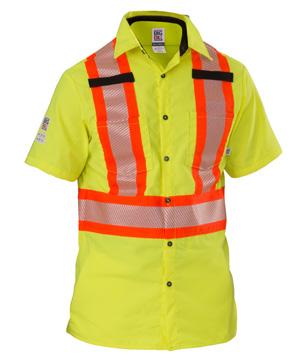

• Can be any garment (except pants) • Must be on a lime yellow, orange or red, fluorescent background material.

• REFLECTIVE MATERIAL EMPLACEMENT must be applied in a CSA approved pattern: provides 360-degree visibility with two vertical strips on front, “X” on back, material around the waist.

• Must use 2 inch Silver Reflective Material, which meets Level 2 standard for superior quality.

• REFLECTIVE MATERIAL EMPLACEMENT must be applied in a CSA approved pattern: provides 360-degree visibility with two vertical strips on front, “X” on back, material around the waist.

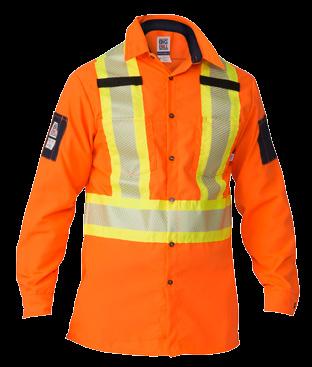

• Can be any garment (except pants) • Must be on a lime yellow, orange or red, fluorescent background material.

• Must use 2 inch Silver Reflective Material, which meets Level 2 standard for superior quality.

• REFLECTIVE MATERIAL EMPLACEMENT must be applied in a CSA approved pattern: provides 360-degree visibility with two vertical strips on front, “X” on back, material around the waist, a horizontal strip around each arm.

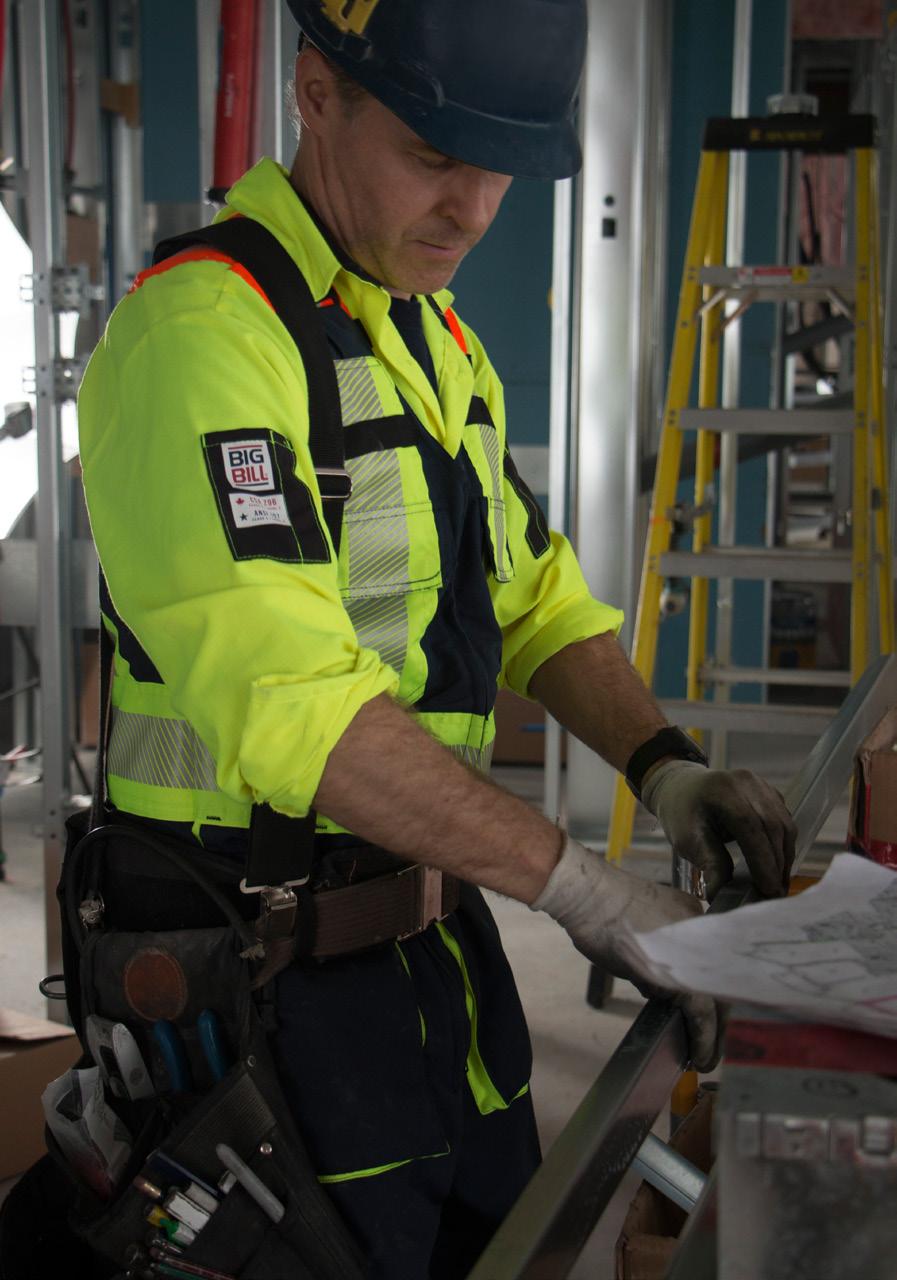

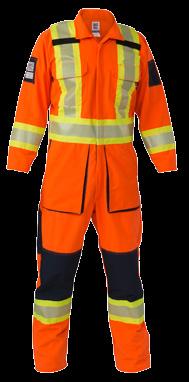

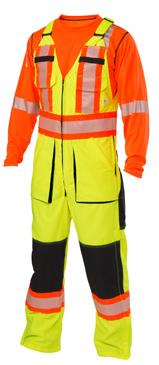

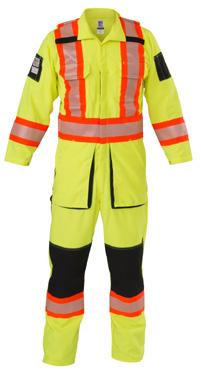

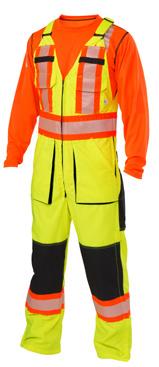

• Applies only to coveralls, bib overalls & shirt with reflective tape on arms or pant & shirt with reflective tape on arms combination.

• Must be on a lime yellow, orange or red, fluorescent background material.

2

• Must use 2 inch Silver Reflective Material, which meets Level 2 standard for superior quality.

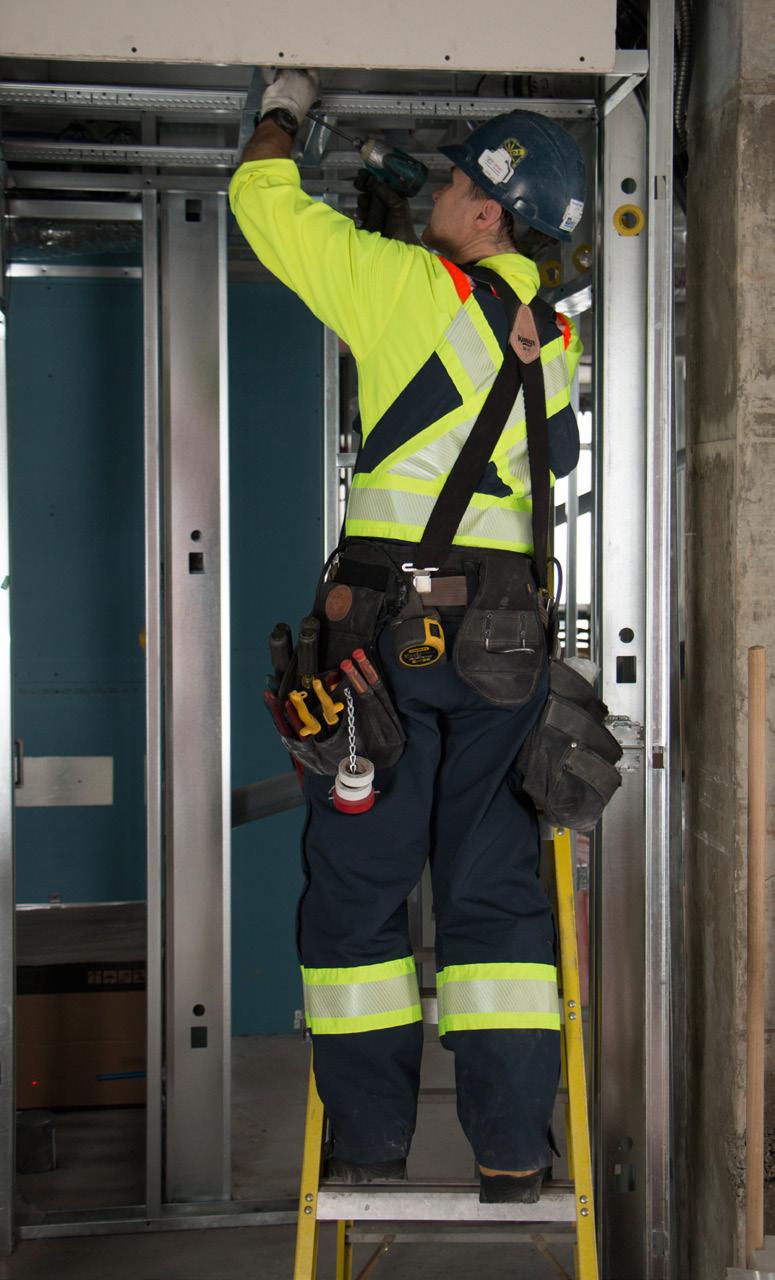

• Pants

• REFLECTIVE MATERIAL EMPLACEMENT must be applied in a CSA approved pattern: provides 360-degree visibility with two vertical strips on front, “X” on back, material around the waist, a horizontal strip around each leg and arm.

• Must use 2 inch Silver Reflective Material, which meets Level 2 standard for superior quality on fluorescent background or 4 inch Reflective Material, Yellow, or Orange / Silver / Yellow or Orange, which meets Level 2 standard for superior quality on non-fluorescent background.

* All 3M Reflective Material meets Level 2 standard for superior quality.

• Can be on any background material.

* All 3M Reflective Material meets Level 2 standard for superior quality.
