BIG BILL FLASHTRAP CATALOG WESTEX

®

A

ÂŽ

PATENTED ÂŽ

A

PATENTED

TECHNOLOGY

Flame Blocking Venting Trap US. PATENT # 9,974,347 B2 / CA. PATENT # 2,835,852

REDUCEs BURN INJURY Increases RATE of survival A patentED TECHNOLOGY Flash Fire & Arc Flash Protection

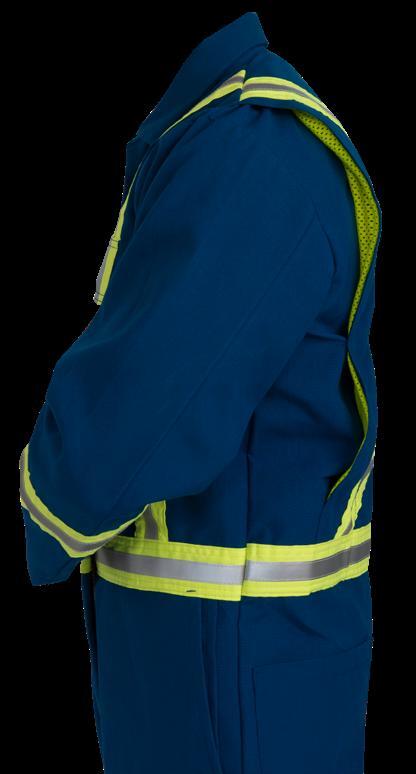

Uppe r & Lo w e r B ac k V e n te d Tr a ps Located along both sides at the back, these vents allow the hot air, which circulates upwards, to be pushed outward, exiting the coverall, keeping you cool. The traps are constructed of a double layered fabric that does not leave your skin exposed, creating more protection.

B ac k K n e e V e n te d Tr a ps Located on the back of both knees, this technology allows cooler air into the coverall, pushing warmer air up through the upper back and out the side air vents. The traps are constructed of a double layered folded fabric that does not leave your skin exposed, creating more protection against exposure.

A SAFER,

MORE COMFORTABLE coverall.

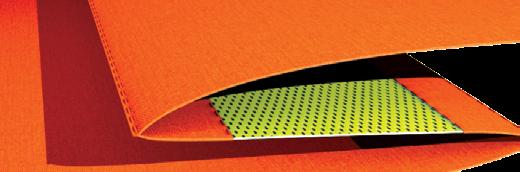

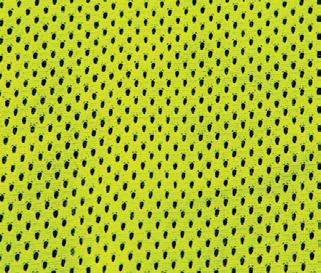

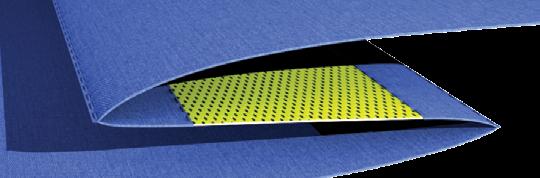

F e at u re s PAT E N T E D S p e c i a l ly D e s i gn e d V e n te d Tr a ps M a d e o f F R M e s h The Vented Traps that are located along the back and back of legs are specially designed in a manner that does NOT expose your skin, keeping you protected from arc flash or flash fire exposure. No debris can enter the coverall. The fashion in which the vented traps are constructed includes a double layer of fabric, folded to create the vented trap, increasing the protection, making a safer coverall. The FR Mesh located between the folded double layer of fabric allows cool air to circulate into your coverall, pushing out hot air, creating a ventilation system.

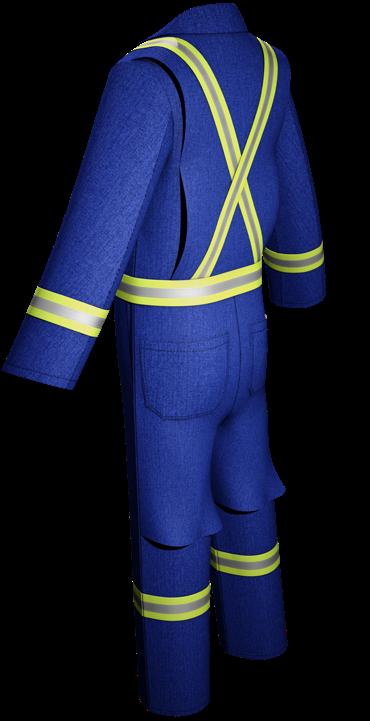

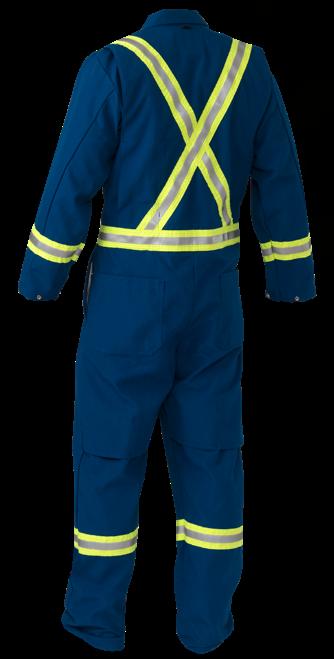

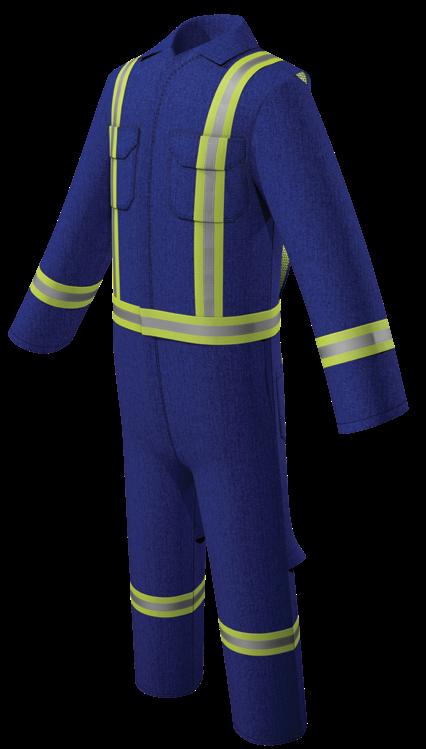

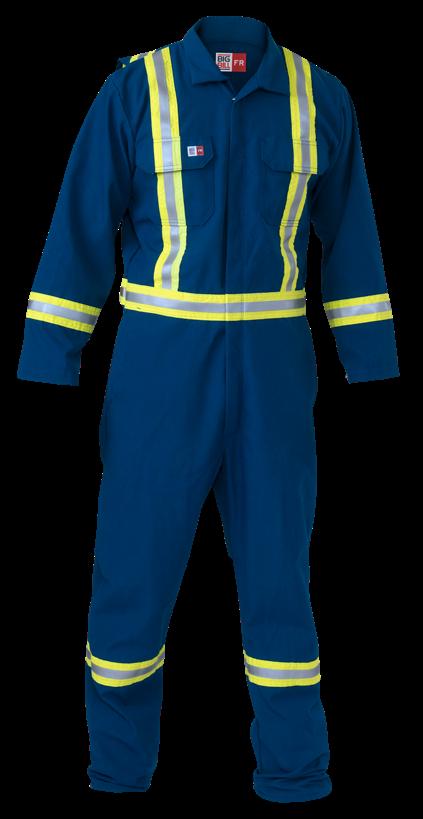

FLASHTRAP VENTED COVERALL MADE IN CANADA

/ CONCEALED NOMEX ® TAPED TWO-WAY BRASS ZIPPER AND SNAP FRONT CLOSURE / 2 LARGE DOUBLE STITCHED FRONT CHEST POCKETS

WITH FLAP AND CONCEALED SNAP CLOSURE / 2 LARGE DOUBLE STITCHED BACK POCKETS / 2 SLASH POCKETS AT WAIST / SIDE OPENINGS AT WAIST WITH CONCEALED SNAP CLOSURE / NICKEL PLATED BRASS SNAPS / CUFF WITH CONCEALED SNAP CLOSURE (ALL SNAPS ARE COVERED WITH MATERIAL) / FEVATURES PATENTED SPECIALLY DESIGNED VENTED TRAPS LOCATED VERTICALLY ALONG EACH SIDE OF THE BACK AND HORIZONTALLY AT THE BACK OF EACH LEG. THE FASHION IN WHICH THE VENTED TRAPS ARE CONSTRUCTED INCLUDES A LAYER OF FOLDED FR FABRIC COMBINED WITH AN INTERIOR LAYER OF FR MESH THAT IS 100% MODACRYLIC. THIS DESIGN DOES NOT EXPOSE YOUR SKIN.

PATENTED ®

Flame Blocking Venting Trap US. PATENT # 9,974,347 B2 / CA. PATENT # 2,835,852

1155US7 / FLASHTRAP VENTED COVERALL 7 OZ westex Ultrasoft ® 88% COTTON / 12% NYLON

CSA-Z9 6 3M™

CLASS

1

SCOTCHLITE™

/

LEVEL

REFLECTIVE

FR

MATERIAL

#9740 3/4” FR SILVER, HEAT TRANSFERRED ONTO 2”

FLUORESCENT

LIME-YELLOW

FIREWEAVE.

COMMERCIAL LAUNDERING.

NFPA 70E / CSA Z462 / NFPA 2112 ARC RATED

8.7 cal/cm 2

CATEGORY 2

S i z e s : (REG) S-5XL / (TALL) M-5XL C a r e : C o m m e rc i al L a u n d e r i ng C o l o r s : NAY, BLR, ORA, GRY, KAK

ALSO AVAILABLE in WESTEX ULTRASOFT AC ®

1155AC7 / FLASHTRAP VENTED COVERALL 7 OZ WESTEX ULTRASOFT AC ® 88% PIMA COTTON / 12% NYLON

C o l o r : BLR ALSO AVAILABLE with OUT REFECTIVE TAPE

1150US7 / FLASHTRAP VENTED COVERALL 7 OZ WESTEX ULTRASOFT ® 88% COTTON / 12% NYLON

C o l o r s : NAY, GRY, KAK

3 NAY

BLR

ORA

GRY

KAK

® A

PATENTED

PATENTED ®

TECHNOLOGY Flame Blocking Venting Trap US. PATENT # 9,974,347 B2 / CA. PATENT # 2,835,852

REDUCEs BURN INJURY Increases RATE of survival A patentED TECHNOLOGY Flash Fire & Arc Flash Protection

Uppe r & Lo w e r B ac k V e n te d Tr a ps Located along both sides at the back, these vents allow the hot air, which circulates upwards, to be pushed outward, exiting the coverall, keeping you cool. The traps are constructed of a double layered fabric that does not leave your skin exposed, creating more protection.

A SAFER,

MORE COMFORTABLE shirt.

F e at u re s PA T E N T E D S p e c i a l ly D e s i gn e d V e n te d Tr a ps M a de o f F R M e s h

4

The Vented Traps that are located along the back are specially designed in a manner that does NOT expose your skin, keeping you protected from arc flash or flash fire exposure. No debris can enter the coverall. The fashion in which the vented traps are constructed includes a double layer of fabric, folded to create the vented trap, increasing the protection, making a safer shirt. The FR Mesh located between the folded double layer of fabric allows cool air to circulate into your shirt, pushing out hot air, creating a ventilation system.

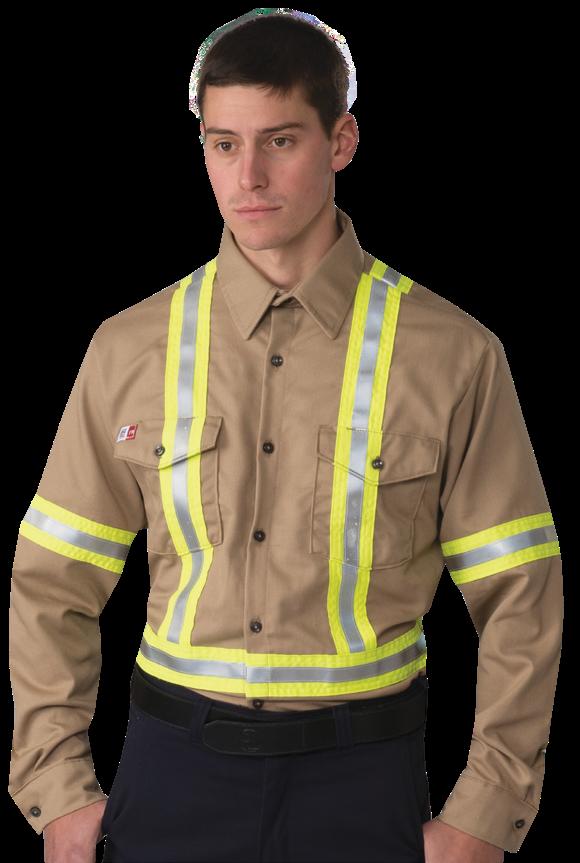

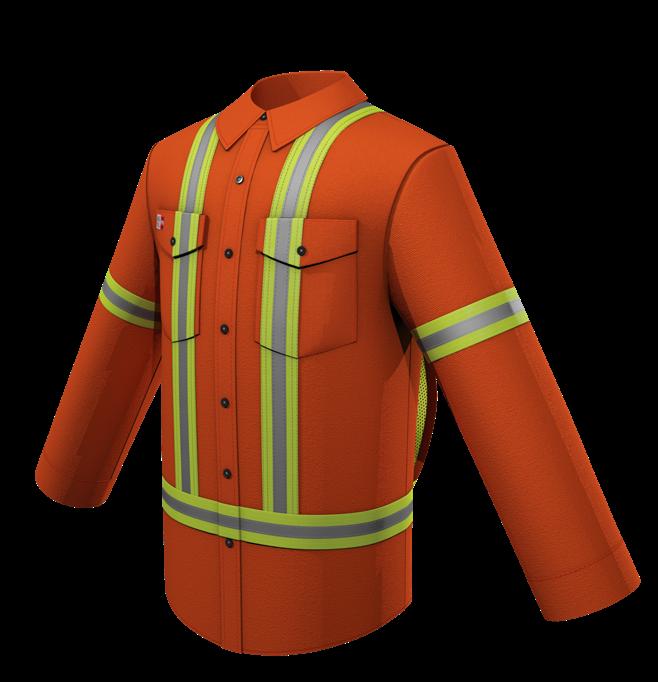

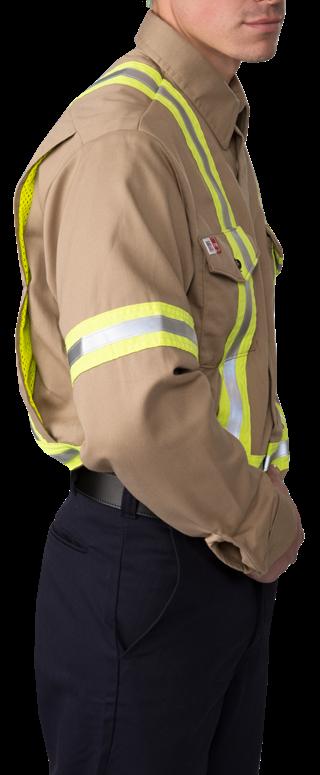

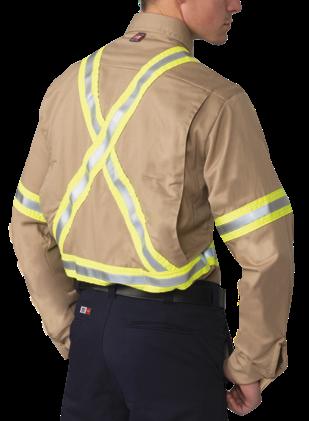

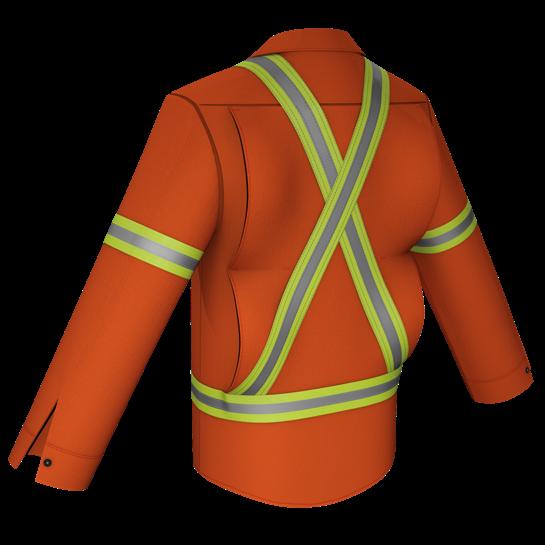

FLASHTRAP VENTED SHIRT MADE IN CANADA

/ PLACKET FRONT WITH BUTTON CLOSURE / BANDED COLLAR WITH PELON & STAYS / 2 FRONT CHEST POCKETS WITH FLAP AND BUTTON CLOSURE /

PENCIL DIVISION ON BOTH POCKETS / DOUBLE BACK YOKE / BAR-TACKED AT ALL STRESS POINTS / CUFFS WITH BUTTON CLOSURE / FEATURES PATENTED SPECIALLY DESIGNED VENTED TRAPS LOCATED VERTICALLY ALONG EACH SIDE OF THE BACK. THE FASHION IN WHICH THE VENTED TRAPS ARE CONSTRUCTED INCLUDES A LAYER OF FOLDED FR FABRIC COMBINED WITH AN INTERIOR LAYER OF FR MESH THAT IS 100% MODACRYLIC. THIS DESIGN DOES NOT EXPOSE YOUR SKIN.

PATENTED

®

®

Flame Blocking Venting Trap US. PATENT # 9,974,347 B2 / CA. PATENT # 2,835,852

1115US7 / FLASHTRAP VENTED SHIRT 7 OZ westex Ultrasoft ® 88% COTTON / 12% NYLON

CSA-Z9 6 CLASS 1 / LEVEL FR 3M™

SCOTCHLITE™

REFLECTIVE

MATERIAL

3/4” FR SILVER, HEAT TRANSFERRED ONTO 2”

FLUORESCENT

LIME-YELLOW

FIREWEAVE.

COMMERCIAL LAUNDERING.

NFPA 70E / CSA Z462 8.7 cal/cm 2

ARC RATED

CATEGORY 2

S i z e s : (REG) S-5XL / (TALL) M-5XL C a r e : C o m m e rc i al L a u n d e r i ng C o l o r s : ORA, GRY, KAK ALSO AVAILABLE IN WESTEX ULTRASOFT AC ®

1115AC7 / FLASHTRAP VENTED SHIRT 7 OZ WESTEX ULTRASOFT AC ® 88% PIMA COTTON / 12% NYLON

C o l o r s : NAY, GRY, KAK ALSO AVAILABLE WITHOUT REFLECTIVE TAPE

1117US7 / FLASHTRAP VENTED SHIRT 7 OZ WESTEX ULTRASOFT ® 88% COTTON / 12% NYLON

C o l o r s : NAY, GRY, KAK ALSO AVAILABLE WITHOUT REFLECTIVE TAPE

1117AC7 / FLASHTRAP VENTED SHIRT 7 OZ WESTEX ULTRASOFT AC ® 88% PIMA COTTON / 12% NYLON

C o l o r : KAK

5 NAY

ORA

GRY

KAK

®

6
