BIG BILL FLASHTRAP CATALOG NOMEX®

A A

ÂŽ

PATENTED ÂŽ

A

PATENTED

TECHNOLOGY

Flame Blocking Venting Trap US. PATENT # 9,974,347 B2 / CA. PATENT # 2,835,852

REDUCEs BURN INJURY Increases RATE of survival A patentED TECHNOLOGY Flash Fire & Arc Flash Protection

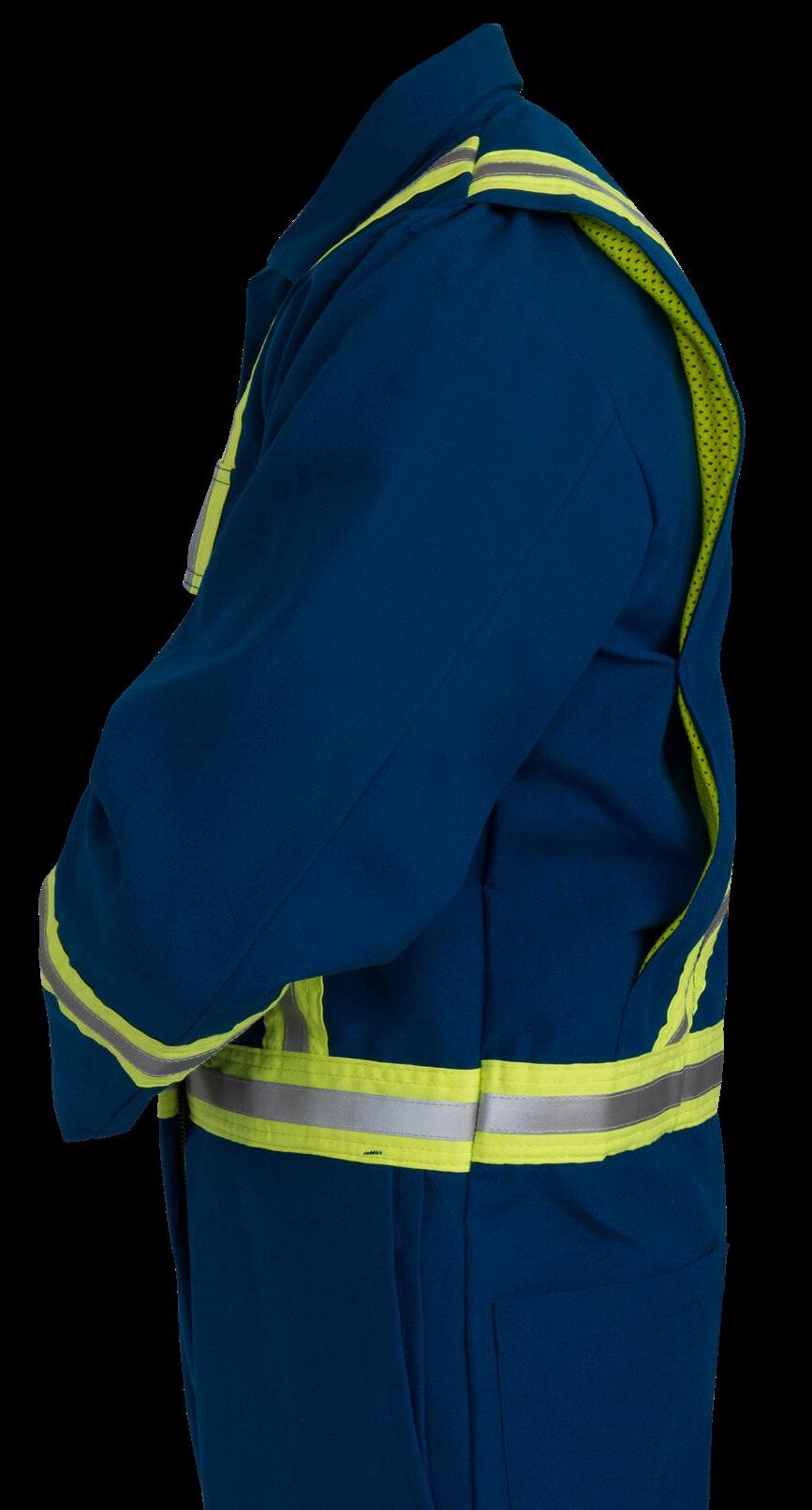

Upper & Lower Back Vented Traps Located along both sides at the back, these vents allow the hot air, which circulates upwards, to be pushed outward, exiting the coverall, keeping you cool. The traps are constructed of a double layered fabric that does not leave your skin exposed, creating more protection.

Back Knee Vented Traps Located on the back of both knees, this technology allows cooler air into the coverall, pushing warmer air up through the upper back and out the side air vents. The traps are constructed of a double layered folded fabric that does not leave your skin exposed, creating more protection against exposure.

A SAFER,

MORE COMFORTABLE coverall.

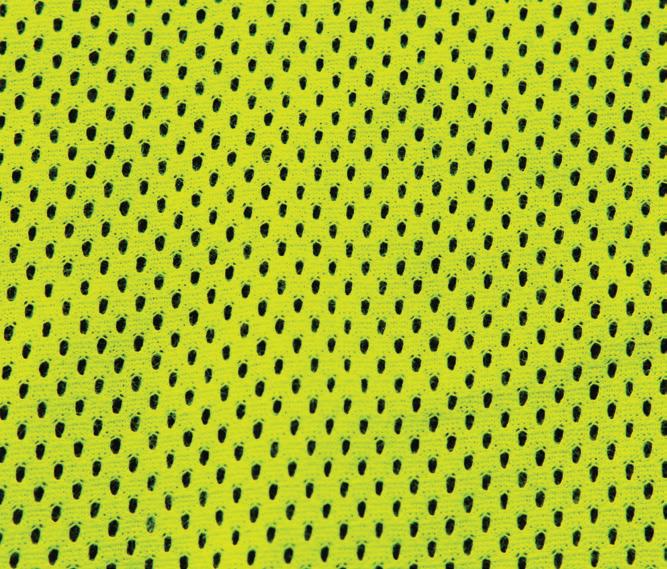

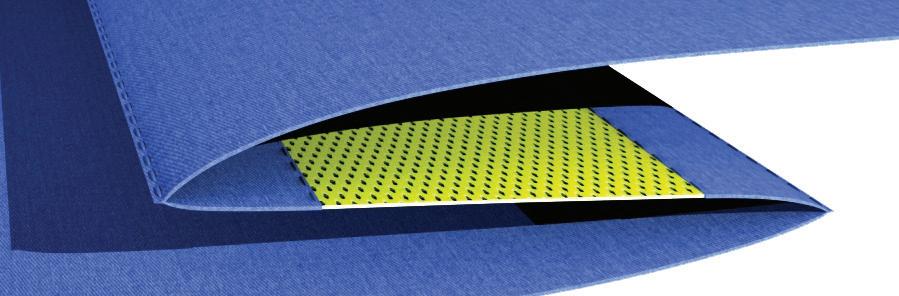

Features PATENTED Specially Designed Vented Traps Made of FR Mesh The Vented Traps that are located along the back and back of legs are specially designed in a manner that does NOT expose your skin, keeping you protected from arc flash or flash fire exposure. No debris can enter the coverall. The fashion in which the vented traps are constructed includes a double layer of fabric, folded to create the vented trap, increasing the protection, making a safer coverall. The FR Mesh located between the folded double layer of fabric allows cool air to circulate into your coverall, pushing out hot air, creating a ventilation system.

FLASHTRAP VENTED COVERALL MADE IN CANADA

/ CONCEALED NOMEX TAPED TWO-WAY BRASS ZIPPER AND SNAP FRONT CLOSURE / 2 LARGE DOUBLE STITCHED FRONT CHEST POCKETS WITH FLAP AND CONCEALED SNAP CLOSURE / 2 LARGE DOUBLE STITCHED BACK POCKETS / 2 SLASH POCKETS AT WAIST / SIDE OPENINGS AT WAIST WITH CONCEALED SNAP CLOSURE / NICKEL PLATED BRASS SNAPS ®

/ CUFF WITH CONCEALED SNAP CLOSURE (ALL SNAPS ARE COVERED WITH MATERIAL) / FEATURES PATENTED SPECIALLY DESIGNED VENTED TRAPS LOCATED VERTICALLY ALONG EACH SIDE OF THE BACK AND HORIZONTALLY AT THE BACK OF EACH LEG. THE FASHION IN WHICH THE VENTED TRAPS ARE CONSTRUCTED INCLUDES A LAYER OF FOLDED FR FABRIC COMBINED WITH AN INTERIOR LAYER OF FR MESH THAT IS 100% MODACRYLIC.

This design does not expose your skin. DUPONT™ NOMEX® : Is inherently flame resistant and does not burn or melt and drip • Provides permanent protection that won’t wash out or wear away • Lightweight, breathable, outstanding wear life, extremely durable, cost effective • Excellent in appearance retention, easy to launder and low laundry shrinkage

PATENTED ®

Flame Blocking Venting Trap US. PATENT # 9,974,347 B2 / CA. PATENT # 2,835,852

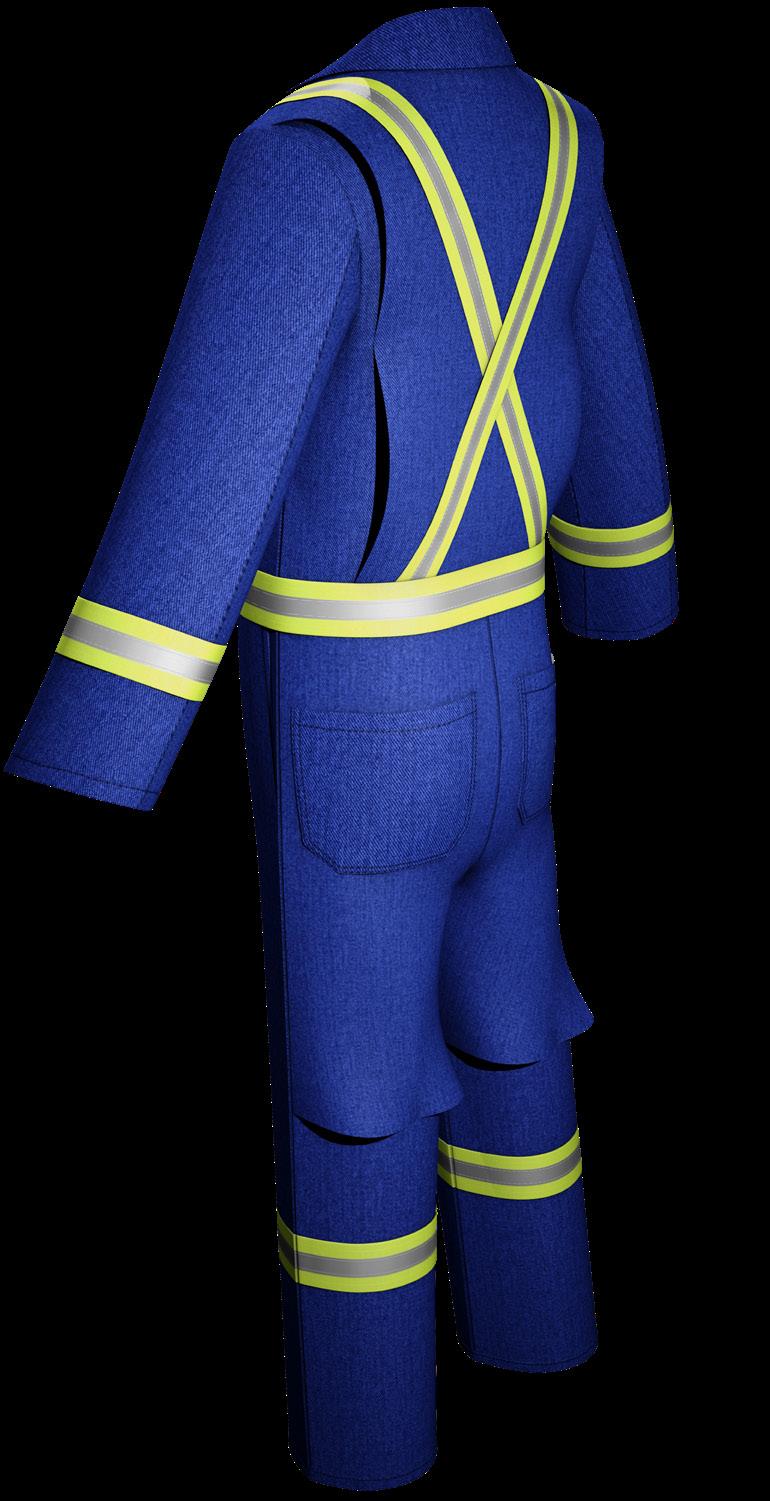

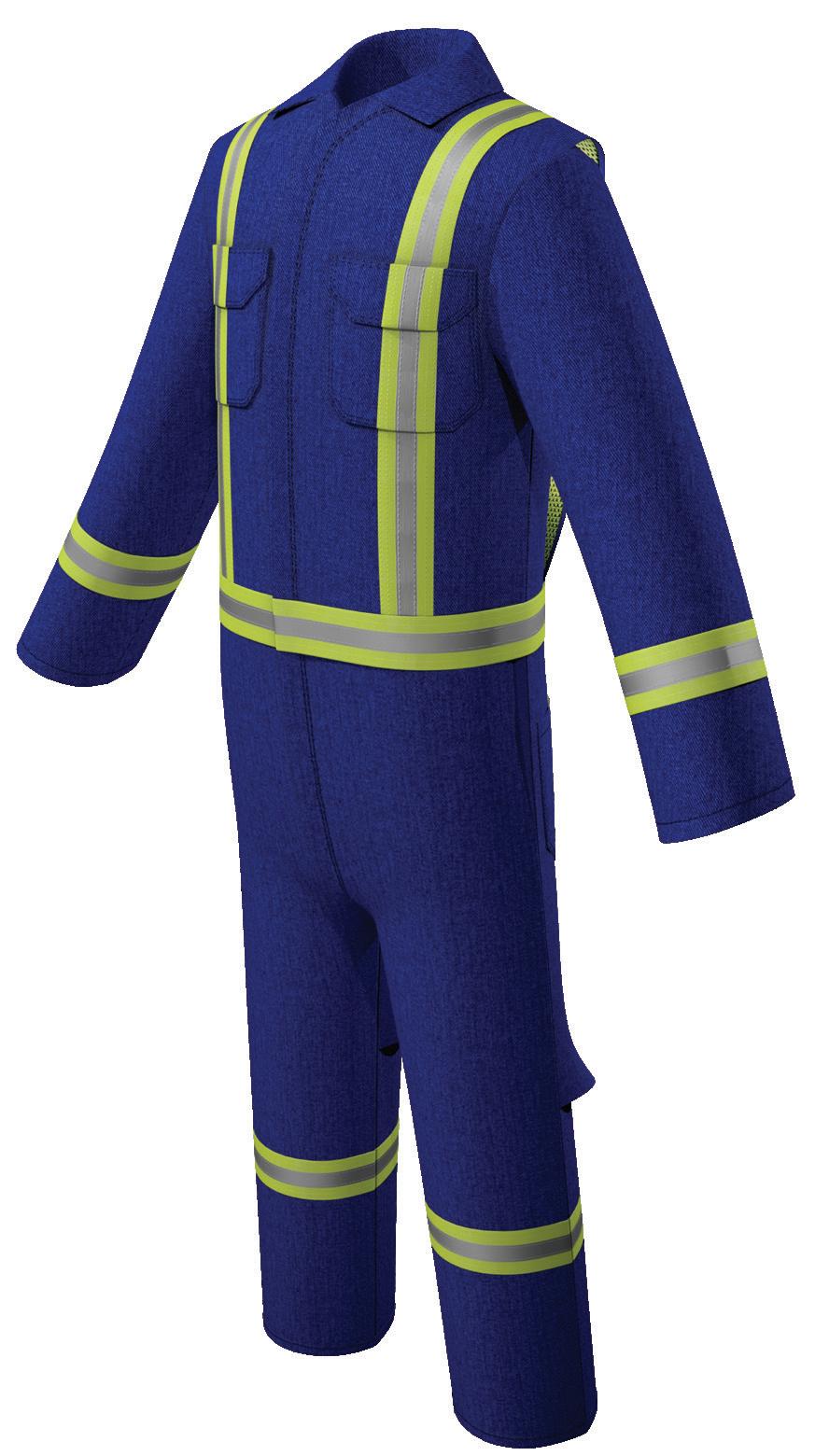

1155N6 / FLASHTRAP VENTED COVERALL

6 OZ Dupont™ Nomex ® iiiA 93% NOMEX® / 5% KEVLAR 2% P-140 CARBON

CSA-Z9 6 CLASS 1 / LEVEL FR 3M™

SCOTCHLITE™

REFLECTIVE

MATERIAL

#9740 3/4” FR SILVER, HEAT TRANSFERRED ONTO 2”

FLUORESCENT

LIME-YELLOW

FIREWEAVE.

COMMERCIAL LAUNDERING.

NFPA 70E / CSA Z462 / nfpa 2112 ARC RATED

5.7 cal/cm 2

CATEGORY 1

S i z e s : (REG) S-5XL / (TALL) M-5XL C a r e : C o m m e rc i al L a u n d e r i ng C o l o r s : NAY, BLR, ORA, GRY, KAK

BLR

ALSO AVAILABLE with OUT REFECTIVE TAPE

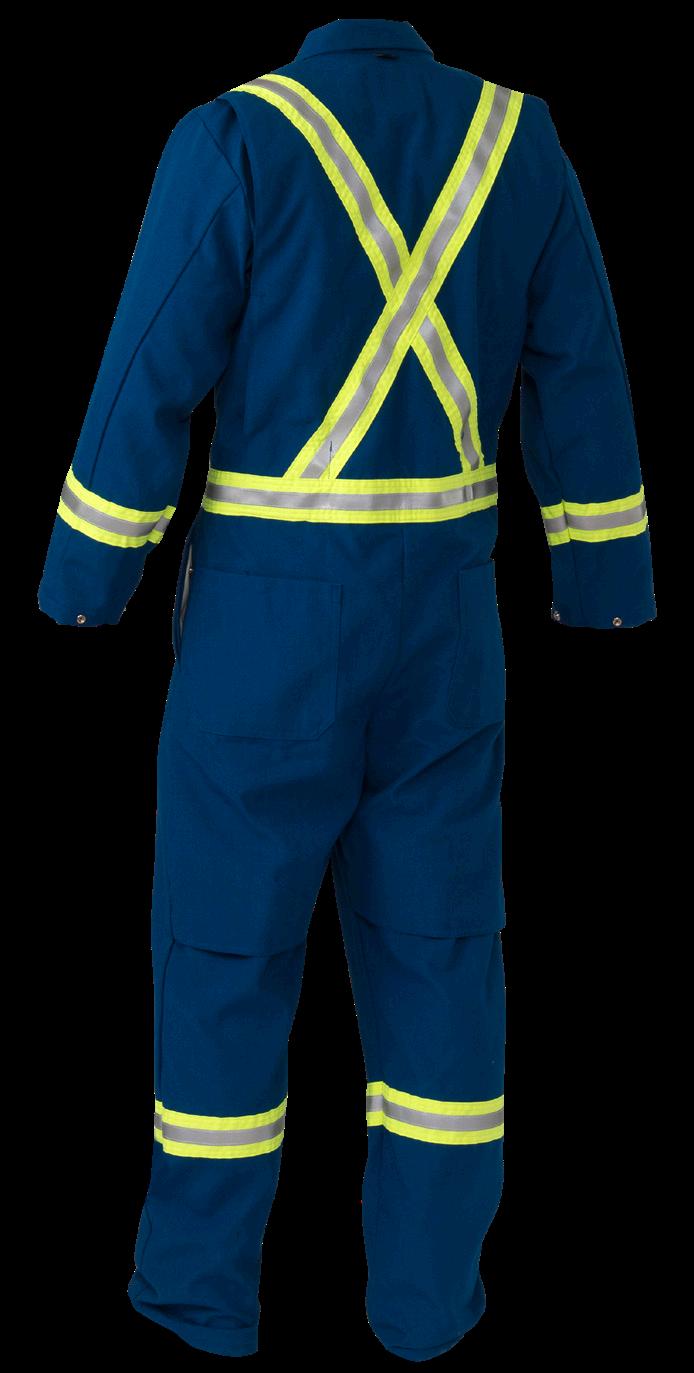

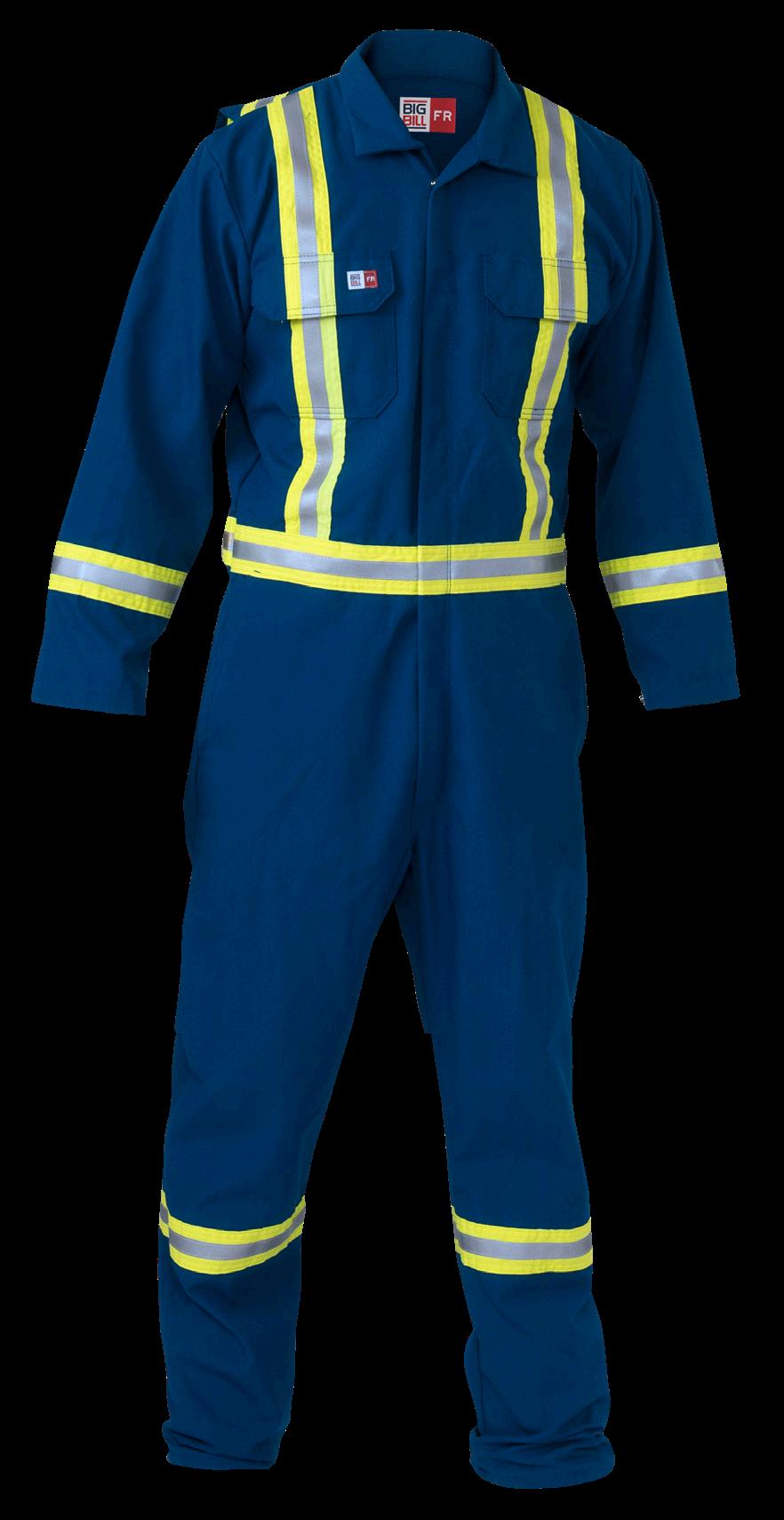

1150N6 / FLASHTRAP VENTED COVERALL 6 OZ Dupont™ Nomex ® IIIA 93% NOMEX® / 5% KEVLAR / 2% P-140 CARBON

1 1

The miracles of science™

The miracles of science™

PATENTED ®

Flame Blocking Venting Trap

3

US. PATENT # 9,974,347 B2 / CA. PATENT # 2,835,852

second

exposure Tested by DuPont™ Thermo-Man® Fires are unpredictable. They can last for 3, 4, and 5 seconds or longer. A matter of seconds can mean the difference between minor burns and life-threatening injuries. Thermo-Man® is a UL Certified test mannequin. This life-sized, instrumented mannequin is one of the most advanced thermal burn injury evaluation device in the world.

Covered with 122 heat sensors and dressed in test garments, DuPont™ Thermo-Man® helps ensure optimal product performance.

Not Protected 2nd Degree Burn 3rd Degree Burn

FLASHTRAP 1150N6

No Information

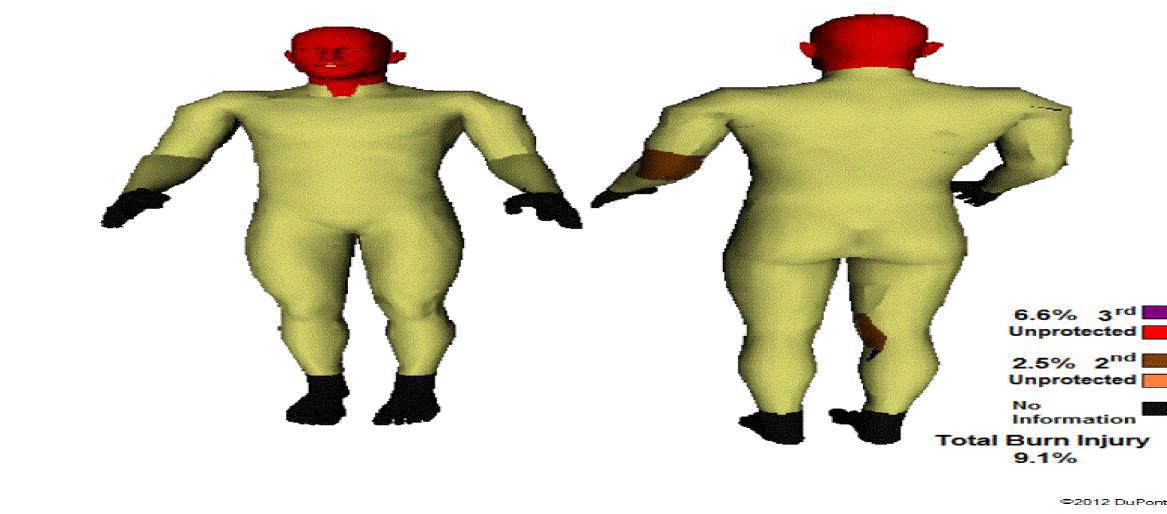

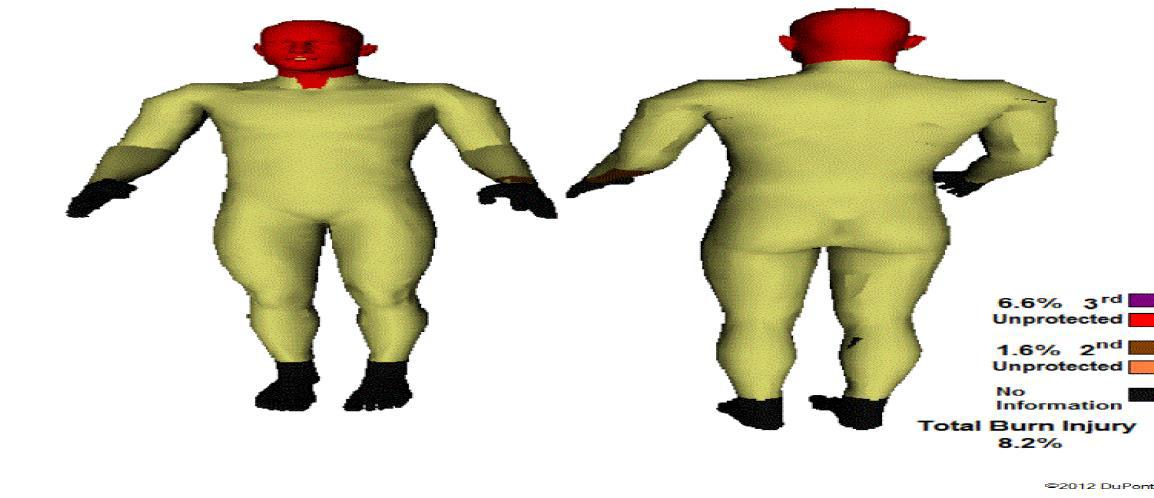

RUN # RIC_130814_0788 8.2% Total Body Burn at 3 Second Exposure

RIC_130814_794

The miracles of science™

80

non FLASHTRAP TX1100N6 RUN # RIC_130814_0789 Body Burn at 3 Second Exposure

9.9% Total RIC_140814_0802

The miracles of science™

Dupont Thermo-man ® Burn Test Completed at 3 & 4 Second Exposure

70

% Of Burn Injury

60

4

50

second

40

exposure

30 20 Not Protected

10 0

2nd Degree Burn 3rd Degree Burn

2 2.5 3 3.5 4 Seconds

NFPA 2112

BIG BILL® FLASHTRAP Vented Coverall 1150N6 3 sec: RUN # RIC_130814_0788 / 4 sec: RUN # RIC_130814_0802

2

BIG BILL® Coverall TX1100N6 3 sec: RUN # RIC_130814_0789 / 4 sec: RUN # RIC_130814_0803 * The charts are highlighted up to 3 seconds and below 50% body burn in accordance with NFPA and CGSB standards and definitions.

No Information

FLASHTRAP 1150N6

non FLASHTRAP TX1100N6

RUN # RIC_130814_0802

RUN # RIC_130814_0803

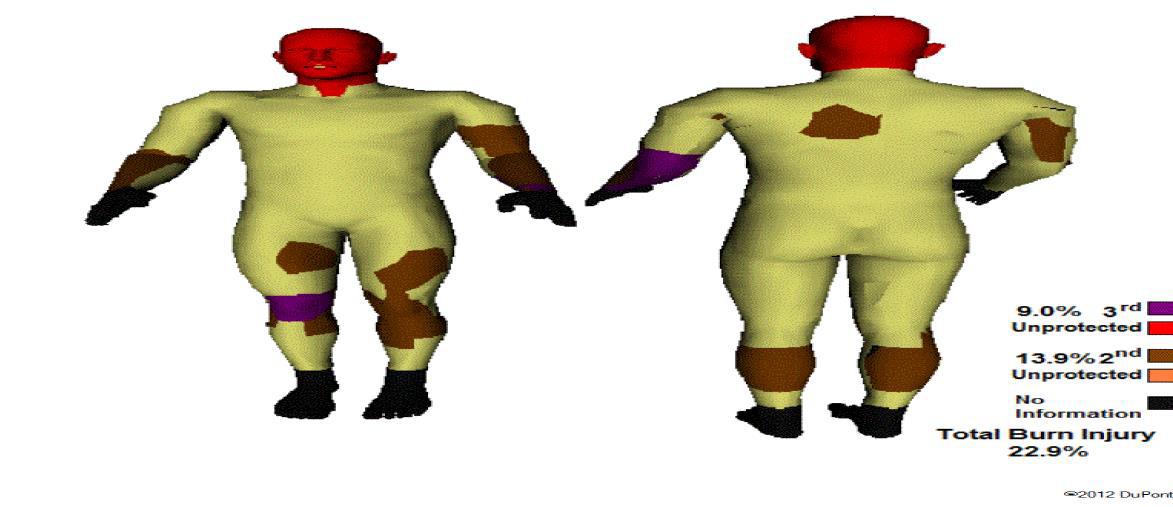

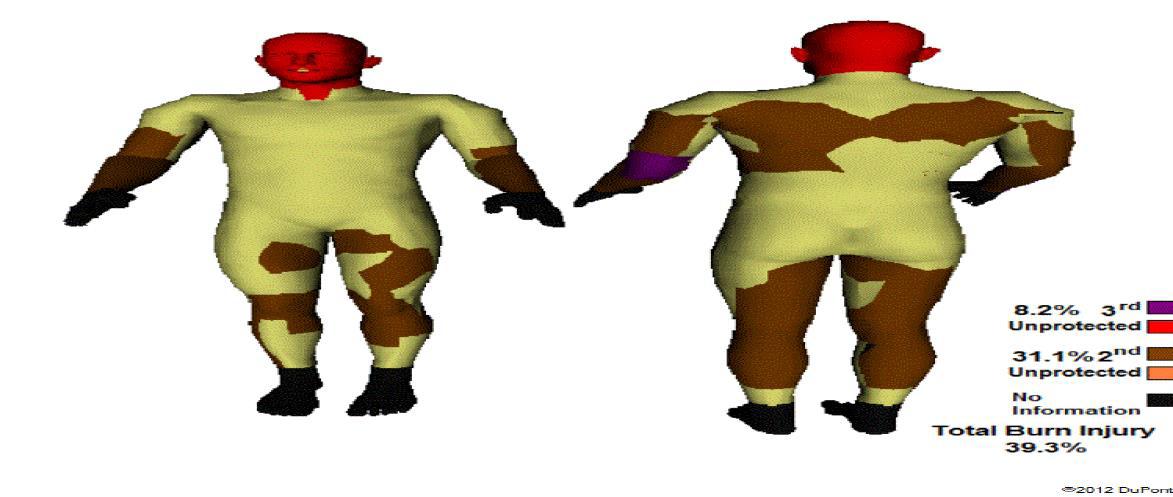

39.3% Total Body Burn at 4 -Second Exposure 22.9% Total Body Burn at 4-Second Exposure RIC_140814_0804 RIC_140814_0803 * Please Note: The mannequin’s has less burn % in areas where the FLASHTRAP Vents are located.

Predicted body burn % may differ with different FR fabric technologies and fabric weights.

TESTED + PROVEN

Dupont Thermo-Man ® Burn Test Completed at 4 Second Exposure Total Body Burn % 40.0

9.5

% Of Burn Injury

% Of Burn Injury

Dupont Thermo-Man ® Burn Test Completed at 3 Second Exposure Total Body Burn % 10.0

9.0

8.5

to REDUCE BURN INJURY +Increases RATE of survival.

35.0

TESTING PROCESS & BURN AGENDA 30.0

A total of 12 individual garments were tested in order to validate the data trends. The mannequin gives burn data results according to the testing standard ASTM F1930.

All coveralls that were tested were made from 6 oz. DuPont™ Nomex® IIIA. The only

25.0

difference between the BIG BILL® Standard Unlined Coverall, TX1100N6, and the BIG BILL® PATENTED FLASHTRAP Vented Coverall, 1150N6, is the FLASHTRAP has the

8.0

1

2

specially designed vented traps along the back and back of legs.

20.0

3

1

Run Number

2

3

Run Number

BIG BILL® FLASHTRAP Vented Coverall 6 oz. DuPont™ Nomex® III A 1150N6

BIG BILL® FLASHTRAP Vented Coverall 6 oz. DuPont™ Nomex® III A 1150N6

BIG BILL® Coverall 6 oz. DuPont™ Nomex® III A TX1100N6

BIG BILL® Coverall 6 oz. DuPont™ Nomex® III A TX1100N6

Dupont Thermo-man ® Burn Test Completed at 3 Second Exposure Run #

Garment Type

A total of 6 tests are performed at 3 second exposure: 3 individual BIG BILL® PATENTED FLASHTRAP Vented Coveralls 1150N6 3 individual BIG BILL® Standard Unlined Coveralls TX1100N6 A total of 6 tests are performed at 4 second exposure: 3 individual BIG BILL® PATENTED FLASHTRAP Vented Coveralls 1150N6 3 individual BIG BILL® Standard Unlined Coveralls TX1100N6 **S e e

Style #

Fabric

2nd

3rd

Total

RIC_130814_0788

BIG BILL® FLASHTRAP Vented Coverall

1150N6

6 oz. DuPont™ Nomex® III A

6.6

1.6

8.2

RIC_130814_0789

BIG BILL® Coverall

TX1100N6

6 oz. DuPont™ Nomex® III A

6.6

3.3

9.9

RIC_130814_0790

BIG BILL FLASHTRAP Vented Coverall

1150N6

6 oz. DuPont™ Nomex® III A

2.5

6.6

9.0

RIC_130814_0792

BIG BILL® Coverall

TX1100N6

6 oz. DuPont™ Nomex® III A

3.3

6.6

9.8

RIC_130814_0793

BIG BILL® FLASHTRAP Vented Coverall

1150N6

6 oz. DuPont™ Nomex® III A

1.6

6.6

8.2

RIC_130814_0794

BIG BILL® Coverall

TX1100N6

6 oz. DuPont™ Nomex® III A

2.5

6.6

9.1

®

Dupont Thermo-man ® Burn Test Completed at 4 Second Exposure Run #

Garment Type

% of Burn Injury

Style #

Fabric

2nd

3rd

Total

RIC_130814_0802

BIG BILL® FLASHTRAP Vented Coverall

1150N6

6 oz. DuPont™ Nomex® III A

13.9

9.0

22.9

RIC_130814_0803

BIG BILL® Coverall

TX1100N6

6 oz. DuPont™ Nomex® III A

31.1

8.2

39.3

RIC_130814_0804

BIG BILL FLASHTRAP Vented Coverall

1150N6

6 oz. DuPont™ Nomex® III A

18.9

7.4

26.3

RIC_130814_0806

BIG BILL® Coverall

TX1100N6

6 oz. DuPont™ Nomex® III A

26.2

6.6

32.8

RIC_130814_0807

BIG BILL® FLASHTRAP Vented Coverall

1150N6

6 oz. DuPont™ Nomex® III A

16.4

7.4

23.8

RIC_130814_0808

BIG BILL® Coverall

TX1100N6

6 oz. DuPont™ Nomex® III A

26.2

7.4

33.6

®

testing results on the left.

% of Burn Injury

TEST RESULTS The Flashtrap Vented Coverall had lower body burn percentages after every test completed. This evidence supports the PATENTED FLASHTRAP design is the unique variable that results in lower body burn percentages and increases the rate of survival. This data trend supports the FLASHTRAP design is safer than the average coverall. If you look at the results from the mannequin test performed, on your left, the burn injuries that occurred during exposure were less in the areas where the PATENTED FLASHTRAP vents are located. The way the vents are designed with a layer of folded FR fabric between a layer of FR Mesh, does not expose your skin, keeps the wearer safer and more comfortable.

DUPONT™ NOMEX ® : • Is inherently flame resistant and does not burn or melt and drip • Provides permanent protection that won’t wash out or wear away • Lightweight, breathable, outstanding wear life, extremely durable, cost-effective • Excellent in appearance retention, easy to launder and low laundry shrinkage

* When exposed for 4-Seconds on average the BIG BILL® FLASHTRAP Vented Coverall reduces burn injury by 10.9%

3 3

4
