Objectives Since the company’s inception, the sole objective has been to bring the best possible audio to the masses, and become the number one choice in professional sound systems around the globe. It’s easier said than done, of course, but hearing is believing. We want to make a real statement with our products so that Sound Engineers, Installers, Audio Consultants, System Engineers, and anyone else with a passion for audio will only see CODA as their go-to brand for any application: music clubs to full-scale international tours, West End and Broadway productions, permanent and temporary installs, AV events, exhibitions, houses of worship. No job is too big or too small.

Philosophy As live shows continue to grow and evolve, so must the sonics. Be it a rock and roll night at the local club or a massive stadium tour, the demand is now universal; deliver great sound.

The same can also be said for any music exhibition, theatre production, or AV events. As these productions and setups get bigger, smarter, and bolder, the expectation on the shoulders of the guys and girls flying the faders and specifying the spaces increases, and there are fewer excuses for bad audio.

And that is why CODA Audio refuses to compromise. In order to be number one, you simply cannot afford to be conventional, and when you’re talking about sound reproduction, you have to think outside the box to fine tune what will happen inside the box. In CODA’s case, it starts with the drivers. A whole new range of bespoke, ultra-efficient drivers, which feature none of the fundamental flaws found in traditional equivalents. In short, it means CODA’s sonic prowess is unparalleled, as only the most accurate and crystal clear, full spectrum sound audio is produced.

3

4

The Team It’s one thing having the potential, it’s quite another reaching that potential, and that’s why CODA’s key team members have been carefully selected from the top drawer. It’s a passionate and meticulous team effort all around.

From concept to completion, everything is done from scratch at CODA, fitting with the company ethos. In manufacturing, it’s those cool little touches, such as the specially-designed pins that make stacking and arraying the boxes quick and easy, as well as the groundbreaking driver technologies and electronics at the heart of the loudspeakers themselves, that make this company unique – and every piece has been designed and constructed in-house.

Then there’s CODA’s unique twist on technical support – an area which can so often let a good product down in practice. With technical teams deployed in all key territories for direct customer support and distribution, you’ll never be far away from a helping hand. And, of course, people invest in people. Enter CODA’s smartthinking marketing and sales team, and product specialists, a core team of committed, vastly experienced, knowledgeable professionals, all of whom share that same CODA headspace.

5

Technology Technology DDP, DDC & RDC Driver °C

°C

°C

IMMERSIVE IMMERSIVE IMMERSIVE SPACE SPACE SPACE

DS-FIR

DS-FIR

DS-FIR

PHASEPHASEPHASE LINEARITY LINEARITY LINEARITY

DDP & DDC drivers redefine the performance expectations for high-powered reinforcement of mid and high frequencies.

Discarding the traditional dome diaphragm compression driver design, CODA Audio utilises a 3-way coaxial system employing two concentric annular ring diaphragms. Each diaphragm covers a smaller frequency range for increased power handling, high dynamics and extremely low distortion.

DDP Dual Diaphragm Planar Wave Driver °C

IMMERSIVE SPACE

DS-FIR

PHASE LINEARITY

CODA’s patented Dual Diaphragm Planar wave driver (Fig. 1) is at the heart of the AiRAY, CiRAY, ViRAY and N-RAY line array systems. This driver technology provides several advantages: Fidelity: Unlike dome diaphragms, annular ring diaphragms feature wings that are smaller than the wavelengths they reproduce. The diaphragms move in phase, creating far less audible and measurable intermodulation distortion than speakers equipped with traditional drivers, especially at high frequencies.

Frequency Range: The outer wings of planar ring diaphragms extend the radius of the diaphragm when compared to traditional compression drivers of equal voice coil size. This greater surface area allows for a lower crossover point and more consistent overall directivity.

Sensitivity: CODA DDP wave drivers are far more efficient than traditional compression wave drivers. They boast 3–5 dB higher sensitivity than the top quality conventional alternatives. The low-profile Fig. 1. Dual Diaphragm Planar wave driver (DDP) annular ring diaphragms have a double surround supporting a reduced moving mass resulting in a much stiffer and far more efficient transducer with no breakup modes.

6

ANNULAR RING DIAPHRAGM

DDC Dual Diaphragm Curved Wave Driver °C

DS-FIR

RSIVE CE

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

At the heart of the APS and APS-Pro loudspeakers are patented Dual Diaphragm Curved wave drivers (as in Fig. 2).

The larger annular mid-range diaphragm covers the frequency range 400–6500 Hz with a smooth, linear response. The extended diaphragm excursion of max. +/– 0.8 mm results in high output and increased power handling up to 1300 W peak. The ultra-light annular diaphragm for the high range offers exceptional transient response with very high efficiency from 6 to 22 kHz. Fig. 2. Dual Diaphragm Curved wave driver (DDC)

This distinctive new transducers were engineered to radiate a true coherent curved wave front form a rectangular piston without internal diffraction for superior dispersion control and crystal clear full spectrum sound. The patented designs are a result of extensive, dedicated research and development providing dramatic improvement in dynamic response, clarity and transparency.

RDC Ring Diaphragm Curved Wave Driver °C

DS-FIR

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

At the heart of N-APS is a string of patented technologies, the unique RDC (Ring Diaphragm Curved wave driver) – similar to CODA’s planar wave driver, but with a bit of a twist, in that the wavefront is curved at 20°. This ultimately means there is less distortion, and no reshaping is required, so it offers extraordinary sonic precision.

As a result, when you put more N-APS together, they perform as one single cabinet, with no interference whatsoever.

Fig. 3. Ring Diaphragm Curved wave driver (RDC)

7

Technology °C

IMMERSIVE SPACE

Dynamic Airflow Cooling (DAC) DS-FIR

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

DAC technology is integrated into every model in the CiRAY and N-SERIES as well as into the HOPS-Pro and APS-Pro loudspeakers, using thermal induction by utilising a single-piece aluminium construction, in turn preserving the sound.

Putting an immense amount of power into a speaker cabinet required a new design and a new thermal concept: the front baffle and vents are made from aluminium with all drivers mounted WITHOUT D.A.C. into it. These RTA | Frequency Response aluminium vents are optimised to maximise airflow, increasing the thermal capacity of the system.

POWER

TIME

TEMP

Applying more power increases the airflow in the vents, conducting more heat away 100% 20:48 from the drivers, and distributing that heat outside the enclosure. The DAC technology dramatically improves heat dissipation, doubling the power handling and the maximum SPL capability compared to a conventionally cooled system.

8

WITHOUT D.A.C.

WITH D.A.C.

RTA | Frequency Response

RTA | Frequency Response

POWER

TIME

100%

20:48

TEMP

POWER

TIME

100%

20:48

TEMP

DS-FIR

PHASE LINEARITY

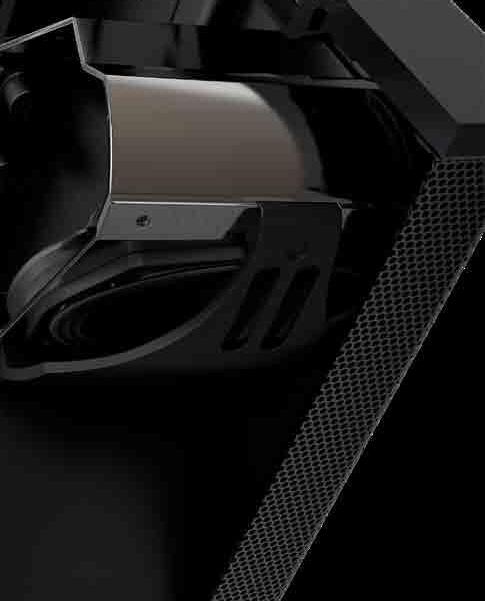

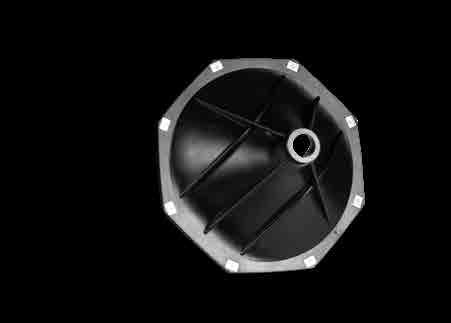

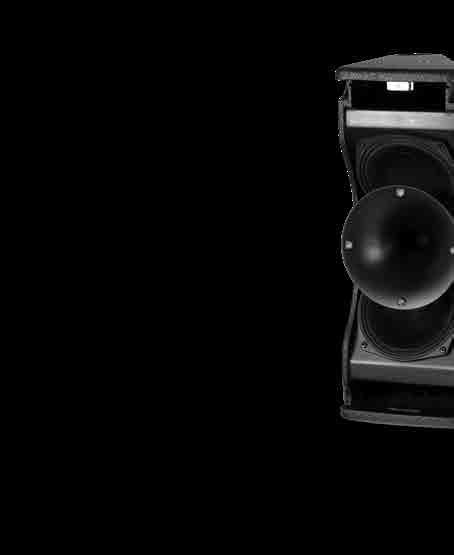

Instafit Waveguide ANNULAR RING DIAPHRAGM

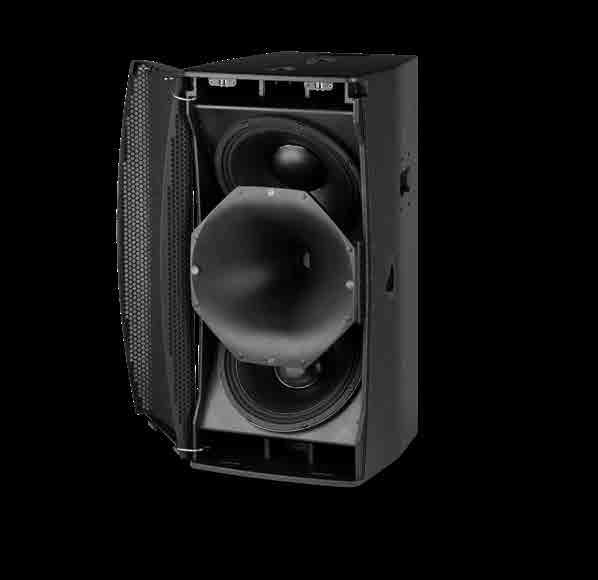

Interchanging of the waveguides as well as directing it to the precise angle you need has never been so easy. HOPS-Pro rotatable dispersion patterns give yet more control.

No screws, no hassle.

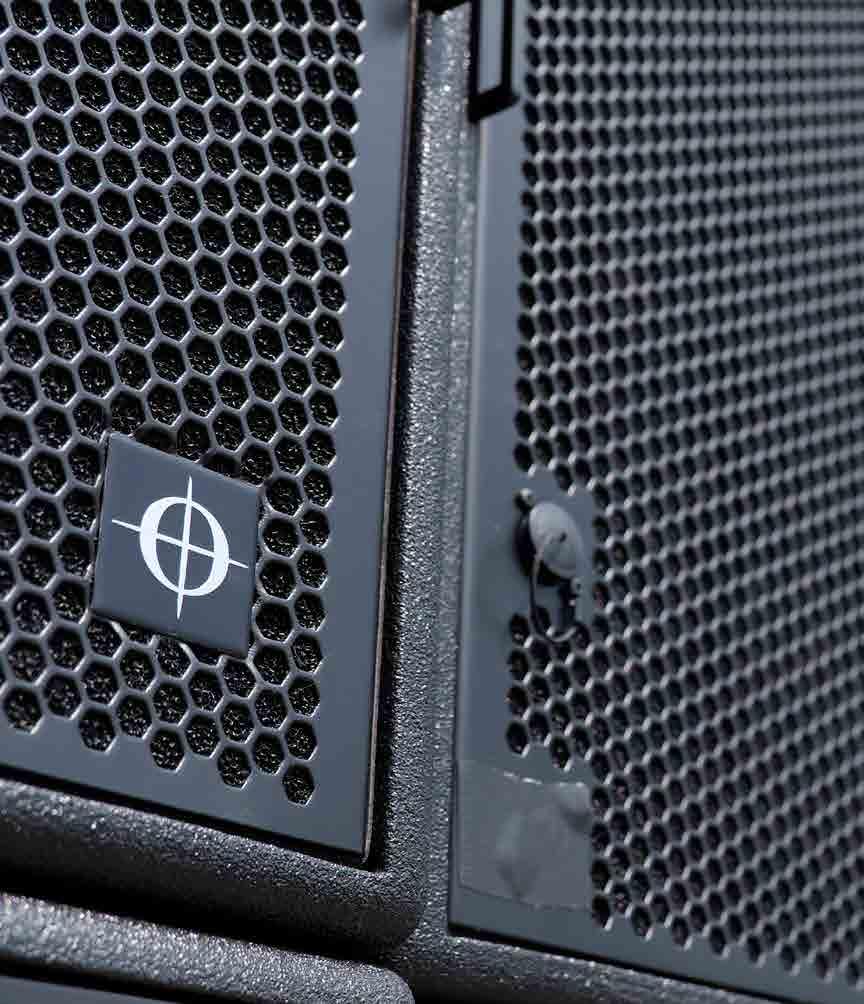

Quick Release Grille No Tools Required Available in CiRAY, N-Series, APS-Pro and HOPS-Pro T loudspeakers

9

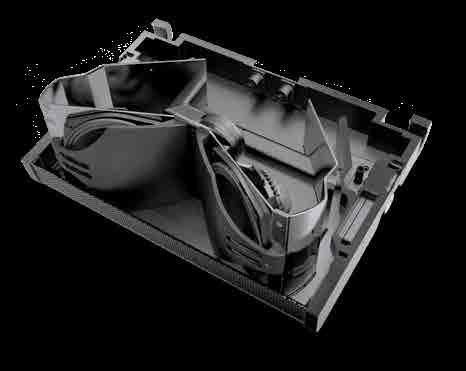

Fig. 4. CODA Coupler behaves as a single waveguide, producing a unified wavefront without diffraction

10

Technology Couplers °C

DS-FIR

PHASE

ANNULAR

LINEARITY RING Couplers for AiRAY, CiRAY, ViRAY and N-RAY solve a common problem for line arrays DIAPHRAGM as well as for arrayable point source in APS and N-APS.

Coverage: Once the mid and high frequencies behave correctly it is necessary to tackle the inconsistent horizontal coverage of line arrays. A typical narrowing of coverage between 150 and 1000 Hz (Fig. 4) is the main reason users count on a “90 degree” line array for much less than its specifications, leading to extra outfills being specified.

All drivers in CODA line arrays are loaded to a Coupler. This design combines the energy produced and allows the element to perform as a single source without phase destruction, achieving a coherent and uniform wavefront (Fig. 3). The Coupler design also determines the horizontal on-axis and off-axis frequency response (Fig. 5).

Frequency Spectrum for Input Signal 120 116 112 108

Level (dBSPL)

104 100 96 92 88 80 80 76 72 31.5

63

125

250

500 1k Frequency (Hz)

2k

4k

8k

16k

Fig. 5. Frequency response of a typical 90º line array system comprising of 12 enclosures. Upper trace is measured on axis; lower trace is measured 30º off axis

Frequency Spectrum for Input Signal

120

- Level (Sum 127.4 dBSPL)

115 110 105

Level (dBSPL)

100 95 90 85 80 75 70 65 60 55 31.5

63

125

250

500

1k

2k

4k

8k

16k

Frequency (Hz)

Fig. 6. Frequency response of a CODA line array system comprising of 12 enclosures with Couplers. Upper trace is measured on axis; lower trace is measured 30º off axis

11

Technology

°C

IMMERSIVE SPACE

Sensor Control DS-FIR

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

The performance of subwoofers can be unpredictable due to the non-linear distortion produced by the subwoofer itself, especially under high power conditions. CODA’s subwoofers and low frequency extensions are designed to overcome this problem. The transducers in CODA’s sensor controlled low frequency elements contain an integrated velocity sensor that measures LF diaphragm movement in real time and compares it with the audio input signal. This proprietary sensor controlled technology is a self-optimising, closed feedback loop that precisely determines how much power the driver needs to accurately reproduce the original audio signal. Any distortion produced by the driver or the enclosure is instantly corrected.

The result is a line of well-behaved, crystal clear full spectrum sound, highpowered CODA subwoofers that allow the system designer to approach low frequency reinforcement with the same detail, sophistication, and confidence as the rest of the audio spectrum.

12

Audio Signal Input

Excursion Sensor

Frequency response

7.1 SC woofer incl. LPF 90 Hz 24 dB Link/Riley Frequency response measures 5 cm from the loudspeaker

Impulse response

7.2 Conventional port loaded subwoofer including processing Frequency response measured 5 cm from the loudspeaker port

Group delay

9.1 SC subwoofer incl. LPF 90 Hz 24 dB Link/Riley Group delay measured 5 cm from the loudspeaker

8.1 SC woofer incl. LPF 90 Hz 24 dB Link/Riley Impulse response measured 5 cm from the loudspeaker

8.2 Conventional port loaded subwoofer including processing Impulse response measured 5 cm from the loudspeaker port

Waterfall

9.2 SC woofer vs. conventional port loaded woofer Group delay measured 5 cm from the loudspeaker port

10.1 SC woofer incl. LPF 90 Hz 24 dB Link/Riley Waterfall measured 5 cm from the loudspeaker

10.2 SC woofer vs. conventional port loaded woofer Waterfall measured 5 cm from the loudspeaker port

13

14

Technology °C

DS-FIR

PHASE LINEARITY

Phase Linearity ANNULAR RING DIAPHRAGM

All CODA systems are phase-linear and will work together without compromise. This eliminates the need to apply destructive processing when combining different elements in complex systems.

Ease of use Compatibility between products Fewer potential reliability issues in complex systems Better fidelity and more faithful imaging Attaining phase linearity is no simple task. A heavier processing load with a longer time window (typically 45 – 60 ms) is normally required to achieve a linear phase response that extends into the lower frequency range.

The secret to CODA’s DS-FIR is multi-sampling with a combination of filters, each set to a length that is precisely adapted to the virtual and acoustical crossover points. CODA’s proprietary combination of filters results in a loudspeaker system with incredible fidelity and precise impulse response aligned over the loudspeakers’ complete frequency and operating range.

While many of today’s professional loudspeakers feature a linear frequency response — exhibiting a frequency response that remains the same regardless of output level — very few feature a linear phase response, and are often not phase-compatible with other loudspeakers in their own product lines. Such arrangements require additional, time-intensive system tuning. CODA systems offer linearity not just for each individual element, but for the entire system, right out of the box.

Impulse response, phase response, and frequency response graphs of AiRAY system. AiRAY (magenta), SC2-F (blue), and SCP-F (green).

Sum trace is shown in red. Measurements taken in an arena 30 m from the system, with no processing applied.

15

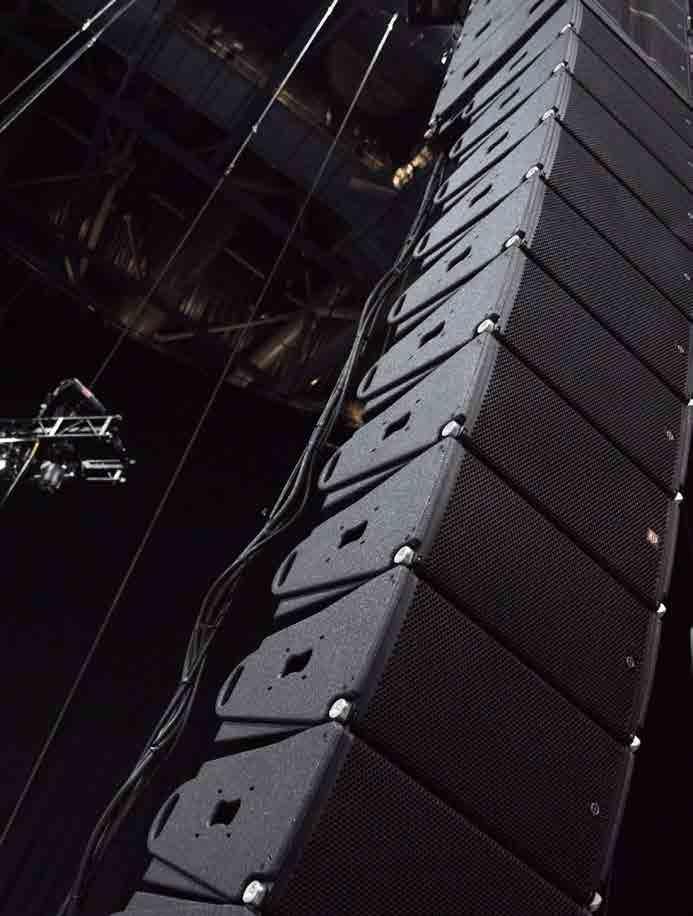

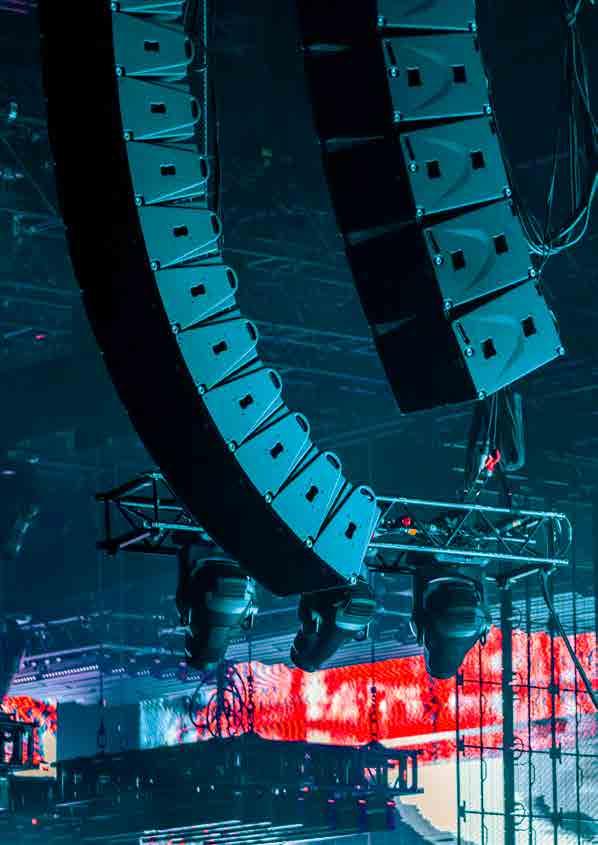

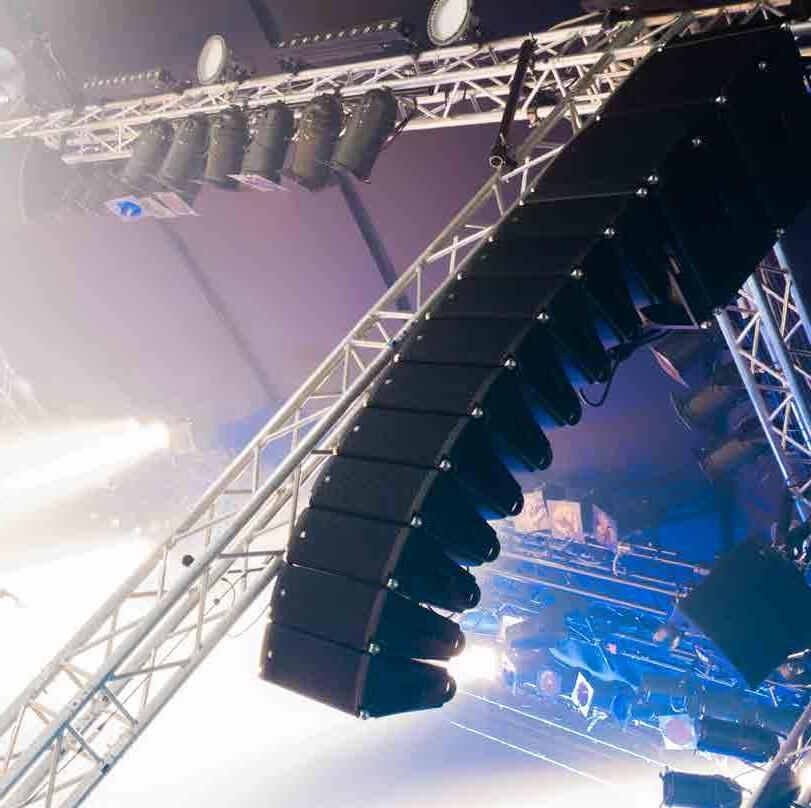

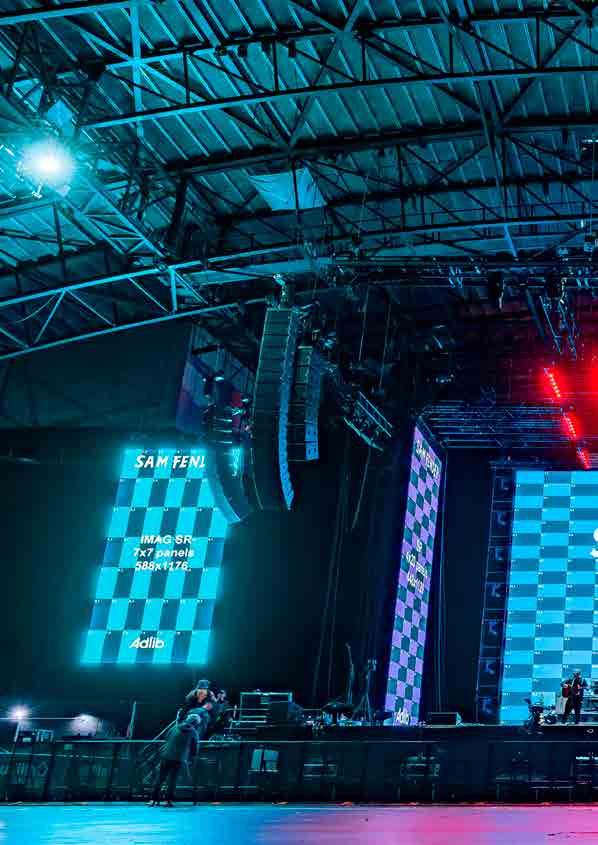

Line Arrays Audio quality, power, efficiency, size and weight are the key determinants of sound system choice. CODA Audio’s line arrays meet the combined requirements of these criteria ahead of any other manufacturer. With our patented DDP driver (Dual Diaphragm Planar wave driver) and SC (Sensor Controlled) subs, CODA Audio leads the way in meeting the exacting demands of today’s global market.

VCA Family AiRAY Series

High Output, Long Throw, Full Range Line Array System

16

CiRAY Series

High Output, Full Range Line Array System

ViRAY Series

Compact Line Array System

CODA Audio has a range of line array systems which cover every type and scale of application. For small venues of every kind, the ultra compact TiRAY delivers unparalleled crystal clear full spectrum sound and intelligibility. In medium to large venues N-RAY and ViRAY continue the theme of exceptional clarity with high SPL, whilst AiRAY and CiRAY sets a completely new standard in power and flexibility to cover everything up to Arena and Stadium applications. Unique to CODA is that the form factor (width-wise) of both ViRAY CiRAY and AiRAY (VCA) is identical, allowing them to be flown in the same hang. Further to that, the sensor-controlled bass extensions also share the same form factor. This enables them to be flown in the same hang or directly behind, avoiding interference with sight lines to video screens and stage sets. Their flexibility, adaptability and sheer quality, makes CODA Audio line arrays the perfect multi purpose systems for any rental or installation company.

N-RAY Series Ultra Compact Line Array System

TiRAY Series

Ultra Compact Line Array System

17

The Ultimate Flexibility As well as offering the most flexible and reliable solution in terms of applications, we’re proud to offer the most compact option on the market. Where else will you find a whole range of speakers that can be flown together with no specialist equipment needed? With the VCA range, everything is tailored to convenience. In spite of a smaller size, CODA line arrays offer more bass and higher SPL than anything else on the market, and even use fewer amplifier channels.

The VCA range is designed to be a rental company’s best friend. As well as saving time and crew in setup, the speakers are far better for trucking, and a friend of the environment too. Rather than six or seven different systems, why not one family that can achieve results in every scenario? Some clients need long throw while some need cardioid deployments, some will focus on vocal applications whereas others need speakers to handle the challenges of a full orchestral setup. Our speaker system can be deployed in so many different setups and retain the same quality, whether a small and intimate setup is called for, or you’re setting up in a huge venue. For rental companies, this means fewer restrictions on how you can use the equipment, more flexibility, and ultimately a far improved ROI. Your equipment can spend less time in storage, and more time on the road, doing its job. No matter what is needed, CODA’s line array system provides crystal clarity in a compact system that stands alone in the industry.

With our audio family, the possibilities are limitless.

18

CODA VCA flexibility versus competition fixed formats Venue or Show Size CODA

200 - 500

500 - 1000

1k - 5K

5K - 10k

10K - 20K

20K - 50K

50K +

200 - 500

500 - 1000

1k - 5K

5K - 10k

10K - 20K

20K - 50K

50K +

AiRAY/CiRAY/ViRAY System 5 System 4

Competition

System 3 System 2 System 1

CODA VCA flexibility Venue or Show Size Combined

AiRAY/CiRAY/ViRAY AiRAY

Individual

CiRAY ViRAY

Illustration of transportation of AiRAY (top) versus competing 2 x 12” line array (bottom)

19

ViRAY, CiRAY, AiRAY Series Same Family, New Member The AiRAY and ViRAY family of line arrays recently welcomed their newest member, CiRAY, providing even more flexibility and deployment options.

CiRAY builds upon the revolutionary speakers that came before. First, we pushed the boundaries of what was possible with ViRAY, before creating the innovative AiRAY speakers.

Now, there’s a new model, providing even more versatility and convenience.

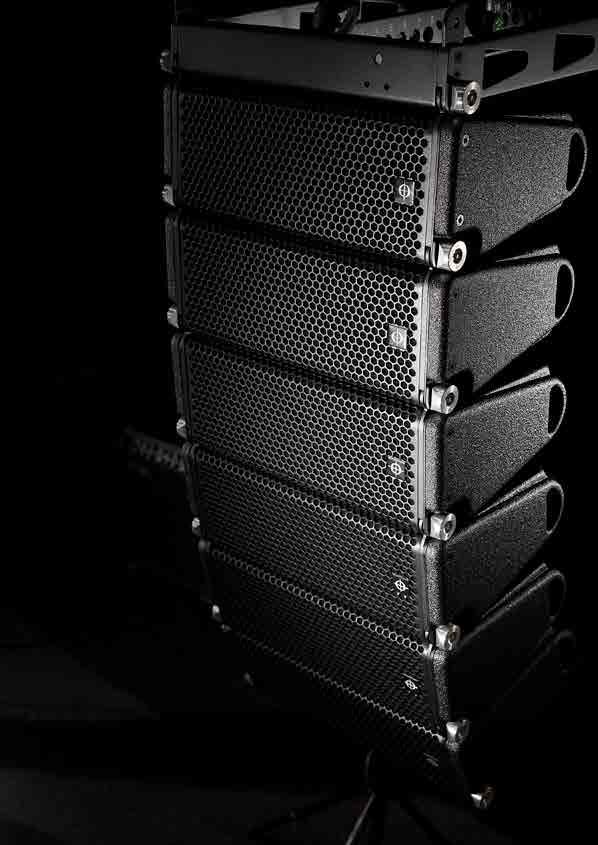

We call our VCA line arrays a family. They’re made from the same handmade CODA DNA, and they work as a unit in whatever configuration you require while still being sonically superior to anything else on the market.

Our innovations mean that the speakers not only work together flexibly and coherently, they are also much more cost-effective and accurate than the competition.

All of the benefits we can offer are down to the unique technologies within, DDP, DAC, Couplers, and DS-FIR for unrivalled phase response, regardless of your chosen deployment, plus have the tightest and cleanest low-end on the market thanks to our patented sensor control technologies.

120°

90°

Illlustration showing horizontal directivity using different couplers

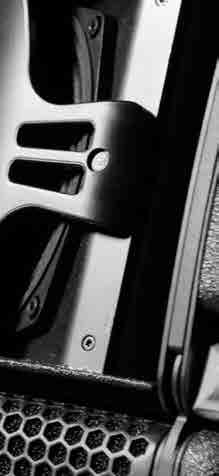

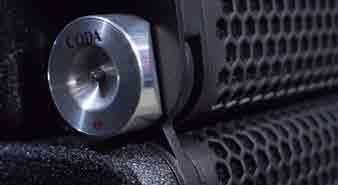

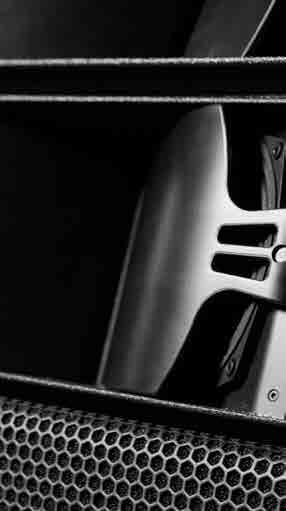

Specially designed Captive Pin

20

60°

Whether it’s an arena, a stadium, a festival, a theatre, or any other setting, you can mix and match the VCA family, including a range of bass extensions and subwoofers, to suit the task at hand. Audiences from 200 up to 50,000 can all be perfectly catered for using one family of speakers. Being more compact, our speakers also save on space in the truck and are lightweight and simple to set up.

These speakers are totally configurable and interchangeable. Unlike other bespoke systems which are fixed format, the ViRAY, AiRAY, and CiRAY family is an ecosystem, built to give you more control. Further flexibility in the VCA family comes from variable horizontal coverage provided by our unique coupler design, allowing you to tailor the coverage perfectly to your venue and audience and control the direction of sound.

The speakers have all been optimised to be driven by our LINUS amplifiers and can also be paired with SCV-F, SC2-F, and SCP-F for an even more impactful low end.

CODA’s innovative design strips away the complications of fixed formats. All of these speakers hang together and boast the same form factor to fit within the frame. No more worrying about hardware or wasting time working out how you’re going to fly or stack your systems. CODA’s systems can be set up for the throw you need at any venue or outdoor event, retaining crystal clarity and full spectrum frequency response in the process. The VCA family is also designed with a range of accessories to transport and protect your system including ground-stack adaptors and durable covers. There are dollies available, plus LIDs cleverly allow you to stack on top to achieve a much tighter truck pack.

Speaker setups often come with compromise. Many of the speakers on the market used for live applications overlap in their frequency response, or worse, leave gaps. CODA’s line arrays are full-range speakers providing elite performance for every genre, every sound, and every detail. This is true whatever configuration of speakers you decide to use.

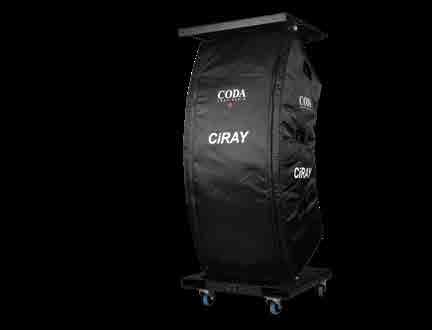

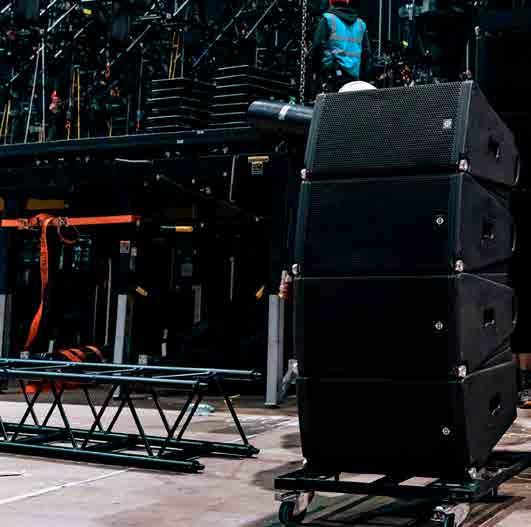

CiRAY 6 packs on a dolly

CiRAY 6 pack with covers and lid

21

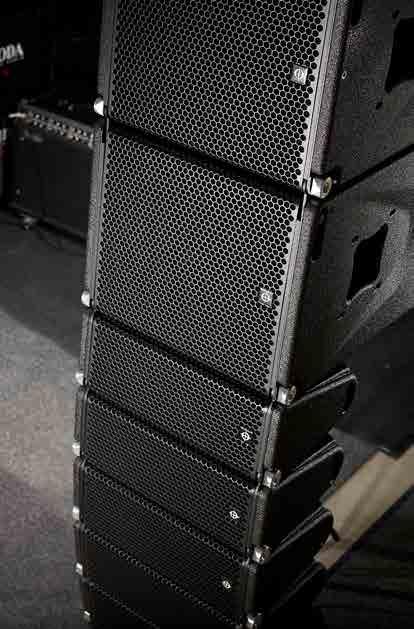

Interchangeable Units, One Cohesive System The units within the audio system may be unique, but they align physically, electronically, and acoustically. Your system can be deployed in a cardioid or long throw setup, and different combinations of the family can provide the same sonic quality and unbelievable power.

This means that however the VCA line arrays are used, you can expect the same stunning results.

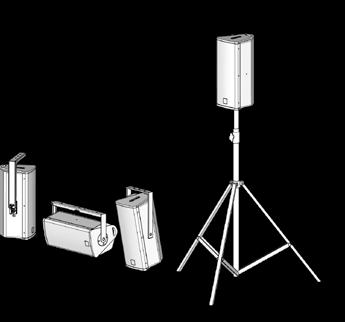

llustration showing flexibility and compatibility of two different Line Arrays.

AiRAY CiRAY

5m

22

25m

50m

100m

SC2-F

SCV-F

Dual 15” bass extension with Sensor Control technology extending to 35 Hz and bringing exceptional power to the low end.

Compact 18” sensor controlled subwoofer for extended low frequency range down to 25 Hz.

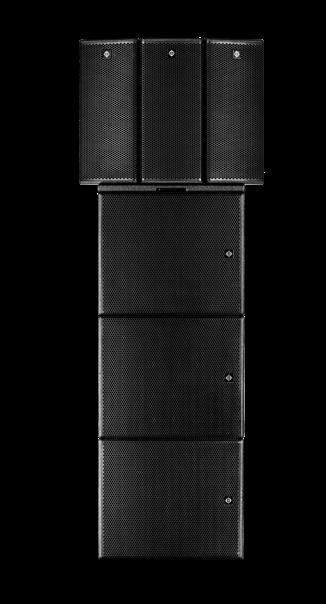

ViRAY Compact 3-way bi-amplified line array system featuring 8” DDP plus dual 8” neodymium ultra-low distortion cone drivers

CiRAY High output, full range, 3-way passive line array system with patented DAC technology featuring 8.75” DDP plus dual 10” neodymium ultra-low distortion cone drivers

AiRAY High output, full range, long throw 3-way bi-amplified line array system featuring dual 6” DDP plus dual 12” neodymium ultra-low distortion cone drivers

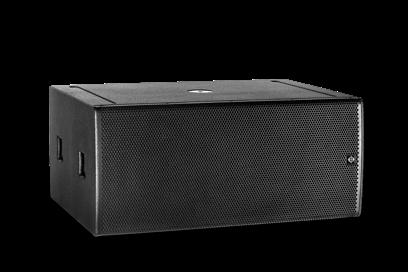

SCP-F High output subwoofer with dual 18” long neodymium excursion woofers extending the bass to 25 Hz. 23

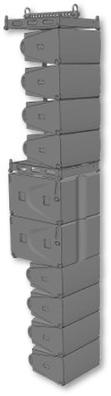

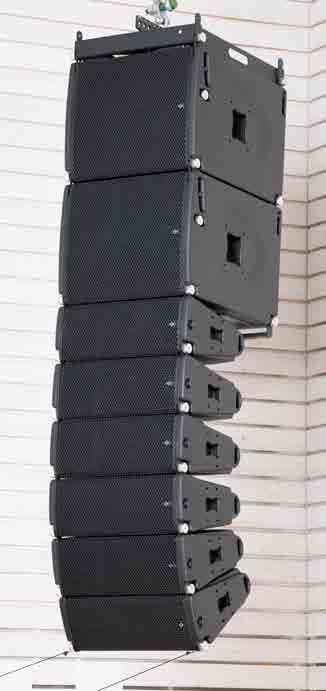

VCA Line Array Configurations The VCA family can be deployed in extended cardioid, long throw, or beam split configurations, so you can adapt your system to any environment and situation.

Couplers within our line array systems provide you with variable horizontal coverage plus the power to focus on directivity, eliminate unwanted reflections, and choose the ideal dispersion pattern for your venue. Optional SC2-F low-frequency extensions can give you even more deployment options.

Line arrays can inherently be cardioid-only or deployed in a more versatile method.

Cardioid-only line arrays incorporate actively driven transducers with the sole purpose of providing cancellation towards the rear. The disadvantage is that this increases the size and weight, and causes nonlinear phase response. Plus, the need for additional amplifiers makes it almost impossible to use in some circumstances.

CODA Audio versatile line arrays however can be arrayed in cardioid, extended cardioid, long throw, or beam split configurations, with a perfect solution for any situation.

Full-range Cardioid radiation pattern using SC2-F: When an array of SC2-F low-frequency extensions is flown behind the line array, it is possible to create either a cardioid radiation pattern or an extended cardioid pattern with increased rejection.

Cardioid Array (example AiRAY + SC2-F flown behind the line array): The cardioid radiation pattern is achieved by overlapping in the 45 – 200Hz frequency range of the two system elements - the same principle of operation as an end-fire subwoofer array.

63Hz@ 1-0ct.

24

Extended Cardioid Array (example AiRAY + SC2-F in cardio flown behind the line array): This cardioid deployment can provide even more powerful rejection, by rotating every other SC2-F enclosure and using extended cardioid presets on the SC2-F subwoofers. This configuration is comparable to end-fire array with three sources placed one behind the other (line array/low frequency extension front/low frequency extension rear).

The whole system is working together to throw the energy forward and provide wide-band cancellation towards the rear.

63Hz@ 1-0ct.

25

Long Throw Configuration The SC2-F bass extensions overlap between 45 and 200Hz. This physical increase in array length further enhances the long throw at lower frequencies. This configuration provides a smaller tonal variation from the front to the rear of a larger audience listening area.

26

Beam Split Configuration The SC2-F low extensions are placed between the other line array elements, and parts of the vertical dispersion of the system can be split into two separate beams. This focuses the power and energy exactly where it needs to go, plus avoids the hard edge of a balcony in a theatre that would otherwise cause undesirable reflections.

Variable Horizontal Dispersion: All CODA line arrays utilize variable horizontal coverage.

For example: CiRAY provides variable horizontal dispersion of symmetrical 60°, 90° or 120° as well as asymmetrical 30°+45°, 30°+60° or 45°+60°

120° Horizontal Directivity

90° Horizontal Directivity

60° Horizontal Directivity

27

AiRAY °C

IMMERSIVE SPACE

DS-FIR

°C

PHASE LINEARITY

DS-FIR

°C

PHASE ANNULAR LINEARITY RING DIAPHRAGM

DS-FIR

PHASE ANNULAR LINEARITY RING DIAPHRAGM

ANNULAR RING DIAPHRAGM

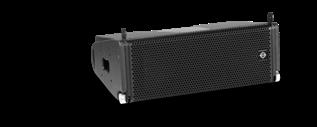

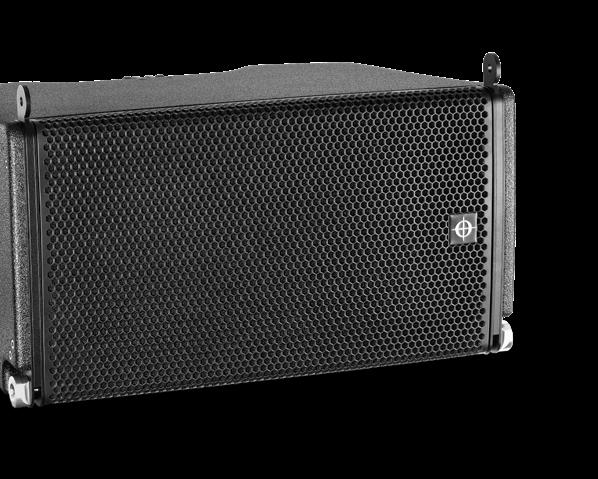

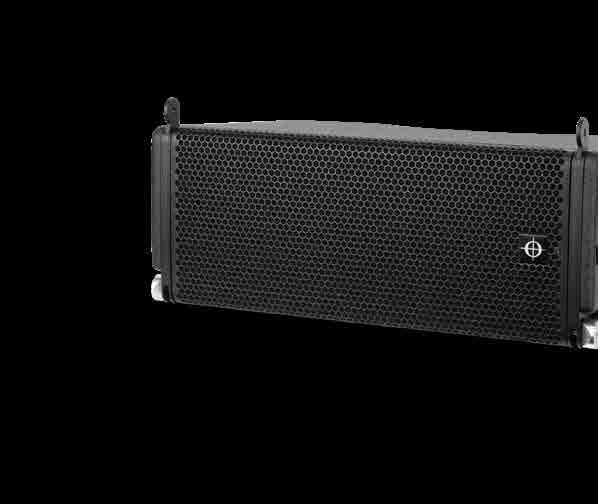

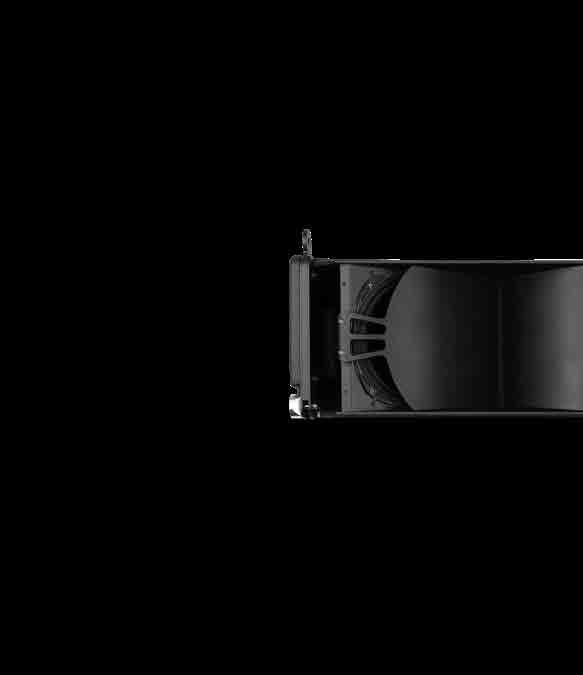

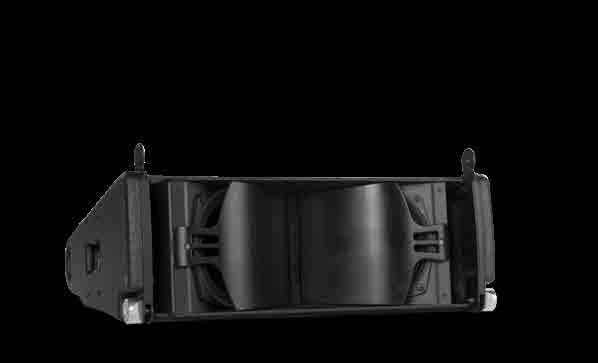

Our flagship high output system. AiRAY has continued to reliably serve customers with the advanced and patented CODA technologies that make AiRAY the perfect companion for a wide range of uses.

AiRAY speakers are part of our family of line array systems, along with CiRAY and ViRAY. You can mix and match speakers seamlessly and perfect the sound for any venue using System Optimiser prediction software.

It is also straightforward to increase the low end with SC2-F, SCP/SCP-F or SCV-F units and ensure even more power and detail in the bass frequencies.

Crystal clear sound, unrivalled power, and the convenience of being able to configure your system without the restraints of a fixed format system. This means spectacular flexibility, and that speakers spend more time on the road doing their job, rather than sitting in a warehouse.

AiRAY is a 3-way high output system, featuring double 12” neodymium cone drivers with 4” coils. The speakers offer accuracy and power across all frequencies from 50 Hz (extendable down to 25 Hz) all the way up to 22 kHz. Simplify setup with a three-point rigging system. Flown or ground stacked deployment are equally straightforward.

Sharing the same form factor as all the other speakers in the line array range, AiRAY, ViRAY, and CiRAY can be flown together.

Our advanced technologies allow us to reduce the size and weight of the speakers while retaining elite quality, power, and coverage. The space-saving of our system makes the AiRAY more environmentallyfriendly, and easier to set up and tear down.

On top of our uncompromising approach to sound, the cutting-edge technologies you’ve come to expect from CODA are all built into the system, including the DDP Drivers that provide exceptional fidelity, sensitivity, and frequency response.

Our unique AiCOUPLER helps to provide more control, achieve an incredibly balanced sound, and achieve a uniform wavefront. Couplers help to provide a wider coverage than other line arrays on the market and reduce the need for outfills.

Peace of mind with both water protection and spectacular durability, provided by the Multiplex enclosure with Polyurea coating.

Experience the power of a large system with an incredibly compact and efficient design, along with crystal clarity thanks to patented CODA tech. When it comes to large reinforcement systems, AiRAY changes the game.

28

29

30

AiRAY Series

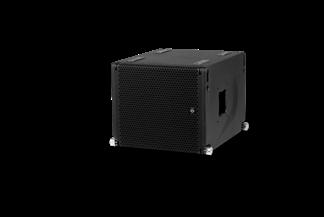

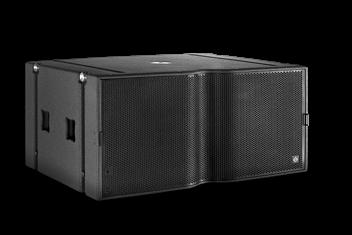

SC2-F

SCP-F

High Output 3-way Bi-Amplified Line Array System

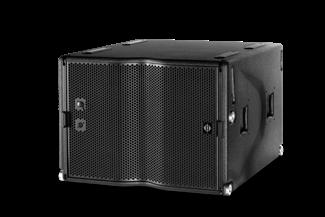

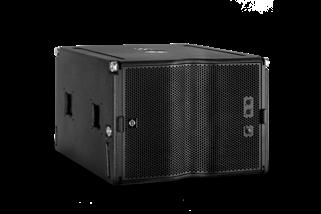

Dual 15” Bass Extension with SC Technology for AiRAY and ViRAY

High Output Dual 18” Subwoofer with SC Technology

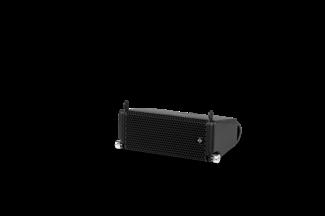

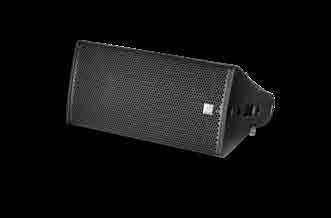

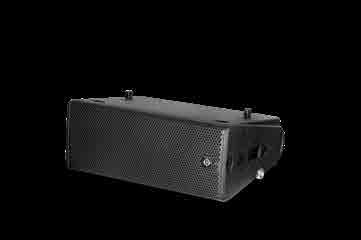

Exceptionally compact, dual unique 6” DDP planar wave driver, dual 12” neodymium ultra low distortion cone drivers

Compact dual 15” sensor controlled bass extension with extended frequency range 35 - 200 Hz (-6 dB)

Dual 18” extreme high excursion woofers, integrated velocity sensor measures the voice coil movement

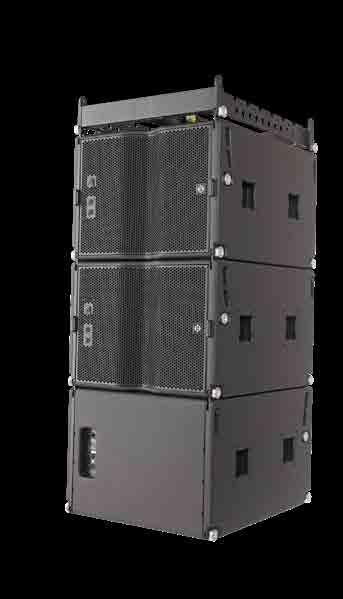

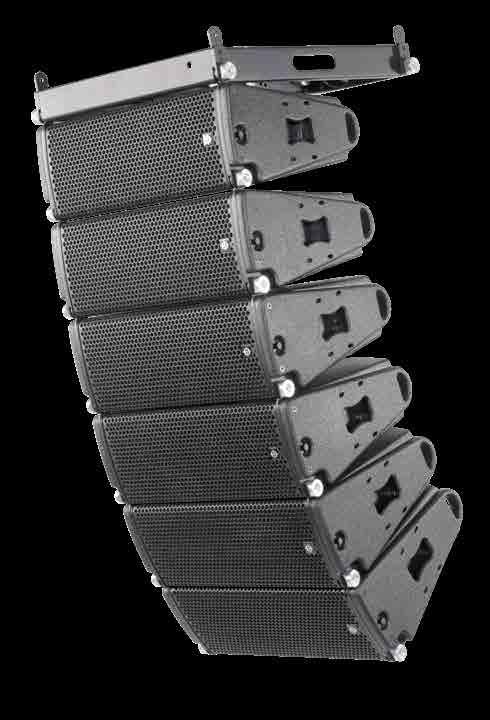

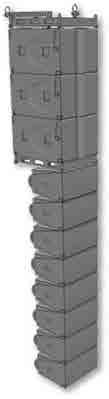

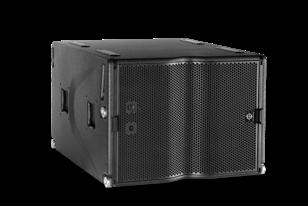

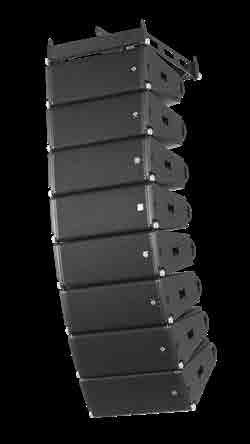

AiRAY Line Array

The AiRAY is a fully integrated dual 12”, 3-way line array module designed for wide varieties of applications where high output, even coverage and outstanding intelligibility is required.

The AiRAY unique package brings together the high output of a large system with the flexibility of a compact system creating a new category in large reinforcement systems.

The SC2-F is NOT only a subwoofer, it is a sensor controlled bass extension system operating in the range 35 - 200 Hz which overlaps both the low range of AiRAY, ViRAY and the SCV-F and SCP-F subwoofers providing essentially more energy and control in the lower range of the system.

SCV-F

LINUS T-RACK

Compact 18” Subwoofer with SC Technology

12-Channel Mobile Rack

Compact 18” sensor controlled subwoofer with extended frequency range down to 25 Hz (-6 dB) The CODA Audio award winning sensor controlled technology is extended with the compact SCV-F subwoofer. Combining a closed feedback-loop control with large, low noise laminar flow ports the SCV-F subwoofer offers increased output and well controlled response.

The SCP-F is perfectly suited as a subwoofer for mobile systems, extending the performance down to 25 Hz. SCP-F is also an addition to AiRAY high output line array systems. Typical applications are mobile sound, theaters, houses of worship, dance clubs and live sound venues.

3 x LINUS14/D amplifiers in a 10U heavy-duty shockmount rack 19” / 10U Flyable system rack including 3 x LINUS14/D, LINUS PAN-T, internal cable set, PDU-T.

31

32

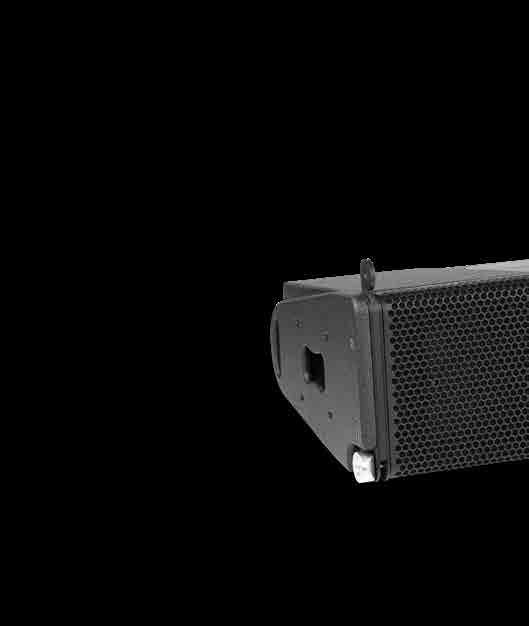

CiRAY °C

IMMERSIVE SPACE

IMMERSIVE IMMERSIVE SPACE SPACE

IMMERSIVE SPACE

DS-FIR

°C

PHASE LINEARITY

°C

DS-FIR

°C

DS-FIR

PHASE PHASE ANNULAR LINEARITY LINEARITY RING DIAPHRAGM

DS-FIR

PHASE ANNULAR ANNULAR LINEARITY RING RING DIAPHRAGMDIAPHRAGM

ANNULAR RING DIAPHRAGM

The latest innovation and addition to the family, with the same VCA DNA and compact portability, with a range of applications, plus even more advanced patented technologies.

CiRAY is a 3-way symmetrical line array module, which can be combined with other members of the family, plus CODA Audio amplifier racks. You can boost the low end with SCP/SCP-F, SCV-F subs or SC2-F bass extension.

CiRAY includes an 8.75“ DDP Wave Driver, plus dual 10“ neodymium ultra-low distortion cone drivers. CiRAY offers accuracy and power across all frequencies from 50 Hz (extendable down to 25 Hz) all the way up to 22 KHz. We set out to make a smaller and more powerful box, and the solution to this is our patented DAC technology, which allows smaller drivers that are designed in a way that dramatically improves cooling and heat dissipation, doubling the power handling and the maximum SPL capability compared to a conventionally cooled system and allowing us to make even more compact speakers while avoiding power compression but retaining signature CODA power and clarity.

Further new technology in CiRAY includes a quick-release grille and Instafit magnetic coupler, putting even more control over dispersion at your fingertips.

The integrated three-point rigging system allows quick and easy flying or ground stacking, and the horizontal coverage is variable allowing you to easily choose the perfect coverage for your venue.

CiRAY is designed to use fewer amplifier channels for even more convenience and simple setup.

For special applications and requirements, the CiRAY systems can be extended with the SC2-F, SCP/SCP-F, or SCV-F units.

As well as DAC technology, CiRAY systems incorporate CODA’s most advanced technologies, including the DDP driver, CODA’s proprietary coupler technology.

Like all of the VCA family, this is perfect for a variety of applications including installation and touring, and venues with varying capacities, from houses of worship to gig venues, conference centres to nightclubs. CiRAY shares the same form factor and works in perfect harmony with ViRAY and AiRAY speakers. This means simple tailoring of your system, and mixing and matching to suit your specific needs, retaining the highest possible audio clarity.

33

34

CiRAY Series

CiRAY Line Array

SC2-F

SCV-F

High Output 3-way Passive Line Array System

Dual 15” Bass Extension with SC Technology for AiRAY and ViRAY

Compact 18” Subwoofer with SC Technology

High Output, 3-way Passive Line Array System featuring 8.75” DDP plus dual 10” neodymium ultralow distortion cone drivers

Compact dual 15” sensor controlled bass extension with extended frequency range 35 - 200 Hz (-6 dB)

Compact 18” sensor controlled subwoofer with extended frequency range down to 25 Hz (-6 dB)

The SC2-F is NOT only a subwoofer, it is a sensor controlled bass extension system operating in the range 35 - 200 Hz which overlaps both the low range of AiRAY, ViRAY and the SCV-F and SCP-F subwoofers providing essentially more energy and control in the lower range of the system.

The CODA Audio award winning sensor controlled technology is extended with the compact SCV-F subwoofer. Combining a closed feedback-loop control with large, low noise laminar flow ports the SCV-F subwoofer offers increased output and well controlled response.

SCP-F

LINUS M-RACK

LINUS T-RACK

High Output Dual 18” Subwoofer with SC Technology

Compact 4-Channel Mobile Rack

12-Channel Mobile Rack

1 x LINUS14/D amplifier in a 3U Case

3 x LINUS14/D amplifiers in a 10U heavy-duty shockmount rack

19”/3U Mobile Rack including 1 x LINUS14/D, LINUS PAN-M, internal cable set.

19” / 10U Flyable system rack including 3 x LINUS14/D, LINUS PAN-T, internal cable set, PDU-T.

The CiRAY unique package combines the high output of a large system with the flexibility of a compact system, creating a new category in sound reinforcement systems.

Dual 18” extreme high excursion woofers, integrated velocity sensor measures the voice coil movement The SCP-F is perfectly suited as a subwoofer for mobile systems, extending the performance down to 25 Hz. SCP-F is also an addition to ViRAY line array systems. Typical applications are mobile sound, theaters, houses of worship, dance clubs and live sound venues.

35

36

ViRAY °C

IMMERSIVE SPACE

IMMERSIVE SPACE

IMMERSIVE SPACE

DS-FIR

°C

PHASE LINEARITY

DS-FIR

°C

PHASE ANNULAR LINEARITY RING DIAPHRAGM

DS-FIR

PHASE ANNULAR LINEARITY RING DIAPHRAGM

ViRAY is an innovative product that was the first in this series. ViRAY makes no compromises when it comes to audio clarity and power, yet still manages to provide a compact solution for mobile as well as fixed installations.

Sound that exceeds expectations and preconceptions, plus groundbreaking CODA technologies included in every speaker providing pinpoint sound and exceptional phaselinearity.

ViRAY is a compact 3-way symmetrical line array module including unique 8" DDP mid/high planar wave driver, and dual 8" neodymium ultra low distortion cone drivers.

Our innovations mean power that would previously have been unthinkable from such a compact system, provided by the innovative neodymium drivers.

Limitless live sound possibilities.

Twin with the SC2-F, SCP/SCP-F or SCV-F units for tight and controlled low-end, and dedicated CODA amplifier racks to unlock the potential of your speakers, plus mix and match with AiRAY and CiRAY line arrays.

An elegant solution for theatres, live sound performance venues, clubs, houses of worship, and corporate events, plus many more fixed installations. The ViRAY system is also an exceptional touring partner.

Setup is simple. With an integrated rigging system, ViRAY can be easily ground-stacked or flown, and installed in curved designs to give you exceptional, full coverage. You can even calculate the perfect setup for every application using CODA System Optimiser simulation software, with precise control and mapping of any space. Build the perfect audio experience for your venue.

For special applications requiring next-level power and bass, ViRAY systems can be extended with the SCP sensor controlled double 18” subwoofer or SC2-F bass extension.

37

38

ViRAY Series

ViRAY Line Array

SC2-F

SCV-F

Compact 3-way Line Array System

Dual 15” Bass Extension with SC Technology for AiRAY and ViRAY

Compact 18” Subwoofer with SC Technology

Compact dual 15” sensor controlled bass extension with extended frequency range 35 - 200 Hz (-6 dB)

Compact 18” sensor controlled subwoofer with extended frequency range down to 25 Hz (-6 dB)

The SC2-F is NOT only a subwoofer, it is a sensor controlled bass extension system operating in the range 35 - 200 Hz which overlaps both the low range of AiRAY, ViRAY and the SCV-F and SCP-F subwoofers providing essentially more energy and control in the lower range of the system.

The CODA Audio award winning sensor controlled technology is extended with the compact SCV-F subwoofer. Combining a closed feedback-loop control with large, low noise laminar flow ports the SCV-F subwoofer offers increased output and well controlled response.

SCP-F

LINUS M-RACK

LINUS T-RACK

High Output Dual 18” Subwoofer with SC Technology

Compact 4-Channel Mobile Rack

12-Channel Mobile Rack

1 x LINUS14/D amplifier in a 3U Case

3 x LINUS14/D amplifiers in a 10U heavy-duty shockmount rack

19”/3U Mobile Rack including 1 x LINUS14/D, LINUS PAN-M, internal cable set.

19” / 10U Flyable system rack including 3 x LINUS14/D, LINUS PAN-T, internal cable set, PDU-T.

Unique 8” coaxial DDP mid/ high planar wave driver, dual 8” neodymium ultra low distortion cone drivers The ViRAY is a compact 3-way symmetrical line array module, designed for small to medium venues where crystal clear full spectrum sound and outstanding intelligibility is required.

Designed for mobile, theatre productions, dance clubs or installations.

Dual 18” extreme high excursion woofers, integrated velocity sensor measures the voice coil movement The SCP-F is perfectly suited as a subwoofer for mobile systems, extending the performance down to 25 Hz. SCP-F is also an addition to ViRAY line array systems. Typical applications are mobile sound, theaters, houses of worship, dance clubs and live sound venues.

39

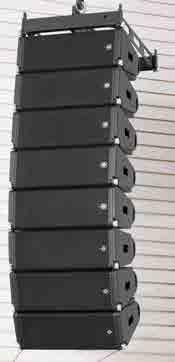

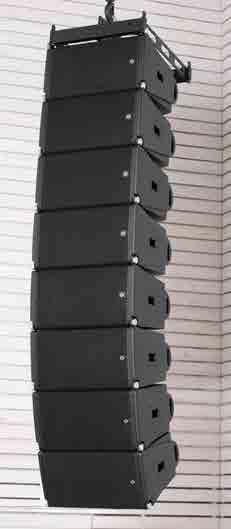

N-RAY °C

IMMERSIVE SPACE

IMMERSIVE IMMERSIVE SPACE SPACE

IMMERSIVE SPACE

DS-FIR

°C

PHASE LINEARITY

°C

DS-FIR

°C

DS-FIR

PHASE PHASE ANNULAR LINEARITY LINEARITY RING DIAPHRAGM

DS-FIR

PHASE ANNULAR ANNULAR LINEARITY RING RING DIAPHRAGMDIAPHRAGM

The N-RAY Series takes its name from the word nano, presenting itself as a range of flexible, lightweight and small systems with the efficiency and power to rival much larger and heavier loudspeaker systems.

Targeted towards a variety of small-to-medium size applications, the series boasts the inclusion of unique and patented DAC Technology for effective cooling, and optimised CODA Audio manufactured DDP driver – ensuring fidelity, frequency range, and versatility.

Using these revolutionary technologies, the N-RAY Series drastically improves its sonic qualities by reducing intermodulation distortion, resulting in increased efficiency in the drivers themselves, which in turn increases the efficiency of the system, all the while reducing the size and weight of a system – and crucially, system ownership costs.

N-RAY is an ultra compact, 3-way line array that brings the benefits of the AiRAY technology into a shallow, lightweight cabinet for theatres, performing arts centres, and corporate events.

Incorporating the latest in driver and system design technology, this next generation product boasts twice the power handling of similar systems, significantly increasing low frequency output and long term SPL capability.

The system contains two 6.5” ultra low distortion neodymium drivers and a 6” DDP planar wave driver, while the SCN-F 15” sensor controlled low frequency extension provides additional headroom with exceptional dynamic range and tight punch.

Offering a phase linearity similar to AiRAY, a 60 Hz - 22 Hz (-6 dB) frequency range and high power handling of 1000 W, N-RAY outputs a power, frequency and transient response that belies its small size.

N-RAY has a variable horizontal coverage of 90°, 120° or asymmetric 105°, variable vertical curving 0°, 1° to 10° in 1° steps and 12°, and features an integrated three-point rigging system for flown or ground stacked arrays compatible with SCN-F – 15” sensor controlled low frequency extension.

The line array facilitates system integration with LINUS loudspeaker management amplifiers, while a hybrid wooden and aluminium enclosure with Polyurea coating ensures extreme durability and water protection.

40

ANNULAR RING DIAPHRAGM

41

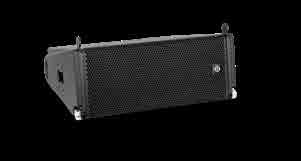

N-RAY Series

SCN-F

SCV-F

Ultra Compact 3-way Line Array System

15” Bass Extension with SC Technology for N-RAY

Compact 18” Subwoofer with SC Technology

Patented DAC technology Unique 6” DDP planar wave driver, dual 6.5” neodymium ultra low distortion cone drivers

Patented DAC technology Compact 15” sensor controlled bass extension with extended frequency range down to 35 Hz (-6 dB)

Compact 18” sensor controlled subwoofer with extended frequency range down to 25 Hz (-6 dB)

N-RAY is an ultra compact, 3-way line array that brings the benefits of the AiRAY technology into a shallow, lightweight cabinet for theatres, performing arts centres, and corporate events.

SCN-F is a sensor controlled bass extension system which overlaps both the low range of N-RAY and the SCV -F and SCP subwoofers – providing more energy and control in the lower range of the system.

The CODA Audio award winning sensor controlled technology is extended with the compact SCV-F subwoofer. Combining a closed feedback-loop control with large, low noise laminar flow ports the SCV-F subwoofer offers increased output and well controlled response.

LINUS M-RACK

LINUS T-RACK

ACCESSORIES

Compact 4-Channel Mobile Rack

12-Channel Mobile Rack

DOT-NR

1 x LINUS14/D amplifier in a 3U Case

3 x LINUS14/D amplifiers in a 10U heavy-duty shockmount rack

Transport dolly for 6 x N-RAY, incl. transportation lid

19”/3U Mobile Rack including 1 x LINUS14/D, LINUS PAN-M, Internal cable set.

19” / 10U Flyable system rack including 3 x LINUS14/D, LINUS PAN-T, internal cable set, PDU-T.

More: www.codaaudio.com

N-RAY Line Array

42

43

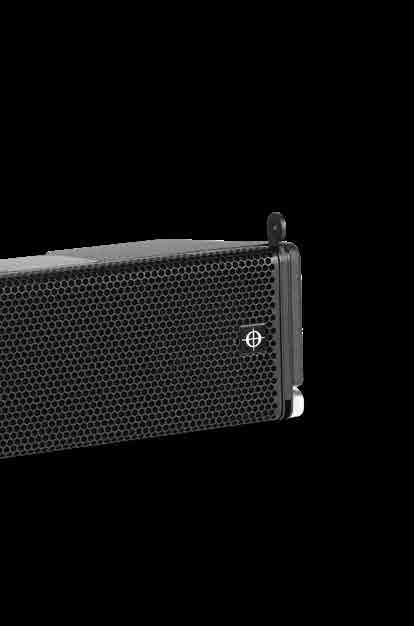

TiRAY °C

IMMERSIVE SPACE

IMMERSIVE SPACE

°C

DS-FIR

PHASE LINEARITY

DS-FIR

ANNULAR RING DIAPHRAGM

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

TiRAY is CODA Audio’s pocket rocket line array. A remarkably small-footprint, super-light, 2-way passive system which packs more of a punch than many competitors’ more sizeable equivalents.

This is largely down to its two 5” ultra low distortion cone speakers, and unique 5” neodymium planar wave driver, which gives it its power and versatility. Designed for mobile applications and installations, these boxes are perfectly suited to music bars and clubs, theatres, ballrooms, and auditoriums, as well as sports centres and Houses of Worship.

TiRAY is the ultimate, easy-to-rig, plug and play system – and it’s very easily expandable. Up to 24 units can be flown, thanks to CODA’s smart integrated rigging system, and a built-in passive crossover means multiple units can be driven by a single channel of CODA’s proprietary LINUS12C four-channel DSP amplifier.

Furthermore, the TiLOW bass extension works seamlessly with the main box, providing plenty of low-end reinforcement, which means extra flexibility for audio companies when working in larger venues.

TiRAY: Small. Powerful. Flexible.

44

45

TiRAY Series

TiRAY Line Array Ultra Compact 2-way Line Array System Unique 5” HF neodymium planar wave driver, dual 5” ultra low distortion cone drivers The TiRAY is an ultra compact, passive full range line array module, designed for small venues where crystal clear full spectrum sound and outstanding intelligibility are required. The system is highly efficient and provides 100° dispersion and linear phase response.

SCV-F Compact 18” Subwoofer with SC Technology Compact 18” sensor controlled subwoofer with extended frequency range down to 25 Hz (-6 dB) The CODA Audio award winning sensor controlled technology is extended with the compact SCV-F subwoofer. Combining a closed feedback-loop control with large, low noise laminar flow ports the SCV-F subwoofer offers increased output and well controlled response.

46

TiLOW Ultra Compact 12” Bass Extension for TiRAY Extended frequency range 44 - 300 Hz (-6 dB) The TiLOW is NOT a subwoofer, it is a bass extension system which overlaps both the low range of TiRAY and the subwoofers providing more essential energy and control in the lower range of the system.

LINUS M-RACK

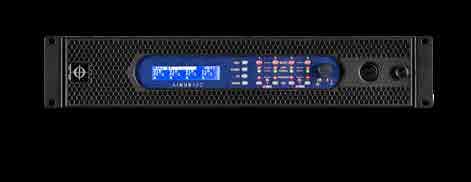

LINUS12C

Compact 4-Channel Rack

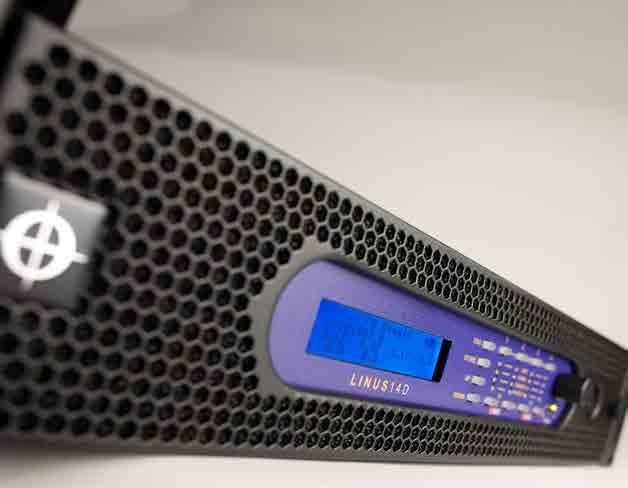

4-Channel DSP Amplifier with Loudspeaker Management

1 x LINUS14/D amplifier in a 3U case 19” / 3U Mobile Rack including 1 x LINUS14/D, LINUS PAN-M, internal cable set.

Integrated DSP, network and amplifier solution, high efficiency Class D amplifier engine 19” / 2U Four channel DSP amplifier for fixed installations, mobile and portable applications, delivers 4 x 3000 W / 4 Ω.

47

Sensor Controlled Subwoofers CODA Audio takes subwoofers to the next level with our sensor controlled SC Series. The technological breakthrough contained within these patented designs is highly significant.

The presence of a patented velocity sensor in the driver, with a feedback loop comparator, reduces Total Harmonic Distortion (THD) by up to amazing 90° at low frequencies, giving extended frequency response.

In turn, group delay is drastically reduced to deliver extremely accurate and musical bass reproduction. This ground breaking technology is housed in a notably compact enclosure, offering very real space-saving advantages in a truck and venue.

Then, as with all CODA SC products, comes the unique driver capabilities. Each woofer has a built in ‘velocity sensor’ within its driver, which measures the exact movement of the voice coil by sending information over XLR cable to the Comparator built in to the LINUS DSP Amplifier about velocity, excursion and speed of the voice coil itself. In turn, the Comparator then compares the original input signal to the movement measurement from the ‘velocity sensor’, and adjusts the amplifier driving voltage and/or current, so the diaphragm can move the way it should move.

The Comparator brings THD down by a massive 80 - 90%, which means this speaker can be modified without any equaliser or high pass filters: the Comparator not only compensates for the nonlinearities of the speaker, but the frequency response as well.

48

SCP & SCP-F °C

IMMERSIVE SPACE

DS-FIR

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

The SCP and SCP-F are equipped with two extremely long excursion 18” neodymium ultra low distortion woofers with integrated velocity sensor. The neodymium motor delivers extreme high magnetic flux for increased efficiency.

The 4” voice coil is 50 mm high, ensuring ultra linear excursion of 40 mm/pp at consistent magnetic force. State-of-theart carbon-fibre cone ensure maximum stiffness and low moving mass. Three aluminium shorting rings reduce intermodulation distortion and minimise induction variation while reducing thermal compression. This design reduces dramatically the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality and performance characteristics of the cabinet. The sensor is in fact an additional voice coil connected to the loudspeakers voice coil in a high precision, magnetically shielded system.

The SCP/SCP-F is the perfect low frequency extension extending the system performance down to 25 Hz; and also as an extension for all CODA systems. It’s perfect for a wide variety of applications: tour sound, theatres, houses of worship, dance clubs, and music venues.

49

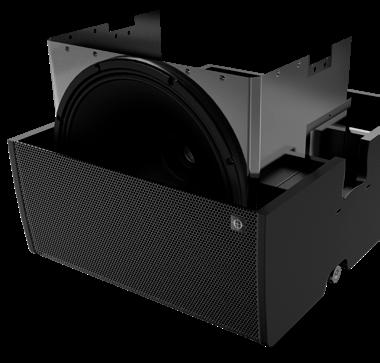

SCV-F °C

MERSIVE SPACE

DS-FIR

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

At the core of SCV-F (which works in cardio or omni mode) is its very efficient, high output 18” long neodymium excursion woofer, which provides a completely flat response down to 25 Hz (- 6 dB), and hardly any distortion at all.

SCV-F was primarily designed to be the perfect low frequency extension to CODA’s ViRAY line arrays, though it is also suited for a variety of applications in mobile and installations, particularly where small footprint, pristine sonic coverage, and controllable bass are paramount.

SC2-F °C

DS-FIR

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

The SC2-F is NOT only a subwoofer, it is a sensor controlled bass extension system operating in the range 35 – 200 Hz which overlaps both the low range of the AiRAY, ViRAY and the SCV/SCP subwoofers providing essentially more energy and control in the lower range of the system.

Incorporating dual 15” drivers in a compact, vented enclosure it provides a distinctive 15” signature punch to the system.

The SC2-F is equipped with two extremely long excursion 15” neodymium ultra low distortion drivers with integrated velocity sensor that measures, compares and controls cone movements. The neodymium motor delivers extreme high magnetic flux for increased efficiency. The 4” voice coil is 36 mm high, ensuring ultra linear excursion of 26 mm / pp at consistent magnetic force.

State-of-the-art carbon fibre cones ensure maximum stiffness and low moving mass. Three aluminium shorting rings reduce intermodulation distortion, minimising induction variation whilst reducing thermal compression. This design reduces dramatically the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality and performance characteristics of the cabinet.

50

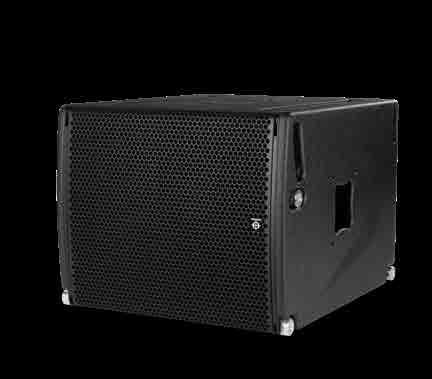

SCN-F °C

IMMERSIVE SPACE

IMMERSIVE SPACE

°C

DS-FIR

PHASE LINEARITY

DS-FIR

PHASE ANNULAR LINEARITY RING DIAPHRAGM

ANNULAR RING DIAPHRAGM

Targeted towards theatres, houses of worship, corporate events, sport venues, and live sound venues, the SCN-F is a 15” sensor controlled low frequency extension system operating from 35-200 Hz, overlapping both the low range of N-RAY and the SCV/SCP subwoofers – providing more energy and control in the lower range of the system.

The 15” driver contains an integrated velocity sensor that measures the diaphragm movement in real time. The LINUS14/D compares this with the audio input signal and adjusts its driving current to correct any driver inaccuracies – the key advantage being a very extended and controlled response.

SCN-F is designed to work exclusively with dedicated CODA Audio amplifiers and racks as an integrated solution for DSP and sensor control, amplification, network remote control, and diagnostics, ensuring optimal performance and protection.

SCN-F is equipped with an extremely long excursion neodymium ultra low distortion driver. Three aluminium shorting rings reduce intermodulation distortion, minimising induction variation whilst reducing thermal compression, dramatically reducing the distortion of a typical low frequency driver at larger excursions.

Weighing just 33 kg, and a power handling of 1500 W AES, the SCN-F extends the LF throw capability of the N-RAY system significantly. The flying system allows for vertical curving of the SCN-F too, ensuring perfect time alignment with N-RAY when flown behind or to the side.

51

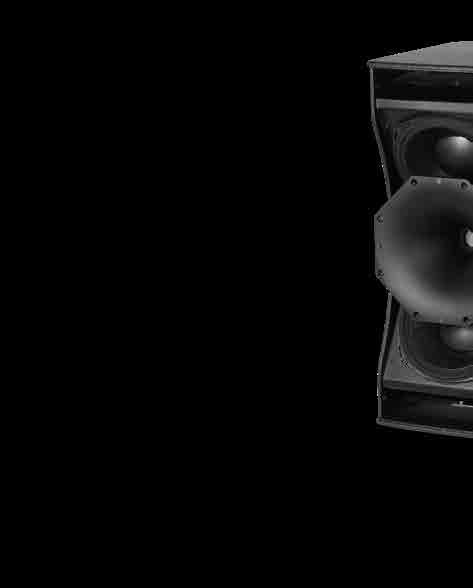

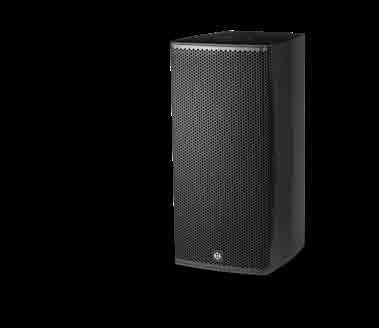

APS Series APS stands for Arrayable Point Source, and is very much a ‘one for all’ box. It’s CODA’s most flexible threeway solution when it comes to medium size applications, and is a true hybrid of point source and line array.

Use APS as a single speaker, a stage fill, or create an entire main hang; and such is the level of its flexibility and scalability, users can achieve repeatable, superior results in small to medium size applications. As vertical or horizontal arrays for small to medium venues, as single box systems, as fills for the stage or audience, or as DJ monitors, these adaptable loudspeakers will give superlative performance however you use them.

APS - FIXED CONFIGURATION

°C

IMMERSIVE SPACE

IMMERSIVE SPACE

DS-FIR

IMMERSIVE SPACE

°C

PHASE LINEARITY

°C

DS-FIR

PHASE ANNULAR LINEARITY RING DIAPHRAGM

DS-FIR

PHASE LINEARITY

APS C 3-way Arrayable Point Source C Frequency range: 50 Hz – 22 kHz C Unique 9” Dual Diaphragm Curved-wave-driver (DDC) C Dual 10” neodymium ultra low distortion cone drivers

C APS-COUPLER sums the energy from all transducers to perform as a single source

C Linear phase response for superior fidelity C Exceptionally high sound pressure C Changing the APS couplers gives a choice of 120°, 90°, 60° symmetrical coverage patterns or 105°, 90°or 75° asymmetric. Variable vertical coverage of 20° (one cabinet), 40° (two cabinets), 60° (3 cabinets) etc. up to 360° (18 cabinets)

C Integrated rigging system for horizontal or vertical arrays as well as Single use

C Multiplex enclosure with Polyurea coating for extreme durability and water protection

52

C Subwoofer extension down to 28 Hz with APS-SUB C System integration with LINUS amplifiers

ANNULAR RING DIAPHRAGM

ANNULAR RING DIAPHRAGM

RSIVE CE

CODA Audio APS-Pro builds on the success of APS, while taking flexibility and maximum SPL to new heights.

APS-Pro-D has a cabinet angle of 10°, ideal for longer throw applications and situations where you need the maximum granularity of control. APS-Pro-S has a cabinet angle of 30°, ideal for near field, wide coverage, or single cabinet applications.

Both loudspeakers benefit from our tool-free Quick Release Grille and magnetic InstaFit APS-Couplers, allowing you to choose from symmetrical dispersion angles of 120°, 90°, or 60°, and asymmetrical 105°, 90°, or 75°. CODA Audio’s unique and revolutionary DNA, present across all our products, is of course here in these new systems. APS-Pro has Dynamic Airflow Cooling technology (DAC) to give maximum power handling with minimum power compression for their dual 10” low frequency drivers, while the mid and high ranges are taken care of with new versions of our coaxial DDC driver, to provide the curved wavefronts suited to the 10° and 30° cabinet angles.

Sound designers often use several different loudspeaker systems to meet their challenges, or get the specific sonic results they’re after. Take theatre as an example: there are often so many dynamics and cues that audio coverage can quickly flip from super-wide to extremely focused, with varying SPLs. Using APS, the point source provides the flexible coverage, and hanging the boxes provides more SPL and dispersion options, so there is no need for multiple systems – APS has it all covered. It’s smart, it’s elegant, and it’s very simple.

APS-Pro - FLEXIBLE VERSATILITY

°C

°C °C

DS-FIR

IMMERSIVE PHASE LINEARITY SPACE

°C

DS-FIR DS-FIR

°C

DS-FIR

IMMERSIVE PHASE IMMERSIVE PHASE IMMERSIVE PHASE ANNULAR ANNULAR ANNULAR LINEARITY SPACE LINEARITY SPACE LINEARITY SPACE RING RINGRING DIAPHRAGM DIAPHRAGM DIAPHRAGM

APS-Pro-S Features C Dynamic Airflow Cooling (DAC) technology C Frequency Range: 50 Hz to 22 kHz C Power Handling: 1400 W (AES) C 30° cabinet angle for short throw and wide near field coverage C Unique 9” DDC (3.5” + 1.75” VC) C Dual 10” neodymium ultra-low distortion cone drivers C InstaFit APS-Couplers ensure a coherent uniform wavefront that performs as a single source and provides directivity control over a wide frequency range C Up to three cabinets can be linked for amp channel economy C Seamless integration with APS-Pro-D C Part of an integrated system with LINUS DSP amplifiers

ANNULAR RING DIAPHRAGM

°C °C

DS-FIR

PHASE LINEARITY

°C

DS-FIR DS-FIR

PHASE PHASE LINEARITY LINEARITY

DS-FIR

PHASE ANNULAR ANNULAR ANNULAR LINEARITY RING RINGRING DIAPHRAGM DIAPHRAGM DIAPHRAGM

ANNULAR RING DIAPHRAGM

APS-Pro-D Features C Dynamic Airflow Cooling (DAC) technology C Frequency Range: 50 Hz to 22 kHz C Power Handling: 1400 W (AES) C 10° cabinet angle for long throw or high granularity of control C Unique 8.75” DDC (3.5” + 1.75” VC) C Dual 10” neodymium ultra-low distortion cone drivers C InstaFit APS-Couplers ensure a coherent uniform wavefront that performs as a single source and provides directivity control over a wide frequency range C Up to three cabinets can be linked for amp channel economy C Seamless integration with APS-Pro-S C Part of an integrated system with LINUS DSP amplifiers

* Measured with pink noise 12 dB Crest Factor (A-weighted).** T version only. *** i version only.

53

APS Series

APS

APS-SUB

LINUS M-RACK

Compact 3-way Arrayable Point Source

Flyable 18” Subwoofer for APS

Compact 4-Channel Mobile Rack

Compact 18” subwoofer with extended frequency range down to 28 Hz (-6 dB)

1 x LINUS14/D amplifier in a 3U case

Unique 9” Dual Diaphragm Curved-wave-driver (DDC), Dual 10” neodymium ultra low distortion cone drivers.

The APS is a compact arrayable point source loudspeaker that combines the user-friendliness of a point source with the perfect arrayability of a line array creating a unique category reinforcement system for medium size and large venues.

APS-SUB is a high output subwoofer that provides powerful and extended low frequency response with immense headroom. Low port compression and optimised enclosure design give a tight, accurate bass response.

ACCESSORIES FRV-APS

CU-APS

Frame for vertically arrayed APS or APS-SUB Distance pole adapter for vertically stacked APS, APS-Pro or APS-SUB

Distance pole adapter for vertically stacked APS or APS-Pro

Visit www.codaaudio.com for a full list of APS accessories

54

19” / 3U Mobile Rack including 1 x LINUS14/D, LINUS PAN-M, internal cable set.

The APS-SUB is an 18” high output subwoofer that provides powerful and extended low frequency response with immense headroom. Low port compression and optimised enclosure design give a tight, accurate bass response that is ideally suited for mobile or installation applications. The integrated rigging system allows quick and easy flying or ground stacking.

The APS-SUB is equipped with an extremely long excursion 18” ultra low distortion driver. The strong motor delivers extreme high magnetic flux for increased efficiency. The 4” voice coil ensures ultra linear excursion of 20 mm / pp at consistent magnetic force.

The state-of-the-art carbon fibre cone ensures maximum stiffness and low moving mass. Three aluminium shorting rings reduce intermodulation distortion, minimising induction variation whilst reducing thermal compression. This design dramatically reduces the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality and performance characteristics of the cabinet.

Primarily designed as a subwoofer extension for APS, the APSSUB is also suited for a variety of applications in mobile and installations where compact size, high precision, deep bass with directivity control is needed.

With the addition of a 2-point rigging thread distance mount, APS-SUB can be used as a base for groundstacked pole-mounted APS arrays, to form a powerful and lightweight mobile system that requires no motors or trusses. Typical applications are dance clubs, theaters, houses of worship and live sound venues.

55

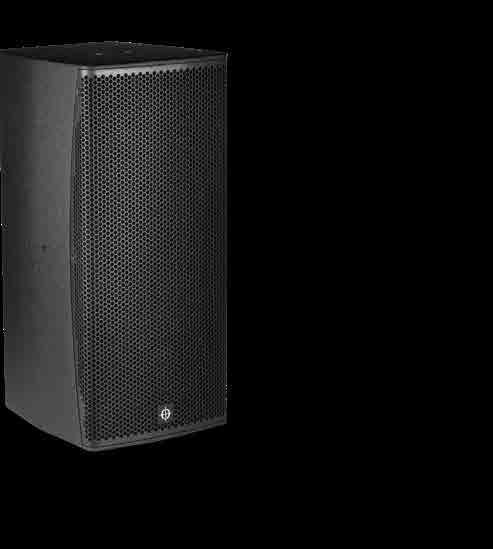

APS-Pro Series

APS-Pro-D

APS-Pro-S

APS-SUB

3-way Passive Arrayable Point Source for long throw applications

3-way Passive Arrayable Point Source for short throw applications

Flyable 18” Subwoofer for APS and APS-Pro

Unique 8.75” Dual Diaphragm Curved-wave-driver, dual 10” neodymium ultra-low distortion cone drivers

Unique 9” Dual Diaphragm Curved-wave-driver, dual 10” neodymium ultra-low distortion cone drivers

Compact 18” subwoofer with extended frequency range down to 28 Hz (-6 dB)

The APS-Pro-D is a compact, 3-way arrayable point source loudspeaker, designed for small and mediumsized venues where a scalable and powerful solution is required.

The APS-Pro-S is a compact, 3-way arrayable point source loudspeaker, designed for small and mediumsized venues where a scalable and powerful solution is required.

LINUS M-RACK

Instafit Magnetic Couplers

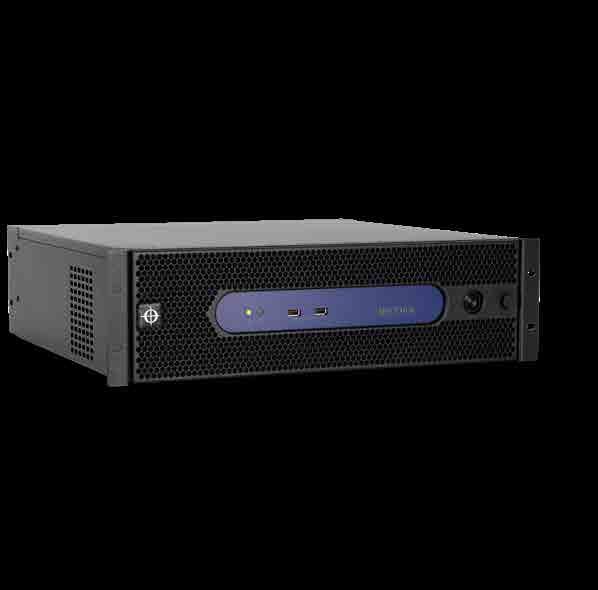

Compact 4-Channel Mobile Rack 1 x LINUS14/D amplifier in a 3U case 19” / 3U Mobile Rack including 1 x LINUS14/D, LINUS PAN-M, internal cable set.

56

APS-SUB is a high output subwoofer that provides powerful and extended low frequency response with immense headroom. Low port compression and optimised enclosure design give a tight, accurate bass response.

Visit www.codaaudio.com for a full list of APS-Pro accessories.

Horizontal Symmetrical Dispersion 120°/90°/60°

Horizontal Asymmetrical Dispersion 75° in either direction

120° 45°

30°

90° 60°

75°

Horizontal Asymmetrical Dispersion 90° in either direction

Horizontal Asymmetrical Dispersion 105° in either direction

60°

60° 45°

30°

90°

105°

Vertical Dispersion APS-Pro D projects energy further with its narrower angle output resulting in higher SPL for the longer throw section of an array, when used with narrow angle couplers.

APS-Pro S has wider coverage, so slightly less SPL, especially when wide angle couplers are used.

An array is naturally level shaded without having to use multiple amplifier channels.

10° 10° 30°

57

N-APS °C

IMMERSIVE SPACE

IMMERSIVE IMMERSIVE IMMERSIVE SPACE SPACE SPACE

°C °C °C

DS-FIR

PHASE LINEARITY

DS-FIR DS-FIR DS-FIR

PHASE PHASE PHASE ANNULAR LINEARITY LINEARITY LINEARITY RING DIAPHRAGM

ANNULAR ANNULAR ANNULAR RINGRINGRING DIAPHRAGM DIAPHRAGM DIAPHRAGM

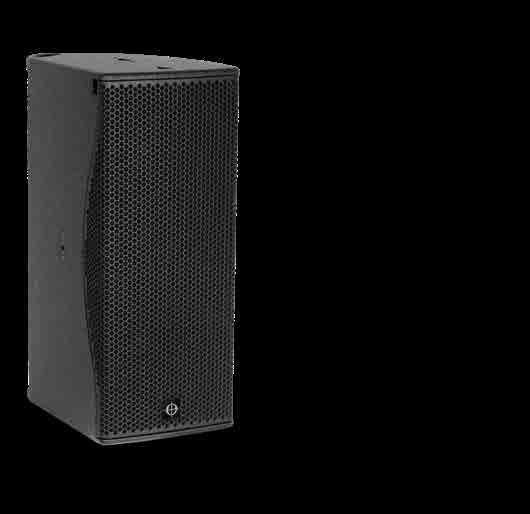

N-APS is the smaller sibling of APS (Arrayable Point Source), yet benefits from new technology which allows it to compete in terms of output with loudspeakers many times its size.

Targeted towards a variety of small-to-medium size applications, the series boasts the inclusion of unique and patented DAC Technology for effective cooling, and optimised CODA Audio manufactured Ring Diaphragm Curved-wave-driver (RDC) – ensuring fidelity, frequency range, and versatility.

58

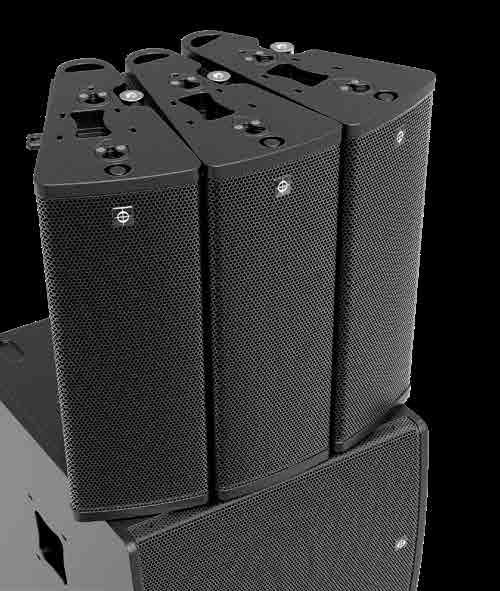

N-APS is an ultra compact dual 6.5”, 2-way arrayable point source that combines the versatility of a point source loudspeaker with the ‘arrayability’ of a line array, creating a unique category of sound reinforcement system for small to medium size venues.

With the latest in driver and system design technology, N-APS delivers twice the power handling as well as significantly more low-end compared to other systems.

Created to be a sound designers’ dream problem solver, the ultra hi-fidelity N-APS delivers large dynamic range, incredible flexibility, and variable horizontal directivity.

N-APS allows users to deploy systems which are in real terms, half or smaller in size compared to the competition. The commercial advantage of this is best demonstrated in trucking: very little truck space is taken up by the system.

N-APS offers a distinct commercial advantage of performing exactly the same as larger elements, but with a tiny footprint. Not only are the loudspeakers smaller, the cabling, amplification and power distribution system is halved in size.

59

N-APS Series N-APS features many unique CODA technologies.

The RDC driver means there is less distortion and no reshaping required, so it offers extraordinary sonic precision. As a result, when you put more N-APS together, they perform as one single cabinet, with no interference whatsoever.

Available in 60°, 90°, 120° or asymmetrical horizontal coverage, a key benefit of N-APS is that you can configure it in any way you choose, with no tools required.

Like CODA’s N-APS, N-SUB benefits from DAC – a smart, unique technology which allows the box to hit very high SPLs while staying completely cool – contrasting traditional sub behaviour, where applying more power generally increases the heat inside, resulting in compressed and distorted audio. In the N-SUB’s case, all sonic clarity is retained – it simply gets louder.

When paired with the CODA LINUS amplification platform, the N-APS have a ruler flat phase response from 120 Hz upwards.

This guarantees seamless integration with other CODA products as part of a bigger system.

60

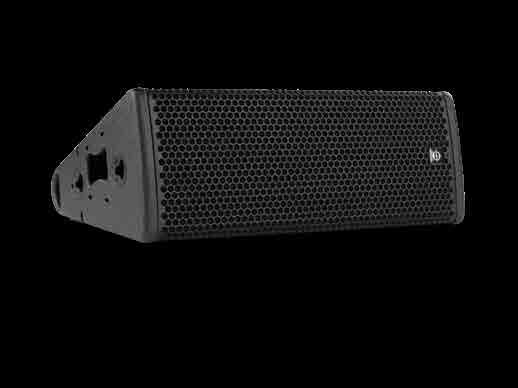

N-APS

N-SUB

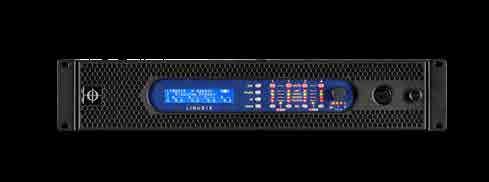

LINUS12C

Ultra Compact 2-way Arrayable Point Source

Compact 15” Subwoofer for N-APS

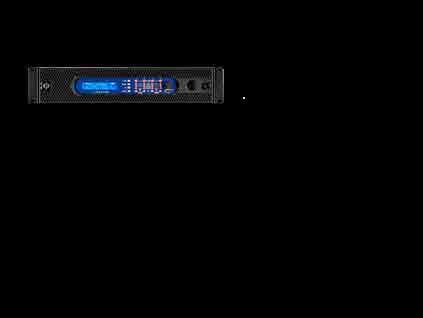

4-Channel DSP Amplifier with Loudspeaker Management

Patented DAC technology Unique 6” Ring Diaphragm Curved wave driver (RDC), dual 6.5” neodymium ultra low distortion cone drivers.

The N-APS is an ultra compact and very lightweight arrayable point source that combines the versality of a point source with the perfect arrayability of a line array creating a unique category reinforcement system for medium size venues.

Patented DAC technology Compact 15” subwoofer with extended frequency range down to 30 Hz (-6 dB) N-SUB is a compact 15” high output subwoofer, weighing in at just 28 kg.

With high power handling of 1500 W, a maximum SPL of 139 dB (peak), this sub reaches as low as 30 Hz.

Integrated DSP, network and amplifier solution, High efficiency Class D amplifier engine 19” / 2U 4-Channel DSP amplifier for fixed installations, mobile and portable applications, delivers 4 x 3000 W / 4 Ω.

ACCESSORIES FRV N-APS Frame for vertically arrayed N-APS Visit www.codaaudio.com for a full list of N-APS accessories

61

CoRAY Series °C

IMMERSIVE SPACE

IMMERSIVE SPACE

DS-FIR

PHASE LINEARITY

°C

DS-FIR

ANNULAR RING DIAPHRAGM

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

This 2-way system may look slender, but there’s a lot going on inside: high power handling of 700 W is achievable thanks to its dual 4” HF neodymium planar wave drivers and four 5” ultra low distortion cone speakers.

Also, CoRAY4 is smart, you can easily eliminate any unwanted reflections in tricky spaces, and tailor your sound for your audience from venue to venue, by altering the horizontal and asymmetrical coverage, for greater intelligibility.

Staying on coverage, it gets better. For a bigger show, why not link two CoRAY4s together to create CoRAY4 Twin? This will guarantee a perfectly consistent symmetrical vertical coverage of 24° with zero interference between the cabinets, with switchable horizontal coverage: 120° for short throw, or 60° for long throw. In this format, the output gets a 6 dB boost, and narrow vertical control in the low end, extending the capabilities of the system further.

And better still, there’s the CoRAY4L, the low frequency extension, which gives you that rich bottom end, and even more power: again, a high power handling of 700 W, with four 5” ultra low distortion cone speakers, and built for life on the road.

If you’re looking at specifying your sonics for a permanent installation, there is also CoRAY4i, which has been specifically optimised for those applications and also CoRAY4Li, the low frequency extension for installation.

The CoRAY4L is an ultra compact low frequency extension for the CoRAY4. The cabinet contains four 5” ultra low distortion cone speakers and features the same CMS (CODA Mobile Suspension) as the CoRAY4 for an integrated fixing solution.

62

CoRAY4/i

CoRAY4L/i

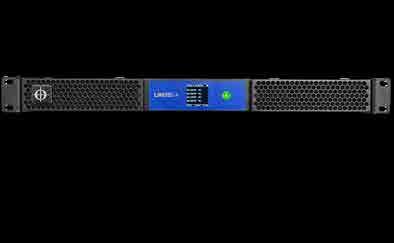

LINUS6.4i/D

Compact 2-Way Column Line Source

Low-Mid Frequency Extension for CoRAY4

4-Channel Installation DSP Amplifier with Loudspeaker Management

Four 5” ultra low-distortion cone speakers. Provides significantly higher output and increases the long throw capability.

The LINUS6.4 is a four-channel DSP networkable installation amplifier delivering 4 x 1500 W of clean power in a convenient and lightweight 19”/1U package.

Four 5” low frequency cone drivers paired with two 4” high frequency neodymium planar wavedrivers.

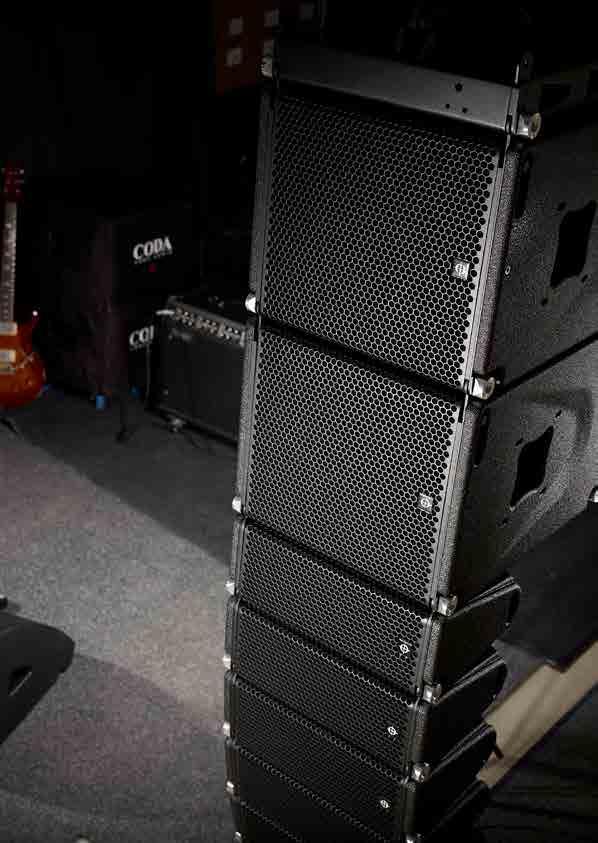

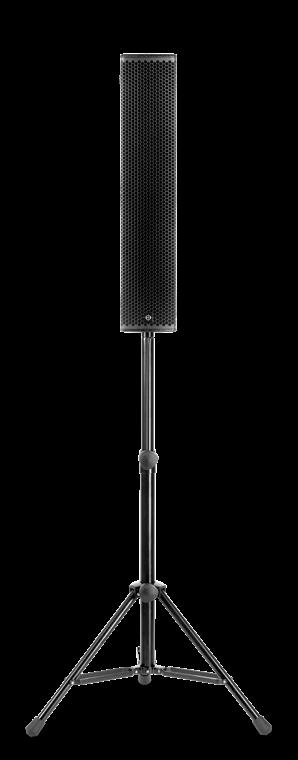

CoRAY4 is a compact 2-way column line source system designed for small and mid-sized venues with difficult acoustic environments, where high quality sound and outstanding intelligibility are required.

CoRAY4L is a compact low-mid frequency extension for CoRAY4/4i.

This system convinces with high fidelity, scalability and excellent speech intelligibility. The CoRAY Series combines the CODA Audio innovative driver and system design technologies.

ACCESSORIES CF4 Flying frame for CoRAY4 / CoRAY4L to be fixed on CMS (CODA Mobile Suspension) Visit www.codaaudio.com for a full list of CoRAY accessories

63

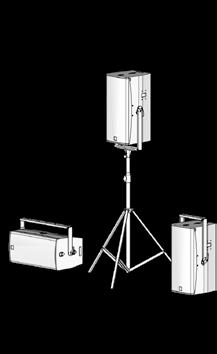

HOPS Series The CODA Audio HOPS Series has all bases covered when it comes to point source loudspeakers.

With signature CODA Audio technology throughout, the Series offers the ultimate in power and versatility, providing flexible options to deliver innovative solutions for every application.

CODA Audio’s unique and revolutionary DNA, present across all our products, is embedded in the HOPS range – where the HOPS acronym represents HighOutput Point Source - an appropriate name for a range that typically provides 6 dB more level than systems with comparably sized enclosures.

HOPS - FIXED CONFIGURATION

°C

IMMERSIVE SPACE

MMERSIVE SPACE

DS-FIR

PHASEIMMERSIVE LINEARITY SPACE

°C

°C

DS-FIR

ANNULAR RING DIAPHRAGM

PHASE LINEARITY

DS-FIR

°C

PHASEANNULAR LINEARITY RING DIAPHRAGM

HOPS8T/i C Compact 2-way coherent point source

C 60 Hz - 20 kHz (-6 dB) C Power handling of 450 W (AES) C Max SPL peak 133.5 dB (A)* C Unique 1.75” mid/high ring-diaphragm neodymium driver

C 8” coaxial driver paired with a 8” LF driver

DS-FIR

ANNULAR RING DIAPHRAGM

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

HOPS5 C Ultra-compact 2-way coherent point source

C 80 Hz - 20 kHz (-6 dB) C Power handling of 300 W (AES) C Max SPL peak 128 dB (A)* C Unique 1.75” mid/high ring-diaphragm neodymium driver

C 5” coaxial driver paired with a 5” LF driver

C 100° symmetrical coverage C Available as a left and right version C Ball impact resistant (DIN 18032-3)*** C System integration with LINUS

C 100° symmetrical coverage C Available as a left and right version C Ball impact resistant (DIN 18032-3)*** C System integration with LINUS

loudspeaker management amplifiers

loudspeaker management amplifiers

C Variants for mobile applications and installations

64

* Measured with pink noise 12 dB Crest Factor (A-weighted).** T version only. *** i version only.

As our proprietary technologies are present across our loudspeaker ranges, users can take advantage of incredible flexibility and synergy across models, enabling systems to be deployed in a variety of formats and combinations to meet a clients’ exact requirements. For example, HOPS7-Pro shares components with N-Series products (N-APS and N-RAY). HOPS10-Pro aligns with APS and CiRAY, and HOPS12-Pro with AiRAY. HOPS5 and HOPS8 provide a fixed 100° conical dispersion in a cost-effective solution for a variety of different applications.

The HOPS-Pro Series has three models which provide users with high performance and flexibility. HOPS7-Pro, HOPS10-Pro, and HOPS12-Pro all feature rotatable and easily interchangeable waveguides giving optional coverage patterns. A Quick Release Grille, allows users instant access to make the changes.

HOPS-Pro also benefit from CODA Audio’s patented DAC Technology (Dynamic Air Cooling), further pushing boundaries by increasing low frequency power handling and reducing power compression.

HOPS-Pro - FLEXIBLE VERSATILITY

DS-FIR

°C

PHASE IMMERSIVE LINEARITY SPACE

°C

°C

DS-FIR

IMMERSIVE ANNULAR PHASE IMMERSIVELINEARITY SPACE RING SPACE DIAPHRAGM

DS-FIR

PHASE LINEARITY

DS-FIR

PHASE ANNULAR IMMERSIVE LINEARITY RING SPACE DIAPHRAGM

HOPS7-Pro C High-output compact 2-way versatile full-range point source

C DAC Technology C 60 Hz - 20 kHz (-6 dB) C High power handling of 1000 W (AES) C Max SPL peak: 85: 139 dB (A)*, 126: 137 dB (A)*

C Unique 1.75” mid/high ring-diaphragm neodymium driver

C Dual 6.5” neodymium ultra-low distortion cone drivers

C Instafit Waveguides

(rotatable 80º x 50º and 120º x 60º)

C Quick Release Grille C Ball impact resistant (DIN 18032-3)*** C System integration with LINUS loudspeaker managementamplifiers

°C

°C

ANNULAR IMMERSIVE RING SPACE DIAPHRAGM

°C DS-FIR

ANNULAR PHASE LINEARITY RING DIAPHRAGM

DS-FIR DS-FIR

PHASE LINEARITY

ANNULAR PHASE RING LINEARITY DIAPHRAGM

HOPS10T/i-Pro C High-output 3-way versatile full-range point source

C DAC Technology C 50 Hz – 22 kHz (-6 dB) C High power handling of 1400 W (AES) C Max SPL peak: 85: 144 dB (A)*

C Unique 1.4” mid/high coaxial ring-diaphragm neodymium driver

C Dual 10” neodymium ultra-low distortion cone drivers

C Instafit Magnetic Waveguide** (rotatable 80° x 50°)

C Quick Release Grille** C Ball impact resistant (DIN 18032-3)*** C System integration with LINUS loudspeaker management amplifiers

C Variants for mobile applications and installations

°C

°C

DS-FIR

ANNULAR ANNULAR PHASE RING LINEARITY RING DIAPHRAGM DIAPHRAGM

DS-FIR

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

ANNULAR RING DIAPHRAGM

HOPS12T/i-Pro C High-output 3-way versatile full-range point source

C DAC Technology C 44 Hz – 22 kHz (-6 dB) C High power handling of 2000 W (AES) C Max SPL peak: 64: 144 dB (A)*, 96: 142 dB (A)*

C Unique 1.4” mid/high coaxial ring-diaphragm neodymium driver

C Dual 12" neodymium ultra-low distortion cone drivers

C Instafit Magnetic Waveguides **

(rotatable 90º x 60º and 60º x 40º)

C Quick Release Grille*** C Ball impact resistant (DIN 18032-3)*** C System integration with LINUS loudspeaker management amplifiers

C Variants for mobile applications and installations

65

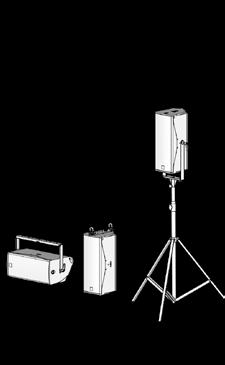

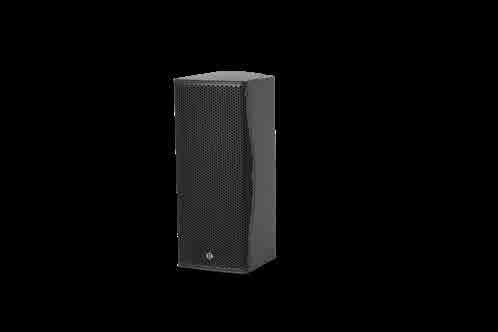

HOPS5 HOPS5 uses two 5” drivers, one with co-axial HF, giving high power handling of 300 W, and 100° conical dispersion.

At the heart of HOPS5 are its drivers, one 5”/1.75” neodymium coaxial driver, and an additional 5” LF driver. The 5” cone drivers cover the 80-1500 Hz frequency range with high efficiency and a silky smooth linear response. The drivers use three aluminium shorting rings, which minimise induction variation while reducing thermal compression. This significantly reduces intermodulation distortion along with distortion at longer excursion levels, providing punchy low frequency performance and extension that belies the cabinets size.

The high frequency driver is the same ultra-light 1.75” annular diaphragm as used in the HOPS8. This has an exceptional transient response and very high efficiency, giving crystal clear full spectrum sound with perfect time alignment.

HOPS5 is ultra-compact and easy to deploy with hardware available to suit a variety of applications, both touring and installation.

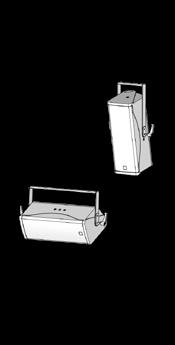

HOPS5 Accessories

HOPS5 Features C Ultra-compact 2-way coherent point source C 80 Hz - 20 kHz (-6 dB) C Power handling of 300 W (AES) C Max SPL peak 128 dB (A)* C Unique 1.75” mid/high ring-diaphragm neodymium driver C 5” coaxial driver paired with a 5” LF driver C 100° symmetrical coverage C Available as a left and right version C Ball impact resistant (DIN 18032-3) C System integration with LINUS loudspeaker management amplifiers * Measured with pink noise 12 dB Crest Factor (A-weighted).

H5H Horizontal U-bracket for HOPS5

24471 Wall mount for HOPS5

SF36 Reduce flange black, m10 x 18mm

H5V Vertical U-bracket for HOPS5

66

HOPS8T/i HOPS8 uses two 8” drivers, one with a co-axial HF unit, giving high power handling of 450W, and 100° conical dispersion.

At the heart of HOPS8 are its drivers, one 8”/1.75” neodymium coaxial driver, and an additional 8” LF driver. The 8” cone drivers cover the 60-1500 Hz frequency range with extremely high efficiency and a silky smooth linear response. The drivers use three aluminium shorting rings, which minimise induction variation while reducing thermal compression. This significantly reduces intermodulation distortion and distortion at longer excursion levels, providing punchy low frequency performance and extension that belies the cabinets size.

The high frequency driver is the same ultra-light 1.75” annular diaphragm as used in the HOPS5. This has an exceptional transient response and very high efficiency, giving crystal clear full spectrum sound with perfect time alignment.

HOPS8i is perfect for installation applications, whilst its counterpart HOPS8T is built for mobile convenience, with CODA Audio’s CMS (CODA Mobile Suspension) allowing for fast and simple setup.

HOPS8T/i Features C Compact 2-way coherent point source C 60 Hz - 20 khz (-6 dB) C Power handling of 450 W (AES) C Max SPL peak 133.5 dB (A)* C Unique 1.75” mid/high ring-diaphragm neodymium driver C 8” coaxial driver paired with a 8” LF driver C 100° symmetrical coverage C Available as a left and right version C Ball impact resistant (DIN 18032-3)*** C System integration with LINUS loudspeaker management amplifiers C Variants for mobile applications and installations * Measured with pink noise 12 dB Crest Factor (A-weighted).*** i version only

HOPS8i Accessories

HOPS8T Accessories

H8H Horizontal U-bracket for HOPS8 HL8 Vertical L-bracket for HOPS8T

H8V Vertical U-bracket for HOPS8 24471 Wall mount for HOPS8

H8TH Horizontal U-bracket for HOPS8T

H8V Vertical U-bracket for HOPS8

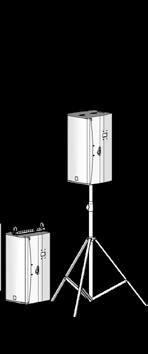

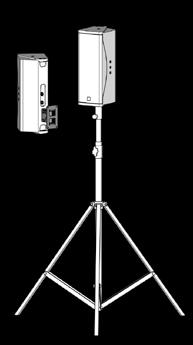

Integral Pole Mount HOPS8 T

67

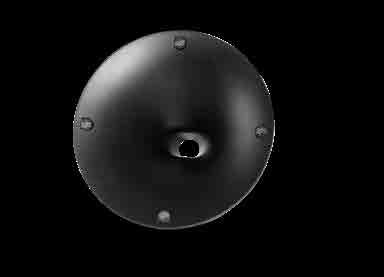

Directivity Control with Instafit Waveguides Versatility HOPS-Pro Series feature interchangeable and rotatable waveguides, providing options for the systems’ dispersion.

With the coaxial design in HOPS7-Pro and the triaxial HOPS10-Pro and HOPS12-Pro, the waveguide for the mid/high driver also aligns the acoustic centres of the low frequency transducers to produce a perfectly coherent and uniform wavefront, power response, and directivity control.

The waveguide in the HOPS7-Pro is designed to give excellent pattern control across the annular high frequency drivers’ 1 kHz to 22 kHz operating range. The coax mid-high driver in HOPS10-Pro and HOPS12-Pro is loaded to a large elliptical waveguide with supreme horizontal pattern control over the entire operating range of the driver.

The two low frequency drivers are symmetrically loaded and the vertical distance between their acoustical centres is optimised to enhance the vertical directivity of the system down to 300 Hz on a HOPS12-Pro, 400 Hz on a HOPS10-Pro and 550 Hz on a HOPS7-Pro. The benefits of this cannot be understated – the energy is exactly focused where it’s needed, whilst keeping it away from walls and other reflective surfaces.

HOPS7-Pro Instafit Waveguide

HOPS10T-Pro and HOPS12T-Pro Instafit Magnetic Waveguide 68

190mm / 7.48”

HOPS7&10-Pro 50° x 80°

HOPS7&10-Pro 80° x 50°

80°

80°

50°

50°

HOPS7-Pro 60° x 120°

HOPS7-Pro 120° x 60°

190mm / 7.48”

650

518mm / 20.39”

273mm / 10.75”

420mm / 16.54”

518mm / 20.39” 650

368mm / 14.49”

790mm / 31.1” 120°

120°

60°

60°

420mm / 16.54”

HOPS12-Pro 40° x 60° 273mm / 10.75”

368mm / 14.49”

790mm / 31.1”

420mm / 16.54”

368mm / 14.49”

HOPS12-Pro 60° x 40°

790mm / 31.10” 60°

40°

40°

790mm / 31.10”

60°

HOPS12-Pro 60° x 90°

HOPS12-Pro 90° x 60°

90°

90°

60°

60°

420mm / 16.54”

368mm / 14.49”

69

HOPS7-Pro Accessories

H7V Vertical U-bracket for HOPS7-Pro

H7H Horizontal U-bracket for HOPS7-Pro

70

HOPS7-Pro The HOPS7-Pro is a high-output point source loudspeaker with it’s DAC technology giving a high power handling of 1000W. Featuring dual 6.5” neodymium low distortion bass drivers and a 1.75” VC annular diaphragm compression driver reproducing mid and high frequencies.

The smallest of the Pro-Series, the HOPS7-Pro gives unrivalled power while retaining a compact design. The Quick Release Grille and Instafit rotatable and interchangeable waveguides provide flexibility, with an 80º x 50º supplied as standard and a 120º x 60º available as an option or additionally.

Offering convenience with no compromise on performance, HOPS7-Pro offers a variety of convenient deployment options for installation or touring use.

HOPS7-Pro Features C High-output compact 2-way versatile full-range point source C DAC Technology C 60 Hz - 20 kHz (-6 dB) C High power handling of 1000 W (AES) C Max SPL peak: 85: 139 dB (A)*, 126: 137 dB (A)* C Unique 1.75” mid/high ring-diaphragm neodymium driver C Dual 6.5” neodymium ultra-low distortion cone drivers C Instafit Waveguides (rotatable 80º x 50º and 120º x 60º) C Quick Release Grille C Ball impact resistant (DIN 18032-3) C System integration with LINUS loudspeaker managementamplifiers * Measured with pink noise 12 dB Crest Factor (A-weighted).

SF36 Reduce flange black, m10 x 18mm 24471 Wall mount for HOPS7-Pro

71

Integral Pole Mount HOPS10T-Pro H10TV Vertical U-bracket for HOPS10T-Pro

72

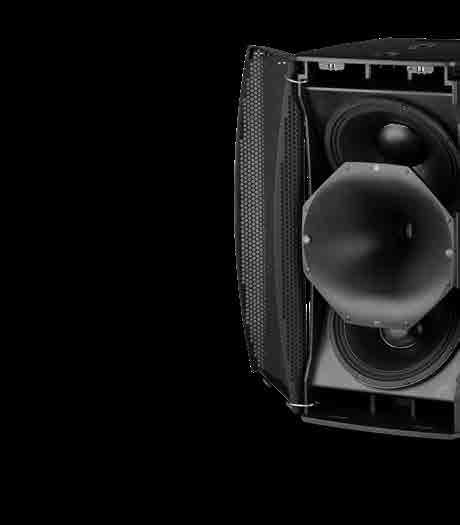

HOPS10T/i-Pro The HOPS10-Pro is a high-output point source loudspeaker with high power handling of 1400 W, featuring dual DACmounted 10” neodymium low distortion drivers to provide power and accuracy across the bass frequencies, plus a 1.4” exit coaxial neodymium mid/high driver in a compact enclosure.

In addition to the exceptional power obtainable from such a compact design, users can also benefit from a choice of dispersion patterns thanks to the Quick Release Grille and Instafit Magnetic Waveguide 80º x 50º (rotatable).

HOPS10-Pro is a step up in power from its smaller HOPS7-Pro counterpart. Benefitting from CODA Audio’s flagship technologies, the HOPS10-Pro provides unrivalled performance for its size, with exceptional low end response.

With CODA Audio CMS (CODA Mobile Suspension) enabling fast and simple setup in any location, HOPS10-Pro has virtually limitless application scope.

HOPS10T/i-Pro Features C High-output 3-way versatile full-range point source C DAC Technology C 50 Hz – 22 kHz (-6 dB) C High power handling of 1400 W (AES) C Max SPL peak: 85: 144 dB (A)* C Unique 1.4” mid/high coaxial ring-diaphragm neodymium driver C Dual 10” neodymium ultra-low distortion cone drivers C Instafit Magnetic Waveguide** (rotatable 80° x 50°) C Quick Release Grille** C Ball impact resistant (DIN 18032-3)*** C System integration with LINUS loudspeaker management amplifiers C Variants for mobile applications and installations * Measured with pink noise 12 dB Crest Factor (A-weighted). ** T version only *** i version only

HOPS10i-Pro Accessories

HOPS10T-Pro Accessories

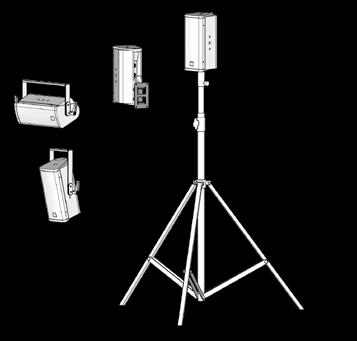

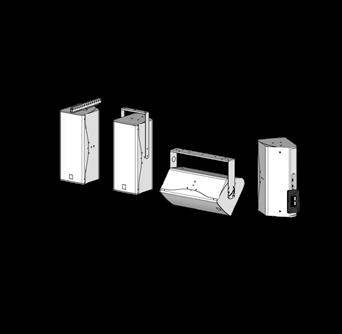

H10TSF Stand fitting adapter HFA10 Flying adapter for HOPS10i-Pro

H10TH Horizontal U-bracket for HOPS10T-Pro

H10V Vertical U bracket HOPS10i-Pro

H10H Horizontal U-bracket HOPS10i-Pro

24481 Wall mount for HOPS10T-Pro

FRH-N-APS Flying adapter for HOPS10i-Pro

73

HOPS12T-Pro Accessories

H12TSF Stand fitting adapter

H12TH Horizontal U-bracket for HOPS12T-Pro

74

H12TV Vertical U-bracket for HOPS12T-Pro

HOPS12T/i-Pro The CODA Audio HOPS12-Pro is a high output point source loudspeaker with high power handling of 2000 W, featuring DAC-mounted dual 12” neodymium ultra-low distortion lowfrequency drivers and a 1.4” exit coaxial neodymium mid/high driver in a compact enclosure.

HOPS12-Pro models provide the highest power in the range, perfect for larger venues and a wide range of applications. Users can combine great power with precise control thanks to the unit’s Quick Release Grille and rotatable Instafit Magnetic Waveguide, with a 90º x 60º supplied as standard and 60º x 40º available as an option or additionally.

HOPS12T-Pro is built for convenience, with CODA’s CMS (CODA Mobile Suspension) allowing for fast and simple setup in any location.

HOPS12i-Pro is specifically intended for cost-effective installation, for a variety of applications including dance clubs, houses of worship, sports venues, theatres, and corporate events.

HOPS12-Pro T/i Features C High-output 3-way full-range versatile point source C DAC Technology C 44 Hz – 22 kHz (-6 dB) C High power handling of 2000 W (AES) C Max SPL peak: 64: 144 dB (A)*, 96: 142 dB (A)* C Unique 1.4” mid/high coaxial ring-diaphragm neodymium driver C Dual 12" neodymium ultra-low distortion cone drivers C Instafit Magnetic Waveguides ** (rotatable 90º x 60º and 60º x 40º) C Quick Release Grille** C Ball impact resistant (DIN 18032-3)*** C System integration with LINUS loudspeaker management amplifiers C Variants for mobile applications and installations * Measured with pink noise 12 dB Crest Factor (A-weighted). ** T version only *** i version only

HOPS12i-Pro Accessories

HFA12 Flying adapter for HOPS12i-Pro

HFA12 Flying adapter for HOPS12i-Pro

H12V Vertical U bracket HOPS12i-Pro

H12H Horizontal U-bracket HOPS12i-Pro

Integral Pole Mount HOPS12T-Pro

75

76

CUE Series °C

IMMERSIVE SPACE

DS-FIR

PHASE LINEARITY

°C

DS-FIR

ANNULAR RING DIAPHRAGM

PHASE LINEARITY

ANNULAR RING DIAPHRAGM

The CUE Series takes stage monitoring to another level for several reasons: exceptionally high output, phenomenal sound quality, and a triaxial transducer design that provides a true one point source. They are also very portable and lightweight, perfect for taking out on the road.

As an artist, what you’re looking for out of a stage monitor is volume, clarity, and feel. The technology in this box provides all of this and more.

Thanks to its powerful neodymium woofers and compression driver.

Feedback is extremely minimal, integrated hardware provides increased dispersion, and the low end frequency response is immense.

This entirely unique loudspeaker technology offers a perfectly coherent wavefront with no hot spots in sight, resulting in precise directivity and uniform coverage, providing perfect time alignment between the components.

77

CUE Series

78

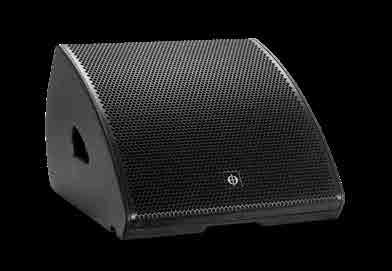

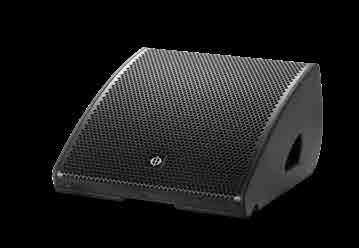

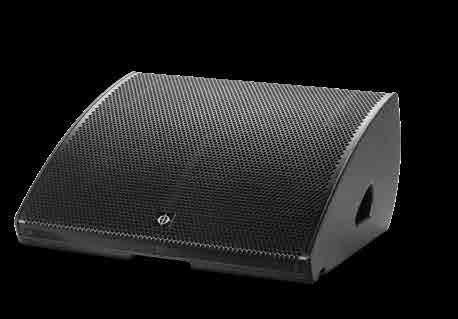

CUE ONE is a high output 3-way, coherent low profile monitor built for the stage. It’s a double 12” box with a 1.4” coaxial compression driver, loaded by an asymmetrical 60° x 55° + 40° elliptical waveguide.

CUE TWO is a compact 3-way, high output, coherent low profile monitor built for the stage. It’s a superhigh power box thanks to its 15” neodymium cone driver and 1.4” coaxial compression driver concentrically mounted to the woofer, loaded by a 60° x 90° elliptical waveguide.

CUE FOUR is a 3-way, high output, coherent low profile monitor built for the stage. It benefits from double 8” neodymium woofer and 1.4” coaxial compression driver, loaded by an asymmetrical 60° x 55° + 40° elliptical waveguide.

79

Multipurpose Subwoofers U12/U12i-Sub Ultra Compact 12” Multipurpose Subwoofer The U12-Sub is a 12” ultra compact subwoofer that provides powerful low frequency response. Low port compression and optimised enclosure design give a tight, accurate bass response that is ideally suited for mobile and installation applications.

The U12-Sub is equipped with an extremely long excursion 12” neodymium ultra low distortion woofer. The neodymium motor delivers extreme high magnetic flux for increased efficiency. The 3” voice coil is 26 mm high, ensuring ultra-linear excursion of 16 mm/pp at consistent magnetic force. A state-of-the-art carbon fibre cone ensures maximum stiffness and low moving mass.

The aluminium shorting rings reduce intermodulation distortion, minimise induction variation while reducing thermal compression. This design dramatically reduces the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality and performance characteristics of the cabinet.

The U12i-Sub is a slim, wallmounted version of the U12Sub. U12i

U15-Sub Compact 15” Multipurpose Subwoofer The U15-Sub is a 15” compact subwoofer is only slightly bigger than its sibling products, and provides power in the low frequency. It includes the same port compression and optimised enclosure to give a tight, accurate bass response that is ideally suited for mobile and installation applications.

The U15-Sub is equipped with an extremely long excursion 15” ultra-low distortion woofer. The motor provides high magnetic flux for increased efficiency. The 3” voice coil is 32 mm high, meaning ultra-linear excursion of 22 mm/pp at consistent magnetic force. Like the U12, there is a state-of-the-art carbon-fibre cone, which is stiff and rigid for a low moving mass.

The same low intermodulation distortion comes from the shorting rings, and helps to minimise induction variation and lower thermal compression. All of these features reduce the distortion of a typical 15” sub at longer excursion levels, with clear quality and the performance you expect from a CODA cabinet.

80

U12

U4-Sub High Output Dual 18” Multipurpose Subwoofer Double 18” ultra low distortion woofer, very high power handling of 2500 W, extended low frequency reproduction.

The U4-Sub is equipped with twin extremely long excursion 18” ultra low distortion woofers. The strong motor delivers extreme high magnetic flux for increased efficiency. The 4” voice coil is 32 mm high, ensuring ultra linear excursion of 20 mm / pp at consistent magnetic force.

The state-of-the-art carbon-fibre cone ensures maximum stiffness and low moving mass. Three aluminium shorting rings reduce intermodulation distortion, minimising induction variation whilst reducing thermal compression. This design dramatically reduces the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality and performance characteristics of the cabinet.

The U4-Sub is designed to work exclusively with CODA Audio LINUS amplifiers as an integrated solution for DSP control, amplification, network remote control and diagnostic.The integrated solution ensures optimal performance and protection.

The U4-Sub is perfectly suited as a sub extension for HOPS Series, CUE Series and TiRAY, extending the system performance down to 30 Hz. Typical applications are dance clubs, theatres, houses of worship and live sound venues.

81

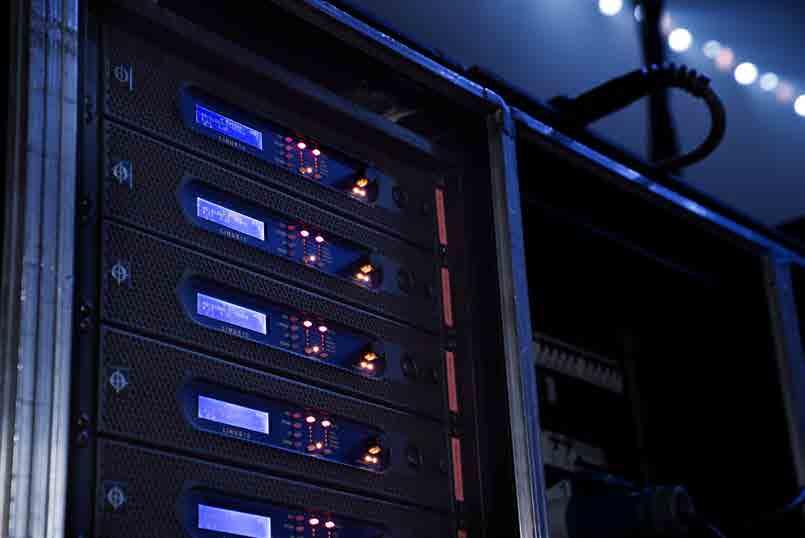

Electronics More power, more control, more efficiency: CODA Audio’s LINUS Loudspeaker Management Amplifiers are designed to control all CODA Audio loudspeakers. They are perfectly at home in both mobile and installed sound applications.

The platform provides intelligent processing, amplification and monitoring in any application, from the smallest of corporate gigs to the largest tours or the most complex of stadium installations. The amplifiers’ powerful DSP includes factory presets utilising advanced proprietary DS-FIR and IIR filtering techniques, which obtain maximum performance from CODA Audio loudspeaker systems.

Digital audio distribution via LiNET buffers and transmits up to 8 AES digital audio signals 300m over a shielded CAT5e cable, from FOH to amplifiers around a venue. The graphical user interface LINUS Control offers flexible options for system set-up, control, tuning, and monitoring.

The current portfolio consists of the cost effective LINUS6.4i/D, the LINUS12C and the most powerful LINUS14/D. Along with higher power this brings sensor control for use with our SC range of subwoofers and the option for DANTE™ inputs.

82

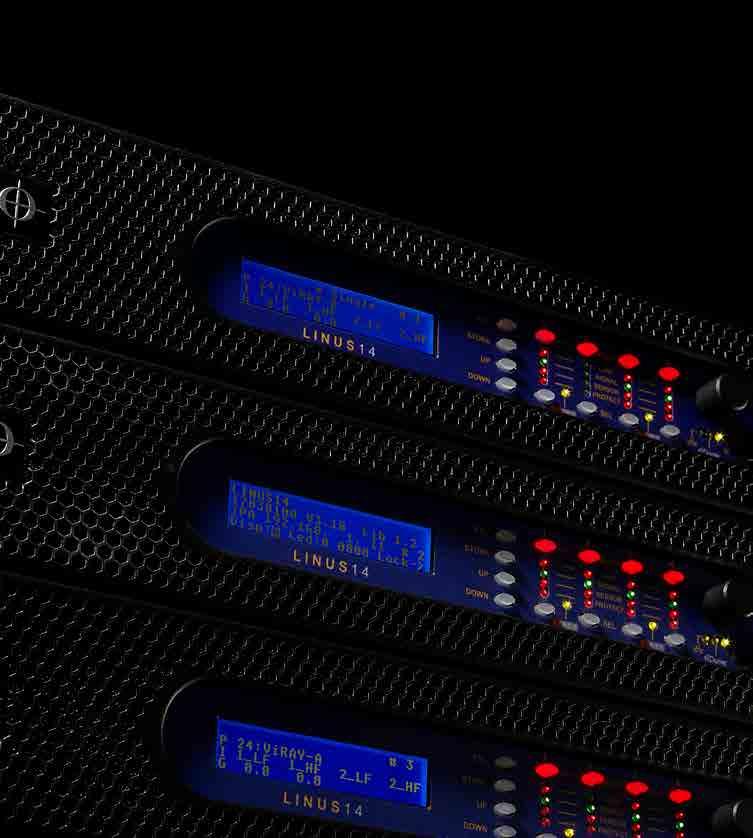

LINUS6.4i/D

The LINUS6.4 is a four-channel DSP networkable installation amplifier delivering 4 x 1500 W of clean power in a convenient and lightweight 19”/1U package.

The four audio inputs are selectable, you can choose between analog, LiNET, Dante digital audio network and simply and easily route to any of the four outputs via the input matrix.

LINUS6.4i/D offers factory presets for the following product series: TiRAY, CoRAY, HOPS, APS, N-APS, CUE, G-Series and D-Series.

LINUS12C

The LINUS12C is a four channel networkable DSP amplifier delivering 4x 3000 W of virtually distortion-free power in a light weight 19”/2U package. The four audio inputs are selectable from analog, AES3 or LiNET (AES3) digital audio and are routable to any of the four outputs.

LINUS12C offers factory presets for: ViRAY, N-RAY, TiRAY, CoRAY, APS Series, N-APS Series, HOPS Series, CUE Series, G-Series, D-Series, and U-Subs.

LINUS14/D

The LINUS14/D is a four channel DSP, network, comparator and amplifier delivering 4x 3500 W of clean power in a light weight 19”/2U package. The four audio inputs are selectable from analog, LiNET (AES3) digital audio network and are routable to any of the four outputs via the input matrix.

LINUS14/D offers a flexible solution for mobile, permanent installation, corporate AV and portable applications, containing factory presets for all series including Sensor Controlled subs.

83

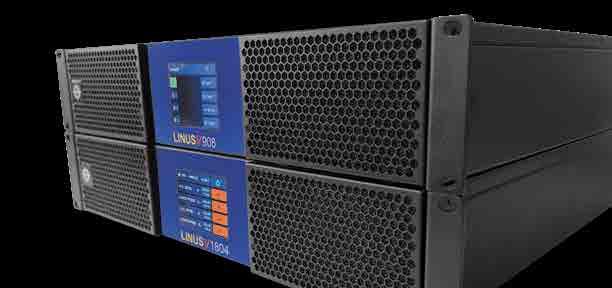

V-Series Power that punches above its size. Control that fits in your pocket.

Meet the V-Series, two new touring grade amplifiers from CODA Audio. Built on CODA Audios latest topology, these compact 2U power amplifiers deliver high power density and exceptional audio quality with CODA’s signature very low distortion characteristics. A new DSP architecture allows for future updating and adaptability, ensuring these amplifiers will provide a long useful life and excellent return on investment.

The V908 delivers 1500W at 2 Ohms through eight channels at 1500 W. Channels can be bridged separately to build combinations of 1500 W at 4 Ohm and 3000 W at 4 Ohm channels, giving maximum flexibility.

The V1804 is a four channel amplifier, delivering 3000 W per channel into a minimum 4 Ohm load Both models have dual high efficiency SMPS with PFC for 100 V to 240 V operation. Analogue and LiNET inputs are standard, with Dante available in the V90-D and V1804-D models. The sonic purity, flexibility and high power outputs make these amplifiers suitable for driving any CODA loudspeaker up to APS-Pro for portable or small touring systems. Presets for CODA loudspeakers other than sensor-controlled subwoofers and large format line arrays are stored on board and accessible through the 320 x 240 pixel touch screen. You can also control amplifiers individually through the Linus Control App, or network the amplifiers for remote control via our Linus Control software for full system management.

Reliability and and road-worthiness are backed up by a five year guarantee, and future firmware updates will ensure it is always up to date with new presets or specialist functionality.

V-Series. Built for the future, now.

84

Features

LINUS-V908 C Integrated DSP, network and amplifier solution C 8x 1500 W @ 2Ω, 8x 800W @ 4Ω C Maximum output voltage / current +/- 90 Vpeak, +/- 50 A peak C 2x high-efficiency SMPS with PFC 100 V – 240 V AC C Inputs - Analog, LiNET & Dante™ (908-D only) C Touch display 3.2” / 320x240 pixel C Control and monitoring – LINUS Control, LINUS App C 5-year warranty

LINUS App

LINUS-V1804 C Integrated DSP, network and amplifier solution C 4x 3000 W @ 4Ω, 4x 1600W @ 8Ω C Maximum output voltage / current +/- 180 Vpeak, +/- 50 A peak C 2x high-efficiency SMPS with PFC 100 V – 240 V AC C Inputs - Analog, LiNET & Dante™ (1804-D only) C Touch display 3.2” / 320x240 pixel C Control and monitoring – LINUS Control, LINUS App C 5-year warranty

LINUS Control

85

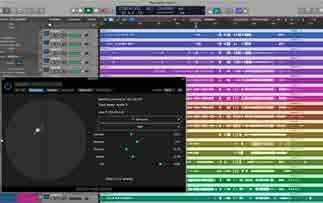

SPACE HUB SPACE HUB is a 19”/3U state of the art immersive processor that features highly advanced 3D sound algorithms for positioning and movement of sound objects.

Up to 128 audio sources can be rendered into 128 outputs to create an ultimate immersive listening experience in theaters, musicals, HOW, live venues, concerts and production studios.

The SPACE HUB web-based control software is an integral part of SPACE Immersive System Solutions ensuring smooth workflow and integration with CODA’s System Optimiser.

VST3, AU, AAX and AAX-DSP plugins for automation and control

Interface for Pre Production and small Immersive shows SPACEHUB Producer. Coda gives you a complete, fully featured software package for immersive sound creation, with 128 inputs, 16 outputs, free of charge.

86

Flexible system design within the System Optimiser

Loudspeaker setups up to 128 objects and 128 output channels

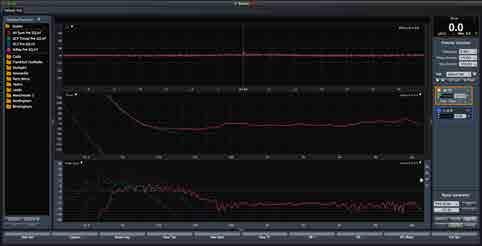

Software LINUS Control The LINUS Control application provides a reliable and ruggedized method for the control and monitoring of the CODA LINUS amplification platform.

It is optimised for both Mac OSX and Windows, for both tablet and native interfaces. Bundled in the application behind the scenes is the device Firmware, Speaker Files, Control Logic and a 3rd Party UDP Control protocol that will allow for offline remote control of LINUS amplifiers from 3rd party devices.

System Optimiser Design all sizes of audio system from the smallest of gatherings right up to the largest of stadium productions with incredible ease. Creating proposals for clients. SPL Pressure mapping is presented to you in incredible detail, with a strong sense of reality.

Pushed for time. Workflow is tantamount to accuracy and with this in mind, bespoke tools are provided to fully enable the system designer.

Accuracy Computationally intensive operations have been highly optimised to deliver results in seconds, not minutes – call it ‘mathemagic’… Predictions are wholly based on real-world electro-acoustic measurements, heavily utilising multifaceted multipole expansions.

A highly complex atmospheric model is employed; taking temperature, dewpoint, humidity and altitude into account. Complex response functions are morphed using cutting edge continuous phase techniques, the end result being authentic free-field predictions indistinguishable from reality.

Power Clever tools are included to create complex designs effortlessly. Use the layout tool to place loudspeakers in a multitude of shapes and arrangements. The template engine is an incredibly powerful way of managing entities within the layout system. Measurement microphones can be placed anywhere within the 3D scene. Probes are a smart extension of the measurement microphones that make choosing line array angles stress-free. Link Groups define how line arrays are connected, and allow electronic filters to be applied to correct for distance and splay angle.

87

Line Array Systems AiRAY

CiRAY

ViRAY

Type:

High output 3-way bi-amplified line array system

High output, full range, 3-way passive line array system

Compact 3-way bi-amplified line array system

Frequency response:

50 Hz – 22 kHz (-6 dB)

50 Hz – 22 kHz (-6 dB)

55 Hz – 22 kHz (-6 dB)

Power handling AES / peak (passive):

Bi-amplified only

1400 W / 5600 W

600 W/ 2400 W

- Low AES / peak:

2000 W / 8000 W

- Mid / High AES / peak:

300 W / 2600 W

Max. peak SPL:

149 dB (A)**

145 dB (A)**

143 dB (A)**

LINUS14/D Optimum / Maximum:

4/6

12 / 16

8 / 12 (bi-amp) or 16 / 24 (passive)

LINUS12C Optimum / Maximum:

N/A

12 / 16

8 / 12 (bi-amp) or 16 / 24 (passive)

Dispersion horizontal:

90°, 120° or asym. 105°

60°, 90°, 120° or asymmetrical

120°, 80° or 100° (60° + 40° or 40° + 60°)

Dispersion vertical:

Array dependent: 0°, 0.5°, 1°, 2°, 2.5°, 3° to 8° in 1°-steps

Array dependent: 0.5°, 1°, 2°, 2.5°, 3° to 10° in 1°-steps

Array dependent: 0°-10° in 1°-steps

Components Low frequency:

2x 12" Nd woofer, 4" (101.6 mm) VC, 1000 W (AES) each

2x 10" Nd woofer, 3” VC (77mm), 700 W (AES)

2x 8” Nd woofer, 2” (50.8 mm) VC, 300 W (AES) each

Components Mid/High frequency:

2x 6” DDP MF: 3.5” (90 mm) VC, 150 W (AES) each HF: 1.75” (44.4mm) VC, 80 W (AES) each

8.75” DDP MF: 3.5” (90 mm) VC, 150 W (AES) HF:1.75” (44.4mm) VC, 80 W (AES)

8” coax. Nd Planar-wave-driver MF: 3.5” (90 mm) VC, 150 W (AES) HF: 1.75” (44.4mm) VC, 80 W (AES)

Crossover point:

400 Hz bi-amp, 6.3 kHz passive

560 Hz passive, 6.3 kHz passive

600 Hz passive or bi-amp (internal connector), 6.3 kHz passive

Input connectors:

2x Neutrik™: 1x NLT4M + 1x Link cable with NLT4FX

2x Neutrik™: 1x NLT4M + 1x Link cable with 1x NL4FXX-W-S

2x Neutrik™: 1x NL4MP + 1x Link cable with NL4FX

Nominal impedance LF / MF+HF:

8 Ω (1+/1-) / 16 Ω (2+/2-)

12 Ω (2+/2-)

16 Ω (1+/1-) / 16 Ω (2+/2-) 3-way-passive: 16 Ω (2+/2-)

Enclosure material:

Birch plywood

Hybrid Birch Plywood/Aluminium

Birch plywood

Finish

Polyurea coating

Polyurea coating

Polyurea coating

Suspension

Flying hardware integrated

Flying hardware integrated

Flying hardware integrated

IP rating options (IEC 60529):

Standard IP54

Standard IP54

Standard IP54

Weatherproof protection options:

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Dimensions (WxHxD):

674 x 356 x 555 mm / 26.54 x14.02 x 21.85” (674 x 400 x 555 mm / 26.54x 15.75 x 21.85” incl. hardware)

675 x 270 x 549 mm / 26.57 x10.63 x 21.61” (675 x 314 x 551 mm / 26.57 x 12.36 x 21.69” incl. hardware)

674 x 242 x 385 mm / 26.54 x 9.53 x 15.16 (674 x 286 x 385 mm / 26.54 x 11.25 x 15.16” incl. hardware)

Net weight:

40 kg / 88.18 lbs

29.3 kg / 64.6 lbs

25.5 kg / 56.22 lbs

600 W/ 2400 W 150 W/ 1300 W

Amplification, Cabinets per Amplifier

* Measured with pink noise 6 dB Crest Factor. Half-space loading. ** Measured with pink noise 12 dB Crest Factor. (A-weighted). *** CMS = CODA Mobile Suspension.

88

Product Comparison Chart Column Speakers N-RAY

TiRAY

CoRAY4

CoRAY4L

Ultra compact 3-way line array system

Ultra compact 2-way line array system

Compact 2-way column line source

Low-mid frequency extension for CoRAY4

60 Hz – 22 kHz (-6 dB)

70 Hz – 20 kHz (-6 dB)

80 Hz - 20 kHz (-6 dB)

80 Hz - 1300 Hz (-6 dB)

1000 W / 4000 W

300 W / 1200 W

700 W / 2800 W

700 W / 2800 W

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

143 dB (A)**

139 dB*

144 dB*

131 dB*

12 / 16

8 / 12

4/8

4/8

12 / 16

8 / 12

4/8

4/8

90°, 120° or asymmetrical 105°

100°

Sym. 120° or 60° or asym. 90° (60°+30°)

N/A

Array dependent: 0°-10°, 12° in 1°-steps

Array dependent: 0°-12° (in steps 0°, 1°, 3°, 5°, 7°, 9°, 12°)

12° (+1° / -11°)

N/A

2x 6.5” Nd water resistant cones, 2” (50.8 mm) VC, 500 W (AES) each

2x 5” woofer, 1.5” (38 mm) VC, 150 W (AES) each

4x 5” woofer, 1.5” (38 mm) VC, 170 W (AES) each

4x 5” woofer, 1.5” (38 mm) VC, 170 W (AES) each

MF: 3.5” (90 mm) VC, 150 W (AES) each HF: 1.75” (44.4 mm) VC, 80 W (AES) each

5" Nd Planar-wave-driver HF: 1.75” (44.4 mm) VC, 80 W (AES)

2x 4" Nd Planar-wave-drivers HF: 1.75” (44.4 mm) VC, 80 W (AES) each

N/A

500 Hz / 6.3 kHz passive

950 Hz passive

1.3 kHz passive

2x Neutrik™ NL4MP

2x Neutrik™: 1x NL4MP + 1x Link cable with NL4FX

2x Neutrik™: 1x NL4MP + 1x Link cable with NL4FX

2x Neutrik™ NL4MP

N/A

12 Ω (2+/2-)

8 Ω (2+/2-)

4 Ω (1+/1-)

4 Ω (1+/1-)

Hybrid Multiplex / Aluminium

Birch plywood

Birch plywood

Birch plywood

Polyurea coating

Polyurea coating

Polyurea coating

Polyurea coating

Flying hardware integrated

Flying hardware integrated

CoRAY4: CMS***+flange adapter CoRAY4i: M6 threaded points

CoRAY4L: CMS+flange adapter CoRAY4Li: M6 threaded points

Standard IP54

Standard IP54

Standard IP54

Standard IP54

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

518 x 192 x 390 mm / 20.39 x 7.56 x 15.35” (518 x 227 x 390 mm / 20.39 x 8.94 x 15.35” incl. hardware)

404 x155 x 253 mm / 15.91 x 6.10 x 9.96" (404 x 191 x 253 mm / 15.91 x 7.51 x 9.96” incl. hardware)

152 x 758 x 214 mm / 5.98 x 29.84 x 8.42"

152 x 758 x 214 mm / 5.98 x 29.84 x 8.42”

15 kg / 33.07 lbs

9.9 kg / 21.83 lbs

15.7 kg / 34.61 lbs

13.2 kg / 29.1 lbs

89

Arrayable Point Source

Point Source Systems

APS-Pro-S/D

APS

N-APS

HOPS12 T/i-Pro

HOPS10 T/i-Pro

Type:

3-way Passive Arrayable Point Source

Compact 3-way arrayable point source

Ultra compact 2-way arrayable point source

High-output 3-way full-range point source for installations and mobile applications

High-output 3-way full-range point source for installations and mobile applications

Frequency response:

50 Hz – 22 kHz (-6 dB)

50 Hz - 22 kHz (-6 dB)

60 Hz – 20 kHz (-6 dB)

44 Hz – 22 kHz (-6 dB)

50 Hz – 22 kHz (-6 dB)

Power handling AES / peak (passive):

1400 W / 5600 W

1200 W / 4800 W

1000 W / 4000 W

2000 W / 8000 W

1400 W / 5600 W

- Low AES / peak:

N/A

N/A

N/A

N/A

N/A

- Mid / High AES / peak:

N/A

N/A

N/A

N/A

N/A

HOPS12-Pro 64: 144 dB (A)* HOPS12-Pro 96: 142 dB (A)*

HOPS10-Pro 85: 144 dB (A)*

Max. peak SPL:

144 dB (A)*

146 dB*

139 dB (A)**

Amplification, Cabinets per Amplifier LINUS14/D/D Optimum / Maximum:

12/12

12/12

12 / 16

8 / 12

8 / 12

LINUS12C Optimum / Maximum:

12/12

12/12

12 / 16

8 / 12

8 / 12

SE

-

-

8 / 16

4/ 12

BTL

6/6

6/6

2/4

2/2

Dispersion horizontal:

Symmetrical 120°, 90° or 60°. Asymmetrical 105°, 90° or 75°. Dependent on APS-COUPLER in use.

60°, 90°, 120° or asymmetrical 75° (30°+45°), 90° (30°+60°), 105° (45°+60°)

60°, 90°, 120° or asymmetrical 75° (30°+45°), 90° (30°+60°); 105° (45°+60°)

HOPS12-Pro 64: 60° (rotatable) HOPS12-Pro 96: 90° (rotatable)

HOPS10-Pro 85: 80° (rotatable)

Dispersion vertical:

30°/ 10°

20° to 360° in 20° steps

20°

HOPS12-Pro 64: 40° (rotatable) HOPS12-Pro 96: 60° (rotatable)

HOPS10-Pro 85: 50° (rotatable)

Components Low frequency:

2x 10” Nd water resistant cones 3” (77 mm) voice coil, 700 W (AES) each

2x 10" Nd water resistant cones, 3" (77 mm) VC, 600 W (AES) each

2x 6.5” Nd water resistant cones, 2” (50.8 mm) VC, 500 W (AES) each

2x 12” Nd water resistant cones, 4” (101 mm) VC, 1000 W (AES) each

2x 10" Nd water resistant cones, 3" (77 mm) VC, 700 W (AES) each

9” Nd DDC MF: 3.5” (90 mm) VC, 150 W (AES HF: 1.75” (44.4mm) VC, 80 W (AES)

6” /20° RDC 1.75” (44.4mm) VC, 80 W (AES)

1.4” Nd coaxial driver, MF: 3.5” (90 mm) VC, 150 W (AES) HF: 1.75” (44.4 mm) VC, 80 W (AES)

1.4” Nd coaxial driver, MF: 3.5” (90 mm) VC, 150 W (AES) HF: 1.75” (44.4 mm) VC, 80 W (AES)

LINUS 6.4 i/D

Components Mid/High frequency:

90

9” DDC / 8.75” DDC (Dual Diaphragm Curvedwave Driver) MF: 3.5” (90 mm) voice coil, 150 W (AES) HF: 1.75” (44.4 mm) voice coil, 80 W (AES)

Crossover point:

3-way passive 650 Hz / 6.3 kHz

500 Hz, 6.3 kHz passive

900 Hz passive

3-way passive 440 Hz, 6.3 kHz

3-way passive 650 Hz / 6.3 Hz

Input connectors:

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

Nominal impedance LF / MF+HF:

12 Ω (2+/2-)

8 Ω (2+/2-)

12 Ω (2+/2-)

8 Ω (1+/1-)

6 Ω (1+/1-)

Enclosure material:

Hybrid - Birch plywood and aluminium

Birch plywood

Hybrid - Birch plywood and aluminium

Hybrid - Birch plywood and aluminium

Hybrid - Birch plywood and aluminium

Finish

Polyurea coating

Polyurea coating

Polyurea coating

Polyurea coating

Polyurea coating 12 x M8 threaded points CMS*** + flange adapter, M6, M8 threaded points for additional U-bracket

Suspension

Integrated

Flying hardware integrated

Flying hardware integrated

12 x M8 threaded points CMS*** + flange adapter, M8 threaded points for optional U-bracket

IP rating options (IEC 60529):

Standard IP54

Standard IP54

Standard IP54

Standard IP54

Standard IP54

Weatherproof protection options:

Standard IP55 (Amphenol connectors) IP55 (direct cable) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

Dimensions (WxHxD):

674 x 333 x 491 mm / 26.54 x 13.11 x 19.33” 674 x 266 x 492 mm / 26.54 x 10.47 x 19.39”

674 x 291x 492 mm / 26.54 x 11.46 x 19.37"

518 x 200 x 358 mm / 20.39 x 7.87 x 14.09”

368 x 790 x 420 mm / 14.49 x 31.1 x 16.54”

280 x 674 x 380 mm / 11.02 x 26.54 x 14.96

Net weight:

26.4 kg / 58.2 lbs 26 kg / 57.3 lbs

27 kg / 59.52 lbs

12.2 kg / 26.9 lbs

34 kg / 74.96 lbs 36.2 kg / 79.81 lbs

21.5 kg / 47.4 lbs 21.9 kg / 48.3 lbs

* Measured with pink noise 6 dB Crest Factor. Half-space loading. ** Measured with pink noise 12 dB Crest Factor. (A-weighted). *** CMS = CODA Mobile Suspension.

Product Comparison Chart Point Source Systems

Stage Monitors

HOPS7-Pro

HOPS8T/i

HOPS 5

CUE ONE

CUE TWO

CUE FOUR

Compact 2-way highoutput full-range point source

Compact 2-way highoutput point source for installations and mobile applications

Ultra-compact 2-way high-output point source

High output low profile 3-way stage monitor

Compact 3-way stage monitor

Ultra compact 3-way stage monitor

60 Hz – 20 kHz (-6 dB)

60 Hz – 20 kHz (-6 dB)

80 Hz - 20 kHz (-6 dB)

50 Hz – 22 kHz (- 6 dB)

50 Hz – 22 kHz (- 6 dB)

54 Hz – 22 kHz (- 6 dB)

1000 W / 4000 W

450 W / 1800 W

300 W / 1200 W

2000 W / 8000 W

1000 W / 4000 W

500 W / 2000 W

N/A

N/A

N/A

2000 W / 8000 W

1000 W / 4000 W

500 W / 2000 W

N/A

N/A

N/A

150 W/ 1300 W

150 W / 1300 W

150 W / 1300 W

133.5dB (A)*

128dB (A)*

143 dB*

143 dB*

143 dB*

8 / 12

8 / 16

8 / 16

2 / 4 (bi-amp) or 4 / 8 (passive)

2 / 8 (bi-amp) or 4 / 16 (passive)

2 / 8 (bi-amp) or 4 / 16 (passive)

8 / 12

8 / 16

8 / 16

2 / 4 (bi-amp) or 4 / 8 (passive)

2 / 8 (bi-amp) or 4 / 16 (passive)

2 / 8 (bi-amp) or 4 / 16 (passive)

8 / 12

8 / 16

8 / 16

2/2

2/4

2/4

HOPS7-Pro 85: 80° (rotatable) HOPS7-Pro 126: 120° (rotatable)

100° conical

100° conical

60°

60°

60°

HOPS7-Pro 80: 50° (rotatable) HOPS7-Pro 126: 60° (rotatable)

100° conical

100° conical

95° (40° up, 55° down)

90°

95° (40° up, 55° down)

2x 6.5" Nd, water resistant cones 2" (50.8 mm) VC, 500 W (AES) each

8” coaxial driver, 2” (50.8 mm) VC, 225 W (AES)

5” coaxial driver, 1.5” (38 mm) VC, 150 W (AES)

2x 12" Nd woofer, 4” (101.6 mm) VC, 1000 W (AES)

15" Nd triaxial woofer, 4" (101.6 mm) VC, 1000 W (AES)

2x 8” Nd woofer, 2” (52 mm) VC, 250 W (AES)

1.4" Nd coax. driver MF: 3.5” (90 mm) VC, 150 W (AES) 750 Hz passive / bi-amp (internal connector) HF: 1.75" (44.4 mm) VC, 80 W (AES)

1.4" Nd coax. Driver MF: 3.5” (90 mm) VC, 150 W (AES) HF: 1.75" (44.4 mm) VC, 80 W (AES)

HOPS7-Pro 85: 139 dB (A)* HOPS7-Pro 126: 137 dB (A)*

HF: 1.75" (44.4 mm) VC Annular diaphragm compression driver, 80 W (AES)

8”/1.75" coax. driver HF: 1.75” (44.4 mm) VC, 80 W (AES)

5”/1.75" Nd coax. driver HF: 1.75” (44.4 mm) VC, 80 W (AES)

1.4" Nd coax. driver MF: 3.5” (90 mm) VC, 150 W (AES) HF: 1.75" (44.4 mm) VC, 80 W (AES)"

1 kHz, passive

1.5 kHz passive

1.5 kHz passive

750 Hz passive or bi-amp (internal connector), 6.3 kHz passive

750 Hz passive or bi-amp (internal connector), 6.3 kHz passive

750 Hz passive or bi-amp (internal connector), 6.3 kHz passive

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

6 Ω (1+/1-)

8 Ω (1+/1-)

8 Ω (1+/1-)

4 Ω (1+/1-) / 8 Ω (2+/2-) 3-way-passive: 4 Ω (1+/1-)

8 Ω (1+/1-) / 8 Ω (2+/2-) 3-way-passive: 8 Ω (1+/1-)

8 Ω (1+/1-) / 8 Ω (2+/2-) 3-way-passive: 8 Ω (1+/1-)

Hybrid - Birch plywood and aluminium

Birch plywood

Birch plywood

Birch plywood

Birch plywood

Birch plywood

Polyurea coating

Polyurea coating

Polyurea coating

Polyurea coating

Polyurea coating

Polyurea coating

M6, M8, M10 threaded points

M6 threaded points CMS*** + flange adapter

M6, M8, M10 fixing points

M6 fixing points

M6 fixing points

M6 fixing points

Standard IP54

Standard IP54

Standard IP54

Standard IP53

Standard IP53

Standard IP53

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

190 x 518 x 273 mm / 7.48 x 20.39 x 10.75”

230 x 540 x 278 mm / 9.06 x 21.26 x 10.94"

146 x 349 x 204 mm / 5.75 x 13.74 x 8.03"

670 x 322 x 627 mm / 26.38 x 12.68 x 24.69"

540 x 379 x 574 mm / 21.26 x 14.92 x 22.6"

545 x 272 x 450 mm / 21.46 x 10.71 x 17.72"

9.2 kg / 20.28 lbs

12 kg / 26.5 lbs

6.4 kg / 14.1 lbs

32 kg / 70.55 lbs

29 kg / 63.93 lbs

19 kg / 41.89 lbs

91

Sensor Controlled Subwoofers SC2-F

SCV-F

SCP-F

SCP

SCN-F

Type:

Dual 15” bass extension with SC Technology for AiRAY and ViRAY

Compact 18” subwoofer with SC technology

High output dual 18” subwoofer with SC technology

High output dual 18” subwoofer with SC technology

15” Bass extension with SC technology for N-RAY

Frequency response:

35 Hz- 200 Hz (-6 dB)

25 Hz - 150 Hz (-6 dB)

25 Hz - 120 Hz (-6 dB)

25 Hz - 120 Hz (-6 dB)

35 – 200 Hz (-6 dB)

Power handling AES / Peak:

2500 W / 10000 W

1500 W / 6000 W

3000 W / 12000 W

3000 W / 12000 W

1500 W / 6000 W

Max. peak SPL:

143 dB*

138 dB*

144 dB*

144 dB*

139 dB*

LINUS14/D Optimum / Maximum:

4/4

8 / 12

4/4

4 /4

8/12

LINUS12C Optimum / Maximum:

N/A

N/A

N/A

N/A

N/A

Components Low frequency:

2x 15” Nd ultra low distortion woofer, 4" (101.6 mm) VC, 1250 W (AES) each

18" Nd ultra low distortion woofer, 4" (101.6 mm) VC, 1500 W (AES) each

2x 18" Nd ultra low distortion woofer, 4" (101.6 mm) VC, 1500 W (AES) each

2x 18" Nd ultra low distortion woofer, 4" (101.6 mm) VC, 1500 W (AES)

15” Nd ultra low distortion woofer, 4” (101.6 mm) VC, 1500 W (AES)

Input connectors:

2x Neutrik™ NL4MP (rear) + 1 x Neutrik™NL4MP (front)

2x Neutrik™ NL4MP (rear) + 1 x Neutrik™NL4MP (front)

2x Neutrik™ NL4MP (rear) + 1 x Neutrik™NL4MP (front)

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

Velocity sensors output:

1x Neutrik™ NC3MAV (rear) + 1x Neutrik™ NC3MAV (front)

1x Neutrik™ NC3MAV (rear) + 1x Neutrik™ NC3MAV (front)

1x Neutrik™ NC3MAV (rear) + 1x Neutrik™ NC3MAV (front)

1x Neutrik™ NC3MAV

1x Neutrik™ NC3MAV

Nominal impedance LF / MF+HF:

4 Ω (1+/1-)

8 Ω (1+/1-)

4 Ω (1+/1-)

4 Ω (1+/1-)

8 Ω (1+/1-)

Enclosure material:

Birch plywood

Birch plywood

Birch plywood

Birch plywood

Hybrid - Birch plywood and aluminium

Finish

Polyurea coating

Polyurea coating

Polyurea coating

Polyurea coating

Polyurea coating

Suspension

Flying hardware integrated, allows curving (0°, 2.5°, 5°), M20 threaded flange

Flying hardware integrated, allows curving (0°, 2.5°, 5°), M20 threaded flange

Flying hardware integrated, M20 threaded flange

M20 threaded flange

Flying hardware integrated, allows curving of 0°, 2°or 5°, M20 threaded flange

IP rating options (IEC 60529):

Standard IP54

Standard IP54

Standard IP54

Standard IP54

Standard IP54

Weatherproof protection options:

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Dimensions (WxHxD):

675.3 x 490 x 790 mm /26.59 x 19.29 x 31.1" 675.3 x 495 x 806.5 mm / 26.59 x 19.49 x 31.75” (incl. hardware)

675.3 x 490 x 790 mm /26.54 x 19.29 x 31.1" 675.3 x 495 x 806.5 mm / 26.59 x 19.49 x 31.75” (incl. hardware)

1108 x 550 x 800 mm / 43.62 x 21.65 x 31.5"

1190 x 547 x 800 mm / 46.85 x 21.54 x 31.1"

518 x 418 x 595 mm / 20.39 x 16.46 x 23.43”

Net weight:

70 kg / 154.32 lbs

57 kg / 125.66 lbs

95 kg / 209.44 lbs

95 kg / 209.44 lbs

33 kg / 72.75 lbs

Amplification, Cabinets per Amplifier

* Measured with pink noise 6 dB Crest Factor. Half-space loading. ** Measured with pink noise 12 dB Crest Factor. (A-weighted). *** CMS = CODA Mobile Suspension.

92

Product Comparison Chart Multipurpose Subwoofers TiLOW

APS-SUB

N-SUB

U4-Sub

U15-Sub

U12/U12i-Sub

Ultra compact 12” bass extension for TiRAY

Flyable 15” subwoofer for APS

Compact 15” subwoofer for N-APS

High output dual 18” multipurpose subwoofer

Compact 15” multipurpose subwoofer

Ultra compact 12” multipurpose subwoofer

44 Hz - 300 Hz (-6 dB)

28 Hz - 150 Hz (-6 dB)

30 Hz – 150 Hz (-6 dB)

30 Hz - 150 Hz (-6 dB)

35 Hz - 150 Hz (-6 dB)

38 Hz - 150 Hz (-6 dB)

1000 / 4000 W

1250 / 5000 W

1500 W / 6000 W

2500 W / 10000 W

1000 W / 4000 W

800 W / 3200 W

135 dB*

138 dB*

139 dB*

144 dB*

133 dB*

130 dB*

8 / 16

8 / 12

8/12

4/4

4/8

4/8

8 / 16

8 / 12

8/12

4/4

4/8

4/8

12" ultra low distortion woofer, 4" (101.6 mm) VC, 1000 W (AES)

18" ultra low distortion woofer, 4" (101.6 mm) VC, 1300 W (AES)

15” ultra low distortion woofer, 4” (101.6 mm) VC, 1500 W (AES)

2x 18" ultra low distortion woofer, 4" (101.6 mm) VC, 1250 W (AES) each

15" ultra low distortion woofer, 3" (77 mm) VC, 1000 W (AES)

12" ultra low distortion woofer, 3" (77 mm) VC, 800 W (AES)

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

2x Neutrik™ NL4MP

U12: 2x Neutrik™ NL4MP U12i: 1x Neutrik™ NL4MP

N/A

N/A

N/A

N/A

N/A

N/A

8 Ω (1+/1-)

8 Ω (1+/1-)

8 Ω (1+/1-)

4 Ω (1+/1-)

4 Ω (1+/1-)

4 Ω (1+/1-)

Birch plywood

Birch plywood

Hybrid - Birch plywood and aluminium

Birch plywood

Birch plywood

Birch plywood

Polyurea coating

Polyurea coating

Polyurea coating

Polyurea coating

Polyurea coating

Polyurea coating

Flying hardware integrated, M20 threaded flange

Flying hardware integrated, M20 threaded flange

Flying hardware integrated, M20 threaded flange

Integrated 2x M20 threaded flange

M20 threaded flange

U12: M20 threaded flange

Standard IP54

Standard IP54

Standard IP54

Standard IP54

Standard IP54

Standard IP54

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (Amphenol connectors) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

Standard IP55: IP55 (direct cable) MG1 (Marine Grade 1): IP55

404 x 344 x 490 mm / 15.91 x 13.54 x 19.29"

674 x 570 x 596 mm / 26.54 x 22.44 x 23.46"

518 x 418 x 595 mm / 20.39 x 16.46 x 23.42” (518 x 446 x 595 mm / 20.39 x 17.56 x 23.43” incl. hardware)

1108 x 497 x 750 mm / 43.62 x 19.57 x 29.53"

520 x 420 x 596 mm / 20.47 x 16.54 x 23.46"

20 kg / 44.09 lbs

45 kg / 99.21 lbs

28 kg / 61.73 lbs

77 kg / 169.76 lbs

26 kg / 57.32 lbs

404/580 x 350/342 x 493/350 mm 15.91/22.83 x 13.78/13.46 x 19.41/13.78” 19/17 kg 41.89/37.48 lbs

93

LINUS14/14D

LINUS12C

Number of output channels

4

4

Output stage

Class D-IC

Class D-IC

Internal samplerate / bit-depth Signal-to-noise ratio (22 Hz - 20 kHz, 4 Ω - anl. input) Signal-to-noise ratio (22 Hz - 20 kHz, 4 Ω - dig. input) Frequency response (8 Ω load, with CLEAR preset)

96 kHz / 24 bit >108 dB (unweighted) >111 dB (A-weighted) > 116 dB (unweighted) > 119 dB (A-weighted)

96 kHz / 24 bit >108 dB (unweighted) >111 dB (A-weighted) > 116 dB (unweighted) > 119 dB (A-weighted)

20 Hz–20 kHz = (+0.0 dB / -1.0 dB)

20 Hz–20 kHz = (+0.0 dB / -1.0 dB)

General

THD+N Ethernet connection Latency (input to loudspeaker output) Protection circuits LED indicators User Interface

& IMD: 20 Hz–20 kHz = < 0.005% (4 Ω load @ 1/2 20 Hz–20 kHz = < 0.005% output power) 2x 100 Mbps RJ45 Control 2x 100 Mbps RJ45 Control 1x 100 Mbps RJ45 DanteTM min. 2.70 ms AES/EBU input min. 2.70 ms AES/EBU input min. 2.00 ms Analog input min. 2.00 ms Analog input Inrush current limiter, Thermal limiter, Output DC, Inrush current limiter, Thermal limiter, Output DC, SMPS over-current, Output overload SMPS over-current, Output overload Mute status, Limit, Signal, Protection, Ethernet control Mute status, Limit, Signal, Protection, Ethernet control active, Digital signal locked active, Digital signal locked, Power on N/A

N/A

Neutrik 32A powerCON® 180 V = Minimum 230 V = Nominal 253 V = Maximum 90 V = Minimum 115 V = Nominal 132 V = Maximum 47 - 63 Hz (1/4 power = 600 W @ 4Ω ) Standby = 17.6 W Idle = 191 W 1/4 power = 3200 W

Neutrik 32A powerCON® 180 V = minimum 230 V = nominal 253 V = maximum 90 V = minimum 115 V = nominal 132 V = maximum 47 - 63 Hz

Analog input impedance (balanced

12 kΩ

12 kΩ

Maximum input level (analog differential)

+18 dBu / 6.15 Vrms

+18 dBu / 6.15 Vrms

Input sources

Analog, AES/EBU & DANTE™ 4x XLR3 Analogue IN 2x XLR5 Sensor IN 1x RJ45 LiNET IN (8x CH) 1x RJ45 LiNET LINK (8x CH) 1x RJ45 Dante IN (4x CH)

Analog, AES/EBU

Supported digital input formats (internal SRC)

32 kHz / 44.1 kHz/ 48 kHz/ 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz

32 kHz / 44.1 kHz/ 48 kHz/ 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz

RMS output power* (20 Hz - 20 kHz, THD < 0.01%) (All channels driven except L10)

1800 W @ 8 Ω 3500 W @ 4 Ω 4400 W @ 2.7 Ω 4500 W @ 2 Ω

1600 W @ 8 Ω 3000 W @ 4 Ω 4000 W @ 2.7 Ω 4100 W @ 2 Ω

Peak output power* (20 Hz - 20 kHz, 6 dB Crest Factor) (All channels driven except L10)

3600 Wpk @ 8 Ω 7000 Wpk @ 4 Ω 6500 Wpk @ 2.7 Ω 5200 Wpk @ 2 Ω

3200 W pk @ 8 Ω 6000 W pk @ 4 Ω 5500 W pk @ 2.7 Ω 4800 W pk @ 2 Ω

Max. output voltage*

+/- 170 Vpk

+/- 155 Vpk

Max. output current*

+/- 52 Apk

+/- 52 Apk

Damping factor (8Ω load, ≤1 kHz)

> 2500 2 Ω nom 2.7 Ω - sensor control 2x Neutrik NL4 speakON® 1x Neutrik NL8 speakON®

> 2500

+5°C to 55°C / 41°F to 131°F

+5°C to 55°C / 41°F to 131°F

AC MAINS AC mains input connector AC mains voltage (high range)** (dual voltage SMPS with automatic voltage range selection) AC mains voltage (low range)** (dual voltage SMPS with automatic voltage range selection) AC mains frequency Power consumption* (power = W @ 4Ω to represent typical music signal)

Amplifier in standby = 17.6 W Amplifier idle = 191 W Amplifier 1/4 power = 3200 W

Input

Input connections

4x XLR3 Analog IN 1X RJ45 LINET IN (8x CH) 1x RJ45 LINET LINK (8x CH) 1x RJ45 AUX

Output

Min. output load Power output connections

2 Ω nom 2x Neutrik NL4 speakON® 1x Neutrik NL8 speakON®

Thermal Operating temperature Thermal output (BTU/h) Thermal output (kWh) Cooling

679.02 = Idle / 2470.39 = 20% / 5159.16 = 50% / 9635.88 = 100% 0.199 = Idle / 0.724 = 20% / 1.512 = 50% / 2.824 = 100% 2x thermally controlled fans Hot air expelled at rear

679.02 = Idle, 2124 = 20 % 4437 = 50 % 8287 = 100 % 0.199 = Idle, 0.623 = 20 % 1.300 = 50 %, 2.429 = 100 % 2x thermally controlled fans Hot air expelled at rear

Physical

94

Dimensions (W x H x D)

483.5 x 88 x 454 mm / 19 x 3.4 x 17.8”

483.5x88x454.2mm / 19x3.4x17.8”

Shipping dimensions (W x H x D)

675 x 130 x 560 mm / 26.5 x 5.1 x 22”

675x130x560 mm / 26.5x5.1x22”

Net weight

14.75 kg / 32.5 lbs

14.70 kg / 32.4 lbs

Shipping weight

17.5 kg / 38.6 lbs

17.5 kg / 38.6 lbs

Product Comparison Chart LINUS V1804

LINUS V908

LINUS6.4-iD

4

8 Class D-IC 48 kHz / 64 >105 dB (unweighted) >108 dB (A-weighted) >113 dB (unweighted) >116 dB (A-weighted)

48kHz / 24bit >105 dB (unweighted) >108 dB (A-weighted) >113 dB (unweighted) >116 dB (A-weighted)

20 Hz – 20 kHz = (+0.3 dB/-0.2 dB)

20 Hz – 20 kHz = (+0.3 dB /-0.2 dB)

20 Hz – 20 kHz = < 0.05%

20 Hz – 20 kHz = < 0.05%

2 x 100 Mbps RJ45 Control (1 port accepts PoE 802.3af backup power for DSP) 2 x 1000 Mbps RJ45 Dante™ (Redundant) Minimum 2.70 ms AES/EBU input Minimum 2.00 ms Analog input Inrush current limiter, Thermal limiter, Output DC, SMPS over-current, Output overload IPS Touchscreen 240x320 Mute / Status/ Limit/Signal / Protection / Ethernet / Power on / Mains voltage Front panel control of audio parameters: Preset / Gain / Delay / Mute / Snapshot / Standby PowerCon 32A

(1/4 power = 400 W @ 8Ω ) Standby = <=10 W Idle = <=50 W 1/4 power = 2000 W

Universal Min 90 Max 264

Universal Min 90 Max 264

Universal Min 90 Max 264

47-63 Hz (1/4 power = 200 W @ 4Ω ) Standby = <=10 W Idle = <=50 W 1/4 power = 2000 W

47-63 Hz

20 kΩ

44 kΩ

4 x XLR Female 1 x RJ45 LiNET IN (8 x CH) 1 x RJ45 LiNET LINK (8 x CH) 2 x RJ45 DANTE IN (4 x CH) (optional)

Amplifier in standby <= 8 W Ampl ifier idle <= 25 W Amplifier ¼ power = 1000 W

+21 dBu / 8.7 Vrms

8 x XLR Female 1 x RJ45 LiNET IN (8 x CH) 1 x RJ45 LiNET LINK (8 x CH) 2 x RJ45 DANTE IN (8 x CH) (optional)

44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz

44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz 500 W @ 8 Ω 800 W @ 4 Ω 1500 W @ 2 Ω 1600 W @ 8 Ω bridged 3000 W @ 4 Ω bridged 1000 W @ 8 Ω 1600 W @ 4 Ω 3000 W @ 2 Ω 3200 W @ 8 Ω bridged 6000 W @ 4 Ω bridged +/- 90 V pk +/- 160 V pk (bridge) +/- 40 A pk

+/- 180 V pk

IPS 240x240 Status Display Control with smartphone app

Universal Min 90 Max 264

Analog & LiNET & DANTE™ (option)

1600 W @ 8 Ω 3000 W @ 4 Ω

1 x 100 Mbps RJ45 Control 2 x 1000Mbps RJ45 Dante™ Min. 2.70 ms AES/EBU input Min. 2.00 ms Analog input Inrush current limiter Thermal limiter Output DC SMPS over-current Output overload Mute status Limit Signal Protection Ethernet connected / IP address Power on / Limiting

IEC

+21 dBu

1600 W @ 8 Ω 3000 W @ 4 Ω

4 Class D-IC

4 Ω per channel 4 Ω per channel

>2500 2 Ω per channel 4 Ω in bridged mode

2 x SpeakOn 4 pole

2 x SpeakOn 4 pole

Analog, LiNET & DANTE™ 4x Phoenix 1840379 Analog 1X RJ45 LINET IN (8x CH) 1x RJ45 LINET LINK (8x CH) 2x RJ45 Dante IN (4x CH/optional)

44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz 500 W @ 8 Ω 800 W @ 4 Ω 1500 W @ 2 Ω 1600 W @ 8 Ω bridged 3000 W @ 4 Ω bridged (2ch BTL, 2ch SE) 1000 W @ 8 Ω / 1600 W @ 4 Ω 3000 W @ 2 Ω 3200 W @ 8 Ω bridged 6000 W @ 4 Ω bridged (2ch BTL, 2ch SE) +/- 90 V pk SE +/- 180 V pk BTL +/- 50 A pk 2500 2 Ω nom SE 4 Ω nom BTL 2x PHOENIX 4P (Connector supplied with amplifier) +5°C to +55°C 41°F to 131°F

+5º C to +55º C 41º F to 131º F 170.6 = Idle 1400 = 20 % 3248 = 50 % 6312= 100 %

85.3 = Idle 700 = 20 % 1621 = 50 % 3156 = 100 %

0.05 = Idle 0.41 = 20 % 0.95 = 50 % 1.85 = 100 %

0.025 = Idle 0.205 = 20 % 0.475 = 50 % 0.925 = 100 %

2 x thermally controlled fans. Hot air expelled at rear.

2x thermally controlled fans Hot air expelled at rear

483.5x88x454mm / 19x3.4x17.8” (2 Rack units)

483 x 44 x 345 mm / 19” x 1.73” x 13.58” (1U)

675x130x560 mm / 26.5x5.1x22” 11.85kg / 26.12 lbs

12.10kg / 26.67 lbs

5.75 kg / 12.68 lbs.

13.85kg / 30.53 lbs

14.09kg / 31.06 lbs

6 kg / 13.23 lbs.

95

CODA Audio GmbH Boulevard der EU 6 30539 Hannover, Expo Park Germany Phone: +49 (0)511- 866 558 88 Fax: +49 (0)511- 866 558 87 E-Mail: contact@codaaudio.com Website: www.codaaudio.com E&OE
