FOUNDATION & PILING EQUIPMENT
OWNED EQUIPMENT AVAILBLE FOR OPERATED RENTALS
Giken Silet Piler
Abi Tm22 Mobilram
Hitachi Zx 520 With Pve 23 Vma Vibro
Link-Belt Tcc 1100 With Pve 23 Vma Vibro
Kobelco 350 With Movax Sp-100 Vibro

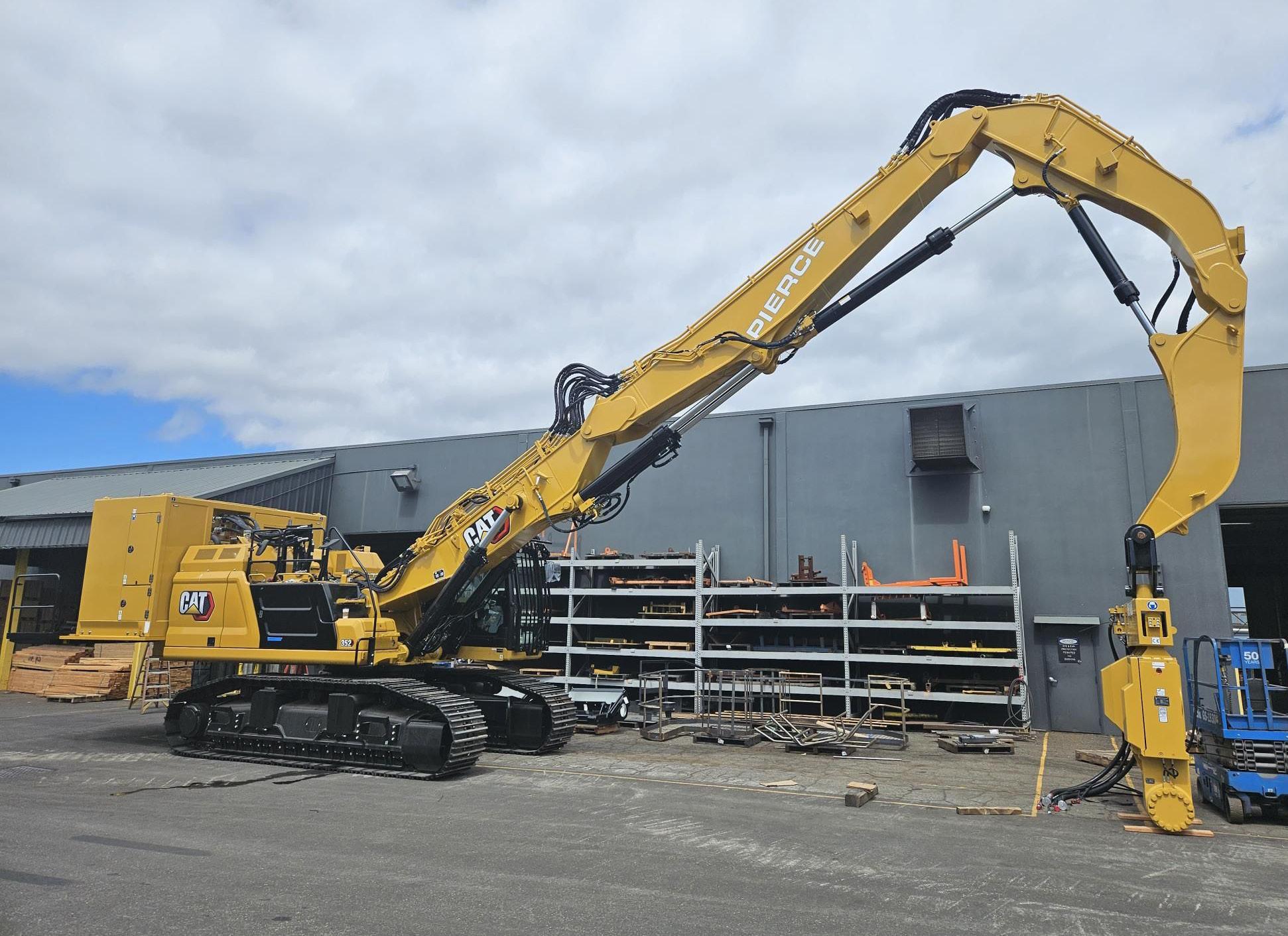

CAT 352 xxx

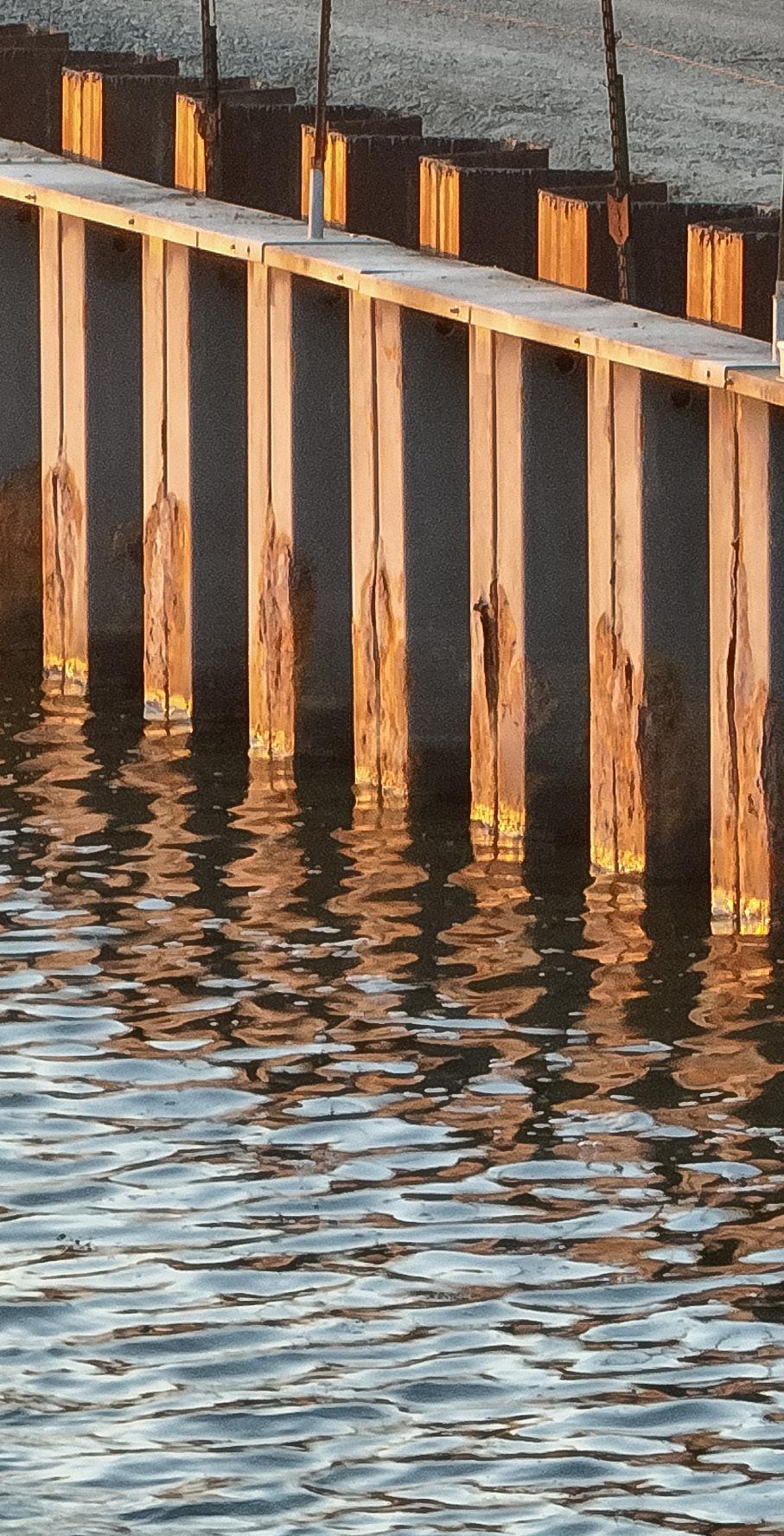

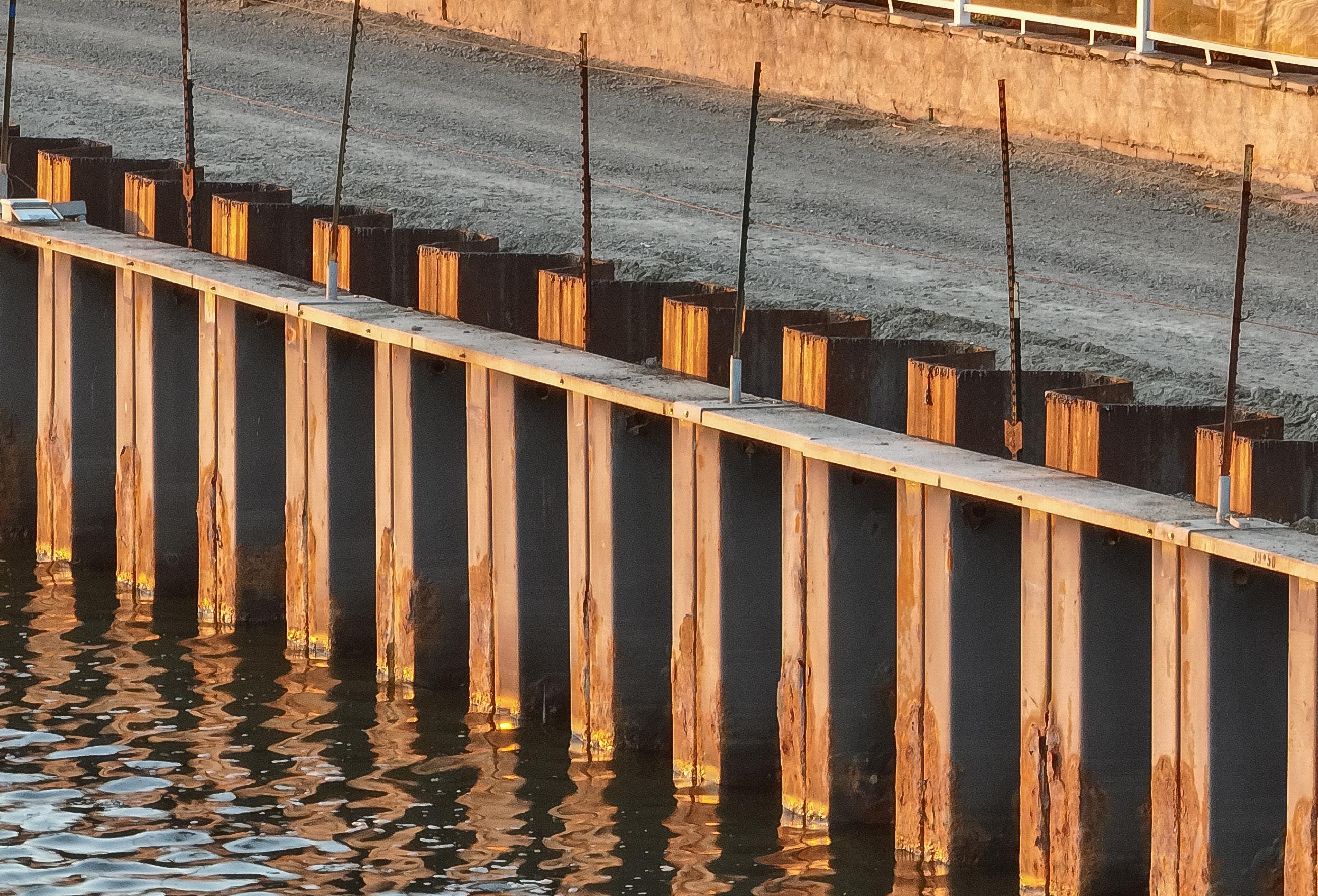

Sheet Pile
H-Piles & Wide Flange
Steel Plates

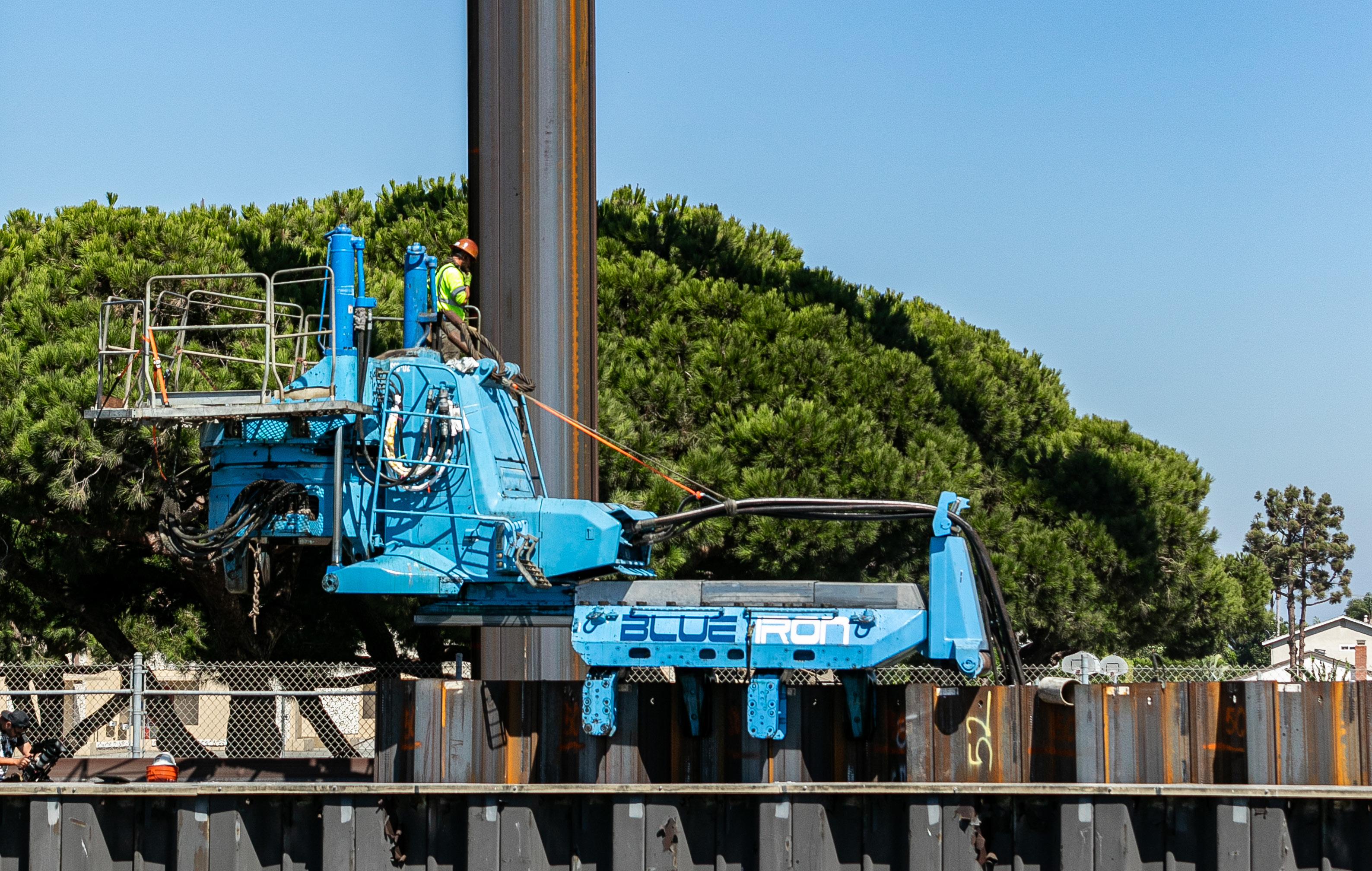

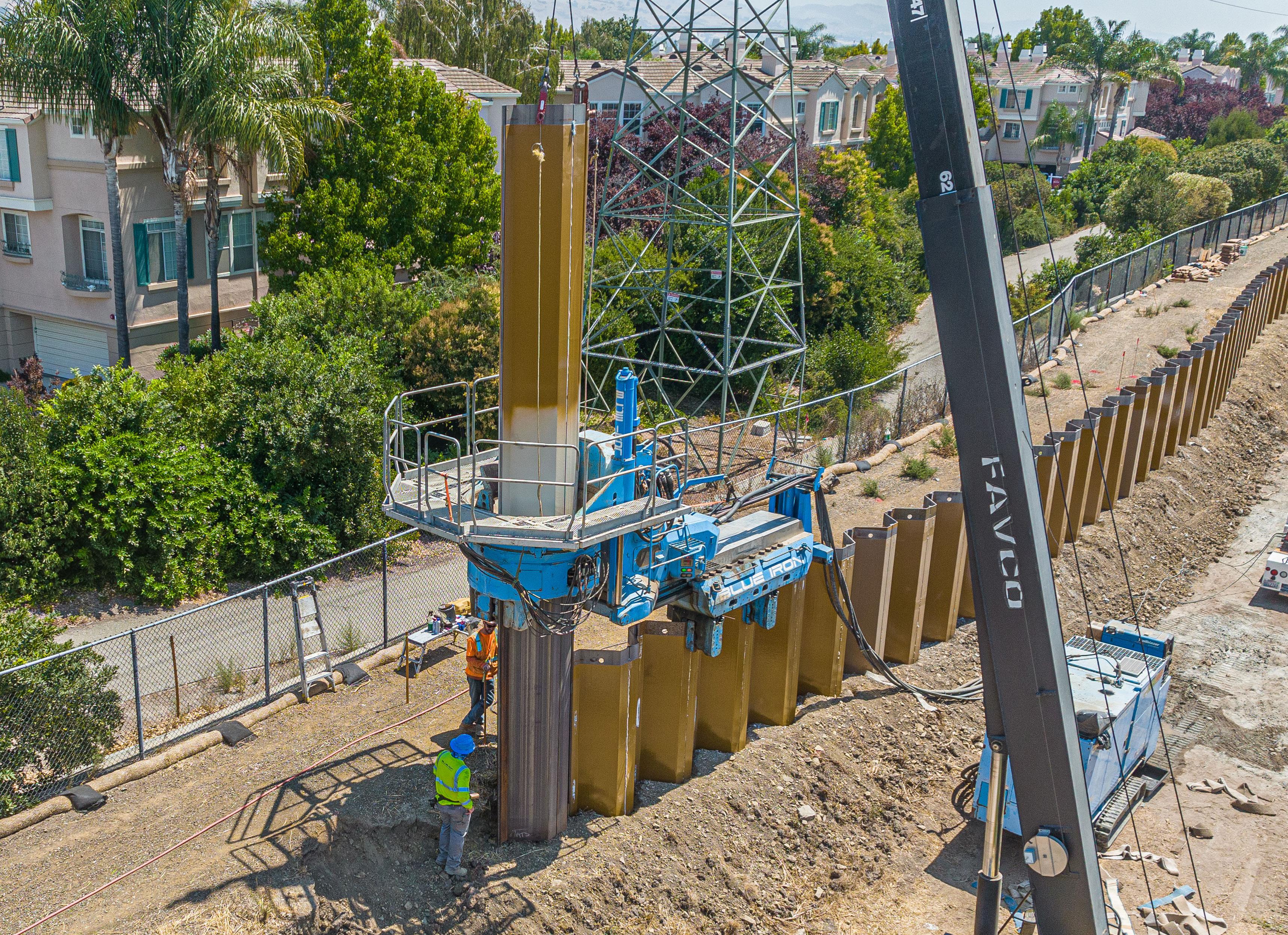

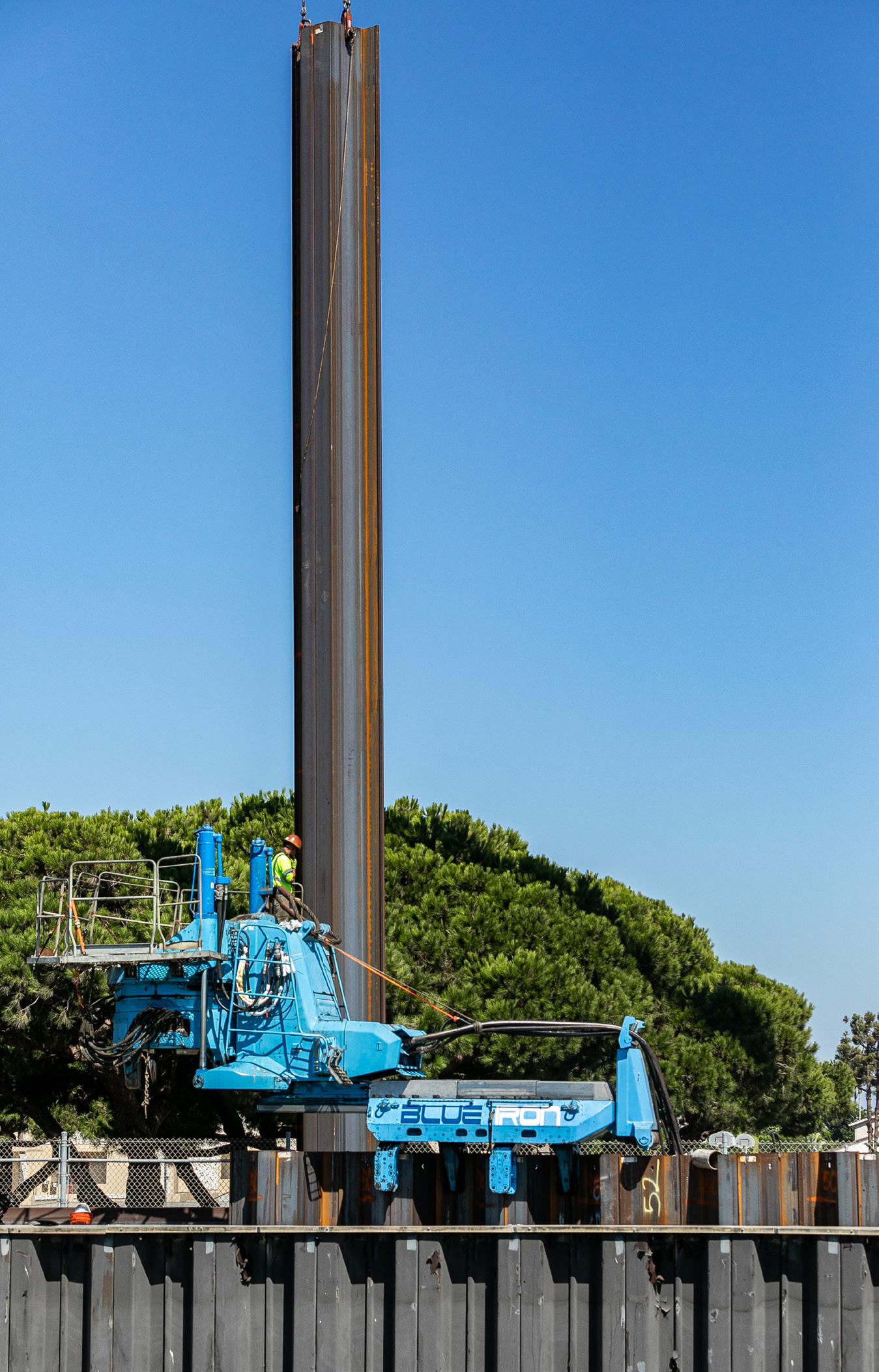

Our Giken Silent Pilers install sheet pile utilizing vibration and percussive free techniques. This means there are no vibrations perceived by humans and noise levels are below 70dB at 25 feet away.
° No length restriction for the sheet pile.
° Ideal for Sensitive Areas with existing structures.
° Allows for pile installation on constrained work sites with small construction footprint.
° Provides ability to install piles in Low Overhead Clearance.
° High quality piling installation using state of the art lasers for alignment.
° Reduction of interlock friction due to vibration with conventional pile driving.
° Auger Crush.
° 63,000 ft lbs of torque.
° Simultaneously augers as piles are installed.
° Installed piles thru Caliche & 12,000 psi rock
° Water Jet.
° Pressures up to 2,500 psi to penetrate dense sands and/or stiff clays.

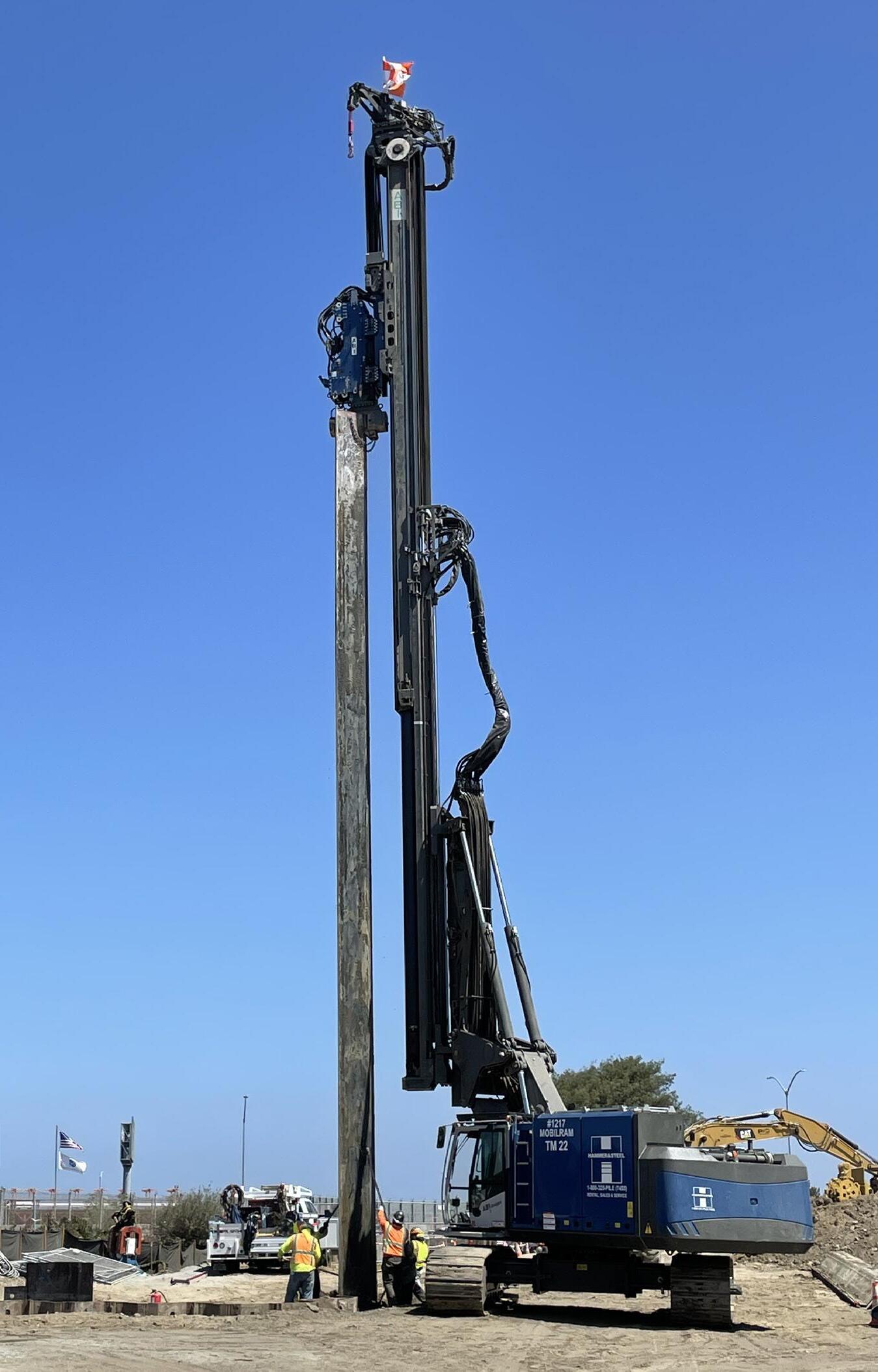

Our ABI TM22 is a versatile machine that is not only able to vibrate piles but drill as well.
° Installation & Removal of sheet pile and soldier piles up to 70’ in continuous length.
° CFA Drilling up to 65’ in Depth with ability to simultaneously auger cast concrete.
° Docking system to allow quick set up and breakdown.
IN LESS THAN 10 MINS:
° MRZV 30 VV Vibro.
° MDBA 6000 Drill Head & CFA Auger.
° Delmag D19-42 Diesel Hammer.
° HPZ Hydraulic Press.

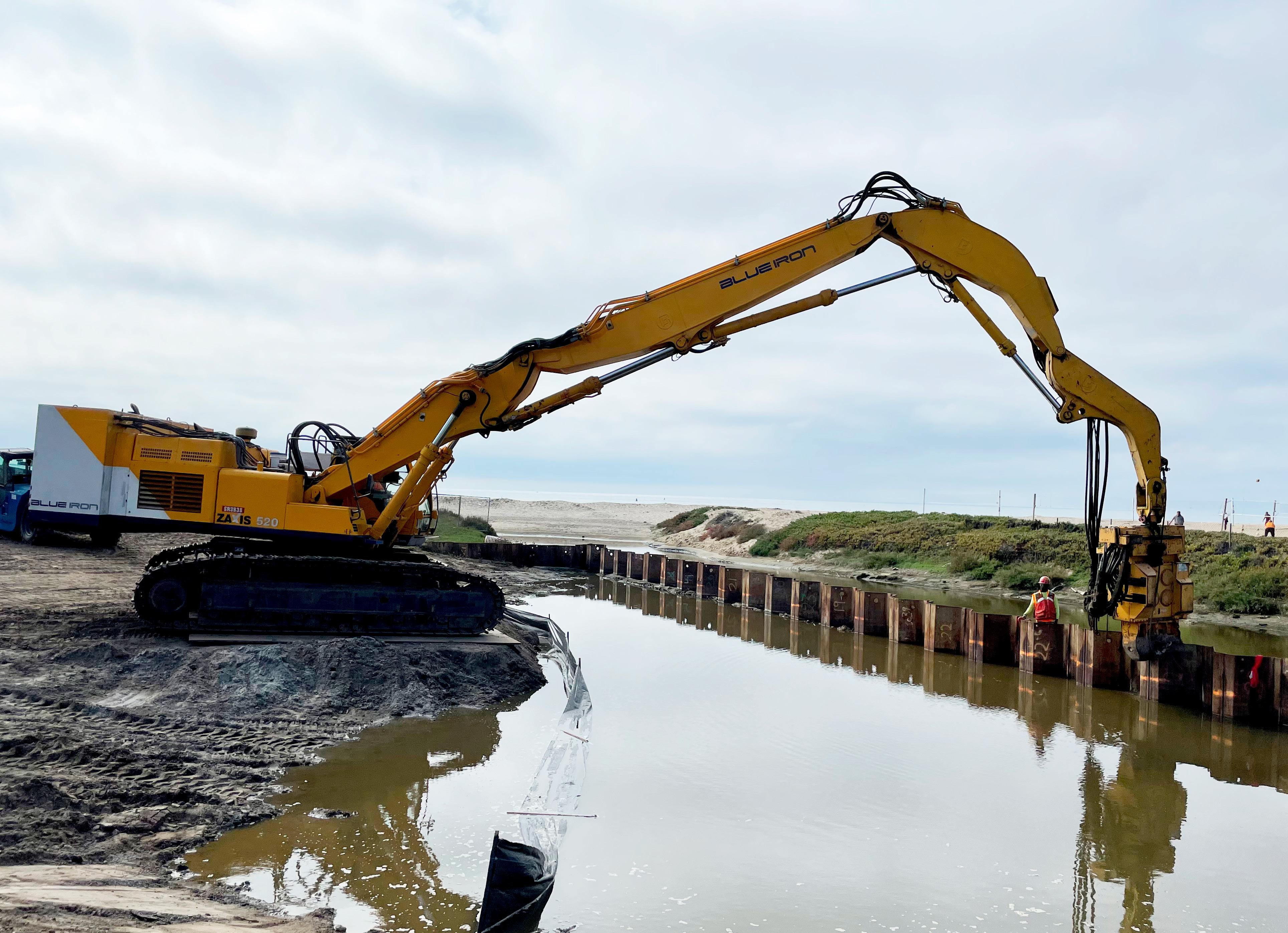

Our Hitachi 520 Zaxis is equipped with power pack & 23 VMA vibro assembled on the machine without any additional set up required.
° Installation & Removal of sheet pile and solider piles up to 50’ in continuous length.
° Reach of up to 50 ft from Centerpin of Equipment.
° Variable moment vibro.
° Transported on one 9 axle load. No assembly or set up required.
° No additional labor to run power pack and vibro.
° Controls are ran from inside the Hitachi.
° Ideal for projects that require equipment to be set back from pile line or reaching over existing structures and walls.

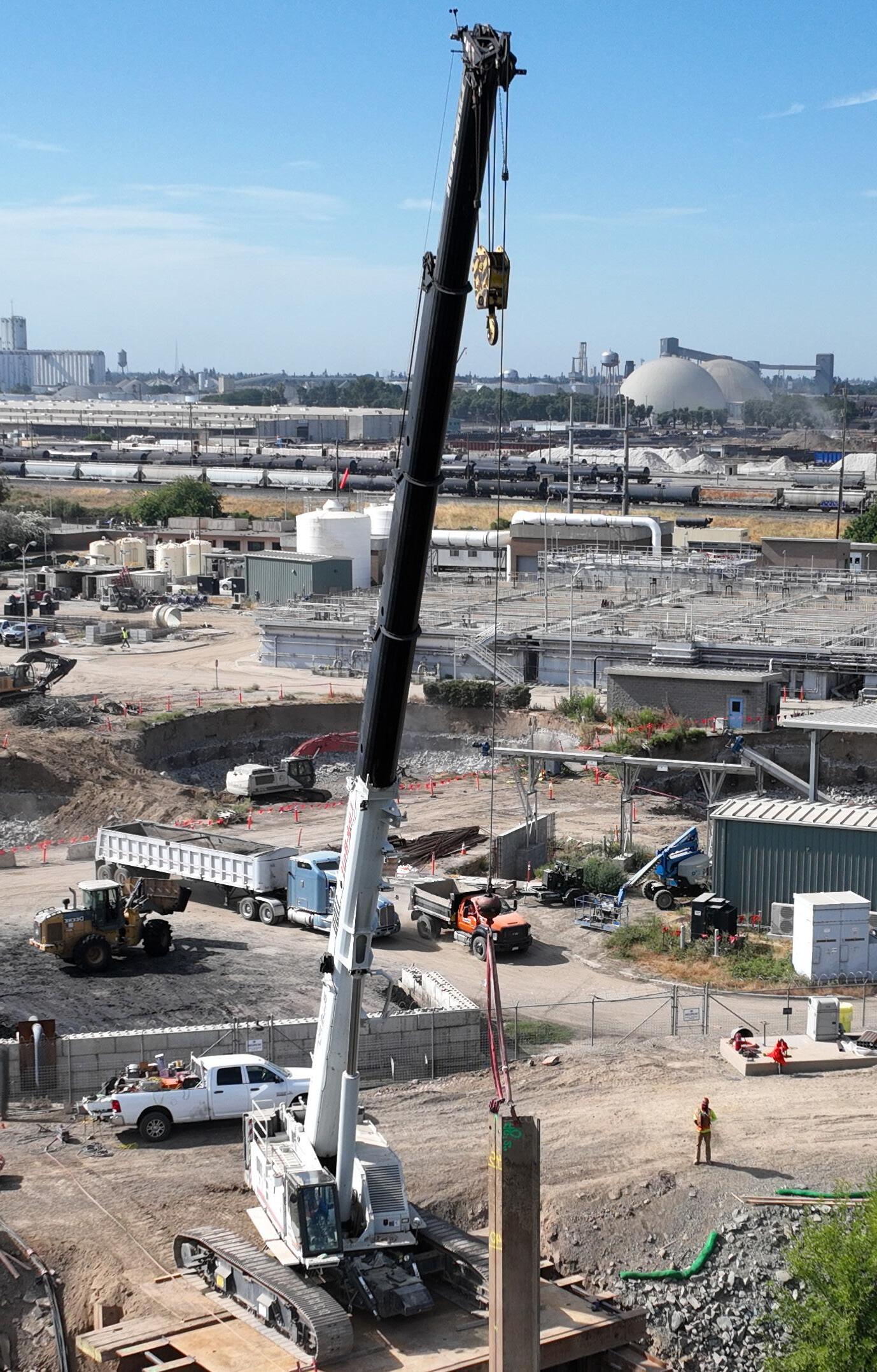

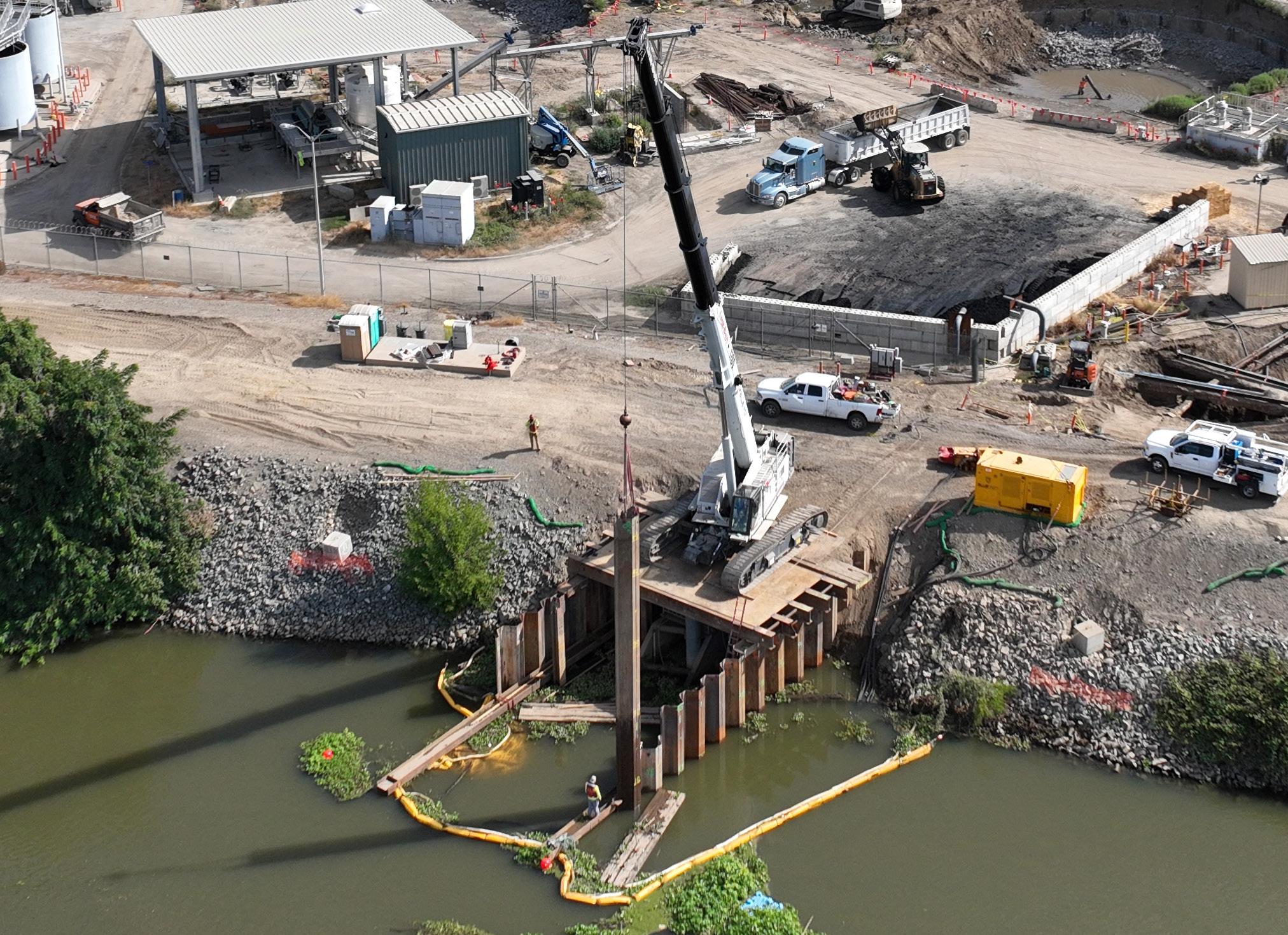

Our Linkbelt TCC 1100 is 110 ton capacity crane designed with self loading and unloading counterweights. It is equipped with a PVE 23 VMA Vibro for installation and removal of piles.
° Installation & Removal of sheet pile and soldier piles up to 70’ in continuous length.
° Hydro Crawler crane without the need for outriggers reducing the working space required.
° Variable moment vibro.
° Reach up to 65’ from Center Pin for pulling and installing piles.
° Dual drum crane for multiple picks.
° Delmag D19-42 Diesel Hammer.
° HPZ Hydraulic Press.

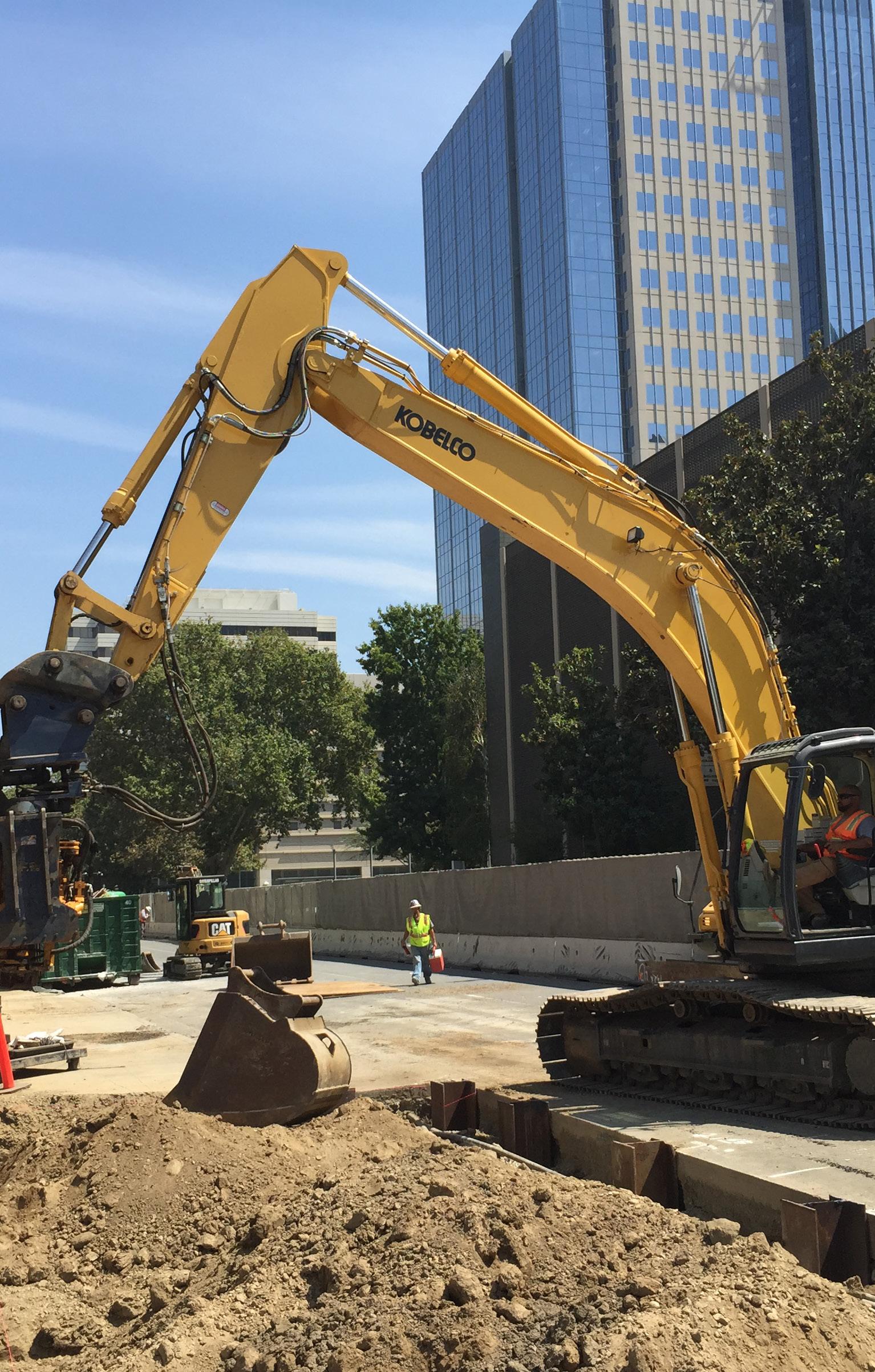

Our Kobelco 350 is equipped with an SP-100 Movax and Digga Drill.
Ideal for projects that require equipment to be set back from pile line or reaching over existing structures and walls.
° Installation & Removal of sheet pile and solider piles up to 30’ in continuous length.
° Reach of up to 25 ft from Centerpin of Equipment
° Sonic Side Grip for low overhead clearance.
° No additional labor. Controls are ran from inside the Kobelco.
° Ability to pre-drill up to 20 ft in difficult soils.
° Timber pile & pipe attachment.
