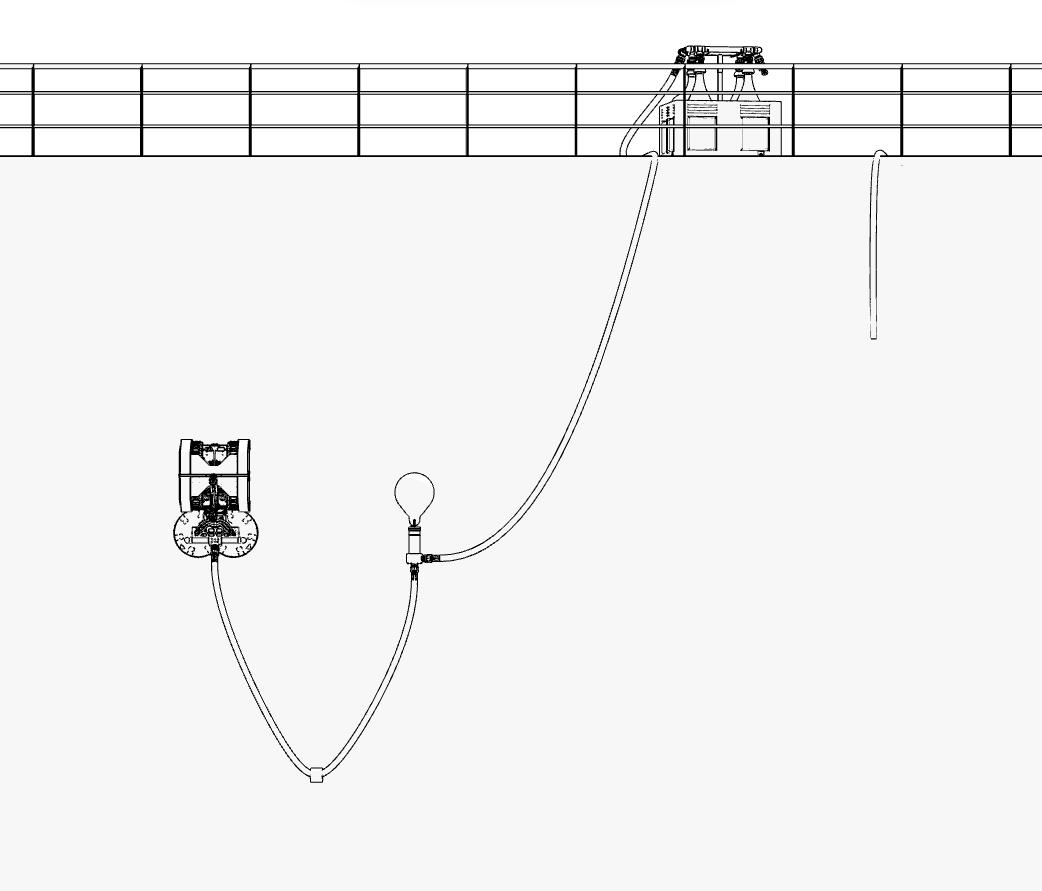

Cavitation or brush tools with 2 inch exit to be connected to the suction hose.

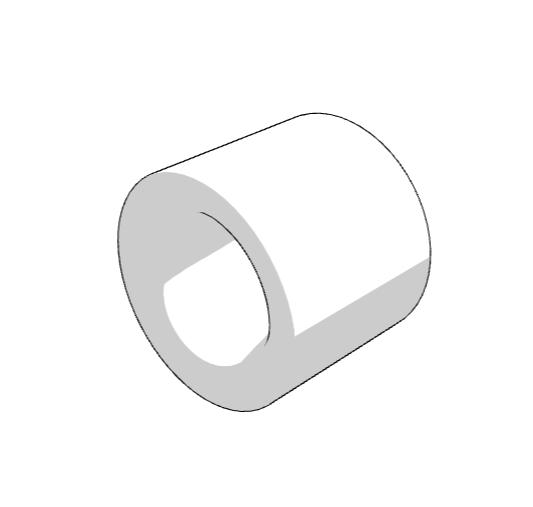

Moveable weight.
Lowest points ensured by gravity, that hose is free of air pockets. (3 kg included)
Scalable filter system, placed on deck or on service boat.
Submergible dirt pump.
Flowrate: 32 m3/h.
220V-240V @ 50-60 Hz, 1.2 kW.

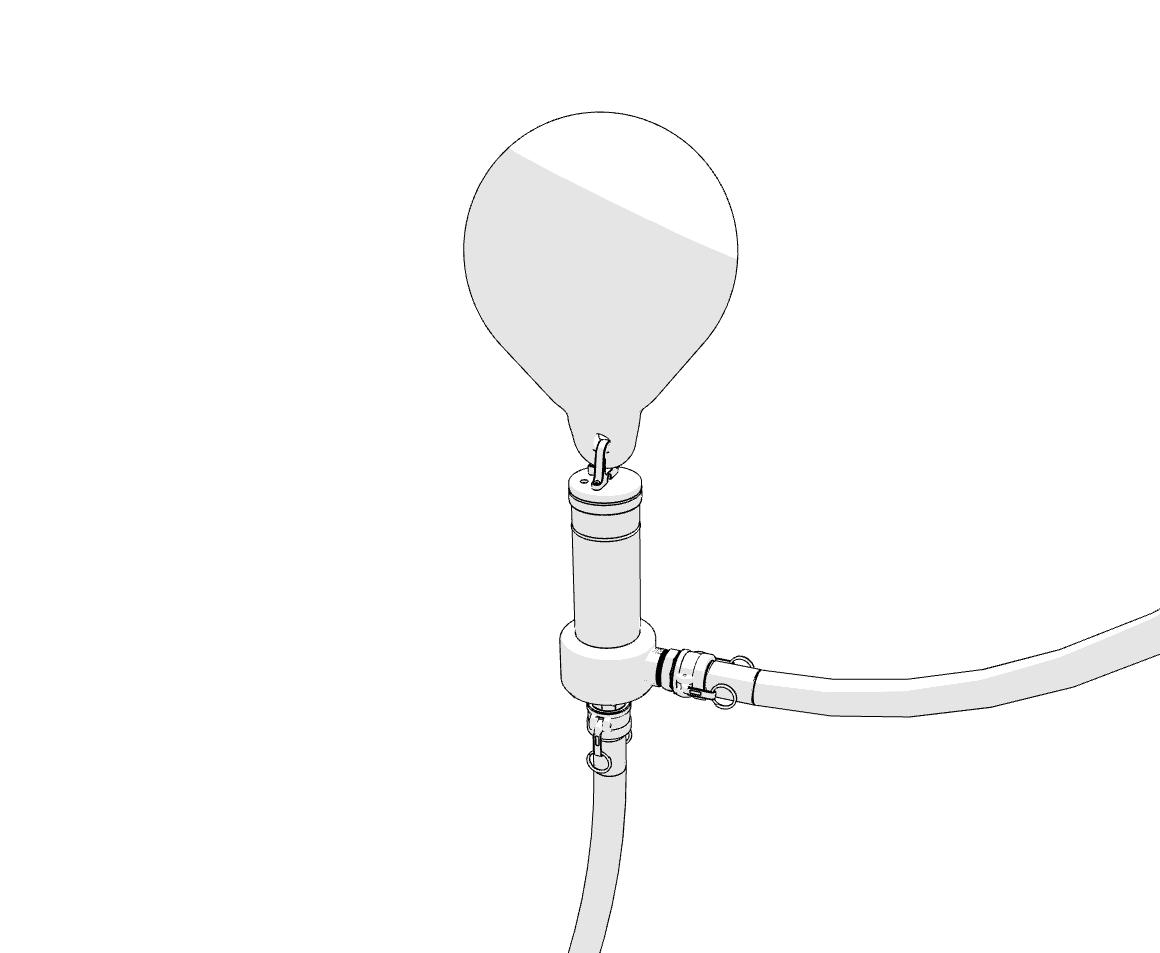

Buoyancy by float or buoy.

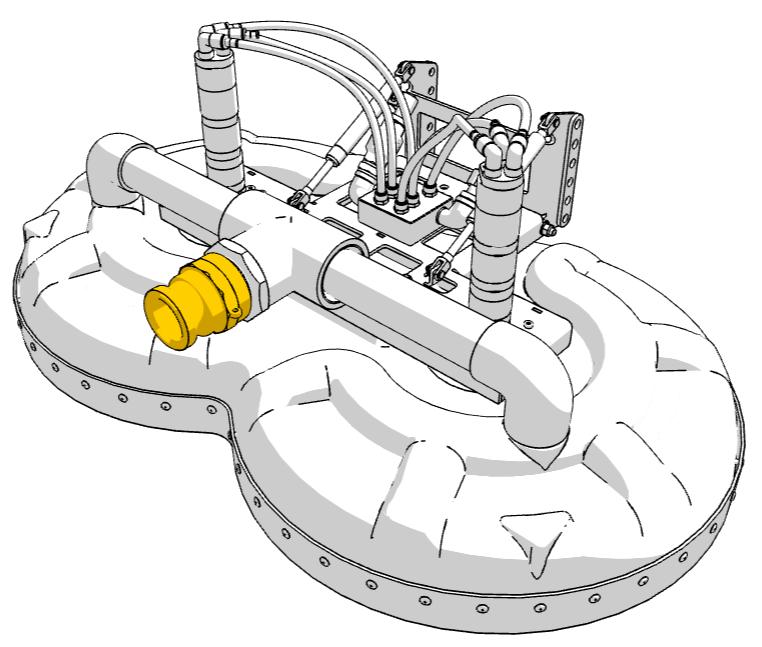

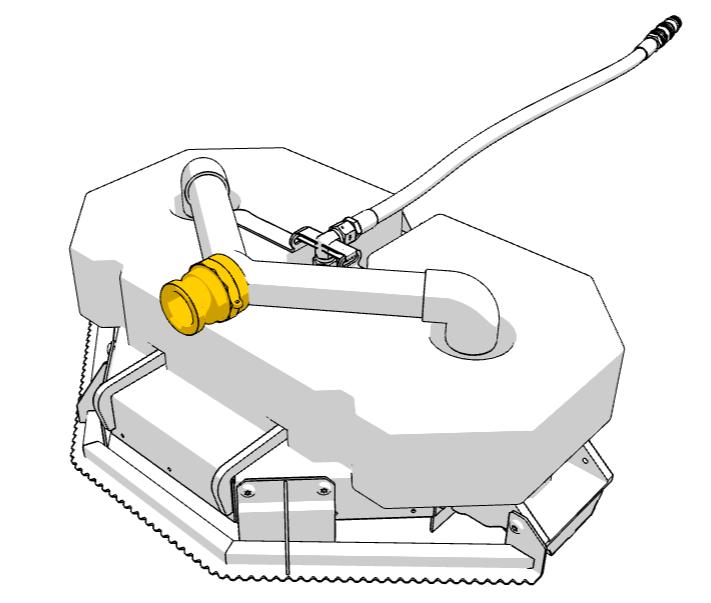

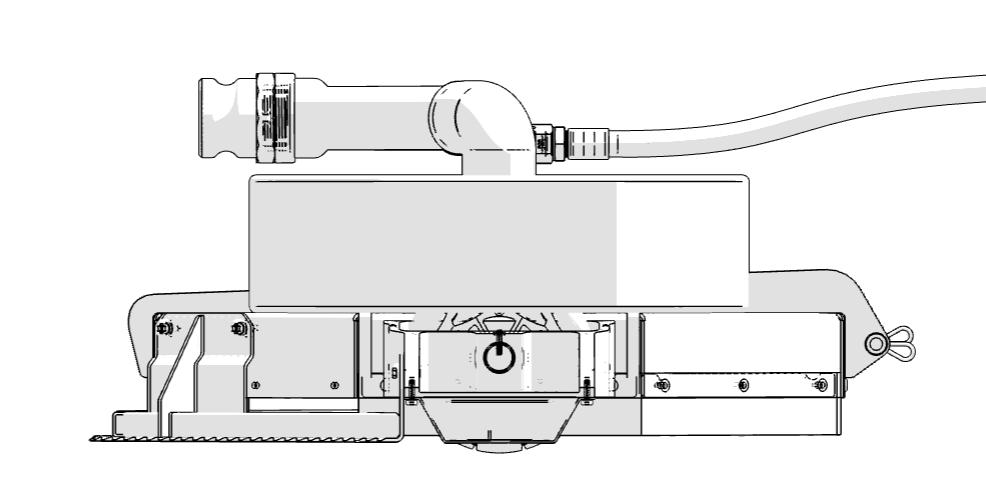

Cavitation tool [HPT0015]

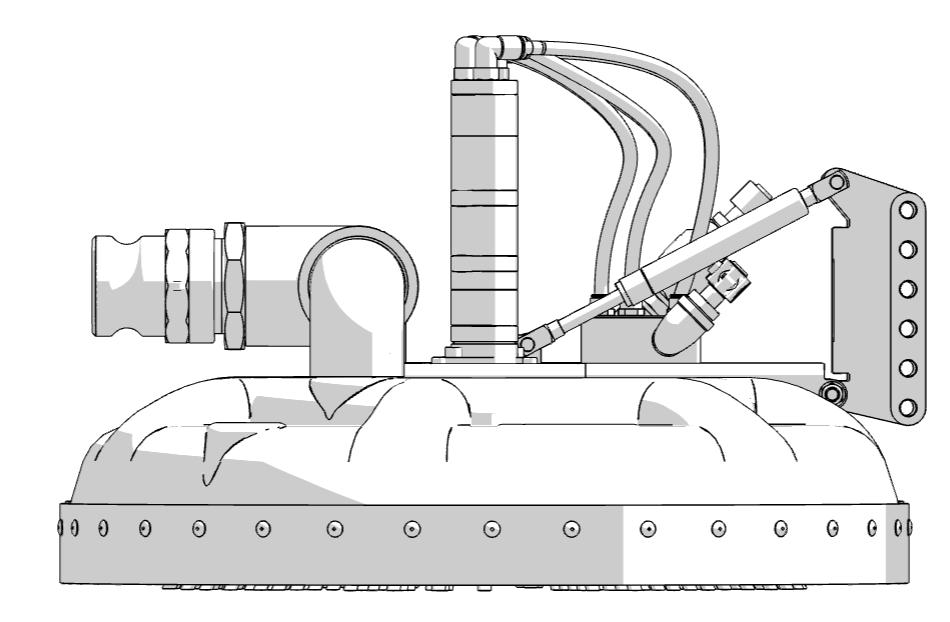

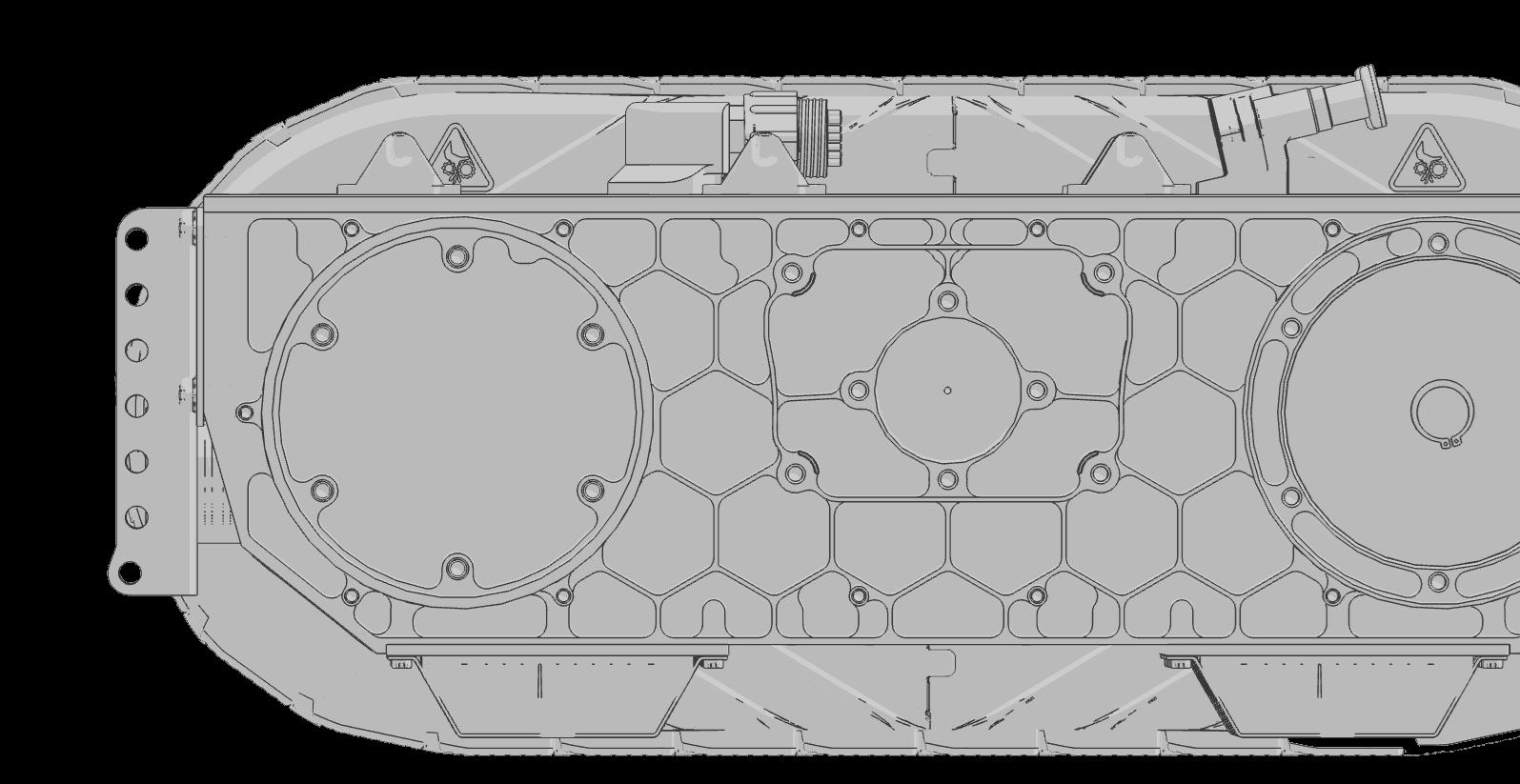

Brush tool [HPT0014] with collection dome

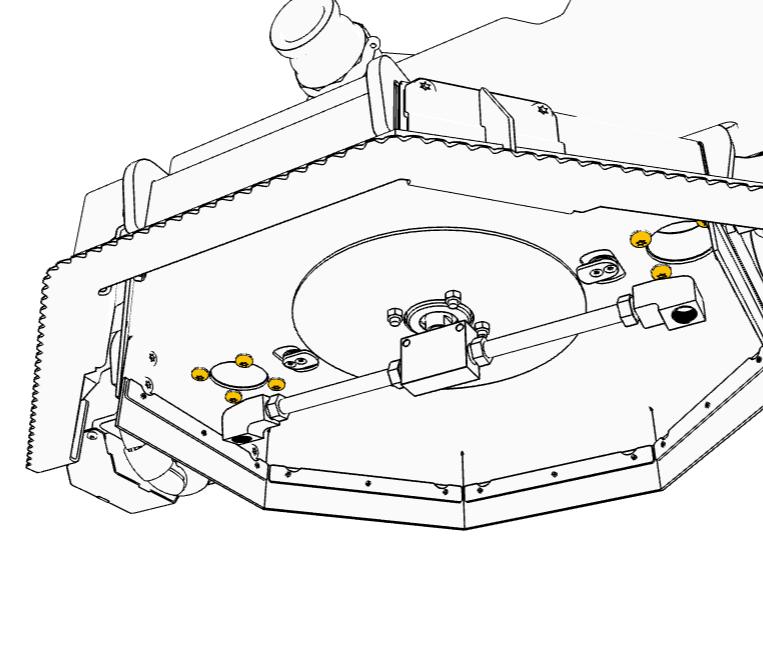

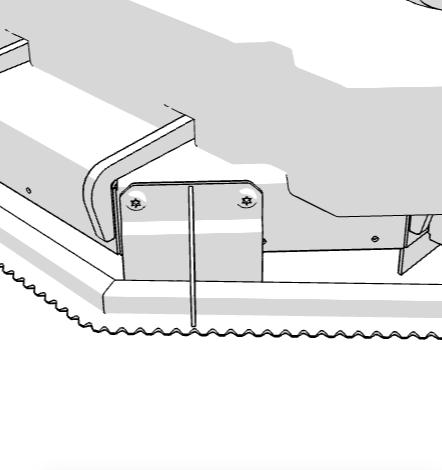

The front cutter will remove biofouling higher than 10 mm.
Collection exit mounted from the inside

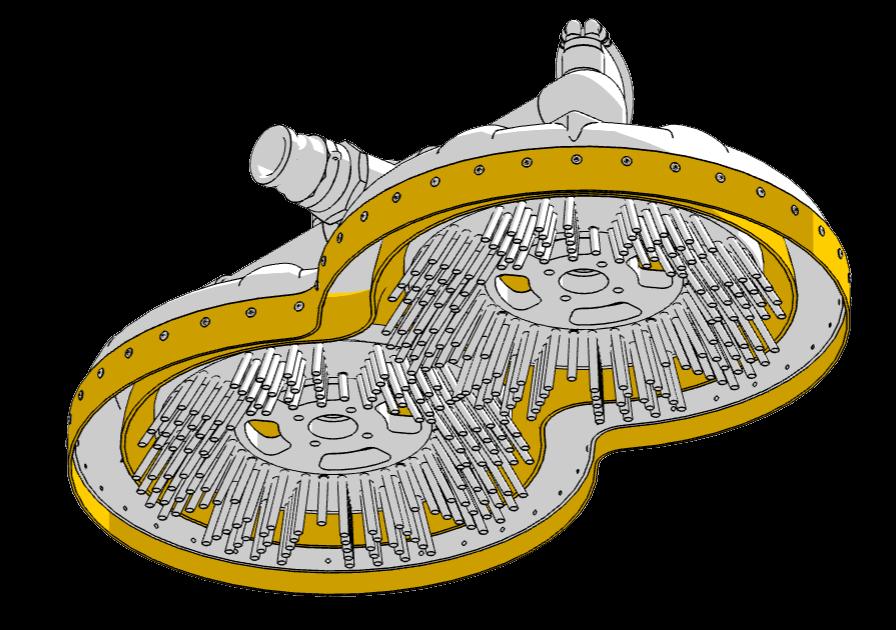

The outer rubber ring creates a thorough seal on the surface and the inner vortex shield ensures lower pressure as water is driven out of the top ejectors. This ensures optimal capture if light to medium biofouling. The brushes can be exchange depending on the FR

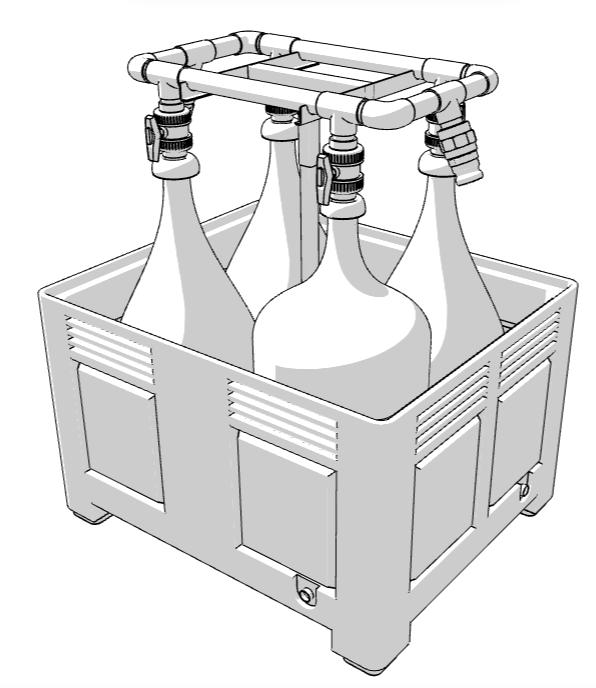

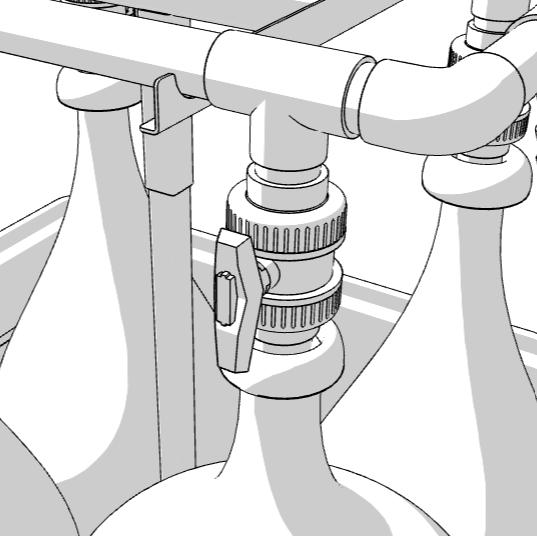

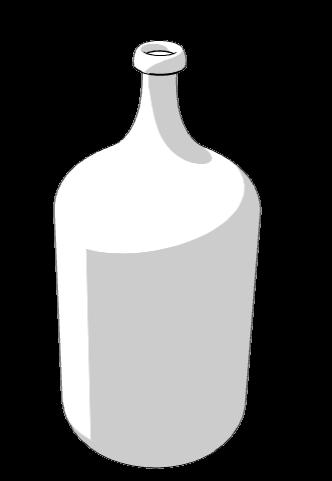

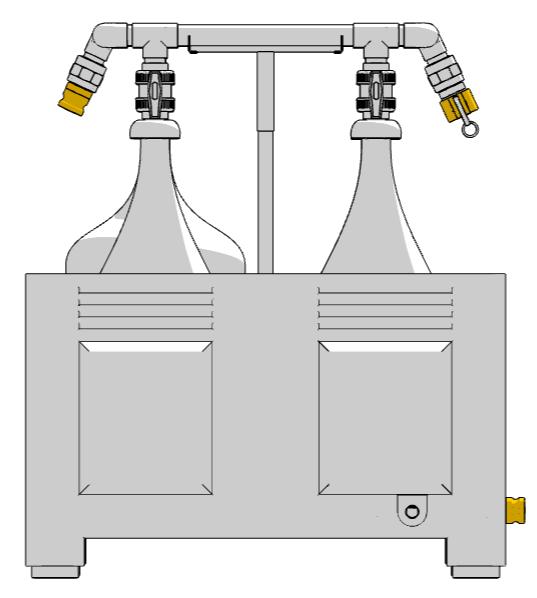

When bag filter bag is full or clogged the handle is closed and flow is diverted to the next bag, while the bag is replaced manually.
Filter size on bag can be exchanged to fit local requirements.
Water filters through the bag system and into the large container.
When filter bag is full it is removed and can be taken to landfill.
Degradable bags included 500 micron mesh size.
To improve the flow, the setup can be scaled to e.g. have the first system with coarse filter bags and finer filters in the next filter system.
This setup is optional but may improve operation efficiency.
