Claymore 2024 Gear Guide

ILLUMINATING LIFE’S ADVENTURES

ORIGIN AND INNOVATION

Established in South Korea in 2013, Claymore emerged as a visionary in portable lighting, rapidly evolving from crafting outdoor lanterns to becoming a leader in outdoor lighting solutions.

DESIGN AND TECHNOLOGY SYNERGY

After trailblazing with the Claymore S, M, L series lanterns, the brand has set new standards in the integration of cutting-edge LED technology and functional design. Claymore offers more than just light – they provide companionship and memorable experiences on outdoor adventures.

EXPANDING HORIZONS

Moving beyond traditional outdoor gear, Claymore now provides a wide range of both outdoor and indoor lighting solutions - from fishing expeditions, industrial sites, and even home lighting, Claymore continues to demonstrate its focus on versatility and innovation.

AWARD-WINNING EXCELLENCE

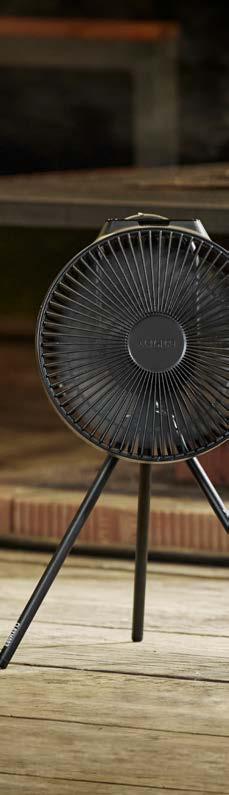

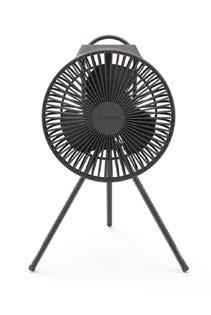

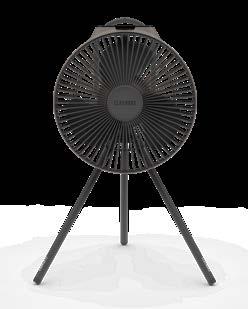

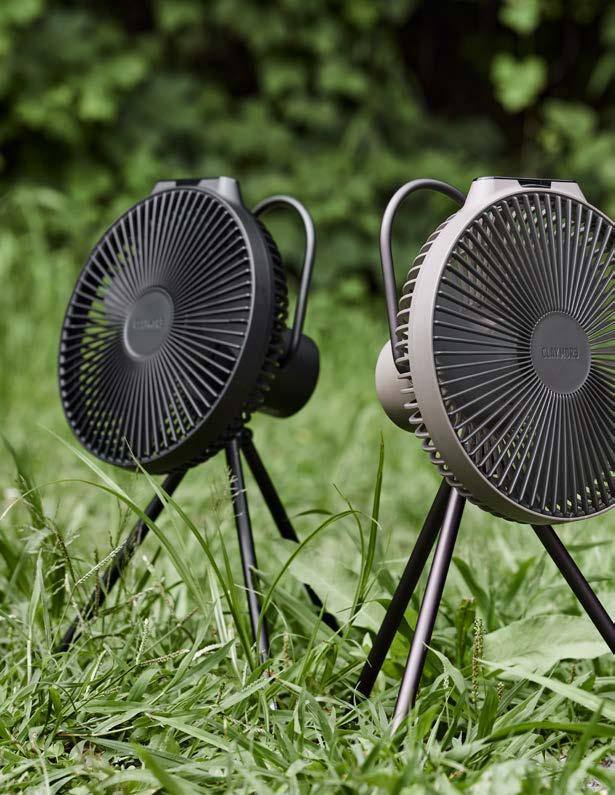

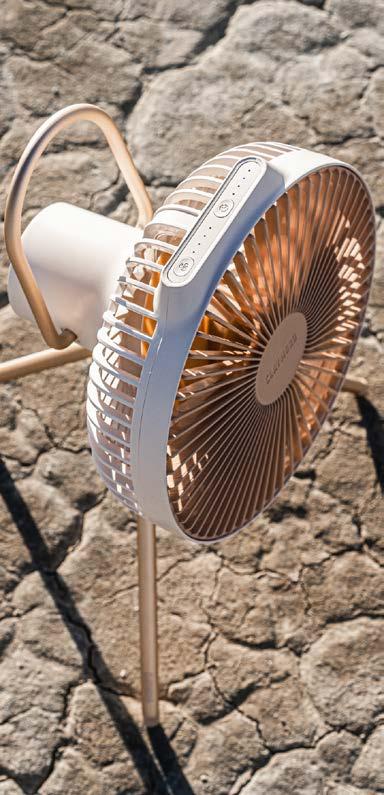

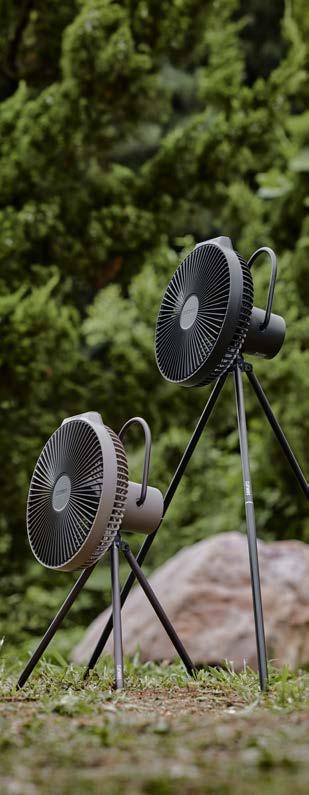

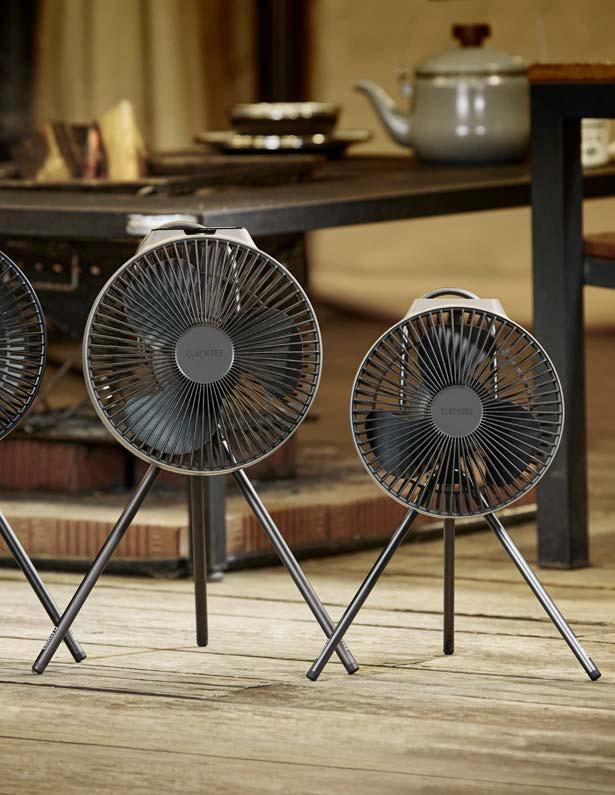

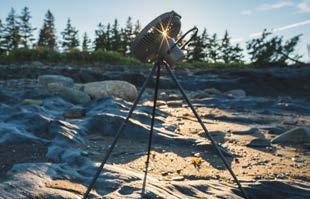

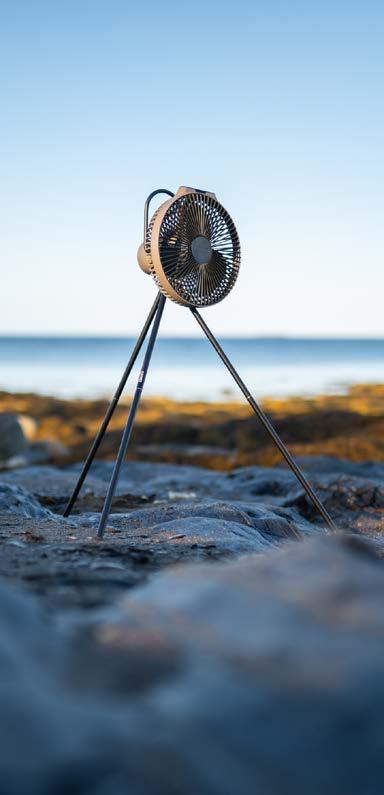

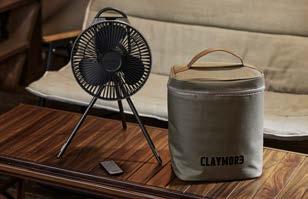

The receipt of the Red Dot Design Award for the Claymore Fan Series V600 highlights the brand’s commitment to excellence in design and functionality, redefining industry standards.

BRAND ETHOS“BEYOND BOUNDARIES, BEYOND EXPECTATIONS”

This new ethos encapsulates Claymore’s commitment to pushing the limits of innovation and quality, promising extraordinary experiences in outdoor adventures and everyday life.

VISION FOR THE FUTURE

Claymore is more than a brand; it’s an adventure companion and a symbol of endless exploration. Committed to enhancing life’s adventures, the brand stands as a beacon of innovation, inspiring customers to explore into the unknown and embrace a world of limitless possibilities.

3D WIDE-ANGLE LIGHT

QUICK STAND

EASY HANGING WITH CARABINER

5 LED COLOR TEMPERATURES

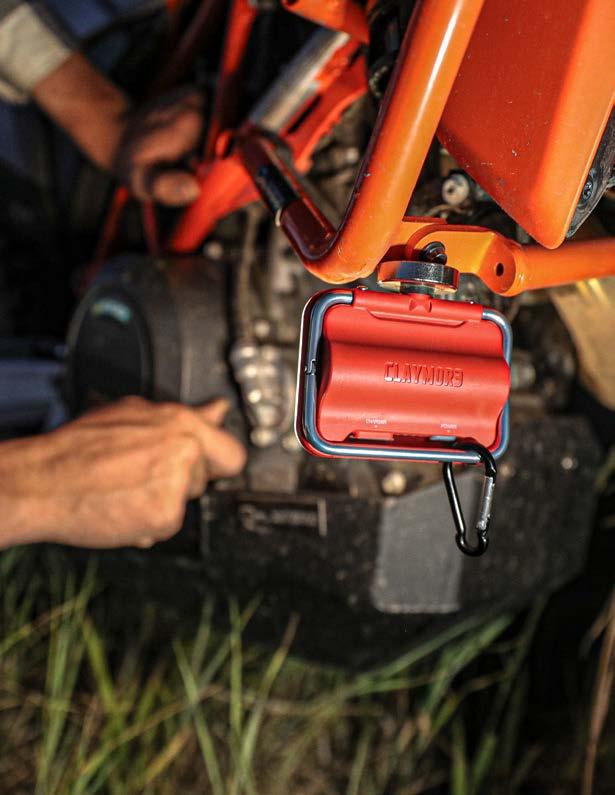

3FACE PRO

Rechargeable Area Light

The 3FACE PRO is crafted for resilience in the great outdoors and harsh industrial settings. Its unique three-dimensional design ensures comprehensive illumination, casting light across a wide spectrum. Doubling as a powerful power bank and controlled via an intuitive Bluetooth app, it extends beyond basic lighting. Crafted with precision and care in S. Korea, the 3FACE PRO is not just a lantern; it’s a versatile companion for challenging environments.

3FACE PRO L

3FACE PRO X

· USB Type-C Rechargeable

· Bluetooth App Control

· 3D Wide-Angle Lighting

· 5 LED Color Temperatures

· Quick Charge Power Bank (Max. 45W)

· Equipped with Three 1/4 Inch Screw Holes

· Includes: 3Face Pro, Hardshell Case, Carabiner, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS / OUTPUTS

IN THE BOX

LED COLOR

SKU: CLFP-GL-3000LG / CLFP-GL-3000BK

295 x 75 x 43 mm

11.6 x 3 x 1.7 inch

942 g / 2.1 lbs

130 - 6,000 Lm

29,400 mAh / 106.722 Wh

8 - 80 hrs

3 hrs (PD 45W) / 7 hrs (18W)

IP66

USB-C 5V2A - 20V2.3A

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS / OUTPUTS IN THE BOX

LED COLOR

SKU: CLFP-GL-4000LG / CLFP-GL-4000BK

365 x 75 x 43 mm

14.4 x 3 x 1.7 inch

1,202 g / 2.6 lbs

160 - 7,500 Lm

39,200 mAh / 142.296 Wh

8 - 90 hrs

3.5 hrs (PD 45W) / 8 hrs (18W)

IP66

USB-C 5V2A - 20V2.3A

3Face Pro, Hardshell Case, Carabiner, Charging Cable (USB-C to C)

3Face Pro, Hardshell Case, Carabiner, Charging Cable (USB-C to C) Cool White Deep Orange Warm White Orange Natural White Cool White Deep Orange Warm White Orange Natural White

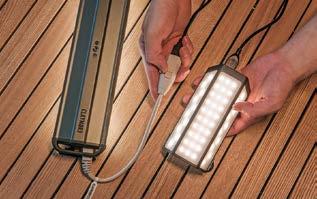

ATTACH VIA EXTENSION CABLE

EASY HANGING WITH CARABINER

3 LED COLOR TEMPERATURES

Accessory 3FACE PRO WING

The 3FACE PRO WING is an elegantly designed accessory that seamlessly integrates with the 3FACE PRO, offering both direct attachment and flexible positioning through extension cables. It elevates the 3FACE PRO’s functionality, all manageable via a Bluetooth app for effortless control. More than just an accessory, it transforms the 3FACE PRO into an all-encompassing lighting solution.

· Compatible with 3FACE PRO

· Bluetooth App Control

· 3D Wide-Angle Lighting

· 3 LED Color Temperatures

· No Built-In Battery

· Includes: 2 3Face Pro Wing, Hardshell Case, Carabiner, 2 Hooks, 2 Extension Cables

SKU: CLFW-GL-01LG / CLFW-GL-01BK

161 x 75 x 34 mm

6.3 x 3 x 1.3 inch

154 g / 0.3 lbs (1pc)

180 - 8,300 Lm

IP65

USB 5V2A

2x 3Face Pro Wing, Hardshell Case, 2x Carabiner, 2x Hook, 2x Extension Cable

3FACE NEO

Rechargeable Area Light

The 3FACE NEO, ideal for outdoor adventures and tough work environments, offers robust and versatile lighting. Its rechargeable feature ensures easy portability, while the 3D wide-angle light provides broad and consistent illumination. With three light colors, a power bank function, and versatile mounting options, the 3FACE NEO caters to diverse needs. The added turbo mode boosts brightness, making the 3FACE NEO a flexible and dependable lighting solution for any setting.

· USB Type-C Rechargeable

· 3D Wide-Angle Lighting

· 3 LED Color Temperatures

· Double the Brightness with Turbo Mode

· Quick Charge Power Bank (Max. 45W)

· Equipped with Two 1/4 Inch Screw Holes

· Includes: 3Face Neo, Hardshell Case, Carabiner, Charging Cable

3-WAY LIGHT CONTROL

HARDSHELL CASE

TURBO MODE

HANGING

KHAKI GRAY

3FACE NEO 10

3FACE NEO 20

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

OUTPUTS

IN THE BOX

SKU: CLF-GL-1000KG

182 x 81 x 38 mm

7.2 x 3.2 x 1.5 inch

380 g / 0.8 lbs

100 - 4,900 Lm

9,800 mAh / 35.574 Wh

3 - 45 hrs

2 hrs (PD 30W) / 3.5 hrs (18W)

IP54

USB-C 5V2A - 20V1.5A

USB-C 5V2A - 20V1.5A

USB-A 5V2A - 9V2A

3Face Neo, Hardshell Case, Carabiner, Strap, Charging Cable (USB-C to C)

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

OUTPUTS

IN THE BOX

LED COLOR

SKU: CLF-GL-2000KG

252 x 81 x 38 mm

9.9 x 3.2 x 1.5 inch

595 g / 1.3 lbs

120 - 6,500 Lm

19,600 mAh / 71.148 Wh

6 - 80 hrs

3.5 hrs (PD 30W) / 4.5 hrs (18W)

IP65

USB-C 5V2A - 20V1.5A

USB-C 5V2A - 20V1.5A

USB-A 5V2A - 9V2A

3Face Neo, Hardshell Case, Carabiner, Strap, Charging Cable (USB-C to C)

3FACE NEO 30

3FACE NEO 40

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

OUTPUTS

IN THE BOX

LED COLOR

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

OUTPUTS

IN THE BOX

LED COLOR

SKU: CLF-GL-3000KG

322 x 81 x 38 mm

12.7 x 3.2 x 1.5 inch

810 g / 1.8 lbs

200 - 8,500 Lm

29,400 mAh / 106.722 Wh

6 - 80 hrs

3.5 hrs (PD 45W) / 7.5 hrs (18W)

IP65

USB-C 5V2A - 20V2.3A

USB-C 5V2A - 20V1.5A

USB-A 5V2A - 9V2A

3Face Neo, Hardshell Case, Carabiner, Strap, Charging Cable (USB-C to C)

Cool White

Warm White Natural White

392 x 81 x 38 mm

15.4 x 3.2 x 1.5 inch

1,030 g / 2.3 lbs

230 - 9,500 Lm

SKU: CLF-GL-4000KG

39,200 mAh / 142.296 Wh

6 - 80 hrs

4 hrs (PD 45W) / 8 hrs (18W)

IP54

USB-C 5V2A - 20V2.3A

USB-C 5V2A - 20V1.5A

USB-A 5V2A - 9V2A

3Face Neo, Hardshell Case, Carabiner, Strap, Charging Cable (USB-C to C)

3FACE MINI

Rechargeable Area Light

The 3FACE MINI combines compact design with powerful functionality. Its three-dimensional lighting offers expansive illumination, and with a 5,000mAh battery, it also serves as a power bank. It achieves up to 800 lumens of brightness and customizes ambiance with three light colors. Ultra-lightweight at just 159g, it’s ideal for on-the-go needs. Perfect for minimal space storage, the 3FACE MINI is a dynamic and portable lighting solution.

· USB Type-C Rechargeable

· Ultra-Lightweight, 159 g / 0.4 lbs

· 3D Wide-Angle Lighting

· 3 LED Color Temperatures

· Compact Power Bank

· Equipped with a 1/4 Inch Screw Hole

· Includes: 3Face Mini, Hardshell Case, O-Carabiner, Charging Cable

SKU: CLF-GL-500LG / CLF-GL-500DG / CLF-GL-500MS

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE INPUTS / OUTPUTS

IN THE BOX

LED COLOR

78 x 103 x 20 mm

3.1 x 4.1 x 0.8 inch

159 g / 0.4 lbs

40 - 800 Lm

5,000 mAh / 18.5 Wh

6.5 - 60 hrs

2.7 hrs

IP54

USB 5V2A / 5V2A

3Face Mini, Hardshell Case, 2x Carabiner, Charging Cable (USB Type-C)

Cool White Warm White Natural White

COLOR:

DIMENSION:

SOS STROBE Side

Via USB-A:

For Claymore Accesorries Only

COLOR:

DIMENSION:

SPECIAL:

Side - Center - Both Turbo

SOS STROBE

Via USB-C: Quick Charge Available USB-A and USB-C cannot be used simultaneously

COLOR:

DIMENSION:

SPECIAL:

Side - Center - Both Turbo

SOS STROBE

USB-A and USB-C cannot be used simultaneously

Side - Both COLOR:

DIMENSION:

SOS STROBE

ULTRA 3.0

Rechargeable Area Light

The ULTRA 3.0, the 4th generation of Claymore’s classic line since the brand’s inception, epitomizes rechargeable and versatile lighting. Ideal for illuminating large areas, it combines up to 18W quick charge power bank functionality with a turbo mode for enhanced brightness, ensuring adaptability to any situation. With three light colors and versatile mounting options, the ULTRA 3.0 raises the standard in the portable lighting category.

· USB Type-C Rechargeable

· Quick Charge Power Bank (Max. 18W)

· 3 LED Color Temperatures

· Double the Brightness with Turbo Mode

· Equipped with a 1/4 Inch Screw Hole

· Includes: Ultra 3.0, Hardshell Case, S-Hook, Charging Cable

3 LED COLOR TEMPERATURES

1/4 INCH SCREW HOLE

HANGABLE WITH S-HOOK

POWER BANK WITH QUICK CHARGE

BLACK

ULTRA 3.0 S

ULTRA 3.0 M

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

OUTPUTS

IN THE BOX

LED COLOR

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

OUTPUTS

IN THE BOX

LED COLOR

SKU: CLC-GL-900BK

120 x 90 x 34 mm

4.7 x 3.5 x 1.3 inch

270 g / 0.6 lbs

30 - 1,200 Lm

7,000 mAh / 25.2 Wh

3.5 - 50 hrs

2.5 hrs (18W)

IP54

USB-C 5V2A / 9V2A / 12V1.5A

USB-A 5V2A / 9V2A / 12V1.5A

Ultra 3.0, Hardshell Case, Hook, Charging Cable (USB Type-C)

Cool White Warm White Natural White

160 x 90 x 34 mm

6.3 x 3.5 x 1.3 inch

405 g / 0.9 lbs

40 - 2,200 Lm

SKU: CLC-GL-1400BK

13,400 mAh / 48.24 Wh

4 - 80 hrs

6 hrs (18W)

IP54

USB-C 5V2A / 9V2A / 12V1.5A

USB-A 5V2A / 9V2A / 12V1.5A

Ultra 3.0, Hardshell Case, Hook, Charging Cable (USB Type-C)

Cool White Warm White Natural White

ULTRA 3.0 L

ULTRA 3.0 X

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

OUTPUTS

IN THE BOX

LED COLOR

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

OUTPUTS

IN THE BOX

LED COLOR

SKU: CLC-GL-1900BK

200 x 90 x 34 mm

7.9 x 3.5 x 1.3 inch

540 g / 1.2 lbs

50 - 2,700 Lm

20,100 mAh / 72.36 Wh

5.5 - 100 hrs

7 hrs (18W)

IP54

USB-C 5V2A / 9V2A / 12V1.5A

USB-A 5V2A / 9V2A / 12V1.5A

Ultra 3.0, Hardshell Case, Hook, Charging Cable (USB Type-C)

Cool White Warm White Natural White

240 x 90 x 34 mm

9.5 x 3.5 x 1.3 inch

680 g / 1.5 lbs

60 - 3,200 Lm

SKU: CLC-GL-2800BK

26,800 mAh / 96.48 Wh

6.5 - 150 hrs

8 hrs (18W)

IP54

USB-C 5V2A / 9V2A / 12V1.5A

USB-A 5V2A / 9V2A / 12V1.5A

Ultra 3.0, Hardshell Case, Hook, Charging Cable (USB Type-C)

COMPATABLE WITH NEODYMIUM MAGNET

EASY ANGLE ADJUSTMENT

EQUIPPED WITH 1/4 INCH SCREW HOLES

3 LED COLOR TEMPERATURES

ULTRA2 3.0

Rechargeable Area Light

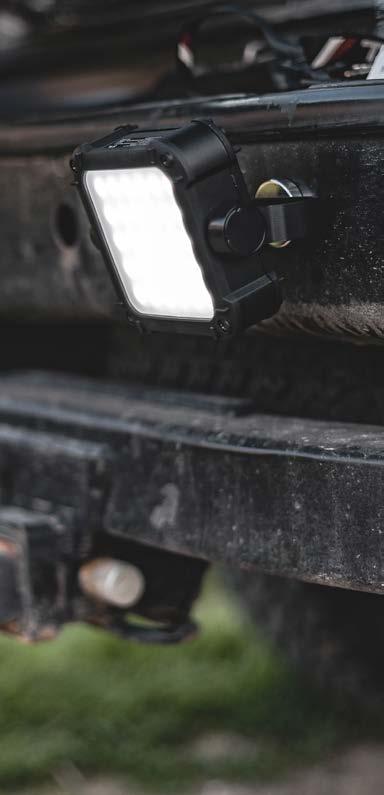

The ULTRA2 3.0, a durable lighting solution, is built for the toughest outdoor conditions. With an IP65 dustproof/ waterproof rating and a rugged body, it ensures reliability in all environments. This powerhouse offers a large battery capacity doubling as an efficient power bank. Equipped with 3 light colors, versatile mounting options, and easy angle adjustments, the ULTRA2 3.0 stands out as an adaptable and robust lighting device for any setting.

ULTRA2 3.0 M

· USB Type-C Rechargeable

· 3 LED Color Temperatures

· Quick Charge Power Bank (Max. 18W)

· Equipped with 1/4 inch screw holes.

· IP65 Water & Dust Resistance

· Includes: Ultra2 3.0, Hardshell Case, Hook, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

OUTPUTS

IN THE BOX

LED COLOR

ULTRA2 3.0 X

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

OUTPUTS

IN THE BOX

LED COLOR

SKU: CLC2-GL-1300BK

125 x 116 x 40 mm

4.9 x 4.6 x 1.6 inch

465 g / 1 lbs

40 - 1,200 Lm

13,400 mAh / 48.24 Wh

10 - 80 hrs

6 hrs (18W)

IP65

USB-C 5V2A / 9V2A / 12V1.5A

USB-A 5V2A / 9V2A / 12V1.5A

Ultra2 3.0, Hardshell Case, Hook, Charging Cable (USB Type-C)

SKU: CLC2-GL-2300BK

125 x 116 x 56 mm

4.9 x 4.6 x 2.2 inch

675 g / 1.5 lbs

50 - 2,200 Lm

26,800 mAh / 96.48 Wh

15 - 150 hrs

8 hrs (18W)

IP65

USB-C 5V2A / 9V2A / 12V1.5A

USB-A 5V2A / 9V2A / 12V1.5A

Ultra2 3.0, Hardshell Case, Hook, Charging Cable (USB Type-C)

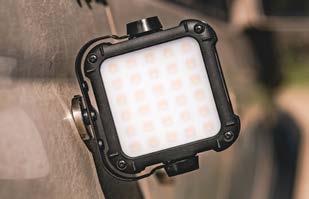

ULTRA MINI

Rechargeable Area Light

The ULTRA MINI, remarkably lightweight at only 115 g (0.3 lbs), offers lasting illumination up to 24 hrs with its 3,500mAh battery. Capable of reaching 500 lumens, it features three color temperature settings for tailored lighting. Its compact design ensures easy storage and portability. This combination of size, power, and versatility makes the ULTRA MINI a practical lighting tool for various scenarios.

· USB Type-C Rechargeable

· Ultra-Lightweight, 115 g / 0.3 lbs

· 3 LED Color Temperatures

· Equipped with a 1/4 Inch Screw Hole

· Includes: Ultra Mini, Hardshell Case, Hook, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE INPUTS

IN THE BOX

LED COLOR

85 x 66 x 27 mm

3.4 x 2.6 x 1.1 inch

115 g / 0.3 lbs

30 - 500 Lm

3,500 mAh / 12.6 Wh

6 - 24 hrs

6.5 hrs

IP64

USB-C 5V1A

Ultra Mini, Hardshell Case, Hook, Charging Cable (USB Type-C)

AVAILABLE NOW

CLAYMORE MOBILE APP

EASY CONTROL FROM A SINGLE SCREEN

Control every aspect of your lighting with unparalleled ease. From the simplicity of turning lights on and off to adjusting brightness and color, the Claymore app puts total control in the palm of your hand.

· One-Touch ON & OFF

· Brightness Adjustment

· Versatile Light Modes

· Customizable Light Colors

· Convenient Timer Feature

· Safety First with SOS Mode

INDEPENDENT CONTROL OF OFFICIAL ACCESSORIES

The Claymore Lantern app enables you to seamlessly control accessories connected to the 3FACE PRO. Experience the convenience of managing your lighting setup with ease.

· Individual ON & OFF

· Separate Brightness Control

· Independent Light Color Choices

SAVE THE PERSONALIZED LIGHTING

The Claymore app provides a user-friendly way to save and recall your favorite lighting settings.

Easy Save Function

Instant Access to Personalized Settings

Tailored Lighting at Your Command

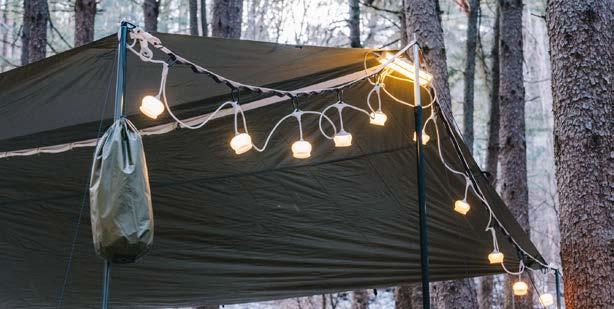

CADENA

Camping Light

The CADENA offers a unique, sentimental string lighting experience, perfect for both indoor and outdoor ambiance creation. Its ample length and carabiners for each light ball allow for a variety of atmospheric setups. With versatile hanging and mounting options, a range of light colors, and a serene breeze mode, the CADENA is adept at crafting the desired mood, adding a touch of elegance and tranquility to any space.

· Glow-like-Crystal String Lights

· Bluetooth App Control

· 5 LED Color Temperatures with Breeze Mode

· No Built-In Battery

· Includes: Cadena, Case, 3/5/7/9 x Carabiners, Power Cable

6 LIGHT MODES

CADENA 3

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

INPUTS IN THE BOX

LED COLOR

SKU: CLEN-GL-03IV

2,900 x 80 x 159 mm

114.2 x 3.2 x 6.3 inch

401 g / 0.9 lbs

230 - 2,100 Lm

USB-A 5V2A

Cadena, Case, 3x Carabiner

Natural White

Cool White

Warm White Breeze Orange Soft Warm

CADENA 5

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

WATTAGE

INPUTS

IN THE BOX

LED COLOR

SKU: CLEN-US-05IV

7,000 x 80 x 159 mm

275.6 x 3.2 x 6.3 inch

750 g / 1.7 lbs

580 - 4,600 Lm

23.1 Wh

12V3A Power Adapter

Cadena, Case, 5x Carabiner, Power Adapter (12V3A)

Cool White

Natural White

Warm White Breeze Orange Soft Warm

CADENA 7

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

WATTAGE INPUTS IN THE BOX

LED COLOR

SKU: CLEN-US-07IV

7,500 x 80 x 159 mm

295.3 x 3.2 x 6.3 inch

876 g / 1.9 lbs

800 - 6,500 Lm

28.6 Wh

12V3A Power Adapter

Cadena, Case, 7x Carabiner, Power Adapter (12V3A)

CADENA 9

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

WATTAGE

INPUTS

IN THE BOX

SKU: CLEN-US-09IV

8,500 x 80 x 159 mm

334.7 x 3.2 x 6.3 inch

1,115 g / 2.5 lbs

980 - 7,900 Lm

35.9 Wh

12V4A Power Adapter

Cadena, Case, 9x Carabiner, Power Adapter (12V4A)

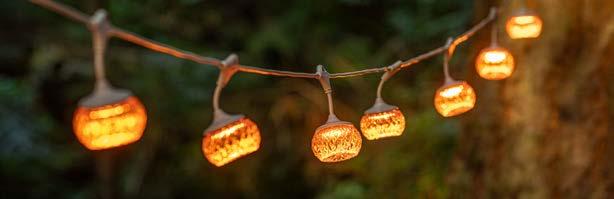

CADENA UF5

Camping Light

The CADENA UF5 is an accessory designed to expand the lighting capabilities of the 3FACE PRO. It allows for additional lighting placement in different spaces, leveraging the ample battery capacity of the 3FACE PRO and the generous length of the extension cables. With Bluetooth app control, it offers various modes and colors to create the desired ambiance.

· Compatible with 3FACE PRO

· Bluetooth App Control

· 3 LED Color Temperatures with Breeze Mode

· No Built-In Battery

· Includes: Cadena UF5, Case, 5 Carabiners, Extension Cable

SPECS

DIMENSIONS WEIGHT BRIGHTNESS

WATER RESISTANCE

SKU: CLUF5-GL-01LG / CLUF5-GL-01BK

3,524 x 145 x 60 mm

138.8 x 5.7 x 2.4 inch

436 g / 1 lbs

80 - 1,300 Lm

IP65

USB-A 5V2A

Cadena UF5, Case, 5x Silicon Shade, 5x Carabiner, Extension Cable

4

MODES

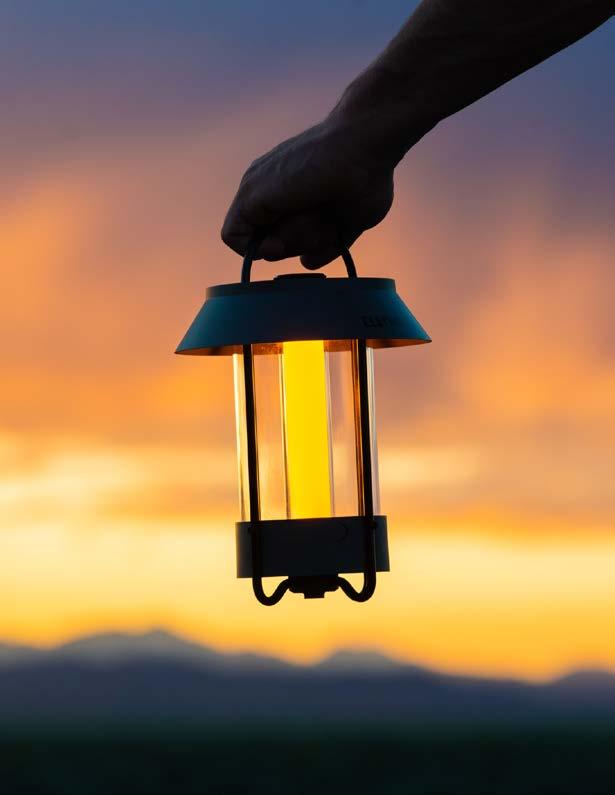

SELENE

Camping Light

SELENE blends classic elegance with modern aesthetics, offering a unique design twist. It provides USB rechargeable convenience, four light modes including Breeze Mode, and a detachable shade for varied lighting effects. Equipped with a 1/4-inch screw hole for versatile mounting, SELENE is ideal for both indoor and outdoor settings. Its combination of traditional charm and contemporary features makes SELENE a stylish addition to any space.

· USB Type-C Rechargeable

· 3 LED Color Temperatures with Breeze Mode

· Shade Piece Detachable

· Power Bank Feature

· Equipped with a 1/4 Inch Screw Hole

· Includes: Selene, Hardshell Case, Shade, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS BATTERY / WATTAGE

RUNTIME CHARGING TIME

WATER RESISTANCE INPUTS / OUTPUTS IN THE BOX

LED COLOR

SKU: CLL-GL-650WH / CLL-GL-650DG

165 x 165 x 250 mm

6.5 x 6.5 x 9.8 inch

660 g / 1.5 lbs

30 - 660 Lm

6,700 mAh / 24.12 Wh

6 - 55 hrs

5.5 hrs

IP54

USB-C 5V2A / USB-A 5V2A

Selene, Hardshell Case, Shade, Charging Cable (USB Type-C)

4 LIGHT MODES

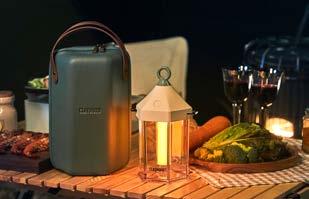

CABIN

Camping Light

The CABIN, designed to create a moody atmosphere, offers 4 light modes for various settings. Rechargeable and lasting up to 55 hours, it doubles as a power bank. Featuring a built-in 1/4 inch tripod socket, it’s compatible with tripods, enhancing its versatility. Suitable for both outdoor and indoor environments, the CABIN not only illuminates spaces but also adds an aesthetic touch, making it a unique and adaptable lighting solution.

· USB Type-C Rechargeable

· 3 LED Color Temperatures with Breeze Mode

· Various Mounting Accessories

· Power Bank Feature

· Equipped with a 1/4 Inch Screw Hole

· Includes: Cabin, Hardshell Case, Pendant Hook, Leather Strap, Ring Hook, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS / OUTPUTS IN THE BOX

SKU: CLL-GL-600IV

141 x 108 x 233 mm

5.6 x 4.3 x 9.2 inch

556 g / 1.2 lbs

30 - 640 Lm

6,700 mAh / 24.12 Wh

6 - 55 hrs

5.5 hrs

IP54

USB-C 5V2A / USB-A 5V2A

Cabin, Hardshell Case, Pendant Hook, Leather Strap, Ring Hook, Charging Cable (USB Type-C)

4 LIGHT MODES

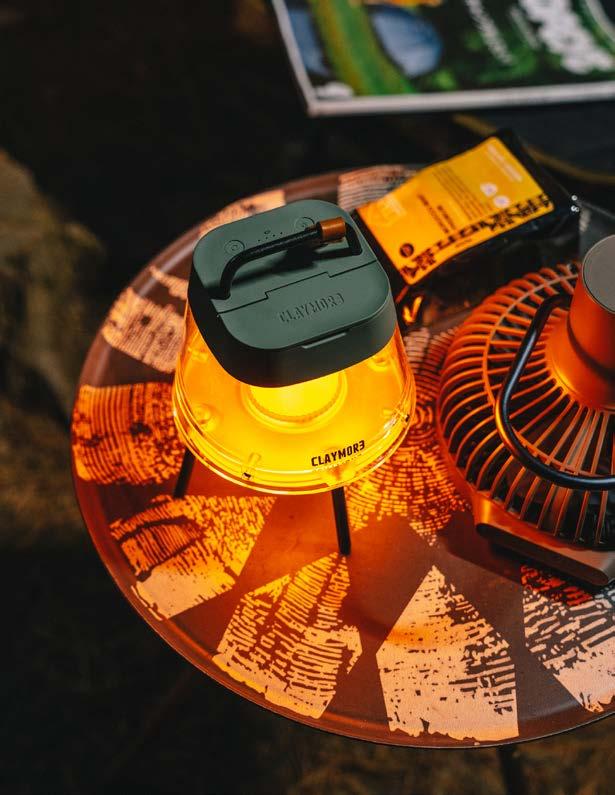

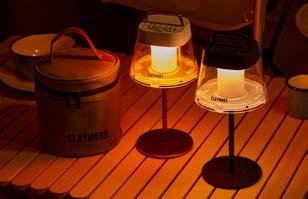

ATHENA S

Camping Light

The ATHENA S offers versatile lighting with 3 LED color temperatures and a cozy Breeze Mode. Designed for flexibility, it provides various standing, mounting, and hanging options. The inclusion of detachable legs and a 1/4 inch mountcompatible Light Stand enhances its practicality for diverse lighting needs in different environments.

· USB Type-C Rechargeable

· 3 LED Color Temperatures with Breeze Mode

· Various Standing, Mounting, and Hanging Options

· Equipped with a 1/4 Inch Screw Hole

· Includes: Athena S, Case, 4 Legs, Lantern Stand, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

INPUTS / OUTPUTS

IN THE BOX

LED COLOR

SKU: CLL-GL-790MS

144 x 144 x 181 mm

5.7 x 5.7 x 7.1 inch

492 g / 1.1 lbs

24 - 440 Lm

10,050 mAh / 36.18 Wh

10 - 75 hrs

7 hrs

USB-C 5V2A / USB-A 5V2A

Athena S, Case, 4x Legs, Light Stand, Charging Cable (USB Type-C)

3 LIGHT MODES

MOSS GREEN

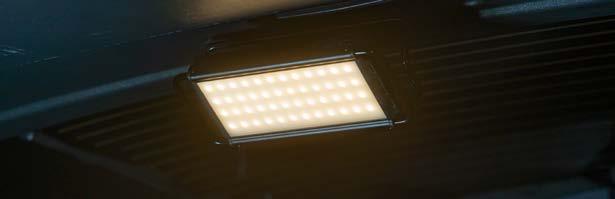

MEDAL

Camping Light

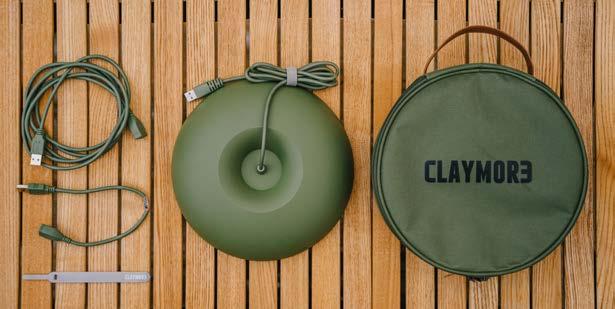

The MEDAL is designed to expand the lighting capabilities of the 3FACE PRO, enabling additional lighting placement in another spot. Utilizing an extensive extension cable, it allows for installation at any desired location and height. Once connected to the 3FACE PRO, the MEDAL can be controlled via a Bluetooth app, offering a range of modes and colors to set the perfect ambiance.

· Compatible with 3FACE PRO

· Bluetooth App Control

· 3 LED Color Temperatures with Breeze Mode

· No Built-In Battery

· Equipped with a 1/4 Inch Screw Hole

· Includes: Medal, Case, Fixing Ties, Extension Cables

SKU: CLME-GL-01KH

DIMENSIONS

WEIGHT

BRIGHTNESS

WATER RESISTANCE INPUTS IN THE BOX

LED COLOR SPECS

215 x 50 mm

8.5 x 2 inch

410 g / 0.9 lbs

170 - 2,400 Lm

IP54

USB-A 5V2A

Medal, Case, Fixing Ties, Extension Cables (Long/Short)

4 LIGHT MODES KHAKI

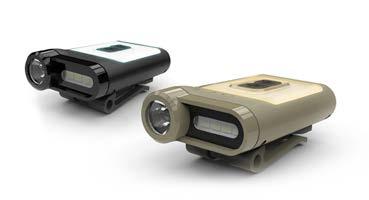

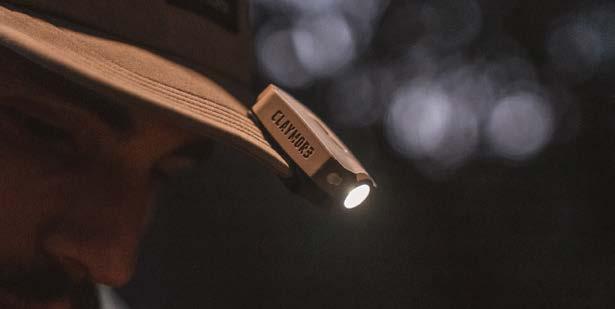

Rechargeable Wearable Light CAPON 40B

The CAPON 40B is the lightest and most compact model in the CapOn Series. With ample usage time, it offers the convenience of portability, making it ideal for various outdoor activities.

· USB Type-C Rechargeable

· Ultra-Compact / Light Weight

· 3 Light Modes

· Easy Clip-On / Hangable with Carabiner

· Angle Adjustable Up To 180°

· Includes: Capon, Pouch, Carabiner, Charging Cable

ADJUSTABLE UP TO 180°

IN THE BOX

400 mAh / 1.48 Wh

2 - 12 hrs

1.5 hrs

IP54

USB-C 5V1A

Capon, Pouch, Carabiner, Charging Cable (USB Type-C)

CAPON 65A+

Rechargeable Wearable Light

The CAPON 65A+ is ideal for various outdoor activities. Compared to the CAPON 40B, it offers a slightly extended operation time and larger battery capacity, ensuring more usage without compromising on portability.

· USB Type-C Rechargeable

· Ultra-Compact / Light Weight

· 3 Light Modes

· Easy Clip-On / Hangable with Carabiner

· Angle Adjustable Up To 180°

· Includes: Capon, Pouch, Carabiner, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

IN THE BOX

39 x 64 x 24 mm

1.5 x 2.5 x 0.9 inch

36 g / 0.08 lbs

1 - 230 Lm

650 mAh / 2.4 Wh

3 - 19 hrs

1.7 hrs

IP54

USB-C 5V1A

Capon, Pouch, Carabiner, Charging Cable (USB Type-C)

CAPON 80C

Rechargeable Wearable Light

The CAPON 80C, equipped with an On/Off motion sensor, facilitates easy operation even with gloves. Featuring 3 light modes, angle adjustability up to 180°, and versatile clip-on and hanging options, it’s a handy tool for dynamic environments.

· USB Type-C Rechargeable

· On/Off Motion Sensor

· 3 Light Modes

· Easy Clip-On / Hangable with Carabiner

· Angle Adjustable Up To 180°

· Includes: Capon, Pouch, Carabiner, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

IN THE BOX

51 x 50 x 30 mm

2 x 2 x 1.2 inch

43 g / 0.09 lbs

1 - 280 Lm

800 mAh / 2.96 Wh

3 - 60 hrs

1.3 hrs

IP54

USB-C 5V1A

Capon, Pouch, Carabiner, Charging Cable (USB Type-C)

CAPON 120D

Rechargeable Wearable Light

The CAPON 120D efficiently balances the trade-off between weight/ portability and performance/duration. Ideal for those seeking a lightweight design with lasting performance, it’s a versatile choice for various settings.

· USB Type-C Rechargeable

· On/Off Motion Sensor

· 3 Light Modes

· Easy Clip-On / Hangable with Carabiner

· Angle Adjustable Up To 180°

· Includes: Capon, Pouch, Carabiner, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

IN THE BOX

54 x 57 x 34 mm

2.1 x 2.2 x 1.3 inch

55 g / 0.12 lbs

1 - 380 Lm

1,200 mAh / 4.44 Wh

3 - 60 hrs

2 hrs

IP54

USB-C 5V1A

Capon, Pouch, Carabiner, Charging Cable (USB Type-C)

CAPON 120H

Rechargeable Wearable Light

The CAPON 120H, with its enhanced maximum brightness, is ideal for demanding settings requiring strong and reliable lighting. It’s perfectly suited for extreme outdoor activities, industrial work, and various tasks, offering robust and effective illumination.

· USB Type-C Rechargeable

· On/Off Motion Sensor

· 3 Light Modes

· Easy Clip-On / Hangable with Carabiner

· Angle Adjustable Up To 180°

· Includes: Capon, Pouch, Carabiner, Charging Cable

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME CHARGING TIME WATER RESISTANCE

THE BOX SPECS

2 hrs

IP54

USB-C 5V1A

Capon, Pouch, Carabiner, Charging Cable (USB Type-C)

CAPON 200H

Rechargeable Wearable Light

The CAPON 200H, designed for professional use, features a 2,000mAh battery, up to 1,000 lumens, and a durable polycarbonate body. Its wider and stronger clip ensures a secure fit, making it ideal for experts who need reliable, high-performance lighting in demanding conditions.

Ultimate Performance for Professionals

Industrial-grade Polycarbonate Housing

USB Type-C Rechargeable

On/Off, Dimmable Motion Sensor

3 Light Modes

Easy Clip-On / Hangable with Carabiner

Angle Adjustable Up To 180°

Includes: Capon, Pouch, Carabiner, Rubber Pad, Charging Cable

SPECS

4

IP54

USB-C 5V1A

Capon, Pouch, Carabiner, Rubber Pad, Charging Cable (USB Type-C)

CAPON 120D UV

Rechargeable Wearable Light

The CAPON 120D UV, ideal for night fishing, features UV lighting that effectively highlights glow-in-the-dark baits and lures. Including a Wrist Strap and Wearable Kit, it offers versatile attachment options for convenient and effective illumination in various activities.

· UV Light for Night Fishing

· USB Type-C Rechargeable

· On/Off, Dimmable Motion Sensor

· 3 Light Modes

· Easy Clip-On / Hangable with Carabiner

· Angle Adjustable Up To 180°

· Includes: Capon, Pouch, Carabiner, Wrist Strap, Wearable Kit, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

IN THE BOX

LED COLOR

54 x 57 x 34 mm 2.1 x 2.2 x 1.3 inch

56 g / 0.12 lbs

2 - 380 Lm

1,200 mAh / 4.44 Wh

2 - 45 hrs

2 hrs

IP54

USB-C 5V1A

Capon, Pouch, Carabiner, Wrist strap, Wearable Kit, Charging Cable (USB Type-C)

CAPON SERIES

Comparison Table

Capon, Pouch, Carabiner, Charging Cable (USB Type-C)

Capon, Pouch, Carabiner, Rubber pad, Charging Cable (USB Type-C)

Capon, Pouch, Carabiner, Wrist strap, Wearable Kit, Charging Cable (USB Type-C)

CLP-GL-135TN CLP-GL-135BK

CLP-GL-2000MG CLP-GL-2000BK

CLPUV-GL-120TN

IP54

IP54

IP54

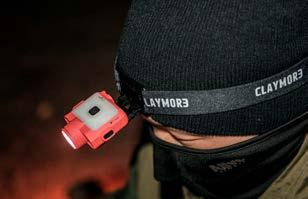

Rechargeable Wearable Light HEADY2

The HEADY2 is a powerful yet compact headlamp, ideal for casual outdoor activities. It offers three light modes, a clip, and a built-in hanger, making it adaptable to any environment.

· USB Type-C Rechargeable

· Compact and Light Weight

· 3 Light Modes with 2 LED Colors

· Various Mounting Options

· Angle Adjustable Up To 90°

· Includes: Heady, Pouch, Headband, Clip, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

IN THE BOX

ADJUSTABLE UP TO 90°

60 x 40 x 40 mm

2.4 x 1.6 x 1.6 inch

58 g / 0.13 lbs

5 - 350 Lm

1,200 mAh / 4.44 Wh

3.5 - 40 hrs

2 hrs

IP54

USB-C 5V1A

Heady, Pouch, Clip, Headband, Charging Cable (USB Type-C) LIGHT MODES

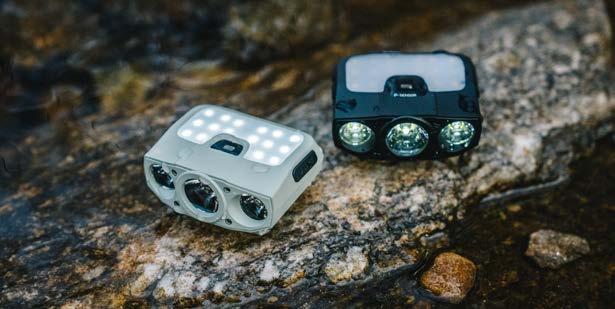

HEADY3

Rechargeable Wearable Light

The HEADY3 represents the culmination of the series’ best features, combining portability with high functionality. Integrating full benefits, including a motion sensor and red diffused light, it stands as a pinnacle in the HEADY series.

· USB Type-C Rechargeable

· On/Off, Dimmable Motion Sensor

· 6 Light Modes with 4 LED Colors

· Various Mounting Options

· Angle Adjustable Up To 90°

· Includes: Heady, Pouch, Headband, Clip, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS IN THE BOX

4 hrs

IP54

USB-C 5V1A

Heady, Pouch, Clip, Headband, Charging Cable (USB Type-C)

HEADY+

Rechargeable Wearable Light

The HEADY+ boasts a maximum brightness of 600 lumens and a generous 3,500 mAh battery, while remaining lightweight at just 104 g (3.6 oz). Its Turbo mode enables the light to reach up to 150 meters (164 yards), providing powerful and far-reaching illumination.

· USB Type-C Rechargeable

· 600 Lumens / 150 Meter distance in Max

· 6 Light Modes with 3 LED Colors

· Various Mounting Options

· Angle Adjustable Up To 90°

· Includes: Heady, Pouch, Headband, Clip, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

IN THE BOX

74 x 44 x 44 mm

2.9 x 1.7 x 1.7 inch

103 g / 0.23 lbs

35 - 600 Lm

3,500 mAh / 12.6 Wh

4 - 70 hrs

6 hrs

IP54

USB-C 5V1A

Heady, Pouch, Clip, Headband, Charging Cable (USB Type-C) LIGHT

HEADY+ R

Rechargeable Wearable Light

The HEADY+ R, featuring a red light in flood mode, is designed for specific use cases like preserving night vision or minimizing glare. It’s an ideal choice for astronomy, wildlife observation, or situations requiring less intrusive lighting.

· USB Type-C Rechargeable

· Red Light in Flood Mode

· 600 Lumens / 150 Meter distance in Max

· 5 Light Modes with 2 LED Colors

· Various Mounting Options

· Angle Adjustable Up To 90°

· Includes: Heady, Pouch, Headband, Clip, Charging Cable

SPECS

DIMENSIONS

WEIGHT

BRIGHTNESS

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

IN THE BOX

3,500

4 - 90 hrs

6 hrs

IP54

USB-C 5V1A

Heady, Pouch, Clip, Headband, Charging Cable (USB Type-C) LIGHT

HEADY SERIES

Comparison Table

LIGHT MODES

Focused Light

Cool Flood Light

Warm Flood Light

SOS strobe

Focused Light

Focused + Flood Light

Cool Flood Light

Natural Flood Light

Warm Flood Light

Diffused Light

SOS strobe

Focused Light (8°)

Focused Light (25°)

Turbo Light

Cool Flood Light

Natural Flood Light

Warm Flood Light

SOS strobe

Focused Light (8°)

Focused Light (25°)

Turbo Light

Cool Flood Light

Red Flood Light

SOS strobe

REMOVABLE SAFETY CAGE FOR EASY CLEANING

CEILING FAN MODE FOR MAXIMUM AIR CIRCULATION

TILT UP & DOWN 45°

VARIOUS MOUNTING OPTIONS

V600+

Rechargeable Portable Fan

The CLAYMORE V600+ is a versatile wireless air circulator fan. It features a large 7,800 mAh Li-ion battery for up to 32 hours of use per charge. With 4 wind speed levels and a detachable safety cage for easy cleaning, it ensures convenience and functionality. Enhanced for portability with an attached handle, it also offers flexible usage with a Tripod Stand and a 1/4 screw hole for various mounting options.

SAND BEIGE GRAY

· USB Type-C Rechargeable

· Wireless Fan / Air Circulator for All Seasons

· Removable Safety Cage for Easy Cleaning

· 4-Step Wind Speed / 1-4 Hrs Timer Setting

· Various Mounting Options

· Includes: V600+, Case, Tripod Stand, Charging Cable

SPECS

DIMENSIONS

WEIGHT

MAX AIRFLOW

SPEED SETTING

TIMER

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS

IN THE BOX

SKU: CLFN-GL-V610SB / CLFN-GL-V610WG

243 x 226 x 350 mm

9.6 x 8.9 x 13.8 inch

600 g / 1.32 lbs

5.8 m/s

4 steps

1 - 4 hrs

7,800 mAh / 28.08 Wh

7 - 32 hrs

6.5 hrs

IP64

USB-C 5V2A

V600+, Case, Tripod Stand, Charging Cable (USB Type-C)

4-STEP WIND SPEED / 1-4 HRS TIMER SETTING

V600+ V1040

CEILING FAN MODE FOR MAXIMUM AIR CIRCULATION

TILT UP & DOWN 60°

EXTENSION POLE COMPATIBLE

V1040

Rechargeable Portable Fan

The V1040, sharing its design with the V600+, comes with a bigger battery and advanced technology. It features a power bank function and a remote control with magnetic attachment. This fan/air circulator offers 4-step wind speed settings, a 1-4 hour timer, and various mounting options. It’s a powerful and versatile solution for air circulation, suitable for all seasons.

· USB Type-C Rechargeable

· Wireless Fan / Air Circulator for All Seasons

· Remote Control with Magnetic Hold

· Removable Safety Cage for Easy Cleaning

· 4-Step Wind Speed / 1-4 Hrs Timer Setting

· Various Mounting Options

· Includes: V1040, Case, Tripod Stand, Remote Control, Charging Cable

SPECS

DIMENSIONS

WEIGHT

MAX AIRFLOW

SPEED SETTING

TIMER

BATTERY / WATTAGE

RUNTIME

CHARGING TIME

WATER RESISTANCE

INPUTS / OUTPUTS IN THE BOX

SKU: CLFN-GL-V1040WG / CLFN-GL-V1040BK

282 x 252 x 410 mm

11.1 x 9.9 x 16.1 inch

910 g / 2.01 lbs

6.4 m/s

4 steps

1 - 4 hrs

10,400 mAh / 38.48 Wh

7 - 23 hrs

5.5 hrs

IP64

USB-C 5V2A / USB-A 5V1A

V1040, Case, Tripod Stand, Remote Control, Charging Cable (USB Type-C)

WARM GRAY BLACK

Table

CLFN-GL-V610SB

CLFN-GL-V1040WG

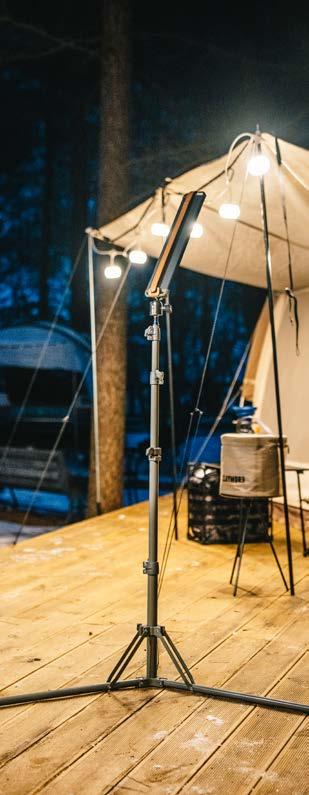

TRIPOD STAND

TRIPOD STAND+

· Foldable Tripod Stand

· Telescopic Height Adjustable (19” - 74”)

· 360° Ball Head with 1/4 inch Male Threads

· Lightweight Aluminium

· Includes Two-Way Hanger

LIGHT KHAKI

· Foldable Tripod Stand

· Telescopic Height Adjustable (19” - 78”)

· 360° Ball Head with 1/4 inch Male Threads

· Lightweight Aluminium

· Includes Two-Way Hanger

SPECS

DIMENSIONS

WEIGHT IN THE BOX

SKU: CLA-T05_LK / CLA-T05_BK

Min. 500 mm / 19.69 inch

Max. 1,900 mm / 74.80 inch

1,050 g / 2.31 lbs

Tripod Stand, Pouch , Ball Head, TwoWay Hanger

SPECS

DIMENSIONS

WEIGHT IN THE BOX

SKU: CLA-T01

Min. 500 mm / 19.69 inch

Max. 2,000 mm / 78.74 inch

1,230 g / 2.71 lbs

Tripod Stand, Pouch , Ball Head, TwoWay Hanger, Mount Adapter (1/4”screw)

MULTI PILE DRIVER

· Height Adjustable (Max. 49”)

· 2 Types of Mounting Options

· Table Clamp (Apply up to 25mm thick or less)

· Durable Ground Peg

· 360° Ball Head with 1/4 inch Male Threads

· Lightweight Aluminium

SPECS

DIMENSIONS

WEIGHT IN THE BOX

SKU: CLA-D01

Min. 300 mm / 11.81 inch

Max. 1,250 mm / 49.21 inch

450 g / 0.99 lbs

4x Pole, Pouch, Ball Head, Mount Adapter (1/4”screw), Table Clamp, Ground Peg

NEODYMIUM MAGNET

· Strong Neodymium Magnet with 1/4 Inch Male Threads

· Rubber Protection Surrounds the Threads

· 1.4 Inch Diameter

SKU: CLA-MG10

LIGHT STAND

SPECS

DIMENSIONS

WEIGHT

32 x 32 x 13.6 mm

1.26 x 1.26 x 0.54 inch

50 g / 0.12 lbs

Magnet

COPPER

BLACK

· Beautifully Designed Stand with 1/4 Inch Male Threads

· Compatible with 1/4 Inch Screw Hole Products

· Lightweight Aluminium with Stable Base

SPECS

DIMENSIONS WEIGHT

SKU: CLA-S01_CP / CLA-S01_BK

110 x 156 mm 4.33 x 6.14 inch

148 g / 0.33 lbs

Light Stand

WEARABLE KIT

· Additional Way to Wear/Mount the CAPON Series

· Headband with Mounting Bracket

· Allows Compatibility of the Clip for HEADY Series

· Compatible with 40B, 65A+, 80C, 120D, and 120H

MULTI CONTROLLER

· Compatible with 3FACE PRO WING, CADENA UF5, and MEDAL

· Controls without Bluetooth Connection

· Power Via 3FACE PRO or External Power Bank

· On/Off, Dimming, and Mode Setting

SPECS

DIMENSIONS

WEIGHT

IN THE BOX

56.5 x 34 x 47 mm

2.22 x 1.34 x 1.85 inch

9.5 g / 0.02 lbs

Bracket, Headband, Clip

SKU: CLA-WK01

SPECS

DIMENSIONS

WEIGHT

INPUTS

IN THE BOX

SKU: CLA-MC01

313 x 25 x 15.7 mm

12.32 x 0.98 x 0.62 inch

35 g / 0.08 lbs

USB-A

Multi Controller

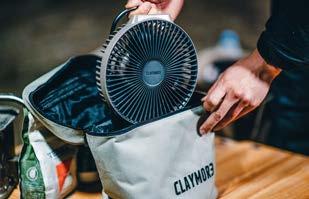

V600 CASE

· Carrying Case for V600+

· Generous Size for Storing Additional Items

· Mesh Pocket Inside for Small Accessories

V1040 CASE

· Carrying Case for V1040

· Generous Size for Storing Additional Items

· Mesh Pocket Inside for Small Accessories

SPECS

DIMENSIONS

WEIGHT IN THE BOX

210 x 160 x 235 mm

8.27 x 6.30 x 9.25 inch

168 g / 0.37 lbs Case

SKU: CLA-P01

SPECS

DIMENSIONS

WEIGHT IN THE BOX

SKU: CLA-P03

230 x 160 x 280 mm

9.06 x 6.30 x 11.02 inch

220 g / 0.49 lbs Case

V1040 EXTENSION POLE

· Tripod Leg Extension for V1040

· Doubles the Height and customizes the Airflow

WARM GRAY

BLACK

SPECS

DIMENSIONS

WEIGHT IN THE BOX

SKU: CLA-X01_WG / CLA-X01_BK

328 x 11 mm

13.31 x 0.43 inch

144 g / 0.32 lbs

3x Extension Pole, Pouch,

3x Rubber Feet

SELENE CASE

· Hard Shell Case

· Compatible with SELENE

SPECS

DIMENSIONS

WEIGHT IN THE BOX

190 x 175 x 265 mm

7.48 x 6.89 x 10.43 inch

518 g / 1.14 lbs

Hard Shell Case

SKU: CLA-P05

CABIN CASE

· Hard Shell Case

· Compatible with CABIN

SPECS

DIMENSIONS

WEIGHT IN THE BOX

SKU: CLA-P04

165 x 145 x 260 mm

6.50 x 5.71 x 10.24 inch

336 g / 0.74 lbs

Hard Shell Case

CLAYMORE USA

2552 Walnut Ave. Suite 145, Tustin, CA 92780, USA

info@claymoreoutdoor.com

www.claymoreoutdoor.com

R&D CENTER

Prism Co., Ltd

20, Magokjungang 8-ro 1-gil, Gangseo-gu, Seoul 07795, Republic of Korea

MANUFACTURING

Prism Co.,Ltd 221, Pyeongcheon-ro, Bupyeong-gu, Incheon 21314, Republic of Korea
