p o r t f o l i o 2 0 2 3

PORTFOLIO

TABLE OF CONTENTS

COSMIC COURTS

PARK AND RIDE AVENUE

GRAND ROUNDS

(dis)CONNECT

MODEL PROCESS

CHANGING TIDES

CONSTRUCTION DRAWINGS

WANDERING WILLOWS

REVIT

COSMIC COURTS SAC, CA

THE HISTORIC SACRAMENTO RAILYARDS IS A SPECTACULAR SITE WITH A STRONG NARRATIVE THAT ALLOWS US A GLIMPSE INTO THE PAST.

THIS DESIGN SEEKS TO ECHO ELMENTS THAT ARE REMENISCENT OF THE SITE’S PREVIOUS USES. ADJACENTLY, A MIYAWAKI FOREST JUMPSTARTS SOME MUCH NEEDED BIOREMEDIATION. THE TWO CIRCLES REPRESENT THE TWO AUDIENCES FOR WHICH THE DESIGN PERFORMS : PEOPLE + ECOSYSTEM

COSMIC COURTS

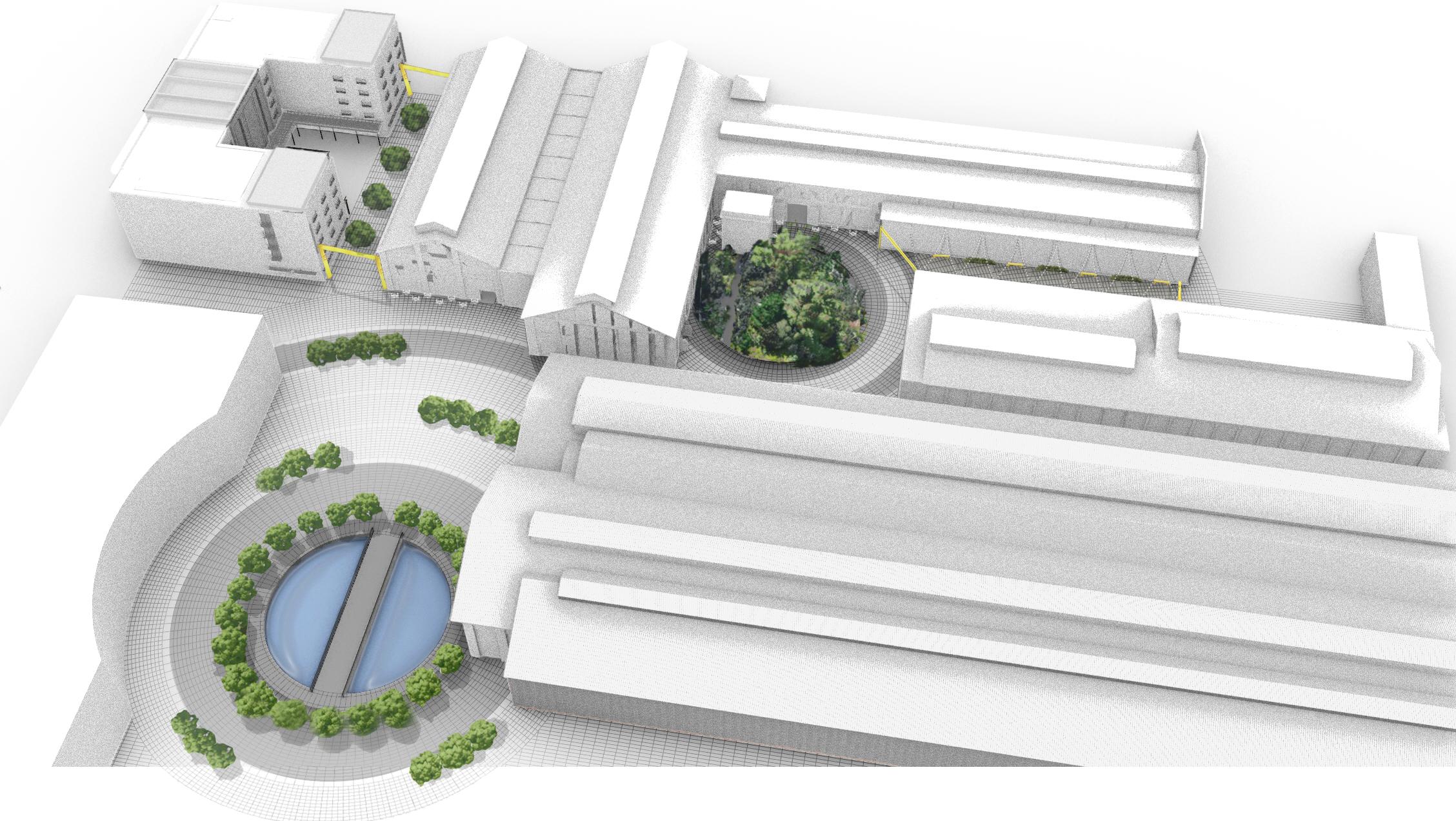

A HISTORIC TURNTABLE REMAINS LEAVING A 7’ DEEP CIRCULAR FOOTPRINT. THIS IS TO BE CONVERTED TO A WATER FEATURE THAT CASCADES ALL ALONG THE CIRCUMFERENCE.

INSERTION

PERMEABILITY TRANSITION

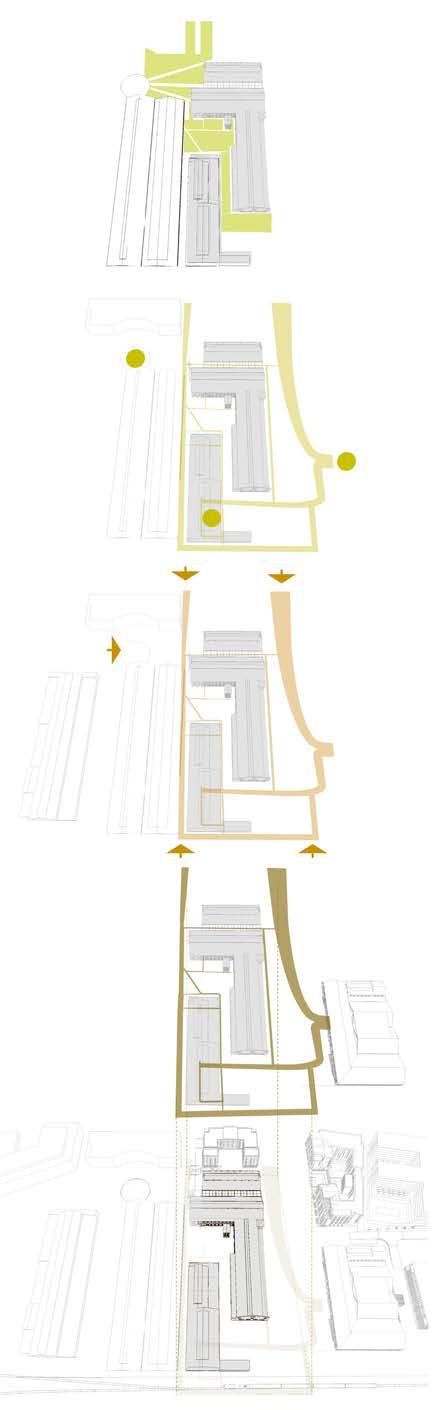

SPACE STUDIES WERE CONDUCTD IN ORDER TO DEPICT A NATURAL MOVEMENT OF PEOPLE THROUGH THE SITE

ATTRACTOR POINTS

A SET OF PLAZAS PROVIDES SITE USERS A SPACE TO EXPLORE AT BREAK TIME, OR PERHAPS AFTER GRABBING A BITE AT THE FOOD HALL.

BY INCORPORATING A MIYAWAKI FOREST ON SITE, A THRIVING AND BIODIVERSE PLANT COMMUNITY CAN THRIVE ON WHAT IS CURRENTLY CONSIDERED A BROWNFIELD SITE.

ENTRANCES

THE PLANTINGS FOLLOW TWO CONTRASTING

STYLES :

UNIFORMITY + ORGANICS. THESE AESTHETICS PAY HOMAGE TO THE PEOPLE WHO INHABIT THE SPACE AND THE NATURAL ECOSYSTEM IN WHICH THE SITE SITS.

CIRCULATION

COSMIC COURTS

TWO INTERSECTING PATHS CUT THROUGH THE DENSE MIYAWAKI FOREST. A ‘SECRET’ ENTRANCE LEADS TO THE HISTORIC PRIVY THAT HAS BEEN REPURPOSED AS A QUIRKY SPEAKEASY THEMED BAR.

yoga studio retail coffee shop

ARCHITECTURAL PROGRAMMING IS PREDICTED TO HELP IMAGINE AND SHAPE THE LANDSCAPE TO BEST FIT PROPOSED FUTURE SITE USES.

H- SERIES PERMEABLE CONCRETE PRECAST DARK NATURAL GRANITE

YELLOW JIB STRUCTURES ARE REMINISCENT OF THE HISTORIC RAILYARDS AND ACT AS PLACEMAKERS TO GUIDE THROUGH THE SITE. CUSTOM YELLOW BENCHES ALLOW AESTHETIC CONTINUITY AND PROVIDE COMFORT FOR THOSE VISITING THE SITE.

TEXTURE AND COLOR CHANGES ACCENTUATE AESTHETIC PAVED RINGS THAT ORBIT ABOUT THE TURNTABLE FOUNTAIN AND THE MIYAWAKI FOREST. THESE RINGS SERVE AS GUIDES THAT LEAD VISITORS TO THE TWO MIRRORED ATTRACTIONS FROM THROUGHT THE ENTIRE SITE.

COSMIC COURTS

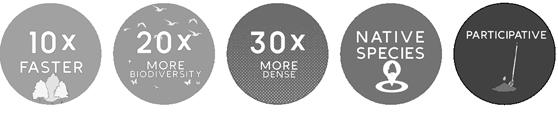

THE PLANTS CHOSEN FOR THE MIYAWAKI FOREST ARE NATIVE AND FAST-GROWING. BY GROWING SO DENSELY, THE FOREST MATURES 10X FASTER AND CREATES 20X MORE BIODIVERSITY. THIS METHOD PROVES EFFECTIVE EVEN ON BROWNFIELD SITES.

PARK + RIDE AV ENUE MPLS, MN

A PEDESTRIAN AND CYCLIST WALKWAY IS PROPOSED TO IMPROVE WAYFINDING TO NEARBY POINTS OF INTEREST. AN EXISTING BIKE-WAY MERGES WITH THE CORRIDOR, ALLOWING FOR A SEAMLESS TRANSITION.

BIOSWALES LINE EACH SIDE OF THE PEDESTRIAN-WAY, ABSORBING RAINWATER AND REMOVING CONTAMINANTS.

VACANT PARKING LOTS MAY BE REPURPOSED INTO RECREATIONAL GREEN SPACE. INTRODUCED GREENSCAPE HAS PHYTOREMEDIAL PROPERTIES WHILE ITS AESTHETICS IMPROVE NAVIGATION TO POINTS OF INTEREST THROUGH PLACEMAKING

DROP-OFF AREAS FOR AVS HAVE BEEN DETERMINED IN REFERENCE TO EXISTING MOVEMENT INFLUENCED BY THE METRO RAIL LINE AND STADIUM ENTRANCES.

A TEN-MINUTE WAITING TIME IS MONITORED TO ENCOURAGE CIRCULATION. AVES THAT ARE STILL WAITING ON A PASSENGER CAN SIMPLY LOOP BACK TO WAIT ONCE AGAIN.

PARK + RIDE AV ENUE

PARK + RIDE AV ENUE

PLANTINGS ALONG THE EASTERN CORRIDOR EDGE PRESENT A VIKING’S FOOTBALL-INFLUENCED COLOR SCHEME, GIVEN THE CLOSE PROXIMITY TO THE U.S. BANK STADIUM.

THESE PLANTS FORM AN ELONGATED RAIN GARDEN TO ASSIST WITH STORMWATER MANAGEMENT.

PARK + RIDE AV ENUE

A SMALL RESTING SPACE SITS ADJACENT TO THE NORTHWEST EDGE OF THE SOUTH PEDESTRIAN CORRIDOR. PLANTINGS WITH PHYTOREMEDIAL PROPERTIES ARE SELECTED TO ABSORB CONTAMINANTS.

A HIERARCHY OF PLANT HEIGHTS CREATE AREAS THAT FEEL PRIVATE, WITHOUT BEING TOO ISOLATED.

THE CLOSEST PARK TO THE HIGHLIGHTED SITE IS FATHER HENNEPIN BLUFF

PARK, ONLY .25 MILES AWAY. WITHIN 5 MILES FROM THE SITE, ONE CAN

TRAVEL TO MOST OF THE PARKWAY. 2 AND 5 MILES ARE RELATIVELY

WALKABLE, MAKING HOLMES PARK A MAGNET LOCATION FOR BIKERS AND PEDESTRIANS TRAVELING ALONG THE PARKWAY.

GRAND ROUNDS MPLS, MN

WALKABILITY BUFFER

USING ARCGIS I CREATED A CONTEXT MAP SHOWING HOLMES PARK, IN MINNEAPOLIS, MN, AND IT’S PROXIMITY TO THE GRAND ROUNDS PARKWAY. THE CLOSEST PARK TO THE HIGHLIGHTED SITE IS FATHER HENNEPIN BLUFF PARK, ONLY .25 MILES AWAY. WITHIN 5 MILES FROM THE SITE, ONE CAN TRAVEL TO MOST OF THE PARKWAY. 2 AND 5 MILES ARE RELATIVELY WALKABLE, MAKING HOLMES PARK A MAGNET LOCATION FOR BIKERS AND PEDESTRIANS TRAVELING ALONG THE PARKWAY.

(dis) CONNECT MPLS, MN

WALKWAY LEADS TO CROSSWALK AND THE UNIVERSITY AGRICULTURAL FIELDS

EXISTING SIDEWALK LEADS TO BRIDGE

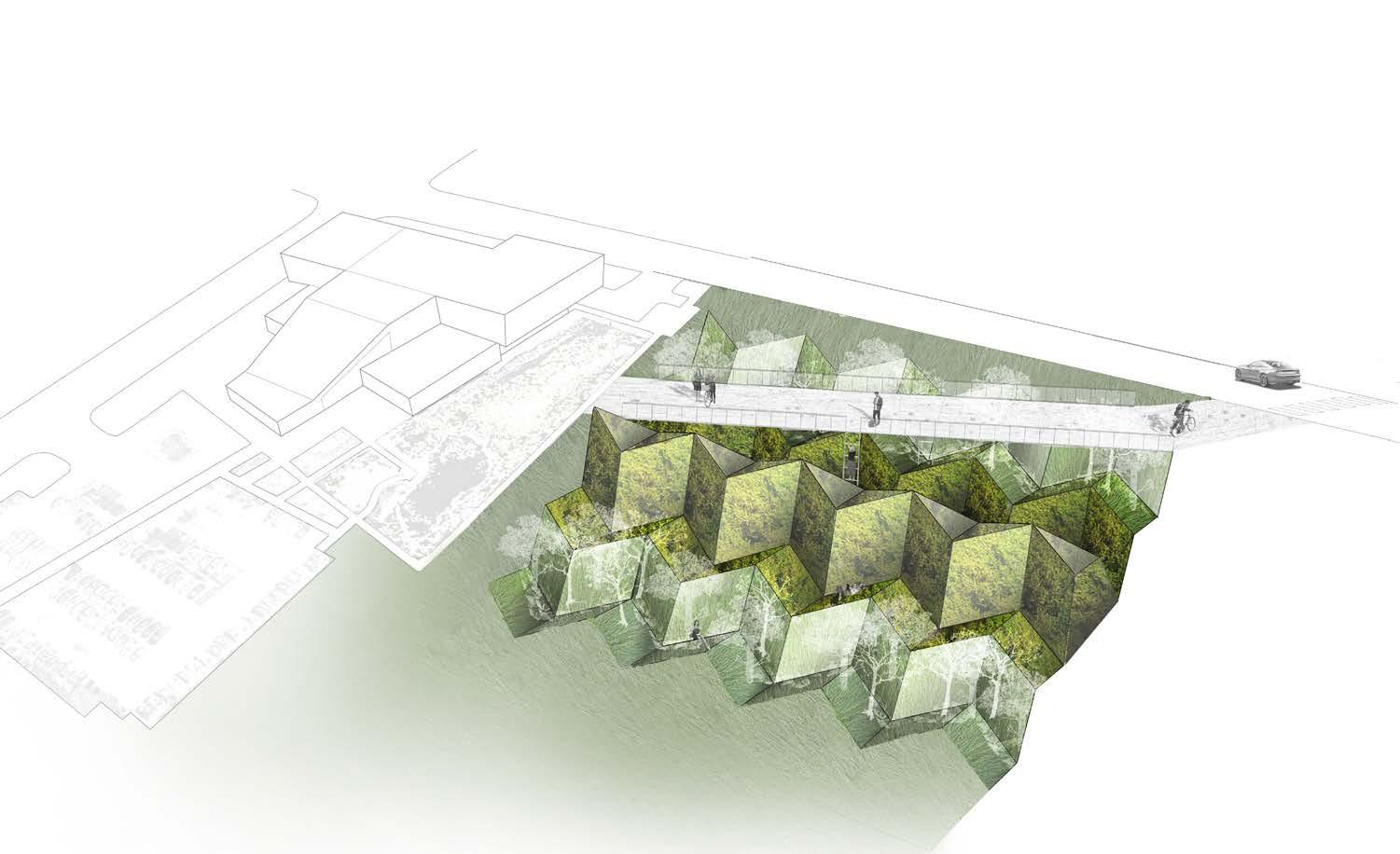

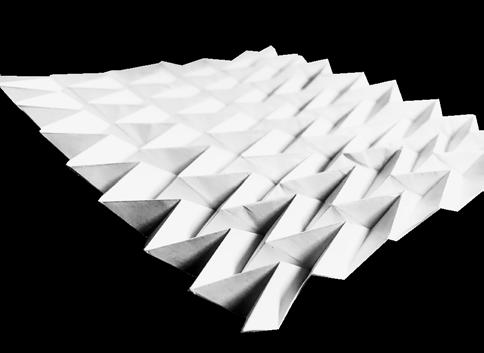

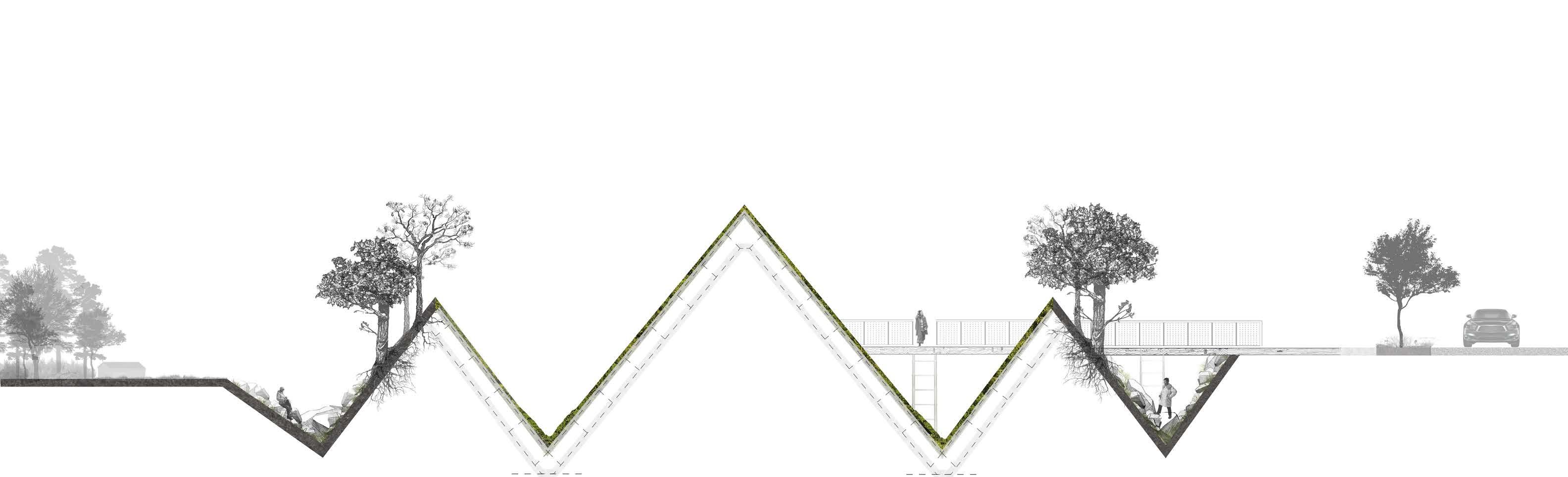

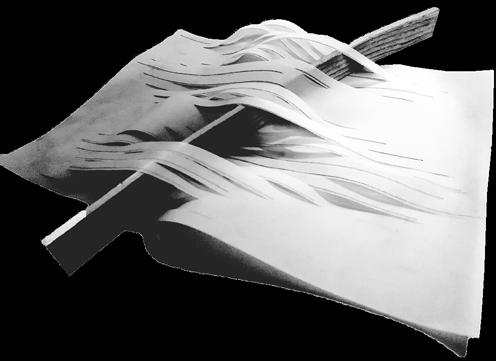

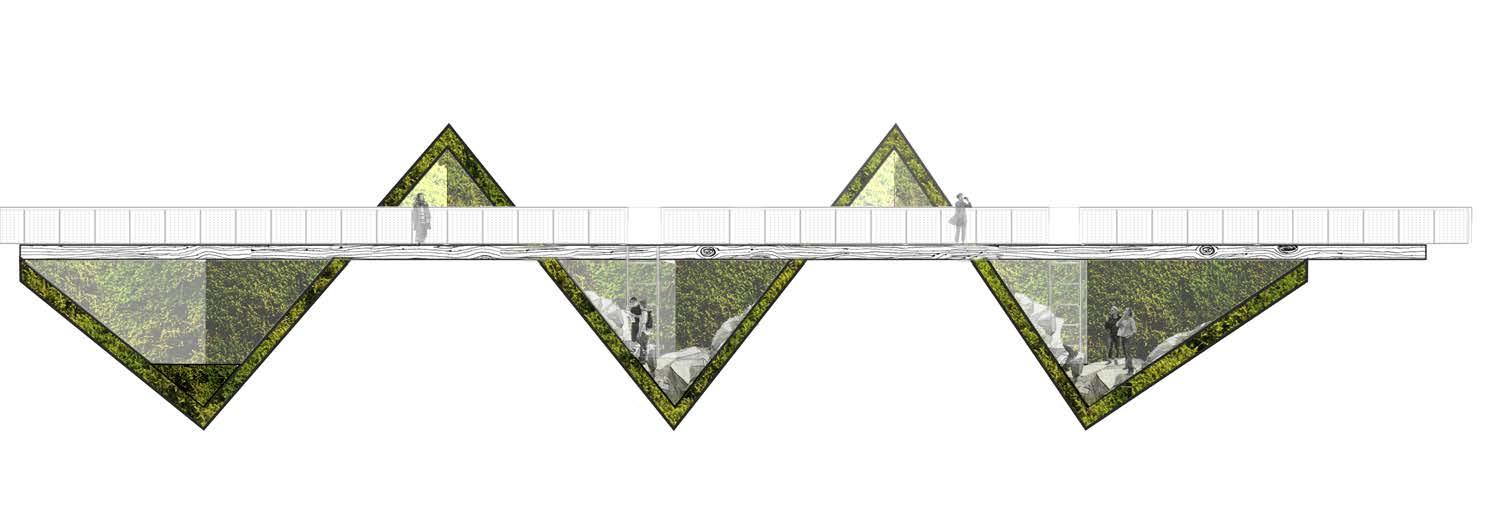

I NSPIRED BY THE PATTERNS OF 2 WORKING MODELS, EARTHWORKS ARE FASHIONED TO CREATE SYNTHETIC AND DRAMATIZED PEAKS AND VALLEYS, CUT THROUGH BY AN ELEVATED WALKWAY

TESSELATIONS CREATE COMPARTMENTS OR ‘ROOMS’ WITHIN LANDSCAPE.

FOUR ‘ZIG-ZAG’ CORRIDORS, COMPILED OF A SERIES OF THESE ROOMS STRETCH ACROSS THE SITE, LEADING FROM THE MUSEUM TO AN EXISTING TRAIL SOUTH OF THE SITE

(dis)CONNECT

A TREE GARDEN IS A PLACE TO CONNECT + DISCONNECT. TRAVEL ALONG THE ELEVATED PATH TO CONNECT TO YOUR NEXT DESTINATION OR CHOOSE TO DISCONNECT AND GET LOST IN UNIQUE GEOMETRIC LANDFORMS AND THE INTERACTIVE COMPARTMENTS THEY CREATE.

A LINEAR PATH DIRECTS VISITORS UP AND OVER THE BUSY TERRAIN TO PROVIDE DIRECT CONNECTION TO THE CROSS WALK AND UNIVERSITY OF MINNESOTA AGRICULTURAL FIELDS

THE RAILING ALONG THE BRIDGE MATCHES THOSE EXISTING ON THE BELL MUSEUM BALCONY

(dis)CONNECT

CONDITIONS AND PROGRAMMING ALTERNATE WITH SEASONAL CHANGE. PROPOSED LANDSCAPES SUCCESSFULLY FILTER RAIN WATER IN SPRING WHILE UNIQUE SLOPES ENCOURAGE SLEDDING DURING THE COLDER SEASONS

REBAR AND CONCRETE FOOTINGS ARE UTILIZED TO ENSURE PROPER AND SECURE INSTALLATION OF THE BIOLOGICAL CONCRETE

1st layer - structural with waterproofing element to prevent water damage

1ST LAYER - STRUCTURAL WITH WATERPROOFING ELEMENT TO PREVENT DAMAGE

2nd layer - organic material; supports moss coloniza�on while allowing water infiltra�on

2ND LAYER - ORGANIC MATERIAL; SUPPORTS MOSS COLONIZATION WHILE ALLOWING WATER INFILTRATION

3RD LAYER - RETAINS WATER TO MAINTAIN DESIRED MOISTURE LEVEL IN MIDDLE LAYER

3rd layer - retains water to maintain desired moisture level in middle layer

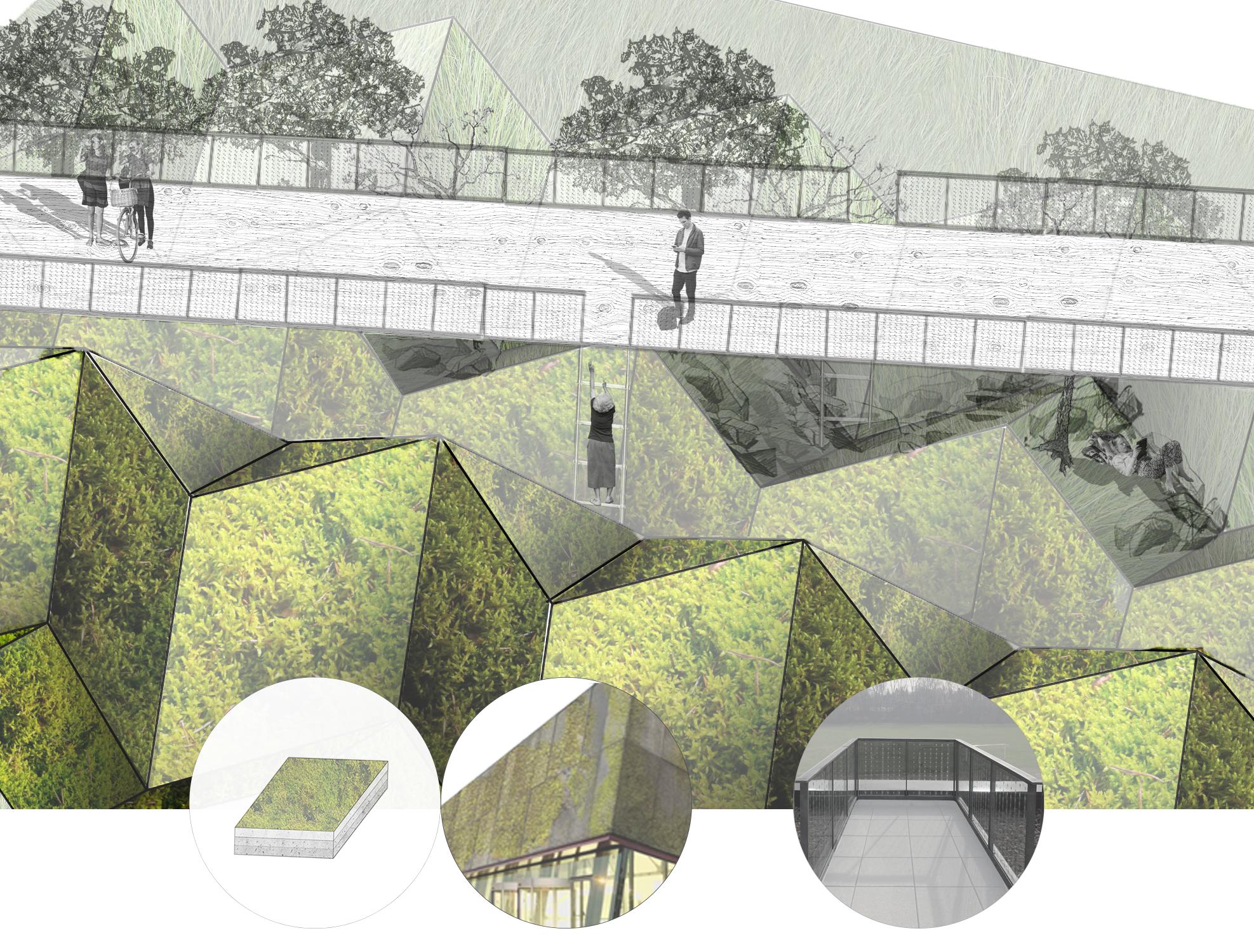

‘BIOLOGICAL CONCRETE’ IS UTILIZED ALONG THE CENTER OF THE SITE. THESE STRUCTURAL FACADES ASSIST IN RETENTION OF THE STEEP GRADES WHILE PROMOTING MOSS GROWTH

(dis)CONNECT

SEASONAL FLOOD LEVELS FLUCTUATE RESULTING IN EVER-CHANGING CONDITIONS. TOLERANT SWAMP WHITE OAK, BLACK LOCUST, AND MOSS HELP ABSORB AND DETOXIFY STORMWATER AND RUNOFF

THE PROPOSED ROCK CONDITIONS HELP TO PRESERVE AREAS WITH STEEP GRADE AND CREATE MORE RUSTIC EXPERIENCE

MODEL PROCESS

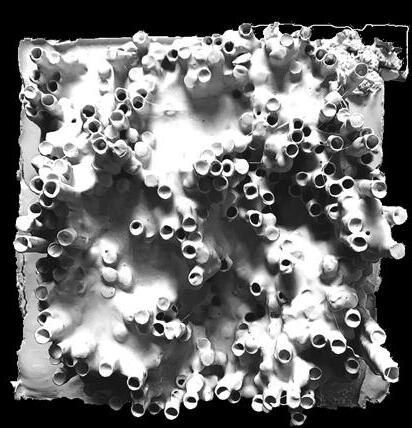

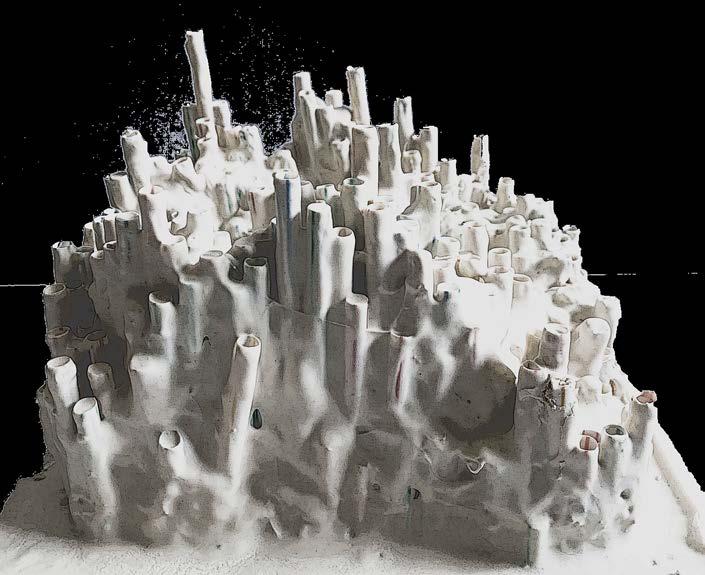

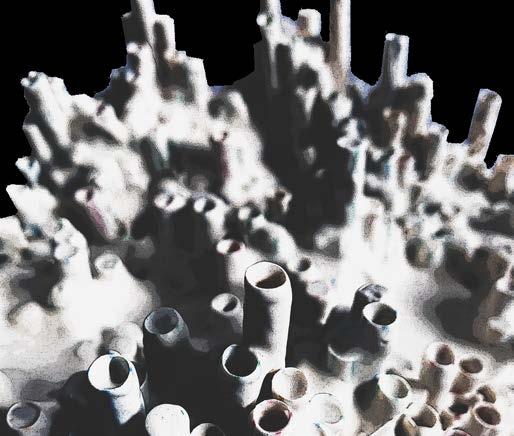

USING PLASTER, PLASTIC STRAWS AND HOT GLUE, A MODEL WAS CREATE TO SYMBOLIZE DIFFERING SCALES OF VERTICALITY.

A CONTRAST TO THE VERTICAL ELEMENTS, VOIDS ARE SEEN IN AREAS WITH LOW ELEVATION, CREATING POCKET NICHES WITHIN A COMPLEX LANDSCAPE.

MODEL PROCESS

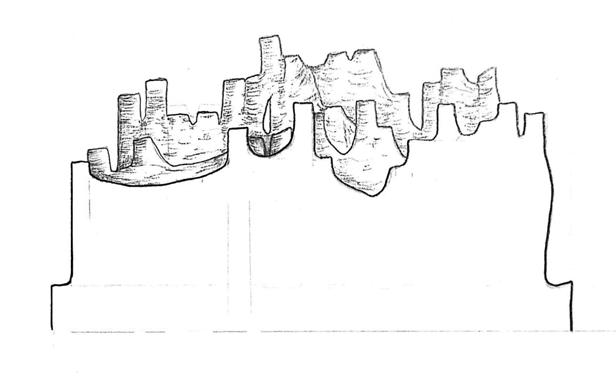

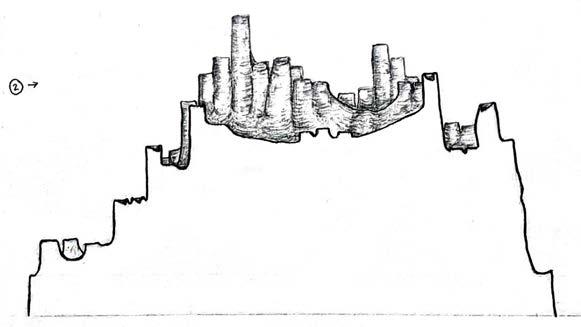

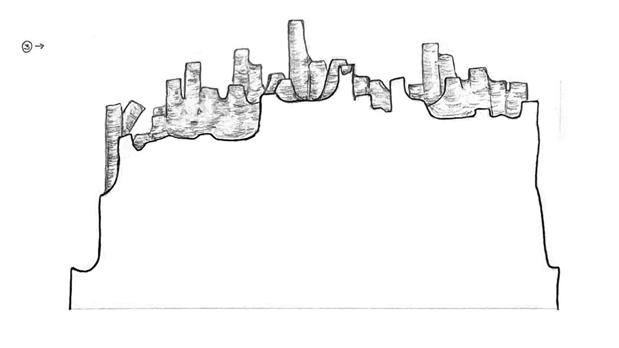

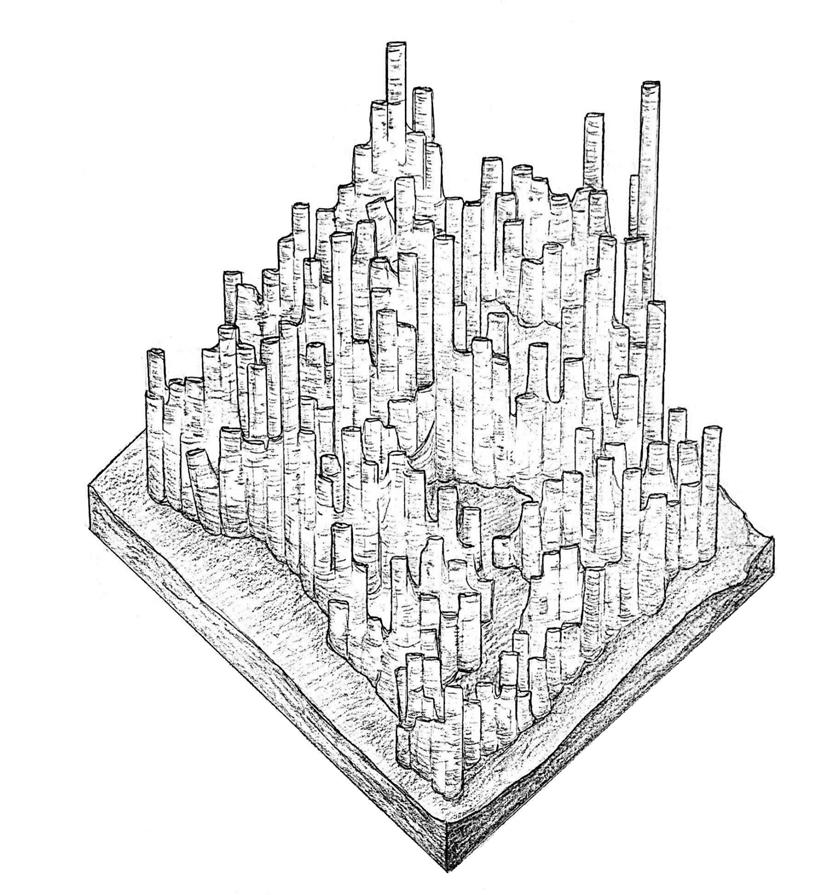

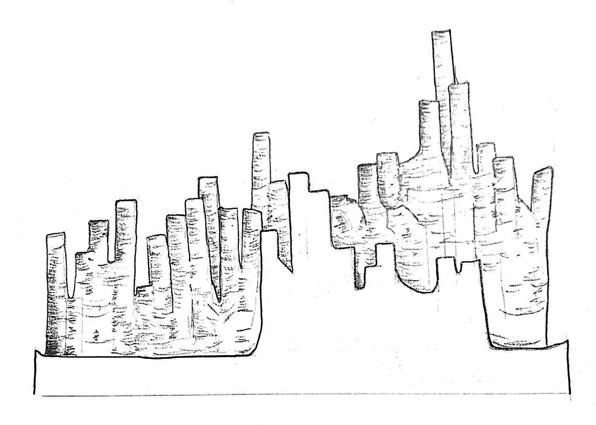

STUDYING THE MODEL, A SERIES OF DRAWINGS WERE CONDUCTED. SECTION DRAWINGS ALLOWED FOR A BETTER UNDERSTANDING OF MASSING ACROSS DIFFERING TRANSECTS.

MODEL PROCESS

TAKING PHOTOGRAPHY OF THE MODEL, COLLAGES WERE ILLUSTRATED, REIMAGINING THE SPACE AS A UNIQUE LANDSCAPE OF TREMENDOUS SCALE.

AS PART OF AN UNEXPECTED SCIENCE EXPERIMENT, PARTS OF THE PLASTER BEGAN TO GROW MOLD.

MOLD PHOTOS WERE UTLIZED TO ADD A BIT OF COLOR AND CREATE AN AMBIENT SKYLINE.

CHANGING TIDES

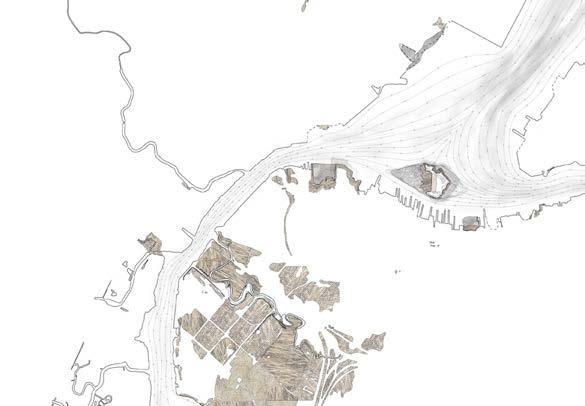

SHOOTERS ISLAND NJ

SHOOTERS ISLAND, NEWARK BAY, NY

DESIGN PROPOSAL FOR ISLAND OFF OF NEWARK BAY, NJ

EXISTING MICROHABITATS

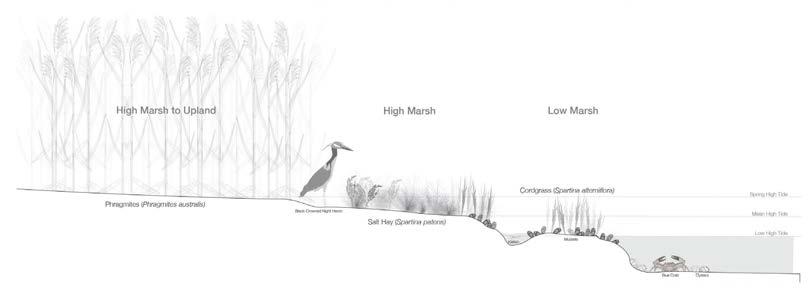

THE TIDAL INTERFACE SHIFTS

THROUGH SEDIMENTATION

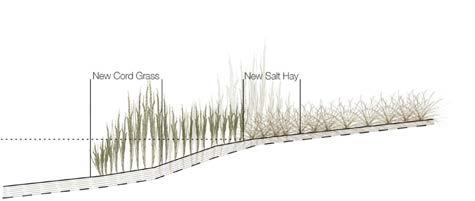

A PROPOSED CUT INTO SITE WILL MAXIMIZE CORDGRASS GROWTH AND MINIMIZE PHRAGMITES

DENSE CORDGRASS ROOTS COMBAT EROSION AND PROMOTE LAND GROWTH WITH SEDIMENTATION

DESPITE SEA LEVEL RISE

CONSTRUCTION DRAWINGS

4th + 4th Apartments

4TH & 4TH APARTMENTS

timber inlays

pre-cast conc

A BENCH UNIT FOUND IN THE COURTYARD AT 4TH & 4TH APARTMENTS, IN THE NORTH LOOP. CUSTOM CONCRETE UNITS, ACCOMPANIED BY AN ACCENT OF TIMBER LOGS CREATE AN URBAN MODERN DESIGN WITH A HINT OF WILDERNESS.

granite pavers

1” granite sand class v aggregate

BLOOMINGTON STATION

BLOOMINGTON STATION

paver brick

kentucky bluegrass

steel edging

galvanized steel bolt

6” class v aggregate

compacted subgrade

A STEEL EDGING UNIT AT BLOOMINGTON METRO STATION. DRAWING TAKEN FROM A PEDESTRIAN WALKWAY.

WANDERING WILLOWS

BIRD SANCTUARY

USING WILLOW TREES AND POLLARDING, LIVING STRUCTURES ARE GROWN TO FORM DISTINCT ‘FORK’ SHAPES. THESE PORES CREATE OPTIMAL NICHES FOR NESTING WILLOW FLYCATCHERS, A FEDERALLY ENDANGERED BIRD SPECIES.

RANCHES CUT AT AN ANGLE TO PROMOTE HEALING

INOSCLUATION ENCOURAGED BY TYING TREE LIMBS TOGETHER. PERFORATED WOODEN CUBES CREATE RIGID FORMS FOR BRANCHES TO GENTLY GROW AROUND WITHOUT CAUSING ANY DAMAGE.

LEFTOVER TRIMMINGS FROM THE POLLARDING PROCESS ARE UTILIZED TO CONSTRUCT A LIVING FENCE. THIS FENCE WILL GROW SIMULTANEOUSLY, 20 FEET AWAY FROM THE NESTING STRUCTURE AND WILL ACT AS A SCREEN BY VISUALLY SEPARATING PEOPLE FROM NESTING BIRDS. THIS DELINEATION ENSURES TYPICAL NESTING CONDITIONS IN SPITE OF BIRD-WATCHERS AND OTHER DISTURBANCES.

IN ACCORDANCE TO PARAMETERS, THIS ONE-STORY LIBRARY INCLUDES A RECEPTIONIST DESK, A DIRECTOR’S OFFICE, ADA-APPROVED RESTROOMS, A RENTABLE STUDY/EVENT SPACE, AND AN OUTDOOR PATIO. ADDITIONALLY, A CAFE WITH SEATING IS PROVIDED.

NORTH AND SOUTH PROFILES PRESENT THE PATIO AND FRONT ENTRANCE CONDITIONS, RESPECTIVELY.

SKYLIGHTS MIRROR THE VERTICAL WINDOWS, AND CREATE AN ABUNDANCE OF NATURAL LIGHT FOR READERS.

INTERIOR SPACES ARE DESIGNED TO BE TALL AND OPEN, TO ALLOW SPACE FOR CREATIVE THINKERS.

2 Interior View-1

Interior 3 Interior View-3

Interior

A MEZZANINE LEADS UPSTAIRS TO AN OPEN PATIO SPACE WHERE PLANES CAN BE OBSERVED AS THEY TAKE OFF AND LAND.

PROFILES SHOW MATERIALITY AND SCALE.

THANK YOU
