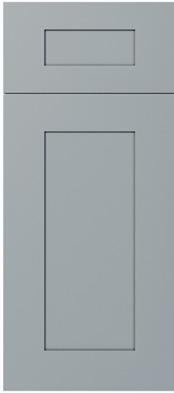

Shaker

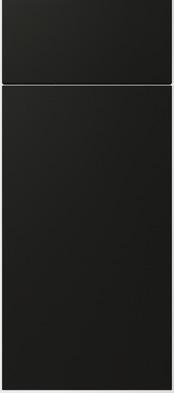

Frameless
Shaker
Frameless
Frameless

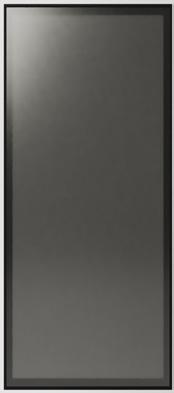

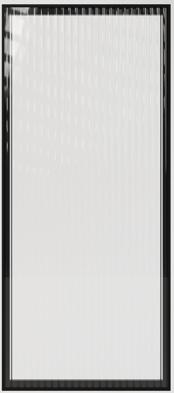

Glass

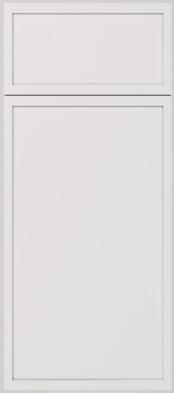

Slim Shaker
Frameless
Frameless
Slim Shaker

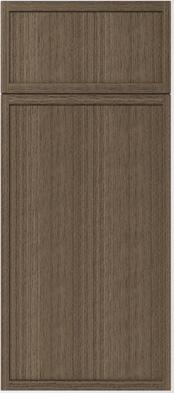

Slim Amber Oak SAO

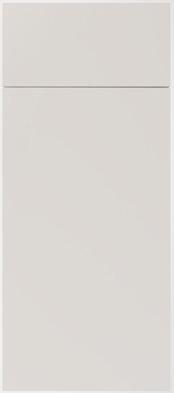

Frameless Matt Ivory
Shaker White
Shaker
Shaker Gray
Shaker

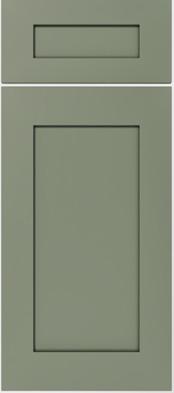

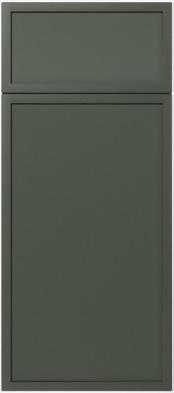

Green
Shaker
Shaker
CLASSIC LINE
Shaker
Collection

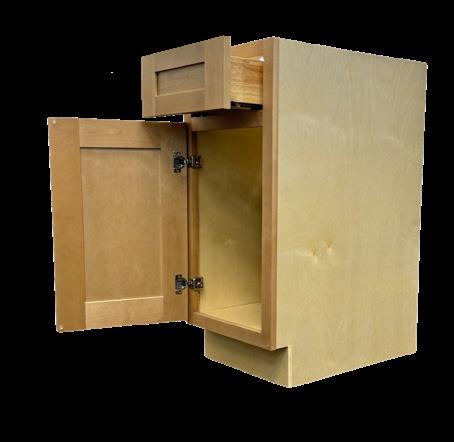

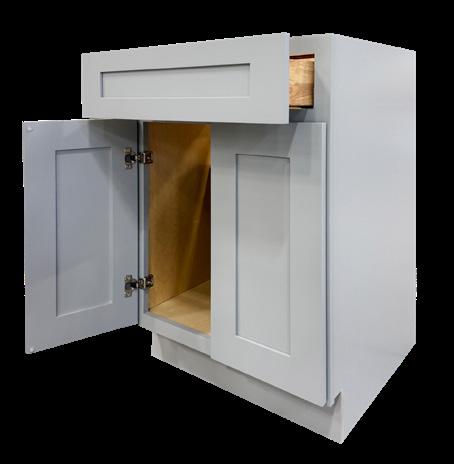

Classic Line Cabinet Construction
A Door & Drawer Front: Full overlay, 5-piece door & drawer, solid wood with MDF center panel.
B Face Frame: 3/4” solid wood frame.
C Cabinet Box: 1/2” cabinet grade plywood box.
D Drawer Box: Solid wood, dovetail construction, 2 1/2 depth or 3” depending on style.
E Drawer Glides: Concealed under mount full extension glides with soft-close feature.
F Hinges: 6-way adjustable with soft-close feature.
G Exterior Finish: Matching color exterior.
H Interior Finish: Clear UV coated natural plywood.
I Shelves: 3/4” thick plywood with front edge banding.
J Accessories: Door bumper, metal shelf pin, metal clips, L bracket for base cabinet.
K Package Type: One box per cabinet (Charcoal is 2 packages per cabinet)
L Certifications: CARB2, NGBS Green, KCMA.
Dovetail Drawer Box Under mount Glides
3/4” Thick Shelves
Plywood Cabinet Box
UNLIMITED LINE
Shaker Collection
Shaker Collection
Double Shaker Collection
Unlimited Line Cabinet Construction
A Door & Drawer Front: Full overlay, 5-piece door & drawer, solid wood with MDF center panel.
D Drawer Box: Solid wood, dovetail construction, 3” depth.
E Drawer Glides: Concealed under mount full extension glides with soft-close feature.
F Hinges: 6-way adjustable with soft-close feature.
H Interior Finish: Clear UV coated natural plywood.
I Shelves: 3/4” thick plywood with front edge banding.
J Accessories: Door bumper, metal shelf pin, metal clips, L bracket for base cabinet.
K Package Type: 2 packages per cabinet, Universal Box and Front Set.
L Certifications: CARB2, NGBS Green, KCMA.
B Face Frame: 3/4” solid wood frame.
C Cabinet Box: 1/2” cabinet grade plywood box.
G Exterior Finish: Matching color exterior.
Dovetail Drawer Box Under mount Glides
Clear UV Coated Interior
Plywood Cabinet Box
Need to order Finished Skin Panel for exposed sides
FRAMELESS LINE
Frameless Line Cabinet Construction

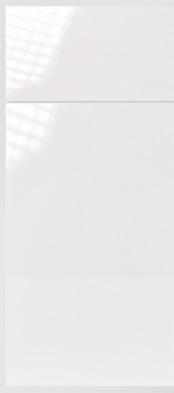

A Door & Drawer Front: Full Front overlay PET high glossy slab door style.
B Face Frame: No frame, frameless style.
C Cabinet Box: 3/4” thick plywood box with white melamine finish.
D Drawer Box: 3/4” thick plywood box with white melamine finish.
E Drawer Glides: Concealed under mount full extension glides with soft-close feature.
F Hinges: 6-way adjustable with soft-close feature. G Exterior
I Shelves: 3/4” plywood with white melamine finish and front edge banding.
J Accessories: Door bumper, metal shelf pin, wooden dowels, and cam lock screws.
K Package Type: 2 packages per cabinet, Box Set and Front Set.
L Certifications: CARB2, NGBS Green, KCMA.
Finish: White melamine.
H Interior Finish: White melamine.
