Civlease Catalogue 2025 by Civlease

Catalogue Civlease 2025

We Make Plant Hire Easy!

Civlease is a leading plant hire solutions provider for civil construction projects across Australia. With years of experience in the civil construction industry, our team understands the critical role of reliable plant and equipment in project success. We are dedicated to minimising downtime and maximising productivity by offering a comprehensive, well-maintained, modern ﬂeet. From excavators and tipper trucks to specialised equipment, we have the solutions to drive your projects forward.

By choosing Civlease, you can expect a seamless plant hire experience supported by our expertise and commitment to customer satisfaction.

Why Choose Civlease?

Civlease is a dedicated equipment supplier serving projects throughout Queensland and New South Wales. We are a progressive team that understands the essential requirements of contractors. Our mission is to support you in “Making It Happen!” Through ongoing investment in our ﬂeet, we have expanded to offer 200 high-quality plant and equipment items, including earthmoving machinery, compaction equipment, site support machinery, cranes, and heavy haulage machinery.

Scan the QR code and let's get you moving!

Powering Projects Across Australia

Elevate your civil construction projects with Civlease's exceptional plant and equipment hire services. We're your trusted partner for a diverse range of industries, including utility, rail, road, and mining.

Earthmoving

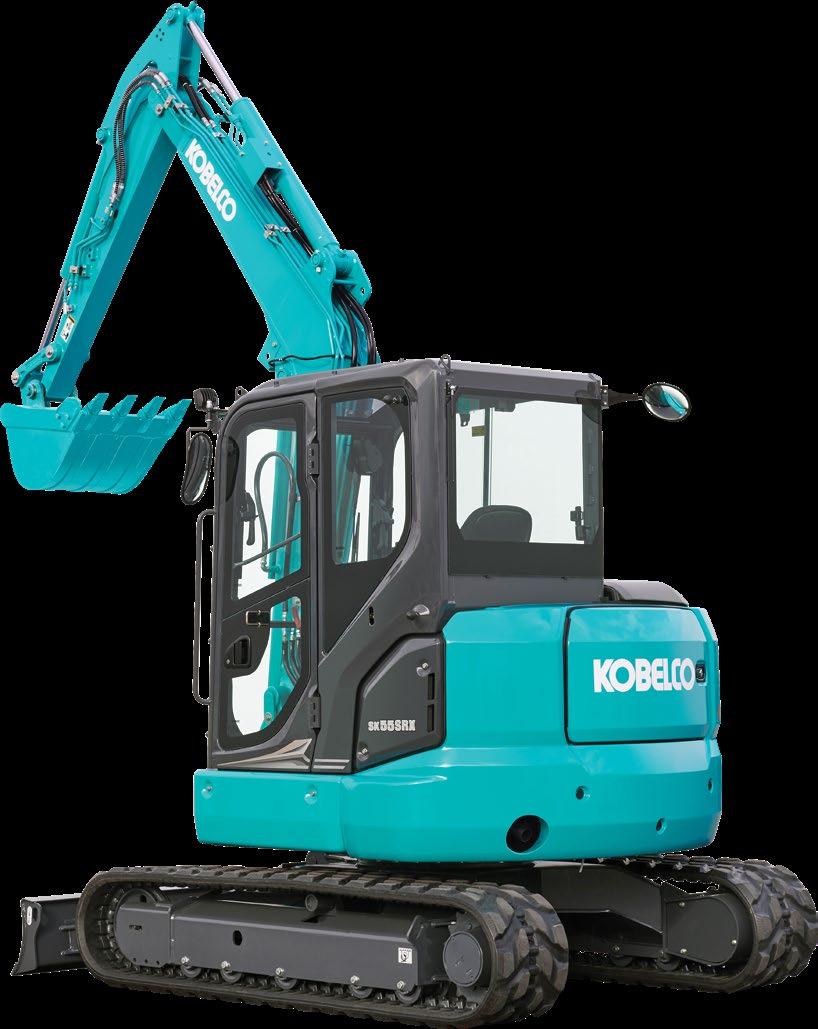

• Available for dry/wet hire

• Length, Width & Height: 5.55 x 1.96 x 2.53 m

• Operating Weight: 5,095 kg

• Max. Digging Depth: 3.9 m

• Max. Digging Reach: 6.27 m

• Bucket Digging Force: 35.2 kN

• Arm Crowding Force: 24.6 kN

• Fuel Tank: 75 litre

• 1200 mud bucket

• Bucket sizes: 600mm, 450mm, 300mm

• Ripper, compaction wheel and rock breaker attachments

• Augers 450mm, 600mm with 3m extension

• Height & Slew Limiter

• Fitted with Blade

• Tilt Hitch

• Available for dry/wet hire

• Length, Width & Height: 6.17 x 2.3 x 2.57 m

• Operating Weight: 8,740 kg

• Max. Digging Depth: 4.30 m

• Max. Digging Reach: 6.48 m

• Bucket Digging Force: 60.1 kN

• Arm Crowding Force: 39.9 kN

• Fuel Tank: 120 Litre

• 1500 mud bucket

• Bucket sizes: 600mm, 450mm, 300mm

• Ripper, compaction wheel and rock breaker attachments

• Augers 450mm, 600mm with 3m extension

• Height & Slew Limiter

• Fitted with Blade

• Tilt Hitch

Earthmoving

Kobelco 13.5 tonne Excavator- SK135SR-7

• Available for dry/wet hire

• Length, Width & Height: 8.07 x 2.49 x 2.86 m** (**500 mm shoe)

• Operating Weight: 15,100 kg with dozer

• Max. Digging Depth: 5.52 m

• Max. Digging Reach: 8.37 m

• Bucket Digging Force: 105.4 kN

• Arm Crowding Force: 64.0 kN

• Fuel Tank: 186 Litre

• 1500 mud bucket

• Bucket sizes: 600mm, 450mm, 300mm

• Ripper, compaction wheel and rock breaker attachments

• Augers 450mm, 600mm with 3m extension

• Height & Slew Limiter

• Fitted with Blade

• Tilt Hitch

Kobelco 24 tonne Excavator - SK235SR-2 WB

Available for dry/wet hire

Operating Weight: 24,300 kg

Length, Width & Height: 8.79 x 2.99 x 3.15 m

Max Digging Depth: 6.65 m

Max Digging Reach: 9.85 m

Bucket Digging Force: 157 kN

Arm Crowding Force: 112 kN

Fuel Tank: 330 Litre

Fitted with Blade Tilt Hitch

Topcon GPS (if required)

Earthmoving

Hitachi 35 tonne ZX350LCH-5

Available for dry/wet hire

Length, Width & Height: 11.33 x 3.99 x 3.47 m

Operating Weight: 34,590 kg

Max. Digging Depth: 8.18 m

Max. Digging Reach: 11.86 m

Bucket Digging Force: 225 kN

Arm Crowding Force: 185 kN

Fuel Tank: 630 Litre

Fitted with Blade

Tilt Hitch

Trimble GPS

Kobelco 38 tonne Excavator - SK380SRLC-5

• Available for dry/wet hire

• Length, Width & Height: 9.98 x 3.19 x 3.35 m** (**600 mm shoe)

• Operating Weight: 36,800 kg

• Max. Digging Depth: 6.99 m

• Max. Digging Reach: 10.93 m

• Arm Crowding Force: 139 kN

• Bucket Digging Force: 208 kN

• Fuel Tank: 630 Litre

• Fitted with Blade

• Tilt Hitch

• Topcon GPS (if required)

Earthmoving

Kobelco 38 tonne Excavator - SK380XDLC-10

• Available for dry/wet hire

• Length, Width & Height: 11.3 x 3.26 x 3.43 m** (**600 mm shoe)

• Operating Weight: 37,700 kg

• Max. Digging Depth: 7.56 m

• Max. Digging Reach: 11.26 m

• Bucket Digging Force: 244 kN

• Arm Crowding Force: 180 kN

• Fuel Tank: 503 Litre

• Fitted with Blade

• Tilt Hitch

• Topcon GPS (if required)

Hyundai 14 tonne Wheeled Excavator

• Available for dry/wet hire

• Operation Weight: 13,880 kg

• Max Digging Depth: 5770 mm

• Bucket Digging Force: 102 kN

• Arm Crowding Force: 80.4 kN

• Fuel Tank: 270 Litre

• Fitted with Blade

• Fitted with Eggcon 360-degree Hitch

• 1600mm Mud Bucket, 900mm GP Bucket, Forks

• Topcon GPS (if require)

Earthmoving

Posi Track Loader RT-65

• Available for dry/wet hire

• Operation Weight: 3,393 kg

Hyundai 17 tonne Wheeled Excavator - R170W-9

• Available for dry/wet hire

• Operation Weight: 17,300 kg

• Length, Width & Height: 8.73 x 2.5 m x 3.19 m

• Fuel Tank: 270 Litre

• Fitted with Blade

• Fitted with Eggcon 360-degree Hitch

• 1600mm Mud Bucket, 900mm GP Bucket, Forks

• Topcon GPS (if require)

• Length, Width and Height: 3,59 x 1,67 x 2,06 m (ﬁtted with Height Limiter)

• Fuel Tank: 87 Litre

• Brush & Pallet Fork

• 4/1 Bucket

Posi Track Loader RT-75

Available for dry/wet hire

Operation Weight: 4,110 kg

Lenght, Width and Height: 3,75 x 1,78 x 2,21 m (ﬁtted with Height Limiter)

Fuel tank: 69 Litre

Brush & Pallet fork

Earthmoving

CAT 432 Backhoe Loader

• Available for dry/wet hire

• Operating Weight: 8,469 kg

• Loader Breakout Force: 54.7 kN

• Fuel Tank: 160 Litre

• Length, Width & Height: 5.81 x 2.35 x 3.71 m

CAT 950H Wheel Loader 18 Tonne

• Available for dry/wet hire

• Operating Weight: 18,338 kg

• Bucket Capacities: 2.5 - 3.5 m3

• Overall Length: 8,146 mm

• Overall Height: With bucket at full raise 5,386 mm

• Maximum Gross Power: 162 kW

• Fuel Tank: 314 Litre

CAT 930K Wheel Loader 13 Tonne

• Available for dry/wet hire

• Operating Weight: 13,130 kg

• Bucket Capacities: 2.1 -5 m3

• Overall Length: 7,613 mm

• Overall Height: 5239 mm

• Maximum Gross Power: 119 kW

• Fuel Tank: 195 Litre

Earthmoving

CAT 150 Motor Graders

• Available for dry/wet hire

• Net Power Range: 149 kW

• Operating Weight: 19,935 kg

• Blade Width: 3.7 m

• Fuel Tank: 416 Litre

www.civlease.com.au

Simplify your logistics with our diverse ﬂeet of cranes, dumpers, tipper trucks, and more. Our reliable equipment ensures efficient and safe transportation tailored to your speciﬁc project needs.

Transport

Crane Truck 12 tonne Capacity

• Available for dry/wet hire

• Length and Height: 10,140 mm x 3,329 mm

• Reach Capacity: 12.6 m

• Maximum front loading: 13,000 kg

• Maximum rear loading: 21,600 kg

• Fuel Tank: 400 Litre

• Tray: 8.5 m

12T Tipper Truck

• Axle Conﬁguration: 6x4

• Engine: GH11

• Weight: GVW 26.0 Ton

• Transmission: ESCOT-VI

• Power: 460 PS

• Torque: 2250

DV90 Dual View Dumper

• 180° swivel seat console with automatic switching of the steering, direction of travel and direction indicators

• Main seat position: skip at the back, secondary seat position: skip at the front

• Payload 9,000 kg

• Deutz TD 2.9 diesel engine, 74 HP, 4-cylinder, turbocharged, liquid cooled, T4F emissions compliant

• Maximum Speed: 30km/h (18.6mph)

• Reversing camera (IP69) with infrared and white LEDs

• Braking System: Disc brake; Exhaust brake system

• UD Trucks ECS icon: Post New Long Term emission regulation.

For more information or to contact us, scan the QR code or visit www.civlease.com.au

Transport

Dual Cab Crew Canter

• GVM: 7,500 kg

• Length and Height: 5,935 mm x 2,220 mm

• Power: 110 kW @ 2840~3500 rpm

• Maximum loading capacity: 7,500kg

• Fuel Tank: 100 Litre

3T Tri Tipper

• Towing Capacity: 4,000 kg

• Power: 110 kW @ 2,800 rpm

• Fuel Tank: 75 Litre

12 seaters

Easy access

Spacious room for your gear

Diesel engine: 2.8 Litre

Braked towing capacity: 1,900 kg

Minibus

Cranage and lifting

25 Tonne Terex Franna

• Dry/Wet Hire

• 25 tonne at 1.4 m radius

• 14.8 tonne at 3.0 m radius

• 1.8 tonne at 15.7 m radius

• Maximum hook height: 18 m

• Maximum boom length: 18.4 m

• Engine Power: 205 kW

• Fuel Capacity: 440 litre

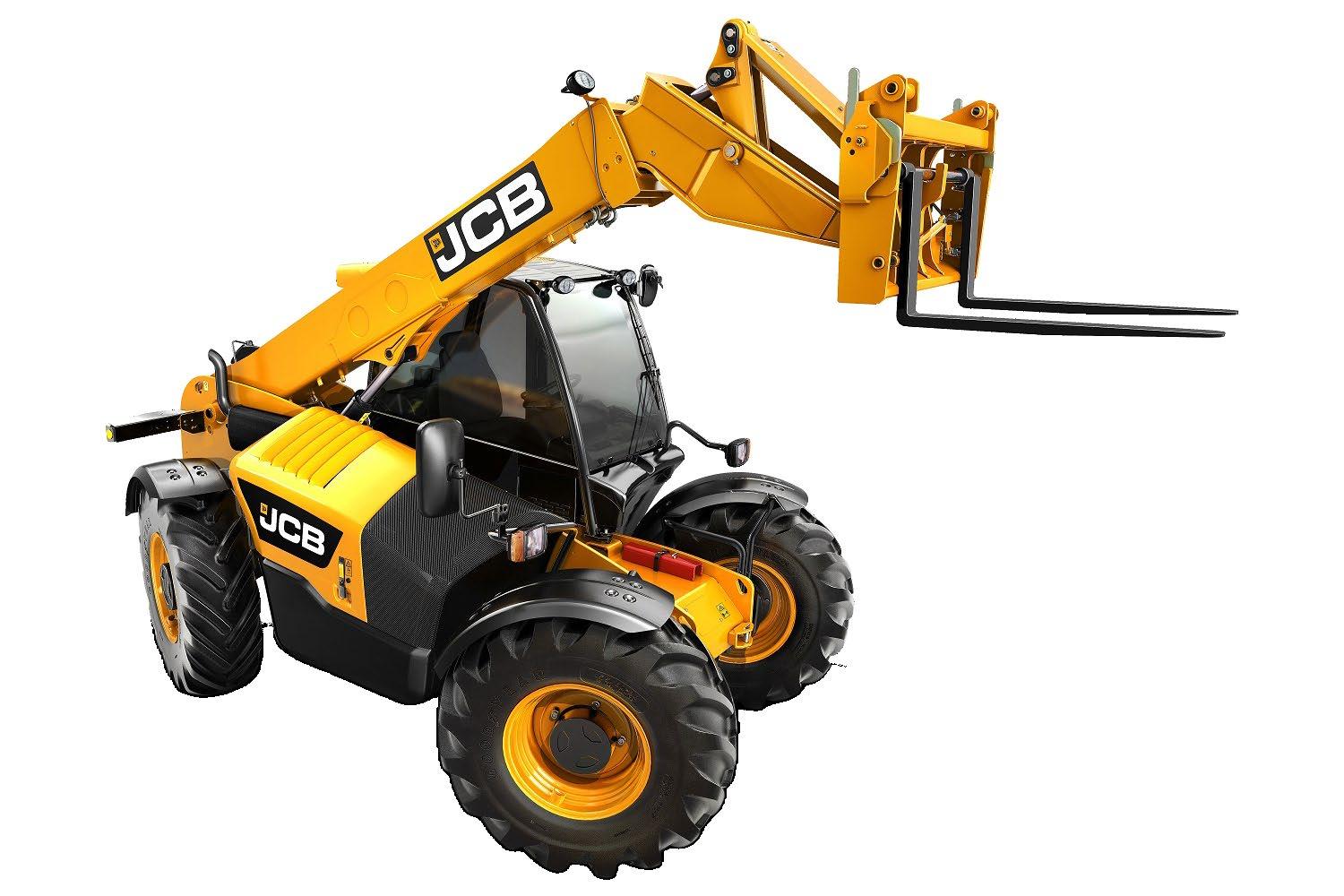

JCB Telescopic Handler

Dry/Wet Hire

Maximum lift capacity: 3,500 kg

Lift height: 9.50 m

Lift capacity at full reach: 500 kg

Maximum Engine Power: 63kW (85hp)

Travel Speed: 33 km/h

5 Tonne Rotary Telescopic Handler

• Dry/Wet Hire

• Lifting capacity: 4.999 kg

• Capacity at maximum height: 2.000kg

• Lifting height: 24,60 m

• Reach: 19 m

• Length: 7.62 m

• Width: 2.54 m

• Ground clearance: 320 mm

• Travel speed: 40 km/h

• Rotation: 360°

• Winch & Fork attachments

Experience the power and precision of our Boom Concrete Pumps. Ideal for efficient and accurate concrete delivery to your project site. Choose Civlease for reliable and efficient concrete pumping solutions.

Concrete

Concrete pumping

20M Z Fold Boom Concrete Pump

• 20m vertical reach with 4 arms in roll Z-folding

• Minimum unfolding height of 3.9 m

• Standard pump line DN 125/5.5”

• Output up to 90m3/h

• Small support area: 3.40 m at the front, 2.60 m at the rear

• Pump geometry adapted optimally to all common types of concrete

• End hose length: 3m

• Reach height: 41.6 m

• Minimum unfolding height: 8.6 m

• Output up to 170 m3/h and delivery pressure up to 130 bar

• End hose length: 4 m

• Standard pump line DN 125/5.5”

42M Z Fold Boom Concrete Pump

Concrete pumping

Trailer Concrete Pumper TK50

• Pump a variety of materials at up to 41m³/h

• Maximum concrete pressure 79 bar

• Features an angled hopper that’s easier to ﬁll and clean

• Most ideal for wet process shotcrete

• Fuel tank capacity: 98 litre

Height Access

Knuckle Boom 34ft

• Max Working Height: 12.52 m

• Max Horizontal Reach: 6.78 m

• Max Up and Over Clearance: 4.65 m

• Platform Capacity: 227 kg

Knuckle Boom 46ft

• Max Working Height: 15.9 m

• Platform Height: 14.1 m

• Max Horizontal Reach: 7.54 m

• Max Up and Over Clearance: 7.45 m

• Platform Capacity: 227 kg

• Capacity for up to 2 people

Optimise your project efficiency with Civlease's versatile trailer ﬂeet. From water carts and tag trailers to portable toilets and diesel trailers, we provide the equipment to streamline your operations. Our reliable trailers are ideal for transporting materials, water, and essential supplies to and from your job site.

Trailers & Water Carts

Slip-on Water Cart 10,000L

Water Truck

• The truck features a 14.000-litre water cartage transport tank capacity.

• Heavy-duty cast-iron water pump, approximately 2,200 LPM.

• Equipped with a GH8 engine for smart fuel efficiency.

• Fuel truck capacity: 400 litres.

• FloodRite 10,000L heavy-duty poly water cartage tank food grade certiﬁed & UV stabilised, ﬁtted with site level indicator.

• Tank ﬁtted with liquid locker baffle system for stability, eliminates surge.

• Heavy-duty skid mount frame with forklift pockets and lifting lugs

• 3″ 1000L/min or 1600L/min pump options.

• 3″ Rear Spray Heads (centre, left, right).

• Fully welded & hot dipped galvanised pipework.

• All units supplied with a 6m suction ﬁll kit to ﬁll back through your pump quickly.

• 20m spring retractable hose reel

Water Cart Trailer 2000L

• Fully drainable UV stabilised poly tank

• 36m heavy-duty hose reel with adjustable

• Liquidlocker™ baffle system ﬁtted

• 6m quick suction ﬁll hose kit with holder

• Strong heavy duty Hot-dipped galvanised chassis

• 65mm 4T-rated galvanised axles with 15″ wheels

• Pressure bypass hose for pump protection

• Chequer plate steel mudguards and tail light board

Trailers & Water Carts

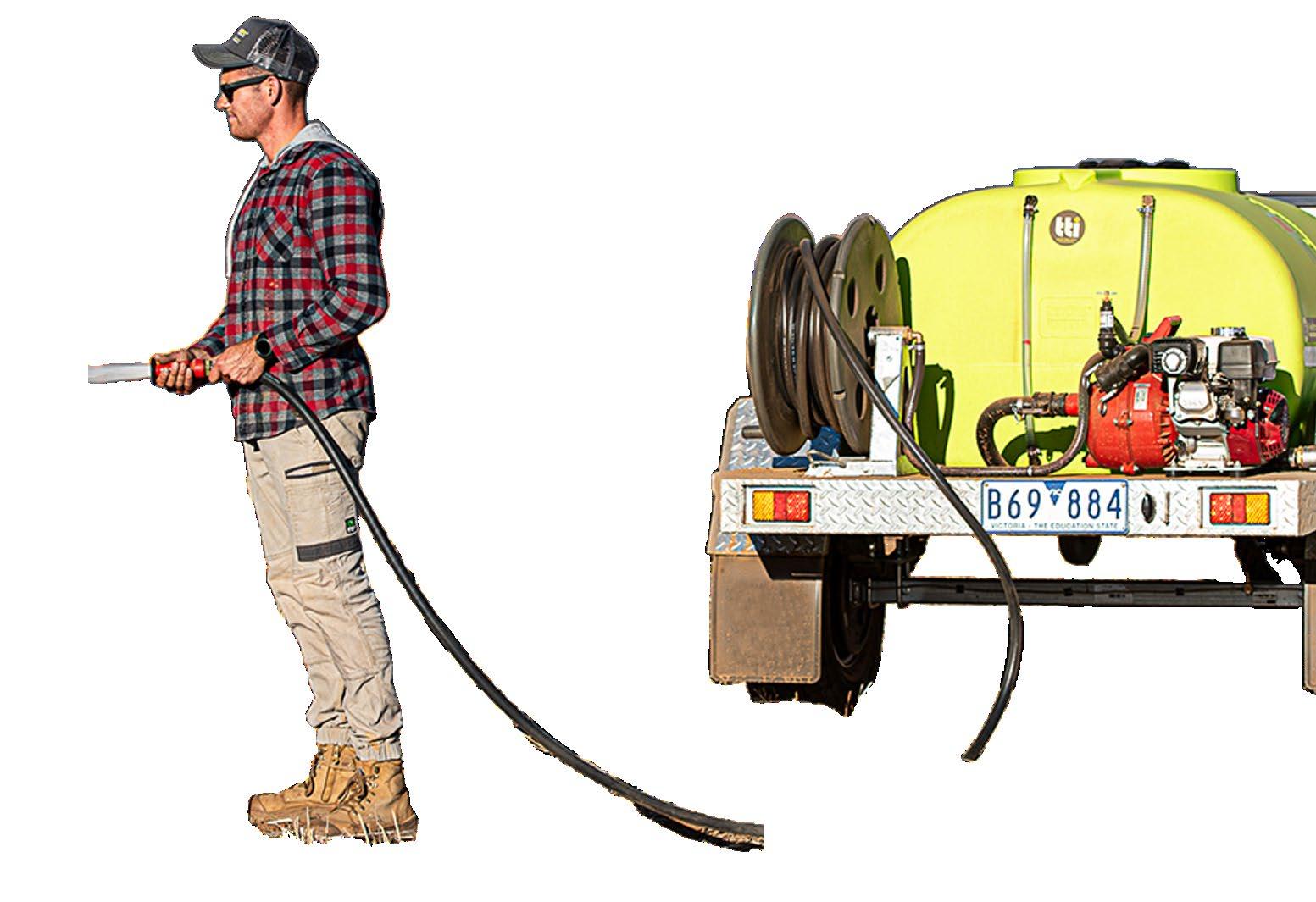

Fire Marshal Trailer1000L

• Fully-drainable, UV stabilised polyethylene tank

• Heavy duty 36m x 19mm Hose reel with twist-type nozzle

• Reliable Honda GX200 engine

• LiquidLocker™ baffle system ﬁtted

• 6m quick suction ﬁll hose kit with holder

• Strong heavy duty hot-dipped galvanised chassis

• 65mm 2T-rated galvanised axles with 15″ wheels

• Pressure bypass hose for pump protection

• Chequer plate steel mudguards and tail light board

Tag Trailer

• Bartlett ball hitch

• 16 tonne payload

Diesel Trailer 1000 litre

• The portable diesel trailer tank, fully baffled, is designed and approved for on-site storage and transport of diesel. It meets the needs of various industries, including earth moving, mining, and transportation.

• Triplex Pump rated at 3625 PSI max

Trailers & Water Carts

Portable Pressure Washer

• Diesel driven, 3625 PSI MPP, 15 LPM, cold water

• Water supply is from onboard 1000L water tank

Portable Toilet

• The solution for the effortless relocation of portable toilets to diverse job sites.

• Platform and handrail at the front

• Convenient fold-down step

• Bright and efficient LED taillights

• Sturdy heavy-duty jockey wheel

• Reliable spare wheel

In addition to our core plant and equipment offerings, Civlease provides a wide range of essential accessories to support your projects.

Other Equipment

AIR ACCESSORIES

PUMP ACCESSORIES

COMPACTION

Other equipment

AIR ACCESSORIES: Compressor

Model: The Sullair 260

• Model: The Sullair 260A

• Max Pressure: 150 (PSI) / 10 (BAR)

• Capacity: 260 (CFM) / 7.4 (m3/Min)

• Motor Rating: 58 kW / 78HP

• Dimension L x W x H (mm): 3650 (drawbar) or 2162 (canopy) x 1661 x 1522

Model: The Sullair 185

• Max Pressure: 80-125 (PSI) / 5.5 – 8.6 (BAR)

• Capacity: 185 (CFM) /5.2 (M3/Min)

• Motor Rating: 44.2 (kW) / 60 (HP)

• Dimension L x W x H (mm): 1967 x 1105 x 1250 (DLQ) / 3198 x 1508 x 1484 (DPQ)

Other equipment

PUMP ACCESSORIES: Drive Unit and Sludge Pump

Drive Unit FDU-P1 (Standard):

• The Sludge Pump is ideal for efficiently handling sludge and other dense materials on-site. It features a quick-action coupling, allowing for easy connection to various ﬂexible shaft submersible pumps and concrete vibrators.

Sludge Pump:

Drive Unit FDU-D2 (Recoil Start):

• The Drive Unit FDU-D2 is a robust and reliable solution for demanding environments such as mining, tunnels, and reﬁneries. It’s powered by a Yanmar L48 diesel engine with a recoil starter, ensuring long-term, hassle-free operation. The unit features a quick-action coupling compatible with most ﬂexible shaft submersible pumps and concrete vibrators, a durable powder-coated steel roll frame, and heavy-duty rubber mounts for vibration isolation.

• Operated by either a petrol or diesel portable drive unit, the submersible pump is a highly efficient, completely self-priming unit with an extremely robust design. Its ﬂexible drive shaft means it can be used in many situations where close-coupled pumps would not be suitable.

Other Equipment

Jumping Jack (72kg, 75kg, 93kg)

• Our range of Jumping Jacks, available with 72kg, 75kg, and 93kg operation weights, is designed for high-performance compaction in even the most challenging conditions. Featuring high stroke energy, a rapid percussion rate, and a long shoe stroke, these rammers deliver exceptional compaction results. They are perfect for cohesive soil and backﬁll and ideal for conﬁned spaces such as trenches and deep excavations.

Plate Compactors (87kg, 103kg, 356kg)

• Our Plate Compactors, available in 87kg, 103kg, and 356kg sizes, are the go-to choice for superior compaction in granular soils and asphalt. Built with a robust and durable design, these compactors offer excellent build quality, optimised operator comfort, and outstanding compaction performance.

• Equipped with a reliable engine , these plate compactors are the only diesel-operate, ensuring consistent power and efficiency across various job sites. Ideal for both small and large-scale projects, they deliver reliable results in diverse applications.

• The ARR 1575 is a trench roller designed to deliver impeccable ground contact and maximum compaction efficiency.

• Length, Width and Height: 1,980 mm x 601 mm x 1,317 mm

• Dry hire

Trench Roller:

www.civlease.com.au
