RADI+SHED

The project proposes and tests the possibilities of introducing hydroponic agriculture practices in Greenland as a response to increasing quotas on hunting in Greenland.

Set in the eastern Queqqata Kommune of Greenland, in the small hamlet of Kangerlussuaq, the device takes the form of a deployable shelter to assess how hydroponic systems that use perlite [a natural insulant]as a growing medium for plants, can create comfortable indoor temperatures for shelter, but also for a potential indoor wall system applicable to larger [...]

16

RAPID BILHARZIA PREVENTION

Found most dominantly in children likely to bathe and play in the infested water and in women who do daily chores such as laundry and dishes in these water bodies, 95% of the total Tanzanian population is at risk of contracting Schistosomiasis [Bilharzia], with 50% being infected.

The installation proposed allows locals to interact with infested water without fear of becoming directly in contact with it. As a floating platform, water is pumped by stepping action. Walking on the modules pumps water up into a filtration chamber that uses [...]

28

COOP HIMMELB(L)AU SELECTED WORKS

For 6 months I interned at the Viennese Architecture office Coop Himmelb[l]au in Austria, where I worked on two large residential housing towers for a period of 4 and 2 months respectively. For the first project, located in Vienna, I was tasked with drafting facade detailing and helped for the floor plans.

Time was also put towards a large physical model.

For the second project, in Bulgaria, I worked on renderings and the facade,using wind simulations in grasshopper for balcony placement and form-generation.

10

The new Kangerlussuaq terminal aims to respond to both increasing tourism pressures in Greenland and the lack of suitable gathering spaces for locals in Kangerlussuaq by rebuilding a new social airport in the center of the hamlet.

To counteract the eminent construction of a new international airport in the capital, Nuuk, and the economic repercussions it might have on Kangerlussuaq, the terminal also houses aeroponic food production infrastructure for the creation of a new workforce and local economy. By reconfiguring and mixing both [...]

22

UWANJA WA FISI UNDERTAKING AUTONOMY

Located on the Tanzanian east coast, the city of Dar es Salaam is booming with new development and investment from the east. Confounded between new infrastructural potential and a plethora of possible development agendas for the city, local government ignores the struggle of sex workers within its slums.

Through an architectural camouflage of intentions, the project therefore addresses the plight of the 200 commercial sex workers of Hyena Square in Dar es Salaam by fostering illegal activities within its boundary. By re-framing [...]

30

FREELANCE / NORDIC ARCH. & HENNING LARSEN

Working on a short contract for the Nordic Architecture office, three classmates and myself worked on a large scale physical model of a masterplan project of a new residential area near Sisimuit, Greenland.

We organized and assembled a 350 layer thick foam model into six A1 sized sections, for the model to be shipped to Greenland for a presentation to the local planning council.

At Henning Larsen Architects I made a total of three competition renders for a competition on a tight deadline; the project being an outdoor public park in Sweden.

03

04

SØNDRE STRØMFJORD HYDRO/AIRPORT

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

RADI + SHED

04

001 RADISH + SHED

HYDROPONIC TEST SHELTER The project proposes and tests the possibilities of introducing hydroponic agriculture practices in Greenland as a response to increasing quotas on hunting in Greenland.

Set in the eastern Queqqata Kommune of Greenland, in the small hamlet of Kangerlussuaq, the device takes the form of a deployable shelter to assess how hydroponic systems that use perlite [a natural insulant]as a growing medium for plants, can create comfortable indoor temperatures for shelter, but also for a potential indoor wall system applicable to larger architectures. A dual-application of this greenhouse effect might then have applications in the built arctic world.

The device is built to be autonomous and self-regulating, and was used, in this case, to germinate radish seeds, as an alternative source of food for harder to reach communities and towns.

AUTUMN 2017

TUTORS:

05

David Garcia & Jakob Knudsen

The mandate of the device is to design and built a prototype with architectural potential that is to be implemented in the field. The location of said implementation was in Kangerlussuaq, Greenland, where I spent 3 weeks testing and analyzing the potential of hydroponic practices as spacial insulation for shelter.

Greenland is very much in an ideological conundrum, confounded between its preservation of traditional ways and its willingness to reach out to a larger international market. On one hand, its economic dependence from Denmark; on the other, sustainable practice, tradition, hunting, & an abundance of revealed resources due to global warming.

001 / RADI + SHED

A lot of uproar within the local hunting communities is felt with the increasing quotas and limits enforced to preserve local animal populations.

Alternatively, agriculture is beginning to make its way into local culture especially on the southern portion of the country, which, with its lower latitude, is much warmer than the rest of Greenland.

The project therefore investigates the agricultural possibilities of hydroponic practices in Greenland as it could provide another means of acquiring food, help local economy, reduce dependence on the importation of produce and still somewhat resonate with the hunter-gatherer traditional culture of local populations.

The growing medium used for the germination of the radish seeds is perlite; one of the few plant growing mediums used in hydroponic systems that has a dual application in building insulation. It is inexpensive and provides an alternative to cultivatable land due to permafrost/ However its greatest potential lies in its ability to provide additional thermal insulation to spaces, to benefit both plants and people within. In all, this could provide an alternative to the increased food imports while capitalizing on the local raising temperatures and melt-water runoff of glaciers.

CORNER +

Arduino System Configuration Sensors & Power Source

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

BATTERY FOR ARDUINO

BATTERY FOR ARDUINO CAPACITOR WIRE DISTRIBUTION CAPACITOR BREADBOARD

PUMP POWER SOURCE PUMP POWER SOURCE

WIRE DISTRIBUTION BREADBOARD

PUMP

BUILT IN CLOCK MODULE

PUMP

BUILT IN CLOCK MODULE

C

SD CARD

TEMPERATURE + HUMIDITY SENSOR

SD CARD

TEMPERATURE + HUMIDITY SENSOR Analog

C

Digital + Analog Digital + -

D D 06

A

B

F

07

E

A

001 / RADI + SHED

SPREAD +

A

The aluminum frame was built with rota-table joints to test different angles of water distribution with the polyethylene film built in two layers. Small pockets of perlite and radish seed were sown in between the layers where water could trickle down from the top “stem” before being pumped back up. At all moment of the data collection, temperature, humidity and water flow were registered within the space, with and without human heat.

Device Assembly Schematic

Built in 4 parts, the entire system is comprised of an aluminum frame,a sonic welded polyethylene growing film, a Tyvek wrap jacket, and a control box for water distribution and data collection.

RIGHT + System Fastening & Water Distribution Details

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

B

C

08

D

E

F

2

3

4

5

6

7

8

9

10

11

12

09

1

07 + Fitting the joints

02 + Unpacking

08 + Rolling the frame up

03 + Unrolling the system

09 + Tightening joints in place

04 + Placing vertical tubes

10 + Cutting openings for plants

05 + Sliding the tube in

11 + Uploading the Arduino code

06 + Tightening the ropes

12 + Covering the device for testing

welded together over pockets of expanded perlite with two seeds per pocket. Once germinated the seed less promising would be removed for plants not to compete with each other.

Each pocket housed two tablespoons of perlite, giving a very low, but noticeable quantity of insulation.

The water would then be pumped to the top of he structure only to trickle down and guided back into the reservoir for the cycle to repeat. for the water to enter the film, aquarium piping was used to split the initial water current in 16 smaller streams.

Temperature and humidity levels were calculated and analyzed within the device structure, and thermal images of the growing pockets were taken. What was discovered was that the pockets had a very high thermal capacity. This heat storage capability was even further enhanced when influenced by local conditions like

This layer was built using two polyethylene plastic films sonic

001 / RADI + SHED

a heat source. The device performed at its best when a person would stay inside the structure, allowing the pockets to harvest the individual’s heat release. The pockets would trap the heat create a rich growing environment for plants while passively increasing interior temperatures.

It is then easy to imagine and stipulate that this hydroponic system would perform well as a temperature regulating device especially in public spaces and interior environments with a lot of human activity.

Growth Specimen

The device was designed to assure a even distribution of water to all plants. To this effect a grid like sheet made of hexagonal pockets distribute water from top to bottom through openings in the sonic welding.

This allows water to flow properly,and for roots to grow but stops.

CENTER + On Site Assembly Top + Final Germination

01 + Full system ready to deploy

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

SØNDRE STRØMFJORD HYDRO + AIRPORT

10

SØNDRE STRØMFJORD

PITUFFIK

HYDRO + AIRPORT & HOTEL NORTH EAST GREENLAND NATIONAL PARK

QAASUITSUP

The new Kangerlussuaq terminal aims to respond to both increasing tourism pressures in Greenland and the lack of suitable gathering spaces for locals in Kangerlussuaq by rebuilding 53612 51% a new social OVERNIGHT STAYS IN THEin the center OF THESE FROM airport of ARE the hamlet.

QEQQATA KOMMUNE IN 2016

UPERNAVIK

GREENLAND LOCALS

Jan

a

ad

an

C

Jap an

USA

e

rop

Eu

an

UK

ce

s

therland

da

an a

Ja pa n

Jap

an

China

C

ad a

an C

an Jap

ada

USA Can

A

USA

US

e

e

rop Eu

rop

Eu

n pa

n

China

Ja

pa Ja

China

a Canad

a

A

Canad

US

an

C

an

Jap

USA

e rop

an

ce

UK

ce

ndsIta

Italy

The Net herla

11

UK

nds

The Net herla

ly

n

A

a

ad

a

ad

an

C

Eu

Fr

an

pa

US

Fr

Ja

Spain

ia

ss

Ru

UK

China

Ru

UIt Kaly

a

Spain

ia

ss

ce

Canad

an

Italy

rm

A US

Fr

ce

Jul

an

Jun

Jun

Fr

an

s

herland

The Net

Jap

UK

herland Italy s

USA

UK

ce

The Net

e

an

Italy

rop

UK

Eu

Fr

ce

y

n

ia

ss

Ru

Spain

an

an

pa

Fr

rm

Ja

The Ne

Italy

Ge

China

ce

Sweden

a Canad

an

e

Norway

Ge

A

Fr

ro p

d

Sweden

an

US

Italy

Eu

lan

Norway

y Fr

Fr

an

an

ce Italy

Spain

ia

ss

ce

Ru

UItK aly

Spain

ia

ss

Ru

UK

002 / SØNDRE STRØMFJORD HYDRO + AIRPORT

k

Ice

d

Jul

y

lan

y

Jun

Jun

rm an

e

an

Jul

Ge

ro p

rm

Aug

Aug

Iceland

Eu

Ge

May

k

ay

mar

mar

y

Den

Sweden

May

30000 27500 ro 25000 pe 22500 20000 17500 15000 12500 10000 7500 5000 2500

Eu

Norway

Apr

Apr

Greenland

Ice

Mar

Den er thar Om k

22500 20000 17500 15000 12500 10000 7500 5000 2500

y

iw Ta

30000 27500 an iw Ta25000 22500 20000 17500 15000 12500 10000 7500 5000 2500

May

Den

30000 27500

ro 25000 pe

an

an

an

d

Sep

Greenland

er

Oth

Feb

lan

Oct

12000 11000 10000 9000 8000 7000 Mar 6000 5000 4000 3000 2000 1000

Aug Jul

Ice

Nov

Feb

Apr

Greenland

Eu

rm

rm

Jan

Dec 12000 11000 10000 9000 8000 7000 6000 5000 4000 3000 2000 1000

Mar

Apr

May

Aug

73%

73%

Norw

i Ta

Den er Omthark

Ge

Ge

km

30000 27500 n wa ai T25000 22500 20000 17500 15000 12500 10000 7500 5000 2500

n wa

Sweden

Iceland

500

Sep

Sep

Greenland

er

Oth

Feb

Norway

12000 11000 10000 9000 8000 7000 Mar 6000 5000 4000 3000 2000 1000

d

ay

y

400

y

Feb

lan

Norw

an

500300 km

68470

Jan Dec

Sep

Oct

Oct

Dec 12000 11000 10000 9000 8000 7000 6000 5000 4000 3000 2000 1000

Ice

en

rm

68470

300100Jun400200

100 Jun 200 0 Jul

Ge

0Aug Jul

May

an

ed

Iceland

May

YEARLY PASSENGERS OF THESE PASSENGERS YEARLY PASSENGERS TRAVELING TRAVELING OF THESE PASSENGERS ARE FROM ARE FROM FROM THE KANGERLUSSUAQ AIRPORT GREENLAND AND DENMARK FROM THE KANGERLUSSUAQ AIRPORT GREENLAND AND DENMARK

Oct

Nov

Nov ay

NARSARSUAQ ARSUAQ NARSAQ NARSAQ QAQORTOQ QAQORTOQ Aug ALLUITSUP ALLUITSUP NANORTALIK NANORTALIK

73%

73%

Jan

Jan

Norw

Sep

Nov

68470

Dec

en

Apr

Apr

68470

KUJALLEQ

KUJALLEQ Sep KANGILINNGUIT

27500 25000 22500 20000 17500 15000 12500 10000 7500 5000 2500

Jul

Sw

er 12000 Feb 30000 Oth 11000 27500 10000 25000 ICE ICE 9000 L 22500 LA AN N D D 8000 (SEA 20000 (SEA S S ONAL ONAL 7000 17500) ) Mar Mar 6000 15000 5000 12500 4000 10000 3000 7500 2000 5000 1000 2500

Jun

Jun

rm

Feb

ed

Oct

Oct PAAMUIT

(SEAS EASO A ONA AGE NAL GE Greenland Greenland L) N ) ND D enm eern 30000 ark Oth mark

Jan

Jan

Nov

Aug Jul

YEARLY PASSENGERS OF THESE PASSENGERS ARE FROM YEARLY PASSENGERS TRAVELING TRAVELING OF THESE PASSENGERS ARE FROM FROM THE KANGERLUSSUAQ AIRPORT GREENLAND FROM THE KANGERLUSSUAQ AIRPORT GREENLAND AND DENMARKAND DENMARK

OVERNIGHT OF THESE ARE FROM OVERNIGHT STAYS IN THE STAYS IN THE OF THESE ARE FROM CO CO PE LOCALS PE LOCALS QEQQATA QEQQATA KOMMUNE IN KOMMUNE 2016 KULUSUKIN 2016 KULUSUK GREENLAND NH NH GREENLAND (S

Sw

UIT

51%

51%

May

Jun

Jul

Aug

53612

May

km

QEQQATA

Nov

David Garcia Aug

Ge

Sep

500

Sweden

400

Norway

300

y

200

an

TASIILAQ

100

Sep

rm

0

SISIMUIT

Dec 12000 11000 10000 9000 8000 7000 6000 5000 4000 3000 2000 1000

TUTORS:

May

Ge

TASIILAQ

Apr

Iceland

NARSARSUAQ NARSAQ QAQORTOQ ALLUITSUP NANORTALIK

53612

SPRING 2017 Apr

Sep

KANGILINNGUIT

ay

Oct

SERMERSOOQ KUJALLEQ

SERMERSOOQ

ILLULISSAT

Apr

Norw

PAAMUIT

Mar

Mar

d

Nov

30000 27500 25000 22500 20000 17500 15000 12500 10000 7500 5000 2500

lan

UUMMANNAQ QAARSUT

30000 27500 25000 22500 20000 17500 15000 12500 10000 7500 5000 2500

30000 27500 25000 22500 20000 17500 15000 12500 10000 7500 5000 2500

Ice

(SEA SONA L)

12000 11000

12000 10000 11000 9000 10000 8000 90007000 80006000 70005000 Mar 4000 6000 3000 5000 2000 40001000 3000 2000 1000

12000 11000 10000 9000 Nov 8000 7000 Nov 6000 5000 4000 Oct 3000 2000 1000 Oct

en ed Sw

ICE LA ND

Fr

NUUK

NUUK

y

CO PE NH (SEAS ONA AGE L) N

KULUSUK

Dec

Ge rm an

MANIITSOQ

ITSOQ

Iceland

QEQQATA

UPERNAVIK

QEQQATA

May

By reconfiguring and mixing both Aug social Jun spaces and places for visit, the Jul project allows and encourages mingling 68470 73% 53612 51% 53612 51% and exchange between and YEARLY PASSENGERS TRAVELING OF THESElocals PASSENGERS AREtravelers FROM OVERNIGHT IN THE THESE FROM OVERNIGHTFROM STAYS IN KANGERLUSSUAQ THE STAYS OF THESE AREOF FROM THE AIRPORT GREENLAND ANDARE DENMARK as forms of participatory encounters QEQQATA KOMMUNE IN 2016 GREENLAND Jan QEQQATA KOMMUNE IN 2016 GREENLAND LOCALS Greenland D LOCALS enm er and speed-tourism experiences, all the Jan Oth Jan Dec Feb Greenland ark Greenland DeE De r unrm enm an er opar locals Dec th w Dec Feb while Feb th training and encouraging a i O rk O e k Ta into the practice of agriculture.

SISIMUIT

KANGERLUSSUAQ

USSUAQ

ay

Sep

TASIILAQ

AASIAAT

Norw

Oct

NATIONAL PARK

NATIONAL PARK QAASUITSUPAASIAATQAASUITSUP

De

30000 27500 25000 22500 20000 17500 15000 12500 10000 7500 5000 2500

n de

Nov

SERMERSOOQ NORTH EAST GREENLAND NORTH EAST GREENLAND ILLULISSAT

Feb

12000 11000 10000 9000 8000 7000 6000 5000 4000 3000 2000 1000

e Sw

UUMMANNAQ QAARSUT

Greenland

er Oth To counteract the nmark eminent construction of a new international airport in Marthe capital, Nuuk, and the economic repercussions it might have on Kangerlussuaq, the terminal also houses Apr aeroponic food production infrastructure for the creation of a new workforce and local economy.

Dec

en ed Sw

Q

002

QAANAAQ

TOP +

Ground Floor Plan

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018 This project responds to three problematics observed in the settlement of Kangerlussuaq in Greenland.

Currently, this hamlet built around an airport, is faced with increasing tourism pressures & it has a absence of suitable gathering spaces for locals. In addition, settlements like that of Kangerlussuaq have very limited access to fresh, yearly available, agricultural produce.

In response to these observations, the project considers the possibility of rebuilding the current airport terminal of Kangerlussuaq into a new “social” airport. Through the introduction of new agricultural technologies and the creation of multi-functional cultural gathering spaces within this traffic heavy terminal,exchange between locals and travelers are favored and common.

P P P

O

K N M

L M

B L D L

C

Z E F

H M

J M

I

G

A A A

Z

A

12 august Sunlight is brought into the airport through extruded skylights spread throughout the building T h e s e h e l p g u i d e l i g h t t o s p e c i fi c p a r t s o f t h e b u i l d i n g , namely waiting areas and grow walls

september

october

march

february

The aeroponic hotel and facilities adapt themselves to the airport program A s t o u r i s m i n fl u x inreases, crops are scheduled to be ready for harvest, freeing up space in the hotel for new incoming travellers

LANDING STRIP

april

july

may

june

Y

Q

U W R V U R

T

U S

X

U

S

U W

LEGEND Current Airport Outline Security Line Circulation U Terraces W

U

Courtyard

U W

LEGEND Current Airport Outline Security Line Circulation Terraces Courtyard

LEGEND Current Airport Outline Security Line Circulation Terraces Courtyard

OCCUPIED

Airport Office Space Airport Arrival Hall Check-In Counter Security Check Security Staff Room Post-Security Waiting Area Employe Lunch Room Clinic Passport Control Immigration Counter Cantine Eating Area Washrooms Storage Kitchens Shops Market Agricultural Workshops Office Spaces R O OHotel M Hotel Check-in Counter Rooms Lobby Agriculture System Storage Plant Water Filtration Tanks Bus Stop Flight Gates

To f r e e u p g a t e s a n d allow more building flexibility for any potential airpor t expansion, mobile louge gates are proposed

002 / SØNDRE STRØMFJORD HYDRO + AIRPORT

A B C D E F G H I J K L ROOM M N O P Q R S T U V W X Y Z

IN

Airport Office Space Airport Arrival Hall Check-In Counter Security Check Security Staff Room Post-Security Waiting Area Employe Lunch Room Clinic Passport Control Immigration Counter Cantine Eating Area Washrooms Storage Kitchens Shops Market Agricultural Workshops Hotel Office Spaces Hotel Check-in Counter Rooms Lobby Agriculture System Storage Plant Water Filtration Tanks Bus Stop Flight Gates FULL PRODUCTION

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Community housing is located on the eastern side of the newly built hotel

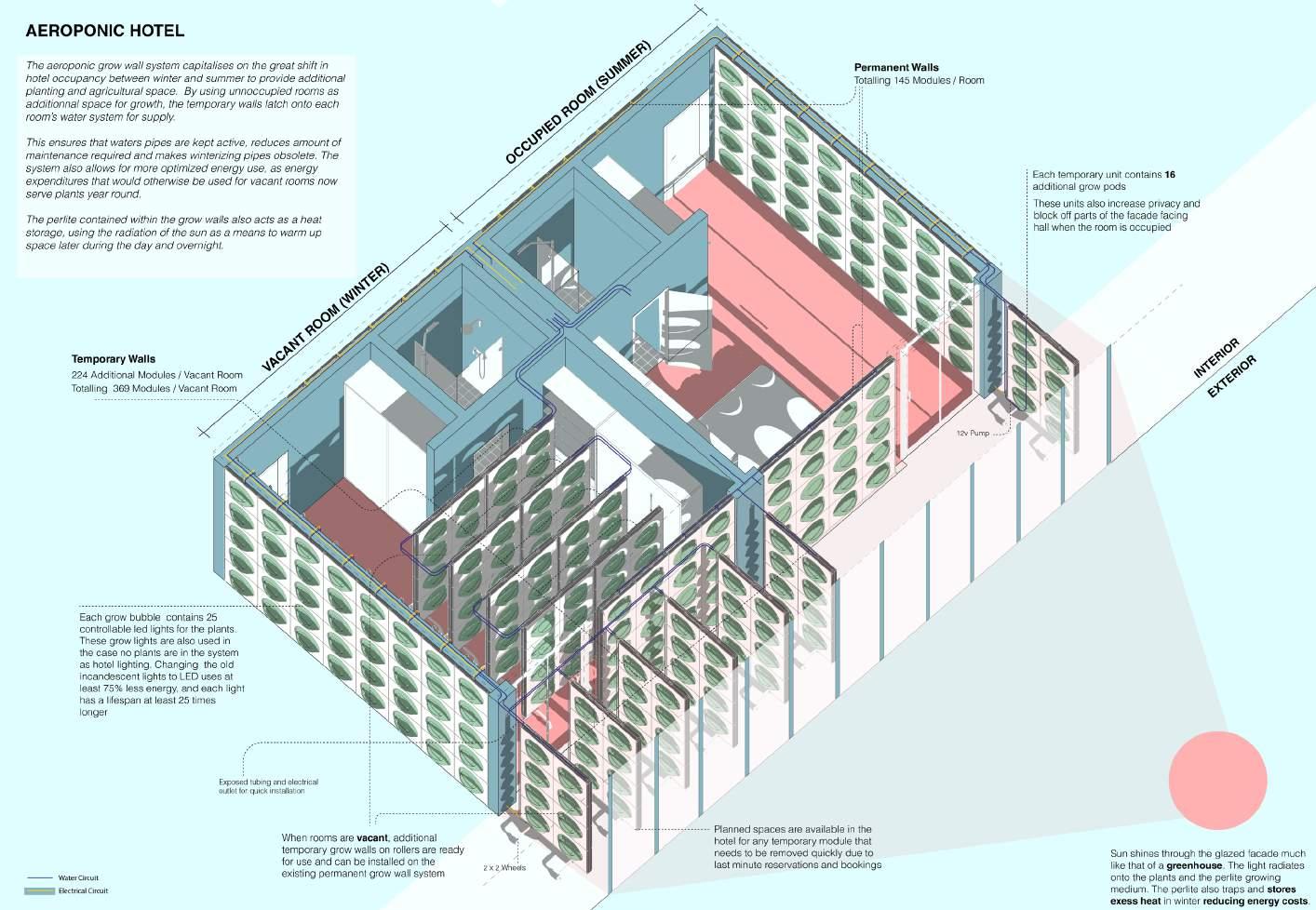

Each hotel room has permanent aeroponic modules that produce vegetables and fruits all ye a r, eve n w h e n o c c u p i e d

When hotel rooms are vacant, additionnal aeroponic production walls are installed temporarily into the room and connected to the permanent system

The newly built hotel facility is built with elevated foundations to follow the old building elevation. This ensures the per mafrost is left unheated by the hotel

Hotel Section & Airport Elevation

X

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

BOTTOM +

U

the hotel encloses rooms with a double glazed facade creating a greenhouse-like environment for both plants and travellers

Airport Office Space Airport Arrival Hall X Check-In Counter Security Check Security Staff Room Post-Security Waiting Area Employe Lunch Room Clinic Passport Control Immigration Counter Cantine Eating Area Washrooms Storage Kitchens Shops Market Agricultural Workshops Hotel Office Spaces Hotel Check-in Counter Rooms Lobby Agriculture System Storage Plant Water Filtration Tanks Bus Stop Flight Gates

U

13

X

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

14

Original building floor slabs and structural columns

Structural elements kept in place

Structural elements kept in place

Relocated structural elements

Removed or relocated structural elements

Spread mostly around the hotel, but also partly around the building are grow walls for produce which is sold within the airport. These walls follow-up on the investigations of the previous device and make full use of perlite to insulate spaces.

The hotel uses vacant rooms to grow produce, keeping the water systems from freezing, even in times of low-tourism in winter.

The roof of the airport is adorned with skylight chimneys.that guide light to specific program areas, revealing and changing space.

These skylights cater to their underlying program in terms of timeof-day and daily use, but also with strong consideration of plant life, sunlight hours and orientation.

03 02 04

01

AIRPORT TERMINAL: 1820 Permanent grow modules HOTEL: 4530 Permanent plant modules with an additional max. of 6720 modules when fully unoccupied

06 11 05

07

08 09

10 12

For a Total of: 13070 13 14

x5

AIRP

GROW-WALL LOCATIONS ORT TERM INAL

ROOF PLAN AND SKYLIGHT LOCATIONS

CULT

URE

CAFE

SECURITY CHECK ENTRANCE HALL

BAR

E

CONFERENCE ROOM

A

EXHIBITION & SCREENING

MARKET

PO

O ER

KITCHENS

TE O

CANTINE & PERFORMANCE

H

FLIGHT CHECK IN

IC

N

AIRPORT ADMIN

RESTAURANT

L

COURTYARD BAGGAGE CLAIM

LOUNGE CIRCULATION

WAITING AREA

DOMESTIC GATE

AGRICULTURAL WORKSHOPS & EQUIPMENT STORAGE

INTERNATIONAL GATE HOTEL OFFICES TERRASSE

BUILDING PROGRAM

002 / SØNDRE STRØMFJORD HYDRO + AIRPORT

ROOMS

The local community does not recycle building materials. Waste is burned at the local landfill twice a week, and building materials are gathered in other sections of said landfill, never to be used again.

To mitigate the amount of waste and limit the high import costs for the new construction, the new airport terminal attempts to rebuild using as much of the current building as possible without compromising the final design. The airport’s design reflects this approach through a structural floor plan that does not differ much from the current terminal. Most new construction is located in the terminal’s hotel, an addition in its own right.

LEFT PAGE + Hydroponic System TOP + Hydroponic Hotel Rooms DOWN + Construction Scheme

DUTY FREE

HOUS

15

RELOCATED & REBUILT STRUCTURE

REMOVED OR RELOCATED ELEMENTS

ORIGINAL BUILDING STRUCTURE

New Construction

When all international flights have gone for the day, sometimes as early as 1 pm the security check area can be closed of.

Circulation Barriers

TOP RIGHT & LEFT +

INTERNATIONAL CONNECTIONS

Circulation Diagram During & After International Connections

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

INTERNATIONAL POST-SECURITY AREA OPENED TO PUBLIC AREA (REGULAR USE)

The high amount of sunlight hours on t h i s w aINTERNATIONAL l l i s p e r f e c t f o r l e t t u cPOST-SECURITY e plants

16 This wall is opened when the l a s t i n t e r n a t i o n a l fl i g h t h a s departed

P

E

R

M

A

N

E

N

T

G

R

O

W

IN

G

C

YC

LE

Commuters waiting to take fl i g h t a f t e r c r o s s i n g s e c u r i t y still have the opportunity to interact with the general terminal area through this catwalk If an inpromptu performance begins, no one is left behind.

Perfect time for a selfie!

POST-INTERNATIONAL CONNECTIONS After the security check area is closed, the post-security area is open for all travelers and locals. The catwalk is unlocked and offers views towards the atrium areas.

Circulation Barriers

INTERNATIONAL POST-SECURITY AREA OPENED TO PUBLIC Extruded skylights are used to direct additional light to plants. They prove especially helpful in darker winter months, where a few more meters in height can add a few hours of sunlight due to the sun

17

View of the runway

This wall is perfect for beet crops, as they require less sunlight

P E R M A N E N T G R OW I N G CYC L E

BOTTOM +

002 / SØNDRE STRØMFJORD HYDRO + AIRPORT

View From the Catwalk [Closed] to the Main Atrium

Ta b l e s c a n b e m o v e d , a n d the eating area can transfor m into a small scale stage for locals and travelers to enjoy

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

RAPID BILHARZIA PREVENTION

18

Each sample was analysed before and after filtration to asess the change in purity.

Lindi Mtwara 225 - 260 mm*

TANZANIA

200 km

RAPID BILHARZIA PREVENTION UNIT

0 - 40 mm*

40 - 65 mm*

Found most dominantly in children likely to bathe and play in the infested water and in women who do daily chores such as laundry and dishes in these water bodies, 95% of the total Tanzanian population is at risk of contracting Schistosomiasis [Bilharzia], with 50% being infected.

Pemba Island

Amani

TANGA

The installation proposed allows locals to interact with infested water without fear of becoming directly in contact with it. As a floating platform, water is pumped by stepping action.

Walking on the modules pumps water up into a filtration chamber that uses coconut activated charcoal.

Wete

Muheza

Floating on thick rubber inner tubes, the device is amphibious and can MODULE RECONFIGURATIONS filter from both smaller water basins shallower ones. The entire system Having each module as an individual unit with a reconfigurable joint system allows the bridge to change to and a platform and RECONFIGURATIO MODULE vice-versa. This also allows the whole system to be deployed at multiple scales and in different water isbodies modular and can be reconfigured and Zanzibar Having each into module as different an individual unit with a reconfigurable joint system all RECONFIGURATIONS MODULE reshaped organizations vice-versa. This also allows the whole system to be deployed at multiple depending on the water body and use.

Having each module as an individual unit with a reconfigurable joint system allows the bridge to change to a platform and vice-versa. This also allows the whole system to be deployed at multiple scales and in different water bodies Unguja Island

INDIAN OCEAN

AUTUMN 2018

PUMPING MODULE

115 - 150 mm*

TUTORS:

STEPPING MODULE

65 - 115 mm*

David Garcia & Thomas Chevalier

RATION MODULE

100

003

65 - 115 mm*

DAR ES SALAAM

Mafia Island

19

115 - 150 mm*

150 - 190 mm* 190 - 225 mm*

Kilwa

225 - 260 mm*

260 - 300 mm*

*Average Monthly Rainfall (1983-2010) Blue lines outline rainfall zones

Lindi Mtwara 225 - 260 mm*

TANZANIA Cheif Town City Summit STEPPING MODULE

FILTRATION MODULE 0

100

200 km

FILTRATION MODULE

003 / RAPID BILHARZIA PREVENTION UNIT

PUMPING MODULE MODULE PUMPING

FILTRATION FILTRATION MODULE MODULE

STEPPING MODULE

STEPPING MODULE STEPPING MODULE

PUMPING MODULE

PAGE +

The device is assembled with three different modules and can be reconfigured many ways. The basic module lies on the inner tube of a scooter, greatly found in eastern Africa, and joins other modules at three parts. The pumping module has a hand-held siphoning pump mechanism on the underside of the stretched fabric to pump water from below, up to a filtration bubble on the single filter module.

The filter itself was made using locally available coconut agricultural waste. The husk of the coconut (a carbon based element) was used to make activated coconut charcoal, proven to have great filtration and purification properties. In addition a nylon 25 micron mesh, could essentially remove the cercariae pathogen while still allowing good water flow.

Activated Coconut Charcoal Fabrication

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

20

Muheza Township

TOP + Standard Module BOTTOM + Deployment in

003 / RAPID BILHARZIA PREVENTION UNIT

21

PAGE + Filtration Module; Filter & Water Bubble

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

22

Pumping Module; Step-on Pumping System

PAGE +

003 / RAPID BILHARZIA PREVENTION UNIT

23

When analyzing the water both before and after filtration for salinity, dissolved solids, conductivity and pH I realized that the filter works to some extent. The filter greatly improved the smell and color of water samples, and always seems to bring samples closer to neutral pH, placing every sample within both the WHO and the Tanzanian bureau of standards guidelines. The cercariae worms were also removed by the mesh.

TOP + ARDHI University Deployment

The device was deployed at five locations on the eastern coast of Tanzania to test the activated coconut filter and the local population’s reception of design. Three of these test sites which were along the Msimbazi river; a shallow but thoroughly infested waterway running through the city of Dar es Salaam.

BOTTOM + Joint System

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

24

University of Dar es Salaam Presentation & Open Discussion

PAGE +

003 / RAPID BILHARZIA PREVENTION UNIT

25

PAGE +

UNDERTAKING AUTONOMY

Photograph From th Top of the Site’s Current Water Tower

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

26

UNDERTAKING AUTONOMY /

LOUIS-CHRISTOPHE BIGRAS

004 UNDERTAKING AUTONOMY UWANJA WA FISI SQUARE

Located on the Tanzanian east coast, the city of Dar es Salaam is booming with new development and investment from the east. Confounded between new infrastructural potential and a plethora of possible development agendas for the city, local government ignores the struggle of sex workers within its slums.

MANZESE WARD UWANJA WA FISI

Through an architectural camouflage of intentions, the project therefore addresses the plight of the 200 commercial sex workers of Hyena Square in Dar es Salaam by fostering illegal activities within its boundary.

By re-framing commercial sex work practices through the introduction of increased sanitation stations and a reblocking housing strategy, the proposal relinquishes the financial autonomy the sex workers came seeking at the square, yet all under the guise of gentrification for the more conservative regimes of power in place.

CITY CENTER

AUTUMN 2017

TUTORS:

David Garcia & Jakob Knudsen

Uwanja wa Fisi is an active and bustling area both night and day, but environmental elements seem quite stable all throughout the year.

HARBOR AND INDUSTRIAL SECTOR

27

During the day, commercial sex workers of the area stay around their homes, under the employment of regular clients.

They spend their time at home, or around, chatting with other girls, and look after their children. They also take the time to perform some chores for the household.

MANZESE WARD UBUNGO DISTRICT

UWANJA WA SIFA CHURCH

ERASMI SHOP

MPOLAMPOLA BAR JOJETA GUEST HOUSE

At night, local men gather around bars and taverns at the square. Girls usually frequent the bars in search of potential costumers and bring them back to their residences if they have a place to stay. Children are at home and are often only separated by a curtain, while their mother is at work in the other room.

Wakubebwa Video Show Point Pub & Guest House Alex Video Library 8-k Barber Shop Assassination Video Show

004 / UNDERTAKING AUTONOMY [MASTER THESIS]

*Com+Res

MWAJEY BAR ONE

Solar Radiation / Typologies

*Com+Res

TOP + Dar es Salaam BOTTOM + Square Site Analysis

TEMBA LOCAL BAR

UNDERTAKING AUTONOMY /

PAGE +

UNDERTAKING AUTONOMY /

Ancially Sanitation Stations

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

LOUIS-CHRISTOPHE BIGRAS UNDERTAKING AUTONOMY /

LOUIS-CHRISTOPHE BIGRAS

LOUIS-CHRISTOPHE BIGRAS

Anchor Point 1 is located in the north-western part of the site, at a crossing of four paths. One of these connects directly to the center square and bars.

01

02

Ground Floor

First Floor SHOWER x8

UNDERTAKING AUTONOMY /

LOUIS-CHRISTOPHE BIGRAS

UNDERTAKING AUTONOMY /

LATRINE x 14

LOUIS-CHRISTOPHE BIGRAS

ANCHOR POINT 1

LATRINE, SHOWER AND SERVICES ACESS POINT

03

ANCHOR POINT 2

Anchor Point 4 is located in the eartsen part of the site, in between the park and one of the landfills. it is surrounded by housing on all sides.

LATRINE, SHOWER AND SERVICES ACESS POINT

04

Ground Floor

First Floor SHOWER x6

LATRINE x 12

28 UNDERTAKING AUTONOMY /

LOUIS-CHRISTOPHE BIGRAS

05

ANCHOR POINT 4

LATRINE, SHOWER AND SERVICES ACESS POINT

Anchor Point 6 is located in the south-eastern part of the site, surrounded by housing.

ANCHOR POINT 5

LATRINE, SHOWER AND SERVICES ACESS POINT

Five sanitation service sites, Camouflaging Commercial Sexare Work ancillary to the Water Tower, spread

the development. These sites Fivethroughout sanitation ancillary the Water Tower, front as service anchorsites, points ofto services but are spread throughout the development. front as anchor serve a larger purpose in These the sites evening for theofcommercial sexa larger workers without a home points services but serve purpose in the evening for the to practice within. commercial sex workers without a home to practice within.

Ground Floor as sites for laundry, showering Acting asActing sites for laundry, showering and latrines, these zones not and latrines, these zones not only increase onlythe increase the quality of life the residents but also a quality of life ofof the residents but proposes also proposes a potential practice potential vocationnal practice vocational from which the women offrom the area, women the area, can As learn as azones canwhich learn asthe a way out of of commercial sex work. sanitation way out of commercial sex work. As sanitation theyzones also double as commercial sex commercial work facilitating they also double as sex solicitation, work cleaning, escape authorities, but also a sense of ownership of facilitating solicitation, cleaning, escape First Floor from from but also a sense of ownership space andauthorities, security. of space SHOWER and LATRINEsecurity. x6

x 12

This symbolical new temporary for the sex workers around This symbolical newhome temporary home for or the thesex square, enhances sense ofthe security and power to be exerted workers or aaround square, enhances a sense of security and to be exertedwith onto onto their customers.

They arepower two storey structures latrines customers.

They are two structures on their the ground floor, and showers on level the first, operated and with latrines on the ground floor, and showers maintained the women.

Welland lit and dignified, they become on the by first, operated maintained by the reminiscent bath-houses, are core to the emancipation of women. of Well lit andand dignified, they become bath-houses, thereminiscent commercial sexof workers of the area. and are core to the emancipation of the commercial sex workers of the area.

SANITATION SERVICES / ANCILLARY SITES

ANCHOR POINT 6

LATRINE, SHOWER AND SERVICES ACESS POINT

004 / UNDERTAKING AUTONOMY [MASTER THESIS]

& Commercial Sex Work

TOP + Daytime Daily Activities BOTTOM + Nighttime Proclivities

29

Public Furniture Food Vendors Prebuilt-Concrete Elements Residental Foundation Plinths Phase 1 - Immediate Remediation 1 Main Path Network 2 Ancillary Sanition Sites 3 Water Tower Upgrade 4 Landfill Zone / Trash Deposit Phase 2 - Program Incorporation 5 Maintenance & Meeting Rooms 6 Grain Drying Platform 7 Community Clinic 8 Bars & Gambling Areas 9 Kindergarten Cooking & Drop-Off 10 Community Garden 11 Sport Field 12 Playground Phase 3 - Final Housing Development 13 Completed Housing Lots 14 Community Gym

Phase 2 - Program Incorporation 5 Maintenance & Meeting Rooms 6 Grain Drying Platform 7 Community Clinic 8 Bars & Gambling Areas 9 Kindergarten Cooking & Drop-Off 10 Community Garden 11 Sport Field 12 Playground

Community Clinic Bars & Gambling Areas Kindergarten Cooking & Drop-Off Community Garden Sport Field Playground

10 11 12 Phase 3 - Final Housing Development 13 Completed Housing Lots 14 Community Gym Public Furniture Food Vendors Prebuilt-Concrete Elements Residental Foundation Plinths

Phase 3 - Final Housing Development 13 Completed Housing Lots 14 Community Gym

Public Furniture Food Vendors Prebuilt-Concrete Elements Residental Foundation Plinths

4

Public Furniture Food Vendors Prebuilt-Concrete Elements Residental Foundation Plinths

13

13 13 13

2

13 2 8

13

5

7

8 6

13

8 10

5 1 13

30

2 5

9

3

13

14

8 13

4

11

13

12

2

9 13

13

2

13

PAGE +

The final phase of the development completes the last clusters of housing allotments, relinquishing to its residents the rest of the housing constructions.

The site then becomes in a perpetual states of development, changing with the needs of its residences and the migrations of the families within its borders.

7 8 9

Project Master Plan Three-Phased Development

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO /

10 Community Garden 11 Sport Field Phase 1 - Immediate Remediation 12 Playground 1 Main Path Network Phase 3 - Final Housing Development 2018 2 Ancillary Sanition Sites 13 Completed Housing Lots 3 Water Tower Upgrade 14 Community Gym 4 Landfill Zone / Trash Deposit

NCOMPLETE NITS

Earth -Cast Painted e ncrete

NCOMPLETE NITS

Earth -Cast Painted e ncrete

purposefully places to allow light to seep into all home and have space for vegetation.

between neighbors.

Rods can be slotted into the outer edge of the foundation to provide additional support.

Housing clusters create light wells when assembled following the planned foundations and allotments. These small 120 cm x 120 cm areas are purposefully places to allow light to seep into all home and have space for vegetation.

Corrugated roofspainted can be Pre-built, thick, slotted into available concrete walls have allotments, regardless been cast with deep of their built as notches thatstatus, allow for temporary tin roofs to shelters be slotted against rainfall, and also into. These notches additional coveredto channel rainwater courtyards to be shared drain perpendicularly to between neighbors. and the roof orientation Rods can be slotted onto neighbor roofs.into the outer edge of the foundation to provide additional support.

Housing clusters create light wells when assembled following the planned foundations and allotments. These small 120 cm x 120 cm areas are purposefully places to allow light to seep into all home and have space for vegetation.

Pre-built, thick, painted concrete walls have been cast with deep notches that allow for tin roofs to be slotted into. These LIGHTnotches WELL also channel rainwater to drain perpendicularly to the roof orientation and onto neighbor roofs.

Rainfall

Rainfall Painted Cement Blocks, Concrete or Brick

Rainfall

INCOMPLETE UNITS

Pre-Cast Painted Concrete

DRAIN & ROOF SOCKET

Housing cl create light when assem following the pla foundation allotments. small 120 cm cm are purposefully pla allow light to into all hom have spa veget

Rammed Earth Streetscape

Earth e

Pre-built, thick, painted concrete walls have been cast with deep notches that allow for tin roofs to be slotted into. These notches also channel rainwater to drain perpendicularly to the roof orientation and onto neighbor roofs.

Bench

Common Stove

SHARED COURTYARD & PASSAGE

HOUSING UNITS / SHARED SPACES AND OPEN-ENDED DESIGN VENTILATION & SUNLIGHT EYLET RUST-PROOF PAINTED TIN ROOFING

CONCEALED MANHOLE

FIXED FAUCET

TUB DRAIN INTAKE

31

VENTILATION & SUNLIGHT EYLET

TOWEL RACK & HANDRAIL

CAST STEPPING GROOVES TREATED POLISHED CEMENT SURFACE

MOVE-ABLE BENCH

MOVE-ABLE BENCH & LANDRY TUB HANDRAIL

DRAINAGE GROOVE

004 / UNDERTAKING AUTONOMY [MASTER THESIS]

the sanitation zone serve as escape hatches when authorities raid the area. In these cases, a manhole is located on the underside of installed furniture. When commercial sex work is performed on the second level, within the showering units, these nearby elements can be moved by the costumer - typically not fined by local police enforcement - to allow for the sex worker to escape on the lower level inconspicuously.

Latrine Strategy

purposefully places to allow light to support. seep into all home and have space SHOWERING & LATRINE UNIT / CAMOUFLAGED SEXUAL SERVICES & Showering ESCAPE for vegetation.

Pre-built, thick, units are a core element painted concrete walls have been of the “services” zones on site. cast with deep notches that allow Designed to facilitate commercial for tin roofs to be slotted into. sex work for the women of the area, These notches also channel rainwater smooth edges, places to sit, lay and to drain perpendicularly to the roof things to grab on are all integrated orientation and onto neighbor roofs. within the units and camouflaged as typical showering elements. Benches Corrugated roofs can be slotted can be re-arranged to create a long into available allotments, regardless surface to lay on while the general of their built status, as temporary design and intent of the showering shelters against rainfall, and units allow locals to quickly clean

TOP + Housing Strategy BOTTOM + Shower &

Showering units are a core element of the “services” zones on site. Designed to At times, latrines installed in the sanitation zone serve as escape hatches when facilitate commercial sex work for the women of the area, smooth edges, places to authorities raid the area. In these cases, a manhole is located on the underside of Housing clusters create light covered courtyards to beWhen commercial and rinse the area after services are sit, lay and things to grab on are all integrated within theadditional units and camouflaged installed furniture. sex work is performed on the second level, wells when assembled following the shared neighbors. can units, these performed. as typical showering elements.

Benches can be re-arranged to createbetween a long withinRods the showering nearby elements can be moved by the costumer to lay on whileand the general design nd intent of thebe showering units allow typically not fined planned surface foundations allotments. slotted into the outer edge of by local police enforcement - to allow for the sex worker to quickly the area after services are performed. inconspicously.

These small locals 120tocm x clean 120 and cmrinse areas are the foundation to provide additionalescape on the lower At level times, latrines installed in

PAGE + Clinic [1], Bars [2], Park [3], & Water Tower [4] Plans

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018 Supplementary program elements to further increase the quality of life of the square’s inhabitants, that also propose new ways of emerging out of sex work, through vocational training and support are implemented. These include a kindergarten, some bars and gambling zones, a park and some maintenance and training rooms adjacent to the stations.

The kindergarten, for example, plays a crucial role in the re-framed sex-trade around the square. A large portion of the sex workers have children, which become a problem when the women work out of their own homes. In this case, the kindergarten and public park serves two purposes: they add an actual physical place for the children to play outside, and second they offer an opportunity for the women to run the daycare; taking a break from sex work, allowing other women to work away from their children,and learning a potential new vocation into childcare.

UNDERTAKING AUTONOMY /

UNDERTAKING AUTONOMY /

LOUIS-CHRISTOPHE BIGRAS

LOUIS-CHRISTOPHE BIGRAS

7 4 1

4

5 5 6

4

2 3

1

5

1 2

1

7

2 2

5

2 4 1 3 3

5

5

2 1 2 3 4 5 6 7 UNDERTAKING AUTONOMY /

Recovery Rooms Treatment Rooms Nurse’s Room Storage Room Mechanical Room Waiting Area Sanitation Area

CLINIC

PLAN 1:70

LOUIS-CHRISTOPHE BIGRAS

1 2 3 4 5 6 7

Drink Kisosk Food Stand Gambling Table Interior Bar Exterior Drinking Hyena Square Grain Drying Area

UNDERTAKING AUTONOMY /

6 2

LOUIS-CHRISTOPHE BIGRAS

2

DEBAUCHERY ZONE PLAN 1:100

2

32

7

3

2 6

2

2 1 4 1

5

1

1

2

2 2

1

1 1

4

5 4

4 3

1 2 3 4 5 6 7

VOCATIONAL TRAINING & CENTER TOWER PLAN 1:100

Public Latrine Public Showers Roof Acess Meeting Area Common Water Tap Maintenance Office Hyena Square

7

6

1 2 3 4 5 6 7

Reading Area Play Area Kitchen Eating Area Covered Play Area Office Drop-Off Point KINDERGARTEN & PARK TYPE PLAN 1:100

LOUIS-CHRISTOPHE BIGRAS

004 / UNDERTAKING AUTONOMY [MASTER THESIS]

PAGE +

The housing development scheme stays sensitive to the qualities of the area observed during the expedition. Shared courtyards and possibilities for covered exterior cooking are built. Through this,the already present camaraderie felt between the women is enhanced and given public importance.

As is common with informal settlements such as these, the housing framework also permits for an add-hoc approach to building, understanding that family structures migrate and change rapidly while HOUSING / PLAN 1:50 also DEVELOPMENT catering to the present creative and crafty nature of its inhabitants.

Typical Floor Plan of the Housing Scheme

33

UNDERTAKING AUTONOMY /

PAGE +

Bars are found all around the square, and mostly consist of kiosk beverage stands with outdoor seating areas. And it is between the buildings that these spaces for drinking and gambling are located.

The base of the water tower is opened up and becomes a gathering place for the women in the morning. They share experiences about bad clients they should stay away from. They delegate who will be operating the kindergarten today, and outline if any of the services ancillary sites requires maintenance.

Daytime Center Square

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

34

35 Nighttime Center Square

004 / UNDERTAKING AUTONOMY [MASTER THESIS]

PAGE +

In the evening, a space between bars can be rearranged for gambling by using nearby food stalls that have been emptied in order to play kolokolo, a dice game of chance favored by locals.

The Water Tower become core to the women’s emancipation and potential transition out of commercial sex work, all the while guiding newcomers through the safe practices of sex work. At night, it becomes a place for monetary exchange and solicitation and is directly adjacent to one of the 6 services sites.

PAGE +

COOP HIMMEL+ B[L]AU

Cardboard & Paper Physical Model

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

36

SCHEWIZERGARTEN

37

05A

Situated in a residential neighborhood near the train terminal of Vienna, Coop Himmelb(l)au was tasked with the design of a 19 storey residential building in partnership with Delugan Meissl Architects.

PAGE +

005 / COOP HIMMELB[L]AU INTERNSHIP

Facade Detailing Samples & Typical Floor Plan

2017 [4 MONTHS]

PAGE +

Tower & Plaza Render

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

38

00.0 - 12.6 12.6 - 25.2 25.2 - 37.8 37.8 - 50.4 50.4 - 63.0 63.0 - 75.6

Wind Velocity (m/s) 00.0 - 12.6 12.6 - 25.2 25.2 - 37.8Wind 37.8 - 50.4 50.4 - 63.0

05B ZLATEN ROG TOWER

Located in Sofiya, Bulgaria, Coop Himmelb(l)au was asked to propose a design for a residential tower with a multi-functional complex at its base.

The design was informed by local wind conditions and simulations. The wind velocities were directly translated into the balconies’ form.

00.0 - 00.0 12.6 - 12.6 12.6 - 12.6 25.2 - 25.2 25.2 - 25.2 37.8 - 37.8 37.8 - 37.8 50.4 - 50.4 50.4 - 50.4 63.0 - 63.0 63.0 - 63.0 75.6 - 75.6

TOP +

005 / COOP HIMMELB[L]AU INTERNSHIP

Wind Simulation & Grasshopper Facade Script

39

2017 [2 MONTHS]

63.0 - 75.6

Wind Velocity Velocity (m/s) (m/s)

LOUIS-CHRISTOPHE BIGRAS PORTFOLIO / 2018

FREELANCE WORK 06A

HENNING LARSEN ARCHITECTS AUTUMN 2018

Competition rendering for an exterior park using railroad infrastructure in Sweden.

40

WINTER 2017

Model building for a new housing development in Sisimiut, Greenland

006 / PROFESSIONAL FREELANCE WORK

41

06B

NORDIC ARCHITECTS
