WAREHOUSE WALL SECTION

Winter 2023

Contributors:Hannah Lampadio,Chirag Barbhaya

Advertisement

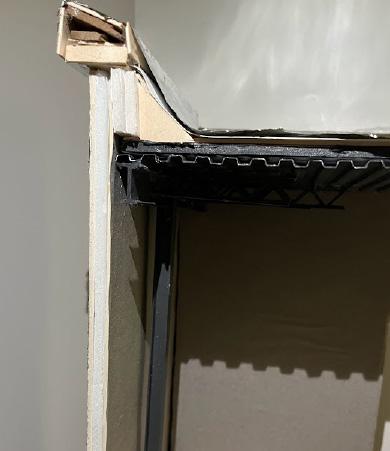

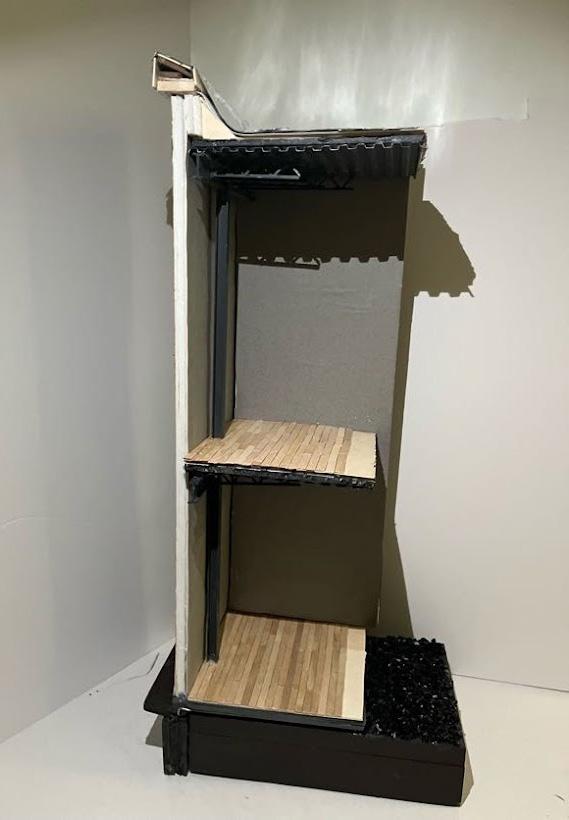

This project required us to make a physical model of the warehouse wall section we did in the fourth semester studio at a scale 1:20.The model represents from 2’ below grade to top of parapet.Materials like cardboard,balsa wood,foamboard have been used in this model to represent the required materials.The wall section chosen for the model represents precast concrete panel as the exterior wall.

Completed in Materials,Methods & Components 2 class

ANCHOR BOLT CONNECTING CONC. SLAB AND CONC. EXTENSION

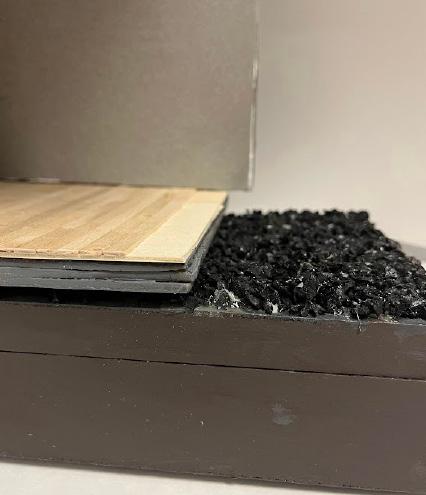

GRAVEL BELOW GROUND FLOOR SLAB

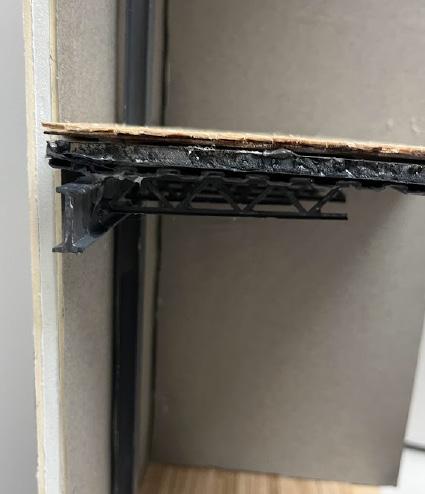

SECOND FLOOR CONNECTION

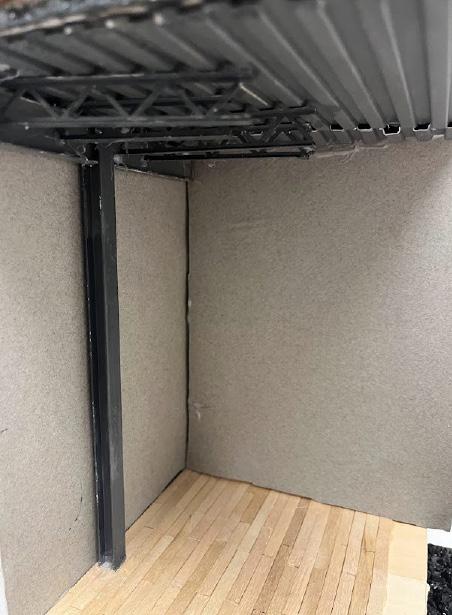

Second Floor Framing

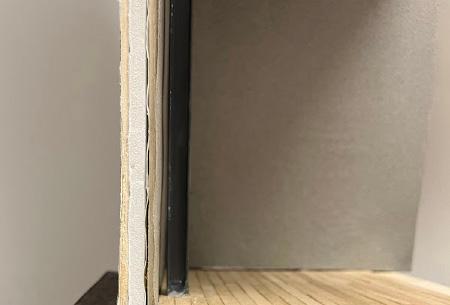

Precast Sandwich Panel
