ARCHITECTURE PORTFOLIO
Subtitle:- An Under Graduate Architecture Portfolio
This is a collection of my selected works throughout my journey through my architecture college. The belief behind every project was to constantly challenge the existing dogmas, to question the very existence the aspects of our cities and the fabric of social interaction that lies within our cities. To maybe, reinvent the wheel.
To move forward, we must evolve and so must our creations.
CHANDAN KUMAR
CHANDAN KUMAR
I am an architecture student with enthusiastic, self motivated, reliable, responsible and hard working personality. I am able to work well both in team environment as well as using own initiative. I particularly efficacious with the software and technical knowledge about today’s technology and utilizing them to their utmost potential.
INFO & CONTACT
Father Name- Sh. Jagdish Shah
Mother Name- Smt. Bindu Devi
D.O.B- 27-02-2000
EDUCATION
2019 - Present Bachelor OfArchitecture
University School OfArchitectureAnd Planning (U.S.A.P)
GGSIPU Dwarka Delhi 110075
2018 - 2019 Senior Secondary School (Class 12)
N.I.O.S Noida Sec-62
2015 - 2018 Diploma (Architectural assistantship)
Aryabhat Institute Of Technology,Ashok Vihar Delhi 110033
2005 - 2015 Higher Secondary School (Class 10)
S.K.V No-2 Khyala, New Delhi 110018
EXPERIENCE
May 2018 - Oct 2018
Metropolation Design Studio
AssistantArchitect & Draughtsman
Interior Working Drawings, On Site Work, Vendor & Contractor Communication.
SOFTWARE SKILLS
Autocad
Sketchup
Adobe Photoshop
Enscape
Adobe Illustrator
Adobe Indesign
Vray
Lumion
Revit
Rhino
Qgis
May 2019 - May 2019
SKETS Studio
TraineeArchitect
2019 - Present Freelance
Architectural & Interior Working Drawings
COMPETITIONS
2019 2020 LBT Trophy (NASA)
Ecotect
Design Builder
Ms Office
OTHER SKILLS & HOBBIES
ADD.- NW-183 Vishnu Garden Khyala New Delhi 110018
MOB.- +91 7530914099
EMAIL.- chandanabit@gmail.com
2020 - 2021
2020 - 2021
Participation
DESTECH (NASA)
Shortlisted In Top 8
Kaarwan National Design Competition Participation
Model Making
Photography Sketching
Hard Working
Team Leading Problem Solving
Critical Thinker Reliable
LANGUAGE
LinkedIn- https://www.linkedin.com/in/chandan-kumar-0949b9202/ Hindi
2020 -2021
LBT trophy (NASA)
Shortlisted In Top 8
2020 - 2021
Un learning of SpaceACOA
Participation
English
Preface
This portfolio is an organized collection of goal-driven artifacts of my professional growth and achieved competence over the past 7th Sem. I am a architecture student studying at University School ofArchitecture and Planning, GGSIPU, Delhi. During my course of study, I have learned problem solving techniques, integration of theories into real life applications, and how to work in a group environment.As my journey ends at University School ofArchitecture and Planning (USAP), I look forward to trucing what I have learned into the corporate world to come up with new and innovative ideas for the global economy.
01. HOUSING02. HOSPITAL03. PRIMARY SCHOOL Year- 2023 Semester- 7th Group of 3 Page no.- 6 Year-
6th Individual Page no.- 12
3rd
Page no.- 16
TABLE OF
2022-2023 Semester-
Year- 2020-2021 Semester-
Individual
CONTENTS 04. WORKING DRAWING05. EXPERIENCE & FREELANCE06. MISCELLANEOUS Year- 2022-2023 Semester- 6th Individual Page no.- 20 Year- 2018-2023 Page no.- 22 Year- 2019-2023 Individual Page no.- 24
01. HOUSING
Year :- 2022-2023

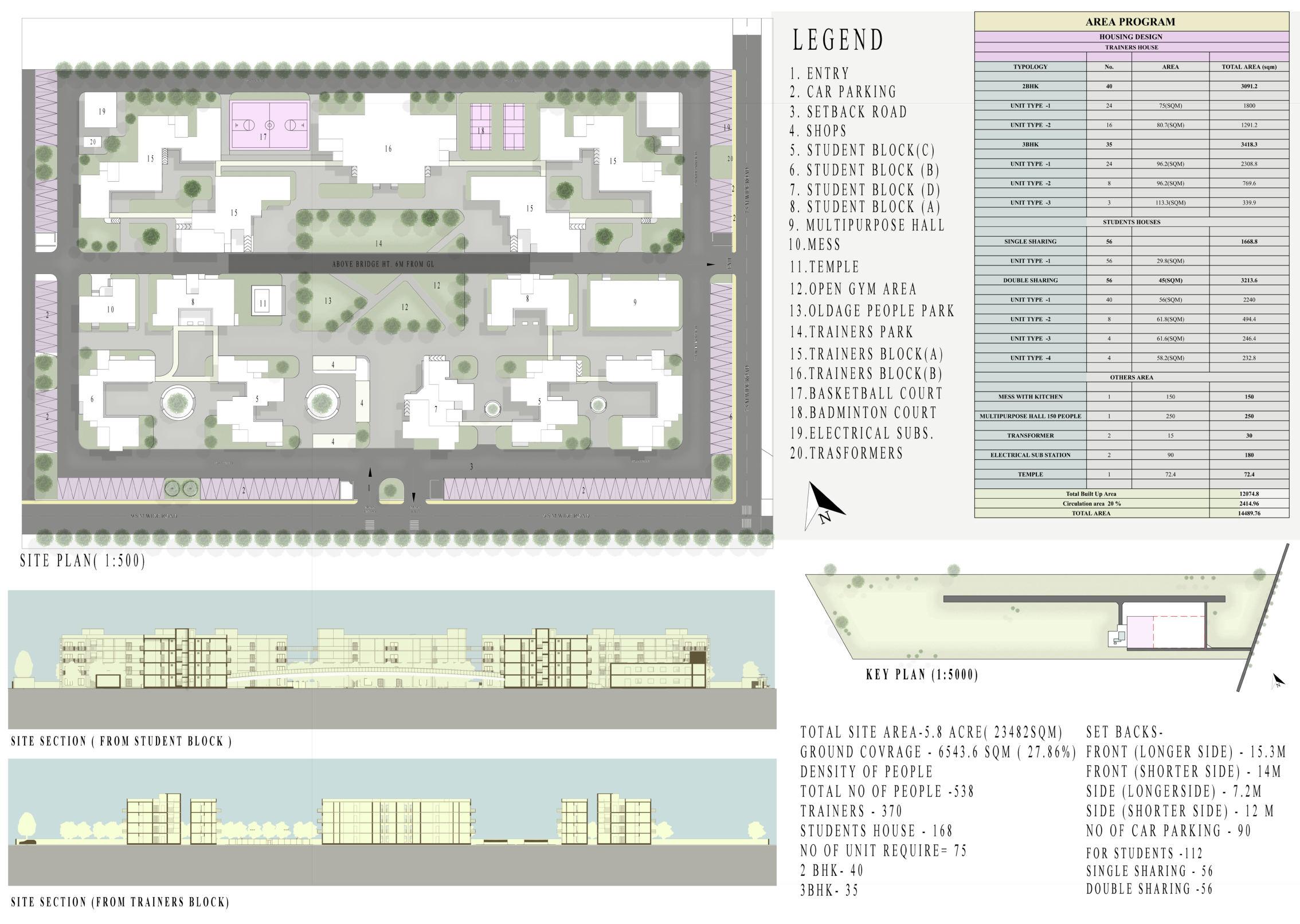

Type :- Sports Student Housing
Location :- BhiwaniAirstrip, Haryana
Software Use:-Autocad, Sktechup, Photoshop, Enscape 3D
About The Project:-
As per transperece competition brief was given to built space/ things for the use the community and also remains/function the existing structure on the airstrip. We purposed the sports training centre for community as well as other people also and provide housing for their Students and trainers.

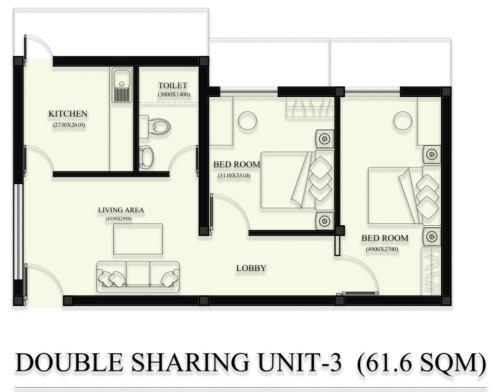

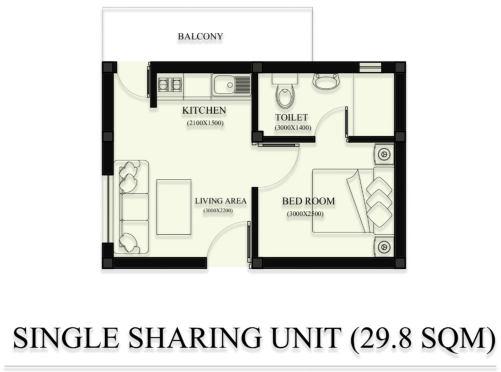

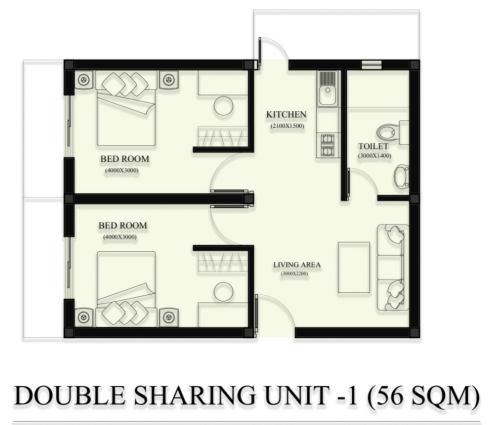

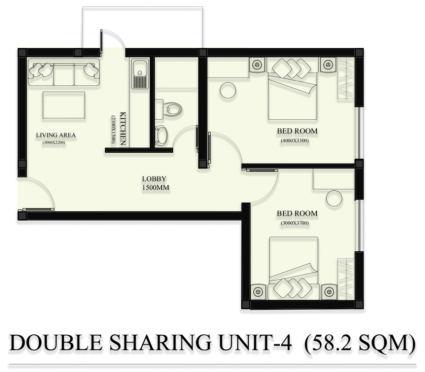

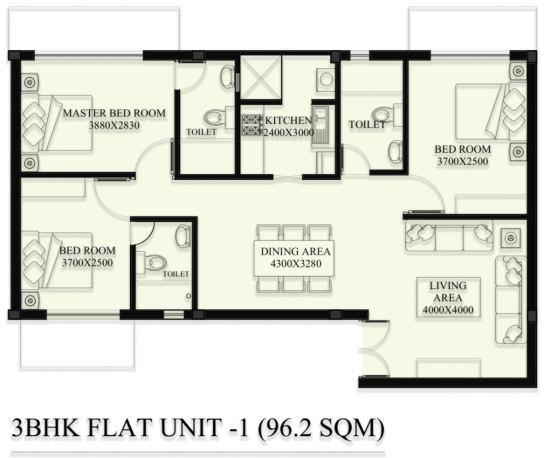

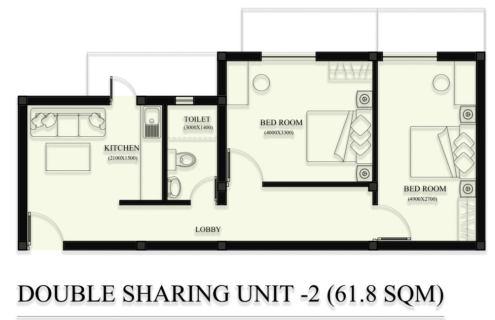

This design project is aim to built a housing for multiple sports students along with sports trainers and also provide housing for the existing FSTC students and trainers.

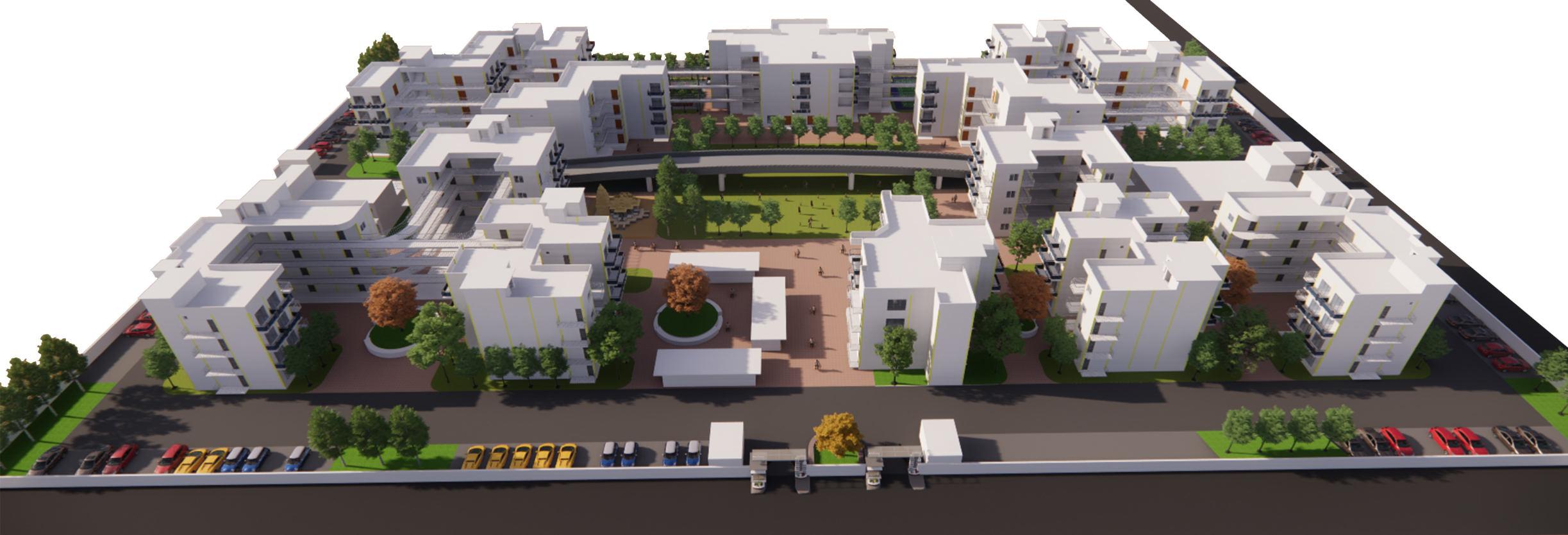

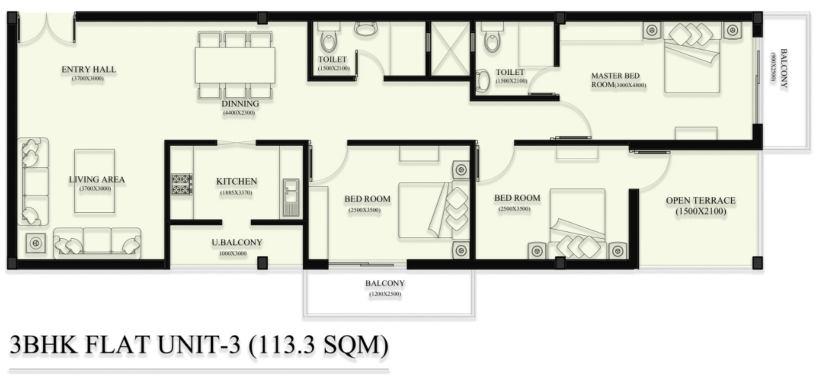

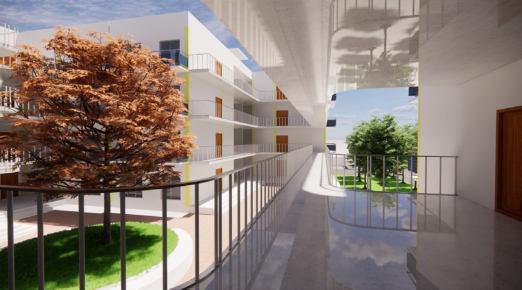

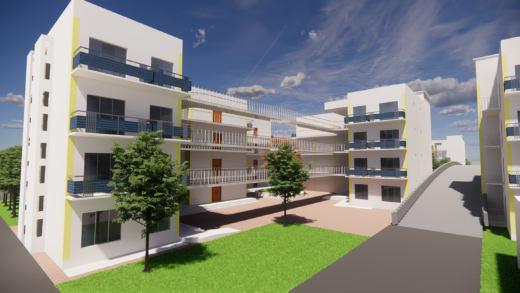

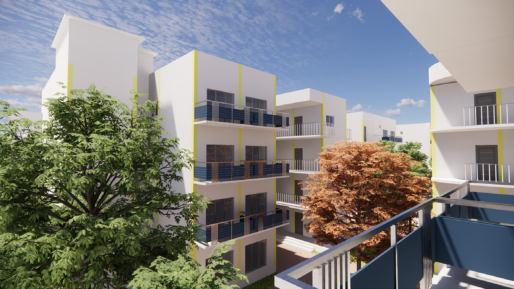

BALCONYVIEW
VIEW FROM STREET

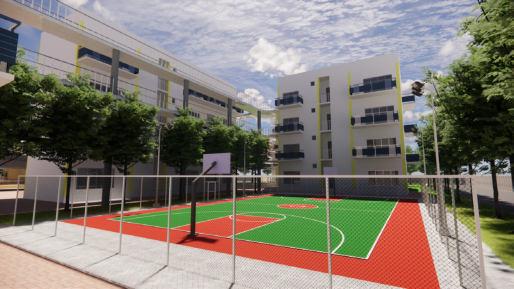

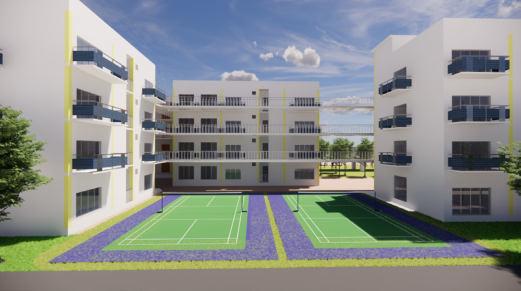

BASKETBALL COURTBADMINTON COURT

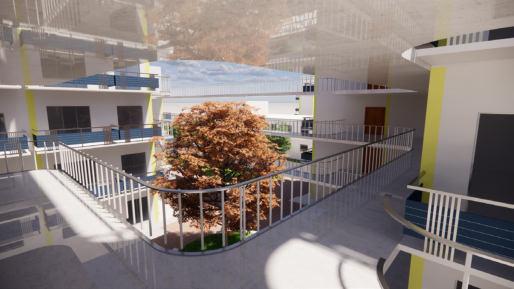

BRIDGE WITH COURTYARDBRIDGE VIEW

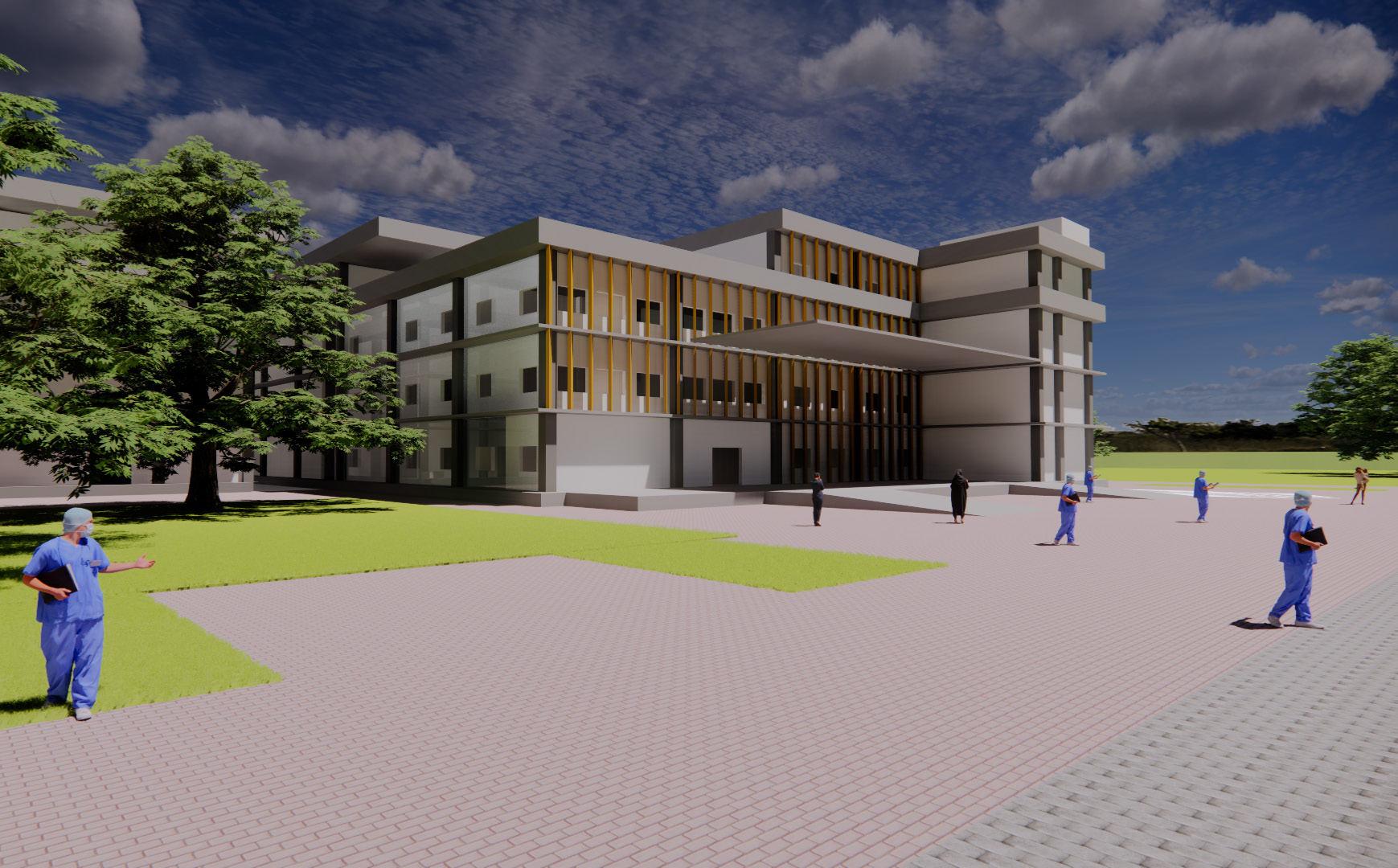

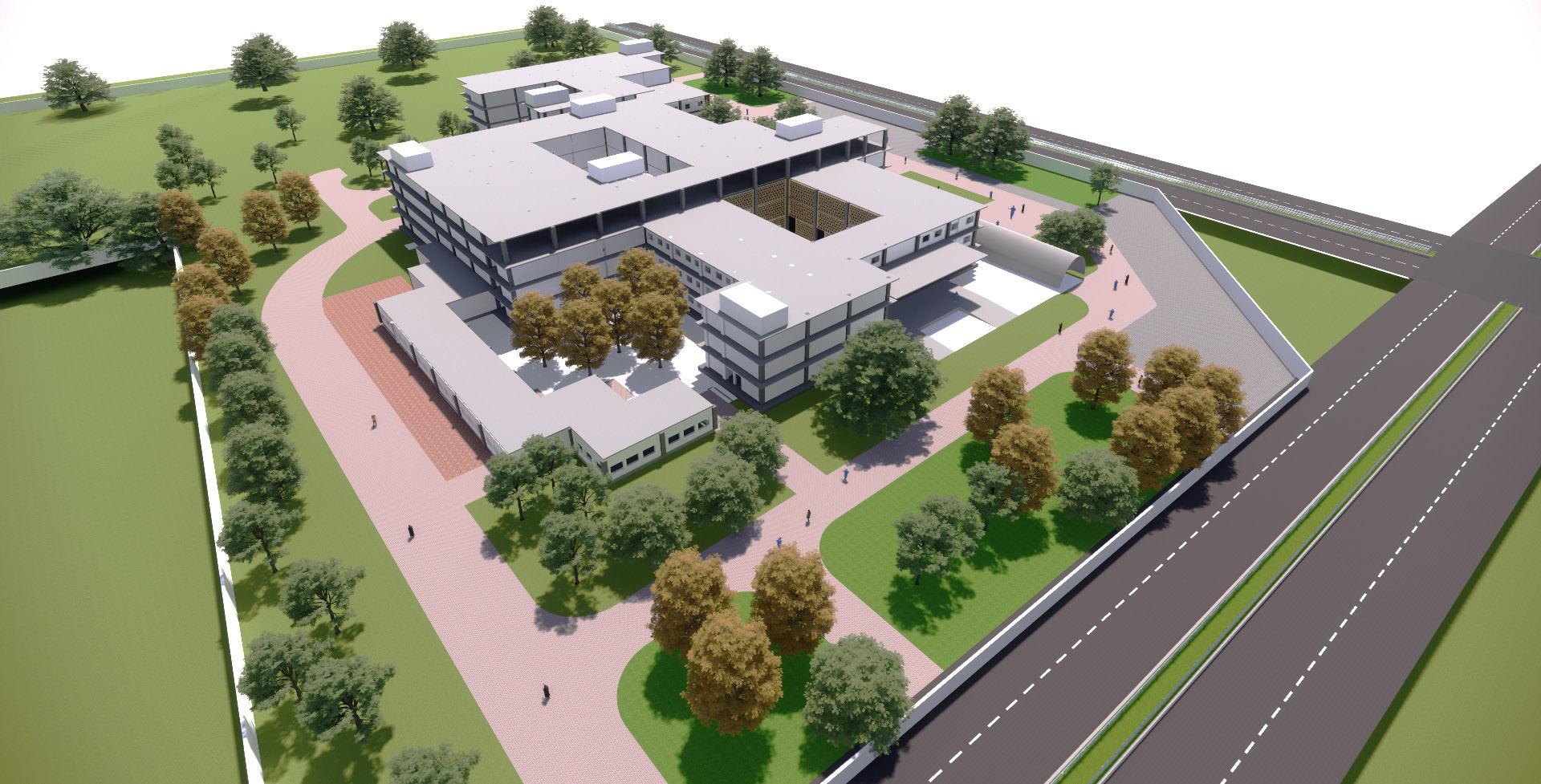

02. HOSPITAL
Year :- 2022
Type :- 100 Beded Hospital
Location :- Dwarka Sec-16, Delhi
Software Use:-Autocad, Sktechup, Photoshop, Enscape 3D
ABOUT THE PROJECT:-

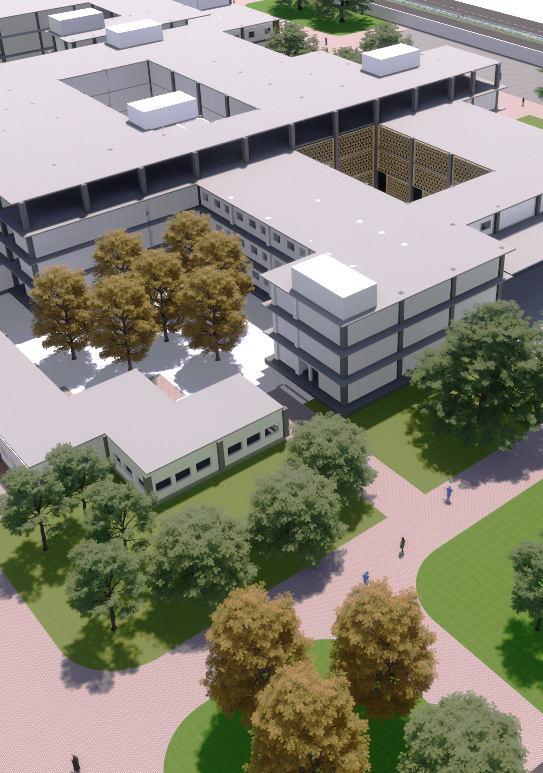

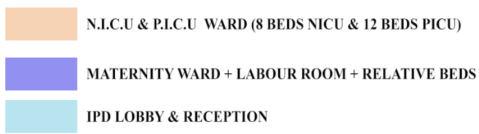

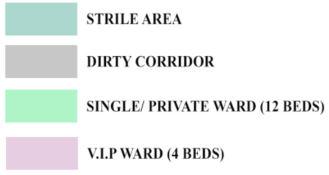

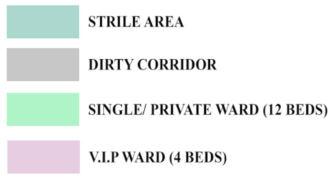

The aim of the 100 beded hospital design is to create a visually appealing and functional space that enhances the healing environment for patients, provides a comfortable and efficient working environment for staff, and meets the specific needs and requirements of a hospital setting.

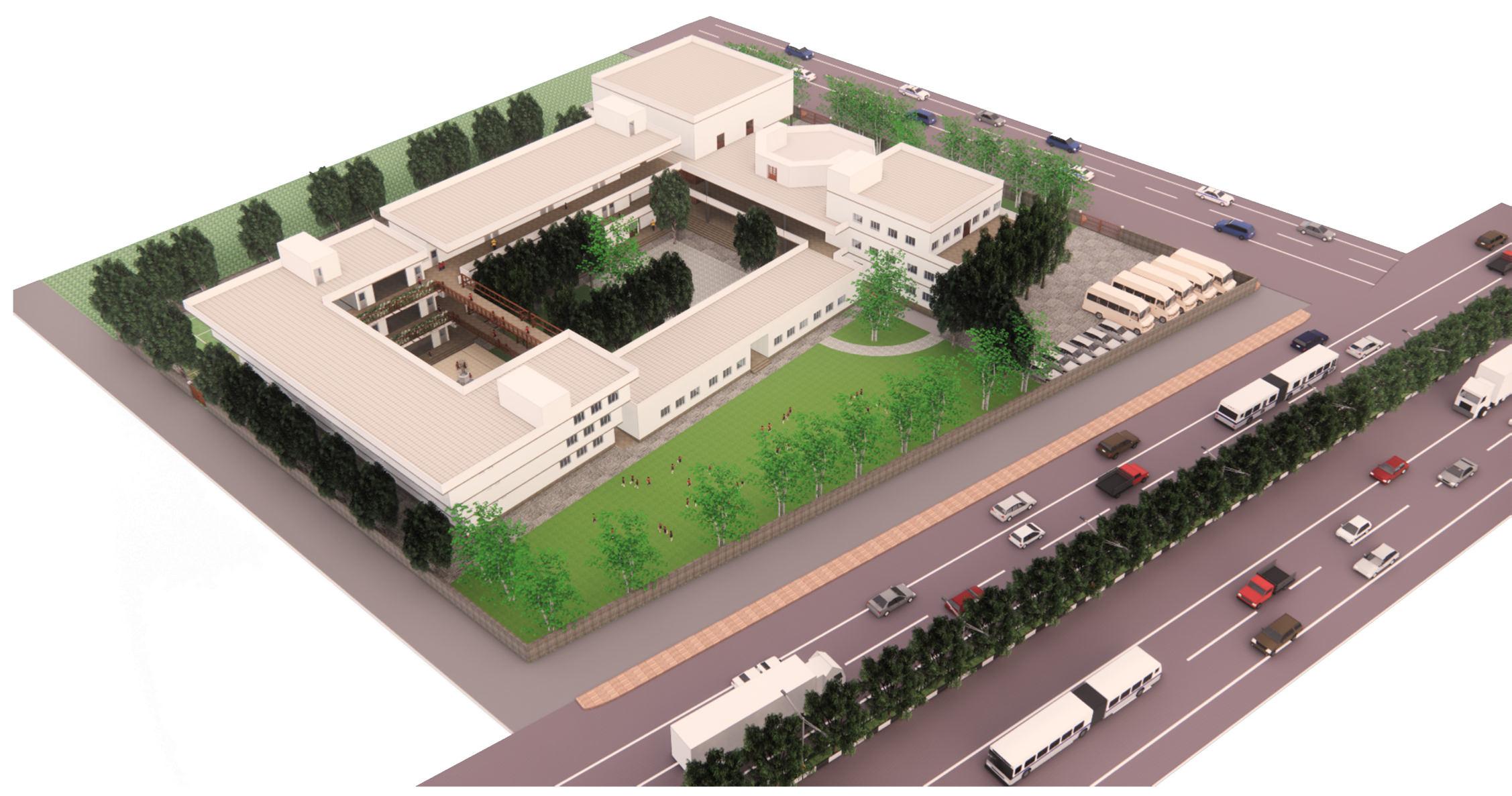

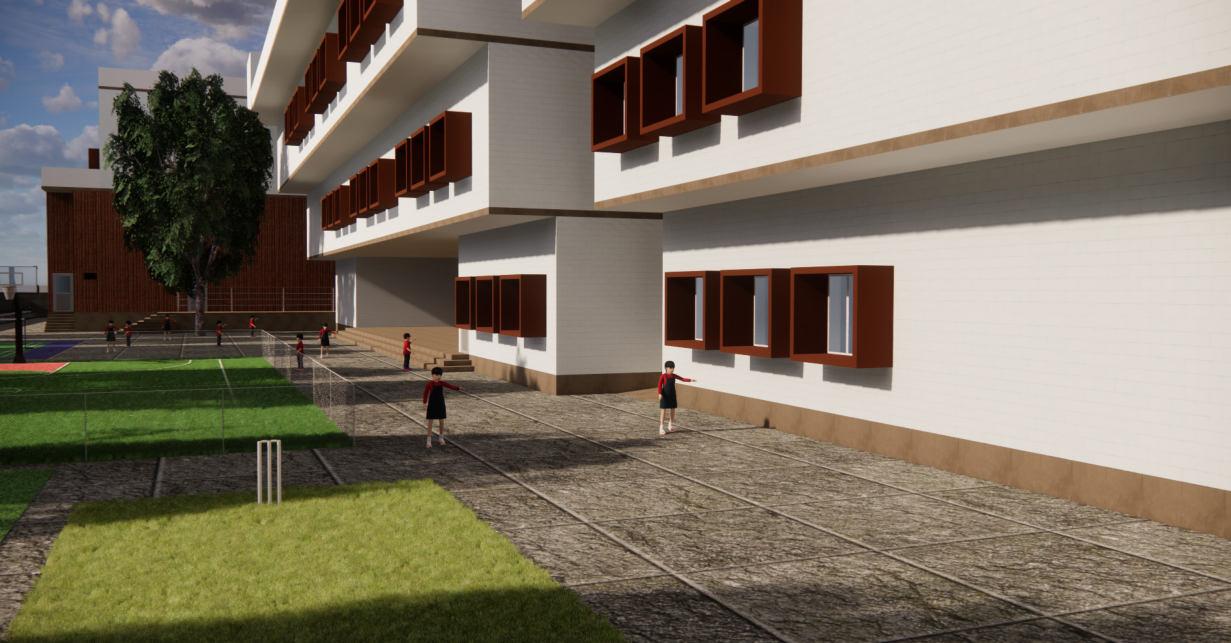

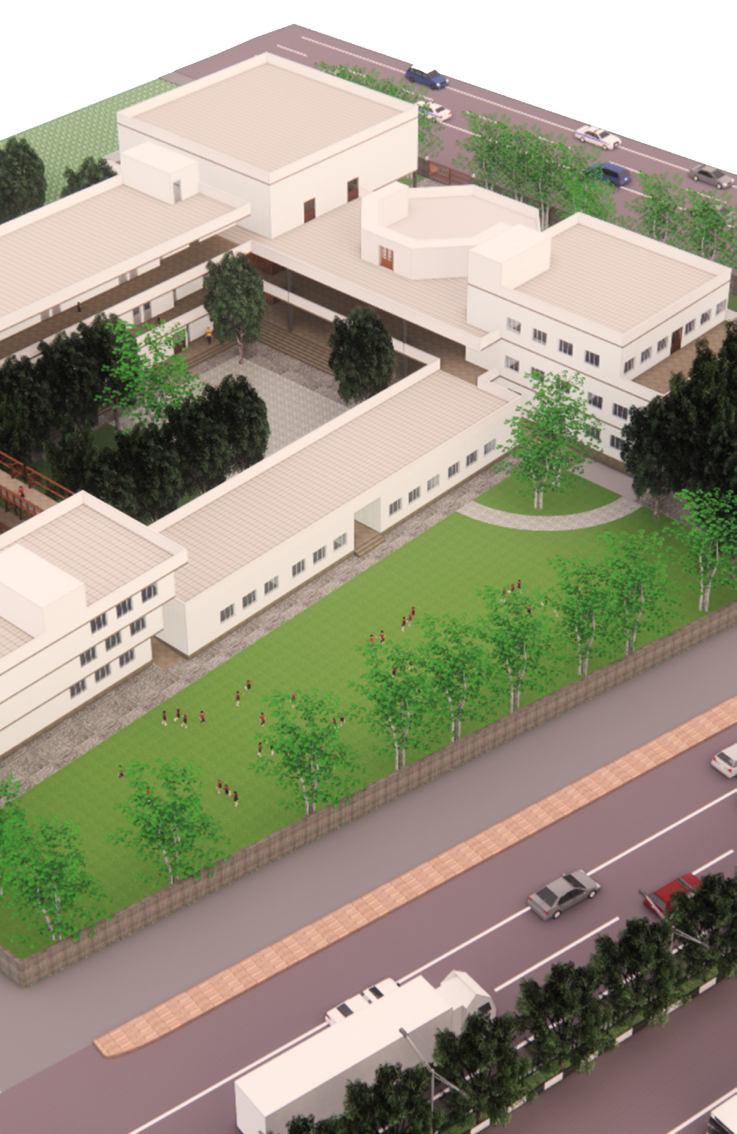

03. PRIMARY SCHOOL
Year :- 2020-2021
Type :- Primary School
Location :- Dwarka Sec-16, Delhi
Software Use:-Autocad, Sktechup, Photoshop, Enscape 3D
ABOUT THE PROJECT:-
The aim of primary school design is to create a safe, and stimulating learning environment that supports the educational needs and holistic development of young children. The design should promote creativity, collaboration, and a positive sense of belonging, while also considering factors such as safety, accessibility, and sustainability.

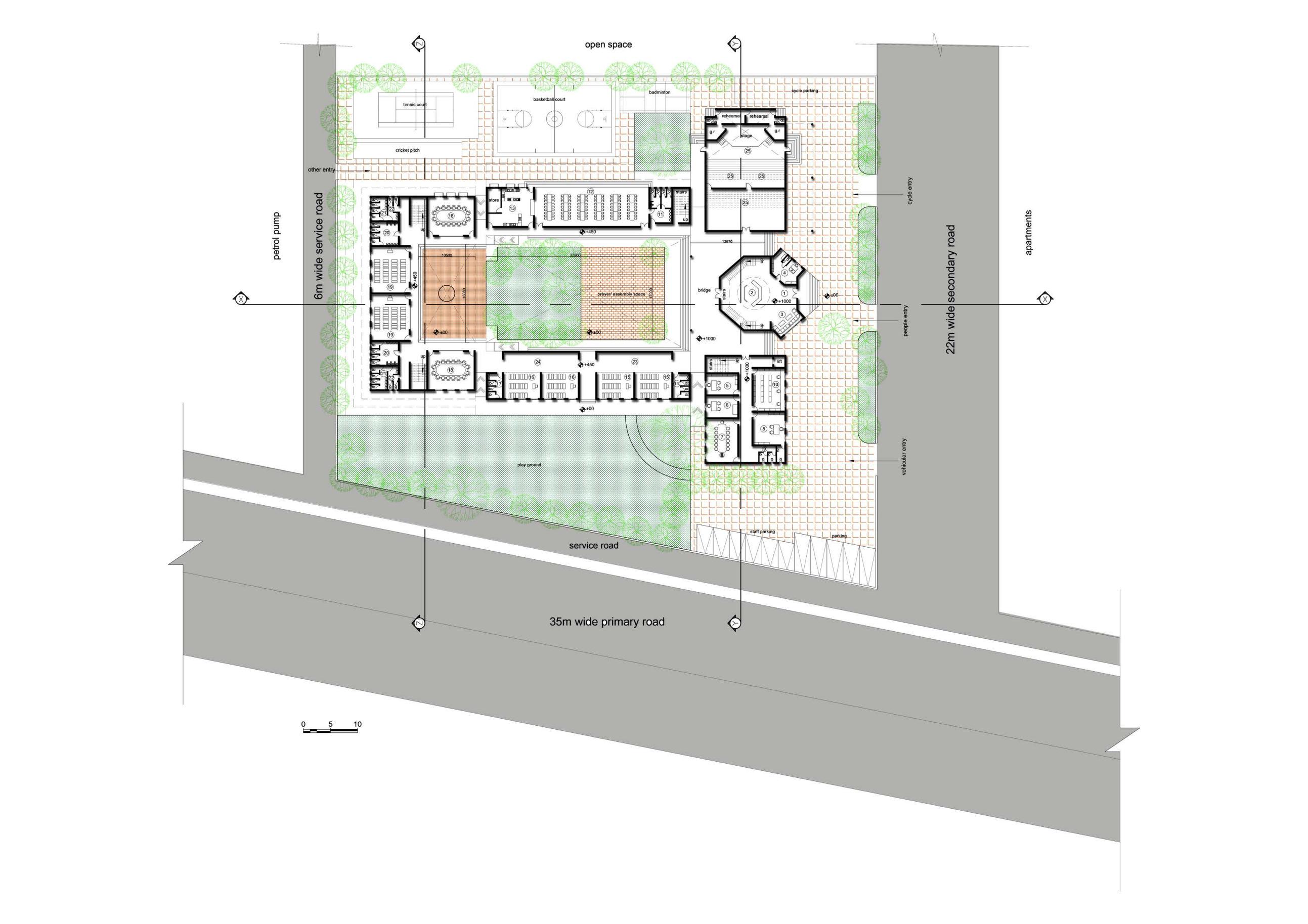

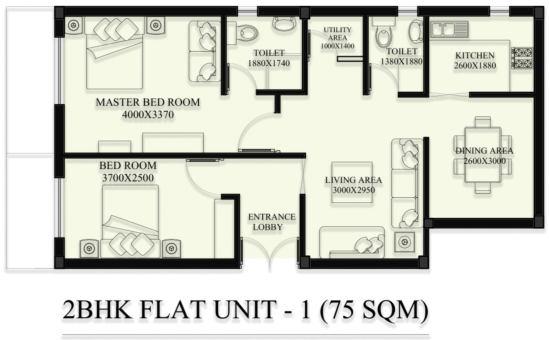

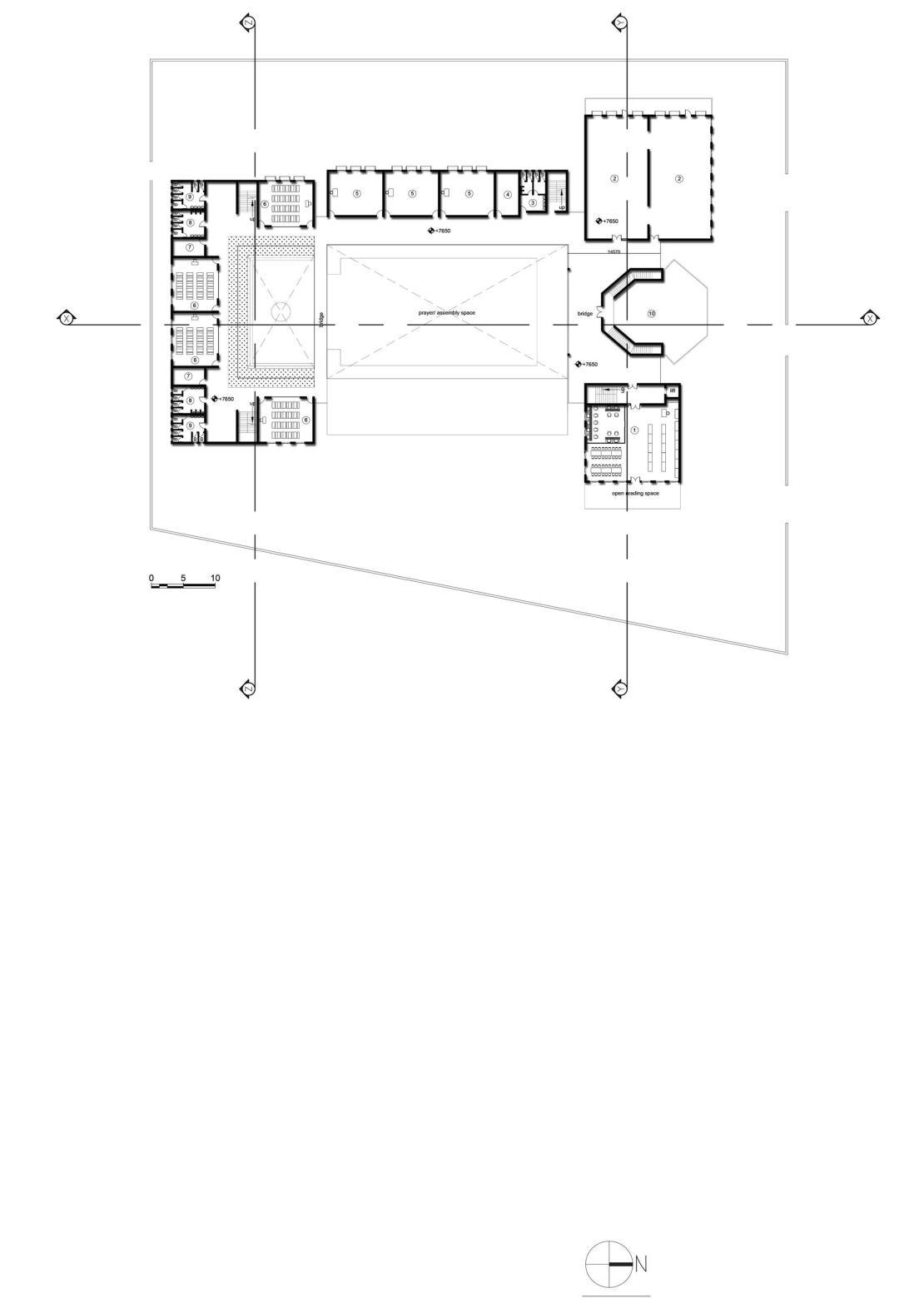

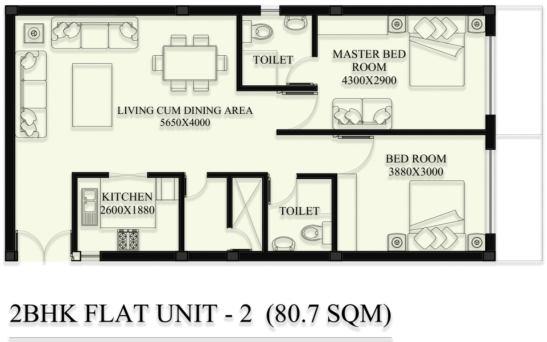

GROUND FLOOR PLAN
FIRST FLOOR PLAN
GROUND FLOOR PLAN

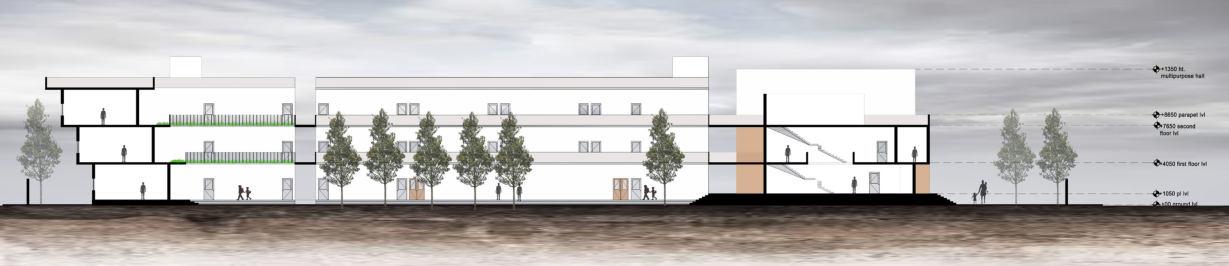

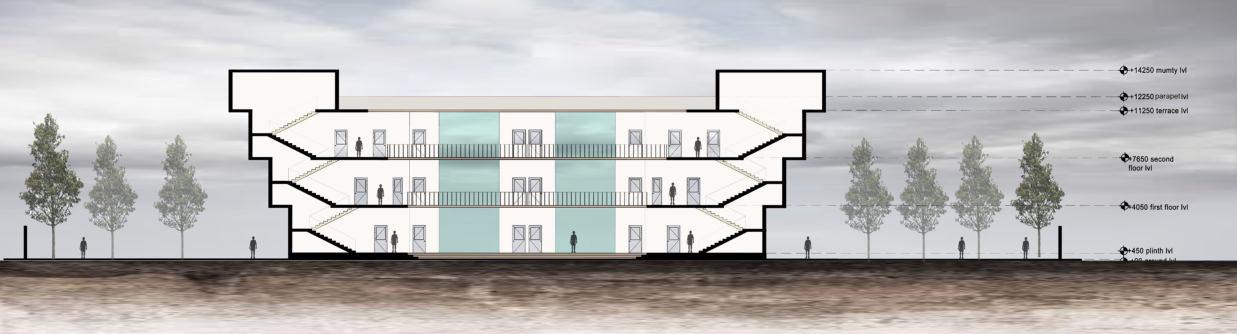

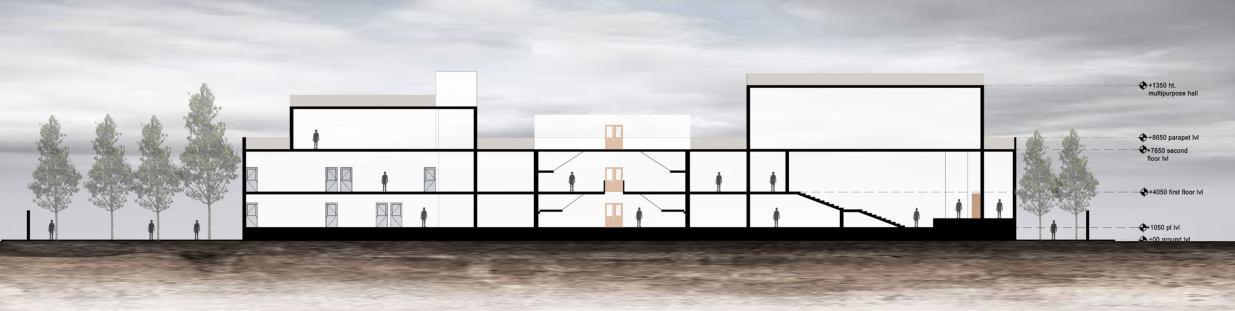

SECTION- XX
SECTION- YY
SECTION- ZZ

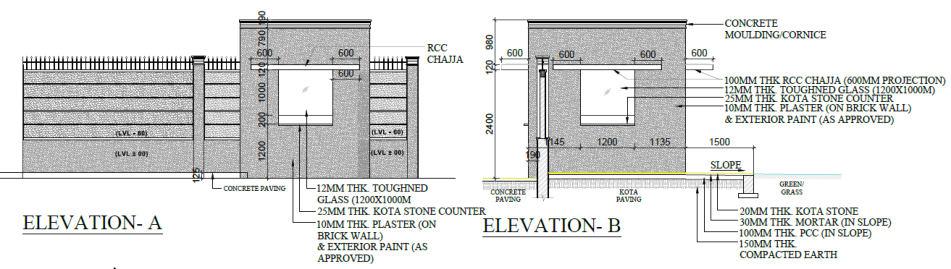

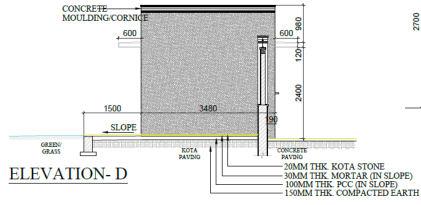

04. WORKING DRAWING & DETAILS
GROUND FLOOR PLAN (DEPARTMENT OF COMMUNICATION BLOCK)
DEPARTMENT OF COMMUNICATION 8000 8000 8000 8000 8000 3775 8000 8000 8000 8000 26600 18600 16000 16000 4225 4225 3775 3775 4225 8000 3775 4225 2700 13300 18600 GRAPHIC DESIGN STUDIO 15770 X 7770 ELECT. ROOM 4120X1825 A.H.U 4120X1915 FILM & ANIMATION 3530X7775 REGULAR FACULTY 4120X7730 EXHIBITION DESIGN 3420X3110 GRAPHIC DESIGN 3420X2030 FEMALE MALE JANITOR ROOM HAND. TOILET DRINKING AREA FILM & VIDEO STUDIO 15770X7770 CLASSROOM 7750X7770 CLASSROOM 7770X7750 LABORATORY 7770X3790 LAB FOR V.I.R, AV 7770X4090 DIGITAL GRAPHIC COMMUNICATION STUDIO FILM & VIDEO 4010X7775 VISITING FACULTY 7770X3940 K J G F E D B A C H 1 2 3 4 5 6 7 8 9 10 COURTYARD COURTYARD RECEPTION 8370 1200 4595 1200 2240 2155 1200 1000 590 1200 1970 230 1600 1800 1795 1800 2605 1800 1805 1800 2605 1800 1795 1800 2215 600 4770 6035 1800 300 300 40600 16000 1575 1575 900 900 UP 9575 1800 2100 1800 2000 1800 1500 1850 1575 2400 1800 2000 1800 2400 1800 5500 3700 6000 3400 2000 1500 W2 W2 W2 W2 W2 W2 W2 V1 D1 V1 SHAFT D1 D1 D1 D1 D1 D1 D1 LO1 LO1 F.H.C W2 W2 W2 W2 W2 W2 W2 2000 LIFT LOBBY D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D1 D4 6000 3400 CLASSROOM 7750X7770 CLASSROOM 7770X7750 CLASSROOM 7770X7750 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D2 D2 UP 1800 2225 W2 2500 2400 11100 7995 6000 210 1500 1000 825 1200 2740 750 1510 1200 4310 1200 9020 1200 4090 230 7725 7815 D5 8370 1200 5000 1200 1200 5000 1200 1200 5000 1200 UP 1800 1795 1800 2605 1800 1795 1800 2605 1800 1805 1800 2605 1800 1795 1800 8000 8000 8000 8000 8000 3775 4225 3775 4225 300 48600 7970 2000 1000 5805 1800 2100 1800 2000 1800 2360 1800 2000 1800 9580 1800 2075 4045 1795 2005 1800 K J G F E D B A C H 1 2 3 4 5 6 7 8 9 10 8055 8000 8000 8000 4225 3775 3775 4225 8000 24000 32615 LEGEND STAIRCASE -1 W. OF STEPS = 1800 MM NO OF STEPS = 24 TREAD= 300 MM RISER= 150 MM LEGEND STAIRCASE -3 W. OF STEPS 1800 MM NO OF STEPS = 24 TREAD= 300 MM RISER= 150 MM LEGEND STAIRCASE -4 W. OF STEPS 1800 MM NO OF STEPS 24 TREAD= 300 MM RISER= 150 MM LEGEND STAIRCASE -2 W. OF STEPS 1800 MM NO OF STEPS = 24 TREAD= 300 MM RISER= 150 MM 2400 2400 8000 8000 RAMP SLOPE 1:10 SLOPE 1:10 6000 3000 5900 1500 600 200 825 200 D2 D1 185 1000 185 570 1200 200 1030 750 3420 230 335 460 2050 150 68055530 2220 1800 520 1800 2205 6805 2590 1500 4420 ELECT. ROOM 4120X1825 A.H.U 4120X1915 TOILET MALE TOILET 2720X1160 HAND. 10005901200 1970 230 600 4770 6035 1800 1575 1575 900 900 6P LIFT UP 3700 1200 2000 SHAFT F.H.C 2000 LIFT LOBBY 210 1500 1000 825 2400 SLOPE 1:10 600 825 185 1000 185 1030 750 3420 230 335 460 6P LIFT 2050 150 55306805 2220 1800 520 1800 6805 2590 1500 4420 V1 V1 LO1 LO1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D2 D2 D3 D3 D4 D5 2220 W2 W1 1200 W1 1800 520 1800 230 7775 7770 230 1800 520 1800 230 3790 8000 230 5545 230 2775 4990 7770 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 24600 32000 D6 D6 +261.6 +261.6 +261.6 +261.6
8000 8000 8000 8000 8000 3775 8000 8000 8000 8000 26600 16000 4225 4225 3775 3775 4225 8000 3775 4225 2700 18600 K J G F E D B A C H 1 2 3 4 5 6 7 8 9 10 300 300 40600 16000 8000 8000 8000 8000 8000 3775 4225 3775 4225 300 48600 7970 K J G F E D B A C H 1 2 3 4 5 6 7 8 9 10 8055 8000 8000 8000 4225 3775 3775 4225 8000 24000 32615 2400 2400 8000 8000 2400 GROUND FLOOR FRAMING PLAN (DEPARTMENT OF COMMUNICATION BLOCK) DEPARTMENT OF COMMUNICATION COURTYARD COURTYARD FEMALE TOILET 4210X5530 MALE TOILET 3710X4525 JANITOR ROOM 2720X1160 HAND. TOILET 2000X2155 DRINKING AREA SHAFT 32300X935 BASEMENT G.F F.F SHAFT A SECTION -XX I.C FOR DRAIN I.C FOR DRAIN PLUMBING LAYOUT OF TOILET 400 400 400 400 SUNKEN SLAB DETAIL
A PART PLAN BASEMENT LIFT AC CHILLER PLANTPUMP ROOM FAN ROOM STORE ROOMSTORE ROOM K G E D B A C H 1 6 7 8 9 10 40600 48600 7970 K J G F E D B A C H 5 6 7 10 BASEMENT PLAN (DEPARTMENT OF COMMUNICATION BLOCK) LEGEND STAIRCASE W. OF STEPS 1800 MM TREAD= 300 MM RISER= 150 MM LEGEND STAIRCASE -3 W. OF STEPS 1800 MM TREAD= 300 MM RISER= 150 MM W. OF STEPS 1800 MM NO OF STEPS 24 TREAD= 300 MM RISER= 150 MM W. OF STEPS 1800 MM NO OF STEPS 24 TREAD= 300 MM RISER= 150 MM RCC COLUMN RCC PEDESTAL TIE/ STITCH BEAM PART PLAN DETAIL AT A COLUMN ON TIE BEAM & PEDESTRIAN IN RAFT SLAB SECTION RCC COLUMN PEDESTAL FOR COLUMN STITCH BEAM RAFT SLAB WATER PROOFING PCC 150mm P.C.C. [1:4:8] AS PLINTH PROTECTION COPING DRIP 20mm Dia. LEVELLING COARSE DETAIL- C' DETAIL- B' KOTAH STONE 25mm P.C.C. LAID AT SLOPE BRICK BATS RAMMED EARTH 25mm THICK ROUGH KOTA STONE SLABS [600X600] 25mm THICK CEMENT SLURRY MIXED WITH W.P 25mm THICK BASE COARSE OF CEMENT [1:3] MIXED WITH W.P 25mm THICK CEMENT MOTAR RETAINING WALL FOUNDATION TIE BEAM KOTA STONE LEAN CONCRETE COLUMN PEDESTRIAN SKIRTING 150mm PLASTER 12mm DETAIL- A' CEMENT SLURRY 400X450 R.C.C. BEAM VENTILATOR A' B' C' 100mm BRICK BATS 120mm SAND 100mm P.C.C. 400X450 R.C.C. BEAM 250mm RETAINING WALL COLUMN REBARS COLUMN STIRRUPS COLUMN SPREAD FOOTING NECK STIRRUPS IN THE JOINT AREA FOOTING HOOK REINFORCEMENT BAR BASE
COLUMN

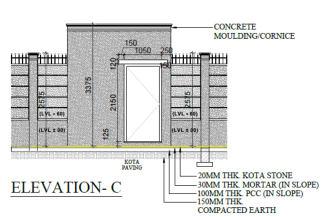

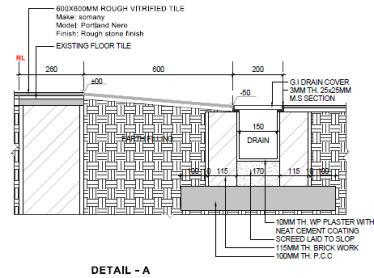

IN SCALE) RAFT SLAB SECTION (SCALE- 1:50) T32-200 BOTTOM REINF. T25-200 TOP REINFORCEMENT BASEMENT FOOTING JOINERY (NOT IN SCALE) RETAINING WALL IN BASEMENT D2 1000 X 2100 D4 1500 X 2100 D1 750 X 2100 D5 2000 X 2100 900 1000 325 400 650 2100 50 1400 50 1500 50 650 50 750 50 25 25 325 EQ EQ 25 325 25 25 325 50 1900 50 2000 EQ EQ 325 25 450 25 25 600 550 DOOR PANEL ELEVATIONS 250 250 D3 1200 X 2100 900 1000 D6 - 2400 X 2100 50 1900 50 2400 EQ EQ 325 25 450 25 25 300 600 550 2100 2100 2100 2100 1200 900 1200 EQ EQ W1 1200 X 1200 WINDOWS 1800 EQ EQ 1200 900 2100 W2 - 1800 X 2100 600 V 600 X 300 VENTILATOR 300 1800 2100 50 50 50 50 50 12 MM THICK CEMENT MORTAR 13 MM THICK WHITE SLATE TILE 18 MM THICK BLACK GRANITE BEADING 110 40 70 200 MM THICK R.C.C WALL 12 MM THICK CEMENT PLASTER 20 70 50 10 MM TIMBER LIPPING (25 MM X 38 MM) TIMBER SECTION 70 MM X 110 MM 36 MM THICK FLUSH DOOR FINISHED WITH 4MM THICK VENEER ON BOTH SIDES DOOR VERTICAL SECTION DETAIL 110 85 200 MM THICK BRICK WALL 12 MM THICK CEMENT PLASTER 12 MM THICK CEMENT MORTAR 13 MM THICK WHITE SLATE TILE 18 MM THICK BLACK GRANITE 18 MM THICK BEADING 20 85 25 BEADING 10 MM THICK CLEAR GLASS TIMBER SECTION 85 MM X 110 MM WINDOW VERTICAL SECTION DETAIL TIMBER SECTION 85 MM X 110 MM BEADING 10 MM THICK CLEAR GLASS 150 18 MM THICK BLACK GRANITE 18 MM THICK BEADING 12 MM THICK CEMENT MORTAR 13 MM THICK WHITE SLATE TILE 110 40 70 200 MM THICK R.C.C WALL 12 MM THICK CEMENT PLASTER 85 20 25 50 WINDOW HORIZONTAL SECTION DETAIL 18 MM THICK BLACK GRANITE TIMBER SECTION 70 MM X 110 MM 30 MM THICK FLUSH DOOR FINISHED WITH 4MM THICK VENEER ON BOTH SIDES HINGE AS SPECIFIED 200 MM THICK R.C.C WALL 12 MM THICK CEMENT PLASTER BEADING 150 110 70 10 MM REBATE 50 TIMBER LIPPING (25 MM X 38 MM) DOOR HORIZONTAL SECTION DETAIL 12 MM THICK CEMENT MORTAR 13 MM THICK WHITE SLATE TILE 20 4000 3750 125 125125 4000 4000 4000 eq eq 10MM THK. PLASTER (BOTH SIDE OF WALL) 115MM THK. BRICKWORK ℄ 230X230MM RCC COLUMN (AS/STR. DETAIL) 125125 125125 3750 125 125 3750 125 125 3750 125 125125 125 900 1500 2700 4000 3750 4000 3750 300 PLAN (BOUNDARY WALL) ELEVATION (BOUNDARY WALL) G.LG.L 300
ISOMETRIC
(NOT

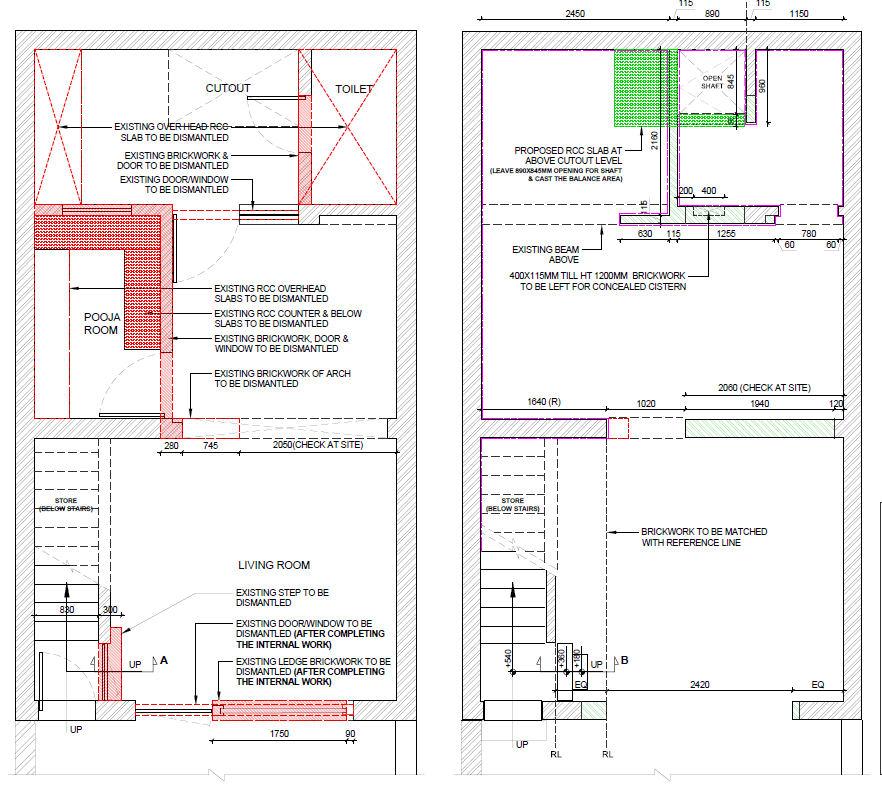

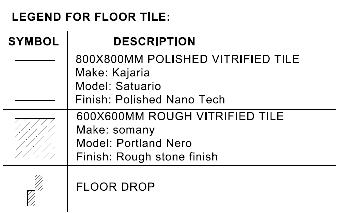

05. EXPERIENCE & FREELANCE WORK

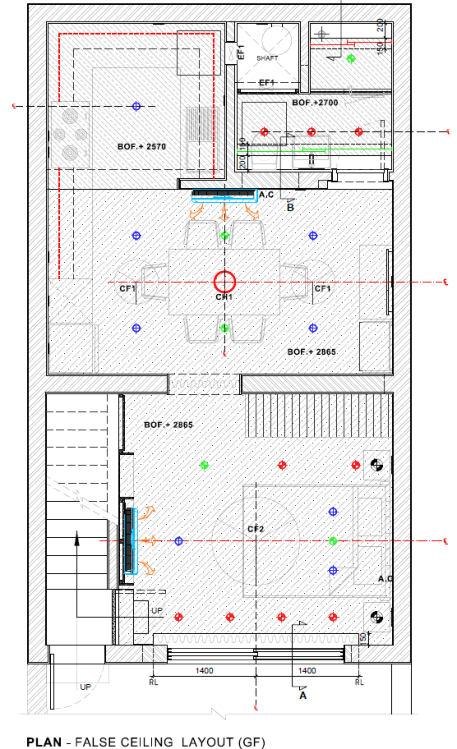

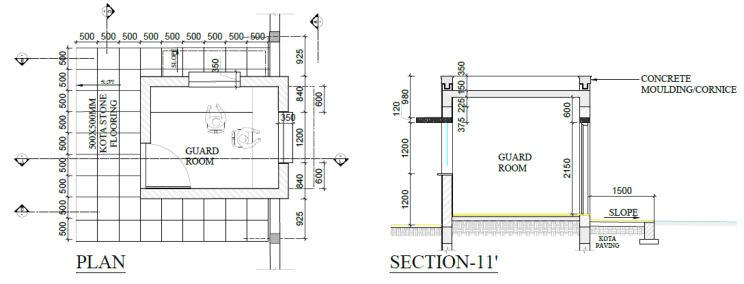

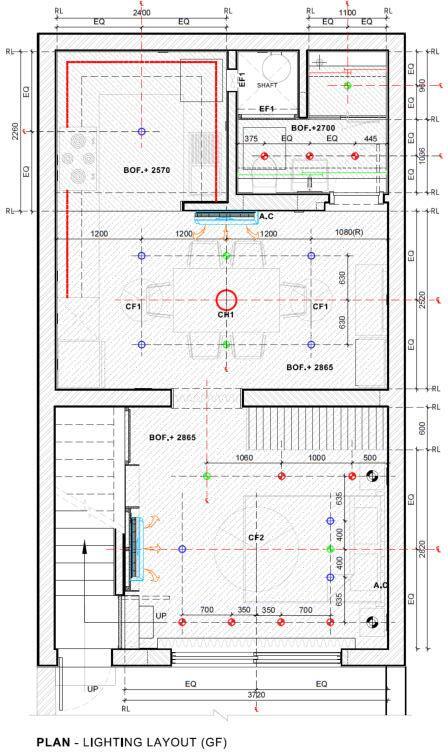

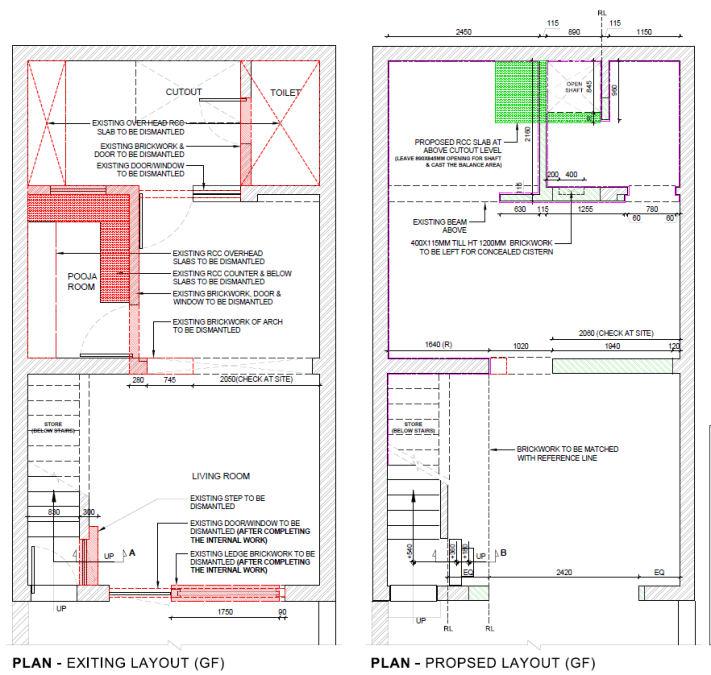

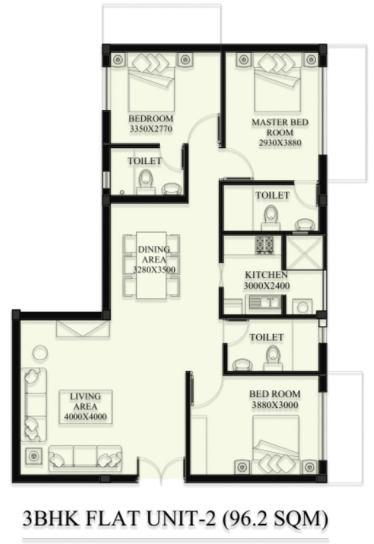

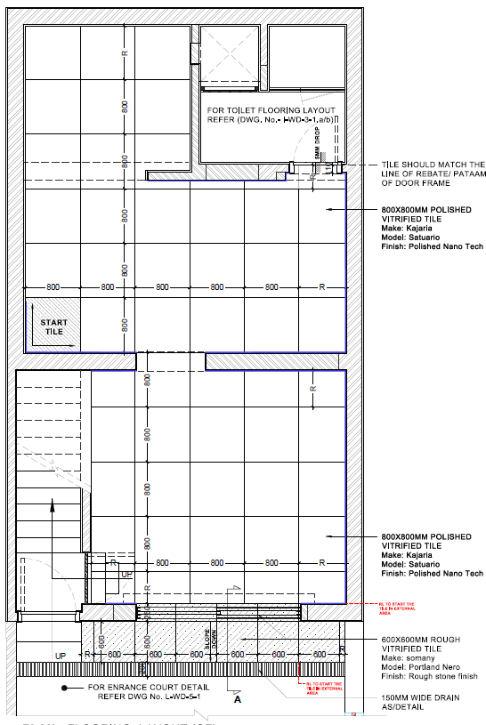

A EQ EQ A A 70 1000 1000 EQ EQ 200 900 750 750 375 375 750 1794 (R) 1500 1500 1455 (R) 1050 200 1970 3544 EQ EQ 450 450 325 3000 2950 900 450 375 275 EQ EQ 3800 A 750 1860
SURJEET RAY RESIDENCE, (PALAM VIHAR, GURUGRAM) ANILBHAT RESIDENCE, (GURUGRAM) UP UP No. 16 AMP SOCKET & SWITCH FOR REFRIGERATOR 350 650 600 1425 900 1050 225 500 1225 1255 NO. AMP SOCKET SWITCH FOR TV. 330 330 NO. 5 AMP SOCKET & SWITCH FOR SET TOP BOX. 1035 1035 No. 16 AMP SOCKET & SWITCH (HT.300MM) No. 16 AMP SOCKET & SWITCH (HT.300MM) N 150 970 970 150 150 1162 1162
GS MART (SECTOR 43, FARIDABAD) ABHISHEK MOURYARESIDENCE DESIGN (NIHALVIHAR, DELHI) MANAGEMENT OFFICE 600 1075 1075 100 2220 2320 3000 1250 4250 600 500 750 250 250 350 250 300 250 N 560 600 600 560 610 600 600 600 600 600 640 100 100 N 900 600 750 750 2400 300 750 2400 500 250 750 250 350 250 300 250 100 100 450 300 300 1500 300 400 200 500 250 2400 750 2400 750 600 750 EQ EQ 550 550 1200 1075 1075 300 200 1100 100 100 9'-9" 28' 11'-3" 8" 8" 8" 8" 8" 2'-6"2'-6" 2'-6" 12345 6 7 8 1615141312 11 10 9 3' 8'-9" 3' 3'-11" 9" 9" 9" 8'-9" 9" 11'-3" 9" 5' 9" 9" 5'-3" 5" 5'-7" 9" 5' 9" 3' BEDROOM 9'9"X8'9" TOILET 3'11"X5'3" BATHING AREA 2'-6" 5" 3'-11" OPEN KITCHEN 2'6"X5'3" LIVING AREA 9'9"X6' 9'-9" 6' 4'-4" STAIRS BELOW BIKE PARKING 1'-3" 1'-3" 1'-3" 1'-3" 1'-3" 1'-3" 1'-3" 1'-3" UP 3' 3' 3' ROAD GROUND FLOOR PLAN 1'-11" 9'-9" 28' 11'-3" 8" 8" 8" 8" 8" 2'-6"2'-6" 2'-6" 1819202122 2324 25 3332313029 28 27 26 3' 8'-9" 3'-11" 9" 9" 9" 8'-9" 9" 11'-3" 9" 5' 9" 9" 5'-3" 5" 5'-7" 9" 5' 9" 3' BEDROOM 9'9"X8'9" TOILET 3'11"X5'3" BATHING AREA 2'-6" 5" 3'-11" OPEN KITCHEN 2'6"X5'3" LIVING AREA 9'9"X6' 9'-9" 6' 4'-4" 1'-3" 1'-3" 1'-3" 1'-3" 1'-3" 1'-3" 1'-3" 1'-3" UP 3' 3' 3' 1'-11" 5'-10" 5'-10" 1734 FIRST FLOOR PLAN OPTION-1 BALCONY 6'-10" 9" 9" 3' 6'-10" 9" 9"
06 MISCELLANEOUS

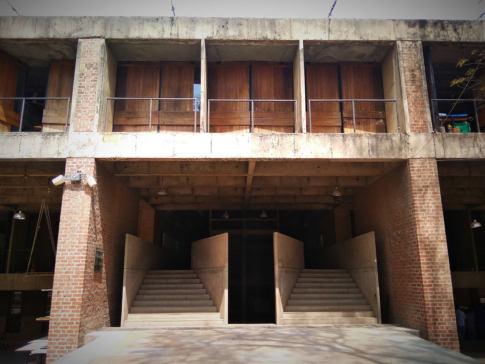

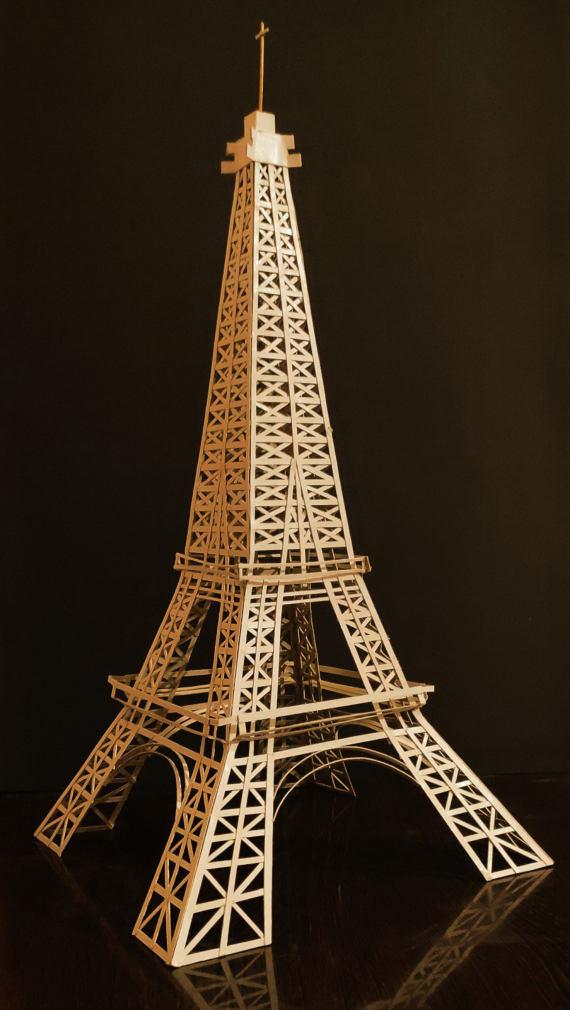

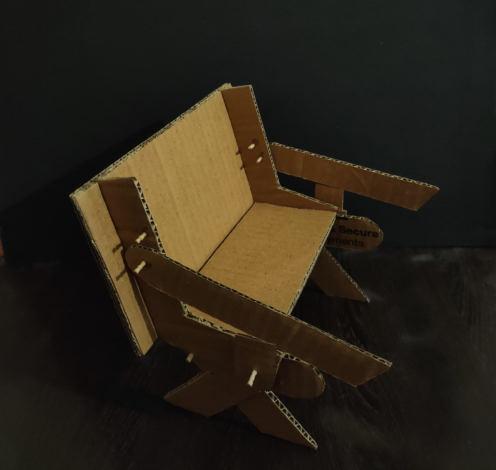

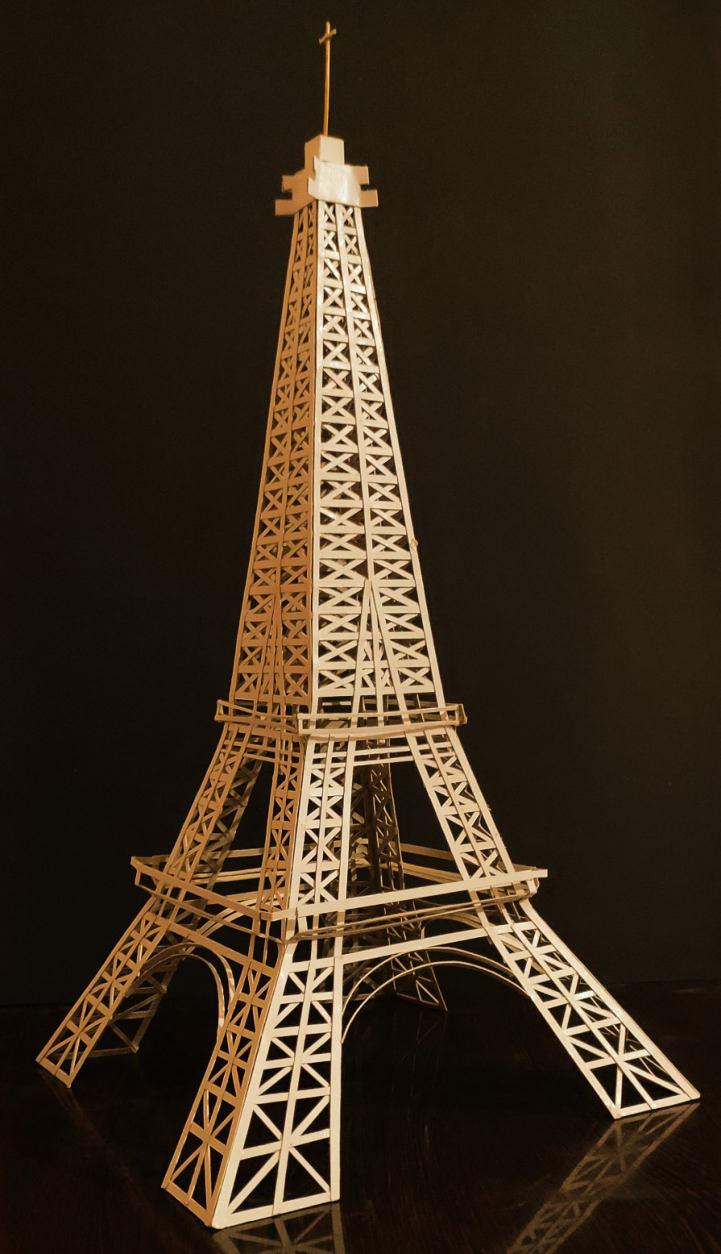

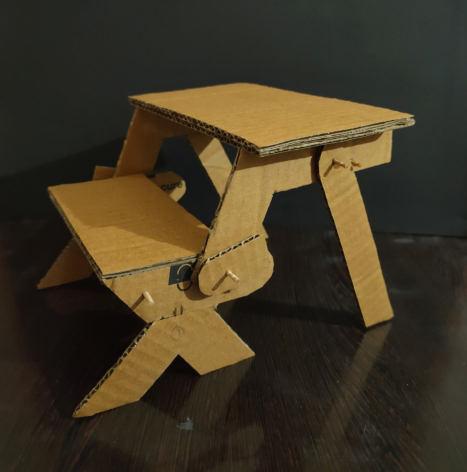

PHOTOGRAPHY, SKETCHES,ART WORK & MODELMAKING
The most fascinating view of architecture is the relationship between scientific and humanistic topics, what touches me is that the design of a building must harmonize between theoretical, social, functional and technical characteristics and at the same time be related to the context, in every project I have worked on I have always tried to ensure a balanced treatment of these aspects and to take into account the needs of the built environment in the most realistic and objective way. It is of great relevance how architecture works on many levels, from the territory to the city, from
spatial problems to structural details butI’vealsotriedtorelatetotheprofessional world and with some additional activities: in all these experiences I’ve realized how important it is, and in fact it is, to go through many topics and requirements that a project needs to be can, from teamwork and theoretical questions to dealing with builders, engineers and building regulations. I came to the conclusion that I am not only fascinated by the part of the purely architectural design, but also all the other knowledge that an architect has to acquire in order to work as one in this world.
“Always
-Margaret Mead
+91 7530914099 Chandan Kumar chandanabit@gmail.com
ARCHITECTURE PORTFOLIO
remember that you are absolutely unique. Just like everyone else”.
