LEARNING FROM ROUTE 66
Christian Brack Studio IV Fall 2022
1
2 1” = 150’ - 0”
Christian
Brack Lodging Emily Nikkel Interpretive Center Nick Morey Restaurant
GROUP MASTER PLAN
Lodging Folk Music Interpretive Center Lake Restaurant
3
1” = 50’-0”

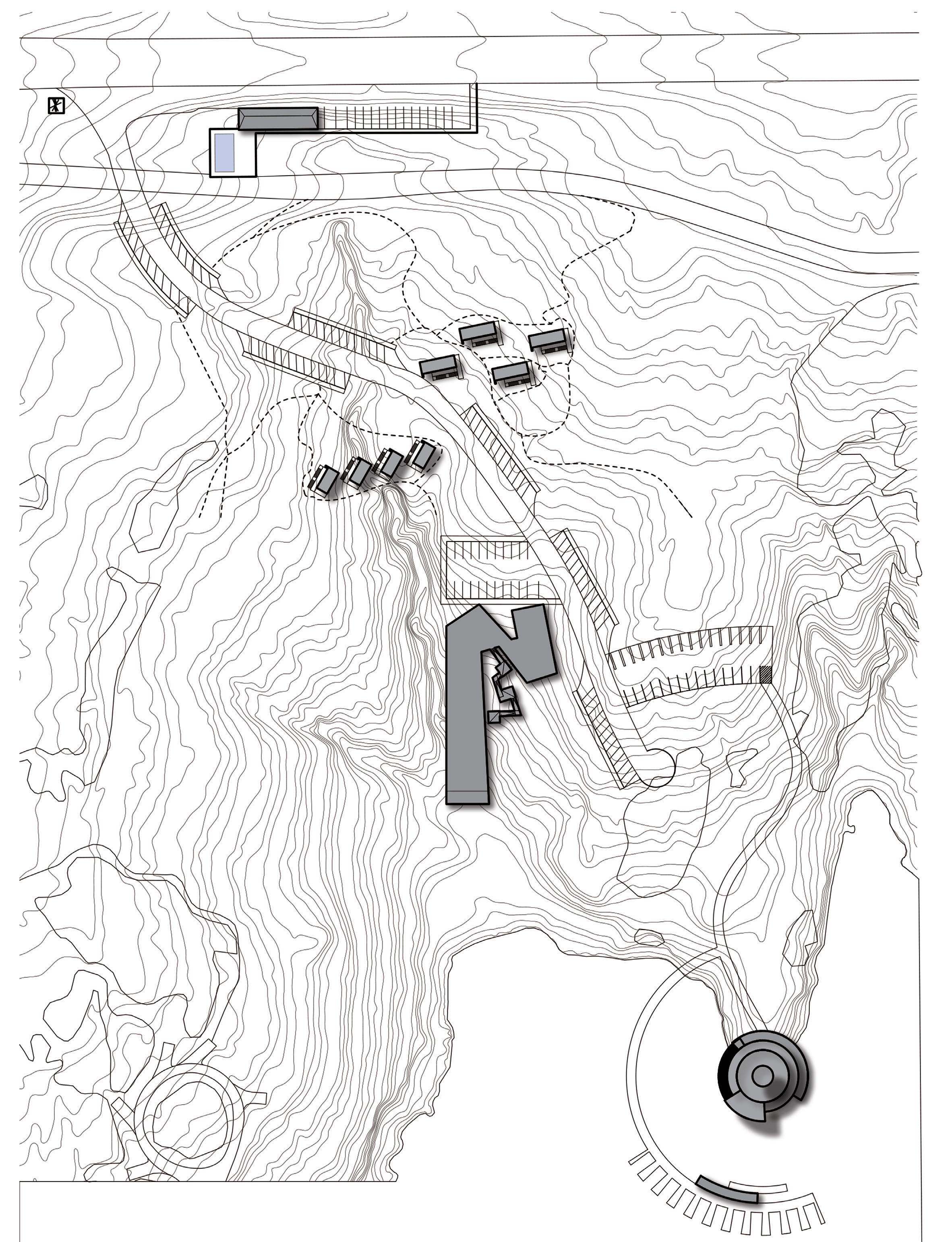

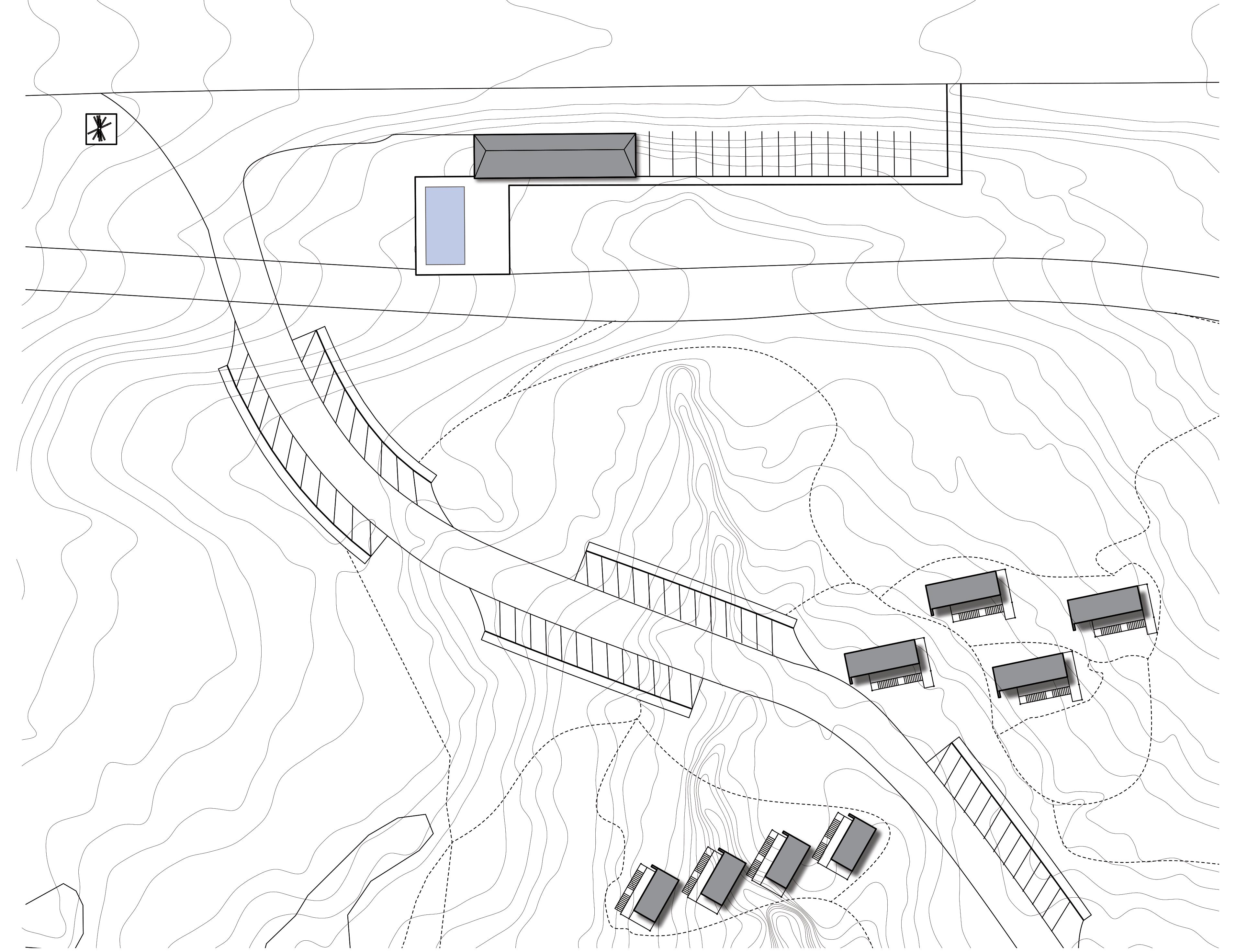

FOCUSED SITE PLAN

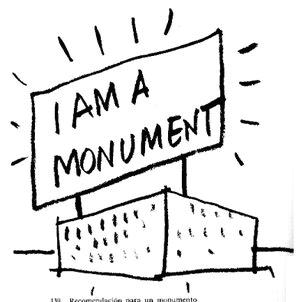

VISUAL ANALYSIS OF SIGNS
Varying Scales

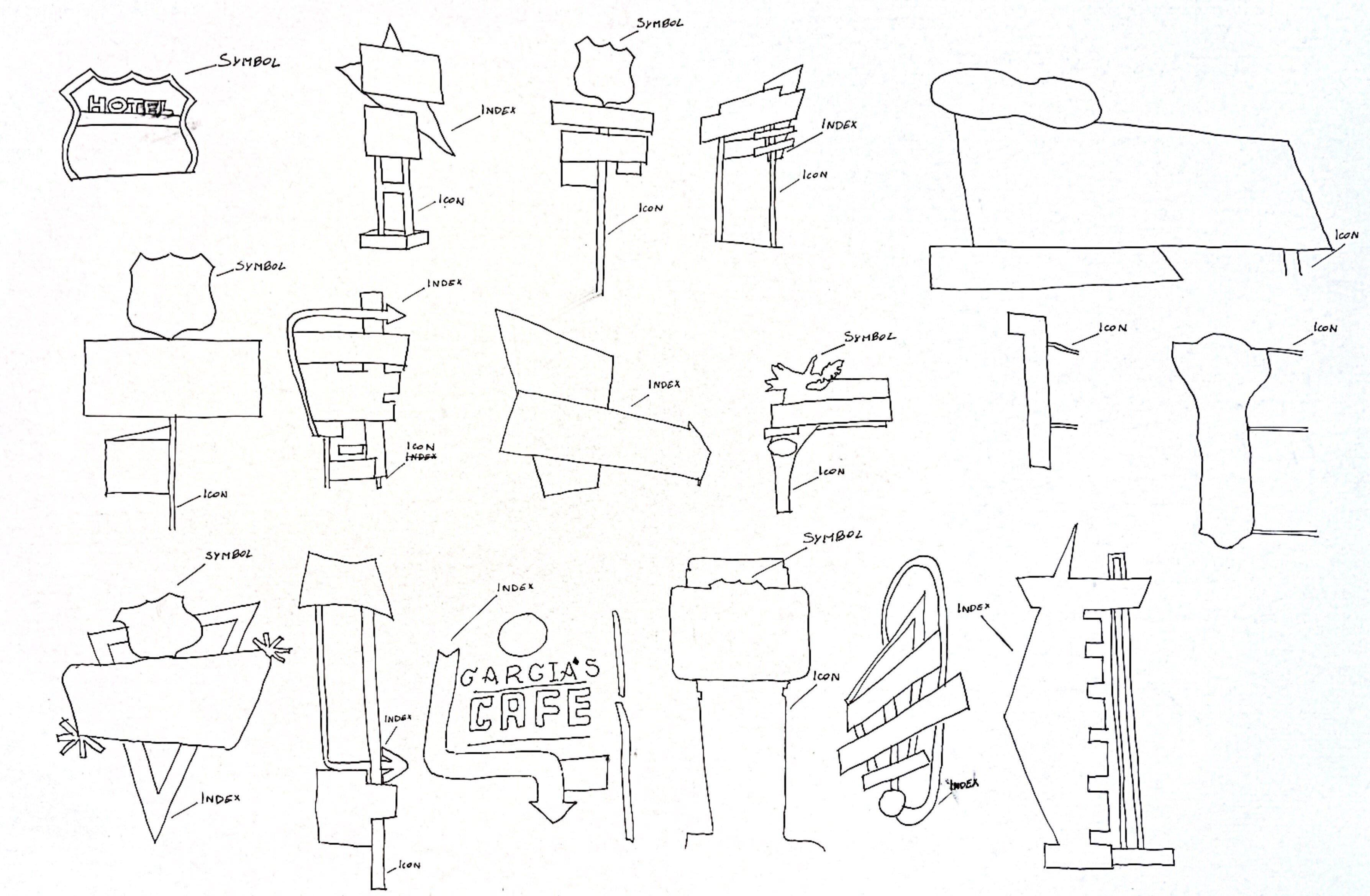

Analysis of signage on Route 66 through the definitions of symbol, icon, and index proposed by Geoffry Broadbent
4
Symbol Index Index Symbol Index Symbol Symbol Index Index Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Icon Index Symbol Symbol Index Index Index
Separation of syntactical methods according to programmatic function while highlighting visual impact
5
1”
= 50’-0”

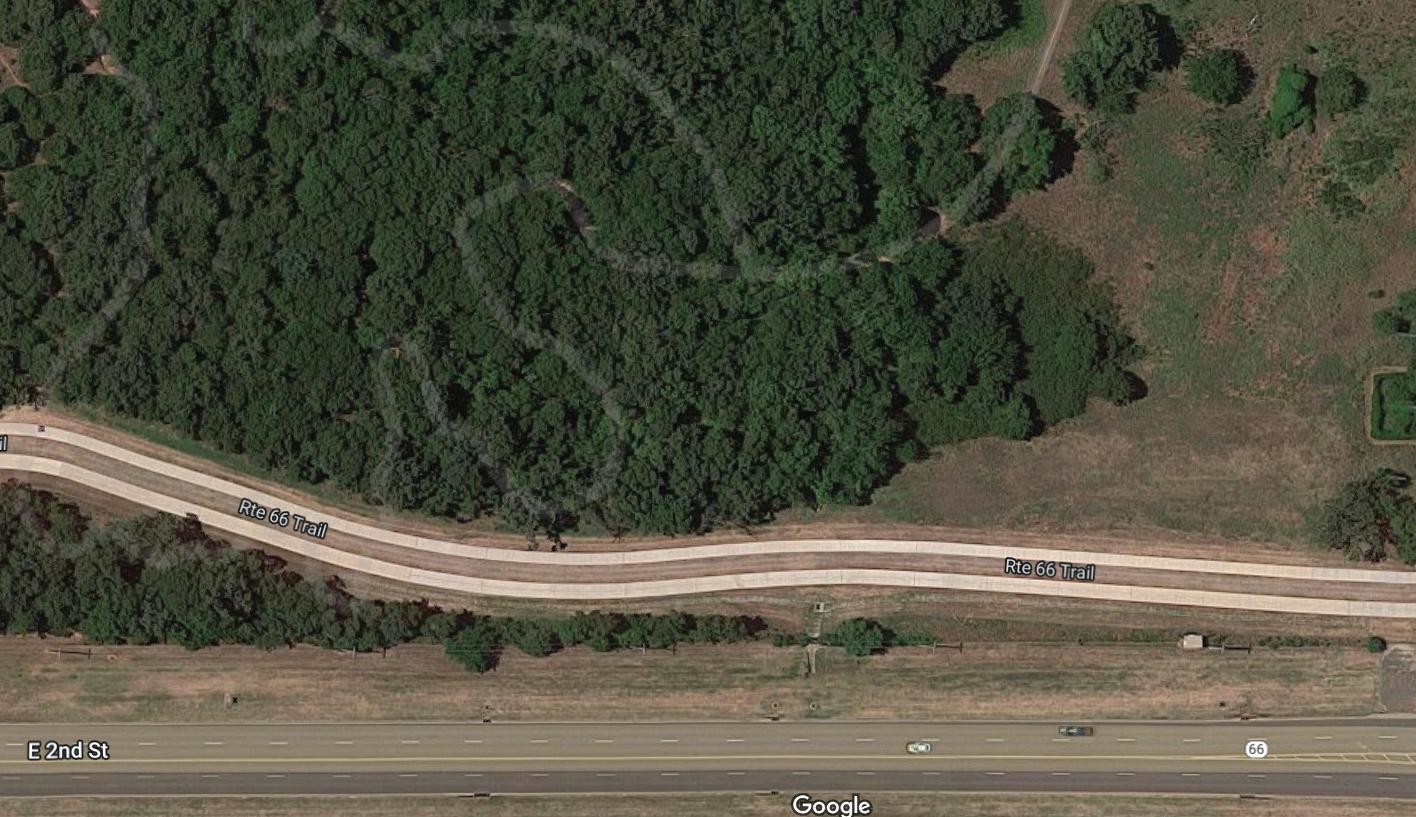

CONCEPTUAL SITE MAPPING

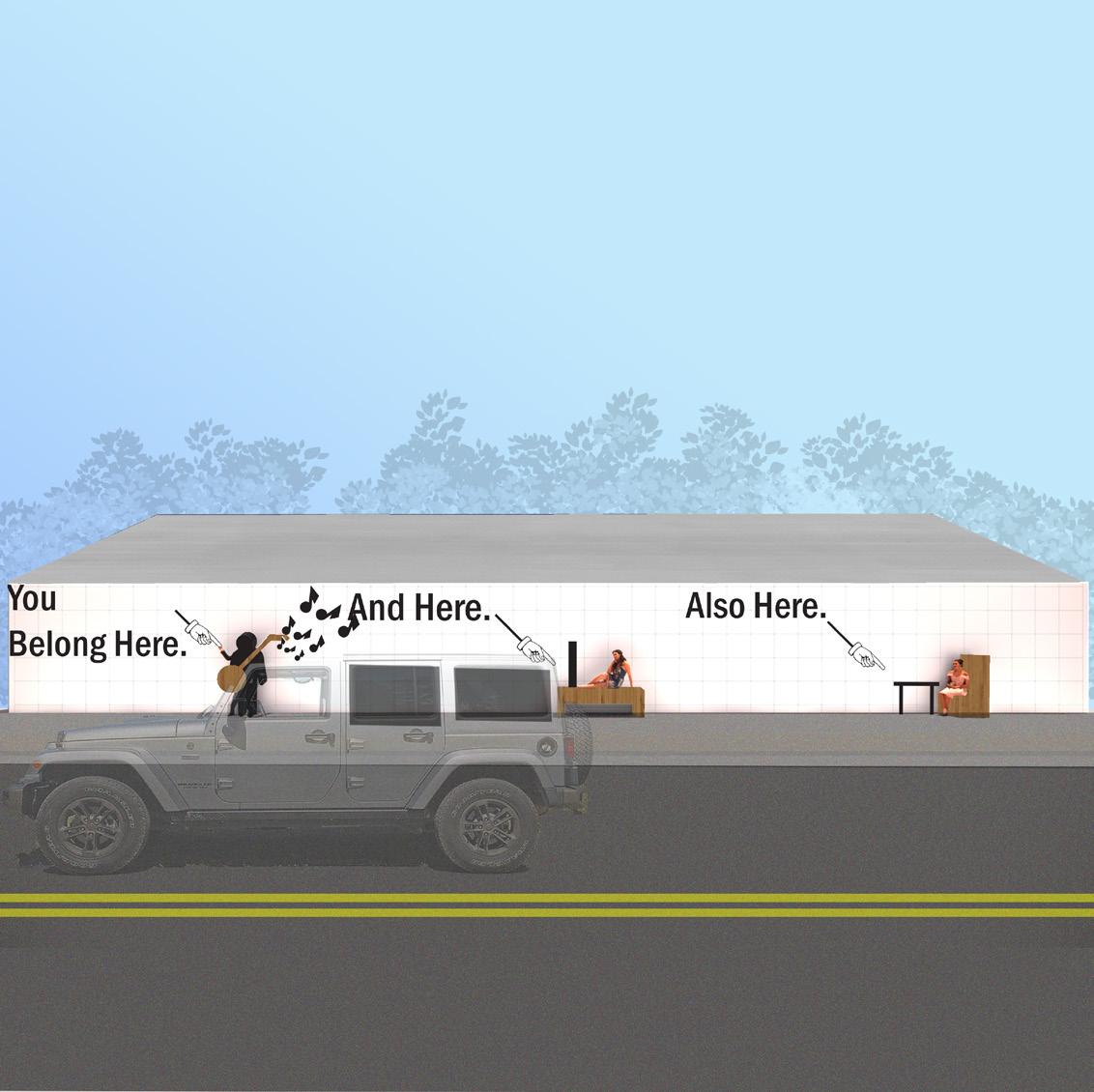

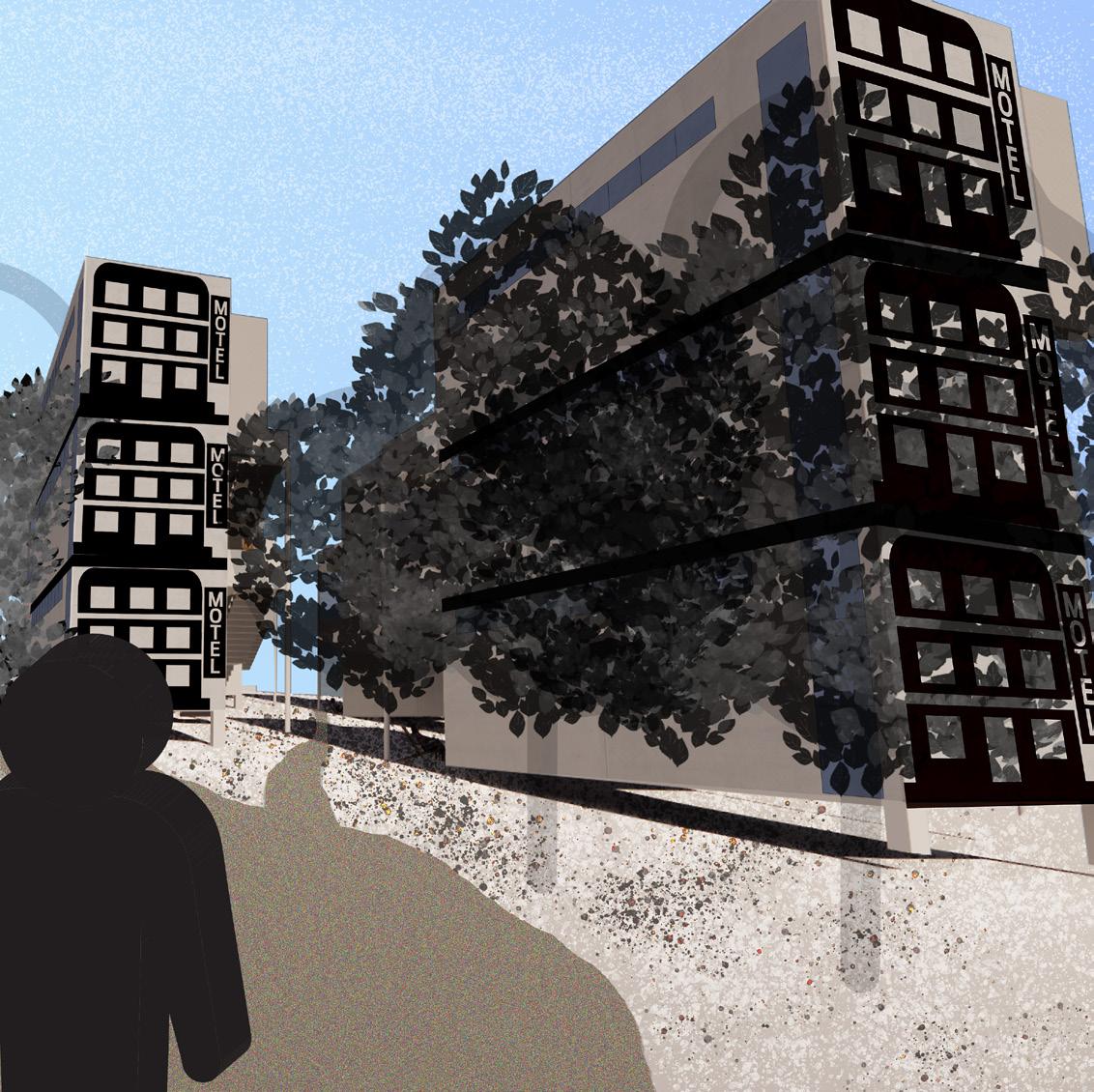

Guerilla Marketing!
Motel Typology
ICON ICON ICON ICON ICON ICON ICON ICON SYMBOL INDEX

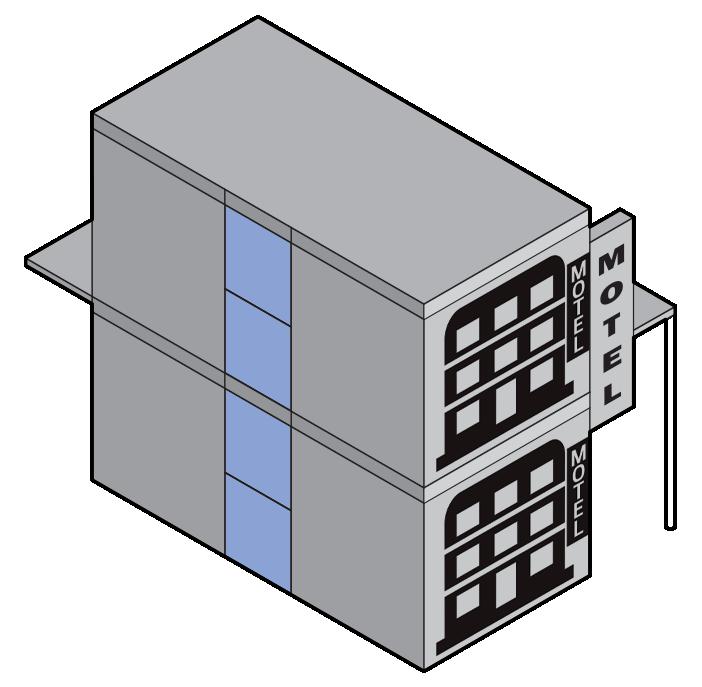

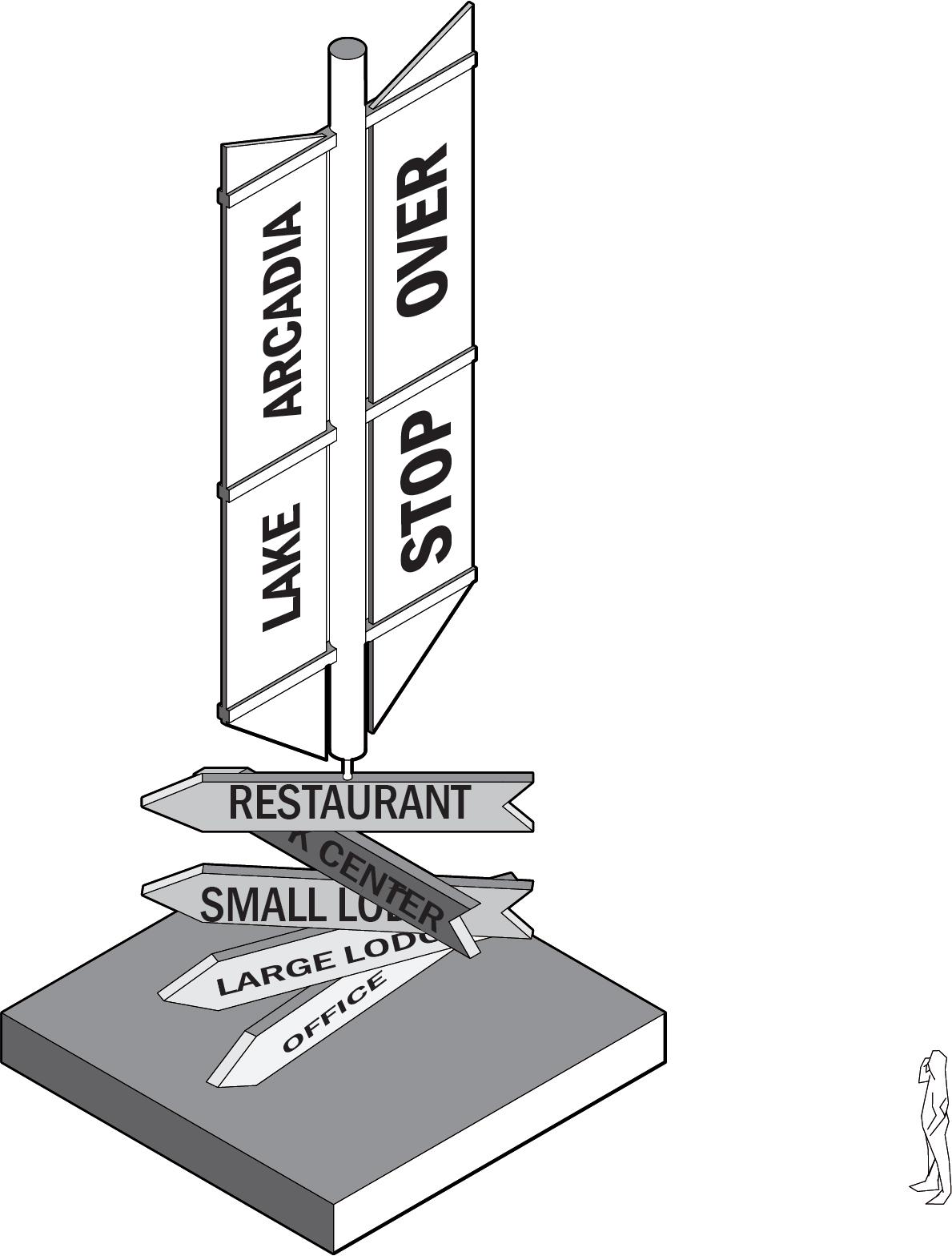

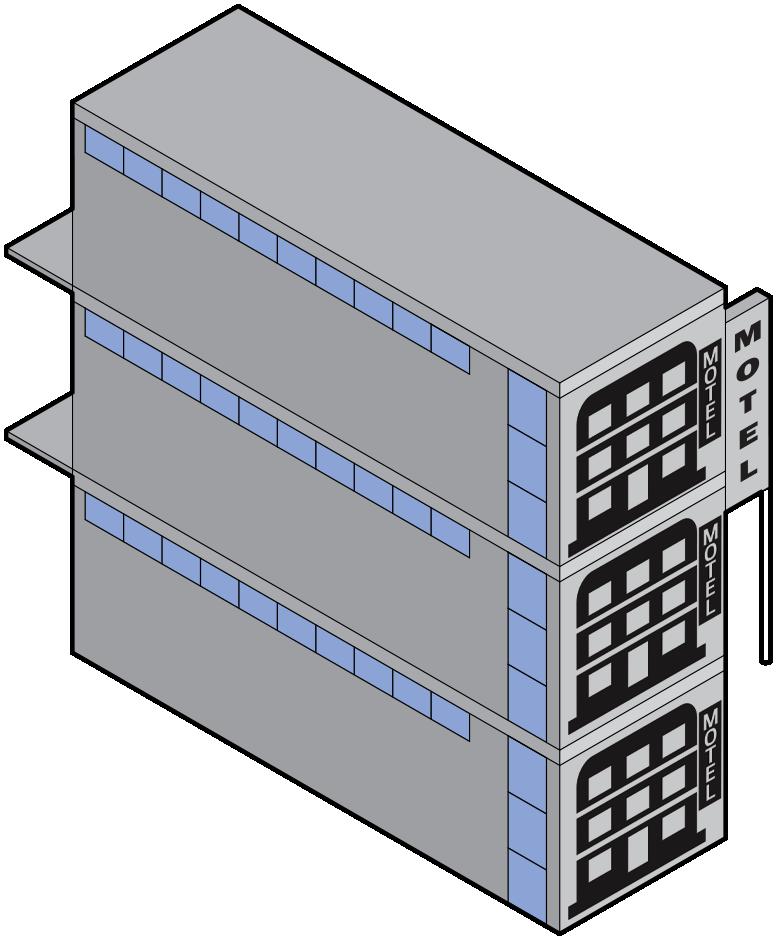

6 3/32” = 1’ - 0” COMMON SPACE AXON
Motel Typology
Indexical Guerilla Marketing Symbolic
office Bathrooms
Vending
Pool Pool Deck
7 1/8”
1’-0”
=

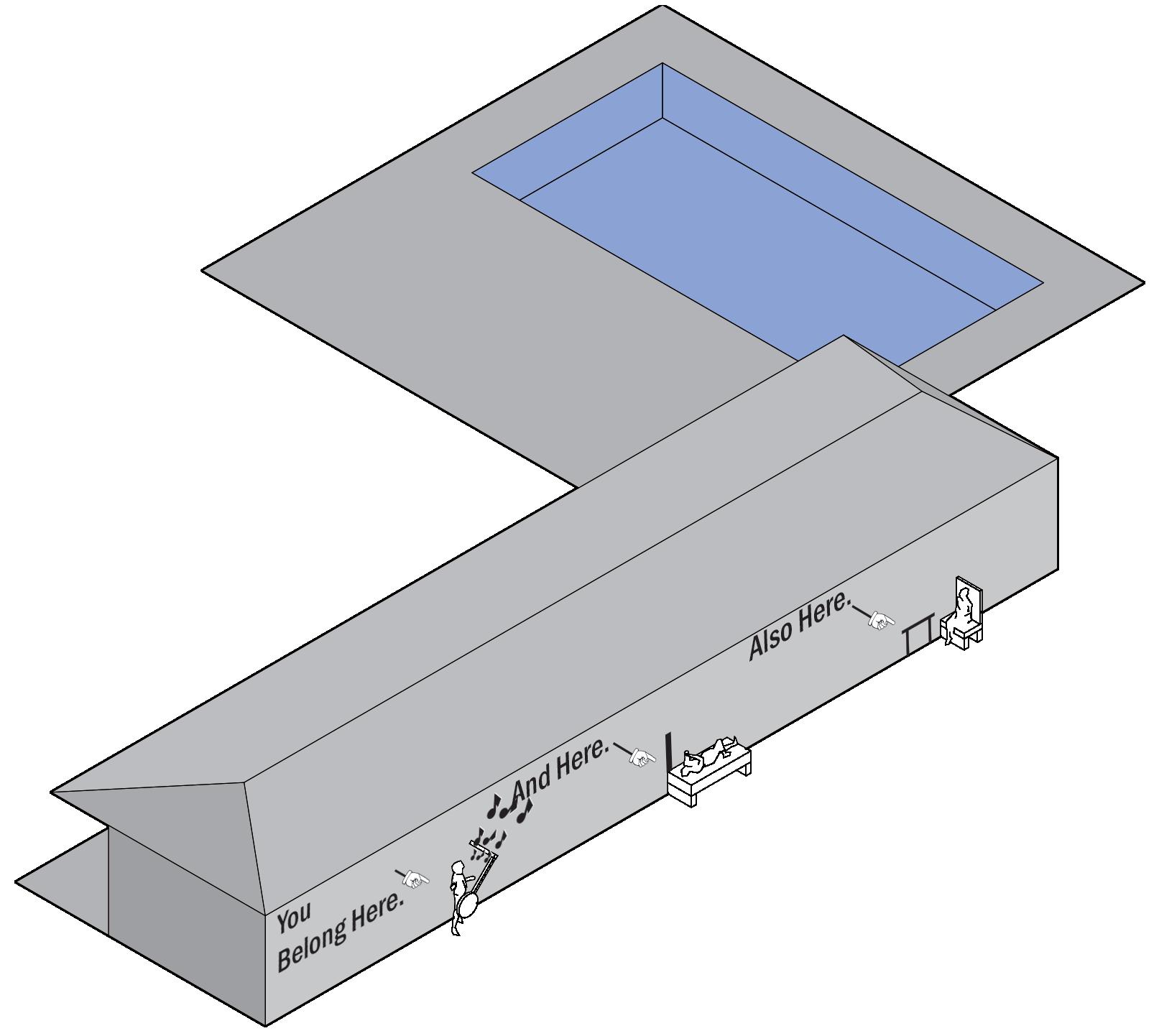

COMMON SPACE PLAN Reception Laundry Custodial Manager’s
8 3/32” = 1’ - 0”
Iconic Iconic Symbolic Symbolic

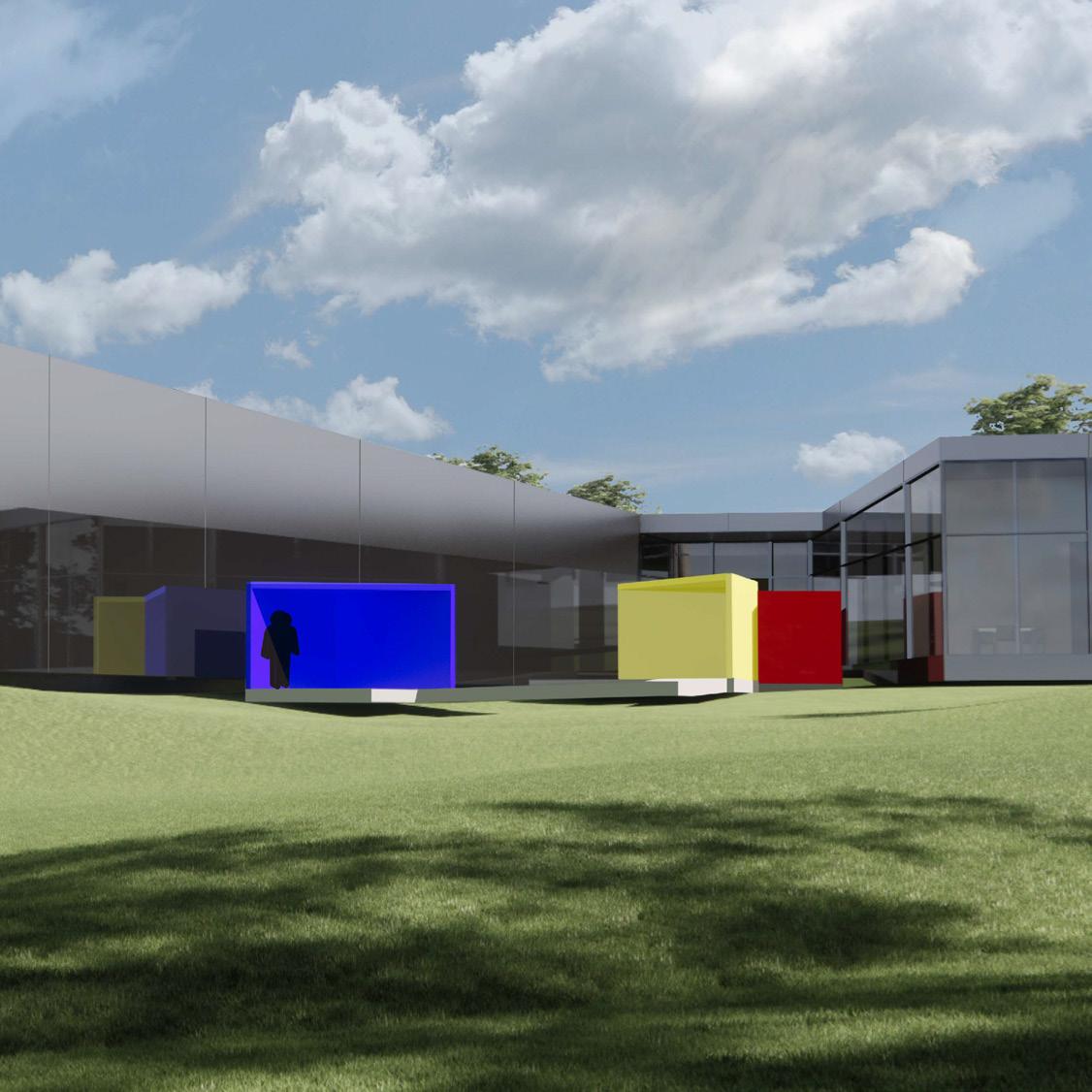

LODGE AXONS
SMALL
9 1/4” = 1’-0” LODGE PLANS
450SF To Road To Road
LARGE LODGE
300SF
LODGE
st.architect

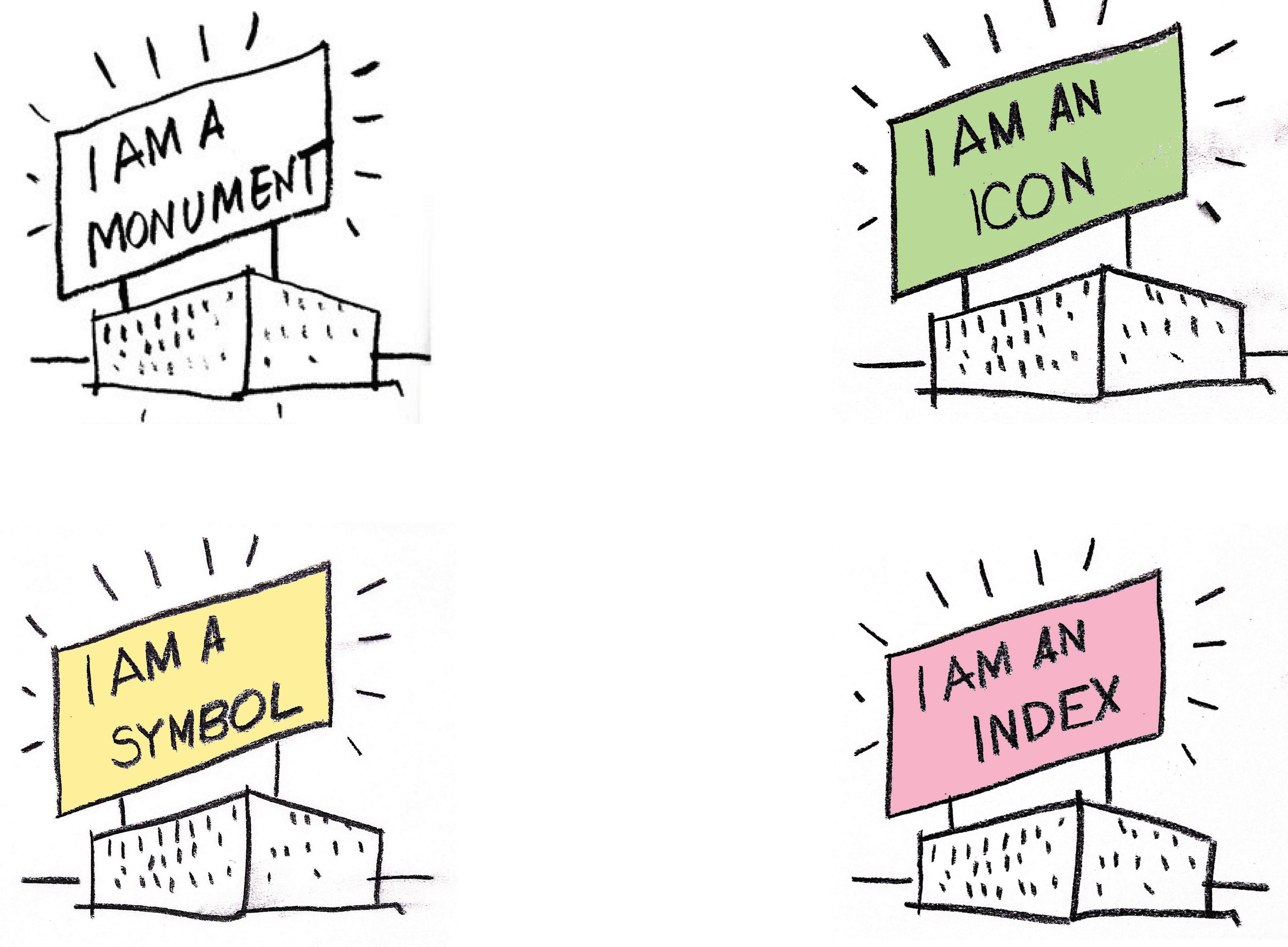

139 posts 156 followers 192 following Semiotic Traveler
Currently exploring Edmond, OK, USA! I am an icon, I am a symbol, I am an index
Follow my travels!
Semiotictravels.org/iconsymbolindex
10

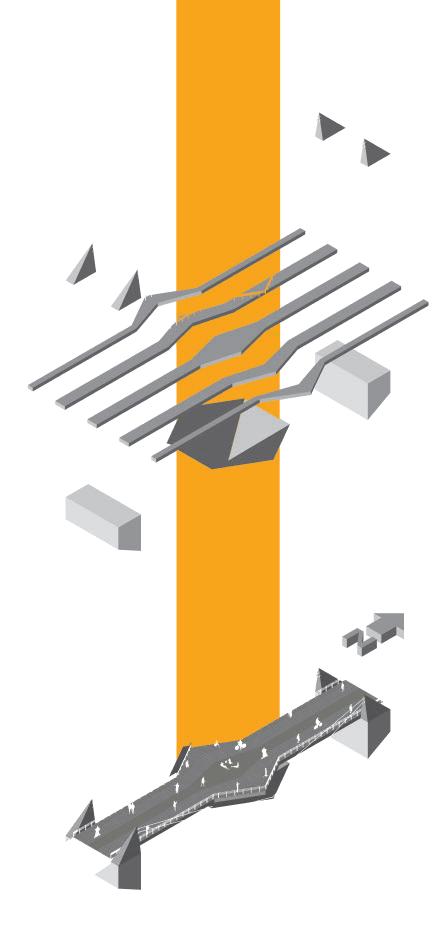

New City Hall Bridge Detail Detail dGlass aili Greater Than TOWN BRIDGE STRUCTURE COMMUTE than bed ommuni its population gat this pedest ough idge ely tation, see pose than ossi point enha pedest ian tion ab ential equi Detail -0” DetailDetail ation5’-6”

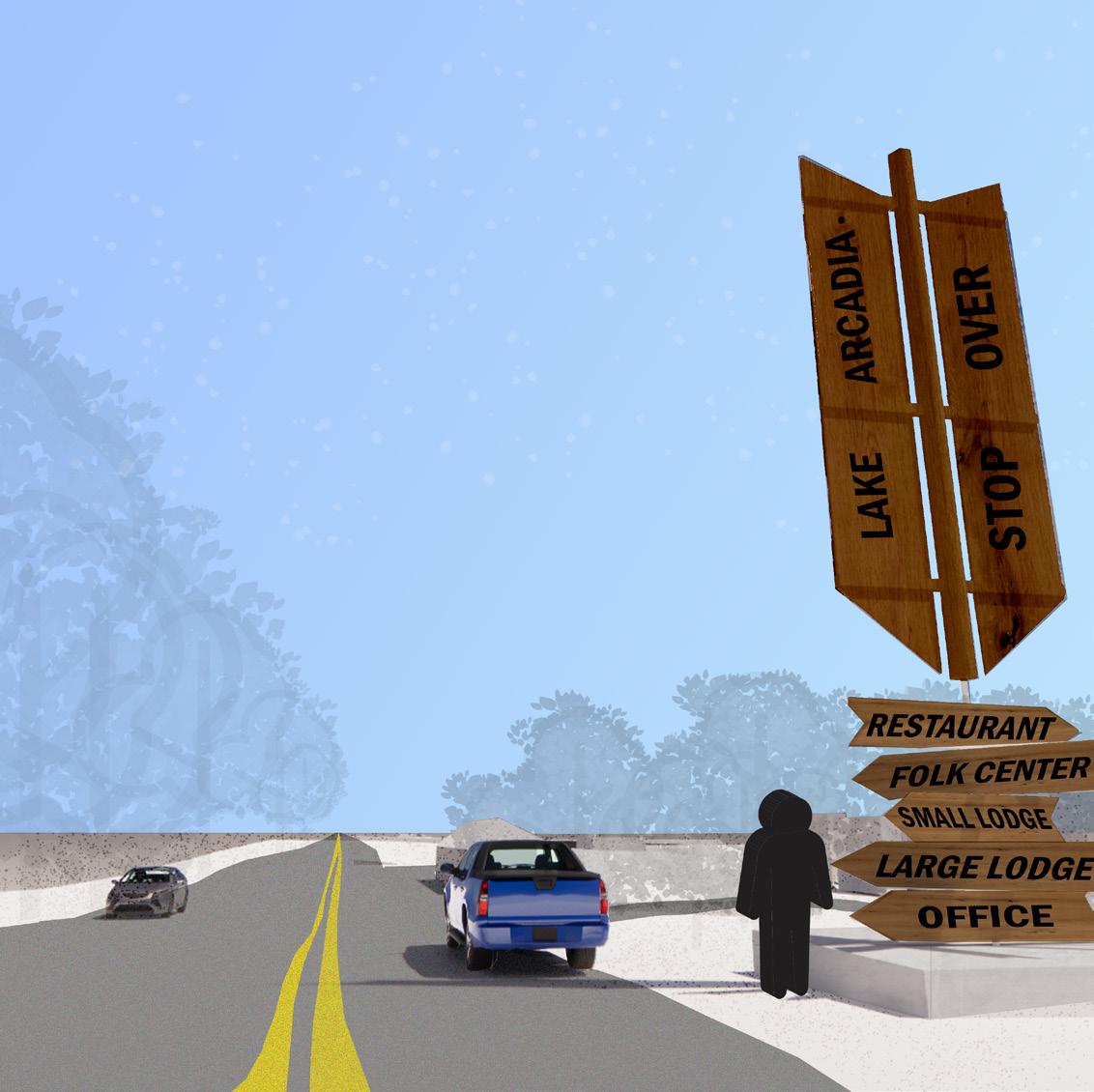

Road sign
Posts Saved Tagged
Indexical
