Timber Nest Bowling Green State University | 2022

Program:

ACSA Timber In The City Competition 2022

Faculty Advisor: Yong Huang

Team Members:

Jack Collins, John Kent, Chris Fletcher

Prompt:

Embracing new structural and ecological possibilities of wood construction, entrants will design a mid-rise, mixed-use complex that includes short stay housing, a large community wellness facility, and an urban marketplace, all interlaced with a new urban transit center.

Entrants are challenged to propose construction systems in scenarios that draw optimally on the performance characteristics of not one but a variety of wood technologies and are encouraged to think about the site as a testing ground for socially, materially, and environmentally progressive and innovative models of sustainable urban living.

This fourth edition of the Timber in the City considers a site, the midtown Atlanta Arts Center, located in Atlanta’s Heart of the Arts, known for its dense number of art galleries, museums, theaters, historic buildings, and the proximity to Georgia Tech, the Kendeda Building for Innovative Sustainable Design (the first Living Building Challenge-certified structure in the South), the Innovation and Technology district as well as Savannah College of Art and Design Atlanta campus.

The Timber Nest, rooted in one of Atlanta’s transit hubs, transforms a complex transportation site into an adaptive home as a sustainable building model for the city.

Roof terraces provide diversified public space and angular urban edge defines public entrance.

Bending façade optimizes surface area and volume of apartments and provides opportunity for fenestration.

In response to the current housing crisis the Timber Nest accommodates 100 units (24 x 2 BD, 52 x 1 BD, 24 x Studio) with additional shared community open space for healthy living.

Superimposed residential tower onto public transportation infrastructure.

Rigid timber frame structure system provides flexibility for residential unit arrangement.

Future expansion through infill could add 50 units increasing current occupancy by 50% to accommodate 150 units in total.

Future expansion through increased building height (FAR) could add 50 units increasing current occupancy by 50% while maintaining shared community open spaces.

04

Timber Nest In response to the current housing crisis, the Timber Nest maximizes the number of residential units while maintaining healthy, productive, and enjoyable living/working environments through a massing strategy of super-imposition.

Hovering over both the metro line and bus stations, the Timber Nest celebrates downtown Atlanta’s urban dynamics.

By overlaying dwelling units onto the existing transit hubs, the design explores a new high-density and mixed-use typology for a more sustainable urban living condition.

The Urban Corridor and Community Corridor bridge the residential tower above and transit hubs below through a composite bridge structural system and programmatic intervention. An elevated green park at the Urban Corridor level provides public amenities including adaptive urban market spaces. Additionally, a public swimming pool is integrated into the train station’s roof top structure that not only mitigates noise pollution and vibrations of the passing trains but also anchors the site as a unique urban feature for the entire community.

We use Passive Design Strategy to overcome the complex site constraints imposed onto the linear “L” shape plot area. By placing residential units along the 360-feet long-narrow-band, we maximize the naturally ventilated spaces between units and reduce excessive heat gain through minimizing west façade exposure. Residents not only enjoy their private balconies but also benefit from shared communal spaces between units with a design that promotes collective and engaging social activities through the layered vertical neighborhood.

Typical Residential Floor Plan + Winter Solar Gain Diagram

CLT Panel Wall / Floor / Roof Semi-Monocoque System

Wall-Frame (Dual System) w/ Reinforced Bracing Frame System

Typical Residential Floor Plan + Summer Solar Shading Diagram 15

60 30

Natural Ventilation

Winter Solstice: passive solar design optimizes the amount of sunlight to enter the apartment units Rigid Frame w/ Diagonal Bracing Reinforcement System

Continuous V-Column w/ CrossBracing Beam Framing System

Natural Ventilation

Summer Solstice: passive solar design prevents excess heat gain in units

Natural Ventilation

Structural cavity between two vertical units provides naturally vented MEP and duct workspaces Truss Bridge System

(Urban Corridor + Community Corridor)

V-Column w/ Cross-Bracing Beam Framing System

Typical Residential Section

06

Restaurant Terrace

Public Entrance Plaza

Restaurant

Community Corridor

Commercial Kitchen

Urban Corridor

Lower Level For MEP / Storage

Section Perspective

20 10

40

Uptown Junction Bowling Green State University | Spring 2022

Program:

Fourth Year Senior Capstone | Design In The City

Faculty:

Linda Beall, John Missell

Prompt:

Drawing upon analysis of the city, develop a significant urban intervention at a building scale in the heart of Toledo, Ohio.

UpTown Junction proposes transforming the Uptown district of Toledo, Ohio into an innovation district.

Through an analysis of Uptown Toledo’s past and present, an urban village is proposed to connect people to various underutilized amenities.

These amenities, such as the Toledo Museum of Art, Mercy College, and the Ebeid Center, are dedicated to enriching Uptown’s community.

The urban village at UpTown Junction will provide a collaborative and open space for existing and future institutions to better connect to the surrounding community.

Innovation Districts: Zones in cities where public and private actors work to attract entrepreneurs, startups, & business incubators, generally with the aim of revitalizing depressed downtown areas.

Observations | Uptown Toledo | Spring 2022 09

1.

2.

4.

3.

5.

6.

8.

10.

7.

1. The Toledo Museum of Art 2. TMA Glass Pavilion by Sanaa 3. University of Toledo Visual Arts 4. Mercy College (partnered with BGSU)

9.

5. Selected Site of UpTown Junction 6. Uptown Green Park 7. Promedica Ebeid Center 8. Owens Community College Downtown

11.

9. The Toledo Club 10. Adams Street Entertainment District 11. Bitwise Jefferson Center 12. Toledo Public Library | Main

A dip in topography and in the built environment at the heart of Uptown.

Proposal for a high-rise, to connect Uptown and Downtown.

Downtown

12.

Uptown

The urban village will serve as an intersection of Uptown Toledo’s resources. Creating a more complete and cohesive community by uniting various resources and institutions in the district with the thing they need most: people.

Inspired by decay, this design creates intimate public spaces in-between the building forms, while preserving connections to the surrounding community.

11

sketches Commercial / Public Space

Residential / Private

Proposing the next layer - the next future for Uptown.

Modern materials growing from the past.

Office Space

Mechanical / Other

One-Point Perspective & Two Point Perspective | Mylar & Pen

Graphite & Bristol Board 11 x 17 in

Study Models | Foam-core & Wood Cubes

Final Model | Plexiglas & Wood Cube

On all sides, brick veneer gives way to glass curtain walls as the building rises.

The facade design pays tribute to The Glass City.

Recognizing the past, while being open to what the future brings to Toledo.

Typical Apartments | 12th Floor

Gym & Apartments | 8th Floor 13

Steel Column & Beam System with CMU Shear Walls & Cores

Masonry Veneer

Metal wall studs are screwed and welded to steel angle @ slab edge

Structural steel frame

Masonry ties screwed to metal studs

Building paper over gypsum sheathing

Metal stud framing

Steel framing to support angle

Flashing and weep holes

Bottom of masonry and stud framing is supported by a steel angle

Masonry Veneer Detail

Suspension Bowling Green State University | Fall 2018 Program: First Year Design Representation Faculty: Scot MacPherson Prompt: Abstractly demonstrate the elements of a given descriptive word through drawings and models.

Definition: Suspension, noun 1. temporary removal, temporary withholding.

2. the act of hanging, the state of being hung.

It was quite difficult to abstract such a literal word.

Many of the study models and concepts brought before the faculty were too literal or only had a weak connection to the word.

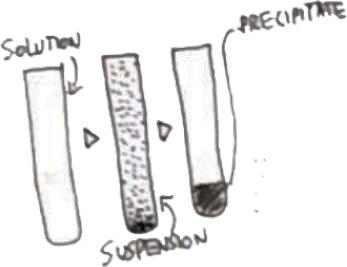

From chemistry, rain, gravity fields, and even atoms, seemingly nothing was an elegant enough way of looking at the word.

There was always a different perspective to consider.

The idea that everything is somehow supported and that suspension could be thought of as the lack of perceiving said support is the concept that won.

It’s all about perspective.

Sketchbook Highlights

One-Point & Two Point Perspective | Mylar & Pen

Study Model | Dice & Two-Part Epoxy

Graphite & Bristol Board 11 x 17 in

Study Models | Foam-core & Wood Cubes

Final Model | Plexiglas & Wood Cube 17

Retain, Reveal, Revitalize An Urban Intervention

Bowling Green State University | Fall 2021 Program: Senior Urbanism Studio Faculty: Scot MacPherson Prompt: Redevelop the master plan for the Government Center area of downtown in a way that engages the needs and interests of multiple stakeholder entities and communities.

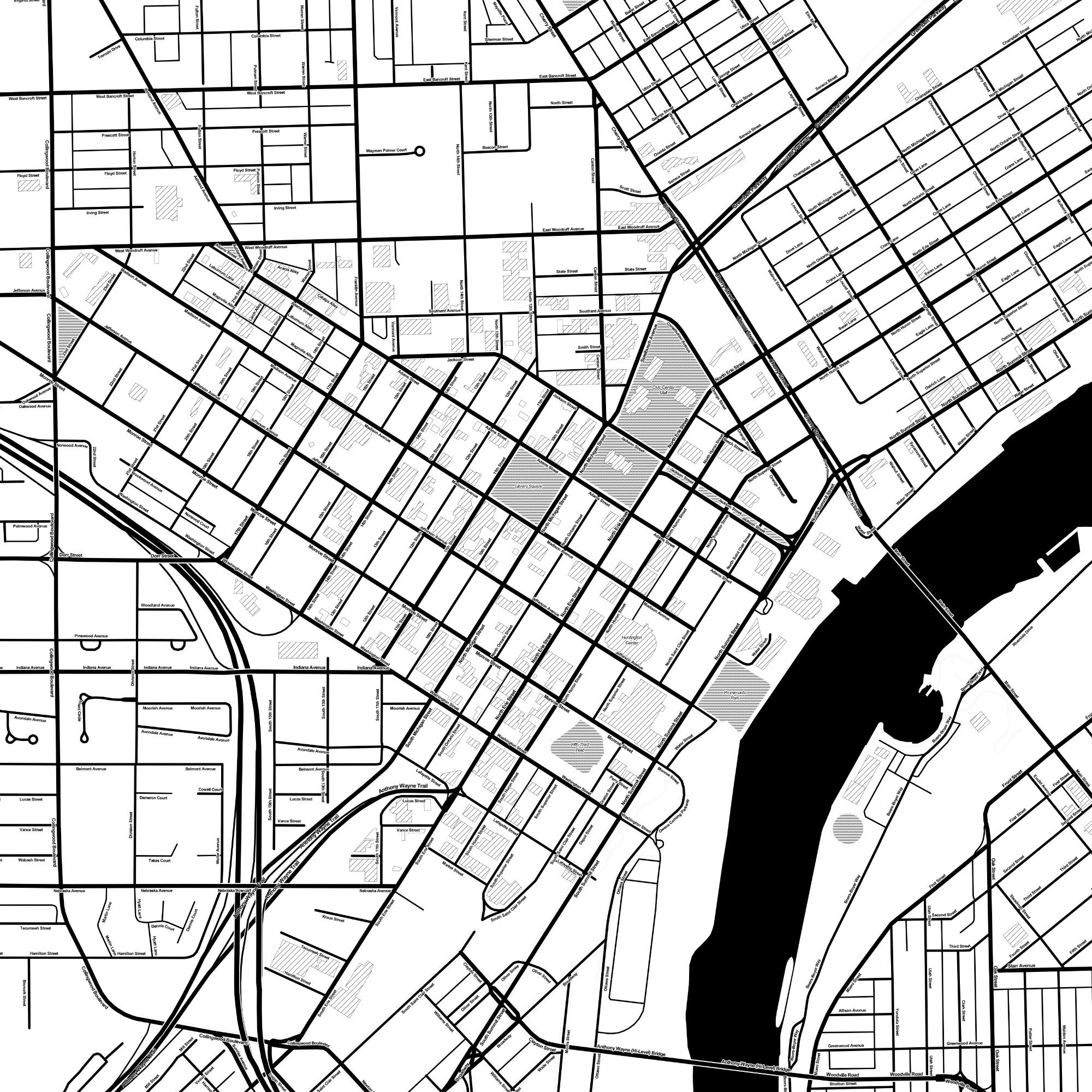

Toledo, Ohio is a classic rust-belt city. With the loss of industry and economic prospects since the 1970s, the city of Toledo has seen a diminished population and an increase in crime.

The urban core of Toledo is now a shell of it’s former self.

Abanonded and forgotten medium and high density buildings have given way to surface parking lots that litter the gridded streets.

The sights aren’t all grim however, as decades of political-will and public investment have added a convention center, a hockey arena, a baseball field and a night-life district named Hensville.

Toledo Metroparks was also awarded best park district in the United States for their developments in 2020.

These resources are all a great start for bringing the people back to downtown Toledo.

It’s time to further build upon these achievements, by making sure the downtown is accessible to all those who live in and around Toledo.

Transit System Light-Rail and Subway systems converge on the downtown grid from all around the Toledo metropolitan area.

Left: Los Angeles metro light rail system. The majority of the metro runs above ground, while the dense downtown goes underground.

Pedways Underground pedestrian walkways provide a route to important areas downtown during all weather to citizens. Linking underground parking, shopping, entertainment and even East Toledo.

N

Left: Toronto, Canada’s PATH network of underground walkways and shops keeps the downtown core of Toronto bustling even during the harsh Canadian winter.

By creating an open and easy to understand metro system, Toledo can draw more people to the city center to live, work, and play in the urban areas.

Walkable developments are crucial for local businesses to thrive.

The majority of the system will utilize light-rail while urban areas will use an underground metro.

A new dimension in Toledo’s center

A transit hub & grand landmark

19

Revealing The Canal The Miami & Erie Canal terminated here in Toledo Ohio. This canal was the largest in North America at over 400 miles long.

It allowed trade to connect from the great lakes and Atlantic Ocean, all the way to the Gulf of Mexico.

In a way, the canal made Toledo a grand entrance to a large portion of our nation.

Toledo can revive this forgotten gateway.

N

A Positive Intervention The return of the Miami and Erie Canal as a transit hub and public center can be used as a model and a catalyst for the cities around Toledo.

The Gems These stark, glass shapes tower above the canal district, shining as beacons of the future emerging from the past.

The Canal District consists of a series of retaining walls.

These walls divide the space into different uses that strengthen the core of the city.

From sustainable year-round urban farming to recreation and wildlife preservation, this urban intervention turns back the clock on Toledo.

Providing housing for year-round urban farming and a transit hub, these structures are monuments to the history and potential of the glass city.

Retaining what is, while revealing what was.

Urban Aquaponics Open Green-space

Urban Farming Great Black Swamp Nature Preservation

The core of the city

Late 1800s Toledo

Urban Decay

Green-space

Palimpsest

Transit Hub & Pedway “Canal”

Intervention

Canal District

N

Retain what is.

Reveal what was.

Revitalize Toledo.

23
