Wall-hung unit with drawers, available with porcelain stoneware covering in the finishes available with a thickness of 6 mm, or fully lacquered.
CHARACTERISTICS OF WALL-HUNG UNIT WITH DRAWERS – PORCELAIN STONEWARE FINISH
• Side and front panels of the base in phenolic birch plywood thickness 18 mm.
• Bottom, top and interior side panels in bilaminate poplar plywood, thickness 25 mm.
• Glue for bonding stoneware to plywood, universal adhesive
• Plywood coated with paste varnish with embossed finish, matching colour.
• Full-extension, adjustable drawers. The interior parts of the drawers are in anthracite grey, except for the front panel, which is in a matching RAL colour.
CHARACTERISTICS
OF UNIT WITH DRAWERS – LACQUERED FINISH
• Side and front panels of the base in multilayer MDF, thickness. 19 mm.
• Bottom, top and interior side panels in poplar plywood, thickness 25 mm.
• Embossed lacquering, available in 5 colour options.
• Full-extension, adjustable drawers. The interior parts of the drawers are in anthracite grey, except for the front panel, which is in the same RAL colour as the exterior.
SERENITY
BASE WITH ONE DRAWER
FRONT VIEW
VIEW FROM ABOVE
AXONOMETRIC VIEW
BASE WITH TWO DRAWERS
FRONT VIEW
VIEW FROM ABOVE

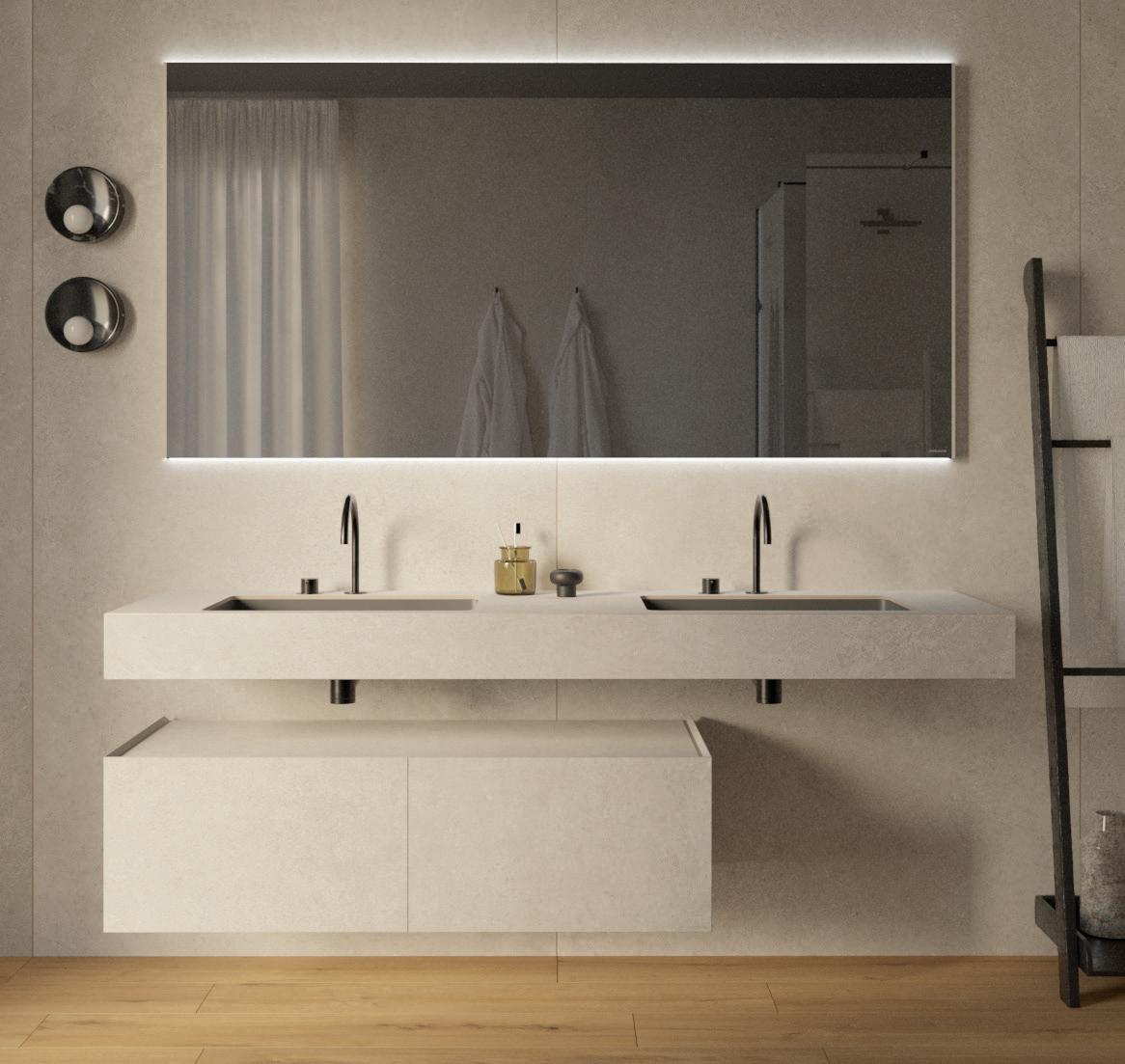

Serenity with porcelain stoneware covering

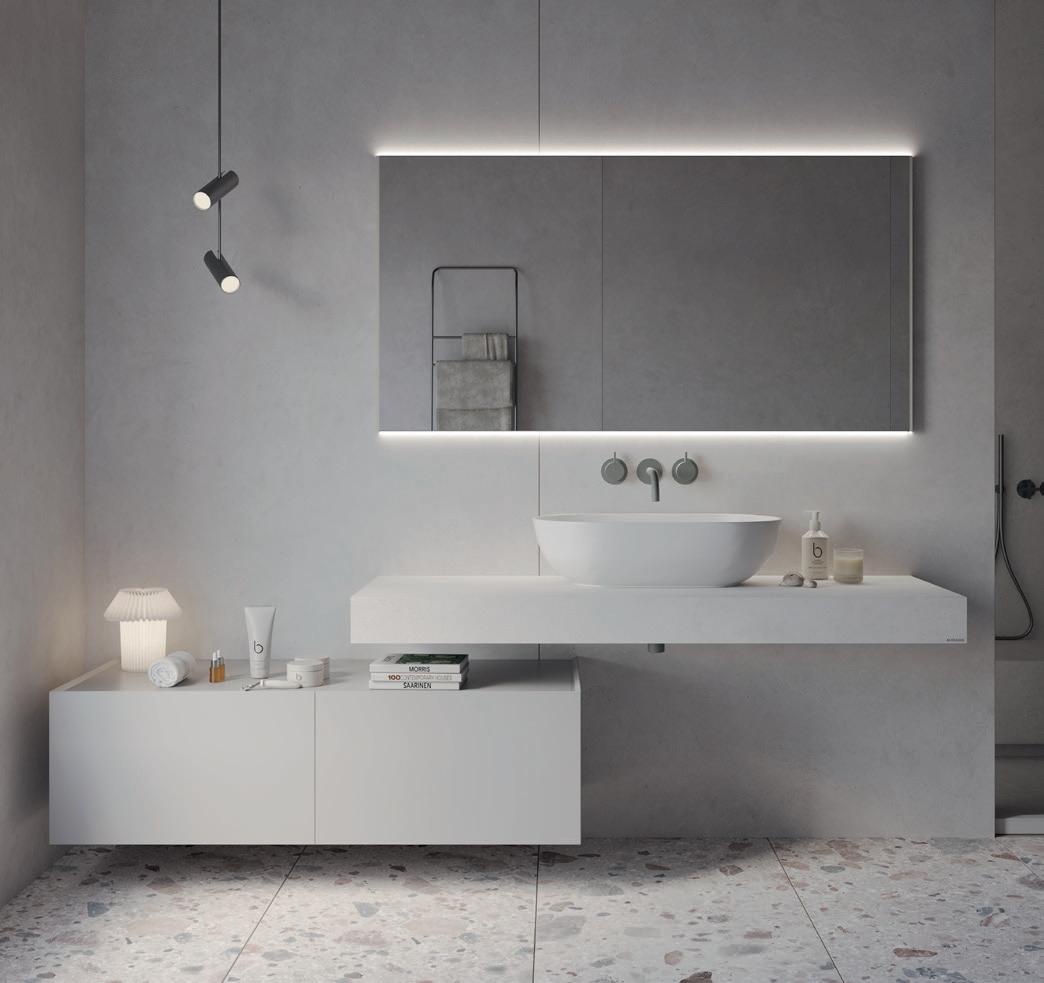

Serenity with lacquered finish
AXONOMETRIC VIEW
SERENITY
CHARACTERISTICS OF THE
COVERING:
Fine porcelain stoneware covering produced by Mirage.
For more information on our collections and on technical characteristics, please consult our website: www.mirage.it
DIMENSIONS
*SB = STONEWARE BASE
*LB = LACQUERED BASE
TECHNICAL DATA
UNI EN 14749:2016 and UNI EN 16122:2012
Paragraph 5.2 Compliant with general safety requirements
Paragraph 5.3.7.1 Compliant with slam open testing of extension elements (Ref. EN 16122:2012, 7.5.1 and 7.5.4)
Paragraph 5.3.7.2 Compliant with resistance testing of extension elements (Ref. EN 16122:2012, 7.5.1 and 7.5.2).
Paragraph 5.3.10 Load resistant for kitchen worktops and other top surfaces (Ref. EN 16122:2012, 6.2.2).
Paragraph 5.3.11.3 Compliant with overload testing
Paragraph 5.3.11.4 Compliant with sidewards detachment testing
Paragraph 5.3.11.5 Compliant with vertical removal testing
Paragraph 5 - Test 14 Compliant with durability testing of extension elements
Paragraph 5 - Test 15 Compliant with resistance testing of the bottom of the extension elements
SERENITY
MATERIAL SUPPLIED
• Brackets, screws and bolts for securing the unit to the wall.
• Assembly instructions.
MATERIAL SUPPLIED ON REQUEST
• Internal drawers.
INDICATIONS AND WARNINGS – unit with drawers
• The wall the drawer unit is to be secured to must be robust enough to bear its weight. Plasterboard walls must be adequately strengthened (e.g. with a wood support). For walls in perforated brick, chemical bolts should be purchased.
• Do not pour boiling water directly on the unit, to avoid sudden expansion caused by thermal shock.
• Avoid impact.
• For specific maintenance and cleaning instructions for the product, consult the website https://www.mirage.it/it/gresporcellanato/istruzioni-per-la-pulizia/
• Avoid using solvents: nitro diluent, turpentine, trichloroethylene, etc.
