Box-shaped top with washbasin with overflow
DESCRIPTION
Built-in washbasin in the finishes available with a thickness of 6mm.
Washbasin with central drain hole that can be closed with click-clack plug and overflow valve.
6 mm stoneware covering Support panel in XSP with cement covering
Fine porcelain stoneware covering produced by Mirage
For more information on our collections and on technical characteristics, please consult our website: www.mirage.it

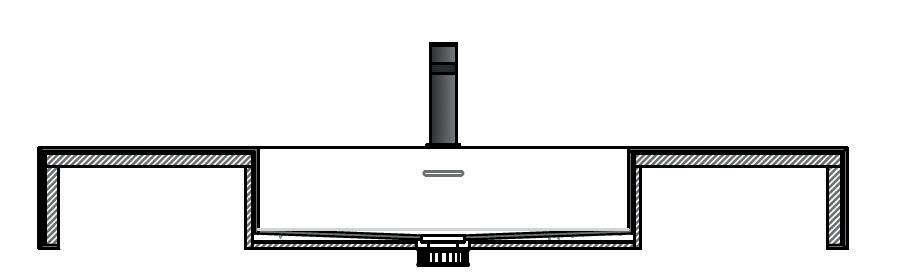

Attached at the bottom of this file are the technical drawings of each type and size of Joy HORECA
UNI EN 14688:2018
Paragraph 5.2 Excellent load resistance
Paragraph 5.8 Excellent cleanability
Paragraph 5.3 Excellent draining of water
Paragraph 5.4 Excellent resistance to temperature changes
Paragraph 5.5 Excellent resistance to chemicals and staining agents
MATERIAL SUPPLIED
• Closed drainage, connection for overflow and coupling elements.
• Brackets, screws and bolts for securing the top to the wall.
• Assembly instructions.
MATERIAL NOT SUPPLIED
• Syphon
• Taps
MATERIAL SUPPLIED ON REQUEST
• Click-clack plug in porcelain stoneware.
INDICATIONS AND WARNINGS – Built-in washbasin and parts in porcelain stoneware
• The wall the top is to be secured to must be robust enough to bear its weight. Plasterboard walls must be adequately strengthened (e.g. with a wood support). For walls in perforated brick, chemical bolts should be purchased.
• Do not pour boiling water directly on the washbasin, to avoid sudden expansion caused by thermal shock.
• Do not use drain cleaners.
• Avoid impact.
• For specific maintenance and cleaning instructions for the product, consult the website https://www.mirage.it/it/gresporcellanato/istruzioni-per-la-pulizia/
• Avoid using solvents: nitro diluent, turpentine, trichloroethylene, etc.
• Recommended syphon: syphon with wall drain (bottle trap).
