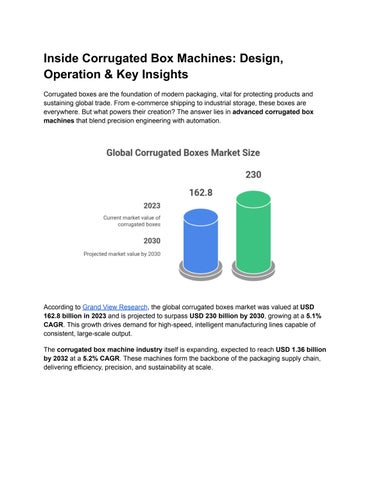

Inside Corrugated Box Machines: Design, Operation & Key Insights

Inside Corrugated Box Machines: Design, Operation & Key Insights Corrugated boxes are the foundation of modern packaging, vital for protecting products and sustaining global trade. From e-commerce shipping to industrial storage, these boxes are everywhere. But what powers their creation? The answer lies in advanced corrugated box machines that blend precision engineering with automation.

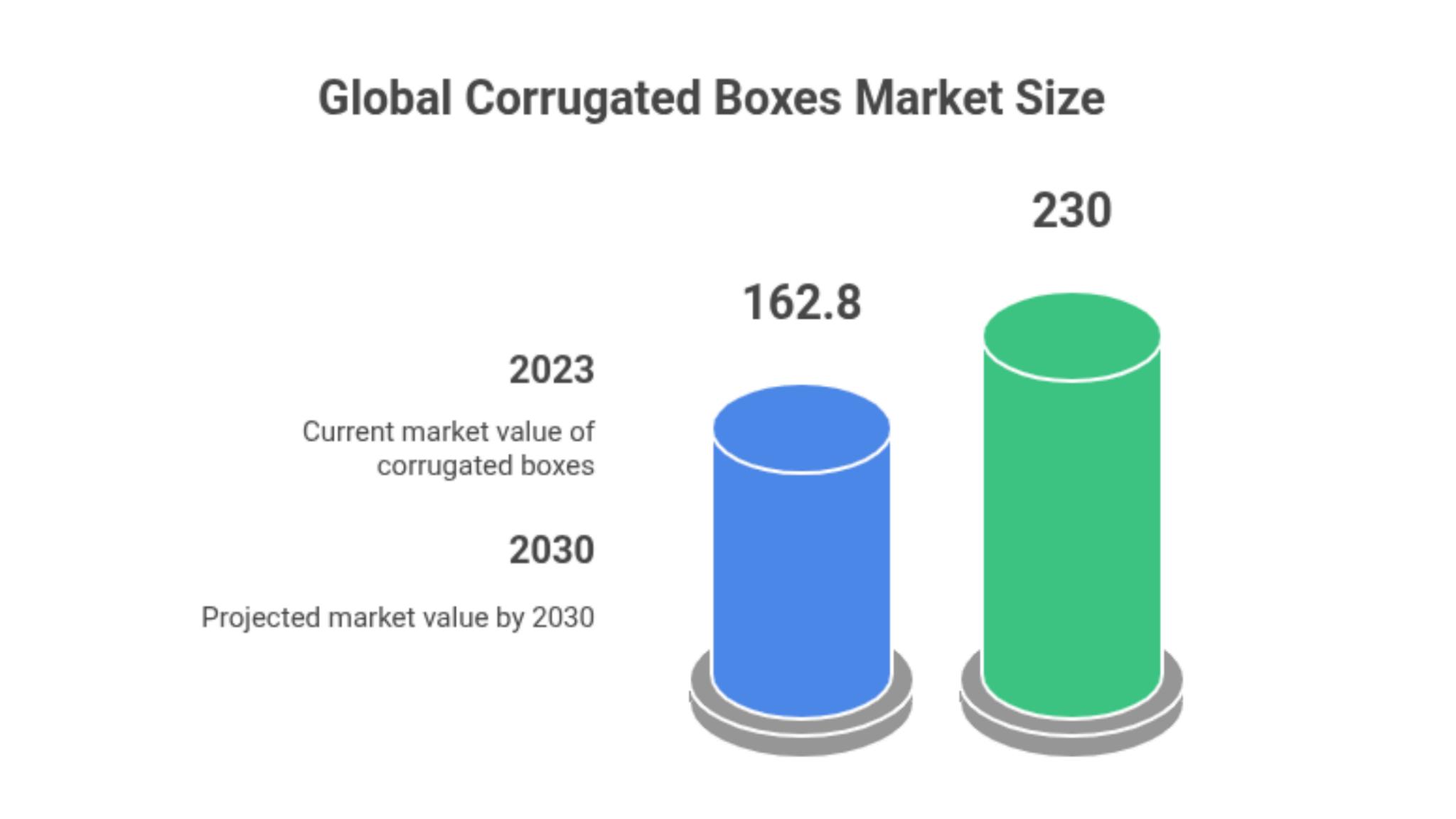

According to Grand View Research, the global corrugated boxes market was valued at USD 162.8 billion in 2023 and is projected to surpass USD 230 billion by 2030, growing at a 5.1% CAGR. This growth drives demand for high-speed, intelligent manufacturing lines capable of consistent, large-scale output.

The corrugated box machine industry itself is expanding, expected to reach USD 1.36 billion by 2032 at a 5.2% CAGR. These machines form the backbone of the packaging supply chain, delivering efficiency, precision, and sustainability at scale.

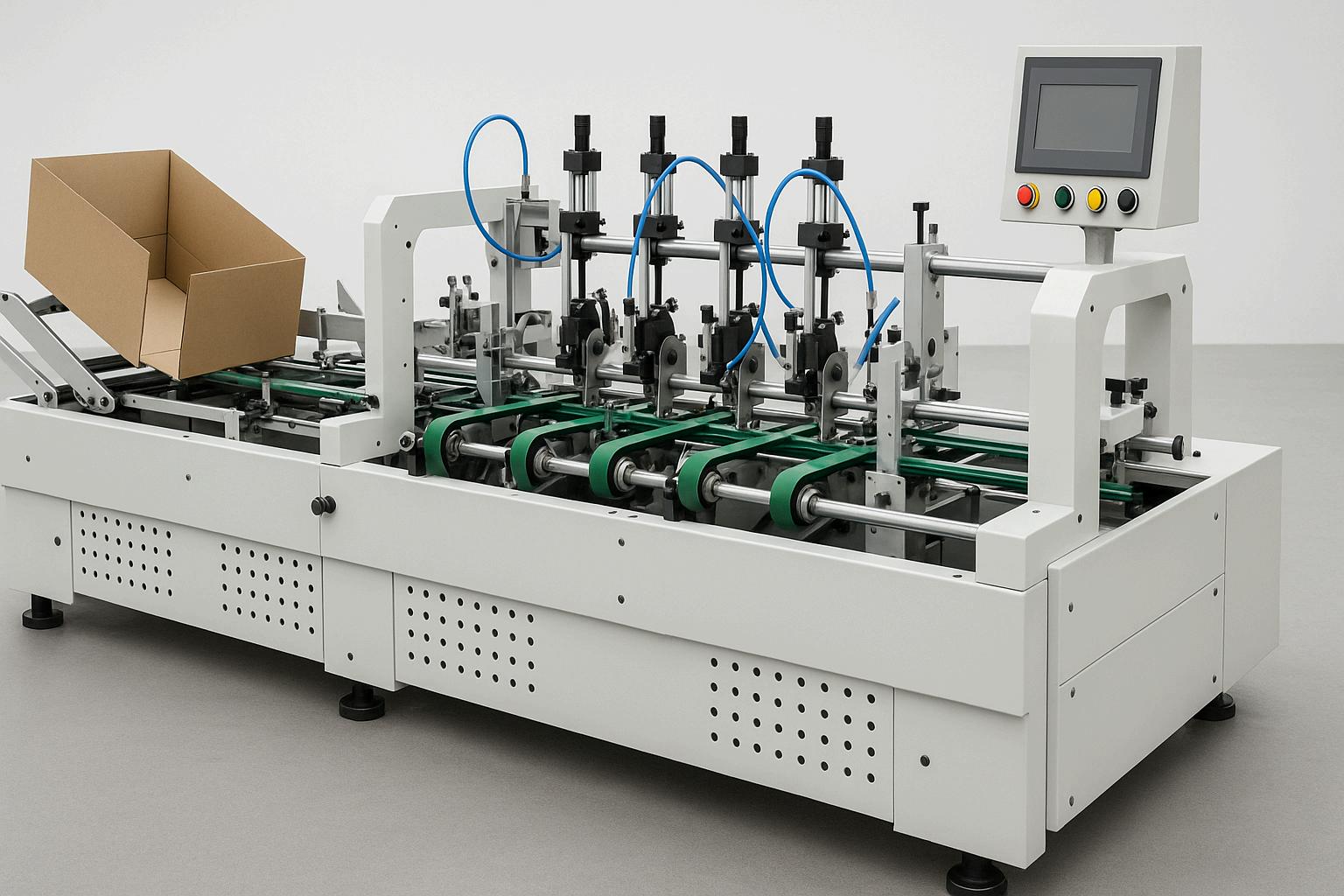

The Role of Automation in Modern Packaging As packaging volumes surge, automation has become essential. Modern systems, including the automatic folder gluer for corrugated box, are designed to streamline production, enhance accuracy, and reduce waste. They handle folding, gluing, and stacking with minimal human intervention, ensuring every box meets exact specifications.

Research by Fortune Business Insights shows the Asia-Pacific region currently holds over 30% market share, with China leading as a key manufacturer and exporter.

Advanced models now feature servo-driven folding systems, touch-screen controls, and PLC-based automation. These innovations allow manufacturers to maintain precision within ±1 mm at speeds over 400 m/min, a benchmark of modern engineering.

For companies focused on consistent output, investing in these automated lines ensures smoother workflows, faster changeovers, and improved box quality, all vital for meeting today’s fast-paced packaging demands.

How Corrugated Box Machines Work The corrugated box production process begins with raw paper and ends with a sturdy, perfectly shaped container. The journey includes multiple stages: 1.​ Feeding Unit: Kraft paper rolls are loaded and fed with controlled tension.​ 2.​ Corrugation: Heated rollers press the paper into waves or flutes that define the board’s strength.​ 3.​ Gluing & Bonding: Adhesive is applied to flute tips, bonding liner sheets to create multi-layer boards.​ 4.​ Drying: Boards are heat-set to maintain rigidity and moisture balance.​ 5.​ Cutting & Scoring: Precision blades and scoring wheels prepare the board for folding.​ 6.​ Folding & Gluing: The sheet is folded, glued, and sealed into box shape.​ 7.​ Stacking: Finished boxes are automatically stacked for packing and dispatch.​

For deeper technical insight, refer to this industry overview by GMI Insights.

Automation has redefined how each stage operates, combining accuracy and sustainability.

Sensors, servo drives, and centralized controls eliminate manual errors and reduce waste by up to 15%, ensuring faster production cycles and consistent output.

Operating Principles and Performance Optimization The performance of corrugated box machines depends on the precise control of heat, pressure, and timing. When balanced correctly, these variables ensure uniform bonding, sharp creases, and high-compression strength.

Today’s lines use advanced sensor systems that track roller speed, paper tension, and glue temperature in real-time. The data is fed into PLC controllers that automatically adjust the process for consistent results.

Maintenance Best Practices ●​ Clean adhesive units daily to prevent blockages.​ ●​ Calibrate roller pressure periodically.​ ●​ Monitor temperature and moisture to prevent warping.​ ●​ Replace worn belts and blades proactively to reduce downtime.​

Manufacturers implementing automation have achieved up to 25% higher efficiency and 20% reduction in waste, according to Future Market Insights.

Tip: Continuous performance tracking ensures consistent quality and minimizes long-term maintenance costs, a major factor in profitability.

Machine Selection: Getting the Right Fit Choosing the right system means balancing performance, cost, and flexibility. The automatic box gluing machine, a modern innovation in corrugated manufacturing, delivers unmatched folding precision and glue control for diverse packaging needs.

When evaluating machinery, consider: ●​ Production Output: Speed and daily box volume targets.​ ●​ Automation Level: Manual, semi-automatic, or fully automatic.​ ●​ Box Type: Single-wall, double-wall, or multi-layer.​ ●​ Energy Efficiency: Servo-based systems save significant power.​ ●​ After-Sales Support: Reliable maintenance and spare parts are essential for uptime.​

According to GM Insights, the automatic segment already dominates with over 55% market share in 2025, showing a clear global trend toward full automation.

Manufacturers using these systems benefit from faster turnaround, minimal errors, and higher return on investment, making them indispensable for high-volume packaging businesses.

The Future of Corrugated Packaging Machines Looking ahead, the corrugated packaging industry is evolving toward sustainability, smart manufacturing, and predictive technology. Industry 4.0 integration now allows real-time diagnostics, IoT-enabled monitoring, and AI-based quality control.

Key trends shaping the future include: ●​ Eco-friendly adhesives and recyclable paper materials.​ ●​ Short-run and customizable box production for e-commerce.​ ●​ Cloud-connected systems enabling predictive maintenance.​ ●​ Intelligent servo systems that adjust automatically for material variations.​

By 2034, the corrugated box machinery market could exceed USD 4.3 billion, according to Global Market Insights, underscoring massive growth potential.

For packaging companies, upgrading to automated machinery isn’t just an improvement, it’s a necessity to stay competitive in an eco-driven, high-speed market.

Conclusion Corrugated box machines are the unseen heroes of global commerce, turning paper into durable packaging that keeps the world moving. Understanding their design, operation, and automation helps manufacturers optimize productivity and profitability.

By adopting advanced systems such as automatic folder gluer for corrugated box and automatic box gluing machine, businesses can scale smarter, faster, and more sustainably , ensuring long-term success in the competitive packaging sector.
