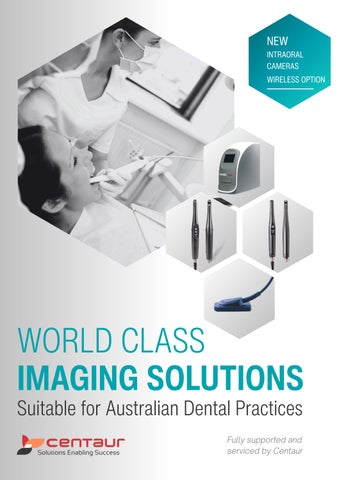

World Class Imaging Solutions - Centaur Software

NEW

INTRAORAL CAMERAS WIRELESS OPTION

WORLD CLASS

IMAGING SOLUTIONS Suitable for Australian Dental Practices

Fully supported and serviced by Centaur

DIGITAL HARDWARE AND SOFTWARE FOR ALL-IN-ONE IMAGING SOLUTIONS With ever increasing competition, today’s dental practices must either move forward with new technology or risk being left behind.

Dental digital x-ray systems are the ultimate modern solution for efficient, cost-effective and quality imaging.

Benefits include a rapid, chemical-free process and a typical reduction in dosage of 70–90%.

Centaur has sourced dental digital x-ray systems and dental camera systems from across the globe that provide the latest technology and reliability and are suitable for Australian conditions. We pride ourselves on providing quality products that won’t break the bank. Our range includes the Mediaray Plus Digital X-Ray Sensor, Mediacam Pro and Mediacam 2 Intraoral Cameras and Medicascan Phosphor Plate Digital X-Ray Scanner, all of which integrate seamlessly with Mediasuite Digital Imaging Software.

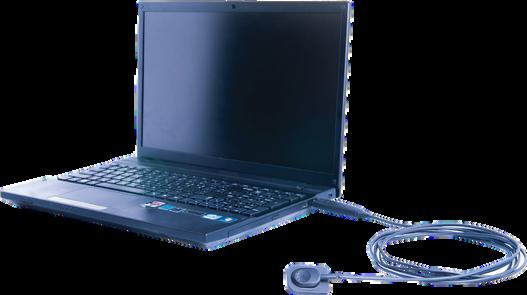

MEDIARAY PLUS

DIGITAL X-RAY SENSOR

Mediaray PLUS delivers rapid, high resolution patient x-rays. No more time consuming and messy film development required.

The slim design with rounded corners assists patient comfort and ease of use, with x-ray dosage significantly reduced.

MEDIARAY PLUS FEATURES: • 24 months warranty • Mediasuite Digital Imaging Software (3 Licences) • Exceptional Value • Direct USB connection • High diagnostic image resolution • Unique cable design • Waterproof • Portability – High speed direct USB connection to your computer • Ergonomic design with rounded corners, edges and a smooth top, optimal sensor positioning and patient comfort is ensured • The unique design of the reinforced cable attachment combined with the hardened bio compatible outer casing makes the Mediaray PLUS sensor safe, durable, reliable and comfortable for the patient

7 element glass optical lens

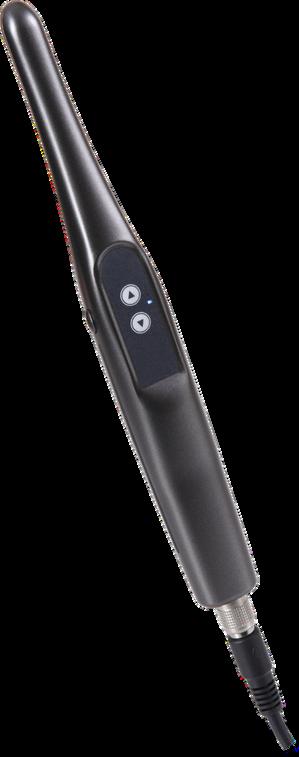

MEDIACAM 2

INTRAORAL CAMERA WIRELESS OPTION Freeze buttons both sides

Focusing button & indicator light

MEDIACAM 2 FEATURES:

Power ON/OFF handpiece holder

• 18 months warranty • Mediasuite Light Digital Imaging Software (3 Licences) • Resolution of 1280 (H) × 720 (V) pixels • 5 step focusing levels from intra-oral to extra-oral imaging • Ergonomic design • Anti-fogging • 7 element glass optical lens producing exceptional image quality • Bright LED light source • Automatic on/off hand-piece holder

Detachable USB connector

Full metal case

MEDIACAM PRO

7 element glass optical lens

INTRAORAL CAMERA

Freeze buttons both sides

Auto & semi-auto focus button

MEDIACAM PRO FEATURES: • 18 months warranty • Mediasuite Light Digital Imaging Software (3 Licences) • Full HD 1080P • Resolution of 1920 (H) × 1080 (V) pixels • Full automatic focus and anti-fogging • Full metal case with ergonomic design • Supports DIS (Digital Image Stabiliser) System • 7 element glass optical lens producing exceptional image quality • Bright LED light source • Patented intelligent IR protection technology • Automatic on/off hand-piece holder

Power ON/OFF handpiece holder

Detachable USB Connector

Aluminium case is produced by high precision CNC machining center.

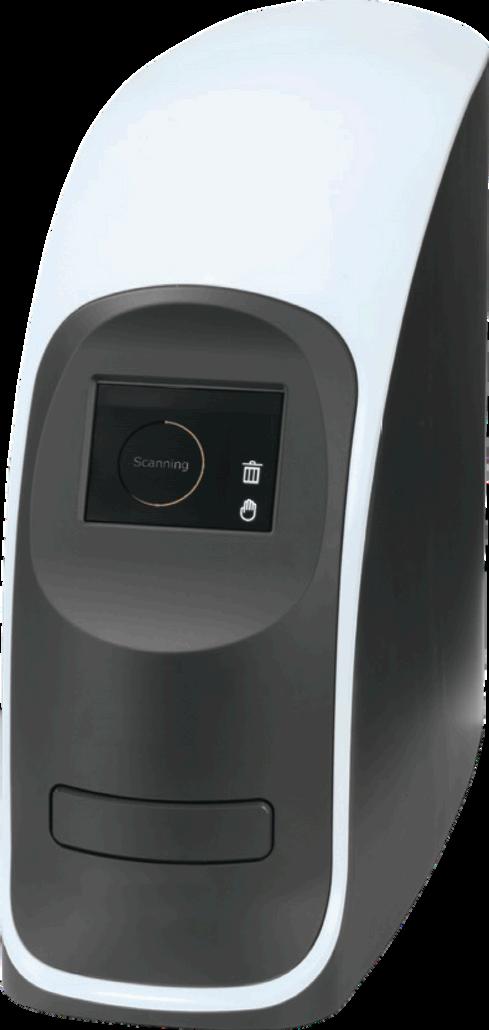

MEDIASCAN PHOSPHOR PLATE SCANNER

A digital x-ray scanner that delivers high-quality digital images for busy dental practices. Coupled with leading digital imaging software, including the complimentary advanced Mediasuite, Mediascan delivers uncompromising image quality at an affordable price.

MEDIASCAN FEATURES:

• 12 months warranty • Mediasuite Digital Imaging Software (3 Licences) • Compact and affordable • Readout time: 4.1–7.2 seconds • Optimised workflow with push & go functionality • Fast diagnostic images • Supports size 0, 1, 2, 3, 4c imaging plates • High quality images • Colour LCD touch screen for x-ray image preview & controls • Interactive chairside review • Magnetic feeding tray protects imaging plates • Built-in memory of last 100 images • Network and USB connectivity • Built-in erase function • Optional RFID reader for unique patient tagging

RFID READER Mediascan RFID Reader

The advanced technology of the Mediascan RFID Reader provides quick and accurate registration of data relevant to each individual patient. By pre-registering the unique tag code of the imaging plate on the RFID Reader, key data is automatically matched to the correct patient file, including the scanned image, imaging plate size and the serial number of the imaging plate.

COMPACT DESIGN & STREAMLINED OPERATION

Mediascan combines an elegant design with a powerful yet easy to use system. The automated, magnetised feeding tray offers push and go functionality, making it simple to operate for busy providers.

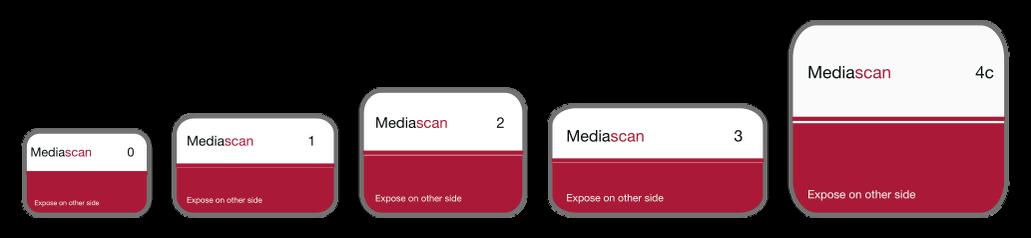

The scanner uses a full range of reusable bite wing and intraoral imaging plates that are easier and faster to position than intraoral digital sensors. Importantly, a true size 4c imaging plate is available, so providers don’t have to use software stitching to combine images from two size 3 plates—a cumbersome and inefficient process. Mediascan accepts IP sizes 0, 1, 2, 3 and a true 4c.

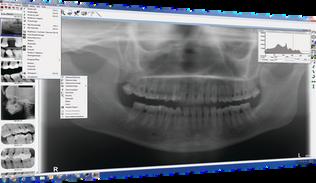

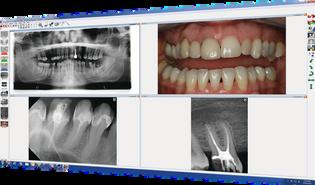

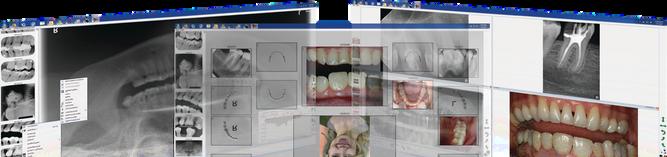

ALL YOUR IMAGING IN ONE PLACE MEDIASUITE DIGITAL IMAGING SOFTWARE

Mediasuite will capture them all and offers true integration to most clinic management systems. The clean, clear and powerful image manipulation toolset assists with more accurate condition/patient diagnoses and far better patient communication. Mediasuite has 16 Bit image processing and is DICOM compliant.

Manage all your digital imaging devices and their images from the one simple imaging application, directly integrated into your practice management system.

Professional or Light version included in all digital imaging purchases.

Analyse and enhance using Mediasuite’s powerful yet userfriendly imaging tool set.

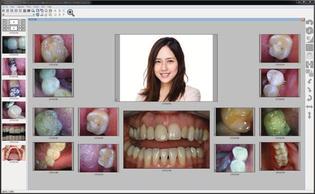

• 16 Bit dynamic range for x-ray images • 24 Bit dynamic range for colour images • Study Mount templates to display patient image portfolios • User defined names and colour labels for Studies (Before & After Treatment, Treatment Plan, Treatment etc.)

• Restore original image • Automatic image recovery in case of power or network failure • Multi-language capability • Audit reports on image manipulation history and actions such as image deletion or exporting and filtered by patient, provider or whole practice • Copy/move all images from one patient to another in Dental4Windows • Conversion available from any other dental imaging system • Support for an unlimited number of network users • Integrates with any number of imaging devices in the one powerful dental imaging system • Customisable print layout • Supports an unlimited number of dental clinics and locations

Mediasuite Digital Imaging Software

✓ Digital X-rays ✓ Videos ✓ Still Images Image Auto Processing When installing a new device, Mediasuite allows users to define the image processing ✓ OPG Images & Scans settings for each image automatically taken by that device. Users can also customise ✓ Digital X-ray Sensors image enhancement filters for each individual provider as well as six global filters for a whole network. ✓ Phosphor Plate Scanners ✓ Intra-Oral Cameras System Functionality ✓ OPGs Import/export/manage all standard image formats including DICOM standard. Display one full screen image through to nine images per screen with full undo/redo functionality. ✓ Camcorders ✓ Web Cams ✓ Flatbed Scanners ✓ Memory Cards

TECHNICAL SPECIFICATIONS Mediacam 2

Mediacam Pro

Image Sensor 1/4" 1.3 Megapixel CMOS Resolution 1280(H) × 720(V) Focusing Type 5 step motorising by stepping motor Capture Systems Freeze buttons on both sides (optional foot switch) Illumination Systems 4 high luminance white chip LEDs Video Output USB2.0 MJPEG Digital Output YUV, 8bit Power Supply DC 5V Length & Weight 212mm, 60g Cable Length 2.7m Warranty 18 months Software Mediasuite Light Digital Imaging Software Pentium V or faster, high speed USB 2.0 port or higher, System more than 2GB RAM / 40GB of hard disk, high res SVGA Requirements monitor (1024 × 768 pixels or higher), Windows 7 SP1 or higher

Image Sensor Resolution

Sony 1/2.8” progressive scan CMOS, 2 megapixel 1920(H) × 1080(V) Motorised Lense Control by stepping Motor (Simplified Focusing Type Adjustment) Capture Systems Freeze buttons on both sides (optional foot switch) Day & Night IR CUT Filter System Illumination Systems 4 high luminance white chip LEDs Digital Output 16bit Power Supply DC 5V Length & Weight 213mm, 97g Cable Length 2.7m Warranty 18 months Software Mediasuite Light Digital Imaging Software System Requirements

CPU: Core i3 or faster, RAM: more than 4GB, OS: Win7 SP1 or higher, preferably with standalone VGA card

Mediaray Plus Sensor Technology Dimensions Active Area Pixel Pitch Theoretical Resolution Interface Cable Length Software

Size 1.0 Size 1.5 CMOS with Scintillator 25.4 × 36.8 × 4.8 mm 29.2 × 39.5 × 4.8 mm 20 × 30 mm 24 × 33 mm 0.0296 mm 0.0296 mm 16.9 lp/mm 16.9 lp/mm Direct USB Direct USB 2.7m 2.7m Mediasuite Professional Digital Imaging Software

Size 2.0 31.5 × 42.8 × 4.8 mm 26 × 36 mm 0.0296 mm 16.9 lp/mm Direct USB 2.7m

Note: Specifications subject to change without notice.

Mediascan

Selectable Pixel Size Sampling Pixel Pitch (35µm) Readout Time Resolution Eraser Dimensions (H × W × D) Weight System Configuration Interface QuantorDent Imaging Software

High: 35µm • Standard: 64µm 14.3 lp/mm 4.1 – 7.2 sec Data Capture: 16-bits per pixel, 65,000 graytones Embedded 10.4” × 4.7” × 12.5” / 265 × 120 × 318 mm 4.7 kg Tabletop USB 2.0 high speed (480 Mbps) / Ethernet (100 Mbps) Image File Formats: DICOM 3.0, TIFF, BMP, JPEG • DICOM Send • Embedded Viewer Mediasuite Professional Digital Imaging Software Intel Core Duo/Core 2 Processor • Min. 80 Gigabytes Hard Disk • 2 Gigabyte RAM Computer Workstation Windows 7 (32-bit & 64-bit) Minimum Requirements NetCard (100 Mbit), CD/DVD, 2 USB 2.0 ports • Monitor: 1,280 × 900 pixels, DVI Interface Power Requirements 100 – 240V / 50 – 60Hz, 30W • UPS required Regulatory Approvals FDA 510(k) • CE (0210) • UL, cUL, FCC • KFDA • Australian TGA: ARTG No 222155 Safety Standards ISO13485 • ISO9001 • ISO14971 • 93/42/EEC • EN60601-1 Temp: 15–30°C, Celsius • Temp Gradient: 0.5°C/min Operating Conditions Humidity: 15%–95% RH • Magnetic Field: Max. 1260 Micro Tesla Note: Specific results may vary since operating conditions fluctuate.
