Halnn PCBN/PCD Inserts eight series

HalnnPCBN/PCDInsertseightseries

Hieveryone!ThisisJoannawithHalnnGroupIamgladtobehereandgivea briefintroductionofourproductionseries.

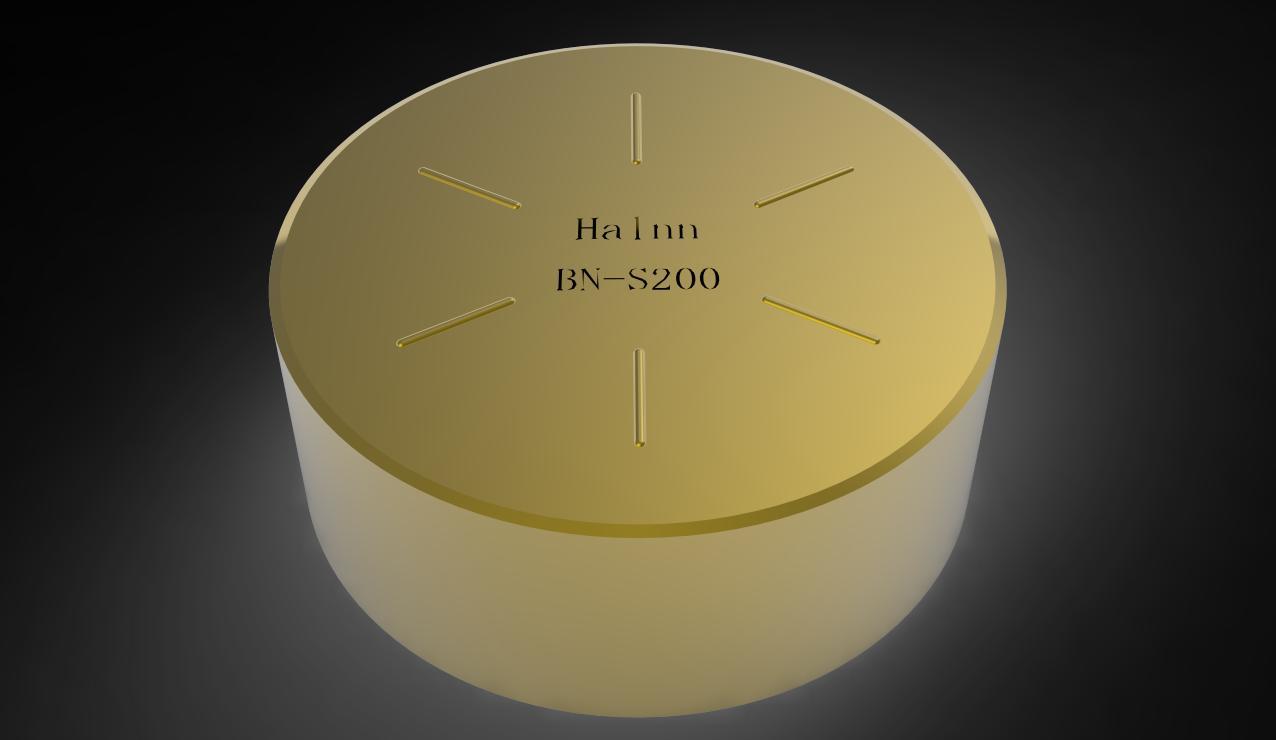

ThefirstoneisHeavydutyTMPCBNseries.ComparedtootherCBN materials,heavy-dutycuttingseriesismoresuitableforlongerprocessingtime, largercuttingdepthandinterruptcuttingconditionsTheyareveryexcellentin processingdifficultmaterialssuchashighmanganesesteelandhigh chromiumcastiron.Theseriescouldcompetewithworldfamousbrandinthis field.

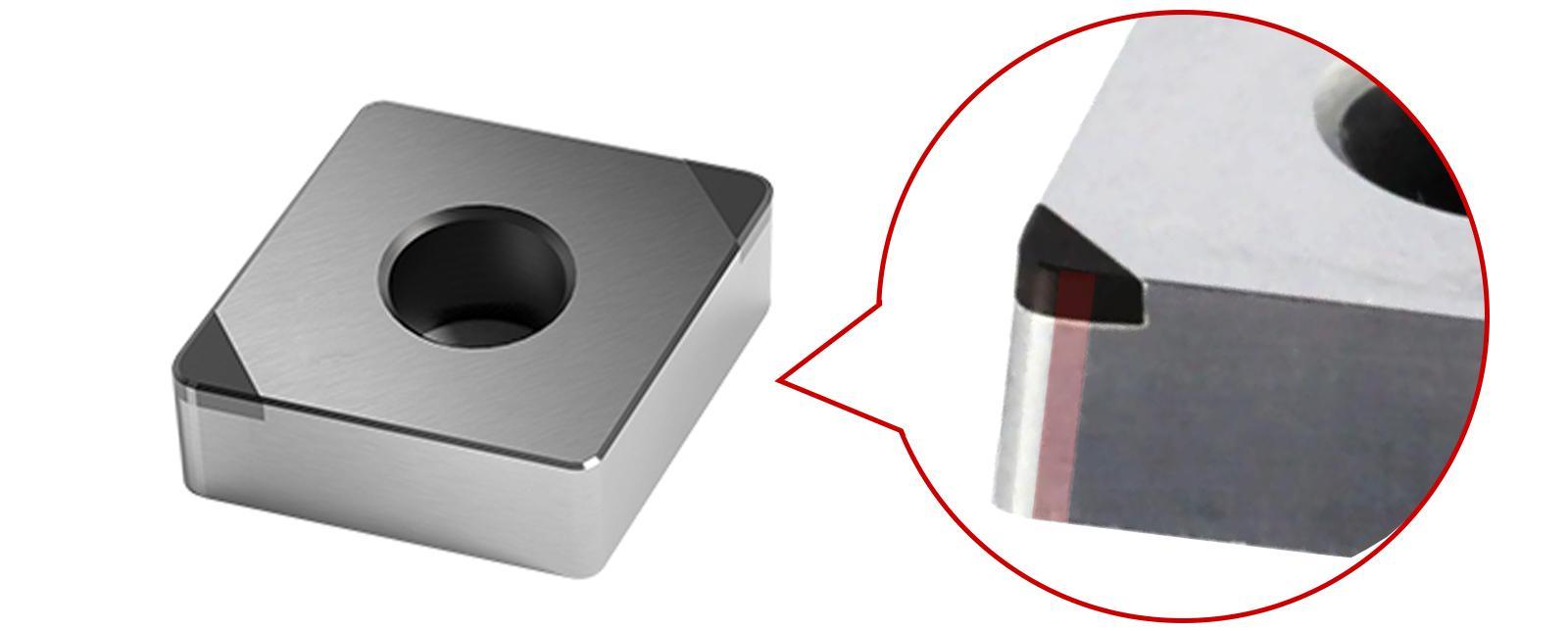

ThesecondoneisPCBN/PCDfullfaceseriesWegot3advantagesinthis series.Theproductivitycouldbegreatlyincreasedbyhighercuttingspeed andfeedrate;Thecostcouldbereducedbyincreasedcuttingtips;Itismore suitableforprecisionprocessingduetoitsstrictcontrolondimensional accuracyTherefore,thisserieswouldgetsignificantadvantagewhenbeing appliedtoindustriessuchaswindpower,engineeringmachineryand processinglargeparts.

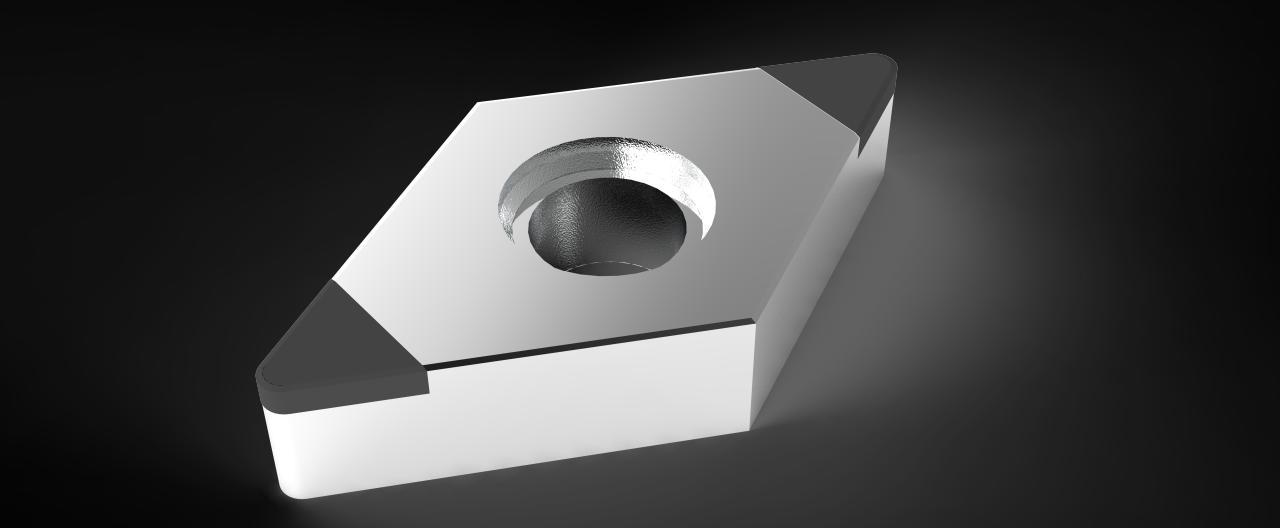

ThethirdisPCBNinsertsfromLengthenseries.ThisseriesofInsetscouldbe appliedtofinishprocessingwithsmallcuttingdepth,aswellasheavy-duty processingwithbigcuttingdepthComparedwithstandardinserts,theinserts hasalongertipandcanbecustomizedwithdifferentinsertslengthsInthe caseoflargecuttingdepth,thestandardinsertsneedstobeprocessedmany

times;theLengtheninsertscancompletetheprocessinonetime,greatly improvingtheprocessingefficiency.Itcanbeusedforheavydutyandhashigh processingefficiency.Atthesametime,thecuttingedgehasbeentreatedwith aspecialprocess,whichhashighedgestrengthandgoodstability,andcan bettercontroltheaccuracyrequirementsofthepartsbeingprocessed

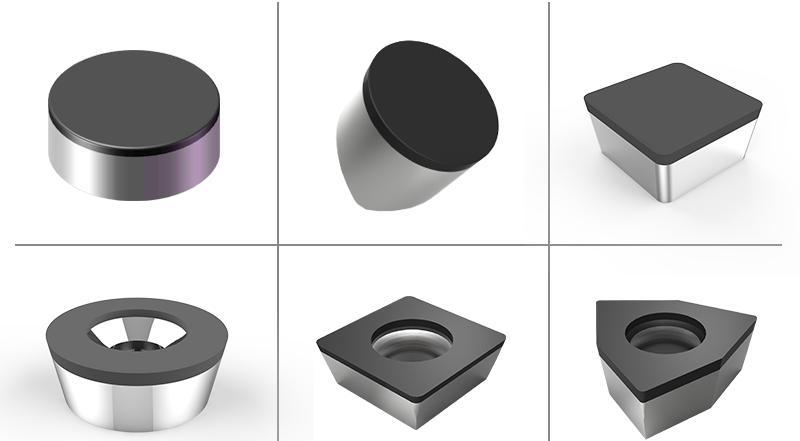

ThefourthistheBreaking-GPCBN/PCDInsertsseriesTheyarewith chip-breakerswhichcansolvetheproblemscasedbychips,ensuringtheparts goodsurfacequalityandtoolservicelife.Chipbreakerisprocessby ultra-precisiongrindingmachine.Withmorestableperformance,smooth surface,longerworklifecouldbeguaranteed

ThefifthoneisWiperCBNseries,WiperCBNinsertswhicharesuitablefor lathesandworkpieceswithhighrigidityHighersurfacequalitycouldbe achievedundersamefeedrate,orhigherfeedrateundersamerequirementof Ra.0.1

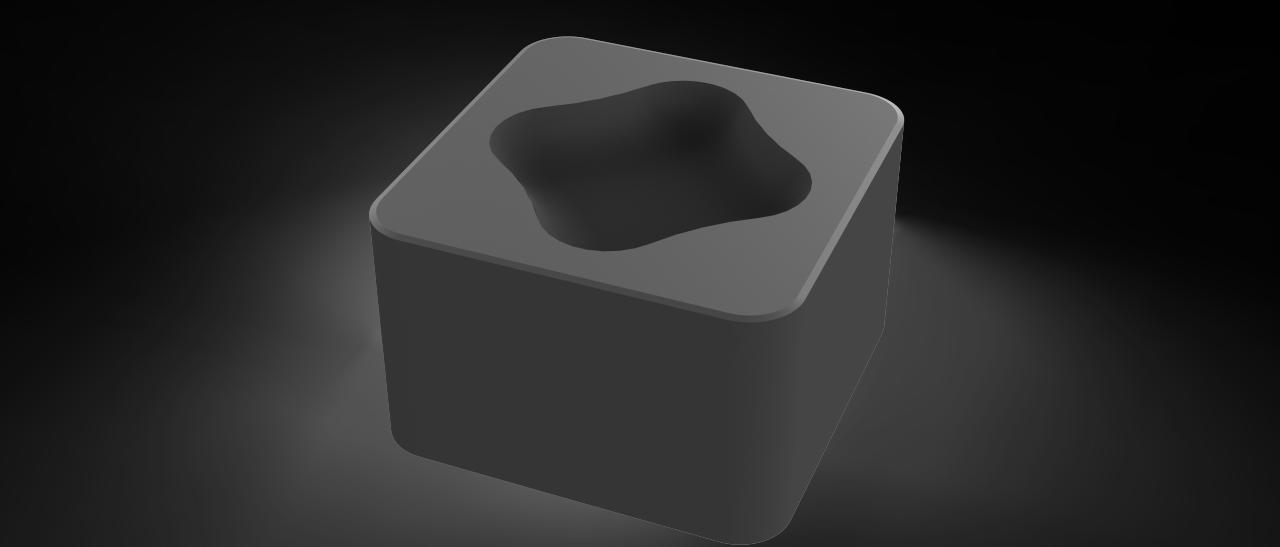

ThesixthoneistheFix-STMCBNpositioningpitseriesCBNInsertwith PositioningPitaremainlyinsolidCBNstructureThedesignoffix-boreis convenientforclampingItisespeciallysuitableforcontourmachiningand speedcutting.

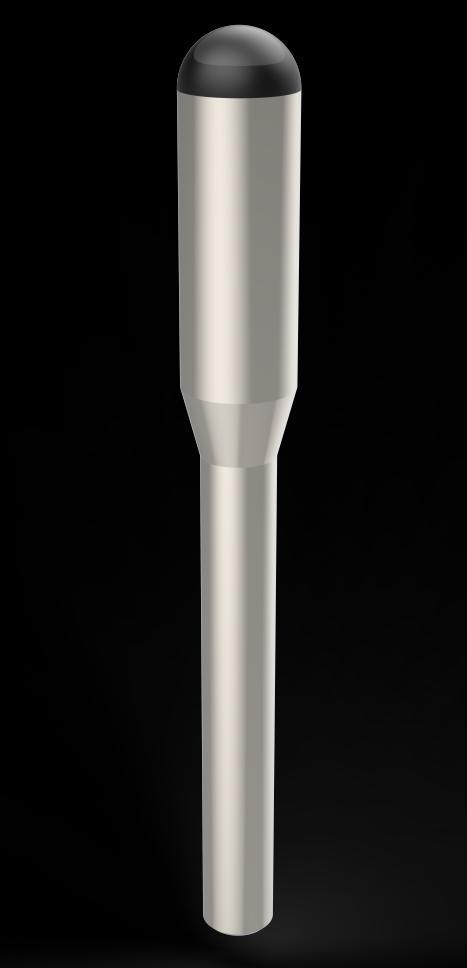

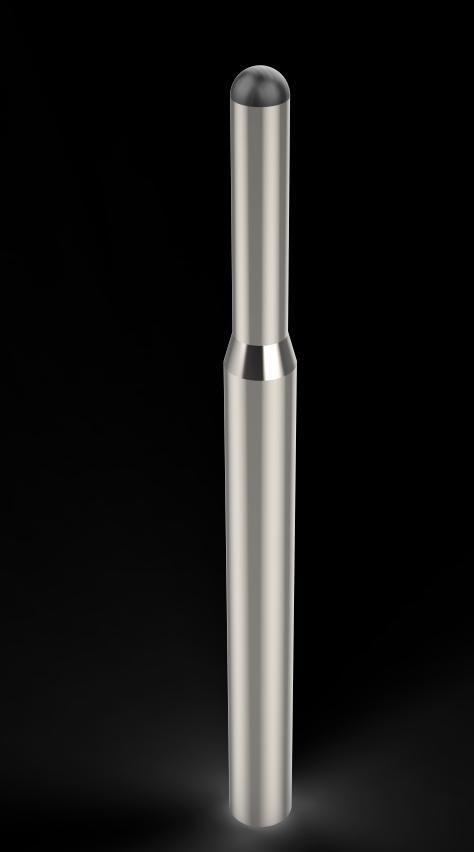

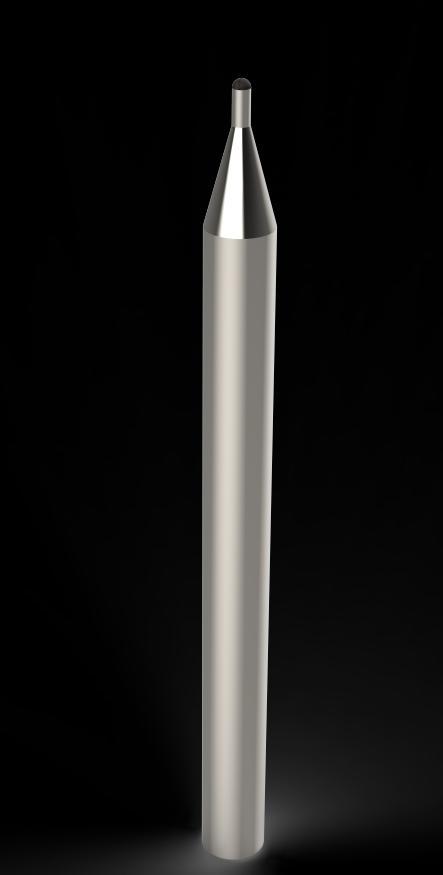

TheseventhoneisHighFinishPCDpolishtoolItismainlyusedfor mirror-surfaceprocessing,andiswidelyusedinplasticabrasivetoolsand opticalmolds.ThesurfacefinishiswithinRa0.1.

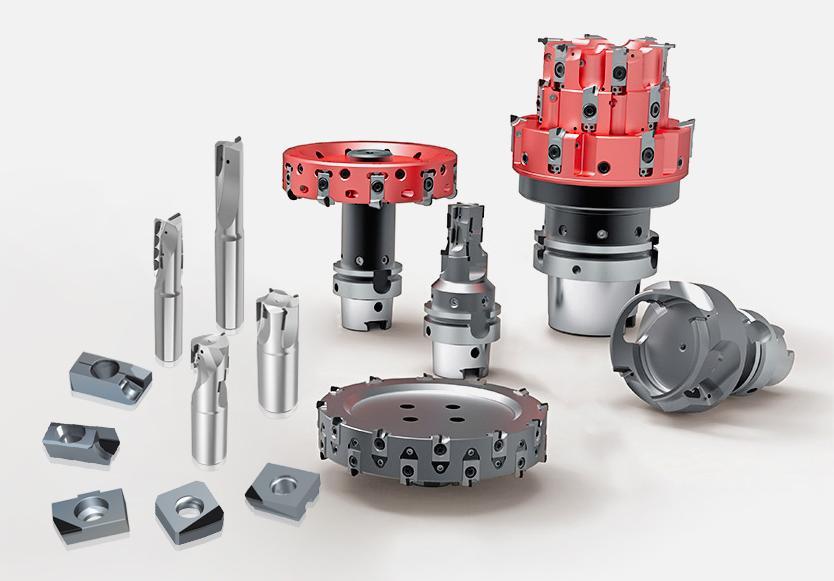

TheeighthistherepairmentserviceThesubstrateproductiontimeislong andthecostishighforsomenon-standardtoolsTheoldinsertscouldbe repairanewtiporregrinding.Inthisway,wehavefasterresponsetimes andlowercosts
