Material Handling Catalog 2024

Equipment, Resources & Parts Catalog

OUTSTANDING. EFFICIENT. EXCEPTIONAL. This is just the beginning of what others will say when they see your warehouse thriving. But what is thriving if you aren’t producing? At C & B we don’t just sell equipment, we believe in the equipment. It’s in our nature to give you the most efficient products you deserve by supplying the most outstanding service to help ease your tough work. With our exceptional knowledge of Material Handling equipment and maintenance, you’ll know what it’s like to be apart of C & B.

cbmaterialhandling.com

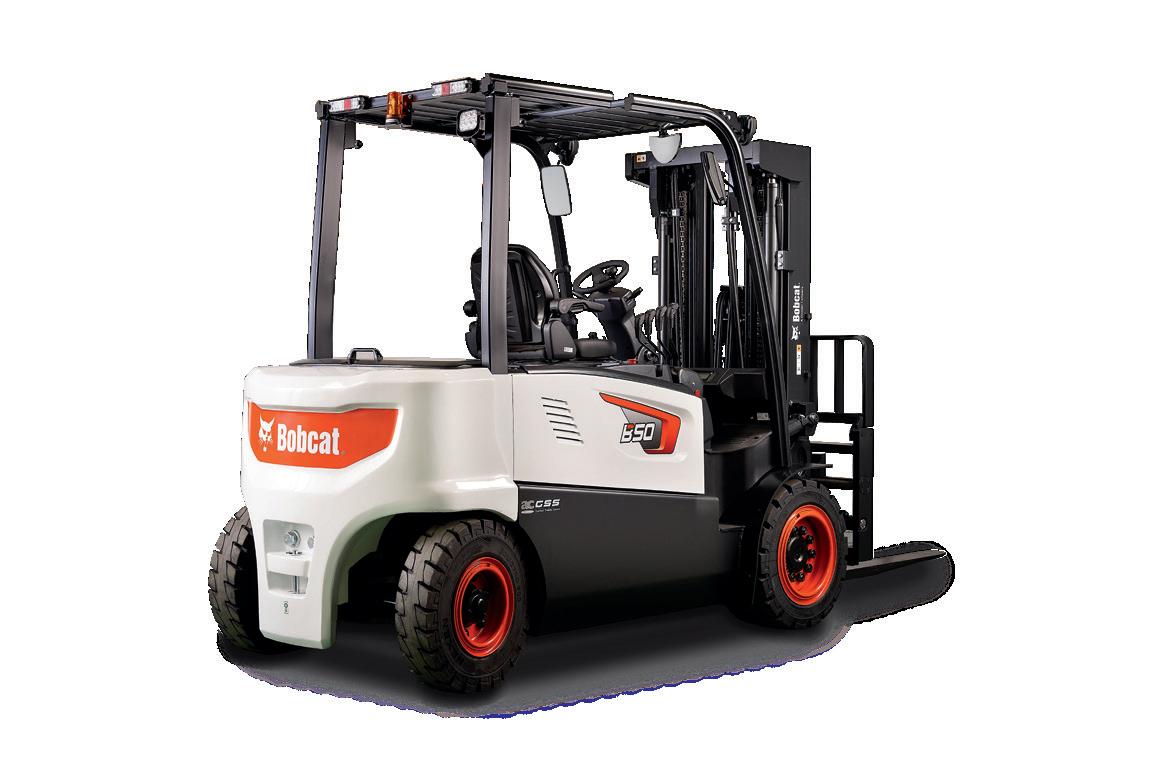

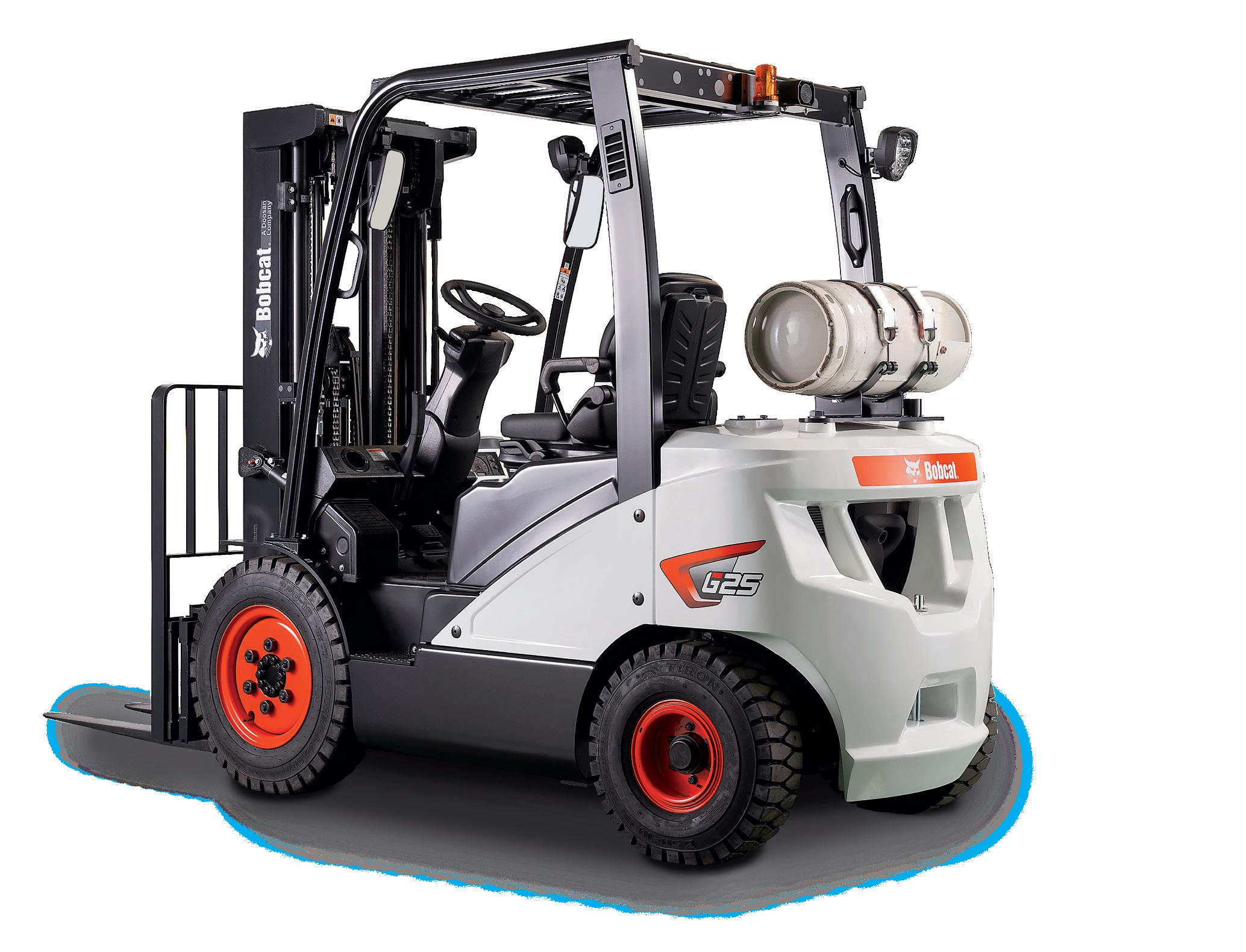

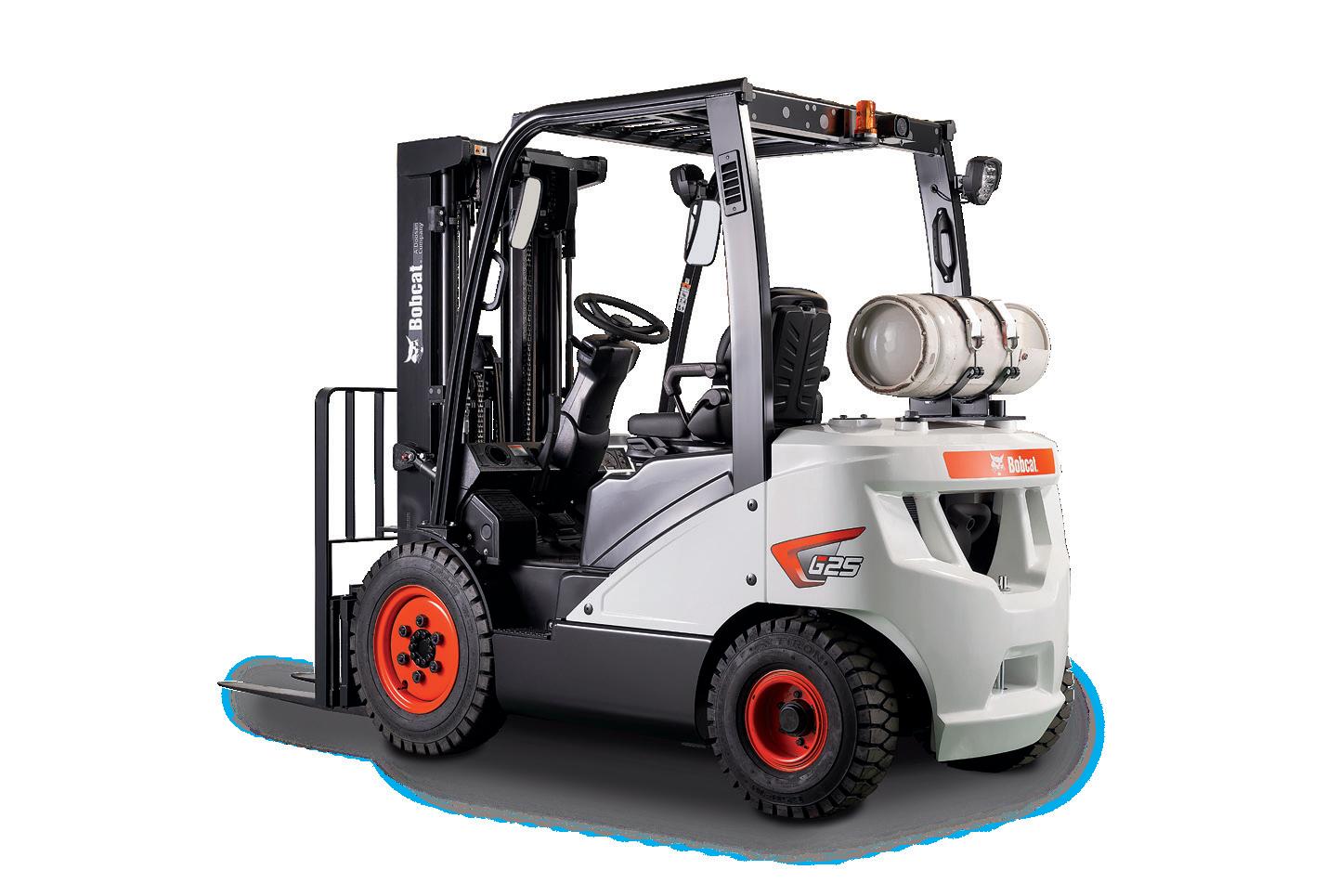

BRINGING BOBCAT® DNA TO FORKLIFTS STOCKING BOBCAT® EQUIPMENT AT A C & B DEALERSHIP NEAR YOU!

3

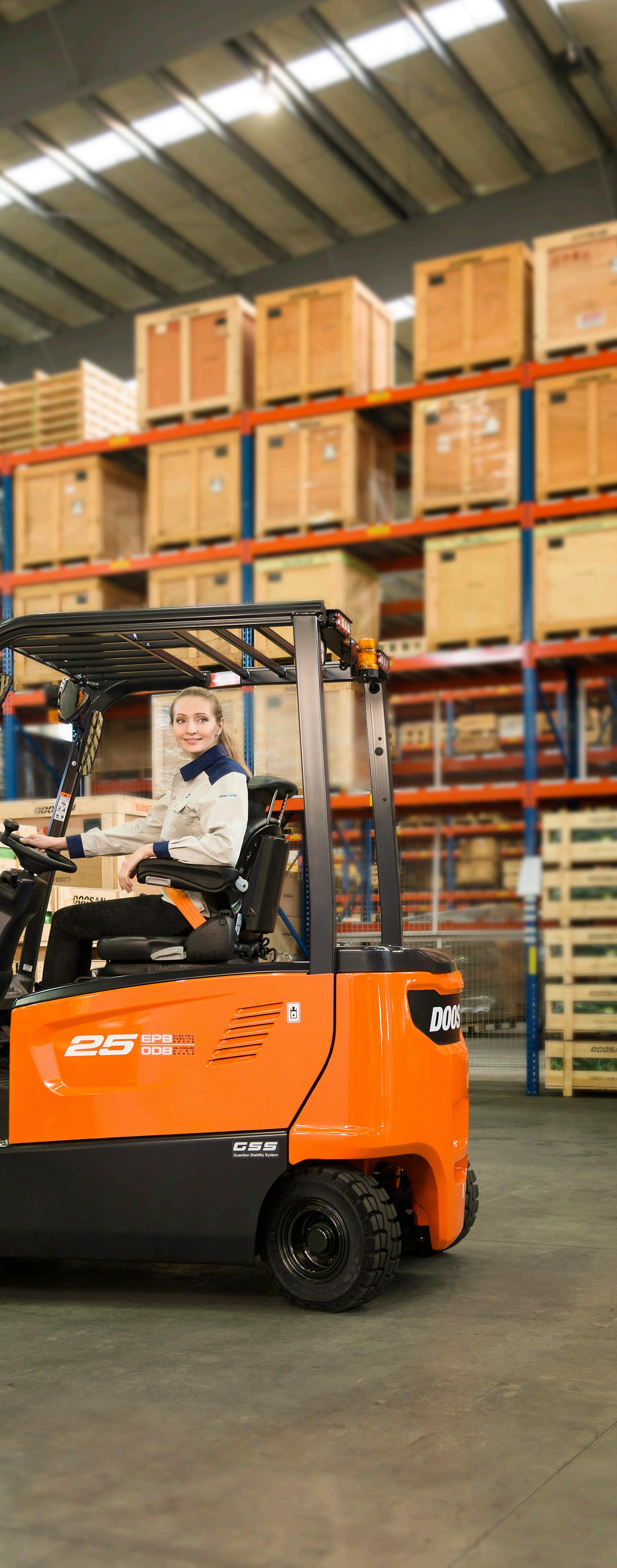

Big changes, same great equipment!

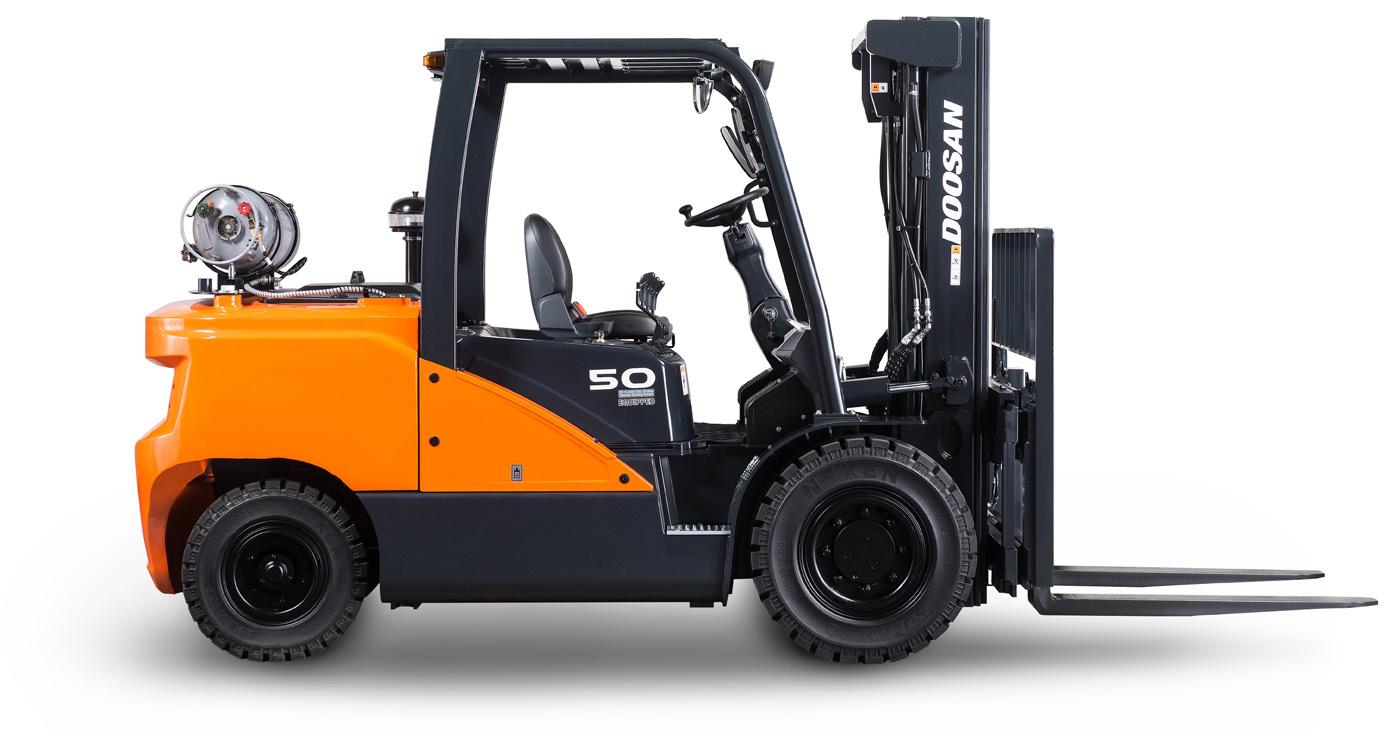

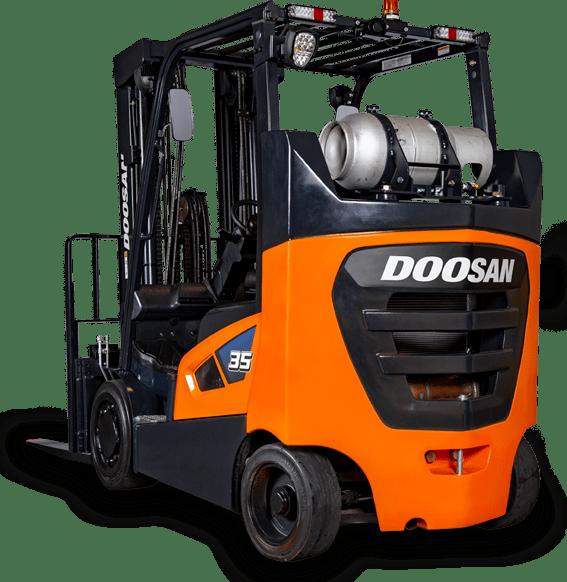

C & B still offers Doosan forklifts and parts as they transition over to Bobcat. While change can be worrysome, with C & B as your dealer of choice, you’ll navigate the warehouse floor with confidence in both your company and equipment.

MODEL

D20S-9

D25S-9

D30S-9

D35C-9

LOAD CAP lb.

4,000

5,000

6,000

7,000

HEIGHT (MAST LOWERED) in.

86.2

86.2

85.8

85.8

LIFT in.

127

127

127

118

HEIGHT (MAST EXTENDED) in.

177

177

177

168

OVERALL LENGTH in.

142.7

144.7

148.8

150.7

LENGTH OF FORKFACE in.

101.3

103.3

107.5

109.4

Scan to see more in-stock equipment *More equipment online. Models shown for examples only and do not reflect stock. Please see C & B for more in-stock equipment.

4

BOSS. BE THE

9 SERIES CUSHION UP TO 8,000 LBS. • LP

REACH TRUCK UP TO 4,000 LBS. • ELECTRIC

9 SERIES PNEUMATIC UP TO 20,000 LBS. • DIESEL

WAREHOUSE VEHICLES UP TO 10,000 LBS. • ELECTRIC

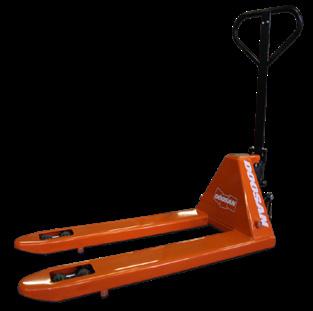

PALLET JACK UP TO 5,500 LBS. • MANUAL

9 SERIES RIDER UP TO 8,000 LBS. • ELECTRIC

ELECTRIC PNEUMATIC UP TO 6,500 LBS. • ELECTRIC C & B Material Handling Catalog

5

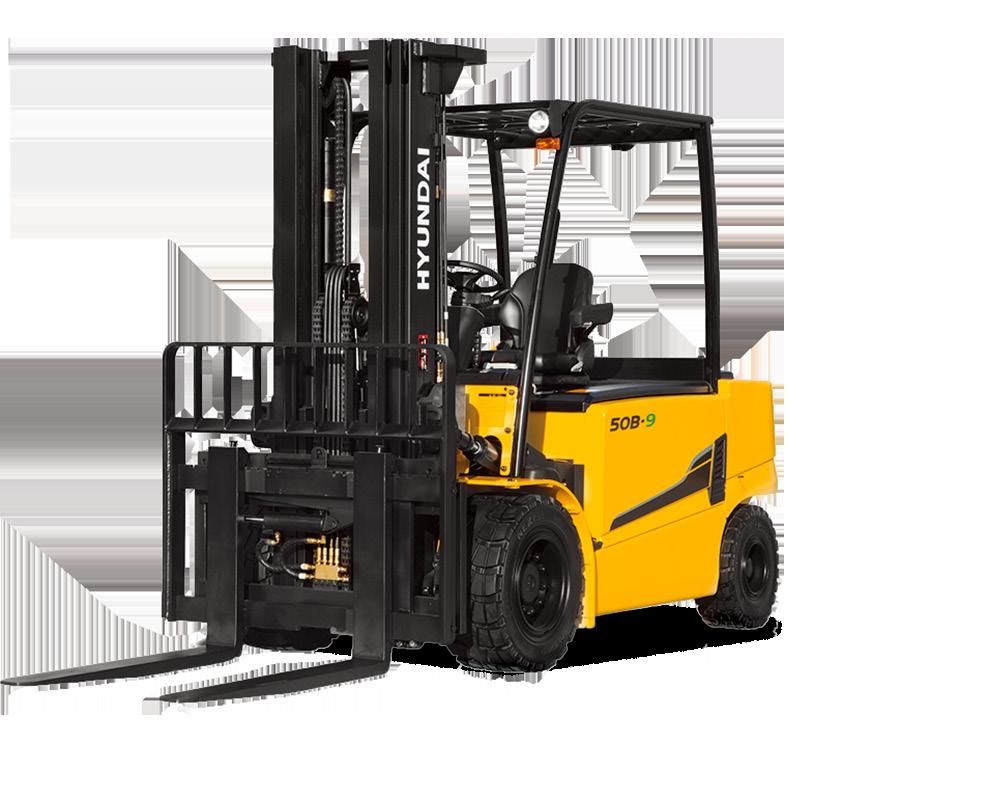

WORK SMARTER. We know there’s more than one type of business, and we don’t expect one forklift to fit all. That’s why we’ve got a wide variety of models for you to choose from. Whether you’re lifting concrete or lumber, filling warehouses or trucks, working inside or outside — or even both, we can make it easier for you to get the hard work done.

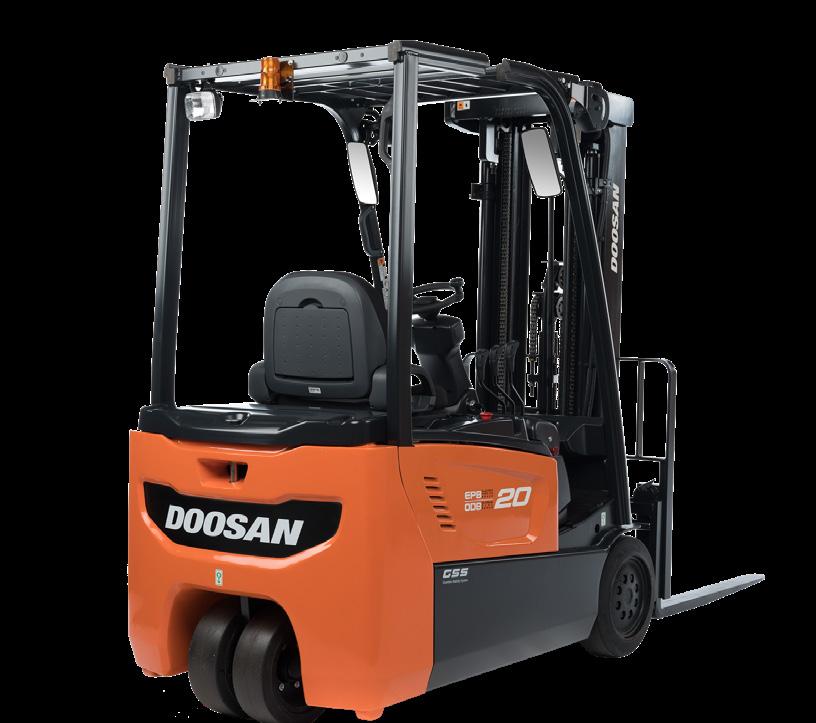

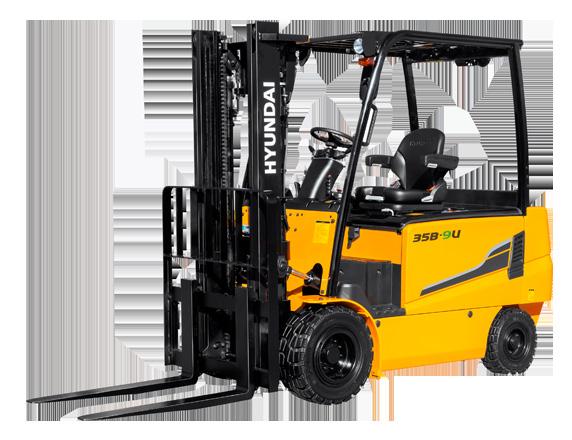

MODEL

16B-9

20B-9

30B-9U

35B-9U

LOAD CAP lb.

3,200

4,000

6,000

7,000

HEIGHT (MAST LOWERED) in.

83.5

83.9

85.2

88.3

LIFT in.

130.9

131.1

129.9

129.9

HEIGHT (MAST EXTENDED) in.

170.1

170.1

176.5

176.5

OVERALL LENGTH in.

121.5

125.2

139.1

143.3

LENGTH OF FORKFACE in.

80.1

83.9

97.8

101.9

Scan to see more in-stock equipment *More equipment online. Models shown for examples only and do not reflect stock. Please see C & B for more in-stock equipment.

6

E. DELIVE

R MOR

7 SERIES PNEUMATIC UP TO 15,000 LBS. • LP

9 SERIES PNEUMATIC UP TO 11,000 LBS. • ELECTRIC

TUGGER UP TO 8,000 LBS. • ELECTRIC

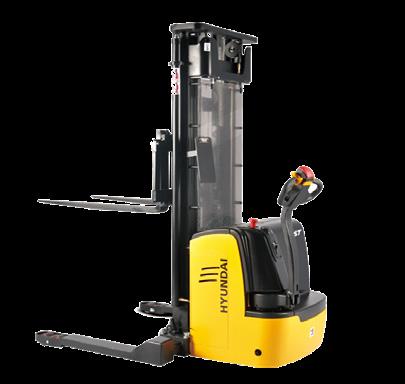

WALKIE STACKER UP TO 4,400 LBS. • ELECTRIC

E-PALLET JACK UP TO 4,500 LBS. • ELECTRIC

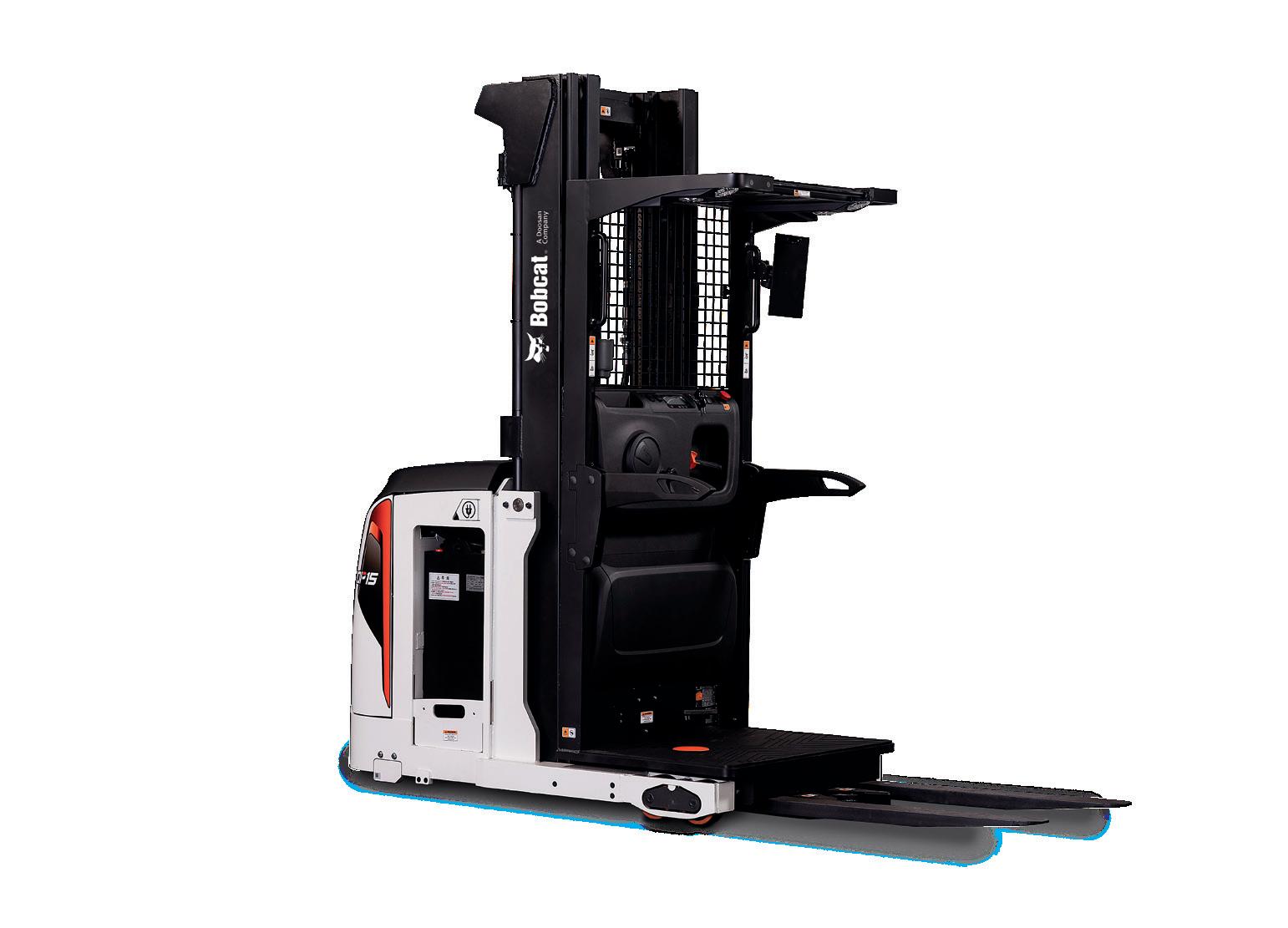

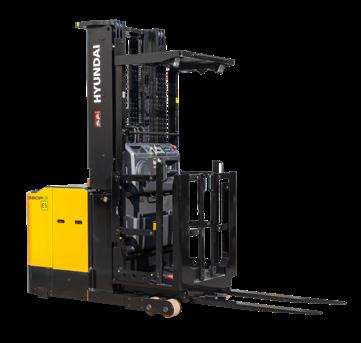

9 SERIES ORDER PICKER UP TO 3,000 LBS. • ELECTRIC

9 SERIES ROUGH TERRAIN PNEUMATIC UP TO 55,500 LBS. • DIESEL C & B Material Handling Catalog

7

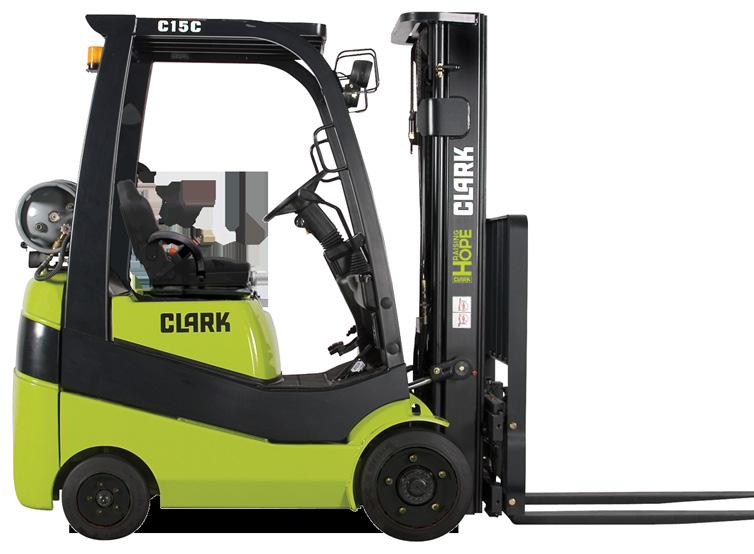

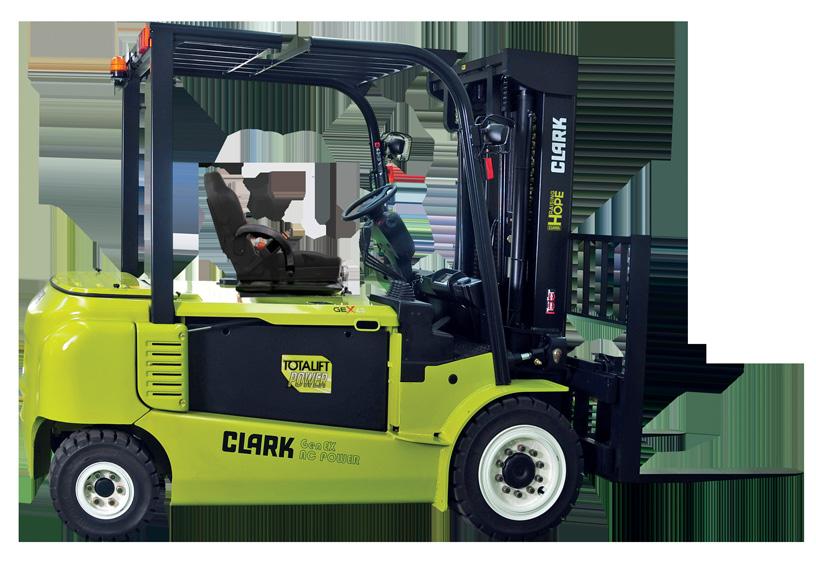

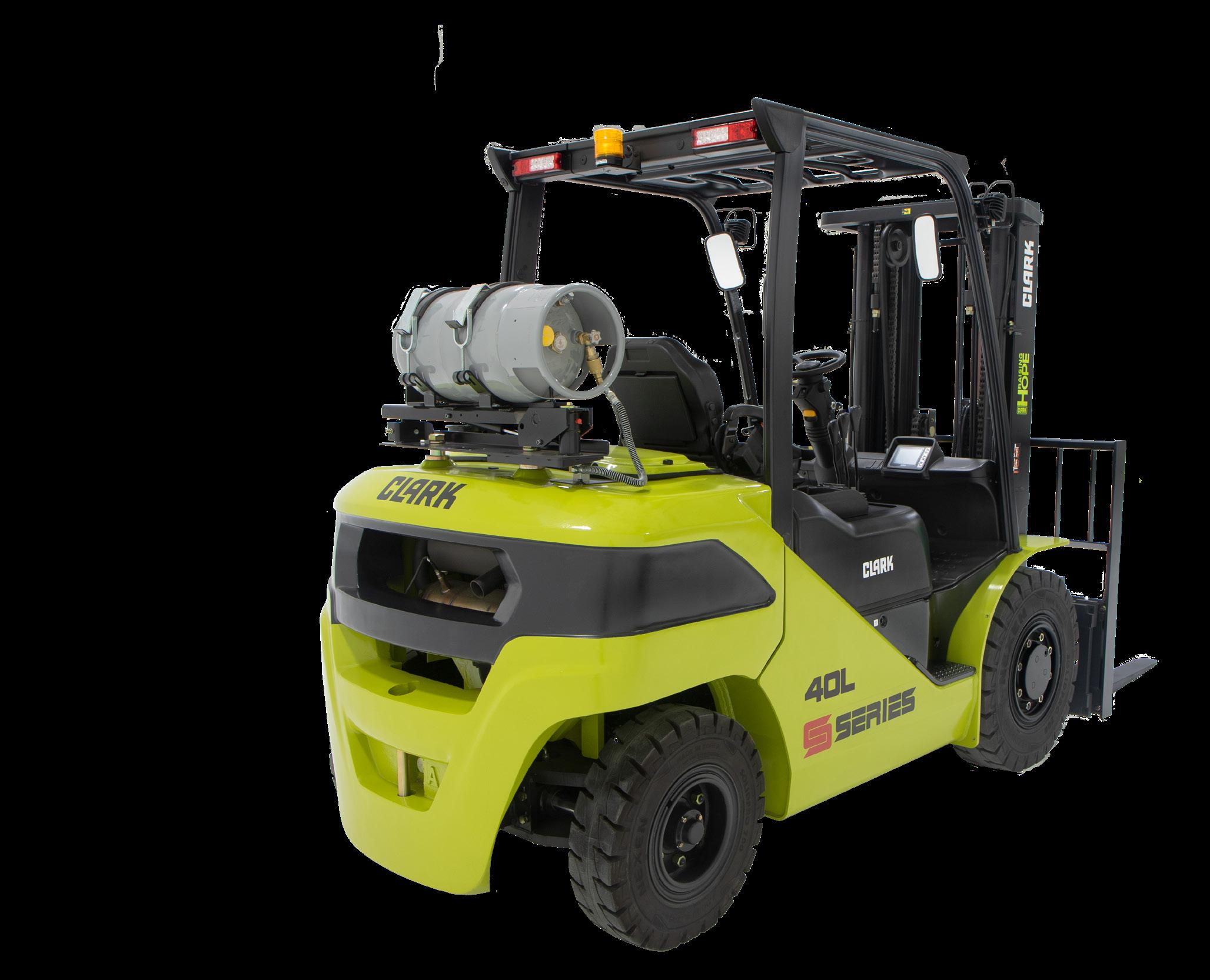

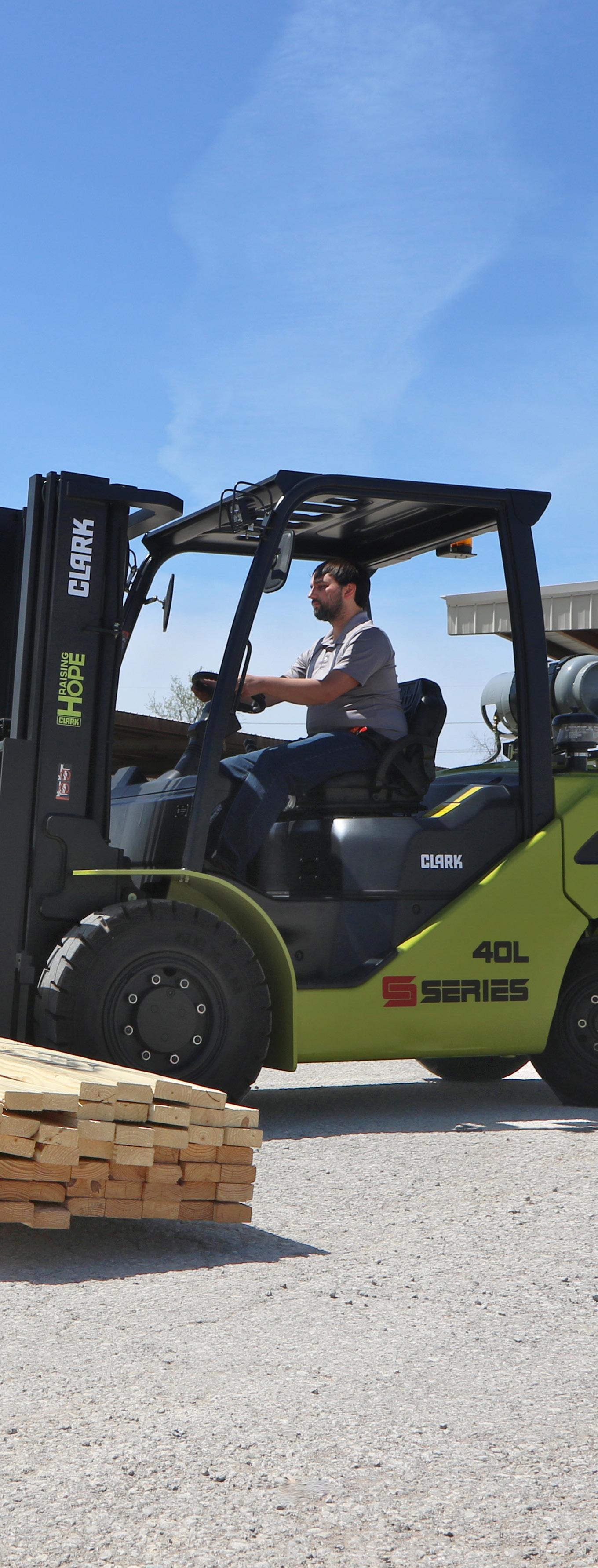

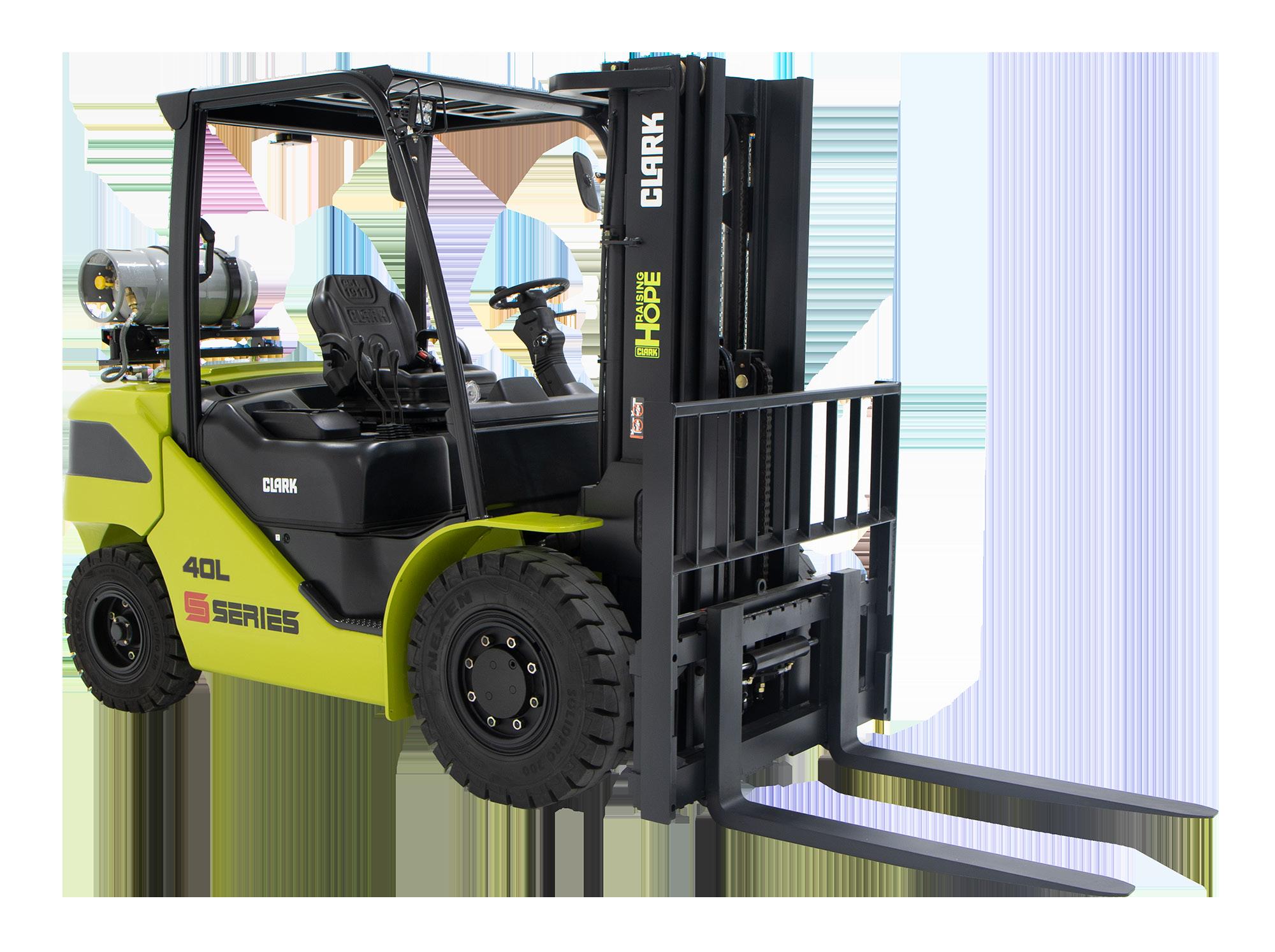

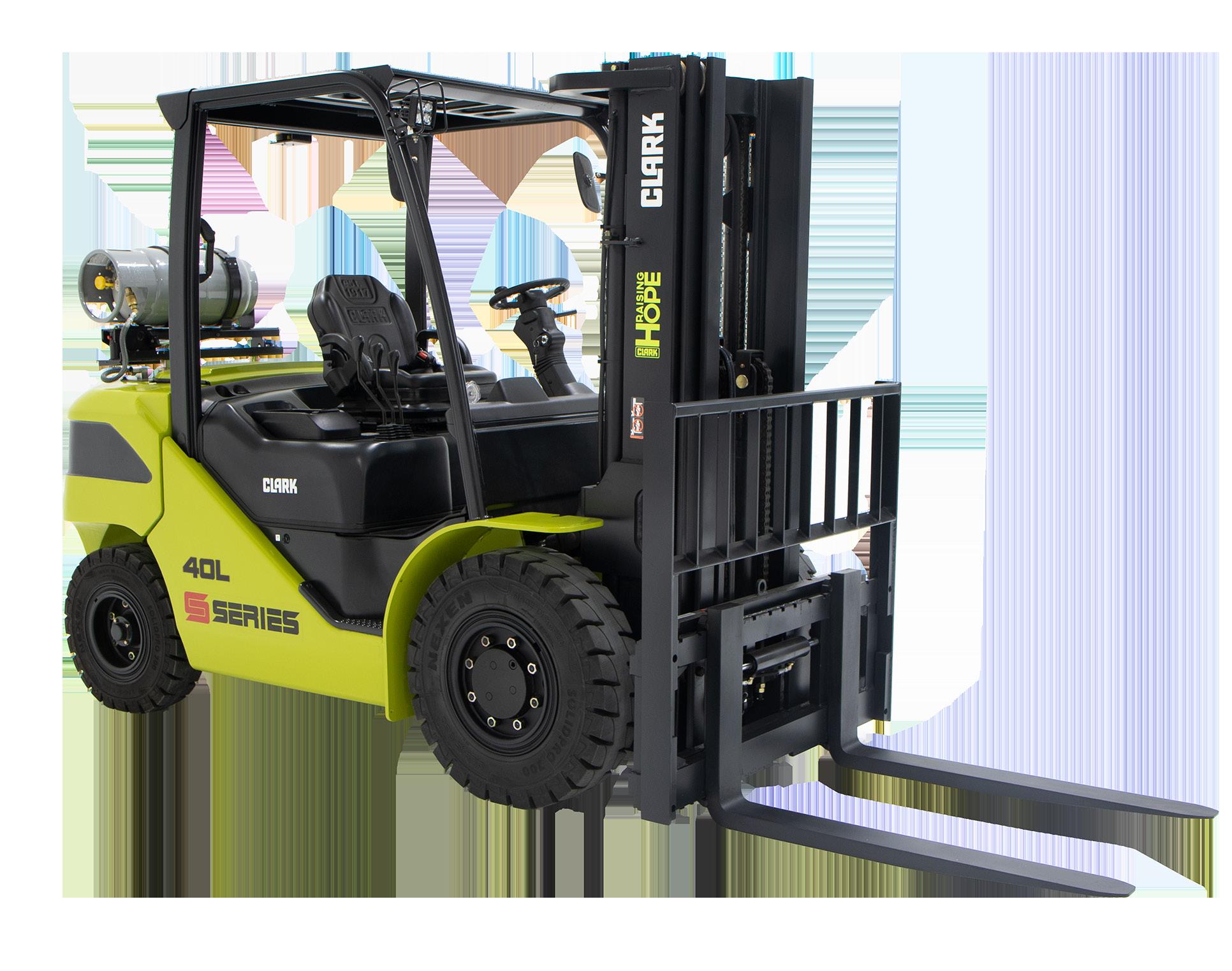

AN AMERICAN BRAND. Worldwide, CLARK has one of the broadest product lines in the industry with five major lines. Trucks ranging from 1,500 to 18,000 pound capacities, LPG, gasoline, dual fuel, diesel, narrow-aisle stackers, electric riders and powered hand trucks.

MODEL

S20

S25

S30

S35

LOAD CAP lb.

4,000

5,000

6,000

7,000

HEIGHT (MAST LOWERED) in.

85.2

85.2

85.8

86.6

LIFT in.

129.9

129.9

129.9

124.6

HEIGHT (MAST EXTENDED) in.

154.4

154.4

156.1

154.0

OVERALL LENGTH in.

143.2

146.0

151.1

154.3

LENGTH OF FORK in.

42.1

42.1

42.1

42.1

Scan to see more in-stock equipment *More equipment online. Models shown for examples only and do not reflect stock. Please see C & B for more in-stock equipment.

8

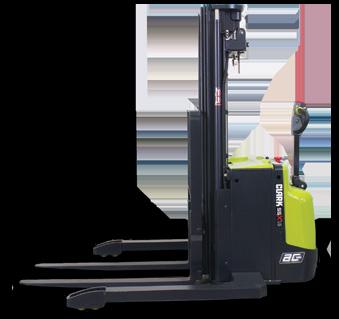

Z E. MAXIM I WALKIE PALLET STACKER UP TO 3,300 LBS. • ELECTRIC

S SERIES PNEUMATIC UP TO 7,000 LBS. • LP

GEX SERIES PNEUMATIC UP TO 10,000 LBS. • ELECTRIC

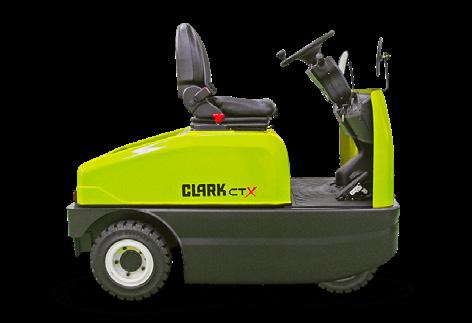

TOW TRACTOR UP TO 15,400 LBS. • ELECTRIC

PALLET JACK UP TO 3,000 LBS. • ELECTRIC

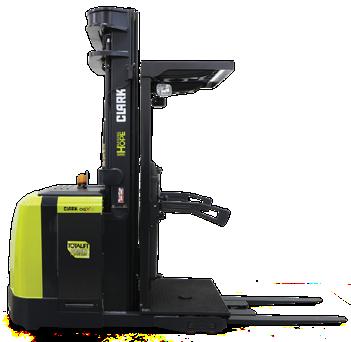

NARROW AISLE ORDER PICKER UP TO 3,000 LBS. • ELECTRIC

C SERIES CUSHION UP TO 12,000 LBS. • IC C & B Material Handling Catalog

9

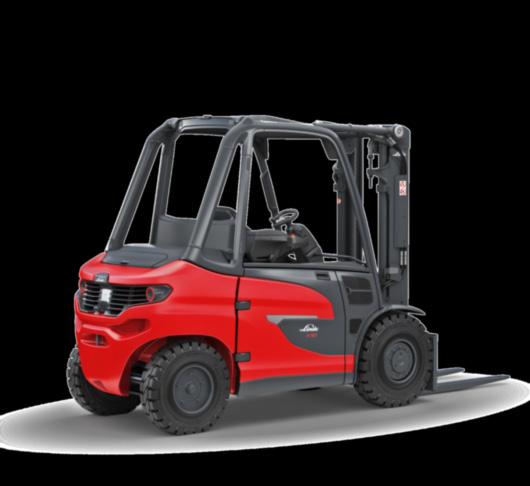

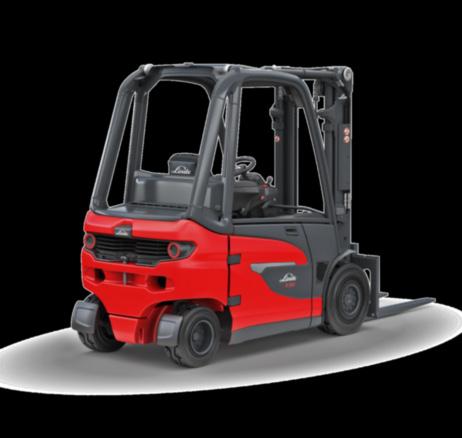

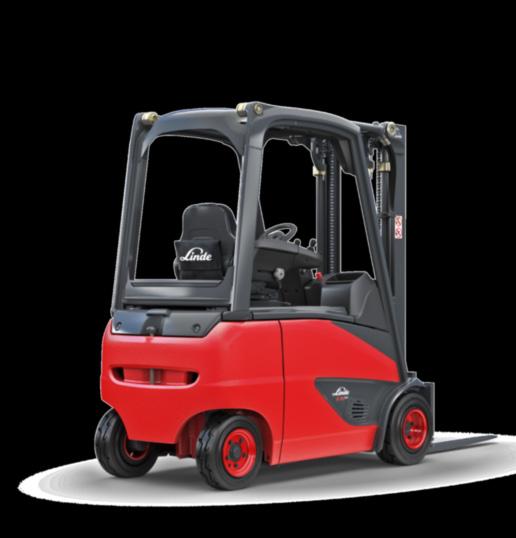

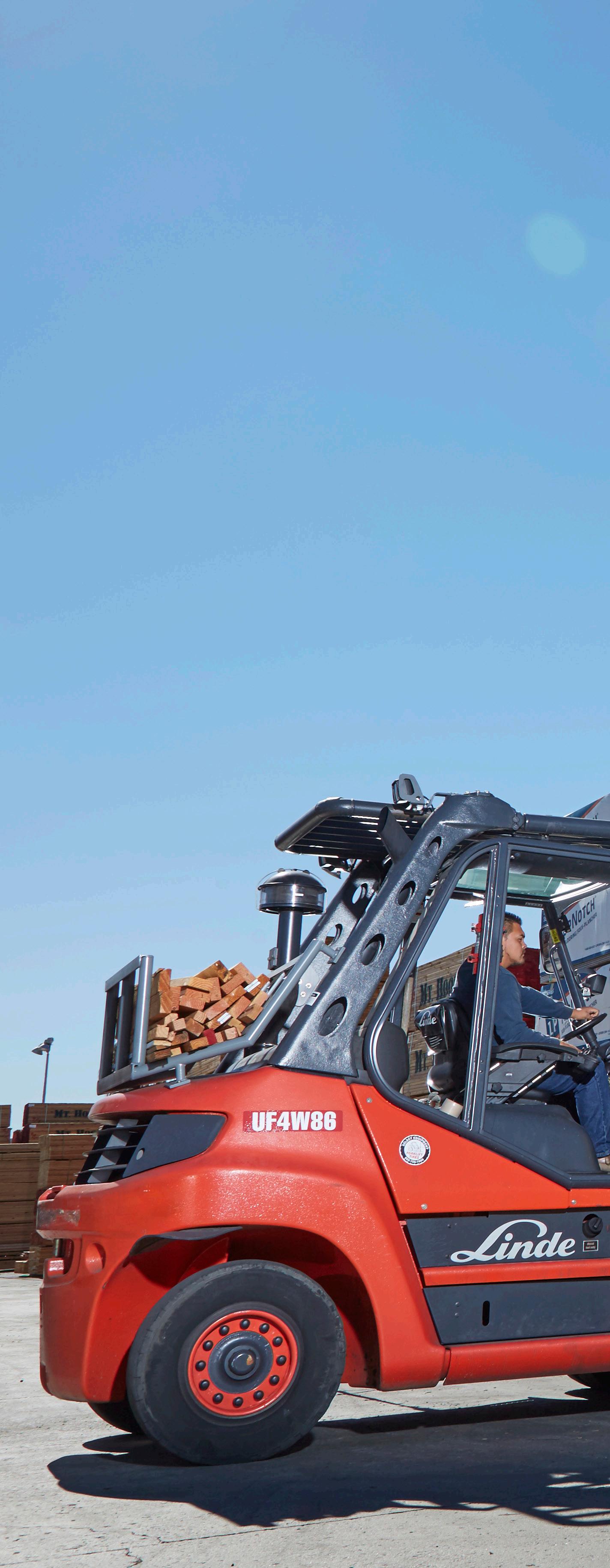

LESS MAINTENANCE. MORE UPTIME. Linde Material Handling offers solutions to keep cost down and trucks running longer. Fewer parts means less maintenance and more uptime. Higher productivity through thoughtful implementation of ergonomic principles. Linde trucks are designed with operator wellness in mind for improved productivity.

MODEL

E20

E25

E30

E35L

LOAD CAP lb.

4,000

5,000

6,000

7,000

HEIGHT (MAST LOWERED) in.

85.8

85.8

85.5

85.5

LIFT in.

119.2

119.2

117.9

117.9

HEIGHT (MAST EXTENDED) in.

145.4

145.4

147.7

147.7

OVERALL LENGTH in.

130.7

130.7

135.4

141.3

LENGTH OF FORKFACE in.

91.3

91.3

96.1

102

Scan to see more in-stock equipment *More equipment online. Models shown for examples only and do not reflect stock. Please see C & B for more in-stock equipment.

10

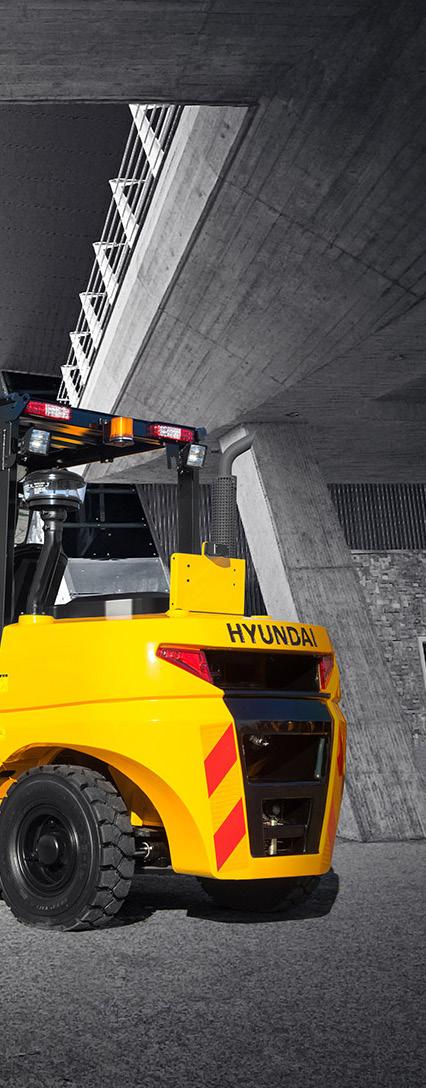

INNOV ATIVE.

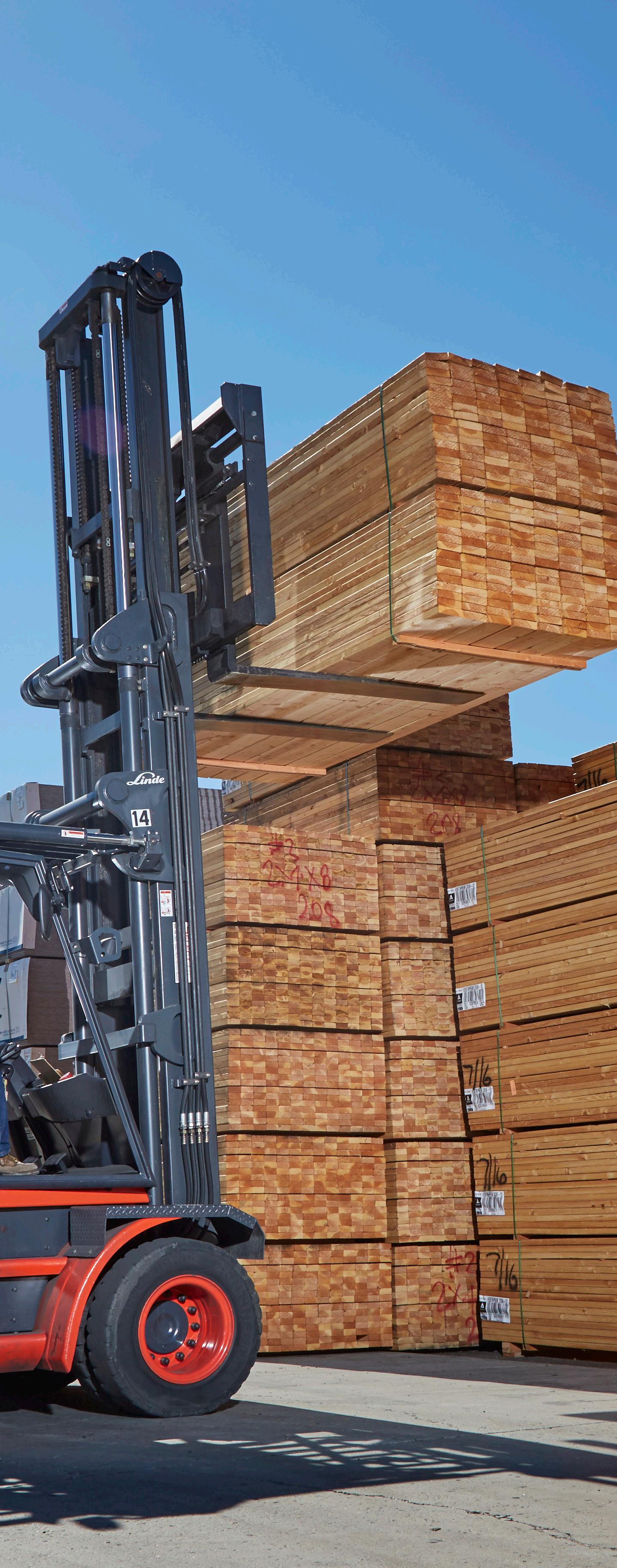

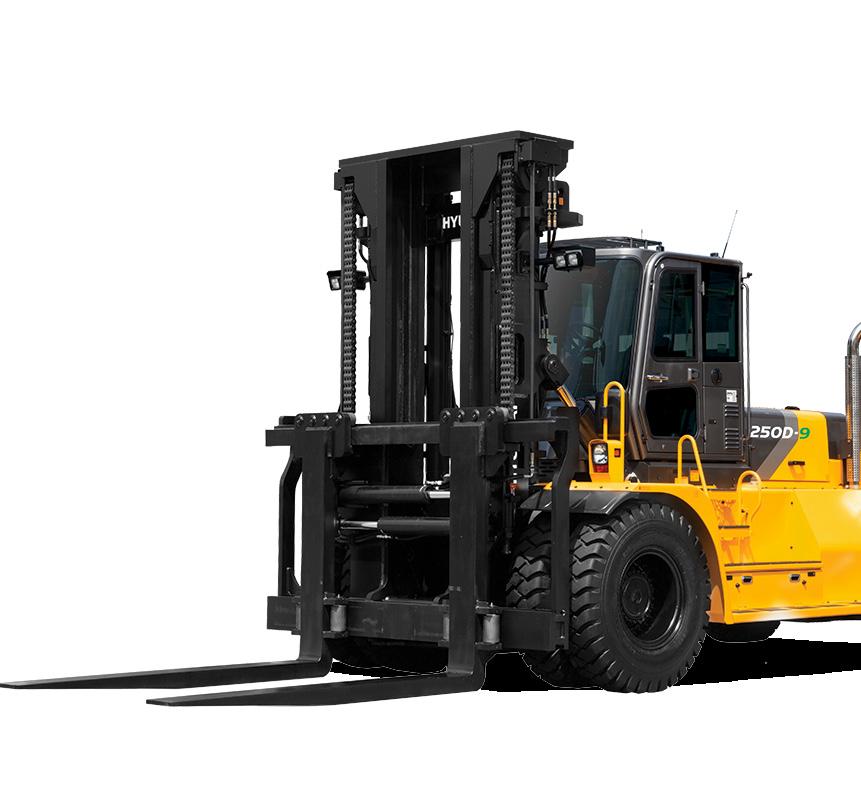

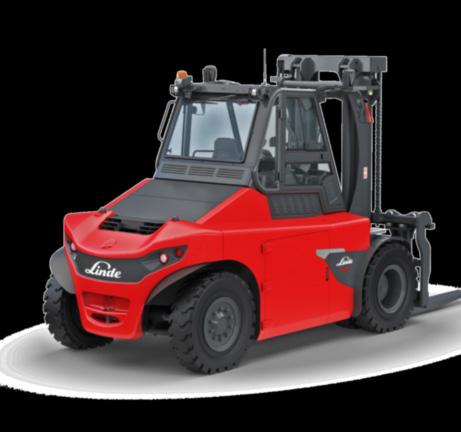

H100-180D PNEUMATIC UP TO 35,000 LBS. • DIESEL

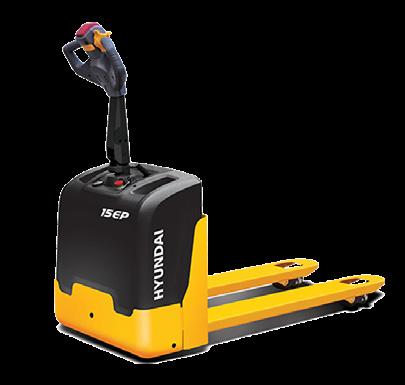

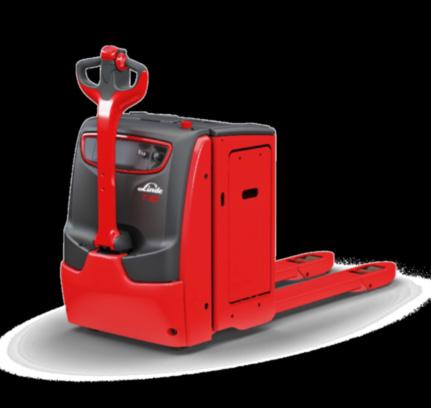

PALLET JACK UP TO 4,400 LBS. • ELECTRIC

E20-35 COUNTERBALANCE UP TO 7,000 LBS. • ELECTRIC

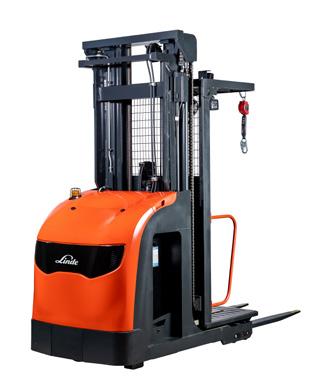

NARROW AISLE ORDER PICKER UP TO 3,000 LBS. • ELECTRIC

PALLET JACK UP TO 5,000 LBS. • MANUAL

STAND UP PALLET JACK UP TO 8,000 LBS. • ELECTRIC

X32-50 PNEUMATIC UP TO 7,000 LBS. • IC C & B Material Handling Catalog

11

IMPROVE SAFETY. MAXIMIZE STORAGE. INCREASE EFFICIENCY. Optimizing the potential of your warehouse or storage facility in combination with our diverse range of material handling solutions could increase your storage capacity by as much as 100%.

MODEL

C2500

C3000

C4000E

C5000E

LOAD CAP lb.

5,500

6,600

8,800

11,000

HEIGHT (MAST LOWERED) in.

104.5

104.5

112.4

112.4

MAST TRAVEL in.

35.4

49.2

51.1

57

HEIGHT (MAST EXTENDED) in.

187.4

187.4

191.7

191.7

OVERALL LENGTH in.

74.8

88.5

90.5

98.4

LENGTH OF FORKFACE in.

43.3

43.3

43.3

45.2

Scan to see more in-stock equipment *More equipment online. Models shown for examples only and do not reflect stock. Please see C & B for more in-stock equipment.

12

G SOLU TIONS .

LIFTIN

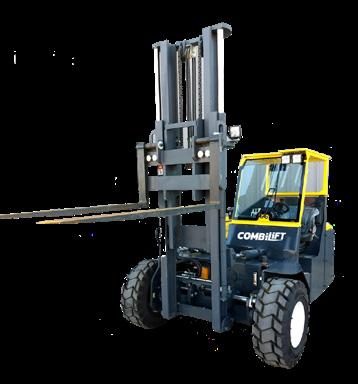

C SERIES MULTIDIRECTIONAL UP TO 55,000 LBS. LPG/DIESEL/ELECTRIC

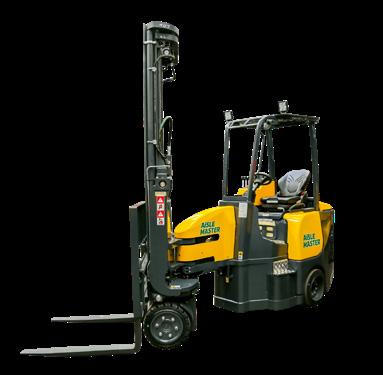

AISLE MASTER UP TO 4,400 LBS. LPG/DIESEL/ELECTRIC

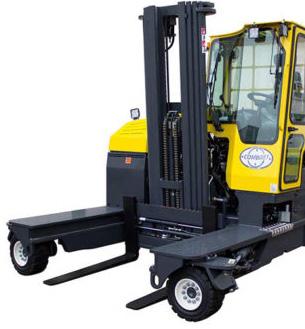

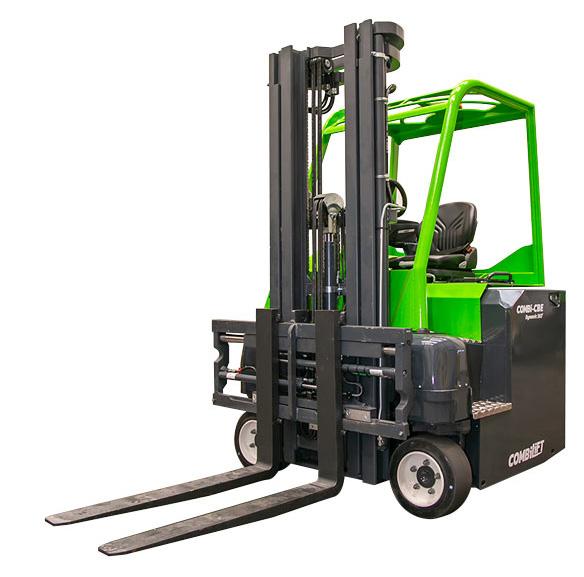

COMBI-CUBE CUSHION UP TO 6,600 LBS. • ELECTRIC

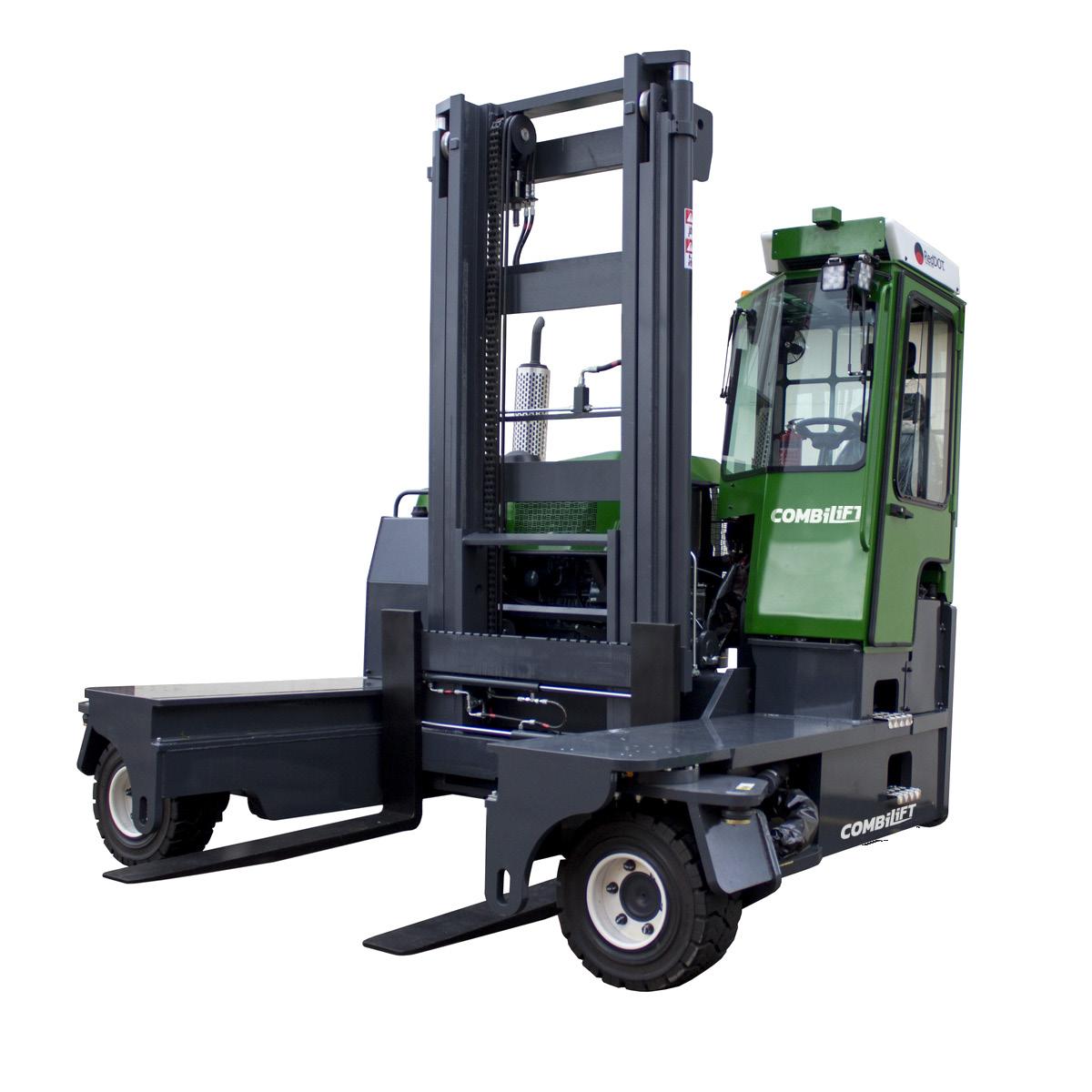

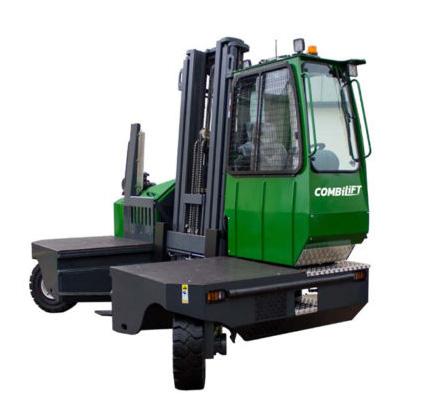

SIDE LOADER COMBI-SL UP TO 17,500 LBS. LPG/DIESEL/ELECTRIC

PEDESTRIAN STACKERS UP TO 3,300 LBS. • ELECTRIC

POULTRY FORKLIFT UP TO 3,500 LBS. • LPG/DIESEL

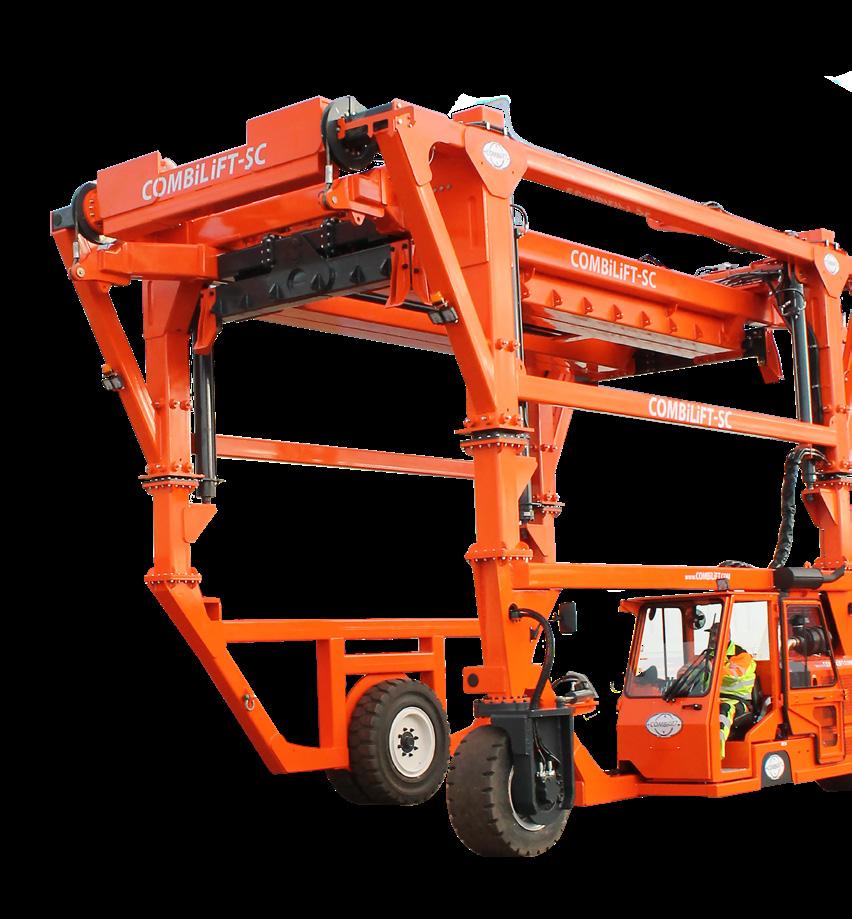

CARRIERS UP TO 220,000 LBS. • DIESEL C & B Material Handling Catalog

13

PIGGY-BACK.COM

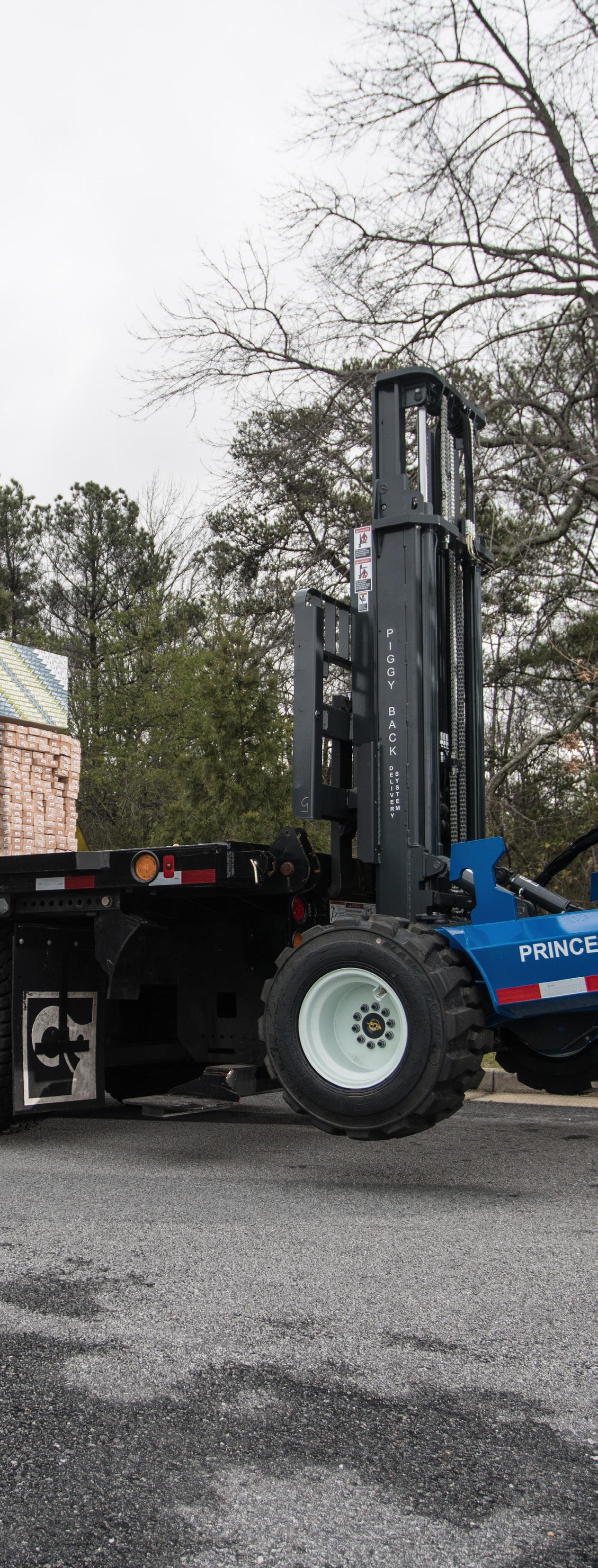

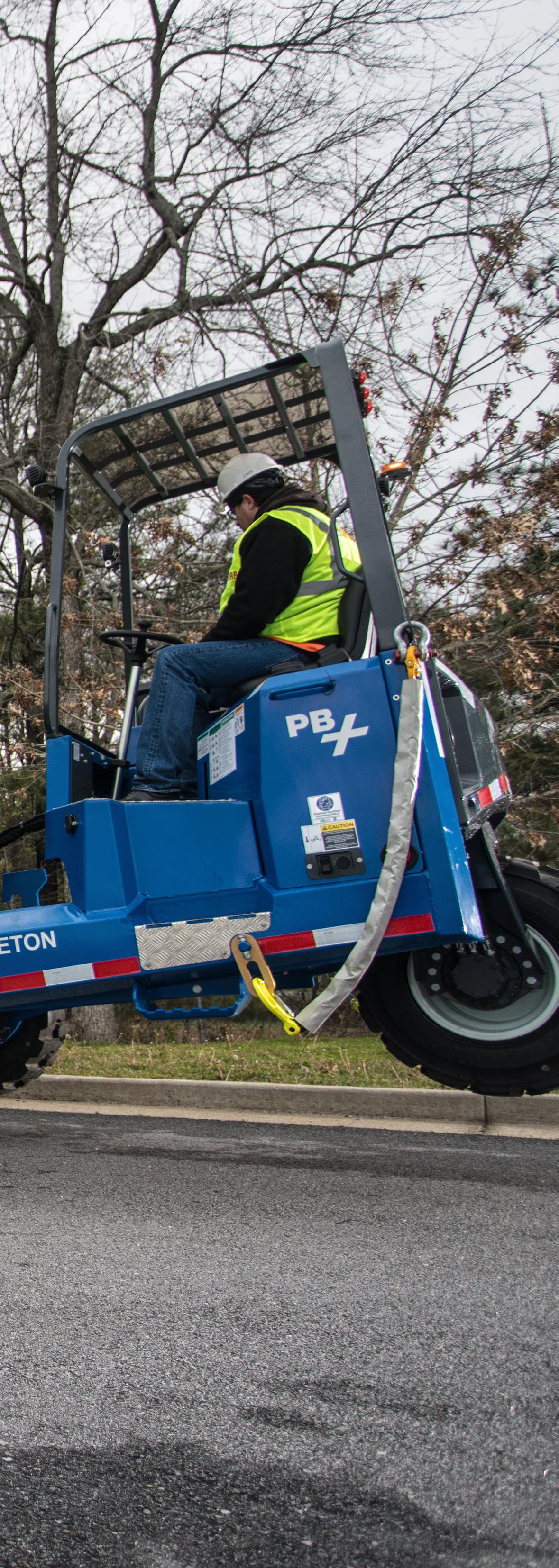

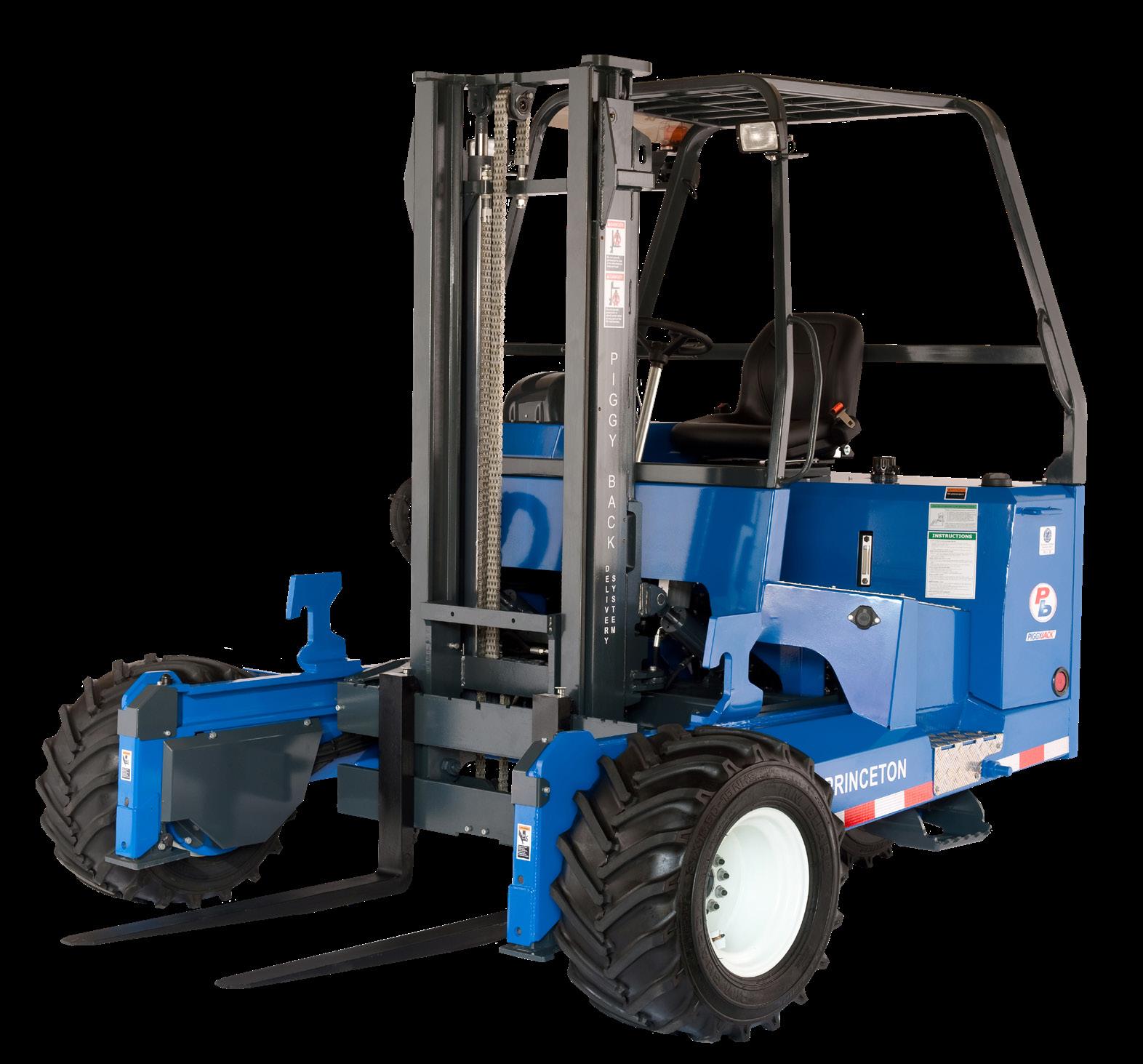

TRUCK MOUNTING LIFTS. From general building materials to sod, the Princeton PiggyBack® Forklift System is prepared to meet a wide range of needs for your organization.

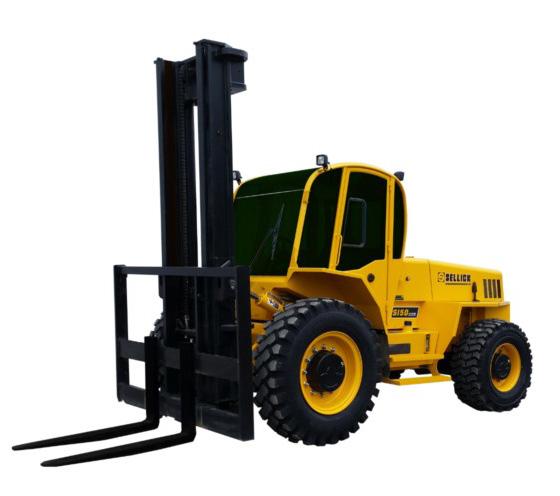

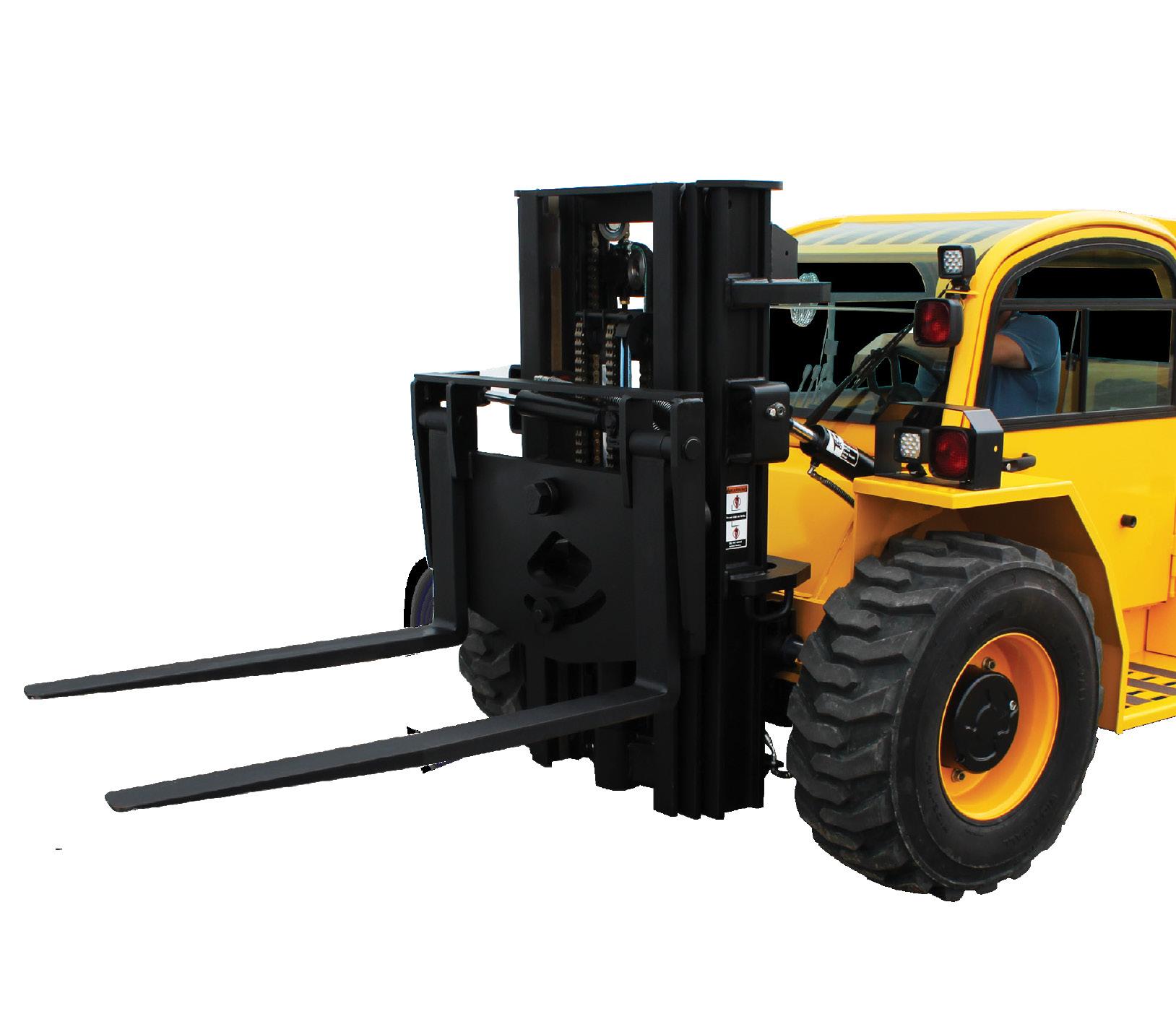

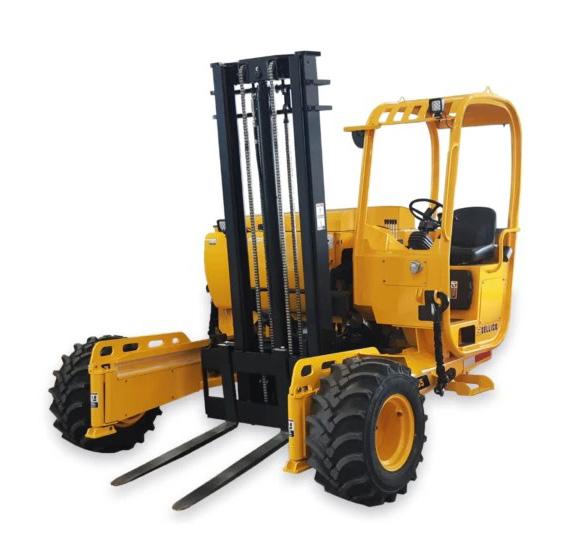

ROUGH TERRAIN. SMOOTH DESIGN. Sellick also brings a big punch in a small package. With it’s ability to manuvere outdoor environments while maintaining a low profile, it will be a great addition to any operation.

PIGGY-BACK.COM

MODEL

PB55.4+ PB80.3+ S60

S120

LOAD CAP lb.

5,500

8,000

6,000

12,000

HEIGHT (MAST LOWERED) in.

<107.25 109.25

-------

-------

LIFT HEIGHT in.

<144

144

-------

-------

HEIGHT (MAST EXTENDED) in.

<179.5

181

-------

-------

MAX GRADEABILITY %

30(15)

30

25

25

ENGINE OUTPUT hp.

56

56

74

74

Scan to see more in-stock equipment *More equipment online. Models shown for examples only and do not reflect stock. Please see C & B for more in-stock equipment.

14

RSAL. UNIVE

S SERIES COMPACT ROUGH TERRAIN UP TO 8,000 LBS. • DIESEL

PB45.3+ UP TO 4,500 LBS. • DIESEL

PB55.4+ UP TO 5,500 LBS. • DIESEL

45.2X UP TO 4,500 LBS. • DIESEL

PB55.3+ UP TO 5,500 LBS. • DIESEL

S SERIES ROUGH TERRAIN UP TO 16,000 LBS. • DIESEL

STM SERIES TRUCK MOUNTED UP TO 7,000 LBS. • DIESEL C & B Material Handling Catalog

15

ELEVATING ACCESS. JLG Industries, Inc. is the world’s leading designer, manufacturer and marketer of access equipment.

Their diverse product portfolio includes leading brands such as JLG® mobile elevating work platforms; JLG and SkyTrak® telehandlers; and an array of complementary accessories that increase the versatility and efficiency of these products.

MODEL

8042

12054

G5-18A

1255

LIFT CAP lb.

8,000

12,000

5,500

12,000

MAX LIFT HT in.

41’ 11”

42’

18’ 4”

55’

MAX REACH in.

26’ 7”

26’ 6”

10’ 11”

42’

MAX SPEED mph

19

18.2

15

20

OUTRIGGERS/STABILIZERS

NO

YES

NO

YES

ENGINE OUTPUT hp.

110

74

74

130

Scan to see more in-stock equipment *More equipment online. Models shown for examples only and do not reflect stock. Please see C & B for more in-stock equipment.

16

ITS. NO LIM

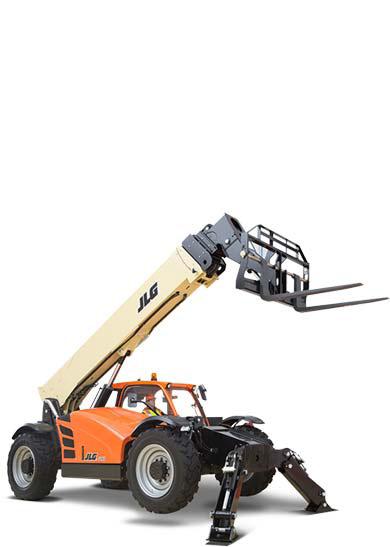

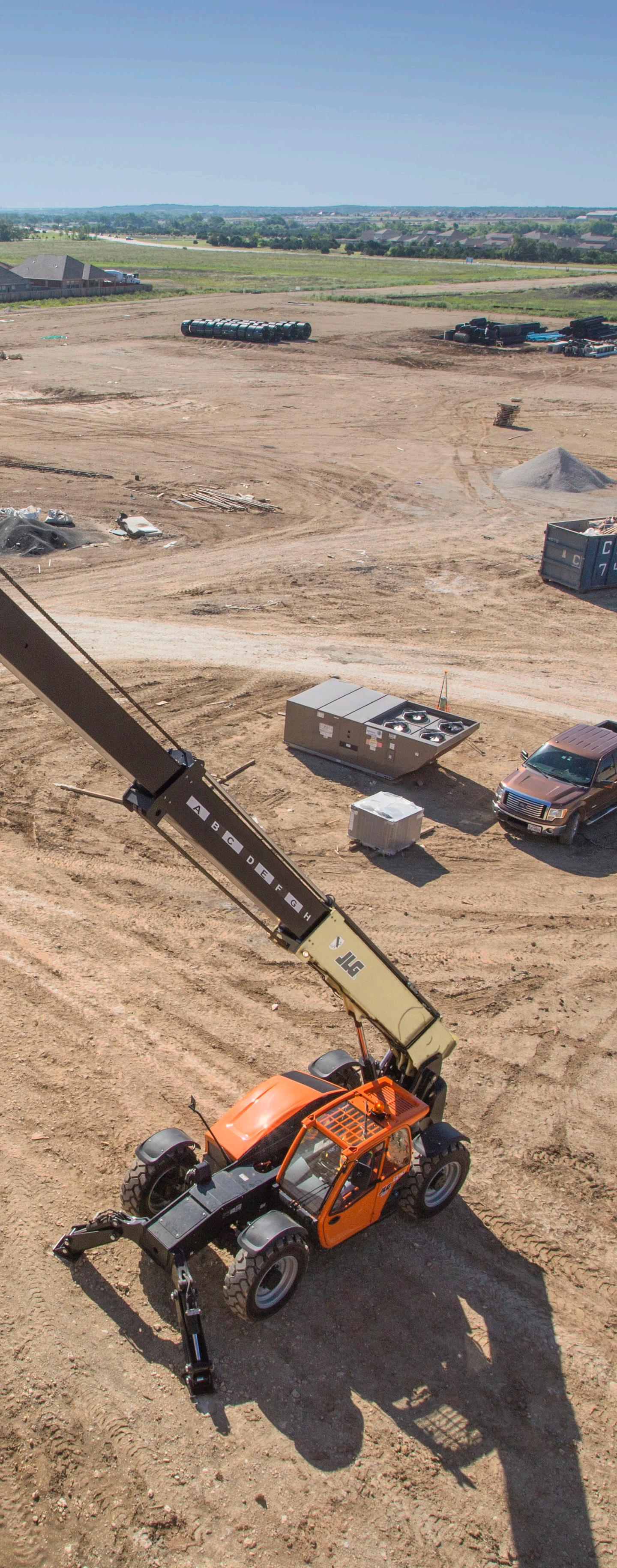

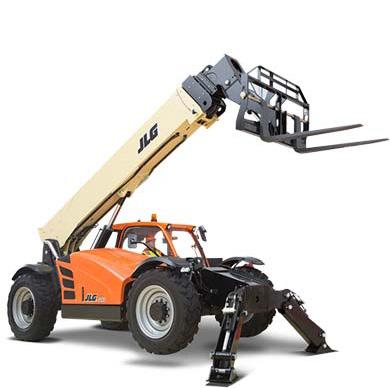

JLG TELEHANDLER UP TO 26,600 LBS. • DIESEL

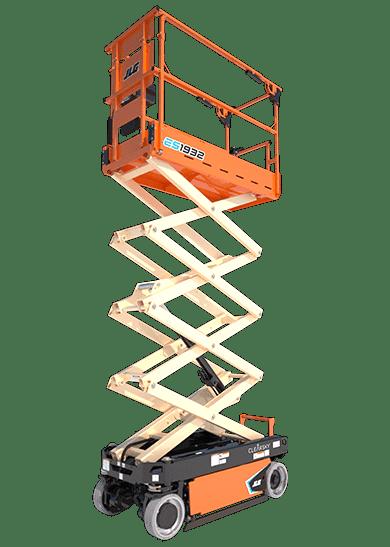

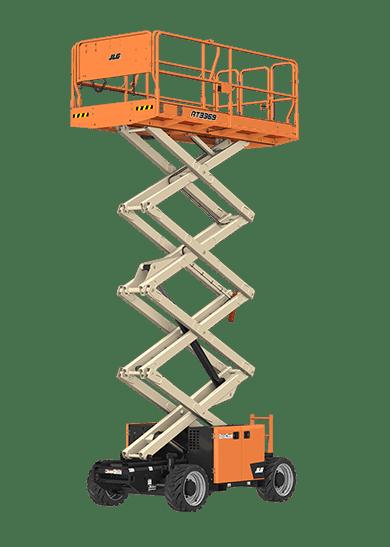

SCISSOR LIFT UP TO 53 FT WORKING HT GAS • ELECTRIC

ORDER PICKER UP TO 24’ WORKING HT • ELECTRIC ARTICULATING & TELESCOPIC BOOM LIFT UP TO 150’ PLATFORM HT • GAS

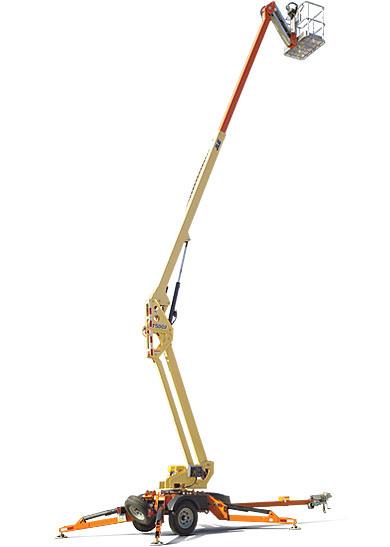

TOW-PRO BOOM LIFT UP TO 50’ WORKING HT • GAS

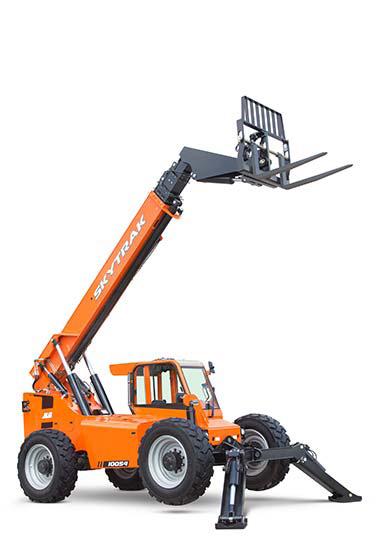

SKYTRAK™ TELEHANDLER UP TO 12,000 LBS. • DIESEL C & B Material Handling Catalog

17

ENERGY. MAINTENANCE. ERGONOMICS. Designed to enhance worksite productivity with highly portable solutions for a wide variety of indoor and outdoor applications. Plus, a wide variety of options and accessories make them extremely adaptable to fit specific worksite needs.

MODEL

Z-34

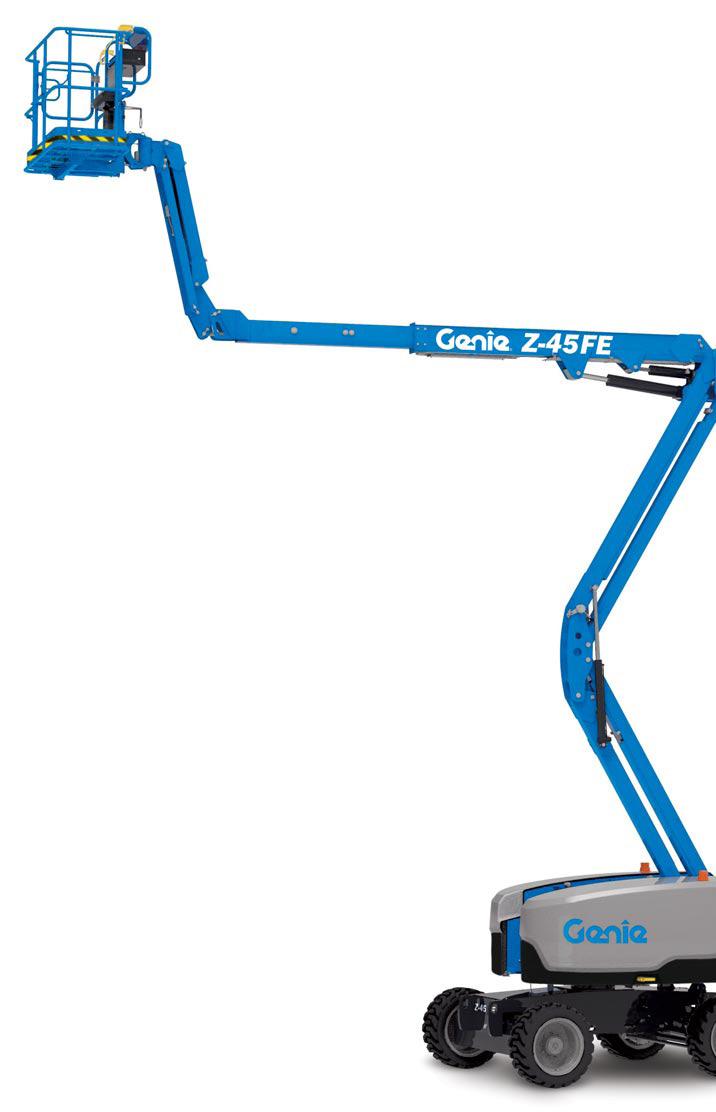

Z-45FE

Z60 DC

Z60 FE

PLATFORM CAP lb.

500

660

500

500

MAX WORKING HT in.

40’ 6”

51’ 8”

65’ 7”

65’ 7”

MAX HORIZONTAL REACH in.

22’ 3”

22’ 9”

36’ 7”

36’ 7”

MAX up and over CLEARANCE

15’ 3”

24’ 7”

24’ 3”

24’ 3”

Scan to see more in-stock equipment *More equipment online. Models shown for examples only and do not reflect stock. Please see C & B for more in-stock equipment.

C & B Material Handling Catalog

18

QUALI TY.

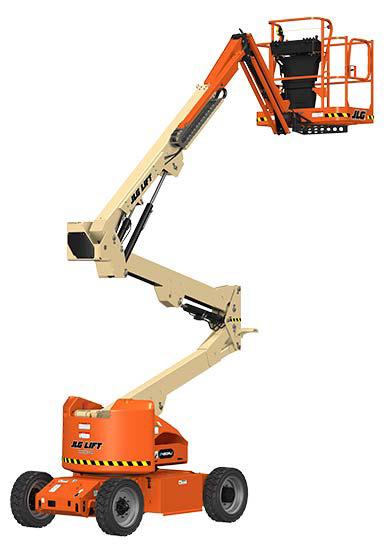

ARTICULATIVE BOOM LIFT UP TO 141FT WORKING HT • HYBRID

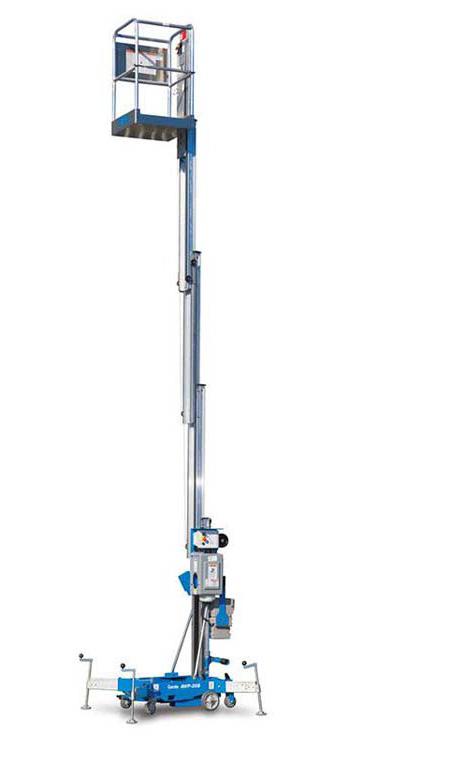

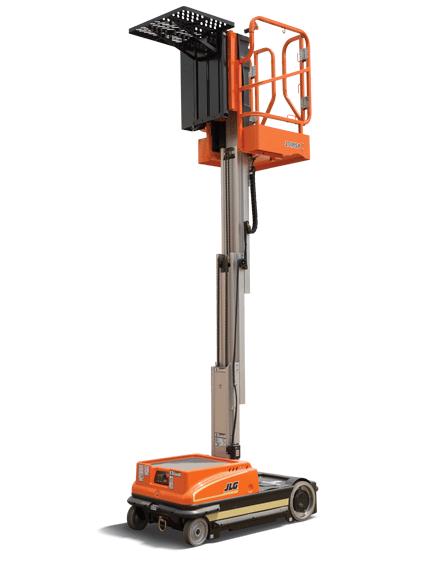

VERTICAL MAST LIFT UP TO 17FT WORKING HT • LP

TELESCOPIC BOOM UP TO 186FT WORKING HT • LPG

ARTICULATING SLAB BOOM LIFT UP TO 65FT WORKING HT ELECTRIC SCISSOR LIFT UP TO 51FT WORKING HT. ELECTRIC

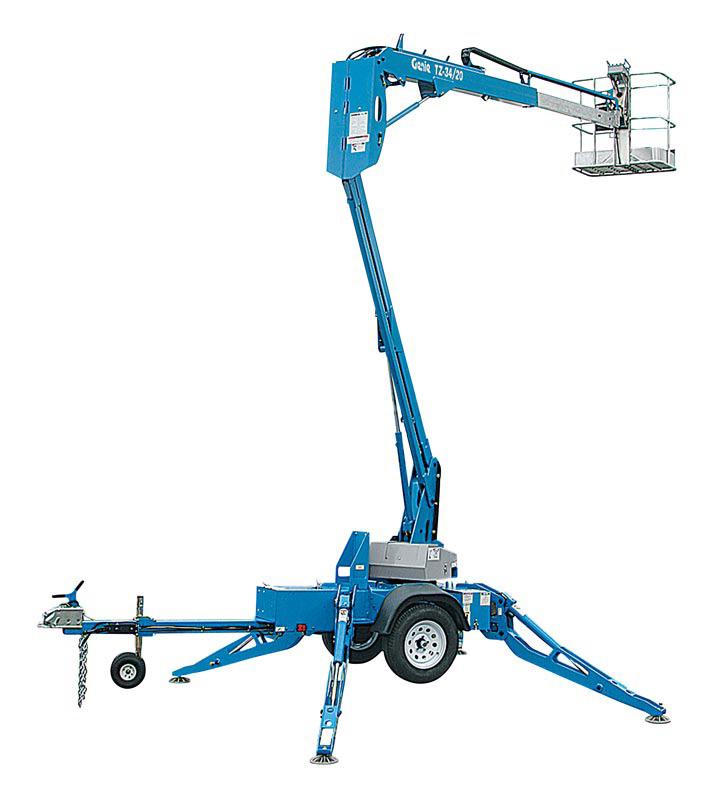

TOWABLE BOOM LIFT UP TO 40FT WORKING HT • ELECTRIC

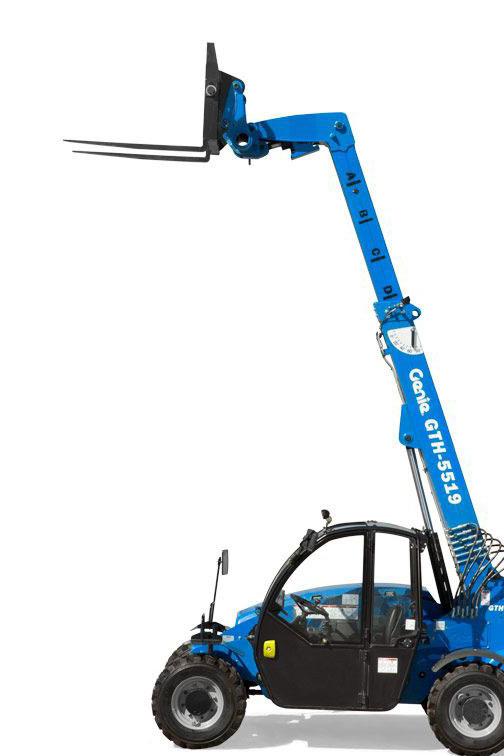

COMPACT TELEHANDLER UP TO 5,500 LBS. • LPG C & B Material Handling Catalog

19

EQUIPMENT RENTALS From needing a forklift for a day to needing a telehandler for a month, or more, our industry experts will help you determine what you need for your next project.

Forklifts (Multi-brand) Our fleet of forklifts provides ample strength, lift height, and features needed for most applications.

Telehandlers

Scissor Lifts

Aerial Boom Lifts

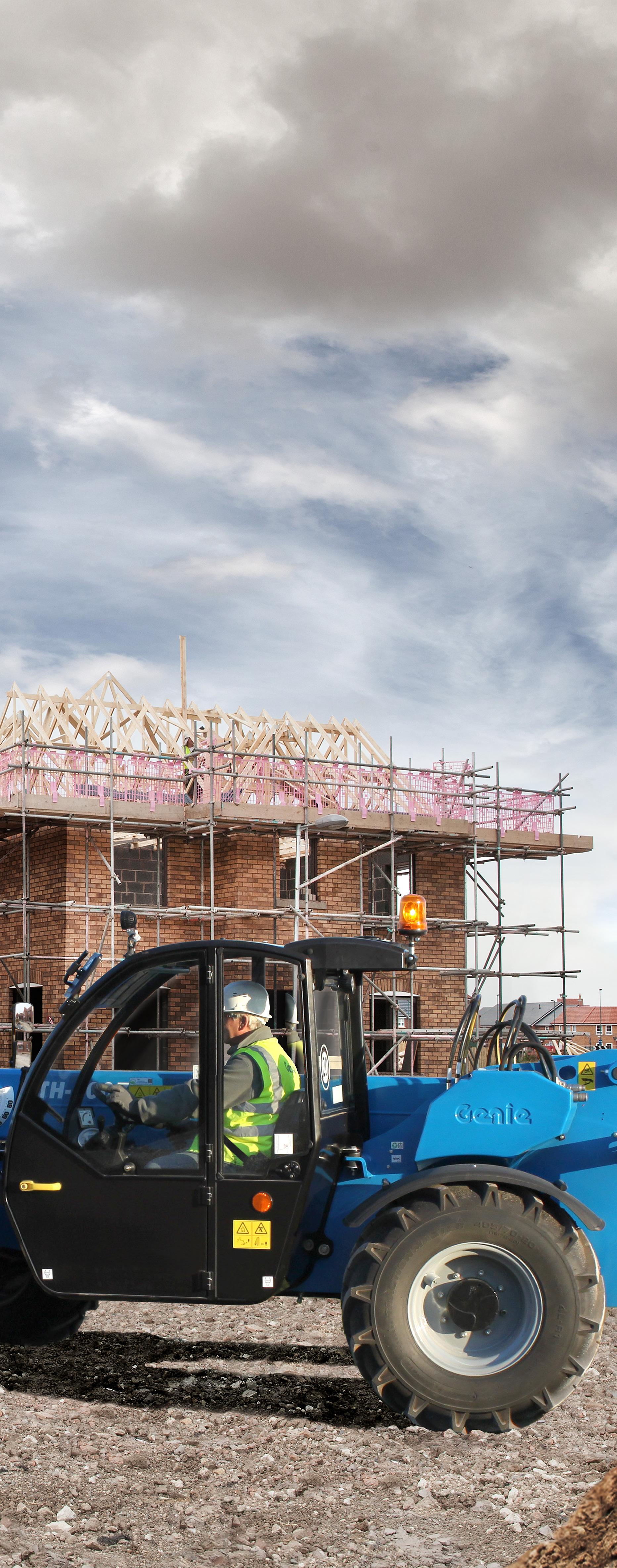

Telehandlers have the power, reach, and versatility to get the job done.

Telehandlers are used mostly in construction, mining, and agriculture sectors.

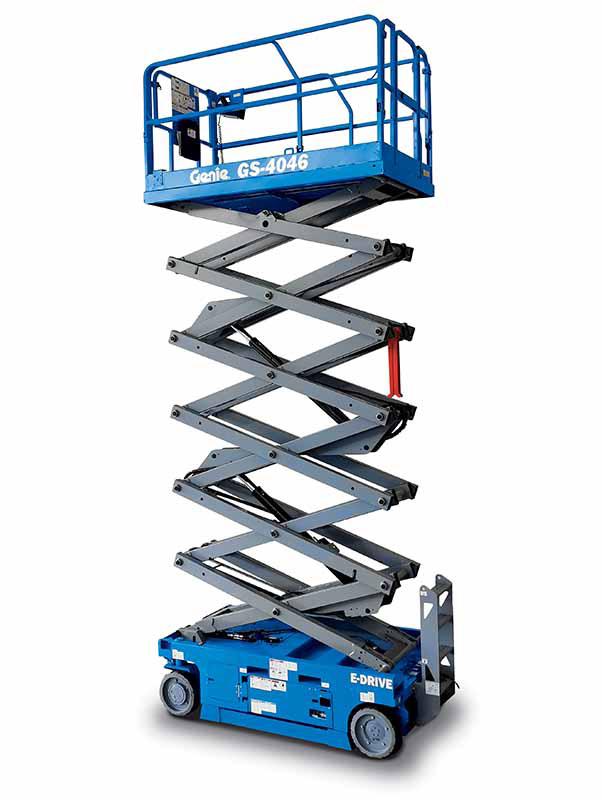

Scissor lifts elevate workers to high areas. Scissor lifts feature large platforms that can fit several people at once with materials.

Aerial boom lifts provide the ability

BOOK NOW Visit cbmaterialhandling.com or scan the QR code to put in a rental request today.

20

to lift up, over, and out with precise positioning for ultimate versatility in hard-to-access areas.

ENGINEERED SOLUTIONS

At C & B, our skilled team of engineers and project managers are experts in tackling complex material handling challenges. Whether it’s warehousing or industrial solutions, we have the expertise to meet your needs and exceed your expectations.

Here’s a glimpse of the many solutions we can bring to your operations!

Mezzanines & Modular Office Space Cranes & Hoists Dock & Door & Shelters

Warehouse Automation Consultation Pallet Racking

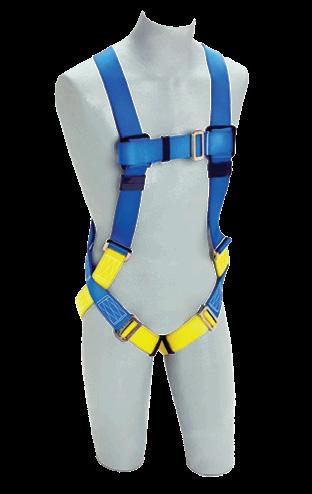

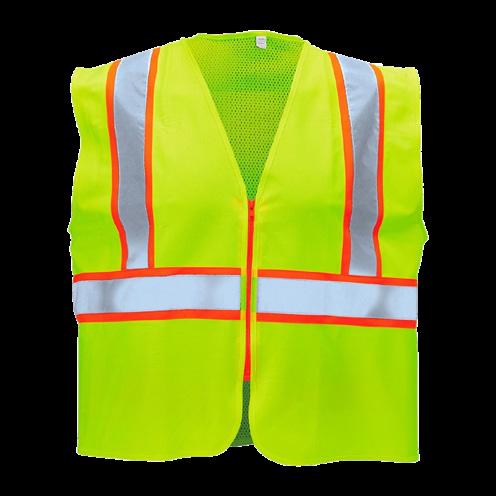

Safety & PPE

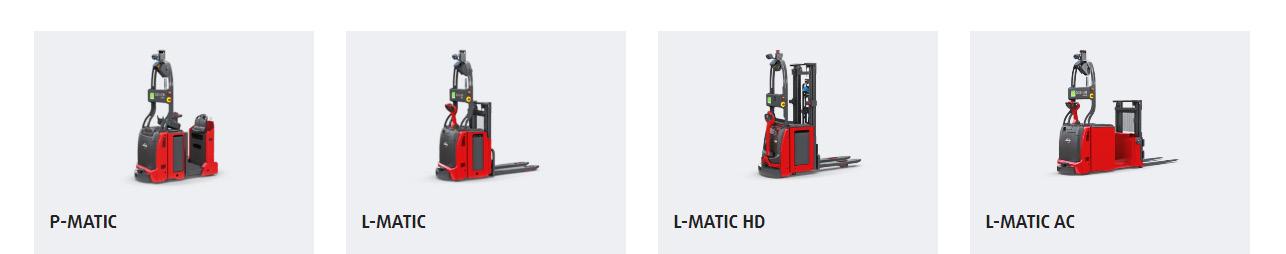

Robotic Staker Autonomous Mobile Robots (AMR’s)

Driver enabled forklifts Conveyors Safety products for warehouses Automated Guided Vehicles (AGV’s)

Manual & Electric Pallet Jacks

OUR TEAM WILL MEET YOU IN YOUR WAREHOUSE! Start with a consultation from our skilled team and be guided through the process of maximizing your warehouse.

#4

Scan to book a consult!

Docks & Doors

Cranes & Hoists

Conveyor Systems

Storage Systems

Consultation & Design

Engineered Solutions

ID#

cbequipment.com DOT NUMBER

C & B Material Handling Catalog

21

ENGINEERED SOLUTIONS

Maintenance & Service With C & B Material Handling, you can expect the best-in-class quality, safety, and security from your equipment. Your journey doesn’t stop after you purchase a custom engineered system from C & B Material Handling. We offer service and maintenance from trained professionals on everything we sell. No matter what comes up, you’ll know there’s a solutionoriented team ready to help.

Annual Inspections C & B offers comprehensive inspections covering critical equipment like conveyors and overhead cranes. Our skilled team of certified technicians will meticulously assess key components and linkages for general defects, wear and tear, or other signs of concern to ensure OSHA compliance, along with safe and reliable operation.

Operator Training Get comprehensive operator certification at C & B to ensure a safer workplace! Schedule training courses with our skilled team of installers on-site or at any of our locations. We offer hands-on evaluations, flexible scheduling, and training certification!

22

Engineered Solutions

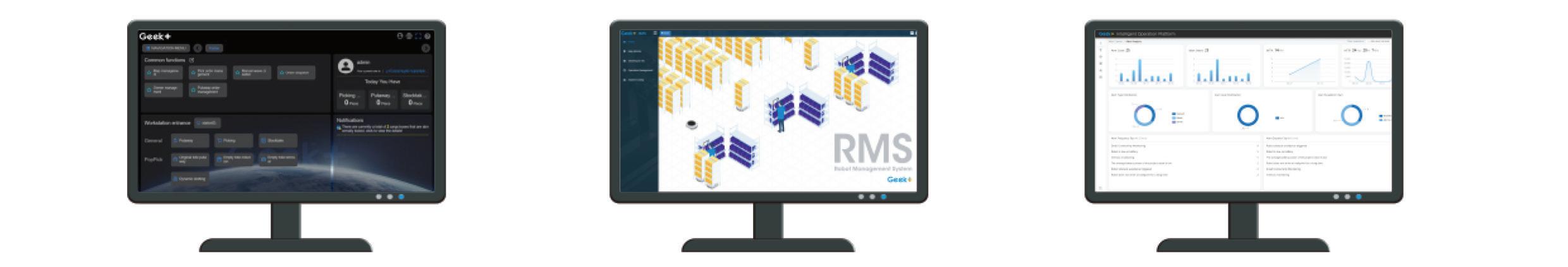

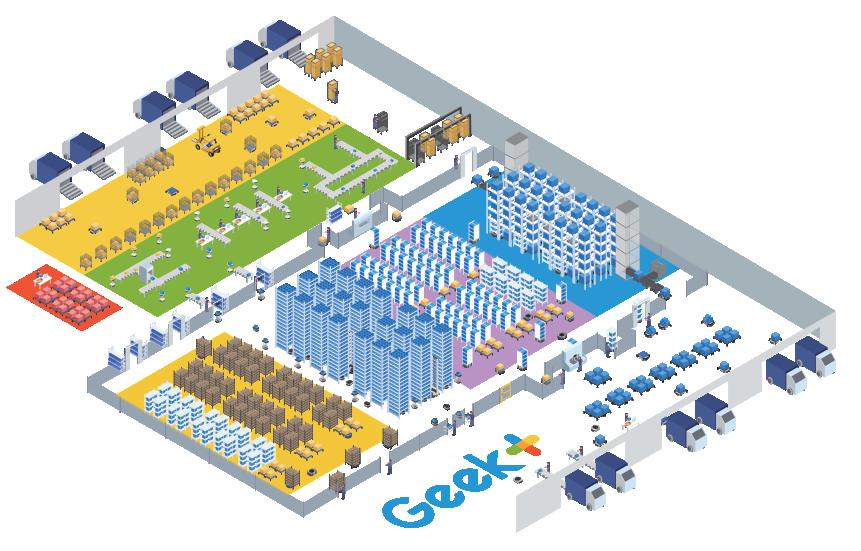

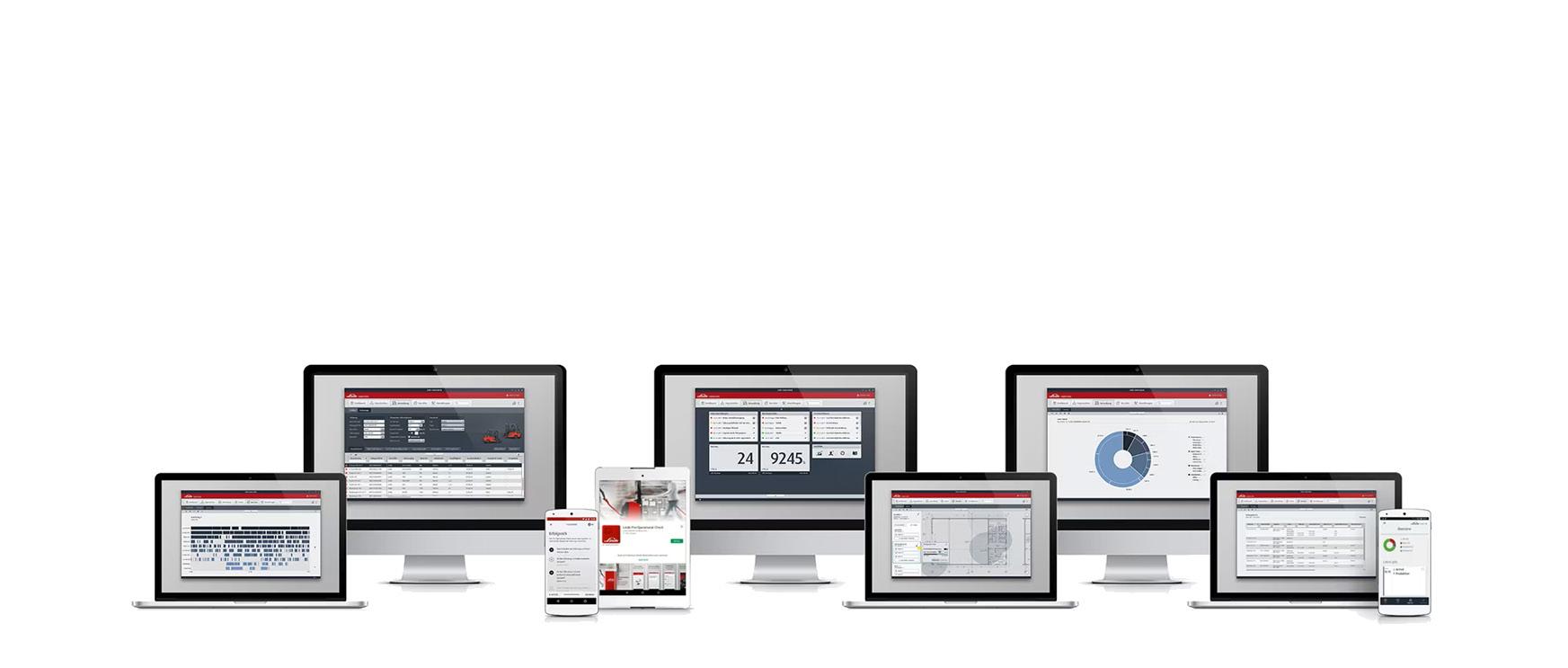

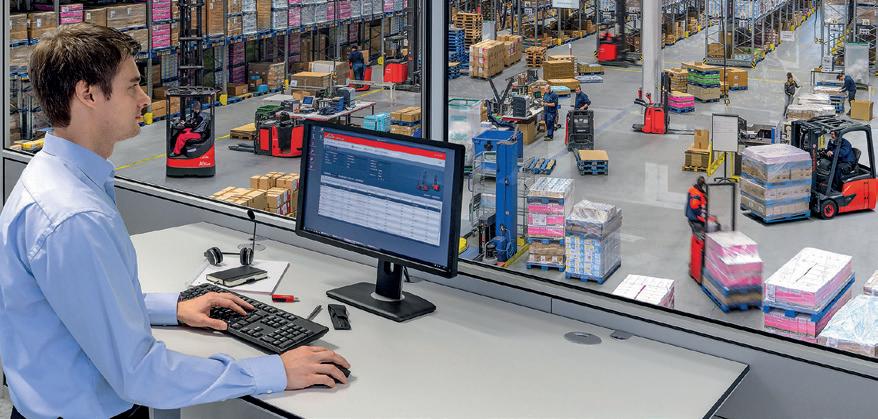

Integrated Systems Programmable Logic Controller and warehouse management software is critical to optimizing warehouse and manufacturing operations. The goal of these operating systems can vary dramatically, but commonly include production throughput oversight, inventory demand and replenishing scheduling, order fulfillment and even safety monitoring. No matter what your unique need, C & B is here to help choose or enhance the platform that best supports your operations.

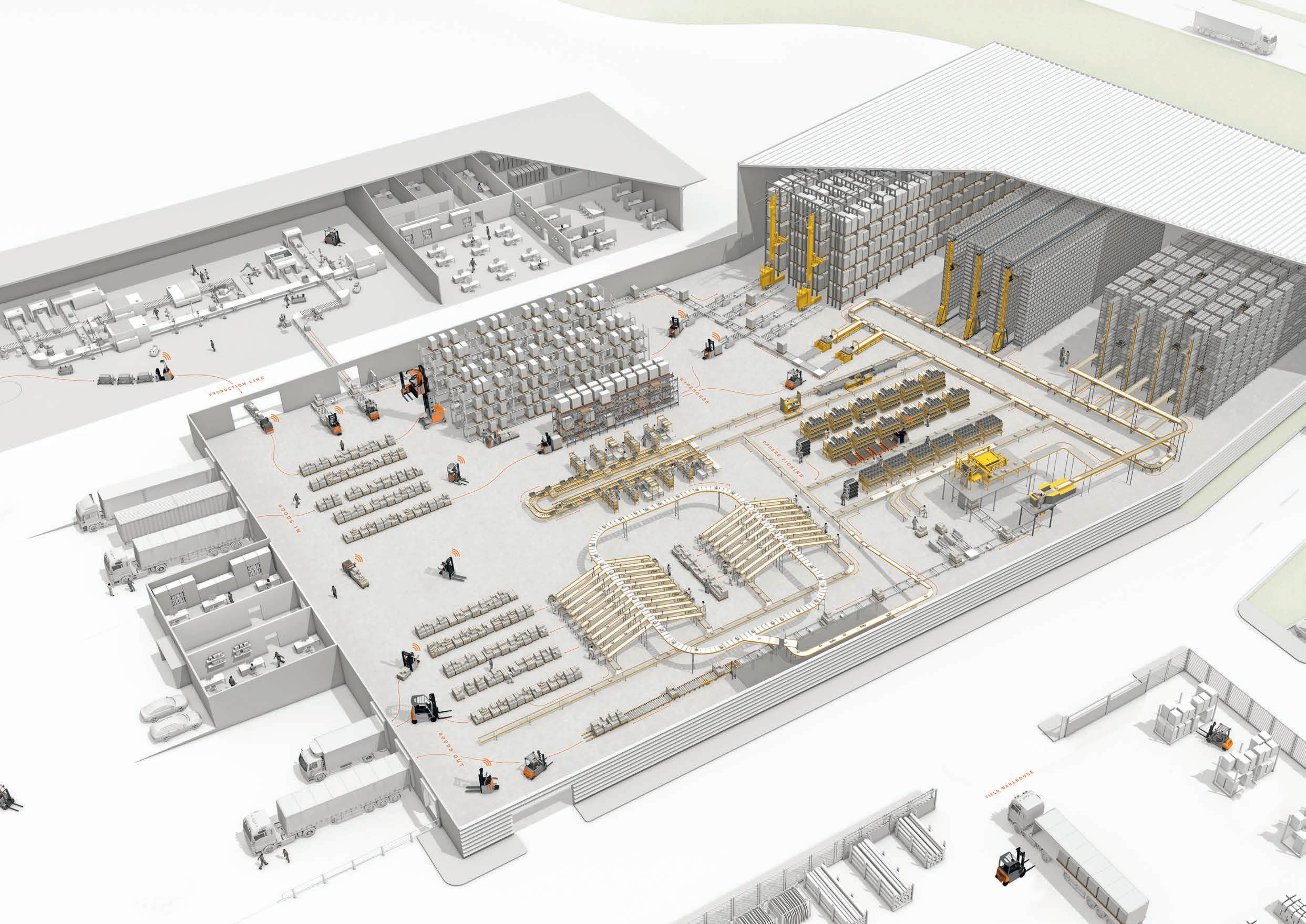

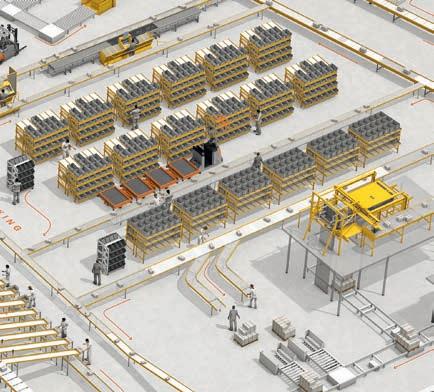

Warehouse & Industrial Our Engineered Solutions team can provide comprehensive consultative services to help guide you through the entire process of designing your next project.

Whether optimizing inventory flow through a new or existing warehouse or increasing production capacity through a manufacturing plant, our trained engineers and project managers will be there every step of the way.

For over 75 years, C & B has fostered deep relationships with key material handling equipment suppliers to ensure that we have the right solutions and support for each unique job. Our goal is to deliver on-time solutions that make your business more streamlined, efficient, and productive.

C & B Material Handling Catalog

23

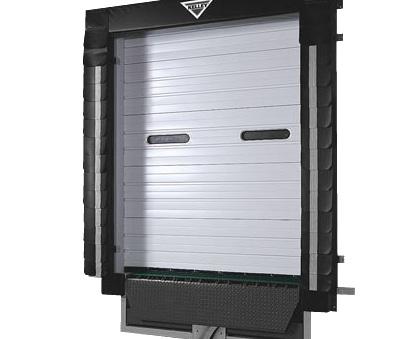

DOCK & DOOR

Dock Levelers

Dock Seals & Shelters

Overhead Doors

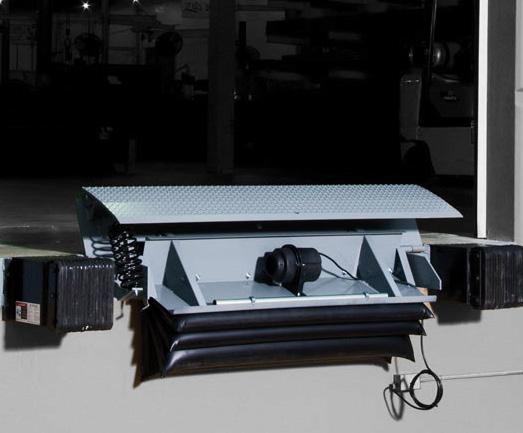

Dock levelers bridge the gap and height difference between the dock and the trailer while compensating for the trailer bed’s movement during loading.

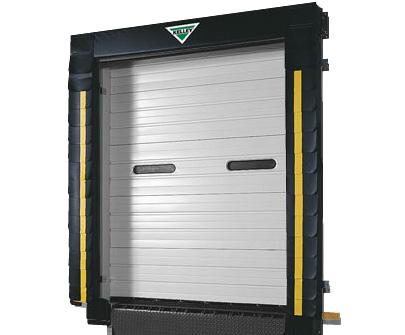

Optimize your loading dock with our quality selection of dock seals and shelters, offering maximum durability for various conditions.

We consider truck types, driveway slope, dock height, bumper projection, building wall construction, and door dimensions when selecting a sealing system.

We are experts in crafting tailored closure solutions for a wide range of applications such as loading docks, freezers, clean rooms, retail stores, and more. Our products prioritize reliability, security, and safety for both residential and business needs.

• • • • •

Mechanical Air-powered Hydraulic Vertical Edge of dock

• • •

Garage & commercial doors Rolling service doors Fire rated products

SPACE OPTIMIZATION

Mezzanines

Bracing & Framing

Modular Office Space

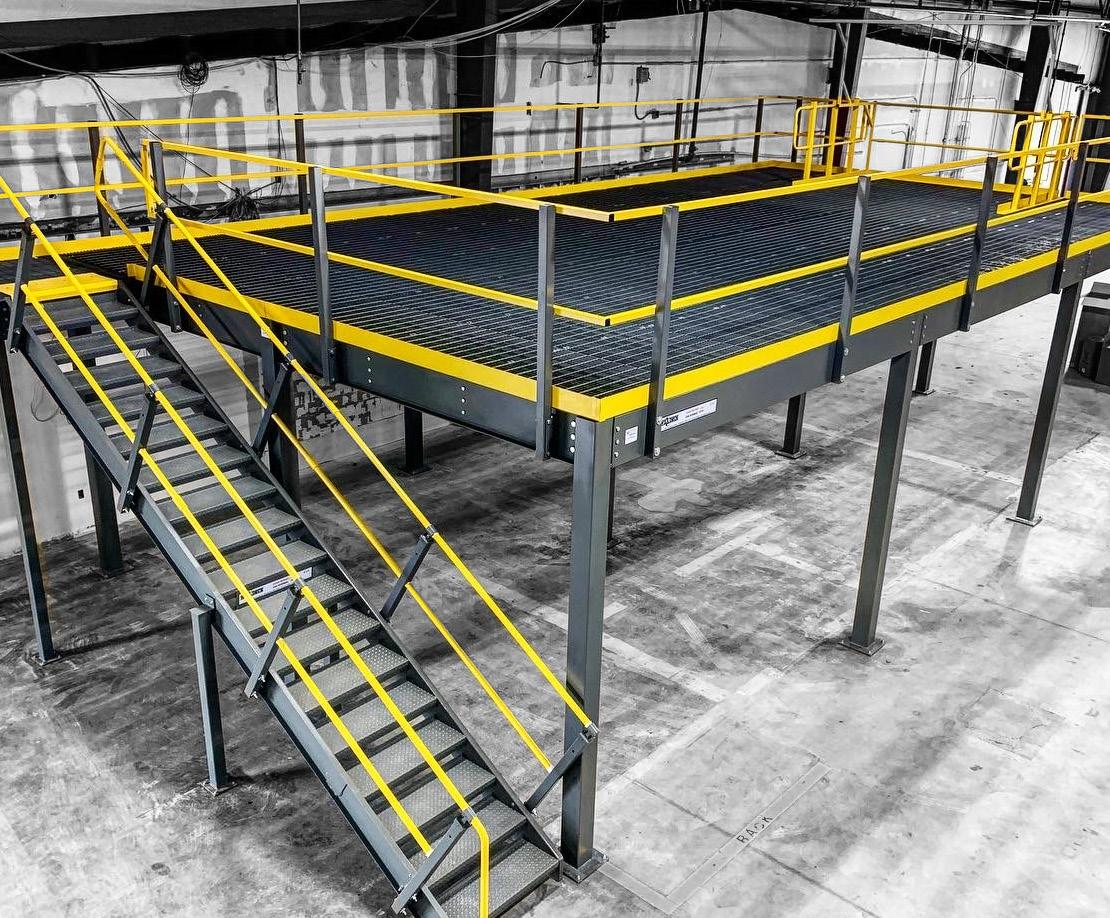

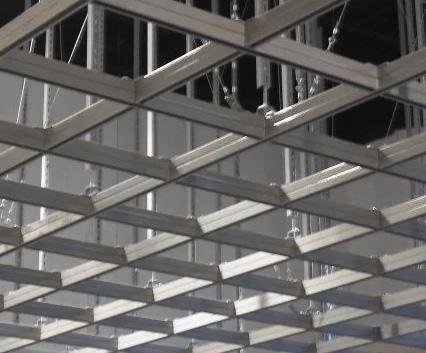

C & B’s industrial steel work platforms (mezzanines) optimize overhead space, enhancing efficiency and profitability. Gain valuable areas at a fraction of the cost of new construction, with quick installation and minimal disruption. Our high-quality, engineered steel components ensure a strong and secure structure, tailored to your needs.

At C & B, we provide customized bracing and framing solutions for residential, commercial, and industrial projects. Our expert team ensures precision and safety, delivering durable and reliable structures that meet your unique needs with exceptional craftsmanship and engineering expertise.

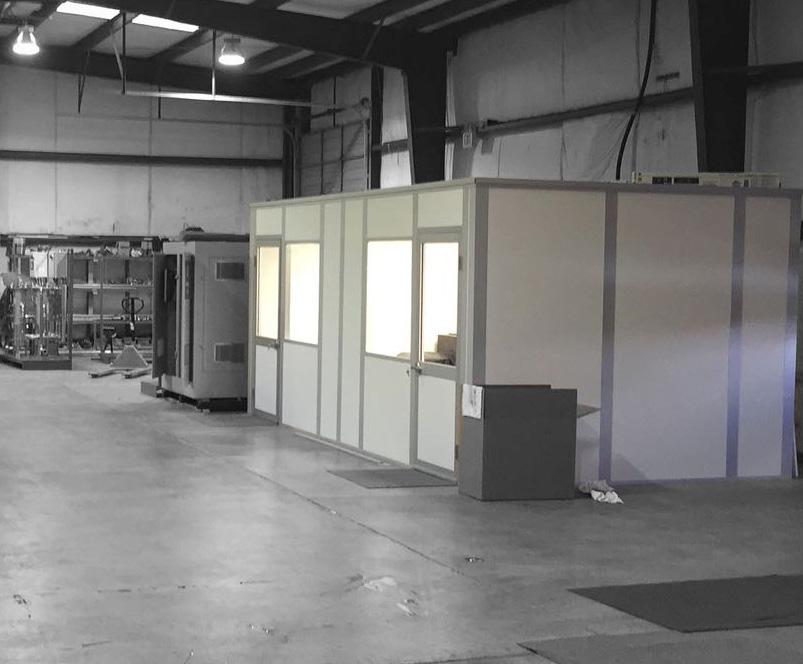

Modular inplant offices offer safety, comfort, and customization. From noise reduction to temperature control, our offices ensure a conducive workspace. With single to multi-story designs, we accommodate one to hundreds of employees. Our experienced team assists you in choosing the best options and supports the installation process.

24

Engineered Solutions

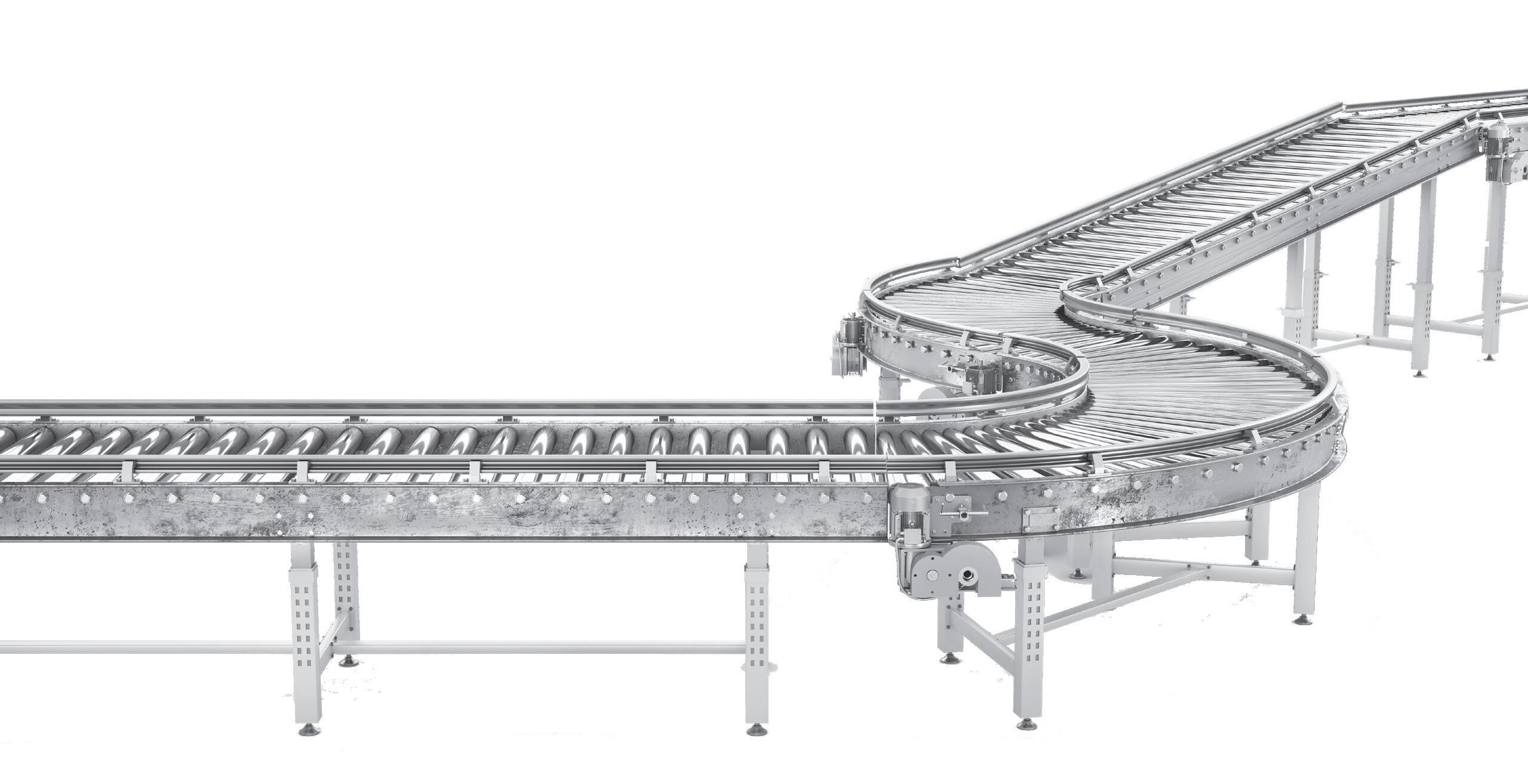

CONVEYOR SYSTEMS Our range of conveyors facilitates the efficient, safe, and cost-effective movement of materials between different levels. With a wide array of products, we offer high-efficiency conveyors and parts that ensure smooth and seamless business operations.

From basic gravity conveyors to sophisticated automated conveyor systems, our material handling solutions cover a diverse spectrum, catering to all your business needs.

Types of Conveyors Offered: Transportation conveyors

•

Mechanical VRCs (vertical reciprocating conveyors)

•

Accumulation conveyors

•

Hydraulic VRCs

•

Sortation conveyors

•

Overhead conveyors

•

Pallet handling conveyors

•

Warehouse & conveyor software

•

Portable conveyors

•

Conveyor parts & accessories

•

CRANES & HOISTS At C & B, we offer a comprehensive range of cranes and hoists with capacities ranging from 150 lbs to 40 tons, making them suitable for any operation - big or small. Our lifting solutions enhance productivity, ensure safety, and optimize space utilization in warehouses. With versatility and customization options, our products streamline material handling, reduce manual labor, and provide a cost-effective solution for lifting heavy items, no matter the size of your operation.

Types of Cranes & Hoists Offered: •

Enclosed track workstation cranes

•

Monorails

•

Work station cranes

•

I-Beam Jibs

•

Enclosed track Jib cranes

•

Articulating Jib cranes

•

Gantry cranes

•

Wire rope hoists

•

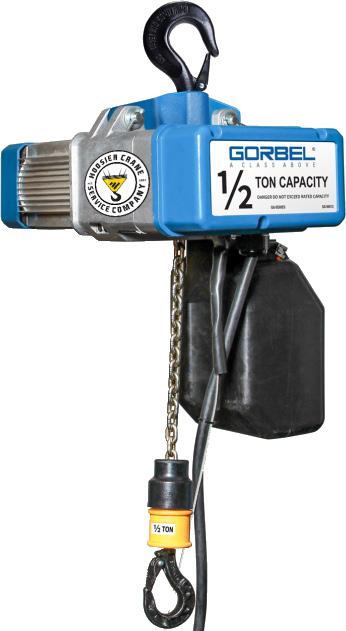

Electric & manual chain hoists

•

Lifting slings & lashing systems

•

Tie-Down & load binders

•

Trolleys & trolley clamps

GET A C & B CONSULTATION Engineered Solutions

25

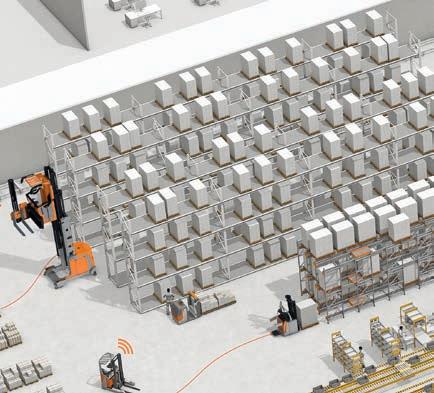

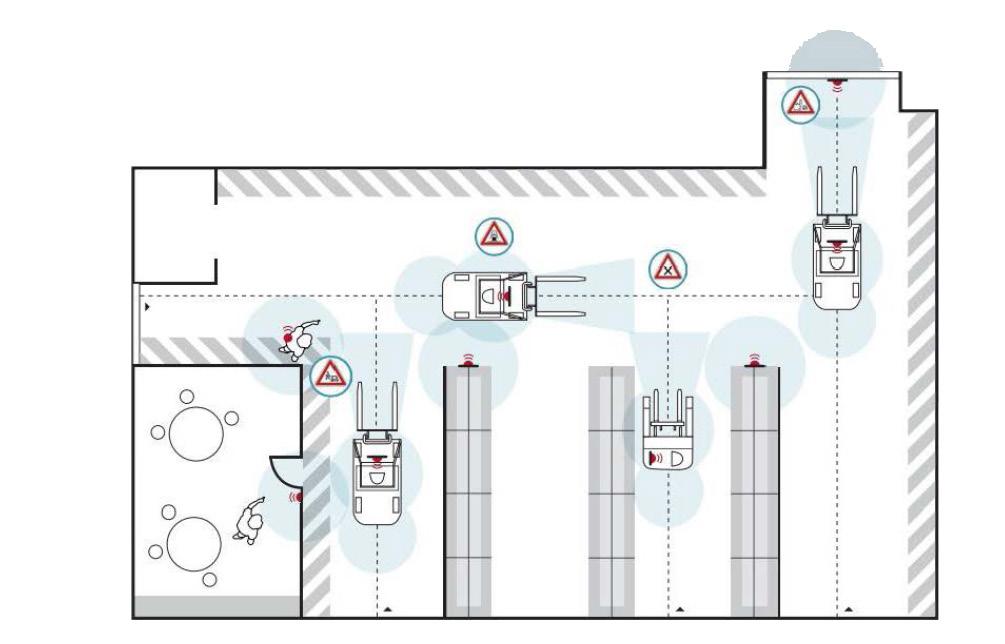

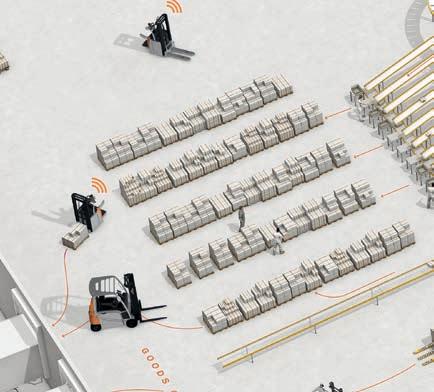

GUARDIAN SAFETY Linde Guardian is an innovative monitoring system for the working environment of industrial trucks, giving signals to the driver and pedestrians in the event of close proximity. Having active advance warning in the event of potential hazards means that everyone involved can react immediately.

Depending on the application and the equipment, Linde Guardian warns of imminent danger via acoustic signals, flashing LED lights, or vibrations.

Personnel and zone recognition

Warning zones that can be configured within 10 centimeters of precision

Visualization of the number and position of personnel in the danger zone

Protecting your People and your Investments Linde Guardian assists all personnel involved in internal traffic. It can see around corners and be programmed to suit any hazardous scenario. Linde Guardian uses the truck, infrastructure, and pedestrian units, to provide full-service awareness technology.

26

Mutual warning for pedestrian personnel and truck operators

Detection through walls and racking*

Versatile, adaptable and rapid installation

SAFETY Warehouse safety is of paramount importance as it not only safeguards the well-being of employees but also ensures the smooth and efficient operation of the facility.

Shop safety

Hi Vis Safety Vests

Stay visible and comfortable on the job site with breathable and dependable colors and fabric.

Personal Protective Equipment (PPE)

RAMGuard •

that is composed of the following parts:

•

• • •

•

full body harness anchor devices coupling or connecting devices

Protection from frontal, angled, and side impacts Reduced impact damage to pallet rack columns Various adapters to fit your columns

Safety Lights

Provides a clear blue warning beam on the floor, mountable at the front or rear of the forklift for maximum visibility.

• • • •

Halo Arch Curtain Blue Spotlight Strobe & LED

Magliners Gemini Jr. • Strong and lightweight hand truck for multiple packages.

• Double grip handle.

• 10” Balloon cushion wheels.

• Hand truck capacity: 500 lbs.

Gemini Sr. • Converts from 2 to 4 wheels in seconds.

• Microcellular foam wheels.

• Strong, lightweight construction reduces user fatigue.

• Hand truck capacity: 500 lbs.

• Platform truck capacity: 1000 lbs.

Replacement Forks

Early identification & prevention of potential issues, such as cracks, bends, wear, & proper alignment, can prevent accidents & damage to goods

All Weather Cab Enclosures • • • • •

Easy to install Fits any brand fork truck Keeps driver dry & out of the wind All zippered closures Zippered doors on each side

C & B Material Handling Catalog

27

C & B TRAINING PROGRAMS

Forklift Training Our forklift training program covers sit-down counterbalance forklifts, reach trucks, order pickers, and turret forklifts. Our formal operator training course teaches operators OSHA requirements related to forklift operations, as well as how to identify potential hazards while operating the equipment.

Aerial Training Operators will learn the safety benefits from our formal operator safety training course & how to recognize potential hazards while operating. The program will instruct operators on ANSI guidelines, & OSHA regulations pertaining to aerial work platforms.

Train the Trainer This certification program is designed to help trainers acquire the necessary skills to train their teams. Our experienced trainers have extensive knowledge of forklift safety and certification regulations.

With their guidance, you and your team can achieve certification in a timely and efficient manner.

Call your local C & B to inquire more!

28

OEM PARTS Welcome to the world of precision and reliability.

We specialize in servicing and selling Original Equipment Manufacturer (OEM) parts for premium material handling equipment brands. Our commitment to excellence is deeply rooted in our passion for optimizing the performance and longevity of your equipment. Whether you rely on the robust capabilities of industry giants or prefer the finesse of niche brands, we understand that your operations demand nothing but the best. As your trusted partner, we offer a comprehensive range of OEM parts, ensuring that your equipment continues to operate at peak efficiency, reducing downtime, and safeguarding your investment in the premium material handling sector.

Cab Caps & Covers

Sideshifters

Forklift Seat

Third Function Valves

Made of high impact, non-yellowing plastic, ClearCap™ has you covered rain or shine with clear or tinted roof cover for current and late model lift trucks.

Shift a load from side to side for reduced handling time and improved maneuvrability.

More comfort for longer sitting times to increase performance and focus of operators.

Re-life your forklift with new hydraulic third function valves for many different brands and types of forklifts.

VISIT US ONLINE! Request parts and more by scanning the QR code!

C & B Material Handling Catalog

29

PARTS

SERVICE

PLANNED MAINTENANCE

Why C & B?

At C & B, our fully qualified technicians provide certified and experienced expertise for your equipment. Our preventive maintenance (P.M.) services go beyond oil and filters, including a thorough quality review of over 100 points. We meet your machine’s requirements while maintaining high standards and ensuring no corners are cut. With proper maintenance, your equipment lasts longer, operates better, and promotes a safer environment. Our early problem identification saves time, money, and preserves equipment value. We provide detailed documentation of each P.M. service, assuring you of good working condition. Trust C & B for exceptional service and peace of mind.

Investment Protection

P.M. schedules ensure business assets are running according to manufacturer and consumer guidelines. As poorly performing parts are updated, assets perform at a steady level of productivity throughout the year. This reduces the frequency of capital expenditures needed to purchase new equipment.

Enhanced Safety

30

Conducting routine equipment inspections plays a role in reducing the likelihood of hazardous issues. To avoid unexpected breakdowns it is imperative to adhere to preventive maintenance schedules.

AUTONOMY Shelf-to-Person Solution The Geek+ flagship solution optimizes warehouse operations using mobile Goods-to-Person Picking robots to transport mobile shelves, automating critical tasks like picking, putaway, slotting, inventory auditing and returns. This dynamic system ensures flexibility, especially during uncertain times.

P-Series GTP

RoboShuttle

PopPick

High-Density Storage Fast Implementation and All-in-One solution Flexibility Compatible with items of all sizes and Maximized height and space · Versatile robotic solutions for your changing needs · Fast deployment with minimum infrastructure changes

various scenarios

utilization

· High space utilization for small items · Human factor engineering · Unmanned tote operation · Dynamic Slotting

· High space utilization: up to 8m · Human factor engineering · Unmanned original carton putaway and picking

Full Pallet/Carton Storage and Picking

Finished Order Parcel/Tote Sorting

Stable and Reliable Powered by advanced algorithms and data, the system was refined over 8 years by 700+ customers.

WES, RMS and IOP software work S-Series Four-way Shuttle Solution together seamlessly. The Geek+ warehouse operation system Ultimate Storage Quickacross and FlexibleLearn Sorting incorporates best practices from leading global enterprises More Maximum storage density combined with fast robotic Automatic handling and dynamic route optimization various industries. picking · High-density storage with maximized storage utilization · One stop picking without order consolidation · Support pallets, cargo, and single item outbound orders

· Quick implementation · Flexible · Low requirements for layout and ground

Your Complete Smart Warehouse Marshalling Zone

Finished Order Tote/ Carton Product Sorting Zone

Return Zone RoboShuttle Picking Zone

RoboShuttle Piece Picking Zone Inbound Staging Zone P-series GTP Picking Zone

C & B Material Handling Catalog

Returns

Moving

31

CONNECTIVITY

connect

NDE CONNECT

Exploit the opportunities offered by logistics in your production plants or your digitization: Modern machinery constantly warehouses. This transparency makes using collects data that gives an insight into its your fleet safer and more economical, and state and its capacity utilization. We at Linde increases the availability of each vehicle. connect make this data available to you locally or via the Internet. With the connect re and hardware connect your vehicles and deliver comprehensive information, product family, we have developed → Transparency The connect:desk fleet management system provides clear access to all your fleet data. From forklift truck and driver management ou to make efficient use of your fleet. a fleet management solution that connects → Cost-effectiveness to maintenance and assignment planning, right through to monitoring and and analysis all forklift truck data, connect:desk is the your vehicles your staff,of meaning you → Security centerpiece of your fleet management. The software is intuitive inareits operation is therefore suitable both for experienced always up to dateand on theitstatus of your → Service optimization

ake your fleet intelligent Linde connect:desk Software - Connect your data collected from both employees & equipment

fleet managers and casual users who only require individual functions, warning, and avoidance of hazardous situations.

nect products interact to make your day-to-day

Infrastructure

Training

Hardware

Whether Bluetooth, Wi-Fi or mobile broadband technology, all the options are available for your fleet data communications. →8

The Linde Academy offers courses for connect:desk users focusing on a variety of subjects. → 12

Our hardware will reliably communicate with a vehicle, collate information, and transmit it wirelessly. → 14

Reports and Analysis

App

Make your fleet as efficient as possible. Over 15 different interactive reports are available for that purpose. → 10

The connect pre-op check app simplifies vehicle checks and simultaneously provides access control. → 13

Functional Communication between the Our connect portfolio is modular in design, allowing you to vehicle and connect:desk can choose precisely the functions for your fleet that you actually need.realized with various be → 15 systems. You can choose the best way to transmit your data: Bluetooth, Wi-Fi or 3 mobile broadband.

Bluetooth

e, manage drivers’ details, monitor and es, analyze data, and generate reports: thanks s, you can handle all of this effortlessly .

When the vehicle comes within range of a SyncPoint, data is automatically accessed and transmitted via Bluetooth.

32

Your benefits at a glance

Wi-Fi

Data is transferred directly from the vehicle to the database within the wireless network.

Mobile broadband

Data is transmitted to the database over the mobile broadband network.

C & B Telematics Gives You: • • • • •

Access only for authorised drivers Pre-shift checks specific to your operations Impact reporting Detailed fleet management reporting, through CAN bus if available or digital inputs to measure traction time, time on seat, time using hydraulics plus others GPS location tracking

C & B Telematics was designed to optimize forklift productivity for large-scale end users. C & B Telematics is a superior system for recording, compiling and presenting data that is critical to carrying out pre-operation checks, performance and utilization level analysis, and damage reports.

With its user-friendly interface, C & B Telematics can report real-time status of vehicles and driver performance directly to smartphone, tablet, laptop, or desktop computers. This fully customizable system puts businesses in total control of their fleet operations allowing them to achieve new standards of health and safety compliance, cost efficiency, and accountability.

Driver Access Control

Accident Sensing and Reports

Vehicle Safety Pre-Operation Check

C & B Telematics allows only licensed, qualified, and trained drivers to operate the vehicles by using a PIN screen entry and RFID cards.

C & B Telematics is calibrated to recognize low and high level accidents and to report the vehicle, location, and time of the accident. Alerts are sent to supervisors, and vehicles can be placed in safe mode until the supervisor assesses the situation.

C & B Telematics puts safety first starting from the beginning of the first shift. With an extensive pre-operation vehicle checklist, C & B Telematics automates a report of completed, incompleted, or failed pre-operation check points.

Contact your local C & B for more information!

C & B Material Handling Catalog

33

AUTOMATION iGo neo

The autonomous low level order picker reduces the amount of work for operators.

OPX-L 20 S iGo neo

OPX-L 20 iGo neo

OPX-L 12 iGo neo

OPX 20/25 iGo neo

•

•

•

•

The ergonomic one 6 AUTOMATISIERUNGSSZENARIEN

Long forks are perfect

The flexible one

Der Wendige

Back-friendly picking of a

WEfor DRIVE AUTOMATED VEHICLES pallet thanks to a variable transporting long

Typische Automatisierungsszenarienworking height of up to goods 891 mm

Suitable for the narrowest working aisles thanks to compact vehicle dimensions

The allround talent

Ideal for retail, automotive or food industry

3

1

4

5

2 1 PRODUKTIONSVER- UND -ENTSORGUNG

34

1

HORIZONTALTRANSPORT Production Supply &2Disposal

2

Horizontal Transport3 EIN- UND AUSLAGERUNGEN (HOCHREGAL)

3

Storage and Outstorage (high 4 EINUNDshelof) AUSLAGERUNGEN

4

Storage and Outstorage (Wide Aisle or block storage)

5

Picking

(BREITGANG- ODER BLOCKLAGER)

5 KOMMISSIONIERUNG

LINDE K-MATIC Manufacturer

Floor to Store Solutions

DeMatic Series

Power unit

Battery

Load capacity/Load

(lb)

3,100

Overall Size (LxW)

(in)

133 - 153 x 59 - 61

Default configuration

Characteristics

LINDE K - Matic

Manufacturer's type designation

Turret head / swing forks

Mast lift height

(ft)

33 - 45

Overall size (LxW)

(in)

133 - 153 x 59-61 (b6 x 121)

Typical operating aisle width with GMA pallet

(in)

72

Travel Speed

(mph)

4-6

(V) (Ah) PbS

80 / 465 - 930

Standard battery Voltage/Rated Capacity Pallet positioning scanner included Navigation

In-aisle: wire Outside of aisle: laser navigation

Lowered mast height

Application specific

Operation capability

Automated & Auxiliary manual operation

Principal equipment compliance standards/norms:

Automated Very Narrow Aisle Turret Truck Common options

K-Matic Series

ANSI B56.5 Part III Machinery Directive (CE) requirements ISO3691-4 standard

Blue Spot

Automatic charging

Telescopic forks

Inbound pallet contour control and verification system

3,100 lb. Capacity

The storage solution for compact spaces. With a lifting height of up to 45 feet, the versatile

NAVIGATION LASER

K-MATIC truck is ideal for use in high-density warehouses.

AUTOMATION KIT Steering unit receives driving orders from the control system

EMERGENCY STOPS On each side of mast

SENSOR BOARD With sensors and controls for load detection, pallet positioning, precise parking, etc.

USER INTERFACE With screen or touchscreen

SECURITY LASER SCANNER 360-degree vehicle monitoring and protection of persons

For more information on Linde Material Handling equipment, please contact: KION North America Corporation 2450 West 5th North Street, Summerville, SC 29483

C & B Material Handling Catalog

35

our MISSION. To exceed customers’ expectations by providing the highest quality products, service, and aftermarket support. To create an environment that provides all our employees the opportunity to grow and contribute to the long-term success of our business.

To continually focus on sound business management to insure our continued presence in rural America for our customers and communities in which they live.

Owned by Dan Cronin & Rod Burwell

Started in Gettysburg, SD

Grew to a leading company in USA

Still family owned & led present day

Strives to be the single-source Supplier of Choice.

SERVING

26 %

OF COUNTIES IN THE U.S.A.

18 U.S.A. LOCATIONS

C & B Location

WELCOME TO

C & B COUNTRY Bettendorf, IA

5875 State St

(563) 359-9600

Roanoke, VA

3218 Salem Turnpike NW

(540) 344-0911

Hiawatha, IA

1520 Stamy Road

(319) 395 9003

Chesapeake, VA

1101 International Plaza

(757) 606-2673

Waterloo, IA

2950 W Airline Highway

(319) 235-6741

Lynchburg, VA

420 Bradley Drive

(434) 845-4699

Baton Rouge, LA

15151 Airline HWY

(225) 753-5700

Richmond, VA

2416 Lanier Rd

(804) 299-3393

Shreveport, LA

6847 Greenwood Rd

(318) 631-5100

Verona, VA

961 Laurel Hill Road

(540) 248-3600

St. Rose, LA

10299 E Airline HWY

(504) 463-3400

Billings, MT

3627 South 56th St West

(406) 409-3889

Mobile, AL

1111 West I-65 Service RD N (251) 479-2909

Sioux Falls, SD

47054 104th St

(605) 607-5900

Dothan, AL

107 Commercial Ln

(334) 794-8468

Chilhowie, VA

223 Lee Hwy

(276) 646-0240

Clarksburg, WV

352 Andell Road

(304) 623-6541

St Albans, WV

2070 Winfield Rd

(304) 755-8111

36

cbmaterialhandling.com
