Power Tools Product Guide 2026
CAT® POWER TOOLS FROM THE BRAND YOU CAN TRUST
The Cat® brand is recognised worldwide for the engineering innovation and rugged dependability of its construction and mining equipment, diesel and natural gas engines and industrial gas turbines.
Cat® now offers a range of Power Tools and Outdoor Power Equipment, engineered by Positec, a globally recognised power tool manufacturer, renowned for its extensive international presence, innovation, cutting-edge technology, and superior product quality.
Features
• Brushless motor
• Two speed gear box
• Rubber over mould grip
• Variable speed trigger
• LED light
• Auxiliary handle to prevent kick back Applications
• Heavy duty drilling into wood, metal & masonry
Includes

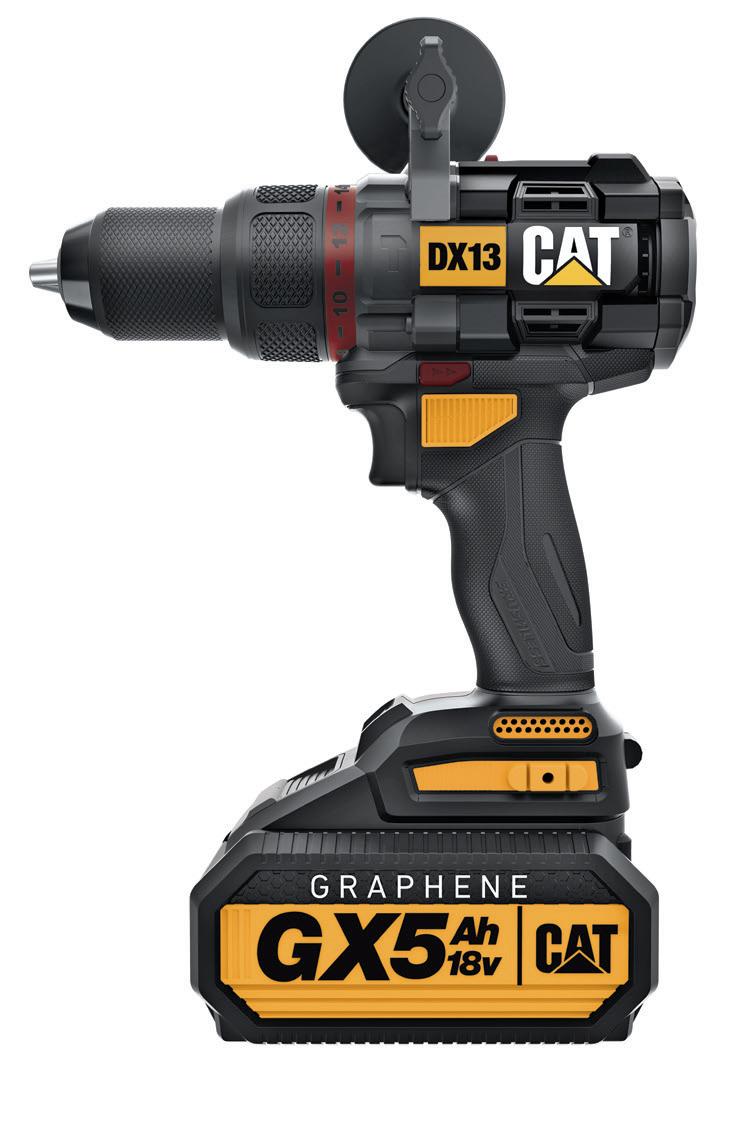

• DX13 Hammer Drill (x1)
• GXB5 Graphene Battery (x1)

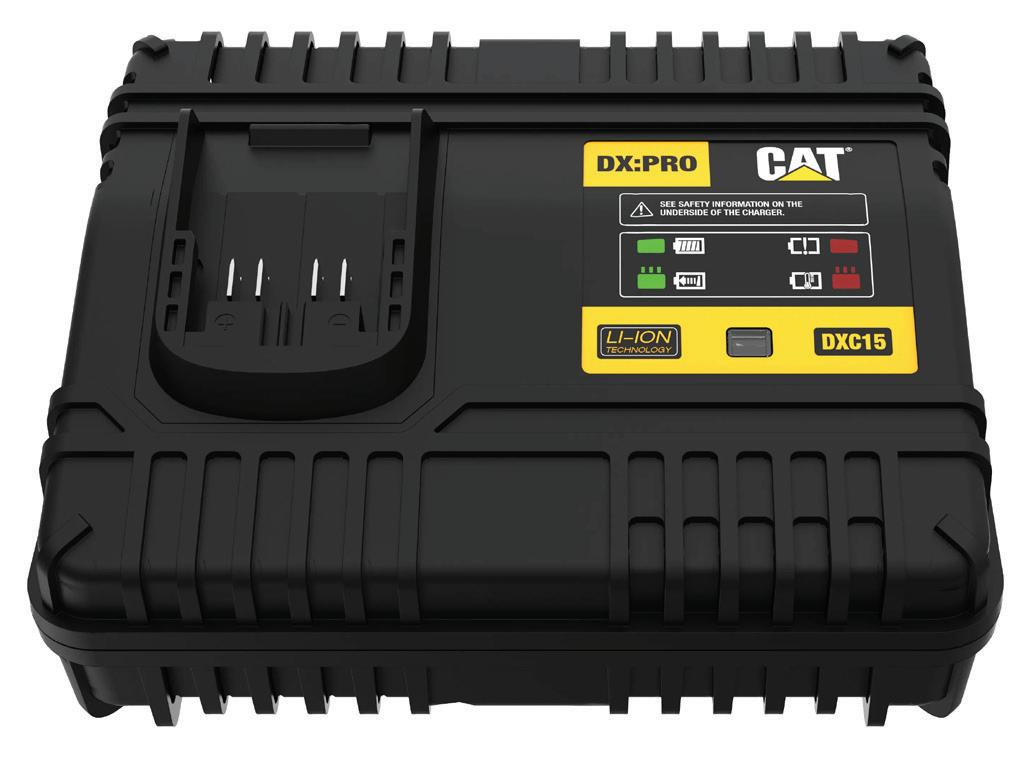

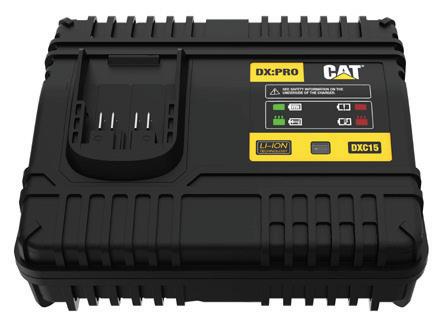

• DXC15 Charger (x1)
• Auxiliary Handle | Belt Clip | Carry Case
Specifications
Chuck 13mm Metal Single Sleeve
No Load Speed
0-550/0-2200 RPM
Max Torque 80Nm
Impact Rate
0-10,450/0-41,800 BPM
Gearbox 2 Speed
Clutch 22 + 1 + 1
Max Drilling Capacity Wood 55mm, Metal 13mm, Masonry 16mm
Tool Weight
(bare)
Features
• Brushless motor
• Two speed gear box
• Rubber over mould grip
• Variable speed trigger
• LED light
• Auxiliary handle to prevent kick back Applications
• Heavy duty drilling into wood, metal & masonry Includes
• DX13 Hammer Drill (x1)

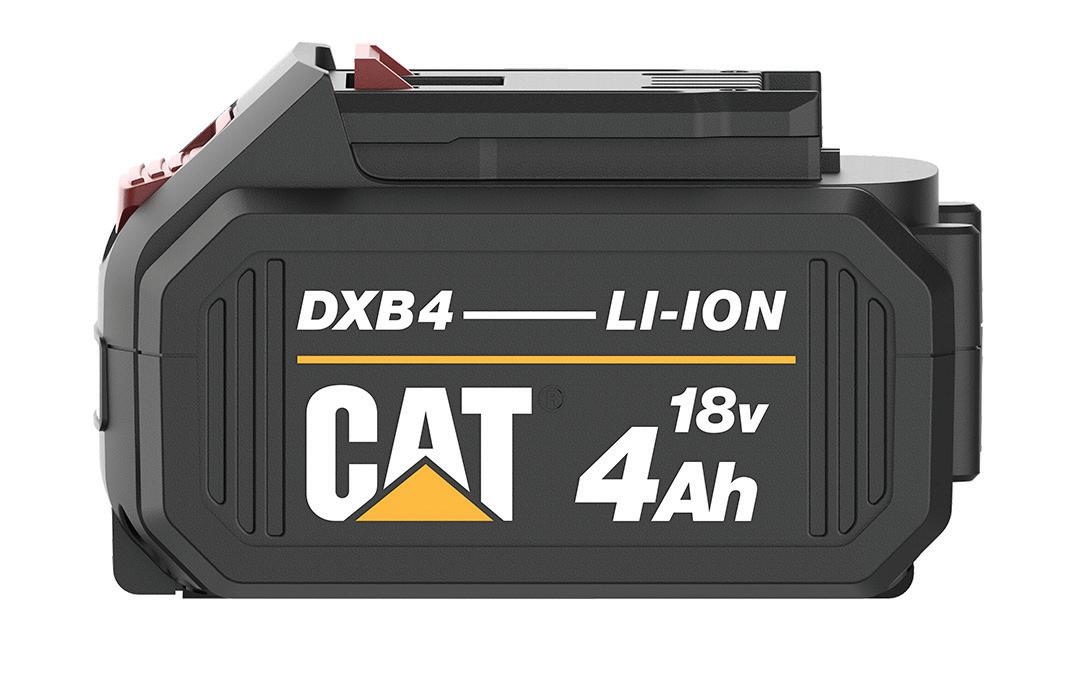

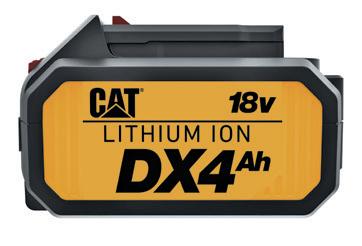

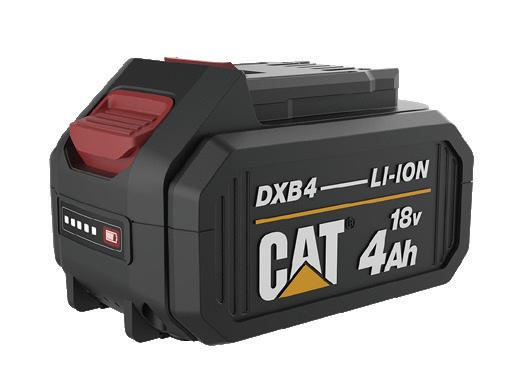

• DXB4 Lithium Battery (x2)

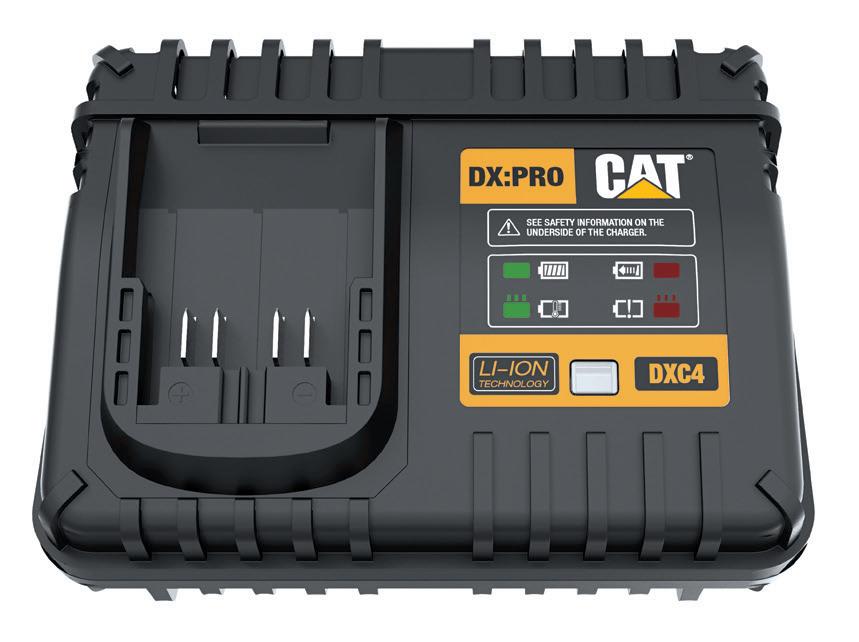

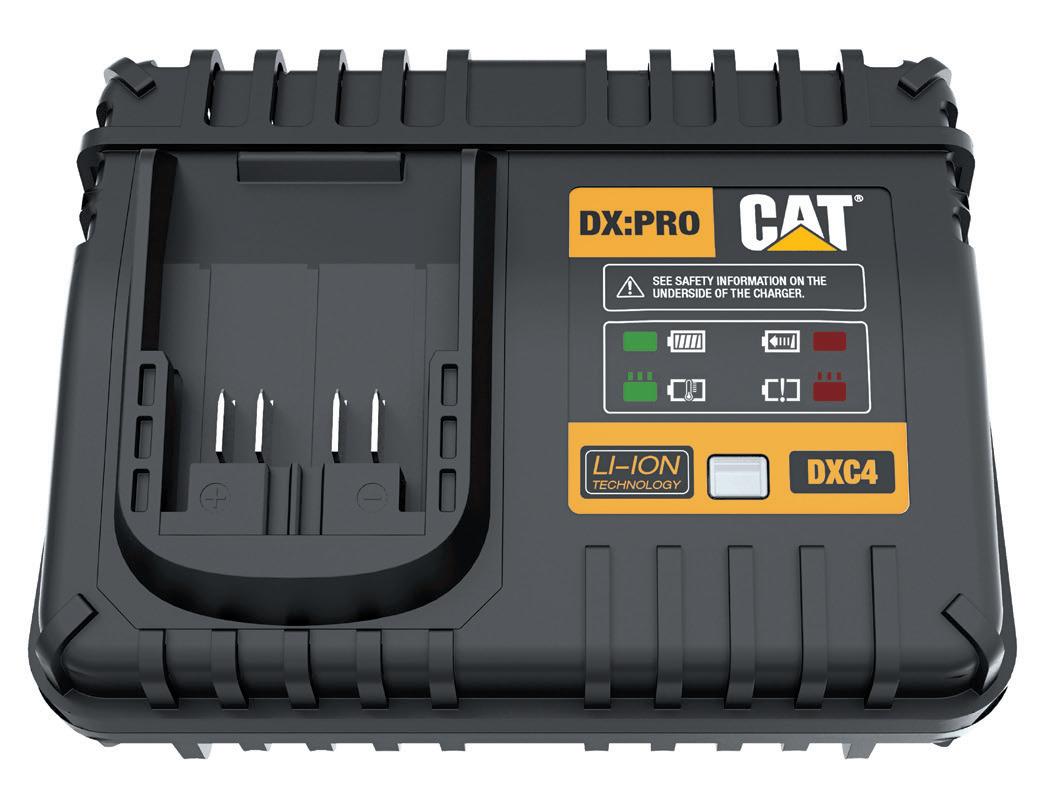

• DXC4 Charger (x1)
• Auxiliary Handle | Belt Clip | Carry Case
Specifications
Chuck 13mm Metal Single Sleeve
No Load Speed
0-550/0-2200 RPM
Max Torque 80Nm
Impact Rate
0-10,450/0-41,800 BPM
Gearbox 2 Speed
Clutch 22 + 1 + 1
Max Drilling Capacity Wood 55mm, Metal 13mm, Masonry 16mm
Tool Weight
(bare)

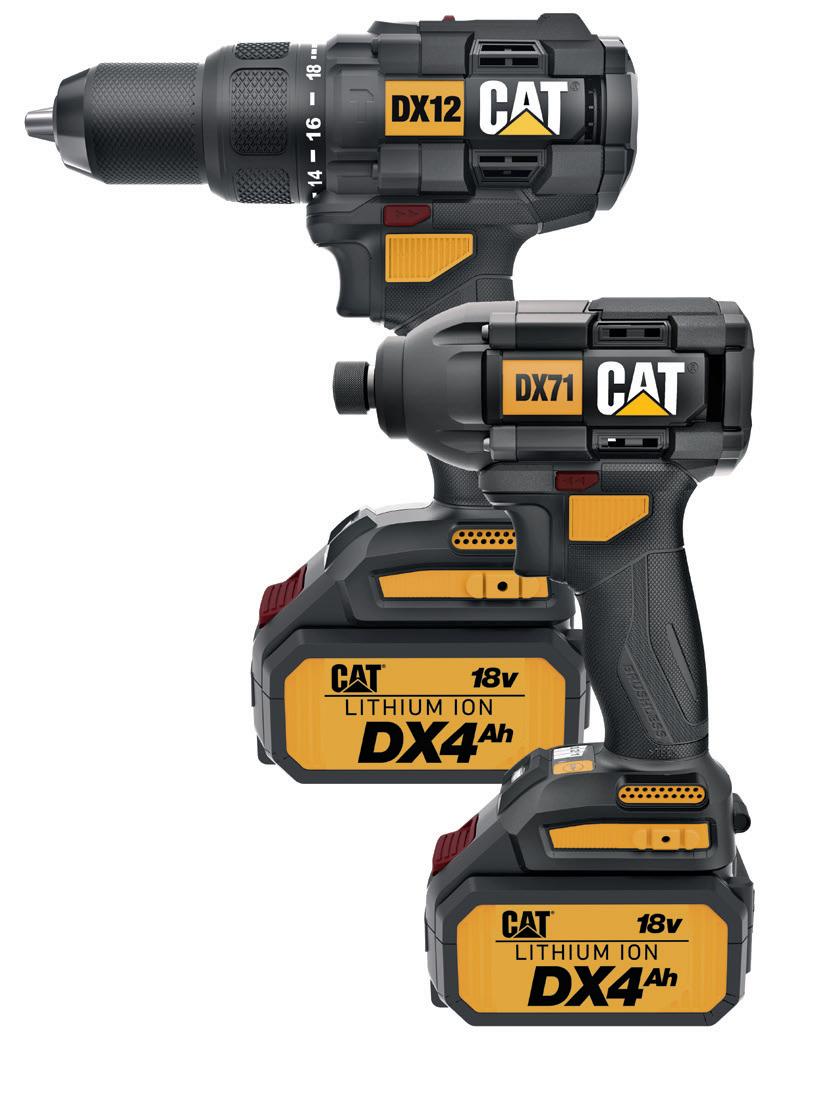

CAT® 18V Brushless Compact 2pc Combo Kit
2T1C2B4K
Features
• Brushless motors
• Two speed gear box
• 3 speed selections for control
• Rubber over mould grip
• Variable speed triggers
• LED lights
Applications
• Medium duty drilling into wood, metal & masonry
• Impact driving of fasteners
Includes
• DX12 Hammer Drill (x1)
• DX71 Impact Driver (x1)
• DXB4 Lithium Battery (x2)
• DXC4 Charger (x1)
• Belt Clip (x2) | Carry Case
Specifications
Chuck 13mm Metal Single Sleeve
No Load Speed 0-550/0-2200 RPM
Max Torque 65Nm
Impact Rate 0-8,000/0-32,000 BPM
Gearbox 2 Speed
Clutch 22 + 1 + 1
Max Drilling Capacity Wood 40mm, Metal 13mm, Masonry 16mm
Tool Weight 1.97KG (bare)
Specifications
Chuck 1/4in Hex Quick Change
No Load Speed 0-1300/2100/3200 RPM
Max Torque 215Nm
Impact Rate 0-1600/2900/3600 BPM
Tool Weight 1.52KG (bare)

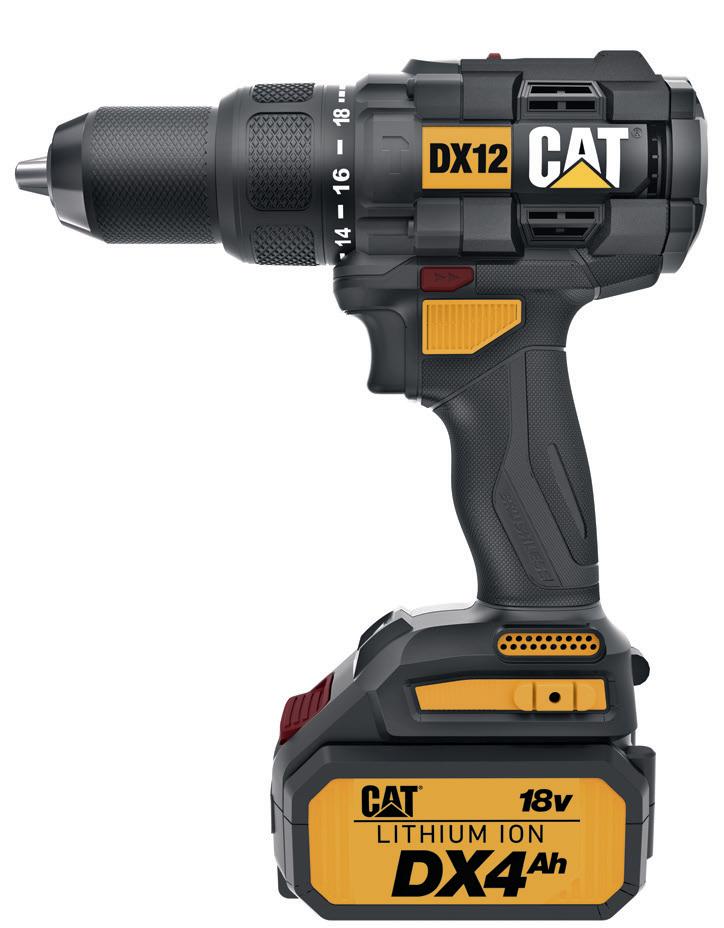

CAT® 18V Brushless Compact Hammer
Drill
Kit 65Nm
DX122B4K
Features
• Brushless motor
• Two speed gear box
• Rubber over mould grip
• Variable speed trigger
• LED light
Applications
• Medium duty drilling into wood, metal & masonry
Includes
• DX12 Hammer Drill (x1)
• DXB4 Lithium Battery (x2)
• DXC4 Charger (x1)
• Belt Clip | Carry Case
Specifications
Chuck 13mm Metal Single Sleeve
No Load Speed
0-550/0-2200 RPM
Max Torque 65Nm
Impact Rate
0-8,000/0-32,000 BPM
Gearbox 2 Speed
Clutch 22 + 1 + 1
Max Drilling Capacity Wood 40mm, Metal 13mm, Masonry 16mm
Tool Weight 1.97KG (bare)

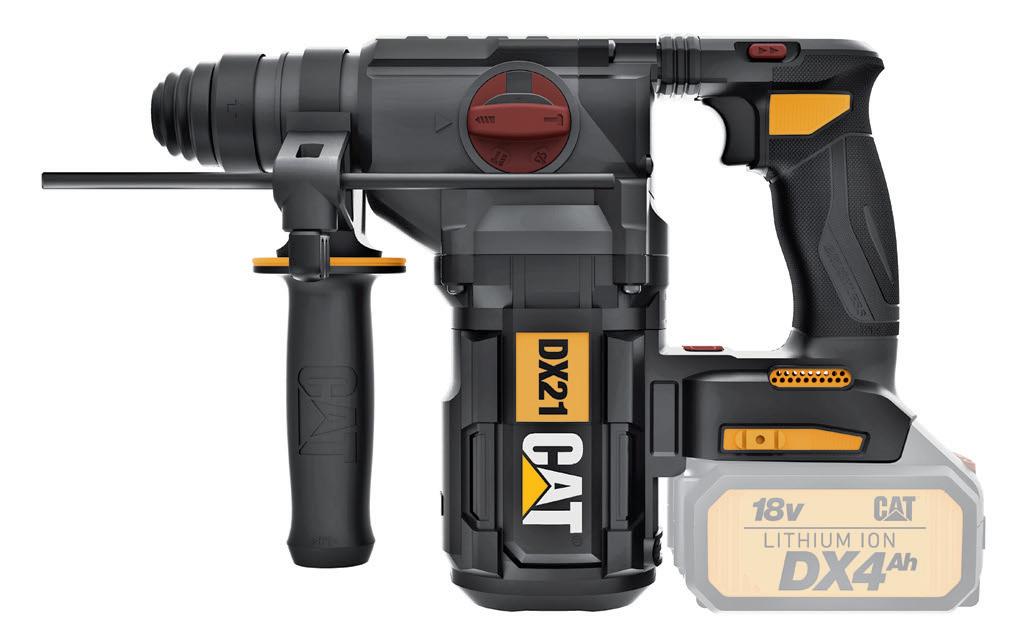

Features
• Brushless motor
• Dual overload protection
• Anti vibration design
• Rubber over mould grip
• Variable speed trigger
• Electronic impulse function for ceramic drilling
• LED light
Applications
• Heavy duty demolition drilling, chipping & chiselling
Includes
• DX21 Rotary Hammer (x1)
• DXB4 Lithium Battery (x2)
• DXC4 Charger (x1)
• Depth Stop Gauge | Carry Case
Specifications
Chuck
Max
Functions

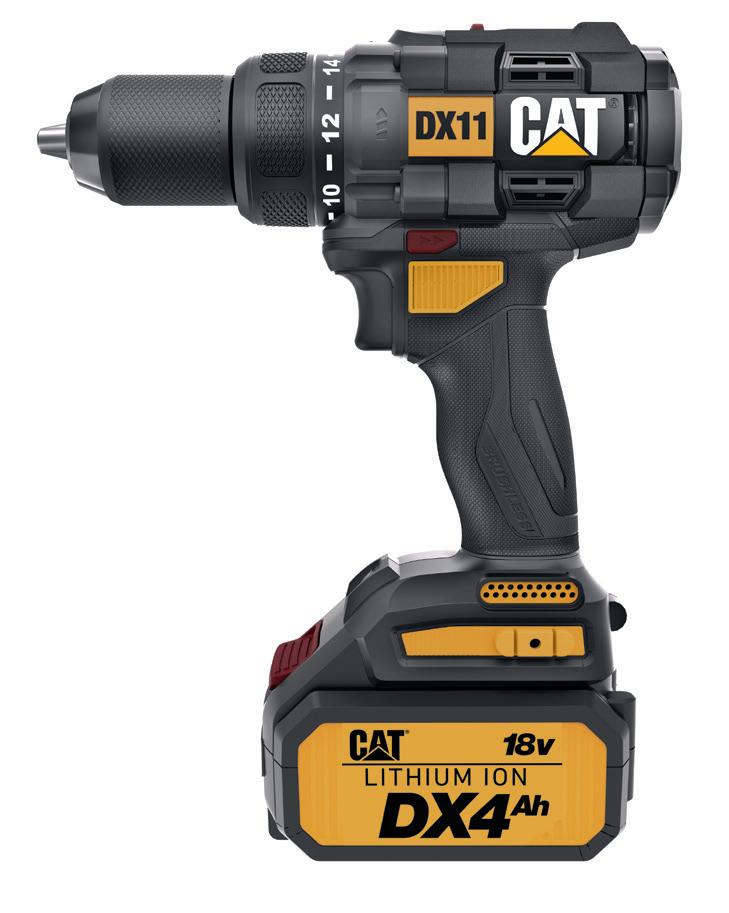

CAT® 18V Brushless Drill Driver Kit 65Nm
Features
• Brushless motor
• Two speed gear box
• Rubber over mould grip
• Variable speed trigger
• LED light Applications
• Medium duty drilling into wood & metal
Includes
• DX11 Drill Driver (x1)
• DXB4 Lithium Battery (x2)
• DXC4 Charger (x1)
• Belt Clip | Carry Case

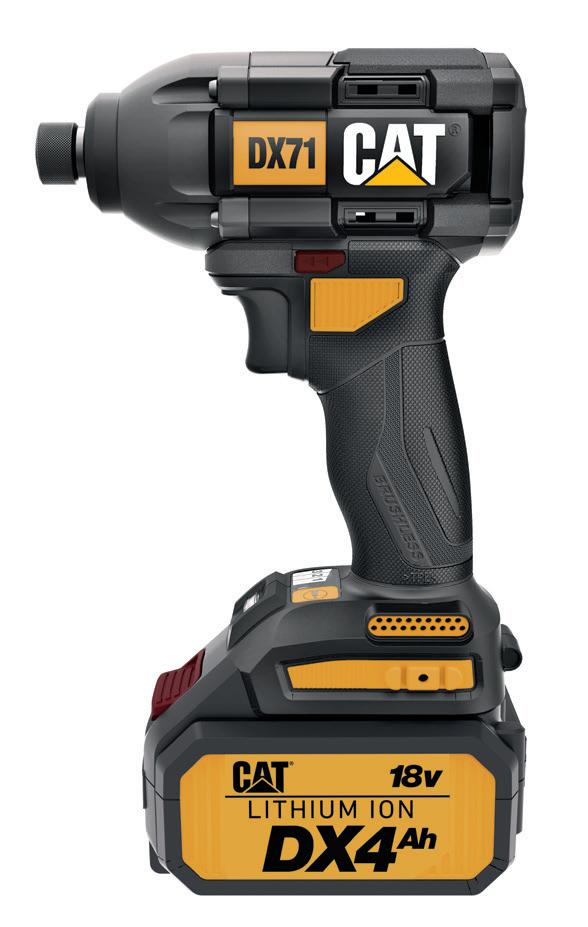

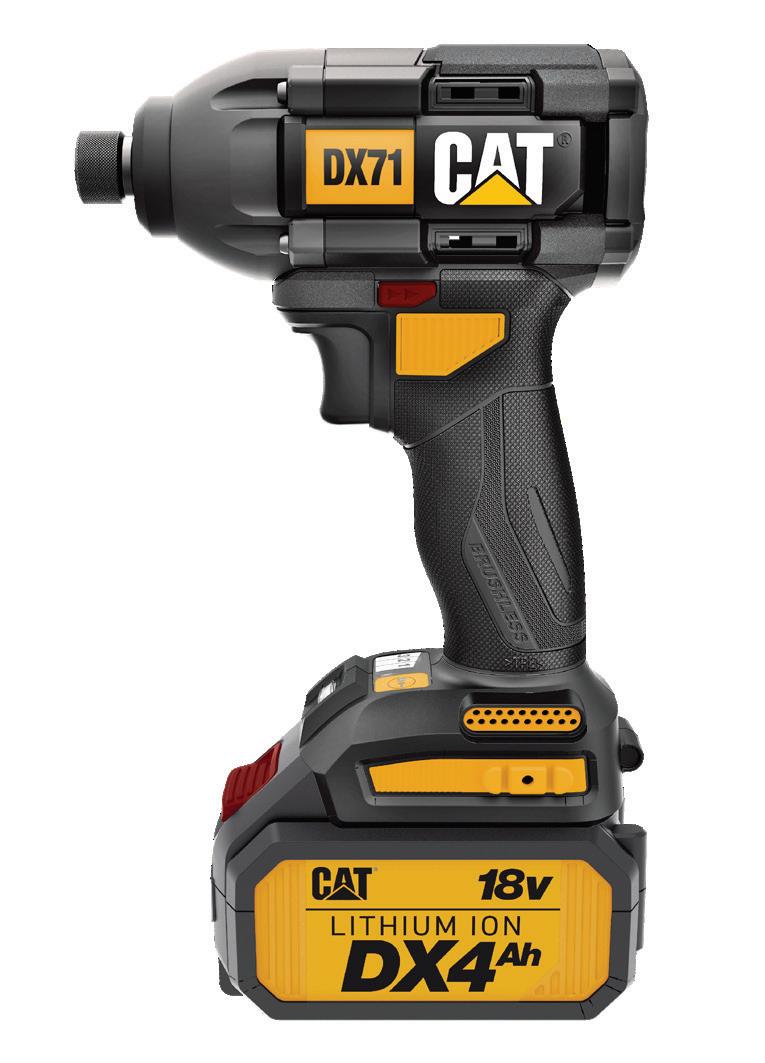

CAT® 18V Brushless 3 Speed
Impact Driver Kit
DX712B4K
Features
• Brushless motor
• 3 speed selections for control
• Rubber over mould grip
• Variable speed trigger
• LED light Applications
• Impact driving of fasteners
Includes
• DX71 Impact Driver (x1)
• DXB4 Lithium Battery (x2)
• DXC4 Charger (x1)
• Belt Clip | Carry Case
Specifications
Chuck

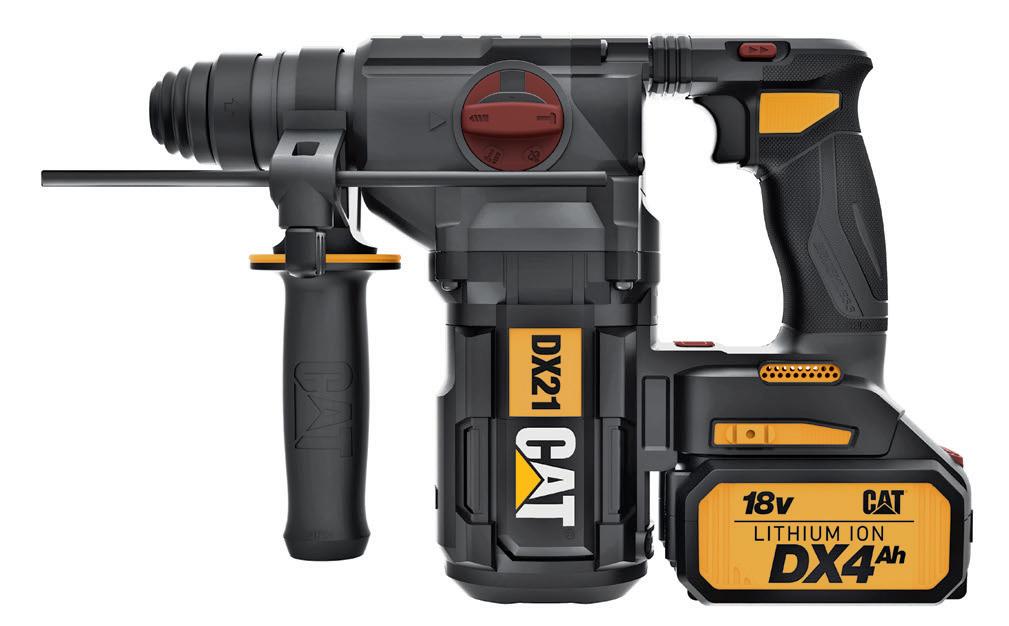

CAT® 18V Brushless Rotary Hammer Drill Skin Only
Features
• Brushless motor
• Dual overload protection
• Anti vibration design
• Rubber over mould grip
• Variable speed trigger
• Electronic impulse function for ceramic drilling
• LED light Applications
• Heavy duty demolition drilling, chipping & chiselling
Includes
• DX21 Rotary Hammer Drill (x1)
• Auxiliary Handle | Depth gauge
Specifications
Functions
CAT® 18V Brushless 3 Speed Impact Driver
Skin Only
Features
• Brushless motor
• 3 speed selections for control
• Rubber over mould grip
• Variable speed trigger
• LED light Applications
• Impact driving of fasteners
Includes
• DX71 Impact Driver (x1)
• Belt Clip
Specifications
Chuck

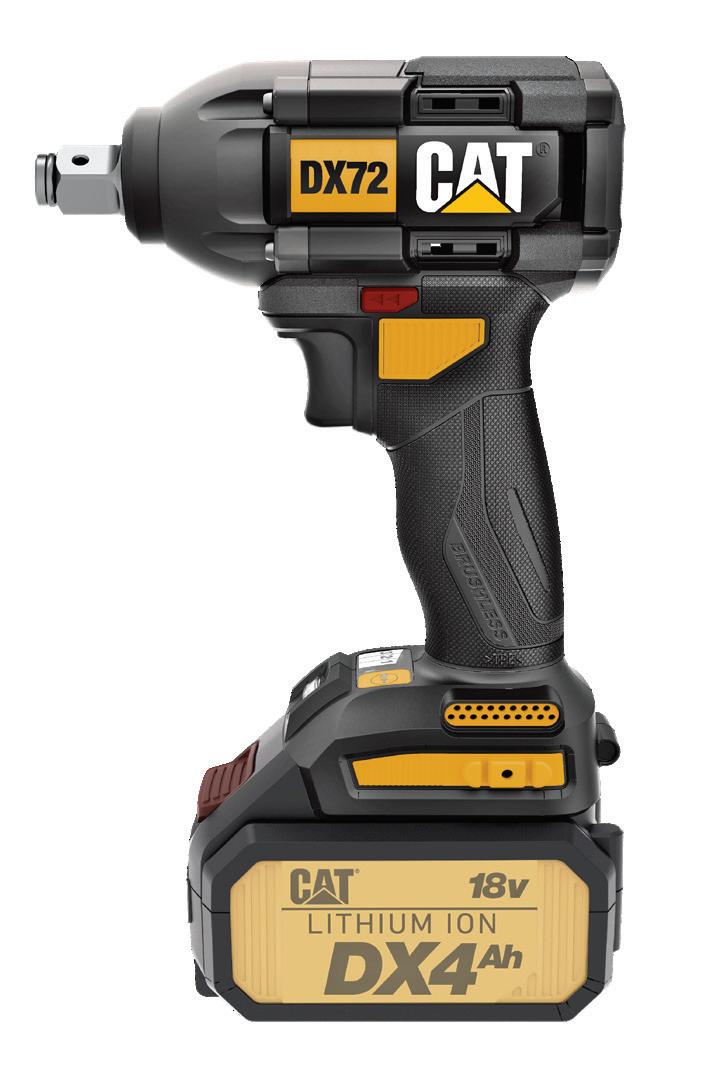

CAT® 18V Brushless 1/2” Drive
Compact Impact Wrench Skin Only
Features
• Brushless motor
• 3 speed selections for control
• Rubber over mould grip
• Variable speed trigger
• LED light Applications
• Use with impact rated sockets
Includes
• DX72 Impact Driver (x1)
• Belt Clip
Specifications
Chuck 1/2in Anvil
No Load Speed
0-1300/2100/3200 RPM
Max Torque 350Nm
Impact Rate
0-1300/2900/3600 BPM

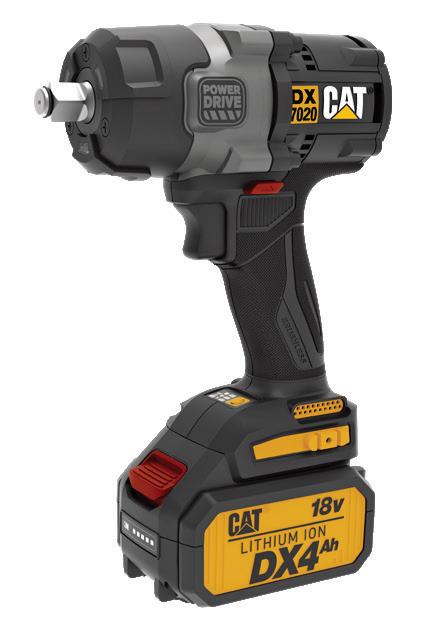

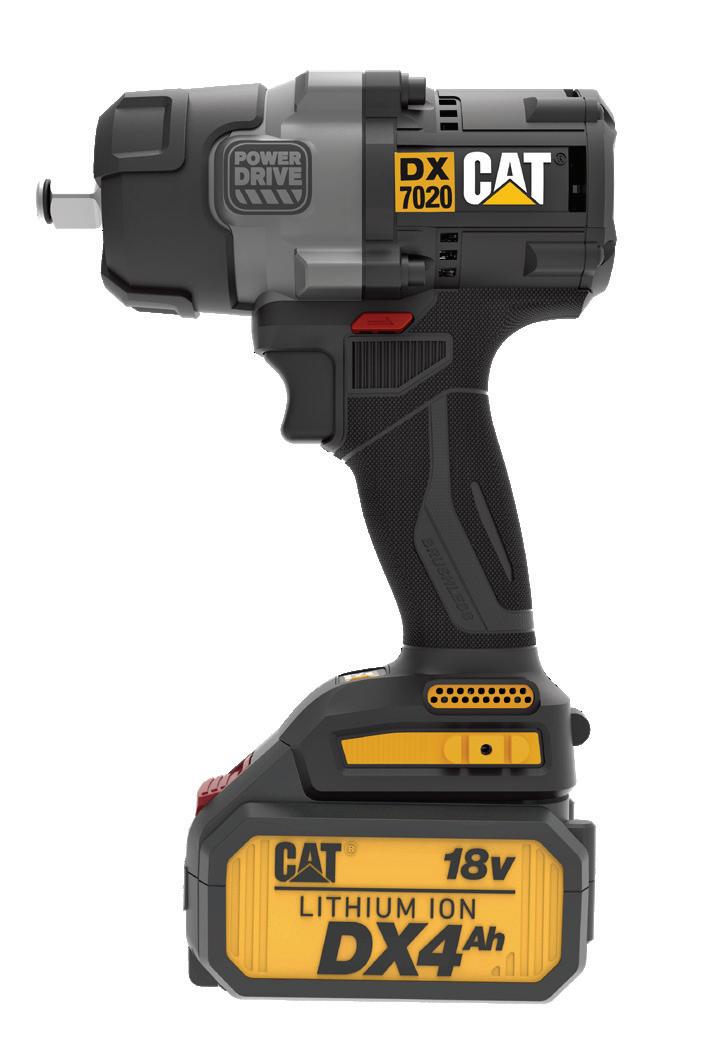

CAT® 18V Brushless 1/2” Drive
Mid-Torque Impact Wrench Skin Only
DX7020B
Features
• Brushless motor
• 3 speed selections for control
• Rubber over mould grip
• Variable speed trigger
• LED light Applications
• Use with impact rated sockets
Includes
• DX7020 Impact Driver (x1)
• Belt Clip
Specifications
Chuck 1/2in Anvil
No Load Speed
0-1400/2000/2400 RPM
Max Torque 700Nm
Impact Rate
0-1500/2300/2800

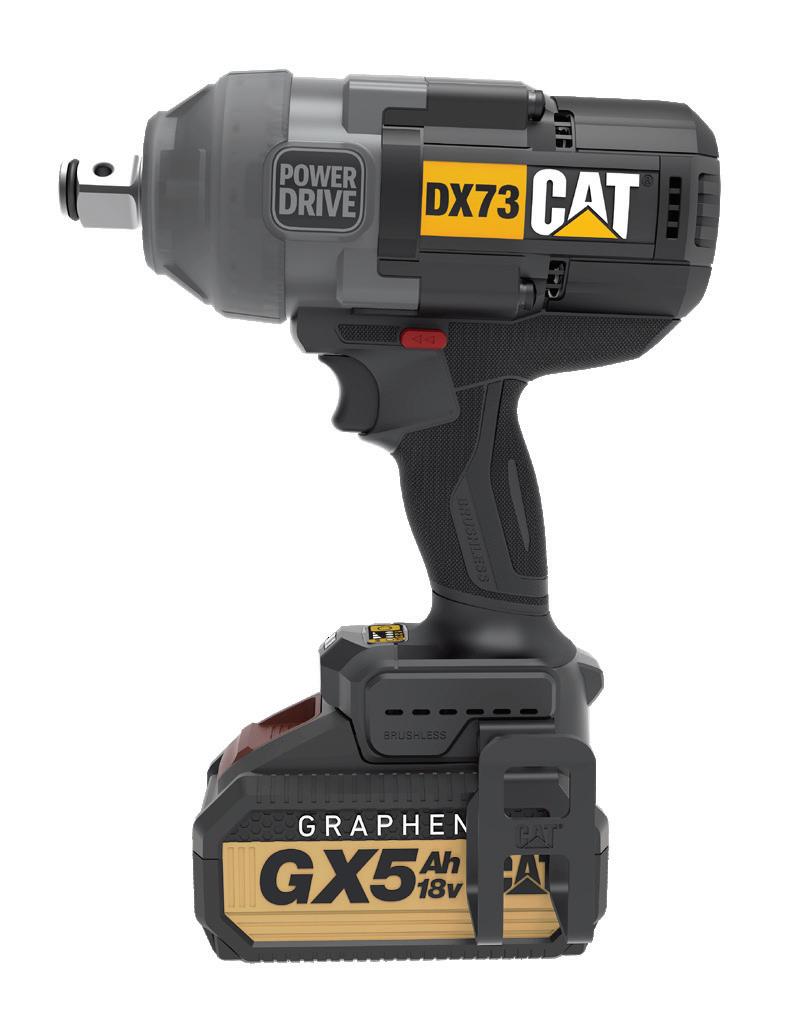

CAT® 18V Brushless 3/4” Drive
High-Torque Impact Wrench Skin Only
DX73B
Features
• Brushless motor
• 3 speed selections for control
• Rubber over mould grip
• Variable speed trigger
• LED light Applications
• Use with impact rated sockets Includes
• DX73 Impact Wrench (x1)
• Belt Clip
Specifications
Chuck 3/4in Anvil
No Load Speed
0-900/1100/1800 RPM
Max Torque 1700Nm
Impact Rate
0-100/1600/2400 BPM

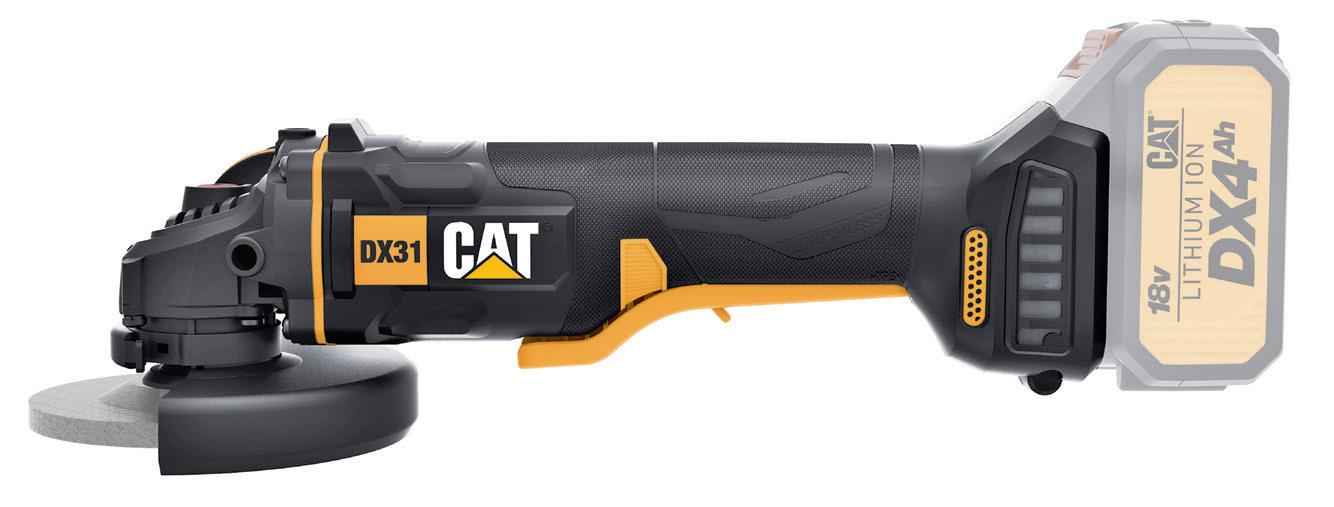

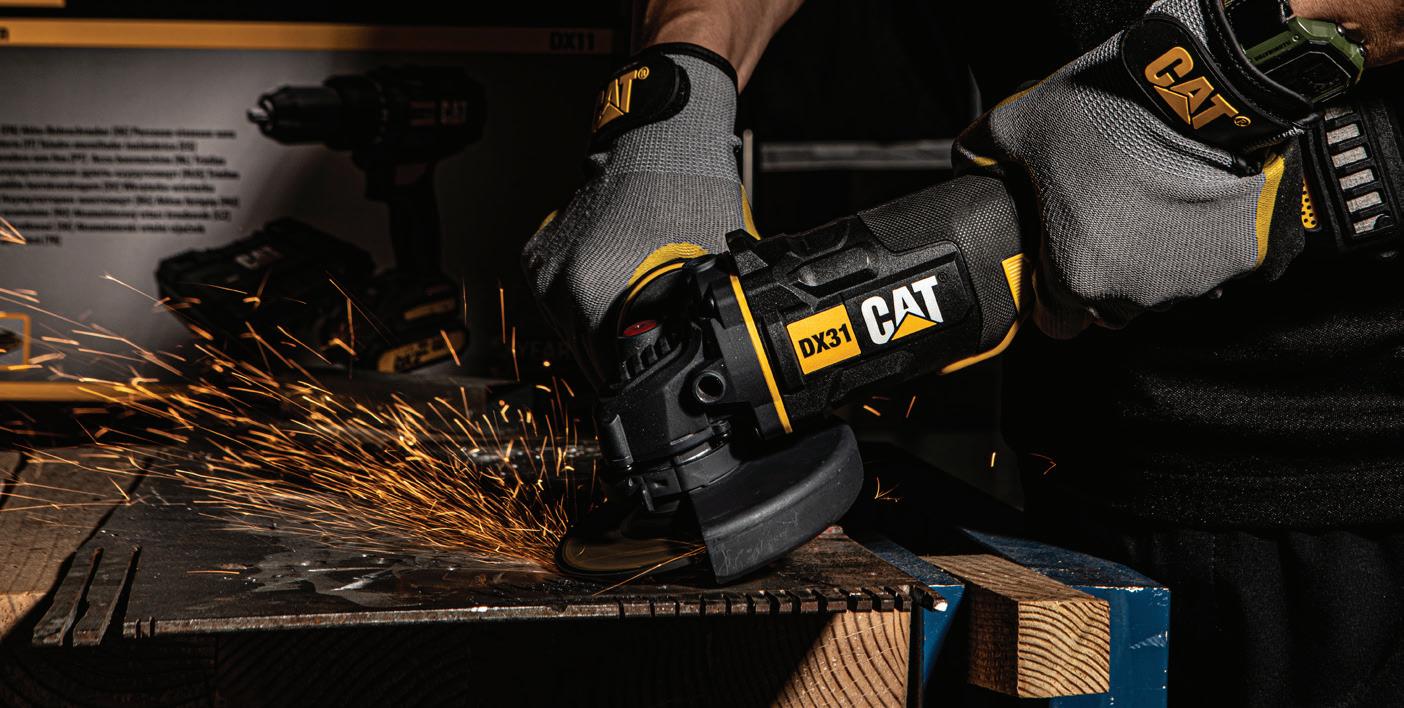

CAT® 18V Brushless 115-125mm Angle
Grinder
Skin Only
Features
• Brushless motor
• 3 Position auxiliary handle
• Rubber over mould grip
• Dust filter
• Overload protection
• Slim design Applications
• Cutting and light grinding of metal and masonry
Includes
• DX31 Angle Grinder (x1)
• 2 in 1 Guard | Handle | Spanner Specifications

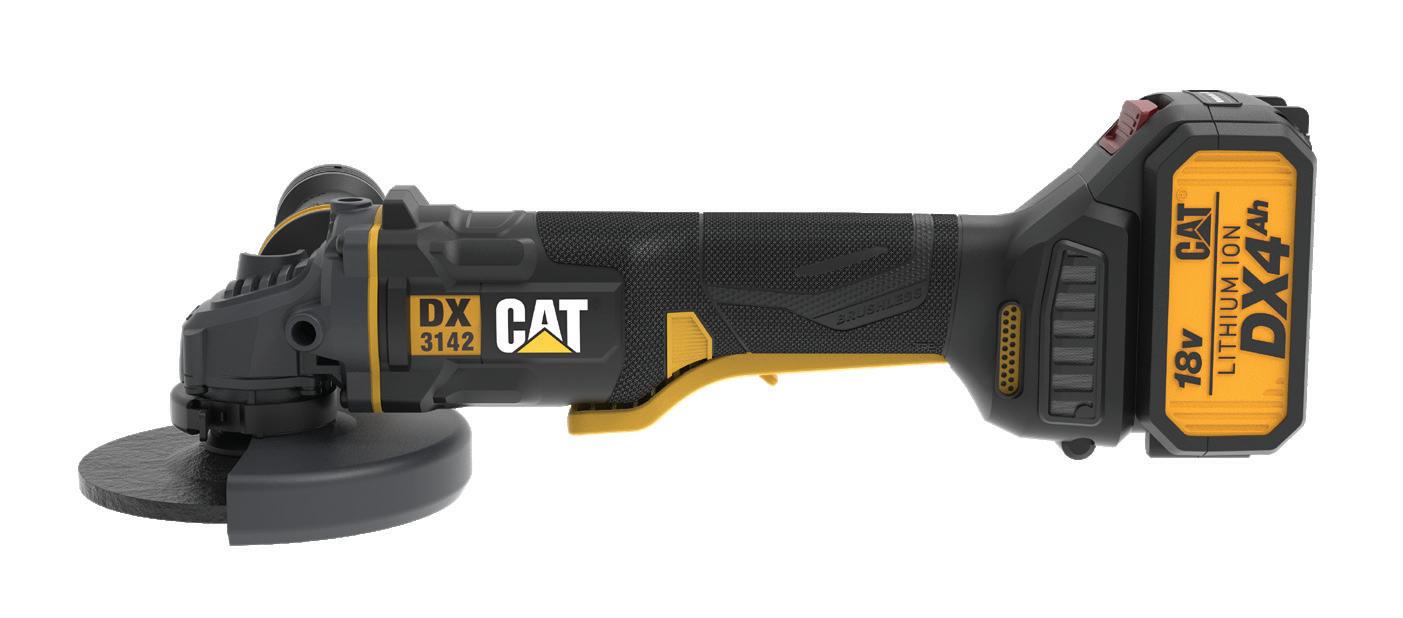

CAT® 18V Brushless 125mm Angle Grinder
Skin Only – Paddle Switch
DX3142B
Features
• Brushless motor
• 3 Position auxiliary handle
• Rubber over mould grip
• Dust filter
• Overload protection
• Slim design Applications
• Cutting and light grinding of metal and masonry Includes
• DX3142 Angle Grinder (x1)
• 2 in 1 Guard | Handle | Spanner

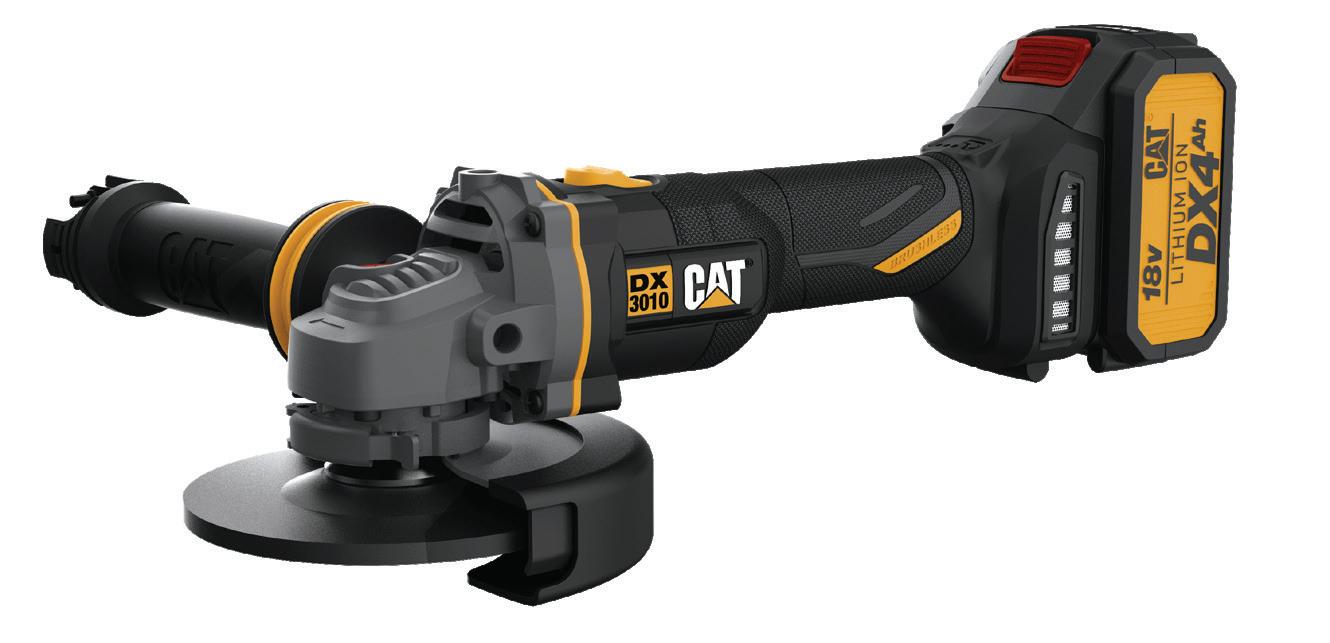

CAT® 18V Brushless 125mm Angle Grinder
Skin Only – Slide Switch
DX3010B
Features
• Brushless motor
• 3 Position auxiliary handle
• Rubber over mould grip
• Dust filter
• Overload protection
• Slim design Applications
• Cutting and light grinding of metal and masonry Includes
• DX3010 Angle Grinder (x1)
• 2 in 1 Guard | Handle | Spanner
Specifications

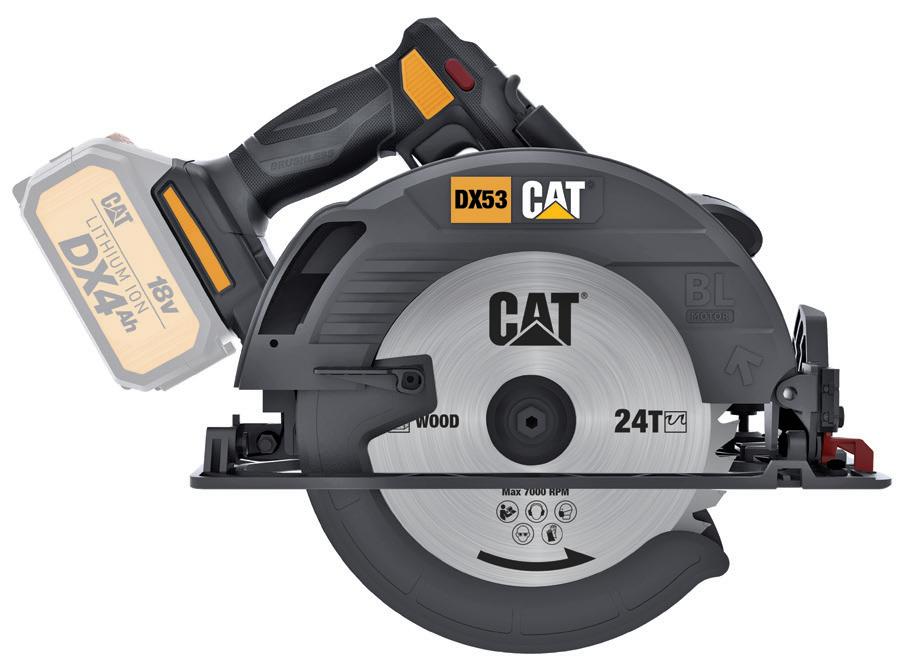

CAT® 18V Brushless 184mm Circular Saw
Skin Only
DX53B
Features
• Brushless motor
• Spindle lock
• Lock off switch
• Rubber over mould grip
• LED light
• Metal rafter hook
• Overload protection
• Electronic brake
• Magnesium alloy base & aluminium blade guard
Applications
• Cutting wooden material
Includes
• DX53 Circular Saw (x1)
• 24T Cutting Blade (x1)
• Hex Key | Guide | Dust adaptor Specifications

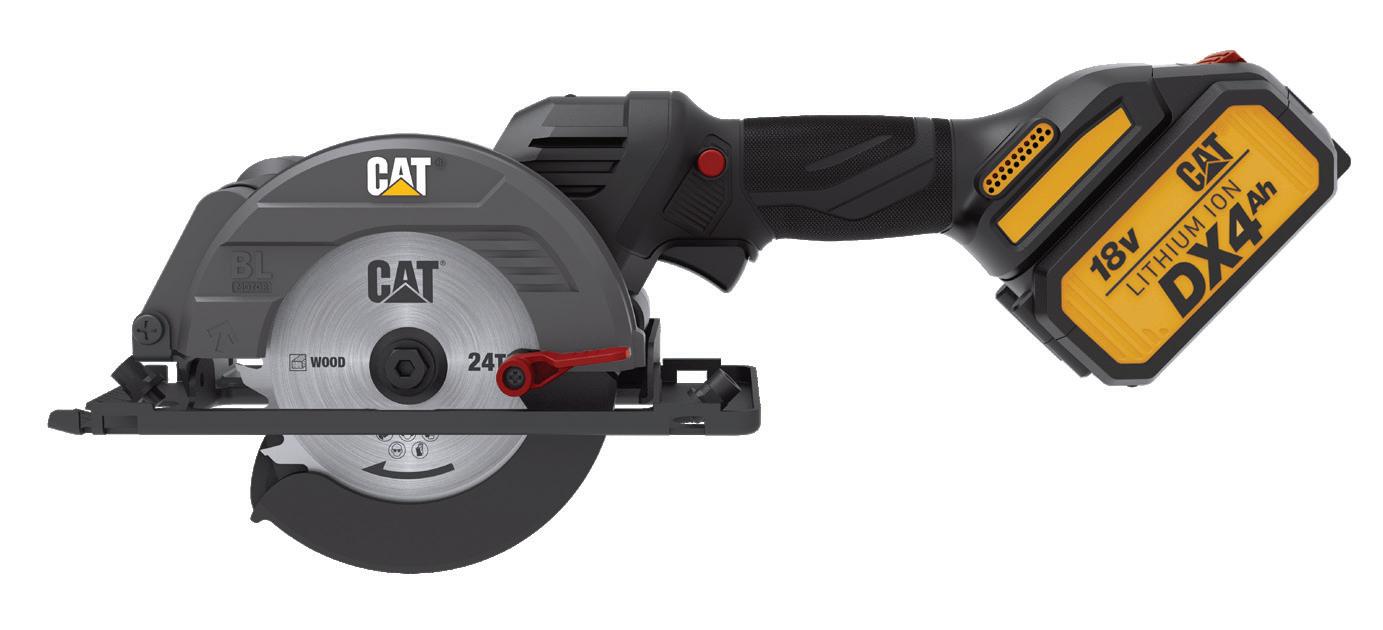

CAT® 18V Brushless 120mm Circular Saw
Skin Only
DX5010B
Features
• Brushless motor
• Spindle lock
• Slim body design
• Rubber over mould grip
• LED light
• Multi material saw
• Quick depth adjustment Applications
• Cutting multiple materials Includes
• DX5010 Circular Saw (x1) • 24T TCT Blade (x1) | 60T HCS Blade (x1)
• 60G Diamond Blade (x1) • Hex Key | Guide | Dust adaptor
Specifications

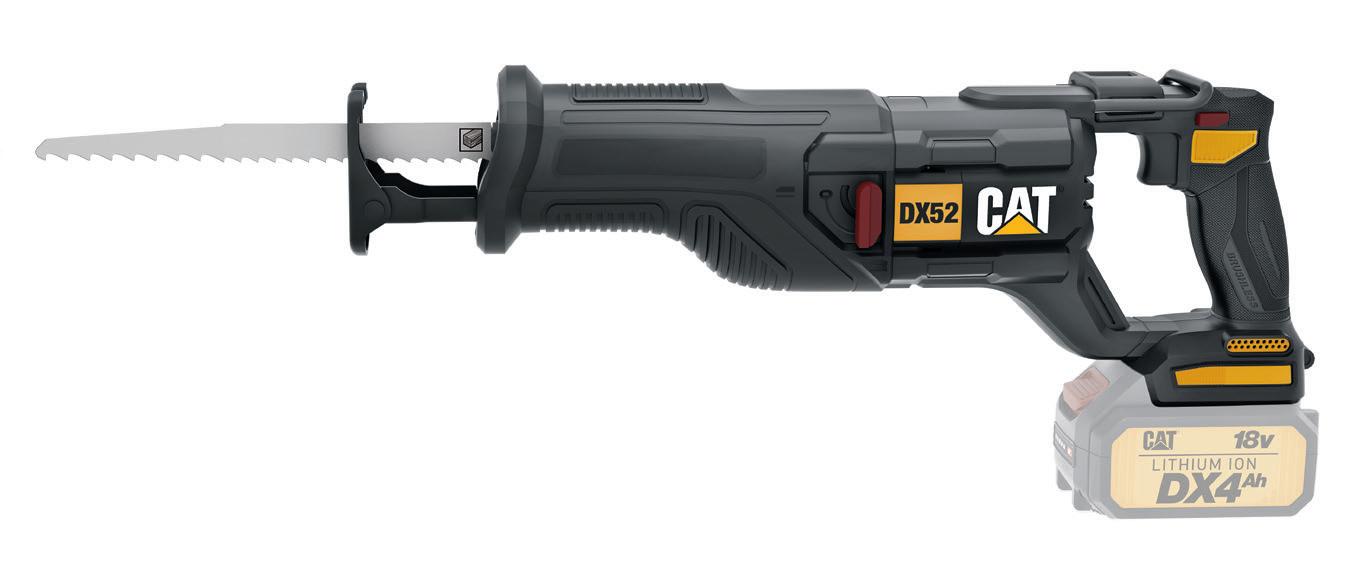

CAT® 18V Brushless Reciprocating Saw
Skin Only
Features
• Brushless motor
• Variable speed
• Aluminium gear box
• Pendulum cutting function
• Tool free blade change
• Rubber over mould grip
• Tool free pivot foot plate adjustment
• LED light
• Metal rafter hook
Applications
• Demolition cutting multiple materials
Includes
• DX52 Reciprocating Saw (x1)
• Wood Cutting Blade (x1)
Specifications

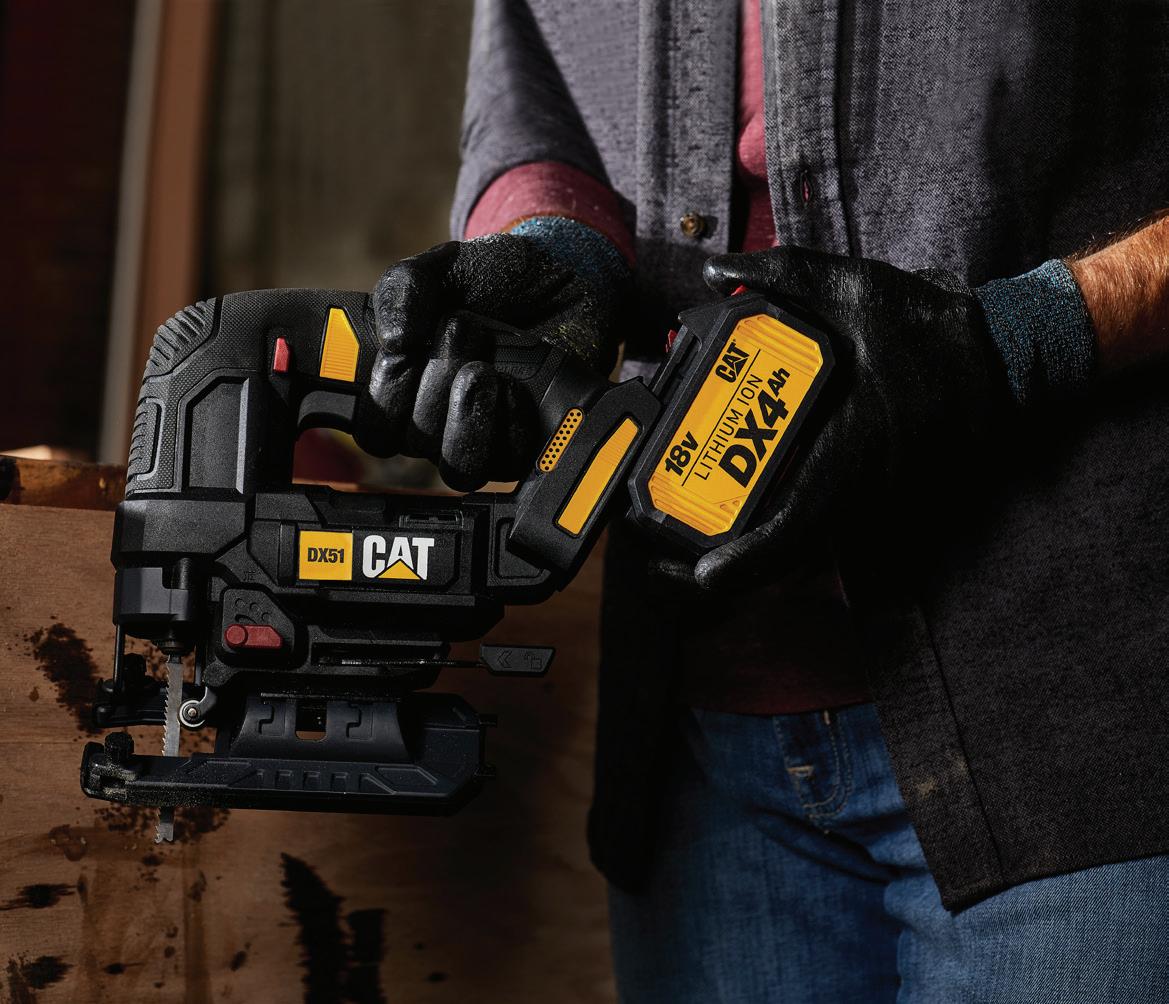

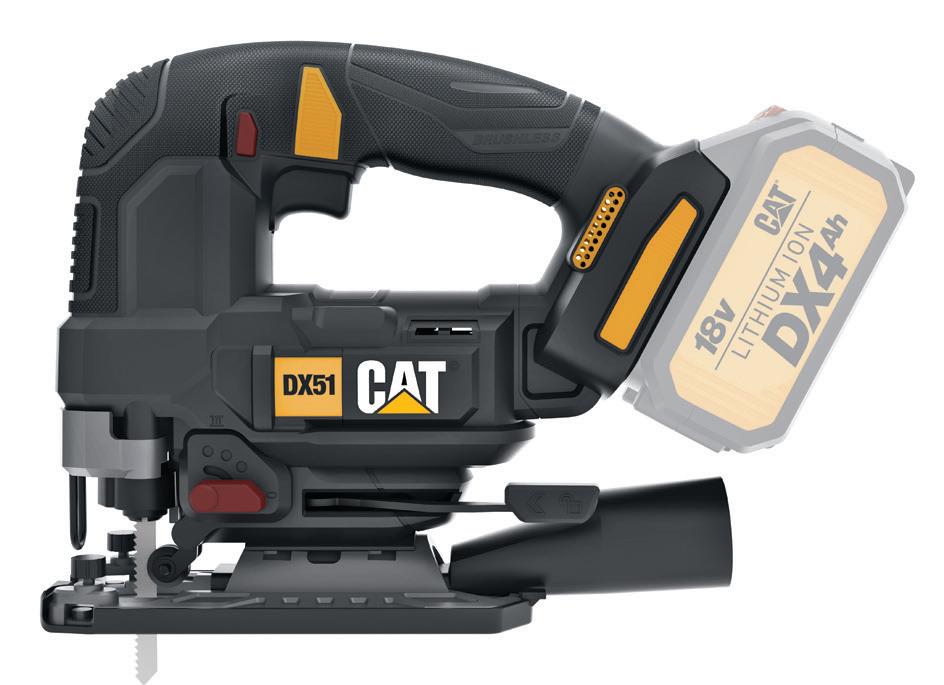

CAT® 18V Brushless D-Handle Jigsaw
Skin Only
Features
• Brushless motor
• Tool free base bevel adjustment
• Rubber over mould grip
• Lock-off switch prevents accidental start up
• 4 stage pendulum settings
• Variable speed
• Tool free blade change system
Applications
• Fine work and trimming multiple materials
Includes
• DX51 Jigsaw (x1)
• Wood Cutting Blade (x1)
• Cutting guide | Dust adaptor | Base cover
Specifications

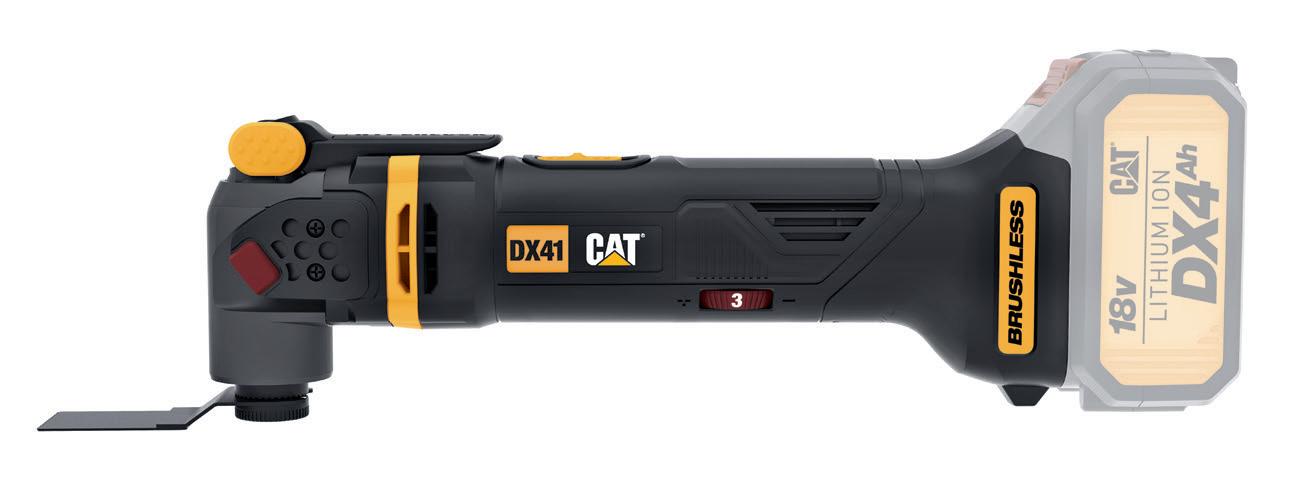

CAT® 18V Brushless SDS Oscillating Tool
Features
• Brushless motor
• Variable speed control
• Slim body design
• Rubber over mould grip
• Tool less blade change system
• Dual LED light
• Universal style of blade fitment
Applications
• Multi function finishing, detailing, cutting & sanding
Includes
• DX41 Multitool (x1)
• Rigid scraping blade (x1)
• HSS segment saw blade (x1)
• Wood plunge cutting blade (x1)
• Metal cutting blade (x1)
• 9pc Sanding sheets (40, 80, 120G x3 each)
• Sanding base (x1) Specifications

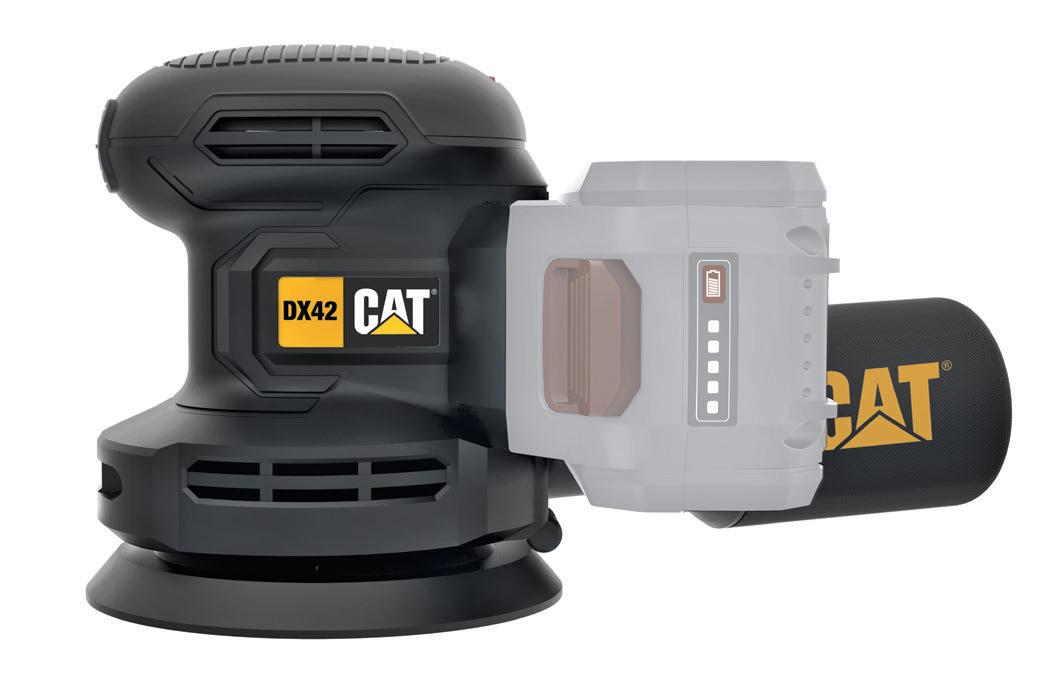

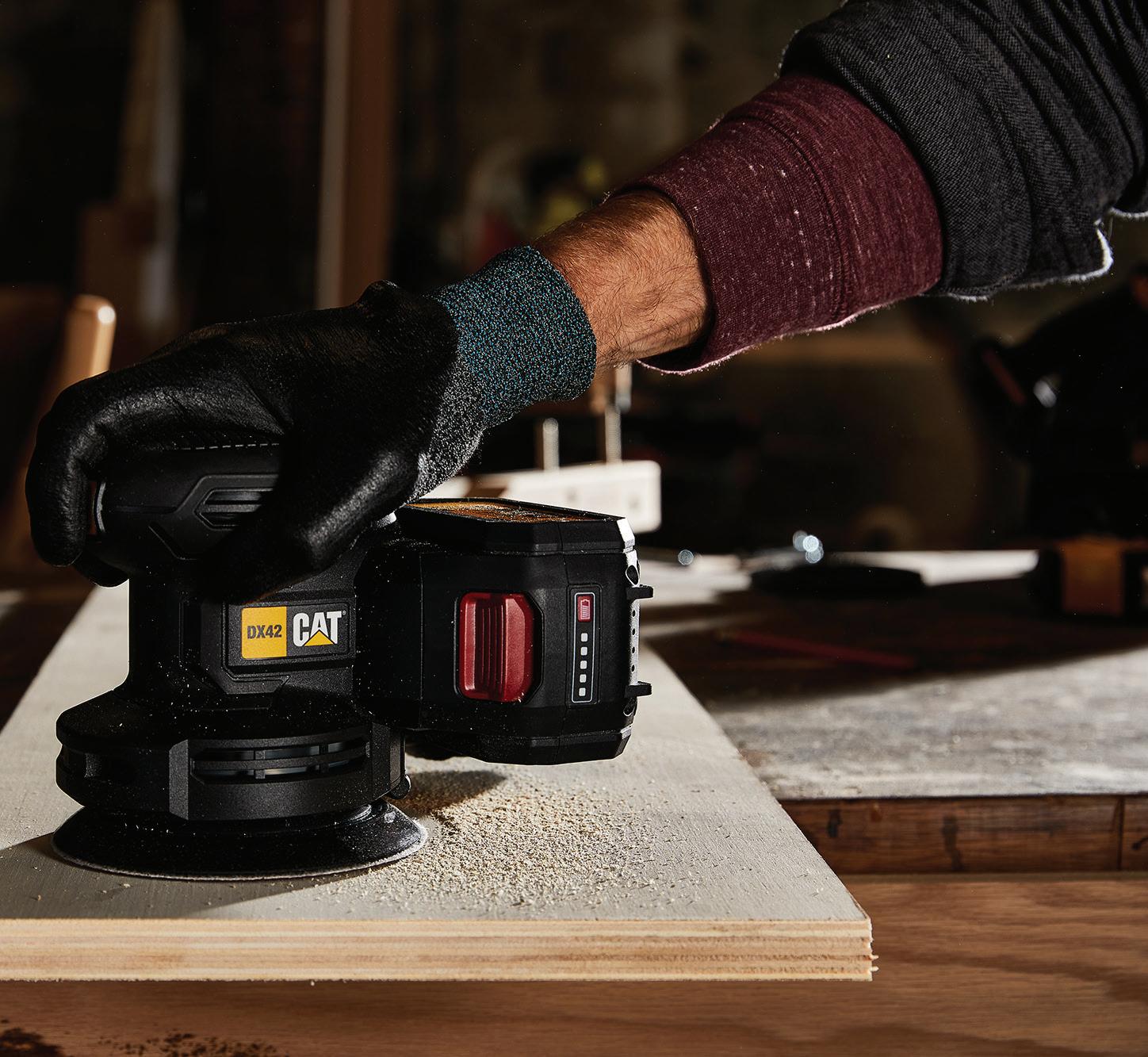

CAT® 18V 125mm Orbital Sander Skin Only
Features
• Sanding & polishing 2 in 1 function
• Hook and loop base
• Variable speed control
• Dust collection system
• On/off switch
• Pad brake system
• Rubber over mould grip
Applications
• Sanding and polishing of various materials
Includes
• DX42 Sander (x1)
• Dust bag (x1)
• 150mm polishing foam pad
• 3pc sandpaper (60, 80, 120 G)
Specifications

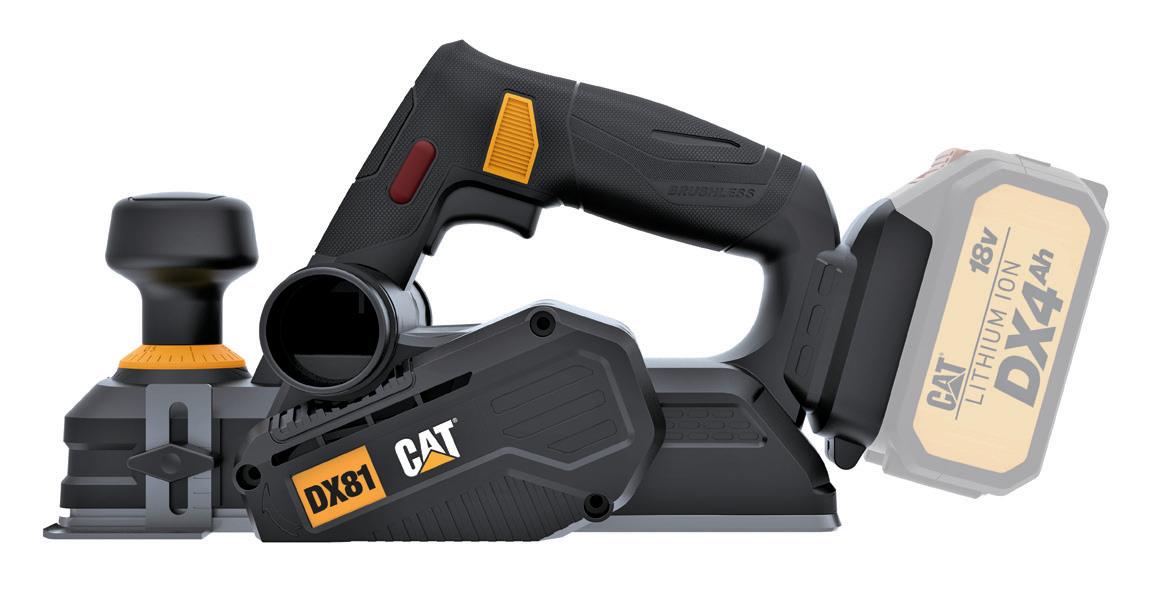

CAT® 18V Brushless 82mm Planer Skin Only
Features
• Brushless motor
• Overload protection
• Right side dust ejection port
• Aluminium base with V-groove
• Rest stand to protect work piece
• Micro cutting depth adjustment
• Rubber over mould grip
Applications
• Removal of layers of wooden product
Includes
• DX81 Planer (x1)
• 2pc TCT Blades (fitted)
• Rebate guide | Dust bag | Hex key
• Spanner | Cutting guide
Specifications

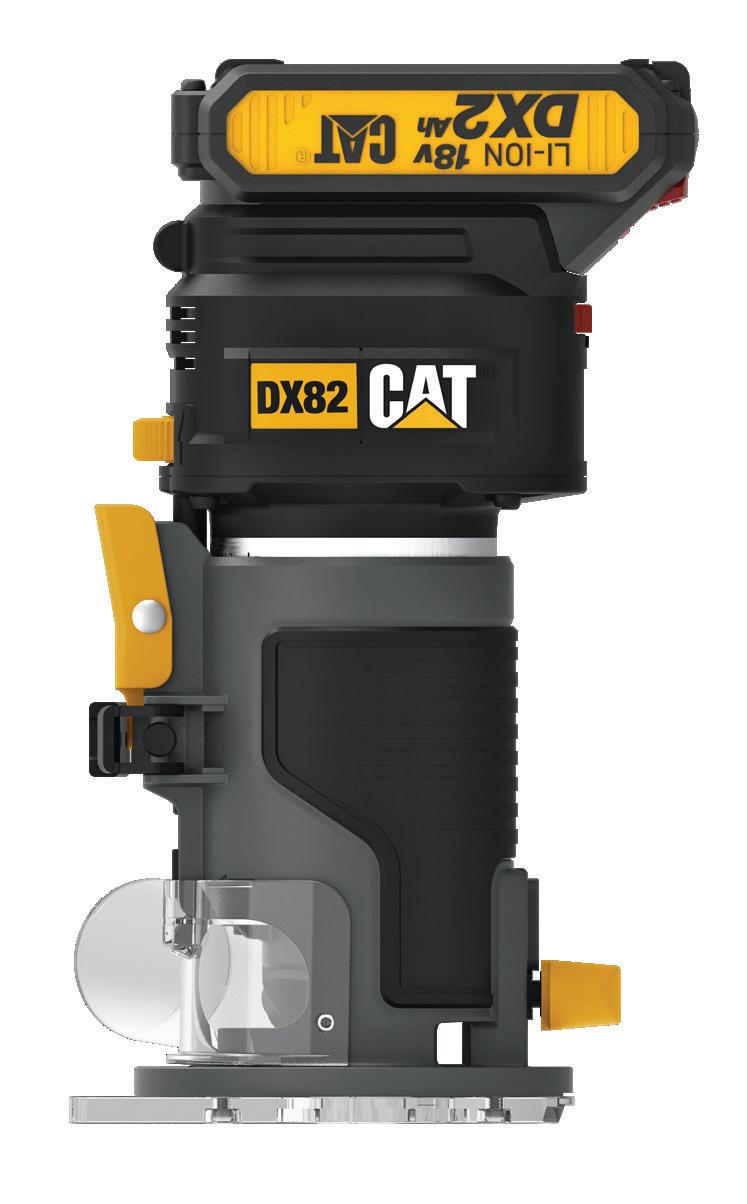

CAT® 18V Brushless Trim Router Skin Only
Features
• Brushless motor with constant speed technology
• Aluminium base
• Variable speed
• Soft start
• Micro depth adjustment
• On/off switch
• Spindle lock
• Rubber over mould grip
• LED light
• Accidental start protection
Applications
• Edge finishing for wooden materials
Includes
• DX82 Trim Router (x1)
• ¼ inch collet
• Collet wrench
• Trim base | Straight edge guide | Dust shroud
Specifications Max

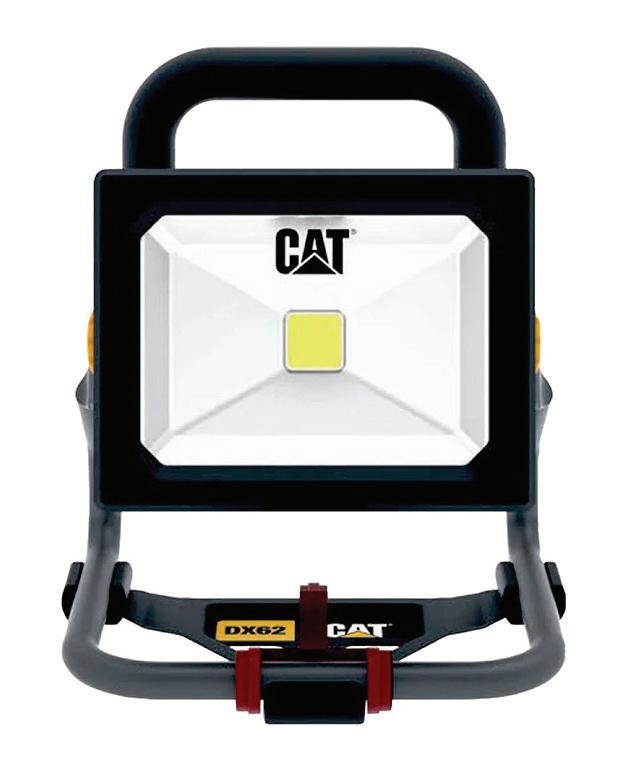

CAT® 18V Work Light Skin Only
Features
• 2 modes – Super bright & energy saving
• LED light for long life and low heat
• 360-degree rotating head
• Portable design
• Sturdy & lightweight
• Sealed waterproof switch
Applications
• Lighting applications on a jobsite
Includes
• DX62 Work light (x1)
Specifications
CAT® 18V Torch Skin Only
Features
• 2 modes
• LED light for long life and low heat
• Rubber over mould grip
• Portable design
• Integrated hook
• Adjustable rotatable head Applications
• Lighting applications on a jobsite
Includes
• DX63 Work light (x1)
Specifications

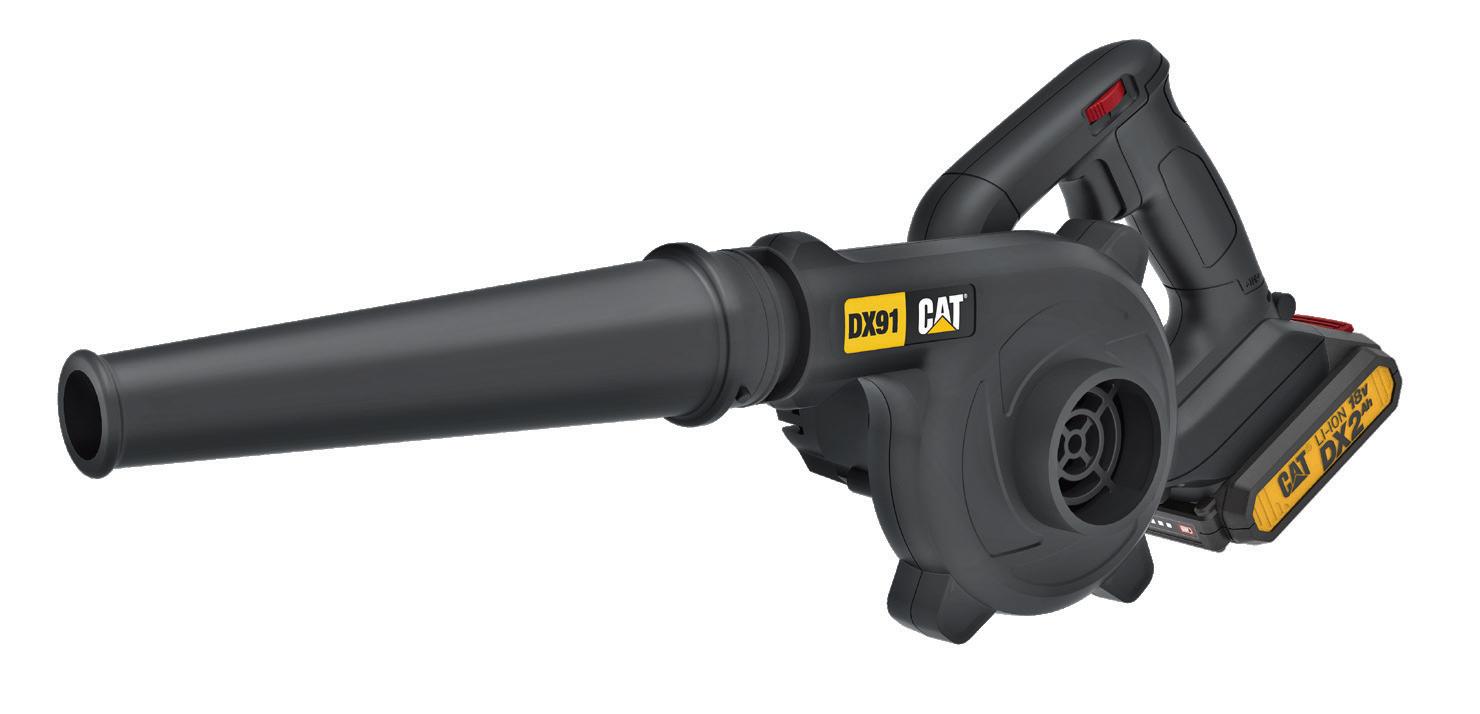

CAT® 18V Jobsite Blower Skin Only
Features
• 3 speed selections
• Rubber over mould grip
• ABS housing
• Powerful blower function
• Rubber nozzle Applications
• Clean up on the jobsite
Includes
•
•
•
Specifications
Air Flow Speed
No Load Speed
Speed 1 - 1.6 m3/min
Speed 2 - 2.2 m3/min
Speed 3 - 2.8 m3/Min
Speed 1 – 11000 RPM
Speed 2 – 15000 RPM
Speed 3 - 18000 RPM Tool

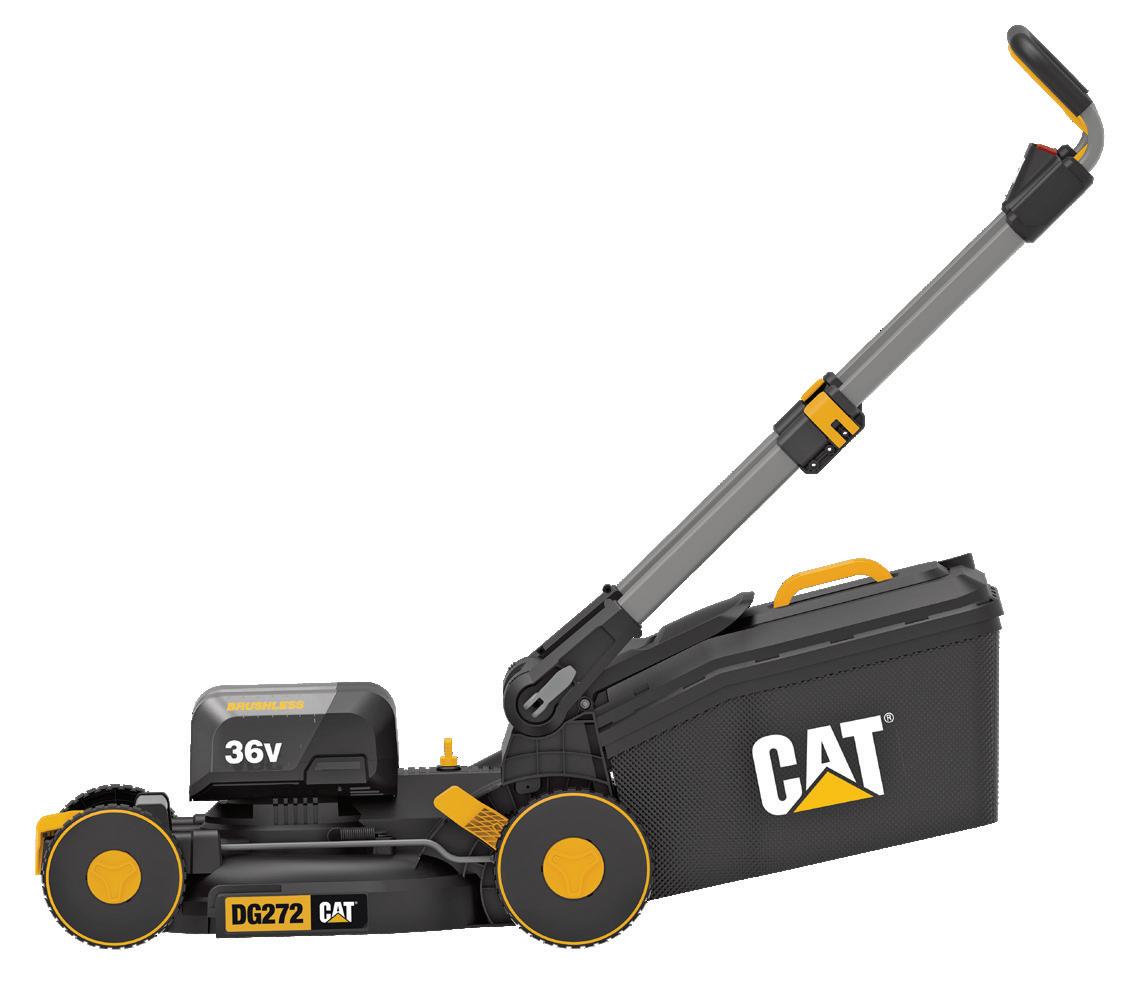

CAT® 2x 18V Brushless 410mm
Lawn Mower Kit
Features
• Intellicut technology constant cutting efficiency
• Brushless motor
• 2 in 1 – cutting & mulching functions
• Grass bag fill indicator
• Soft grip ergonomic handles
• Cuts up to deck edge
• Vertical storage
• One button quick release telescopic handles
• LED light
Applications
• Lawn mowing & maintenance
Includes
• DG272 Lawn Mower (x1)
• DXB4 Battery (x2)
• DXC42 Charger (x1)
• 50L Catcher (x1)
• Mulch Kit (x1)
Specifications
Max
Cutting
Cutting
Features
• Brushless motor
• Adjustable handle
• Intellicut technology constant cutting efficiency
• Dual line bump feed cutting head
• Compact and lightweight
• Foldable shaft for storage
• Gear driven transmission to deliver high torque Applications
• Lawn trimming & maintenance
Includes

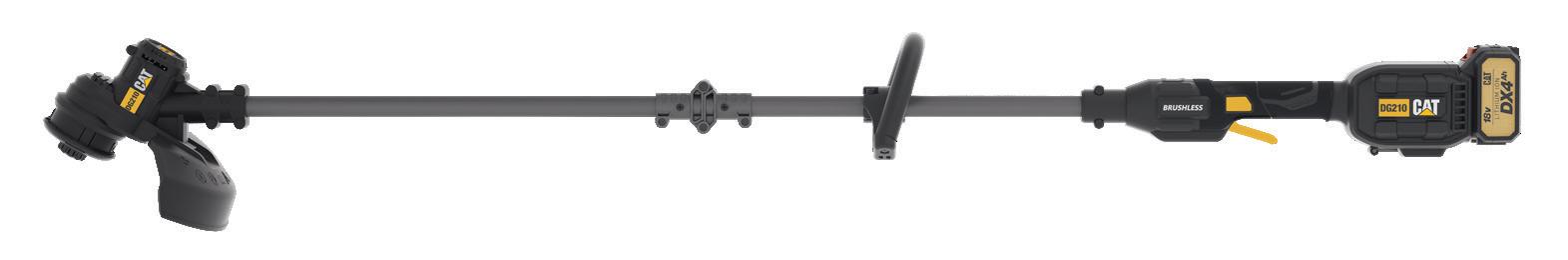

• DG210 Line Trimmer (x1)
• Handle (x1)
• Safety guard (x1)

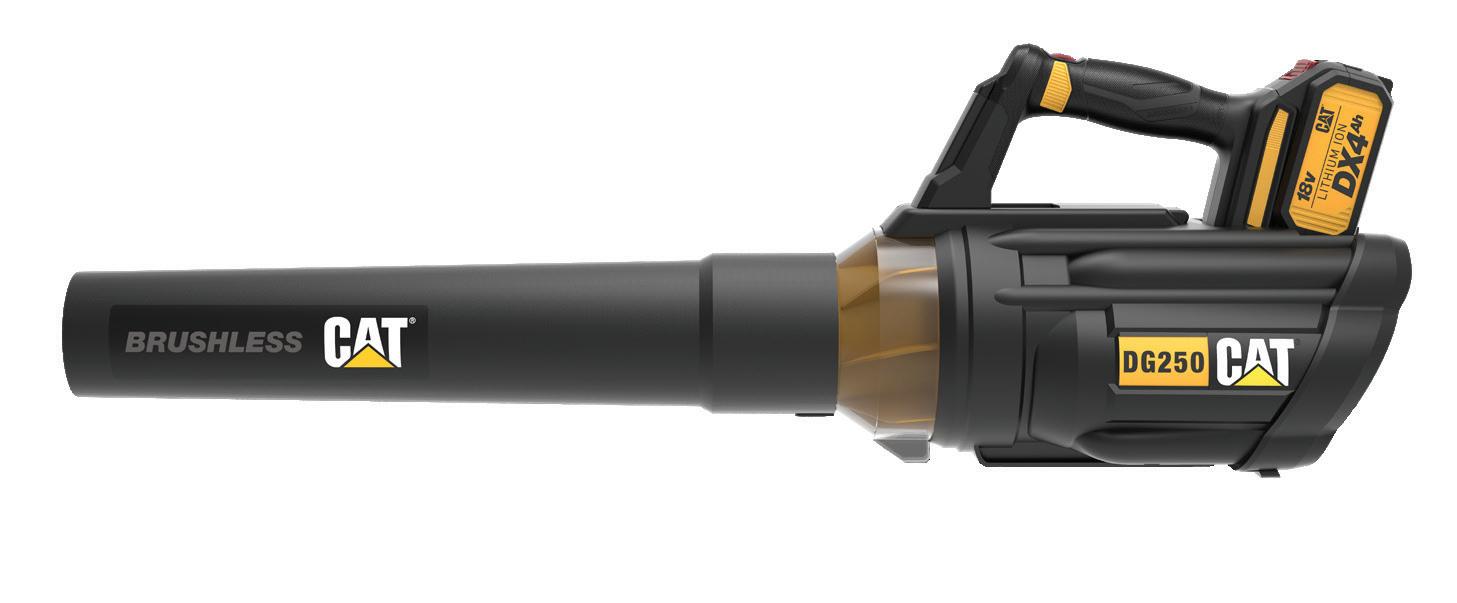

CAT® 18V Brushless 450CFM Jet Blower
Skin Only
DG250B
Features
• Brushless motor
• Variable speed trigger
• Light weight and ergonomic design
• High volume of air movement
• EVER BALANCE technology for use with different batteries
Applications
• Debris clean up in the garden & jobsite
Includes
• DG250 Jet Blower (x1)
Specifications

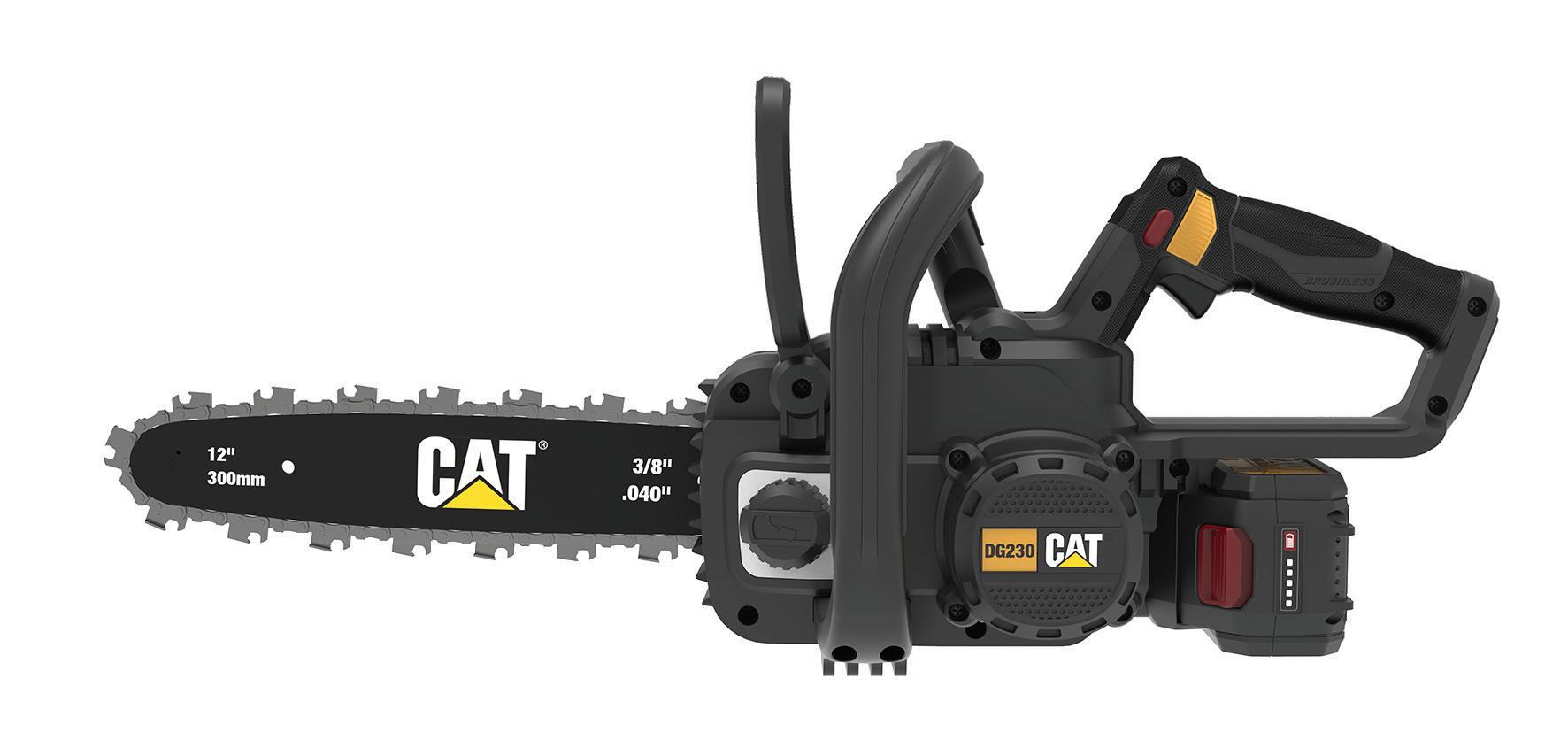

CAT® 18V Brushless 300mm Chainsaw
Skin Only
Features
• Brushless motor
• Auto chain lubrication
• Quick stop chain brake
• Auto kick back protection
• Overload indicator
• Tool free chain tensioner
• Compact & lightweight Applications
• Cutting trees & green debris
Includes
• DG230 Chainsaw (x1)
Specifications

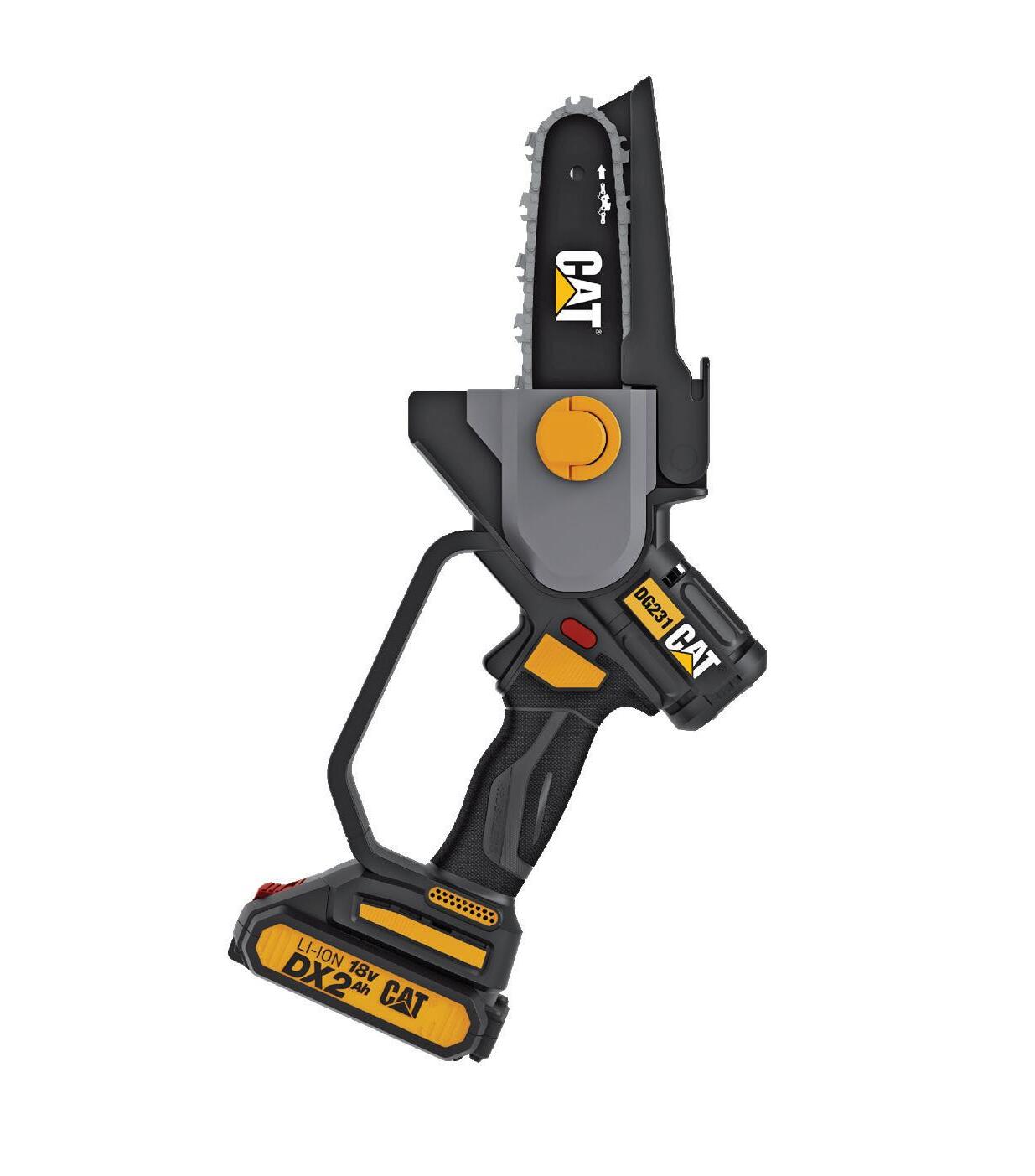

CAT® 18V Brushless 120mm Pruning Saw DG231B
Features
• Brushless motor
• Auto oiling system
• Quick stop chain brake
• Auto kick back protection
• Double lock switch for safety
• Tool free chain tensioner
• Compact & lightweight
• Upper safety guard
Applications
• Cutting trees & green debris
Includes
• DG231 Chainsaw (x1)
• 120mm Chain (x1)
• 120mm Bar (x1)
• Bar Cover (x1)
• Tool Kit | 40ml Lubrication Oil
Specifications
Bar Length

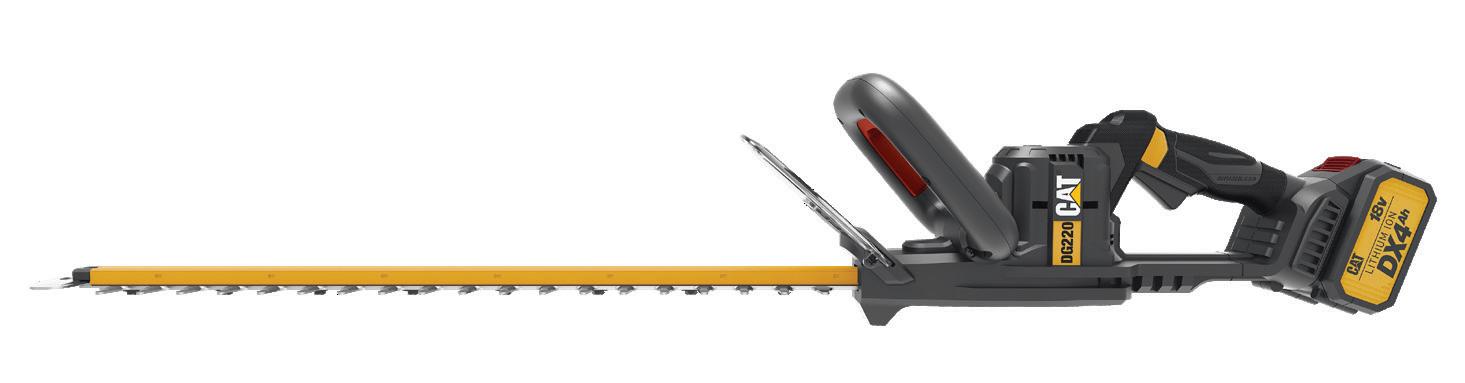

CAT® 18V Brushless 600mm Hedge Trimmer
Skin Only
Features
• Brushless motor
• Dual action safety switch
• Dual action blades for reduced vibration and smooth cutting
• STRIKE CUT function
• Large cut capacity
Applications
• Hedge trimming and maintenance
Includes
• DG220 Hedge Trimmer (x1)
• Safety guard (x1)
Specifications

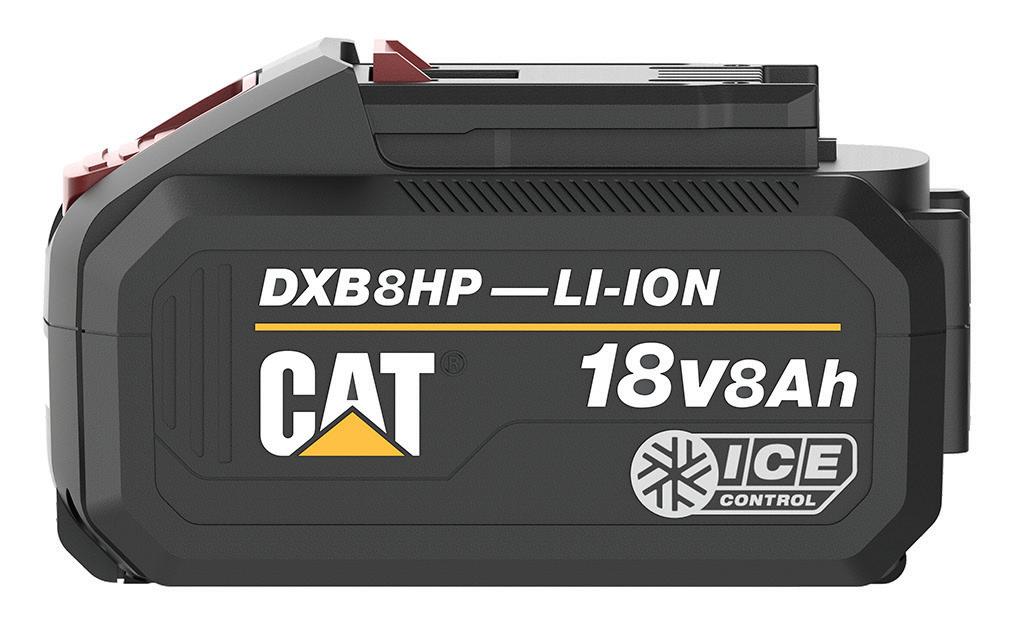

DXB8HP
Features
• Lithium-Ion chemistry
• Battery charge indicator
• 21700 battery cells
• 1.03kg Weight Includes
• DXB8HP Battery (x1)
Features
• Lithium-Ion chemistry
• Battery charge indicator
• 0.65kg Weight Applications
• Normal draw applications Includes
• DXB4 Battery (x1)
CAT® 18V 15Ah Fast Charger
DXC15
Features
• Super quick charging
• LED indicators
Applications
• Fast battery charging
Includes
• DXC15 Charger (x1)
Specifications
(bare)
CAT® 18V 4Ah Fast Charger
DXC4
Features
• Fast 4Ah charging
• LED indicators
Applications
• Battery charging Includes
• DXC4 Charger (x1)
Specifications
CAT® 18V 4Ah Battery & Charger Combo
Features
• Lithium-Ion chemistry
• Battery charge indicator
• Fast 4ah charging
• LED indicators Applications
• Normal draw applications
• Battery charging Includes
• DXB4 Battery (x1)
• DXC4 Charger (x1)
Specifications
Features
• 2x USB-A ports
• 5V Output
• Max 2A output when both ports being used
• LED light
• Belt clip Applications
• Charging portable devices Includes

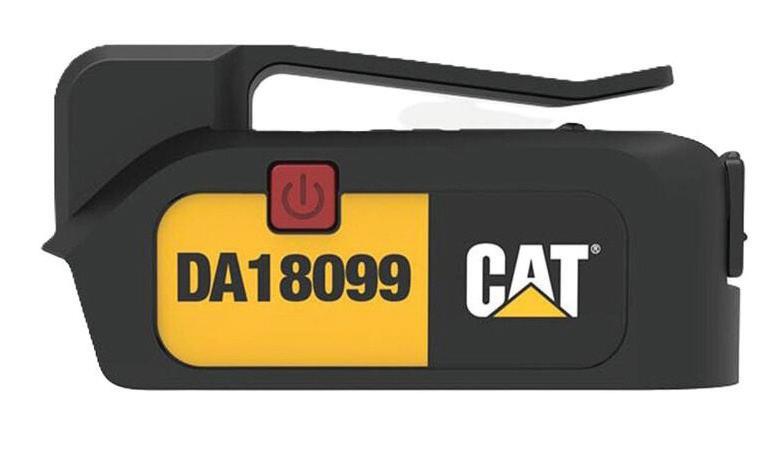

• DA18099 Adaptor (x1)
