CASE excavators are known for speed, power, responsiveness and reliability. And now, they're RELOADED with seven new E Series models that set a new industry standard for what operators care most about. The alreadylegendary CASE excavator lineup is stacked — from heavy production beasts in the quarry to some of the most productive short-radius and mid-sized machines you've ever seen and everything in between.

In this CASE exclusive, we'll review the CASE excavator lineup and the support, services and solutions that help provide you with a complete solution — making it easier, so you can get more done than ever before. Join us for more on machine control, collaborative fleet

YOUR CASE DEALER Equipment experts ready to support you and your business — collaborative fleet management, service, parts, rental and more — all to maximize your uptime

management, financing and more — and we'll share with you stories from the field on how CASE excavators have helped shape lives and businesses throughout North America.

THE LINEUP SPECIALTY EXCAVATORS CX290D MATERIAL HANDLER CX290D SCRAP & RECYCLING MID-SIZED EXCAVATORS CX75C SR | CX80C

2

SHORT-RADIUS EXCAVATORS CX145D SR | CX245D SR | CX365E SR NEW MODEL

NEW E SERIES FULL-SIZED EXCAVATORS CX140E | C170E | CX190E | CX220E | CX260E | CX300E NEW MODEL

HEAVY EXCAVATORS CX350D | CX490D | CX500D | CX750D

3

CASE E Series Excavators CX140E CX365E SR

BUILT ENTIRELY FOR THE OPERATOR Revolutionized. Reloaded. Re-energized. The entire lineup of full-sized conventional-tailswing CASE E Series excavators deliver new control and working features that elevate the operator experience to entirely new levels. Greater power, speed, precision and fuel efficiency — all within your reach. Join Brad Stemper, head of construction equipment product management in North America, as he takes you on a tour of some of the standout features of the new E Series lineup.

HYDRAULIC FLOW CONTROL BALANCE Throw greater priority to select movements based on your digging or truck loading style

THE ALL-NEW E SERIES EXCAVATORS CASE E SERIES EXCAVATOR WALKAROUND

YOUR NEW COMMAND CENTER A massive new 10-inch LCD display serves as the control center for each new machine and provides even greater access and visibility to cameras, machine data and controls. This includes the ability to customize your view (with rear, sideview and Max View™ perspectives) at the same time while still accessing machine data and controls — ensuring optimal visibility and jobsite awareness. The display includes extensive and intuitive customization capabilities that help the operator make the workspace their own.

4

NEW OPERATING MODES

NEW FPT INDUSTRIAL ENGINES*

Four modes. Up to 10 throttle settings. Extreme operator control.

Greater displacement, horsepower and torque, driving even more power and responsiveness for the operator.

NEW CONFIGURABLE BUTTONS

PROPER AND PRODUCTIVE ATTACHMENT SETTINGS

Program preferred functions and views such as fuel consumption, machine performance, auxiliary hydraulics and emissions controls.

Add, set and store up to 10 attachments with manufacturer-recommended settings.

*Not offered on the CX365E SR model

5

-NEWMODEL

-NEWMODEL

THE CASE CX190E EXCAVATOR The all-new CASE CX190E excavator is a “sweet spot” machine that surpasses its size class in power, productivity and performance — all while still being easy to own, operate and transport.

VISIT THE PRODUCT PAGE

6

THE CASE CX365E SR EXCAVATOR The all-new CX365E SR is a short-radius excavator weighing in at more than 78,600 pounds. Built for road and bridge construction, heavy civil work and any environment where you need heavy earthmoving skills in a tight working envelope — this short-radius model delivers big machine productivity and extreme operator satisfaction.

VISIT THE PRODUCT PAGE

7

Short-Radius Excavators CX145D SR CX365E SR

Short-Radius Excavators CX145D SR CX365E SR

BIG POWER UP FRONT. SKINNY IN THE BACK. In addition to the all-new CX365E SR excavator, the CASE excavator lineup retains the wildly popular CX145D SR and CX245D SR minimum-swing-radius excavators. These machines are built exclusively to work alongside roadways, around existing infrastructure and on any jobsite where space and site flow are at a premium. They can hog it with the best of them wide open as well!

With the new CX365E SR, the CASE excavator lineup now features three distinct short-radius excavators — each capable of delivering full-sized performance in a working envelope conducive to more confined areas.

CASE CX145D SR EXCAVATOR WALKAROUND

A MASTER OF ALL TRADES Don’t let the lack of a conventional backside fool you — CASE minimum-short-radius excavators are built for the toughest applications. Here are three stories from the field in three diverse applications to highlight the versatility and value of these machines.

DEMOLITION East Coast Abatement & Demolition CX245D SR

UTILITY Hurst Excavating, LLC CX245D SR

SITE DEVELOPMENT & PAVING B.R. Kreider & Son CX145D SR

8

9

Pro Tip: Fleet Building

ROAD & BRIDGE CONSTRUCTION WITH PRIMCO, INC.

FLEET-BUILDING PRO TIP:

IT TAKES ALL KINDS When weighing conventional tailswing excavators vs. short-radius excavators, the decision comes down to typical jobsite profile and whether or not operating in a mostly contained footprint is important to you. Stacked side by side, the short-radius models provide comparable performance to their conventional counterparts.

Here are two stories about contractors who deploy both types of excavators, and how they fit into their operation!

10

SITE DEVELOPMENT WITH BLACK DIAMOND GENERAL CONTRACTORS

11

CASE Heavy HEAVY EXCAVATORS Excavators CX350D CX750D

LET THE BIG DOGS EAT CASE offers four excavators for the heaviest and most demanding earthmoving operations. Built for big buckets and fast cycle times, the CX350D, CX490D, CX500D and CX750D feature the power and hydraulic responsiveness CASE excavators are known for — all in a package capable of moving large volumes every day. And all supported by CASE ProCare for operations where uptime = volume = profits.

CASE CX350D EXCAVATOR WALKAROUND

DIGGING NEW LAKES WITH THE CX490D

DIGGING NEW LAKES WITH THE CX490D Diggers LLC relies on the CASE CX490D excavator to carry out the heavy excavation work on a new residential development in Valley, Nebraska. The CX490D is outfitted with machine control to make excavation work precise and to cut down on time needed for final grading.

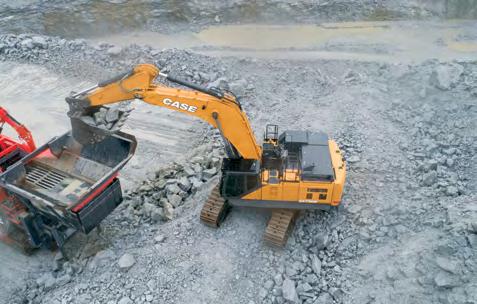

CX750D Feeds Unique Quarry

CX350D Sets Water Pipeline Records

The Randall Community Water District pairs a CASE CX350D excavator with two CASE CX210D excavators to dig in 18,000 feet of new water pipeline in rural South Dakota — each excavator with a specific task that allows productivity to jump to approximately 1,000-feet each day.

12

13

Mid-Sized Excavators

Material Handling & Scrap

THE CASE CX290D

MID-SIZED EXCAVATORS

From scrap yards to lumber yards — the CASE CX290D, available in Material Handler and Scrap/Recycling configurations, provides a dynamic platform for loading trucks and barges with a longer arm and boom, a variety of attachment options and a hydraulically controlled elevating cab.

Don’t call these excavators minis. CASE CX75C SR and CX80C mid-sized, or midi, excavators pack massive digging power into a compact footprint. Perfect for roadside utility work, utility construction and as a universal support excavator on jobsites of all sizes, these machines are celebrated both for their digging and lifting capabilities. Super fuel efficient. Super reliable. Easy to transport.

CASE CX290D Loads Out Heavy Timber

The CASE CX290D with elevating cab helps optimize container loading and timber sorting operations for Integrated Forest Resources in South Carolina.

CASE CX290D Anti-Interference System

The CX290D is built to work with materials from scrap to timber, all which come in various shapes and sizes. The anti-interference system built into the machine helps prevent cab incursions and can be set to meet the specifics of each application.

CASE MIDI EXCAVATOR WALKAROUND

CASE CX75C SR SERVES AS ROADSIDE UTILITY KING

14

15

Machine Control

BUILDING A BETTER FOUNDATION BT Excavating is proving what machine control technology can do for excavation businesses — the savings in time, labor and efficiency are even more impactful when deployed in a small business where time and resources are critical to keeping an edge.

CASE LIVE: EXCAVATORS AND MACHINE CONTROL

PRECISION EXCAVATION

We went DEEP on the topic of excavators and machine control in a recent episode of CASE LIVE. Watch the whole episode here, then reach out to your local CASE SiteControl Certified dealer for more information!

Your local CASE SiteControl Certified dealer has the excavation solutions proven to get you to grade faster, and with greater accuracy, efficiency and profitability. Whether digging basements, pipelines or getting to final grade with your CASE excavator — we offer an intuitive and scalable range of solutions that fit every business. This includes OEM-fit 2D and 3D excavator solutions, as well as semi-automatic solutions, that provide you with the full benefits of machine control: + Greater quality with less rework + Greater productivity = get more done with the time you have + Reduced wear and tear on your equipment + Greater predictability and control of job costs + Improved equipment utilization and efficiency + Shortened training windows and faster operating proficiency + Eliminate workers in the trench and reduce trips in and out of the excavator to check grade

16

17

Machine Control

CASE DEALER SUPPORT

TAKING PRECISION TO THE NEXT LEVEL

Equipment experts ready to support you and your business — collaborative fleet management, service, parts, rental and more — all to maximize your uptime.

Machine control technologies are both easy to deploy and easy to grow with! Check out how easy it is to expand the technology as your needs grow, how semi-automatic systems work and a unique use of machine control that doesn’t involve digging!

FIND YOUR LOCAL CASE DEALER

Excavator Machine Control Scalability

COLLABORATIVE FLEET MANAGEMENT

Semi-Automatic Machine Control for Excavators

Machine Control Height Alarm for Excavators

CASE SiteWatch Telematics

Collaborative fleet management represents you, your CASE dealer and CASE working together to make sure you achieve optimal uptime, productivity and profitability for your business. This is made possible, in part, by CASE SiteWatch telematics.

SiteWatch lets you partner with your dealer for access to machine data so they can help proactively monitor and manage maintenance and other machine performance data.

CASE SITEMANAGER APP

ADDITIONAL PRECISION EXCAVATION SOLUTIONS

If you own a CASE E Series excavator, or one of these other exciting new machines, download the CASE SiteManager App — made possible by the CASE SiteConnect module — and begin experiencing the power of remote software uploads, collaborative fleet management and remote diagnostics.

Machine Control for Excavators Brochure/Guide

Construction Site Tools

CASE Uptime Center 18

See how CASE can help you monitor equipment remotely

19

GO BIG, WE'VE GOT YOU COVERED CASE ProCare is the industry's most comprehensive heavy machine support program that's as powerful as the equipment it protects. Best of all, ProCare comes standard on all new E Series and D Series excavators and keeps you covered for up to three years. It's the assurance businesses need to stay competitive, productive and profitable.

3-yr/3000-hr Full-Machine Factory Limited Warranty* STANDARD

FLEXIBLE FINANCIAL OPTIONS Specialized finance programs and flexible leasing packages are available for industry leading CASE equipment while nononsense warranties and comprehensive protection plans ensure that your equipment is protected. As the only finance company dedicated to CASE, we offer strong products and services designed around your unique service needs.

LENDING

LEASING

COMMERCIAL REVOLVING ACCOUNT

INSURANCE PRODUCTS

CASE PlusCare will supplement the CASE ProCare program on eligible CASE equipment, allowing for customized product support on new machines to ensure your equipment maintains its durability and consistent operation while enhancing jobsite productivity. Protect your investment and maintain value while powering through tough worksite conditions with: + Maintenance Agreements + Purchased Protection Plans + Bundled Support Services

3-yr/2000-hr Planned Maintenance STANDARD

3-yr SiteWatch™ Telematics Subscription STANDARD 20

MAXIMIZE YOUR CAPABILITIES & MACHINE OUTPUT SUPPORT SOLUTIONS Your CASE dealer knows how you can best maximize your equipment investment and uptime — with CASE genuine parts, expert service and a complete range of product support solutions including CASE remanufactured and All Makes parts. CASE supports better parts availability and faster deliveries through nine parts distribution centers in North America and a forecasting system to ensure that the right parts will be there when you need them. And only CASE dealers have exclusive access to the Electronic Service Tool (EST) that quickly pinpoints machine issues. Just ask your dealer for details.

ONLINE PARTS STORE

EXCAVATOR ATTACHMENT FINDER

21

MODEL NUMBER

NET HORSEPOWER MAX DIG DEPTH OPERATING hp (kW) ft in (mm) WEIGHT lb (kg)

MID-SIZED EXCAVATORS 53.6 hp (40 kW) CX75C SR @ 2000 RPM 53.6 hp (40kW) CX80C @ 2000 RPM FULL-SIZED EXCAVATORS 102 hp (76.4 kW) CX140E @ 2000 RPM 121 hp (90.4 kW) CX170E @ 2200 RPM 121 hp (90.4 kW) CX190E @ 2200 RPM

13 ft 7 in (4 130 mm) 15 ft 4 in (4 670 mm)

17,400 lb (7 900 kg) 18,900 lb (8 590 kg)

19 ft 10 in (6 050 mm) 21 ft 4 in (6 490 mm) 21 ft 4 in (6 490 mm)

28,900 lb (13 100 kg) 38,400 lb (17 400 kg) 41,000 lb (18 600 kg)

162 hp (120.4 kW) @ 1800 RPM

21 ft 9 in (6 640 mm)

52,000 lb (23 600 kg)

179 hp (133.4 kW) @ 2000 RPM 259 hp (193.4 kW) CX300E @1900 RPM SHORT-RADIUS EXCAVATORS 102 hp (76.4 kW) CX145D SR @ 2000 RPM 160 hp (119.3 kW) CX245D SR @ 1800 RPM

24 ft 4 in (7 420 mm) 24 ft 10 in (7 580 mm)

56,909 lb (25 814 kg) 67,000 lb (30 400 kg)

19 ft 9 in (6 010 mm) 21 ft 10 in (6 650 mm)

32,100 lb (14 600 kg) 56,900 lb (25 800 kg)

205 hp (153 kW) @ 1800 RPM

21 ft 1 in (6 420 mm)

78,600 lb (35 700 kg)

HEAVY EXCAVATORS 268 hp (200 kW) CX350D @ 1900 RPM 362 hp (270 kW) CX490D @ 2000 RPM 362 hp (270 kW) CX500D @ 2000 RPM 512 hp (382 kW) CX750D RTC @ 1800 RPM

26 ft 8 in (8 140 mm) 30 ft 2 in (9 200 mm) 21 ft 4 in (6 490 mm) 32 ft 4 in (9 850 mm)

82,483 lb (37 414 kg) 109,300 lb (49 600 kg) 111,800 lb (50 700 kg) 158,300 lb (71 800 kg)

CX220E CX260E

CX365E SR

CASE ProCare* SiteConnect Module OEM-FIT LEICA CONFIGURATION REMOTE ACCESS, DIAGNOSTICS 3-YRS: WARRANTY, PLANNED SYSTEM OPTIONS OPTIONS & UPTIME CENTER MAINT. & TELEMATICS

X

X

X

X

X

X

X

X

X

X

X

X

Long Reach (LR) Narrow Track (NLC)

X

X

X

Long Reach (LR)

X

X

X

X

X

X

X

X

X

X

X

X

Long Reach (LR)

X X X

SPECIALTY EXCAVATORS CX290D LC MH

177 hp (132.1 kW) @ 2000 RPM

11ft 11 in (3 610 mm)

72,100 lb (32 700 kg)

X

CX290D LC Scrap

177 hp (132.1 kW) @ 2000 RPM

12 ft 9 in (3 890 mm)

71,700 lb (32 500 kg)

x

Tops specs shown; check model spec sheets for full specs and configuration options. *Visit www.casece.com/ProCare for full support-program details including exceptions and conditions.
