MISSION SAN JUAN BAUTISTA
Scan To Bim
YEAR 3, APRIL 2023
Advertisement
This project integrates Autodesk technology, historical architecture, and research into one “Scan-to-BIM” package. The building Mission San Juan Bautista” from California, USA was chosen for this project. A point cloud data set from OpenHeritage3D was downloaded and registered as information for this project. All building materials and construction was replicated as accurately as possible, by conductng throrough research of the building and analyzing the point cloud.
STEP ONE
UPLOAD POINT CLOUD FROM OPENHERITAGE 3D TO AUTODESK RECAP
STEP TWO
UPLOAD TO AUTODESK REVIT
STEP THREE

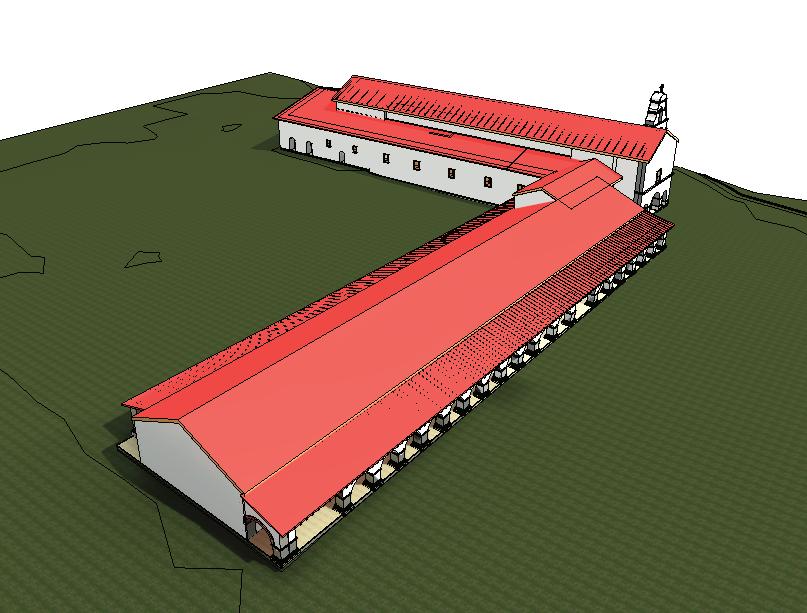

MODEL AS ACCURATELY AS POSSIBLE
