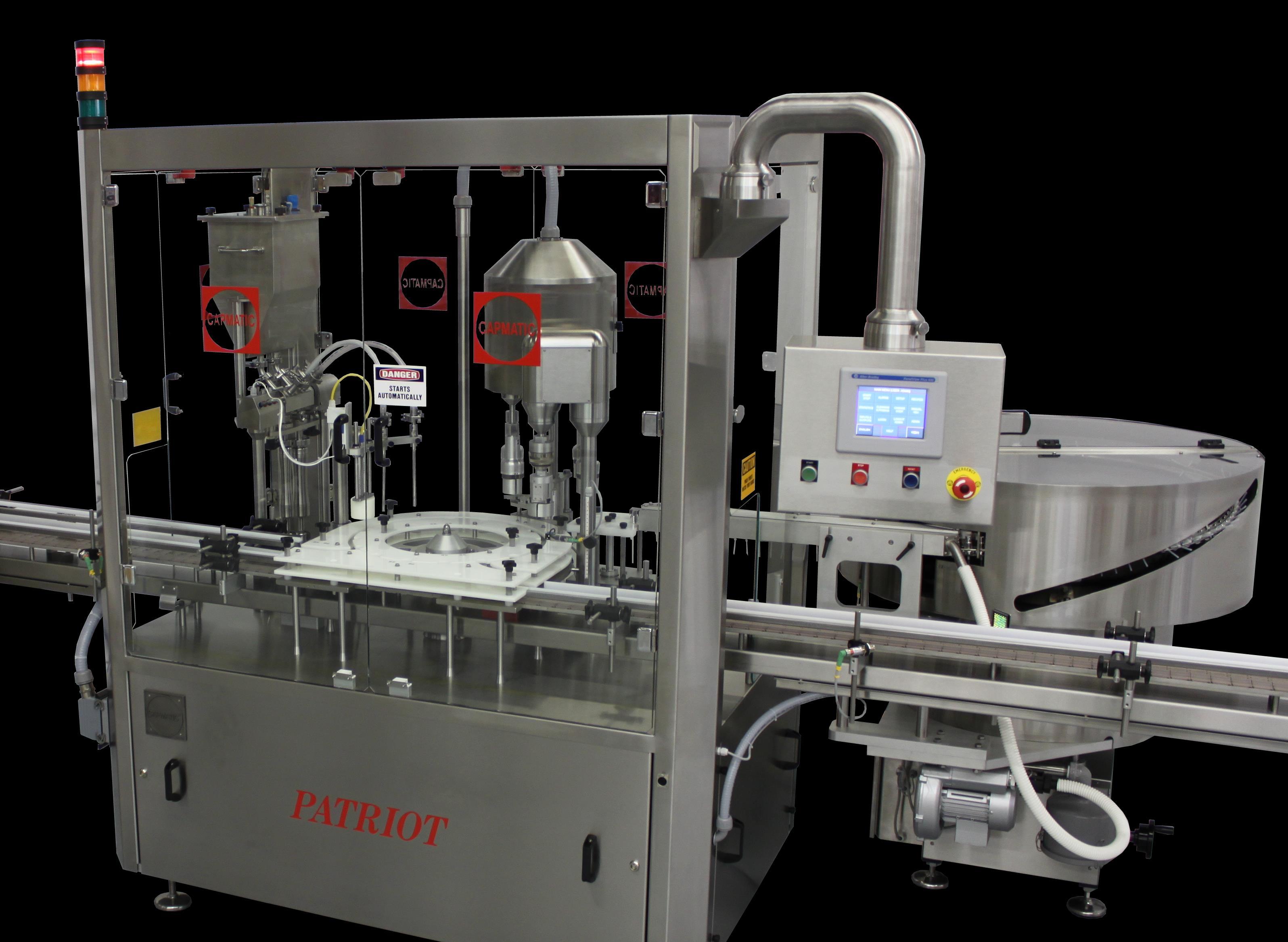

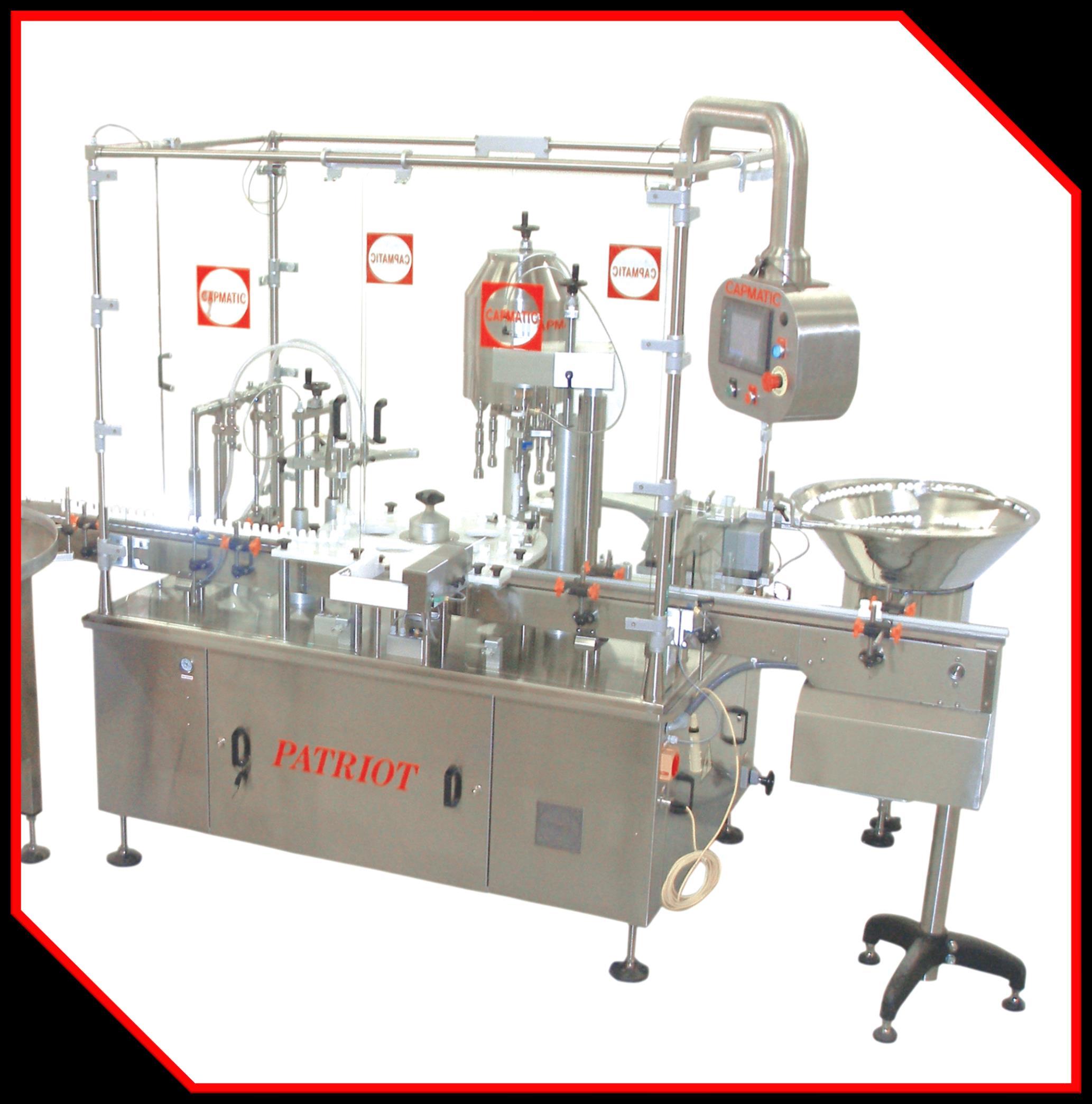

PATRIOT
Multi Process Platform
START

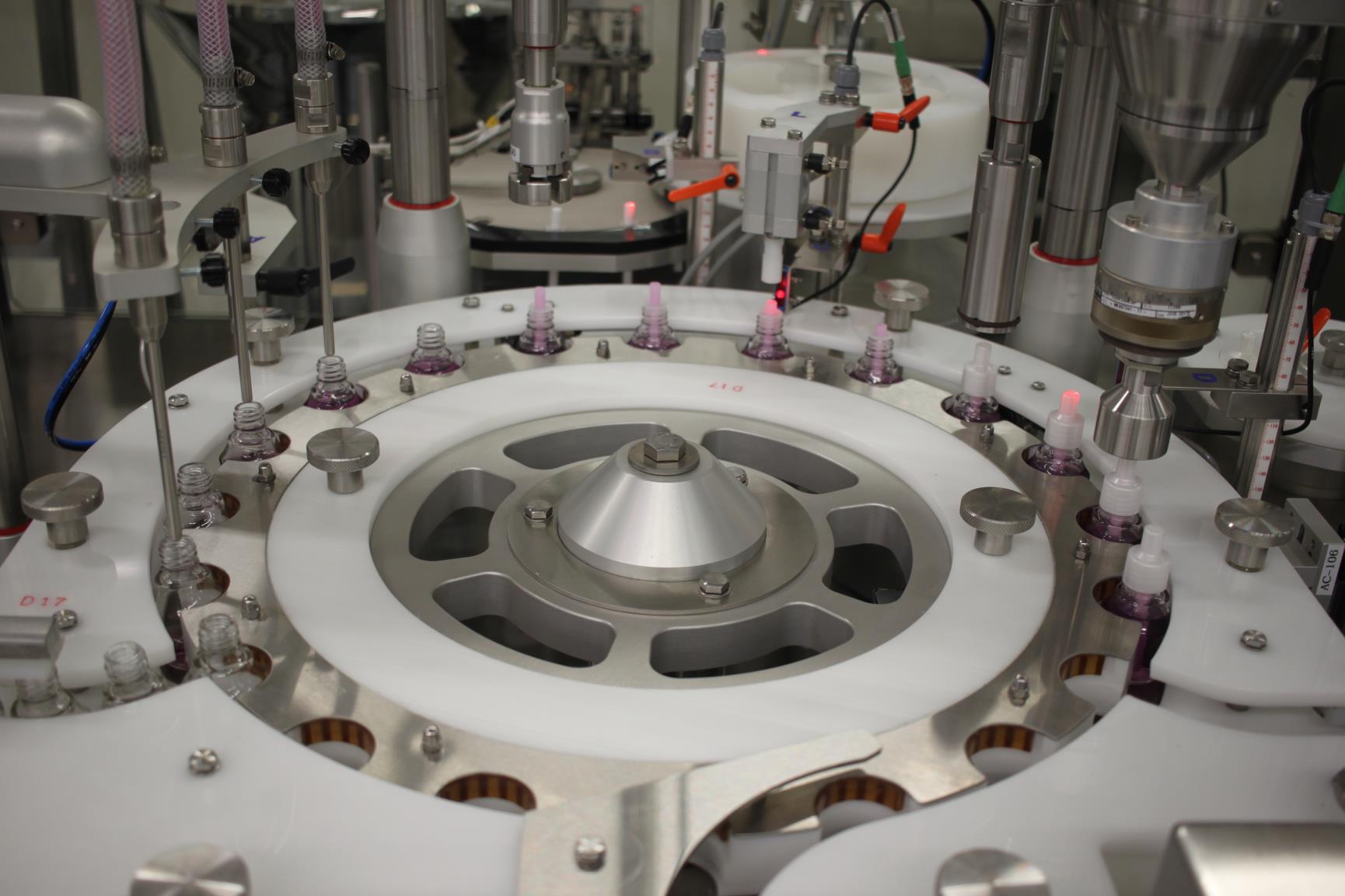

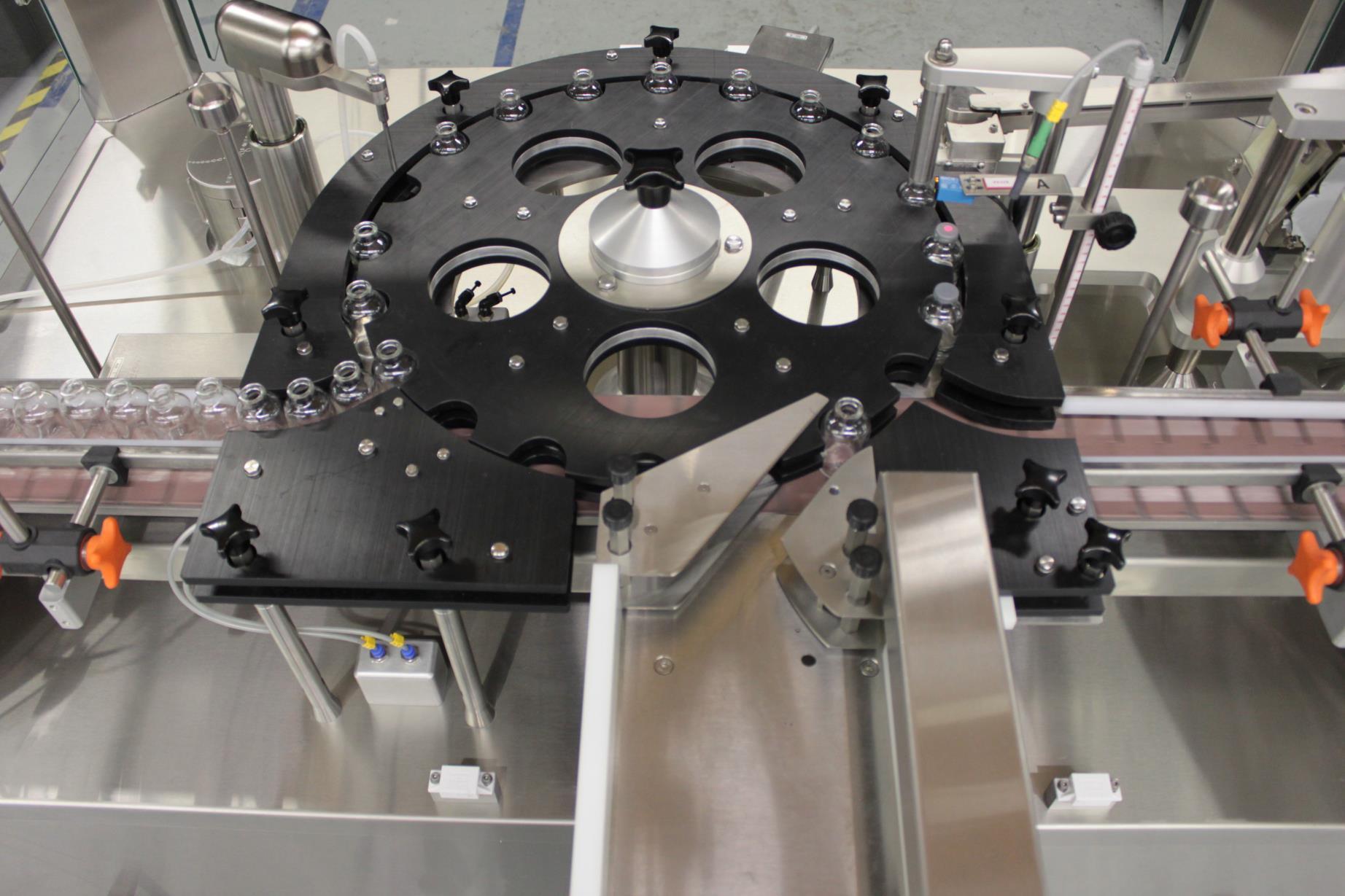

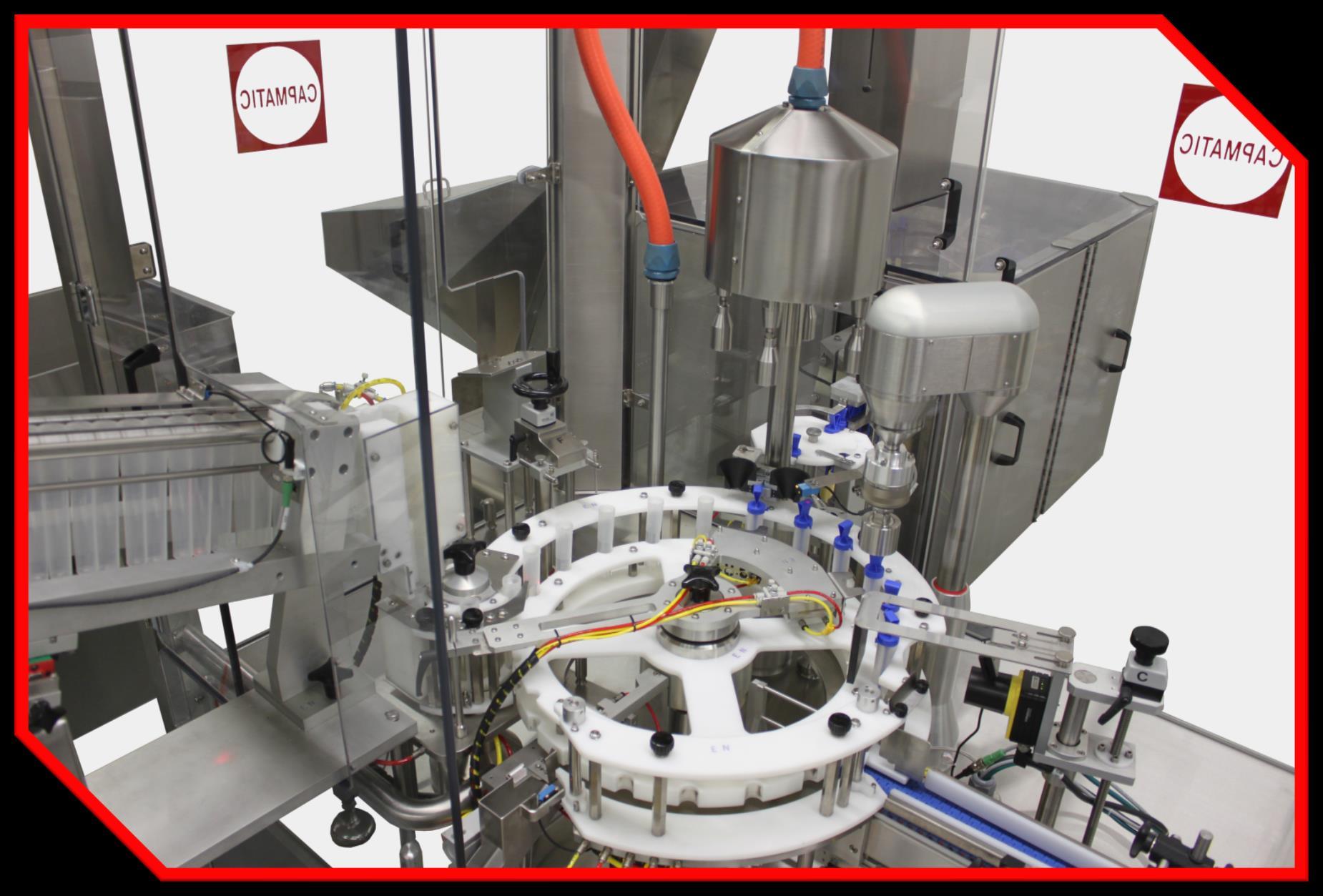

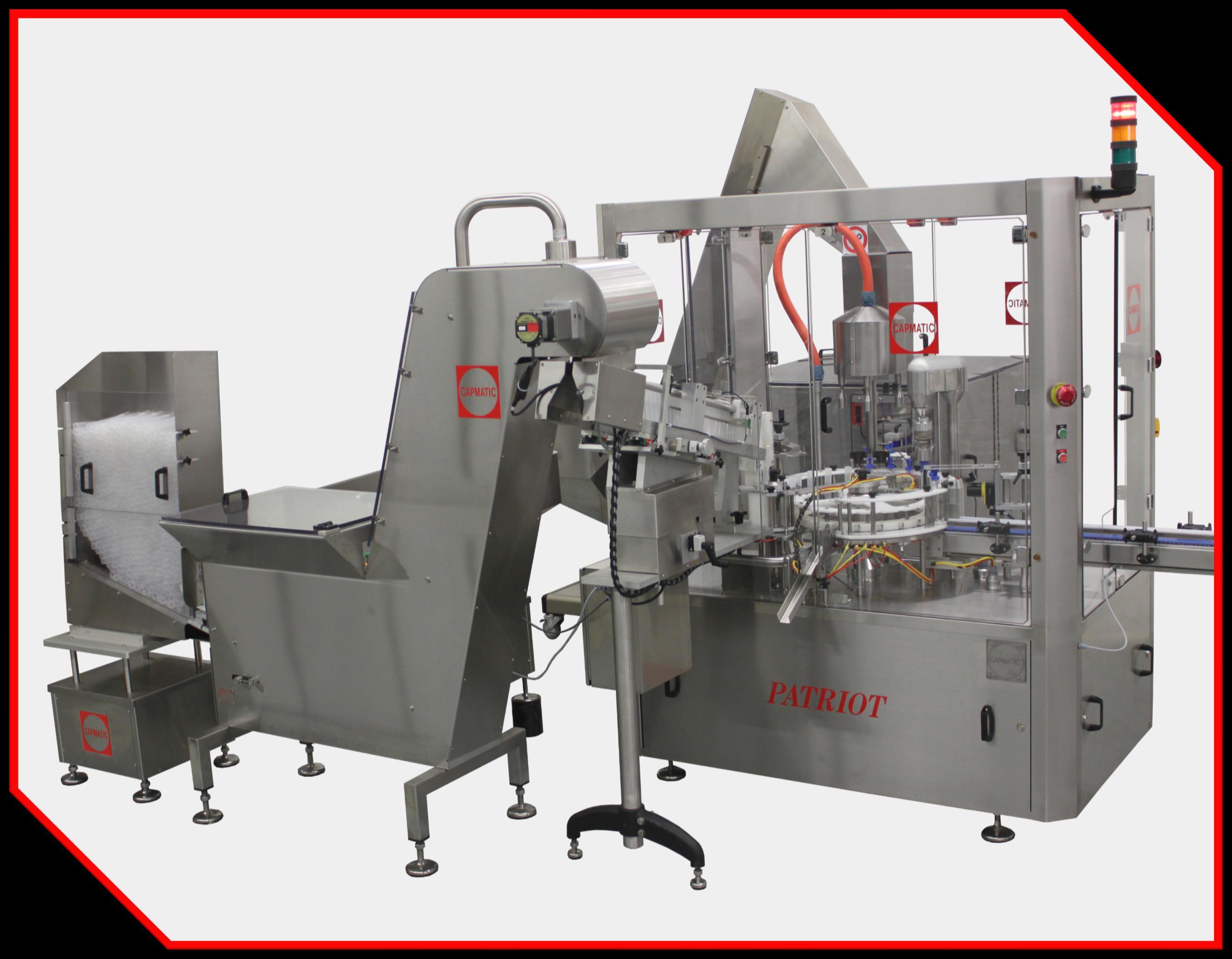

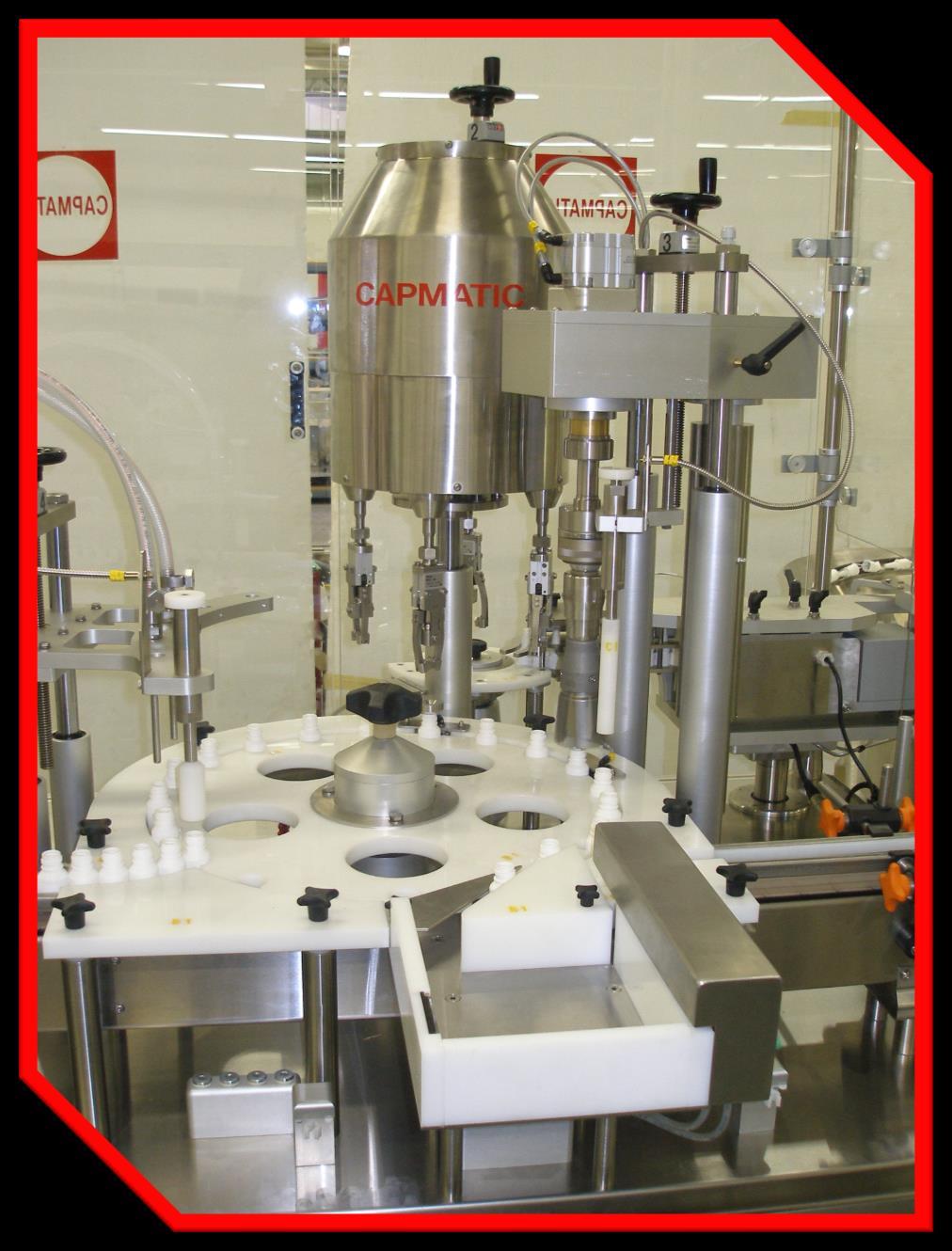

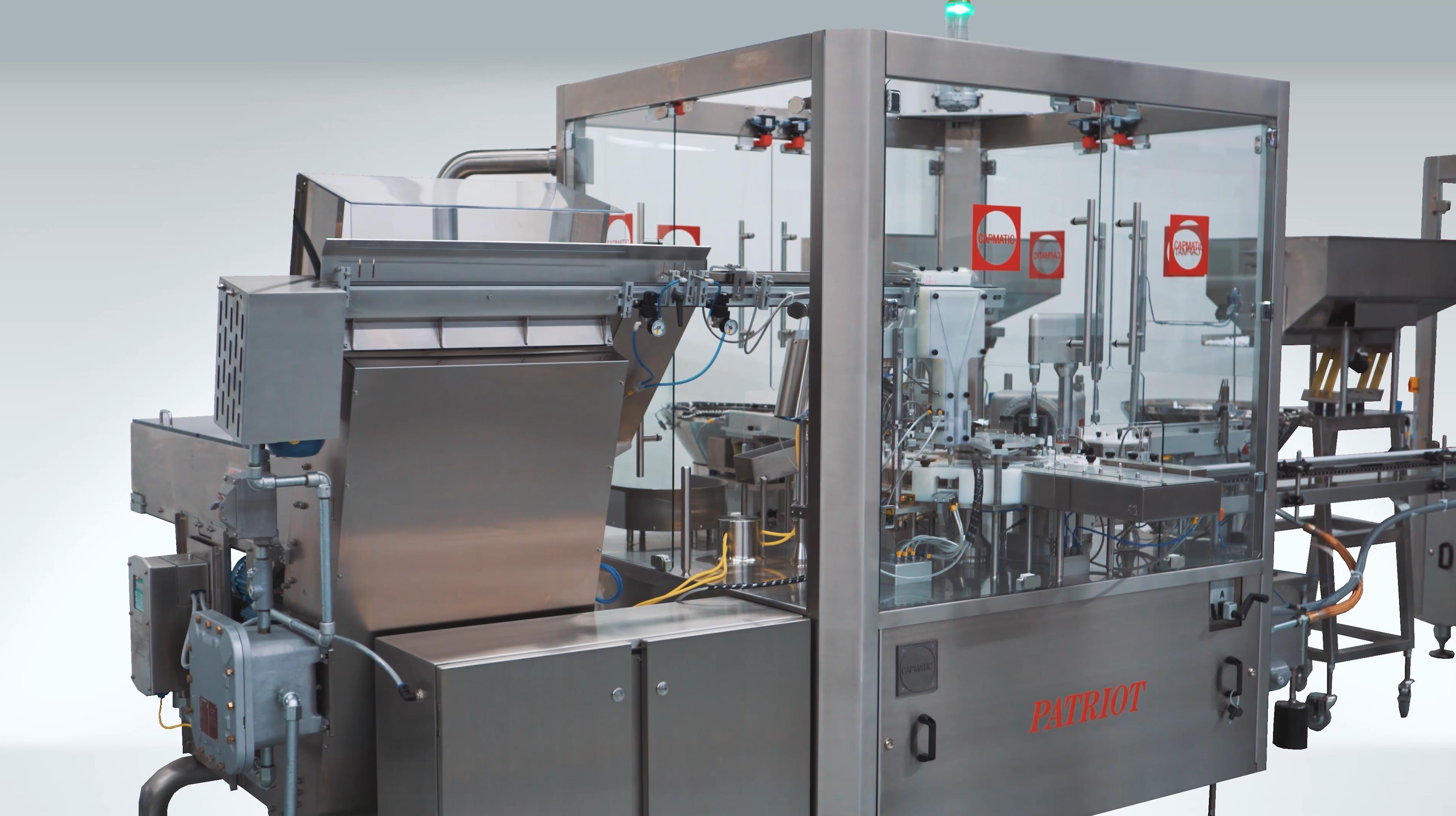

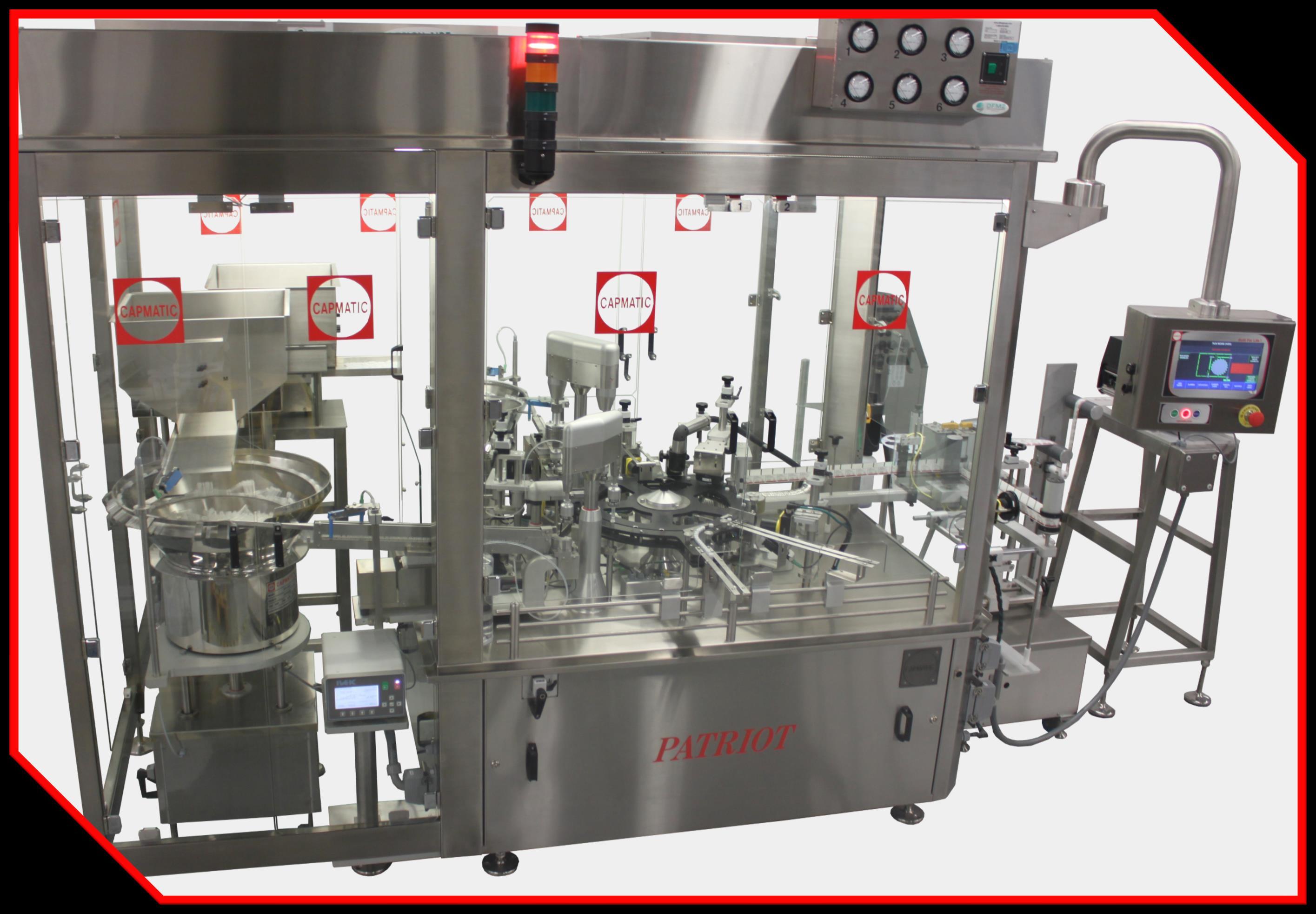

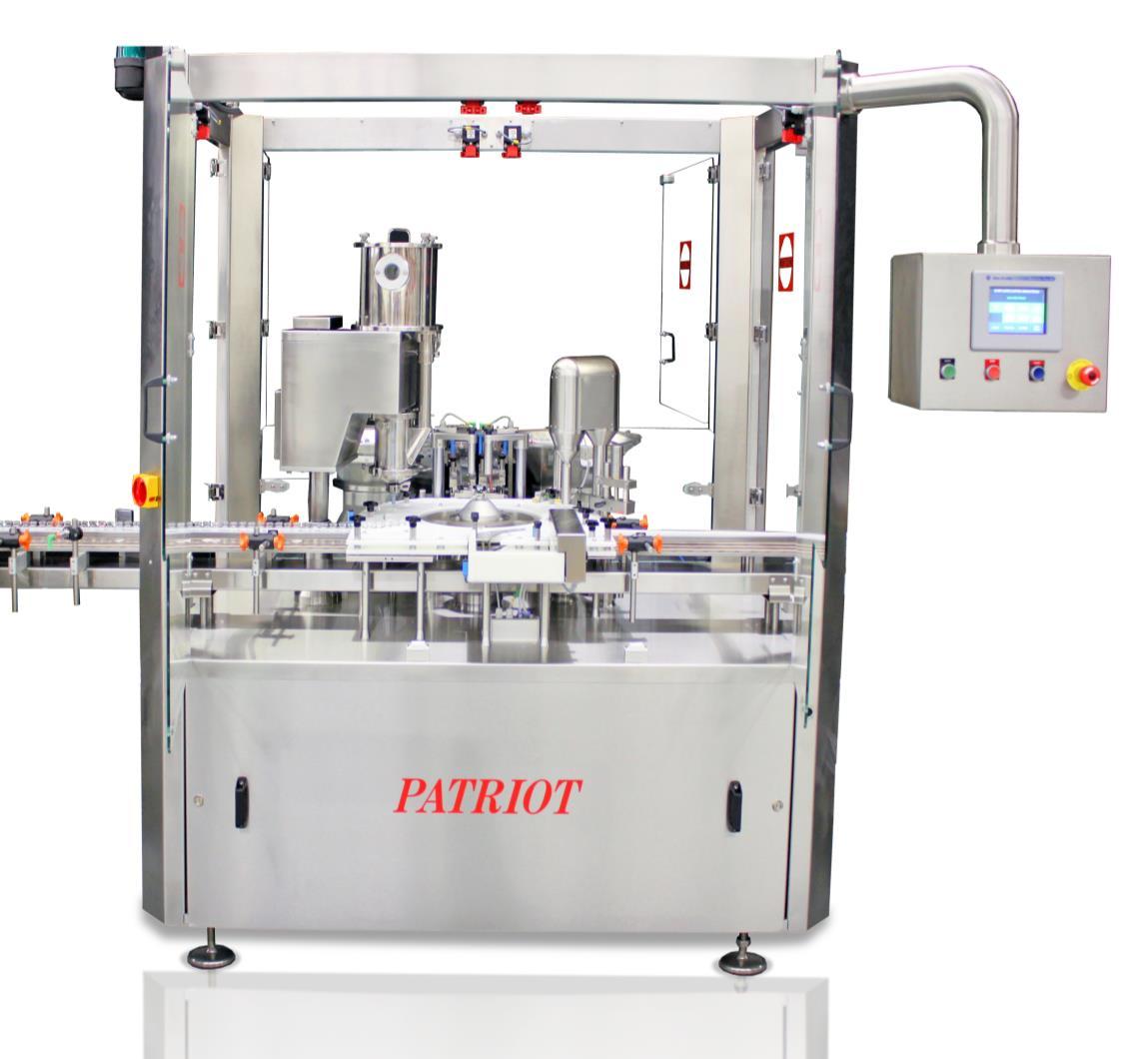

Rotary Patriot
Fully Automated

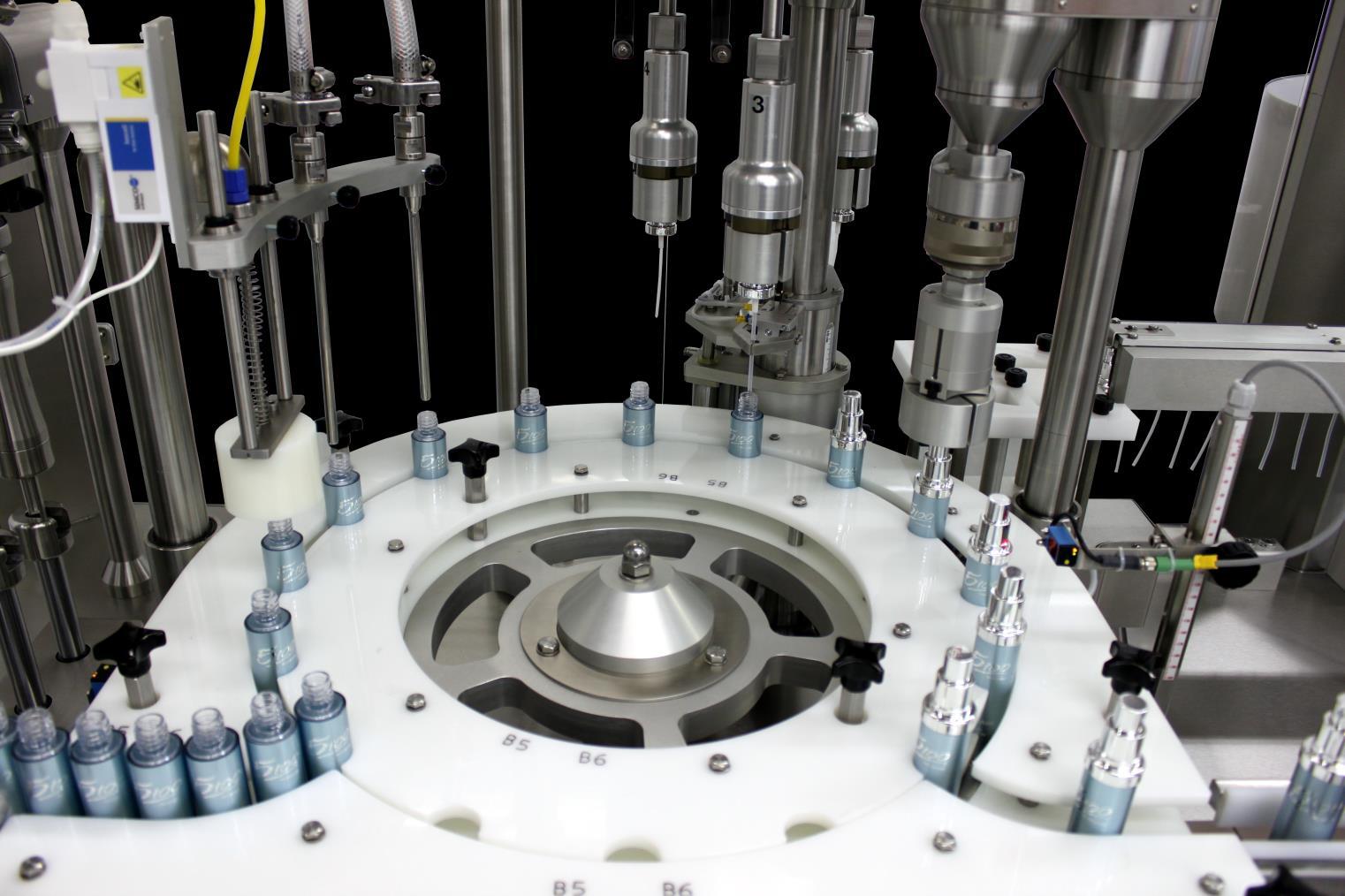

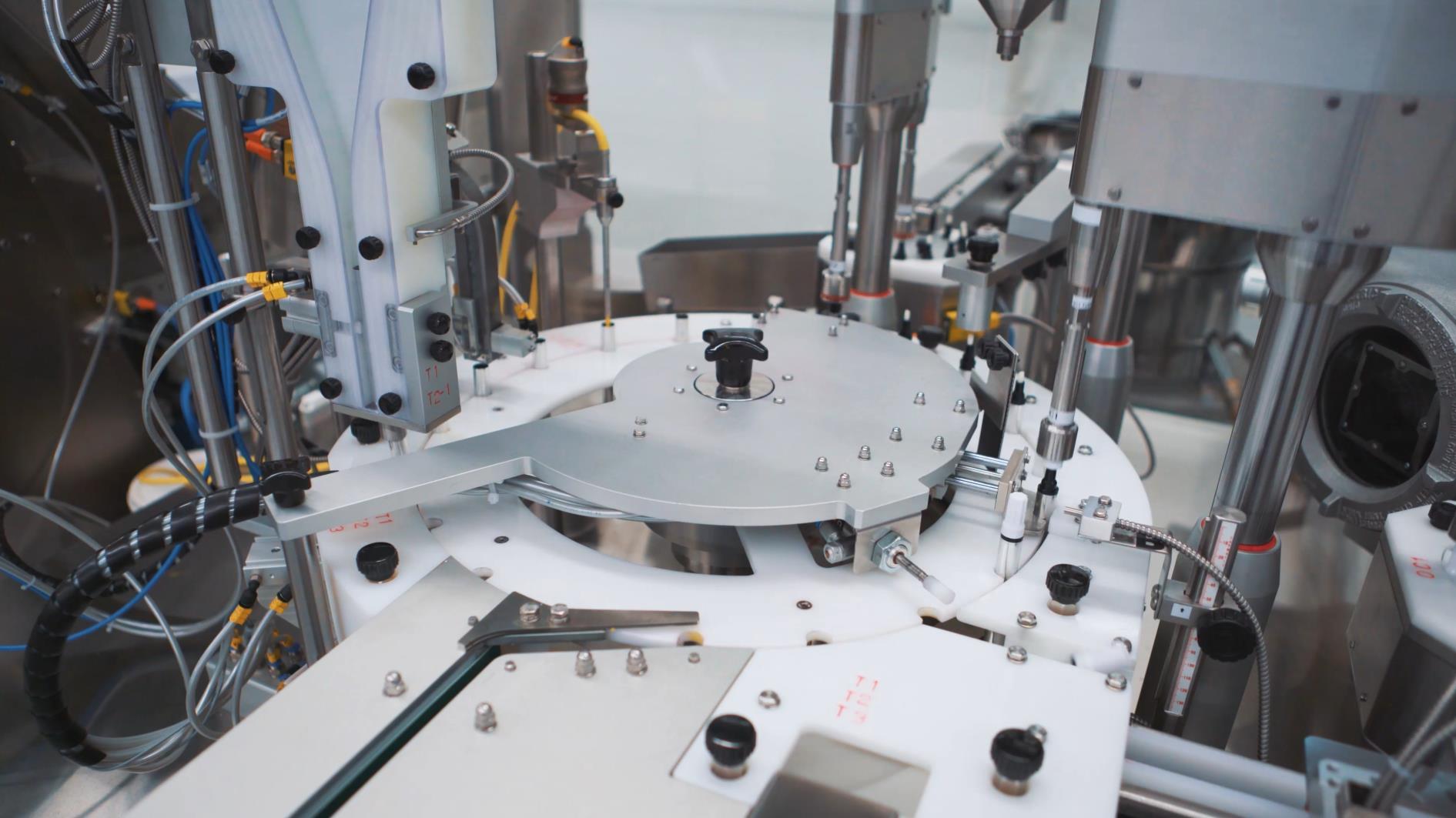

Rotary Sequential Indexing

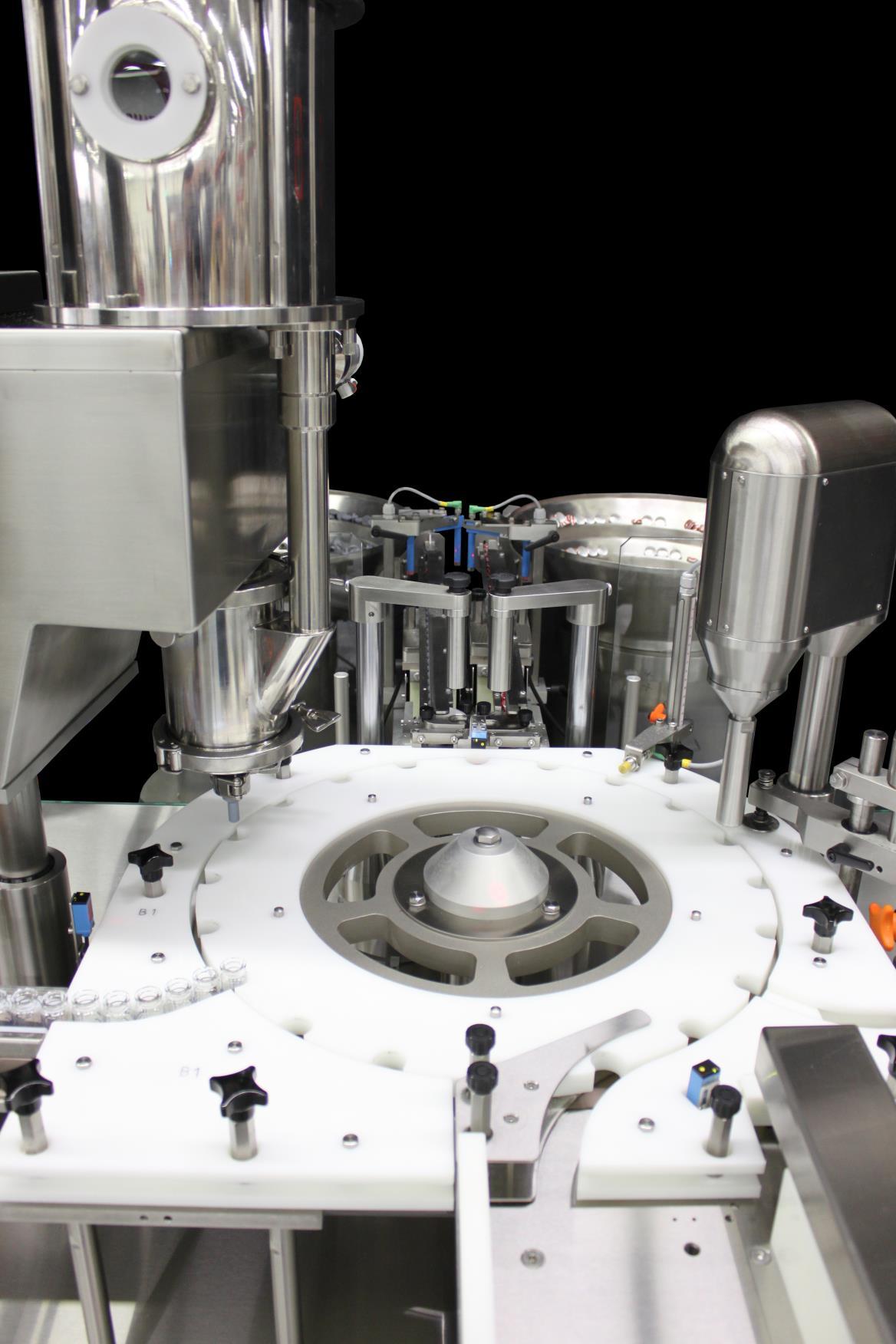

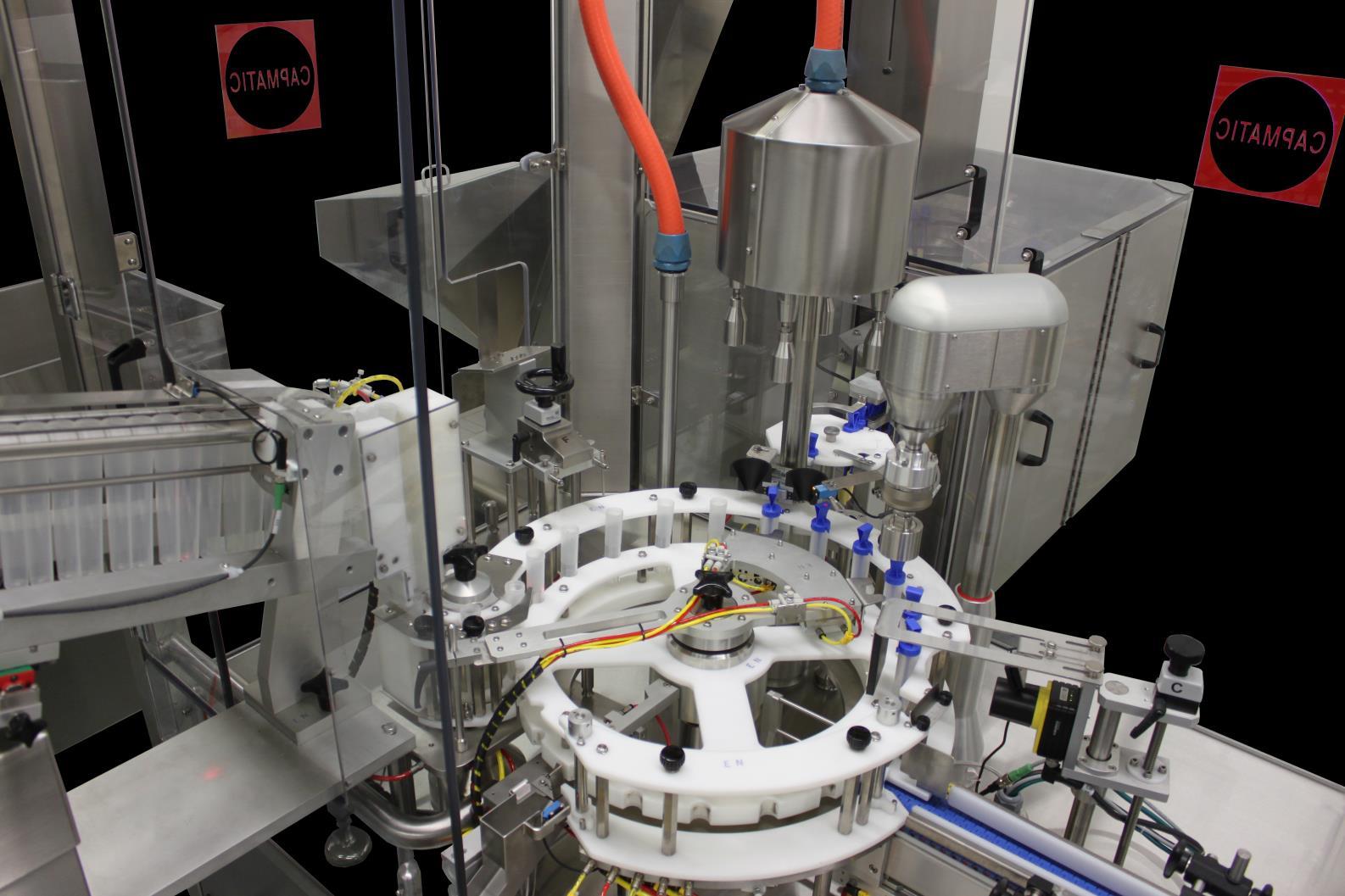

Servo Driven Rotary Dial / Star
Wheel
Single Index
Capable of:
- Filling

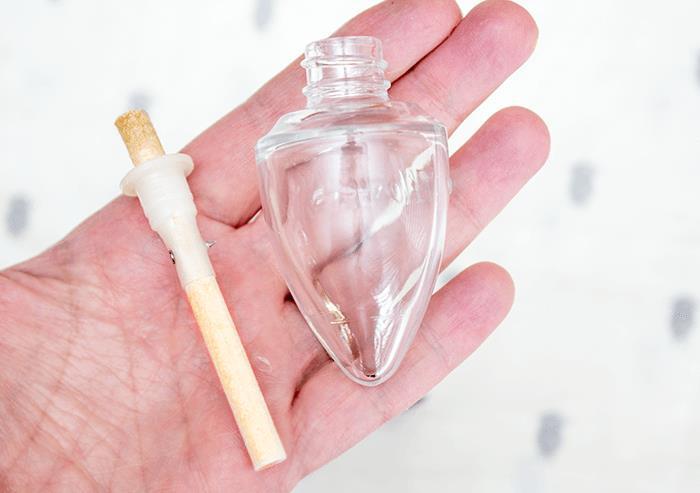

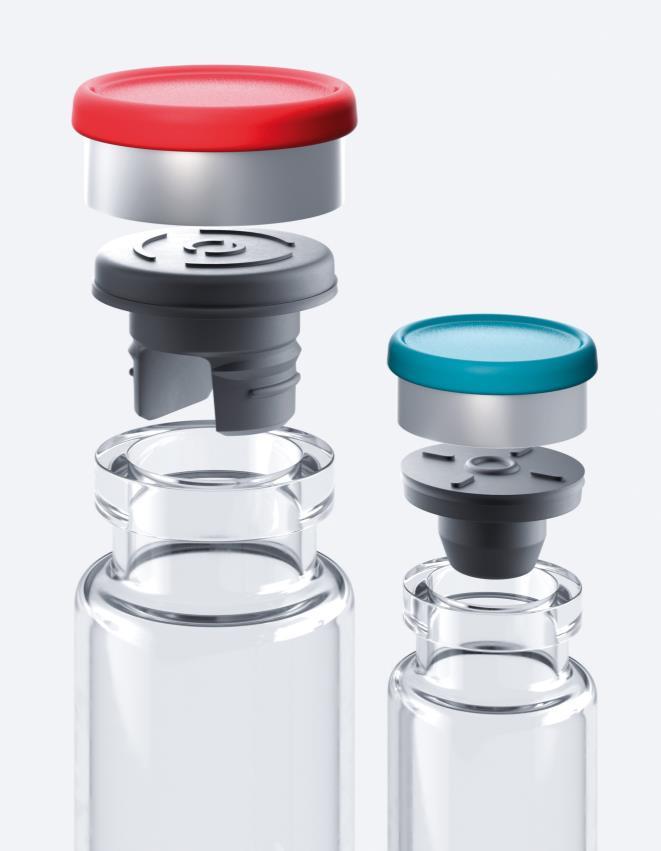

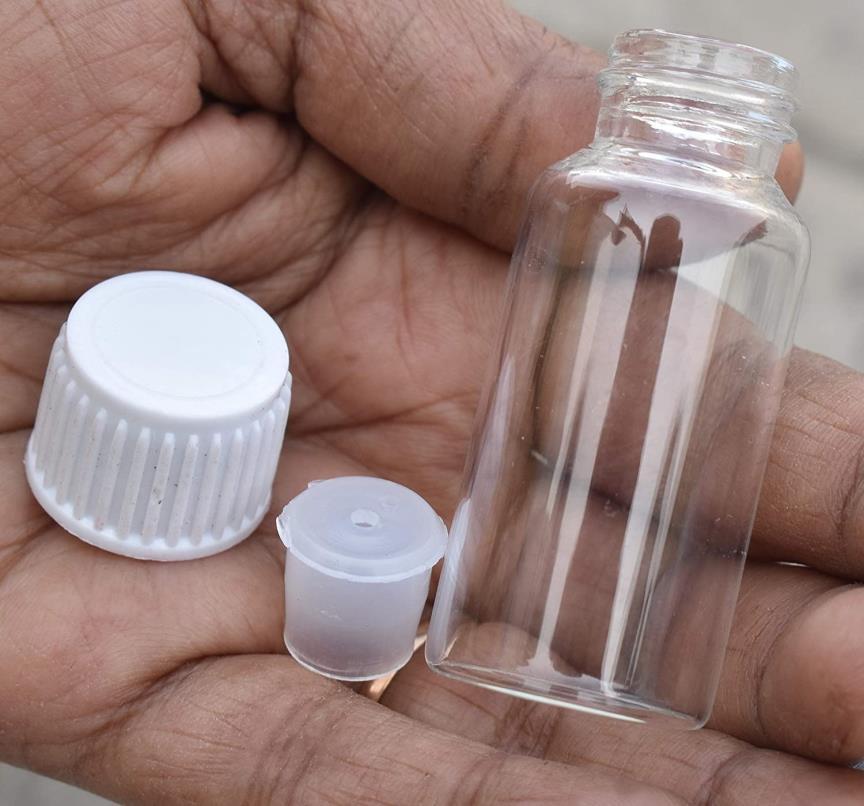

- Plugging (lid / orifice / reducer / eye drop / nasal spray)
- Capping (press-on / CT / CR)

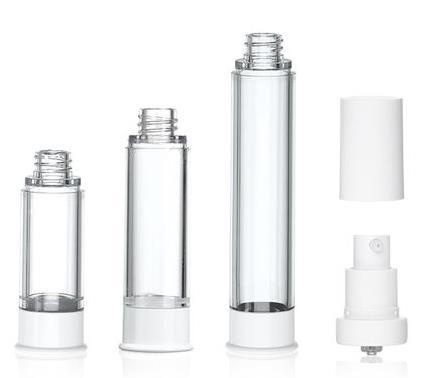

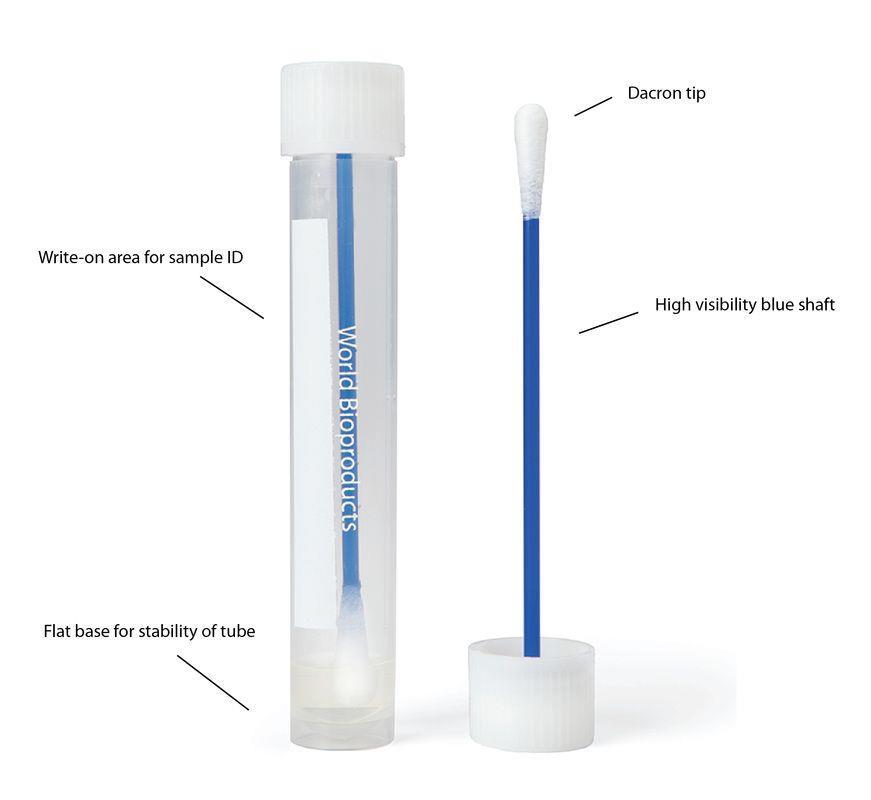

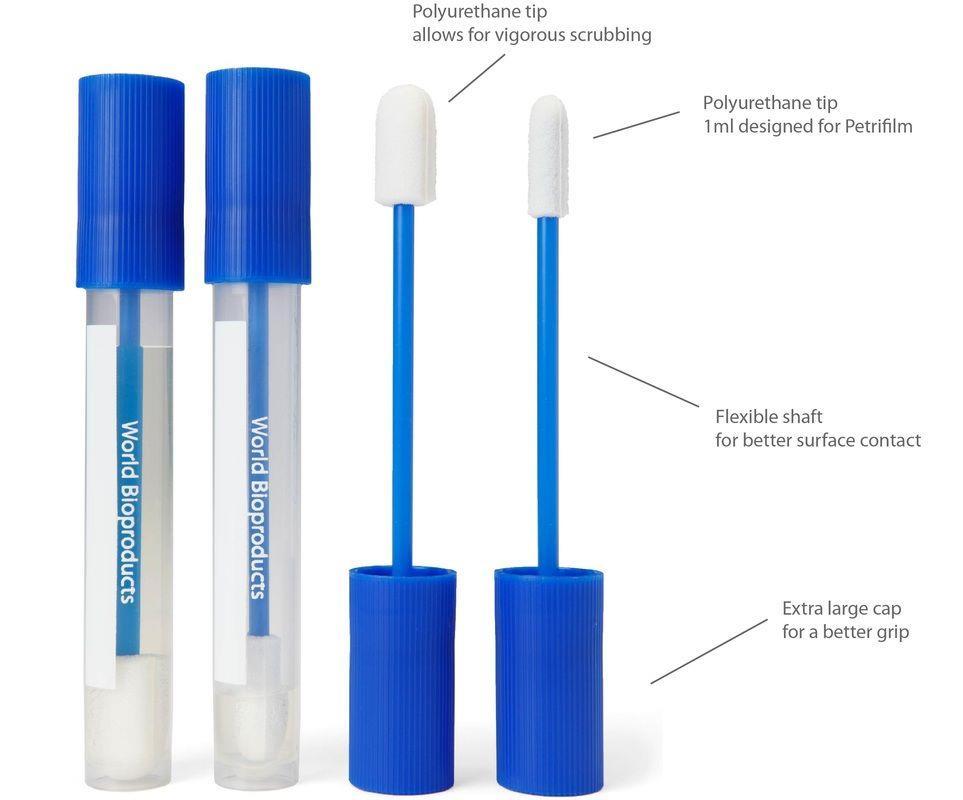

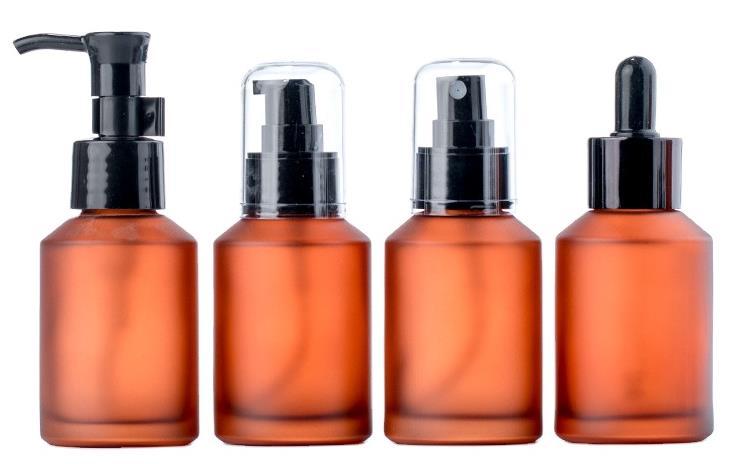

- Caps with stems (sampling wand / spray pump / pipette)
- Labeling (wrap around only)
- Plastic or glass containers
- Speed up to 50 containers per minute
Filling – Capping - Labelling

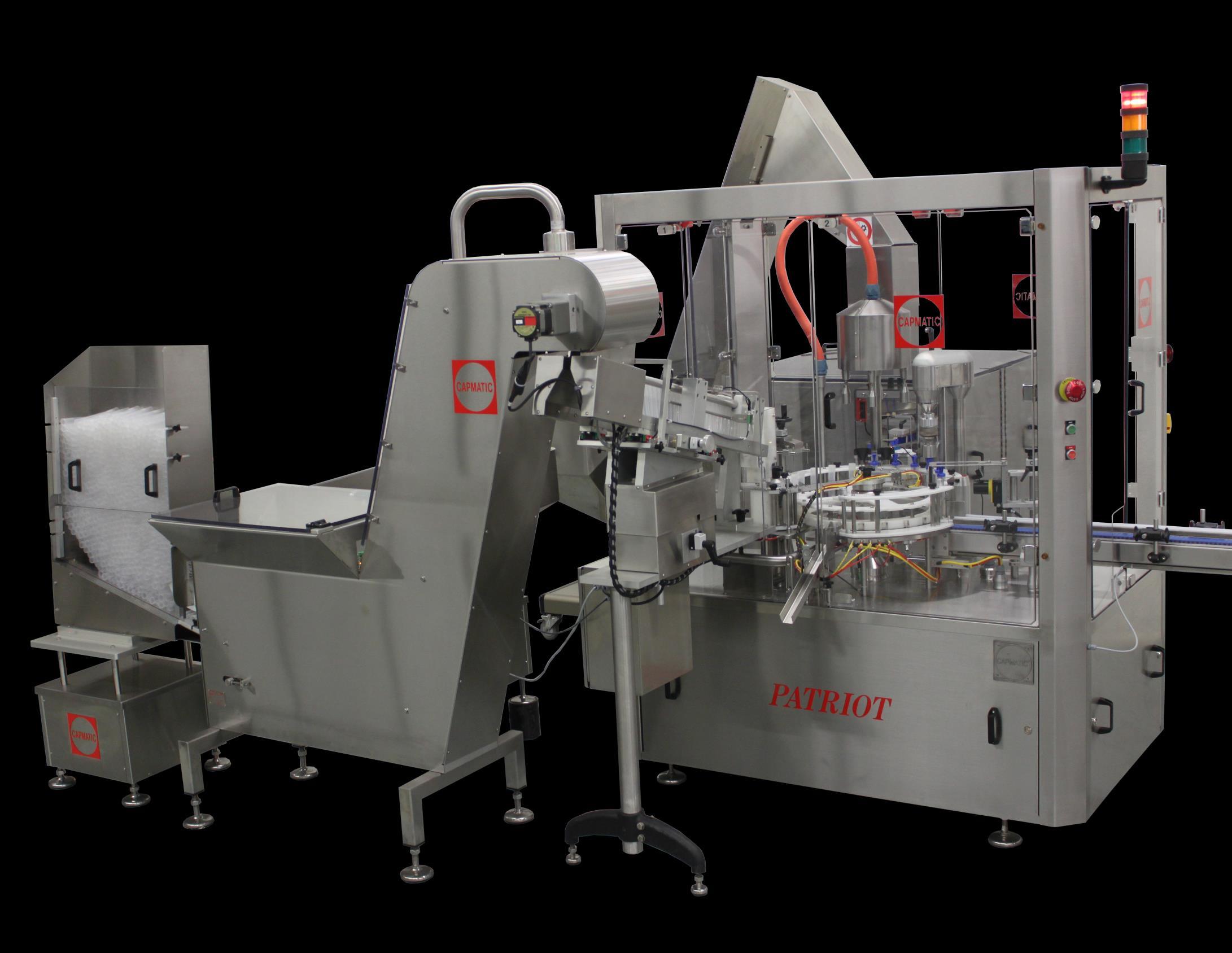

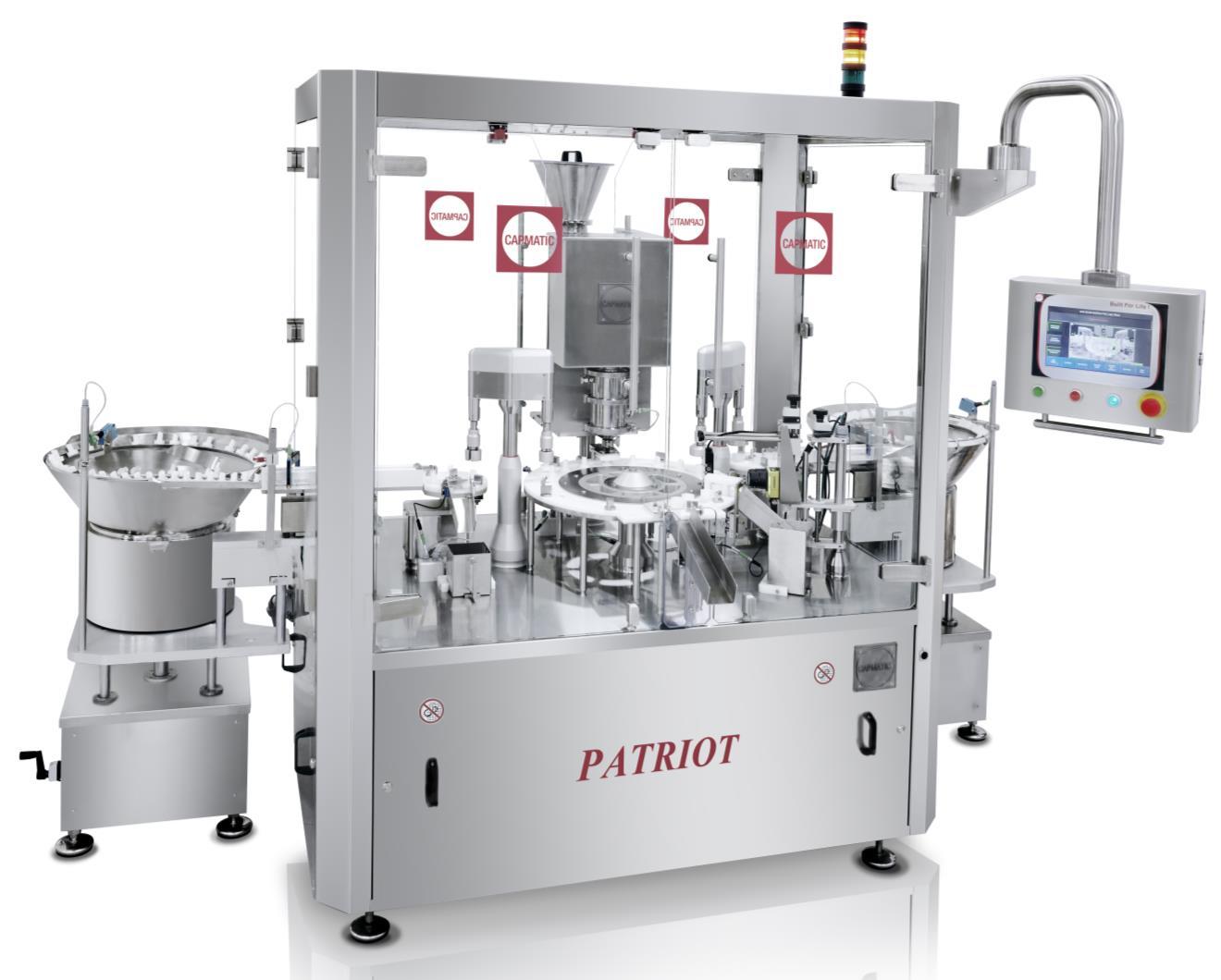

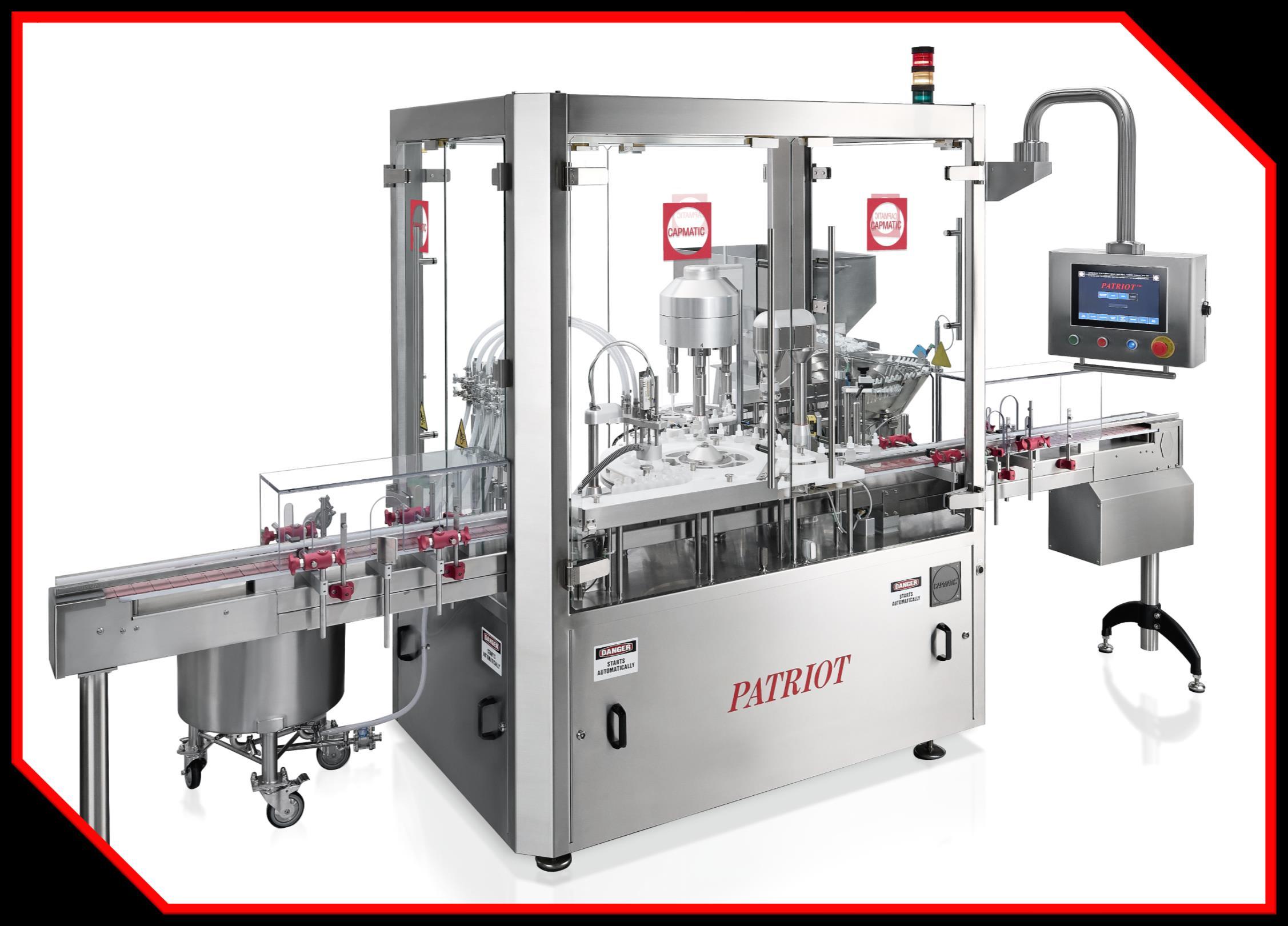

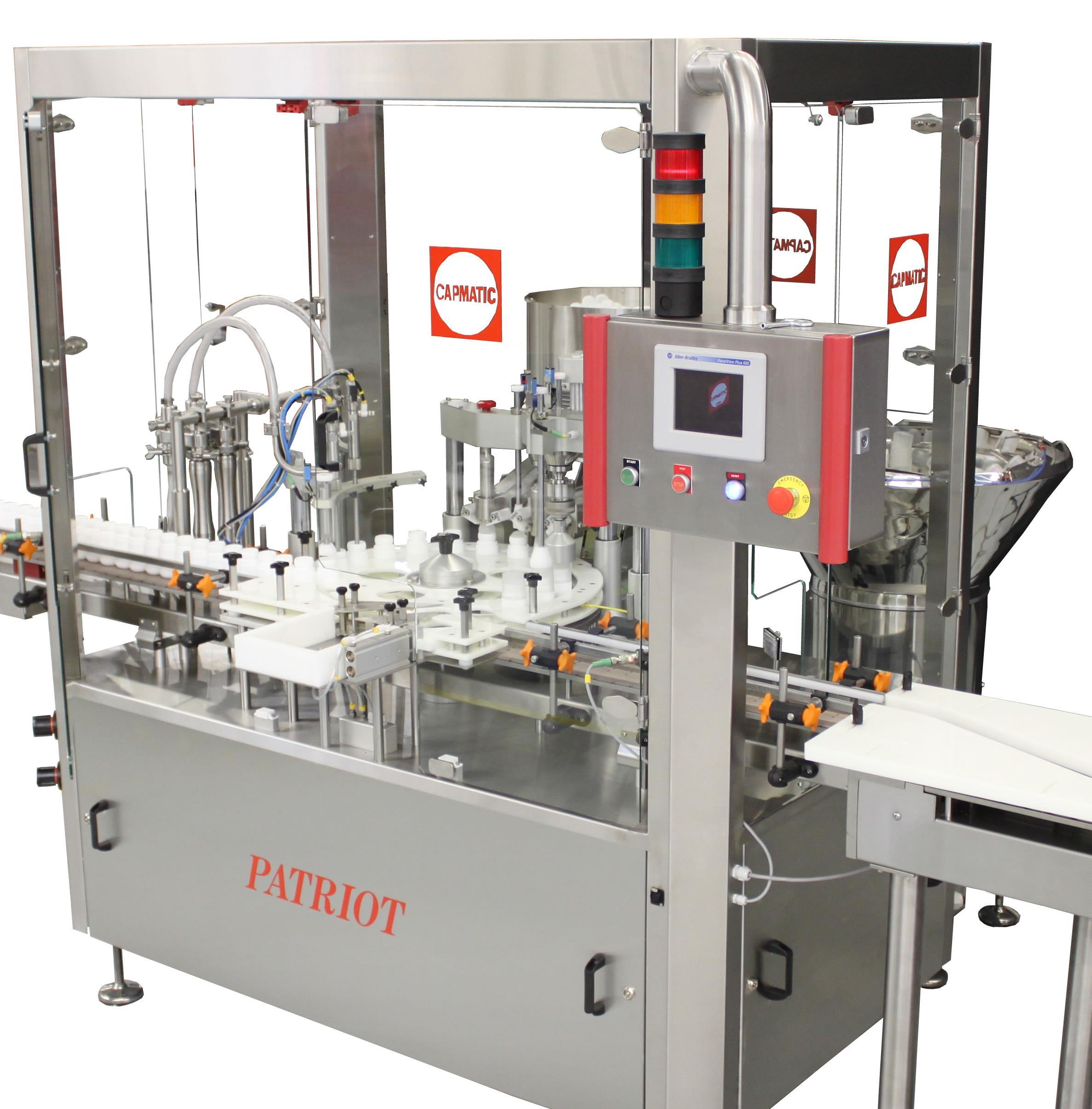

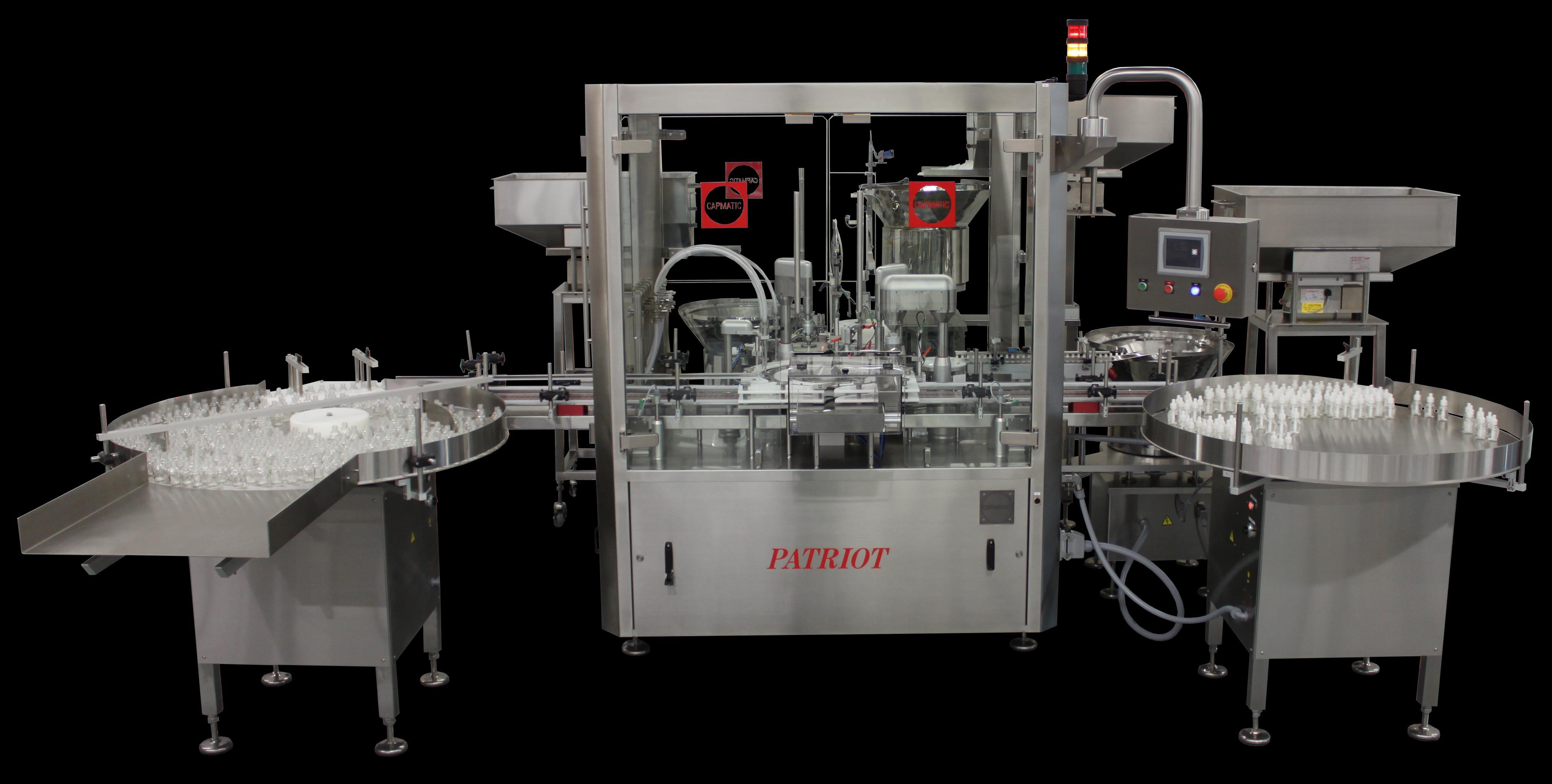

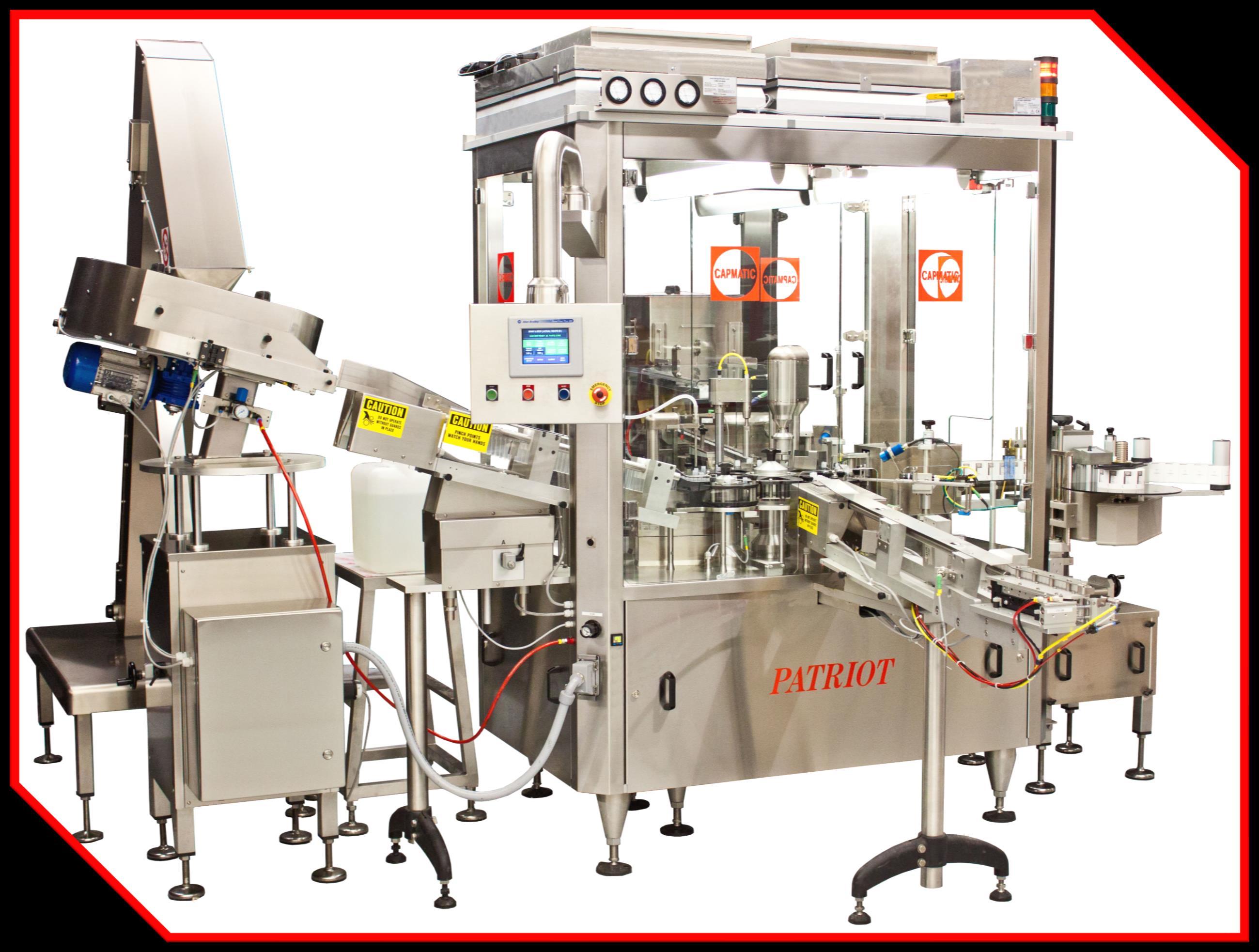

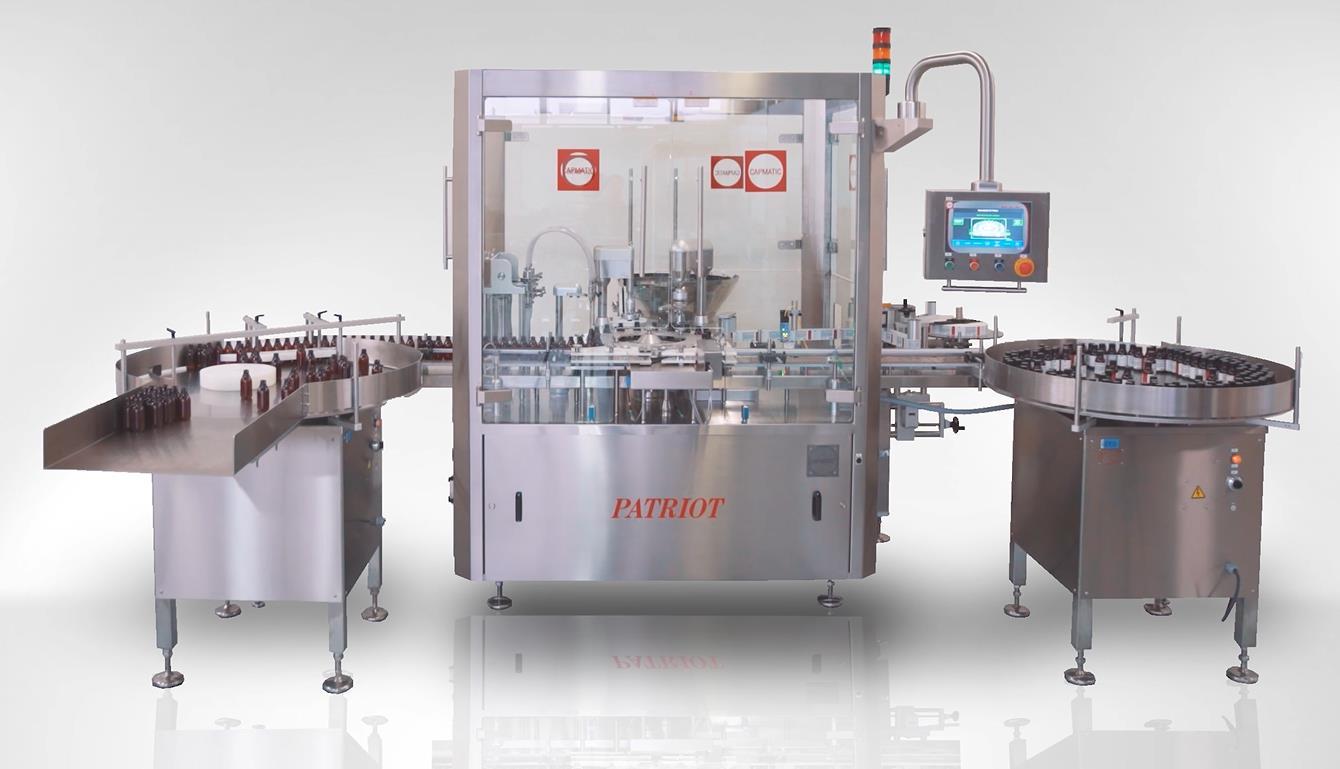

Rotary Patriot FCL

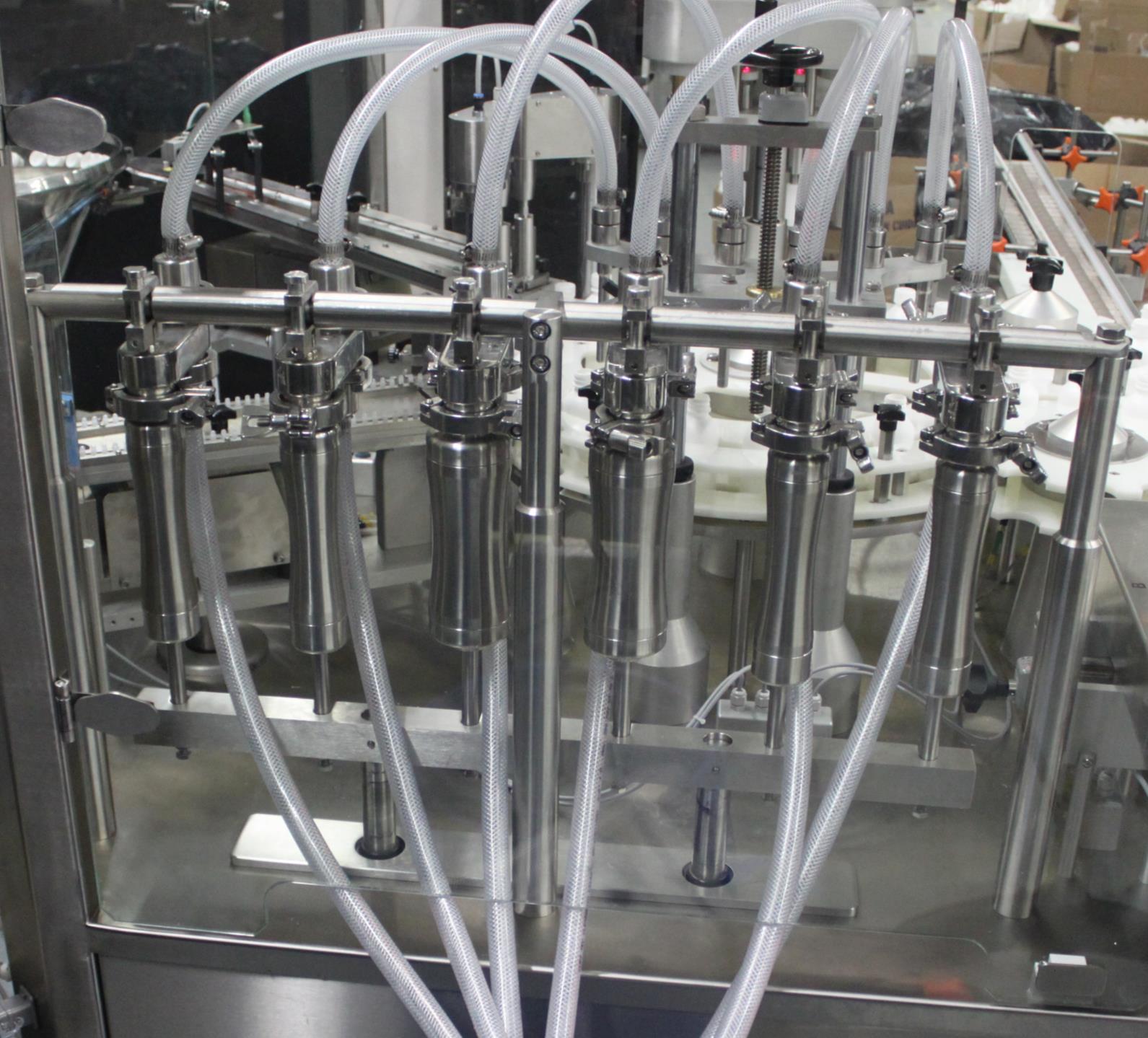

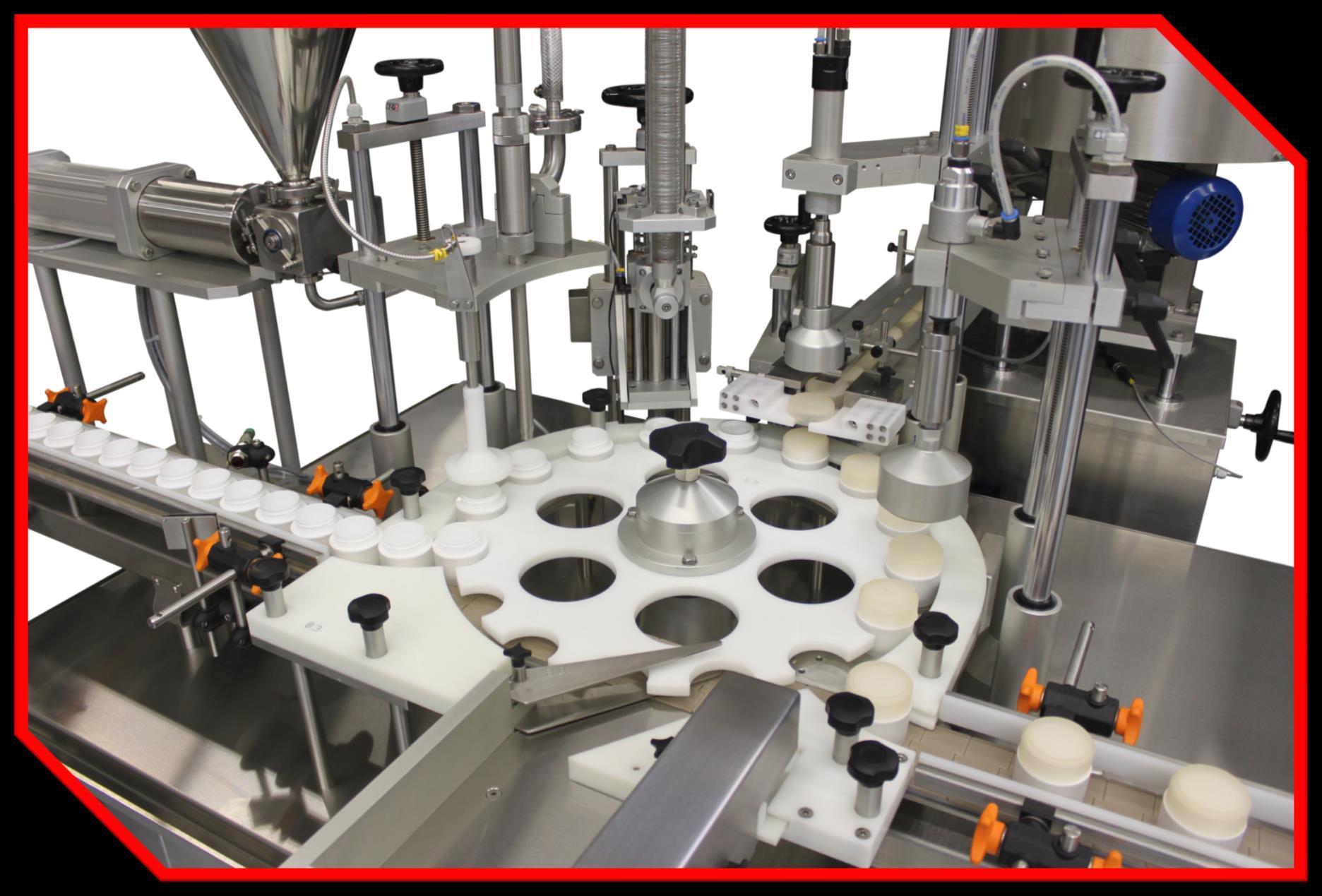

Servo driven Volumetric piston
1 to 6 filling station(s) configuration available
Fill range from 1 ml to 1,000 ml
MONOBLOCK
MULTI-PROCESSING PLATFORM

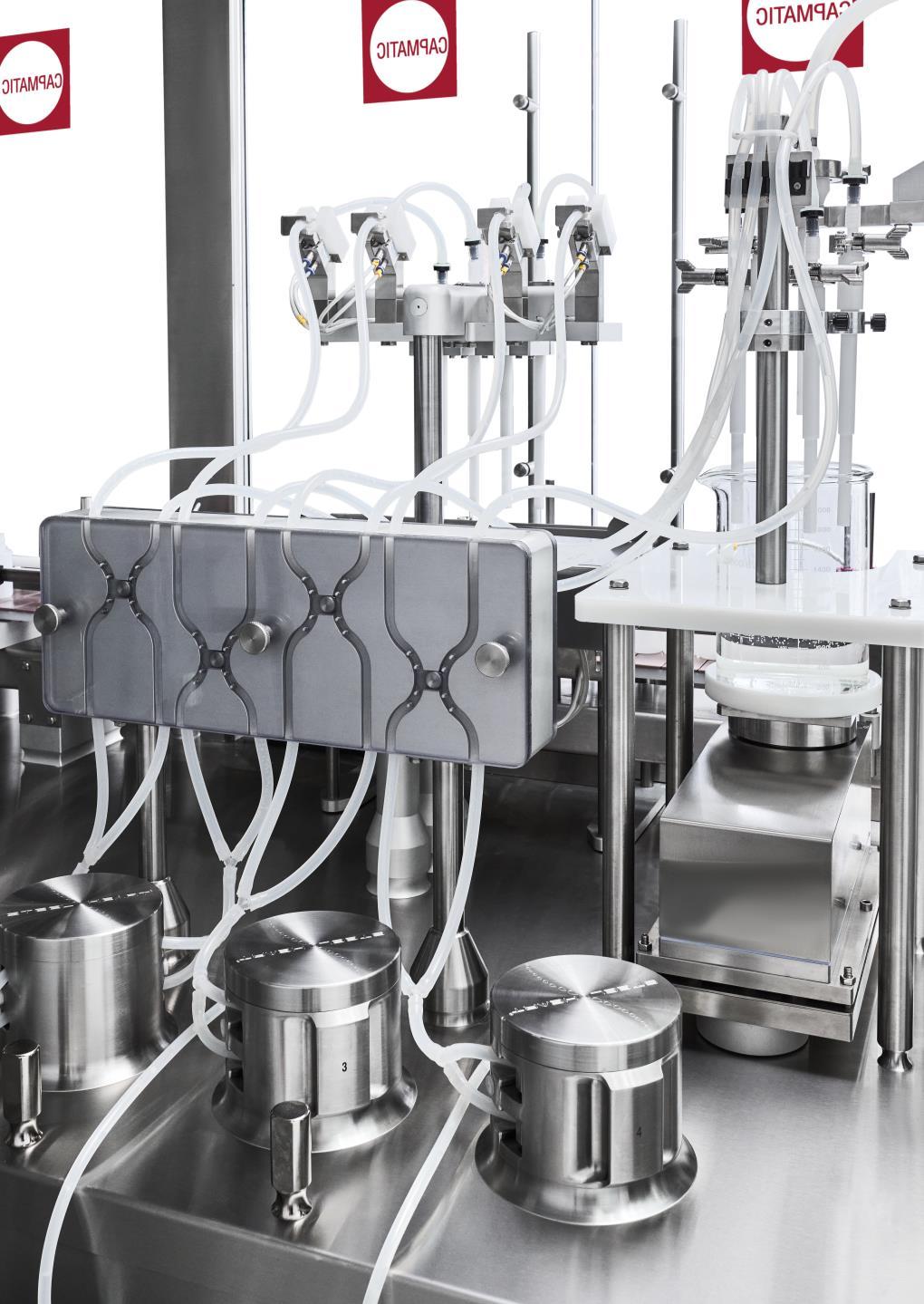

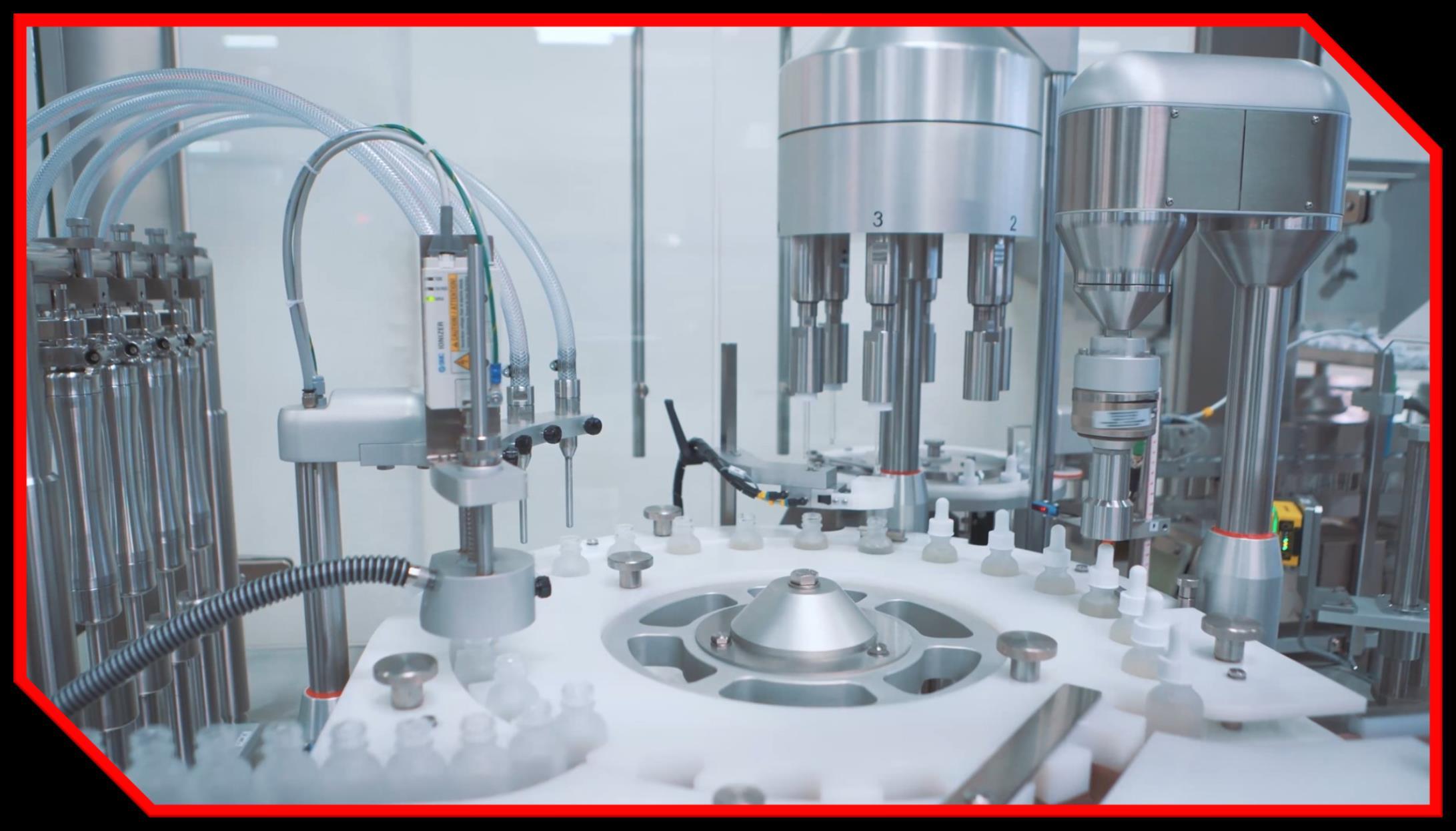

Servo driven Peristaltic pump
1 to 6 filling station(s) configuration available
Fill range from 0.1 ml to 500 ml
Servo driven Nozzle bar
Programmable bottom=up filling profile

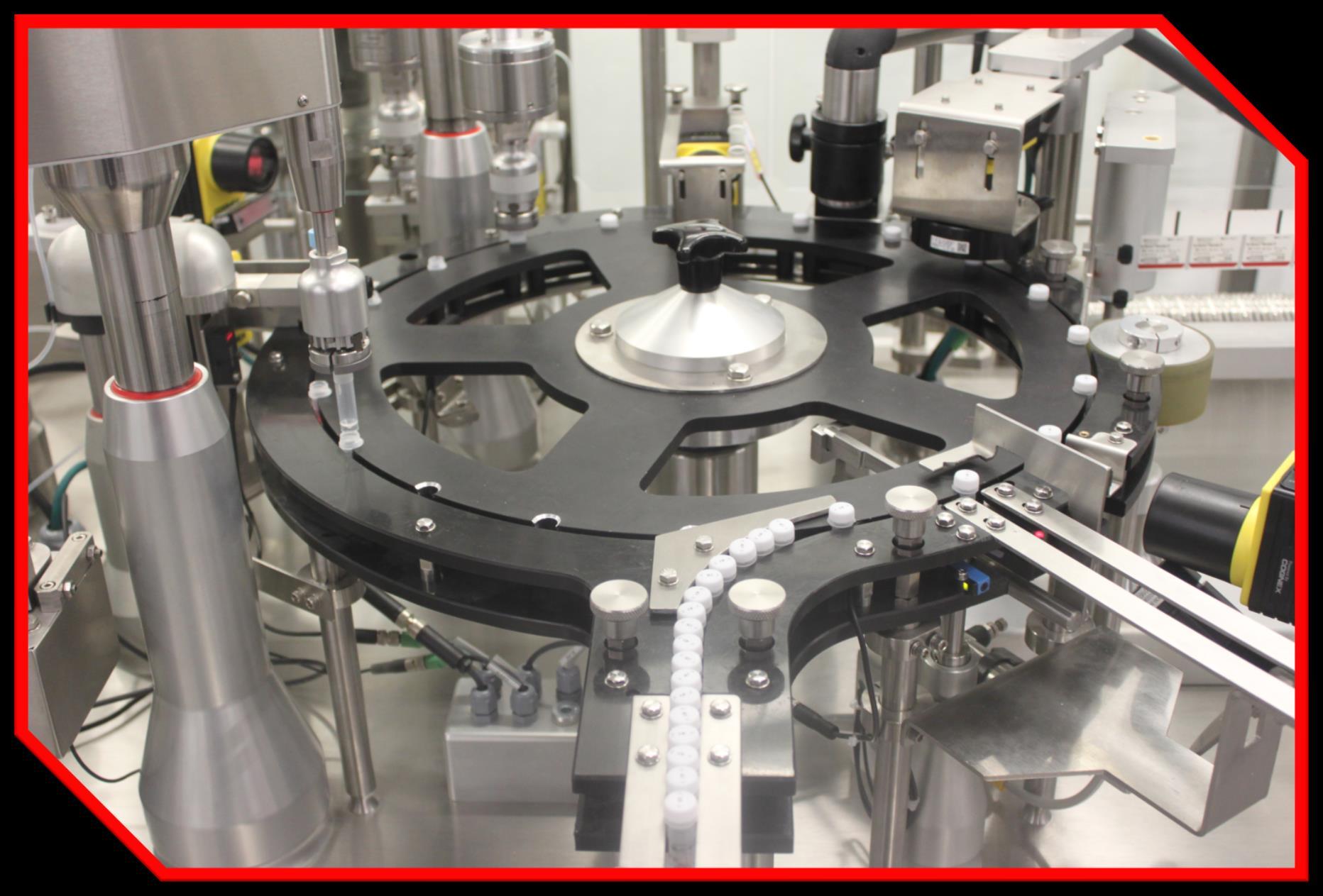

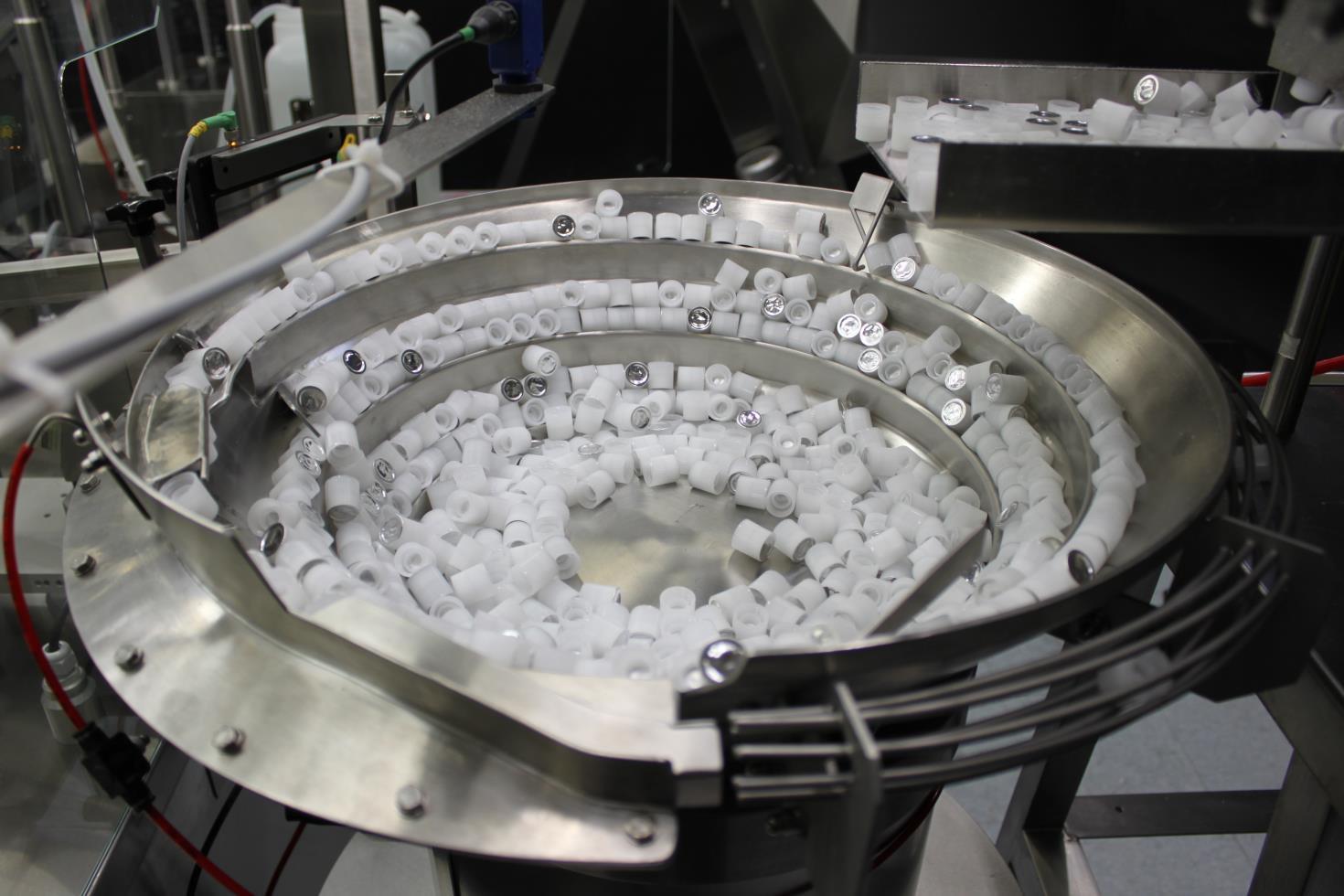

Cap Sorting & Feeding with Vibratory Sorting Bowl
MULTI-PROCESSING PLATFORM

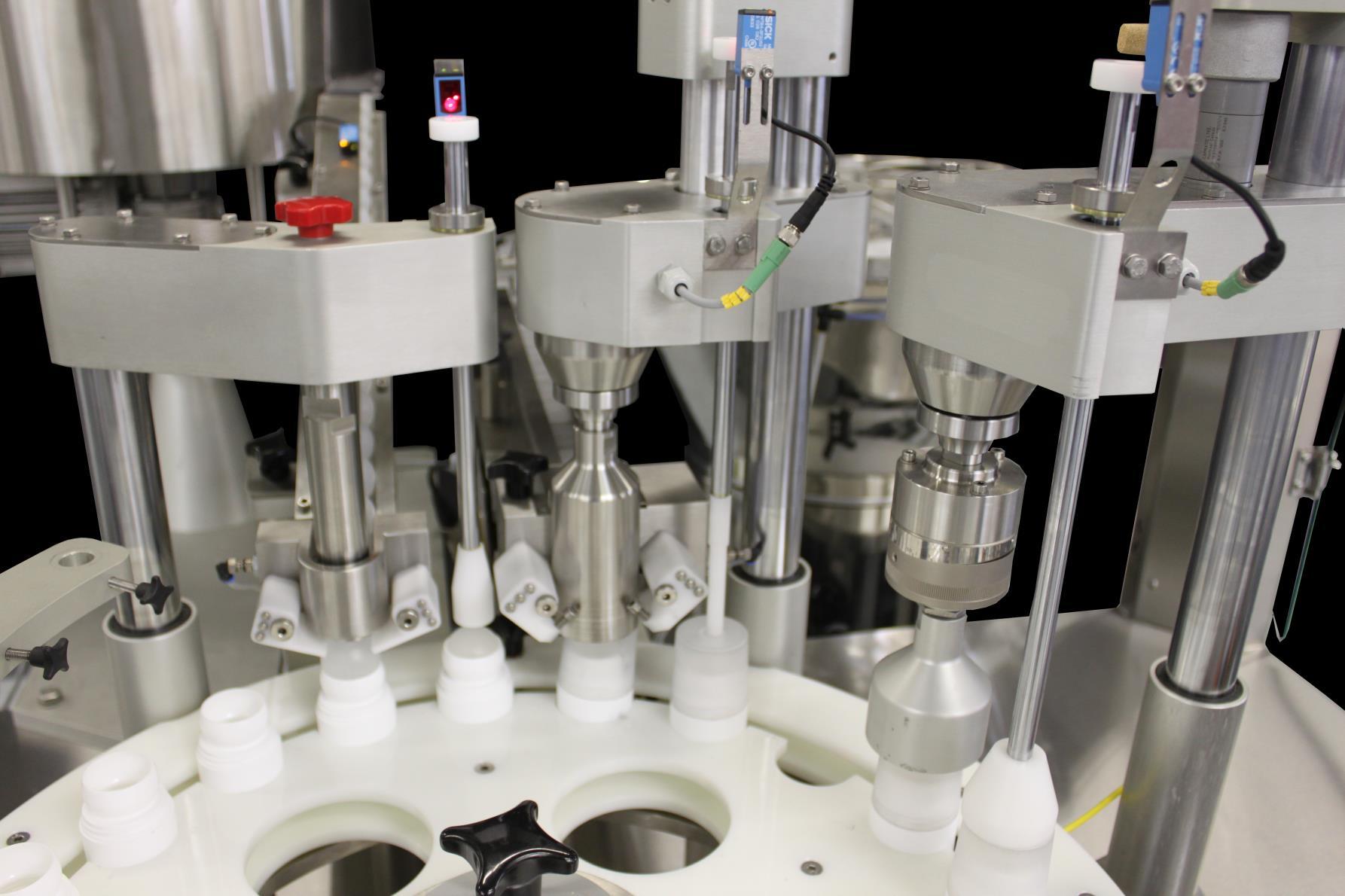

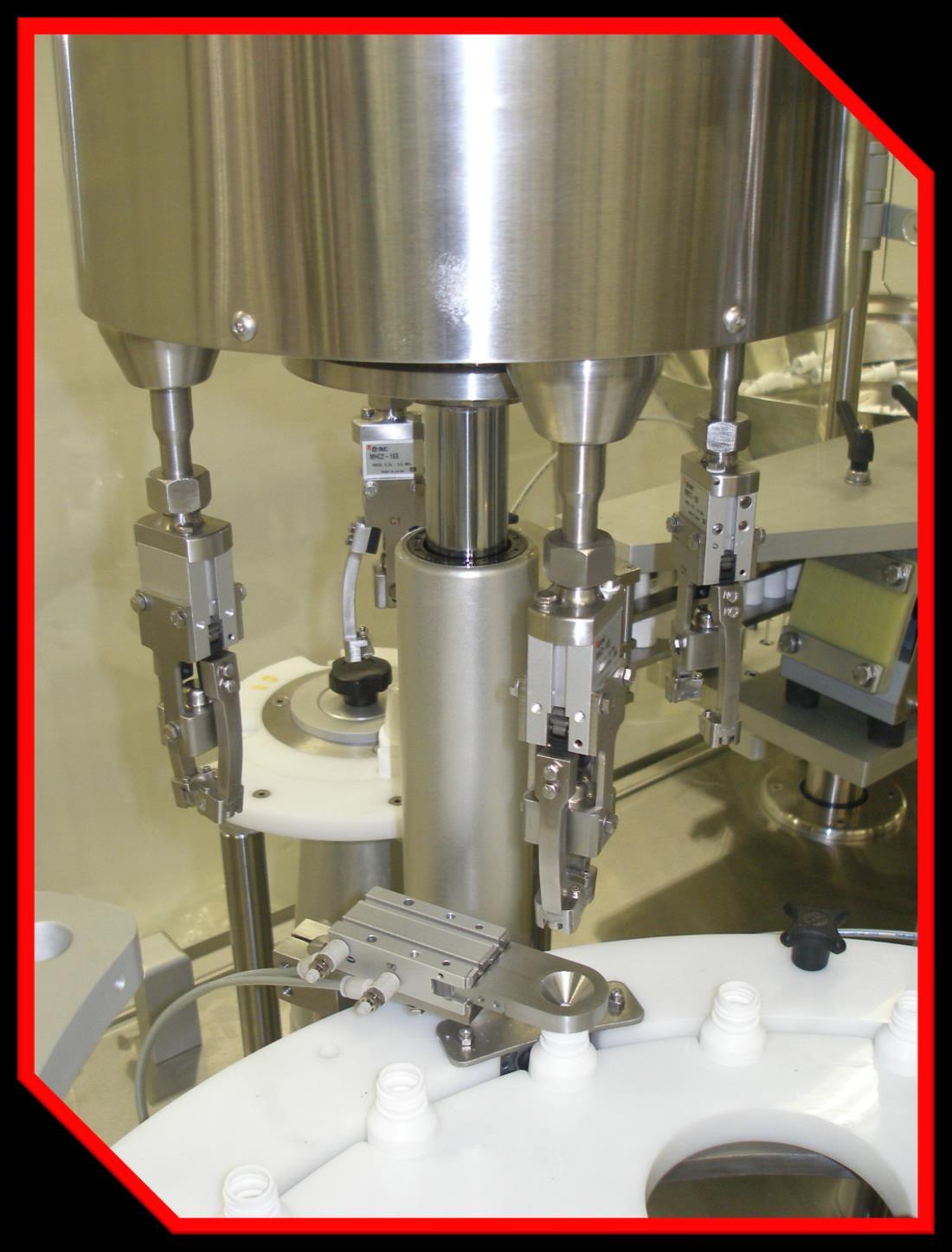

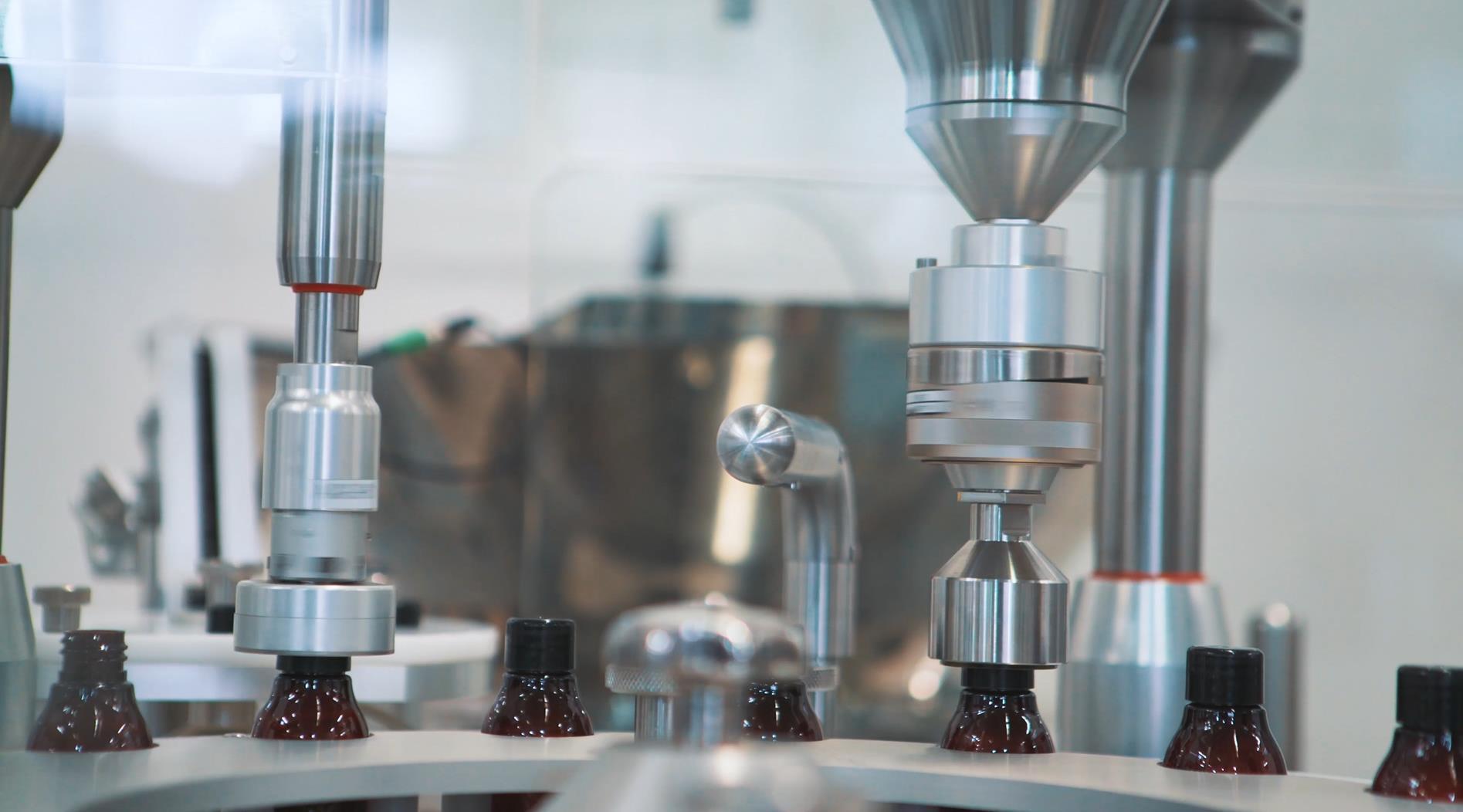

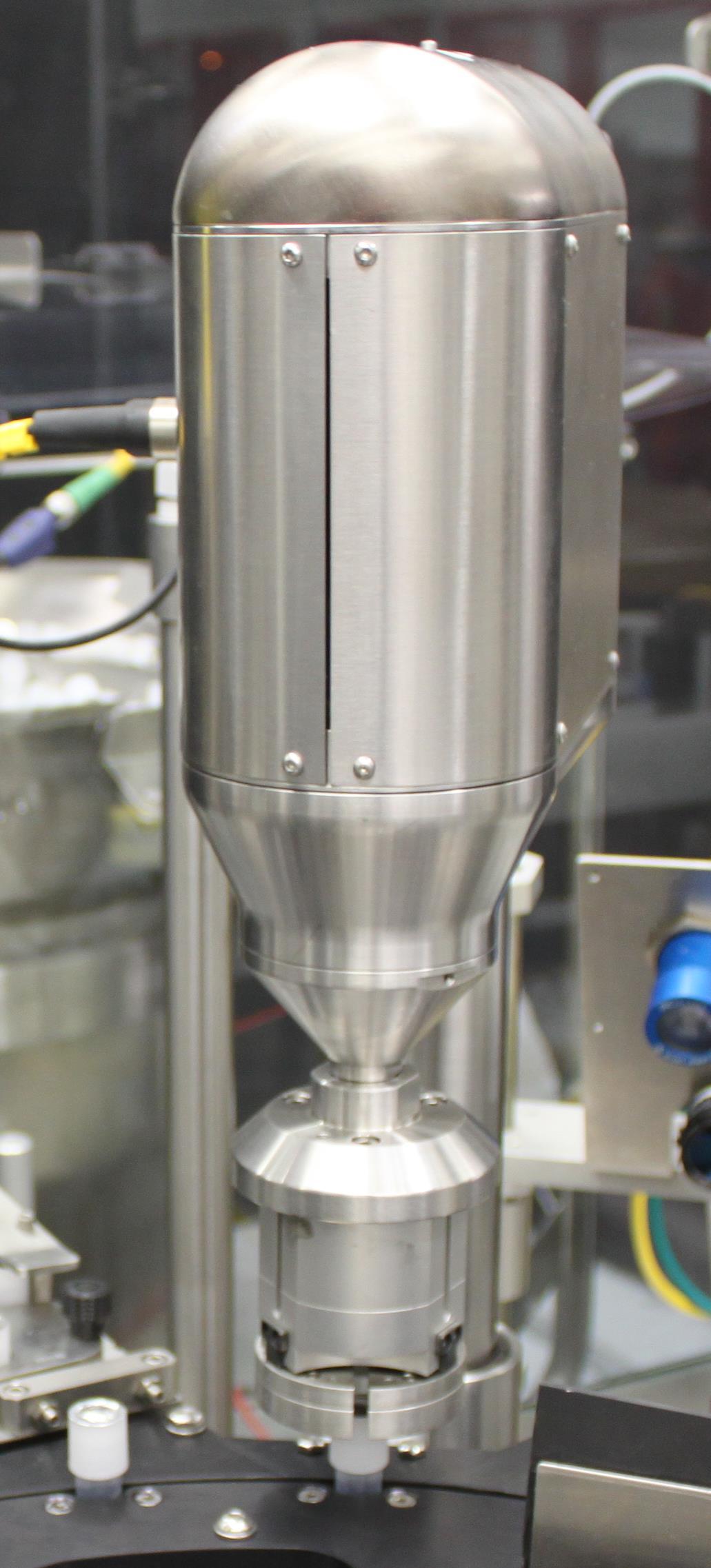

Cap Placement & Final Torque with magnetic slip clutch torque control
Optional Final torque Application with Feedback
Optional:
Servo final torque with feedback

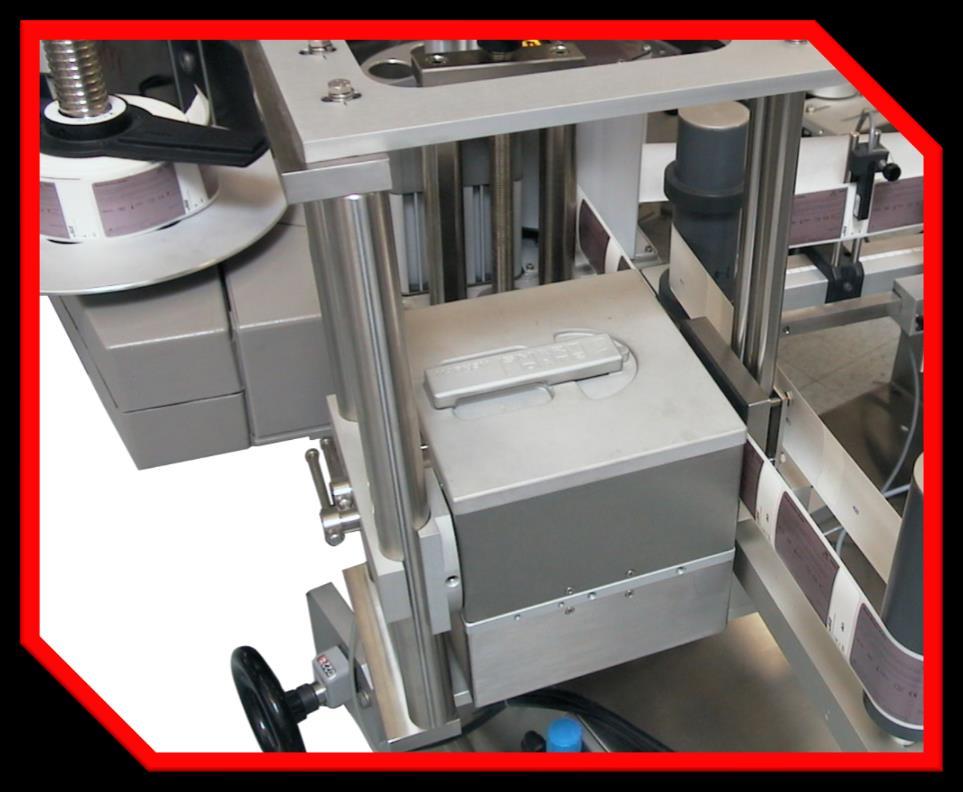

LOT/Date/Code printing on label

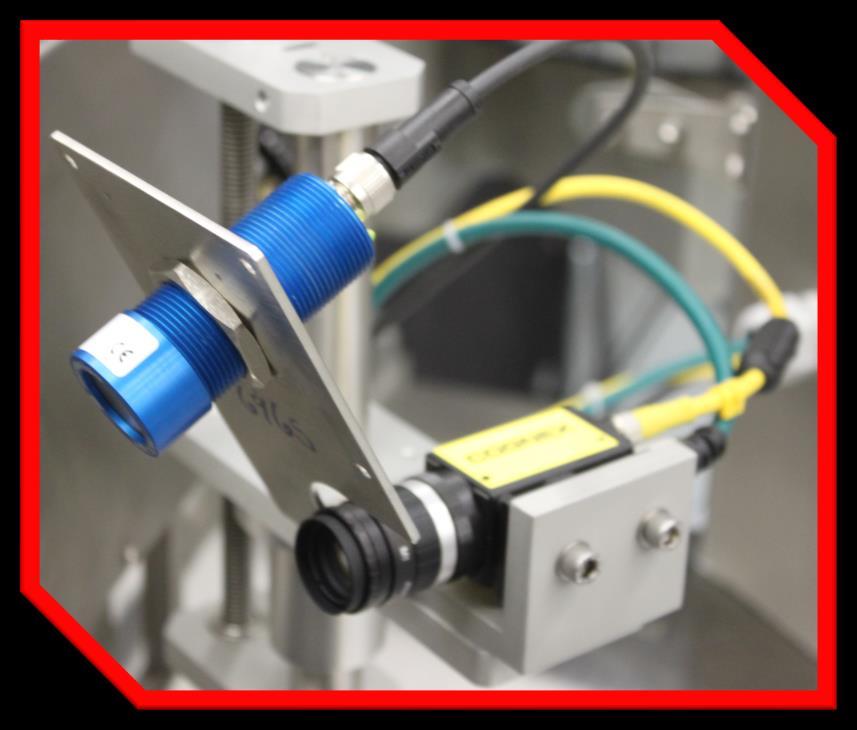

Vision inspection system

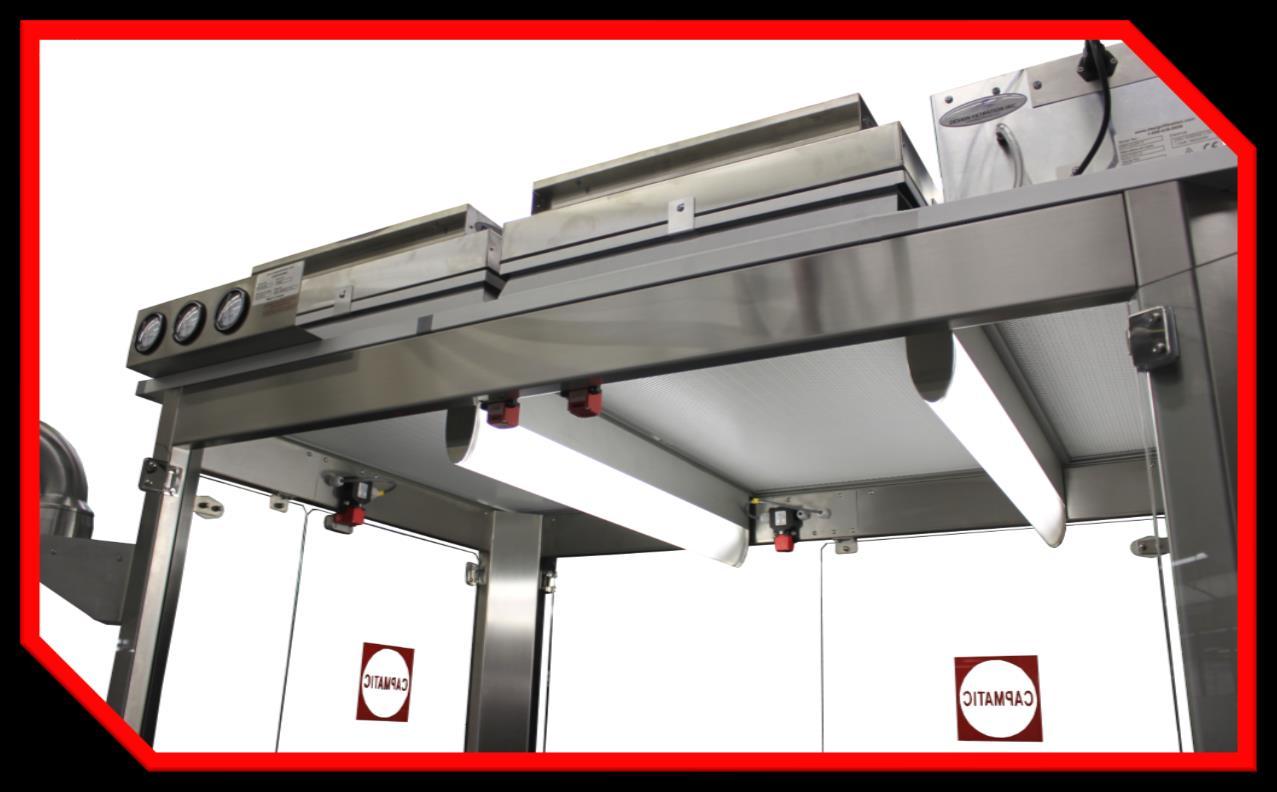

Laminar flow (ISO5)
Machine controlled with B&R Industrial PLC

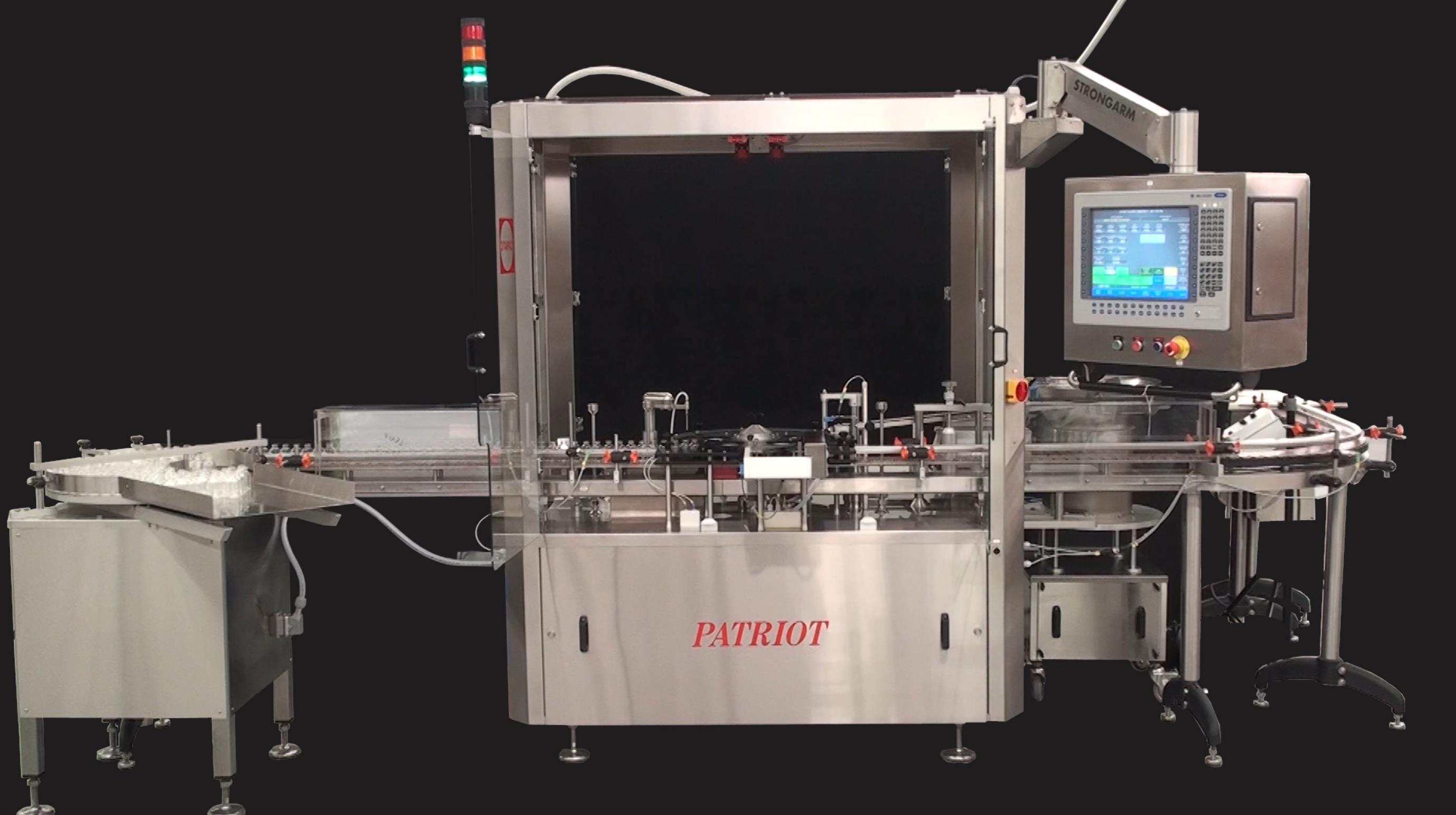

Twin axis swivel control panel

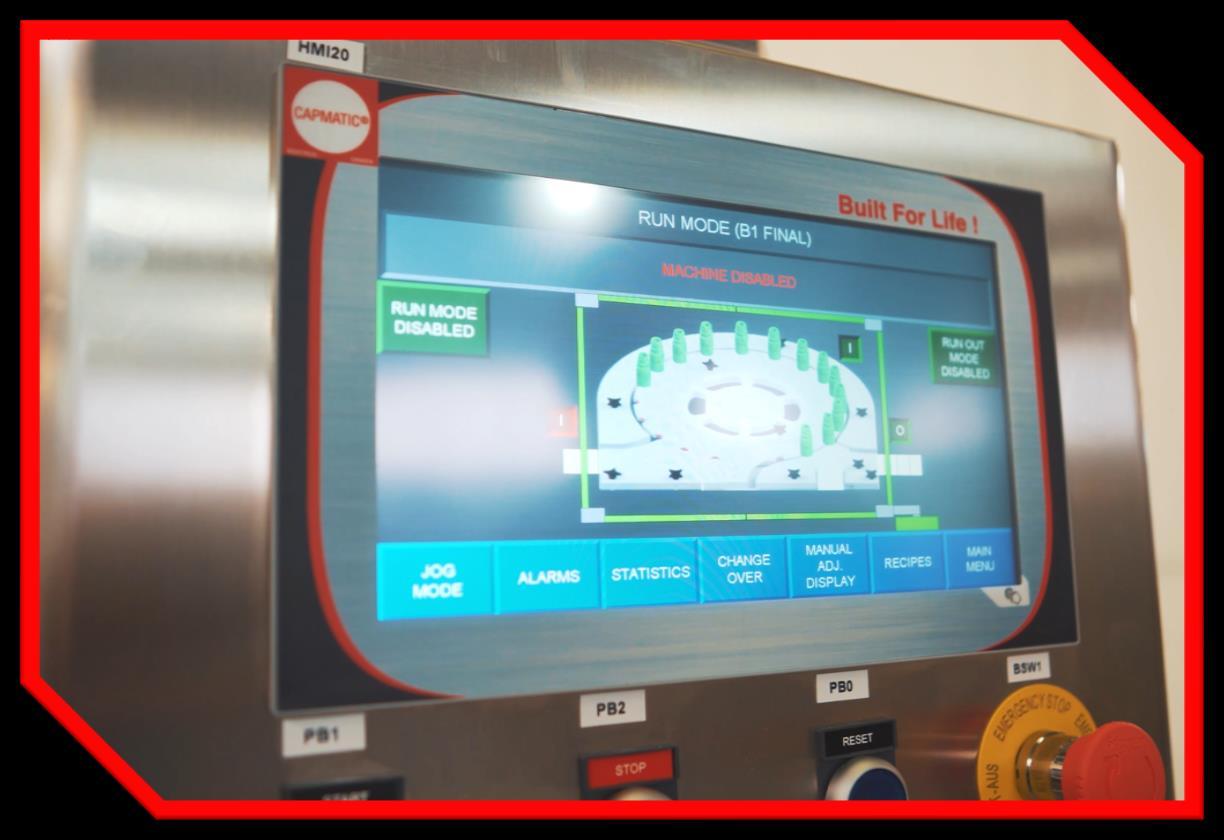

254mm (10’’) multi colors touch screen control interface
Three (X 3) colors status beacon light
Euroguard system with interlocking tempered glass doors
Manufactured to meet or exceed cGMP regulation

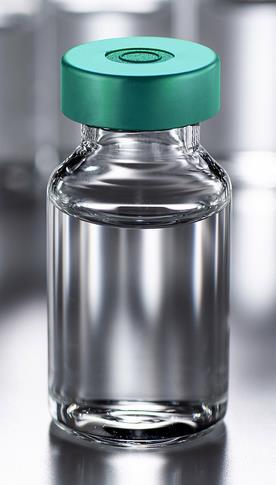

Perfectly adapted to work with steriles or Injectables
Suitable for ISO 5, Class A & B in the pharmaceutical
FC
Filling - Capping
Rotary Patriot
Filling – Plugging - Capping
Rotary Patriot
Filling – Capping
Stem Alignment
Rotary Patriot
Filling – Capping
Stem Alignment & Finger Flange Chuck for Nasal Spray Cap
Rotary Patriot
Filling – Capping - Labeling
Monoblock Solutions

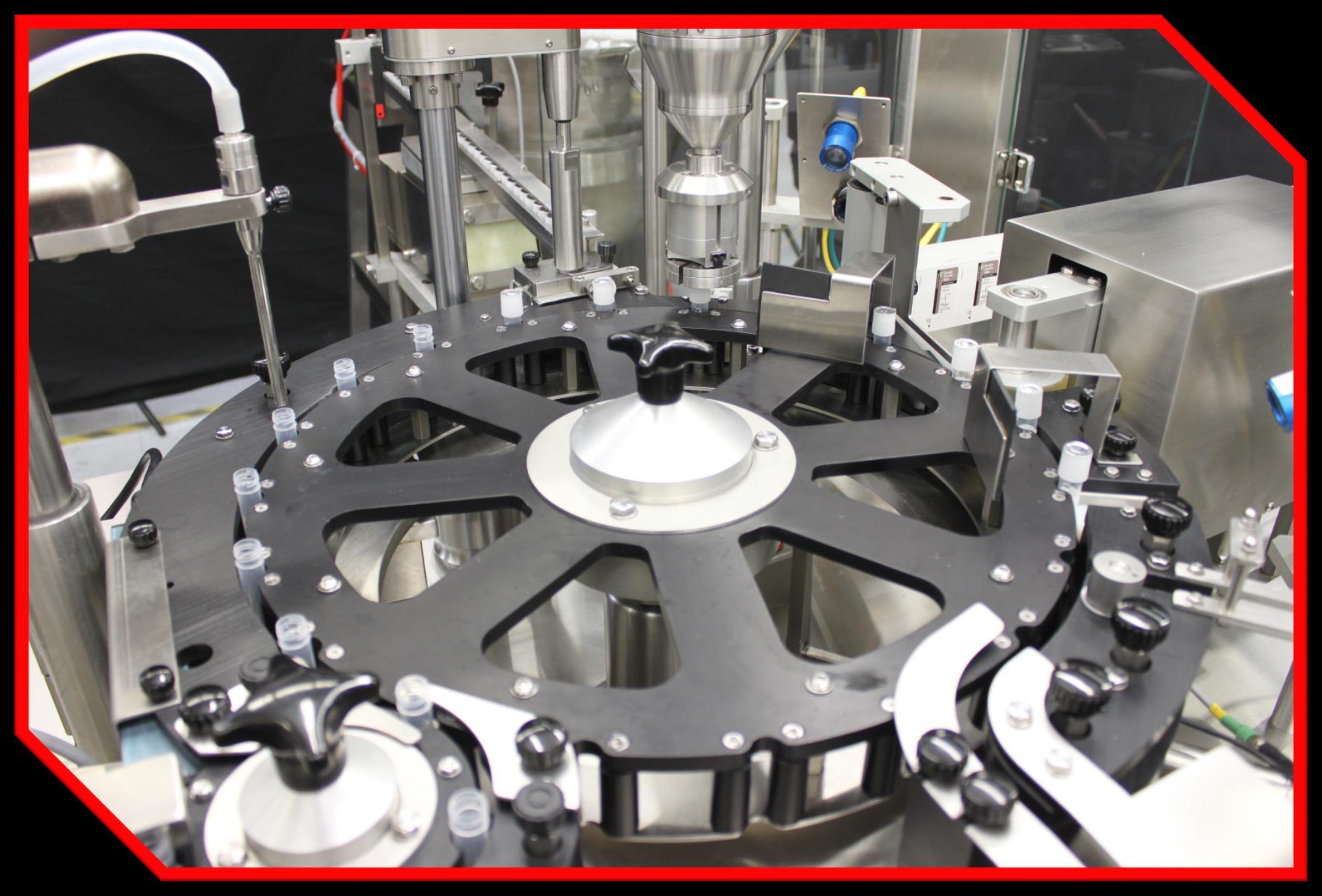

Rotary Patriot Unstable Micro-Tube
Monoblock Solutions
Rotary Patriot
