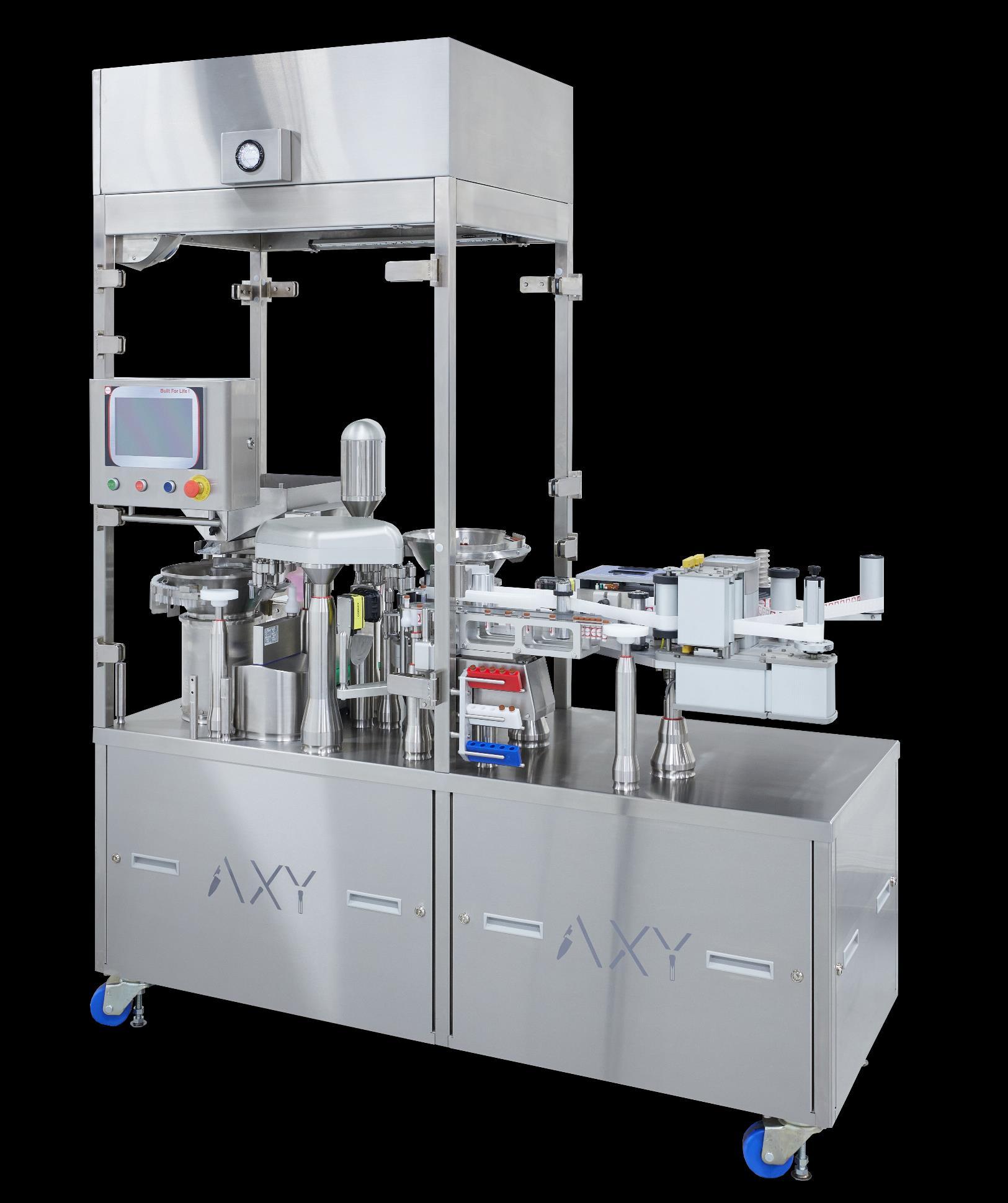

AXY Micro-tube Monoblock

Microtube Monoblock System Model: AXY

PACKAGING MACHINERY & ROBOTIC SOLUTIONS Pharmaceutical - Life Science - Diagnostic & Biotechnology

www.capmatic.com

Microtube Filling – Capping – Labeling Solution with Inspection Up to 30 TPM: - Fill range from 0.001ml to 10ml @ +/-0.5% accuracy - Machine controlled with Industrial P.C. - Following cGMP engineering guidelines & 21 CFR-11 - Completely integrated NEMA-4X electrical cabinet – no remote cabinet - Pharmaceutical finish in stainless steel 304 and all contact parts stainless steel 316 - Tool-less change over under 15 minutes - Time-stamped production history with printable data report - Integrated ISO5 HEPA air filtration unit - GAMP documentation - Integrated 360° remote service camera Tube Handling: - Integrated automatic unstable tube sorting/orienting & feeding - Servo-driven pick and place indexing with mechanical grippers Filling Station with: - Media source product station with cooling plate and orbital shaker - Programmable servo-driven peristaltic pump - Programmable servo-driven bottom-up filling profile - 100% in-process-check weighing (I.P.C.) with automatic fill adjustment Capping Station with: - Screw or press-on cap - Servo-driven final torque monitoring with 100% feedback - Application Torque: min and max 2 to 25 in/lb. (0.22 to 2.82 Nm) Labeling Station: - One pressure-sensitive labelling station for tube wrap around - Integrated thermal transfer coding - Integrated print inspection (OCV-OCR) for presence & legibility - Integrated label presence & skew inspection (+/- 1/32”)

Optional: - Robotic pick & place outfeed - Airborne particulate counter - Glove port and sanitary component transfer - Preventative maintenance program
