BROADCAST SOLUTIONS
ENCLOSURES, RACKS & PANELS
POWER DISTRIBUTION
ALL TYPES OF CONNECTORS
CABLE & CABLE ASSEMBLIES
AUDIO & VIDEO DEVICES
EVERYTHING ELSE
ENCLOSURES, RACKS & PANELS

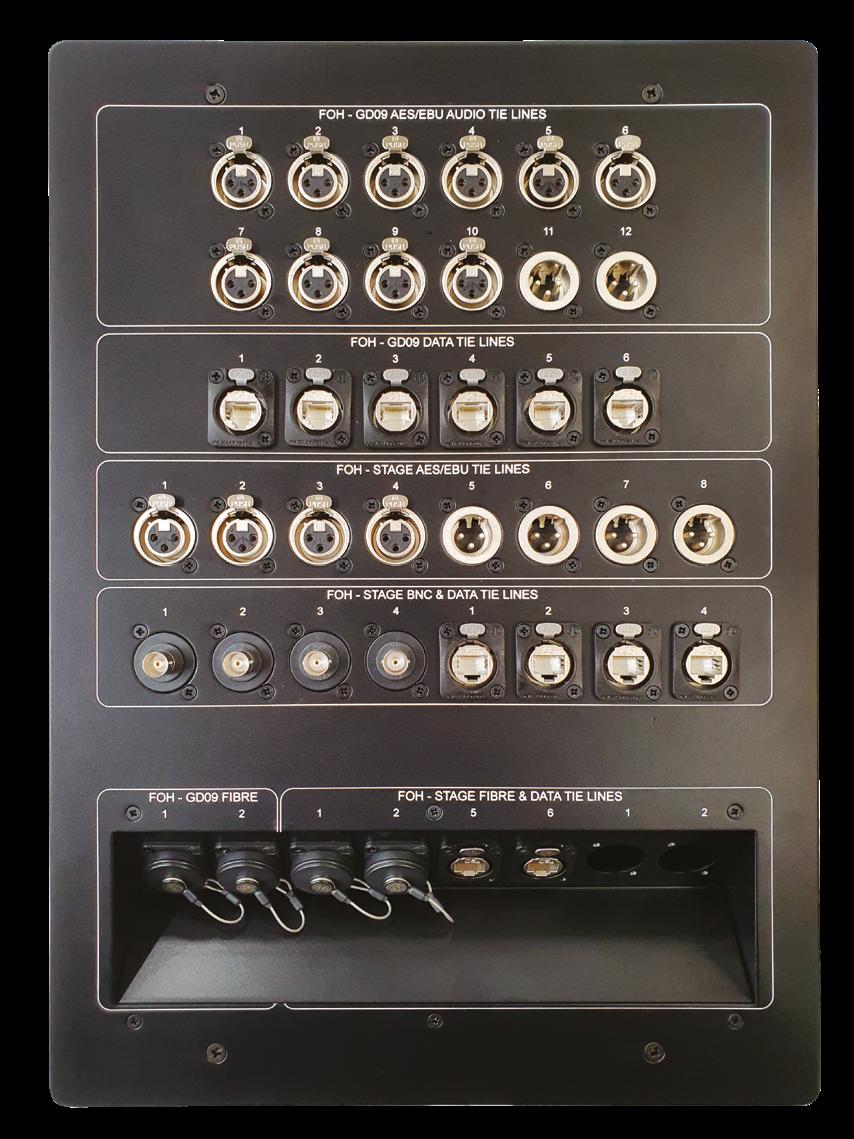

CANFORD CUSTOM METALWORK
Custom designed (including screen printed or laser engraved) metalwork service capable of expertly crafting a huge array of racks, panels, wall and floor boxes, and just about anything else you can imagine.
• Custom: Working with customers to develop bespoke, personalised solutions.
• Quality: Dedicated UK metalwork shop incorporating Painting, Laser Engraving, and Assembly.
• Quick: Short lead times due to our complete integration and our in-house design and development service.

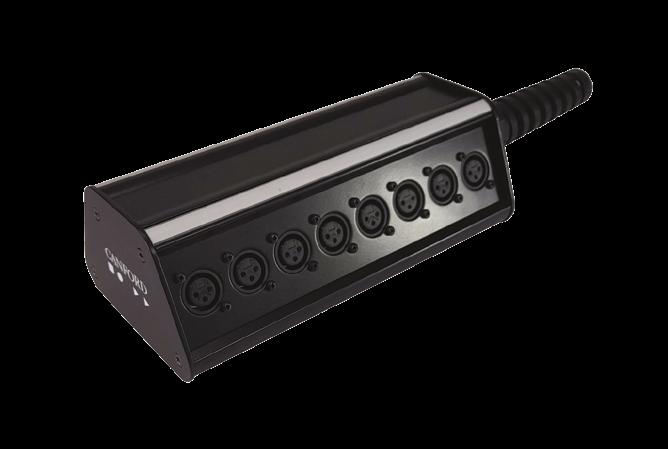

CANFORD STAGEBOXES - Trapezoid, all metal
A selection of durable and cost-effective trapezoid-shaped stageboxes, which are available either unpopulated or pre-loaded with popular configurations of up to 24 D-Series connectors.

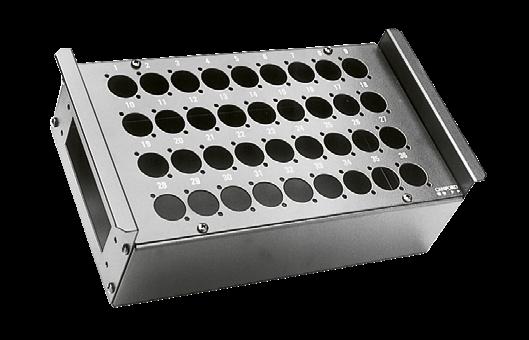

CANFORD STAGEBOXES AND WALLBOXES - Modular, steel
A series of rugged steel stageboxes and wallboxes offering a wide range of connection possibilities when fitted with ‘Universal’ series connectors. Built around a sturdy, folded steel chassis, each box is available with a choice of top or front plates featuring up to 48 ‘Universal’ cutouts, and can be combined with popular multicore connectors where required.

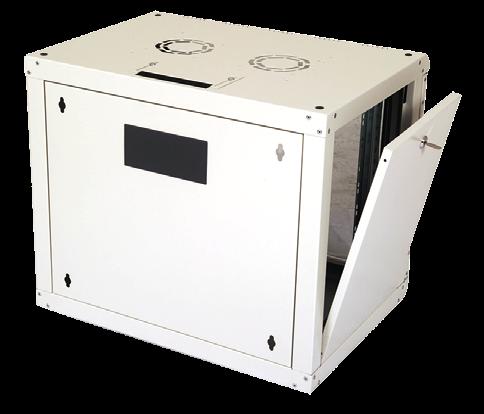

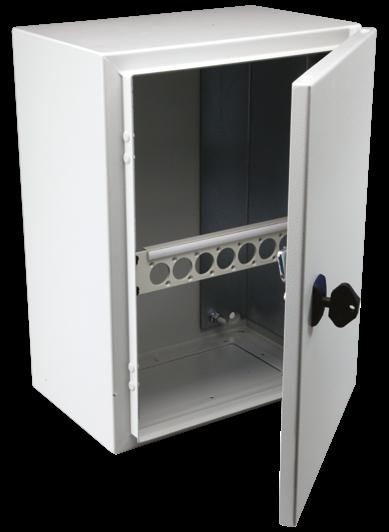

CANFORD RACKS - ES466 SERIES - IP66 wall cabinets
The ES466 Series wall-mounting steel rack cabinets are built for demanding environments, making them ideal for open areas exposed to the elements, as well harsh industrial settings such as chemical plants, pharmaceutical facilities and marine applications. Offering protection up to IP66, these robust enclosures are available in both 19 inch and half-rack (9.5 inch) formats. Choose from three heights, three depths and three finishes. Each cabinet comes complete with a fitted steel front door and sealed gasket for enhanced protection.
49-0803
49-787
ENCLOSURES, RACKS & PANELS

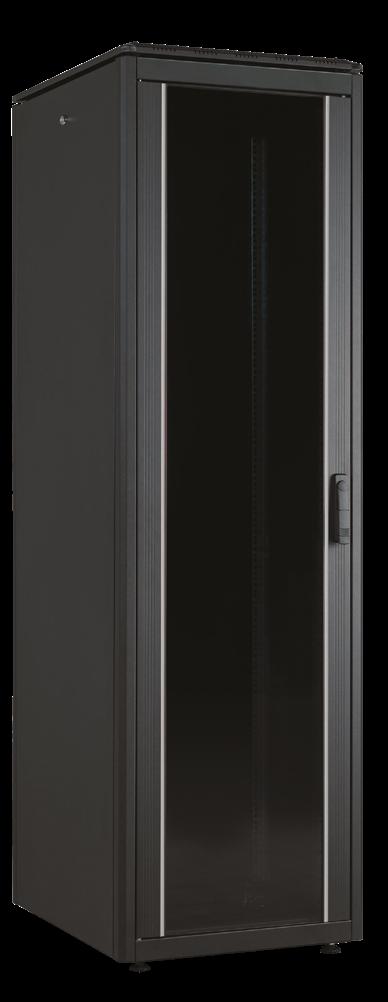

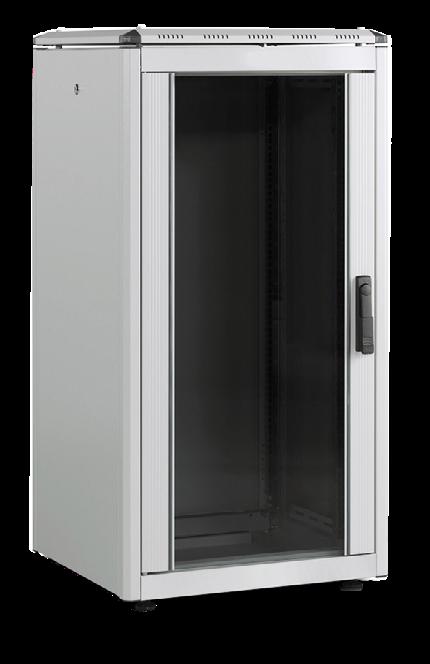

LANDE - ES362 SERIES CABINETS - Assembled
Lande ES362 Series rack cabinets are competitively priced, floor-standing, 19 inch steel frames racks. They are available in two widths, three depths, a range of heights and in a choice of grey or black finishes. These racks can be supplied full assembled with removable front and rear doors, and side panels. Alternatively, the ES362 Series racks can also be supplied flat-packed.
Available in depths of 600mm, 800mm and 1000mm, each rack features a solid frame constructed from four vertical pillars, securely fixed to the top and base sections. Horizontal cross-members add rigidity, while adjustable front and rear mounting profiles (rack strips) are attached to both the cross-members and the top and base flanges. This allows more flexible positioning throughout the cabinet depth. The mounting profiles include dual perforations for cage nuts, enabling easy installation of equipment on both the front and rear faces, as well as internal accessories like shelves and chassis guides. Each profile is clearly marked with screen-printed 1U height indicators, simplifying equipment alignment during setup.
12-2118 & 12-2101

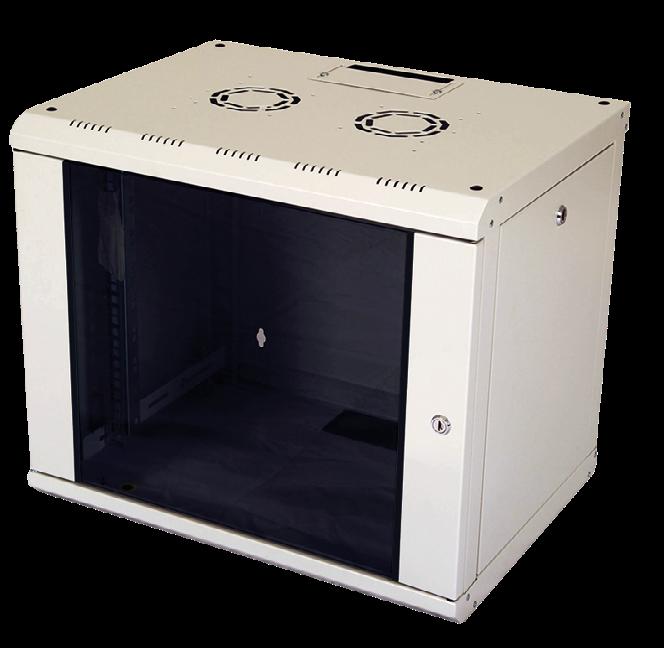

LANDE - PROLINE SERIES
- 19 Inch cabinets - Floor or wall
15-5001
The Proline Series offers a range of cabinets to rack-mount 19-inch equipment on walls, with extra attention paid to ease of mounting. Alternatively either castors or levelling feet can be used for free-standing or under-desk applications. With light-weight, riveted, steel construction giving strength and rigidity, they are available in five heights, two depths and two colours and are supplied complete with a toughened glass door. Side and rear panels are removable, with the rear panel having a large cable entry cut out. The standard single-section cabinets may be extended by adding a rear section.
The rear panel of each cabinet can be removed, used as a drilling template and then fixed to the wall. The cabinet is then lifted and secured onto the panel and fixed with screws - a quick and easy, ‘one-man’, installation. The optional rear section gives extra depth, but more importantly gives access to the rear of the equipment without taking it out of the cabinet.

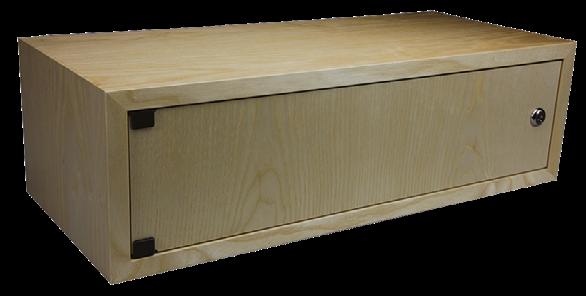

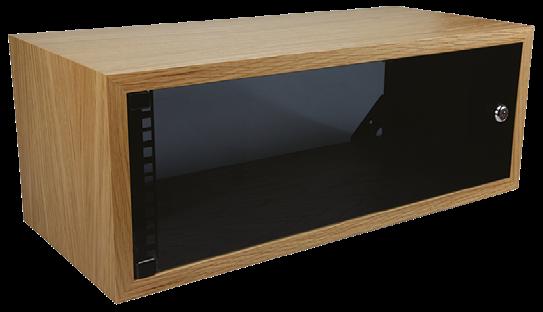

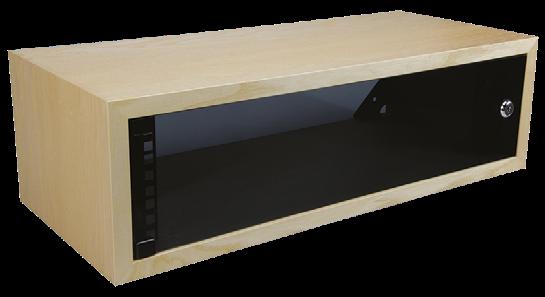

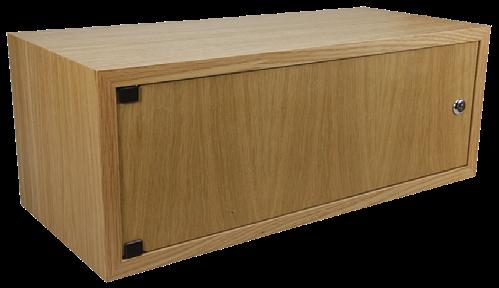

CANFORD RACKS - ES414 SERIES - 19 Inch wall cabinets - Wooden
These wall-mounting 19-inch cabinets are constructed from high-density particle board, finished with ash, oak or beech veneer, with mitred joints for an aesthetic finish. Available in six heights, they are open at the rear, with 19-inch mounting facilities at the front. Available with a tinted acrylic or solid inset door, or solid overlaid door. All lockable for security.
Custom Joinery available at request. For more information or to request a quotation contact Sales. 15-1314
ENCLOSURES, RACKS & PANELS

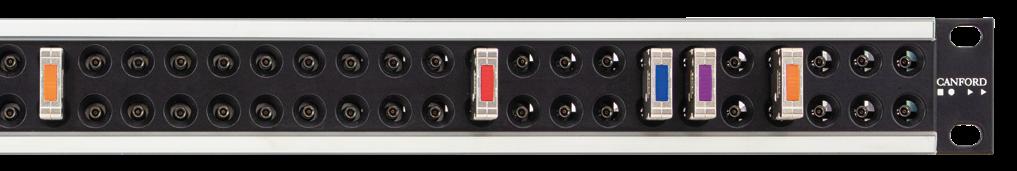

CANFORD MICROMUSA VIDEO PATCH PANELS - 12G 4K UHDStandard Density, High Density, Very High Density
This range of video jackfields feature the innovative microMUSA panel connector, developed exclusively for Canford by Coax Connectors. Engineered to exceed 4k performance standards, they deliver exceptional signal quality while maximizing panel space, with up to two rows of 48 connectors in a compact 1U format.
Each connector includes a unique positive location feature (“detent”), giving tactile feedback when a U-link or patchcord is fully inserted. This not only ensures a secure connection, but also provides resistance to vibration, making it ideal for demanding environments such as outside broadcast (OB) vehicles.
While built to the same high standards as our renowned 3G MUSA connectors, this micoMUSA range offers a new level of performance and density and it not compatible with the existing Canford 3G MUSA system.
CANFORD CONNECTION PANELSKeystone fit
Canford’s range of multipurpose connection panels are ideal for a variety of AV and data applications and support industry-standard keystone connectors, whilst offering a seemingly limitless amount of configuration options. Manufactured from a lightweight yet exceptionally rigid 1U aluminium extrusion, each panel is available with 8, 16, or 24 equally spaced cutouts for a clean, adaptable solution in any rack-mounted setup.

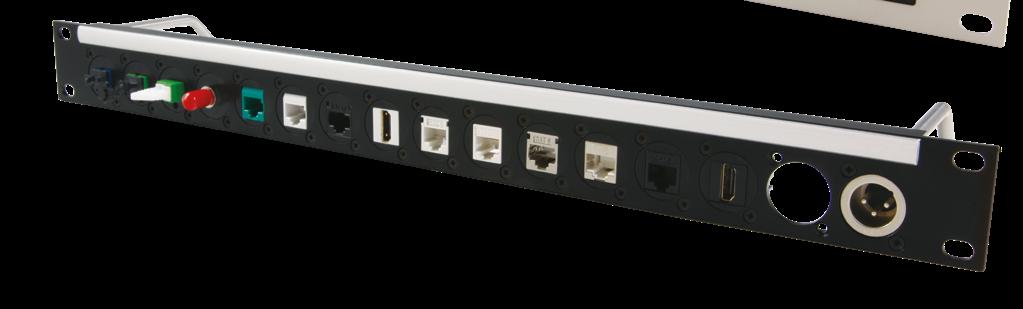

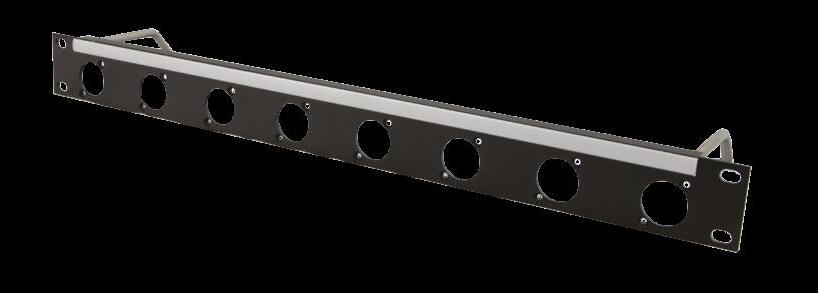

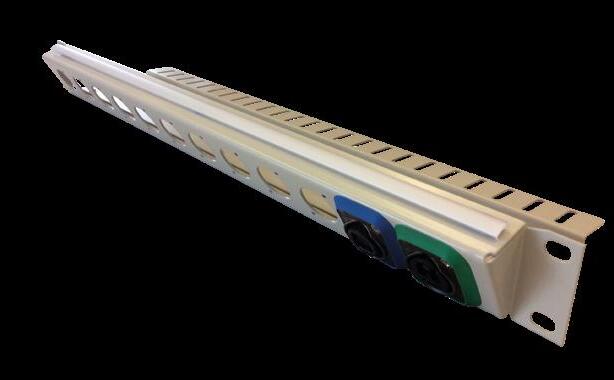

CANFORD UNIVERSAL CONNECTION PANELS - Rapid Assembly
The innovative Canford 1U multipurpose panels are engineers for fast, hasslefree rear mounting of connector configurations, with no specialist tools or fiddly nuts required. Constructed from durable 2mm steel, the design features a single top return, allowing for the included M3 tapped mounting frame. This clever frame simply snaps onto the rear of Neutrik D Series or Canford Universal Series connectors, enabling quick and secure installation using the supplied M3 countersunk screws.
The panels are also fully compatible with the rear mounting of Neutrik Speakon and Powercon D Series connectors, making them a highly versatile solution for professional AV, Broadcast and Installation environments.

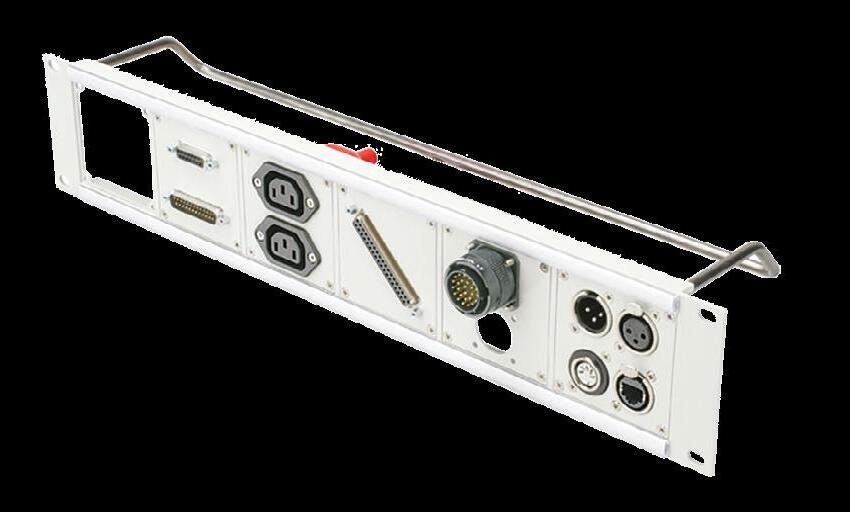

CANFORD UNIVERSAL MODULAR CONNECTION PANELS
Designed for maximum flexibility, these modular connection panels offer virtually limitless configuration options. An evolution of Canford’s long-established Universal Connection System, they are specifically developed to accommodate larger format connectors that exceed the original system’s capacity. Perfect for audio, video, data and power applications, these 2U panels allow users to create custom configurations without the expense or lead time of bespoke metalwork.
44-3791
ENCLOSURES, RACKS & PANELS

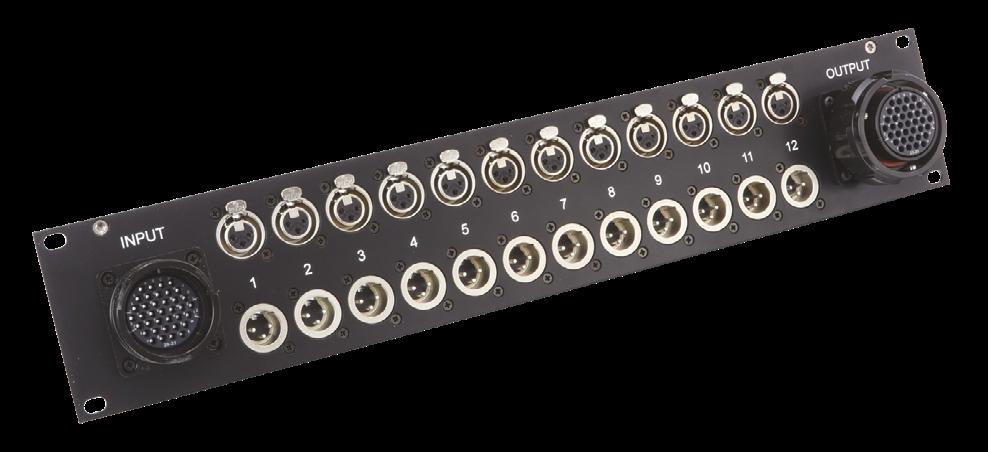

CANFORD AUDIO SPLITTER PANELSand Neutrik XLR connectors
Choose from two 2U splitter panel configurations, each supplied fully populated with 2off 37 pin Tourline connectors and 2 rows of 12 Neutrik D Series 3-pin XLR female and male connectors.
Manufactured from lightweight but extremely rigid aluminium extrusion, supplied with a cranked lacing-bar fitted, giving easy access to the rear of the connectors. Panels are engraved 1-12 with white infill for easy identification of all connectors in low light environments.

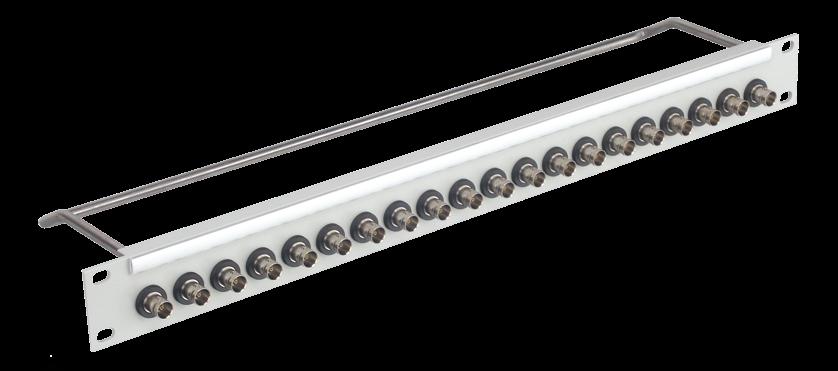

CANFORD BNC 12G, 4K UHD, 75 OHMS TERMINATION PANELS
Engineered for high performance signal integrity, these UHD BNC termination panels are designed for use with 12G 4K UHD (2160P60), 3G and 1.5G high definition, standard definition, and analogue video signals. Their performance exceeds the specifications of SMPTE 2082-1, making them suitable for composite and component video, 270 mb/s SDI, uncompressed 1080i or 1080p HD-SDI, and full 12G UHD video. To support seamless integration, matching COAX 4K cable connectors and patchcords are also available.

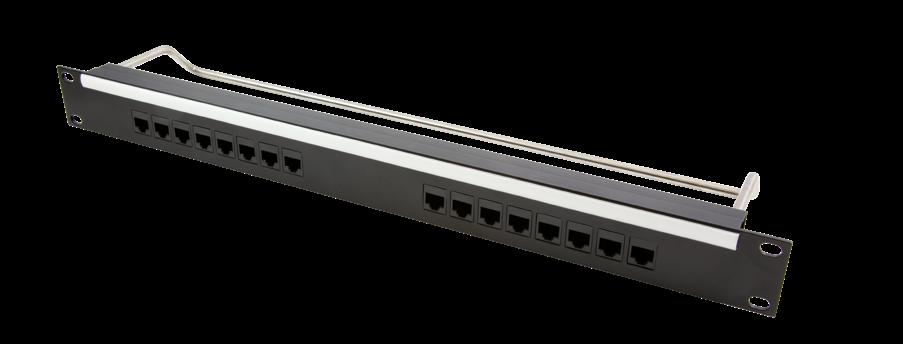

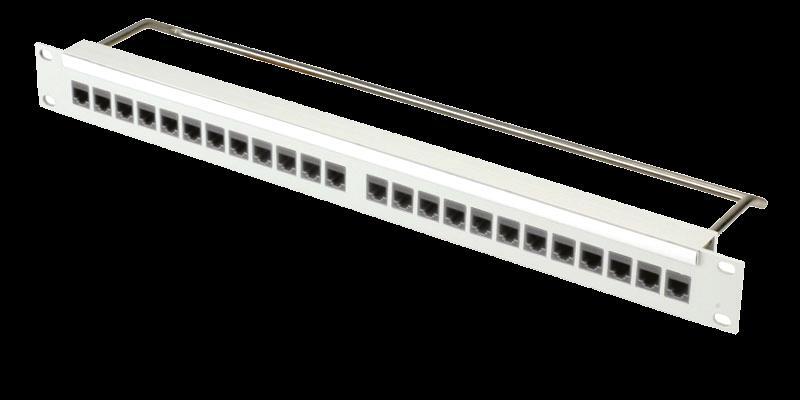

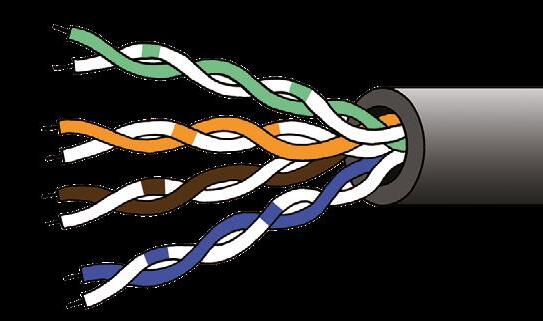

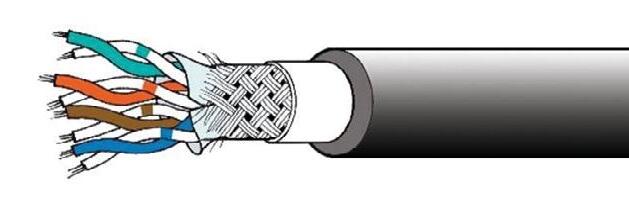

CANFORD CAT5E, CAT6 AND CAT6A RJ45 FEEDTHROUGH AND PRO PATCH PANELS
Unscreened: Supplied fully populated with feed-through (also known as doublesided or back-to-back) unscreened RJ45 CAT5E sockets enabling system patching and easy connection of portable or external equipment. A printable designation-strip with snap on cover and a lacing bar are fitted as standard. Feedthrough modules available in CAT6, CAT6A & CAT5E, panels also available in 8 & 16 way.

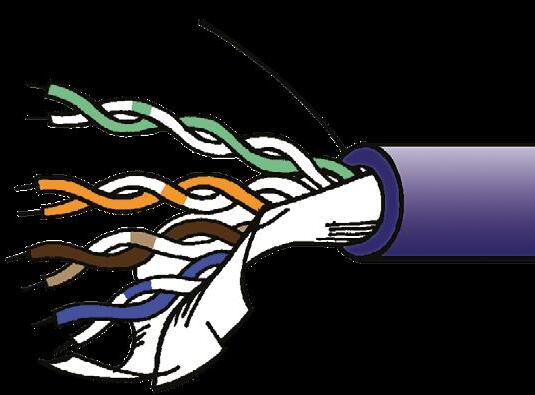

Screened: Supplied fully populated with feed-through (also known as double-sided or back-to-back) screened RJ45 CAT6A sockets enabling system patching and easy connection of portable or external equipment. IDC versions are supplied with screened RJ45 CAT6A IDC sockets. These ‘Tool-less’ sockets have IDC termination with butterfly-style levers to close the housing and make the termination.

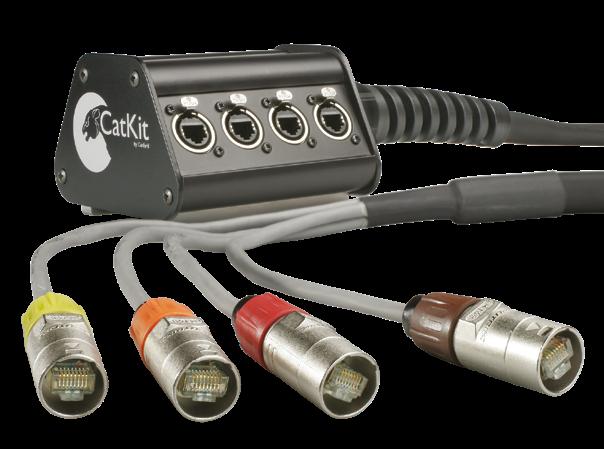

CANFORD CATKIT ETHERCON STAGEBOX SYSTEM
This range of robust stage boxes, patch boxes and super-flexible, multicore cables are built to endure the demands of touring and mobie production. Available in four-way or eightway configurations with standard RJ45-compatible etherCON connectors, they offer a solution to deploying multiple Cat5E equivalent cables in demanding environments, including television outside broadcast and live-performance rigs. Stage boxes are fitted with captive multicore cables in various lengths, with etherCON break-out tails, Multicore cables have etherCON break-out tails at each end, patch boxes provide back-to back etherCON connectivity and breakout to standard RJ45 Cat5E patchcords.
ENCLOSURES, RACKS & PANELS

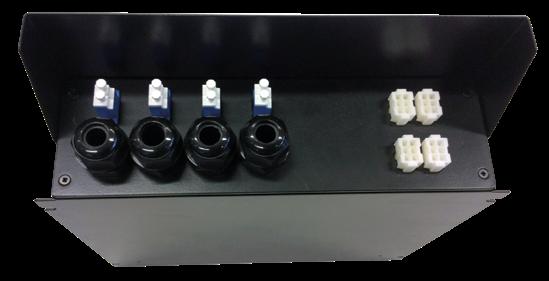

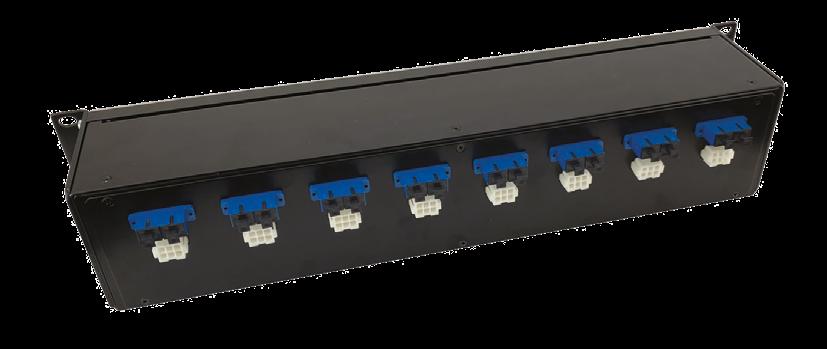

CANFORD FIBRE FIELD TERMINATION RACKMOUNT CASE
Designed to facilitate a fast, easy and effective solution for installing hybrid fibre connectors on site and eliminates the need for pre-terminated cable assemblies. The boxes come complete with up to 8 x Lemo 3K.93C EDW or FMW cable assemblies pre-fitted in either a flat or angled 2U front panel.
The SMPTE cable enters the chassis via rear cable glands and the strain relief is secured to the clamping post. The electrical cables are then terminated directly to the AMP connector provided on the internal bulkhead. The fibre cables terminate directly to the SC coupler on the same bulkhead using SENKO XP Fit Plus connectors or alternatively via SC tails which are spliced to the incoming fibre using the internal splice tray.
This system not only provides improved protection to both the electrical and fibre connections which are secured within the case but also allows for quick and easy replacement/ repair of any failed SMPTE connectors.
CANFORD FIBRE LEMO SMPTE COMPACT RACKMOUNT ENCLOSURES
Adapted from our trusted field termination range, these compact rackmount enclosures offer a space saving alternative for installations where depth is limited. With a shallow profile of just 100mm, they’re ideal for use in shallow racks or wall boxes, delivering a practical solution without compromising on quality or accessibility.

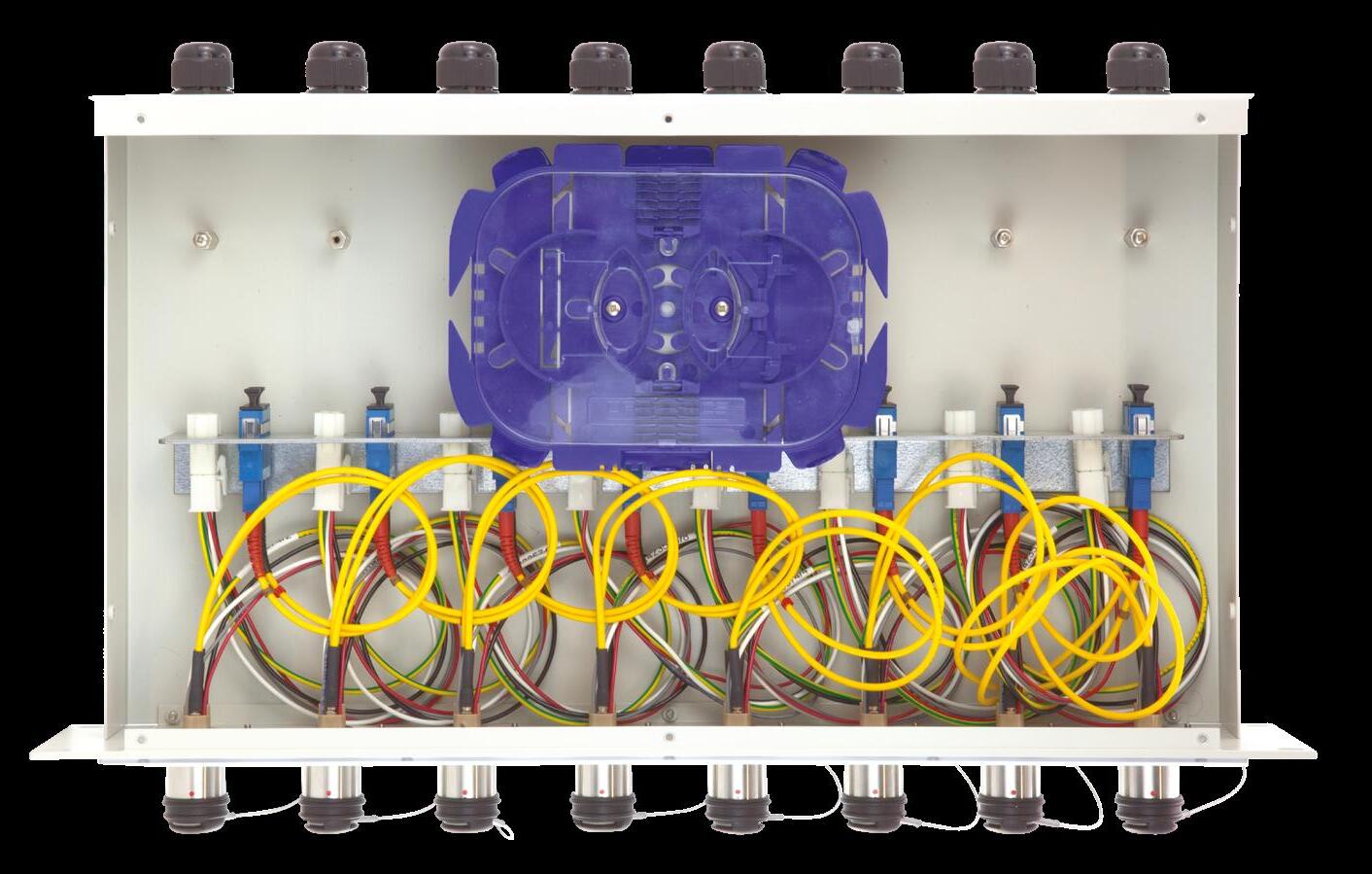

CANFORD FIBRE SMPTE 311 SPLICE ENCLOSURE
These wall/ceiling mountable enclosures are manufactured to accept up to 8 incoming SMPTE 311M cables and are designed to enable the respective fibre and electrical core to be broken out to LC, SC or ST bulkheads and 6 pin Mate-N-Lok panel connectors. Similar to our range of rack mountable field termination boxes they offer not only the possibility of a “plug and play” approach but also simplify the process of on-site installation and maintenance. They are particularly useful in installations where depth is an issue as the SMPTE cable can be brought away from the rear of the panel then terminated elsewhere in a safe and secure manner. The enclosures are also provided with a shroud to offer additional protection against accidental damage to the breakout connections. The enclosures come supplied with the required fibre patch cords, electrical crimp contacts and splice protector sleeves to help facilitate easy installation.
50-2168
50-2418
ENCLOSURES, RACKS & PANELS

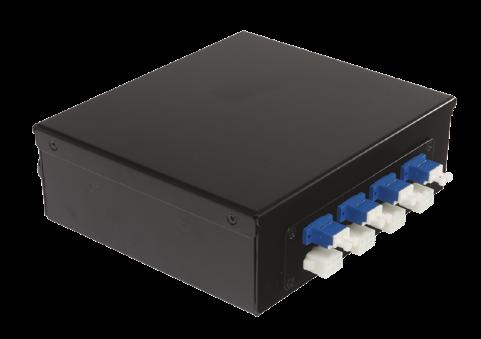

CANFORD SMPTE 311 SUPER COMPACT SPLICE ENCLOSURE
Designed and manufactured by Canford, these mountable enclosures are intended to facilitate fast, easy and effective termination of up to four SMPTE 311 infrastructure cables and eliminate the need for pre-terminated cable assemblies. The super compact enclosure is ideally suited to applications where space is very limited as the units can easily be installed remotely from the SMPTE connection plate or panel if required. Their compact size means they are ideally suited for use in wall boxes, 19” racks and other applications where our standard range of splice enclosures simply won’t fit.
CANFORD ANGLED UNIVERSAL PANEL
Based on the same design as the opticalCON Field Termination Box these panels are supplied in 8 and 12 way and incorporate a simple cable management plate at the rear. They are suitable for use with any D series/Universal series connector and suited to applications where it is beneficial to relieve the stress on the mating cable.

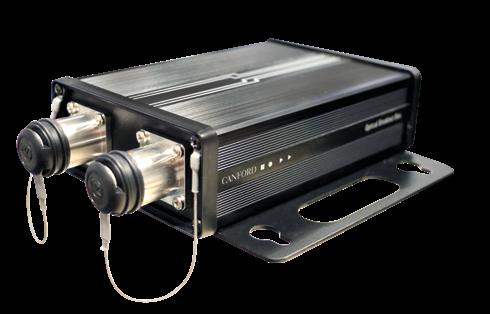

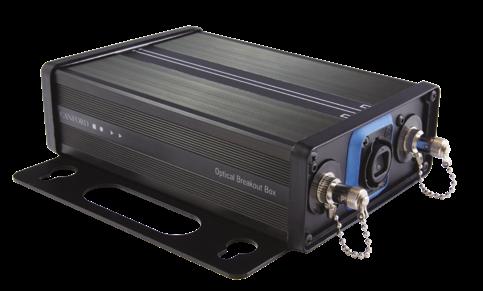

CANFORD opticalCON BREAKOUT BOXES
Manufactured for professional broadcast and live event environments, these robust breakout boxes provide seamless channel splitting for multi-way fibre cables fitted with opticalCON DUO or QUAD connectors. They convert two or four fibre channels into a variety of industrystandard formats such as Duplex LC, SC or ST connectors depending on the model. Housed in a highly durable, extruded aluminium enclosure, they’re built to perform reliably in demanding field conditions. Available in both multi-mode and single-mode variants.

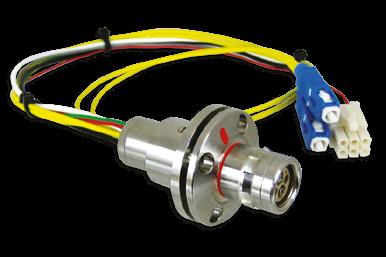

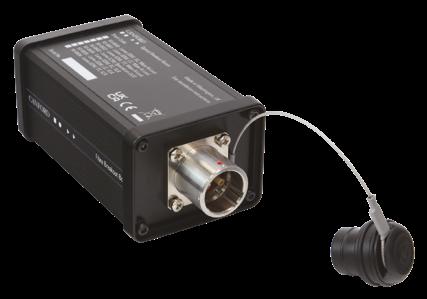

CANFORD LEMO 3K.93C SMPTE BREAKOUT BOXES
In situations where multi-way fibre cables fitted with Lemo SMPTE304 connectors are used to provide a point-to-point link, these break-out boxes split a two-channel or two two-channels to a variety of other formats, including SC, ST, duplex LC, opticalCON DUO SMPTE and opticalCON QUAD connectors, depending on model. The connectors are mounted in a rugged, extruded enclosure, suitable for use in broadcasting and live-event environments.
CANFORD FIBRE BREAKOUT PANELS AND BOXES -
Lemo SMPTE connectors
Much like our LEMO breakout boxes, the Canford Fibre breakout panels and boxes are designed for seamless integration in fibre-based point-to-point systems. These breakout boxes are ideal for use with multi-way fibre cables fitted with LEMO SMPTE304 connectors.
POWER DISTRIBUTION

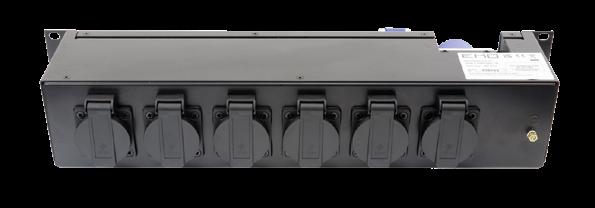

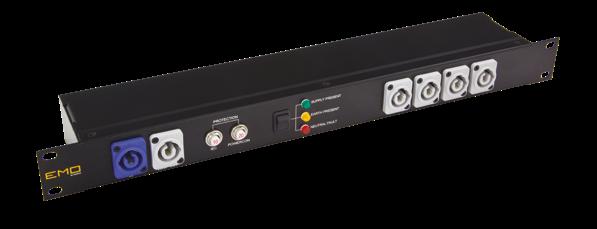

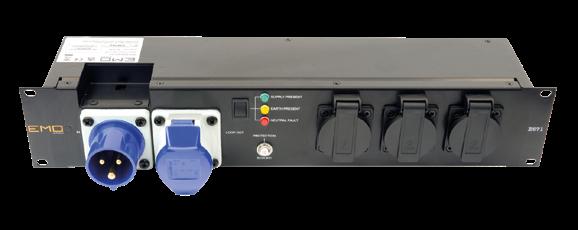

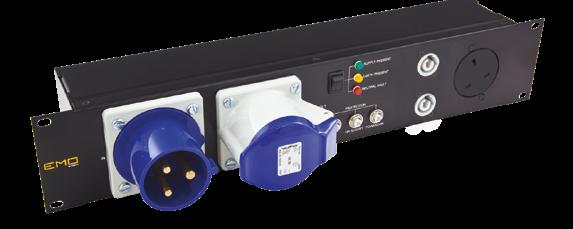

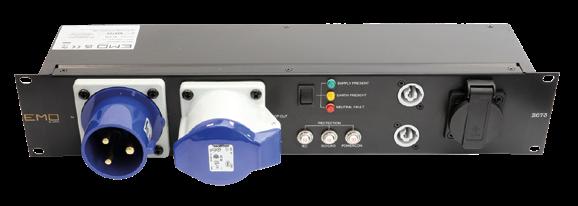

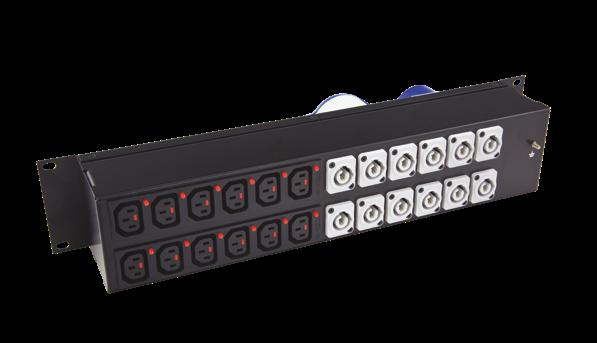

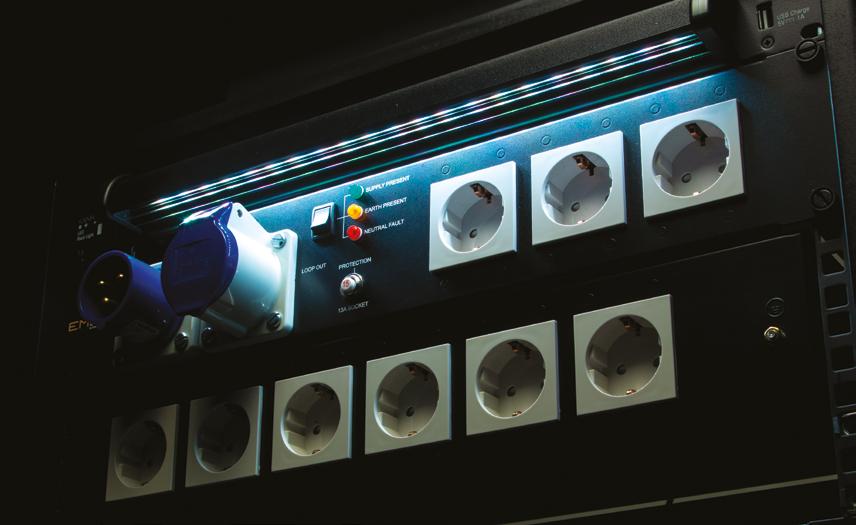

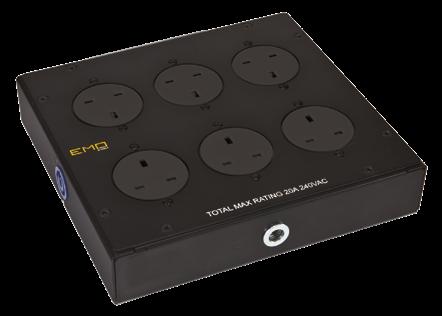

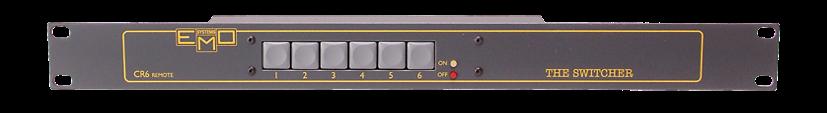

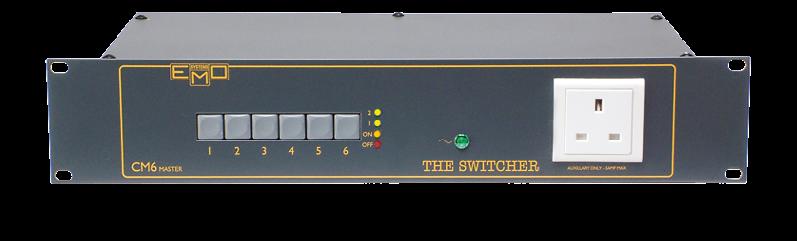

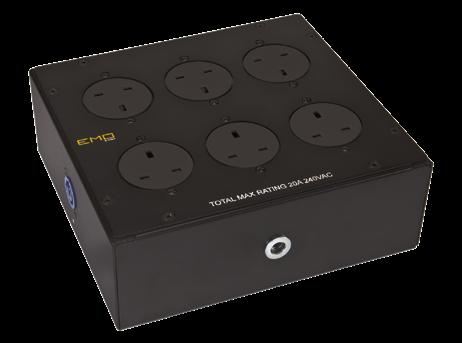

EMO POWER DISTRIBUTION PANELS AND FLOOR BOXES
Designed for touring rigs, theatres, outside broadcast systems, and all manner of fixed installs, the EMO range of modern, 1U and 2U rack-mounting panels and floor boxes is specifically engineered to provide a versatile, robust, and safe solution to powering a diverse range of equipment.
• Robust: 16A and 32A, 1U or 2U rack-mounting panels engineered by Canford to stand up to the rigours of the road.
• Safe: Overcurrent protection and locking connectors ensure safe, reliable performance.
• Versatile: CEE Form, UK 13A, PowerCON, PowerCON TRUE 1, and IEC Connector Combinations.

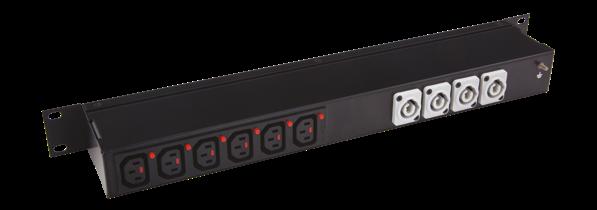

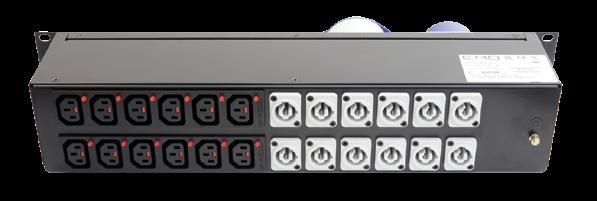

MAINS POWER DISTRIBUTION UNITS
Our wide range of 1U rackmount MDUs are intended for broadcast and pro AV applications where system reliability is paramount. The Canford MDU range includes four input options, loop-through outlets, switched or un-switched, with a green illuminated rocker switch or power present LED and Economy versions.
The most popular MDU configurations are held as stock items and more specialised variations are built to order.
CANFORD AC MAINS POWER LEADS

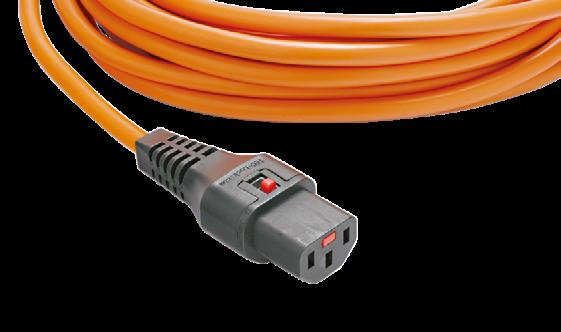

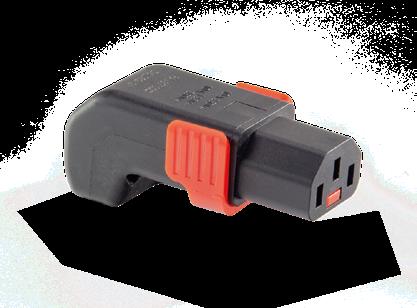

IEC-LOCK IEC MAINS CONNECTOR (CEE22)
These patented IEC 60320 connectors feature an internal locking mechanism that securely mates with any standard male C14 inlet, providing a simple yet highly effective way to prevent accidental power disconnection. Ideal for use with critical equipment, whether free standing or rack mounted, they are especially valuable in environments prone to movement or vibration, such as outside broadcast vehicles, touring systems and fly away kits. Unlike standard connectors, these locking versions stay firmly in place during transit, ensuring uninterrupted performance when it matters most.
IEC-LOCK MAINS CONNECTOR C13 type, female, cable, locking, vertical up/down, rewireable
IEC-LOCK MAINS CONNECTOR Female cable, locking, rewireable 42-3300 IEC-LOCK MAINS CONNECTOR F type, female panel, snap-in 42-3640 IEC-LOCK MAINS CONNECTOR C13 type, female, cable, locking, horizontal left/right, rewireable

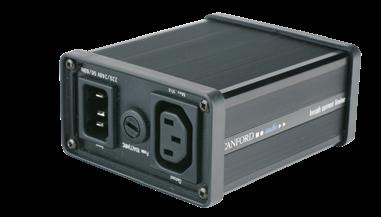

Offering protection against abnormal power circuit conditions.
ALL TYPES OF CONNECTORS

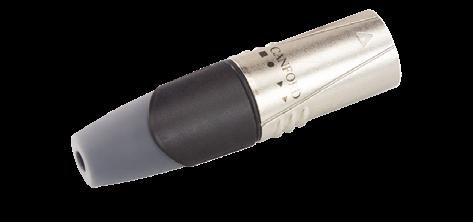

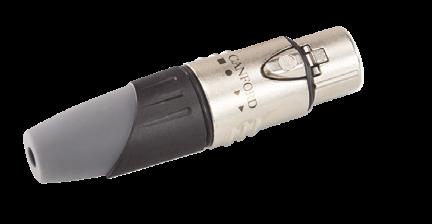

CANFORD CONNECT XLR CONNECTORS
Manufactured to our meticulous specifications and quality requirements, Canford Connect is a growing range of high quality, cost-effective connectors.
• Reliable: Secure, stable connection eliminates EMI and cross-talk, ensuring optimal performance.
• Robust: Die-cast body with industry standard latch locking mechanism.
• Realistic: Incredibly cost-effective, without sacrificing quality.
CANFORD LOW PROFILE XLR CABLE CONNECTORS
A range of low profile, cable XLRs, designed for applications where a small size is critical. They feature a standard body with a rear plastic insert which pushes firmly into the thread of the connector body. The cable exits at a right angle and can be adjusted to face any direction, maximum cable diameter 4.5mm. Available in three, four and five pin versions.

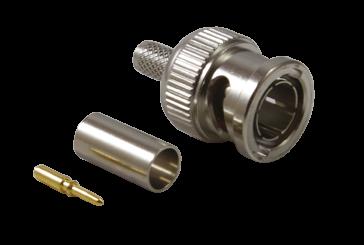

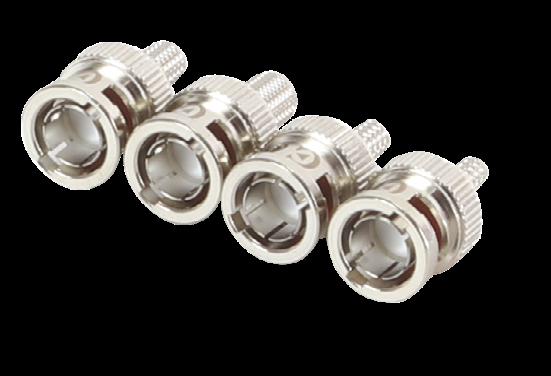

CANFORD CONNECT BNC CONNECTORS - Male, cable - Crimp - 12G 4K UHD
Engineered to meet the demands of today’s video professionals, these high performance 75 ohm crimp BNC connectors are designed specifically for 4K UHDTV applications. Developed exclusively for Canford, they support video signals up top 12GHz, making them ideal for even the most bandwidth-intensive broadcast environments. Each connector is rated for up to 500 mating cycles and features nickel plated brass ferrules, nickel plated zinc alloy coupling nut along with a gold-plated brass pin to maintain signal integrity.
COAX 12G KORUS SERIES BNC - Male, cable - Crimp - 12G 4K UHD
These high-performance, 75 ohm types have been developed specifically for 4K UHDTV applications. They have extremely low return-loss and are rated to 1000 mating cycles. The impedance-matched, gold-plated, crimp centre-pin ‘clicks’ home into a PTFE insulator in a black nickel plated body with crimp outer sleeve (‘ferrule’).
48-5041
COAX
ALL TYPES OF CONNECTORS
3G BNC - Male, cable - Crimp - 3G HD-SDI
High-performance, 75 ohm types developed specifically for HDTV applications.
COAX MICRO BNC - Male, cable - Crimp - 12G, 4K UHD, 75 ohm
These Micro BNCs are bayonet-coupling, 75 ohm types, 51% smaller than standard BNC connectors and are intermatable with similarly sized High Density types by other manufacturers.
COAX DIN 1.0/2.3 - Male, cable - Crimp - 12G UHD and 3G HD-SDI
Push-pull coupling, sub-miniature, ‚true 75 ohm‘ coaxial connectors for use with high density routers.

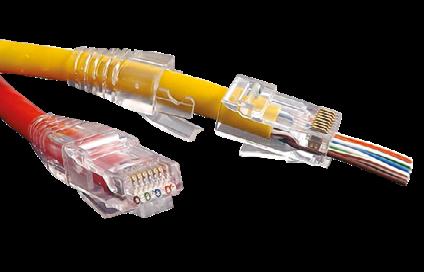

SPEEDYRJ45 RANGE OF CONNECTORS AND TOOLS
The SPEEDYRJ45 range is designed to simplify twisted-pair terminations by allowing the wires to be inserted through the connectors and out of the front. This allows the technician to easily verify the proper wiring order before crimping the connector, reducing wastage and time.
CANFORD CONNECT POWER CONNECTORS
Robust and reliable panel mount IP rated power sockets from Canford designed for use in challenging environments. The Schuko connectors are tested to IP44 standards. Rated to 16A, 250V. The UK connectors are tested to IP54 standards Rated to 13A, 250V. Fully VDE approved.

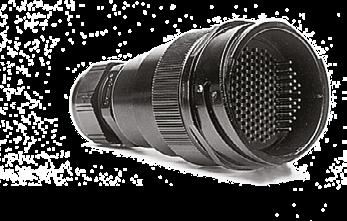

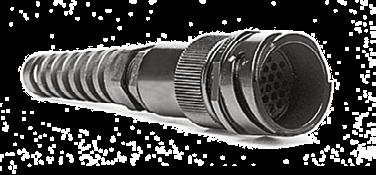

TEN47 TOURLINE MULTIPIN AUDIO CONNECTORS
Heavy-duty circular bayonet-lock connectors, compatible with MIL-C-5015 / VG95234 types, widely used in European broadcast and live audio. Male and female connectors mate in-line with IP67 protection. Available in 25 to 150-pin versions, with crimp or solder contacts.
42-100
48-5021
48-5002
42-100
CABLE & CABLE ASSEMBLIES - FIBRE
CANFORD FIBRE TERMINATION SERVICE
Fibre optic cables, connectors and interfaces
Industry leading, rapid response fibre termination service offering ready-made or fully custom fibre assemblies using a variety of cable and connectors. Our highly trained, qualified specialists go above and beyond to ensure that each cable surpasses the industry standards for insertion loss, geometric inspection, and return loss, accepting only the very best cables.
• Qualified: Fully qualified termination of LEMO, Neutrik, Fibreco HMA, and other industry standard connectors.
• Quality: Tested to IEC and Telcordia standards for complete geometry inspection, accepting only the very best.
• Quick: Rapid response service where speed is of the essence.
FIBRE OPTIC CABLES

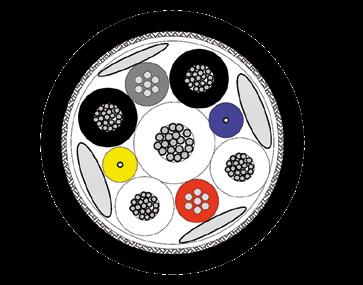

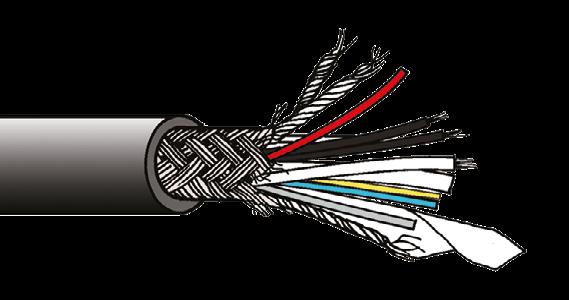

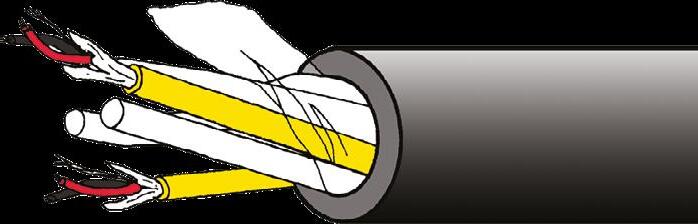

A hybrid cable containing single-mode fibre optic and copper cores, meeting the SMPTE311M standard for HDTV camera connections. It handles video, audio and control signals plus powering between camera and base units. It is suitable for use with the special hybrid connectors produced by manufacturers such as Canare and Lemo.
36-618
36-621
36-622
36-610
36-611
36-619
36-614
36-615
36-616
60-7804EPU
60-7804ELY
60-7804E
60-7804ELW
CANFORD SMPTE311 HDTV CAMERA CABLE, PU
CANFORD SMPTE311-F HDTV CAMERA CABLE, TPE, FLEXIBLE
CANFORD SMPTE311-LFH HDTV CAMERA CABLE, LFH, CCA
DRAKA SMPTE311 FIBRE HDTV CAMERA CABLE, PUR
DRAKA SMPTE311 FIBRE HDTV CAMERA CABLE, FRNC, LFH
DRAKA SMPTE311 FIBRE HDTV CAMERA CABLE, High Flex PU
FURUKAWA 92SM-6.8-98.3 SMPTE HD CAMERA CABLE, 6.8mm J grade ARIB fibre
FURUKAWA TV-OM-AMS SMPTE HD CAMERA CABLE, 9.2mm A grade SMPTE fibre
FURUKAWA 92SM-9.2-37.5 SMPTE HD CAMERA CABLE, 9.2mm J grade ARIB fibre
BELDEN PUR SMPTE HD CAMERA CABLE
BELDEN 7804ELY SMPTE311 FIBRE HDTV CAMERA CABLE
BELDEN PVC SMPTE HD CAMERA CABLE
BELDEN 7804ELW SMPTE311 HDTV CAMERA CABLE, FRNC (LFH), Cca (s1 d2 a1)

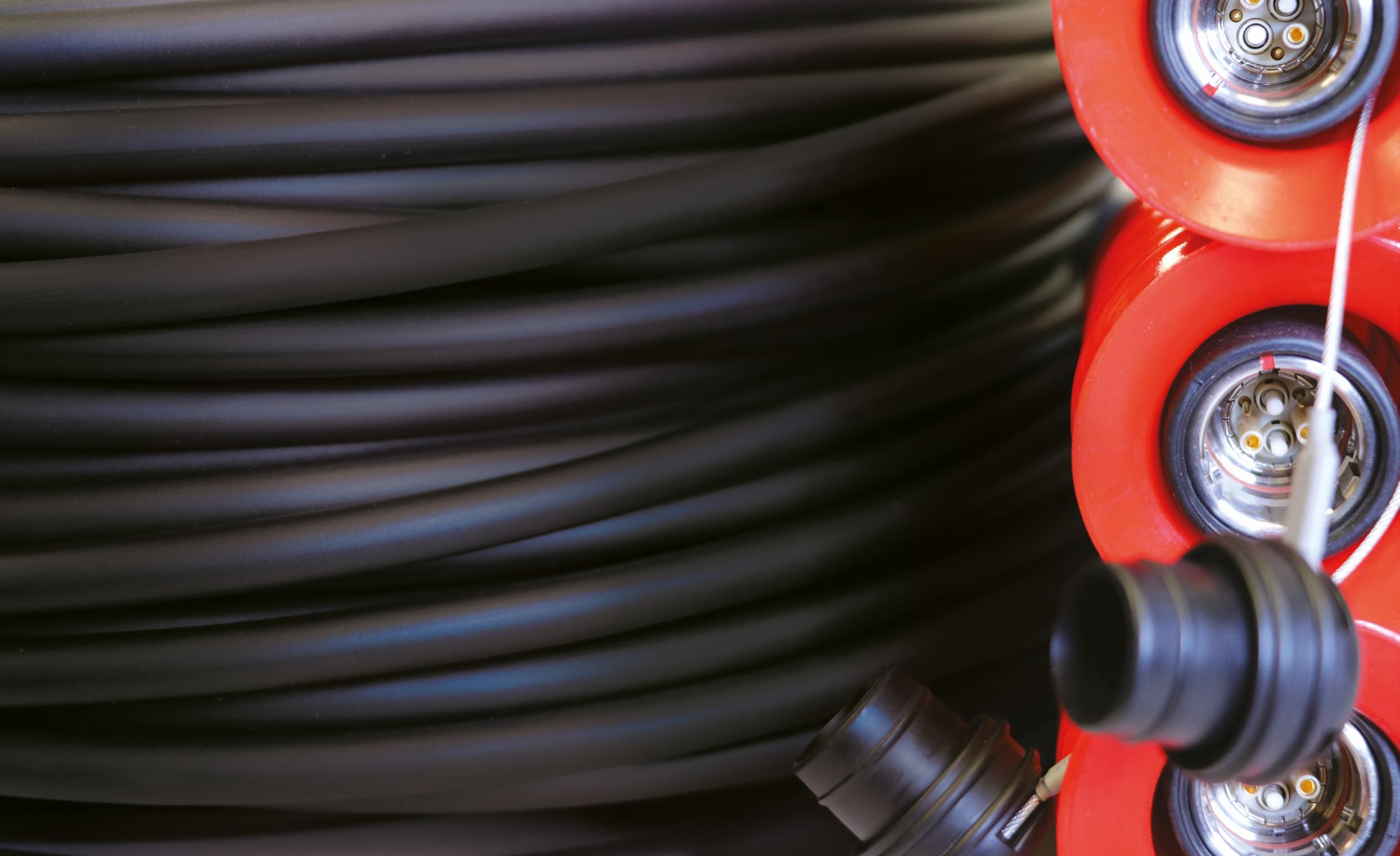

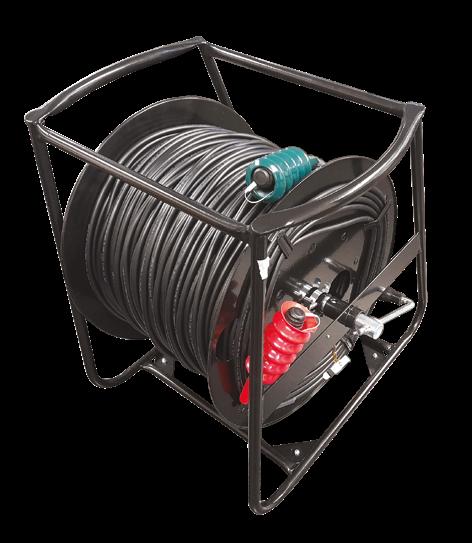

CANFORD CABLE DRUMS - supplied with cables
A range of industry standard, SMPTE311M hybrid fibre, HD camera cables, supplied on either a metal cable drum or ‘skeleton’ cable reel.
The metal drums feature a steel construction with a black nylon-dipped finish and a rotating winding handle that folds 180° for compact storage. A chained drum-locating pin prevents drum rotation during transit.
50-2072
CABLE & CABLE ASSEMBLIES - FIBRE

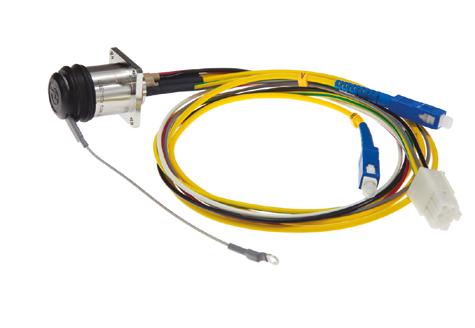

CANFORD SMPTE311M HYBRID FIBRE CAMERA CABLE BREAKOUT ASSEMBLIES With Lemo panel type connectors
These industry-standard hybrid fibre HD camera breakout assemblies use LEMO SMPTE304 connectors and are available in various configurations. The rugged LEMO 3K.93C stainless steel connectors feature the reliable push-pull latching system and are rated for up to 20,000 mating cycles. With proper care and cleaning, the fibre contacts can also achieve this level of durability.

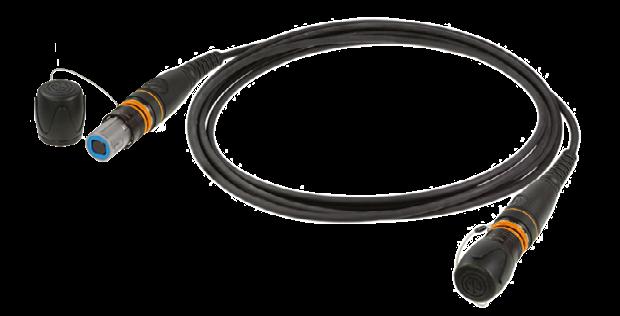

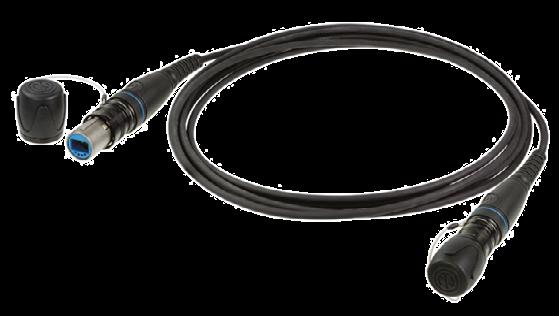

opticalCON FIBRE OPTIC CABLE ASSEMBLIES
All opticalCON ADVANCED cable connectors feature a protective rubber coating, integrated anti-kink strain relief, and a metal latching cap secured with a steel lanyard.
ADVANCED DUO/QUAD: Two or four-fibre lightweight mobile field cables with a tough PUR jacket and strong aramid yarn reinforcement for excellent cable retention. Available in multimode (2M/4M) or singlemode (2S/4S).
ADVANCED MTP: Twelve-fibre lightweight mobile field cable with a durable PUR jacket and aramid yarn for high tensile strength. Available in multimode (12M) or singlemode APC (12SA).

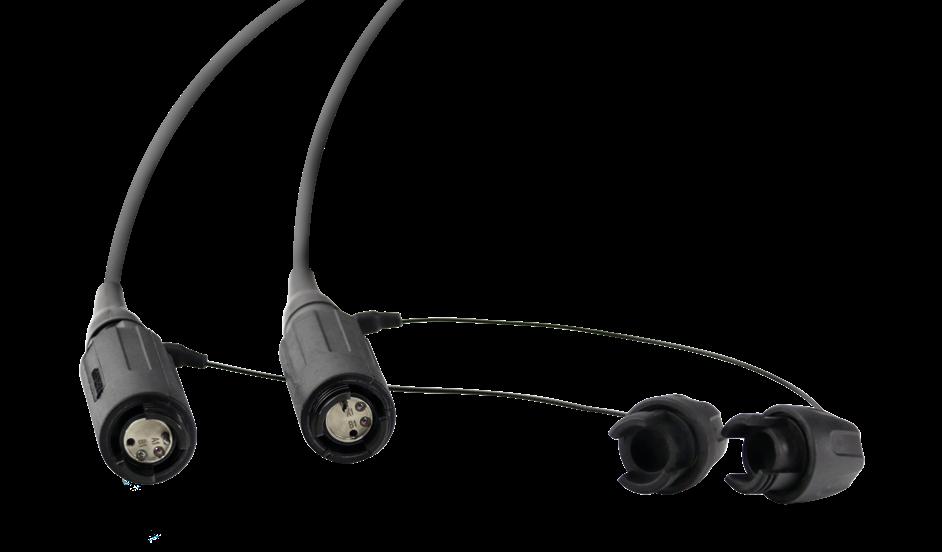

CANFORD HMA FIBRE CABLE ASSEMBLIES WITH FIBRECO CONNECTORS AND BELDEN TACTICAL CABLE
• MIL-DTL-83526 Specification
• Withstands harsh environments, such as Touring and Festivals
• Reliable, with reduced sensitivity to dust and other contaminants
• Time saving hermaphroditic mating
• Simple, on-site cleaning and maintenance
• Singlemode and Multimode versions available
• Custom cable assemblies available – contact sales for more information

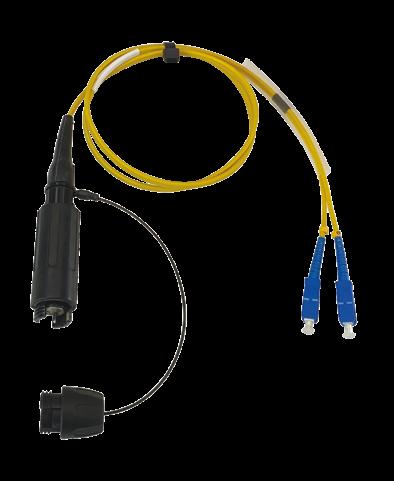

CANFORD HMA FIBRE BREAKOUT ASSEMBLIES
-
ST,
SC and LC Fibre connectors
These HMA cable breakout assemblies use Fibreco Junior expanded beam cable connectors and are offered in a variety of lengths to ST, SC and LC fibre connections. The Junior expanded beam connector offers high performance and are available in either two or four channel Multimode or Singlemode versions.
CABLE & CABLE ASSEMBLIES - AUDIO
COMING SOON TWO RANGES OF DIGITAL INDIVIDUALLY JACKETED MULTIPAIR CABLES
One joining the EMO range of products and designed to endure the harshest environments of touring applications.
The other joining the Canford range of cables and designed for studio and other professional audio applications.
Both ranges will be available in 2, 4, 8 & 12 pair versions, utilising premium OFC copper, discreet black, easily identifiable, individually jacketed pairs with a flexible/durable soft PVC black outer jacket.

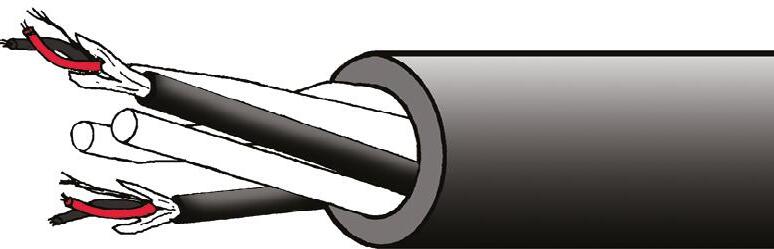

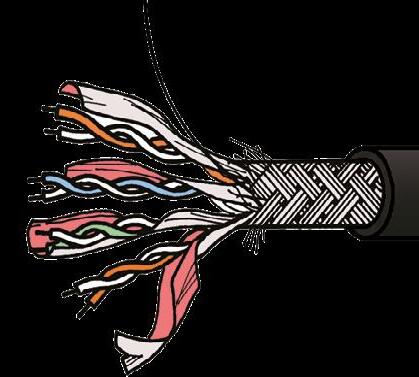

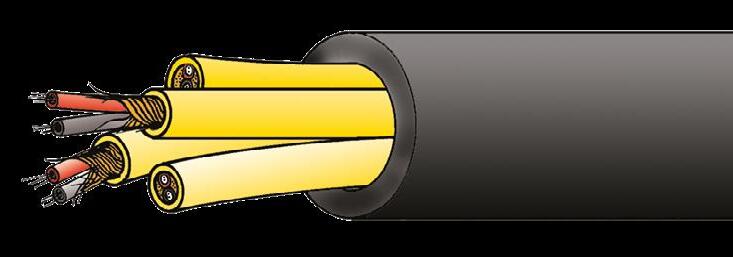

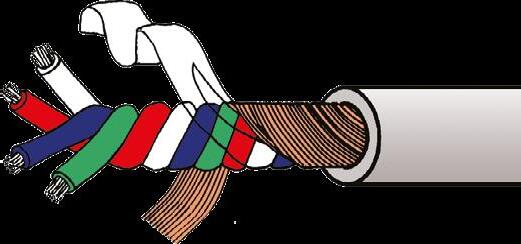

CANFORD FSJ - Foil Screened Stranded Conductor Individually Jacketed Multipair Cable
Flexible and Low Fire Hazard type is designed to be suitable for both digital and analogue audio signals, with an impedance of 100 ohms which has been proven to be suitable for AES/EBU digital audio as well as analogue microphone and line level signals. The individual cores are jacketed ready for termination directly into connectors etc, and the inner jacket is bonded to the screening foil so it strips away in a single action.
FSJ: Individually jacketed multipair cable based on Canford’s FST-F ‘Flexible Foil Screened Twin’ offering enhanced flexibility.
FSJ-LFH: Low fire hazard cable based on Canford’s FST-LFH twin conductor, foil screened cable, for installed applications.
CANFORD HSJ - Double Helical Screened Stranded Conductor Individually Jacketed Multipair Cable
A multipair cable for users requiring an individually jacketed pair construction. Designed specifically to fit into the 20 way metal EDAC multiway connector covers.
CANFORD FST-DMX-LFH - Foil Screened Stranded
Conductor Twin Cable - Low Fire Hazard
Foil screened, 120 ohm installation cable, specifically for DMX512 lighting-control applications, designed to meet RS485 data cable specification. Available in one and two pair versions. Wire insulation is polypropylene which shrinks back minimally during soldering (considerably less than PVC or polyethylene). The overall jacket is bonded to the screen tape so that one stripping action removes jacket and screen, leaving the signal wires and earth wire free for further processing.
CANFORD SQ MICROPHONE CABLE - Starquad
Designed for the transmission of sound through noisy areas the balanced quad cable is used as a twisted pair with capacitance unbalance characteristics designed to cancel out even the worst external noise interference.

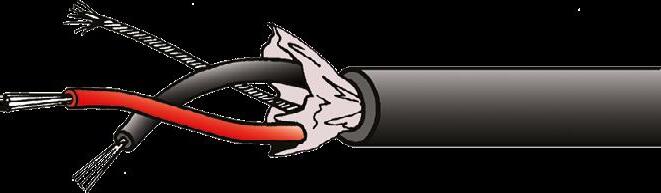

CANFORD HST - Helical Screened Stranded
Conductor Twin Cable
A high performance range of general purpose extra flexible twisted twin conductor, helical (lap) screened cables, suitable for both microphone and general purpose uses. The outer jacket is an extra-flexible, soft PVC with semi-matt finish.

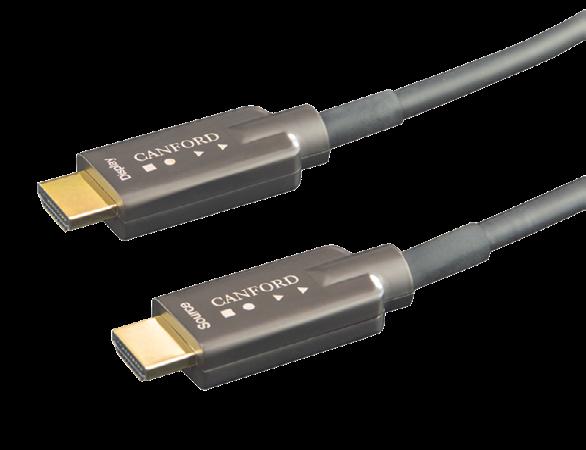

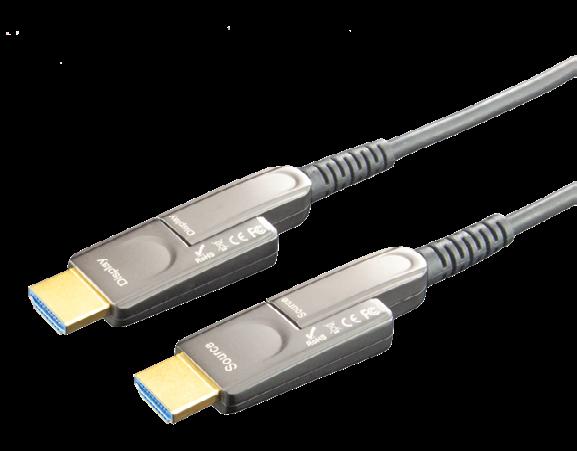

ACTIVE OPTICAL CABLES - PREMIUM HIGH SPEED HDMI®
These active optical HDMI cables are designed for long cable runs and electrically noisy environments, offering reliable signal transmission over distances from 10 to 100 metres. They support 18Gbps bandwidth, 4K resolution at 60Hz, 48-bit colour depth, 3D, and audio formats including 8-channel PCM, Dolby Digital True HD, and DTSHD Master Audio. CPR certified to Cca, s1, d0.
Locking: Ideal for professional AV installations, digital signage, kiosks, and large home theatre systems. Available in two versions:
• Full-size HDMI: Locking type A connectors at both ends.
• Micro HDMI: Locking type D connectors with adapters for full-size type A. Supplied with a USB-to-DC power cable and cable-pulling tool for fixed installation. The smaller connectors simplify routing through conduits, voids, or tight spaces like internal bracket channels.
Armoured – Locking: Built for rental, touring, and demanding environments. These 5.8mm diameter cables feature a TPU jacket over a stainless steel conduit with Kevlar reinforcement, offering protection against rodent damage and mechanical stress.
A 45mm bend radius maintains flexibility. Terminated with locking HDMI type A connectors. No external power required.

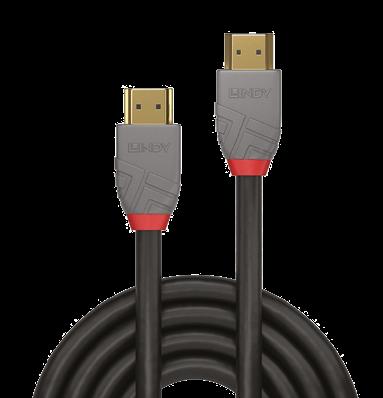

LINDY PREMIUM HIGH SPEED HDMI® AND DISPLAYPORT 1.4 CABLES ANTHRA LINE
Anthra line cables are designed to be the ‘professional choice’. They feature triple shielding with copper and tinned copper conductors for peak performance and corrosion resistance.
CABLE & CABLE ASSEMBLIES - VIDEO

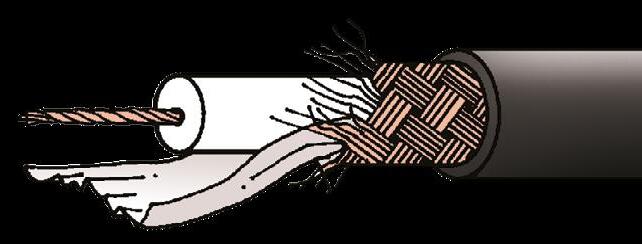

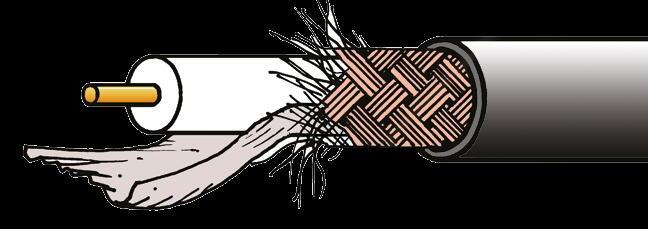

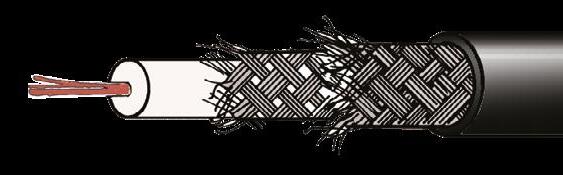

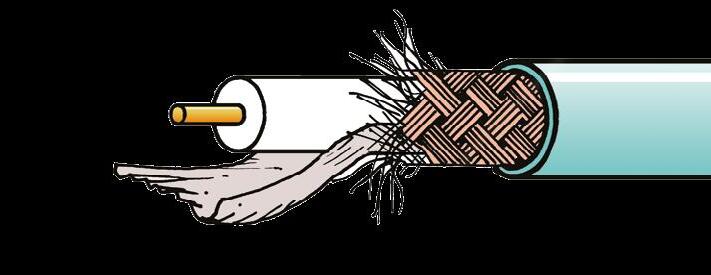

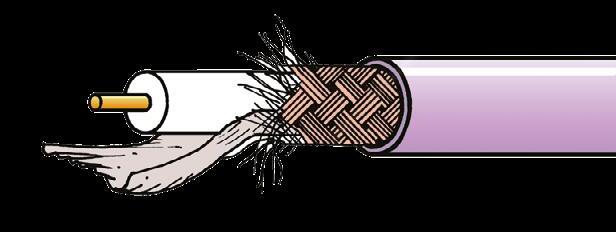

CANFORD SDV-L-X-LFH - HDTV AND SERIAL DIGITAL VIDEO
CABLE (1.0/4.8) Low Loss, Extended Performance - Low Fire Hazard

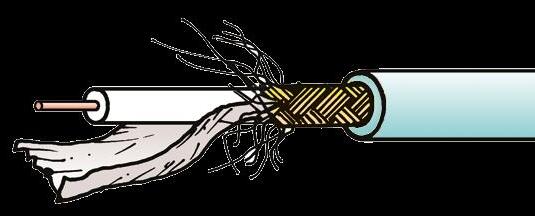

Extended performance low-loss coaxial 75 ohm cable specifically for 3GHz HDTV and serial digital video signals, with low-smoke, zero-halogen material outer jacket.
CANFORD SDV-L - HDTV DIGITAL VIDEO CABLE (1.0/4.8) Low Loss
Low-loss coaxial 75 ohm cable for 3GHz HDTV and serial digital video signals. Suitable crimp BNC’s and strain relief bushes are available.
CANFORD SDV-XF - HDTV DIGITAL VIDEO CABLE (1.0L/4.8)
Extra flexible
Extra-flexible low-loss coaxial 75 ohm cable for both serial digital and analogue video signals. It is constructed to have maximum flexibility whilst maintaining a very high level of performance, and is suitable for both deployable applications and patchcords. A special semi-matt finish PVC composite jacket material helps retain flexibility at lower outdoor temperatures.
CANFORD
SDV-F-HD - HDTV, SERIAL DIGITAL AND ANALOGUE VIDEO CABLE (1.2L/4.8Dz) Flexible, Heavy Duty
A cable designed specifically for deployable applications where HDTV or SDI signals are to be carried. The construction is optimised for extremely high flexibility, and the polyurethane jacket provides resistance to abrasion and durability. This is the HDTV cable that handles like the softest of microphone cables.
CANFORD SDV-UHD-LFH - HDTV DIGITAL VIDEO CABLE (0.7/2.9) Low Fire Hazard
Compact size, coaxial, 75 ohm cable specifically for 4K 12G video signals with low smoke-zero halogen material outer jacket. Suitable crimp 12G BNC, Micro BNC, DIN 1.0/2.3 Group X connectors and strain relief bushes are available.
CANFORD SDV-L-UHD-LFH CABLE 4K
If you need your 12G signal to go further, without up-sizing the cable diameter, this cable gives you that extra distance. Coaxial 75 ohm cable specifically for serial digital video signals, with compact size and low smoke-zero halogen material outer jacket.
CABLE & CABLE ASSEMBLIES - DATA & ETHERNET
CANFORD CAT7-F CAT 7 DATA CABLE Stranded conductor, screened - Deployable, ruggedised
Increasing use of network and data cables between audio and video devices on location calls for a Category 7 cable that is designed specifically for deployable use. Basic Category 7 cable is a relatively inflexible installation cable, and even the slightly more flexible patchcord type still has very poor handling characteristics in deployed (as opposed to patching) applications. This Category 7 cable has been designed specifically for the professional audio and video user, and is intended to handle like a typical microphone cable.
CANFORD CAT6-F CAT 6 DATA CABLE Stranded conductor - Deployable
This Category 6 U/UTP cable has been designed specifically for the professional audio and video user, and is intended to handle like a typical microphone cable. It has an extra-flexible four-pair core structure that maintains Category 6 performance, then a special soft PVC composite material outer jacket, to give superb flexibility and handling characteristics.
DRAKA CAT6 SHIELDED Solid Conductor
DRAKA Category 6 U/FTP 4 twisted pair solid conductor cable, patented foil wrapping of two pairs 1 & 2, 3 & 4, Low Fire Hazard jacket (LSHF). Also available as a Category 6 S/FTP 4 twisted pair solid conductor cable, patented foil wrapping of two pairs 1 & 2, 3 & 4, with overall Braid, Low Fire Hazard jacket (LSHF).
CANFORD CAT5E-R DATA CABLE Stranded conductor, screened - Deployable,
ruggedised
This specialist version of Cat5E SF/UTP (foil and braid screen) has a very tough polyurethane outer jacket, and has moderate flexibility. The jacket is two-layer, the inner layer is low fire hazard material, so the cable can be classed as ‘low fire hazard’. The overall diameter is 7.0mm. It also differs from standard Cat5E construction in that it has two screens; a foil and a braid (“SF/UTP”).
CANFORD CAT5E-F DATA CABLE Stranded conductor, screened - Deployable
Designed for professional audio and video users, this flexible Cat5E cable handles like a microphone cable. It features a foil-screened, extra-flexible four-pair core for full Cat5E performance, and a soft PVC outer jacket for excellent handling in deployable applications.
31-870
31-936 U/FTP, LFH Jacket (Blue)
31-928 S/FTP, LFH Jacket (Blue)
AUDIO & VIDEO DEVICES
CANFORD DANTE INTERFACES
Canford Dante adapters offer a simple, cable-free alternative to existing in-line solutions from Audinate and Amphenol. These compact stereo audio adapters convert between analogue or digital audio and Dante, in either direction.
Three models, with two housing options, provide different audio connectivity options. The range consists of three standalone/desktop units and three units designed to mount in the Canford Universal Modular Connector Panel (UMCP). Each unit is powered by PoE (Power over Ethernet), no external power is required.
Housed in a robust Canford extruded box, the adapters offer superior performance in analogue audio conversion and rugged connectivity through Neutrik etherCON and XLR connectors.
SONIFEX AVN-CU2 COMMENTARY UNIT - Dante enabled
This Dante enabled and 4-wire connection compatible commentary unit is designed to work with existing infrastructure and to ‘bridge the gap between old and new technology’. It features functionality for up to two commentators and provides two mic/line inputs along with two headphone outputs, along with support for up to 16 inputs and output channels over AoIP or up to 16 simultaneous I/O output AoIP streams.
AUDIOPRESSBOX CONFERENCE SPLITTERS - Dante
Dante enabled press splitters are used to avoid the unsightly clutter that results at events such as press conferences, when every broadcasting organisation present tries to erect a microphone directly in front of the speaker, precisely where the cameramen would rather they did not.
The splitter takes a small number of inputs from microphones or the local mixer and distributes the signal to a large number of outputs for use by the media.
CANFORD MICROPHONE SPLITTER
These microphone splitters divide a single feed to three outputs. Output 1, typically used for the main mixer, passes phantom power to the microphone. Features XLR 3-pin connectors – female input, male outputs.
COMING
SOON CANFORD DANTE DIECAST SPEAKER
An evolution of the standard diecast loudspeaker, this powered, Dante-enabled unit is designed to be robust and cost-effective. Suitable for talkback, line listening, cue programme, monitoring, or small PA use. Featuring two Dante channel inputs via RJ45 and operates in two modes: single-channel monitoring or single-channel monitoring and a mixed output of both channels.
CANFORD 1U RACK MONITOR LOUDSPEAKER
The compact unit features two small elliptical loudspeakers driven by two, independent, balanced-input amplifiers, with individual channel volume controls. Naturally these units are intended for checking the presence or content of a source, not its ultimate quality.
SONIFEX REDBOX AUDIO CONVERTERS
LEN LAVS01 VIDEO SPLITTERS - SD, HD, 3G, 4K/12G SDI
Miniature, passive designs, requiring no power, LEN SDI splitters are a direct equivalent to the use of a Distribution Amplifier to create additional SDI signals, for most applications. LEN Splitters are also often used for applications such as additional monitor feeds in remote camera locations, and in situations where size and weight are critical factors, such as racing cars, bikes and other sporting and research applications.
LEN L4KP01 PPDUO CAMERA PROTECTORS
Protection for the latest generation 4K/12G cameras. This galvanic isolator is compatible with HD/3G and 4K/12G SDI formats, and protects sensitive ports from transient voltages (when hot-swapping), protects from induced voltages in long cable runs, as well as acting as a doubler.
LYNX YELLOBRIK CWDM OPTICAL MULTIPLEXERS
The Yellobrik range of fibre optic converters from Lynx Technik AG includes a range of multiplexing units and precision CWDM (‘Coarse Wavelength Division Multiplexing’) SFP modules to enable up to 18 video, Ethernet and data signals to be combined on a single fibre link.
EVERYTHING ELSE
CANFORD STUDIO LED ILLUMINATED SIGNS
A range of attractive LED illuminated signs, which, though designed by Canford especially for studio installations, will readily suit other applications such as meeting or interview rooms. They are designed so that even when fitted in corridors, it is clear from all viewing angles when the sign is illuminated. Operating between 85 and 264volts AC, now makes them suitable for worldwide use. LED is both more efficient and costs less to run compared with the original bulb versions.
The base units are made from metal and painted matt black, whilst the covers, maintaining their iconic Canford shape, are a translucent polycarbonate, and snap fit over the bases, no tools are required for removal. They are available printed with the most popular legends, but are also available unprinted.
CANFORD TABLE CUE LIGHT
Manufactured from polished solid hardwood in Ash, Black Ash, Oak and Sapele to suit a number of decors. Fitted with lamp holder accepting 15 watt BC pigmy lamp. Lamps can be replaced simply by unscrewing lens cap. Units are supplied as standard with domed red lenses - green, blue, amber or clear lenses available as optional extras. 7.5 metres of mains cable is fitted. Supplied complete with 230 volt, BC, LED, 1.6 watt (15 watt equivalent) lamp (51-016).
CANFORD LED RACK LIGHT - Multicolour
Made from aluminium the 1U rack light offers a light weight robust construction. The rack light can be quickly changed from white light to one of six colour options using the front mounted rocker switch. The colour can be pre-selected using the RGB dip switches on the rear of the unit and is powered via a 12v 2A plug in PSU. Connection is via a 2.1mm locking DC connector to ensure a solid connection when used within mobile racks. A USB socket is included on the front panel allowing for charging a mobile phone or similar device. Being only 100mm deep the rack light can easily fit behind most equipment installed within a rack.
CANFORD SCRIPT LIGHTS - LED
These units, constructed from elegant aluminium extrusions, have fully adjustable shutters to provide a narrow ‘curtain’ of light directed at the work surface. They have an integral electronic driver, and have LED Northlight tubes with a colour temperature of approximately 5500 K. The cases are available in three sizes, to take 600mm (10 watt), 900mm (12 watt), and 1200mm (20 watt) tubes, and are finished are finished RAL9005 Jet Black eggshell or RAL9010 Pure white matt powder coat. Spare lamps are also available.
LITTLITE GOOSENECK LED LAMPS - Rack mount
Littlite RL Series can provide localised illumination for a fully-installed equipment rack or allow the user to adjust illumination for patching and general maintenance.
COLES 4104 MICROPHONE - Lip - Commentary
Broadcast quality noise-cancelling ‘lip’ microphone, designed specifically for commentary work in environments where the level of background noise requires that the microphone be used very close to the mouth. It is a gradient ribbon unit with a high degree of acoustic damping, fitted into a special case equipped with nose and mouth breath shields. The talking distance has to be controlled accurately in order to maintain the correct frequency response (avoidance of variation of proximity effect) and this is done by positioning bars which contact the user’s upper lip.
COLES 4038 MICROPHONE RIBBON matched pair
Studio quality ribbon microphone, with bi-directional polar pattern. The frequency response is 30 to 15,000Hz, and impedance 300ohms. Distortion is less than 1% at an SPL of 125dB. The stem incorporates cable eyelets for suspended applications, and a Western Electric 4069 type mating connector.
CANFORD GOOSENECK MICROPHONE 250XB
This range uses a high quality 200 ohm dynamic capsule in an attractive satin nickel or black finish robust metal housing, with foam windshield insert. The range is particularly suited to communications and paging applications, having a response with a peak in the middle of the speech band and good back-tofront rejection ratio.
NEW SENNHEISER RADIOMICS - Profile Wireless
This 2.4GHz 2-channel set wireless system offers an all-in-one wireless microphone system with a two-channel 2.4 GHz receiver, two clip-on microphones, and versatile mounting and connection accessories housed in a portable charging bar that conveniently doubles as a handheld interview mic.
Designed for simplicity and convenience, Profile Wireless comes includes connectivity option to connect to a camera, laptop, phone, or alternatively to use it as a desktop mic. The receiver, two clipon microphones, a cold shoe mounting adaptor, USB-C and Lightning connectors, microphone mounting clips and magnets for attachment to clothing can be stored in the system’s portable charging bar for portability. The OLED display on the receiver has a gyro sensor that automatically orients the display depending on positioning. The internal battery allows up to 7hours operational time (recording and transmitting), and up to 14hours (recording without transmitting). Charging time is 3hours or less. The system also features a 32-bit float recording capability - with each clip on microphone including 16GB memory; allowing for recording up to 30 hours of audio with high dynamic range and recovery of clipped audio.
PANAMIC CARBON FIBRE BOOM POLES
Elegantly hand-crafted in the UK from premium carbon fibre, Panamic boom poles are exceptionally lightweight, perfectly balanced, and remarkably comfortable to use. From Hollywood blockbusters to regional news reporting, Panamic remains the trusted choice of audio professionals worldwide.
Nylon Web Handle & Rubber End Cap: Assist in protecting the carbon fibre construction.
Titanium Tip: Tough and corrosion-resistant whilst being approximately 1/3 the weight of an equivalent stainless steel tip.
Nylon Bushings & Locking Rings: Silently operating whilst helping to prevent jamming, sticking, and binding.
Adjustable End Stops: Unique to Panamic, each section houses an Adjustable End Stop. These keep joints tight and eliminate the risk of rattle noise.
CANFORD LEVEL LIMITED HEADPHONES DMH620 88
Canford is a specialist provider of headphone limiter technology. We supply level-limited headphones from stock, or can assess and modify your preferred model to help employers meet hearing protection requirements.
• Users may plug the headphones into any available outlet (subject to avoiding ‘loading’ programme circuits)
• Users can not readily ‘bypass’ the protection limiting device, which are incorporated within the earcups
• That audio performance up to the point of limiting operation should be minimally affected by the limiting devices
• That devices should be available for the widest range of commercially available headphones and headsets
LINDY NOISE-CANCELLING HEADPHONES
A range of compact, award winning active noise cancelling headphones designed by Lindy to provide an ‘enjoyable audio experience’ for an affordable price.
NC-60: Wired, closed back headphones
BNX-100XT: Wireless, hybrid, with aptX, closed back headphones
TECPRO DMH320 and SMH310
• High performance headsets specifically designed for communications use
• Very robust construction, made from unbreakable flexible composite material
• Dual-chamber foam filled ear shells, larger than 200 series for wearing comfort
• High acoustic isolation on DMH320 for reduced ear fatigue
• Extended response ear loudspeakers
• Broadcast quality noise-cancelling dynamic microphone
• New boom design allows use with boom at left or right hand side
• Mic switched off by swinging boom upwards
• Boom can be bent into optimum position to suit the wearer
DMH220 and SMH210
• Very robust with only two moving joints
• Hidden fixings hinder tampering whilst allowing easy repairs
• Full range of spare parts available
• Noise cancelling microphone on flexible steel-reinforced boom
• Steel core cable for extra strength
• Soft comfortable cushions
• Wide, smooth response for reduced listening fatigue
UK Sales 0191 418 1122
sales@canford.co.uk canford.co.uk
International Sales +44 (0)191 418 1133 international@canford.co.uk canford.co.uk
Dubai Sales +971 50963 1201 dubai@canford.co.uk canford.co.uk
Coordonnées
03 88 55 13 13 ventes@canford.fr canford.fr
Verkauf +44 191 418 1198 verkauf@canford.de canford.de
