pa rt s c ata lo g u e
TA B L E O F C O N T E N T S
ALIVA SHOTCRETE MACHINES
4-5
PUTZMEISTER TK 20 CONCRETE PUMP
6
CCM 200 E CONTINUOUS MIXER
7
CHEMICAL & WATER BOOSTER PUMPS
8
DRY-MIX MACHINE PARTS
9-11
HYDRO-MIX NOZZLES (DRY PROCESS)
12-13
EXTENSION HOSES (DRY PROCESS)
14-15
CONCRETE PUMPING HOSES
16
SNAP COUPLINGS & GASKETS
17
REDUCERS (DRY & WET PROCESS)
18
WET-MIX NOZZLES
19
HOPPER HOOD
20

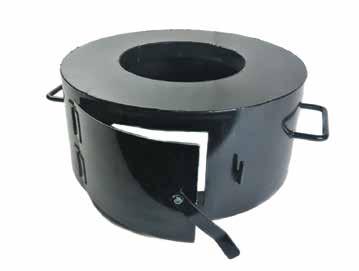

AIR-SEPARATOR BOX
21
SHOTCRETE CONSTRUCTION PANELS
22
FORM OIL
23
SHOTCRETE SUPPORT POSTS
24

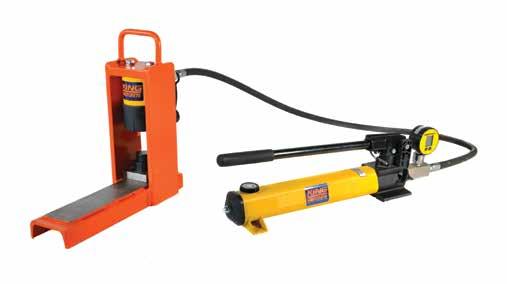

END-BEAM TESTER
25
FABRICATING PRODUCTS ORDER FORM
26-27 28
| 3 |
| 4 |
pa rt s c ata lo g u e
ALIVA SHOTCRETE MACHINES
Aliva AL-237 The Aliva AL-237 shotcrete machine is the ideal machine for small to mid-sized shotcrete applications. Based on the rotor size, the Aliva AL-237 has output capabilities ranging from 0.2 m 3 to 4.0 m 3 per hour. As such, this machine is ideal for applications such as concrete patchwork and restoration, swimming pool construction, joint filling, slope stabilization, and refractory work. • T he Aliva AL-237 Air Model allows for variable rotor speed, controlled by an air motor • T he Aliva AL-237 Standard Model has a fixed output (ON/OFF) • T he Aliva AL-237 Top Model allows for variable rotor speed, controlled by a Variable Frequency Drive (VFD)* *Electric Drive machines require compressed air for material conveyance
Rotor Size
Hose Diameter
Conveying Output
Maximum Aggregate Size
0.7 Litre
32 mm
0.2 - 0.5 m 3 /hr
6 mm
2.0 Litre
32 mm or 38 mm
0.6 - 1.4 m 3 /hr
12 mm
3.6 Litre
38 mm
1.1 - 2.5 m 3 /hr
12 mm
5.6 Litre
50 mm
1.7 - 4.0 m 3 /hr
16 mm
pa rt s c ata lo g u e
ALIVA SHOTCRETE MACHINES
Aliva AL-252 The Aliva AL-252 shotcrete machine has been considered the work horse of the mining and tunneling industry for many years. With output ranging from 3.5 m 3 to 11.0 m 3 per hour, the Aliva AL-252 is ideally suited for high volume, dry-process shotcrete operations. This machine is most commonly used as a stand alone unit, but it can also be integrated into a bulk type shotcrete system when installed on mobile equipment and fed by a bulk hopper. • T he Aliva AL-252 Air Model allows for variable rotor speed, controlled by an air motor • T he Aliva AL-252 Standard Model has a fixed output (ON/OFF) • T he Aliva AL-252 Top Model allows for variable rotor speed, controlled by a Variable Frequency Drive (VFD)* *Electric Drive machines require compressed air for material conveyance
Rotor Size
Hose Diameter
Conveying Output
Maximum Aggregate Size
10 Litre
50 mm
3.5 - 7.0 m 3 /hr
16 mm
16 Litre
60 mm
5.5 - 11.0 m 3 /hr
20 mm
| 5 |
| 6 |
pa rt s c ata lo g u e
PUTZMEISTER TK 20 CONCRETE PUMP The Putzmeister TK 20 Concrete Pump has an optional quick-attach, 0.28 m 3 (13 ft 3 ) mixer. The machine can easily be transformed from a conventional concrete pump to a mixer-pump combination. For low volume concrete mixing or for applications in which ready-mix cannot be used, this all-in-one mixer and pump operates independently, on its own diesel power.
P erformance D ata • Maximum Volume Output:
13 m 3 (459 ft 3 ) per hour
• Maximum Concrete Pressure:
2,085 psi (144 bar)
• Maximum Aggregate Size:
20 mm (1 inch)
T echnical I nformation • Variable Control:
Yes
• Maximum Number of Strokes Per Minute: 28 • Hopper Height:
122 cm (48 inches)
D imensions • Length:
375 cm (148 inches)
• Width:
162 cm (64 inches)
• Height:
157 cm (62 inches)
• Weight:
2,177 kg (4,800 lbs)
pa rt s c ata lo g u e
CCM 200 E CONTINUOUS MIXER The CCM 200 E Continuous Mixer is a high quality, high capacity, easy to operate, concrete mixer with automatic water control, mounted on a four-way steel skid. This mixer addresses all of the technical and practical concerns associated with mixing high quality concrete in underground mining and remote applications.
F eatures & B enefits • Allows for continuous high-output production; 11 m 3 (14.5 yds 3 ) per hour, without interruption • Large receiving hopper allows for 1,000 kg (2,205 lb) bulk bag capacity • Exact control (calibrated) of water and material input ensures constant water-tomaterials ratio • Compact and cageable on a four-way steel skid mount, to allow for maneuverability in confined areas • Removable mixing tube allows for easy cleaning of mixing chamber • Low charging height of 1.6 m (5.25 ft) including protective hopper enclosure, allows for maximum performance in constricted spaces
U ses For continuous mixing of a wide range of mixtures, including pre-blended, pre-packaged concrete, as well as wet or dry shotcrete and slurries.
O ptimal P erformance Use of a water booster pump is recommended for applications where water pressue is expected to fluctuate.
P erformance D ata Ouput of 11m 3 (14.5 yds 3 ) per hour.
S pecifications •
•
Length Operating: Transport: Width Operating: Transport:
•
Height:
1,800 mm (71 in)
3,500 mm (138 in) 1,850 mm (73 in)
•
Power:
20 HP, 575/3/60
•
Weight:
1,500 kg (3,300 lbs)
1,200 mm (47 in) 1,200 mm (47 in)
•
Mounting:
Four-Way Steel Skid
•
Water Control: Automatic
| 7 |
| 8 |
pa rt s c ata lo g u e
C H E M I C A L & W AT E R B O O S T E R P U M P S
The A-10 Chemical/Accelerant Dosing Pump handles abrasive fluids with little wear and provides a high level of volumetric accuracy for sampling, transfer, and metering applications. The A-20 Chemical/Accelerant Dosing Pump has no valves or glands where crystals can build up or clog the pump. The absence of product slip in the hose provides 100 percent volumetric efficiency.
Chemical/Accelerant Pumps A-10
A-20
Maximum Output
0 - 95 L/hr (0 - 25 Gal/hr)
0 - 454 L/hr (0 - 120 Gal/hr)
Maximum Pressure
116 psi (8 bar)
116 psi (8 bar)
Power
Air, Electric, or Hydraulic
Air, Electric, or Hydraulic
Mounting
Portable Stand
Portable Stand
Water Booster Pumps Air-driven water booster pumps, such as the GBP-300 and the GBP-500, work on a reciprocating differential area piston principle. The water pressure can vary from zero to 500 psi (34.5 bar). GBP-300
GBP-500
Maximum Output
76 L/Min (20 Gal/Min)
40 L/Min (10.6 Gal/Min)
Minimum Air Pressure
29 psi (2 bar)
29 psi (2 bar)
Maximum Air Consumption
2.27 m³/min (80.0 ft³/min)
2.27 m³/min (80.0 ft³/min)
Length
610 mm (24”)
610 mm (24”)
Width
330 mm (13”)
330 mm (13”)
Height
305 mm (12”)
305 mm (12”)
Weight
25 kg (56 lbs)
25 kg (56 lbs)
pa rt s c ata lo g u e
D R Y- M I X M A C H I N E PA R T S Aliva OEM joint plates and rotor plates are constructed with the highest quality of rubber and high carbon steel, which allows for increased throughput and lower operating costs. Both the joint plates and rotor plates can be ground-down several times and then put back in operation. This process should be completed before the wear on the plates becomes too severe.
Aliva AL-237/246 PART #
DESCRIPTION
246.2043
Lower Joint Plate
246.2047
Upper Joint Plate
246.0252
Rotor Plate
246.0254
Rotor Plate Gasket
Aliva AL-237/246 Air Outlet Chambers PART #
DESCRIPTION
246.0380
Air Outlet Chamber 38 mm (1½”)
246.0285
Air Outlet Chamber 50 mm (2”)
Aliva AL-252 PART #
DESCRIPTION
260.0233
Lower Joint Plate
260.0244
Upper Joint Plate
260.0237
Rotor Plate
Aliva AL-252 Air Outlet CHAMBER PART #
DESCRIPTION
252.0010
Air Outlet Chamber 60 mm (2 3 / 8 ”)
250.0077
Outlet Gasket
| 9 |
| 1 0 | pa rt s c ata lo g u e
Aliva AL-252 Hose Inserts PART #
DESCRIPTION
260.0506
Hose Insert 10 Litre
260.0526
Hose Insert 16 Litre
Air Motor Silencers PART #
DESCRIPTION
255.0023
Aliva AL-252
255.0025
Aliva AL-237/AL-246 & Piccola
Air Pressure Gauge PART #
DESCRIPTION
150.0276
Pressure Gauge
Allentown Meyco Piccola Discharge Liners PART #
DESCRIPTION
A76033
Discharge Liner
A76034
Outlet Spout Liner 1½”
A76035
Outlet Spout Liner 1¼”
A76036
Outlet Spout Liner 1”
LUBRICATION HOSE FOR WEAR PADS PART #
DESCRIPTION
800.0093
Lubrication Hose
pa rt s c ata lo g u e | 1 1 |
Allentown Meyco Piccola Pads PART #
DESCRIPTION
A76136
Upper Wear Pad
A76140
Bottom Wear Pad
Allentown Meyco Piccola Friction Discs PART #
DESCRIPTION
A27095
Friction Disc, 9 Hole Round
A27096
Friction Disc, 12 Hole Round
A27097
Friction Disc, 12 Hole Pie
Aliva AL-246 & AL-252 Hopper Vibrator PART #
DESCRIPTION
838.0058
Vibrator
Aliva AL-246 & AL-252 Sieve PART #
DESCRIPTION
840.0099
Large Hole Sieve
Aliva AL-252 Agitator & Cable PART #
DESCRIPTION
252.0015
Agitator
246.0086
Wire Cable
Kink Protector & Nozzle Holder PART #
DESCRIPTION
220.0370
Kink Protector
220.2442
Nozzle Holder
| 1 2 | pa rt s c ata lo g u e
H Y D R O M I X N O Z Z L E S ( D R Y- P R O C E S S ) The semi-wet, or hydro-mix, nozzle assembly was designed to increase mixing time after the introduction of water in the dr y-mix process. This increase in time allows for more thorough mixing before the shotcrete exits the nozzle, and greatly reduces dust emissions from the nozzle tip.
38/58 (1½”) Inside Diameter Hose Item
Part #
Quantity
Description
Full assembly
220.1555
1
Full assembly
1
220.1561
1
Nozzle 38
2
220.1562
1
Hose Coupling w/Dist. 38
3
180.1819
16
Screw
4
170.0012
3 M
38/58 Material Hose
5
220.1563
1
Threaded Coupling
6
220.1566
1
Water Ring 38
7
220.1564
1
Water Inlet Piece
8
220.2774
1
Threaded Flange
9
170.0027
1
2½” Coupling
10
125.0342
2
O Ring
11
110.3688
1
Needle Valve
pa rt s c ata lo g u e | 1 3 |
50/70 (2”) Inside Diameter Hose Item
Part #
Quantity
Description
Full assembly
220.1615
1
Full assembly
1
220.1621
1
Nozzle 50
2
220.1622
1
Hose Coupling w/Dist. 50
3
180.1819
16
Screw
4
170.0016
3 M
50/70 Material Hose
5
220.1623
1
Threaded Coupling
6
220.1625
1
Water Ring 50
7
220.1624
1
Water Inlet Piece
8
820.1623
1
Threaded Flange
9
170.0028
1
3” Coupling
10
125.0346
2
O Ring
11
110.3688
1
Needle Valve
60/80 (2 3 / 8 ”) Inside Diameter Hose Item
Part #
Long Nozzles
Quantity
Description
Part #
Description
Full assembly 220.1665
1
Full assembly
220.1610
36” Nozzle 50/70 (2”)
1
220.1671
1
Nozzle 60
820.1671
36” Nozzle 60/80 (2 3 / 8 ”)
2
220.1672
1
Hose Coupling w/Dist. 60
3
180.1819
16
Screw
4
170.0018
3 M
60/80 Material Hose
5
220.1673
1
Threaded Coupling
6
220.1675
1
Water Ring 60
7
220.1724
1
Water Inlet Piece
8
820.1673
1
Threaded Flange
9
170.0028
1
3” Coupling
10
125.0348
2
O Ring
11
110.3688
1
Needle Valve
| 1 4 | pa rt s c ata lo g u e
EXTENSTION HOSES (DRY PROCESS) Minequip’s high quality mandrel-made, dr y-process shotcrete hose is available in var ying diameters and lengths. Our extension hoses are complete with a quick-connect, snap clamp for ease of assembly.
38/58 (1½”) Inside Diameter Hose 10 M Assembly
220.0045
1
Extension Hose Assembly 38/58 (1.5”) x 10 M
20 M Assembly
220.0040
1
Extension Hose Assembly 38/58 (1.5”) x 20 M
Item
Part #
Quantity
Description
1
220.0041
2
Hose End 38
2
170.0012
0-20
38/58 (1½”) Material Hose
3
180.1819
16
Screw
4
170.0027
1
2½” Coupling
pa rt s c ata lo g u e | 1 5 |
50/70 (2”) Inside Diameter Hose 10 M Assembly
220.0052
1
Extension Hose Assembly 50/70 (2”) x 10 M
20 M Assembly
220.0050
1
Extension Hose Assembly 50/70 (2”) x 20 M
Item
Part #
Quantity
Description
1
220.0051
2
Hose End 50
2
170.0016
0-20
50/70 (2”) Material Hose
3
180.1819
16
Screw
4
170.0028
1
3” Coupling
60/80 (2 3 / 8 ”) Inside Diameter Hose 10 M Assembly
220.0062
1
Extension Hose Assembly 60/80 (2 3 / 8 ”) x 10 M
20 M Assembly
220.0060
1
Extension Hose Assembly 60/80 (2 3 / 8 ”) x 20 M
Item
Part #
Quantity
Description
1
220.0061
2
Hose End 60
2
170.0018
0-20
60/80 (2 3 / 8 ”) Material Hose
3
180.1819
16
Screw
4
170.0028
1
3” Coupling
| 1 6 | pa rt s c ata lo g u e
CONCRETE PUMPING HOSES Minequip’s wet-process, concrete placement hose is available in fabric or steel-braid construction, and with inside diameters ranging from 1½” to 5”. Each inner liner is made of natural rubber, and the outer cover is made up of a combination of natural and synthetic rubber that provides superior protection against the elements.
Fabric Braid Hose Inside Diameter
Outside Diameter
Number of Plies
Working Pressure
Burst Pressure
Weight
1½”
2.20”
4
1,000
2,400
1.05 lb/ft
2”
2.76”
4
1,000
2,400
1.39 lb/ft
2½”
3.31”
4
1,000
2,000
1.80 lb/ft
3”
4.01”
6
1,000
2,000
2.82 lb/ft
3½”
4.64”
6
1,000
2,000
3.64 lb/ft
4”
5.12”
6
1,000
2,000
4.00 lb/ft
4½”
5.59”
6
1,000
2,000
4.36 lb/ft
Steel Braid Hose Inside Diameter
Outside Diameter
Number of Plies
Working Pressure
Burst Pressure
Weight
2”
2.76”
2
1,300
2,900
1.77 lb/ft
2½”
3.43”
4
1,300
2,600
2.66 lb/ft
3”
3.90”
4
1,300
2,600
3.24 lb/ft
4”
5.12”
4
1,300
2,600
5.27 lb/ft
5”
6.10”
4
1,300
2,600
6.39 lb/ft
pa rt s c ata lo g u e | 1 7 |
SNAP COUPLINGS & GASKETS Minequip supplies various styles and sizes of quick-connect snap couplings and gaskets, for both wet and dr y shotcrete processes. Our inventor y includes grooved and heavy-duty style clamps and fittings.
Dry Process Couplings Description
Complete Part #
Gasket Part #
2 ½” (64 mm)
170.0027
170.0041
3” (76 mm)
170.0028
170.0042
4” (102 mm)
170.0029
170.0043
wet Process Couplings Description
Complete Part #
Gasket Part #
1 ½” (38 mm)
A23730
A23731
2” (51 mm)
A23138
A23139
2 ½” (64 mm)
A23195
A23196
3” (76 mm)
A23140
A23141
4” (102 mm)
A23142
A23143
5” (127 mm)
A23144
A23145
| 1 8 | pa rt s c ata lo g u e
REDUCERS (DRY & WET PROCESS)
Dry Process reducers Description
Machine
Part #
Reducer 50/38 (2”/1½”)
AL-246.5
220.0201
Reducer 60/50 (2 3 / 8 /2”)
AL-252.1
252.0053
Reducer 75/60 (3”/2 3/ 8”)
AL-262/263/285
220.0283
wet Process reducers Description
Gasket Part #
2” x 1½” x 18” (51 mm x 38 mm x 457 mm) HD
A23679
2 ½” x 2” x 28” (64 mm x 51 mm x 711 mm) HD
A23328
3” x 2” x 90° Elbow (76 mm x 51 mm x 90°) HD
A23793
3” x 2” x 36” (76 mm x 51 mm x 914 mm) HD
A23100
3” x 2 ½” x 12” (76 mm x 64 mm x 305 mm) HD
A23851
3” x 2 ½” x 28” (76 mm x 64 mm x 711 mm) HD
A23207
4” x 3” x 90° Elbow (102 mm x 76 mm x 90°) HD
A23797
4” x 3” x 36” (102 mm x 76 mm x 914 mm) HD
A23200
5” x 4” x 90° Elbow (127 mm x 102 mm x 90°) HD
A23791
5” x 4” x 36” (127 mm x 102 mm x 914 mm) HD
A23682
pa rt s c ata lo g u e | 1 9 |
W E T- M I X N O Z Z L E S Minequip carries a wide variety of wet-process nozzles for applications ranging from handheld spraying to the use of remote spray arms. Each nozzle type is available with or without an accelerator inlet, to cater to various applications.
Acme Nozzle Assembly PART #
Description
A23348
1½” (38 mm) Shotcrete Nozzle with Accelerator Valve
A23349
1½” (38 mm) Shotcrete Nozzle without Accelerator Valve
A23725
2” (51 mm) Shotcrete Nozzle without Accelerator Valve
A23729
2” (51 mm) Shotcrete Nozzle with Accelerator Valve
HP Nozzle Assembly PART #
Description
A76016
2” (51 mm) HP Nozzle Assembly
A76019
2 ½” (64 mm) HP Nozzle Assembly
| 2 0 | pa rt s c ata lo g u e
HOPPER HOOD
Minequip’s enclosed hopper hood was developed to serve various purposes. First and foremost, it allows the machine operator to safely open the discharge chute on bulk bags, without lowering the bulk bag on to the lip of the hopper. By opening the access door on the side of the hopper hood, the operator can safely and effectively untie the bags without risk of injury. Another benefit of the enclosed hopper hood is dust control. Incorporated into the design, is a round hole that is the same diameter as the discharge chute on the bag. This feature allows the chute of the bulk bag to plug the hole in the hood, and prevents dust from escaping from the hopper. The enclosed hopper hood is available in steel or aluminum, and is designed to fit Aliva AL-237, Aliva AL-246, and Aliva AL-252 machines. Custom hoods for other models are available upon request.
pa rt s c ata lo g u e | 2 1 |
A I R- S E PA R AT O R B O X
The purpose of an air-separator box is to allow for concrete to be mixed and placed using a conventional shotcrete machine. The problem with using a standard type shotcrete nozzle to pour a slab or floor, is that the material impacts the surface at a high velocity. As a result of this velocity, aggregate will not adhere to the surface until a layer of paste has built-up. This type of rebound can create pockets of aggregate that exist without cement, which causes voids within the concrete. An air-separator box is designed to stop the material from impacting the surface with any substantial velocity. The box is lined with thick rubber to reduce wear and decrease velocity. The air-separator box is also equipped with a vent on the top, to allow the conveyance air to escape without pushing the material out of the bottom of the box.
| 2 2 | pa rt s c ata lo g u e
S H O TC R E T E C O N S T R U C T I O N PA N E L S
Minequip shotcrete construction panels are widely used for underground shotcrete construction work. Typical applications include the creation of ventilation barricades, refuge station walls, fuel bay contaminate dikes, backfill barricades, ore and waste-pass bumper walls and powder magazines. By eliminating the need for framework, Minequip shotcrete construction panels reduce direct material, labour, and material handling costs. Our panels are made up of five inner trusses of 6 gauge wire, and two full sheets of 9 gauge mesh. The end result is a superior panel, with large openings to facilitate placing on anchor pins. The panels also have a wide enough grid to reduce the amount of rebound that is associated with other panels. Minequip shotcrete construction panels are available in standard 4’ x 8’ sheets, in various thicknesses ranging from 2” to 8”, and can be supplied with or without fabrene backing.
pa rt s c ata lo g u e | 2 3 |
FORM OIL
The Innoltek FORM-TEK 20 WS agent was designed to combine the performance of traditional petroleum-based products with greener characteristics. We believe that the new generation of industrial products must be respectful of the environment and can also exceed the expectations of our customers. FORM-TEK 20 WS is a biodegradable form release agent that is made from 100% renewable products, and is specially formulated to be used at low temperatures. This product is also water soluble, making it easy to clean. This form release agent is non-toxic, contains no solvents or VOCs, can be used on structures near water, and is safe for workers to use.
| 2 4 | pa rt s c ata lo g u e
SHOTCRETE SUPPORT POSTS
Minequip’s shotcrete support posts are prefabricated concrete posts designed to take the place of pillars that are shot-in-place using conventional methods. The posts are deigned as a quick and effective method for installing support in large excavations underground. They are commonly used in the cut-and-fill mining method, and take the place of ore pillars that are costly to leave in place. Each shotcrete support post is available with a rebar strain meter cast into the middle of the post. This feature allows for the user to monitor the load applied to the pillar.
FRONT VIEW
TOP VIEW
pa rt s c ata lo g u e | 2 5 |
END-BEAM TESTER
The end-beam testing apparatus measures the early age, compressive strength of institu concrete or shotcrete. Particularly in mining and tunneling operations, it is important to know the strength of material at early ages. These compressive strength values cannot be obtained through traditional methods such as shooting a panel and retrieving cores, because cores are difficult to extract at an early age and it is not recommended to core a shotcrete panel before a strength of 10 MPa (1,450 psi) has been achieved. The key to the end-beam test method is the use of molds that can be disassembled for quick and easy extraction at any strength. The test is an adaptation of the ASTM-C116, “Standard Test Method for Compressive Strength of Concrete Using Portions of Beams Broken in Flexure”. Minequip’s End-Beam Tester allows users to obtain quick, easy, and accurate early age strength readings for shotcrete and concrete.
| 2 6 | pa rt s c ata lo g u e
FA B R I C AT I N G P R O D U C T S
King’s Fabricating Division offers a wide range of fabricating parts and services to the mining and construction sector. King Fabricating is known for quality workmanship and its ability to custom manufacture or rebuild parts and equipment for the mining industry.
Wheel Chocks PART #
DESCRIPTION
KF-A013-6
6” Wheel Chock
KF-A013-8
8” Wheel Chock
KF-A013-10
10” Wheel Chock
KF-A013-12
12” Wheel Chock
Lifting Cross PART #
DESCRIPTION
KF-A026-INC
Lifting Cross
KF-A026-XS
Lifting Cross with Swivel and Latches
Jib Boom PART #
DESCRIPTION
KF-A009
Jib Boom for Kubota with 6,000 lb Mast (4,000 lb capacity)
KF-A019
Adjustable Jib Boom for Kubota with 5,500 lb and 6,000 lb Mast (2,500 lb capacity)
pa rt s c ata lo g u e | 2 7 |
FA B R I C AT I N G P R O D U C T S
Dust Control Spray Bar PART #
DESCRIPTION
KF-A134
Dust Control Spray Bar 84” L x 36” W x 18” H
Grout Pressure Relief Valve PART #
DESCRIPTION
KF-1057
Grout Pressure Relief Valve for Cable Bolting
Bag Cage PART #
DESCRIPTION
KF-S097-HSS
Storage Cage for Empty Bulk Bags
ORDER FORM
KING SHOTCRETE SOLUTIONS A division of King Packaged Materials Company 644 Simmons Rd. P.O. Box 938 Dowling, ON P0M 1R0 Canada
To order parts, simply fill out the attached form and fax it to 1(705)855-1122 or e-mail it to kingshotcrete@kpmindustries.com. Bill to:
Ship to:
Shipping Instructions: Preferred Carrier: Account Number: Pre-Pay and Charge: Special Instructions:
QTY
Part #
TOTAL
Notes or Comments:
Description
Price
K I N G PAC K AG E D MAT E RIA L S C O M PA N Y Burlington Office
Boisbriand Office
Brantford Office
Sudbury Office
3385 Harvester Rd. Burlington, ON L7R 3Y5 Tel: 905-639-4401 Fax: 905-639-2240
3825 rue Alfred-Laliberté Boisbriand, QC J7H 1P7 Tel: 450-430-4104 Fax: 450-430-6855
541 Oak Park Rd. Brantford, ON N3T 5L8 Tel: 519-756-6177 Fax: 519-756-7490
644 Simmons Rd. Greater Sudbury, ON P0M 1R0 Tel: 705-855-1155 Fax: 705-855-1122
www.kingminequip.com • kingshotcrete@kpmindustries.com
