Fiamma Products 2024

For 75 years quality and technology on the road

Founded in Italy in 1945, Fiamma is an international leader in the development of technical accessories to convert your vehicle into the ideal vehicle for every adventure. Its products offer you technology and quality without boundaries.

Travelling on board a motorhome is the best way to get to know the world. In absolute freedom, you can decide when to leave and where to stop. With friends or family, by the sea or at the foot of a mountain, you can imagine the trip you want, if your vehicle has Fiamma products.

The quality of each item, tested in the laboratory and then on the road, along with professional assistance always available will make every trip an unforgettable moment of dolce vita.

1 logistics and design centre

100,000 spare parts in stock

8 production units

100 patents

Here you will find the technical data sheets of the products, the list of recommended dealers and the 52 trade fairs where you can visit the Fiamma stand.

fiammastore

With Fiamma, home is wherever you decide to go. Get on board of your vehicle and discover the world!

Fiammastore products are the ideal travel companions for your holidays, trips, excursions and adventures.

Whatever vehicle you have, in just a few moments you can enlarge the space at your disposal and transform it into an environment that you will immediately call “home”.

Awnings, Blockers and Privacy Rooms make you feel protected wherever you decide to stop. Start planning your next trip: with Fiamma, “home is everywhere”.

The world is your home

awnings

Practical, easy to use and indispensable on sunny days.

panels

You can mount them on the side or on the front: robust and effective, they are the smartest way to transform your vehicle.

enclosures

Spacious and comfortable, they create a welcoming and safe space.

accessories

Customise each solution with the Fiamma accessory that best suits your needs.

Live in the open air comfortably

Fiamma awnings are the ideal complement for every lover of outdoor life. We have designed them to be easy to install, practical and able to protect you during your relaxing moments from the sun.

Simple, robust and essential in design, you can customise them according to your preferences with numerous accessories and they are suitable for mounting on any type of vehicle.

wall installation

It is the most used type, because the wide range of brackets makes it compatible with most vehicles.

roof installation

Extremely compact, it is installed on the roof of the vehicle thanks to special brackets, integrating perfectly with the aesthetics.

rail mounting

Lightweight and easy to remove in a single motion, it uses the caravan’s rail without the need for any brackets.

Selection guide

How to choose the right awning for you? Here are some practical tips to help you make the right choice.

• Check if there are dedicated Fiamma solutions for your vehicle (Ducato, VW T5 & T6, PSA)

• Choose the awning according to your vehicle, its characteristics and your needs

• Check the usable space available for mounting the awning (wall or roof)

• Choose the bracket for your vehicle (you can find them in the special section of the catalogue from page 48)

wall installation

roof installation / on rail

F80s

F80L

F45eagle

F45s

suitable for motorhomes, caravans, van conversions and campervans

The original wall-mounted awning, practical, robust, functional and versatile, it is the best value for money.

features:

• Cassette luifel met slinger voor wandmontage, voorzien van praktische rails

• Lengte van 190 tot 450

• Optioneel met motor bediening (p.40)

• Licht in gewicht

Visible loop

For maximum ease of use

• Standaard beugels inbegrepen: optioneel meer dan 100 soorten voertuigadapters verkrijgbaar

Double

The awning is delivered as standard with installation kit. * Awning for the main door, comes without vertical support legs. ** 1 Tension Rafter made of anodized aluminium included. ***Ask your local dealer for availability and timing of the Sahara (S), Evergreen (E), Bordeaux (D) fabric versions. Specify the fabric colour you want when ordering by replacing (X) with: R=Royal Grey, Q=Royal Blue.

For RHD vehicles available on request the left version awning with winch installed on the left side, case in Polar White and canopy in Royal Grey.

F45s campervan

These special versions of our F45 awning are complete with an installation kit and are suitable for many types of minivan:

- VW T5 / T6 / T6 1

- PSA group

VW version also suitable for short and long wheelbase

Multivan (Volkswagen transporter with C-rail) and California. PSA version also for lift roof models.

features:

• Winch awnings for wall installation with practical visible loop

• Specific brackets included

• Lengths 260 and 300 (only for VW T5 / T6)

• Optional electric motor (p. 40)

F45s VW T5 / T6

Model

VW T5 / T6 without C rail

VW T5 / T6 with C rail

VW T5 / T6 California

VW T5 / T6 with Multirail Reimo

VW T5 / T6 with Top-rail Brandrup

Awning Adapter Awning Adapter Awning Adapter Awning Adapter Awning Adapter

Spacetourer

Vivaro

Zafira

Proace

Short wheelbase

F45s 260 standard **

optional ***

F45s 260 VW T5/T6 * included in the awning

F45s 260 VW T5/T6 * included in the awning

F45s 260 standard ** optional ***

F45s 260 standard **

optional ***

Long wheelbase-

F45s 300 VW T5/T6 * included in the awning-

Polar White

Titanium

Deep Black

F43van

suitable

Wall-mounted winch awning, specifically designed for campervans. Compact and innovative design, it perfectly matches the shape and aesthetics of campervans, even those with pop-up roofs.

features:

• Opening via winch with magnetic catch which is concealed in the cover, conveniently positioned due to the awning’s mounting height on the van

• Awning opening with negative inclination to use the space at full height (max. 2 20 m)

• LED provision in the case box, recessed front closure

• Lengths 270 and 300

• The compact shape of the awning once installed reduces the maximum height from the ground, granting access to parking spaces

Magnetic attachment

For opening the awning, concealed in the cap cover

LED preparation

Integrated in the box, to illuminate the space (p. 176)

Brackets

Standard bracket included, can be combined with vehiclespecific brackets (p. 48)

Guides

Concealed, for installation of the Room Van Premium or other accessories

Arms

Reinforced and with reduced cross-section

Telescopic Leg

Equipped with a reinforced joint

One Way Roll Guide the rolling direction of the fabric

Secure Lock Adjusts the height of the lead bar

F45L

This special wall-mounted awning with oversized components and an extra-large roller is suitable for large vehicles and therefore provides a large area of shade for the whole family.

features:

• Winch awnings for wall installation with practical visible loop

• Length from 450 to 550

• Optional electric motor (p. 40)

• Standard brackets included. 100 types of brackets are optionally available

Visible loop

For maximum ease of use

Roller support

Facilitates the rolling up of the fabric

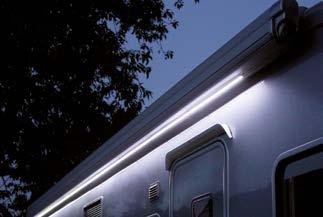

LEDs

The cable ducts on the arms allow the passage of cables for the optional Fiamma LED kits (page 172)

Brackets To find brackets and adapters for every type of vehicle (p. 48)

Dual Security Indicator for correct closure of the lead bar

Double guide

To install a front panel or Privacy and other accessories

Presto Fix

Guarantees perfect closure of the lead bar over time

Reinforced arms

Keep the fabric tensioned

Telescopic Leg

Equipped with a reinforced joint

Dual Shock-Absorber Absorbs shocks in case of heavy stress

One Way Roll Guide the rolling direction of the fabric

Secure Lock Adjusts the height of the lead bar

Specify the fabric colour you want when ordering by replacing (X) with: R=Royal Grey, Q=Royal Blue. *Ask your local dealer for availability and timing of the Sahara (S), Evergreen (E), Bordeaux (D) fabric versions.

F45eagle

Automatic motorised awning, without support legs, with self-supporting arms.

Motorised with compact motor, characterised by smal size, simple construction, reliability and excellent performance. Operated using the wall-mounted Control System.

features:

• Motorised

• Self-supporting arms

• Length: from 350 to 450

• Standard adapter included

Brackets

Full length adapter supplied as standard

12V motor included

To operate the awning in one easy step

Double guide

To install a front panel and other accessories

Presto Fix Guarantees perfect closure of the lead bar over time

Roller support

Facilitates the rolling up of the fabric

Reinforced arms Keep the fabric tensioned One Way Roll Guide the rolling direction of the fabric

Wind Detection System

Sensor that is automatically activated and closes the awning in case of strong wind

LEDs

The cable ducts on the arms allow the passage of cables for the optional Fiamma LED kits (page 172)

Double Block support

Allows the regulation of the inclination from 5° to 17° and reinforces the self-supporting arms, thus avoiding the use of support legs

Important: verify with your trusted dealer if your motorhome or motorcaravan is suitable for the installation of the F45eagle with sturdy full length aluminium bracket. The vehicle must be robust enough to support the weight and the tension of the open awning. Fiamma refuses all responsibility for damages to the walls or for water ingress due to incorrect installation or due to installations on weak walls.

SlideOut

SlideOut is the perfect awning for vehicles with extendable rear or side walls: it protects them from the sun and shields them from the effects of the weather. It extends up to one metre and rolls up automatically.

features:

• Standard brackets included

• Available in two lengths: 200 and 280

Brackets Standard equipment Fabric extension Automatic, up to one metre

Protecting To protect your vehicle from the damaging effects of sun and weather

models and

F80s

suitable for motorhomes, caravans and van conversions

The strengths of this awning are the triple guide on the front and the double LED arrangement. Elegant and minimalist in design, it blends in perfectly with the vehicle’s silhouette.

features:

• Winch awnings for roof installation with practical visible loop

• Brackets optional, more than 90 types of dedicated adapters available (p. 49)

• Length from 290 to 450

• Optional electric motor (p. 40)

Visible loop

For maximum ease of use

Dual Shock-Absorber

Absorbs shocks in case of heavy stress

One Way Roll

Guide the rolling direction of the fabric

Brackets

Find brackets and adapters for every type of vehicle (p. 49)

Roller support Facilitates the rolling up of the fabric

Double LED preparation

Front and case box, LED light visible even when the awning is closed

Secure Lock Adjusts the height of the lead bar

Triple guide

To install a front panel or Privacy and other accessories

Reinforced arms Keep the fabric tensioned

Telescopic Leg Equipped with a reinforced joint

F80s Ducato

Specific version of awning F80s for Ducato in lengths 320, 370 and 400 with Deep Black finish, complete with brackets, gasket and cover.

features:

• Winch awnings for roof installation with practical visible loop

• Specific brackets included, black finish - Kit Ducato / Citroën Jumper /

• Kit Rain Guard Slim (replacing the Rain Guard), a seal that prevents water from running down the wall of the vehicle

• Kit Cover, covers for greater integration of the awning with the vehicle profile

• Length from 320 to 400

• Optional electric motor (p. 40)

F80L

Roof winch awning F80L, particularly suitable for large vehicles, has the aesthetics of the F80s creating a family feeling with the Fiamma roof awnings.

features:

• Winch awnings for roof installation with practical visible loop

• Several types of dedicated brackets are available as options (p. 49)

• Length from 450 to 600

• Extension 275cm

Visible loop

For maximum ease of use

Rain Guard

Hermetic seal supplied as standard

Double LED preparation

Front and case box, LED light visible even when the awning is closed

Brackets Find brackets and adapters for every type of vehicle (p. 49)

Side Caps and Cover Plastic side caps, painted aluminium cover

Secure Lock Adjusts the height of the lead bar

Strong structure

To guarantee solidity with 275cm extension

Dual Shock-Absorber Absorbs shocks in case of heavy stress

Triple guide

To install a front panel or Privacy and other accessories

Roller support Facilitates the rolling up of the fabric

Arms Enlarged section for greater strength and extension to 275cm

F65eagle

Automatic motorised awning, without support legs, with self-supporting arms. Motorised with new compact motor characterised by smaller size, simple construction, reliability and excellent performance. Roof-mounted and operated using the wall-mounted Control System.

features:

• Motorised

• Self-supporting arms

• Brackets included for Ducato version, optional for 400 standard version (Adapter p. 60 and 65)

• Length: from 319 to 400

Brackets

To find brackets and adapters for the standard version (400cm) (p. 60 and 65)

12V motor included

To operate the awning in one easy step

Presto Fix Guarantees perfect closure of the lead bar over time

Reinforced arms

Keep the fabric tensioned

Roller support Facilitates the rolling up of the fabric

One Way Roll Guide the rolling direction of the fabric

Double Block support

Allows the regulation of the inclination from 5° to 17° and reinforces the self-supporting arms, thus avoiding the use of support legs

Double guide

To install a front panel and other accessories

Wind Detection System

Sensor that is automatically activated and closes the awning in case of strong wind

LEDs

The cable ducts on the arms allow the passage of cables for the optional Fiamma LED kits (page 172)

* The awning is delivered as standard with installation bracket. Important: verify with your trusted dealer if your motorhome or motorcaravan is suitable for the installation of the F65eagle. The vehicle must be robust enough to support the weight and the tension of the open awning. Fiamma refuses all responsibility for damages to the roofs or for water ingress due to incorrect installation or due to installations on weak roofs.

F40van

Thanks to its small footprint and integrated brackets, it integrates perfectly into the vehicle and is quick and easy to remove.

features:

• Winch awning for roof installation with practical visible loop

• Several types of dedicated brackets are available as options (p. 48)

• Not suitable for vehicles with lift roof

• Length 210 and 270

• Maximum leg height of 220cm makes maximum use of the awning height

Visible loop

For maximum ease of use

Brackets

One Way Roll

Double guide

To install a front panel or Room Van and other accessories

Arms

Legs

Rafter for F40van awning, for an optimally stretched fabric. It guarantees greater wind resistance and prevents the formation of water pockets in the event of rain, thanks to its installation perpendicular to the arms of the awning. It comes with LEDs to illuminate your holiday space.

CaravanStore / XL

Manual awning for caravans very easy to install: only 45 seconds to open it completely! Legs and rafters are quick and easy to remove as they are integrated into the patented roller, which rolls and unrolls easily, without creasing.

features:

• Manual opening

• Installation on rail

• Length from 190 to 550

•

• From size 360, the awning can be partially opened by attaching the legs to the wall

Bag Comfortable and soft antiscratch tape

Vehicle wall protection

All parts in contact with the vehicle are fitted with a rubber protection kit

Double guide

To install a front panel or Privacy and other accessories

Roller

Rolling up of the fabric in both directions

Integrated legs Stored in the roller, telescopic and easy to take out

LED

To light up your evenings (optional) (p. 176)

* 1 tension Rafter CaravanStore included. ** 1 tension Rafter CaravanStore and 1 CaravanStore Support Leg included *** 2 CaravanStore Support Leg included. Specify the fabric colour you want when ordering by replacing (X) with:

F35pro

suitable for caravans, campervans and suv

Lightweight but very strong, this aluminium awning with legs and rafters integrated into the roller is ideal if you want to go on an adventure in your minivan, 4x4, SUV or caravan.

features:

• Manual opening

• Easy installation on the wall, on roof bars or rail

• Wide range of brackets to fit your vehicle (p. 49)

• Possibility of raising the front to make maximum use of the awning height

• Length from 180 to 300

Brackets

Wide range of brackets purchased separately (p. 49)

Integrated legs

Stored in the roller, telescopic and easy to take out

Compact case box

The awning is contained in a stylish anodised aluminium case box

Reinforced arms

Easy to adjust, keep the fabric tensioned

Double guide

To install a front panel or Privacy and other accessories

Roller

Rolling up of the fabric in both directions

Compass

The perfect awning that provides a large area of shade on two sides of the vehicle, thanks to the circular compass opening. Ideal for every occasion and for short stops, it is very easy to use.

features:

• Manual opening

• 270° compass opening

• Several types of dedicated brackets are available as options (p. 48)

Brackets

Only suitable for left hand drive vehicles

Motor Kit

How to make your awning even more powerful? By installing the right motor for each model! All our motors are 12V powered: ideal for every campsite and vehicle.

features:

• 12V motor

• Equipped with Control System

to which awnings does it fit?

F45 - F65 - F80 (in 3 different variants)

motor kit compact F80 motor kit plus F80s

Small in size and fitted with an aluminium cover, it blends in perfectly with the look of the awning. Operated by the practical Control System wall-mounted control.

Thanks to the convenient infrared remote control, the awning can be opened and closed in a few simple steps; the control unit allows the self-tensioning of the fabric. The Control System wall-mounted control is also available.

motor kit advanced F80

Thanks to the practical Fiamma App (for Android and iOS), you can manage the awning F80s/L from your device: opening and closing, LED control (on/off/dimming). The motor is also equipped with wall control Control System.

* Also available the Kit Upgrade for

motor kit compact F65L

Compact motor for F65L awning, characterised by smaller size, simple construction, reliability and excellent performance.

Equipped with wall-mounted button Control System.

motor kit compact F45 motor kit advanced F45

Compact motor for F45s and F45L awnings, characterised by smaller size, simple construction, reliability and excellent performance.

Equipped with wall-mounted button Control System.

To manage your F45s/L awning thanks to the practical Fiamma App (for Android and iOS): opening and closing, LED control (on/off/ dimming).

The motor is also equipped with wall-mounted button Control System.

Accessories

How to make your awning even more effective and performing?

Simple: just add one or more dedicated Fiamma accessories. Discover them all!

telescopic arm support new

Telescopic arm support: new optional accessory that can be installed on the F80s (from length 320)* and F80L* awnings to guarantee maximum stability. It prevents the arms from closing, whatever the weather conditions**, guaranteeing resistance even under heavy stress. The F80s/L awnings will have their arms prepared to accommodate this new accessory.

features:

• Integrated in the awning arms, can be used as required

• Quick and easy to use, disengages with a simple click

rafter

Canvas always perfectly taut and noise-proof? It can be done, thanks to this practical telescopic rafter adjustable in length, from 145cm to 275cm.

which awnings does it fit?

F45s/L - F80s/L - F65s/L with extension up to 275cm and 550cm length.

rafter pro

* ensure that the awning is fitted with arms designed to receive the accessory ** however, conscientious use is recommended, avoiding exposure to the risk of weather events for which a weather alert has been issued by the appropriate authorities.

Curved rafter, raises the canvas slightly for optimal tensioning. Adjustable in length from 145cm to 250cm. Not recommended for use at high temperatures.

which awnings does it fit?

F45s/L - F80s - F65s/L with extension up to 250cm and length 550cm.

rafter led rafter led caravanstore rafter led van

Restyling featuring easier and more practical awning attachment, COB LEDs* and power supply via jack connector and cigarette lighter (12V socket).

which awnings does it fit?

F45/F80s, Fiamma ZIP.

* Chip On Board. COB LED strips are LED strips that create homogeneous lines of light without the classic dotted effect

Specifically, for CaravanStore awning. Distinct restyling with more convenient and effective awning attachment, COB LEDs* and power supply via jack connector and cigarette lighter (12V socket).

which awnings does it fit?

CaravanStore, CaravanStore ZIP.

It guarantees an optimally stretched fabric, greater wind resistance and prevents the formation of water pockets in the event of rain, thanks to the perpendicular installation with respect to the arms of the awning. It comes with LEDs to illuminate your holiday space. which awnings does it fit?

F43van 270, F40van and F45s 260.

rafter caravanstore / xl magicrafter magicrafter pro

This practical 30mm diameter anodised aluminium tension rafter keeps the awning fabric taut and makes it silent and windproof. It is adjustable in length from a minimum of 150cm to a maximum of 250cm.

which awnings does it fit?

F35pro and CaravanStore awnings with an extension of 225cm and 250cm (CaravanStore XL version).

And as if by magic, this rafter will give your awning greater stability: just attach it to the arm joints.

which awnings does it fit?

Awnings from 250cm to 400cm in length.

This pole is designed to give greater stability to your awning. It is easily attached to the arm joints: the two vertical supports provide optimal tension of the canvas. Caution: not recommended for use at high temperatures.

which awnings does it fit?

Awnings from 350cm to 450cm long.

Accessories

How to make your awning even more effective and performing?

Simple: just add one or more dedicated Fiamma accessories. Discover them all!

tie down

This kit with anchoring strips optimally fixes wall or roof awnings to the ground. It consists of an 11m adjustable strap, two pegs and a tensioning spring.

tie down s

Anchoring kit for easy and solid attachment to the ground from the front of awnings, also designed to be attached to the side of Privacy Room. It consists of 2 adjustable 300cm bands, 2 pegs, 2 tension springs and 2 front hooks. It is also designed to be attached to the Privacy side panel. CaravanStore Tie Down S version suitable for CS and F35pro (with leg attachment).

kit repair plus

Has the awning cover been damaged? Repair it quickly with this kit consisting of 3 transparent PVC adhesive strips!

Comfortable completion mat for your Privacy. It is made of breathable, self-extinguishing and UV-resistant polypropylene. Also available in a Light version featuring a lighter fabric, without edging and equipped with a standard bag.

Patio Bag is optionally available for the Patio Mat.

Close the front of your awning more securely with this 39cm strap for F35pro. Perfect for driving over rough terrain.

The unique design allows for less wind resistance of your awning. Can also be used with other brands of awning. It is made of thermoformed ABS-PLUS with UV protection.

patio mat / patio mat light

spoiler s safety strip

kit awning plate kit awning pegs

These robust screw-in pegs are ideal for tents, Privacy Rooms and mats. They can be screwed into the ground by hand - ideal for soft, sandy ground.

crank

Say goodbye to fatigue with this crank handle, available in 3 different lengths: Short, Standard and Telescopic.

Don’t let your awning get away! Ideal for fixing the front poles to the ground, they increase resistance in case of wind. They fit all types of Fiamma and Thule/Omnistor awning legs.

kit awning hangers

This practical kit has 6 hooks that fit into the front of the awning and allow you to hang small light objects, so that they are always tidy and close at hand.

which awnings does it fit? Awnings with 7mm slots.

handle

Rain Guard and Cover

rain guard lower rain guard s rain guard m

Hermetic seal for F45s/L awnings with suspended installation spaced from the wall. It can be installed on the slot of the case box.

Hermetic seal for awnings mounted with the AS 120 bracket on flat walls.

Hermetic seal for awnings spaced up to 4cm from the wall or on curved walls.

rain guard l kit rain guard california

Hermetic seal for awnings spaced up to 9cm from the wall or on curved walls.

Hermetic seal for F45s and F35pro awnings installed on VW California. Length 200cm.

kit rain guard F80 / F65

Hermetic seal for roof awnings F80s, F65s and F65L, they cover the entire space between the roof and the awning. Available in two versions: 450cm and 50cm kits. Made of EPDM material.

kit rain guard slim F80s ducato

Black rubber seal, specifically for F80s Ducato with low-profile brackets, can be shortened depending on the size of the awning.

kit cover F80s ducato

Black plastic covers, specifically for F80s Ducato with low-profile brackets, to improve integration of the bracket with the vehicle.

kit rain guard van

Kit for F45s and F35pro awnings with suspended installation on camper vans, spaced from the wall. Length 300cm.

kit rain guard + cover F40 van - vw T5 / T6

Kit for VW T5 / T6 vehicles consisting of hermetic seal and cover to optimally integrate the bracket with the F40van awning and the vehicle.

kit rain guard + cover F40 van - ford custom

Kit for Ford Custom vehicles consisting of hermetic seal and cover to optimally integrate the bracket with the F40van awning and the vehicle.

kit cover vw caddy maxi

Black plastic covers in combination with bracket Kit VW Caddy Maxi Lift Roof for F35pro to improve the integration of the bracket with the vehicle.

kit rain guard + cover F40 van - mercedes v class

Kit for Mercedes V Class vehicles consisting of hermetic seal and cover to optimally integrate the bracket with the F40van awning and the vehicle.

F45

All bracket codes in the following pages are suitable for the left guide unless otherwise indicated. (*right guide - **right and left guide)

F65 / F80

The

to compensate the

kit fiat ducato H2 - citroën jumper H2peugeot boxer H2

≥ 1994 ≤ 2006

kit fiat ducato - renault master

H1/H2

Iveco 35C13 City (Fiat New Daily)

Renault Master ≥ 03/1998

Fiat Ducato

Peugeot J5

Citroën C25

≥ 1981 ≤ 1994

kit renault master H2opel movano H2 - nissan interstar H2

kit fiat ducato H2 - citroën jumper H2peugeot boxer H2

≥ 2006

Renault Master

≥ 1997 ≤ 2009

Opel Movano

≥ 1998 ≤ 2010

Nissan Interstar

≥ 1998 ≤ 2011

kit fiat ducato H2 roof rail - alu-line style

kit fiat ducato with roof rack

≥ 2006 H2 - L2/L3

Citroën Jumper

Peugeot Boxer

≥ 2006

•

≥ 2006

F45s for campervans / F43van

The F45s 260 and 300 awnings and the F43van awning will be equipped with the corresponding standard brackets (in yellow) as standard. The vehicle-specific brackets (in red) will no longer include the standard bracket (standard in the awning).

T5/T6 Lift Roof - RHD

Kit VW T5 / T6 Multirail Reimo

Kit

Kit

Kit

Kit Renault Trafic - Opel Vivaro - Nissan

Kit Renault Trafic - Opel Vivaro - Nissan

Kit Renault Trafic - Opel Vivaro - Nissan

300 - Fiat Talento

Kit Renault Trafic - Opel Vivaro - Nissan

300 - Fiat Talento

- 98655A160

- 98655Z156

- 98655-035

98655-854 -

- 98655A854

98655Z021 -

- 98655A021

Kit Ford Transit Nugget High Roof • • 98655Z023Kit Ford Custom Nugget Lift Roof •

- 98655Z114

Kit Auto

98655-310Kit Roof Rail

Kit High Roof Adapter Westfalia

- 98655-770

98655-317 -

- 98655-284

•

Also

Also

Kit and adapters equipped with aluminum finishing kit as standard

Brackets

≥

Not

kit

Brackets complete with Rain Guard Slim Kit 450

Not suitable for vehicles with front panoramic rooflight

kit fiat ducato / citroën jumper / peugeot

Before installation, check compatibility with the front panoramic rooflight

Brackets equipped with Kit Rain Guard

Before installation, check compatibility with the front panoramic rooflight

Brackets equipped with Kit Rain Guard 400

≥

≥

≥

long

≥

Not

•kit mercedes viano / marco polo / vito / v class

H1 - L2

Viano Vito II: ≥ 2003 ≤ 2013

Viano Vito II Marco Polo:

≥ 2003 ≤ 2013

V Class Vito III - Long: ≥

•kit mercedes vito jules verne

•kit mercedes vito / vito

Attention: opening/closing operations of the awning must be performed with the sliding door closed

Compass

kit vw T5 / T6 transporter / multivan compass

Create your own private, safe and comfortable space

Your vehicle is transformed into a safe and cosy environment thanks to Fiamma walls and enclosures. Designed to offer you all the privacy and security you need, they are easy and quick to assemble. The wide range of models allows you to create an additional shady but bright space, protected from the weather. Choose the one that’s right for you!

front and side panels

Fiamma Side and Blocker walls are quickly installed directly on the awning: they are designed to give you all the privacy you need, while maintaining easy access to the awning’s shaded area.

complete tents

Complete solutions consisting of awning, front and side panels, equipped with a robust zip fastener: together, they allow you to create a complete veranda in just a few minutes.

enclosures

Made up of a front and side panels joined together, they can be quickly fitted to the awning thanks to the Fast Clip system.Lightweight and elegant, they are equipped with large windows, mosquito nets and curtains.

rear door enclosures

These practical enclosures are specifically designed for the rear of campervans and van conversions. In just a few steps, they increase the privacy and shaded area.

skirting for wind protection

Our wind protectors, available for various types of vehicles, protect your relaxing moments from draughts.

Choosing guide

Fiamma front and side panels are suitable for all types of vehicles and can be installed directly on the awning.

How to choose the right one for you?

• Select the panel according to the model, length and extension of your awning

• Choose it according to the type of protection you want: from sun, rain and wind

Blocker

Blocker Pro

Sun View XL

Shade Sun View

F45s - F45L - F80s - F80L - F40van CS - F35pro

Side W Pro Shade

Side W Pro

Side Block

Side W Caravanstore

Sun View Side

-

-

-

F45s - F45L - F80s - F80LCS - F35pro

-

-

Blocker

suitable for motorhomes, caravans, van conversions, campervans and 4x4

The Fiamma front walls allow easy access to the awning’s shaded area, giving you greater protection.

features:

• Quick installation

• They are also suitable for awnings of other brands

• Crystal full light window (Blocker Pro)

blocker pro

Front panel with a large Crystal full light window, with extension to the ground. Made of rot-proof, washable and easy to assemble vinyl fabric with UV protection.

Complete with:

• elastics hooks and pegs for fastening

blocker

Convenient front panel that protects you from sun light and rain and gives you more privacy.

Complete with:

• ropes and pegs for fastening

sun

view xl

Comfortable front panel. Made of translucent light filtering fabric, which partially blocks out light. It can be rolled up with convenient fixing clips.

Supplied with:

• ropes and pegs for fastening

shade sun view

The Shade Sun View valance with translucent light filtering material protects from sun and rain extending the shade surface.

Suitable for all awning models, single length 600cm easily adjustable to the length of the awning.

Sun protection

accessories

mega bag

Large, strong bag for storing the front and side panels of the Blocker and Side range or any other accessory you want to protect.

Available in two sizes (p. 108).

Sun View XL

Side

suitable for motorhomes, caravans, van conversions, campervans and 4x4

Our side panels, which can be installed directly on the awning, give you more privacy while protecting you from wind, rain and sun.

features:

• Quick installation

• They are also suitable for awnings of other brands

• Crystal full light windows (Side W Pro / Pro Shade / CaravanStore)

side w pro

Side panel with large Crystal full light window and grey extension to the ground, made of rotproof, UV-resistant and washable vinyl.

Complete with:

• aluminium rafter

• pegs

side w pro shade

Side enclosure with large Crystal full light window, roller blind and grey extension to the ground, made of rot-proof, UVresistant and washable vinyl.

Complete with:

• aluminium rafter

• pegs

side block

Vinyl side panel can be combined with Blocker front wall. Washable, rot-proof and UV-resistant.

Complete with:

• pegs and elastic bands for fixing

side w caravanstore

Side panel with large Crystal full light window made of rot-proof, UV-resistant and washable vinyl.

Complete with:

• aluminium rafter

• pegs

sun view side

Side panel made of translucent light filtering fabric, which partially blocks out light.

Complete with:

• aluminium rafter

• tension ropes and pegs

**

•

that suits you

accessories

mega bag

Large, strong bag for storing the front and side panels of the Blocker and Side range or any other accessory you want to protect.

Available in two sizes (p. 108).

Side Block - Blocker

Choosing guide

Do you already own an awning? Our enclosures allow you to create a real open-air room in a few simple steps. How to choose the right one?

• Select the enclosure according to the model of your awning: manual or winch opening

• Choose the enclosure that best suits the season of the year in which you will be using it

Privacy Room

Privacy Room Light / CS Light

enclosure | for winch and manual awning

Privacy Room

suitable for motorhomes, caravans, van conversions and campervans for fiamma winch awnings F45s, F45L, F80s, F80L

Classic enclosure suitable for all seasons, the best solution for medium and long term stays.

features:

• Modularity: base modules (Van [S], Medium [M], Large [L], [XL] and [XXL]) and a broad range of additional panels

• Composed of front panels and two side panels

• All Crystal full light windows that can be rolled up, with mosquito net and curtains as standard

• The door can be positioned on the left side of the front panel and easily moved to the right side of the same

• Complete with anchor pegs and Bag (dim. 140x27x40 cm) to store Privacy Room and poles

Panels

With roll-up Crystal full light window, fitted with mosquito net and curtains as standard

Zippers

To hermetically join the panels together

Basic

Additional front panels

With fixed Crystal full light window and curtains as standard equipment

Vinyl fabric

Waterproof and UVresistant, rot-proof and easily washable

Additional panel

Windows

Can be closed securely thanks to convenient zips and an extra layer of velcro

Protective sponge

Additional vertical protection for the rear of the side panels

Basic module F45s / F45L (C = 200/250cm)

Height from ground (B)

[S] 180-220cm

[M] 225-250cm

[L] 251-280cm

Basic module F80s (C = 250cm)

Height from ground (B)

[S] 245cm

[M] 245-280cm [L] 280cm

Basic module F80L (C = 275cm)

Height from ground (B)

[XL] 245-280cm

[XXL] 281-310cm

Fast Clip

For quick and safe hooking to the awning fabric with internal lever hooks

Vertical Rafter

Telescopic aluminium pole as standard (2 pcs), improves grip on the vehicle wall *

[S] and [L]: complete with magnet kit (2 sets of 6 magnets) which, inserted in the side panel pocket, permit complete adhesion to the Ducato vehicle.

** This model is suitable for vehicles with straight wall, height from ground 245-280cm.

*** Designed for Mercedes Sprinter, VW Crafter, Fiat Ducato, Citroën Jumper and Peugeot Boxer - H3, Fast Clip Light aluminium poles delivered as standard.

Privacy Room Light / CS Light

suitable for motorhomes, caravans, van conversions and campervans for fiamma winch and manual awnings F45, F45L, CS and F35pro

Aesthetic restyling of the Privacy Room Light and CS Light, featuring new colours and combinations, neutral Crystal, without decorations. Renewed polyester fabric for greater UV resistance; PVC basic module and Crystal windows made of higher-performance materials. Light and compact, suitable for summer or mid-season.

features:

• Modularity: base modules (Van [S], Medium [M], Large [L], [D] and [E]) and a broad range of additional panels

• Front panel with roll-up Crystal full light window, fitted with mosquito net and curtains as standard, roll-up door

• Front additional panels with fixed Crystal full light window and standard curtains, or fixed blinds

• Side panels with roll-up blind and mosquito net

• Complete with anchor pegs and Bag Light (dim. 140x25x25 cm) to store Privacy Room and poles

Front panel

With roll-up Crystal full light window, fitted with mosquito net and curtains as standard

Zippers

To hermetically join the panels together

Additional panels

With fixed Crystal full light window and standard curtains, or fixed blinds

Polyester fabric

Lightweight, durable and washable

create your privacy room light / cs light

Basic module [S], [M], [L], [D], [E]

Side panels

With roll-up blind and mosquito net

Kit Poles Light

Telescopic aluminium pole as optional (2 pcs), improves grip on the vehicle wall

Additional panel

Fast Clip CS

For quick and safe hooking to the awning fabric with internal lever hooks

Closing elastic Is fixed to the awning and the ground to laterally close the Privacy

** Complete with magnet kit (2 sets of 6 magnets) which, inserted in the side panel pocket, permit complete adhesion to the Ducato vehicle.

*** This model is suitable for vehicles with straight wall, height from ground 245-280cm.

Privacy Ultra Light

suitable for motorhomes, caravans, van conversions and campervans for fiamma winch awnings F45s, F45L, F80s

Enclosure consisting of roof, front and side panels. Quick to install, it is ideal for short stays or weekends.

features:

• Double roof consisting of the awning cover and the Privacy roof, which allows a constant passage of air

• Single front panel complete with door and fixed Crystal full light window. Possibility of making it completely removable

• Side panels with roll-up blind and mosquito net

• The shaded surface can be increased by completely lifting the side panels with Kit Poles (optional)

• Aluminium rafters and pegs for safe anchoring

• Complete with bag for storing privacy and poles: Bag Light for sizes 260-300-350 (dim. 140x25x25cm) and Bag for sizes 400-450 (dim. 140x27x40cm) - See page 106

Front panel

Opening sides

Accessories

Ripstop polyester fabric Light and tear-resistant

One single piece

Double roof

Room Van

Specific enclosure for F40van and F43van. Without poles, it is quick to install and ideal for those who like to move on quickly.

features:

• Light and without poles

• Consisting of roof, side and front panels, roll-up door, Crystal full light front panel and roll-up blind, side panels with mosquito nets and roll-up blinds

• Complete with Mega Bag

One single piece Made in one piece consisting of roof, sides and fronts

suitable for motorhomes, caravans and van conversions

complete tent - with winch

Awning F45 with zips, front and side panels with zips which, when joined together, create a complete veranda in a matter of minutes.

features:

• Awning on F45 base with installation brackets included

• Privacy enclosure: front and side panels

• Zipper hinge system

• Crystal full light windows that can be rolled up, with mosquito net and curtains as standard

• Rapid Set and tension rafter installation kit

• Complete with windproof Fiamma Skirting enclosure (p. 99)

• Elastic ropes with quick hooks as standard

• Complete with Bag (dim. 140x27x40 cm) to store Privacy Room and poles

• 2 heights available: Medium [M], Large [L]

Basic module F45s / F45L Height from ground (B) [M] 225-250cm [L] 251-280cm

Awning

F45 Polar White with zips, with installation brackets included

Windows

Can be closed securely thanks to convenient zips and an extra layer of velcro

Door

Can be positioned on either the right or left side of the front

Panels With roll-up Crystal full light window, fitted with mosquito net and curtains as standard

Protective sponge

Additional vertical protection for the rear of the side panels

create your fiamma zip

Basic module [M], [L] length 300cm

Zippers

Combine Privacy with the awning fabric

Rapid Set Installation Kit

Composed of aluminium poles for the installation of the Privacy system

Vinyl fabric

Waterproof, UV-resistant, rot-proof and washable

Rafter Fabric tension rod

Additional panel

Specify the fabric colour you want when ordering by replacing (X) with: R=Royal

CaravanStore ZIP XL

Manual awning CaravanStore with zips, front and side panels with zips which, when joined together, create a complete veranda in a matter of minutes.

features:

• Awning CaravanStore with zips

• Privacy enclosure: front and side panels

• Zipper hinge system

• Crystal full light windows that can be rolled up, with mosquito net and curtains as standard

• Rapid Set and CS installation kit, elastic ropes with quick hooks as standard, complete with Bag (dim. 140x27x40 cm) to store Privacy Room and poles

Panels

With roll-up Crystal full light window, fitted with mosquito net and curtains as standard

Windows

Can be closed securely thanks to convenient zips and an extra layer of velcro

Flexyblock

Zippers Combine Privacy with the awning fabric

Protective

Specify the fabric colour you want when ordering by replacing (X) with: R=Royal Grey, Q=Royal Blue

Moonlight Tent

suitable for campervans, 4x4 and cars

for vehicles equipped with roof bars

Roof tent ideal for trips in the great outdoors, designed for minivans, SUVs and any vehicle equipped with roof rails.

features:

• Compatible with roof bars approved for >75kg and width >78cm

• Compatible with wall awnings

• 140 version homologated for 2 people, 180 version for 3 people

• Mosquito nets and blackout blinds can be opened on all 4 sides, complete rain cover with windows

• YKK closing hinges

• Equipped with 2 30 m aluminium ladder (max. load 150 kg) and waterproof cover bag

• Interior LED strip with adjustable light intensity

Openings

Equipped with mosquito nets and blackout blinds on all 4 sides

Fabric

Curtain: 200g/m2, Poly-cotton

Canvas

Cover: Oxford 210D

Cover bag: Oxford 700D

Rain cover With extended canopies for better protection

Opening Folding, quick and easy

Bag For better storage of your accessories

Mattress 5 cm thick consisting of 2 types of foam with different densities

Ladder Aluminium, height 2 3 m

Floor base

In aluminium honeycomb panels

* ladder included

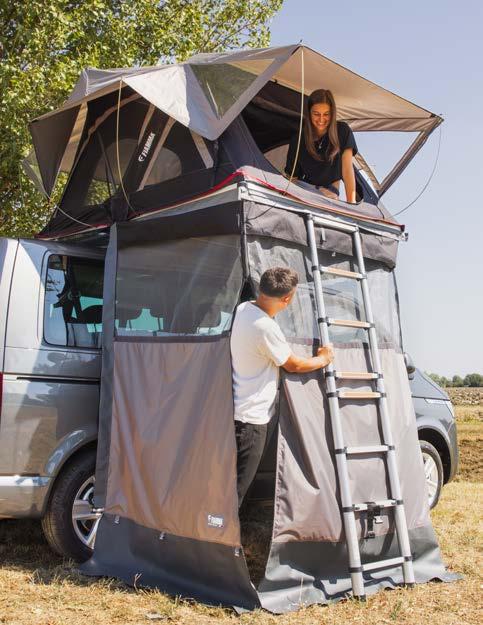

optional - privacy moonlight tent

Complete your rooftop tent by creating a multi-purpose changing room that will provide more privacy. For campervans and 4x4

Rear Door Cover

Our practical tailgate enclosures for minivans and vans are designed to increase your privacy.

features:

• Quick installation

• To make the most of the space

rear door cover ducato

Enclosure with side bands and a front folding closure. Suitable for Fiat Ducato, Citroën Jumper and Peugeot Boxer H2 after 2006 and Mercedes Sprinter H2 from 2006 to 2008. Complete with awning rafter, pegs and tensioning elastics.

rear door cover VW T5 / T6

Can be quickly installed on standard tailgates also with mounted bike rack (without bikes). It is an enclosure with a roll-up or extendable door and mosquito net. Complete with floor poles, pegs, tension elastics and Mega Bag Light.

kit poles

Set of two aluminium poles to extend the door as an additional awning.

Skirting

You can say goodbye to those annoying draughts coming from the underside of your vehicle.

features:

• Can be shortened to awning size

• Different models for each type of vehicle

skirting motorhome

For your motorhome or campervan, the wind protection comes complete with a kit with press studs.

skirting caravan

The wind protector that mounts on the caravan’s standard rail.

skirting ducato

Complete with wheel cover, elastic belts and magnets for attachment, it is suitable for wheelbases of lengths L2, L3 and L4

skirting vw T5 / T6

The perfect model for Volkswagen campervans, it comes complete with wheel cover, elastic belts and magnets for attachment. choose the model that suits you

rear skirting vw T5 / T6

Attach the wind protector to the back of your vehicle. Perfect in combination with Rear Door Cover VW T5 / T6

rear skirting ducato

Attach the wind protector to the back of your vehicle. Perfect in combination with Rear Door Cover Ducato.

Accessories

Complete your enclosure with the right accessories to create a true open-air room.

In the event of wind, the best ally for giving greater stability to the walls of your Privacy.

Three versions available according to the length for the front panel, and one for the side panel.

Optimise the space inside your enclosure and keep everything within reach, thanks to these storage containers that attach directly to the panels.

When you leave your Privacy door open, this telescopic vertical pole increases the stability of the front.

caravanstore support legs

Increase the strength of your CaravanStore with these reinforcement poles designed for application on the front tube.

Delivered as standard with: CaravanStore XL from 440 and CaravanStore ZIP XL from 360

New Dark Grey curtains for Privacy Room front and side panels and Blocker Pro front panels. Thicker material ensures complete black out granting complete privacy. Available kits: 2 and 6 pieces.

To prevent water from seeping into the Privacy in case of rain, don’t miss our special pair of seals. To be applied on the awning side caps, suitable for F45s, F45L, Fiamma ZIP S and Fiamma ZIP L.

kit magic privacy

door pole

rain caps

pack organizer privacy

curtains kit dark grey

Accessories

Complete your enclosure with the right accessories to create a true open-air room.

kit poles

Set of two aluminium poles to extend the door or the side panel as an additional awning, suitable for Privacy Ultra Light, Rear Door Cover Ducato and VW T5 / T6

kit poles light

Vertical support poles to increase the stability of the Privacy Room to the vehicles' wall.

Optional for Privacy Room Light and Privacy Room CS Light.

Storage bag for panels and Privacy Room.

Dimensions: 150x35x35cm.

Equipped with wheels, internal net pockets with elastic border and reinforcement panel on the bottom and 2 on the sides.

patio mat / patio mat light

Comfortable completion mat for your Privacy. It is made of breathable, self-extinguishing and UV-resistant polypropylene. Also available in a Light version featuring a lighter fabric, without edging and equipped with a standard bag. Patio Bag is optionally available for the Patio Mat.

Storage bag for panels and Privacy Room.

Dimensions: 195x25x25cm.

Length increased, to hold and carry skis too with internal Velcro fasteners to secure skis and studded holes to allow small amounts of water to escape; with internal pockets.

privacy rail kit

Kit of 4 rails, 100cm. each, for the installation of Pack Organizer S, L and Shoes inside the Privacy Room.

New version, proposed alternative to the current bags supplied with Fiamma Privacy Rooms. Useful for storing panels and Privacy Rooms.

cm

mega bag elite

mega bag smart l

mega bag / mega bag light

The freedom to go wherever we want, without constraints, is the value that inspires all Fiamma products. We manufacture our bike carriers - 100% made in Italy - with high-quality and extremely durable materials, to ensure maximum safety in transport and the best performance over time, not forgetting protection and care for your bikes. Each bike carrier is designed to be mounted on a specific category of vehicle: from motorhome to caravan, from campervan to van conversion and even off-road vehicle. Take your bike, load it on your Fiamma Carry-Bike and leave for your next adventure!

Your bike, companion of travel.

motorhomes

You can mount the Carry-Bike on the rear wall of the motor home without impairing the view to the rear: practical and safe.

van conversions

You can mount the Fiamma bike carrier on the back of your van even if you have a double door!

caravans

Simply mount the Fiamma bike carrier on the A-frame or on the rear wall of the caravan to safely transport your bikes.

suv

On the tailgate or spare tyre, your bike is always with you.

campervans

The campervan specific Carry-Bike models integrate perfectly with the design of your vehicle for everyday use in transporting your bicycles.

garage

Garage solutions are ideal if you want to transport your bikes safely in the garage of your motorhome.

accessories

From rails to bike covers, our specific accessories facilitate and complete the performance of your Carry-Bike.

Selection guide

Every type of vehicle has its own Carry-Bike. How to choose the right one for you?

• Find the right model for your vehicle type

• Do you also transport E-bikes? Check that the bike carrier is suitable by looking for the corresponding symbol

• Select the model according to the maximum number of bicycles you wish to transport

Carry-Moto

Carry-Ramp

Why are our Carry-Bikes so safe? Here are the main elements you will find in the different models.

Bull Shock Absorber

Device specially designed to absorb shock and vibrations during travel.

Rails

With 3 models of wheel supports: robust, functional and safe.

Bike-Block Pro S

Scratch-proof bicycle locking device, characterised by ease of use on all frames.

Quick Lock

Quick-Safe is the safety strap to safely mount and lock the wheels on the bike carrier rail. Easy release for immediate opening.

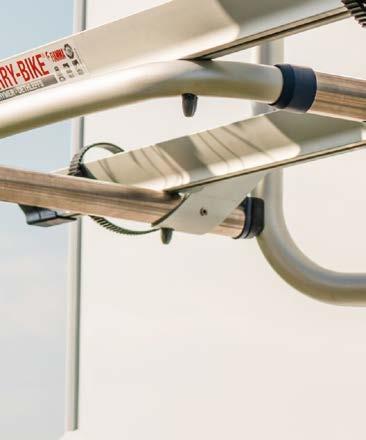

Telescopic rail support

Made of extruded round or oval section, can carry up to 4 bikes.

Easy Position System that allows the installation of offset rails to better organise the loading of bicycles.

Rack Holder

Rail support lock to ensure safe closing of the rail support base.

Pro Series

suitable

from 2 to 4 bikes / 2 e-bike

features:

• 6060 aluminium tubes with oval section

• Height-adjustable frame

• For transporting up to 4 standard bikes or 2 E-Bikes

models

Anodised aluminium frame with oval section tubes, height adjustable from 80 to 150cm.

wheelbase

Compact structure with adjustable height from 40 to 80cm, ideal for vehicles with rear window.

The Pro series achieves standardisation of conventional and E-Bike models, thanks to the introduction of oval-section tubes and the Rail Plus rail, both of which are structurally more powerful. Tubes

Telescopic rail support base

Series

Ultra-reliable, affordable and lightweight it installs easily on most motorhome models and allows you to carry up to three standard bicycles on the back of the vehicle.

features:

• Height-adjustable structure

• Aluminium 6060 rail support base light and resistant

• Lower fixing bar

Compact aluminium structure, adjustable in height from 40 to 50cm. Ideal for vehicles with rear window.

To protect your bikes from scratches and impacts

Upper structure Height adjustable

Anodised aluminium structure, height adjustable from 80 to 150cm.

Rail Quick Pro

wheel

Protective bumpers

Lift 77 / Motor Lift 77

Available in 2 versions, motorised and manual, equipped with a lowerable support rail, which drops by up to 77cm for effortless loading and unloading of bicycles.

Motor Lift 77: motorised version, addition of end stop to perfect the operation of the Carry-Bike when closing, thus defining the end point.

Lift 77: manual version, updating the shape and finish of the headset, the same as the motorised version, thus creating a family feeling for the product.

features:

• Dropping support rail that lowers by 77cm

• Height-adjustable structure

• Upper frame with double perforation to be able to move the horizontal support tube in the case of a rear camera placed on the vehicle

• 12 V supply for Motor version

• Crank handle with magnetic coupling for manual version, that can be shortened

Upper structure

With double perforations in order to be able to move the horizontal support tube

Crank handle (Lift 77)

Activation (Motor Lift 77) By push-button for easy ascent

Special Models

suitable

These bike carriers are designed to suit the characteristics of certain motorhome models, allowing them to be installed easily and safely.

features:

• Based on Pro, Pro C (with round tubes) and CL

• Fast and safe installation

• Telescopic rail support base made of stainless steel AISI 304 and aluminium 6060 for models that carry up to 4 bikes

• Aluminium 6060 rail support base for models that carry 2/3 bikes

models

pro hymer - dethleffs

Specific for Dethleffs motorhomes: upper attachment kit available to fit the brackets fitted as standard on the vehicle.

pro autotrail

Enlarged frame for installation on Autotrail motorhomes fitted with rear wheel moulding, from 2011 onwards. Only suitable for Autotrail vehicles with rounded rear wheel moulding and not the later hexagonal shaped mouldings.

For Laika motorhomes, horizontal wheelbase 80cm.

Only suitable for CI and Roller Team with attachments pre-installed on the vehicle.

trigano - ci - roller team

Trigano

* with rail support base in standard open position and in models with minimum adjustable vertical wheelbase

Caravan: for the A-Frame

The range of bike carriers for the front of the caravan can be installed on standard A-frame without the need to drill holes.

features:

• Installation without drilling holes on standard A-frames

• The Active version, with tensioning strap, allow quick access to the storage compartment

• The upper part pivots forward allowing access to the storage compartment even when bikes are mounted, only when bikes are not mounted for XL A model

caravan active

Thanks to the system with tensioning strap, access to the storage compartment is easy and quick. For transporting 2 E-Bikes or 3 standard bikes.

caravan xl a pro 300

Provided with stainless steel rail support base and reinforced bar, to carry 3 bikes or 2 E-Bikes.

caravan xl a

Compact and inexpensive, fits almost all Caravan frames (including Hobby and Al-Ko).

caravan xl a pro 200

Equipped with the external rail in two pieces to grant maximum possibility of installation and use. Smaller size for short drawbars.

* with rail support base in standard open position and in models with minimum adjustable vertical wheelbase

New optional kit Item No. 08723-01- is available for adapting the Carry-Bike to caravans equipped with the Al-Ko Vario X chassis.

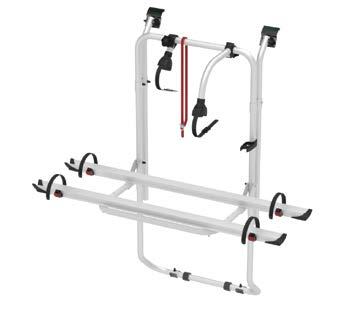

Caravan: for the rear wall

This special range of bike carriers is designed for mounting on the rear walls of caravans.

features:

• Two dedicated models and one to suit every need and requirement

• Aluminium 6060 rail support light and resistant

models

caravan hobby

For mounting on the rear walls of Hobby caravans manufactured after 2003, under the rear window profile.

caravan universal

This bike carrier is designed to be mounted on the supporting frame of the caravan (Bürstner, Chateau, etc.). The upper and lower brackets use self-tapping screws, so no through-holes are required. Telescopic frame. Adjustable from 100 to 180cm.

simple plus 200

Suitable for mounting on caravans with thin and curved rear walls. Installed by using the existing wall reinforcement points. Telescopic frame.

Upper brackets

For attaching the bike carrier to the rear wall of your caravan

Rail Quick Pro

Protective bumpers

VW T5 / T6 PRO

from

Restyling of the Carry-Bike T5 / T6 Pro, improved aesthetics and technically innovative, easy assembly and installation.

features:

• You can open the tailgate with the Carry-Bike mounted without bikes

• Shaped rail support: third stop lamp always visible with bike carrier closed

• Solid anchorage to reinforced points of tailgate

• Suitable for vehicles with raised roof too

• T5 version without plastic top covers

VW T6 pro

VW T5 pro

Telescopic rail support

Upper brackets T6 Pro

Shaped to optimally follow the line of the vehicle

Lower brackets

They ensure attachment to the vehicle and fit the line of the tailgate

Campervan VW

suitable for campervans

from 2 to 4 bikes / 2 e-bike

For all Volkswagen campervan models, Fiamma has designed the perfect Carry-Bike. From Caddy to T2

features:

• All models allow the tailgate to be opened with the bike carrier mounted without bikes

• Telescopic rail support base made of stainless steel AISI 304 and aluminium 6060 for models that carry up to 4 bikes

• Aluminium 6060 rail support base for models that carry 2 / 3 bikes

• Available Deep Black version for VW T5 / T6 D

models

E-Bike

vw caddy

For VW Caddy ≥ 2016 ≤ 2020. The articulated upper structure allows an accurate adjustment of the position of the Bike-Blocks to secure the bikes while the practical lower tensioning system allows the Carry-Bike to be safely fixed to the vehicle.

E-Bike

kit upgrade t6 / t6.1

vw T5 / T6

For Volkswagen T5 and T6 with single rear door. Suitable for vehicles with raised roof too.

Have you changed your vehicle and want to reuse your T5 bike carrier on the new T6/T6 1? Fiamma has thought of a cost-effective solution which allows this operation easily.

Kit Upgrade VW T6

Item No. 98656-988

Weight 0,7kg what

vw T5 / T6 d

For Volkswagen T5 and T6 with double rear doors.

VW

VW T5 Transporter / Caravelle / Multivan / California (≥ 2003 ≤ 2014)

VW T6 Transporter / Caravelle / Multivan / California ≥ 2014)

* with rail support base in standard open position and in models with minimum adjustable vertical wheelbase

Versions for double rear door VW T5 (≥ 2003 ≤ 2014) and T6 ( ≥ 2014) Transporter / Caravelle / Multivan

vw

For Volkswagen T4 with single rear door.

For Volkswagen T4 with double rear doors. For Volkswagen T3 (T25) with single rear door.

For Volkswagen T2 with single rear door.

Mercedes Campervan

from

The ideal bike carriers for the Mercedes campervan range, they can carry from two to four bicycles.

features:

• All models allow the tailgate to be opened with the bike carrier mounted without bikes

• Mercedes V Class Lift E-Bike: equipped with dropping support rail

For vehicles with single rear door, complete with lighting board.

For vehicles with single rear door, the rail support is mounted in the standard or lowered position. Lower version must be used with license plate bar with lights.

For vehicles with single rear door.

E-Bike version of V Class Premium for 2 bikes, with rail support base that drops by 77cm. Complete with license plate bar with lights.

vito

viano

Vehicle compatibility

Mercedes Viano II series, Vito II series and Marco Polo II series with single rear door (≥ 2003 ≤ 2013)

Mercedes Viano Vito I series and Marcolo Polo I series with single rear door (≥ 1996 ≤ 2003)

Mercedes V Class III series, Vito III series and Marco Polo III series with a single tailgate (≥ 2014)

Mercedes V Class III series, Vito III series and Marco Polo III series with a single tailgate (≥ 2014)

* This version allows the installation of the rail support base in two different positions, one standard and one lower to make it easier to load the

Lower version must be used with the License Plate Carrier, which has the license plate holder bar and regulation lights.

** with rail support base in standard open position and in models with minimum adjustable vertical wheelbase

In the Viano and Mercedes V Class versions, the upper structure of the bike carrier is screwed to the vehicle chassis through the holes provided by the parent company, avoiding any problems of incorrect positioning during installation.

Campervans

suitable for

from 2 to 4 bikes / 2 e-bike

Whatever your campervan, Fiamma has the solution for you.

features:

• Version dedicated to PSA group camper vans

• All models allow the tailgate to be opened with the bike carrier mounted without bikes

• Telescopic rail support base made of stainless steel AISI 304 and aluminium 6060 for models that carry up to 4 bikes

• Aluminium 6060 rail support base for models that carry 2 / 3 bikes

models

vivaro - trafic - talento ford transit

For vehicles with single rear door. The licence plate carrier with control lighting is suggested.

vivaro - trafic - talento d

For vehicles with double rear door, structure allowing visibility of the third stop.

For vehicles with single rear door.

Upper brackets

Designed to follow the shape of the vehicle

Curved bottom fixing-bar For greater adhesion to the tailgate

Stabilisation system To

bike

Vehicle compatibility

Renault Trafic II series / Opel Vivaro A / Vauxhall Vivaro A / Nissan Primastar I-II series (≥ 2001 ≤ 2014 - H1)

Renault Trafic III series / Nissan NV300 / Fiat Talento (≥ 2014 - H1)

Opel Vivaro B / Vauxhall Vivaro B (≥ 2014 ≤ 2018 - H1)

Renault Trafic II series / Opel Vivaro A / Vauxhall Vivaro A / Nissan Primastar I-II series (≥ 2001 ≤ 2014 - H1)

Renault Trafic III series / Nissan NV300 / Fiat Talento (≥ 2014 - H1)

Opel Vivaro B / Vauxhall Vivaro B (≥ 2014 ≤ 2018 - H1)

** with rail support base in standard open position and in models with minimum adjustable vertical wheelbase

ford custom nugget / nugget plus highroof

For Ford Transit Custom Nugget / Nugget Plus with raised roof (highroof). Adheres to the lower part of the tailgate thanks for the curved profile that follows the shape of the vehicle.

ford custom

For vehicles with single tailgate and also for models with lift roof. Adheres to the lower part of the tailgate thanks for the curved profile that follows the shape of the vehicle.

Adheres to the lower part of the tailgate thanks to the curved profile that follows the shape of the vehicle.

Peugeot Expert III gen. - Traveller ≥ 2016 - H1

Toyota ProAce II - ProAce Verso ≥ 2016 - H1

Frame

suitable for van conversions

New handling for the Carry-Bike series Frame: Ducato, Sprinter and Crafter. One bike carrier and 3 different dedicated frames for each type of vehicle, which can be purchased separately.

features:

• Stainless steel AISI 304 rail support base

• The geometric configuration of the Carry-Bike allows the rear door of the vehicle to be opened even with the bikes mounted

• Deluxe ladder can be mounted on the left hand door

composition

Complete Carry-Bike Frame

for 2 e-bikes or 3 standard bicycles models

For Fiat Ducato, Citroën Jumper, Peugeot Boxer, allows mounting of the rail support in 3 positions: standard, middle and low*. Also suitable for vehicles with protruding windows.

For Mercedes Sprinter ≥ 2018 - high roof and super high, allows mounting of the rail support in 3 positions: standard, middle and low*.

frame crafter

For VW Crafter II gen. and MAN TGE. It allows mounting of the rail support in 3 positions: standard, middle and low*.

* (for the last two, the license plate bar with lights must be used)

Kit

Kit Frame Ducato 08753-01-

Kit

Kit

Vehicle compatibility

Fiat Ducato III-IV series / Citroen Jumper II-III series / Peugeot Boxer II-III series (≥ 2006 - H2/H3)

Not suitable for vehicles with 270° hinge system

Mercedes Sprinter ≥ 2018 - high roof and super high roof

VW Crafter II series / MAN TGE (≥ 2017 - H3 / H4)

Not suitable for vehicles with 270° hinge system -

* with rail support base in standard open position and in models with minimum adjustable vertical wheelbase

Kit

DJ Series

for 2 standard bicycles

One bike carrier for all models and dedicated fixing bars for each type of vehicle (Ducato, Sprinter, Crafter and Transit) that can be purchased separately.

• Aluminium 6060 rail support base

• Deluxe ladder can be mounted on the left hand door

• Anodised aluminium version also available

Fiat Ducato III-IV series / Citroën Jumper II-III series / Peugeot Boxer II-III series (≥ 2006 - H2/H3)

Mercedes Sprinter II series / Freightliner Sprinter / Dodge Sprinter (≥ 2006 ≤ 2018 - H2)

Mercedes Sprinter III series / Freightliner Sprinter / Dodge Sprinter (≥ 2018 - H2)

VW

Crafter II series / MAN TGE (≥ 2017 - H3 / H4)

Van conversions

bikes suitable for

These bike carriers are installed on the right-hand door of the vehicle, leaving the left-hand door free for the possible installation of a Deluxe ladder to access the roof of the vehicle.

features:

• Installation with Fixing Bar for 200 DJ Ducato, with standard fixing brackets for 200 D

• Solid and light aluminium 6060 structure

• Rear door opens even with bikes mounted

200

For right rear door, mounting with Fixing Bar, equipped with Rail Premium.

for 2 200 DJ Ducato < 2006 200 D Item No. 02093A65A 02096-16Weight 9,0kg 6,9kg Max load 35kg 35kg Bikes 2 max 2 max Rail type Rail Premium Rail Quick Pro Bike-Block ProS 1 / Pro S 2 Pro S 1 / Pro S 2 Dimensions 128 x 43 x 120cm 128 x 48 x 90cm Distance between rails 15cm 15cm

Vehicle compatibility

1995

≤

2006

Fiat Ducato I series / Citroën C25 / Peugeot J5 (≥ 1981 ≤ 1994 - H1/H2)

Ford Transit MK3-MK4-MK5-MK6-MK7 (≥ 1987 ≤ 2014 - H1/H2/H3)

Ford Transit MK8 (≥ 2014 - H3)

* with rail support base in standard open position and in models with minimum adjustable vertical wheelbase

-

SUV

Thanks to the fixing strap, these simple and effective bike carriers fit perfectly in SUVs, off-road vehicles and cars.

features:

• Aluminium 6060 rail support solid and light

• Fastening straps for maximum freedom of fastening on the vehicle (except fibreglass)

backpack 4x4 backpack

The Carry-Bike with universal straps is easily installed on all minivans. Not suitable for fiberglass rear doors. No tools are required for installation, 6 superior Heavy Duty Quick Lock straps secure the bike carrier to the vehicle.

Bike carrier for SUV with rapid installation to the rear spare tyre thanks to the sturdy straps. Before mounting remove the rigid cover of the spare tyre.

*

Garage

suitable

The locker of your motorhome is the perfect place to store your bikes and transport them safely: just install the special Fiamma Carry-Bike!

features:

• Different models of bike carriers to install in the garage facility to transport from 2 up to 4 bikes safely

• Easy to install

from 2 to 4 bikes models

garage plus

Fixes to the floor. With optional accessories it can carry up to 4 bikes. When not in use, it folds up and takes up only 22cm.

garage standard

Bike carrier with lower section fastened to the floor and Bike-Block fixed to the wall or to the roof. When folded it gives more floor space, it carries up to 3 bikes.

E-Bike

garage slide pro-bike

Anodized aluminium 6060 sliding bike carrier for the motorhome garage. Height adjustable.

For transporting 2 E-Bikes or 2 standard bikes.

garage pack-plus

Complete kit with fixing structure for bikes and Organizer line storage.

garage pack

Simple and flexible modular system for storing bikes in the motorhome storage compartment.

Moto

suitable

Motorbike carrier systems ideal for installation in motorhomes with garage facilities or on vans.

features:

• Adaptable to different types of vehicles

• Easy to install

carry-moto

Motorbike-carrier in aluminium for garage. The chute connects easily onto the main structure to facilitate loading of the motorbike. Supplied as standard with 2 click strips.

carry-ramp carry-moto pro

Motorbike-carrier in aluminium for garage. The pull-out chute is coated with an anti-slip band. Supplied as standard with 2 click strips. Height adjustable.

Wheel chock for front wheel. Complete with kit for fixing on wood surfaces. Supplied as standard with 2 click strips.

Wheel chock for rear wheel. The fixing knobs allow the motorbike to be locked quickly and safely. Supplied as standard with rails for floor fixing.

Motorbike aluminium ramp, suitable for motorhome doors or on the floor of the garage facility.

carry-ramp

By combining two pieces of the Carry-Ramp you can create a system of ramps to load quads, powered wheelchairs or wheelchairs.

moto wheel chock front

moto wheel chock rear

Rail

suitable for motorhomes, caravans, van conversions and campervans, 4x4, and suv

Choose the fitting rail model that best suits your bike and your needs: they fit all Carry-Bike models!

rail plus / rail plus xl

Rail Plus, technically better performing, higher resistance against torsion and bending due to its new geometry and improved material distribution. Larger section for transporting different types of bicycles.

Standard version 128cm long, XL version 139cm.

rail quick c

Telescopic rail that can be adjusted to the desired extension, with 2 Quick-Safe straps. Ideal to limit rail overhang. It can be installed on almost all Carry-Bikes.

rail premium s

Rail with increased structure size sliding on the Carry-Bike rail support, it can move in both direction and has adjustable centreto-centre distance.

rail quick pro

Sturdy rail with reinforced base delivered with Quick-Safe straps. It is interchangeable with the previous Rail Quick version.

rail premium / premium xl

Rail with increased structure size, with sliding bike-lock support, for quicker and more practical fixing. The XL version is 139cm longer and is suited for particularly long E-Bikes and bikes with wheelbase greater than 125cm.

rail premium s fat bike

Model based on Premium S rail for transporting modern Fat Bikes with tyres up to 4,8" wide.

Comfortable 40cm strap with fast and safe ratchet coupling.

Deep Black

Deep Black

Deep Black

Deep Black

Deep Black

Anodised

Anodised

Anodised

Anodised

Anodised

Anodised

kit premium s

Turn Quick and Premium rails into Premium S rails.

Quick installation by removing the standard hooks.

Now rails can slide horizontally, to be adapted to the dimensions of the different bikes.

kit rail premium 48

Optional fourth two-part rail for the Carry-Bike VW T5 Pro and T6 Pro models.

kit upgrade e-bike

If you already have a Fiamma Pro Series bike carrier, thanks to the E-Bike Upgrade Kit you can transform it into a bike carrier for your electric bike.

Bike-Block Pro S

suitable for motorhomes, caravans, van conversions, campervans, 4x4 and suv

Upgrade of the Fiamma system to secure your bike to the Carry-Bike during transport. Thanks to the adjustable joint, it adapts to all types of bicycles. It is equipped with a secure holding device with clamp, scratch-proof rubber insert and anti-theft safety loop.

features:

• Improved ergonomics thanks to frontally- positioned knob

• Integrated scratch-proof support base with rubber protection for integrated bike hooking

• In D versions, the practical central joint makes hooking the bikes even simpler

• Aluminium tube curved to make it easier to attach the bike

Locking System

suitable for motorhomes, caravans, van conversions, campervans, 4x4 and suv

Are you ready for a particularly adventurous trip? Secure your bikes with these securing systems, suitable for both Fiamma Carry-Bike and other bike carrier brands.

choose the model that suits you

quick-safe

Sliding strap for locking the wheel to the rail, equipped with an immediate release button. Can be installed only on original Fiamma reinforced rails. Pack of 1 piece.

security strip

200cm security strip, with stainless steel AISI 304 buckle, 200cm long and 1 3cm wide. Suitable for all bike carriers.

Pack of 1 piece.

strip

Kit of 2 strips, 39cm long, with stainless steel AISI 304 buckle suitable for almost all bike carrier brands. Pack of 2 pieces.

bike frame adapter

Additional aluminium 6060 bar for easy fixing of bikes without standard centre bar, ladies' bikes and BMXs.

cable-lock

Anti-theft plastic-coated 250cm steel cable, with incorporated padlock. Delivered as standard with 2 keys. Pack of 1 piece.

Installation Kit

Mounting bars and accessories to install your Fiamma Carry-Bike on your vehicle. Choose the one best suited to your vehicle and bike carriers!

add to your

fixing-bar carry-bike

Pair of 240cm long reinforcement bars ideal for vehicles with rear walls not equipped with internal reinforced points.

support bar kit

Kit of two pre-drilled anodized aluminium bars to fix the bike carrier to the walls of motorhomes. Complete with through screws, internal fixing brackets and end caps for more flexibility of installation: the screws can slide over the bar to be adjusted to the different wheel bases.

licence plate carrier

Licence plate carrier bar in aluminium with regulation lights and 13-pole socket for quick connection to the vehicle's electrical system. It is used when the rail support covers the lights and the licence plate of the vehicle. The bar turns 90° to be positioned correctly even when the rail support is folded up.

dust guard

Guard to prevent the accumulation of debris inside the Fixing-Bar.

Suitable for:

Rear boxes

The Fiamma rear luggage boxes are installed on top of the bike carrier support rail with the kit already included. They are ultraresistant to impacts and weather conditions.

features:

• In ABS (Ultra-Box) or strong tear-resistant polyester

• Three dimensions: from 300 to 500 litres

• The Cargo-Back soft luggage bag is equipped with a transparent material pocket, with Velcro, to insert the protruding load sign

ultra-box

Made of high resistance ABS to last over time. With stainless steel closing lock and key and internal aluminium profile it is also equipped with a net to secure the transported items. Available with 320, 360 and 500-litre capacities. Can only be installed on Carry-Bike for motorhomes.

*

Soft luggage bag made of waterproof, tear-proof polyester. With transparent pocket for protruding loads and perimeter zip on the lid, it is ideal for transporting chairs, camping and sports accessories and is quick and easy to install. The new attachment system means that it now also fits to the Carry-Bike DJ and Carry-Bike Frame models.

cargo back kit frame cargo back

Aluminium tube and plastic structure to be inserted inside the Cargo Back to keep it tensioned in any load situation.

Bike covers and accessories

Protect your bikes with the range of lightweight, water-proof polyester reinforced resin bike covers.

features:

• Bi-colour finish

• Equipped with a transparent material pocket, with Velcro, to insert the protruding load sign (excluding Bike Cover Caravan model)

Elastic bottom closure and metal hooks, 300D polyester fabric with polyurethane backing, maximum opacity and weather resistance.

Equipped with transparent pocket for protruding load sign and bag for convenient storage.

For complete bike protection.

Closes with side zipper and rear Velcro.

Equipped with transparent pocket for protruding load sign and bag for comfortable storage.

Closure with elastic band at the bottom and metal hooks.

Equipped with transparent pocket for protruding load sign and bag for comfortable storage.

Specific for bike carriers mounted on the A-frame of caravans. It is placed on top of the bikes already mounted on the rail support. Drawstring-type closure with a cable clip. Equipped as standard with bag for comfortable storage.

bike cover

bike cover premium

bike cover caravan

bike cover super

easy dry

Practical drying rack for installation on the support rail of the bike rack. The foldable structure makes it possible to travel with the drying rack mounted.

alu signal

Type-approved sign, in light aluminium, for signalling protruding loads. Mandatory in Italy.

Dimensions: 50x50cm.

plastic signal

Non type-approved plastic sign for signalling protruding loads, with four reflectors.

Dimensions: 50x50cm.

comfort

To make you feel at home in every stop and move, Fiamma has created a complete range of devices and accessories that will equip your vehicle with every comfort. Aesthetically appealing and functional in every condition, the right accessories to make your journey more comfortable. Each solution is designed to occupy as little space as possible while giving you maximum performance.

Comfort throughout the journey

rooflights

Different types of rooflights, to adapt to each type of vehicle.

levelling systems

Various models of level and accessories to safely stabilize your vehicle.

ladders

Indoors and outdoors, different models to best suit your vehicle.

lighting

Find the right lighting among the various proposals for indoor and outdoor LEDs.

organisation

Arrange everything in the most suitable place, to have everything always in order.

hygiene

Keep the environment clean and hygienic thanks to portable toilets and specific sanitary accessories.

water

Manage the water and use it in the best possible way in your vehicle with the special tanks and pumps.

safety

Take big and small precautions to make your holiday safer.

vehicle covers

Protect your vehicle from the weather.

mix

Various products and accessories to complete your Comfort range.

Vent 28 F

A small rooflight, it is suitable for smaller rooms and provides excellent interior lighting. It can be motorised with the TurboVent 28 F kit.

features:

• Internal and external frame in neutral white colour

• 28x28cm

• Discreet and elegant design

• Cover available in 2 finishes: White and Crystal

• Standard mosquito net

• Motorised (optional)

White (opaque white)

Crystal (tinted transparent)

Optional kit to motorise your Vent 28 F. The kit can be added at any time after purchase.

Vent / Turbo-Vent

suitable for motorhomes, caravans, van conversions and campervans

Ideal for motorhomes, caravans and van conversions, this rooflight is also available in a motorised version and allows constant air circulation.

features:

• Internal and external frame in neutral white colour

• 40x40cm

• Cover available in 2 finishes: White and Crystal

• Standard mosquito net, optional blind

• Motorised versions also available

vent

Rooflight without motor equipped with permanent air flow ventilation and mosquito net.

turbo-vent

Classic rooflight with 12V DC variable speed motor. Polar

turbo-vent premium

Rooflight with motor where all functions are activated by a simple finger touch. Convenient electronic interface with signal LEDs.

Vent F Pro

suitable for motorhomes, caravans, van conversions and campervans

Ideal for motorhomes, caravans and vans. It can be motorised with 2 different types of Turbo-Vent F Kits.

features:

• Internal and external frame in neutral white colour

• 40x40cm

• Elegant and stylized design

• Mosquito net and pleated blinds as standard

• Motorised

kit turbo-vent f premium

Equipped with "Touch" electronic control unit and Polar Control* thermostat as standard.

kit turbo-vent f Standard version equipped with Polar Control* thermostat.

* Polar Control function automatically activates the ventilation depending on the difference among measured ambient temperature, required temperature and outdoor temperature.

Vent 50

A large rooflight, which can be opened on all four sides “pantograph opening” thanks to the convenient handles.

Allows permanent ventilation of the vehicle.

features:

• Internal and external frame in new neutral white colour

• 50x50cm

• Cover available in 2 finishes: White and Crystal

• Standard mosquito net and blinds

Opening Pantograph type Permanent ventilation For constant exchange of air

Handles Locking anti-theft device

Mosquito net and blind Supplied as standard, fibreglass mosquito net and aluminium blind to reflect heat

cover finish

White (opaque white)

Crystal (tinted transparent)

Sandwich assembly

Quick installation without needing to cut more holes in the roof of your vehicle

Turbo-Kit

An additional fan for your vehicle, quick and easy to install on almost all models of rooflights. Simple to connect to the electrical system, thanks to the 12Vdc power cable.

features:

• It can be installed on Fiamma 50x50cm rooflights, 40x40cm rooflights of other brands up to 50x70cm

• Composed of a ventilation system with fan and telescopic hangers

• Complete with supply for cigarette lighter socket and 12Vdc power supply cable for the motorhome’s electric supply

• It can also be powered by batteries

Polarity inverter: from fan to aspirator

Kit Frame Ducato

Specially designed interface to allow the Vent 28 F, Vent 40 and Turbo-Vent rooflights to be installed on Ducato, adapting them to the surface of the vehicle.

features:

• Made of durable ASA material

• They allow the installation of rooflights 28x28 and 40x40 on Ducato

• Available as an optional accessory

• Easy installation

Accessories

To make your Fiamma rooflight even more efficient, we have designed a range of accessories.

This universal spoiler reduces vibration and noise from the rooflight. It can be shortened to fit to the different rooflight dimensions (from 110cm to 28cm). Complete with side aerodynamic end caps. Can be attached with suitable adhesives (Sika).

spoiler universal spoiler 40

Designed to fit the non-aerodynamic 40x40cm rooflights. Can be attached with suitable adhesives (Sika).

Vent insulation that reflects sun light and prevents cold air from entering. It can be installed on all 40x40cm rooflights.

Heat-reflecting aluminium roller blind for installation on 40x40cm Vent rooflights. Permanent ventilation thanks to its side inlets. Easy installation without drilling the vehicle.

LEDs for awnings

suitable for motorhomes, caravans, van conversions and campervans

Lots of solutions to illuminate your space using the arms and rails of the awning. All systems are LED, to guarantee an excellent level of lighting and very low power consumption.

features:

• Average LED duration 25,000 hours

• Super Bright LEDs, ø 5mm

• 12V power supply

Restyling featuring easier and more practical awning attachment, COB LEDs* and power supply via jack connector and cigarette lighter (12V socket).

Suitable for: F45/F80s, Fiamma ZIP.

Specifically, for CaravanStore awning. Distinct restyling with more convenient and effective awning attachment, COB LEDs* and power supply via jack connector and cigarette lighter (12V socket).

Suitable for: CaravanStore, CaravanStore ZIP.

4 LED lights (2 pairs) that are easily attached to the articulated arms of the awnings and remain mounted allowing the awning to be closed completely. Complete with 5m of cable for quick connection.

Suitable for: F45s/L, F45eagle, F80s/L, F65eagle, F65L, Fiamma ZIP.

Installation by simply pushing on the lead bar, for a permanent fixing. It is composed of two 12V 9 LED low consumption light strips and 5m of cable.

Suitable for: F45s/L, F45eagle, Fiamma ZIP.

Specific for F40van, equipped with warm LED light for a cosy atmosphere. Fast attachment directly to the arms of the awning, for an optimally taut fabric at all times. Power supply via jack and cigarette lighter (12V).

Suitable for: F43van 270, F40van and F45s 260

Specific for F80s, F80L and F65L awnings consisting of a 5m LED COB* sticky strip and PVC lens, which can be easily shortened. To be inserted into the internal profile of the front and case box (for F80s anf F80L only).

Suitable for: F80s/L, F65L, F65eagle.

rafter led caravanstore

rafter led van

awning arms led kit awning led kit led strip awning F80

rafter led

COB LED* strip for insertion in the F43van awning case box. Available in the standard size of 2 5 m

* COB = Chip On Board. COB LED strips are LED strips that create homogeneous lines of light without the classic dotted effect

LED light bar to be inserted in the special case box housing of F45s, F45L and F70 winch awnings. Delivered as standard in the length of 2 5m. The optional 50cm kit is available. Suitable for: F45s/L, Fiamma ZIP.

For hiding electrical cables in the awning. Can be used with Awning Arms LED (1 kit) and Awning LED kit (2 kits).

Kit Cables Guide: kit of 2 flexible profiles ideal for awnings with arms provided with guide preset for the passing of cables.

Kit Cables Rail: kit of 2 compact rails, ideal for all the awnings with arms not preset for the passing of the electrical cables.

LED for outdoors and garage

caravans, van conversions and campervans

To illuminate your outdoor space and your garage. All systems are LED, ensuring optimum lighting and very low power consumption.

features:

• Average LED duration 25,000 hours

• Super Bright LEDs, ø 5mm

External LED light for awnings, which can be installed under the awning case box or above the entrance door.Complete with elegant plastic end caps.

Internal LED light for storage compartments and garage facilities. Similar characteristics as LED Awning Light but complete with switch.

With PIR and light sensor, it only lights up at night when a person approaches your vehicle; the lights remains on for 60 seconds.

Designed to be installed above the doors of motorhomes and caravans.

System of two intermittent signal lights. Ideal to be positioned around your motorhome and caravan to highlight a dangerous area. Each light is provided with a solar panel that recharges the internal batteries during the day. The internal rechargeable batteries are capable of being recharged around 500 times.

To increase the safety and visibility of the steps and step wells at the entrance of the motorhome.Made from sturdy anodized aluminium.

Kit is 50cm long but can be shortened to 23cm. The aluminium L profile can be easily attached to the edge of the step.

led awning light

led garage light

led warning solar

led sensor door light

led step

led awning light gutter

models

External door light, equipped with terminals shaped as a channel, ideal to solve the annoying problem of rain dripping from above the door.

Water pumps

Water pumps

suitable for motorhomes, caravans, van conversions and campervans

Safe and reliable pumps, to guarantee a constant and high flow on your vehicle.

features:

• Anti-vibration base

• Motor with thermal protection

• Standard stainless steel filter removable for easy cleaning

• Fiamma water pumps can be installed in any position and can run dry without damage

• Power supply: 12V

aqua F

Equipped with an internal diaphragm made in a single piece to ensure its watertight seal. 4 chambers for high flow of water. Standard filter. Available in 10 and 13 litres versions.

aqua 8 A20

Aqua 8 is the classic self-priming pump with incorporated filter and antivibration Silent Plate base as standard. Angle and straight connectors for 13mm pipes included. Available in 7 and 10 litres versions.

The A20 expansion tank eliminates pulsating pump operation and provides a constant flow of water in the required quantity, reducing consumption. The internal diaphragm absorbs water hammer and delivers a regular flow at the outlet. New black finish to give visual continuity to the pump and accessory range, of which it is the perfect complement.

Suitable for: all Fiamma pumps and other brands

Tanks

suitable for motorhomes, caravans, van conversions and campervans

Tanks

Water is a precious resource that you need to take care of. Both blue tanks, made of food grade material, and the waste water grey tanks are easy to fill, transport and empty. Choose them according to function and capacity.

features:

• Watertight cap

• Easy to transport

Convenient portable water tank with easy access discharge cap. Compact size (fits through normal vehicle doors). Complete with extra cap for immersion pump (not included).

food water omologations fiamma 2024 184

• DM 174/2004

• EU 10/2011

• DM 21/03/1973

Roll-Tank 23F / Roll-Tank 40F / Tank 70

models waste

Portable water tank, easy grip handle and silent rubber wheels make transportation easy even on gravel. Easy cleaning wide filler cap. The equipment consisting of bayonet cap and hose connector, used for direct filling of the tank, is available as an optional accessory.

Large water tank, it can be installed vertically or horizontally, it is complete with all the fittings.

Convenient portable waste water tank with easy access discharge cap. Compact size (fits through normal vehicle doors).

roll-tank 23F

roll-tank 40F tank 70

roll-tank 23W

roll-tank 40W

kit sanitary flex quick connection w cap

Flexible and extendable up to 300cm, the hose is complete with 2 connections and clamps for connection to the Roll-Tank 40 W and Quick Connection W.

choose the model that suits you

The adapter to turn the threaded connection into a bayonet connection so that the Sanitary Flex can be easily coupled to the Tank 23 W.

Thanks to the key, the cap can be locked and opened for greater security. Available white and black.

Levelling systems

suitable for motorhomes, caravans, van conversions, campervans and 4x4

The ground on which you park your vehicle is not always perfectly level. That’s why we suggest you purchase one of our levelling systems, designed to stabilise each type of vehicle.

features:

• Protects the tyre

• Does not sink into the ground

• Equipped with levelling cradles

• Easy to transport and lightweight

• Resistant

• Pack of 2 pieces

models

kit level up premium

With three levelling cradles, handle for a safe and easy positioning of the product under the vehicle and high manoeuvrability. Delivered as standard with Level Bag Premium. Ideal for motorhomes.

Ideal for caravans and camper vans. Practical self-locking overlapping interlocking levelling system to raise height. Ridged surface to grip to the vehicle’s tyres.

kit level up premium s

Ideal for motorhomes and van conversions. Same features as the Level Up Premium Kit, but with reduced size and weight. The practical Level Bag is included as standard.

Ideal for larger motorhomes. Practical self-locking overlapping interlocking levelling system to raise height.

level up - kit level up

Ideal for motorhomes, van conversions, campervans and 4x4. Ridged surface to grip to the vehicle’s tyres.

Consists of three levels, lightweight and easy to clean. The Kit version is complete with Level Bag.

Ideal levelling system for larger motorhomes with twin wheels, overlapping.

choose

* This item is not offered for sale to UK customers and must not be imported into the UK or sold to third parties in the UK.

+

add to your levels

chock level

Pair of 2 grey chocks to secure the wheels during long stopovers.

level bag / level bag s

Bag in washable polyester, for storing levels after use.

anti slip plate

Optional anti-slip plate for paved surfaces.

level plate

Anti-skid system, installed under the Fiamma Level Up to increase its traction, avoiding skidding on smooth surfaces and sinking into soft grounds.

Levelling systems

suitable for motorhomes, caravans, van conversions, campervans and 4x4

Provides safety and stability for your vehicle.

features:

• Resistant material, UV-resistant

models

Anti-sinking bases

grip system wheel saver alu jacks

Anti-skid system with superior traction, to be placed under the driving wheels of vehicles. They can be combined in length for a greater traction surface.

Plastic jacks. Package of 4 stacked pieces during transport. Adjustable in height from min. 31cm to max. 44cm.

• Easy to transport and lightweight choose the model that suits you

System of cradles that avoids ovalisation of the tyres, suitable for wheels up to 70cm in diameter. Ideal in case of long parking and storage of motorhomes and caravans.

Polished aluminium jack. Package of 4 stacked pieces during transport. Adjustable in height from min. 28cm to max. 43cm.

plastic jacks plates pro plates

Kit of four anti-sinking bases supplied with four locks to be fastened to the vehicle’s lifting jacks.

Kit of four highly reinforced anti-sinking plates. Also ideal for use with jacks or with the caravan's A-frame leg.

step

Step for caravans and motorhomes, made of HD polyethylene for more stability and strength. Anti-skid surface.

step magnum

Stronger and larger step made of polypropylene. Anti-skid surface.

step-mat

Covering for the surface of Fiamma Steps. Made of soft and flexible antiskid rubber.

clean step Step Step Magnum

choose the model that suits you

complete fiammastore carry-bike comfort fiamma 2024 189

Magnum

Organizer

suitable for motorhomes, caravans, van conversions, campervans and 4x4

When travelling, like at home, it is important that everything is in order and in its place. For this reason Fiamma created the Organizer range, to enable you to neatly organise the space both inside and outside of the vehicle.

features:

• Many models

• Easy to install

• Can be installed in 3 different ways: on rail, using eyelets, with Fix Organizer

models

Spacious organiser box, occupies minimum space when closed.

Dimensions: 60x36x31cm.

Practical fixing system.

Dimensions: 5 5x3x1cm.

Practical multi-purpose polyester organiser bin with zip fastener and popup opening for minimum space when closed. Its shape and simplicity make it suitable for storing a wide range of objects such as toys or laundry.

The 4 bag clamps, supplied as standard, also allow it to be used as a dustbin.

Diameter 28cm, height 40cm.

mega bag elite / smart l

Storage bag for panels and Privacy Room.

Mega Bag Elite

Dimensions:

150x35x35cm.

Equipped with wheels, internal net pockets with elastic border and reinforcement panel on the bottom and 2 on the sides.

Mega Bag Smart L

Dimensions:

195x25x25cm.

Length increased, to hold and carry skis too with internal Velcro fasteners to secure skis and studded holes to allow small amounts of water to escape; with internal pockets.

New version, proposed alternative to the current bags supplied with Fiamma Privacy Rooms. Useful for storing panels and Privacy Rooms.

Mega Bag: 140x27x40cm

Mega Bag Light: 140x25x25cm

carry-dog

Folding dog house, complete with bag and handle for easy transportation, carpet and eyelets to fasten it to the ground. Side windows are with mosquito net which can be rolled up with Velcro. Dimensions: 75x55x49cm.

pack organizer toiletry

Container for bathroom fittings.

Dimensions: 30x37x11cm.

Number of pockets: 10

mega bag / mega bag light

Organizer containers

fix organizer

pack organizer box

pack organizer mix

models

pack organizer l

For little objects.

Dimensions: 88x39cm.

Number of pockets: 6

pack organizer s

For little objects.

Dimensions: 50x84cm.

Number of pockets: 11

pack organizer seat

To hang up on the rear part of the seats of your vehicle.

Dimensions: 43x66x2cm.

Number of pockets: 4

pack organizer shoes

Container for shoes.

Dimensions: 84x54x2cm.

Number of pockets: 10

pack organizer privacy

Optimise the space inside your enclosure and keep everything within reach, thanks to these storage containers that attach directly to the panels.

Pocket

suitable for motorhomes, caravans, van conversions, campervans and 4x4

Multipurpose pockets to organize your space in the best possible way and always have everything in order.

features:

• Different dimensions available

• Easy to install with the provided screws

Ultra-Box

You can never have enough luggage when you go on holiday. Choose one of our spacious roof boxes for your motorhome.

features:

• Material: ABS

• Reinforced aluminium structure

• Watertight foam seal

• Complete with installation brackets and stainless steel hinges

Roof Rail Ducato

To make the most of your vehicle's roof, a complete roof rack system for Fiat Ducato, Citroën Jumper and Peugeot Boxer.

features:

• Installation without drilling the vehicle

• Max. load capacity: 150kg

• Two finishes: aluminium and Deep-Black

• Roof Rail Ducato: can be installed on Ducato vehicles with H2 high roof, L1, L2 and L3 lengths Roof Rail

• Ducato Maxi XL: for vehicles with H2 high roof and L4 length

• Roof rail Ducato H3: version for Ducato with H3 high roof and L3 and L4 length

choose the model that suits you

165 mm

Ducato3550mm

DucatoMaxiXL3955mm

Roof Rail Ducato

DucatoH33955mm

Roof Rail Ducato H3

Fixing-Bar

suitable for motorhomes, caravan and van conversion

Carry what you want on the roof of your motorhome, caravan or van conversion with this range of accessories designed to organise it in the best possible way.

features:

• Adaptable to different types of vehicles

• Easy to install models

Two longitudinal bars that can be shortened, easy to install on the roofs of motorhomes and caravans.

The anodised aluminium tubes are suitable for quick attachment of the optional Fixing-Bar Rail.

Roof rails in anodised aluminium. Easily combinable with the Roof Rail without drilling the vehicle, easily shortened. Delivered as standard with:

- 2x bars

- 4x fixing terminals in aluminium pressure die-casting

- 4x rubber spacers

Roof rail in extruded aluminium, easily to shorten.

To be placed on the camper or caravan roof. Ideal supporting system for solar panels or roof boxes.

Delivered as standard with:

- 1x bar

- 2x white end caps (PA)

- 1x rubber spacer

Roller for loading the roof rack. Facilitates the loading and unloading of canoes, kayaks and other objects from the rear of the vehicle. Ideal to be used with Roof Rail Ducato, Roof Rail Ducato Maxi XL.

Luggage

Garage

How to best organise the inside of your garage? With our practical shelving and multi-purpose bars.

features:

• Suitable for all models of motorhomes

• Made of light and strong aluminium 6060

garage system standard

Single stand with three shelves to position the optional folding boxes or to put all the goods of the camper away tidily in the camper storage compartment.

Adjustable in height and with section bars that can be shortened in case of rear steps or narrow, curved spaces.

garage system upgrade

To enlarge the standard module with a second shelf.

It can be used with the Garage System Standard.

garage system support

Set of two lower bars and one side aluminium bar to be used as a support for the Garage System, for greater support of the transported load.

garage box

Set of three folding boxes suitable for the shelves of the Garage System; folded down they take up little space.

garage wall brackets kit

Optional kit for wall installation or installation on the side bars GarageBars for garage with adjustable roof height.

garage bars

Multipurpose aluminium bars to be applied to garage walls or floors. Four versions available:

- Garage Bars

- Garage Bars Corner

- Garage Bars Premium 200

- Garage Bars Premium 60

luggage bar

Telescopic bar ideal for easily and safely fastening your objects into the storage compartments or dinette of the vehicle while travelling. Easy to regulate using the handy hook lever. Easy to shorten (minimum length of 93cm) and extends up to 170cm.

garage carry-rail

The clothes rack is composed of a sturdy light tubular bar in anodized aluminium, supported by two strong ceiling fixings. Please verify the solidity of the ceiling before applying the product. Ideal for hanging clothes and various items. Load capacity: 10kg.

eye premium/corner kit

Additional hooks for Garage Bars Premium/Corner.

cargo accessory kit

Optional kit in combination with Cargo Strap.

eye kit

Additional hooks for Garage Bars.

kit square plates

Corrosion-proof stainless steel hooks for easier load securing. To be applied to the garage floor or walls.

cargo strap

To block objects such as small tables, chairs, spare wheels in the storage compartment or in the garage of your motorhome.

Safe Door

A wide range of safety locks for peace of mind while you are on holiday.

features:

• Suitable for motorhome and caravans (Safe Door Guardian for van conversions)

• Easy to install

• 3 colours available for Safe Door and Safe Door Frame: white, grey and black

• Safe Door Magnum and Safe Door Magnum Frame available in white

• To increase the security of storage compartments and garage doors

safe door

Made of sturdy painted aluminium, without plastic parts. Wall fixing with 4 through screws.

safe door frame

Made of sturdy painted aluminium, without plastic parts. Ideal for installation on the internal profiles of motorhome and caravan doors with 3 self-threading screws.

safe door magnum frame

Fixing on the internal profiles of the doors with 3 self-threading screws and length extended to 20cm to cover, where possible, the locks of the doors.

safe door guardian

Made of sturdy aluminium, without plastic parts. It is installed in place of the standard weak plastic blocks in the living unit, in the same position and using the same fixing holes. Versions for Ducato and Transit are available as well.

* One Key System Version "3" works with the One Key System: it is composed of three pieces of Safe Door or Safe Door Frame with locks using the same key.

safe door magnum

Length extended to 20cm in order to cover, where possible, the locks of the motorhome doors.

duo safe pro

Security system to keep the vehicle cabin doors closed from the inside.

Tested on:

- Fiat Ducato, Citroën Jumper, Peugeot Boxer and Renault Master ≤ 2006

- Mercedes Sprinter, Fiat Ducato, Renault Master, Ford Transit ≥ 2006

- Also suitable for Iveco Daily’s cabin

Kit of spacers to reduce the space between Safe Door lock and wall, to adapt it to the shape of the Safe Door family. Available in colours: white, grey and black.

Security

Security handles made of 6060 aluminium, to help you get in and out of the vehicle.

features:

• Foldable against the wall

• Suitable for both right and left opening of doors

• Equipped with non-slip grip

• Increase security by discouraging break-ins

security 31

Security handle made of painted aluminium, Ø 30mm and thickness 2mm. Height 31cm.

security 46 pro

security 46

security S

Security handle made of painted aluminium, Ø 30mm and thickness 2mm. Height 46cm.

M-shaped security handle with less projection, made of painted aluminium, Ø 30mm and 2mm thickness. Height 46cm.

Security handle made of painted aluminium, Ø 30mm and thickness 2mm. Height 46cm. Complete with Security Lock Kit for greater security and solidity thanks to the third fixing point on the door.

security grip

Non-slip neoprene cover to protect the Security handles security grip.

kit security lock

Optional safety lock kit for security 31, 46 and Security S, to be installed on the door of the motorhome.

Delivered as standard with keys and internal brackets.

Deluxe

Interior and exterior ladders, different models to adapt to your vehicle.

features:

• Pipes ø 30mm and thickness 2mm

• Anodised or painted aluminium

• Non-skid finish

• Step inner width: 28cm

• Step total width: 35cm

models

deluxe 8

deluxe 4B

Equipped with 15° inclined steps for the inside of the overcab motorhome or for caravans with sleeping berths.

Height: 150cm.

Ladder with 8 steps and fold up structure. Ideal for the rear wall of the motorhome. New black plastics, with signal step with red plastics.

deluxe 5D

deluxe 5B

Equipped with 15° inclined steps for the inside of the overcab motorhome or for caravans with sleeping berths.

Height: 165cm.

Ladder with 10 steps and fold up structure. Ideal for the rear wall of the motorhome. New black plastics, with signal step with red plastics.

safe ladder

Reinforced safety plate. Suitable for single fixed ladders or folding ladders. Complete with knob and key.

ladders

Deluxe DJ

New management for the dedicated ladders for Sprinter, Crafter and Transit vehicles. One structure for all models and dedicated fixing bars for each vehicle type can be purchased separately.

• Pipes ø 30mm and thickness 2mm

• Anodised or painted aluminium

• Non-skid finish

• Step inner width: 28cm

• Step total width: 35cm

Deluxe DJ Ducato

Outdoor ladders specifically for Fiat Ducato, Citroën Jumper, Peugeot Boxer.

features:

• Pipes ø 30mm and thickness 2mm

• Anodised or painted aluminium

• Non-skid finish

• Step inner width: 28cm

• Step total width: 35cm

deluxe dj ducato

Ladder with 6 steps.

Installation with Fixing Bar on the left door of the vehicle.

Combines a Carry-Bike mounted on the right door.

choose the model that suits you

deluxe dj ducato H3

Ladder with 6 steps.

Specific version for vehicles with height H3

Portable toilets and sanitary line designed for life in the open air.

features:

• Scratch-resistant tanks

• Handy drain openings

• Easy to clean

• Comfortable and wide seat

• Available in 3 sizes

models

bi-pot 30

Upper tank capacity: 10l. Lower tank capacity: 11l.

bi-pot 34

Upper tank capacity: 15l. Lower tank capacity: 13l.

bi-pot 39

Upper tank capacity: 15l. Lower tank capacity: 20l.

super kem blue

Detergent for fixed and portable toilets. It accelerates disintegration, limiting the formation of unpleasant gases and odours even at high temperatures. Practical 2L bottle. Containing antifreeze for temperatures up to -20°C. 90% biodegradable.

pocket kassett

Composed of four storage pockets for storing Super Kem Sachets in powder and various materials. It is fixed with the standard screws inside the door of the Thetford or Dometic cassette of the vehicle.

super kem sachets

Powder disintegrating, deodorising and sanitising detergent in sachets for daily use, individually packed in protective packaging. One container contains 15 sachets of Super Kem Sachets 30gr each.

dispenser

Soap or liquid shampoo dispenser (100 doses), 0 20l, with transparent container.

toilet brush bidet

Equipped with Velcro to be applied also to the internal cover of the Bi-Pot.

Universal bidet for all types of Bi-Pot. Thetford Porta Potti, Cassette 1, 2, 3 and 4

Bidet 200 for Thetford Cassette 200 swivelling, C250 and Dometic CT3000

super rinse

For fresh water tanks of portable or fixed toilets. Scented bactericide for chemical toilets. Available in 1L bottle.

soft 6

Special two-ply toilet paper specially designed for fixed and portable toilets. Pack of 6 rolls, 300 sheets.

toilet brush pro

Compact toilet brush holder for WC, takes up very little space in the corner of the bathroom.

Vehicle covers

When the journey comes to an end, Fiamma has the solution to protect your vehicle from the elements, dust, pollution and dirt, while waiting to set off on a new adventure.

features:

• Perfect adherence to the vehicle

• Resistant material

cover top

Made of UV-resistant fabric vinyl, easy to tension with ropes or elastic cords, reinforced corners and tie down grommets.

Dimensions: 8 5x5 2m.

Suitable for motorhomes, caravans and van conversions.

thermoglas xxl ducato coverglas

Designed for Fiat Ducato, Citroën Jumper and Peugeot Boxer ≥ 2006 Ideal for winter use to completely cover the engine compartment; insulated material suitable for low temperatures. Available in the complete model and "Windscreen" model with only the upper part.

• Different models for each type of vehicle choose the model that suits you

Convenient and useful thermal panel to be put between the cabin and the motorhome of Fiat Ducato, Citroën Jumper and Peugeot Boxer chassis after 06/2006, to grant more privacy and heat insulation. Dimensions: 182x150hcm .

External blinds to protect the cab from the sun and UV rays, improved over previous models and with new light grey colour.

Available in 4 versions:

- Ducato: suitable for Fiat Ducato, Citroën Jumper and Peugeot Boxer

≥ 2006

- VW T5/T6

- Ford Transit H2 and H3 ≥ 2014

- Ford Transit Custom ≥ 2012

thermo wall ducato cabin

Motorhome

cover

Cover for the motorhome, with belt tension system for excellent adherence.

Available in two versions:

- M: for motorhomes up to 710cm.

Dimensions:cm716 x 259 x 274 h

- L: for motorhomes up to 800cm.

Dimensions:cm808 x 259 x 274 h

Suitable for both left- and right-hand drive motorhomes. choose the model that suits you

4 plastic buckles to fix the lower part

Maximum ventilation thanks to the air vents that also prevent condensation of water under the canopy

6 convenient hinges (3 per side) allow entry into the vehicle on both sides

Velcro for fixing the side panels when they are fully open

Locking system with sturdy plastic buckles. Reflective strips increase visibility during storage

Various accessories

To complete your Comfort range.

moskito net

Mosquito net composed of 2 overlapping panels.

Dimensions: 35x230cm.

Maximum extension width: 64cm.

moskito net pro

Mosquito net which also acts as a shade panel blocking about 60% of the light. Composed of 2 overlapping panels.

Dimensions: 52x230cm.

Maximum extension width: 64cm.

door holder

External plastic door holder, to prevent unintentional closing.

mud flap

Rubber mud flaps with painted steel bracket.

Mud Flap Front: behind the front wheels of the Ducato after 2006

Mud Flap Rear: installation in the rear panel of the motorhome.

omni stop

Multipurpose accessory to keep plates and items in place in the motorhome as you travel.

drip stop

Mini-gutter to eliminate black streaks on your motorhome, caravan and vans. In the white and grey versions, the available sizes are 75, 300 and 1000cm . The black colour is available in lengths of 75, 200 and 500cm.

table legs

Modular table leg system, ideal to build removable and revolving tables.

Tube Pro

Painted aluminium table leg tube. Size 70cm, can be shortened, diameter 5 5cm

Tripod Pro

Reinforced tripod (PA)

Conic Connection

Conical connections in aluminium

Recessed Connection

Recessed conical connections in aluminium

Cap Closure cap

Adapter Tube Pro

To store the Tube Pro

We love “la dolce vita”

We are Italian, we love to travel, the great outdoors, cycling with our family and enjoy the pleasure of good food with our friends. Where we go we feel at home, just park up. Discover the best products for your vehicle!

fiammastore

Winch awnings for wall installation

F43van 16-17

F45eagle 20-21

F45L 18-19

F45s 12-13

F45s minivan 14-15

Slide Out 22-23

Winch awnings for roof installation

F65eagle 30-31

F40van 32-33

F80s 24-25

F80s Ducato 26-27

F80L 28-29

Manual awnings

CaravanStore / XL 34-35

Compass 38-39

F35pro 36-37

carry-bike

Bike carriers for Motorhome

CB Lift 77 / Motor Lift 77 120-121

CB Pro / Pro C 116-117

CB Pro C L80 122-123

CB Pro Autotrail 122-123

CB Pro Hymer - Dethleffs 122-123

CB Trigano - CI - Roller Team 122-123

CB UL / CL 118-119

Bike carriers for Caravan

CB Caravan Active 126-127

CB Caravan Hobby 130-131

CB Caravan Universal 130-131

CB Caravan Simple Plus 200 130-131

CB Caravan XL A 126-127

CB Caravan XL A Pro 200 126-127

CB Caravan XL A Pro 300 126-127

comfort

Motor Kit

Motor Kit

Crank Handle

Kit Awning Hangers

Kit Awning Pegs 44-45

Kit Awning Plate 44-45

Kit Cover 46-47

Kit Rain Guard 46-47

Kit Repair Plus 44-45

Magicrafter / Pro 42-43

Patio-Mat 42-43

Rafter / Pro 42-43

Rafter CaravanStore / XL 42-43

Rafter LED 172-174

Rafter LED CaravanStore 172-174

Rafter LED F40van 172-174

Rain Guard

Safety Strip

Bike carriers for Campervan

CB Ford Custom - Nugget Plus 142-143

CB Ford Transit 140-141

CB Mercedes Viano 138-139

CB Mercedes Vito 138-139

CB Mercedes V Class / Lift E-Bike 138-139

CB Vivaro / Trafic / Talento 140-141

CB Vivaro / Trafic / Talento D 140-141

CB PSA 142-143

CB

LED

Side

Level

Level

Level

Sun

Adapters

Adapters

Adapters F45 50-59

Adapters F40van 66-67

Adapters F80 - F65 - F65eagle 60-65

Alu Jacks 188-189

Alu Signal 162-163

Anti Slip Plate 186-187

Aqua

<

Carry-Bike DJ Crafter 148-149

Carry-Bike DJ Ducato 148-149

Carry-Bike DJ Sprinter / Crafter 148-149

Carry-Bike DJ Transit 148-149

Carry-Bike

Carry-Bike

Carry-Bike

Carry-Bike

Carry-Bike

Carry-Bike Caravan XL A Pro 200 126-127

Carry-Bike Caravan XL A Pro 300 126-127

Carry-Bike Frame Ducato 144-145

Carry-Bike Frame VW Crafter 144-145

Carry-Bike Frame Sprinter 144-145

Carry-Bike Ford Custom - Nugget Plus 142-143

Carry-Bike Ford Transit 140-141

Carry-Bike Garage Plus 152-153

Carry-Bike Garage Slide Pro Bike 152-153

Carry-Bike Garage Standard 152-153

Carry-Bike Pro C L80 122-123

Carry-Bike Lift 77 / Motor Lift 77 120-121

Carry-Bike Mercedes Viano 138-139

Carry-Bike Mercedes Vito 138-139

Carry-Bike Mercedes V Class / Lift E-Bike 138-139

Carry-Bike
