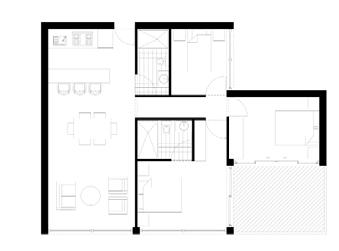

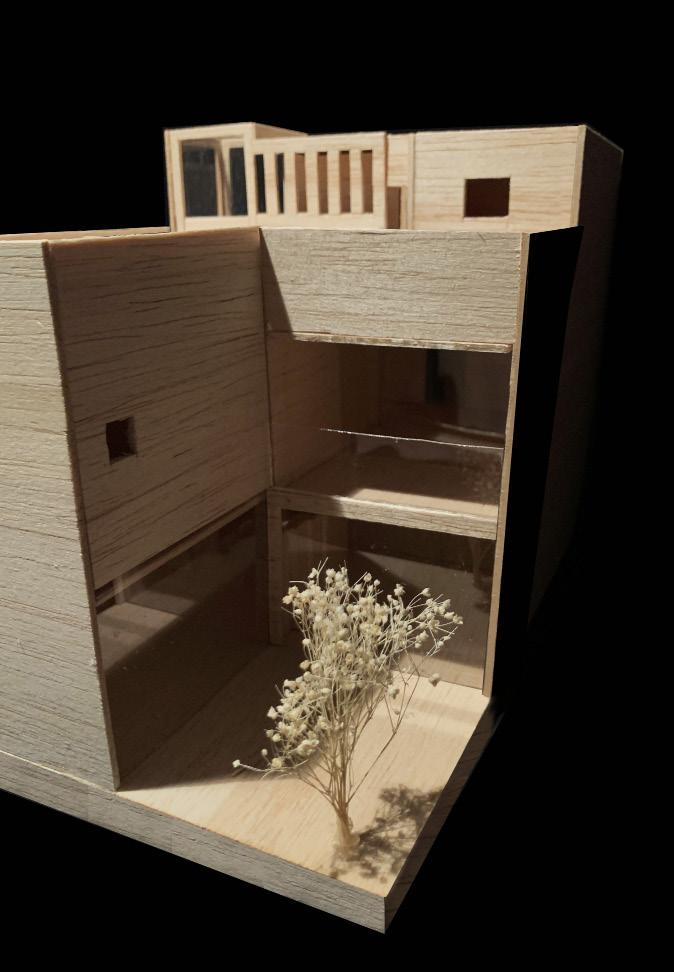

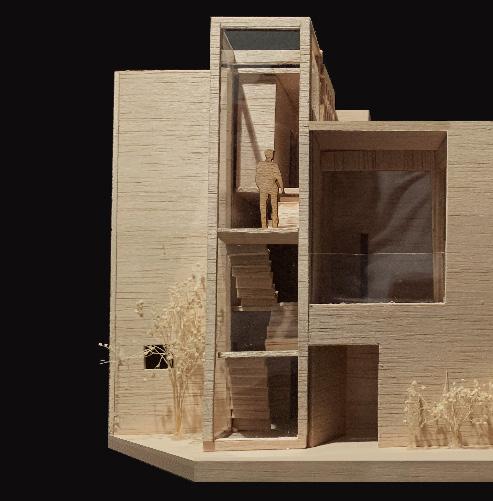

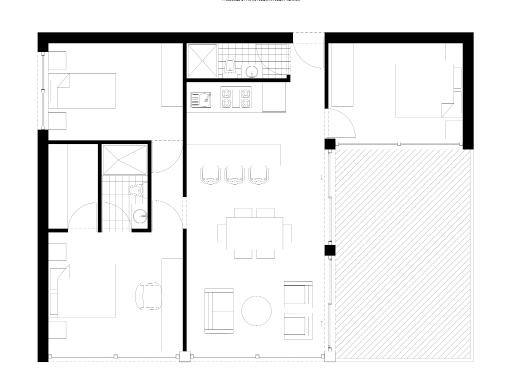

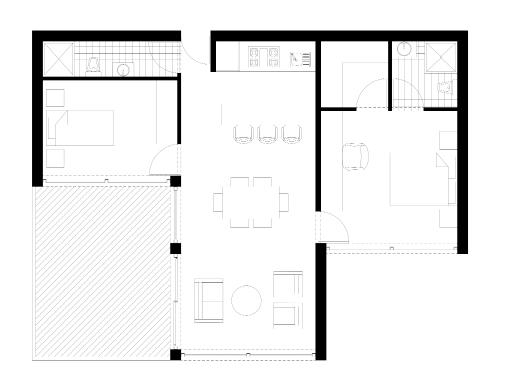

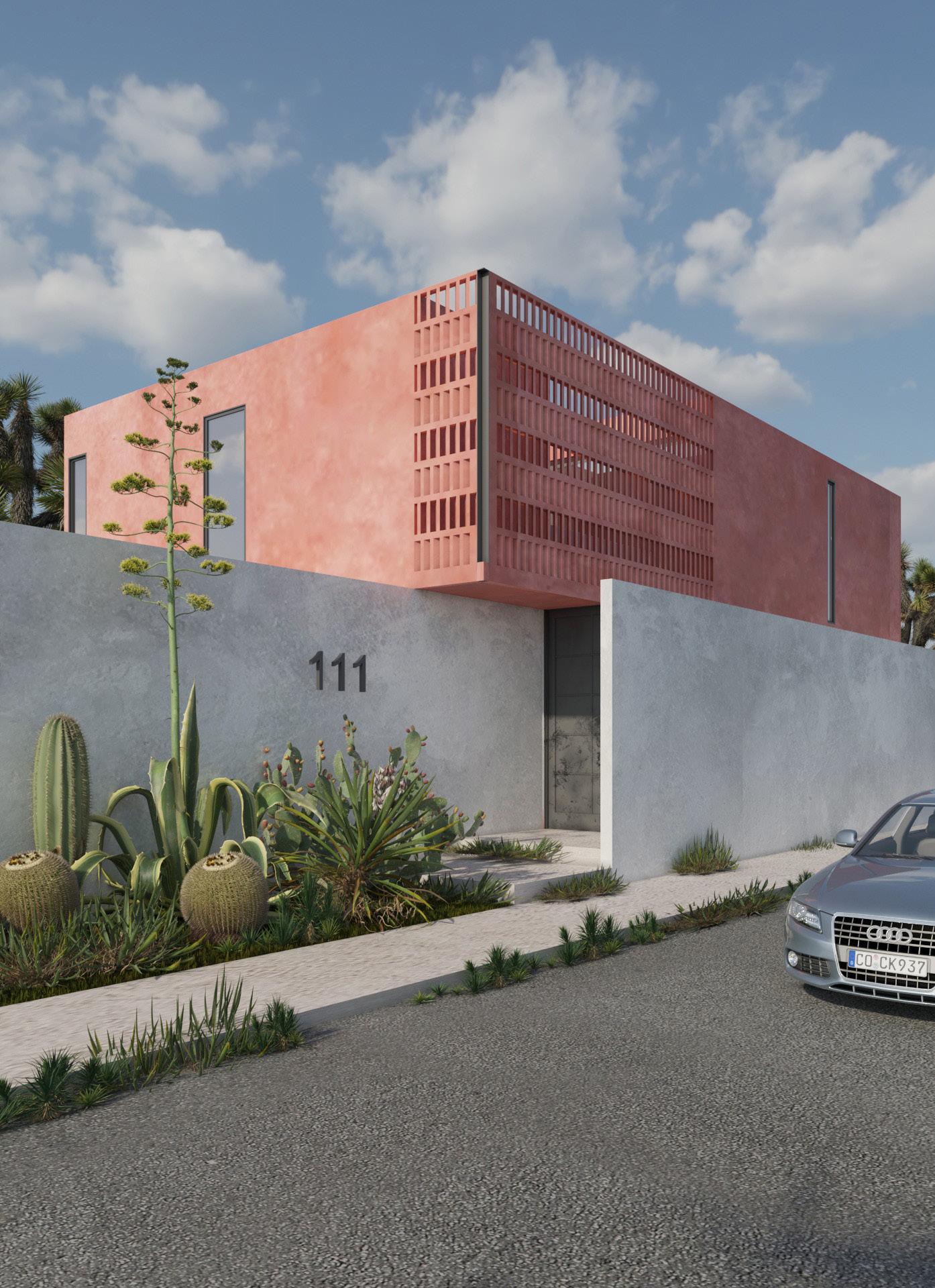

01 CASA GARCÍA Achitectural Projects I Residential housing Location: Monterrey, Mexico Area: 140 m2 Year: 2019 Casa Garcia is designed to fit a family’s needs. Erica and Mundo are a married couple that have two children and a dog. After extensive research into who they are, what they do and what they need, it was concluded that they needed a home that promoted social coexistence and was flexible enough to satisfy all of their different needs. The first floor is designed so that all spaces can become one, perfect for social gatherings. The second floor is more private and re served for the family, emphasis is made in the family room-ter race. The third level becomes a flexible social-private space.

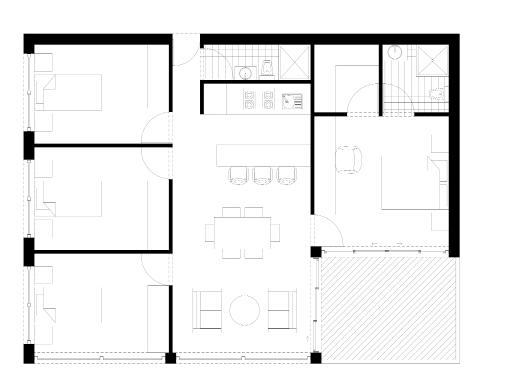

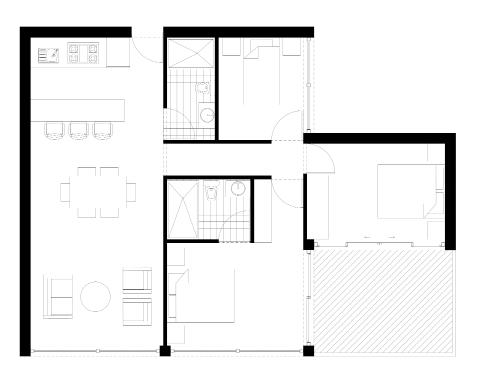

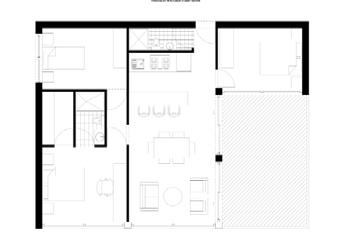

AA BB DD EECC1 S 1 2 2 3 3 4 4 2.80 2.25 4.75 4.50 14.30 4.302.602.409.30 2.80 2.25 4.75 4.50 14.30 4.302.602.40 9.30 PRODUCED BY AN AUTODESK STUDENT VERSION VERSIONSTUDENTAUTODESKANBYPRODUCED PRODUCEDBYANAUTODESKSTUDENTVERSION VERSIONSTUDENTAUTODESKANBYPRODUCED

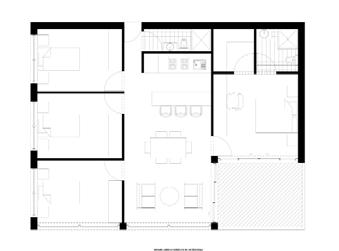

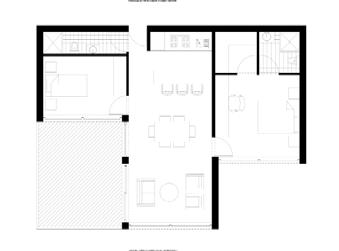

SAA BB DD EECC1 1 2 2 3 3 4 4 2.80 2.25 4.75 4.50 14.30 4.302.602.409.30 2.80 2.25 4.75 4.50 14.30 4.302.602.40 9.30 B PRODUCED BY AN AUTODESK STUDENT VERSION VERSIONSTUDENTAUTODESKANBYPRODUCED PRODUCEDBYANAUTODESKSTUDENTVERSION VERSIONSTUDENTAUTODESKANBYPRODUCED

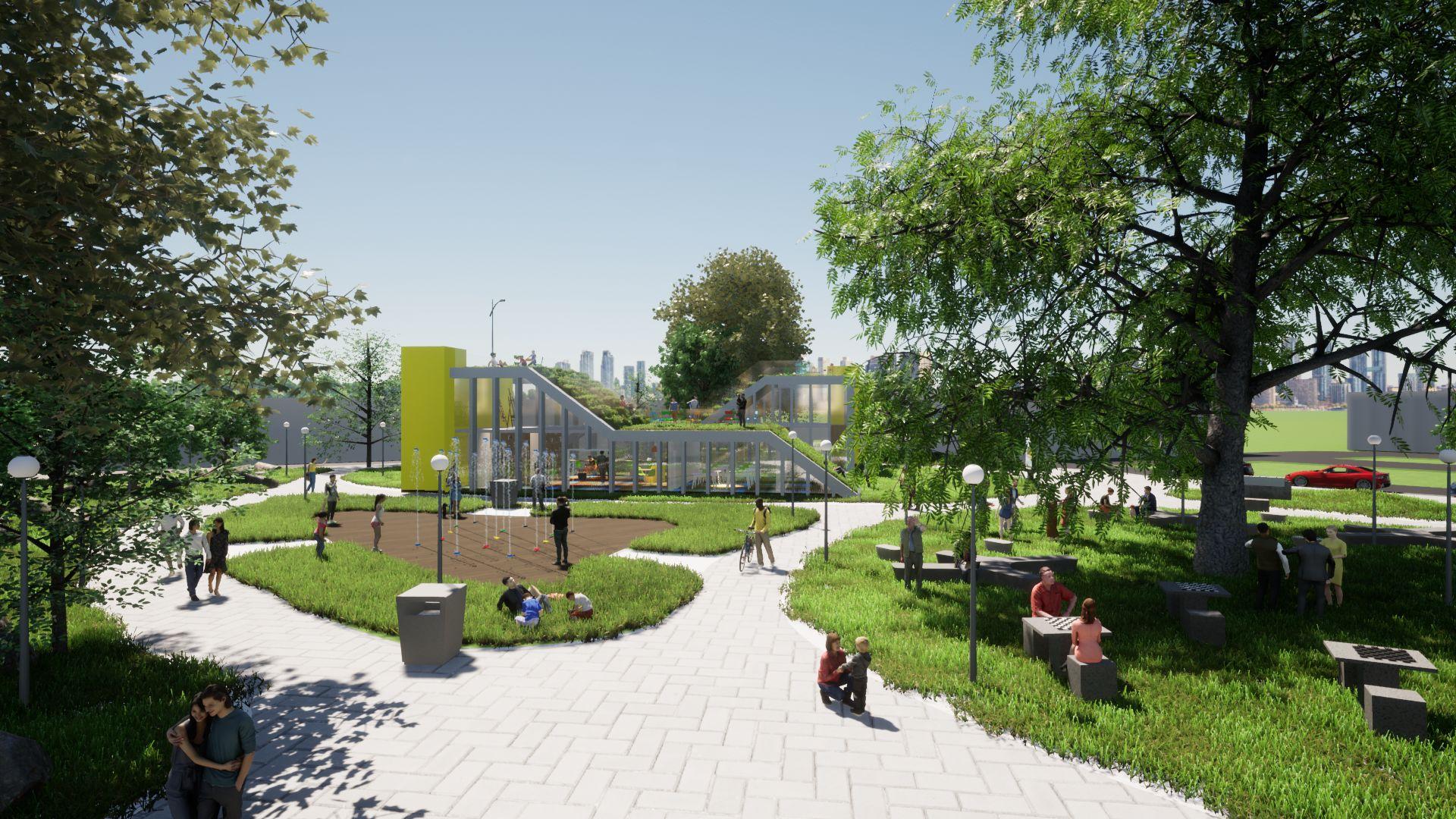

02
Achitectural Projects IV
COMUNITARIOCENTROACS
Community Building Location: Monterrey, Mexico Area: 5300 m2 Year: 2020 In Collaboration with Diego Alejandro Lozano Suro
The project is situated in the heart of the neighborhood “El Cerro de la Sil la”. ACS (Árbol del cerro de la silla) is a community center that promotes the coexistence of the inhabitants of the “Cerro de la Silla” neighbor hood, transforming the block into the heart of the community. Attending to the needs and general tastes, regardless of the age range. The concept is born from the idea of a tree trunk, the trunk is the heart of the tree, its texture represent growth and it connects the roots (the neighborhood) with the leafs (the community), all values that resonate to the project.

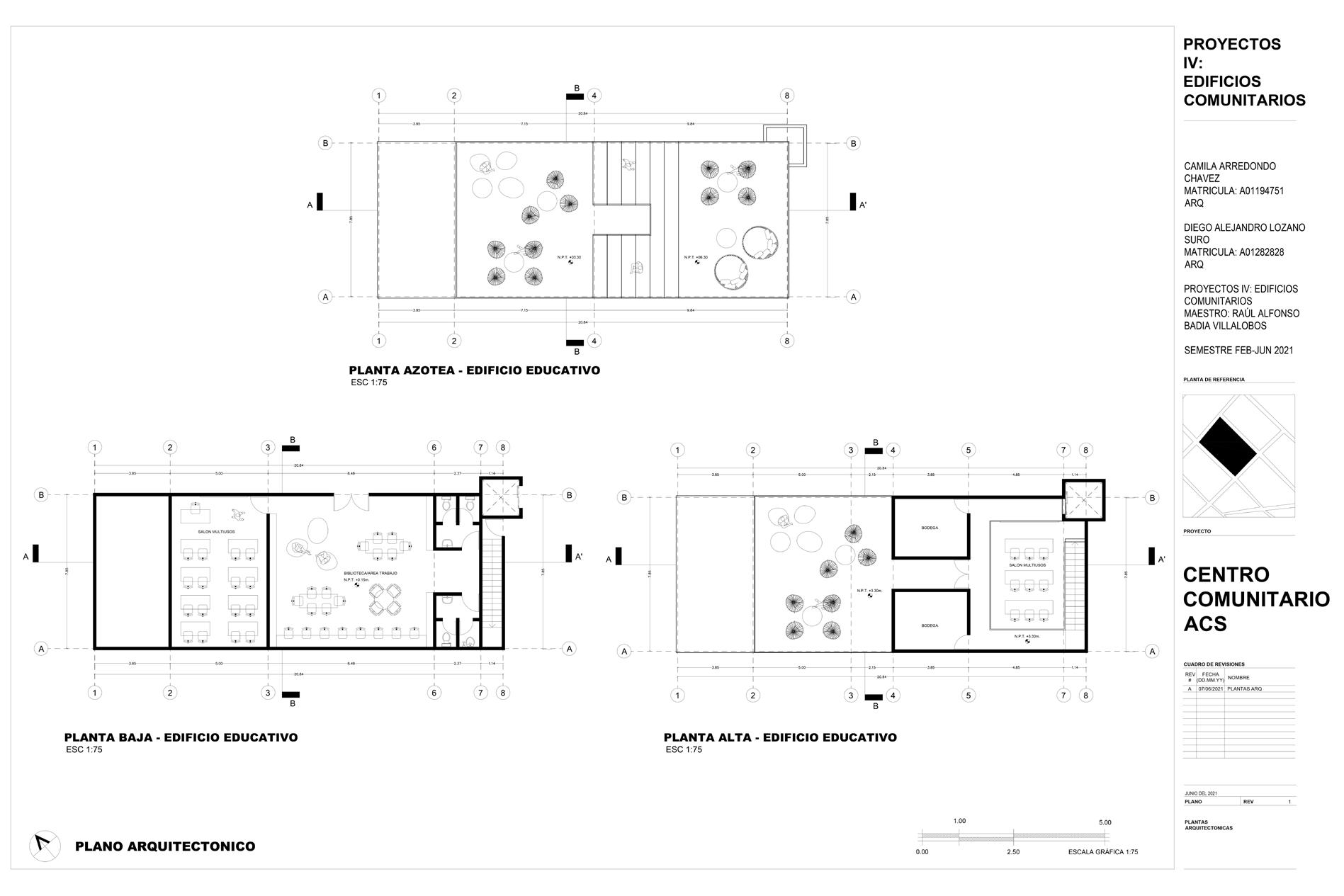

CUADRO DE REVISIONES # (DD.MM.YY) NOMBRE COMUNITARIOCENTROACS A 07/06/2021 PLANTAS ARQ CAMILA BADIAMAESTRO:PROYECTOSMATRICULA:DIEGOMATRICULA:CHAVEZARREDONDOA01194751ARQALEJANDROLOZANOSUROA01282828ARQIV:EDIFICIOSCOMUNITARIOSRAÚLALFONSOVILLALOBOSSEMESTREFEB-JUN2021 EDIFICIOSPROYECTOSIV:COMUNITARIOS PRODUCED BY AN AUTODESK STUDENT VERSION VERSIONSTUDENTAUTODESKANBYPRODUCED VERSIONSTUDENTAUTODESKANBYPRODUCED ELEVACION NORESTE

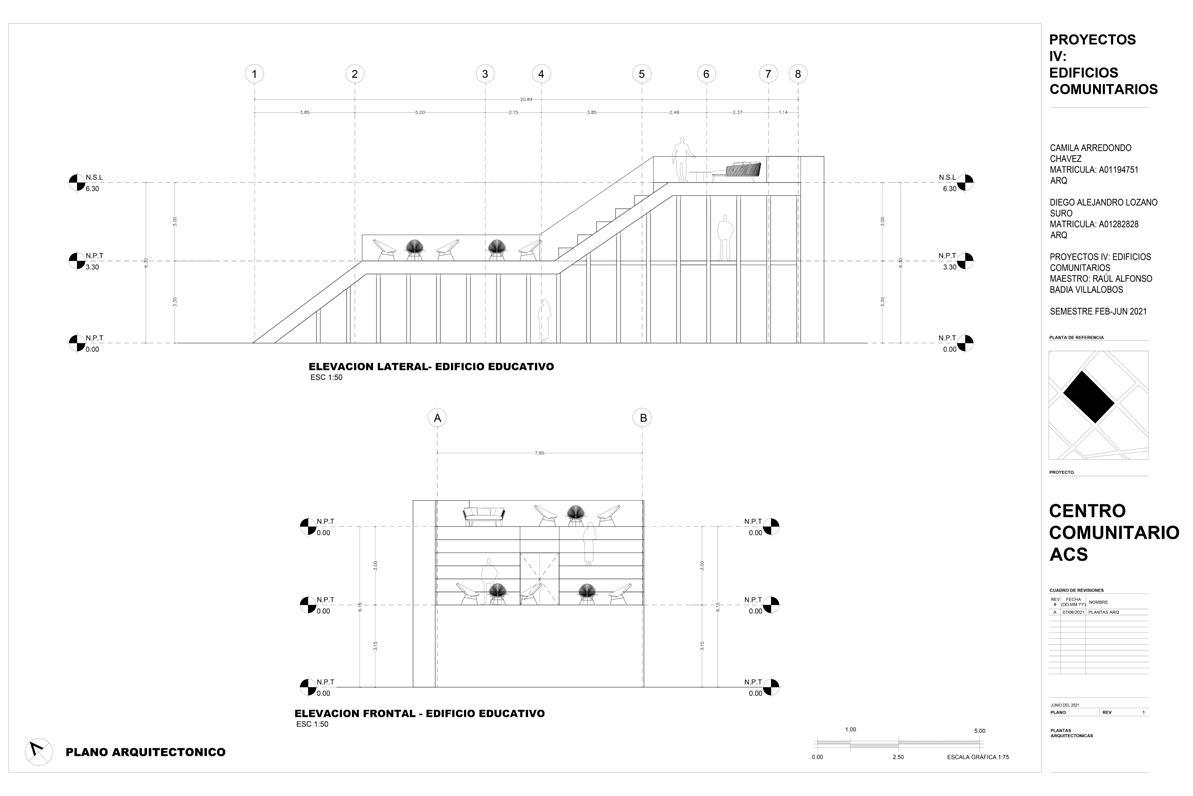

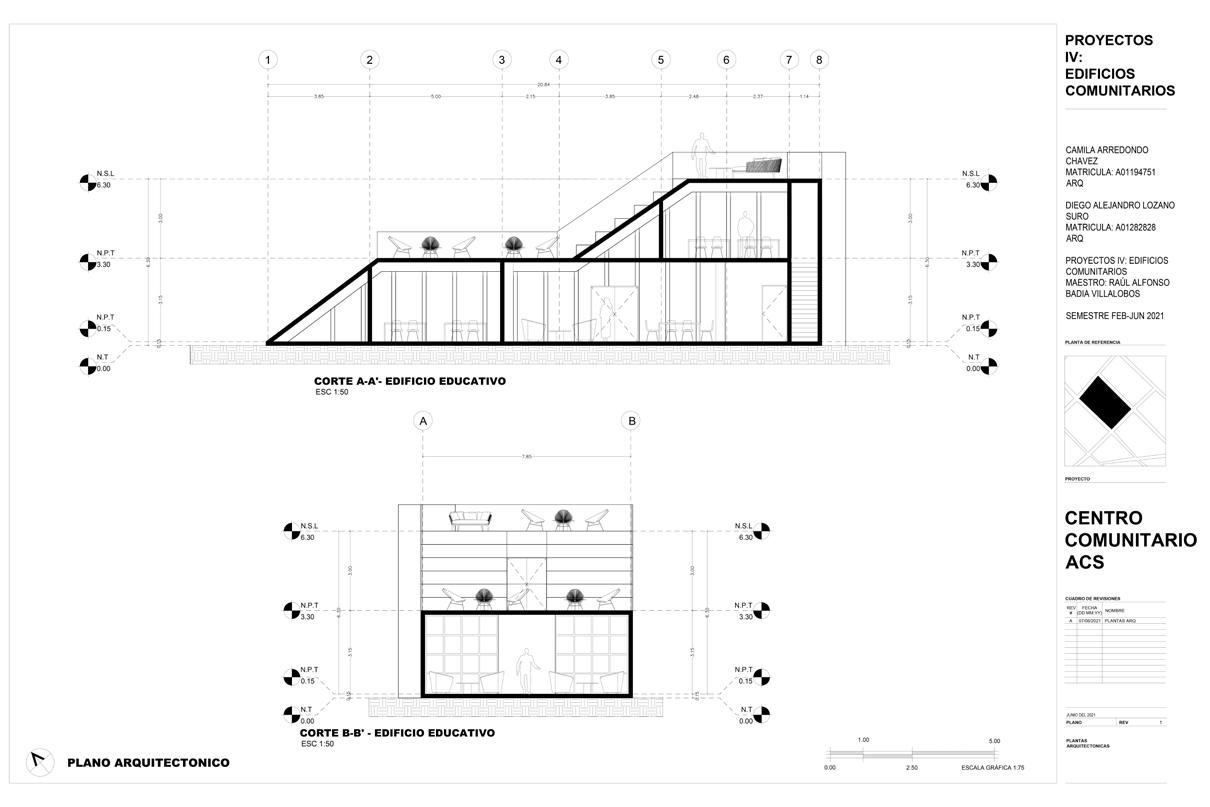

ELEVATION - EDUCATION BUIDLING

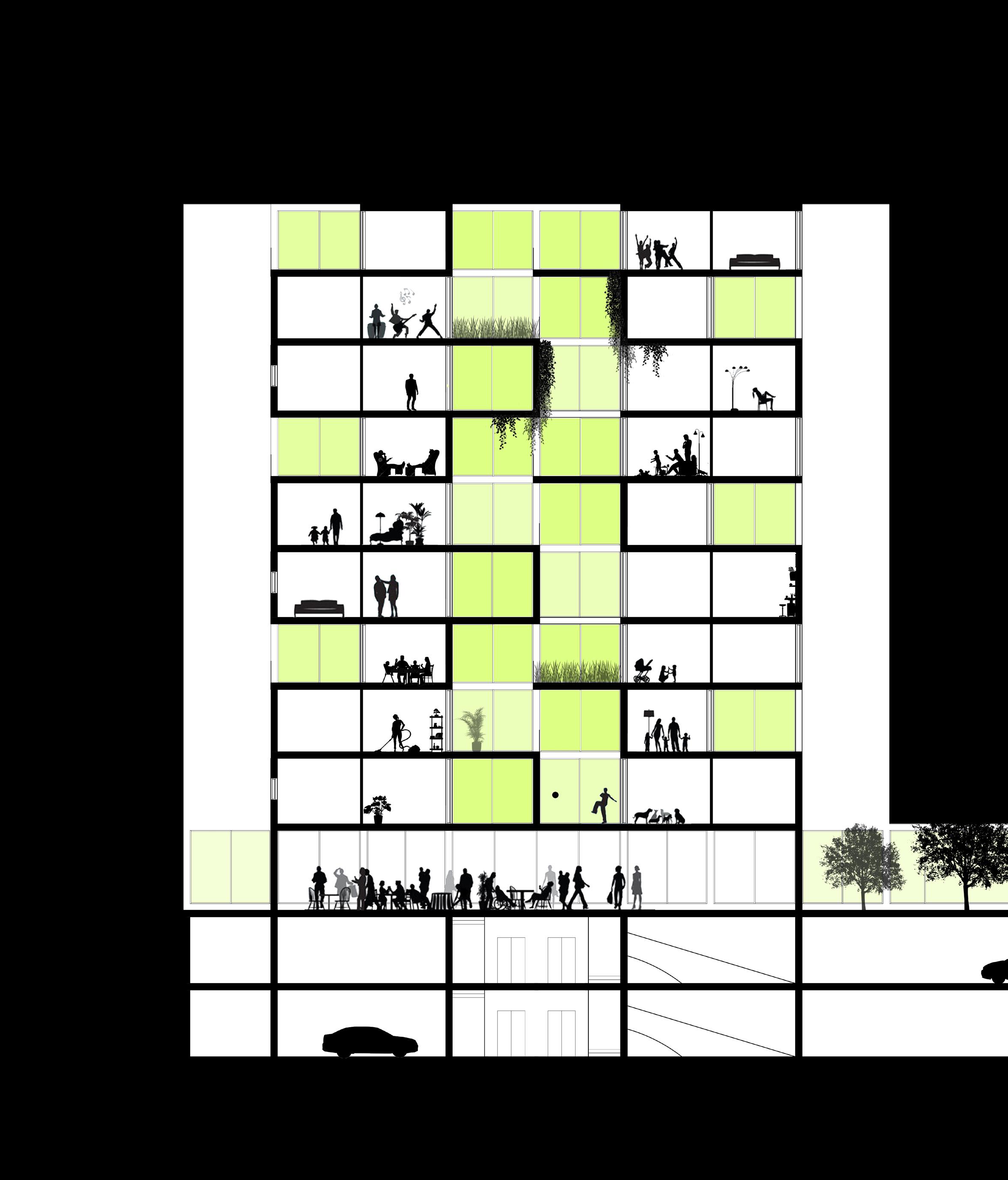

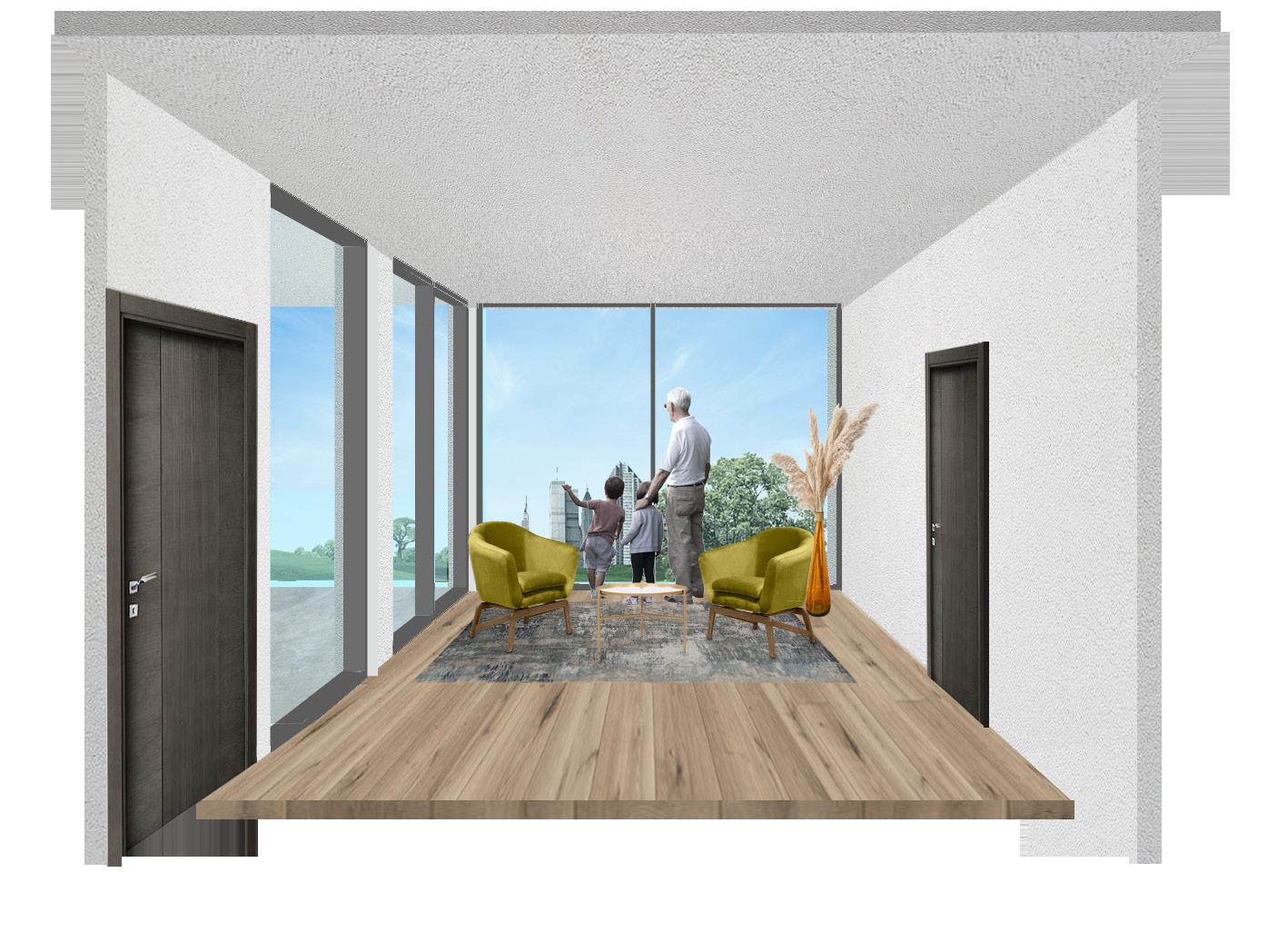

The towers are designed with the purpose of offering the users a space they can call home. In recent times we have realized that outdoor areas have become just as important as indoor areas and sustainability is an indisputable factor in the design and construc tion of any project. AEDAS towers are designed with a modular pre fabricated system that makes construction easier and more sus tainable. The typologies are made up of 12 modules which can be rearranged to create different outdoor spaces and indoor accommo dations. As well as housing, the towers include many amenities like a gimnasium, pool, tv room, play room and a vast green outdoor area.
03 TORRES AEDAS Achitectural Projects V Off-Site Housing Location: Madrid, Spain Area: 32,00 m2 Year: 2021

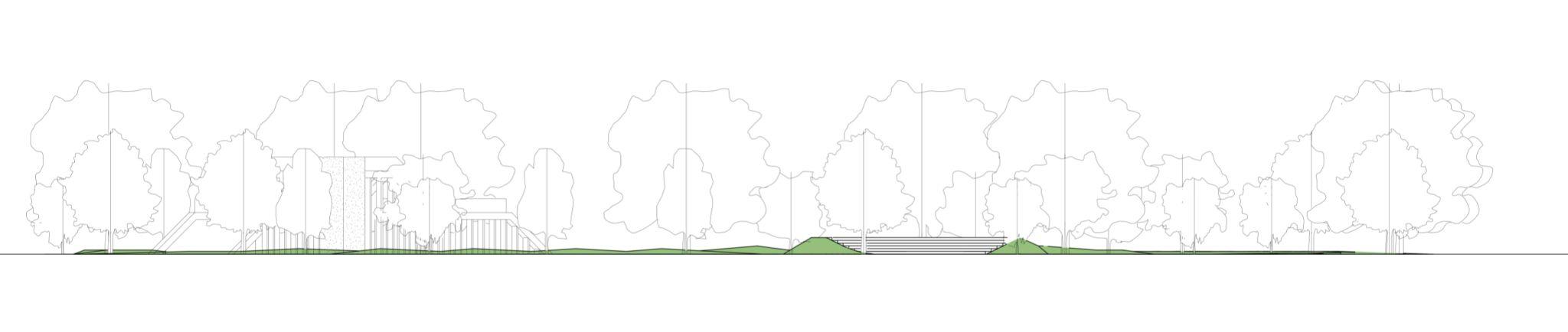

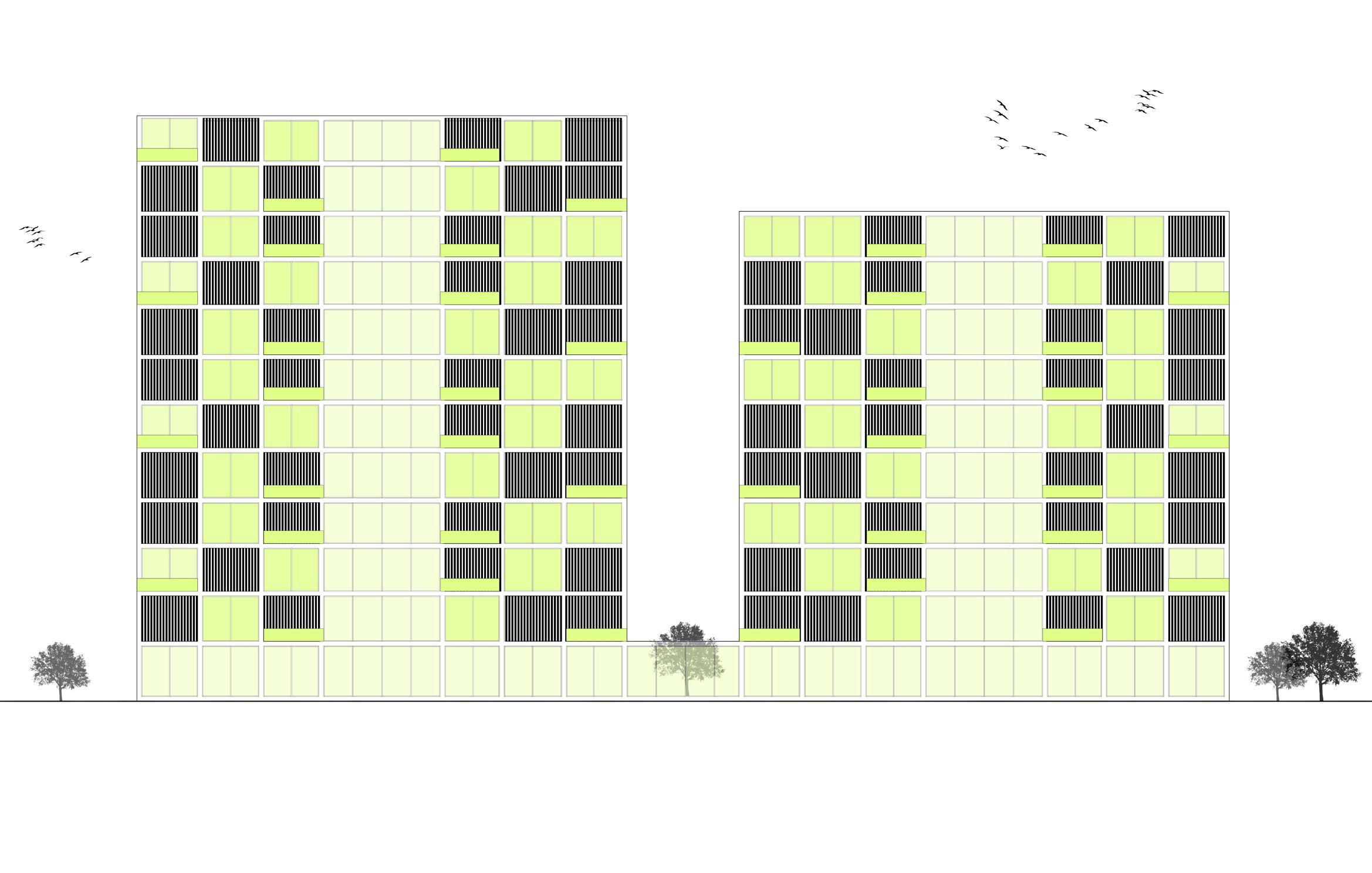

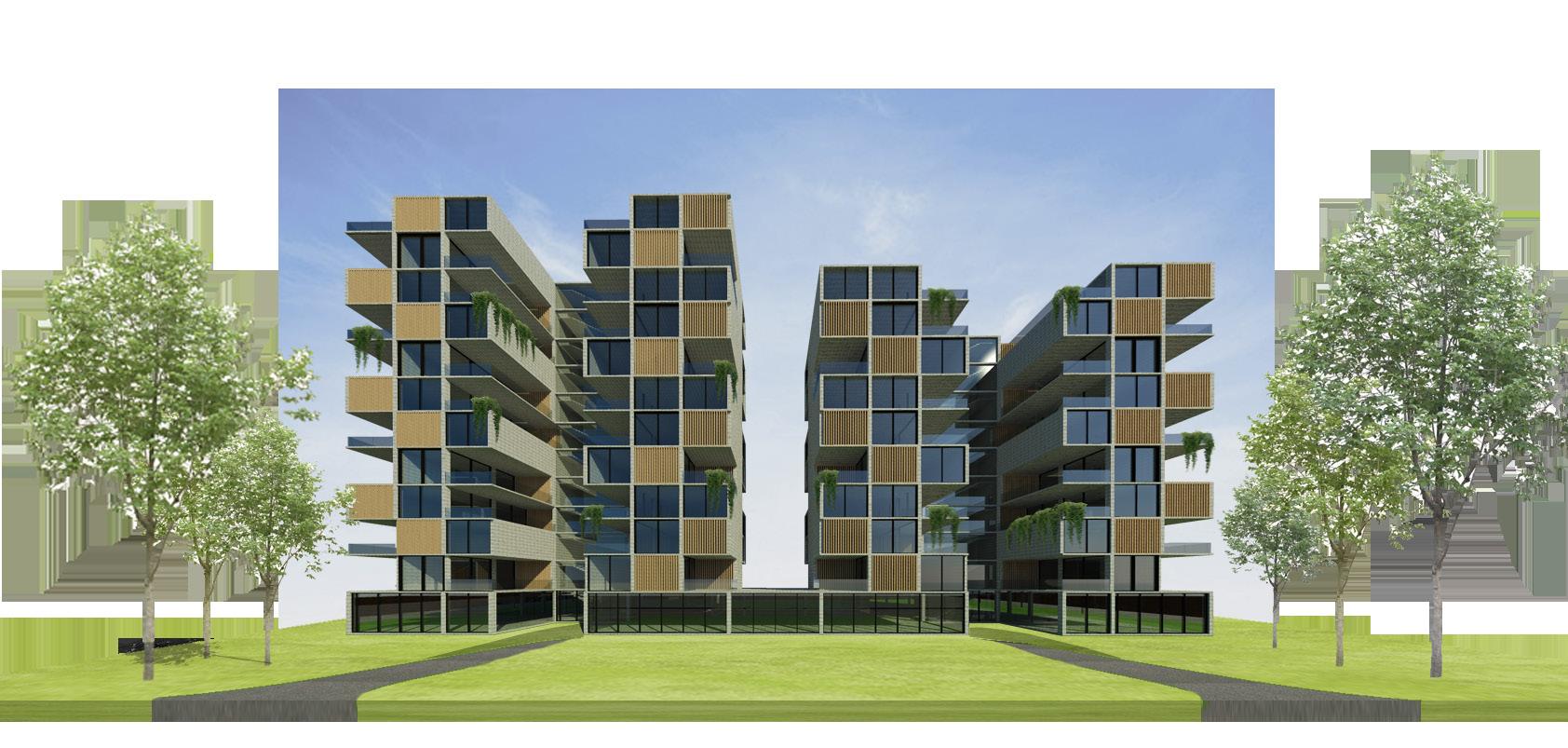

FRONT ELEVATION.

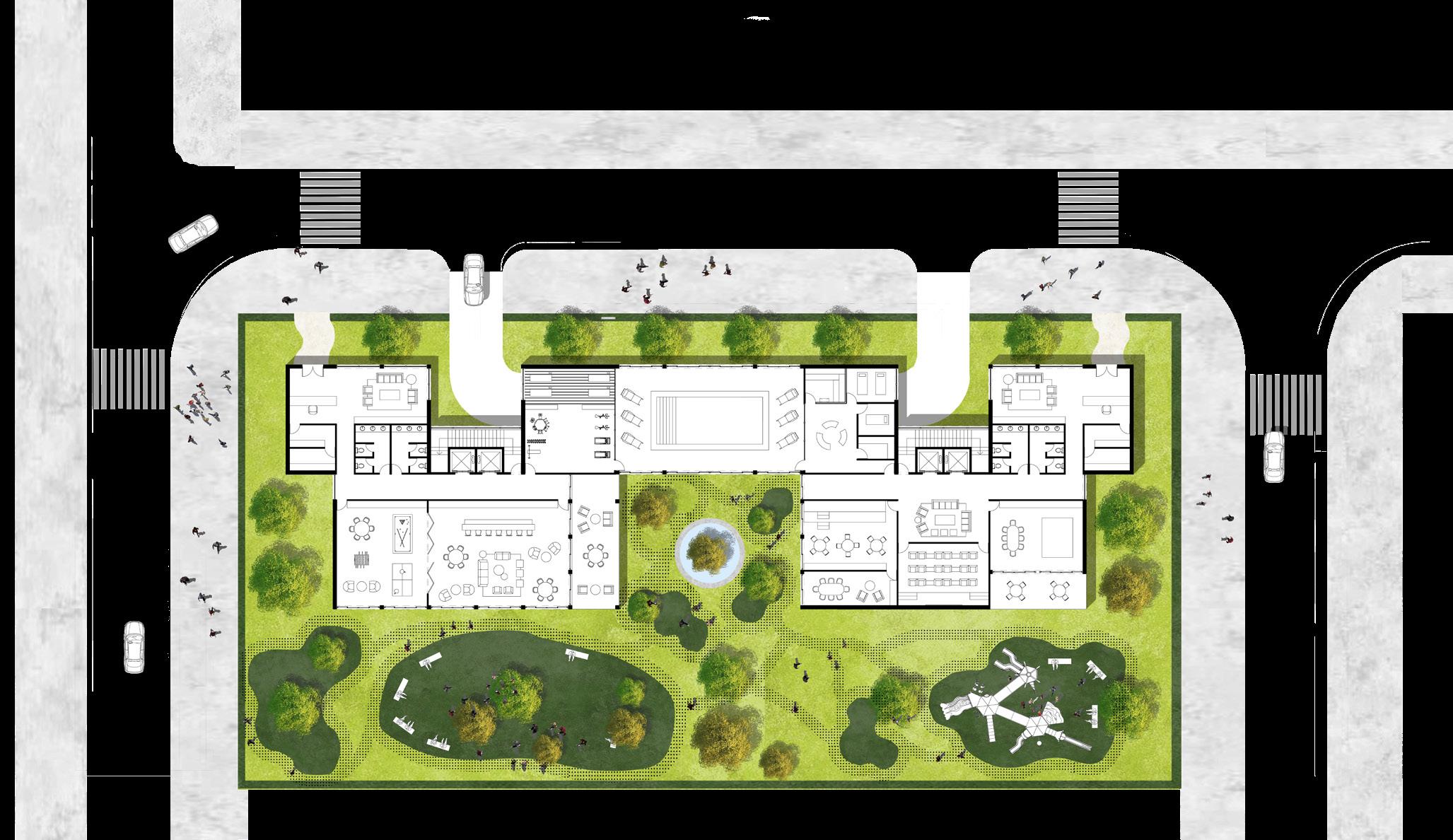

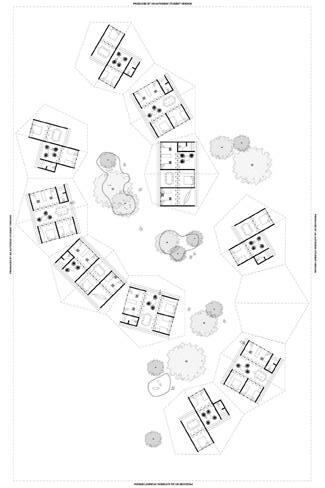

VERSIONSTUDENTAUTODESKANBYPRODUCED VERSIONSTUDENTAUTODESKANBYPRODUCED PRODUCED BY AN AUTODESK STUDENT VERSION VERSIONSTUDENTAUTODESKANBYPRODUCED PRODUCEDBYANAUTODESKSTUDENTVERSION VERSIONSTUDENTAUTODESKANBYPRODUCED 2ND FLOOR PLAN 3RD FLOOR PLAN SITE PLAN

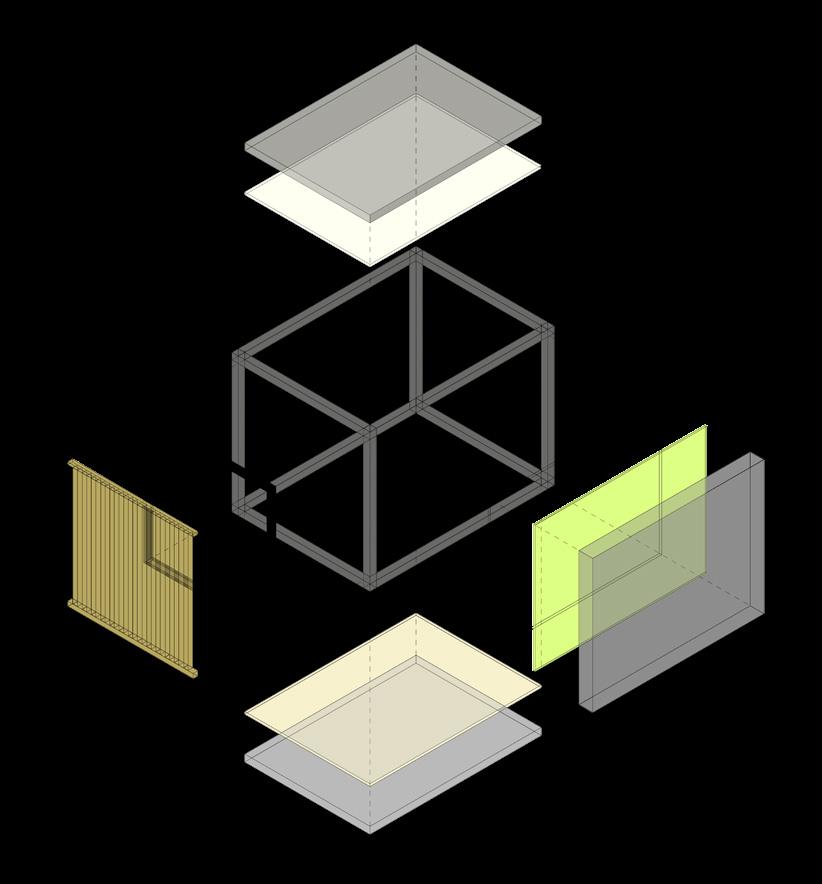

TIPOLOGY 1 TIPOLOGY 2 TIPOLOGY 3 TIPOLOGY 4 ENCLOSURECOVERINGENCLOSURESTRUCTUREFLOOR OFF-SITE MODULAR CONSTRUCTION DAY NIGHTAREAAREA = MODULE INTERIOR EXTERIOR ENCLOSURE Curtain wall with reflecting solar glazing Black metallic structure Wooden shutters Prefabricated concrete walls with thermal insulation + cladding COVERING Downspout drain Precast concrete slab STRUCTURE Steel structure Columns and beams UPN 140 Assembly on all sides 12 modules per typology Stackable with welding FLOOR Concreting + coating (according to the use of space) ADDITIONAL EQUIPMENT Sanitary, lighting, air conditioning, telephone, etc.
LONGITUDINAL SECTION.

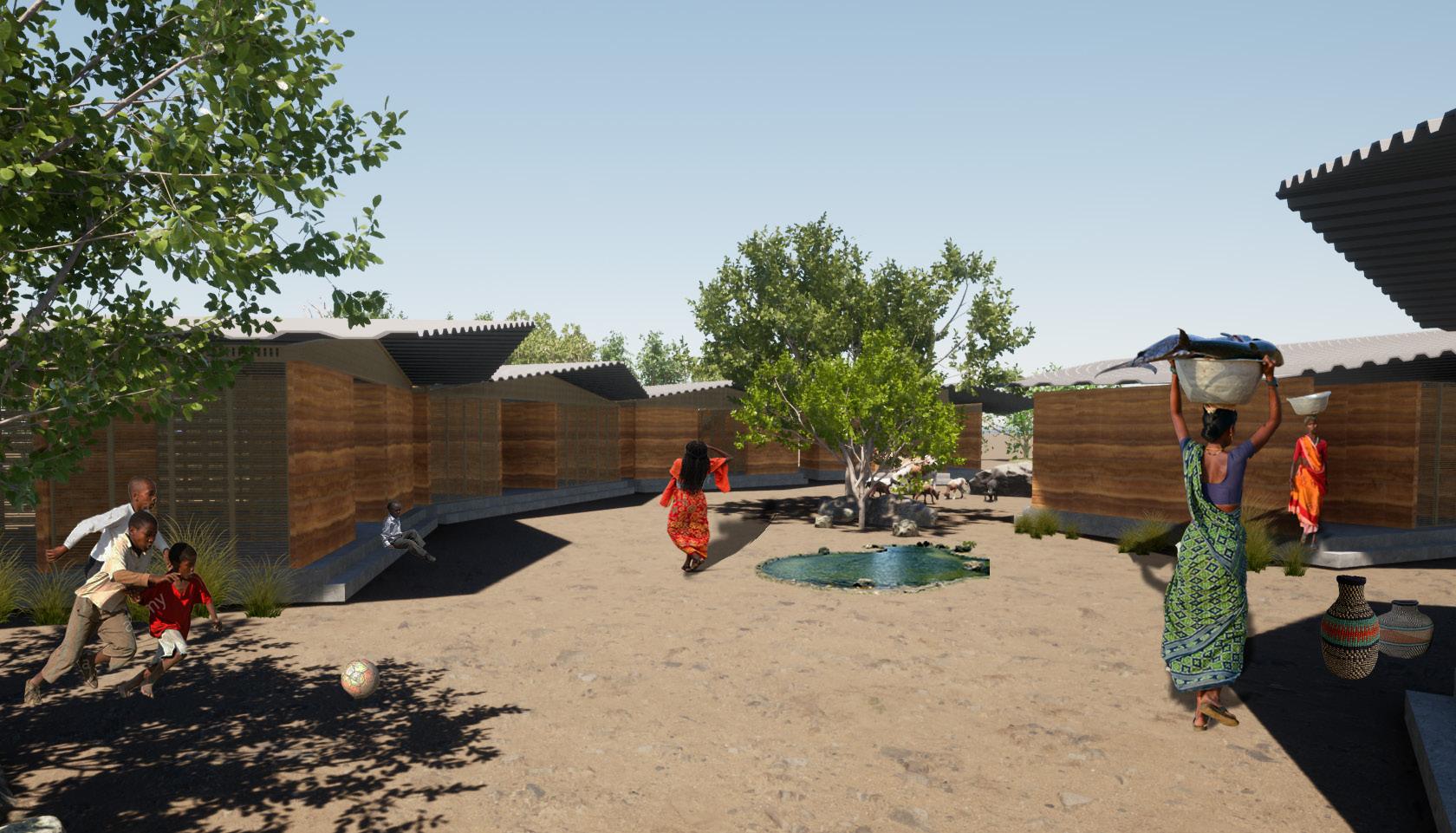

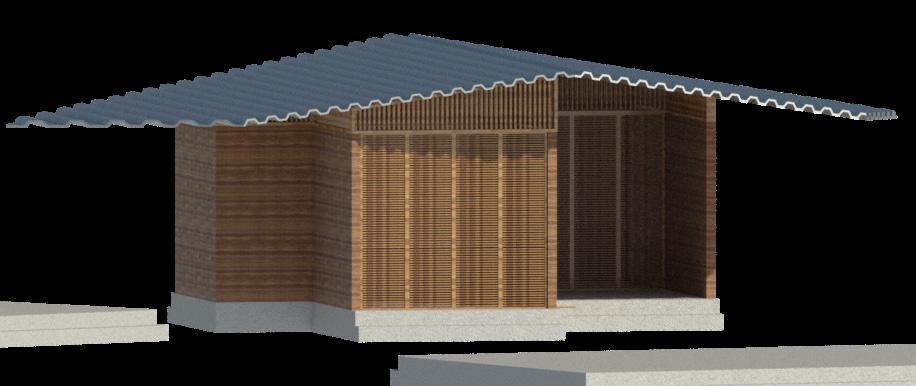

YONI VILLAGE
04

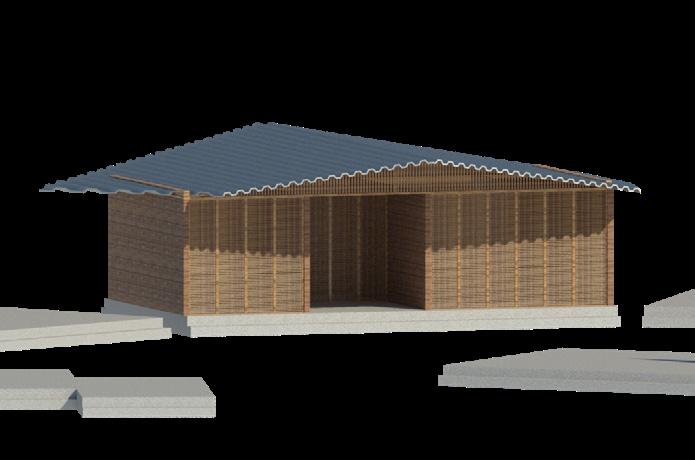

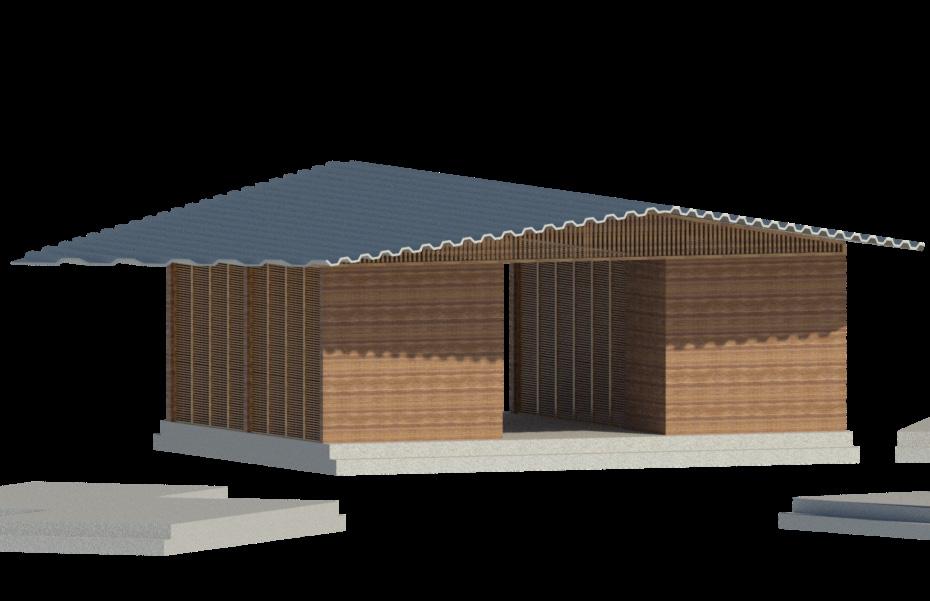

Achitectural Projects V Modular Arquitecture Location: Yoni, SierraYear:Leone2021 Yonis’ population is rapidly growing, making it hard for the village to ad just its architectural footprint, infrastructure and quality of life. This project proposal follows a design that allows incremental growth and an architec ture that responds to climatological needs using sustainable strategies. Six modules are established and with different combinations three typologies are created, all unified by a zinc roof. The dwellings are arranged in a semi circular shape, which enables an easy and seamless addition and con nection to other dwellings. Vernacular construction strategies are used to make the dwellings more sustainable and easy to build for the local people.

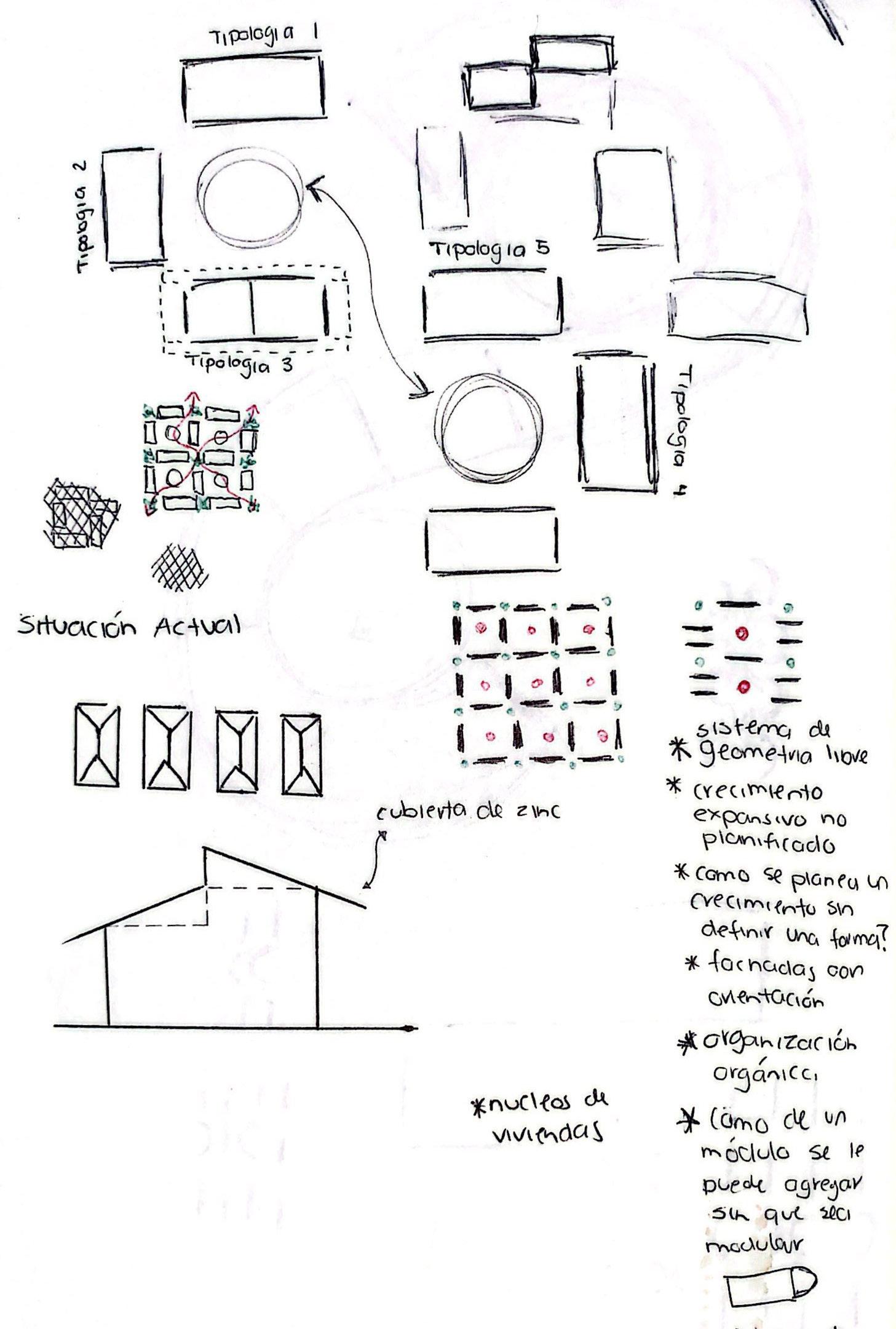

The hexagonal roofing allows for an easy unification of every dwelling CONNECTION Nuclei are created at the center of the dwellings that allow them to con nect and coexist CONNECTION All the dwellings have direct connection with the nuclei and its surroundings GROWTH The community can grow easi ly to satisfy its rapid population growth. The distribution of the dwellings and the tipologies allows for there to always be a direct connecton and circula tion between them.
VERSIONSTUDENTAUTODESKANBYPRODUCED PRODUCED BY AN AUTODESK STUDENT VERSION VERSIONSTUDENTAUTODESKANBYPRODUCED PRODUCEDBYANAUTODESKSTUDENTVERSION UNIDAD CONEXIÓN LA CUBIERTA HEXAGONAL PERMITE LA UNIFICACIÓN FACIL DE CADA VIVIENDA TIPOLOGIA TIPOLOGIATIPOLOGIA231 SE CREAN NÚCLEOS EN EL CENTRO DE LAS VIVIENDAS QUE PERMITE LA CONEXIÓN Y CONVIVENCIA DE ELLAS CUBIERTA TODAS LAS PARCELAS TIENEN CONEXIÓN DIRECTA CON COLECTIVO UNIDAD CONEXIÓN CIRCULACIÓN LA CUBIERTA HEXAGONAL PERMITE LA UNIFICACIÓN FACIL DE CADA VIVIENDA TIPOLOGIA TIPOLOGIATIPOLOGIA231 SE CREAN NÚCLEOS EN EL CENTRO DE LAS VIVIENDAS QUE PERMITE LA CONEXIÓN Y CONVIVENCIA DE ELLAS CUBIERTA CRECIMIENTO LA COMUNIDAD PUEDE INCREMENTAR FÁCILMENTE PARA SATISFACER LA RÁPIDO POBLACIÓN CRECIENTE. LA DISTRIBUCIÓN DE LAS PARCELAS Y LAS TIPOLOGÍAS PERMITE QUE SIEMPRE HAYA CONEXIÓN Y UNA CIRCULACIÓN ENTRE ELLAS.
TODAS LAS PARCELAS TIENEN CONEXIÓN DIRECTA CON LOS NÚCLEOS Y SUS ALREDEDORES COLECTIVO UNITY
TODAS LAS PARCELAS TIENEN CONEXIÓN DIRECTA CON LOS NÚCLEOS Y SUS ALREDEDORES COLECTIVO UNIDAD CONEXIÓN CIRCULACIÓN LA CUBIERTA HEXAGONAL PERMITE LA UNIFICACIÓN FACIL DE CADA VIVIENDA TIPOLOGIA TIPOLOGIATIPOLOGIA231 SE CREAN NÚCLEOS EN EL CENTRO DE LAS VIVIENDAS QUE PERMITE LA CONEXIÓN Y CONVIVENCIA DE ELLAS CUBIERTA CRECIMIENTO LA COMUNIDAD PUEDE INCREMENTAR FÁCILMENTE PARA SATISFACER LA RÁPIDO POBLACIÓN CRECIENTE. LA DISTRIBUCIÓN DE LAS PARCELAS Y LAS TIPOLOGÍAS PERMITE QUE SIEMPRE HAYA CONEXIÓN Y UNA CIRCULACIÓN ENTRE ELLAS.

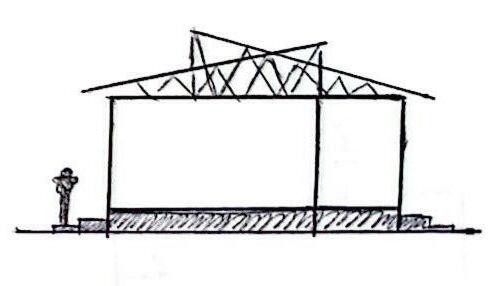

TIPOLOGY 1 TIPOLOGY 2 11 22 33 44A A B B C C D D PRODUCEDBYANAUTODESKSTUDENTVERSION VERSIONSTUDENTAUTODESKANBYPRODUCED 11 22 33A A B B C C D D 11 22 33 44A A B B C C VERSIONSTUDENTAUTODESKANBYPRODUCED TIPOLOGY 3 CBADCBADCBA CBA VERSIONSTUDENTAUTODESKANBYPRODUCED Bambu Structure Mud Walls Zinc ConcreteRoofingFlooring 50cms CROSS VENTILATION The latticework allows the entry of wind and light. Fresh air passes freely throught the fa cade while warm air comes up and through the bamboo structure

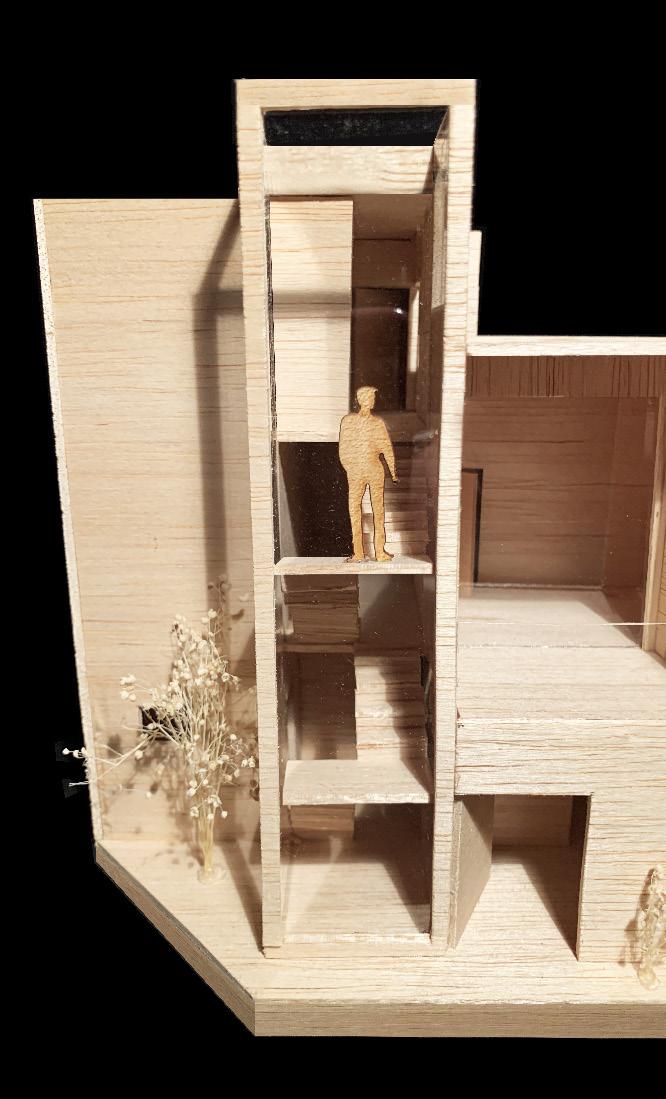

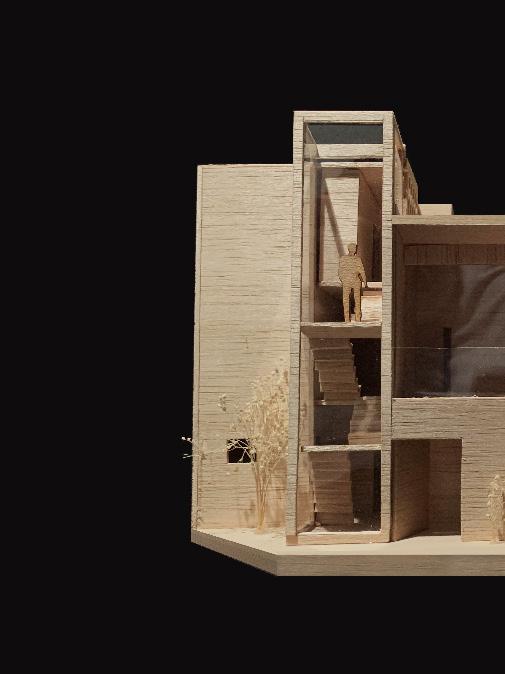

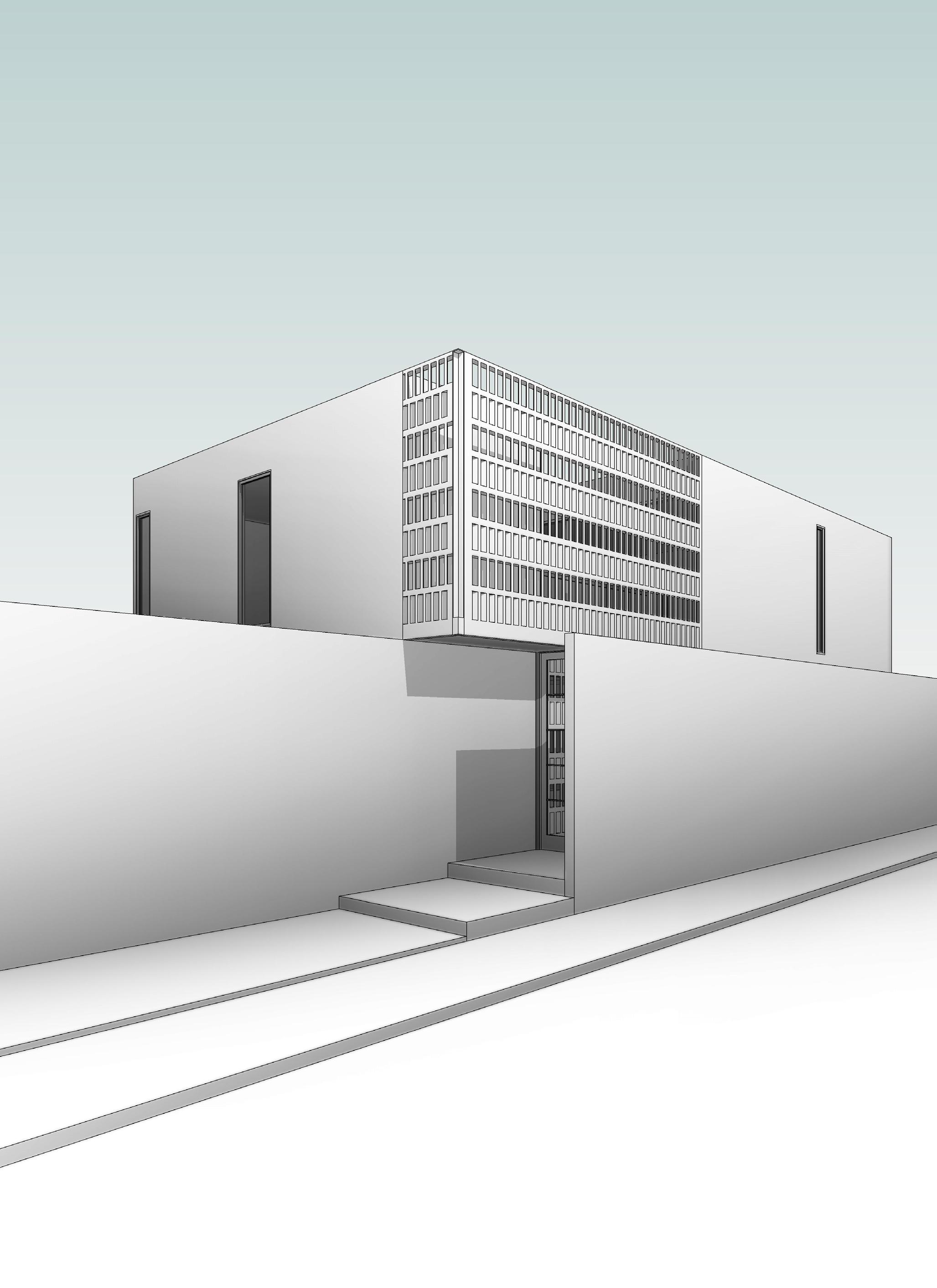

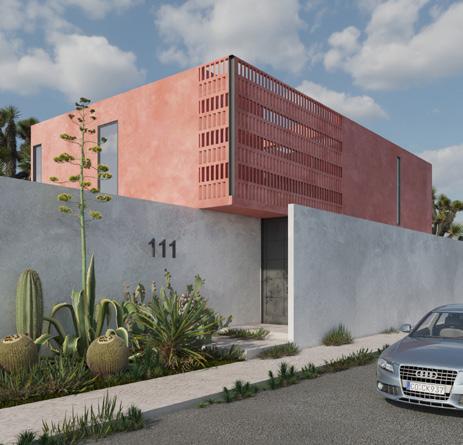

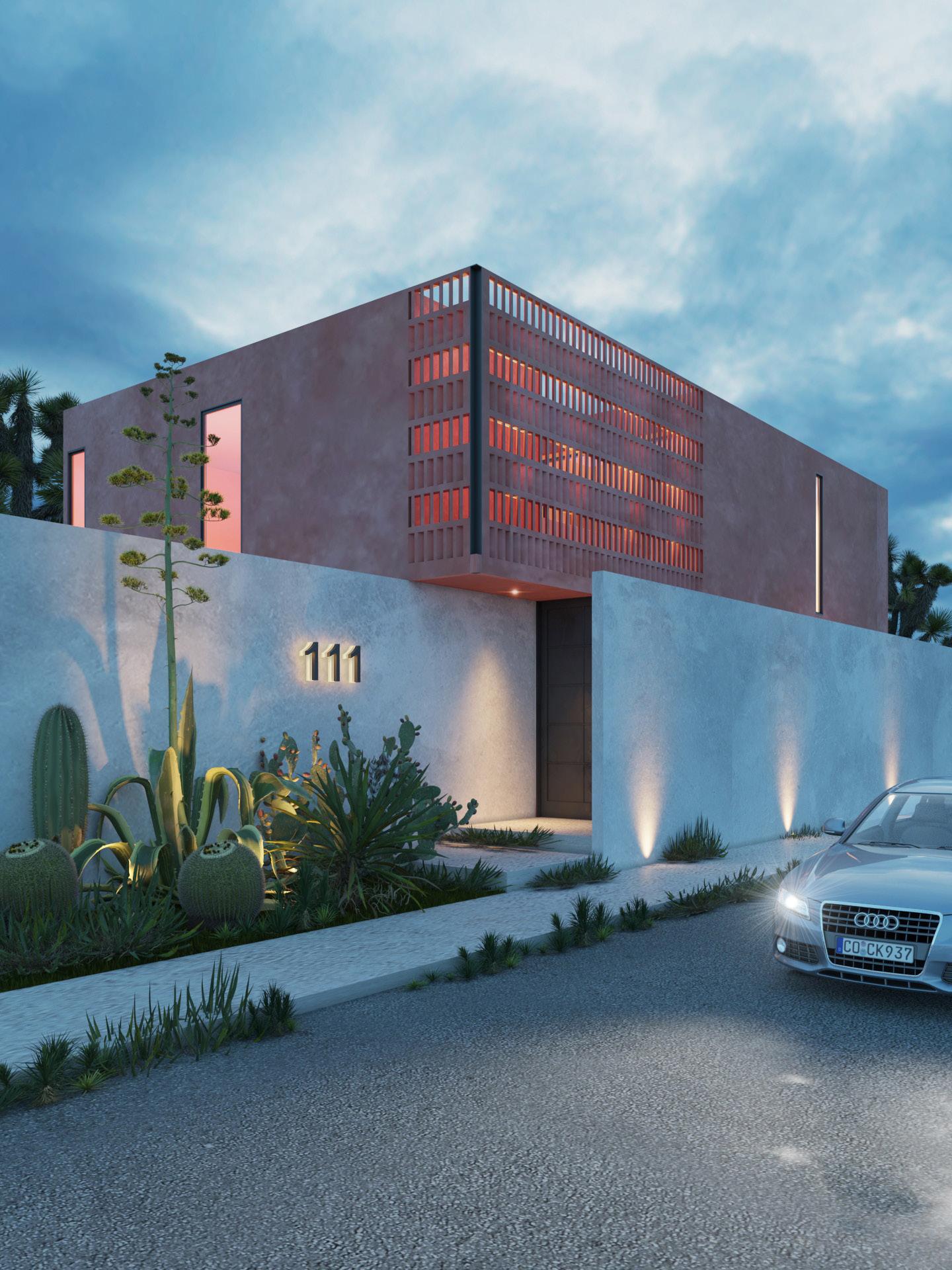

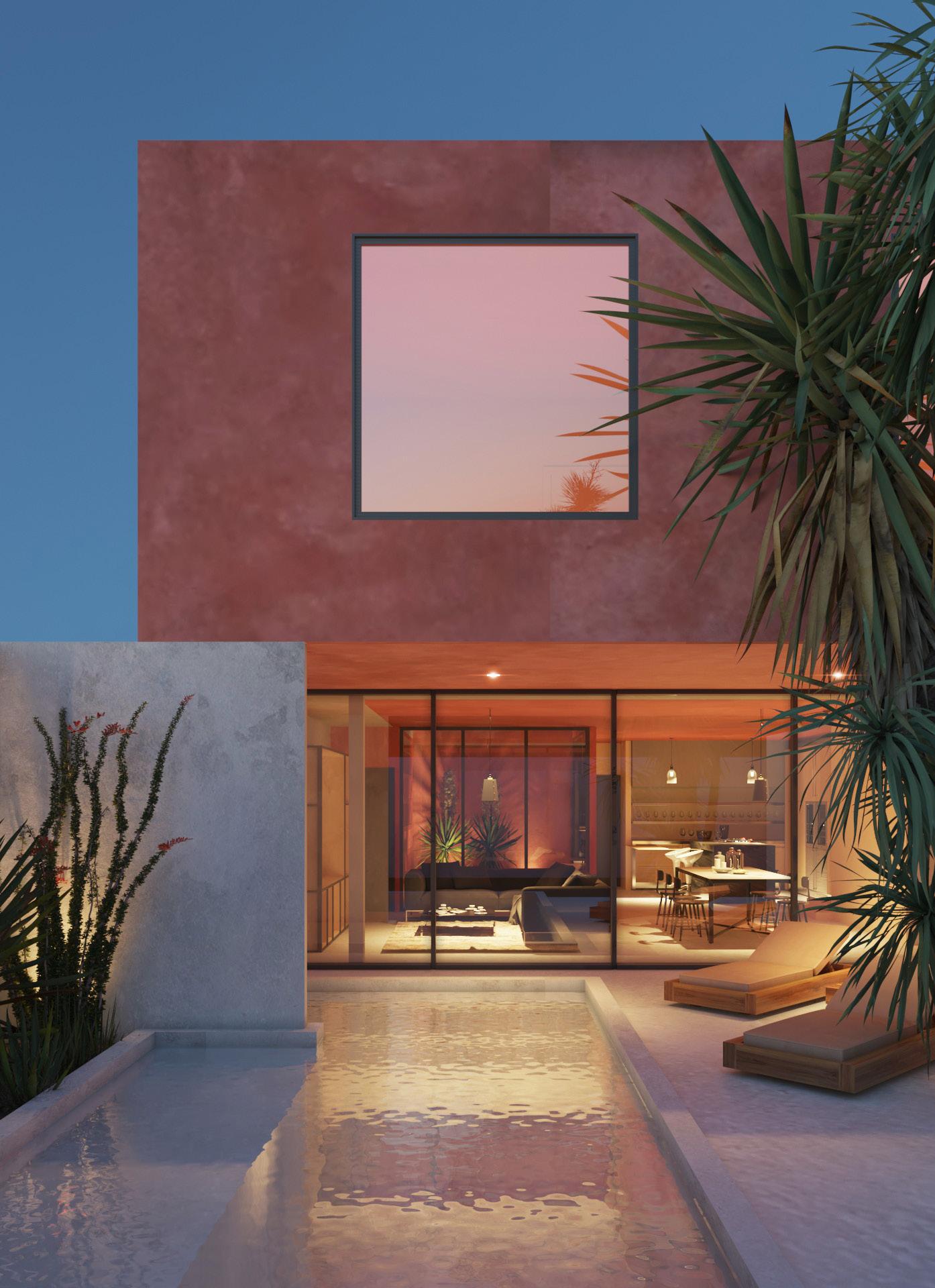

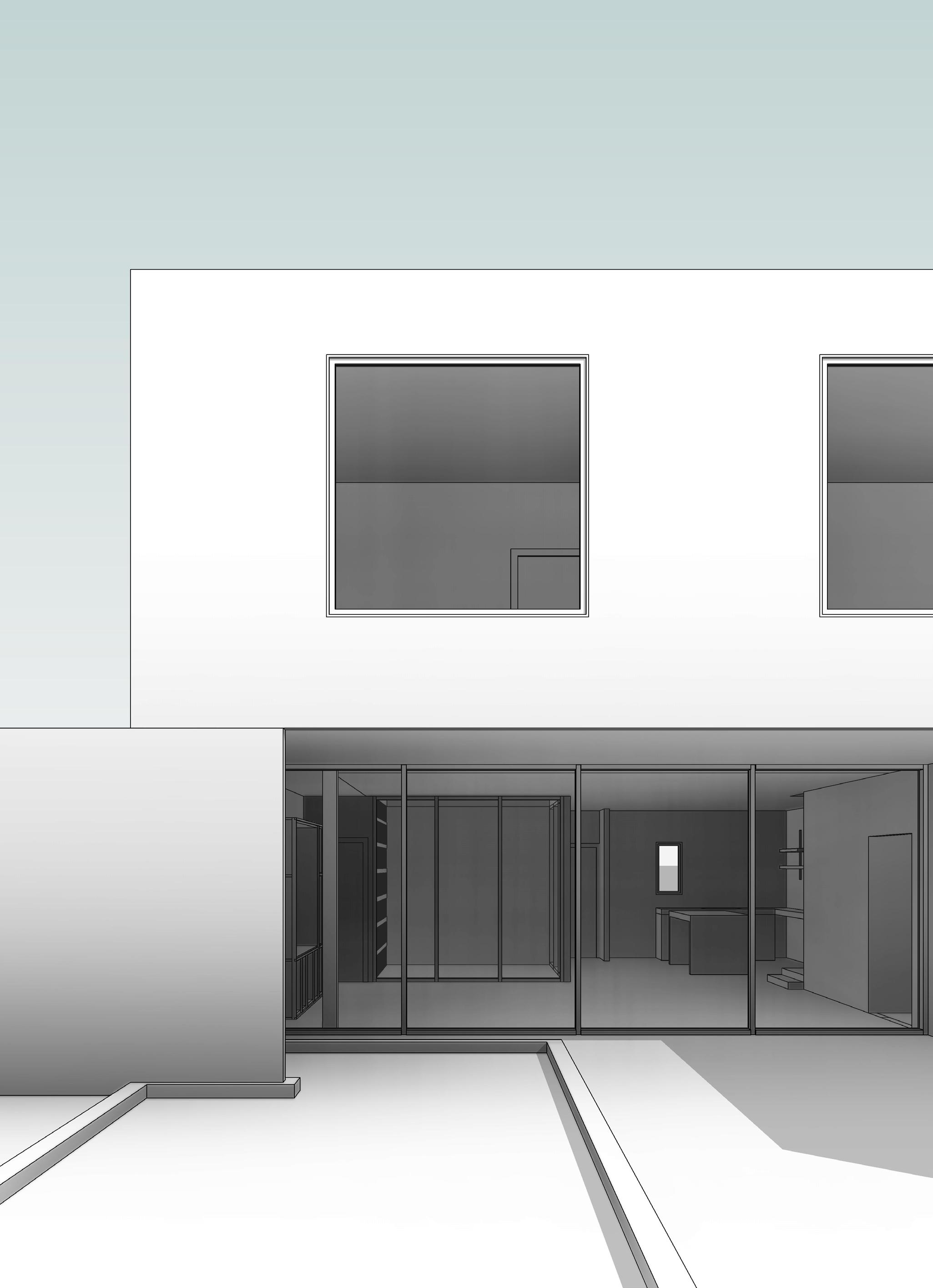

05 3D MODELLING AND RENDERING REVIT + 3D MAX + VRAY Model and rendering of Casa Bugambilias by Taller de Arquitectura Mexicana

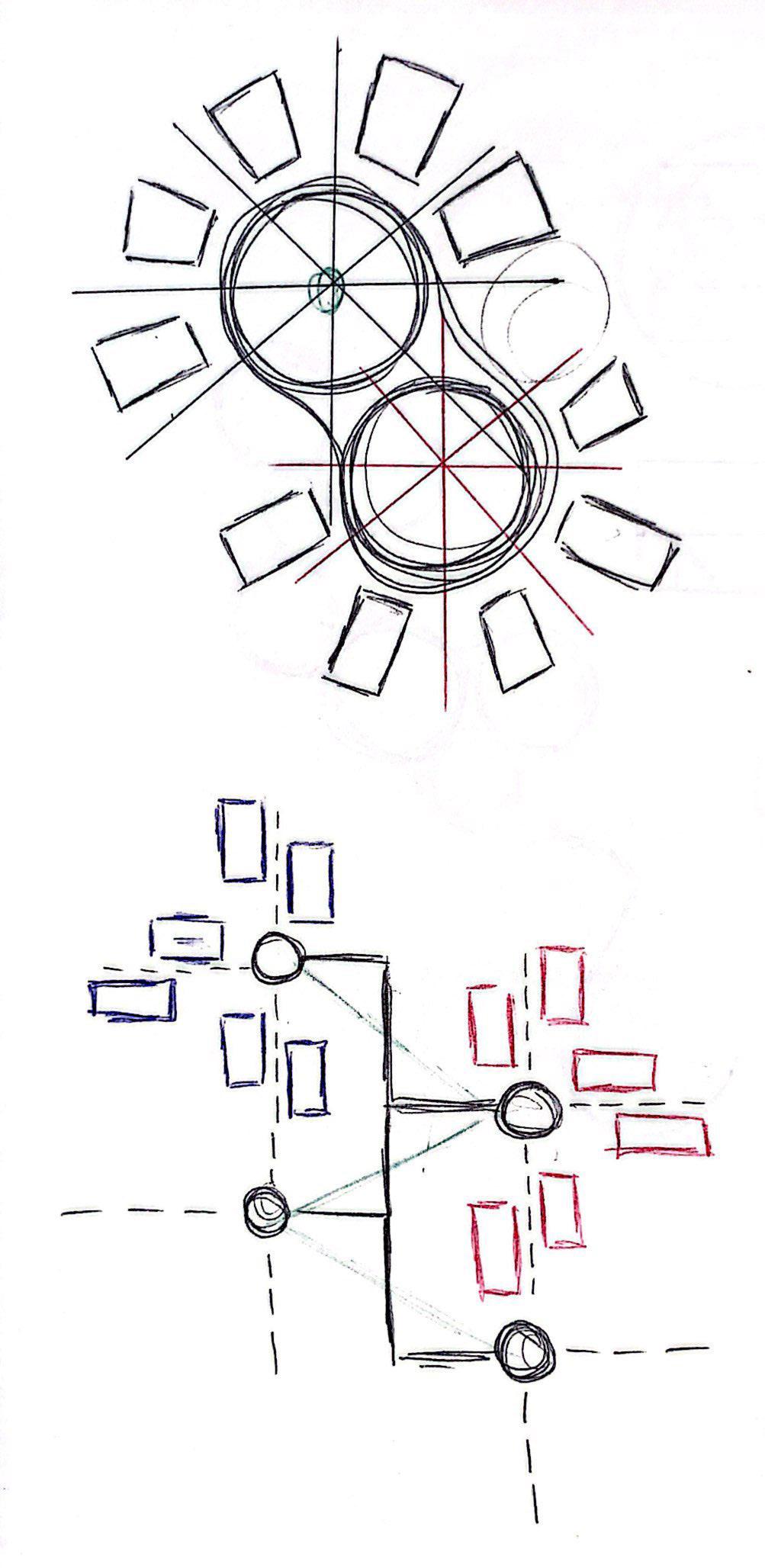

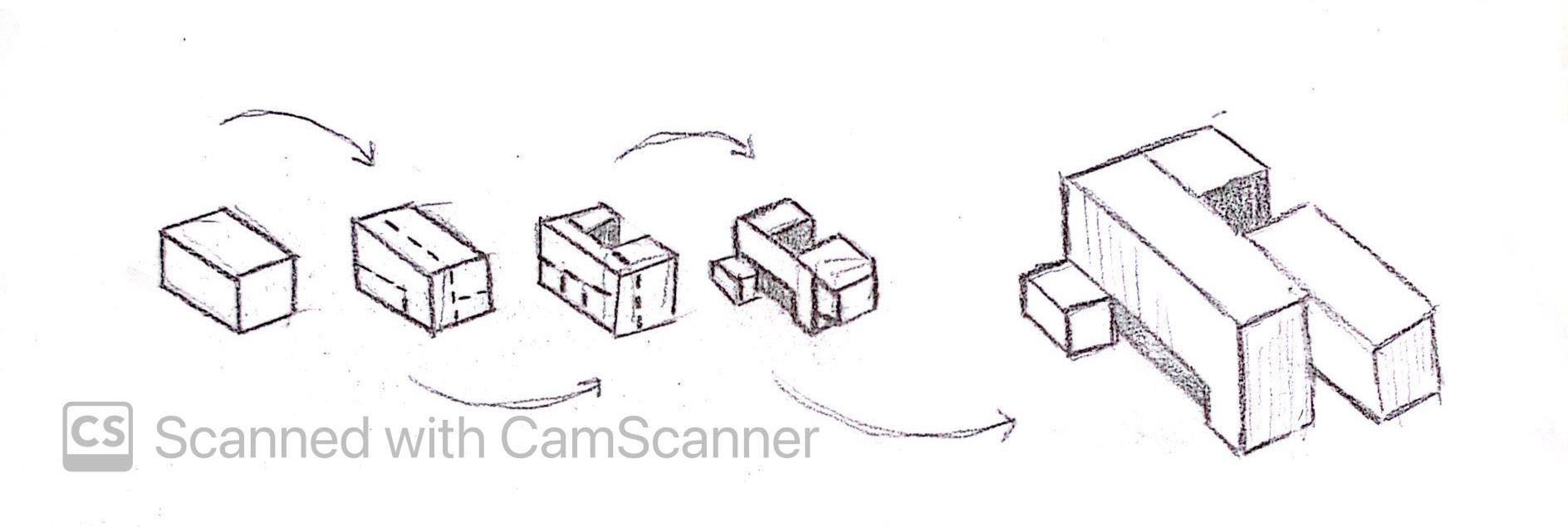

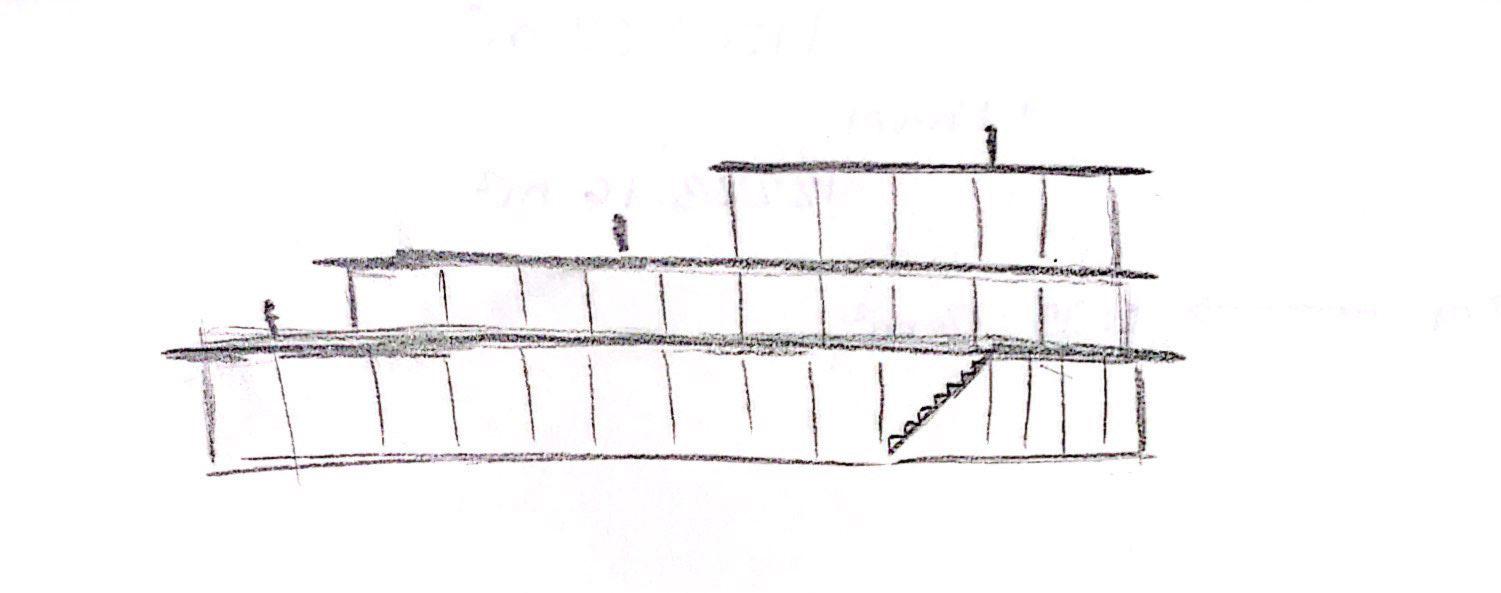

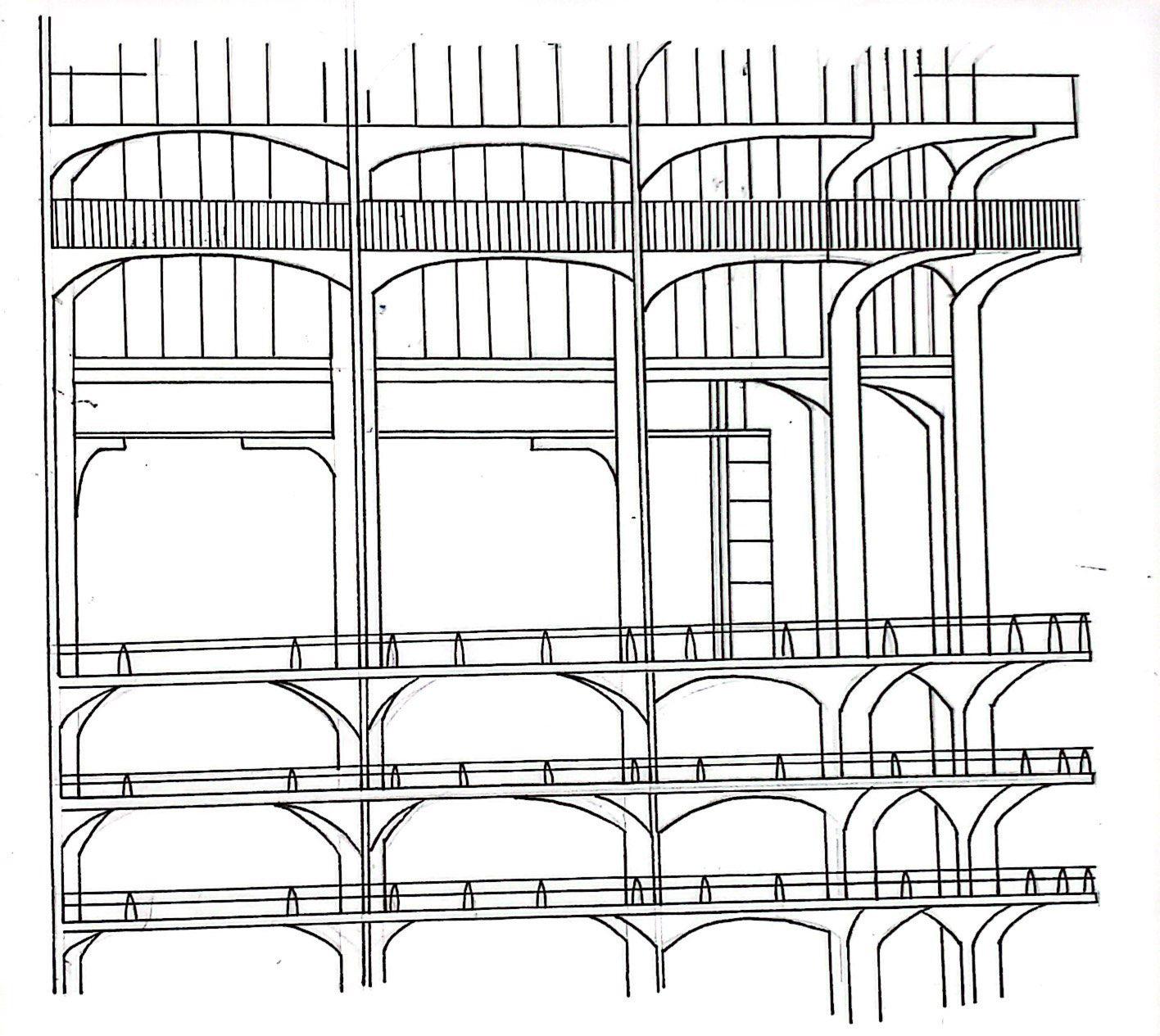

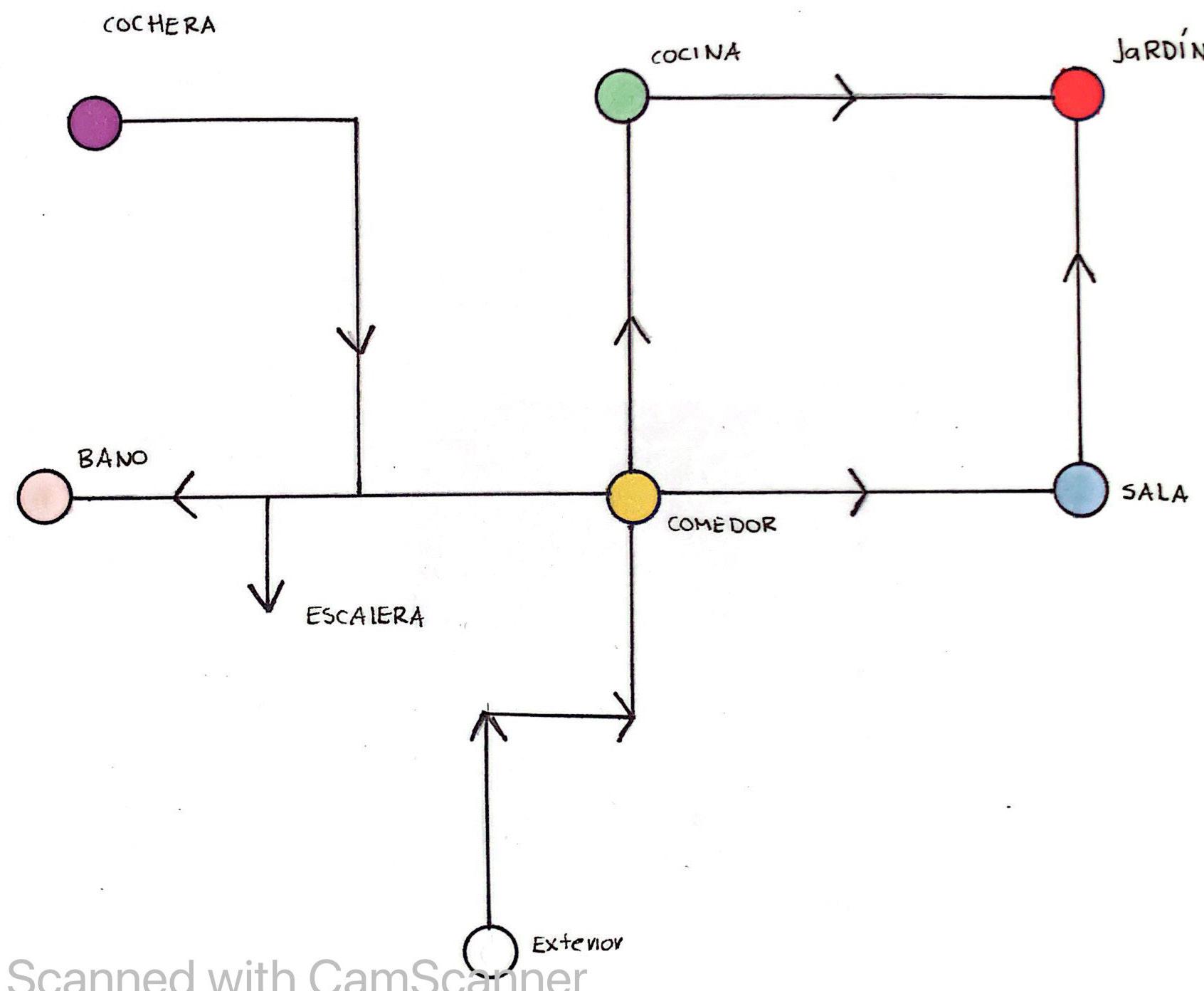

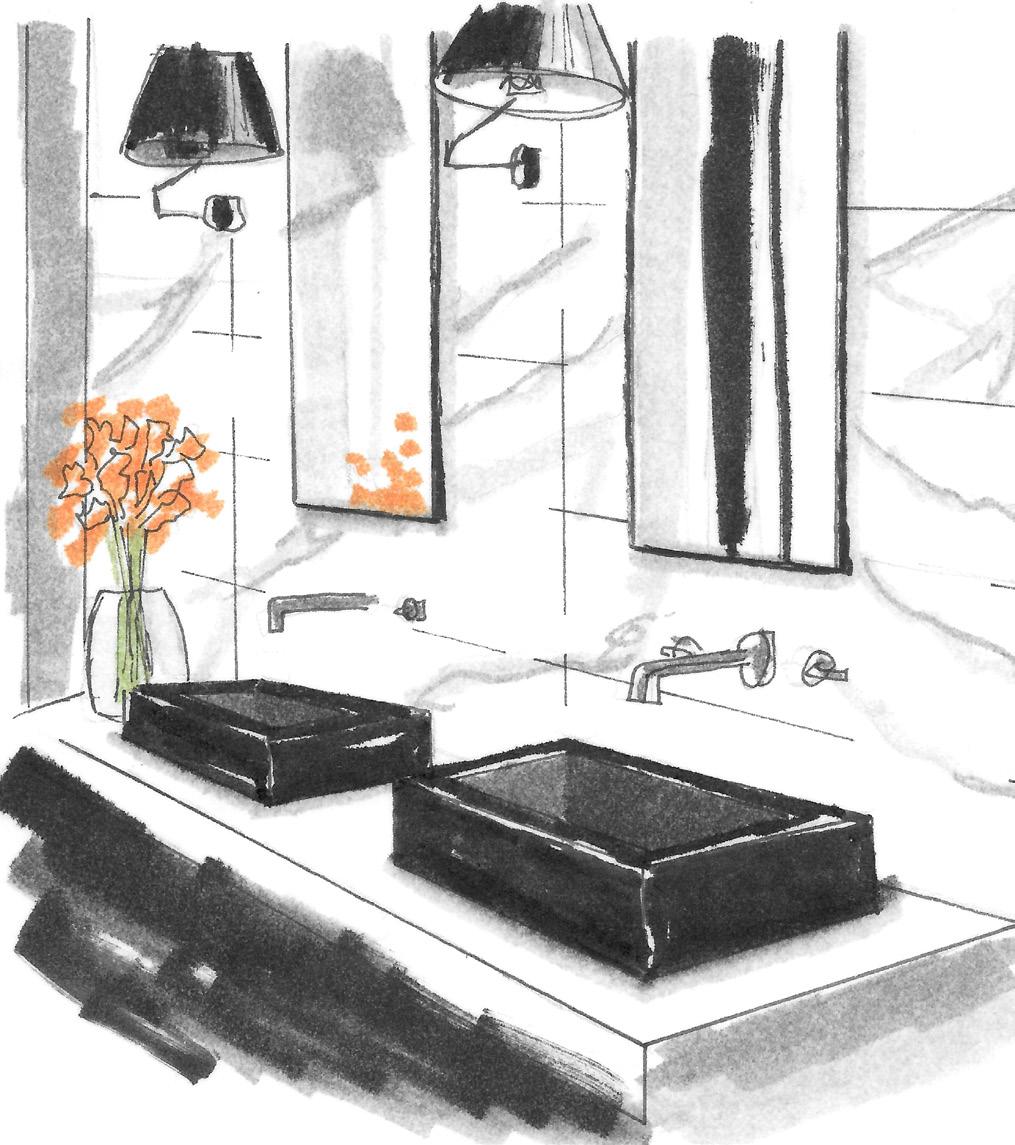

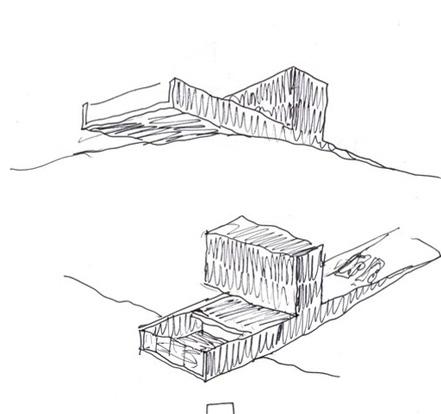

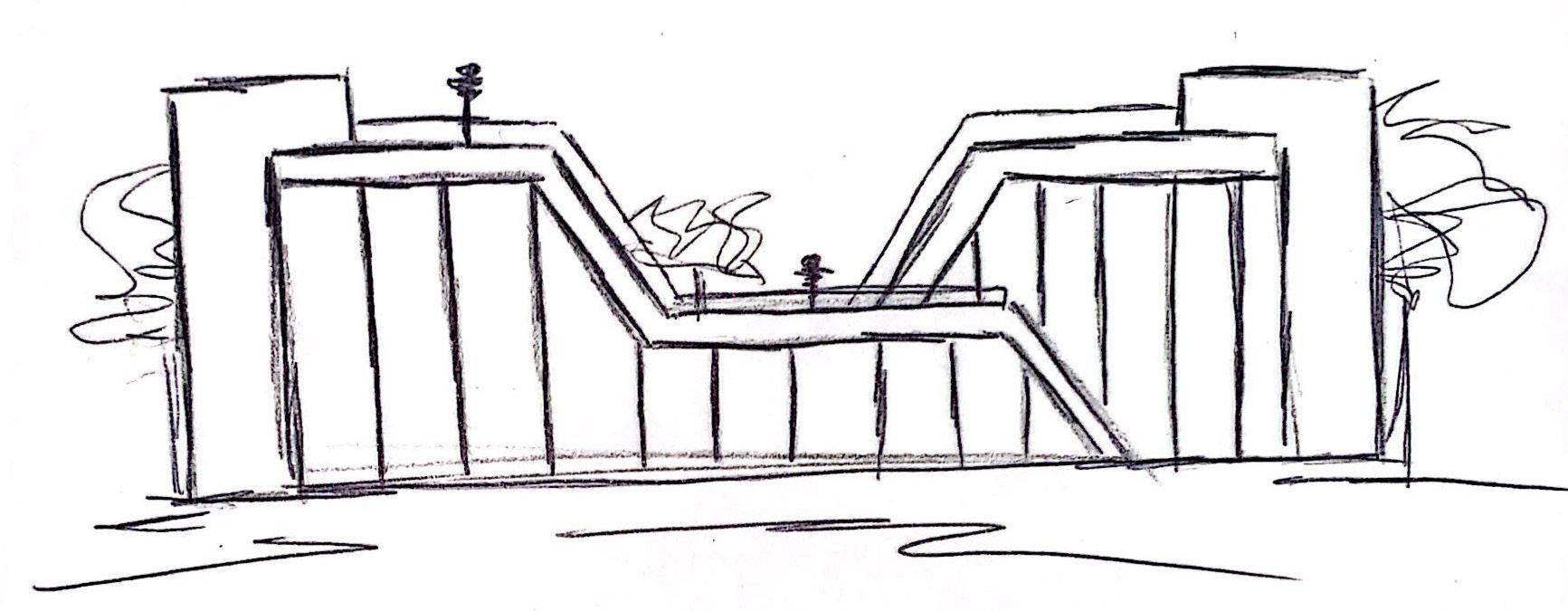

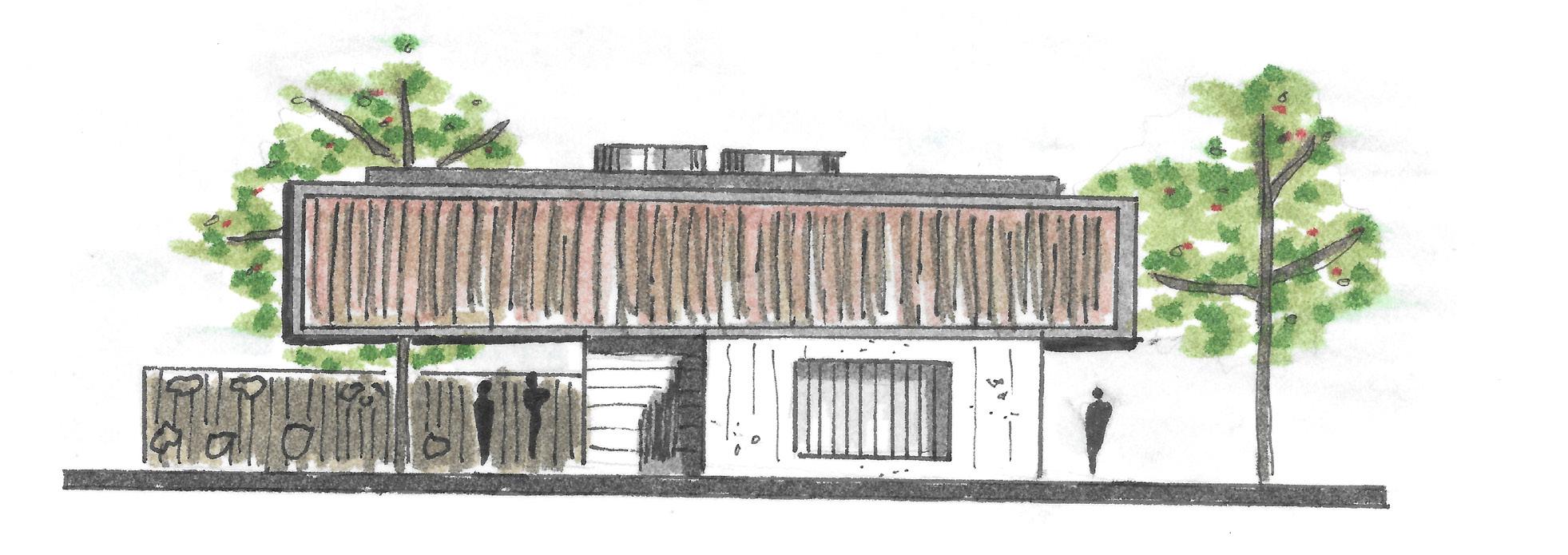

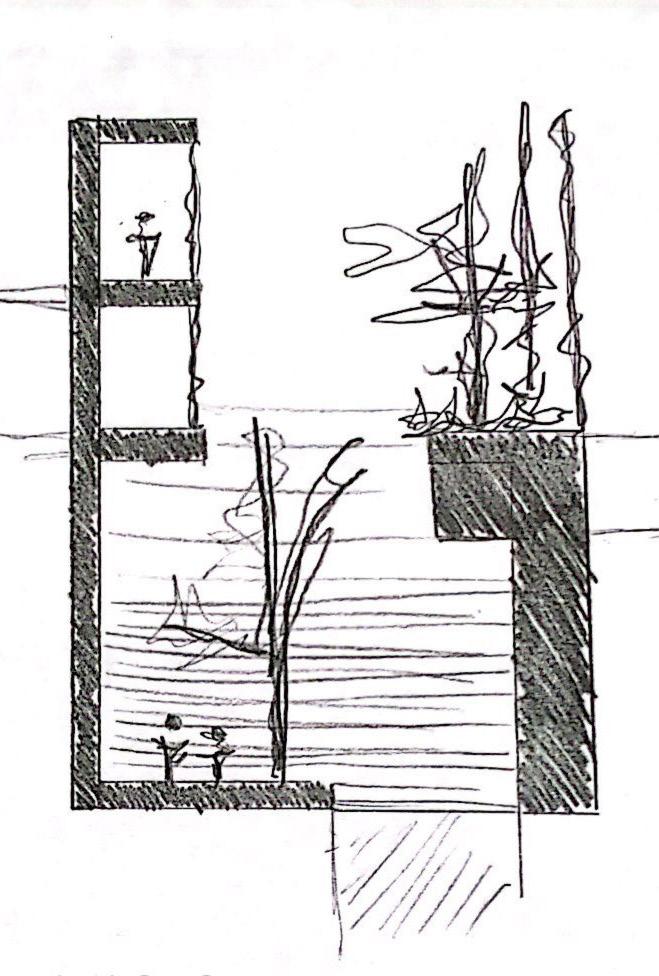

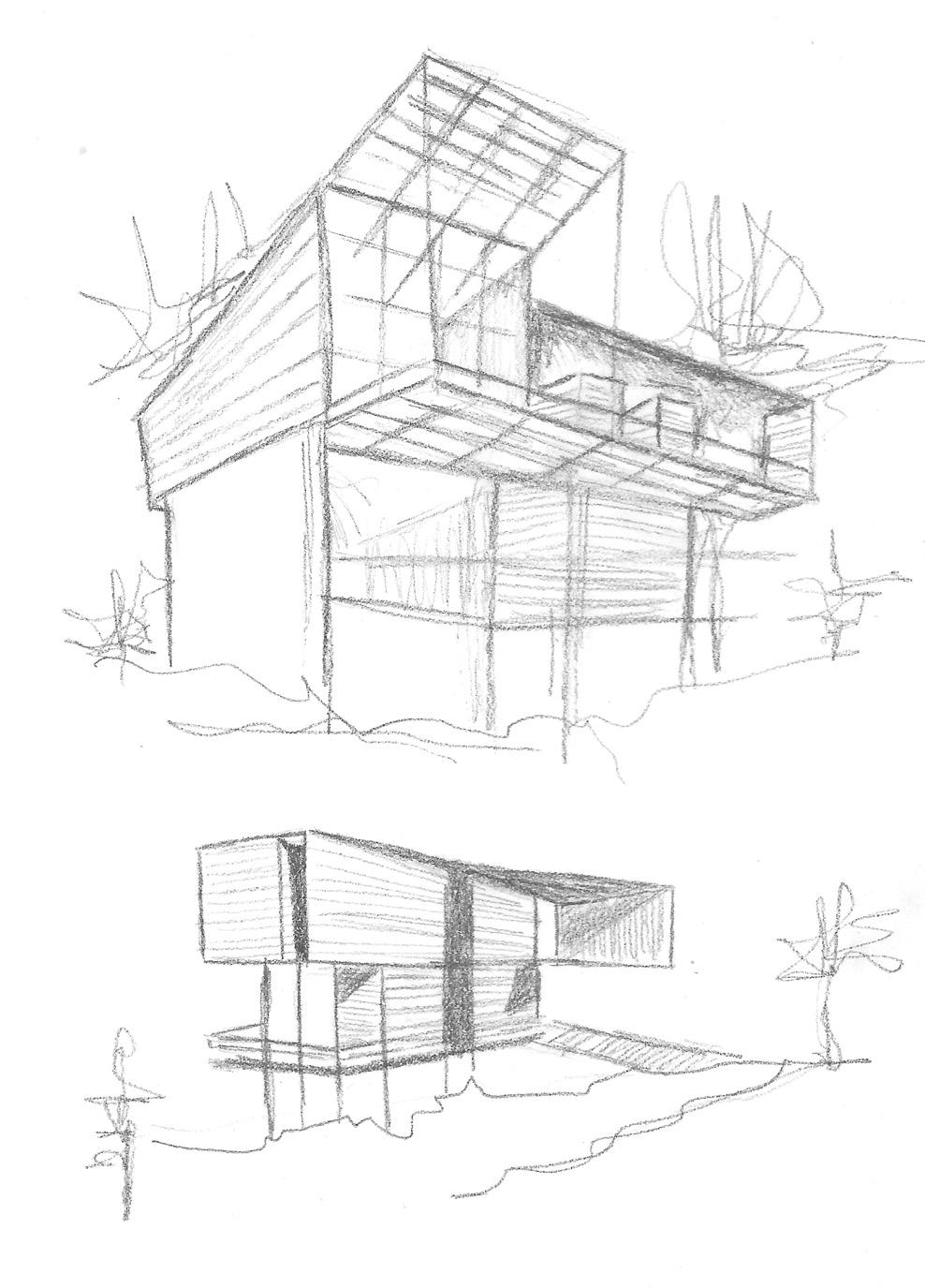

06 FROM MIND TO PAPER A collection of sketches and processes
